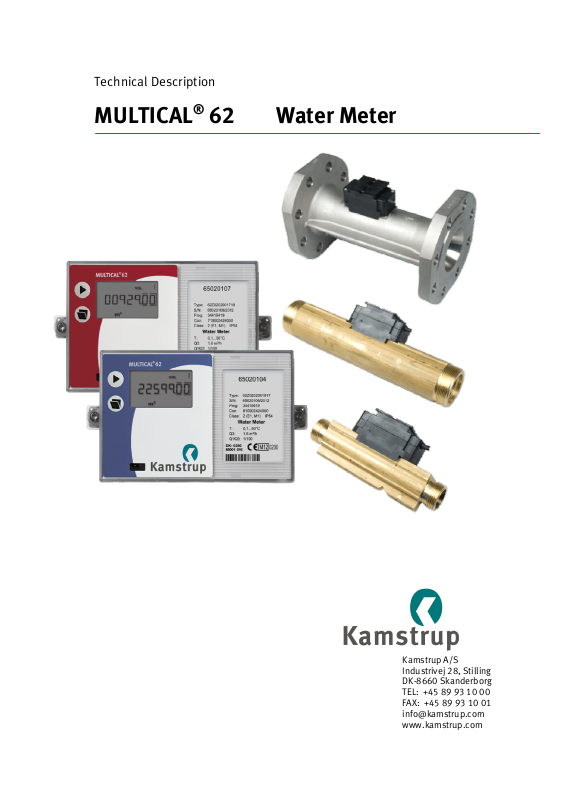

Technical Description
MULTICAL® 62 Water Meter
Kamstrup A/S
Industrivej 28, Stilling
DK-8660 Skanderborg
TEL: +45 89 93 10 00
FAX: +45 89 93 10 01
info@kamstrup.com
www.kamstrup.com
TECHNICAL DESCRIPTION MULTICAL® 62
2
5512-1036 GB/07.2012/Rev.B1
TECHNICAL DESCRIPTION MULTICAL® 62
Contents
1 General Description .......................................................................................................... 6
1.1 Mechanical construction ......................................................................................................................... 7
2 Technical Data .................................................................................................................. 8
2.1 Approved meter data ............................................................................................................................... 8
2.2 Electrical data ......................................................................................................................................... 8
2.3 Mechanical data.................................................................................................................................... 10
2.4 Accuracy ............................................................................................................................................... 11
2.5 Materials ............................................................................................................................................... 11
3 Type Overview ................................................................................................................ 12
3.1 Type number, calculator ........................................................................................................................ 12
3.2 Type number, flow sensor ...................................................................................................................... 13
3.3 Accessories ........................................................................................................................................... 13
4 Programming .................................................................................................................. 15
4.1 PROG (A-B-CCC-CCC) .............................................................................................................................. 15
4.2 CONFIG ( DDD-EE-FF-GG-MN ) ................................................................................................................. 16
4.3 Real Time Clock (RTC) ............................................................................................................................ 17
4.4 >T< Configuration of encryption level ...................................................................................................... 19
4.5 DATA for configuration ........................................................................................................................... 20
4.6 Set-up via the front keys ........................................................................................................................ 21
4.7 Reset via the front keys ......................................................................................................................... 23
5 Dimensioned Sketches ................................................................................................... 24
6 Pressure Loss ................................................................................................................. 27
7 Installation ..................................................................................................................... 28
7.1 Installation requirements ...................................................................................................................... 28
7.2 Installation angle for ULTRAFLOW® 24 ................................................................................................... 29
7.3 Straight inlet ......................................................................................................................................... 30
7.4 Installation example .............................................................................................................................. 30
7.5 Operating pressure ................................................................................................................................ 31
7.6 Mounting of Pulse Transmitter 66-99-618 .............................................................................................. 31
8 The Calculator ................................................................................................................. 32
8.1 Flow measurement and calculation........................................................................................................ 32
8.2 Min. and max. flow, V1 .......................................................................................................................... 33
8.3 Display functions .................................................................................................................................. 34
8.4 Information Codes ”Info” ....................................................................................................................... 37
8.5 Data loggers .......................................................................................................................................... 38
8.6 Leak surveillance .................................................................................................................................. 39
8.7 Reset Function ...................................................................................................................................... 40
5512-1036 GB/07.2012/Rev.B1
3
TECHNICAL DESCRIPTION MULTICAL® 62
9 The Flow Sensor ............................................................................................................. 41
9.1 Ultrasound combined with piezo ceramics ............................................................................................ 41
9.2 Principles ............................................................................................................................................. 41
9.3 Transient time method .......................................................................................................................... 41
9.4 Signal paths ......................................................................................................................................... 43
9.5 Flow limits ............................................................................................................................................ 45
9.6 Guidelines for dimensioning ULTRAFLOW® 24 ....................................................................................... 45
9.7 Pulse Transmitter (Cable extension set) 66-99-618.............................................................................. 46
9.8 Pulse inputs VA and VB ........................................................................................................................ 46
10 Power Supply .............................................................................................................. 48
10.1 Built-in D-cell lithium battery ................................................................................................................ 48
10.2 Battery lifetimes ................................................................................................................................... 49
10.3 High Power supply module 230 VAC ..................................................................................................... 50
10.4 High Power supply module 24 VAC ....................................................................................................... 50
10.5 Supply module 230 VAC ....................................................................................................................... 51
10.6 Supply module 24 VAC ......................................................................................................................... 51
10.7 Change of supply unit ........................................................................................................................... 52
10.8 Mains cables ........................................................................................................................................ 53
10.9 Back-up of data during power down ...................................................................................................... 53
10.10Danish regulations for the connection of mains operated meters .......................................................... 54
11 Plug-in Modules .......................................................................................................... 55
11.1 Top modules ........................................................................................................................................ 55
11.2 Base modules ...................................................................................................................................... 59
11.3 Retrofitting modules ............................................................................................................................. 67
12 Data Communication ................................................................................................... 68
12.1 MULTICAL® 62 Data Protocol ................................................................................................................. 68
12.2 MULTICAL® 62 Communication paths .................................................................................................... 70
12.3 Optical eye ........................................................................................................................................... 70
13 Verification .................................................................................................................. 71
13.1 High resolution volume for test ............................................................................................................. 71
14 METERTOOL for MULTICAL 62 .................................................................................... 72
14.1 Introduction ......................................................................................................................................... 72
14.2 METERTOOL MULTICAL® 62 ................................................................................................................... 73
14.3 Verification with METERTOOL MULTICAL
602 ........................................................................................ 77
14.4 LogView MULTICAL 62 ......................................................................................................................... 80
15 Approvals .................................................................................................................... 82
15.1 Type approvals ..................................................................................................................................... 82
15.2 CE-Marking ........................................................................................................................................... 82
15.3 Measuring Instrument Directive (MID) ................................................................................................... 82
15.4 Declaration of Conformity ..................................................................................................................... 83
4
5512-1036 GB/07.2012/Rev.B1
TECHNICAL DESCRIPTION MULTICAL® 62
16 Troubleshooting .......................................................................................................... 84
17 Disposal ...................................................................................................................... 85
18 Documents .................................................................................................................. 87
5512-1036 GB/07.2012/Rev.B1
5
TECHNICAL DESCRIPTION MULTICAL® 62
1 General Description
MULTICAL® 62 is a cold water meter (0,1…50C) and hot water meter (0,1C…90C) and consists of the flow
sensor ULTRAFLOW
®
24 and the calculator MULTICAL® 602.
Flow sensor
ULTRAFLOW
®
24
Calculator
MULTICAL
®
602
®
MULTICAL
62 is a static water meter based on the ultrasonic principle. The water meter has been developed on
the basis of our experience since 1991 with the development and production of static ultrasonic meters.
The meter, which has been designed to measure the water consumption in ”utility room environments”, has been
subjected to a very comprehensive OIML R 49 type test in order to secure a long-term stable, accurate and reliable
meter. One of the water meter’s many advantages is the fact that it has no wearing parts, which entails longevity.
Furthermore, the starting flow of the meter is only 3 l/h, providing accurate measurement also at low flows.
®
According to OIML R49 MULTICAL
62 can be described as a ”complete water meter”. In practice this means that
flow sensor and calculator must not be separated.
®
MULTICAL
62 employs ultrasonic measuring techniques and microprocessor technology. All circuits for
calculation of flow measurements are placed in the calculator base. The flow sensor is without electronics in
order to protect it against condensation water. The flow sensor is connected with the calculator base by means of
a 2.5 m screened cable.
If flow sensor and calculator have been separated and the seals have therefore been broken, the meter is no
longer valid for billing purposes. Furthermore, the factory guarantee no longer applies.
The volume is measured using bidirectional ultrasonic technique based on the transit time method, a proven
long-term stable and accurate measuring principle. Two ultrasonic transducers are used to send sound signals
both against and with the flow. The ultrasonic signal travelling with the flow reaches the opposite transducer first.
The time difference between the two signals can be converted into flow velocity and thereby also volume.
®
The accumulated water consumption is displayed by MULTICAL
62 in m3 with seven significant digits and the
measuring unit. The display has been specially designed to obtain long lifetime and sharp contrast in a wide
temperature range.
Other reading options are operating hour counter and current flow, max. and min. flow, information code,
customer number and segment test etc. – depending on configuration.
All registers are saved daily in an EEPROM for 460 days. Furthermore, monthly data for the latest three years and
yearly data for the latest 15 years are saved.
The water meter is powered by an internal lithium battery with up to 13 years’ lifetime. See paragraph 10.2.
Battery lifetimes. Alternatively the meter can be mains supplied, either by 24 VAC or 230 VAC.
®
MULTICAL
62 can be fitted with plug-in modules in both calculator top (top modules) and in connecting base
(base modules). Thus, the meter can be adapted to many different applications and data readings.
®
In addition to the water meter’s own data, MULTICAL
62 has two extra pulse inputs, VA and VB, for collection and
remote accumulation of pulses from e.g. water and electricity meters. The pulse inputs are included in the base
modules. Pulse inputs VA and VB function independently of the other inputs/outputs.
®
MULTICAL
MULTICAL
possible to read consumption data and data logger as well as to establish a serial PC connection for configuration
of the water meter. Via plug-in modules it is possible to connect to external communication devices. MULTICAL
62 is available with communication modules for e.g. radio, M-Bus, LON, 0/4..20 mA and RS232.
®
62 includes data communication ports. An optical eye on the front of the calculator top makes it
®
62 can be delivered with communication modules for e.g. radio, M-Bus, LON, 0/4...20 mA and RS232.
This technical description is prepared to give utility managers, meter electricians, consulting engineers and
distributors the possibility of utilizing all functions available in the MULTICAL
®
62. Furthermore, the description is
made for laboratories for the testing and verification process.
6
5512-1036 GB/07.2012/Rev.B1
TECHNICAL DESCRIPTION MULTICAL® 62
1.1 Mechanical construction
1
10
2
8
9
3
Figure 1
Transparent top cover with front plate (Blue cold water meter, Red hot water meter)
1.
Cabinet for electronics unit
2.
Verification cover. The top cover can be dismounted without breaking the verification seal
3.
Verification label
4.
Meter case
5.
Signal case
6.
7
6
5
Fitting, also for wall mounting. Screws and rawlplugs for wall mounting are enclosed with the meter
7.
(item no. 3130-105)
Supply: Battery, 24 VAC or 230 VAC. Can be replaced without breaking the verification seal
8.
Base module
9.
Top module
10.
Optional equipment for cold water meter only:
Strainer (dirt filter) for DN15 and DN40 with gasket
Anti-pollution check valves for DN15 to DN40 with gasket (NF EN 13959)
5512-1036 GB/07.2012/Rev.B1
7
TECHNICAL DESCRIPTION MULTICAL® 62
2 Technical Data
2.1 Approved meter data
Approval DK-0200-MI001-016
EU directives MID (Measuring Instrument Directive 2004/22/EC, MI-001)
LVD (Low Voltage Directive 2006/95/EC)
EMC (Electromagnetic Compatibility Directive 2004/108/EC)
PED (Pressure Equipment Directive 97/23/EC), Category 1,(DN50-DN80)
Standard OIML R 49-1(2006), OIML R 49-2(2006)
WELMEC guide 8.11 (Issue 1, 2006)
Mechanical environmental class M1
Electromagnetic class E1
Environmental class B
Accuracy class 2
Temp. of medium in flow sensor 0.1…50C Cold water meter
0.1…90C Hot water meter
Sanitary approval
On Flow sensor
ULTRAFLOW
®
24 (KTW + W270) (DE) Cold water up to 50C
Hot water up to 85C
2.2 Electrical data
Supply voltage 3.6 V ± 0,1 VDC
Battery
Backup battery
Replacement interval:
- Mounted on the Wall
Mains supply
Power consumption mains supply
Backup supply Integral SuperCap eliminates interruptions due to short-term power cuts
EMC data
3.65 VDC, D-cell lithium
3,0 VDC, BR-cell lithium battery
12+1 years @ t
The replacement interval is reduced when using data modules, frequent
data communication and high ambient temperature.
230 VAC +15/-30%, 50/60 Hz
24 VAC ±50%, 50/60 Hz
1W
(Power supply modules type 602-0000-7 and type 602-0000-8 only)
Fulfils OIML R 49 class E1
30°C
BAT
8
5512-1036 GB/07.2012/Rev.B1
TECHNICAL DESCRIPTION MULTICAL® 62
Pulse inputs without bounce damping:
Pulse inputs VA and VB
VA: 65-66 and VB: 67-68
Pulse input
Pulse ON
Pulse OFF
Pulse frequency
Water meter connection
FF(VA) and GG(VB) = 71…90
680 k pull-up for 3.6 V 680 k
0.4 V in 30 msec.
2.5 V in 100 msec. 2.5 V in 100 msec.
1 Hz
Electricity meter connection
FF(VA) and GG(VB) = 50…60
pull-up for 3.6 V
0.4 V in 30 msec.
3 Hz
Electrical isolation No No
Max. cable length 25 m 25 m
Requirements to external
Leakage current at function open
1 A
contact
Pulse inputs with bounce damping:
Pulse inputs VA and VB
VA: 65-66 and VB: 67-68
Pulse input
Pulse ON
Pulse OFF
Pulse frequency
Electrical isolation None
Max. Cable length 25 m
Requirements to external
Water meter connection
FF(VA) and GG(VB) = 01…40
680 k pull-up for 3.6 V
0.4 V i 200 ms.
2.5 V i 500 ms.
1 Hz
Leakage current at function open
1 A
contact
Pulse outputs CE and CV
- via top module
67-0B
602-0C
Type Opto FET Open collector (OB)
External voltage 5…48 VDC/AC 5…30 VDC
Current 1…50 mA 1…10 mA
Residual voltage
R
ON
≤ 40
U
≈ 1 V at 10 mA
CE
Electrical isolation 2 kV 2 kV
Max. cable length 25 m 25 m
Pulse length Optional 32 msec. or 100 msec.
5512-1036 GB/07.2012/Rev.B1
9
TECHNICAL DESCRIPTION MULTICAL® 62
2.3 Mechanical data
Metrological class 2
Environmental class Fulfils OIML R 49 class B
Mechanical environment MID class M1
Ambient temperature 5…55°C non-condensing, closed location (installation indoors)
Protection class Calculator: IP54
Flow sensor: IP65
Temperature of medium Cold water meter: 0.1…30°C (T30)
Cold water meter: 0.1…50°C (T50)
Hot water meter: 0.1…90°C (T90)
Storage temperature -25…60°C (drained flow sensor)
Weight 0.4 kg excl. flow sensor
Pressure stage Threaded meter:
Flange meter: PN25
Flow sensor cable 2.5 m
PN16
10
5512-1036 GB/07.2012/Rev.B1
TECHNICAL DESCRIPTION MULTICAL® 62
Q
2.4 Accuracy
MPE according to OIML R 49 MPE (maximum permissible error range)
Meter approved: 0.1…30°C 5 % in range Q1 Q < Q2, 2 % in range Q2 Q Q
30…90°C 5 % in range Q1 Q < Q2, 3 % in range Q2 Q Q
Diagram 1
OIML R 49 requirements to water meters
4
4
: Minimum flow velocity
1
Q
: Transition flow velocity
2
Q
: Permanent flow velocity
3
Q
: Overload flow velocity
4
2.5 Materials
Wetted parts
Case, gland DZR brass (Dezincification brass)
Case, flange Stainless steel 1.4408
Transducer Stainless steel 1.4401
Gaskets EPDM
Measuring tube Thermoplastic, PES 30% GF
Reflectors/mirrors Stainless steel 1.4305, 1.4306, 1.4401
Flow sensor case
Base Thermoplastic, PBT 30% GF
Cover Thermoplastic, PC 20% GF
Wall bracket Thermoplastic, PC 20% GF
Calculator case
Top Thermoplastic, PC
Base Thermoplastic, ABS with TPE gaskets (thermoplastic elastomer)
Internal cover Thermoplastic, ABS
Flow sensor cable
Copper cable with silicone jacket and inner Teflon insulation
5512-1036 GB/07.2012/Rev.B1
11
TECHNICAL DESCRIPTION MULTICAL® 62
00
0
5
7
y
0
2
3
4
7
8
3 Type Overview
3.1 Type number, calculator
MULTICAL® 62 62 -
Z
Top module
No module
RTC + data output + hourly data logger
RTC + M-Bus
RTC + 2 pulse outputs for CE and CV + prog. data logger
2 Pulse outputs CE and CV
Base module
No module
Data + pulse inputs
M-Bus + pulse inputs
RadioRouter + pulse inputs
Prog. data logger + RTC + 4…20 mA inputs + pulse inputs
0/4…20 mA outputs
LonWorks + pulse inputs
Radio + pulse inputs (internal antenna) 434 or 444 MHz
Radio + pulse inputs (external antenna connection) 434 or 444 MHz
M-Bus module with medium data package + pulse inputs
M-Bus module with MC-III data package + pulse inputs
Wireless M-Bus Mode C1 + pulse inputs
ZigBee 2.4 GHz int.ant. + pulse inputs
Metasys N2 (RS485) + pulse inputs
SIOX module (Auto detect Baud rate)
GSM/GPRS (GSM6H)
Ethernet/IP (IP201)
High Power RadioRouter + pulse inputs
Suppl
No supply
Battery, D-cell
230 VAC high power isolated SMPS
24 VAC high power isolated SMPS
230 VAC supply module with transformer
24 VAC supply module with transformer
Require HighPower supply
modules
Flow sensor
Supplied with one ULTRAFLOW® 24
Meter type
Hot water meter
Cold water meter
Delivery code (language on label etc.)
B
C
00
10
20
21
22
23
24
25
26
28
29
30
60
62
64
80
82
84
1
7
8
XX
12
5512-1036 GB/07.2012/Rev.B1
TECHNICAL DESCRIPTION MULTICAL® 62
3.2 Type number, flow sensor
ULTRAFLOW
Type number
65-2 -CDAA -XXX 1.6 2.0 16 3 0.25 G¾B (R½) 110 - -
65-2
-CDAC
65-2 -CDA1 -XXX 1.6 2.0 16 3 0.25 G1B (R3/4) 110 - -
65-2 -CDAF -XXX 1.6 2.0 16 3 0.25 G1B (R3/4) 190 OK OK
65-2 -CEAF -XXX 2.5 3.1 25 6 0.04 G1B (R3/4) 190 OK OK
65-2 -CGAG -XXX 4.0 5.0 40 7 0.09 G5/4B (R1) 260 OK OK
65-2 -CHAG -XXX 6.3 7.9 63 12 0.22 G5/4B (R1) 260 OK OK
65-2 -CJAJ -XXX 10 12.5 100 20 0.06 G2B (R1½) 300 OK OK
65-2 -CKCE -XXX 16 20 160 30 0.16 DN 50 270 - -
65-2 -CLCG -XXX 25 31.3 250 50 0.06 DN 65 300 - -
65-2 -CMCH -XXX 40 50 400 80 0.05 DN 80 300 - -
®
24
2)
-XXX 1.6 2.0 16 3 0.25 G¾B (R½) 165 OK OK
Nom.
flow
Q
m
Max.
flow
Q4
3
3
/h m3/h
Min.
flow
Q1
l/h] l/h] bar
Min.
cut off
Pressure
loss
p @ Q3
Connection
on meter
Length Anti-
pollution
check
valve
mm
1)
Strainer
1)
Table 1
1)
Anti-pollution check valve and strainer are only valid options for cold water meter, max. 50°C.
2)
MULTICAL® 62 with flow sensor type 65-2-CDAC (G¾B x 165) is only available as cold water meter.
The type number of the flow sensor cannot be changed after factory programming
The delivery code can also be used for:
Language and approvals on type label
Marking of PN class
Customer labels (2001-XXX) are integrated in the front label.
3.3 Accessories
3.3.1 Accessories list
66-00-200-100 D-cell battery
60200004000000 24 VAC High Power isoleret SMPS
60200003000000 230 VAC High Power isoleret SMPS
60200008000000 24 VAC isoleret lineær forsyning
60200007000000 230 VAC isoleret lineær forsyning
66-99-098 Data cable w/USB plug
66-99-099 Infrared optical reading head w/USB plug
66-99-102 Infrared optical reading head w/D-sub 9F
66-99-106 Data cable RS 232, D-sub 9F
66-99-397/-398/-399 Verification unit (used with METERTOOL)
679xxxxxx2xx External Communication Box
66-99-718 METERTOOL for MULTICAL
66-99-719 METERTOOL LogView for MULTICAL
Please contact Kamstrup A/S for questions concerning further accessories.
®
602
®
602
5512-1036 GB/07.2012/Rev.B1
13
TECHNICAL DESCRIPTION MULTICAL® 62
3.3.2 Glands incl. gaskets
6561-326 Gland incl. gasket for DN15, (R½ x G¾) (2 pcs.)
6561-327 Gland incl. gasket for DN20, (R¾ x G1), (2 pcs.)
6561-328 Gland incl. gasket for DN25, (R1 x G5/4) (1 pc.)
6561-329 Gland incl. gasket for DN40, (R1½ x G2) (1 pc.)
3.3.3 Gaskets (AFM 34 for hot and cold water)
Gasket for gland
Gasket for flange
3130-251 G¾ (R½) (2 pcs.) 2210-099 DN50 (1 pc.)
3130-252 G1 (R¾) (2 pcs.) 2210-141 DN65 (1 pc.)
3130-253 G1¼ (R1) (2 pcs.) 2210-140 DN80 (1 pc.)
3130-254 G2 (R1½) (2 pcs.)
3.3.4 Strainer for flow sensor inlet
1)
6556-484 Strainer DN15 for G¾B (R½), 10 strainers, not for 110 mm housing
6556-485 Strainer DN20 for G1B (R¾), 10 strainers
6556-499 Strainer DN25 for G1¼B (R1), 10 strainers
6556-500 Strainer DN40 for G2B (R1½), 10 strainers
3.3.5 Anti-pollution check valve (EN 13959) for flow sensor return, incl. PE gasket
1)
6556-480 Anti-pollution check valve DN15 for G¾B, incl. strainer and two PE gaskets, not for
110 mm housing
6556-481 Anti-pollution check valve DN20 for G1B, incl. strainer and two PE gaskets
6556-482 Anti-pollution check valve DN25 for G1¼B, incl. PE gasket
6556-483 Anti-pollution check valve DN40 for G2B, incl. PE gasket
( PE = Polyethylene)
3.3.6 PE gasket for strainer and anti-pollution check valve
1)
6556-494 DN15 (10 pcs.)
6556-495 DN20 (10 pcs.)
6556-496 DN25 (10 pcs.)
6556-497 DN40 (10 pcs.)
3.3.7 Pulse Transmitter (Cable extension set)
6699-618.0 Pulse Transmitter, without cable
6699-618.2 Pulse Transmitter , incl. 10 m cable
1)
Anti-pollution check valves, strainers and PE- gaskets are only valid options for cold water meter.
14
5512-1036 GB/07.2012/Rev.B1
TECHNICAL DESCRIPTION MULTICAL® 62
)
-
-
-
-
-
-
-
-
-
-
-
-
2 1
2
4 Programming
MULTICAL® 62 can be ordered in countless combinations as required by the customer. First select the required
hardware from the type overview. Then select ”Prog”, ”Config” and ”Data” to suit the application in question.
The “Prog” and “Config” codes are printed on the front label and can be read out via the display or via
METERTOOL. It is only possible to read out “Data” via METERTOOL.
The supplied meter is configured from the factory and ready for use, but can also be changed/reconfigured after
installation. However, this does not apply to type number and “prog"(CCC-code), which cannot be changed unless
the verification seal is broken. This requires that changes must be made by an accredited meter laboratory.
4.1 PROG (A-B-CCC-CCC)
The meter’s legal parameters are determined by the “Prog”, which cannot be changed without breaking the
verification seal. This means that the change must be made by an accredited meter laboratory.
Prog. number A - B - CCC - CCC
Flow meter position
Measuring units
GJ
MHz
Flow sensor coding
Internal value
(CCC-table
3
2
4
CCC CCC
Internal value
4.1.1 >A< and >B<
The A- and B-codes are always 3 and 4, respectively, for MULTICAL
®
62.
4.1.2 >CCC< CONFIGURATION OF FLOW METER TYPE
The CCC-code states the calculator’s adaption to a specific flow sensor type to the effect that calculating speed
and display resolution are optimized for the selected flow sensor at the same time as type approval regulations
as to minimum resolution and maximum register overflow are obeyed.
The ”Internal value CCC-code” must be identical with the selected CCC-code.
4.1.3 Standard CCC-codes
CCC No. Pre-
counter
419 1000 235926 2 0
407 100 235926 3 0
498 600 393210 2 0
451 5000 471852 1 0
436 500 471852 2 0
437 2500 943704 1 0
438 250 943704 2 0
478 1500 1572840 1 0
483 150 1572840 2 0
420 1000 2359260 1 0
485 100 2359260 2 0
479 600 3932100 1 0
458 5000 471852 0 -
486 500 471852 1 -
Flow
factor
Current flow indication (l/h or m³
Number of decimals in display
h) is calculated on the basis of volume pulses/10 sec. (See paragraph 8.1)
CCC-table for MULTICAL
m³ l/h
m³h
®
62
Pulse output
CV [m³]
0,01
0,001
0,01
0,1
0,01
0,1
0,01
0,1
0,01
0,1
0,01
0,1
0,1
Q3
Imp./l
m³h
100 1.6 65-2-CDxx-xxx
100 1.6 65-2-CDxx-xxx
60 2.5 65-2-CExx-xxx
50 4 65-2-CGxx-xxx
50 4 65-2-CGxx-xxx
25 6.3 65-2-CHxx-xxx
25 6.3 65-2-CHxx-xxx
15 10 65-2-CJxx-xxx
15 10 65-2-CJxx-xxx
10 16 65-2-CKxx-xxx
10 16 65-2-CKxx-xxx
6 25 65-2-CLxx-xxx
5 40 65-2-CMxx-xxx
5 40 65-2-CMxx-xxx
Type
5512-1036 GB/07.2012/Rev.B1
15
TECHNICAL DESCRIPTION MULTICAL® 62
4.2 CONFIG ( DDD-EE-FF-GG-MN )
4.2.1 >DDD< CONFIGURATION OF DISPLAY
Display code ”DDD” indicates the active readings of each meter type.
”1” is the first primary reading, whereas e.g. ”1A” is the first secondary reading.
The display automatically returns to reading ”1” after 4 minutes.
Date
stamp
Volume
Hot
DDD=710
Volume
Hot
DDD=714
4.0 Volume V1
6.0 Hour counter
12.0 Flow (V1)
13.0 Flow (V2)
15.0 VA (Input A)
16.0 VB (Input B)
19.0 Info Code
20.0 Customer number (N
o
1+2)
4.1 Yearly data
4.2 Monthly data
Error hour counter (N
6.1
12.1 This year’s max.
12.2 Max. yearly data
12.3 This year’s min.
12.4 Min. yearly data
12.5 This month’s max.
12.6 Max. monthly data
12.7 This month’s min.
12.8 Min. monthly data
15.1 Meter No. VA
15.2 Yearly data
15.3 Monthly data
L/Imp for VA (N
15.4
16.1 Meter No. VB
16.2 Yearly data
16.3 Monthly data
L/Imp for VA (N
16.4
19.1 Info event counter
19.2 Info logger (36 latest events)
20.1 Date
20.2 Hour
20.3 Target date
Serial no. (No 3)
20.4
Prog. (A-B-CCC-CCC) (No 4)
20.5
Config 1 (DDD-EE) (No 5)
20.6
Config 2 (FF-GG-M-N) (No 6)
20.7
Software edition (No 10)
20.8
Software check sum (No 11)
20.9
20.10 Segment test
Top module type (No 20)
20.11
Top module primary adr. (N
20.12
Top module second. adr. (N
20.13
Base module type (N
20.14
Base module primary adr. (N
20.15
Base module second. adr. (N
20.16
o
60) 2A 2A 2A 2A
o
65)
o
67)
o
21)
o
22)
o
30)
o
31)
o
32)
2 2 2 2
3 3 3 3
4 4
5 5
6 6
7 4 7 4
1 1 1 1
1A 1A 1A
1B 1B 1B
3A 3A 3A
3B 3B 3B
3C 3C 3C
5A 5A
5B 5B
5C 5C
5D 5D
6A 6A
6B 6B
6C 6C
6D 6D
7A 4A 7A
7B 4B 7B
8 5 8 5
8A 5A 8A
8B 5B 8B
8C 5C 8C
8D 5D 8D
8E 5E 8E
8F 5F 8F
8G 5G 8G
8H 5H 8H
8I 5I 8I
8J 5J 8J
8K 5K 8K
8L 5L 8L
8M 5M 8M 5M
8N 5N 8N 5N
8O 5O 8O 5O
8P 5P 8P 5P
Volume
Cold
DDD=810
Volume
DDD=814
1A
1B
3A
3B
3C
4A
4B
5A
5B
5C
5D
5E
5F
5G
5H
5I
5J
5K
5L
Cold
16
5512-1036 GB/07.2012/Rev.B1
TECHNICAL DESCRIPTION MULTICAL® 62
DDD = 714 is the ”standard code” for hot water meter type 62-Z-xxxx0017xx, whereas DDD = 814 is the ”standard
code” for cold water meter type 62-Z-xxxx0018xx. Contact Kamstrup for other combinations.
A data reading can include up to 36 pieces of monthly data and up to 15 pieces of yearly data; the number is
determined by the DDD-code.
See paragraph 8.3.2 for more info on display structure.
Display example showing
the PROG number.
A complete survey of existing display codes (DDD) appears from a separate document.
Please contact Kamstrup for further details.
4.3 Real Time Clock (RTC)
MULTICAL 62 has built-in real time clock and battery backup. This is valuable for applications where correct
date/time in data loggers as well as time-controlled tariffs are important. The battery will ensure the RTC function
for at least 3 years without power during the entire lifetime of MULTICAL
the RTC, meaning that the display will go blank, when the main supply or main battery is off.
®
62. This small battery will only back-up
If a top module with RTC is mounted, the top module’s RTC will not have any effect on the meter’s own RTC.
5512-1036 GB/07.2012/Rev.B1
17
TECHNICAL DESCRIPTION MULTICAL® 62
4.3.1 >EE< Configuration
The EE-code is not used for MULTICAL
4.3.2 >FF< Input A (VA), pulse division >GG< Input B (VB), pulse division
MULTICAL
®
62 has two extra optional pulse inputs, VA and VB, which are placed on the base modules (see
paragraph 9.8 for further details). The inputs can be configured via the FF and GG codes as shown in the table
below. In the absence of other information from the customer the inputs will be configured as FF=24 and GG=24.
®
62 in connection with ULTRAFLOW® 24 and is always “00”
Input A
Terminal 65-66
FF
01 100 m³ h
02 50 m³ h
03 25 m³ h
04 10 m³ h
05 5 m³ h
06 2.5 m³ h
07 1 m³ h
24
25
26
27
40
FF
Max. input
f 1Hz
10 m³ h
5 m³ h
2.5 m³ h
1 m³ h
1,000 m³ h
Max. Input
f 3 Hz
GG
50 2500 kW 50 2500 kW
51 150 kW 51 150 kW
52 120 kW 52 120 kW
53 75 kW 53 75 kW
54 30 kW 54 30 kW
55 25 kW 55 25 kW
56 20 kW 56 20 kW
57 15 kW 57 15 kW
58 7.5 kW 58 7.5 kW
59 750 kW 59 750 kW
60 1250 kW 60 1250 kW
70 25000 kW 70 25000 kW
MULTICAL
11.1
®
62 has no pulse output possibility via the base modules, only via the top modules. See paragraph
Input B
Terminal 67-68
GG
01 100 m³ h
02 50 m³ h
03 25 m³ h
04 10 m³ h
05 5 m³ h
06 2.5 m³ h
07 1 m³ h
24
25
26
27
40
Max. input
f 1 Hz
10 m³ h
5 m³ h
2.5 m³ h
1 m³ h
1,000 m³ h
Max. Input
f 3 Hz
Precounter Wh/imp. l/imp.
1 - 100 vol A/vol B (m3) 000000.0
2 - 50 vol A/vol B (m3) 000000.0
4 - 25 vol A/vol B (m3) 000000.0
10 - 10 vol A/vol B (m3) 000000.0
20 - 5.0 vol A/vol B (m3) 000000.0
40 - 2.5 vol A/vol B (m3) 000000.0
100 - 1.0 vol A/vol B (m3) 000000.0
1 - 10
2 - 5.0
4 - 2.5
10 - 1.0
1 - 1000
Precounter Wh/imp. l/imp.
1 1000 - EL A/EL B (kWh) 0000000
60 16.67 - EL A/EL B (kWh) 0000000
75 13.33 - EL A/EL B (kWh) 0000000
120 8.333 - EL A/EL B (kWh) 0000000
240 4.167 - EL A/EL B (kWh) 0000000
340 2.941 - EL A/EL B (kWh) 0000000
480 2.083 - EL A/EL B (kWh) 0000000
600 1.667 - EL A/EL B (kWh) 0000000
1000 1.000 - EL A/EL B (kWh) 0000000
10 100 - EL A/EL B (kWh) 0000000
2 500 - EL A/EL B (kWh) 0000000
1 10000 - EL A/EL B (MWh) 00000.00
Measuring unit and decimal
position
vol A/vol B (m3)
vol A/vol B (m
vol A/vol B (m
vol A/vol B (m
vol A/vol B (m
3
3
3
3
Measuring unit and decimal
position
)
)
)
)
00000.00
00000.00
00000.00
00000.00
0000000
18
5512-1036 GB/07.2012/Rev.B1
TECHNICAL DESCRIPTION MULTICAL® 62
4.3.3 >MN< Configuration of leak limits
When MULTICAL
®
62 is used for leak surveillance, the sensitivity is determined by the configuration of ”MN”. See
paragraph 8.6
Leak surveillance (V1)
M=
0 OFF 0
1
2
3
N=
Leakage sensitivity
(at 0.01 m3 resolution in display)
OFF
20 l/h (30 min. without counting in display)
10 l/h (1 hour without counting in display)
5 l/h (2 hours without counting in display)
Note: M=0 and N=2 are default values when leak surveillance is used. Increased sensitivity, e.g. N=3, can only be
achieved by means of METERTOOL.
Info codes for leakage (info code 64) are only active when M = 0 and N > 0 respectively.
NB: Input VA of MULTICAL
®
62 cannot be used for leak surveillance.
4.4 >T< Configuration of encryption level
MULTICAL 602 is only available with encryption of the data transmission.
Encryption level
T=
0 No encryption
1 Reserved for future use
2 Reserved for future use
3 Encryption with separately forwarded key (individual key)
4 Reserved for future use
T=3
The meter can only be read if the reading system recognizes the individual meter’s encryption key.
The encryption key is forwarded to the customer and ”matched” with the individual meter’s serial number in the
reading system.
If the encryption key is lost, the meter cannot be read. A new encryption key must be supplied by Kamstrup.
Only encrypted data via the base modules can be read by Wireless M-Bus.
5512-1036 GB/07.2012/Rev.B1
19
TECHNICAL DESCRIPTION MULTICAL® 62
-
4.5 DATA for configuration
Automatic To be stated when ordering Default
Serial no. (S/N) as well as E.g. 65000000/2012
Customer No.
Display No. 1 = 8 digits MSD
Display No. 2 = 8 digits LSD
Target date -
TL2 TL3 Average peak time Max. T1 for cooling metering T2 prog. N/A
T3 prog. N/A
T4 prog. N/A
Date/time
-
YYYY.MM.DD/hh.mm.ss
GMT+offset acc. to
delivery code
Up to 16 digits
Limited to 11 digits depend-
ing on PcBase compatibility
MM=1-12 and DD=1-28
N/A
N/A
1…1440 min.
N/A
GMT 12.0 hours
(in 30 min. steps)
Customer number = S/N
Depends on delivery code
N/A
N/A
60 min.
N/A
N/A
N/A
N/A
-
-DELIVERY CODES
Information on delivery codes see no. 5514-594
- MAINTENANCE
See instructions no. 5508-807 concerning update of programming, configuration and delivery codes.
20
5512-1036 GB/07.2012/Rev.B1
TECHNICAL DESCRIPTION MULTICAL® 62
4.6 Set-up via the front keys
Via the main key and the sub-key on MULTICAL® 62, a number of settings can be selected.
4.6.1
Activate the setup-menu
The setup-menu is activated in the following way:
Select the display reading that you wish to change
1)
Remove the calculator from the base
2)
Wait until the display goes blank (up to 2.5 minutes). Meanwhile do not touch the front keys
3)
While replacing the calculator on the base, press and hold the main key for approx. 8 seconds
4)
The setup-menu is now active
5)
Having activated the setup-menu, the register that you wish to change is now displayed with the rightmost digit
flashing (in the below example the “Date” has been selected):
If a display register that is not supported by the front key set-up is selected, the meter will show the normal
display without activating the setup-menu.
4.6.2
When the setup-menu is activated, the actual value in the register selected will be displayed (in the below
example the date 2011.07.14)
The value of the flashing digit can be increased by pressing the sub-key:
When pressing the main key, the next digit to the left will be flashing:
Setup of a display register
5512-1036 GB/07.2012/Rev.B1
21
TECHNICAL DESCRIPTION MULTICAL® 62
4.6.3 Exit setup-menu
When the display value has been changed as required, hold the main key for 10 seconds, until the ”OK” segment
is displayed. The display reverts to legal reading.
The new value is checked. If it is valid, the new value is saved. If it is invalid, the old value is kept and the “OK”
segment will not be displayed within approx. 3 seconds. The display reverts to legal reading.
If you wish to exit the setup-menu without saving the new value:
Remove the calculator from the base
1)
Wait until the display goes blank (up to 2.5 minutes). Meanwhile do not touch the front keys
2)
Replace the calculator on the base without pressing the front keys
3)
Allow some seconds for the meter to boot-up without pressing the front keys. The normal display register is now
shown and the setup menu is deactivated.
Note that if the front keys are not activated for 4 minutes in the setup-menu, the setup-menu will be deactivated
and the meter will automatically return to normal operation.
No data will be stored in the meter’s memory, unless the “OK” segment is displayed.
4.6.4
Display registers supported by the setup-menu
The following registers are supported by the setup-menu:
●
Date
●
Clock
●
Primary M-Bus address (for both top and base module if mounted)
●
Preset of Input A
●
Preset of Input B
●
Meter No. for Input A
●
Meter No. for input B
●
Pulse value for Input A
●
Pulse value for Input B
22
5512-1036 GB/07.2012/Rev.B1
TECHNICAL DESCRIPTION MULTICAL® 62
4.7 Reset via the front keys
Via the the main key and the sub-key on MULTICAL® 62, a number of reset functions can be made.
4.7.1
Activate the reset-menu
The reset-menu is activated in the following way:
Select the display reading that you wish to reset
1)
Remove the calculator from the base
2)
Wait until the display goes blank (up to 2.5 minutes). Meanwhile do not touch the front keys
3)
While replacing the calculator on the base, press and hold the main key for approx. 8 seconds
4)
The reset-menu has now been activated
5)
Having activated the reset menu, either the operation hour counter, the infoevent-counter or the error hour
counter will be displayed, depending on the register which was selected before activating the reset menu.
When the reset menu has been activated,”0” will be displayed. It is not possible to change to any other value. It
is only possible to “save” the value = 0 in order to reset the register, or to leave the reset menu without reset.
If a display register that is not supported by the reset-menu is selected, the meter will show the normal display
without activating the reset menu.
4.7.2
When the operation hour counter, the info-event counter or the error hour counter displayes “0”, hold the main
key for 5-6 seconds, until the ”OK” segment is displayed, and the display reverts to legal reading.
If you wish to exit the reset menu without resetting any registers:
Allow some seconds for the meter to boot-up without pressing the front keys. The normal display register is now
displayed and the reset menu is deactivated.
Note that if the front keys are not activated for 4 minutes in the setup-menu, the setup-menu will be deactivated
and the meter will automatically return to normal operation.
No data will be reset in the meter’s memory, unless the “OK” segment is shown.
4.7.3
Exit the reset menu
Remove the calculator from the base
4)
Wait until the display goes blank (up to 2.5 minutes). Meanwhile do not touch the front keys
5)
Replace the calculator on the base without pressing the front keys
6)
Time-out
If no keys are activated for 4 min., the reset menu is deactivated and the display reverts to legal reading. If
the “OK” is not displayed, no data have been saved.
5512-1036 GB/07.2012/Rev.B1
23
TECHNICAL DESCRIPTION MULTICAL® 62
5 Dimensioned Sketches
MULTICAL® 62
Figure 2 Physical measurements of the electronics unit
ULTRAFLOW® 24, G¾B and G1B
Figure 3 Flow sensor with G¾B and G1B threaded connection
Thread ISO 228-1
Q
m³/h
3
Thread
L
mm
M
mm
H
2
mm
A
mm
B
1
mm
B
2
mm
H
mm
1
Approx.
weight
kg
1.6 G¾B 110 L/2 89 10.5 58 28 55 0.8
1.6 G¾B 165 L/2 89 20.5 58 28 55 1.2
1.6 G1B 110 L/2 89 10.5 58 28 55 0.9
1.6 G1B 190 L/2 89 20.5 58 28 55 1.4
2.5 G1B 190 L/2 89 20.5 58 29 55 1.3
Table 2 Total weight excl. packing
24
5512-1036 GB/07.2012/Rev.B1
TECHNICAL DESCRIPTION MULTICAL® 62
ULTRAFLOW® 24, G1¼B and G2B
Figure 4 Flow sensor with G1¼B and G2B threaded connection
Thread ISO 228-1
Q
3
m³/h
Thread
L
mm M mm
4.0
G1¼B 260 L/2 89 17 58 22 55 2.3
6.3
10 G2B 300 L/2 89 21 65 31 55 4.5
ULTRAFLOW® 24, DN50
H2
mm
Table 3
A
mm
B1
mm
B2
mm
H1
mm
Approx.
weight
kg
Figure 5 Flow sensor with DN50 flange connection
Flange EN 1092, PN25
Q
3
m³/h
Nom.
diameter
L M H
mm mm mm mm mm mm mm units
B1 D H k
2
16 DN50 270 155 89 65 165 145 125
Number
Bolts d2
Thread
mm kg
4 M16 18 10.1
Approx.
weight
Table 4
5512-1036 GB/07.2012/Rev.B1
25
TECHNICAL DESCRIPTION MULTICAL® 62
ULTRAFLOW® 24, DN65 and DN80
Figure 6 Flow sensor with DN65 and DN80 flange connection
Flange EN 1092, PN25
Q
3
m³/h
Nom.
diameter
L M H
B1 D H k Number
2
mm mm mm mm mm mm mm units
25 DN65 300 170 89 72 185 168 145
40 DN80 300 170 89 80 200 184 160
Table 5
Bolts d2
Thread
mm kg
Approx.
weight
8 M16 18 13.2
8 M16 18 16.8
26
5512-1036 GB/07.2012/Rev.B1
TECHNICAL DESCRIPTION MULTICAL® 62
Q
E40
2
6 Pressure Loss
According to OIML R 49 the maximum pressure loss must not exceed 0.63 bar in range Q1 up to and incl. Q3 and
max. 1.0 bar at Q
The pressure loss in a sensor increases with the square of the flow and can be stated as:
respectively. The pressure loss is without anti-pollution check valve.
4
pkvQ
where:
Q = volume flow rate [m³/h]
kv = volume flow rate at 1 bar pressure loss [m³/h]
p = pressure loss [bar]
Graph Q
3
Nom. diameter kv
@ 0.63 bar
[m³/h] [mm] [m³/h]
A 1. 6 DN 15 & DN 20 3. 2 2.5
B 2.5 & 4 & 6.3 DN20 & DN25 13. 4 10.6
C 10 & 16 DN40 & DN50 40 32
D25 DN6510281
DN80 179 14
Table 6 Pressure loss table
p ULTRAFLOW®24
1
0,1
p [bar]
ABCDE
0,01
0,1 1 10 100 1000
Flow [m³/h]
Diagram 2 Pressure loss chart
5512-1036 GB/07.2012/Rev.B1
27
Loading...
