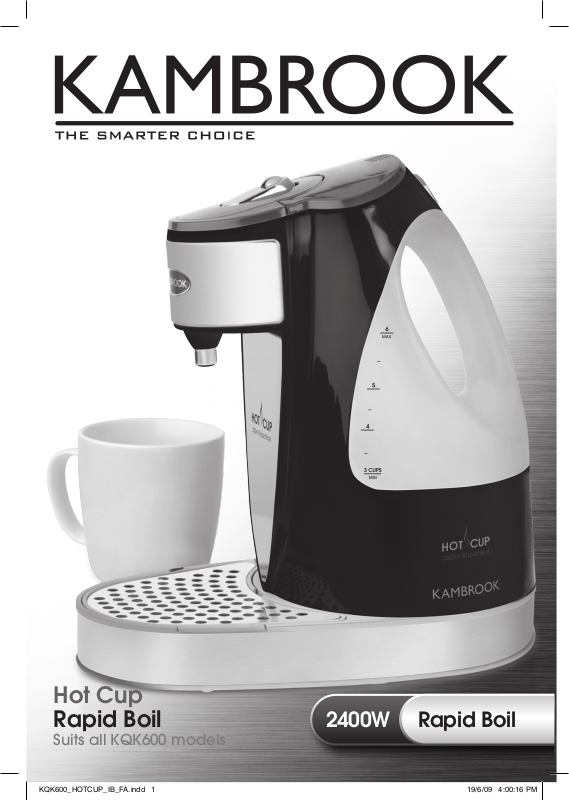

Page 1
2400W
Rapid Boil
Hot Cup
Rapid Boil
Suits all KQK600 models
KQK600_HOTCUP_IB_FA.indd 1 19/6/09 4:00:16 PM
Page 2
2
Carefully read all instructions before operating
the Kambrook HOT CUP for the first time and save
for future reference.
Remove and safely discard any packaging material
and promotional labels before using the kettle for
the first time.
To eliminate a choking hazard for young children,
remove and safely discard the protective cover
fitted to the power plug of this appliance.
The appliance should always be placed on a firm
level surface where normal access from persons
(including children) with reduced physical, sensory
or mental capabilities is restricted.
This kettle has been designed specifically for the
purpose of boiling drinking quality water only.
Under no circumstances should this product be
used to boil any other liquids or foodstuffs.
Do not place the kettle near the edge of a bench
or table during operation. Ensure that the surface
is level, clean and free of water and other
substances.
Do not operate the Hot Cup on a sink drain board.
Do not place the Hot Cup on or near a hot gas
burner, electric element or where it could touch
a heated oven.
Keep the Hot Cup clear of walls, curtains and
other heat or steam sensitive materials. Minimum
20cm distance.
Always ensure the Hot Cup is properly assembled
before use. Follow the instructions provided in
this book.
The Hot Cup must be used only with the power
base supplied.
The Hot Cup is not intended to be operated by
means of an external timer or separate remote
control system.
•
•
•
•
•
•
•
•
•
•
•
•
Do not touch hot surfaces. Use the handle for
lifting and carrying the kettle.
Do not place anything on top of the lid.
Always switch the power off at the power outlet
and remove the power plug from the power outlet
before attempting to move the appliance, when
the appliance is not in use and before cleaning
and storing.
Do not place hand under the spout of the kettle
during operation.
Use caution when hot water is flowing out from
the spout of the kettle, as boiling water and
steam will scald.
This kettle dispenses 250ml of hot water
continuously per operation.
It is not possible to interrupt and stop the hot
water flowing out from the dispensing spout once
one cup of water (250ml) has boiled. Therefore,
you MUST ensure that a vessel/cup is capable
of holding a minimum of 280ml capacity and is
placed under the dispensing spout of the kettle on
the drip tray. Do not overfill the cup as the water
is very hot.
It is recommended that a vessel/cup capable of
accommodating a minimum of 280ml of very hot
water is placed under the dispensing spout at all
times to capture the dispensed water should the
unit be inadvertently turned on.
To protect against electric shock, do not immerse
the Hot Cup base, power base, power cord or
power plug in water or allow moisture to come in
contact with these parts.
Do not remove the Hot Cup from the power base
during operation. Ensure the kettle has switched
off after the water has boiled before removing the
kettle from the power base.
•
•
•
•
•
•
•
•
•
•
KAMBROOK RECOMMENDS SAFETY FIRST
At Kambrook, we believe that safe performance is the first priority in any consumer product,
so that you, our valued customer can confidently use and trust our products. We ask that any
electrical appliance that you use be operated in a sensible fashion with due care and attention
placed on the following important operating instructions.
IMPORTANT SAFEGUARDS FOR YOUR KAMBROOK HOT CUP
KQK600_HOTCUP_IB_FA.indd 2 19/6/09 4:00:16 PM
Page 3
3
Fully unwind the power cord before use.
Do not let the power cord hang over the edge of
a bench or table, touch hot surfaces or become
knotted.
To protect against electric shock do not immerse
the power cord, power plug or appliance in water
or any other liquid.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of
the appliance by a person responsible for their
safety.
Children should be supervised to ensure that they
do not play with the appliance.
It is recommended to regularly inspect the
appliance. To avoid a hazard do not use the
appliance if power cord, power plug or appliance
becomes damaged in any way. Return the entire
appliance to the nearest authorised Kambrook
Service Centre for examination and/or repair.
•
•
•
•
•
•
Any maintenance other than cleaning should be
performed at an authorised Kambrook Service
Centre.
This appliance is for household use only. Do not
use this appliance for anything other than its
intended use. Do not use in moving vehicles or
boats. Do not use outdoors. Misuse may cause
injury.
The installation of a residual current device (safety
switch is recommended to provide additional
safety protection when using electrical appliances.
It is advisable that a safety switch with a rated
residual operating current not exceeding 30mA
be installed in the electrical circuit supplying the
appliance. See your electrician for professional
advice.
•
•
•
IMPORTANT SAFEGUARDS FOR ALL ELECTRICAL APPLIANCES
Do not move the Hot Cup while it is switched on.
Do not open the lid during operation.
•
•
Keep the Hot Cup clean. Follow the cleaning
instructions provided in this book.
•
DO NOT OPERATE THE HOT CuP ON AN INCLINED SuRFACE. DO NOT MOVE THE KETTLE WHILE IT IS SWITCHED ON.
KQK600_HOTCUP_IB_FA.indd 3 19/6/09 4:00:16 PM
Page 4
4
KNOW YOUR KAMBROOK RAPID BOIL
1
Illuminated power ON/OFF switch
2
Lid release button
3
Water chamber
4
1.5L capacity
5
2400 Watt concealed element boils 250ml of
water in under 60 seconds.
6
Removable drip tray and cover
7
Dispensing spout
8
Power base
6
2
3
5
4
1
7
8
KQK600_HOTCUP_IB_FA.indd 4 19/6/09 4:00:17 PM
Page 5
5
OPERATING INSTRUCTIONS
OPERATING YOUR KAMBROOK
HOT CUP
BEFORE FIRST USE
Remove any packaging material and promotional
labels before using your kettle for the first time.
IT IS RECOMMENDED WITH DuE CARE AND ATTENTION PLACED
ON THE FOLLOWINg PRECAuTIONS bEFORE OPERATINg THE HOT
CuP.
WARNINg: THIS KET TLE DISPENSES 250ML OF HOT WATER
CONTINuOuSLy PER OPERATION.
IT IS NOT POSSIbLE TO INTERRuPT AND STOP THE HOT WATER
FLOWINg OuT FROM THE DISPENSINg SPOuT ONCE ONE CuP OF
WATER (250ML) HAS bOILED. THEREFORE, yOu MuST ENSuRE
THAT A VESSEL/CuP IS CAPAbLE OF HOLDINg A MINIMuM
OF 280ML CAPACITy AND IS PLACED uNDER THE DISPENSINg
SPOuT OF THE KETTLE ON THE DRIP TRAy. DO NOT OVERFILL THE
CuP AS THE WATER IS VERy HOT.
THE APPLIANCE SHOuLD ALWAyS bE PLACED ON A FIRM LEVEL
SuRFACE WHERE NORMAL ACCESS FROM PERSONS (INCLuDINg
CHILDREN) WITH REDuCED PHySICAL, SENSORy OR MENTAL
CAPAbILITIES IS RESTRICTED.
IT IS RECOMMENDED THAT A VESSEL/CuP CAPAbLE OF
ACCOMMODATINg A MINIMuM OF 280ML OF VERy HOT WATER
IS PLACED uNDER THE DISPENSINg SPOuT AT ALL TIMES
TO CAPTuRE THE DISPENSED WATER SHOuLD THE uNIT bE
INADVERTENTLy TuRNED ON.
It is recommended that before the first use to fill
the kettle to the maximum level with cold tap
water, carry out several boil cycles discarding the
water each time from a vessel/cup capable of
holding a minimum of 280ml capacity. Then, discard
the water inside the water chamber as following.
EMPTYING YOUR RAPID BOIL
After the Hot Cup has completely cooled down,
unplug it from the mains supply socket.
Press the lid release button.
Hold your kettle sideways over a sink.
Then, tip the Hot Cup upside down.
Still holding the Hot Cup over the sink, turn it
the right side up and allow any water to drain
out of the spout.
1.
2.
3.
4.
5.
Repeat steps 3, 4 and 5 until the water has
been emptied from the Hot Cup.
Your kettle will only operate when positioned on
the power base with the ON/OFF switch in the ON
position. The kettle will automatically switch off
once the water has boiled.
Note: The maximum capacity of the Kettle is 1.5L.
OPERATION OF YOUR KETTLE
To fill the kettle with water, remove it from the
power base and open the lid by pressing the lid
release button. The lid will automatically open.
Fill with the desired amount of water. Do not
operate the kettle without water. Always fill the
kettle between the minimum and the maximum
marks on the water window. Too little water will
result in the kettle switching off.
Ensure that the lid is closed and locked firmly into
place before placing the kettle on the power base.
Place the kettle firmly onto the power base. Plug
the power cord into 230/240V power outlet and
switch ‘ON’.
Press the ON/OFF switch to the ‘ON’ position.
The power ‘ON’ light will illuminate.
Note: In choosing the size of vessel/cup, it is
recommend the capacity is not less than 280ml,
make sure the vessel/cup is positioned in place
before using. Do not overfill the cup.
The kettle will switch off automatically once
one cup of water (250ml) has boiled.
The hot water will flow out from the spout
under 60 seconds. Before removing cup, make
sure the water flow has ceased.
Note: The water flowing out from spout is hot and
contact with the hot water may result in scalding.
Therefore, this appliance should not be used
by children.
If you want to boil water again, simply press the
power ON/OFF switch to ‘ON’ position again.
If further heating of the kettle is not required,
switch off at the power outlet, unplug the power
cord and empty the water from the kettle. Replace
the kettle onto the power base and close the lid.
6.
1.
2.
3.
4.
5.
6.
KQK600_HOTCUP_IB_FA.indd 5 19/6/09 4:00:18 PM
Page 6
6
IMPORTANT: IF yOuR HOT CuP WILL NOT bE uSED FOR
AN ExTENDED PERIOD (E.g. IF yOu ARE ON HOLIDAy), WE
RECOMMEND THAT yOu FIRST EMPTy IT. FOLLOW THE
EMPTyINg yOuR RAPID bOIL ON PAgE 5 bEFORE uSINg THE HOT
CuP AgAIN, CARRy OuT SEVERAL bOIL CyCLES DISCARDINg
THE WATER EACH TIME. THIS SHOuLD PREVENT ANy bAD
SMELL OR TASTE FROM WATER THAT MAy HAVE RESIDED IN
THE uNIT OVER THE ExTENDED PERIOD OF NON uSE.
NOTE: Never operate the Hot Cup dry - too little
water will result in the Hot Cup switching “OFF”. Do
not overfill the Hot Cup - filling above the maximum
mark on the water window may result in water
splashing from the kettle.
NOTE: The Hot Cup must only be used with the
power base supplied.
NOTE: Do not remove the Hot Cup from the power
base during operation. Ensure the Hot Cup has
switched to ‘OFF’ position after the water flow has
ceased before removing the vessel/cup.
CAuTION: THIS APPLIANCE IS DESIgNED FOR THE bOILINg
OF DRINKINg quALITy WATER ONLy, NEVER uSE IT TO HEAT
OR bOIL ANy OTHER LIquIDS OR FOODSTuFFS. THE LID
SHOuLD ALWAyS bE FIRMLy IN PLACE AND LOCKED CLOSED
bEFORE uSE.
SAFETY BOIL DRY PROTECTION
The Hot Cup is fitted with a safety device, which
protects against overheating should the appliance
be operated with insufficient water. If this occurs
the Hot Cup will stop heating and the illuminated
light on the power on/off switch will go out. Switch
off at the power outlet and allow the kettle to
cool before refilling. Remove the Hot Cup from the
power base and add cold water. Return the Hot
Cup to the power base. The safety device will then
automatically reset.
KQK600_HOTCUP_IB_FA.indd 6 19/6/09 4:00:18 PM
Page 7
7
CARE AND CLEANING
Always switch off at the power outlet, and then
unplug the appliance from the power outlet before
cleaning.
Note: Ensure the kettle and water have cooled
down before attempting to clean the kettle.
REMOVAL OF MINERAL DEPOSITS
Mineral deposits in tap water may cause the
interior and water gauge to discolour over time. This
may be removed by the following way.
Fill the Hot Cup until 2⁄3 full with 1 part vinegar
and 2 parts water. Mix them in a vessel before
pouring into the water chamber of the Hot Cup.
Boil and allow to stand overnight.
Empty the solution from the Hot Cup. Fill with
clean water, bring to boil and discard the water.
Repeat and the Hot Cup will be ready for use.
TO CLEAN THE EXTERIOR
The outside of the Hot Cup may be wiped over with
a damp cloth and polished with a soft, clean dry
cloth.
Empty the drip tray. Wash the drip tray and drip
tray cover in warm soapy water. Rinse and dry
thoroughly before placing them back to the power
base.
Note: Do not use kettle descaler, chemical, steel
wool, or abrasive cleaners to clean the inside or
outside of the Hot Cup.
STORAGE
Ensure the kettle is switched off, cleaned and dried
before storing. Ensure that the lid is closed and
locked securely into place. Wrap the power cord
around the cord storage under the power base.
Stand the kettle upright on the power base. Do not
store anything on top.
WARNINg: TO PREVENT DAMAgE TO THE APPLIANCE, DO
NOT uSE ALKALINE CLEANINg AgENTS WHEN CLEANINg. uSE A
SOFT CLOTH AND MILD DETERgENT.
WARNINg: NEVER IMMERSE THE HOT CuP bASE, SWITCH
AREA, POWER bASE OR POWER SuPPLy CORD IN WATER, OR
ALLOW MOISTuRE TO COME IN CONTACT WITH THESE PARTS.
1.
2.
KQK600_HOTCUP_IB_FA.indd 7 19/6/09 4:00:18 PM
Page 8
12
Kambrook warrants the purchaser against defects in workmanship and material for a period of 12 months
from the date of purchase (3 months commercial use).
Guarantee and purchase receipt for this product are to be retained as proof of purchase and must be
presented if making a claim under the Kambrook guarantee.
Kambrook reserves the right to replace or repair the appliance within the warranty period.
Warranty does not apply to any defect, deterioration, loss, injury or damage occasioned by, or as a result
of the misuse or abuse, negligent handling or if the product has not been used in accordance with the
instructions. The guarantee excludes breakages and consumable items such as kneading blades.
This warranty is void if there is evidence of the product being tampered with by unauthorised persons.
If the product includes one or a number of accessories only the defective accessor y or product will be
replaced. In the event of Kambrook choosing to replace the appliance, the guarantee will expire at the
original date, i.e. 12 months from the original date of purchase.
In Australia, this KAMBROOK Guarantee is additional to the conditions and guarantees which are mandator y
as implied by the Trade Practises Act 1974 and State and Territory legislation.
For service, spare parts or product information in Australia, please call KAMBROOK on the Customer
Service Line; 1300 139 798.
For service, spare parts or product information in New Zealand, please call K AMBROOK on the Customer
Service Line; 0800 273 845 or 09 271 3980.
If claiming this guarantee the product must be returned freight prepaid.
KAMBROOK 12 MONTH REPLACEMENT WARRANTY
YOUR PURCHASE RECORD (Please complete)
DATE OF PURCHASE .......................................................
MODEL NUMBER .............................................................
SERIAL NUMBER .............................................................
PURCHASED FROM .........................................................
Attach a copy of the purchase receipt here.
(Please don’t return purchase record
until you are making a claim)
Due t o cont inual im prove ment in design o r othe rwis e, the p roduct you pur chase ma y diff er slig htly f rom th e illus trat ion in t his boo k. Iss ue 1/0 9
KAMBROOK 12 MONTH REPLACEMENT WARRANTY
Register your warranty at www.kambrook.com.au/service.asp
Kambrook - Australia
Building 2, Port Air Industrial Estate
1A Hale Street
Botany NSW 2019
Australia
Customer Service Line 1300 139 798
Customer Service Fax 1800 621 337
Kambrook - New Zealand
Private Bag 94411
Botany, Manukau
Auckland 2163
New Zealand
Customer Service Line/Spare Parts 0800 273 845
or 09 271 3980
Customer Service Fax 0800 288 513
KQK600_HOTCUP_IB_FA.indd 12 19/6/09 4:00:12 PM
Loading...
