Kambrook KFA837 User Manual

Kambrook - Australia

Building 2, Port Air Industrial Estate
1A Hale Street
Botany NSW 2019
Australia
Customer Service Line 1300 139 798
Customer Service Fax [phone]

www.kambrook.com.au

Due to continual improvement in design or otherwise, the product you
purchase may differ slightly from the illustration in this book. Issue A13

Kambrook - New Zealand

Private Bag 94411
Botany, Manukau
Auckland 2163
New Zealand
Customer Service Line/
Spare Parts 0800 273 845
Customer Service Fax [phone]

www.kambrook.co.nz

Arctic LED
Display

Tower Fan

KFA837

Instruction Booklet

Important

Please retain your instruction
book for future use.

In the event that you need some assistance with your
Kambrook appliance, please contact our Customer Service
Department on 1300 139 798 (Australia) or 0800 273 845
(New Zealand). Alternatively, visit us on our website at
www.kambrook.com.au or www.kambrook.co.nz

Contents

Kambrook Recommends
Safety First

Your Kambrook Arctic
Tower Fan

Quick Start Guide p7

Using Your Kambrook
Tower Fan

Care, Cleaning and Storage p12

p4

p6

p8

Kambrook Recommends Safety First

IMPORTANT: Please retain your
instruction book for future use.

At Kambrook, we believe that safe performance is the first priority in any
consumer product, so that you, our valued customer can confidently
use and trust our products. We ask that any electrical appliance that
you use be operated in a sensible fashion with due care and attention
placed on the following important operating instructions.

Important Safeguards For Your Kambrook
Arctic Tower Fan

• Carefully read all instructions before
operating the tower fan for the first time
and save for future reference.

• Remove and safely discard any packaging
material and promotional labels before
using the tower fan for the first time.

• To eliminate a choking hazard for young
children remove and safely discard the
protective cover fitted to the power plug
of this tower fan.

• This tower fan i s intended for household use
only and not for commercial or i ndustrial use.

• Switch off the tower fan and unplug at the
power outlet, prior to assembling , clea ning
and storing the tower fan.

• Avoid touching mobile parts of the tower fan.

• Do not place the tower fan on a bench or

table. Ensure that the surface is level, clean
and free of water and other s ubstances.

• Always ensure the tower fan is properly
assembled before u se. Follow the
instructions provided in this book.

• Do not leave the tower fan unattended
when in use.

• Do not place anything, on top of the tower
fan when assembled, when in use and
when stored.

• Never insert fingers, pencils or any other
objects through the guards whenever the
power plug is connected, in particular while
the tower fan is switched on.

• The tower fan must not be used if the base
is not fastened correctly, according to
the instructions.

• Do not operate in the presence of explosives
and/or flammable fumes or liquids.

• Do not unplug the tower fan by pulling on
the cord.

• Never carry the tower fan by the cord or yank
to disconnect from an outlet; instead, grasp
the plug and pull to disconnect.

• Do not pull the cord around sharp edges
or corners.

• When unpa cking the tower fan, check to see
you have received all the items listed in the
parts list, before discarding the packa ging.

• Keep the tower fan clean. Follow the
cleaning instructions provided in this book.

• Do not operate without the base stand fitted.

4

Important Safeguards For All Electrical
Appliances

• Fully unwind the power cord before use.

• Connect on ly to a 230V or 240V power outlet.

• Do not let the power cord hang over the

edge of a bench or table, touch hot surfaces
or become knotted.

• To protect against electric shock , do not
immerse the power cord, power pl ug or
appliance in water or any other liquid or
allow moisture to come in contact with
the part, unless it is recommend ed in the
cleaning instructions.

• The appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience a nd knowledge,
unless they have been given super vision or
instruction concerning use of the appliance
by a person responsible for their safety.

• Children s hould be supervised to ensu re that
they do not play with the appliance.

• It is recommended to regularly inspect the
appliance. To avoid a hazard, do not use
the applia nce if power cord, power plug or
appliance becomes damaged i n any way.
Return the entire appliance to the nearest
authorized Kambrook service centre for
examination and / or repair.

• Any maintenance other than cleaning
should be performed at an authorised
Kambrook Service Centre.

• This appliance is for household use only.
Do not use this a ppliance for anything other
than its intended use. Do not use in moving
vehicles or boats. Do not use outdoors.

Misuse may cause injury.

• The installation of a res idual current device
(safety switch) is recommended to provide
additional safety protection when using
electrical appliances. It is advisabl e
that a safety switch with a rated res idual
operating current not exceeding 30mA be
installed in the electrical circuit supplying
the applia nce. See your electrician for
professional advice.

• Always turn the appliance to the OFF
position, switch off at the power outlet
and unplug at the power outlet when
the applia nce is not in use.

• Before cleaning, always turn the appliance
to the OFF position, switch of f at the
power outlet, unp lug at the power outlet and
remove the power cord, if detachable, from
the applia nce and allow a ll parts to cool.

• Do not place this appliance on or near
a heat source, such as hot p late, oven
or heaters.

• Position the appliance at a minimum
distance of 20cm away from walls, curtains
and other heat or steam sensitive materials
and provide adequate space above and
on all s ides for air circulation.

5

Your Kambrook Arctic Tower Fan

1. LED screen

2. Control panel featuring:

• POWER On/Off button

• Fan SPEED button

(Includes 3 speed settings;
low, medium and high)

• MODE button (includes 3
cooling modes; normal,
nature and reduction mode)

• TIMER button (up to 12 hours)

• SWING button to set oscillation

3. Tower fan body

4. Remote control signal receiver

5. Oscillating platform

6. 2 piece base stand (a) and (b)

7. Remote control with soft

touch buttons

Not Shown

• Remote control storage

(top and back)

• Carry handle (at rear of unit)

• 4 screws to secure the base to

the unit

6

Quick Start Guide

Turning the tower fan on

Plug the cord into a 230V or
240V power point and
switch on.

Setting the fan speed

Pressing the ‘SPEED’ button
once will set the tower fan into
LOW speed setting.

Setting the fan mode Setting the osciillation

Once the power outlet
is switched on, this will
automatically allow the LED
screen to display to current
room temperature.

Pressing the ‘SPEED’ button
twice will set the tower fan
into MEDIUM speed setting.
The speed indicator bar on
the control panel will flash
continuously on this cycle.

To start the tower fan, turn the
tower fan on by pressing the
‘POWER’ button once; the unit
will be in NORMAL fan mode.

Pressing the ‘SPEED’ button
three times will set the tower
fan into HIGH speed setting.
The speed indicator bar on
the control panel will flash
continuously on this cycle.

Once the tower fan is switched
on and the the ‘POWER’button
is selected; the unit will be in
NORMAL fan mode.
Pressing the ‘MODE’ button
once will set the tower fan
into NATURE mode.

Pressing the ‘MODE’ button
twice will set the tower fan into
REDUCTION mode. To set the
tower fan back to NORMAL
mode, press the ‘MODE’ button
again.

Pressing the ‘SWING’ button
will allow the tower fan to
oscillate side to side. To stop the
oscillation, press the ‘SWING’
button again.

7

Using Your Kambrook Tower Fan

Before first use

Remove your tower fan from its carton
and associated protective wrapping.

Unwind the cord to its full length and
remove any protective cardboard
or foam that may have been used
to minimise transportation damage.
Place the tower fan on a firm, level
surface in a stable upright position.
Visually inspect the air inlet and
outlets to ensure no foreign material is
blocking these areas.

Assembling Your Kambrook
Arctic Tower Fan

Toassemblethebasestand;

1. The tower fan base stand comes
in two separate pieces that must
be fixed together before being
fitted to the fan body.

2. To assemble the base stand,
place the tower fan body on its
side. Holding base stand piece
(a) and (b) align the power cord
with the centre of the round cord
opening of base stand piece (a)
(see Fig.1).

3. Position base stand piece (b)
onto base stand piece (a) by
aligning the four locating posts.
Firmly push down base stand
piece (b) until the base stands are
secured into place (see Fig.2).

Fig. 2

4. Thread the power cord through
the circle cord opening. Once
power cord is pulled through,
align the holes on the base
stands with the four screw holes
located at the bottom of the
tower fan body (see Fig.3).

Fig. 3

Fig. 1

8

5. Once base stand is aligned with
the tower fan body, secure the
base stand to the tower body
with the four fastening screws
(see Fig.4).

Fig. 4

6. Return the tower fan to its upright
position; it is now ready for use.

Setting the Fan Speed

The tower fan has three fan speed
settings; LOW
HIGH

Pressing the ‘SPEED’ button once
will set the tower fan into LOW
speed setting.

Pressing the ‘SPEED’ button
twice will set the tower fan into
Medium

Pressing the ‘SPEED’ button three
times will set the tower fan into
HIGH

NOTE: The SPEED indicator bar
on the control panel will flash
continuously during these cycles.

, MEDIUM and

.

speed setting.

speed setting.

WARNING:Donotoperate
thetowerfanwithoutthe
basestandtted.

Turning Your Tower Fan On

To turn the tower fan on, plug the
power cord into a 230V or 240V
electrical outlet and switch on. Be
sure the plug fits tightly as a loose fit
will cause overheating and damage
the plug.

Once the power outlet is switched
on, this will automatically allow the
LED screen to display to current
room temperature.

To start the tower fan, turn the tower
fan on by pressing the ‘POWER’
button once; the unit will be in
NORMAL fan mode.

To turn the tower fan OFF, press the
‘POWER’ button and turn off at the
power outlet and remove the plug
from the power outlet.

9

Using Your Kambrook Tower Fan continued

Setting the Nature and
Reduction Mode

Your tower fan has a NATURE
and REDUCTION

setting.

Both the NATURE and REDUCTION
modes can be used on any fan
speed. The LED screen will indicate
what mode the fan has been set in.

Nature Mode

The NATURE mode stimulates the
natural rise and fall of the wind
over time.

At any fan speed setting, pressing the
MODE button once will turn the tower
fan into NATURE mode.

To turn the NATURE mode OFF, press
the MODE button twice, the fan will
now be in NORMAL operation mode.

Reduction mode

The REDUCTION mode automatically
decreases the fan speed over time.

The REDUCTION mode only applies in
the MED or HIGH speed settings.

Once a fan speed setting is selected,
press the MODE button twice will turn
the tower fan into REDUCTION mode.

After 30 minutes, the selected setting
will drop to the next lowest setting.
For example if the fan speed is set
at MEDIUM, after 30 minutes it will
drop down to LOW until the unit is
turned off.

To turn the REDUCTION mode off,
press the MODE button once, the
fan will now be in NORMAL
operation mode.

When REDUCTION mode is selected
the display panel will automatically
switch off after 30 seconds. Press any
button on the control panel to turn
the display on again. This will NOT
turn the tower fan off.

Diagram of speed cycle settings:

NATURE:

Random speed cycles

Speed (LOW,MED,HIGH)

speed

10

Speed steps down every 30 minutes for MED and HIGH

REDUCTION:

settings.

Pre-select speed (MED)

variation

speed

variation

speed

Pre-select speed (HIGH)

variation

speed

variation

speed

variation speed

NOTE: When the NATURE mode
setting is selected, the tower fan
is programmed to self regulate
through the various fan speeds.
The NATURE mode is independent
from the fan speed settings while
the LED screen will still display the
last selected fan speed setting.

•Press the ‘TIMER’ button to
activate the timer settings.

•Press the ‘TIMER’ button to cycle
through the one hour increments,
up to 12 hours.

•The tower fan will then switch itself
to standby mode after the selected
number of hours has passed.

•The TIMER can be set on any of
the settings.

NOTE: The tower fan is fitted with
a power save mode. When the
REDUCTION mode is selected
or the TIMER function is set, the
display panel will automatically
switch off after 30 seconds.
Press any key to turn the display
on again.

Setting the Oscillation

This function will work in any mode.
Pressing the ‘SWING’ button will allow
the tower fan to oscillate back and
forth. To stop the unit oscillating, press
the ‘SWING’ button once more.

Setting the Auto-Off Timer

The timer function works in all
operating modes, and switches
the unit off after a pre-set number
of hours.

Using the Remote Control

Before using the remote control,
remove the battery isolating slip
by pulling the slip away from the
remote control. The remote control
buttons operate in the same way
as those on the tower fan control
panel. Your remote control includes
1 x CR2025 3V Lithium battery, and
can be conveniently stored in the
compartment on the top of the
tower fan or at the rear housing
of the unit.

11

Care, Cleaning and Storage

1. Ensure that the tower fan is
switched OFF and disconnected
from the power outlet
before cleaning.

2. Use a clean, dry cloth to clean
the external surfaces of the tower
fan. If the tower fan has collected
dirt inside the unit, have the unit
cleaned by a qualified service
agent. Do not operate the tower
fan in this condition.

3. Do not attempt to open the
case of the tower fan at any
time as there are no customer
serviceable parts inside.

4. When not in use, store the tower
fan (preferably in its original box)
in a cool, clean and dry location.

12

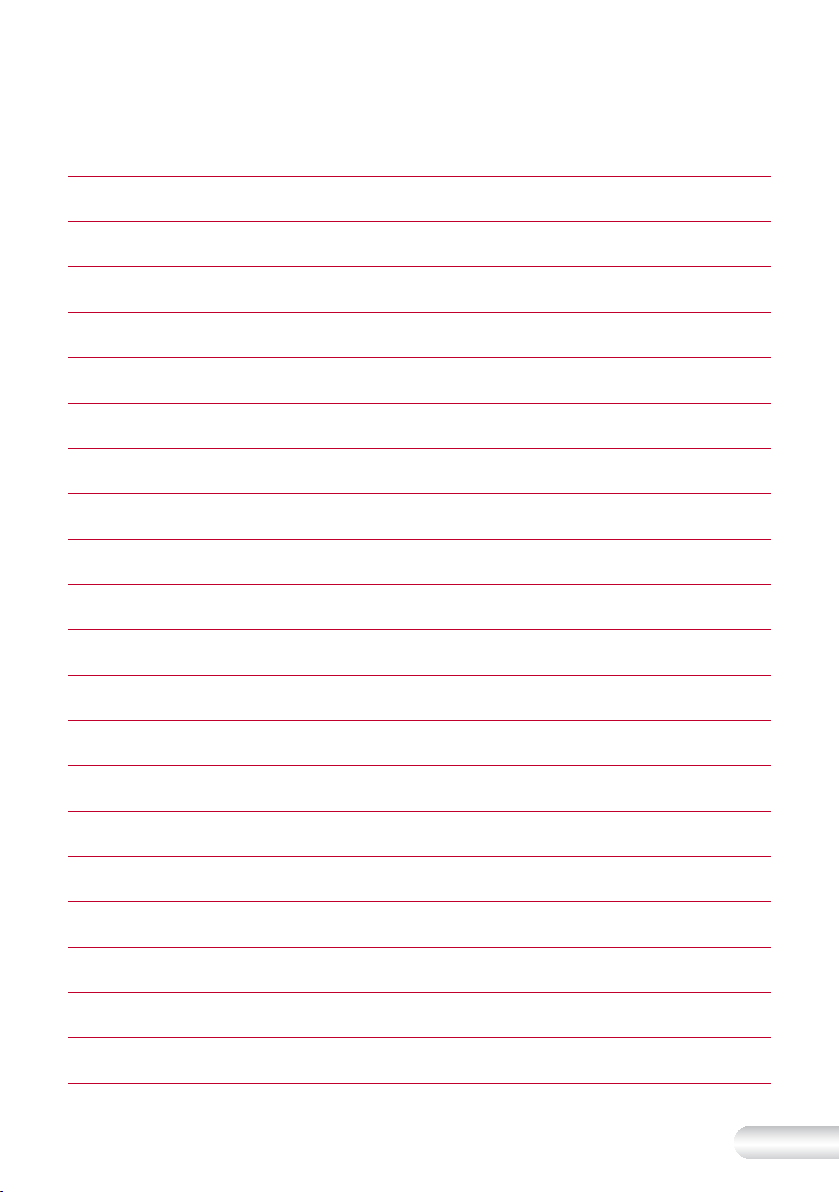

Notes

13

Notes

14

Notes

15
