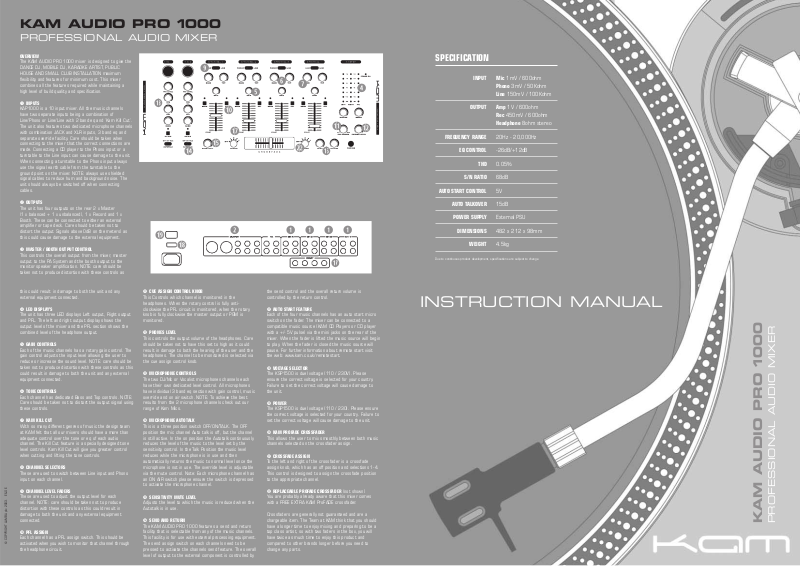

KAM KAP1000 Instruction Manual
KAM AUDIO PRO 1000
PROFESSIONAL AUDIO MIXER
INSTRUCTION MANUAL
KAM AUDIO PRO 1000
PROFESSIONAL AUDIO MIXER
this could result in damage to both the unit and any
external equipment connected.
r LED DISPLAY’S
The unit has three LED displays Left output, Right output
and PFL. The left and right output display shows the
output level of the mixer and the PFL section shows the
combined level of the headphone output.
t GAIN CONTROLS
Each of the music channels has a rotary gain control. The
gain control adjusts the input level allowing the user to
reduce or increase the sound level. NOTE: care should be
taken not to produce distortion with these controls as this
could result in damage to both the unit and any external
equipment connected.
y TONE CONTROLS
Each channel has dedicated Bass and Top controls. NOTE:
Care should be taken not to distort the output signal using
these controls.
u KAM KILL CUT
With so many different genres of music the design team
at KAM felt that all our mixers should have a more than
adequate control over the tone or eq of each audio
channel. The Kill Cut feature is a specially designed tone
level controls. Kam Kill Cut will give you greater control
when cutting and lifting the tone controls.
i CHANNEL SELECTORS
These are used to switch between Line input and Phono
input on each channel.
o CHANNEL LEVEL FADERS
These are used to adjust the output level for each
channel. NOTE: care should be taken not to produce
distortion with these controls as this could result in
damage to both the unit and any external equipment
connected.
1) PFL ASSIGN
Each channel has a PFL assign switch. This should be
activated when you wish to monitor that channel through
the headphone circuit.
1! CUE ASSIGN CONTROL KNOB
This Controls which channel is monitored in the
headphones. When the rotary control is fully anticlockwise the PFL circuit is monitored, when the rotary
knob is fully clockwise the master output or PGM is
monitored.
1@ PHONES LEVEL
This controls the output volume of the headphones. Care
should be taken not to have this set to high as it could
result in damage to both the hearing of the user and the
headphones. The channel to be monitored is selected via
the cue assign control knob.
1# MICROPHONE CONTROLS
The two DJ/Mc or Vocalist microphones channels each
have their own dedicated level control. All microphones
have individual 3 band eq section with gain control, music
override and on air switch. NOTE: To achieve the best
results from the 2 microphone channels check out our
range of Kam Mics.
1$ MICROPHONE AUTOTALK
This is a three position switch OFF/ON/TALK. The OFF
position the mic channel Auto talk is off, but the channel
is still active. In the on position the Autotalk continuously
reduces the level of the music to the level set by the
sensitivity control. In the Talk Position the music level
reduces while the microphone is in use and then
automatically returns the music to normal level once the
microphone is not in use. The override level is adjustable
via the mute control. Note: Each microphone channel has
an ON AIR switch please ensure the switch is depressed
to activate the microphone channel.
1% SENSITIVITY MUTE LEVEL
Adjusts the level to which the music is reduced when the
Autotalk is in use.
1^ SEND AND RETURN
The KAM AUDIO PRO 1000 features a send and return
facility that is selectable from any of the music channels.
This facility is for use with external processing equipment.
The send assign switch on each channels need to be
pressed to activate the channels send feature. The overall
level of output to the external component is controlled by
the send control and the overall return volume is
controlled by the return control.
1& AUTO START FEATURE
Each of the four music channels has an auto start micro
switch on the fader. The mixer can be connected to a
compatible music source (KAM CD Players or CD player
with a +/- 5V pulse) via the mini jacks on the rear of the
mixer. When the fader is lifted the music source will begin
to play. When the fader is closed the music source will
pause. For further information about remote start visit
the web: www.kam.co.uk/remotestart.
1* VOLTAGE SELECTOR
The KSP1500 is duel voltage (110 / 230V). Please
ensure the correct voltage is selected for your country.
Failure to set the correct voltage will cause damage to
the unit.
1( POWER
The KSP1500 is duel voltage (110 / 230). Please ensure
the correct voltage is selected for your country. Failure to
set the correct voltage will cause damage to the unit.
2) KAM PROFADE CROSSFADER
This allows the user to mix smoothly between both music
channels selected on the crossfader assign.
2! CROSSFADE ASSIGN
To the left and right of the crossfader is a crossfade
assign knob, which has an off position and selections 1-4.
This control is designed to assign the crossfade position
to the appropriate channel.
2@ REPLACEABLE PROFADE CROSSFADER (not shown)
You are probably already aware that this mixer comes
with a FREE EXTRA KAM ProFADE crossfader.
Crossfaders are generally not guaranteed and are a
chargeable item. The Team at KAM think that you should
have a longer time to enjoy mixing and preparing to be a
top class artist, so with two faders in the box, you will
have twice as much time to enjoy this product and
compared to other brands longer before you need to
change any parts.
© COPYRIGHT LAMBA plc 2003. E&O E.
OVERVIEW
The KAM AUDIO PRO 1000 mixer is designed to give the
DANCE DJ, MOBILE DJ, KARAOKE ARTIST, PUBLIC
HOUSE AND SMALL CLUB INSTALLATION maximum
flexibility and features for minimum cost. This mixer
combines all the features required while maintaining a
high level of build quality and specification.
q INPUTS
KAP1000 is a 10 input mixer. All the music channels
have two separate inputs being a combination of
Line/Phono or Line/Line with 2 band eq and `Kam Kill Cut`.
The unit also features two dedicated microphone channels
with combination JACK and XLR inputs, 3 band eq and
separate override facility. Care should be taken when
connecting to the mixer that the correct connections are
made. Connecting a CD player to the Phono input or a
turntable to the Line input can cause damage to the unit.
When connecting a turntable to the Phono input always
use the signal earth cable from the turntable to the
ground point on the mixer. NOTE: always use shielded
signal cables to reduce hum and background noise. The
unit should always be switched off when connecting
cables.
w OUTPUTS
The unit has four outputs on the rear 2 x Master
(1 x balanced + 1 x unbalanced), 1 x Record and 1 x
Booth. These can be connected to either an external
amplifier or tape deck. Care should be taken not to
distort the output Signals above 0dB on the meters) as
this could cause damage to the external equipment.
e MASTER / BOOTH OUTPUT CONTROL
This controls the overall output from the mixer, master
output to the PA System and the booth output to the
monitor speaker amplification. NOTE: care should be
taken not to produce distortion with these controls as
o
1(
wqqqq
r
1*
t
y
u
1)
1!
1@
1#
1$
1%
1^
1&
1&
2@
SPECIFICATION
INPUT Mic 1mV / 600ohm
Phono 3mV / 50Kohm
Line 150mV / 100Kohm
OUTPUT Amp 1V / 600ohm
Rec 450mV / 600ohm
Headphone 8ohm stereo
FREQUENCY RANGE 20Hz - 20,000Hz
EQ CONTROL -26dB/+12dB
THD 0.05%
S/N RATIO 68dB
AUTO START CONTROL 5V
AUTO TALKOVER 15dB
POWER SUPPLY External PSU
DIMENSIONS 482 x 212 x 98mm
WEIGHT 4.5kg
Due to continuous product development, specifications are subject to change.
