Kalorik USK FP 5 User Manual

Citrus press

Exprimidor de cítricos

Presse-agrumes

USK FP 5

120V~30W

IMPORTANT SAFEGUARDS

1. READ ALL INSTRUCTIONS

2. Check that your mains voltage corresponds to that stated on the
rating plate of the appliance before using the appliance.

3. To protect against electrical shock do not immerse cord, plug, or
the motor unit in water or other liquid.

4. Close supervision is necessary when the appliance is used by or
near children.

5. Unplug from outlet when not in use and before putting on or
taking off parts or before cleaning.

6. Do not operate any appliance with a damaged cord or plug or
after the appliance malfunctions or has been damaged in any
manner. Return appliance to the nearest authorized service
facility for examination, repair, or adjustment.

7. The use of accessory attachments not recommended by the
appliance manufacturer may cause injuries.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter or touch hot
surfaces.

10. Do not place on or near a hot gas or electric burner, or in a
heated oven.

11. Always attach plug to appliance first, then plug cord into the wall
outlet. To disconnect remove the plug from the wall outlet.

12. Do not use appliance for other than intended use.

13. Only use this citrus press to extract the juice from tender fruits
(orange, lemon, grapefruit...). Never try to extract the juice from
fruits such as pineapple, mango or other fruits that are too hard
and/or too large.

14. This kind of appliance cannot function continuously, it is not a
professional type of appliance. It is necessary to make temporary
stops. Check the section "Important information" in the
instruction manual.

15. It is absolutely necessary to keep this appliance clean at all times
as it comes into direct contact with food.

2

USK FP 5 -070524

16. The appliance is designed for extracting a small quantity of juice,
which has to be drunk rather quickly. It is not designed for
preparing large quantities at once.

17. Never touch the movable part with your hands in order not to get
hurt. Do not force the mechanism by squeezing the fruits you are
pressing too much.

18. To disconnect the appliance remove the plug from the wall
outlet.

SAVE THESE INSTRUCTIONS

POLARIZED PLUG INSTRUCTIONS

This appliance has a polarized plug (one blade is wider than the
other). To reduce the risk of electric shock, this plug will fit into the
polarized outlet only one way. If the plug does not properly fit into
the outlet at first, reverse it. If it still does not fit, contact a competent
qualified electrician. Do not attempt to modify the plug in any way.

SHORT CORD INSTRUCTIONS

A short power supply cord is provided to reduce the hazards resulting
from becoming entangled in, or tripping over a longer cord.
Extension cords may be used if care is exercised in their use.

• The electrical rating of the extension cord should be at least

that of the appliance. If the electrical rating of the extension
cord is too low, it could overheat and burn.

• The resulting extended cord should be arranged so that it will

not drape over the counter top or tabletop where it can be
pulled on by children or tripped over.

3

USK FP 5 -070524

PART DESCRIPTION

A. Cover
B. Big cone
C. Small cone
D. Filter A
E. Filter B
F. Cup
G. Conjunction
H. Base

IMPORTANT INFORMATION

This appliance is not for professional use. You should follow the
requested breaks. Failure to follow this instruction carefully may result
in damage to the motor. The maximum continuous usage time is 5
minutes. After 5 minutes of continuous use, you should insert a break
of at least 10 minutes.

4

USK FP 5 -070524

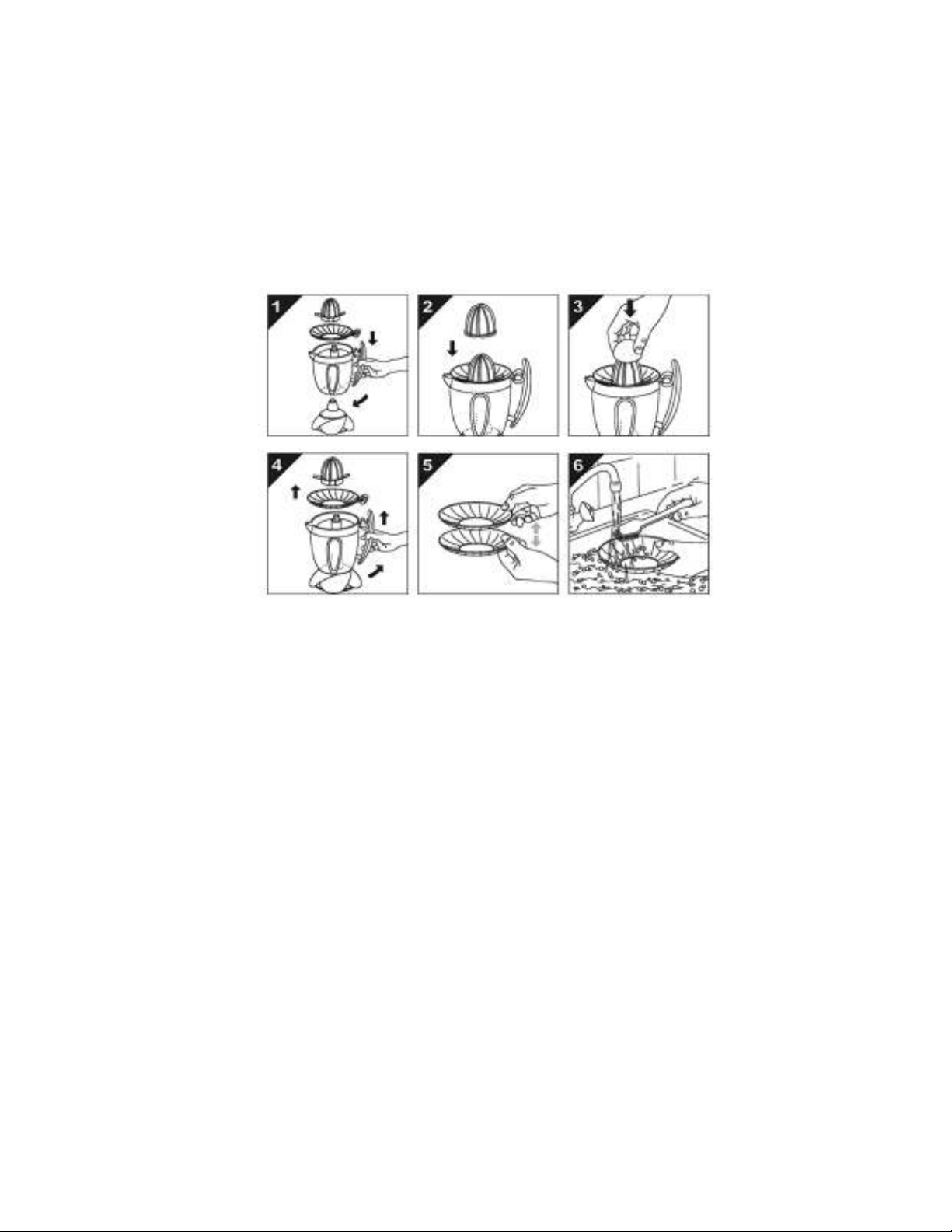

ASSEMBLY AND USE

• Put the cup (F) on the base (H) (Fig. 1) and turn it clockwise to
lock it.

• Put the filter A (D) on the filter B (E), turn it left and right until it is in
the correct position.

• Put the small cone (C) on the shaft of the base (Fig. 2).

• Put the jug on the base.

• Plug in the appliance

• Cut the citrus fruit into 2 pieces, cutting across sections.

• Press gently each half of the fruit on the cone. The citrus press will

start operating automatically by turning to the right and to the
left (Fig. 3). If the fruit is too big, please use the big cone. Put the
big cone on the small one. The 2 gaps on the big cone must be
locked on the 2 wings on the small cone.

• Remove the jug from the base. Now you can enjoy delicious
juice.

• When finished, unplug the juicer.

5

USK FP 5 -070524
