INSTALLATION INSTRUCTIONS
BATHTUB
Instructions d’installation
Instrucciones de montaj
1
KALDEWEI BATHTUB
Carefully read these installation instructions prior to installing your Kaldewei
product.
In the installation instructions, the icons
described are used. These icons refer to
instructions and note which require your
special attention.
Instructions and notes which
ensure proper functioning and
trouble-free installation of the
bathtub.
Instructions and notes to ensure
the health of the bathtub user.
Cleaning and care instructions
to retain the high quality of the
bathtub.
EXPLANATION
• Kaldewei has prepared these installation instructions to be as accurate as
possible.
• The illustrations used in these instal
lation instructions do not necessarily
show the bathtub model in question.
Installation is to be done analogously.
• The bathtub complies with ASME
Standard A112.19.4M. All dimensions are nominal.
• Kaldewei reserves the right to change
the contents of the installation instructions without being obliged to
inform third parties.
• Kaldewei reserves the right to modify
and to improve the technical portion
without being obliged to inform third
parties. Please read the attached addendum, if necessary.
• No part of these installation instruc
tions may be reproduced or transferred otherwise without the express
approval of Kaldewei.
• The most current and accurate in
formation is available on our website
www.kaldewei.com.
If you wish to ask any questions regarding the bathtub or its installation or if
you have detected any defect to the
bathtub before the installation please
contact the Kaldewei customer service.
KALDEWEI USA Inc.
9465 Counselors Row
Suite 200
Indianapolis, IN 46240
telephone +1 317 805 4821
fax +1 317 805 4823
2
TRANSPORT
Transport the bathtub in the
transport box only and do not
stock items on top of tubs.
Kaldewei shall not assume any
liability for damage incurred due
to improper intermediate storage
and for transport damage resulting from a failure to observe the
relevant instructions.
The contents of the packing are
subjected to extensive quality
and performance checks. Check
the contents of the packing for
completeness and possible transport damage. Kaldewei ships FOB
and does not assume liability for
freight damage after product has
been received in the USA.
Due to the heavy weight, at least
two persons are required to carry
or move the bathtub.
Take special care when transport
ing the bathtub through narrow
doors.
RECOMMENDATION
To ensure a simple and safe
installation of the bathtub, it is
recommended to use the Kaldewei leveling feet and optional wall
anchors (to be obtained in traditional plumbing distributor).
For further information, please, also
refer to www.kaldewei.com.
3
Before the installation, the bathtub shall be checked for accuracy
to size, color, default and defects.
Claims in respect to defects
which had already existed before
the installation cannot be admitted after the installation.
Installation of the bathtub shall
only be performed by a specialized business able to prove to the
pertinent authorities its knowhow and competence in terms of
the application of national safety
regulations, e.g. water supply/discharge.
The floor must be level for a suc
cessful installation of the bathtub
without a Kaldewei bathtub base
frame. It is recommended to use
the Kaldewei bathtub base frame
(see www.kaldewei.com, not in
-
cluded in the scope of supply).
When planning and building the
facing or the framework for the
bathtub, particular attention must
be paid to dimensional accuracy.
For any necessary maintenance/
service work, an inspection opening is to be provided in the drain
area.
All work has to be carried out using recommended tools.
During the installation work, in
particular when working with
tools, appropriate protective
clothing shall be worn.
GENERAL INSTALLATION INSTRUCTIONS
When installing the bathtub,
protect the bathtub surface and
casing and the wall and floor tiles
from damage.
Avoid excessive debris of any
kind and, in particular, debris
which might cause clogging of
the drain.
When connecting the bathtub to
the local waste system, take into
account an adequate slope to
the drain and check the proper fit
of pipe connections.
Upon completed installation and
connection of the bathtub to the
plumbing system, a drainage test
shall be made to check whether
the residual water is drained
completely.
After completed installation,
these installation instructions
shall be handed over to the
owner or to the supervisor or architect acting as an agent.
The plumbing contractor or the
owner of the bathtub shall make
these installation instructions and
the warranty card available to any
subsequent owners and users.
4
To use the bathtub, it is absolutely necessary to consult the
treating physician in case of disorders of the central or peripheral
circulatory system (coronary heart
disease, heart attack, cardiac
insufficiency, peripheral arterial
occlusion). Generally, however,
a water temperature similar to
the body temperature will be
preferable.
Check and, if necessary, correct
the water temperature before
getting into the filled bathtub.
Water temperatures of above
104° F (40° C) may be hazardous
to your health.
Do not switch on any electrical
appliances (such as hairdryers, shavers, television sets or
radios) near the bathtub, even
if the bathtub is not being used.
Electrical appliances in the bathroom must be placed or mounted
such that they cannot fall into
the bathtub (minimum distance:
60“/1.5 m).
The bathtub may only be used
to clean your body. Do not place
any objects into the bathtub.
Imprudent use of the bathtub
may result in the risk of injury or
drowning.
Do not leave children unattended
by an adult during a bath.
Elderly and handicapped persons
and persons restricted in their
movement should take special
care when using a bath.
Special care is required to prevent injuries and falls when getting in and out of the bathtub. If
necessary, a suitable grip (avail
able at specialized dealers) is to
be mounted to get safely in and
out of the bathtub.
The bathtub shall not be used for
taking a bath under the influence
of medication, alcohol or drugs.
SAFETY GUIDELINES
CLEANING OF THE BATHTUB
For cleaning the bathtub, please
observe the instructions given
in the enclosed warranty card or
check under www.kaldewei.com.
GARANTIEP
ASS
GUARANTEE
13

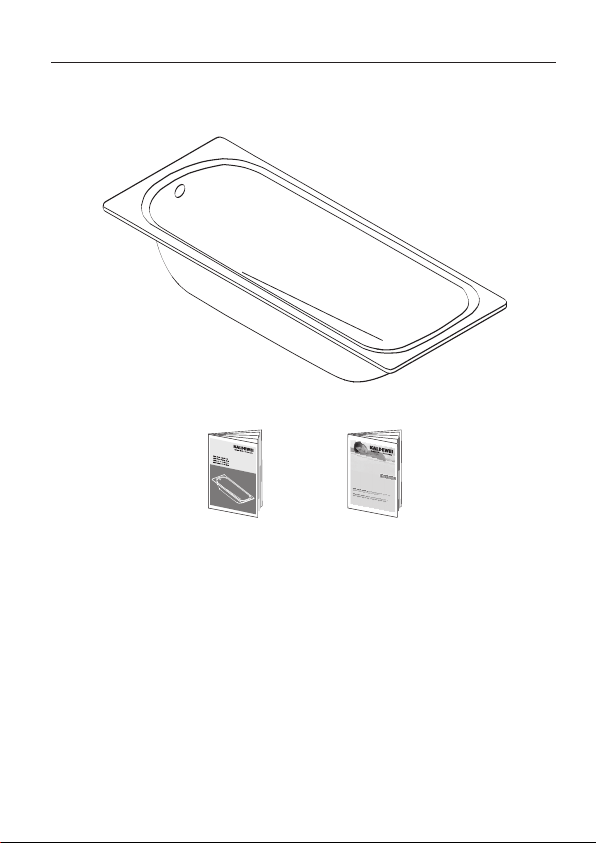

SCOPE OF SUPPLY
VOLUME DE LIVRAISON
VOLUMEN DE SUMINISTRO
GARANTIEP
ASS
GUARANTEE
EINBAUANL
EITU
NG
BADE
W
ANNE
14

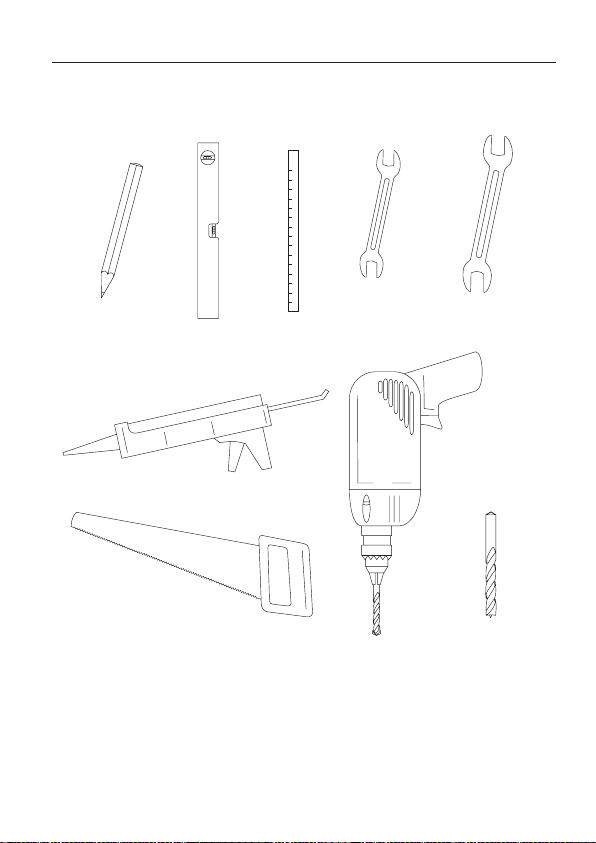

REQUIRED TOOLS
