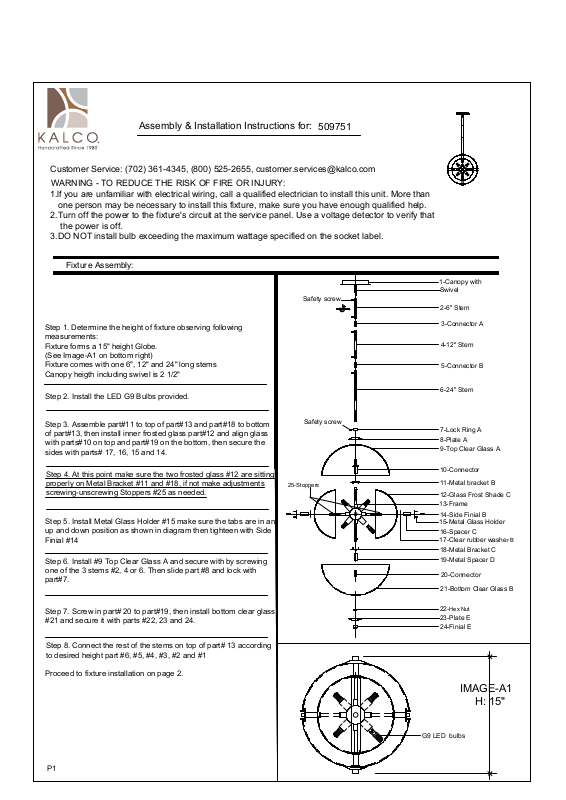

Kalco 509751WB Assembly Guide

Customer Service: [phone], [phone], [e-mail]

WARNING - TO REDUCE THE RISK OF FIRE OR INJURY:

1.lf you are unfamiliar with electrical wiring, call a qualified electrician to install this unit. More than
one person may be necessary to install this fixture, make sure you have enough qualified help.

2.Turn off the power to the fixture's circuit at the service panel. Use a voltage detector to verify that
the power is off.

3.DO NOT install bulb exceeding the maximum wattage specified on the socket label.

Assembly & Installation Instructions for:

509751

Fixtur

e Assembly:

Step 1. Determine the height of fixture observing following
measurements:
Fixture forms a 15" height Globe.
(See Image-A1 on bottom right)
Fixture comes with one 6", 12" and 24" long stems
Canopy heigth including swivel is 2 1/2"

Step 2. Install the LED G9 Bulbs provided.

Step 3. Assemble part#11 to top of part#13 and part#18 to bottom
of part#13, then install inner frosted glass part#12 and align glass
with parts#10 on top and part#19 on the bottom, then secure the
sides with parts# 17, 16, 15 and 14.

Step 6. Install #9 Top Clear Glass A and secure with by screwing
one of the 3 stems #2, 4 or 6. Then slide part #8 and lock with
part#7.

Step 4. At this point make sure the two frosted glass #12 are sitting
properly on Metal Bracket #11 and #18, if not make adjustments
screwing-unscrewing Stoppers #25 as needed.

Step 5. Install Metal Glass Holder #15 make sure the tabs are in an
up and down position as shown in diagram then tighteen with Side
Finial #14

Step 8. Connect the rest of the stems on top of part# 13 according
to desired height part #6, #5, #4, #3, #2 and #1

Proceed to fixture installation on page 2.

Step 7. Screw in part# 20 to part#19, then install bottom clear glass
#21 and secure it with parts #22, 23 and 24.

C10-15-02-00

C10-15-02-00

C10-15-02-00

C10-15-02-00

C10-15-02-00

C10-15-02-00

20-Connector

1-Canopy with
Swivel

2-6" Stem

3-Connector A

4-12" Stem

5-Connector B

6-24" Stem

7-Lock Ring A

8-Plate A

9-Top Clear Glass A

10-Connector

11-Metal bracket B

12-Glass Frost Shade C
13-Frame

Safety screw

15-Metal Glass Holder

14-Side Finial B

16-Spacer C

18-Metal Bracket C

19-Metal Spacer D

21-Bottom Clear Glass B

17-Clear rubber washer B

Safety screw

22-Hex Nut
23-Plate E
24-Finial E

25-Stoppers

C10-15-02-00

C10-15-02-00

C10-15-02-00

C10-15-02-00

C10-15-02-00

C10-15-02-00

G9 LED bulbs

IMAGE-A1
H: 15"

P1

Customer Service: [phone], [phone], [e-mail]

sre wilyppe sutih

k & W

acBl

T)

SCEN

ANDE

NC

(I

KET

SOC

HTOOM

LINE:S

DLINE:RIBBE

RESSE WIHOU

L

N

G

J-BOX

C10-15-02-00

C10-15-02-00

C10-15-02-00

C10-15-02-00

C10-15-02-00

C10-15-02-00

G9 LED bulbs

A

B

C

Assembly & Installation Instructions for:

509751

Cross Bar with Tabs

8/32 Screws x 2

Flat Head Screw

Canopy

P2

IMPORTANT!

(Install top Clear Glass and

Bottom Clear Glass
following the labels marks (A) for

top and (B) for bottom)

Fixture Installation:

Step 9. Install Cross Bar to J-Box using the

8

32

screws, then rise
fixture up close enough to make wire connections.
While an extra set of hands holds fixture make wire connections

as follows:

Step 10. Refer to wiring diagram:
Splice the ribbed side of fixture cord and connect to the white
power supply wire, then splice the smooth side of the fixture cord
and connect to power supply black wire.

Step 11. Connect fixture bare thin or copper wire to ground/green

wire in outlet box.
Secure all wire connections with wire nuts, electrician's black tape
or as stated by your local electrical code.

Step 12. Carefully tuck all wires inside J-Box and raise canpy flat
to ceiling, align canopy side holes to cross bar holes and secure

with the flat head screws.

Step 13. Turn lights on. Clean with a damp cotton cloth.
Enjoy your light fixture for many years to come!
