R20 CAR DVR
Capture your journey
USER GUIDE
Languages
English 4
4
English
Community
Tech support:
e: helpdesk@kaiserbaas.com
w: www.kaiserbaas.com/support
p: Australia 1300 302 306
p: New Zealand 0800 302 306
(business hours, AEST)
/kaiserbaas
Register this product for 12 month warranty:
www.kaiserbaas.com/register
Get product updates:
www.kaiserbaas.com/updates
5
English
Contents
Safety Precautions 6
What’s in the Box 7
Product Diagram 8
Setting up the R20 Car DVR 9
In Car Operation 10
Computer Connection 11
Interface 12
Settings 16
Software 18
Specifications 23
Frequently Asked Questions 24
Contact Us 25
6
English
Safety Precautions
Before using your R20 Car DVR, please ensure you have
read and understand all of the safety precautions below.
• Only use the provided power cables to charge the
device.
• Do not expose the R20 camera to water, dust, oil and
temperatures over 70˚c.
• Avoid leaving your R20 camera in direct sunlight for
prolonged periods of time.
• Please do not attempt to adjust the camera settings
while you are operating your vehicle.
PLEASE USE YOUR CAMERA WITHIN YOUR COUNTRIES ROAD
LAWS. PLEASE CHECK YOUR LOCAL ROAD LEGISLATION
BEFORE USE.
7
English
What’s in the Box
Please ensure the product package has all the following
contents:
B
A
B
C
E
F
G
D
D
E
F
G
C
R20 Car DVR
Mount
Micro USB Cable
User Guide
USB Car Charger
6 x Cable Management Clips
USB DC power cable
A
8
English
Product Diagram
1
Wide Angle Lens
2
Mounting Socket
3
DC Power Port
4
HDMI Mini Port
5
Micro USB Port
6
Up/Playback Button
7
Down/Photo Shutter Button
8
2.7” Display
9
Power/Back/Settings Button
10
OK/Event Recording Button
11
Reset Button
12
Micro SD Slot
8
1
2
11
1210
9
7
6
5
4
3
Front
Side
Back
Bottom
9
English
Side
Bottom

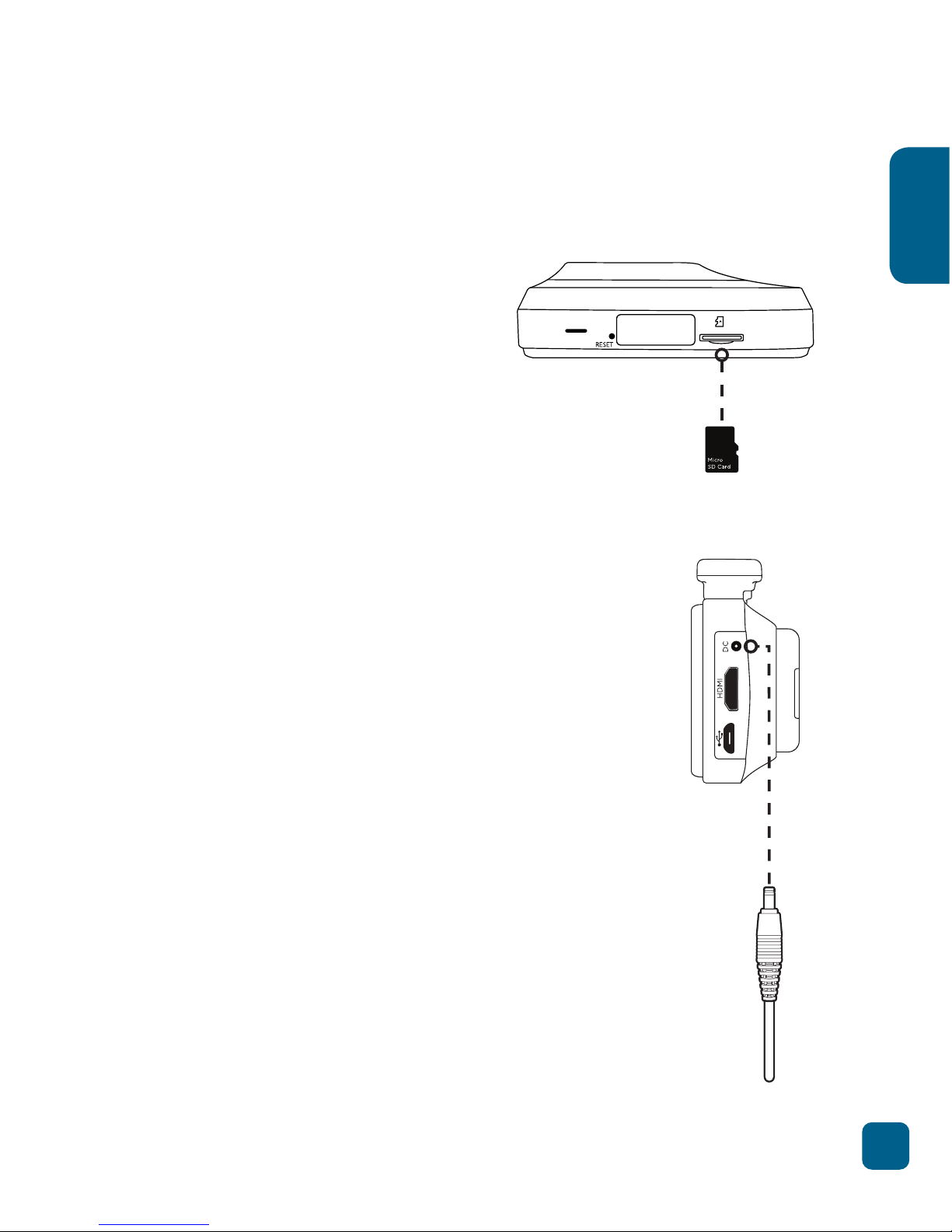

Setting up the R20 Car DVR
• Insert Micro SD card in
the Micro SD card slot on
the bottom of the camera.
• Camera will power up and
start recording as soon as
it receives power from the
DC power connection (eg.
when you start your car).
• Clean the area on your windscreen making
sure desired placement is not blocking the
drivers view.
• Attach the camera to the mount by sliding
the camera connection from right to left
along the mount connection until latched.
• Remove the protective skin from the 3M
adhesive on the mount.
• Stick the adhesive to the inside of the front
windscreen in the desired position, and
press for 30 seconds to ensure that the
camera is secure.
• Adjust the nut to ensure that the camera is
correctly angled.
• Finally connect the R20 to power using the
DC power cable and the USB car charge
adaptor.
General:
Car set up:
10
English
In Car Operation
• Once camera is set up and connected to DC power, the
camera will automatically power on and start recording
when the car is started.
• The car camera requires a class 6 or above Micro SD
card (not included) with at lease 8GB of free space.
• The internal G sensor will register any bumps that could
be accidents and registers them as an “Event”. These
event files will not be recorded over by regular footage,
these files need to be manually deleted from your SD
card using the provided management software.
• Event recording can be manually triggered using the
“OK” button during recording.
• Still photos can be taken using the Down button during
recording.
• LDWS (Lane Departure Warning System) will warn the
driver if they are not correctly in their lane. This feature
can be adjusted through the Camera setting.
Note: For more information on the R20 interface please see section
marked “Interface”.
11
English
Computer Connection
• Download and install the supplied Motor+ software to
your PC or Mac. The software can be found at:
www.kaiserbaas.com/software/r30
• Follow the on screen set up guide.
• Connect your R20 camera to your computer using the
supplied micro USB cable.
• Open the Motor+ software.
• Select if you want to review media on the camera (left
icon), or your computer (right icon)
Note: For more information on software functions please see section marked “Software”.
12
English
Interface
Recording Screen
This is the device’s main recording screen; this will show
while your R20 is powered on and not in screensaver mode.
The four on screen icons are selected by using their adjacent
buttons.
!
Recording Screen Screen
1
Library/Playback
2
Photo Shutter Button
3
Settings
4
Event Record
5
Mode
6
Resolution
7
Microphone/Mute
8
GPS Signal
9
Photo Capacity
10
Event Capacity
11
Time
12
Power
1
2
3
4
5 6 7 8 9 10 11 12
13
English
Library
This menu is found by pushing the up button while at the
recording screen. From here you can review your media,
select either Event Recording, Loop Recording, or Photos by
using the Up and Down buttons and the OK button to select.
Library Screen
1
Event recording
2
Normal Recording
3
Photos
1
2
3
14
English
Media
Once you have selected your media from the library screen,
this screen gives the option of skipping to the next or
previous file, or playing the currently selected file.
Media Screen
1
Previous
2
Next
3
Back
4
Play
1
2
3
4
15
English
Player
This is the player screen, which is controlled by using the
buttons on the side of the screen.
Player Screen
1
Rewind
2
Fast Forward
3
Stop
4
Pause
1
2
3
4
16
English
Settings
Camera
Video
Resolution
Set the video
resolution of Normal
Looping Video and
Event Protection Video
• 1296p: 2304x1296 P30
• 1080p: 1920x1080 P30
• 720P: 1280x720 P30
LDWS Turn on/o the LDWS
function
• On
• O
LDWS
Calibration
Adjust the lane sensing
upper line & bottom
line
-
Recording
Duration
Set the duration of
each Normal Looping
Video
• 3 min
• 5 min
• 10 min (Disabled in
1296p)
Driving
Screen
Saver
Duration
Set the amount of
time you would like
the screen saver to
activate or turn o the
screen saver function
• 30 sec
• 1 min
• 3 min
• O
Screen
Saver Type
Set the Screen saver
type
• Display o
• Time
• Direction
17
English
Microphone Turn on/o the
microphone during
recording
• On
• O
Volume Adjust the Speaker
volume of Voice/
Sound/Playback
• 0-5
Sensitivity Set the sensitivity
of the G-sensor to
activate the Event
Protection Recording
or turn o this function
• High
• Mid
• Low
• O
Voice Guide Turn on/o the voice
prompt function
• On
• O
General
Language Set the device
language
• English
• German
• Spanish
• French
• Italian
• Russian
• Japanese
• Korean
• S. Chinese
• T. Chinese
Date/Time
Set
Set the date and time
of the device
YYYY/MM/DD/HH/MM
18
English
Software
Opening Screen
Opening Screen Screen
1
Camera media
2
Media Stored on
Computer
1 2
19
English
Media Manager
Media Manager Screen
1
2
Video
3
Event Video
4
Media Stored on
Computer
5
Media
6
Camera Settings
7
General Settings
32 4
5
1 76
20
English
Media Player
Media Player Screen
1
Speed
2
Compass
3
Player Controls
4
GPS position
5
Share to Social Media
6
Copy Video from
Camera
4
5
6
1
2
3
21

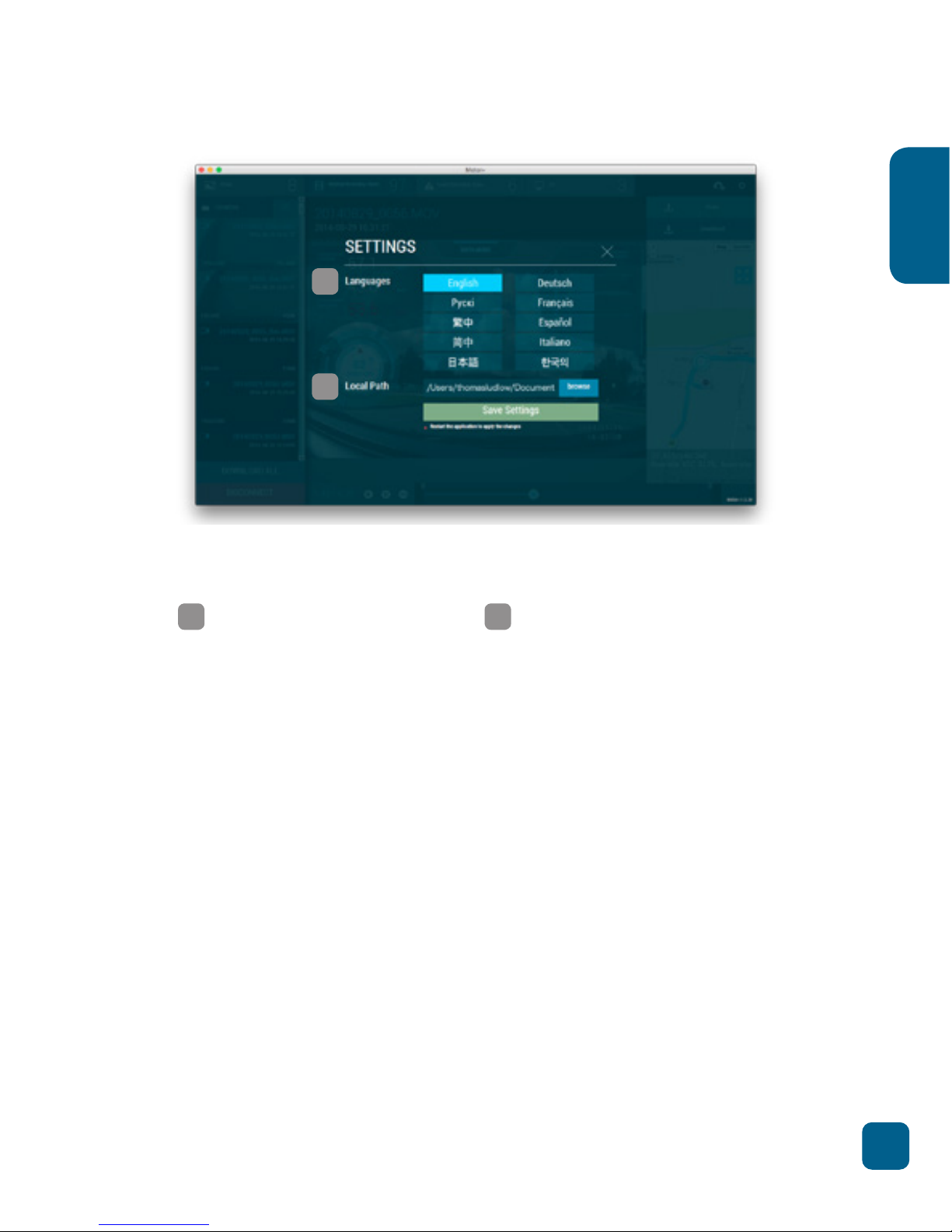

English
General Settings
General Settings Screen
1
Language Selection
2
Directory to Save
Videos to Computer
1
2
22
English
Camera Settings
Camera Settings Screen
1
Mute/Volume
2
Event Recording
Sensitivity
3
Video Resolution
Settings
4
Voice Guidance Settings
5
Video Duration Settings
1
2
3
4
5
23
English
Specifications
Sensor 3MP CMOS
Lens 135° Wide Angle Lens
Still Image Resolution
on Recording
3MP on 1296p/2MP on 1080p/1MP on
720p
Video Resolution 1296P: 2304x1296 P30/1080P: 1920x1080
P30/720P: 1280x720 P30
Video Format MPEG4 (H.264) .MOV File
Photo Format JPG
Display Panel 2.7” Color Display 16:9
Indicator LED 1 pc, 3 colors
GPS Sensor Yes
G Sensor Yes
TV Out Mini HDMI
USB Port Micro USB
Power DC in
Microphone Yes
Speaker Yes
Voice Language English, Mandarin
Operation Temperature -20 to 70 degree
Storage Temperature -40 to 80 degree
Dimension (L x W x H) 92 x 51 x 29.3mm
Weight 104g
24
English
Frequently Asked Questions
Q. The image is blurry
A. Try repositioning the camera. For best results, try to
aim the camera through a section of the windshield that
is not overly curved or angled as this can cause a
blurring eect with footage.
Q. I can’t find the App in the App store
A. Go to www.kaiserbaas.com/R20 using your mobile
phone for a direct link to the app store in your country.
Q. My device will not record
A. Please ensure that you have power connected to the
camera using the supplied DC power cable and that you
have a SD card inserted that is Cat 6 or above.
Q. My HDMI cable will not fit in the HDMI socket on the
camera
A. The socket on the side of the camera is a mini HDMI port
and requires a mini HDMI adaptor (not included).
25
English
Contact Us
Having trouble setting your R20 Car DVR up?
Please contact us. No question too big or small and we are
more than happy to help.
Please visit:
www.kaiserbaas.com/support
Or email:
helpdesk@kaiserbaas.com
For further information please visit:
www.kaiserbaas.com
Tech support:
e: helpdesk@kaiserbaas.com
w: www.kaiserbaas.com/support
p: Australia 1300 302 306
p: New Zealand 0800 302 306
(business hours, AEST)
