Introduction
Congratulations on the purchase of your Kaiser Baas Car Camera. This user
guide will explain the various options available to record and play video footage.
Features
• 1280 x 720 capture resolution with 120 degree wide view angle
• 2.5 inch TFT LCD display
• 1/4 high resolution CMOS sensor
• Video recording and playback function
• Supports real time playback and real time date and time display
• AVI video format
• Supports motion detection recording
• Built-in microphone
• Built-in LED for night vision
• Built-in rechargeable Li-ion battery
• Supports 5.0 mega pixel resolution for snapshot capture
• Supports SD memory cards up to 64GB
pg1
Car Camera
User Manual Car Camera
Safety Notice
• Do not try and disassemble or remodel the Kaiser Baas Car Camera. Doing
so may cause the unit to malfunction and may void the warranty
• Place all magnetised devices such as speakers away from the Kaiser Baas
Car Camera as it may erase or cause damage to data stored on the SD card
• Do not place the Kaiser Baas Car Camera in places that are exposed to oil,
water or dust
• Keep your Kaiser Baas Car Camera away from heated sources such as heaters
• Do not touch the power cable with wet hands or use defective power cables
as it may cause electric shocks or fire
• Do not drop the Kaiser Baas Car Camera as it may cause serious damage and
may void the warranty
Product Specifications
• Video resolution: 640 x 480 (30fps) / 1280 x 720 (30fps)
• Video format: AVI (MJPEG)
• Audio format: ADPCM
• Image resolution: 2560 x 1920 (5M), 2048 x 1536 (3M),
1600 x 1200 (2M), 1280 x 1024 (1M)
• Image format: JPG
• Power source: Built-in rechargeable Li-ion battery, DC 5V car charger
• Card support: SD card support up to 64GB
• Built-in microphone
• A/V output & USB 2.0 PC connection
pg2
Car Camera
User Manual Car Camera
Package Contents
• 1 x Kaiser Baas Car Camera • 1 x Suction mount
• 1 x USB cable • 1 x A/V cable
• 1 x Car charger • 1 x Quick start guide
pg3
Car Camera
User Manual Car Camera
Button & Function Description
1. Mode - This will change from video record mode, photo
record mode and playback mode
2. Down - Menu navigation
3. Up - Menu navigation
4. Rec/Snap - Press this to start or stop recording video in video
record mode and to take a snapshot in photo record mode,
press this to authorise changes in menu mode
5. Menu – On-screen menu
6. On/Off - Press and hold to turn the device on or off
ON/OFFMENUREC/SNAPUPDOWNMODE
RESETAV OUTUSB DC 5V
1 2 3
4
5 6
pg4
Car Camera
User Manual Car Camera

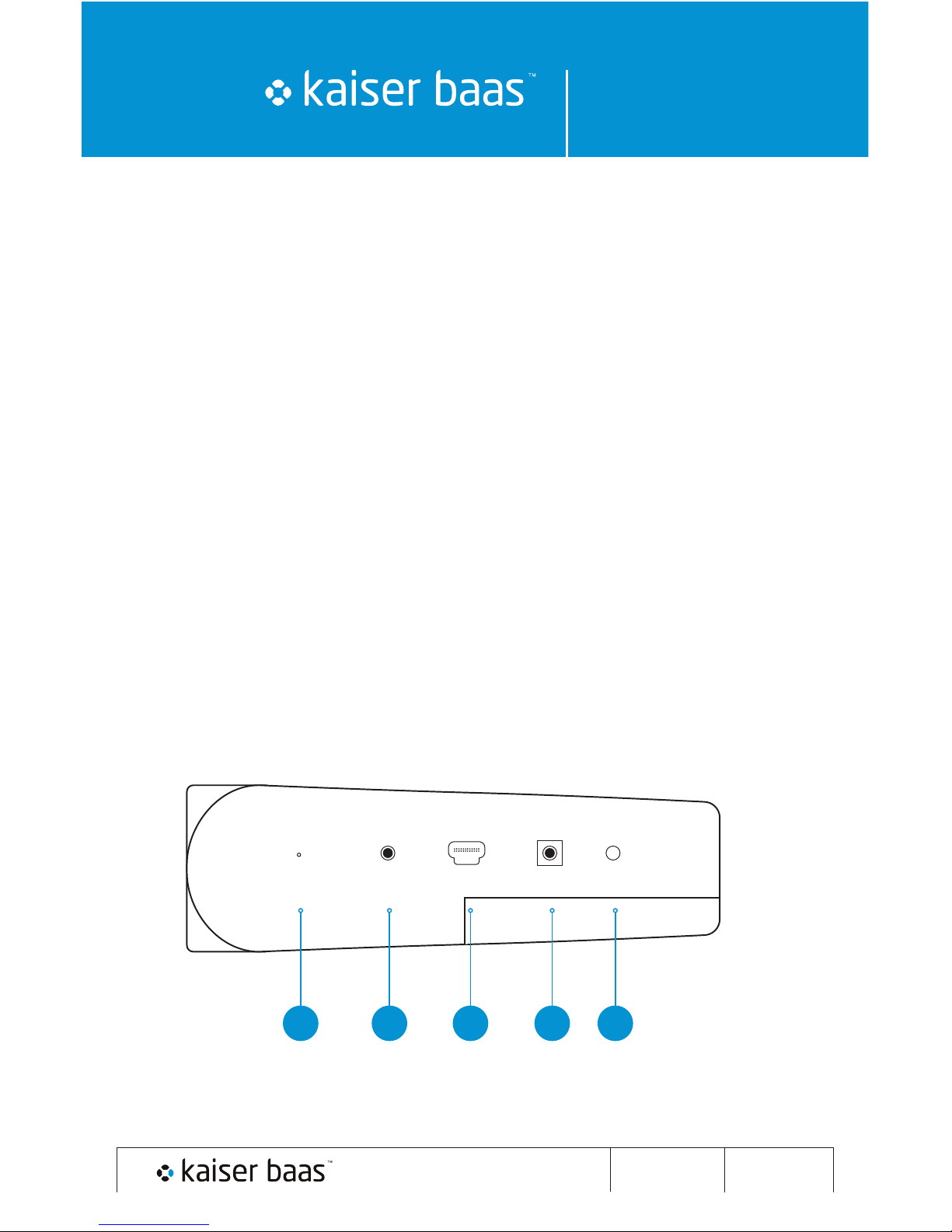

7. Reset - Reset to factory default
8. A/V - Connect the provided A/V cable to play video files and to
display photo files
9. USB - Connect the provided USB cable to charge the battery and
to access the SD card
10. DC 5V - Connect the provided car charger to the cigarette
socket inside the car to charge battery
11. Battery indicator - Red indicates that the battery is charging.
The light will change to orange when it is fully charged. A green
light indicates that the battery is partially charged. When
connected to a computer that is turned on, the words MSDC will
appear on-screen. When the computer is turned off, you will see
a flashing battery icon on-screen.
pg5
RESETAV OUTUSB DC 5V
7 8 9 10
11
Car Camera
User Manual Car Camera
pg6

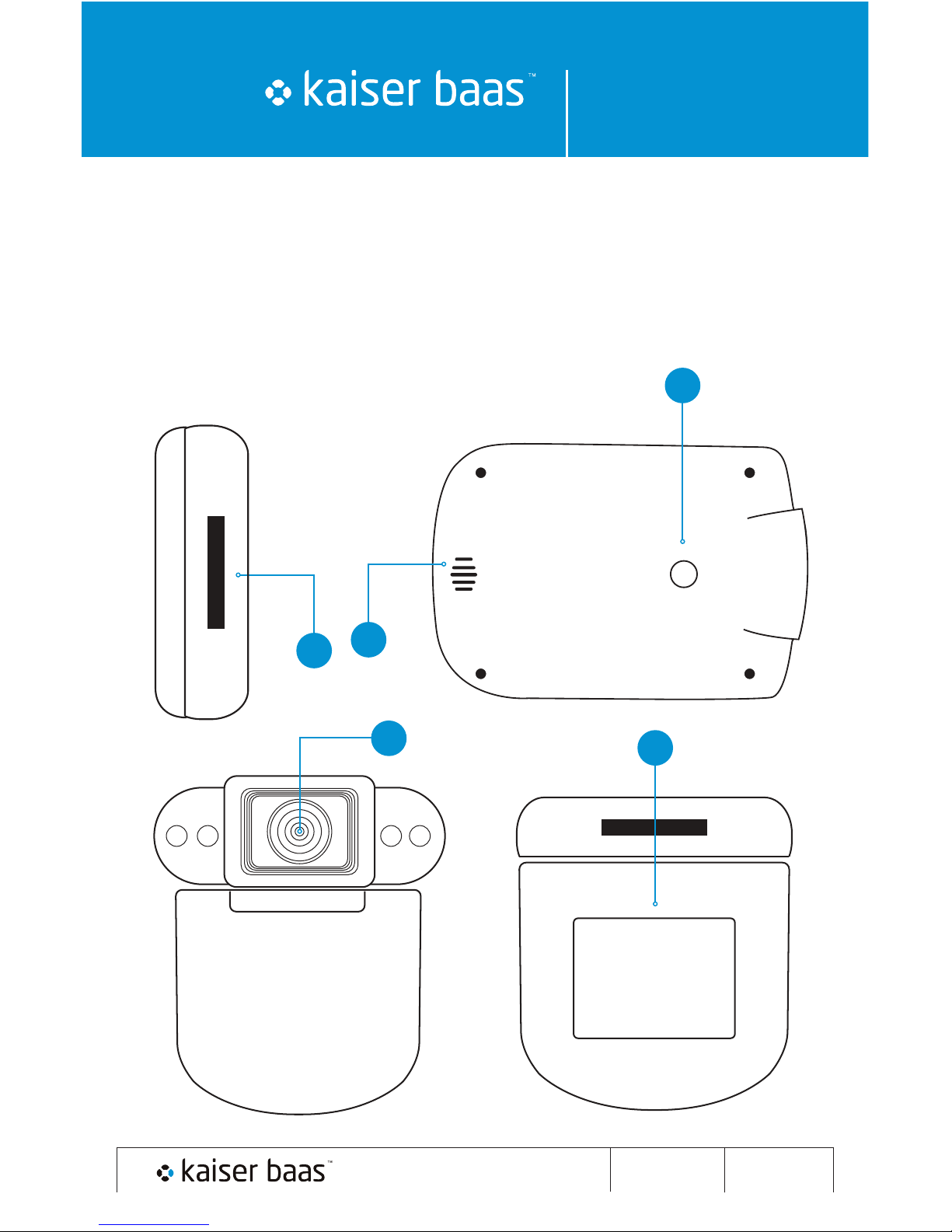

12. SD card slot - Insert an SD card into this slot
13. Mount hole - Connection to the provided suction mount
14. Speaker
15. Lens
16. 2.5 inch LCD
12
13
14
RESETAV OUTUSB DC 5V
RESETAV OUTUSB DC 5V
RESETAV OUTUSB DC 5V
16
15
Car Camera
User Manual Car Camera
Operation
If you would like to use the built-in Li-ion battery while operating the
device in your car, it is recommended that you connect the device to your
computer for at least two hours to charge. Alternatively you can use the
provided car charger to provide power.
Please insert a formatted SD card before turning the device on.
When the device is turned on, it will enter video record mode and start
recording automatically.
Press the ‘Rec/Snap’ button to stop recording.
Press the ‘Menu’ button to enter the menu.
If you are using the car charger, the device will turn on and start recording
when the car is started and will stop recording and turn off when the car is
turned off.
How to change the date and time
1. Press the Menu button
2. Press the Model button
3. Press the Down button to select ‘Date’
4. Press the Rec/Snap button and select ‘Set Date’, press the Rec/Snap
button again
5. Press the Up or Down buttons to select the date orientation, press the
Rec/Snap button to confirm
6. Press the Up or Down button to select the correct date and time, press
the Rec/Snap button to confirm
pg7
Car Camera
User Manual Car Camera

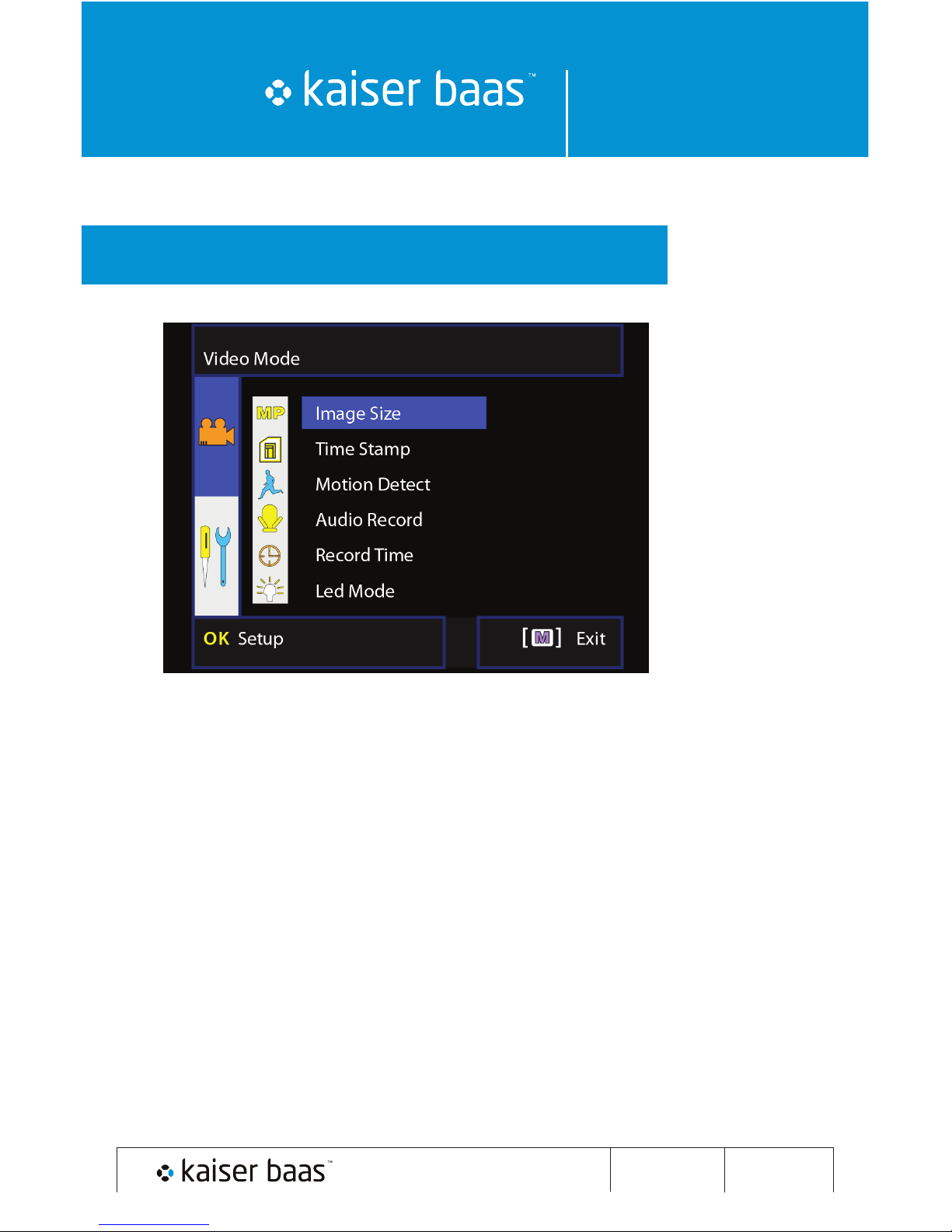

Video record menu
Select the ‘Up’ or ‘Down’ buttons to select the different
sub-menus available, press the ‘Rec/Snap’ button to enter the
sub-menu and to confirm the setting that you have selected.
Image size - Select either 640 x 480 or 1280 x 720 video recording
resolution.
Time stamp - Select to turn on or off time stamping. When enabled, all
video recordings and still images will have the time and date visible.
Motion detect - Select to turn on or off motion detection. When the
camera senses motion, it will automatically start recording. You will see a
motion icon on-screen when enabled.
pg8
Car Camera
User Manual Car Camera
Audio record - Select to turn on or off audio recording
Record time - The device can record in three different time blocks. For
example if you select 5 minutes, all recordings will be created in 5 minute
blocks. Select 2 minutes, 5 minutes or 15 minutes.
Led mode - Select either cancel or auto. When set to auto, the device will
automatically turn on the built-in LED for night vision. This will be indicated
by a light bulb icon on-screen.
Press the ‘Mode’ button to enter the setup sub menu.
Setup - Format - Format the inserted SD card, Language - Select the
various language options available, Default setting - Select default
settings, Frequency - Select 50Hz or 60Hz, Date - Set the time and date.
• To turn off the LCD display when recording, press the ‘Down’ button.
• The device will display the amount of recording time available on the
SD card.
*
The device automatically supports cyclical recording. When the
card has run out of memory, it will record over the
previously recorded files. There will be a 3 seconds pause during
this time.
pg9
Car Camera
User Manual Car Camera
Photo record menu
Select the ‘Up’ or ‘Down’ buttons to select the different sub-menus available,
press the ‘Rec/Snap’ button to enter the sub-menu and to confirm the setting
that you have selected.
Image size - Select either 1280 x 1024, 1600 x 1200, 2048 x 1536
or 2560 x 1920.
Press the ‘Mode’ button to enter the setup sub menu.
The options in the setup sub menu are the same as the video record menu.
Playback menu
Select the ‘Up’ or ‘Down’ buttons to select the different sub-menus available,
press the ‘Rec/Snap’ button to enter the sub-menu and to confirm the setting
that you have selected.
Delete - You can delete the current file or all files.
Show thumbnails - Select to display thumbnails of all recordings. Press the
‘Up’ and ‘Down’ buttons to navigate and press the ‘Rec/Snap’ button to enter
the current index page.
Volume adjust - You can adjust the playback volume of a video file.
If the device freezes or crashes and stops responding, use a paper clip
or pin to reset.
If your device has malfunctioned or there is a part missing from the box, please
contact us on 1300 302 306, email – helpdesk@kaiserbaas.com or at our
customer support centre – www.kaiserbaas.com/support
pg10
Car Camera
User Manual Car Camera
Troubleshooting
Q: The device is not turning on
A: Make sure the device is fully charged before operation.
Alternatively you can use the provided car charger to
provide power
Q: What type of SD cards can I use?
A: The device is compatible with SD and SDHC cards up to 64GB
in size. Use the format option before you start recording
Q: Can I use the device without an SD card?
A: The device itself does not have on-board memory to record to.
You must use an SD card to record video or take photos
Q: How long does the battery last on a full charge?
A: On a full charge you will get around 2 to 3 hours of use
depending on the settings that you have selected
Q: I have connected the device to my PC to charge, I see the letters
MSDC on the screen, what does this mean?
A: This basically indicates that the Li-ion battery is being charged
Q: I have recorded video but there is no audio
A: Make sure you have selected to record audio in the setup menu
Q: I can see a number of video files on the SD card, why can’t it
record one file?
A: The Car Camera device can record in 2, 5 and 15 minute blocks.
Select the appropriate setting for your needs
pg11
Car Camera
User Manual Car Camera
Warranty
A. AUSTRALIAN WARRANTY
The warranties and conditions below apply to products sold in Australia only.
B. THE KAISER BAAS TWELVE (12) MONTH WARRANTY
In relation to your purchase of a Kaiser Baas Product (“Product”), in addition to
any warranties/guarantees that cannot by law be excluded, Kaiser Baas warrants
to you that subject to the conditions and exclusions below, Kaiser Baas will, at its
option, repair or replace any Product which is defective and is returned to Kaiser
Baas within twelve (12) months of the date of purchase.
C. DETAILS OF WARRANTOR
The details of the Warrantor are as follows:
Warrantor: Lako Pacific Pty Ltd
ABN: 55606759651
Business address: 92 McEwan Road, Heidelberg Heights, VIC 3081
Phone: 1300 302 306
Email: helpdesk@kaiserbaas.com
D. PROCEDURE FOR WARRANTY CLAIMS
To make a warranty claim, you must:
(1 Deliver or send the defective Product to Kaiser Baas at its address shown above,
together with proof of purchase in the form of a dated receipt or tax invoice,
and a description of the Product’s defect/s. It is your responsibility to ensure that
in delivering the defective Product to Kaiser Baas, the Product is suitably pack
aged so that it is adequately protected against damage during transit.
(2) Prior to delivering the defective Product to Kaiser Baas, you should (if applicable),
remove all files or data stored on the Product which you consider private or
confidential.
(3) On receipt of the defective Product, proof of purchase and description of the
Product’s defect/s as required above, Kaiser Baas will assess the claim and notify
you of the claim’s outcome.
(4) Any expense associated with making a claim under the Kaiser Baas twelve
pg12
Car Camera
User Manual Car Camera
pg13
E. EXCLUSIONS FROM TWELVE (12) MONTH WARRANTY
The Kaiser Baas twelve (12) month warranty does not apply if the Product:
• Ismodifiedortamperedwith;
• IsdamagedbyactofGod,powersurge,misuse,abuse,negligence,
accident, mishandling, wear and tear, misapplication, or other causes
unrelatedtodefectivematerialsorworkmanship;
• Isdamagedbyprograms,data,virusesorfiles,orduringshipment;
• Isnotusedinaccordancewiththeaccompanyingdocumentation
andinstructions;
• Isrepaired,modifiedoralteredbyanyoneotherthanKaiserBaas;
• Ison-sold,assigned,transferredorleasedtoathirdparty.
F. EXCLUSIVE REMEDY
It is a condition of the Kaiser Baas twelve (12) month warranty that in
making your claim:
(1) Kaiser Baas is not liable to you for any loss of your data or information stored
ontheProductresultingfromtherepairorreplacementoftheProduct;and
(2) The repair or replacement of the Product is your exclusive remedy.
G. NO OTHER WARRANTIES
The twelve (12) month Kaiser Baas warranty referred to above is the only
express warranty given to you, and subject to any applicable laws that can
not be excluded, is provided in lieu of all other express or implied
warranties and conditions (if any) including any created by any other
documents or packaging. No information (oral or written) or statements
made by Kaiser Baas, its agents or suppliers, or its or their employees are to
be taken as amounting to a warranty or condition or expanding the scope
of the Kaiser Baas twelve (12) month warranty, and if any such information
or statements have been made they are hereby withdrawn.
H. CONSUMER RIGHTS
You may have the benefits of other rights and remedies pursuant to law
in relation to your purchase of the Product in respect of which liability may
not be excluded or restricted. The conditions of the Kaiser Baas twelve (12)
month warranty referred to above are subject to, and do not affect, such
other rights and remedies.
Car Camera
User Manual Car Camera
pg14
I. NOTICE
Our goods come with guarantees that cannot be excluded under the
Australian Consumer Law. You are entitled to a replacement or refund for a
major failure and for compensation for any other reasonably foreseeable loss
or damage. You are also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not amount to a
major failure.
www.kaiserbaas.com
Loading...
