Kaisai KPC-09AI Installation And Service Manual

Download

PORTABLE AIR

CONDITIONER

Instrukcja montażu i obsługi

KPC-09AI

Thank you for choosing our product. For proper operation, please read and keep this manual carefully.

If you have lost the Owner’s Manual, please contact the local agent or visit www.kaisai.pl or sent email to: handlowy@fgpoland.pl, for electronic version.

Operation environment

Safety warning

for commercial industry.

● Do not operate the air conditioner at humid environ-

ment.

● During operation, close doors and windows to improve

● Please keep air inlet and air outlet clean, no obstacles.

cooling effect.

und for operation to avoid noise and vibration.

● Please put the air conditioner at smooth and flat gro-

should slide at smooth and flat ground.

● Prohibit inclining or turn over the air conditioner. If th- ere’s abnormity, please disconnect power immediately and contact dealer.

30cm

● Children shall not play with the appliance.

● Cleaning and user maintenance shall not be made by children without

supervision.

● persons with reduced physical, sensory ormental capabilities or lack of experience and knowledge if they have been given supervision or instruction

involved.

oner and pull out the power plug.

conditioner.

sional person.

that on nameplate.

● Make sure the power cord hasn’t been pressed by hard objects.

● Do not pull or drag the power cord to pull out the power plug or move the air

● If the supply cord is damaged, it must be replaced by the manufacturer or its

● Do not insert or pull out the power plug with wet hands.

● If the power cord is damaged, it must be replaced by manufacturer or profes-

Operation Notices

Operation environment ....................................................................................... 32

Safety warning .................................................................................................... 32

Part's Name ........................................................................................................ 35

Content

Operation Guide

Operation introduction for control panel ............................................................... 36

Buttons on remote controller ................................................................................ 37

Introduction for icons on display screen ............................................................... 37

Operation introduction of remote controller ......................................................... 38

Disassembly and assembly of batteries for remote controller ............................. 40

Simple operation and other function introduction ................................................ 41

Maintenance

Clean and maintenance ...................................................................................... 42

Checking before use-season .............................................................................. 43

Checking after use-season ................................................................................. 43

Long-time storage ............................................................................................... 43

Notice for recovery .............................................................................................. 43

Malfunction

Malfunction analysis ........................................................................................... 44

Installation Notice

Installation and Maintenance .............................................................................. 46

Preparation before installation ............................................................................ 48

Installation

Install wire hook .................................................................................................. 49

Install drainage pipe ............................................................................................ 50

Accessories and installation of heat exhaust hose ............................................. 51

Install window frame ........................................................................................... 52

Installation in a double-hung sash window ......................................................... 53

Installation in a sliding sash window ................................................................... 54

Installation and disassembly of heat discharge pipe .......................................... 55

Operation test ..................................................................................................... 56

Attached sheet

Drainage way ..................................................................................................... 57

Electric schematic diagram ................................................................................ 58

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

R410A(R32/125: 50/50): 2087.5

The graphic in this instruction manual is only the diagrammatic sketch, please refer to the actual product.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from un- controlled waste disposal, recycle it responsibly to promote the sustainable reuse of mate- rial resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for envi- ronmental safe recycling.

Operation environment

for commercial industry.

● Do not operate the air conditioner at humid environ-

ment.

● Please keep air inlet and air outlet clean, no obstacles.

● During operation, close doors and windows to improve cooling effect.

● Please put the air conditioner at smooth and flat gro- und for operation to avoid noise and vibration.

should slide at smooth and flat ground.

● Prohibit inclining or turn over the air conditioner. If th- ere’s abnormity, please disconnect power immediately and contact dealer.

30cm

Safety warning

● persons with reduced physical, sensory ormental capabilities or lack of experience and knowledge if they have been given supervision or instruction

involved.

● Children shall not play with the appliance.

● Cleaning and user maintenance shall not be made by children without

supervision.

that on nameplate.

oner and pull out the power plug.

● Make sure the power cord hasn’t been pressed by hard objects.

● Do not pull or drag the power cord to pull out the power plug or move the air

conditioner.

● Do not insert or pull out the power plug with wet hands.

● If the supply cord is damaged, it must be replaced by the manufacturer or its

● If the power cord is damaged, it must be replaced by manufacturer or profes-

sional person.

Part's Name

Note:

Heat-removal pipe and other installation accessories can't be discarded.

control panel

handle

vertical louver

horizontal louver

air outlet

castor

heat removal pipe

joint B

joint A

air outlet (condenser)

plug of power cord

wire-fixing hook

remote controller

grille

joint C

air inlet

remote controller box

Safety warning

● If abnormal condition occurs (e.g. burned smell), please disconnect power at once and then contact local dealer.

● When nobody is taking care of the unit, please turn it off and remove the po- wer plug or disconnect power.

● Do not splash or pour water on air conditioner. Otherwise, it may cause short circuit or damage to air conditioner.

● If use drainage hose, nearby temperature can’t lower than 0℃. Otherwise, it will cause water leakage to air conditioner.

● Prohibit operating heating equipment around the air conditioner.

● Far away from fire source, inflammable and explosive objects.

● Children and disabled people are not allowed to use the dehumidifier without supervision.

● Keep children from playing or climbing on the air conditioner.

● Do not put or hang dripping objects above the air conditioner.

● Do not repair or disassemble the air conditioner by yourself.

● Prohibit inserting any objects into the air conditioner.

Part's Name

control panel

handle

remote controller box

air outlet

horizontal louver

vertical louver

castor

air inlet

grille

joint C

joint B

heat removal pipe

joint A

air outlet (condenser)

plug of power cord

wire-fixing hook

remote controller

Note:

Heat-removal pipe and other installation accessories can't be discarded.

Operation introduction for control panel

Buttons on remote controller

Introduction for icons on display screen

ON/OFF button

MODE button

+/- button

FAN button

SWING button

SLEEP button

TIMER button

AUTO OPERATION COOL OPERATION

DRY OPERATION

FAN OPERATION

HEAT OPERATION

TIMER ON

TIMER OFF

SIGNAL-SENDING

SWING OPERATION SLEEP OPERATION

LOCK SET SPEED

SET TEMPERATURE SET TIME

Note:

This remote controller is the universal remote controller. Some function is not

available for this unit.

Name of control panel

temperature adjustment button

fan speed indicator

dual-8 nixie tube

ON/OFF button

fan speed button

cool mode indicator

fan mode indicator

signal receiving window

dry mode indicator

mode button

Operation of control panel

Note:

● After putting through the power, the air conditioner will give out a sound. After that, you can operate the air conditioner by the control panel.

● Under ON status, after each pressing of the button on control panel, the air conditioner

will give out a sound. Meanwhile, corresponding indicator on control panel will be bright.

● Under OFF status, dual-8 nixie tube on control panel won’t display. Under ON status, dual-8 nixie tube on control panel will display set temperature under cooling mode, while it won’t display under other modes.

ON/OFF button

Press this button can turn on or turn off the air conditioner.

“+”, “-” button

Under cooling mode, press “+” or “-” button to increase or decrease set temperature 1ºC(ºF). Set temperature is range is 16ºC(61

button is invalid.

MODE button

Press this button and the mode will circulate according to below sequence: COOL→DRY→FAN COOL: Under this mode, cooling mode indicator is bright. Corresponding fan speed indicator

DRY: Under this mode, drying mode indicator is bright. Low speed indicator is also bright.

FAN: Under this mode, the air conditioner only blow fan. Fan indicator and corresponding

Note: Before turning on COOL or DRY mode, you must install the heat-removal pipe at first.

Press this button and the fan speed will circulate as “low speed→ medium speed → high speed→ auto fan→ low speed”. Note: This button is invalid under DRY mode.

is also bright. Dual-8 nixie tube displays set temperature. Temperature setting range

ºC

is 16

Fan speed can’t be adjusted. Dual-8 nixie tube won’t be display.

fan speed indicator are bright. Dual-8 nixie tube won’t be display.

It’s unnecessary to install heat-removal pipe under only FAN mode.

FAN SPEED button

~30ºC.

ºF)~30ºC(86

ºF). Under auto, drying or fan mode, this

Buttons on remote controller

ON/OFF button

MODE button

+/- button

FAN button

SWING button

SLEEP button

TIMER button

Introduction for icons on display screen

TIMER ON

AUTO OPERATION COOL OPERATION

DRY OPERATION

FAN OPERATION

HEAT OPERATION

SET TEMPERATURE SET TIME

TIMER OFF

SIGNAL-SENDING

SWING OPERATION SLEEP OPERATION

LOCK SET SPEED

Note:

This remote controller is the universal remote controller. Some function is not

available for this unit.

Operation introduction of remote controller

Swing button (not applicable for this model)

Press this button to turn on up&down swing.

SLEEP button

TIMER button

Under COOL, HEAT or HEAT mode, press this button to turn on sleep function. Press this button again to cancel sleep function. This function is not available for FAN mode and AUTO mode.

display. Press “+” or “-” button to adjust TIMER OFF setting within 5s. After each pressing of “+” or “-” button, timer setting will increase or decrease 0.5h. If hold “+” or “-” button, time will change quickly after 2s, and loose the button until reach

● Under ON status, press this button to set TIMER OFF. “T-OFF” and “H” flash to

● Under AUTO fan speed, air conditioner will select proper fan speed according to

ex-factory setting.

● Fan speed can’t be adjusted under DRY mode.

to your required time. Press “TIMER” button to confirm it. “T-OFF” and “H” won’t flash any more.

OFF procedure for detailed operation. Cancel TIMER ON/TIMER OFF: Under TIMER setting status, press TIMER

● Under OFF status, press this button to set TIMER ON. Please refer to TIMER

button once to display residual time. Press TIMER button again within 5s to cancel TIMER.

AUTO

first notch (same as low speed on control panel)

second notch (same as medium speed on control panel)

third notch (same as high speed on control panel)

fourth notch

Note:

● Time setting range: 0.5-24h.

roller will exit setting status automatically.

● Time interval between two operations can’t exceed 5s. Otherwise, remote cont-

Note:

● After putting through the power, the air conditioner will give out a sound. After

that, you can operate the air condition by remote controller.

● Under ON status, after each pressing of the button on remote controller, sign-

al-sending icon on display screen of remote controller “ ” will flash once. If the air conditioner gives out a sound, it indicates the signal has been send to air

conditioner.

● Under OFF status, display screen of remote controller displays set temperature.

Under ON status, display screen displays corresponding function icon of the air

conditioner.

ON/OFF button

Press this button can turn on or turn off the air conditioner.

MODE button

Press this button and the mode will circulate according to below sequence: AUTO→ COOL→DRY→FAN→HEAT (This function is only applicable for heat pump unit). After you selecting mode, corresponding will be bright.

AUTO COOL DRY FAN HEAT

● After selecting AUTO mode, air conditioner will operate automatically according

to ex-factory “FAN” button to adjust fan speed.

● After selecting COOL mode, air conditioner will operate under cooling mode.

Press “+” or “-” button can adjust set temperature. Press “FAN” button to adjust fan speed.

● After selecting DRY mode, air conditioner will operate under drying mode at low

speed. Fan speed can’t be adjusted.

● After selecting fan mode, air conditioner only blow fan. Press “FAN” button to

adjust fan speed.

● Cooling only unit can’t receive heating mode signal. If set HEAT mode by remote

controller, press ON/OFF button can’t turn on the air conditioner.

+/- button

● After each pressing “+” or “-” button, set temperature will increase or decrease

1ºC(ºF). When holding “+” or “-” button, 2s later, set temperature will change

quickly. Loose the button on remote controller after setting temperature. (tempe- rature can’t be adjusted under auto mode)

● Under TIMER ON, TIMER OFF or clock setting, press “+” or “-” button to adjust

time. (refer to TIMER button for detailed setting)

FAN button

setting. Set temperature can’t be adjusted and displayed. Press

Press this button to select fan speed in sequence: auto (AUTO), first notch ( ), second notch ( ), third notch ( ), fourth notch ( ) (this function is not available for this air conditioner. Fourth notch is same as third notch).

Operation introduction of remote controller

AUTO

first notch (same as low speed on control panel)

third notch (same as high speed on control panel)

Note:

● Under AUTO fan speed, air conditioner will select proper fan speed according to

ex-factory setting.

● Fan speed can’t be adjusted under DRY mode.

Swing button (not applicable for this model)

Press this button to turn on up&down swing.

SLEEP button

Under COOL, HEAT or HEAT mode, press this button to turn on sleep function. Press this button again to cancel sleep function. This function is not available for FAN mode and AUTO mode.

TIMER button

● Under ON status, press this button to set TIMER OFF. “T-OFF” and “H” flash to

second notch (same as medium speed on control panel)

fourth notch

● Under OFF status, press this button to set TIMER ON. Please refer to TIMER

OFF procedure for detailed operation. Cancel TIMER ON/TIMER OFF: Under TIMER setting status, press TIMER button once to display residual time. Press TIMER button again within 5s to cancel TIMER.

Note:

● Time setting range: 0.5-24h.

● Time interval between two operations can’t exceed 5s. Otherwise, remote cont-

roller will exit setting status automatically.

Child lock function: press “+” and “-” buttons simultaneously can turn on or turn

won’t send signal.

remote controller is ON. If you operate the remote controller, remote controller

Temperature display switchover function: Under OFF status, press “-” button

and “MODE” button simultaneously can switch between

C and

ºF.

off child lock function. When child lock function is started up, LOCK indicator on

1. After putting through power, press ON/OFF button on remote controller to turn

2. Press MODE button to select your required operation mode: AUTO, COOL,

3. Press “+” or “-” button to set your required temperature. (temperature can’t

on the air conditioner.

DRY, FAN.

adjusted under AUTO mode)

4. Press FAN button to select your required fan speed: auto, first notch, second notch, third notch, fourth notch (fourth notch is same as third notch for this air conditioner.)

Simple operation and other function introduction

Other function

Simple operation

Light function:

Under switch-on or switch-off state, you may hold "+"and "FAN"

buttons simultaneously for 3 seconds to set the lamp on or off and send the code.

After being energizedthe lamp is defaulted on

Disassembly and assembly of batteries for remote controller

1. Press the mark “ ” on back cover of batteries box cover for remote controller with fingers as shown in the fig, and then remove the batteries box cover along the arrow direction.

2. Replace with two #7 (AAA 1.5V) dry batteries. Make sure positions for “+” pole and “-” pole are correct.

3. Reinstall batteries box cover.

Battery

Reinstall

Remove

Note:

● During operation, point the signal sender at the signal receiving window on

indoor unit.

● Distance between signal sender and receiving window can’t exceed 8m and

there should no obstacles between them.

● As for the room with fluorescence lamp or wireless telephone, signal can be

interfered easily. Try you best to put you remote controller close to indoor unit.

● When replacing batteries, do use two new same mode batteries.

● If you won’t use your remote controller for a long time, take out the batteries.

● If display on remote controller is light or no display, please replace batteries.

Cover of battery box

Operation of remote controller box

Press the position marked with “ ” on remote controller box cover with fingers as shown in the fig, and the remote controller box cover will bounce automatically. Put the remote controller into it and then reinstall the remote controller box cover.

Simple operation and other function introduction

Simple operation

1. After putting through power, press ON/OFF button on remote controller to turn on the air conditioner.

2. Press MODE button to select your required operation mode: AUTO, COOL, DRY, FAN.

3. Press “+” or “-” button to set your required temperature. (temperature can’t adjusted under AUTO mode)

4. Press FAN button to select your required fan speed: auto, first notch, second notch, third notch, fourth notch (fourth notch is same as third notch for this air conditioner.)

Other function

Child lock function: press “+” and “-” buttons simultaneously can turn on or turn

off child lock function. When child lock function is started up, LOCK indicator on

remote controller is ON. If you operate the remote controller, remote controller

won’t send signal.

Temperature display switchover function: Under OFF status, press “-” button

and “MODE” button simultaneously can switch between

Light function:

buttons simultaneously for 3 seconds to set the lamp on or off and send the code. After being energizedthe lamp is defaulted on

Under switch-on or switch-off state, you may hold "+"and "FAN"

C and

ºF.

Checking before use-season

Checking after use-season

1. Check whether air inlets and air outlets are blocked.

2. Check whether plug and socket are in good condition.

3. Check whether filter is clean.

4. Check whether batteries is installed in remote controller.

5. Check whether joint, window bracket and heat-removal pipe are installed tightly.

6. Check whether heat-removal pipe is damaged.

1. Disconnect power supply.

2. Clean filter and outer case.

3. Remove dust and sundries on the air conditioner.

4. Eliminate accumulated water in chassis (refer to the section of "discharge me- thod" for details).

5. Check whether window bracket is damaged or not. If yes, please contact dealer.

Long-time storage

If you don't use the air conditioner for a long time, please maintain it by following steps for good performance:

● Make sure there's no accumulated water in chassis and the heat-removal pipe is

● Pull out the plug and wrap the power cord.

● Clean the air conditioner and pack it well to prevent dust.

disassembled.

Notice for recovery

● Many packing materials are recyclable materials. Please deal with them through

● If you want to throw away the air conditioner, please contact local division or co-

local recycle bin.

nsultant service center for the correct disposal method.

Clean and maintenance

Warning:

● Before cleaning the air conditioner, please turn off the unit and disconnect power. Otherwise, it may cause electric shock.

● Do not wash air conditioner with water. Otherwise, it may cause electric shock.

● Do not use volatile liquid (such as thinner or gas) to clean the air conditioner. Otherwise, it may damage the appearance of air conditioner.

Clean outer case and grille

Clean outer case: If there's dust on the surface of outer case, please use soft towel to wipe it. If the outer case is very dirty (such as grease), please use neutral ablu- ent to wipe it. Clean grille: Use cleaner or soft brush to clean it.

Clean filter

1. Remove the filter;

a. Press the clasp as shown in the fig, and then remove the filter 1; b. Pull out the filter 2.

clasp

filter 1

filter 2

2. Clean filter

Use cleaner or water to clean the filter. If the filter is very dirty (such as grease),

ºC

use warm water 40 at shady place to dry it.

3. Install filter

After the filer is cleaned and dried, reinstall it well.

Note:

● The filter should be cleaned about once every three months. If there's much dust in the operation environment, you can increase clean frequency.

● Do not dry the filter with fire or hair drier. Otherwise, it may be deformed or catch fire.

(104ºF) melted with neutral abluent to clean it and then put

Clean heat-removal pipe

Remove the heat-removal pipe from air conditioner, clean and dry it, and then rei- nstall it. (For the method of installation and removal method, please refer to the instruction for Install and Remove Heat-removal Pipe).

Checking before use-season

1. Check whether air inlets and air outlets are blocked.

2. Check whether plug and socket are in good condition.

3. Check whether filter is clean.

4. Check whether batteries is installed in remote controller.

5. Check whether joint, window bracket and heat-removal pipe are installed tightly.

6. Check whether heat-removal pipe is damaged.

Checking after use-season

1. Disconnect power supply.

2. Clean filter and outer case.

3. Remove dust and sundries on the air conditioner.

4. Eliminate accumulated water in chassis (refer to the section of "discharge me- thod" for details).

5. Check whether window bracket is damaged or not. If yes, please contact dealer.

Long-time storage

If you don't use the air conditioner for a long time, please maintain it by following steps for good performance:

● Make sure there's no accumulated water in chassis and the heat-removal pipe is

disassembled.

● Pull out the plug and wrap the power cord.

● Clean the air conditioner and pack it well to prevent dust.

Notice for recovery

● Many packing materials are recyclable materials. Please deal with them through

local recycle bin.

● If you want to throw away the air conditioner, please contact local division or co-

nsultant service center for the correct disposal method.

Malfunction analysis

Phenomenon Troubleshooting Solution

There's off

flavour

There's

abnormal sound

during operation

Set temperature

can't be adjusted.

You can heard

water-flowing

sound

You can heard

the sound of

"PAPA"

● Whether evaporator is defrosted

(observe it by pulling out the

● Whether the unit operates under

auto mode?

● Whether the required

temperature exceeds the temperature setting range?

● There’s off-flavour source in the

room, such as furniture,

● Whether the unit is interfered by

thunder, radio, etc?

● Whether the unit is turned on or

turned off just now?

● Whether the unit is turned on or

turned off just now?

cigarette etc.

filter)

● It's the normal phenomenon.

Air conditioner is defrosting. After defrosting is finished, it

● Temperature can't be adjusted

under auto mode.

● Temperature emperature se-

● Eliminate the

off-flavour source.

● Clean the filter.

● Disconnect power, put through

tting range: 16℃-30

℃

the power again, and then turn

● There’s flowing sound of refri-

● Heat expansion or shrinkage for the

gerant inside the air conditioner,

which is the normal phenomenon.

on the unit again.

panel due to change of temperature, which cause friction sound.

will resume operation.

Malfunction code

Chassis is full of water.

Malfunction of ambient temperature sensor.

Please contact previsional person to deal with it.

Malfunction of evaporator temperature sensor.

Please contact previsional person to deal with it.

1. Pour out the water inside chassis.

2. If "H8" still exits, please contact professional

person to maintain the unit.

1.Refrigerant is leaking

2.System is blocked

1. Re-energize the unit after turning off and pulling out the plug for 30min;

2. If there's still malfunction, please contact

after-sales service.

Overload protection for compressor

Overload malfunction

1. Check if the unit is under high-temperature

and high-humidity environment; if ambient temperature is too high, power off the unit and then energize it for operation after the

ambient temperature drops to 35°C below.

2. Check if the evaporator and condenser are blocked by some objects; if yes, take away

the objects, power off the unit and then energize it for operation.

3. If the malfunction still occur, please contact

our after-sales service center.

Outdoor tube temperature sensor is open/short-circuited.

Please

contact after-sale service person

to deal with it.

Malfunction analysis

General phenomenon analysis

Please check below items before asking for maintenance. If the problem still can't be solved, please contact dealer or professional person.

Phenomenon Troubleshooting Solution

Air conditioner

can't operate

Poor cooling

Air conditioner

can't receive

signal from

remote controller

or remote

controller is not

No fan blowed

out from air

conditioner

(heating)

sensible.

● Power failure?

● Is plug loose?

● Whether the air switch is tripped off or fuse is burnt? replace air switch or fuse.

● Is there's malfunction for the

circuit?

● Whether the unit is restarted up after stopping immediately?

● Is the power too low?

● Whether the air filter is too dirty?

● Whether the set temperature is proper?

● Whether door and window are closed?

● Whether the unit is interfered seriously (such as static pressure, unstable voltage)?

● Whether remote controller is within the receiving range?

● Whether it's blocked by obstacles?

● Is sensitivity of remote controller low?

● Whether there’s fluorescence lamp in the room?

● Whether air outlet or air inlet is blocked?

● Under heating mode, whether

indoor temperature is reached

to set temperature?

● Whether heating mode is started up just now?

● Wait after power recovery.

● Reinsert the plug.

● Ask professional person to

replace circuit.

● Wait after voltage is resumed.

● Clean the air filter.

● Adjust the temperature.

● Close door and window.

● Please pull out the plug. Insert

the plug after about 3min, and

then turn on the unit.

● The receiving range of remote

controller is 8m.

Do not

exceed this range.

● Remove the obstacles.

● Check the batteries of remote

controller. If the power is low, please replace the batteries.

● Move the remote controller

close to air conditioner.

● Turn off the fluorescence lamp and try it again.

● Eliminate the obstacles.

● Indoor unit will stop blowing

fan after reaching to set temperature.

● In order to prevent cold air, air conditioner will delay for a

while to be started up, which is the normal phenomenon.

Malfunction analysis

Phenomenon Troubleshooting Solution

Set temperature

can't be adjusted.

There's off

flavour

There's

abnormal sound

during operation

You can heard

water-flowing

sound

You can heard

the sound of

"PAPA"

● Whether evaporator is defrosted

(observe it by pulling out the filter)

● Whether the unit operates under

auto mode?

● Whether the required

temperature exceeds the temperature setting range?

● There’s off-flavour source in the

room, such as furniture, cigarette etc.

● Whether the unit is interfered by

thunder, radio, etc?

● Whether the unit is turned on or

turned off just now?

● Whether the unit is turned on or

turned off just now?

● It's the normal phenomenon.

Air conditioner is defrosting. After defrosting is finished, it will resume operation.

● Temperature can't be adjusted

under auto mode.

● Temperature emperature se-

tting range: 16℃-30

● Eliminate the

off-flavour source.

℃

● Clean the filter.

● Disconnect power, put through

the power again, and then turn on the unit again.

● There’s flowing sound of refri-

gerant inside the air conditioner,

which is the normal phenomenon.

● Heat expansion or shrinkage for the

panel due to change of temperature, which cause friction sound.

Malfunction code

Chassis is full of water.

Malfunction of ambient temperature sensor.

Malfunction of evaporator temperature sensor.

1.Refrigerant is leaking

2.System is blocked

Overload protection for compressor

Overload malfunction

1. Pour out the water inside chassis.

2. If "H8" still exits, please contact professional

person to maintain the unit.

Please contact previsional person to deal with it.

1. Re-energize the unit after turning off and pulling out the plug for 30min;

2. If there's still malfunction, please contact

after-sales service.

1. Check if the unit is under high-temperature

and high-humidity environment; if ambient temperature is too high, power off the unit and then energize it for operation after the

ambient temperature drops to 35°C below.

2. Check if the evaporator and condenser are blocked by some objects; if yes, take away

the objects, power off the unit and then energize it for operation.

3. If the malfunction still occur, please contact

our after-sales service center.

Outdoor tube temperature sensor is open/short-circuited.

Please to deal with it.

contact after-sale service person

Malfunction analysis

Installation and Maintenance

Safety precaution

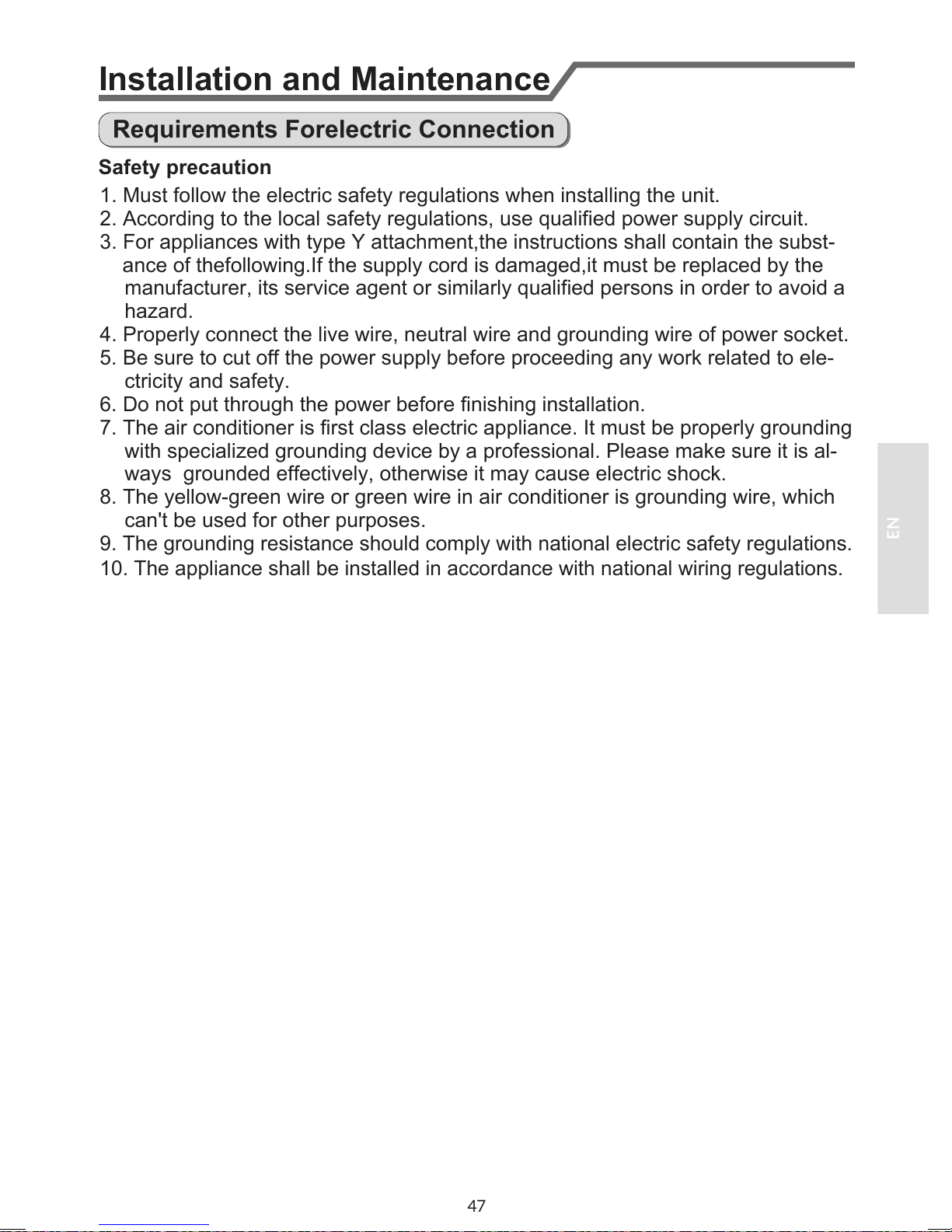

1. Must follow the electric safety regulations when installing the unit.

3. For appliances with type Y attachment,the instructions shall contain the subst-

4. Properly connect the live wire, neutral wire and grounding wire of power socket.

5. Be sure to cut off the power supply before proceeding any work related to ele-

6. Do not put through the power before finishing installation.

7. The air conditioner is first class electric appliance. It must be properly grounding

8. The yellow-green wire or green wire in air conditioner is grounding wire, which

9. The grounding resistance should comply with national electric safety regulations.

10. The appliance shall be installed in accordance with national wiring regulations.

2. According to the local safety regulations, use qualified power supply circuit.

ance of thefollowing.If the supply cord is damaged,it must be replaced by the

manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

ctricity and safety.

with specialized grounding device by a professional. Please make sure it is al- ways grounded effectively, otherwise it may cause electric shock.

can't be used for other purposes.

Requirements Forelectric Connection

Installation and Maintenance

Warning

■ If there're below phenomenons, please turn off the air conditioner and disco- nnect the power immediately, and then contact dealer immediately.

● Power cord is overheating or damaged.

● Abnormal sound during operation.

● Off-flavor.

● Water leakage

■ Do not repair or refit the air conditioner by yourself.

■ If operate the air conditioner under abnormal condition, it may cause malfunc- tion, electric shock or fire hazard.

Warnings:

● Observe all governing codes and ordinances.

● Do not use damaged or non-standard power cord.

● Be caution during installation and maintenance. Prohibit incorrect operation to prevent electric shock, casualty and other accidents.

Selection of Installation Location

Basic requirement

Installing the unit in the following places may cause malfunction. If it is unavoid- able, please consult the local dealer:

1. The place with strong heat sources, vapors, flammable or explosive gas, or vo- latile objects spread in the air.

2. The place with high-frequency devices (such as welding machine, medical eq- uipment).

3. The place near coast area.

4. The place with oil or fumes in the air.

5. The place with sulfureted gas.

6. Other places with special circumstances.

Requirement of air conditioner

1. Air inlet should be far away from obstacles and do not put any objects near air

outlet. Otherwise, it will affect the radiation of heat-removal pipe.

2. Select a location where the noise and outflow air emitted by the outddor unit will

not affect neighborood.

3. Please try your best to keep far away from fluorescent lamp.

4. The appliance shall not be installed in the laundry.

Installation and Maintenance

Requirements Forelectric Connection

Safety precaution

1. Must follow the electric safety regulations when installing the unit.

2. According to the local safety regulations, use qualified power supply circuit.

3. For appliances with type Y attachment,the instructions shall contain the subst-

ance of thefollowing.If the supply cord is damaged,it must be replaced by the

manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

4. Properly connect the live wire, neutral wire and grounding wire of power socket.

5. Be sure to cut off the power supply before proceeding any work related to ele- ctricity and safety.

6. Do not put through the power before finishing installation.

7. The air conditioner is first class electric appliance. It must be properly grounding with specialized grounding device by a professional. Please make sure it is al- ways grounded effectively, otherwise it may cause electric shock.

8. The yellow-green wire or green wire in air conditioner is grounding wire, which can't be used for other purposes.

9. The grounding resistance should comply with national electric safety regulations.

10. The appliance shall be installed in accordance with national wiring regulations.

Preparation before installation

Install wire hook

● Assemble the wire hook at the back of the unit with screws (the direction of wire hook is

● Wind the power cord around the wire hook.

as shown in following fig).

direction of wire hook is upward

wire hook

screw

direction of wire hook is downward

Note: check if the accessories are available before installation.

Accessory list

unit

screw (3) pipe clip

drainage pipe

joint A joint B joint C

Optional accessories

window frame (3)

window fastener

heat discharge pipe

rubber plug

battery (2)

(AAA 1.5V)wire hook (2)

remote controller

user's manual

Optional accessories：some models are without the following accessories.

clip of rear connection plate (4)

sponge B (adhesive) (2)

sponge A

support (2)

rain shield (1) protective grille (1)

Tools needed for installation

cross screwdriver straight screwdriver saw

gauge scissors pencil

screw (7) nut (4) bolt (4)

spring washer (4) washer (4)

Install wire hook

● Assemble the wire hook at the back of the unit with screws (the direction of wire hook is

as shown in following fig).

direction of wire hook is upward

wire hook

screw

● Wind the power cord around the wire hook.

direction of wire hook is downward

Accessories and installation of heat exhaust hose

● The length of the exhaust pipe is less than 1m. It is recommended to use it with shortest

● When installing, exhaust pipe should be as flat as possible. Don't prolong the pipe or connect it with other exhaust pipe, or Correct installation is as shown in figure (When

length.

installing it on wall, height of hall should be about 40cm-100cm from floor).

Wrong installation is shown in following figure (If the pipe is bent too much, it would easily cause malfunction.)

100cm

40cm

Install drainage pipe

Note: Install drainage pipe before using, otherwise poor drainage will affect normal operation

1. Remove the rubber plug at drainage port.

of the unit.

drainage port

rubber plug

2. Fix the drainage pipe clip on the right of rear side plate near drainage port with a screw.

screw

drainage port

drainage pipe clip

3. Put the drainage pipe into drainage port and screw it up, and then bind it with pipe hoop.

4. Put the rubber plug into the other side of drainage pipe, fix it with pipe hoop and then fix it in the drainage pipe clip.

pipe hoop

rubber plug

drainage pipe clip

drainage pipe

pipe hoop

drainage port

Accessories and installation of heat exhaust hose

● The length of the exhaust pipe is less than 1m. It is recommended to use it with shortest length.

● When installing, exhaust pipe should be as flat as possible. Don't prolong the pipe or connect it with other exhaust pipe, or Correct installation is as shown in figure (When

installing it on wall, height of hall should be about 40cm-100cm from floor).

100cm

40cm

Wrong installation is shown in following figure (If the pipe is bent too much, it would easily cause malfunction.)

28"(718mm)＜W≤36.5"(927mm)

36.5"(927mm)＜W≤64"(1625mm)

W≤28"(718mm)

Installation in a double-hung sash window

1. Cut the sponge B to a proper length and attach it to the window sash.

sponge B (adhesive)

2. Open the window; place the window frame on the window sash; slide the adjustment plate to make the window frame close to the window sashes at the left and right side of window; fix the window frame on the windowsill with screws and clips of rear connection plate. (required quantity is shown in the sheet below)

Window width (W)

Screw quantity

Clip quantity

window sash

clip of rear connection plate

window frame

windowsill

Window width (W)

3. Cut the sponge B to a proper length and attach it to the window frame.

sponge B (adhesive)

4. Close the window securely against the window frame.

5. Cut the sponge A to a proper length and seal the gap between upper part of inner window sash and outer window sash.

6. Fix the inner window with window bracket and screw, so that it can not slide vertically.

sponge A

outer window

inner window

plastic window

wooden window

window bracket

Install window frame

(Note: When user want to install in window, optional accessories list is necessary.

width of window is below 28"(718mm), please remove the adjusting plate and then cut the window frame to make its width the same as the width

from window frame

of window.)

If the inner

cut

1. Clamp joint C into the inner side of window frame along the direction of arrow.

2. Fix the protective grille on joint C with 2 screws.

adjusting plate

window frame

joint C

inner side

screw

3. Fix the support on the outer side of window frame with 2 nuts, spring washer, washer and bolt.

protective grille

nut

washer

spring washer

4. Fix the rain shield on the support with 2 nuts, spring washer, washer and bolt.

bolt

support

nut

spring washer

washer

bolt

rain shield

Note: protective grille, support, rain shield, nut, bolt, spring washer and washer are

optional accessories; some models are without these accessories.

Installation in a double-hung sash window

1. Cut the sponge B to a proper length and attach it to the window sash.

sponge B (adhesive)

clip of rear

Window width (W)

W≤28"(718mm)

28"(718mm)＜W≤36.5"(927mm)

36.5"(927mm)＜W≤64"(1625mm)

Screw quantity

Clip quantity

window sash

Window width (W)

3. Cut the sponge B to a proper length and attach it to the window frame.

sponge B (adhesive)

connection plate

window frame

window sash

windowsill

4. Close the window securely against the window frame.

5. Cut the sponge A to a proper length and seal the gap between upper part of inner window sash and outer window sash.

6. Fix the inner window with window bracket and screw, so that it can not slide vertically.

plastic window

sponge A

outer window

inner window

wooden window

window sash

window bracket

Installation and disassembly of heat

Install heat discharge pipe

1. Rotate joint A and joint B clockwise into the two ends of heat discharge pipe.

clockwise

joint A

joint B

heat discharge pipe

2. Insert joint A of heat discharge pipe (the side with "TOP" is upwards) into the groove until you hear a sound.

clasp

locating pole

opening

joint B

correct

correct wrong

joint C

groove

the side with "TOP" is upwards

3. Aim the locating pole of joint B of heat discharge pipe at the opening of joint C; rotate it slightly to make joint B and joint C connect tightly.

tightened status

In order to improve cooling efficiency, the heat discharge pipe should be as short as possible and flat without curve to ensure smooth heat discharge.

discharge pipe

Installation in a sliding sash window

1. Cut the sponge B to a proper length and attach it to the window sash.

sponge B (adhesive)

2. Open the window; place the window frame on the window sash vertically; slide the adjust- ment plate to make the window frame close to the window sashes at the upper and lower side of window; fix the window frame on the windowsill with screws and clips of rear conn- ection plate. (required quantity is shown in the sheet below)

Window height (H)

H≤28"(718mm)

28"(718mm)＜H≤36.5"(927mm)

Screw quantity

Clip quantity

window sash

36.5"(927mm)＜H≤64"(1625mm)

3. Cut the sponge B to a proper length and attach it to the window frame.

4. Close the window securely against the window frame.

sponge B (adhesive)

window sash

clip of rear connection plate

Window height (H)

windowsill

5. Cut the sponge A to a proper length and seal the gap between left side of inner window sash and outer window sash.

6. Fix the inner window with window bracket and screw, so that it can not slide horizontally.

plastic window

window

outer window

sponge A

inner window

wooden window

sash

window bracket

Installation and disassembly of heat

Install heat discharge pipe

1. Rotate joint A and joint B clockwise into the two

ends of heat discharge pipe.

discharge pipe

clockwise

joint B

clockwise

joint A

heat discharge pipe

2. Insert joint A of heat discharge pipe (the side with "TOP" is upwards) into the groove until

you hear a sound.

clasp

groove

the side with "TOP" is upwards

locating pole

opening

3. Aim the locating pole of joint B of heat

discharge pipe at the opening of joint C; rotate it slightly to make joint B and joint C connect tightly.

joint C

joint B

tightened status

In order to improve cooling efficiency, the heat discharge pipe should be as short as possible and flat without curve to ensure smooth heat discharge.

correct

correct wrong

Drainage way

spattered by water-striking motor. As the temperature of condenser is high, most of the condensation water will be evaporated and drained to outdoor. So usually, only a little condensation water will be accumulated inside the chassis and you do not need to discharge the water frequently.

to remind user to discharge water:

horizontal during moving;

●

In cooling or drying operation, the condensation water will be drained to the chassis and

●

When the chassis is full with water, the buzzer will give out 8 sounds and "H8" is displayed

●

Move the unit to a suitable place for discharging water; do not tilt the unit and keep it

to discharge water;

●

Take the drainage pipe from the clip and pull out the rubber plug on the drainage pipe

fix the pipe on the clip;

●

Put back the rubber plug onto drainage pipe after finishing discharging water and then

minutes, the unit will resume operation.

●

After full water protection is eliminated and the compressor has been stopped for 3

Installation and disassembly of heat discharge pipe

Disassemble heat discharge pipe

1. Remove joint B:

remove joint B from joint C.

joint B

joint C

2. Remove joint A: Press the clasp and lift joint A upwards to remove it.

upwards

joint A

clasp

disassemble

Operation test

●

Put through the power supply and then press ON/OFF button on remote controller to start the unit.

●

Press mode button to select auto, cooling, drying, fan or heating function, and then check if the unit operates normally.

●

If ambient temperature is below 16ºC, the unit can't operate in cooling mode.

Drainage way

●

In cooling or drying operation, the condensation water will be drained to the chassis and

●

When the chassis is full with water, the buzzer will give out 8 sounds and "H8" is displayed

to remind user to discharge water:

●

Move the unit to a suitable place for discharging water; do not tilt the unit and keep it horizontal during moving;

●

Take the drainage pipe from the clip and pull out the rubber plug on the drainage pipe to discharge water;

●

Put back the rubber plug onto drainage pipe after finishing discharging water and then fix the pipe on the clip;

●

After full water protection is eliminated and the compressor has been stopped for 3 minutes, the unit will resume operation.

Electric schematic diagram

WATER MOTOR

DISP2

DISP1

AP2

YEGN

WATER(WATER1)

DISP2

DISP1

ROOM TEMP.

SENSOR

RT1

ROOM

HIGH-WP

COM

WATER LEVEL

SWITCH

TUBE TEMP.

SENSOR

RT2

TUBE

AP1

OUTTUBE TEMP.

SENSOR

RT3

OUTTUBE

K201

FAN

MOTOR

COMP

YEGN

YE W3

POWER

ELECTRIC BOX

BN(BK)

BU(WH)

YEGN(GN)

COMP.

MOTOR

R(M)

RD W2

COMP.

Kaisai KPC-09AI Installation And Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
