Kaindl SM180 Operation Manual

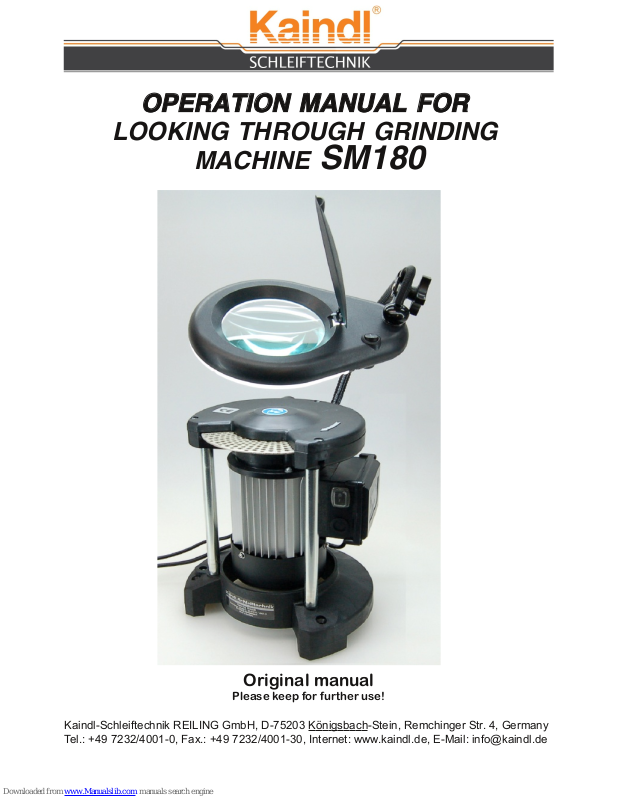

OPERATION MANUAL FOR

LOOKING THROUGH GRINDING

MACHINE SM180

Original manual

Please keep for further use!

Kaindl-Schleiftechnik REILING GmbH, D-75203 Königsbach-Stein, Remchinger Str. 4, Germany
Tel.: [phone], Fax.: [phone], Internet: www.kaindl.de, E-Mail: [e-mail]

CONTENT

EC Declaration of conformity 3

Directed means of use 4

Technical data 4

Duty of taking care by the user 5

Requirement to the operating personnel 5

Moving 5

Set up 5

Transport 5

Environmental conditions for set up 5

Operation 6

Description of the operation parts 7

Change of the grinding wheel 8

Instruction for grinding rest (option) 9

Maintenance 1 0

Spare parts list 1 0

Warranty 1 0

Repairs 1 0

2

EC DECLARATION OF CONFORMITY

The manufacturer: Kaindl-Schleiftechnik

Reiling GmbH
Remchinger Straße 4

75203 Königsbach-Stein
Germany

declares that the machine

Grinding machine

described herein: Type:

SM 180

refers to the security and health requirements EC-Machine instruction (2006/42/EC)

of the following EC instructions: EC-Instruction EMV (2004/1 08/EC)

Applied harmonised norms:

EN ISO 12100-1 and EN ISO 12100-2; EN ISO 13857; EN ISO 13732-1;
EN 61029-1, EN 60204 Part 1; EN 61000-6-1; EN 61000-6-2;
EN 61000-6-3; EN 6100 0-6-4

Changes in design, which affect the technical data, listed in this manual and the
directed use, therefore change the machine substancially, make this declaration
of conformity invalid!

The documents were compiled by: Reinhard Reiling

Kaindl-Schleiftechnik
Reiling GmbH
Remchinger Straße 4
75203 Königsbach-Stein

Königsbach-Stein, dated 29.12.2009 ..................................................

Reinhard Reiling, General Manager

3

1. DIRECTED MEANS OF USE

The

looking through grinding machine SM 180

is determined exclusively for hand
operated and occasionally grinding of different tools, as drills, cutoff tools, turning tools
and hammer drills, etc.
For other operations as listed here, the machine is not destined for. That goes for
unauthorized use.

Power: 0,1 8 KW
Revolutions: 1 405 Rpm
Electrical connection: 230 Volt /50 Hz; Option 11 0 Volt /60 Hz
Grinding wheel: Ø 1 80 mm
Coating of wheel: Diamond, electroplated
Connection for dust exhaust: Ø 35 mm
Weight: approx. 9 Kg
Noise load: below 70 db/A

2. TECHNICAL DATA

4

3. GENERAL SAFETY ADVISE

When working with the through looking grinding machine SM 1 80, always wear your
protection glasses!

The looking through grinding machine has been designed and constructed under
consideration of an endangering analyses and careful selection of oberved harmonized
norms, as well as further technical specifications. The SM 1 80 meets the state of the art and
grants a maximum of safety.

This safety can only be achieved in daily work, when all necessary steps are taken. It is the
duty of taking care by user to plan and control these steps.

The operator in particular has take care that:

• the machine is used as directed (see chapter "Description")

• the machine is use in flawless condition, expecially that the safety installations are

checked regularly for function

• requested personal security equipment for the operator is avaiilable and used

• the operation manual is always kept in a readable condition, complete and available

near the machine

• all safety and warning instructions are not removed from the machine and kept

readable

The grinding machine is only operated by personnel, who knows the operation manual and
work with correspondingly.

Moving to another place by handcarry of the SM 1 80. Here grap the columns between uper
and lower housing. Net weight: 9 Kg.

Place on a working table with height of approx. 80-95 cm. Take care for a safe stand.
The SM 1 80 can also be screwed on the working table. Please see the 3 boring holes on the
buttom of the machine.

Temperature: from +5 to +50° Celsius Humidity: from 90%, not condensing

4. DUTY OF TAKING CARE BY USER

5. REQUIREMENTTO THE OPERATING PERSONNEL

6. MOVING

7. SET UP

8. ENVIRONMENTAL CONDITIONS FOR SET UP

5

9. OPERATION

The diamond grinding wheel of the SM 1 80 is also coated on the back side, so that you
can grind from below and look from the top through the diamond wheel and see your
workpiece.

So you have full visible control of your workpiece and can correct the hand held piece if
necessary.

Please always wear your safety glasses!!!

CAUTION:

Lens cover always ust be kept

close when not in use

(Fire hezard by sunbeam)

6

10. DESCRIPTION OF THE

OPERATIONS PARTS

Optical lens LED lighted
(Option)

Diamond
wheel

Switch 0/I

Boring holes for screwing
on a work table

7

11. CHANGE OF THE GRINDING WHEEL

For changing the grinding wheel you have to
disconnect the main plug!

The threaded pin of grinding
wheels must be are tightened in
notch of the motor shaft.

threaded pin

8

12. INSTRUCTION MANUAL FOR LATER BUIDING THE

GRINDING REST ON THE SM 180

1 . Unplug the SM 1 80 and ligthed lens from electric current

(in case this option is mounted on your machine)

2. Remove the lighted lens (in case this part is mounted)

3. Lay the machine on its side, so that you can see the lower fastening screws

(M8 flat-head socket cap screw)

4. Loose all 3 screws and remove the bottom part from the columns

5. Carefully slide the grinding rest on the correspinding column (left column at the

opening for the grinding wheel).

ADVISE:

in case the grinding rest cannot be
slided from below, then unscrew the complete colukn and try to slide the grinding
rest from the other side onto the column

6. Fix the bottom part again with the 3 screws and put the machine in upright position.

9

13. MAINTENANCE

14. SPARE PARTS LIST

15. WARRANTY

16. REPAIRS

Check the circuit cable occasionally.

Artikel Nr. Bezeichnung

1 0947 Diamond grinding wheel D 1 26 (standard)
1 0948 Diamond grinding wheel D 76 (medium)
1 0949 Diamond grinding wheel D 46 (fine)
1 0946 Grinding wheel support
111 36 Plastic cover for optical lens
11 01 8 Motor SM 1 80 1 450 U/m 240 V /50 Hz
1 0960 Cleaning rubber

The warranty is

12 months

from date of shipment and refers to a

one shift work

under
conditions of a appropriate use of the machine. The gurantee includes the costs for
replacing of defect parts and assembly groups including the required working time.
Replacment can also included repaired, used parts and assemblies.

Excluded from any gurantee are:

• Wear parts

• Transport damages

• Damage by improper use of the machine

• Damage by use of force

• Damages and conequential damages caused by breach of the duty of taking care

of the user

In case of a warranty claim, we a s k you to inform us about the serial No. of the machine

.

Returns have to be authorized by us, before shipment. We reserve the right to charge
you with the transportation cost, if the return was not authorized. Spare parts or
replacment parts are transferred absolutely in our ownership.

Repairs of the looking through grinding machine are only allowed in our factory, or by
personal authorized by us. The change of wear parts is permitted.

1 0
