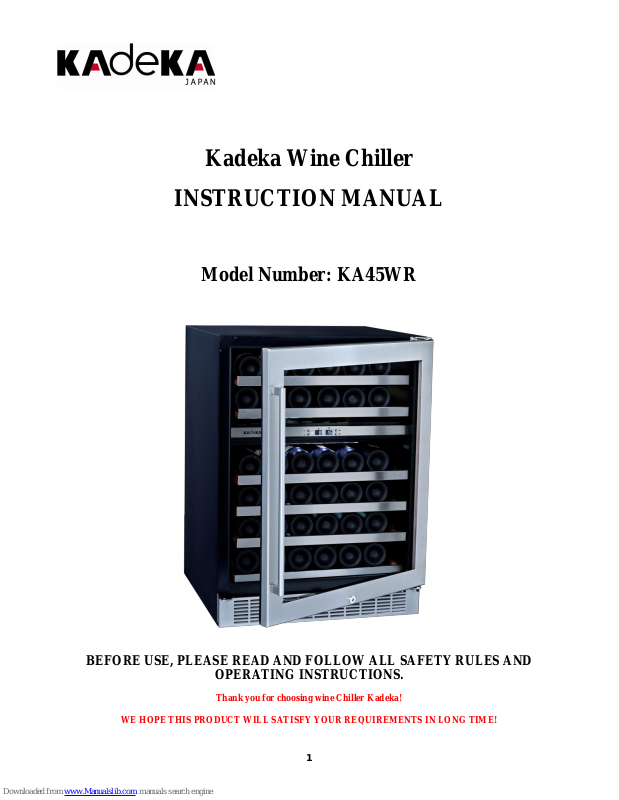

Page 1
1
Kadeka Wine Chiller
INSTRUCTION MANUAL
Model Number: KA45WR
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND
OPERATING INSTRUCTIONS.
Thank you for choosing wine Chiller Kadeka!
WE HOPE THIS PRODUCT WILL SATISFY YOUR REQUIREMENTS IN LONG TIME!
Page 2
2
PARTS & FEATURES
1. HUMIDOR
2. DIGITAL CONTROL PANEL
3. MIDDLE PARTITION
4. DOOR
5. HANDLE
6. FULL SHELVES
7. HALF SHEF
8. LEVELING LEGS
9. LOCK
10. ODOUR FILTER
11. CABINET
WARNING
To prevent damaging the door gasket, make sure to have the door all the way opened when
pulling shelves out of the rail compartment.
The appliance must be positioned so that the plug is accessible. Release the electric cord. Move
your cabinet to its final location. Do not move your Cabinet while loaded with wine. You might
distort the body. The Wine Cooler should be installed in a suitable place in order to avoid Touching
the compressor with the hand.
If the supply cord is damaged, it must be replaced by manufacturer of its Service agent or a
similarly qualified person in order to avoid a hazard.
Page 3
3
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of fire, electrical shock, or injury
when using your appliance, follow these basic
precautions:
Read all instructions before using the Wine Cooler.
DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or abandoned
appliances are still dangerous . . . even if they will “just sit in the garage a few days”.
Before you throw away your old Wine Chiller: Take off the door. Leave the
shelves in place so that children may not easily climb inside.
Never allow children to operate, play with, or crawl inside the appliance.
Never clean appliance parts with flammable fluids. The fumes can create a fire
hazard or explosion.
Do not store or use gasoline or any other flammable vapors and liquids in the vicinity
of this or any other appliance. The fumes can create a fire hazard or explosion.
-Save these instructions-
INSTALLATION INSTRUCTIONS
Before Using Your Wine Chiller
Remove the exterior and interior packing.
Before connecting the Wine Cooler to the power source, let it stand upright for approximately 2
hours. This will reduce the possibility of a malfunction in the cooling system from handling during
transportation.
Clean the interior surface with lukewarm water using a soft cloth.
Install the handle on the left side of the door.
When replace the illuminating lamp, please select the lamp which comply with the rated power
input of lamp according to the rating label. Shut off the power supply before replacing the lamp.
When disposing your appliance, please choose an authorized disposal site.
Installation of Your Wine Chiller
This appliance is designed to be for free standing installation or built-in (fully recessed).
Place your Wine Cooler on a floor that is strong enough to support it when it is fully loaded. To
level your Wine Cooler, adjust the front leveling leg at the bottom of the Wine Cooler.
Locate the Wine Cooler away from direct sunlight and sources of heat (stove, heater, radiator,
etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.
Avoid locating the unit in moist areas.
Plug the Wine Cooler into an exclusive, properly installed-grounded wall outlet. Do not under any
circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and/or grounding should be directed toward a certified electrician or an
authorized Products service center.
Page 4
4
OPERATING YOUR WINE CHILLER
These Wine Cooler should be placed in where the ambient temperature is between 5-35℃. If the ambient
temperature is above or below this range, the performance of the unit may be affected. For example,
placing your unit in extreme cold or hot conditions may cause interior temperatures to fluctuate. The
range may not be reached.
The controls of your Wine Chilller
RUN
Indicator light illuminates to signify the cooling mode is currently in operation.
To control the appliance turn on/off.
To control the inner light turn on/off.
Used to set temperature in upper zone.
Used to set temperature in lower zone.
ON/OFF Power and memory function
To turn the Wine chiller ON or OFF, press and hold the power button for 2 seconds. The LED readout
will show the last set temperature.
Setting the Temperature Control
The Wine Cooler has two temperature zones.
Upper zone – temperature range 5℃ to 12℃
Lower zone – temperature range 12℃ to 18℃
You can set the required temperature either zone by pushing the Set Upper or Set Lower button.
When you push the two buttons for the first time, the LED readout will show the previously set
temperature set for that zones .
The temperature preset at the factory are:
Upper zone:: 6℃
Lower zone: 12℃
To set the temperature in the Upper zone press Set Upper button once. The present temperature will
flash. The temperature will decrease by every time the button is pressed until minimum temperature is
reached, at which point it will then revert back to its maximum setting and start again.
To set the temperature in the Lower zone press the Set Lower button and follow the instructions
above.
To view the temperature set in either zone at any time, press the corresponding “Set Upper” or “Set
Lower” button, the “Set” temperature will temporarily flash in the LED display for 5 seconds.
Shelves
To prevent damaging the door gasket, make sure to have the door all the way opened when pulling
shelves out of the rail compartment.
For easy access to the storage content, you must pull the shelves approximately 1/3 out of the rail
compartment, however this unit was designed with a notch on each sides of the shelf tracks to prevent
bottles from falling.
Page 5
5
How to remove the Shelves
Type A
Firstly remove both of the plastic posts with the Phillips screwdriver, then pull on onward direction
to remove the shelf.
Type B
Move the shelf towards the gap on the both sides and alignment with shelf support A. Then,
upwards the shelf and pull out it from the cabinet once the shelf support disengaged from the gap.
NOTE:
If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before restarting the
unit. If you attempt to restart before this time delay, the Wine Cooler will not start.
When you use the Wine Cooler for the first time or restart the Wine Cooler after having been shut off
for a long time, there could be a few degrees variance between the temperature you select and the
one indicated on the LED readout. This is normal and it is due to the length of the activation time.
Once the Wine Cooler is running for a few hours everything will be back to normal.
CARE AND MAINTENANCE
Cleaning Your Wine Chiller
Turn off the power, unplug the appliance, and remove all items including shelves and rack.
Wash the inside surfaces with a warm water and baking soda solution. The solution should be
about 2 tablespoons of baking soda to a quart of water.
Wash the shelves with a mild detergent solution.
Wring excess water out of the sponge or cloth when cleaning area of the controls, or any electrical
parts.
Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry
with a clean soft cloth.
Power Failure
Most power failures are corrected within a few hours and should not affect the temperature of your
Page 6
6
appliance if you minimize the number of times the door is opened. If the power is going to be off for a
longer period of time, you need to take the proper steps to protect your contents.
Vacation Time
Short vacations: Leave the Wine Cooler operating during vacations of less than three weeks.
Long vacations: If the appliance will not be used for several months, remove all items and turn off
the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the
door open slightly: blocking it open if necessary.
Moving Your Wine Chiller
Remove all items.
Securely tape down all loose items (shelves) inside your appliance.
Turn the adjustable leg up to the base to avoid damage.
Tape the door shut.
Be sure the appliance stays secure in the upright position during transportation. Also protect
outside of appliance with a blanket, or similar item.
Energy Saving Tips
The Wine Cooler should be located in the coolest area of the room, away from heat producing
appliances, and out of the direct sunlight.
Page 7
7
PROBLEMS WITH YOUR WINE CHILLER?
You can solve many common Wine Cooler problems easily, saving you the cost of a possible service call.
Try the suggestions below to see if you can solve the problem before calling the servicer.
TROUBLESHOOTING GUIDE
PROBLEM
POSSIBLE CAUSE
Wine Cooler does not operate.
Not plugged in.
The appliance is turned off.
The circuit breaker tripped or a blown fuse.
Wine Cooler is not cold enough.
Check the temperature control setting.
External environment may require a higher setting.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal properly.
Turns on and off frequently.
The room temperature is hotter than normal.
A large amount of contents has been added to the Wine
Cooler.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The light does not work.
Not plugged in.
The circuit breaker tripped or a blown fuse.
The bulb has burned out.
The light button is “OFF”.
Vibrations.
Check to assure that the Wine Cooler is level.
The Wine Cooler seems to make too much
noise.
The rattling noise may come from the flow of the
refrigerant, which is normal.
As each cycle ends, you may hear gurgling sounds caused
by the flow of refrigerant in your Wine Cooler.
Contraction and expansion of the inside walls may cause
popping and crackling noises.
The Wine Cooler is not level.
The door will not close properly.
The Wine Cooler is not level.
The door was reversed and not properly installed.
The gasket is dirty.
The shelves are out of position.
Water condensation may form on the glass
door.
A natural occurrence due to high humidity ambient . Just
wipe it off.
