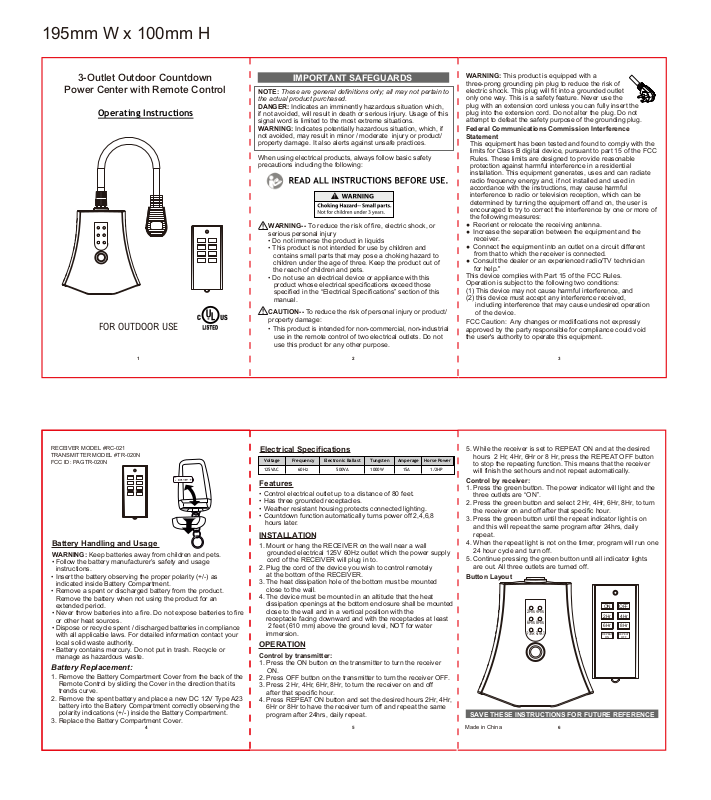

195mm W x 100mm H

3-Outlet Outdoor Countdown

Power Center with Remote Control

Operating Instructions

FOR OUTDOOR USE

1

IMPORTANT SAFEGUARDS

NOTE: These are general definitions only; all may not pertain to

the actual product purchased.

DANGER: Indicates an imminently hazardous situation which,
if not avoided, will result in death or serious injury. Usage of this
signal word is limited to the most extreme situations.
WARNING: Indicates potentially hazardous situation, which, if
not avoided, may result in minor / moderate injury or product/
property damage. It also alerts against unsafe practices.

When using electrical products, always follow basic safety
precautions including the following:

WARNING-- To reduce the risk of fire, electric shock, or
serious personal injury

• Do not immerse the product in liquids

• This product is not intended for use by children and

contains small parts that may pose a choking hazard to
children under the age of three. Keep the product out of
the reach of children and pets.

• Do not use an electrical device or appliance with this

product whose electrical specifications exceed those
specified in the “Electrical Specifications” section of this
manual.

CAUTION-- To reduce the risk of personal injury or product/
property damage:

• This product is intended for non-commercial, non-industrial
use in the remote control of two electrical outlets. Do not

use this product for any other purpose.

2 3

WARNING: This product is equipped with a

three-prong grounding pin plug to reduce the risk of

electric shock. This plug will fit into a grounded outlet
only one way. This is a safety feature. Never use the
plug with an extension cord unless you can fully insert the

plug into the extension cord. Do not alter the plug. Do not

attempt to defeat the safety purpose of the grounding plug.

Federal Communications Commission Interference
Statement

This equipment has been tested and found to comply with the

limits for Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful
interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of
the following measures:

● Reorient or relocate the receiving antenna.

● Increase the separation between the equipment and the

receiver.

● Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

● Consult the dealer or an experienced radio/TV technician

for help."
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation
of the device.

FCC Caution: Any changes or modifications not expressly
approved by the party responsible for compliance could void

the user's authority to operate this equipment.

RECEIVER MODEL #RC-021
TRANSMITTER MODEL #TR-020N
FCC ID: PAGTR-020N

Battery Handling and Usage

WARNING: Keep batteries away from children and pets.

• Follow the battery manufacturer’s safety and usage

instructions.

• Insert the battery observing the proper polarity (+/-) as

indicated inside Battery Compartment.

• Remove a spent or discharged battery from the product.

Remove the battery when not using the product for an
extended period.

• Never throw batteries into a fire. Do not expose batteries to fire

or other heat sources.

• Dispose or recycle spent / discharged batteries in compliance

with all applicable laws. For detailed information contact your
local solid waste authority.

• Battery contains mercury. Do not put in trash. Recycle or

manage as hazardous waste.

Battery Replacement:

1. Remove the Battery Compartment Cover from the back of the
Remote Control by sliding the Cover in the direction that its
trends curve.

2. Remove the spent battery and place a new DC 12V Type A23

battery into the Battery Compartment correctly observing the

polarity indications (+/-) inside the Battery Compartment.

3. Replace the Battery Compartment Cover.

4 5

Electrical Specifications

Voltage Frequency Electronic Ballast Tungsten Amperage Horse Power

125VAC 60Hz 500VA 1000W 15A 1/2HP

Features

• Control electrical outlet up to a distance of 80 feet.

• Has three grounded receptacles.

• Weather resistant housing protects connected lighting.

• Countdown function automatically turns power off 2,4,6,8

hours later.

INSTALLATION

1. Mount or hang the RECEIVER on the wall near a wall
grounded electrical 125V 60Hz outlet which the power supply
cord of the RECEIVER will plug in to.

2. Plug the cord of the device you wish to control remotely

at the bottom of the RECEIVER.

3. The heat dissipation hole of the bottom must be mounted

close to the wall.

4. The device must be mounted in an altitude that the heat

dissipation openings at the bottom enclosure shall be mounted
close to the wall and in a vertical position with the
receptacle facing downward and with the receptacles at least

2 feet (610 mm) above the ground level, NOT for water

immersion.

OPERATION

Control by transmitter:

1. Press the ON button on the transmitter to turn the receiver

ON.

2. Press OFF button on the transmitter to turn the receiver OFF.

3. Press 2 Hr, 4Hr, 6Hr, 8Hr, to turn the receiver on and off

after that specific hour.

4. Press REPEAT ON button and set the desired hours 2Hr, 4Hr,

6Hr or 8Hr to have the receiver turn off and repeat the same
program after 24hrs, daily repeat.

5. While the receiver is set to REPEAT ON and at the desired

hours 2 Hr, 4Hr, 6Hr or 8 Hr, press the REPEAT OFF button

to stop the repeating function. This means that the receiver
will finish the set hours and not repeat automatically.

Control by receiver:

1. Press the green button. The power indicator will light and the
three outlets are “ON”.

2. Press the green button and select 2 Hr, 4Hr, 6Hr, 8Hr, to turn

the receiver on and off after that specific hour.

3. Press the green button until the repeat indicator light is on

and this will repeat the same program after 24hrs, daily

repeat.

4. When the repeat light is not on the timer, program will run one
24 hour cycle and turn off.

5. Continue pressing the green button until all indicator lights
are out. All three outlets are turned off.

Button Layout

2Hrs 4Hrs

6Hrs 8Hrs

POWER REPEAT

OFFON

4Hr

2Hr

6Hr

8Hr

REPEATONREPEAT

OFF

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

Made in China
