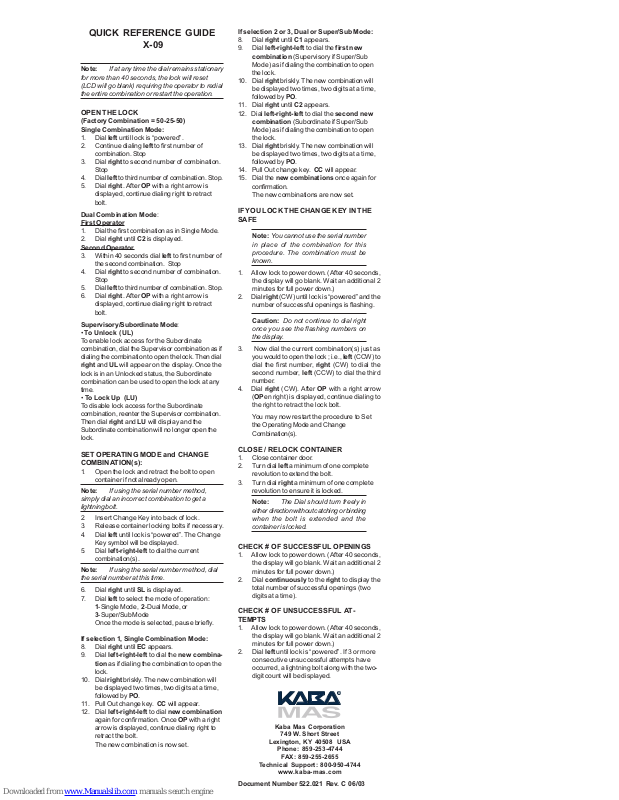

Kaba X-09 Quick Reference Manual

QUICK REFERENCE GUIDE

X-09

Note: If at any time the dial remains stationary

for more than 40 seconds, the lock will reset
(LCD will go blank) requiring the operator to redial
the entire combination or restart the operation.

OPEN THE LOCK

(Factory Combination = 50-25-50)
Single Combination Mode:

1. Dial left until lock is “powered”.

2. Continue dialing left to first number of
combination. Stop

3. Dial right to second number of combination.
Stop

4. Dial left to third number of combination. Stop.

5. Dial right. After OP with a right arrow is
displayed, continue dialing right to retract
bolt.

Dual Combination Mode:
First Operator

1. Dial the first combination as in Single Mode.

2. Dial right until C2 is displayed.

Second Operator

3. Within 40 seconds dial left to first number of
the second combination. Stop

4. Dial right to second number of combination.
Stop

5. Dial left to third number of combination. Stop.

6. Dial right. After OP with a right arrow is
displayed, continue dialing right to retract
bolt.

Supervisory/Subordinate Mode:

• To Unlock (UL)

To enable lock access for the Subordinate
combination, dial the Supervisor combination as if
dialing the combination to open the lock. Then dial
right and UL will appear on the display. Once the
lock is in an Unlocked status, the Subordinate
combination can be used to open the lock at any
time.

• To Lock Up (LU)

To disable lock access for the Subordinate
combination, reenter the Supervisor combination.
Then dial right and LU will display and the
Subordinate combination will no longer open the
lock.

SET OPERATING MODE and CHANGE
COMBINATION(s):

1. Open the lock and retract the bolt to open
container if not already open.

Note: If using the serial number method,
simply dial an incorrect combination to get a
lightning bolt.

2. Insert Change Key into back of lock.

3. Release container locking bolts if necessary.

4. Dial left until lock is “powered”. The Change
Key symbol will be displayed.

5. Dial left-right-left to dial the current
combination(s).

Note: If using the serial number method, dial
the serial number at this time.

6. Dial right until SL is displayed.

7. Dial left to select the mode of operation:

1-Single Mode, 2-Dual Mode, or
3-Super/Sub Mode

Once the mode is selected, pause briefly.

If selection 1, Single Combination Mode:

8. Dial right until EC appears.

9. Dial left-right-left to dial the new combina-
tion as if dialing the combination to open the
lock.

10. Dial right briskly. The new combination will
be displayed two times, two digits at a time,
followed by PO.

11. Pull Out change key. CC will appear.

12. Dial left-right-left to dial new combination
again for confirmation. Once OP with a right
arrow is displayed, continue dialing right to
retract the bolt.
The new combination is now set.

If selection 2 or 3, Dual or Super/Sub Mode:

8. Dial right until C1 appears.

9. Dial left-right-left to dial the first new
combination (Supervisory if Super/Sub
Mode) as if dialing the combination to open
the lock.

10. Dial right briskly. The new combination will
be displayed two times, two digits at a time,
followed by PO.

11. Dial right until C2 appears.

12. Dial left-right-left to dial the second new
combination (Subordinate if Super/Sub
Mode) as if dialing the combination to open
the lock.

13. Dial right briskly. The new combination will
be displayed two times, two digits at a time,
followed by PO.

14. Pull Out change key. CC will appear.

15. Dial the new combinations once again for
confirmation.
The new combinations are now set.

IF YOU LOCK THE CHANGE KEY IN THE
SAFE

Note: You cannot use the serial number

in place of the combination for this
procedure. The combination must be
known.

1. Allow lock to power down. (After 40 seconds,
the display will go blank. Wait an additional 2
minutes for full power down.)

2. Dial right (CW) until lock is “powered” and the
number of successful openings is flashing.

Caution: Do not continue to dial right
once you see the flashing numbers on
the display.

3. Now dial the current combination(s) just as
you would to open the lock ; i.e., left (CCW) to
dial the first number, right (CW) to dial the
second number, left (CCW) to dial the third
number.

4. Dial right (CW). After OP with a right arrow
(OPen right) is displayed, continue dialing to
the right to retract the lock bolt.

You may now restart the procedure to Set
the Operating Mode and Change
Combination(s).

CLOSE / RELOCK CONTAINER

1. Close container door.

2. Turn dial left a minimum of one complete
revolution to extend the bolt.

3. Turn dial right a minimum of one complete
revolution to ensure it is locked.

Note: The Dial should turn freely in
either direction without catching or binding
when the bolt is extended and the
container is locked.

CHECK # OF SUCCESSFUL OPENINGS

1. Allow lock to power down. (After 40 seconds,
the display will go blank. Wait an additional 2
minutes for full power down.)

2. Dial continuously to the right to display the
total number of successful openings (two
digits at a time).

CHECK # OF UNSUCCESSFUL AT­TEMPTS

1. Allow lock to power down. (After 40 seconds,
the display will go blank. Wait an additional 2
minutes for full power down.)

2. Dial left until lock is “powered”. If 3 or more
consecutive unsuccessful attempts have
occurred, a lightning bolt along with the two­digit count will be displayed.

Document Number 522.021 Rev. C 06/03

Kaba Mas Corporation

749 W. Short Street

Lexington, KY 40508 USA

Phone: [phone]

FAX: [phone]

Technical Support: 800-950-4744

www.kaba-mas.com
