C
ondition Parameters
Green LED Red LED Duration Rate
V
alid pushbutton ON OFF 1/10 sec Once
pressed
Timeout expired OFF ON 1 sec; A Once
Valid access ON OFF 1 sec Once
code keyed
Access granted ON OFF 1/10 sec 1 sec
Access granted ON ON 1/10 sec 1 sec
(battery low condition)
Access denied OFF ON 1 sec; A Once; B
Valid programming ON OFF 1 sec Once
entry
Invalid programming OFF ON 1 sec; A Once; B
entry (including
duplicate access code)
Tamper shutdown OFF ON 2 sec Once
beginning
Tamper shutdown state OFF ON 1 sec; C 10 sec
Tamper shutdown ON OFF 2 sec; C Once
ending
Visual Feedback Message Definitions
Summary of Pushbutton Programming Commands
Name
Diagnostic
Command
500 #
123456789*0#
Description of Command
‘Manual diagnostic’
www.kabaaccess.com

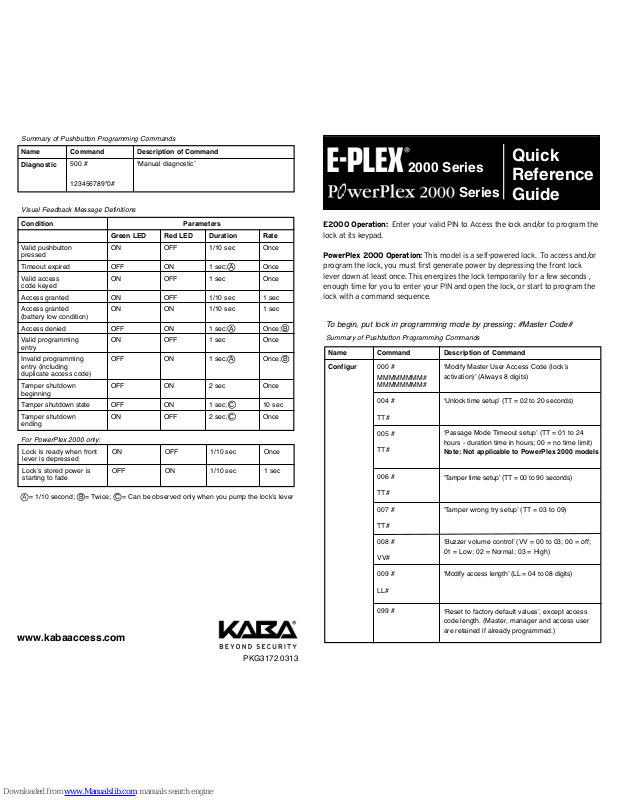

Quick
Reference
Guide
PKG3172 0313
For PowerPlex 2000 only:
Lock is ready when front ON OFF 1/10 sec Once
lever is depressed
Lock’s stored power is OFF ON 1/10 sec 1 sec
starting to fade
A = 1/10 second; B = Twice; C = Can be observed only when you pump the lock’s lever
E2000 Operation: Enter your valid PIN to Access the lock and/or to program the
lock at its keypad.
PowerPlex 2000 Operation: This model is a self-powered lock. To access and/or
program the lock, you must first generate power by depressing the front lock
lever down at least once. This energizes the lock temporarily for a few seconds ,
enough time for you to enter your PIN and open the lock, or start to program the
lock with a command sequence.
Name
Configur
Command
000 #
MMMMMMMM#
MMMMMMMM#
004 #
TT#
005 #
TT#
006 #
TT#
007 #
TT#
008 #
VV#
009 #
LL#
099 #
Description of Command
‘Modify Master User Access Code (lock’s
activation)’ (Always 8 digits)
‘Unlock time setup’ (TT = 02 to 20 seconds)
‘Passage Mode Timeout setup’ (TT = 01 to 24
hours - duration time in hours; 00 = no time limit)
Note: Not applicable to PowerPlex 2000 models
‘Tamper time setup’ (TT = 00 to 90 seconds)
‘Tamper wrong try setup’ (TT = 03 to 09)
‘Buzzer volume control’ (VV = 00 to 03; 00 = off;
01 = Low; 02 = Normal; 03 = High)
‘Modify access length’ (LL = 04 to 08 digits)
‘Reset to factory default values’, except access
code length. (Master, manager and access user
are retained if already programmed.)
Summary of Pushbutton Programming Commands
To begin, put lock in programming mode by pressing: #Master Code#
2000 Series
Series
S
ummary of Pushbutton Programming Commands
Name
Activate
Users
De-Activate
Users
C
ommand
3
00 #
N
NN#
301 #
NNN#
302 #
NNN#
398 #
399 #
P#
400 #
NNN#
401 #
NNN#
402 #
NNN#
498 #
499 #
L#
D
escription of Command
‘
Activate User Access Code’
N
NN = specific User ID location (001 to 099)
‘Activate Manager Access Code’
NNN = specific User ID location (001 to 099)
‘Activate Service User Access Code’
NNN = specific User ID location (001 to 099)
‘Activate all User Codes’ (except Master and
Manager)
‘Activate / De-Activate Passage Mode’ (P = 0
or 1; 0 = disable Passage Mode; 1 = enable
Passage Mode)
‘De-Activate User Access Code’
NNN = specific User ID location (001 to 099)
‘De-Activate Manager Access Code’
NNN = specific User ID location (001 to 099)
‘De-Activate Service User Access Code’
NNN = specific User ID location (001 to 099)
‘De-Activate all User Codes’ (except Master and
Manager)
‘Activate / De-Activate Lockout Mode’ (Master User
is not affected by Lockout Mode) (L = 0 or 1; 0 =
disable Lockout Mode; 1 = enable Lockout Mode)
Delete
Users
NNN#
299 #
‘Delete Service User Access Code’
‘Delete all User Access Codes’ (except Master and
Manager)
Name
A
dd/Modify
U
sers
Command
1
00 #
N
NN #
U
UUU {UUUU}#
UUUU {UUUU}#
101 #
NNN #
UUUU {UUUU}#
UUUU {UUUU}#
102 #
NNN #
UUUU {UUUU}#
UUUU {UUUU}#
HH#
200 #
NNN#
201 #
NNN#
202 #
Description of Command
‘
Add/Modify User Access Code’ NNN = specific
U
ser ID location (001 to 099) (Combination length
c
an be 4 to 8 digits, depending on access length
LL setting)
‘
Add/Modify Manager Access Code’ NNN =
specific User ID location (001 to 099)
(Combination length can be 4 to 8 digits,
depending on access length LL setting)
‘Add/Modify Service User Access Code’ NNN =
specific User ID location (001 to 099) (HH = 01
to 24 hours - duration time in hours; 00 = onetime entry; Combination length can be 4 to 8
digits, depending on access length LL setting)
Delete User Access Code’
‘Delete Manager Access Code’
Summary of Pushbutton Programming Commands
