Jwin JX-CD483D User Manual

Portable MP3 CD / CD player with Cassette and AM/FM Stereo radio
Instruction Manual
JX-CD483D
Please read this manual carefully before operating and save it for future reference.
Have a question? Please visit http://www.jWIN.com
USER SAFETY GIUDE
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
These markings are located on the bottom, side or back of the unit.
CAUTION: To prevent the risk of electric shock, do not remove cover (or back). Non- user­serviceable parts inside. Refer servicing to a service professional.
The lightning flash with an arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to a person.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating, maintenance and servicing instructions in the literature accompanying the appliance.
Dripping warning: This product shall not be exposed to any dripping or splashing, and no objects filled with liquids, such as vases, shall be placed on or near the product.
Ventilation warning: "The normal ventilation of the product shall not be impeded for intended use." (Minimum distances must be kept around the apparatus for sufficient ventilation, especially while use of the apparatus is in tropical and/or moderate climates.)
Dispose of old batteries safely. Do not throw them into a fire.
LASER SAFETY
This unit utilizes laser technology. Only a qualified professional should remove the cover or attempt to service this device, due to possible eye injury.
CAUTION
Use of controls or adjustments or performance of procedure other than specified herein may result in hazardous radiation exposure.
Hazardous laser radiation when open and interlock defeated.
DANGER
Invisible laser radiation when open and interlock failure. Avoid direct exposure to beam.
1
www.jWIN.com
USER SAFETY GIUDE
INSTRUCTIONS ON ENVIRONMENT PROTECTION
Do not dispose of this product in the usual household garbage at the end of its life cycle; bring it to a collection point for the recycling of electrical and electronic appliances. This symbol on the product means the instructions for use or the packing will inform about the methods for disposal. The materials are recyclable as mentioned in its marking. By recycling, material recycling, or other forms of re-utilization of old appliances, you make an important contribution to protect the environment. Please inquire at your local community administration for the authorized disposal location.
IMPORTANT SAFETY PRECAUTIONS
1. READ INSTRUCTIONS - All safety and operating instructions should be read before the appliance is operated.
2. RETAIN INSTRUCTIONS - The safety and operating instructions should be retained in a secure place for future reference.
3. HEED WARNINGS - All warnings on the appliance and in the operating instructions should be observed.
4. FOLLOW INSTRUCTIONS - All operating and use instructions should be followed.
5. WATER AND MOISTURE - The appliance should not be used near water. For example: near a bathtub, kitchen sink, laundry tub, and swimming pool or even in a wet basement.
6. VENTILATION - The appliance should be situated so that its location and position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug or similar surface that may block the ventilation openings; or, be placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
7. HEAT - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
8. POWER SOURCES - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
9. GROUNDING AND POLARIZATION - Precautions should be taken to ensure that the grounding or polarization of the appliance is correct.
10. POWER CORD PROTECTION - Power supply cords should be routed so that they are not likely to be walked on or obstructed by items placed upon or against them. Pay particular attention to cords at plugs, convenience receptacles, and the point at which they exit from the appliance.
11. CLEANING - The appliance should be cleaned only as recommended by the manufacturer.
12. POWER LINES - An outdoor antenna should be located away from power lines.
13. NONUSE PERIODS - The power cord of the appliance should be unplugged from the outlet when the appliance is to be left unused for an extended period of time.
2
www.jWIN.com
USER SAFETY GIUDE
IMPORTANT SAFETY PRECAUTIONS – CONTINUED
14. OBJECT and LIQUID ENTRY - Care should be taken so that objects do not fall and liquids are not spilled into the device’s openings.
15. CARTS AND STANDS - The appliance should be used only with a cart or stand that is recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.
16. WALL OR CEILING MOUNTING - If the appliance is mounted to a wall or ceiling, it should be mounted only as recommended by the manufacturer.
17. DAMAGE REQUIRING SERVICE - The appliance should be serviced by qualified service professional when:
a. The power-supply cord or plug has been damaged. b. Objects have fallen into, or liquid has been spilled into the appliance’s apertures. c. The appliance has been exposed to rain. d. The appliance has been dropped and suffered damage. e. The appliance does not appear to operate normally or exhibits a marked change
in performance.
18. SERVICING - The user should not attempt to service the appliance beyond that described in the user's operating instructions. All other servicing should be referred to qualified service professional.
19. PROTECTIVE ATTACHMENT PLUG - The appliance is equipped with an attachment plug that has an overload protection. This is a safety feature. If replacement of the plug is required, be sure the service technician has used a replacement plug specified by the manufacturer that has the same overload protection as the original plug. (UK Version Only)
To prevent fire or electric shock, do not expose the unit to rain or moisture.
Never attempt to open the cabinet. Dangerous high voltages are present in the unit.
Always refer servicing to a qualified technician.
3
www.jWIN.com
TABLE OF CONTENTS
1. Getting Started
a. Introduction … …………………………………………………………………. 5
b. Location of Controls (top, speaker, right, left) ……………………………… 6
c. AC operation …………………………………………………………………... 7
d. Battery operation……………………………………………………………… 7
e. FM antenna………………………………….……………………………….. 7
f. Bass Boost……………………………………………………………………. 7
g. Auxiliary (AUX) mode………………………………….…………………….. 7
h. Listening with Stereo Headphones ………………………………………… 8
i. Listening to the Radio……………………………………………………….. 8
j. Listening to the Cassettes…………………………………………………….. 8
k. Listening to the CDs and MP3 CDs…………………………………………. 8
2. Operational Instructions
a. Audio CD playback………..……………………………………………………. 9
b. Play/Pause mode………………………………………………………………. 9
c. Skip and Search mode………………………………………………………… 9
d. Repeat Mode ………………………………………………………….……….. 10
e. Random play mode……………………………………………………………. 10
f. Program Mode …………………………………………………………………. 10
g. MP3 playback ………………………………………………………………….. 11
h. FM Stereo Indicator ………………………………………………………….. 14
3. Maintenance & Specifications
a. Notes on CDs ………………………………………………………………….. 15
b. Cleaning the lens ……………………………………………………………. 15
c. Cleaning the cabinet ………………………………………………………... 15
d. Troubleshooting………………………………………………………………… 16
e. Technical specifications ………………………………………………………. 17
4
www.jWIN.com
GETTING STARTED
Thank you for purchasing the JX-CD483D. Unpack the unit and make sure to put aside all accessories so they will not be lost. We recommend that you retain the original carton and packaging materials for future use, should you transport or ship the unit in the future.
Portable stereo audio system
Top loading MP3 CD / CD player
Supports MP3 CD / CD / CD-R / CD-RW
20 tracks programmable
Analog AM / FM stereo radio with digital display
Single cassette recorder
Bass boost system (BBS)
3.5mm built in stereo headphone jack & Aux in jack
Skip and search functions
What’s included
Portable CD Boom box
Instruction manual
Warranty card
5
www.jWIN.com
GETTING STARTED
Location of Controls
6
www.jWIN.com
GETTING STARTED
Location of Controls
1. CD DOOR 17. CASSETTE PLAY BUTTON
2. BASS BOOST BUTTON 18. CASSETTE RECORD BUTTON
3 VOLUME KNOB 19. LCD DISPLAY
4. FOLDER+ BUTTON 20. FM STEREO LED INDICATOR
5. FOLDER- BUTTON 21. SPEAKER LEFT
6. SKIP/SEARCH+ BUTTON 22. SPEAKER RIGHT
7. SKIP/SEARCH -BUTTON 23. CASSETTE DOOR
8. 10+ BUTTON 24. BATTERY COMPARTMENT
9. STOP BUTTON 25. FM ANTENNA
10. PLAY/PAUSE BUTTON 26. BAND SWITCH
11. MODE BUTTON 27. AUX IN JACK
12. PROGRAM BUTTON 28. HEADPHONE JACK
13. CASSETTE PAUSE BUTTON 29. FUNCTION SWITCH
14 CASSETTE STOP BUTTON 30. AC SOCK
15. CASSETTE F.FWD BUTTON 31. AC 110/ 220V SWITCH
16. CASSETTE REWIND BUTTON
AC Operation
Before operating the JX-CD483D, make sure that the voltage on the unit corresponds to the voltage of your local area. Unravel the AC Line Cord; insert one end into an AC socket on the unit and the other end into a standard AC outlet.
1. In case of malfunction due to electrostatic discharge (ESD), reset the unit by
reconnecting the AC cord again to resume to normal operation.
2. When not in use, unplug the AC power cord from the AC power socket.
3. You may adjust the voltage of the unit using the AC 110/ 220V switch located at “31”
on Location of controls of the unit.
Battery Operation
Disconnect the AC Cord. Open the BATTERY COMPARTMENT and insert 2/UM-“C” size x 8 batteries (not included) making sure that the battery polarity (+/-) is observed. Remove the batteries if the unit will not be used for a long period of time.
Antenna
For best FM reception, fully extend the FM ANTENNA. For AM reception, the unit has a built-in antenna, turn the whole unit for best reception.
Bass Boost
To increase bass at all volume levels, push the BASS BOOST BUTTON to ON position to boost the low frequency tone for an emphasized bass sound. To release the super bass, simply push the button again.
Auxiliary (AUX) Mode
1. Slide the FUNCTION SWITCH to the AUX position.
2. Connect the earphone socket from the Auxiliary unit (e.g. MP3 player or MD player)
into AUX-IN jack on the rear of this product via an Audio Line Cord (3.5mm plug on both ends; not supplied).
3. Play the Auxiliary unit. Music from the Auxiliary unit can be listened through the
speaker of this product.
7
www.jWIN.com
GETTING STARTED
Listening with Stereo Headphones
For private listening, insert the plug of a Stereo Headphone into the STEREO HEADPHONE JACK and adjust the VOLUME CONTROL KNOB accordingly. During the use of headphones
the Speakers are automatically disconnected.
Listening to the Radio
Slide the FUNCTION SWITCH to the RADIO position. Slide the BAND SWITCH to the desired waveband. Turn the TUNING KNOB to your desired radio station. Adjust the sound level by rotating the VOLUME CONTROL KNOB. To turn off the radio, simply slide the FUNCTION
SWITCH to TAPE (OFF) position. Note: Radio frequency is shown on the LCD DISPLAY.
Listening to Cassettes
Slide the FUNCTION SWITCH to the TAPE (OFF) position. Open the CASSETTE DOOR and place a cassette tape in the player. Use the Cassette Controls (PLAY, PAUSE, F.FWD, REWIND, RECORD, or STOP) to control the cassette playback. Adjust the sound level by rotating the VOLUME CONTROL KNOB.
Listening to CDs and MP3 CDs
Open the CD DOOR by pulling it in an upward direction. Place a CD disc into the CD COMPARTMENT and close the CD DOOR. Set the FUNCTION SWITCH to the CD position.
Adjust the sound level by rotating the VOLUME CONTROL KNOB. Follow the Operational Instructions in the following pages of this manual.
Note: Before playing a CD or MP3 CD make sure the CD DOOR is properly closed.
8
www.jWIN.com
OPERATIONAL INSTRUCTIONS
Audio CD Playback

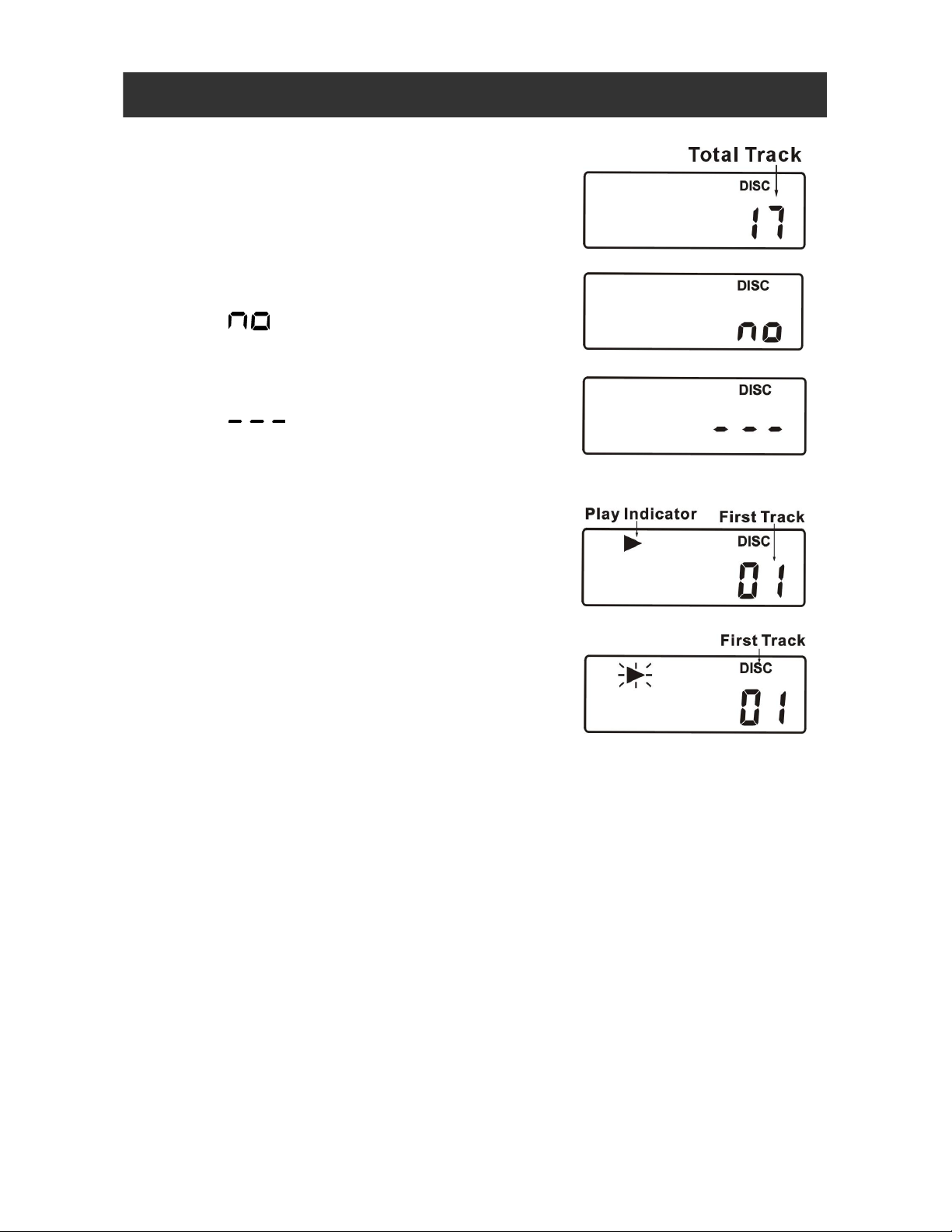

1. When the CD DOOR is closed and a CD is inside,
the total number of the tracks in the disc show on the LCD DISPLAY and will enter Stop mode. The DISC indicator will always show on the LCD DISPLAY when the JX-CD483D is in CD mode.
2. If there has no disc inside, the LCD DISPLAY will
show “
3. If the CD DOOR is not closed, the LCD DISPLAY will
show “
” and remain in Stop mode.
”.
PLAY/PAUSE MODE
1. When the PLAY/PAUSE BUTTON is pressed during
CD stop mode, the first track will play. The Play Indicator “” will show on the LCD DISPLAY. The LCD DISPLAY will also show the number of the track playing.
2. For interruption while the CD is playing, press the CD
PLAY/PAUSE BUTTON once. Playback is now paused and the Play Indicator “” will blink continuously on the LCD DISPLAY.
3. Though the sound stops, the disc will continue to spin. To re-start playback, press the
PLAY/PAUSE BUTTON again. The music will start from the exact position where it was interrupted.
4. To stop the CD, press the STOP BUTTON once in Play or Pause mode. The LCD
DISPLAY will show the total number of tracks on the disc again.
5. To turn off the unit, slide the FUNCTION SWITCH to OFF position.
SKIP AND SEARCH MODE
1. In play or pause mode, when CD SKIP/SEARCH or CD SKIP/SEARCH BUTTON
is pressed once, the player will advance to the next track or return to the beginning of the track.
2. During play mode, when CD SKIP/SEARCH or CD SKIP/SEARCH BUTTON is
pressed and held, it will search the track with audible high-speed forward or backward playback.
9
www.jWIN.com
OPERATIONAL INSTRUCTIONS
REPEAT MODE
1. Repeat 1:
When the MODE BUTTON is pressed once, the REPEAT indicator show on the LCD DISPLAY. This
single track of music will be repeated.
2. Repeat All:
When the MODE BUTTON is pressed twice, the REPEAT ALL indicator show on the LCD DISPLAY.
The whole disc will be played continuously.
3. To cancel the Repeat Function
Press the MODE BUTTON repeatedly until the Repeat Indicator disappears from the LCD DISPLAY.
RANDOM PLAY MODE
This feature allows the track on the disc to be played in a random order.
1. In CD stop mode, press the MODE BUTTON three
times. The RANDOM indicator show on the LCD DISPLAY and all music will play in random order.
2. To cancel the Random play function, press the MODE BUTTON again. The RANDOM
indicator will disappear from the LCD DISPLAY.
PROGRAM MODE
1. During the CD stop mode, press the PROGRAM
BUTTON once. The PROGRAM indicator and the
number of Program to be memorized starts from the first program “
LCD DISPLAY.
2. Press the CD SKIP/SEARCH or SKIP/SEARCH BUTTON to your desired musical
track, the LCD DISPLAY will show the appropriate track number. Press the PROGRAM BUTTON to store this track in memory.
3. Repeat above procedure until all desired tracks have been programmed. A total of 20
tracks can be stored in memory.
Note: When the SKIP/SEARCH or SKIP/SEARCH BUTTON is pressed, it will
always show the last programmed track first to
recall your memory. After programming, the LCD DISPLAY will show “PROGRAM _ _ _” and flash continuously.
” will blink continuously on the
10
www.jWIN.com
OPERATIONAL INSTRUCTIONS
Audio CD Playback-continued
PROGRAM MODE-continued
3. Press the CD PLAY/PAUSE BUTTON once to start the program playback and the CD play Indicator “” will light up.
4. To check the program you have stored after complete programming, press the PROGRAM BUTTON once during CD stop mode, then press the CD SKIP/SEARCH BUTTON once, The LCD DISPLAY will show the first programmed track number. Repeat above procedure to read all the programmed memory.
5. To cancel the programmed memory:
During the CD stop mode, press the CD STOP BUTTON once, or
Open the CD DOOR during the CD stop mode.
The Program Indicator will disappear from the LCD DISPLAY.
MP3 CD Playback
1. When the CD DOOR is closed and an MP3 disc is inside, the total number of the tracks in the disc will show on the LCD DISPLAY and will enter the Stop mode. The DISC indicator will always show on the LCD DISPLAY when the JX-CD483D is in MP3 CD mode.
2. When no disc is loaded, the LCD DISPLAY will show “
3. If the CD DOOR is not closed, the DISPLAY will show “
PLAY/PAUSE MODE
1. When the PLAY/PAUSE BUTTON is pressed during CD stop mode, the first track will be played. The Play Indicator “” will light. The MP3 Indicator will show as well to indicate MP3 Disc is playing. The LCD DISPLAY will show the specific track number being played.
2. MP3 music can be stored on a CD Disc with or without folders depending on your MP3 burning method. To select specific musical tracks inside an MP3 disc, follow these instructions:
a. If an MP3 disc is downloaded without dividing into folders, all track numbers will be
shown directly on the LCD DISPLAY. The Album number will only show pressing the FOLDER BUTTON.
b. If music is stored into different folders, select the specific Album number first by
pressing the FOLDER UP/DOWN (+/-) BUTTON. Press the CD SKIP/SEARCH or SKIP/SEARCH BUTTON to select the Track number inside this Album.
” and remain in Stop mode.
”.
after
11
www.jWIN.com
OPERATIONAL INSTRUCTIONS
MP3 CD Playback-continued
PLAY/PAUSE MODE-continued
Example:
To select Album # 4, track # 3.
STEP – 1: Press the FOLDER UP/DOWN (+/-) BUTTON to select the Album # 4.
STEP – 2: Press the CD SKIP/SEARCH or SKIP/SEARCH BUTTON to select the Track # 3
inside this Album # 4.
3. To interrupt MP3 disc playback, press the CD PLAY/PAUSE BUTTON once. The disc is now in Pause mode. The Play Indicator “” will blink continuously on the LCD DISPLAY.
4. Though the sound stops, the disc will continue to spin. To re-start playback, press the CD PLAY/PAUSE BUTTON again. The music will start from the exact position where it was interrupted.
5. To stop the MP3 disc, press the CD STOP BUTTON once in Play or Pause mode.
6. To turn off the unit, slide the FUNCTION SWITCH to the OFF position.
REPEAT MODE
1. Repeat 1:
When the MODE BUTTON is pressed once, the REPEAT Indicator will light. This single track of music
will be repeated.
2. Repeat Folder:
When the MODE BUTTON is pressed twice, the REPEAT and ALBUM indicators will show. This folder
will be play repeatedly. Note: The folder number and the track number will
show every 2 seconds alternatively.
3. Repeat All:
When the MODE BUTTON is pressed three times, the REPEAT ALL Indicator will show. The whole disc will play continuously.
4. To cancel the Repeat Function
Press the MODE BUTTON repeatedly until the REPEAT Indicator disappears from the LCD DISPLAY.
12
www.jWIN.com
OPERATIONAL INSTRUCTIONS
MP3 CD Playback-continued
RANDOM PLAY MODE
This feature allows the tracks on the disc to be played in a random order.
1. During the CD Stop mode, press the MODE BUTTON four times, the RANDOM Indicator will show on the LCD DISPLAY and all music will be played in random order automatically.
2. To cancel the Random Play function, press the MODE BUTTON again, The RANDOM Indicator will disappear from the LCD DISPLAY.
SKIP AND SEARCH
1. In play or pause mode, when CD SKIP/SEARCH or CD SKIP/SEARCH BUTTON
is pressed once, it will go to the next track or go back to the beginning of the track.
2. In play mode, when CD SKIP/SEARCH or CD SKIP/SEARCH BUTTON is
pressed once and held, it will search the track with audible high speed forward or backward playback.
PROGRAM MODE
1. In the CD stop mode, press the PROGRAM BUTTON
once. The PROGRAM Indicator and the number of Program to be memorized starts from the first
program “ Press the FOLDER UP/DOWN (+/-) BUTTON, then press CD SKIP/SEARCH or CD SKIP/SEARCH BUTTON to select your desired musical track, the LCD DISPLAY will show the track number of the specific Album to be programmed. Press the PROGRAM BUTTON to store this track in memory.
2. Repeat the above procedure until all desired tracks have been programmed.
Note: When the FOLDER UP/DOWN (+/-) BUTTON is pressed, it will always show the
last programmed Album number first to recall your memory. A total of 20 tracks can be stored into memory. After programming is complete, the LCD DISPLAY will show PROGRAM _ _ _ and blink continuously.
3. To begin Programmed playback, press the CD PLAY/PAUSE BUTTON once. The CD Play Indicator “”, PROGRAM and the track number of the specific Album will light.
Example: Album # 3, Track # 2.
” will light and blink continuously.
13
www.jWIN.com
OPERATIONAL INSTRUCTIONS
MP3 CD Playback-continued
PROGRAM MODE-continued
4. To check the program you have stored after programming is complete, press the PROGRAM BUTTON once during the CD Stop mode. The LCD DISPLAY will show
” and blink continuously. Press the FOLDER UP/DOWN (+/-) BUTTON to read the
“ Album number. Press the CD SKIP/SEARCH or CD SKIP/SEARCH BUTTON to read the specific track number of said Album. Press the PROGRAM BUTTON again,
LCD DISPLAY will show “ check all stored programs.
5. To cancel the programmed memory:
During the CD stop mode, press the CD STOP BUTTON once or
Open the CD Door during the CD stop mode.
The PROGRAM Indicator will disappear from the LCD DISPLAY.
” and blink continuously. Repeat the above procedure to
FM Stereo indicator
1. In FM ST mode, If FM is selected, ensure the telescopic antenna is fully extended and
positioned vertically, and clear station is selected, the FM ST indicator light turn on.
2. In the case of stereo stations with a bad (noisy) reception, we recommend band switch
from FM ST slide to FM position, and the FM ST indicator light turn off.
14
www.jWIN.com
MAINTENANCE
Notes on CDs
1. Before playing, clean the CD with a cleaning cloth.
Wipe the CD from the center out to the ends.
2. Do not use solvents such as benzine, thinner,
commercially available cleaners or anti-static spray intended for vinyl LPs.
3. Do not expose the CD to direct sunlight or heat sources such as hot air ducts. Do not
expose to direct sunlight, nor leave CDs in a car, as there can be a considerable rise in temperature.
4. Do not stick paper or sticker on the CD. Do not scratch, dirt or fingerprints on the CD, for
it may cause tracking error.
Cleaning the lens
If the lens becomes dirty, it may cause a skipping of sound during CD operation. Clean with a commercially available lens cleaner.
Cleaning the cabinet
Clean the cabinet, panel and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent, such as alcohol or benzine.
15
www.jWIN.com
TROUBLESHOOTING GUIDE
When the instructions in this manual are followed, this unit should function properly. However, if any of the following difficulties occur and cannot be corrected by the user or if a problem arises that is not mentioned here, please contact jWIN Customer Service or a qualified service technician.
1. Unit Does Not Play
Unit may be disconnected from power source (No AC connection or batteries). Check connection.
Disc is not correctly set. CDs should be inserted label side up.
Disc is scratched or dirty. Please clean.
The lens is dirty. Wipe clean gently with soft, dry cloth. Follow the instructions of the
lens cleaner.
There is moisture on the lens wait an hour and try again.
2. No Sound, Distorted Sound or Feedback
Ensure plugs are inserted firmly.
Wipe off plugs with clean cloth.
Disc is scratched or dirty. Please clean.
Volume control is turned down. Please increase.
3. Radio Reception is Unclear
Radio station frequency may be weak. Adjust antenna.
If FM station, BAND switch may be set to FM ST. Slide BAND switch to FM.
16
www.jWIN.com
SPECIFICATIONS
Audio Output: 2W
o Total: 4W
(L) + 2W
RMS
RMS
/ 8W
Frequency Range
o AM: 530kHz – 1710kHz o FM: 88MHz – 108MHz
Connectivity
o 3.5mm stereo headphone jack o 3.5mm Aux in jack
Power Requirement
o AC 110/220V~60/ 50Hz o Battery: 12V (8 x “C” size or UM2 batteries, not included)
Power Consumption: 15W
Unit Dimensions (W x H x D): 13.78” x 6.34” x 9.41 (350mm x 161mm x 239mm)
* Specifications and features are subject to change without prior notice.
PEAK
RMS
/ 80W
(R)
PMPO
17
www.jWIN.com
18
www.jWIN.com
TEL: 516-626-7188 FAX: 516-626-7105
website: www.jWIN.com
© 2007 jWIN Electronics Corp. All rights reserved. No portion of this printed material or product enclosed herewith including design, shape and graphics, may be reproduced or transmitted in any form without prior written consent of jWIN Electronics Corp. by any means, electronic or mechanical, including photocopying, recording or use of an information storage and retrieval system. Any unauthorized distribution or reproduction of this printed material or product, or any portion thereof, will be prosecuted to the fullest possible extent of the law.
Printed in China
Loading...
