DVD PLAYER/MEMORY CARD READER

XV-NP10S

DVD/CARD

Before operation 2

Preparations 5

Basic operations 10

Advanced operations 15

Audio/Video files playback 23

Region code of DVD VIDEO

This player can play back DVD VIDEO discs whose region code numbers include “1.”

Examples of playable DVD VIDEO discs:

ALL

The player’s region code is printed on the rear of the player.

INSTRUCTIONS

Changing the initial settings 28

Additional information 33

3 6

For Customer Use:

Enter below the Model No. and Serial No. which are located on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No.

Se ria l No

LET0246-001B

[J/UJ]

G-1

Important Products Safety Instruction

Electrical energy can perform many useful functions. But improper use can result in potential electrical shock or fire hazards. This product has been engineered and manufactured to assure your personal safety. In order not to defeat the built-in safeguards, observe the following basic rules for its installation, use and servicing.

ATTENTION: Follow and obey all warnings and

instructions marked on your product and its operating instructions. For your safety, please read all the safety and operating instructions before you operate this product and keep this brochure and the operating instructions packaged with your product for future reference.

INSTALLATION

1. Grounding or Polarization

(A) Your product may be equipped with a polarized

alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

(B) Your product may be equipped with a 3-wire

grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

2. Power Sources

Operate your product only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. If your product is intended to operate from battery power, or other sources, refer to the operating instructions.

3. Overloading

Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

4. Power Cord Protection

Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

5. Ventilation

Slots and openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered.

• Do not block the openings by placing the product on a bed, sofa, rug or other similar surface.

• Do not place the product in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

6. Wall or Ceiling Mounting

The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

ANTENNA INSTALLATION INSTRUCTIONS

1. Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

2. Lightning

For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

3. Power Lines

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

G-2

USE

1. Accessories

To avoid personal injury:

• Do not place this product on an unstable cart, stand, tripod, bracket, or table. It may fall, causing serious injury to a child or adult, and serious damage to the product.

• Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product.

• Use a mounting accessory recommended by the manufacturer and follow the manufacturer’s instructions for any mounting of the product.

• Do not try to roll a cart with small casters across thresholds or deep-pile carpets.

2. Product and Cart Combination

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

3. Water and Moisture

Do not use this product near water-for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool and the like.

4. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

5. Attachments

Do not use attachments not recommended by the manufacturer of this product as they may cause hazards.

6. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

7. Heat

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

SERVICING

1. Servicing

If your product is not operating correctly or exhibits a marked change in performance and you are unable to restore normal operation by following the detailed procedure in its operating instructions, do not attempt to service it yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

2. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen into

the product. c. If the product has been exposed to rain or water. d. If the product does not operate normally by following

the operating instructions. Adjust only those controls

that are covered by the operating instructions as an

improper adjustment of other controls may result in

damage and will often require extensive work by a

qualified technician to restore the product to its

normal operation. e. If the product has been dropped or damaged in any

way. f. When the product exhibits a distinct change in

performance-this indicates a need for service.

3. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

4. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in safe operating conditions.

G-3

YU20333

Supplied accessories

Check that you have all the following accessories supplied to you. If anything is missing, consult your dealer immediately.

• Audio/video cable (Yellow/White/Red) (

• Remote control unit (

• R6(SUM-3)/AA(15F) battery (

• AC power plug adaptor (

× 1)

× 2)

× 1) (for PX model ONLY)

× 1)

About this manual

• The display window information and OSD (On Screen Display) menu items are put in brackets [ ] in the operation procedures.

• Usable disc(s) for each operation/function is (are) referred to by the icons;

Precautions

Notes on the power cord

• When you are away on travel or otherwise for an extended period of time, remove the plug from the wall outlet. A small amount of power (1.1 W) is always consumed while the power cord is connected to the wall outlet.

• When unplugging the player from the wall outlet, always pull the plug, not the power cord.

• Do not handle the power cord with wet hands!

Avoid moisture, water and dust

• Do not place the player in moist or dusty places.

• If water gets inside the player, turn off the power and remove the plug from the wall outlet, then consult your dealer. Using the player in this state may cause a fire or electrical shock.

Avoid high temperatures

• Do not expose the player to direct sunlight or place it near a heating device.

Notes on installation

• Select a place which is level, dry and neither too hot nor too cold between 5° C and 35° C (41° F and 95° F).

• Leave sufficient distance between the player and the TV.

• Do not install the player in a place subject to vibrations.

• Do not put heavy objects on the player.

To prevent malfunction of the player

• There are no user-serviceable parts inside. If anything goes wrong, unplug the power cord and consult your dealer.

• Do not insert any metallic objects, such as wires, hairpins, coins, etc. into the player.

• Do not block the vents. Blocking the vents may damage the player.

To clean the cabinet

• Use a soft cloth. Follow the relevant instructions on the use of chemically-coated cloths.

• Do not use benzene, thinner or other organic solvents and disinfectants. These may cause deformation or discoloring.

Before operation................................................... 2

About playable media ..............................................................2

Care and handling of discs ......................................................2

Names of parts and controls....................................................3

Preparations ......................................................... 5

Connections.............................................................................5

Using the remote control unit...................................................8

Basic operations ................................................ 10

Turning on/off the player........................................................10

Initial setup ............................................................................10

Basic playback.......................................................................11

Resuming playback ...............................................................12

Various speed playback ........................................................13

Locating the beginning of a scene or song ............................14

Advanced operations......................................... 15

Playing from a specific position .............................................15

Changing the playback order.................................................17

Repeat playback ....................................................................18

Changing the language, sound and scene angle ..................19

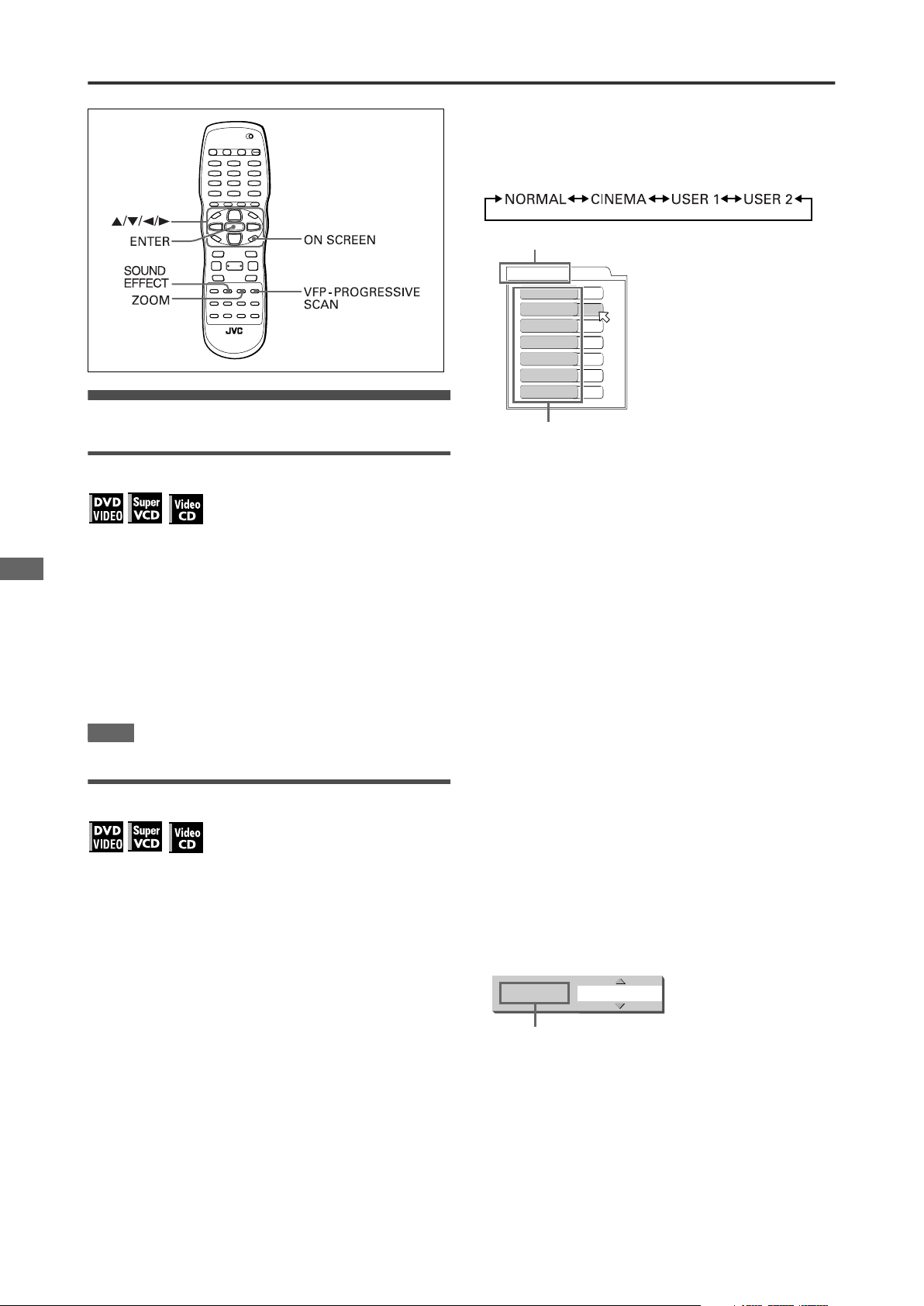

Special picture/sound effect ..................................................20

Menu bar functions ................................................................21

Audio/Video files playback................................ 23

Outline ...................................................................................23

Basic operations ....................................................................24

Direct selection for JPEG files ...............................................25

Repeat playback ....................................................................25

Slide show playback..............................................................26

Changing the picture of the opening display .........................26

BGM slide show playback .....................................................27

Changing the initial settings ............................. 28

Selecting preferences............................................................28

Limiting playback by children.................................................31

Additional information ....................................... 33

AV COMPU LINK remote control system..............................33

Troubleshooting.....................................................................34

Specifications ........................................................................35

Appendix A: Digital output signal chart..................................35

Appendix B: Country/Area code list for Parental Lock........... 36

Appendix C: Table of languages and their abbreviations ...... 36

Appendix D: Glossary ............................................................37

Before operation

About playable media

Playable disc types

Discs with the following marks can be played back on the player.

DVD VIDEO SVCD Video CD

Audio CD

Playable memory cards

This player has two types of the exclusive insertion slot for the memory cards; one is the 5 in 1 slot for SD card (SD), Multi Media Card (MMC), SmartMedia (SM), Memory Stick (MS), and xD-Picture Card (xD), the other for CompactFlash (CF). You can play back the following files written in memory cards:

• MP3, WMA, JPEG, MPEG-4 (Simple profile)

Requirements for memory cards

The DVD Logo is a trademark. The player can also play back the following discs:

• The finalized DVD-R and DVD-RW discs written in the DVD VIDEO format.

• The DivX file on the DVD-R and DVD-RW discs written in the UDF format.

Before operation

• The finalized CD-R and CD-RW discs written in the SVCD, Video CD or Audio CD format.

• CD-R and CD-RW discs written in MP3/WMA/JPEG/MPEG-4/ DivX in accordance with the “ISO 9660” format. (For details, see page 23.)

NOTE

If a disc gets dirty, scratched or warped, or due to the disc characteristics or recording conditions, it may take considerable time for the player to read the content, or the player may not be able to play back such discs.

The player can also play back audio signals recorded in MIXMODE CD, CD-G, CD-EXTRA and CD TEXT.

Color system format

This player accommodates the NTSC system, and also can play back discs recorded with PAL system whose Region Code numbers include “1.” Note that the PAL video signal on a disc is converted to an NTSC signal and output. With some discs, the playback picture may become jagged.

• Format: Fat 12/16

• Voltage type: 3.3 V

• Storage type: Up to 128 MB (256 MB type is also available for only SD, xD, and CF). 4 MB type is not available for MMC and xD.

• For CompactFlash: Type

• Protection: Secure MMC card and Magic Gate Memory Stick are not available.

• For Memory Stick: Memory Stick Pro and Memory Stick Duo are not available.

NOTES

• The playback order may differ from that of the other device such as a digital still/video camera.

• The memory cards initialized by PC are not available.

• The player may be unable to play back some CompactFlash which are available for the high speed reading/writing.

• The player may be unable to play back some memory cards due to their characteristics or recording conditions.

• Memory cards are precision instruments. DO NOT impact, bend, drop, or wet them.

SD, Secure SD, MultiMediaCard, SmartMedia, CompactFlash, Memory Stick, xD-Picture Card are trademarks of their respective product companies.

Notes on copyright

Check the copyright laws in your country before recording from DVD VIDEO, SVCD, Video CD, Audio CD, MP3, WMA, JPEG, MPEG-4, and DivX discs. Recording of copyrighted material may infringe copyright laws.

Digital audio formats

The player supports the following digital audio formats (see page 37 “Glossary” for descriptions of each audio format):

Linear PCM, Dolby Digital, DTS (Digital Theater Systems)

NOTE

Depending on the player’s [DIGITAL AUDIO OUTPUT] setting, digital audio signals may not be output as they are recorded on the disc. See “DIGITAL AUDIO OUTPUT” on page 30 for details.

Notes on discs

• With some DVD VIDEO discs, the player starts playback automatically after inserting the disc.

• The image may be sometimes poor or noisy due to defects in the disc itself.

• With some discs, operations described in this manual may not be possible.

Unplayable discs

The player does not play back discs listed below.

• DVD-RW discs written in the VR format

• DVD-ROM, DVD-RAM, DVD AUDIO, CD-ROM, PHOTO CD, SACD

In addition, the player does not play:

• Unfinalized discs.

• Discs of irregular shape or discs with tape, seals or paste on either the label side or playback side. Playing back these discs may damage the player.

Care and handling of discs

If a disc gets dirty, dusty, scratched or warped, playback sound and picture may be deteriorated. Take proper precautions when handling discs.

Handling

• Do not touch the surface of the disc.

• Do not damage, stick paper to, or use any adhesive on either the label side or playback side.

Storing discs

• Keep discs in their cases. If discs are piled on top of one another without their protective cases, they can be damaged.

• Do not put discs in a location where they may be exposed to direct sunlight, or where the humidity or temperature is high. Avoid leaving discs in a car!

Cleaning discs

• Wipe with a soft dry cloth, moving from the center outwards. If a disc is difficult to clean, wipe with a cloth moistened with water.

• Never use record cleaners, petrol, alcohol or any anti-static agents.

Names of parts and controls

Front panel

Before operation

3459

Inside of the card door (~).

1 button (10) 2 STANDBY/ON indicator (10) 3 Disc tray (11) 4 0 (eject) button (11) 5 4 button (13, 14) 6 ¢ button (13, 14) 7 7 (stop) button (12, 13, 15)

8 3 (play) button (11, 13) 9 8 (pause) button (12, 13, 25) 0 DVD/CARD button (13, 24, 27)

- Display window (see below)

= Remote sensor (8) ~ Card door (24) ! Memory card slots (24)

How to open/close the card door

• Make sure the disc playback is stopped when inserting or removing the memory card.

0876

Before operation

Display window

2 3 4 5 6 7

8 9 p

1 Audio format indicators

[LPCM] Turns on when linear PCM audio signals are output

[MPEG] Turns on when MPEG signals are output from the

[Dolby D] Turns on when playing back a Dolby Digital sound

[DTS] Turns on when playing back a DTS-encoded digital

Progressive indicators

[P] Turns on while in the Progressive scanning mode. [DDP] Turns on depending on the [PICTURE SOURCE]

from the player, for example when playing back an Audio CD disc.

player, for example when playing back a Video CD disc.

source.

sound source.

preference setting and the source type of the current DVD VIDEO disc (see page 6).

SE (Sound Effect) indicator

Turns on when the Sound Effect function takes effect.

Group/title/track/chapter indicators

Show what is indicated by the multi-information display during playback.

Repeat mode indicator

Turns on while in the repeat mode and shows the currently selected repeat mode.

Program/random indicators

Turn on while in the program playback mode or random playback mode respectively.

Total time/remaining time indicators

[TOTAL] Turns on when total elapsed time is indicated by the

[REM] Turns on when remaining playback time is indicated

8 3

Turn on while in playback or in pause respectively.

M (memory) CARD indicator

Turns on while accessing a memory card.

Multi-information window

Indicates various kinds of information by numbers and alphabets, such as the player’s current status (“READING,” “OPEN,” etc.) or currently played DVD’s title and chapter.

multi-information display.

by the multi-information display.

(play) / 8(pause) indicators

Before operation

Remote control unit

TV DVD

OPEN

/CLOSE

1 2

DVD/CARD

TV1 TV2 TV3

TV4 TV5 TV6

TV7 TV8 TV9

TV-/-- TV0 MUTING

4 5

6 7

Before operation

VOL VOL+

STANDBY/ON

TV DVD

213

546

879

010 +10

TITLE

THUMBNAIL

/LIST

CH +

ENTER

TV/VIDEO

/GROUP

CANCELRETURN

NEXTPREVIOUS

SELECTCLEAR

( )

_ +

= ~

! @ # $ %

SLOW

ANGLE

REPEAT

SOUND EFFECT

SUB TITLE

SLIDE

EFFECT

AUDIO

DIMMER

SLOW+

VFPZOOM

PROGRESSIVE

SCAN

AMP

VOL

1 OPEN/CLOSE button (11) 2 DVD/CARD button (13, 24, 27) 3 Numeric buttons 4 RETURN button (15) 5 THUMBNAIL/LIST button (25) 6 TOP MENU button (15) 7 Cursor selection (5 Up, ∞ Down) - CH (+/–) buttons 8 Cursor selection (2 Left, 3 Right) - VOL (+/–) buttons 9 SET UP button (11, 26, 28) 0 4/PREVIOUS button (13, 14, 15, 17, 25, 27)

- 7/CLEAR button (12, 17, 18, 25, 26) = 3/SELECT button (11, 13, 15, 17, 26) ~ 1/SLOW– button (13, 25)

! button (14) @ SOUND EFFECT button (21) # ANGLE button (19) $ SUBTITLE button (19) % REPEAT button (18, 25, 27) ^ SLIDE EFFECT button (26) & Infrared signal window (8) * TV - DVD switch (9, 10, 15, 24, 26, 28)

( TV STANDBY/ON button (9) ) DVD STANDBY/ON button (10)

_ TV/VIDEO - CANCEL button (9, 17) + TITLE/GROUP button (15) ¡ MENU button (15)

ENTER button

£ ON SCREEN button (12, 16, 18, 21) ¢ ¢/NEXT button (13, 14, 15, 17, 25, 27)

8 button (12, 13, 26) ¡/SLOW+ button (13, 25)

ZOOM button (20, 25) VFP - PROGRESSIVE SCAN button (6, 20) AUDIO button (19) AMP VOL +/– buttons (9)

DIMMER button (See below)

To change the brightness of the display window

Press DIMMER on the remote control unit. You can select the brightness of the display window and the illumination on the front panel from three levels, or off. If the brightness is set to off, nothing will be shown on the display. In this case, the illumination on the front panel is also

turned off.

Preparations

Connections

Before using the player, connect the player to a TV and/or amplifier.

Before making connections

• Do not connect the AC power cord until all other connections have been made.

• Connect VIDEO OUT of the player directly to the video input of your TV. Connecting VIDEO OUT of the player to a TV via a VCR may cause a monitor problem when playing back a copy-protected disc. You may also have a monitor problem when connecting the player to an integrated TV/ Video system.

Connecting to a TV

The following sections A to C describe TV connections where only a TV is connected to the player so that you will hear sound from the TV.

A Connecting to a conventional TV

NOTE

If your TV has an AV COMPU LINK terminal, you can use the AV COMPU LINK function. See “AV COMPU LINK remote control system” on page 33 for details.

• In the following description, “TV” may be substituted with “monitor” or “projector.”

• Terminal names used for other components may be different

from those used in the following description.

NOTES

• If your TV has a monaural audio input instead of stereo, you need to use an optional audio cable which converts stereo audio output to monaural.

• You must change the VIDEO SIGNAL SELECTOR position while the player power is off. Otherwise, the changed setting is not effective.

Preparations

The player

VIDEO

AUDIO

Ye ll o w

White

Red

V L

PCM/STREAM

-V

Audio/video cable (supplied)

B Connecting to a TV with an S-video jack

If your TV has an S-VIDEO input, you can get better picture quality by connecting it with the S-VIDEO output of the player using an S-video cable instead of connecting the video input of the TV to the VIDEO jack of the player.

The player

S-VIDEO

VIDEO

AUDIO

S-video cable (not supplied)

PCM/STREAM

White

Red

-V

Audio cable (not supplied)

White

Yellow

White

Red

Set the VIDEO SIGNAL SELECTOR to “480i.”

REMOTE

480p

480i

VIDEO SIGNAL

SELECTOR

NOTES

• When using the S-VIDEO output jack, do not connect the COMPONENT VIDEO OUT jacks on the player.

• You must change the VIDEO SIGNAL SELECTOR position while the player power is off. Otherwise, the changed setting is not effective.

Set the VIDEO SIGNAL SELECTOR to “480i.”

REMOTE

480p

480i

VIDEO SIGNAL

SELECTOR

Red

Preparations

C Connecting to a TV with component jacks.

You can enjoy picture of high-fidelity color reproduction by connecting the COMPONENT VIDEO OUT jacks on the player to your TV.

NOTES

• Connect “Y” to “Y,” “PB” to “PB” (CB), “PR” to “PR” (CR) correctly.

• When using the COMPONENT VIDEO OUT jacks, do not

connect the S-VIDEO output jack on the player.

• If your TV has component video input jacks of BNC type, use an adapter which converts a pin jack to a BNC jack (not supplied).

Progressive scan video playback available

In the Progressive scanning mode, you can enjoy high quality picture with less flickers when the COMPONENT VIDEO OUT jacks are connected to a TV or monitor that supports the progressive video input.

Red

Blue

Green

Red

Blue

Green

The player

White

S-VIDEO

VIDEO

AUDIO

Red

White

Red

PCM/STREAM

U O

-V

Audio cable (not supplied)

HINT

Depending on the material source format, DVD VIDEO discs can be classified into two types; film source and video source (note that some DVD VIDEO discs contain both film source and video source). Film sources are recorded as 24-frame-per-second information, while (NTSC) video sources are recorded as 30frame-per-second (60-field-per-second interlaced) information. When the player plays back a film source material, Progressive (uninterlaced) output signals are created using the original information. When a video source material is played back, the player interleaves lines between the interlaced lines on each to create the interpolated picture and outputs as the progressive signal.

Component video cable (not supplied)

REMOTE

480p

480i

VIDEO SIGNAL

SELECTOR

Selecting the VIDEO SIGNAL SELECTOR position

• If your television equipped with component jacks does not support the progressive scanning mode Set the VIDEO SIGNAL SELECTOR to “480i.”

• If your television equipped with component jacks supports the progressive scanning mode Set the VIDEO SIGNAL SELECTOR to “480p.”

• If you want to change the scanning mode using the remote control unit (depending on the source condition, or when connecting more than one television, etc.) Set the VIDEO SIGNAL SELECTOR to “REMOTE.”

NOTE

You must change the VIDEO SIGNAL SELECTOR position while the player power is off. Otherwise, the changed setting is not effective.

Activating the Progressive scanning mode using the remote control unit

When the player is turned on and the VIDEO SIGNAL SELECTOR is set to “REMOTE,” press and hold down VFP - PROGRESSIVE SCAN for a few seconds. The scanning mode switches between the Progressive scanning and Interlaced scanning modes.

When the scanning mode is set to the Progressive mode, the [P] indicator lights up in the display window. [DD] indicator also lights up when Progressive scanned signals on a DVD VIDEO disc are directly output as they are from the player.

Depending on the [PICTURE SOURCE] setting on the [PICTURE] preference display (see page 29) and whether the current DVD VIDEO disc is film-source or video-source, the progressive indicator lights, as shown in the table.

Setting of [PICTURE SOURCE]

AUTO DDP P

FILM DDP DDP

VIDEO (NORMAL)/ (ACTIVE)

Source type of DVD VIDEO

Film source Video source

* While stopped in the Progressive scanning mode, [P] indicator is

lit regardless of the [PICTURE SOURCE] selection.

NOTES

• The Progressive scanning mode works only when you connect the player’s COMPONENT VIDEO OUT jacks to a progressive TV.

• There are some progressive TV and High-Definition TV sets that are not fully compatible with the player, resulting in the unnatural picture when playing back a DVD VIDEO disc in the Progressive scanning mode. In such a case, use the Interlaced scanning mode. To check the compatibility of your TV set, contact your local JVC customer service center.

• All JVC progressive TV and High-Definition TV sets are fully compatible with the player (Example: AV-61S902).

Connecting to optional audio equipment

Connecting to a stereo audio amplifier/receiver

Connect the player’s AUDIO OUT (LEFT/RIGHT) jacks to any line-level inputs (such as AUX, DVD, CD, etc.) of an audio amplifier or receiver.

Amplifier or receiver

AUDIO

-V

PCM/STREAM

The player

Preparations

White

Red

Audio cable (not supplied)

White

Red

Preparations

Connecting to a digital audio device

You can enjoy sound of enhanced quality by connecting the player’s DIGITAL OUT (either OPTICAL or COAXIAL) jack to a digital input of an amplifier, etc., using an optical or coaxial digital cable. The digital audio signal on a disc will be transferred directly from the player. If the connected digital audio equipment is a Dolby Digital or DTS decoder or an amplifier with a built-in decoder, you can enjoy high-quality surround sound.

Digital equipment

DIGITAL

PCM/STREAM

-V

The player

DVD

NOTES

• Connect the player and the digital audio device by using either an optical digital cable or a coaxial digital cable.

• It is not recommended to use the digital jacks for dubbing. When recording the sounds (DVD VIDEO, SVCD, Video CD or Audio CD) played back on the player, record them through the analog jacks.

• Depending on the disc, no signal may be output from the DIGITAL OUT. Make an analog connection in this case.

• Set [DIGITAL AUDIO OUTPUT] in the [AUDIO] preference display correctly according to the connected digital audio equipment. If setting made for [DIGITAL AUDIO OUTPUT] is incorrect, loud noise may be generated causing damage to the speakers (see page 30).

Coaxial digital cable (not supplied)

Audio cable (not supplied)

Optical digital cable (not supplied)

Preparations

Connecting the power cord

When all the audio/video connections have been made, connect the AC power plug to the wall outlet. Make sure that the plugs are inserted firmly. The STANDBY/ON indicator lights in red.

NOTE

(ONLY for PX model) Use the supplied AC power plug adaptor when inserting the larger plug to the wall outlet.

Warning

• Disconnect the power cord:

- if you are not going to use the player for a long time.

- before cleaning the player.

- before moving the player.

• Do not:

- connect or disconnect the power cord with wet hands.

- pull the power cord when disconnecting it, as this may damage the cord and cause fire, electric shock, or other accidents.

Caution

• Do not alter, twist or pull the power cord, or put anything heavy on it, which may cause fire, electric shock, or other accidents.

• If the cord is damaged, consult a dealer and have the power cord replaced with a new one.

Remote sensor

Point the top of the remote control unit toward the remote sensor as directly as possible. If you operate it from a diagonal position, the operating range (approx. 5 m) may be shorter.

Remote sensor

Using the remote control unit

To install batteries

Open the compartment cover, and place the two supplied R6 (SUM-3)/AA(15F) batteries in the remote control unit according to the polarity markings (“+” and “–”) inside the compartment. Then replace the cover.

The batteries will last about six months with normal use. If the functions of the remote control unit become erratic, replace the batteries.

Precautions of the safe use of batteries

Observe the following precautions for the safe use of batteries. If they are used improperly their lives will be shortened, they may burst or their contents may leak.

• Remove the batteries from the remote control unit if it is not going to be used for a long period of time.

• Remove dead batteries and dispose of them properly.

• Never leave dead batteries lying around, take them apart, mix

them with other refuse, or throw them into an incinerator.

• Never touch liquid that has leaked out of a battery.

• Do not mix new and old batteries, or batteries of different types,

when replacing them.

Numeric buttons

Preparations

3 Release TV/VIDEO - CANCEL. 4 Try to operate the TV by pressing TV

STANDBY/ON .

If your TV turns on or off, you have successfully set the control signal.

NOTES

• When you purchased the player the manufacturer code is set to “JVC” (01).

• If there is more than one code listed for the manufacturer of

your TV, try them one by one until you succeed.

Operating the TV

Set the TV - DVD switch on the remote control unit to “TV.”

TV DVD

The following buttons can be used for operating the TV.

To use the remote control unit for TV operation

Setting the remote control signal for operating your TV

1 Set the TV - DVD switch to “TV.” 2 While holding down TV/VIDEO - CANCEL,

enter the manufacturer code of your TV listed below by using the numeric buttons (0 to 9), and then press ENTER.

Example:

To enter the manufacturer code “01”: Press “0,” “1,” then ENTER.

Manufacturer code list

Manufacturer No. Manufacturer No.

AIWA 36 MIVAR 29

BEIJING 22 NEC 20

CCE 02 NOBLEX 22

CHANGHONG 34 NOKIA 31

DAEWOO 17, 37 PANASONIC 04, 11

FERGUSON 27 PEONY 34, 38, 39

FINLUX 30 PHILCO 10, 17, 21

FUNAI 32 PHILIPS 02

GRADIENTE 15, 20 RCA 05

GRUNDIG 19

HITACHI 10

ITT 28 SANYO 13, 16

JINXING 38 SEARS 13

01, 23, 24, 25SHARP 06

JVC

KONKA 40 TCL 41

LG (GOLDSTAR) 18 THOMSON 26

MAGNAVOX 02 TOSHIBA 08, 14

MITSUBISHI 03 ZENITH 09

SAMSUNG

SONY 07

12, 33, 34, 35

Turns the TV on or off.

Switches the TV input mode between TV and VIDEO.

Selects the TV channels directly. *For some TVs, pressing “+10” functions as the

“100+,” while “10” functions as the ENTER button if your TV requires pressing the ENTER button after selecting a channel number.

Mutes the TV sound.

Changes the TV channels.

Adjusts the TV sound volume.

VOL+

VOL

TV1

TV/VIDEO

CANCEL

TV0

MUTING

+10

TV-/--

To control the volume of a JVC’s amplifier or receiver

Pressing the AMP VOL + button raises the audio volume of a JVC’s amplifier or receiver, while pressing the – button lowers the volume.

AMP

VOL

Preparations

NOTE

These codes may not be compatible with TVs which are relatively old.

Basic operations

STANDBY/ON indicator

NOTE

Make sure that the TV - DVD switch on the

TV DVD

remote control unit is set to “DVD ” when using the 5/∞/2/3 and numeric buttons for controlling the player.

• CANNOT READ THIS DISC (The player cannot play back the disc.)

• OPEN (The disc tray is opening.)

• CLOSE (The disc tray is closing.)

• NO DISC (No disc is loaded.)

NOTES

• Even if you turn off the player, the player is not disconnected from the AC power source as long as it is connected to the wall outlet. This state is called standby mode. In this state, the player consumes a very small amount of power.

• You can change the picture of the opening display. (See page

26.)

Initial setup

When you turn on the player for the first time, the following message appears on the TV screen.

EXECUTE DVD PLAYER SETUP? - BASIC PICTURE/AUDIO SETTING YES - PRESS ENTER NO - PRESS CANCEL

1 Press ENTER.

The first page of the DVD PLAYER SET UP display appears. The pull-down menu of the [ON SCREEN LANGUAGE] is already open.

About invalid operation icon

When you press a button, and if the player does not accept its operation, appears on your TV screen. Operations are occasionally unacceptable even if is not displayed.

Note that some operations may not be accepted. For example, some discs may not allow rapid advance/reverse or slowmotion playback.

Turning on/off the player

Press DVD STANDBY/ON on the remote control unit or press on the front panel.

The STANDBY/ON indicator on the front panel, which lights in red during standby, lights in green. The left and right sides of the display window are illuminated.

The opening display appears on the TV screen, and the following messages may appear at the bottom of the opening display.

NOW READING

ON SCREEN LANGUAGE options

2 Press 5/∞ to select the desired language.

You can select the on-screen language for the preference displays, etc. from among ENGLISH, FRENCH, and SPANISH.

3 Press ENTER.

The second page is shown, in which the pull-down menu of the [MONITOR TYPE] is already open.

MONITOR TYPE options

4 Press 5/∞ to select the desired monitor type.

For a normal (conventional) TV, select [4:3 LB] or [4:3 PS]. For a wide-screen TV, select [16:9]. (See page 29.)

Message area

• NOW READING (The player is reading the disc information.)

• REGION CODE ERROR! (The region code of the DVD VIDEO

disc does not match the player. The disc cannot be played back.)

5 Press ENTER.

The third page is shown, in which the pull-down menu of the [DIGITAL AUDIO OUTPUT] is already open.

PCM ONLY DOLBY DIGITAL/PCM STREAM/PCM

Basic operations

Basic playback

Press 0 (or OPEN/CLOSE on the remote control unit) to open the disc tray.

2 Place a disc in the disc tray.

DIGITAL AUDIO OUTPUT options

6 Press 5/∞ to select a desired digital output

signal type.

Set this item correctly when you connect the player to an external surround decoder or D/A converter. See “DIGITAL AUDIO OUTPUT” on page 30. (If you do not connect the player to such a device, you do not have to set this item.)

• When connecting to other digital device, select [PCM ONLY].

• When connecting to a Dolby Digital decoder, select [DOLBY DIGITAL/PCM].

• When connecting to a Dolby Digital decoder/DTS decoder/ MPEG decoder, select [STREAM/PCM].

7 Press ENTER.

The TV screen returns to the opening display.

To bring up the DVD PLAYER SET UP display later

Press SET UP for a few seconds until the DVD PLAYER SET UP display appears.

With the label side up

• To insert an 8-cm disc, place it in the inner recess.

3 Press 0 (or OPEN/CLOSE on the remote

control unit) to close the disc tray.

4 Press 3 on the player or 3/SELECT on the

remote control unit.

The player starts playback from the beginning.

• Depending on the disc, playback starts when you close the disc tray.

If a menu is shown on the TV screen

When inserting a DVD VIDEO, SVCD or Video CD disc, a menu may be shown on the TV screen. From the menu, you can select a desired item to be played back.

For DVD VIDEO

1Press 5/∞/2/3 to select a desired item. 2Press ENTER.

The player starts playback of the selected item.

Basic operations

For SVCD/Video CD

Press the numeric buttons to select a desired item. The player starts playback of the selected item.

NOTES

• Do not insert an unplayable disc. (See page 2.)

• When inserting a disc on the disc tray, be sure to position the

disc inside the recess. Otherwise, the disc may be damaged when the disc tray is closed, or you may not be able to remove the disc from the player.

• If it takes time to read the loaded disc (“READING” appears on the display window), remove the disc by pressing OPEN/ CLOSE on the remote control and check the disc.

Basic operations

About On-screen guide icons

You may see the following icons displayed over the picture at the beginning of an operation. They have the following meanings.

: Playback

: Pause

: Fast playback with the speed indication

: Slow-motion playback with the speed indication

: A scene recorded from multiple angles (see page 19)

: A scene recorded with multiple audio languages (see

page 19)

: A scene recorded with multiple subtitle languages (see

page 19)

You can change the setting so that the on-screen guide icons do not appear on the TV screen (see page 30).

Basic operations

To check the playback status

You can see the current selection number (the title/chapter number for DVD VIDEO or track number for SVCD/Video CD/Audio CD), time information (the track or chapter time while stopped, or elapsed track or chapter time during playback) and the transport status (stop, playback, pause, etc.) on the TV screen.

Press ON SCREEN.

Example: for DVD VIDEO

Transfer rate

8.5Mbps

Note that pressing ON SCREEN again brings up the menu bar under the status bar, from which you can access various functions. See page 21 for details about the menu bar.

To turn off the status bar

Press ON SCREEN repeatedly until the status bar goes off.

Current chapter

number

TITLE 33 TOTAL 1:25:58CHAP 33

Current title number

Current transport

status

Current chapter

time

To stop playback completely

Press 7.

Hint

If you press 0 during playback, the player stops playback and opens the disc tray.

To stop playback temporarily

Press 8.

To resume playback, press 3/SELECT. (See the following item.)

Resuming playback

The player can memorize the position on a disc where you interrupt playback, and resume playback from that position later. There are three resume modes; ON, OFF and DISC RESUME. The mode is initially set to ON when you purchased the player.

• You can select the mode using the preference display (see page

30).

When the resume mode is “ON”

When you press 7, the player stops playback and memorizes the interrupted position. The TV screen shows “RESUME STOP” and [– – – – RESUME] appears in the display window. The memory of the interrupted position is not cleared if you turn off the player. When you turn off the player after setting the resume function, simply press 3/SELECT. The player is turned on, and playback starts from the interrupted position. Note that the memory is cleared if you open the disc tray.

When the resume mode is “DISC RESUME”

Hint

The player memorizes interrupted positions for the last 30 discs played. Storing a new interrupted position will erase the interrupted position stored for the first disc.

To clear the memory

Press 7 while the disc is stopped.

Basic operations

To resume playback

When the resume mode is “ON”

While the disc you interrupted playback is still on the disc tray, press

The player resumes playback from the position where playback was interrupted. The TV screen shows “RESUME PLAY.”

To play back from the beginning

Press 7 before pressing 3/SELECT to start playback.

3/SELECT.

When the resume mode is “DISC RESUME”

1 Press 0 to insert a disc for which the player

has stored an interrupted position.

The TV screen shows “RESUME STOP.”

2 Press 3/SELECT.

The TV screen shows “RESUME PLAY” and the player resumes playback from the position where playback was interrupted.

To play back from the beginning

After inserting the disc, press 7 before pressing 3/SELECT to start playback.

When playing back a memory card

Pressing the DVD/CARD with a disc loaded clears the memory of the interrupted position. To playback a memory card without clearing the memory of the interrupted position, do the following procedure.

1 Set the [RESUME] setting to [DISC RESUME]. 2 Press 7. 3 Press 0 to eject the disc. 4 Press DVD/CARD and start the memory card playback.

NOTES

• If you change the [RESUME] setting from [DISC RESUME] to [OFF] or [ON], you cannot resume playback of a disc whose “resuming” position is stored. However, when you again set [RESUME] to [DISC RESUME], you will then be able to resume playback of the disc.

• When you resume playback, set the [RESUME] setting to [DISC RESUME] before removing a loaded disc.

• If you interrupt the playback of a disc for which an interrupted position has already been stored, the memory will be updated with the new interrupted position.

• For a double-sided DVD VIDEO disc, the player regards each side as a different disc. Therefore, to resume playback of such a disc, the disc must be inserted with the same side down.

• When the player memorizes an interrupted point for a disc, it also memorizes Audio, Subtitle and Angle settings.

Various speed playback

To advance or reverse playback rapidly while monitoring

During playback, press ¡ or 1 on the remote control unit.

You can select from 2 times (1.5 times for only the forward playback of DVD VIDEO), 5 times, 20 times and 60 times (for DVD VIDEO only) normal speed. Pressing 3/SELECT returns the player to normal playback.

During playback, hold down ¢ or 4.

Playback is advanced or reversed at 5 times normal speed.

NOTE

During rapid playback, the sound will be muted except when playing an audio CD, and when playing a DVD VIDEO at 1.5 times normal speed. For Audio CD, the sound will be heard intermittently.

x1.5 Quick Playback with sound

Basic operations

When you select 1.5 times normal speed playback, the disc is played back with sound.

• The subtitle does not go off.

• The sound may be heard intermittently.

• If the sound of a DVD VIDEO disc is recorded in Dolby Digital or

DTS format, stereo linear PCM signals are output. With some DVD VIDEO discs, the sound quality and volume may alter, or the sound may be out of tune.

• To switch from rapid reverse playback to x1.5 Quick Playback,

first press 3/SELECT, then press ¡ once.

To advance a still picture frame by frame

While paused, press 8.

Each time you press 8, the still picture advances to the next frame. Pressing 3/SELECT returns to normal playback.

To play back in slow motion

You can select from 1/32 times, 1/16 times, 1/4 times and 1/2 times normal speed.

During playback, press 8, then press ¡ (to play forward slow motion), or reverse slow motion, for DVD VIDEO disc only).

Pressing 3/SELECT returns to normal playback.

NOTE

During slow motion playback, the sound will be muted.

1 (to play

Basic operations

Numeric buttons

Locating the beginning of a scene or song

For DVD VIDEO: During playback, you can skip a chapter or title,

depending on the disc configuration.

For SVCD/Video CD: During playback without PBC function, you

can skip a track.

For Audio CD: During playback or while in stop mode, you can skip

a track.

To skip forward, press ¢.

Basic operations

To replay the previous scenes (One touch replay function)

During DVD VIDEO playback, press .

The playback position moves back 10 seconds before the current position.

NOTES

• This function works only within the same title, though it works between chapters.

• This function may not work with some DVD VIDEO discs.

To skip backward, press

4 twice.

Using the numeric buttons

For DVD VIDEO/Audio CD: During playback or while in stop mode For SVCD/Video CD: During playback without PBC function or

while in stop mode

Press the numeric buttons to specify the number.

To select 5: press 5. To select 23: press +10, +10, then 3. To select 40: press +10, +10, +10, then 10.

The player starts playback from the beginning of the selection.

NOTES

• Depending on the disc type and the player status, what is specified differs:

Player status

While stopped

During playback

Disc type What is specified

DVD VIDEO title

SVCD/Video CD/Audio CD track

DVD VIDEO chapter

SVCD/Video CD/Audio CD track

• During DVD VIDEO playback, if a menu is shown on the TV screen, the numeric buttons may be used for selecting an item in the menu.

About screen saver function

A television monitor may have an image burned into it if a static image is displayed for a long time. To prevent this, the player automatically activates the screen saver function if a static picture, such as an on-screen display or menu, is displayed for over 5 minutes. When the screen saver function is activated, the TV screen gets darker. Pressing any buttons will release the screen saver function. See “SCREEN SAVER” on page 29.

• The screen saver function does not work when playing back

the following sources:

- JPEG/MPEG-4 (while in pause)

- Audio CD

Advanced operations

Numeric buttons

NOTE

TV DVD

Make sure that the TV - DVD switch on the remote control unit is set to “DVD ” when using the 5/∞/2/3, numeric and TV/ VIDEO - CANCEL buttons for controlling the player.

To locate a desired scene from the menu of a SVCD/Video CD with PBC

Some SVCD/Video CD discs support the PBC function. PBC is an abbreviation of “Playback Control.” Some SVCD/Video CD discs recorded with PBC have their own menus, such as a list of the songs of the disc. You can locate a specific scene by using the PBC menu.

1 In stop mode, press 3/SELECT.

A disc menu appears on the TV screen.

2 Press the numeric buttons to select the

desired item.

To select 5: press 5. To select 23: press +10, +10, then 3. To select 40: press +10, +10, +10, then 10.

The player starts playback of the selected item. To return to the menu, press RETURN.

Hint

If something like “NEXT” or “PREVIOUS” appears on the TV screen, pressing ¢ advances to the next page, and pressing 4 returns to the previous page.

Playing from a specific position

To locate a desired scene from the DVD menu

DVD VIDEO discs generally have their own menus which show the disc contents. These menus contain various items such as titles of movies, names of songs, or artist information, and display them on the TV screen. You can locate a desired scene using the DVD menu.

1 While a DVD VIDEO disc is inserted, press

TOP MENU or MENU.

The menu appears on the TV screen.

2 Press 5/∞/2/3 to select a desired item, then

press ENTER.

The player starts playback of the selected item.

Hints

• Some DVD VIDEO discs may also have a different menu which appears when MENU is pressed.

• See the instructions of each DVD VIDEO disc for its particular menu.

• With some discs, you can select items by entering the corresponding number using the numeric buttons, which may cause the player to automatically start playback.

About PBC (Playback Control)

Some SVCD/Video CD discs support the PBC function. The PBC function allows you to enjoy menu-driven operation and high-resolution still images which have a resolution four times greater than moving pictures.

• To play a PBC-compatible SVCD/Video CD disc without activating the PBC function, press the numeric buttons instead of 3/SELECT to start playback.

• To activate the PBC function again, press 7 to stop playback, then press 3/SELECT.

To specify a desired title

1 During playback, press TITLE/GROUP.

[--] is shown in the title display area of the display window.

2 Press the numeric buttons to specify a title to

be played.

To select 5: press 5. To select 23: press +10, +10, then 3. To select 40: press +10, +10, +10, then 10.

The player starts playback from the specified title.

NOTE

This function may not work with some DVD VIDEO discs.

Advanced operations

NOTE

The MENU button does not work while stopped.

Advanced operations

Numeric buttons

To locate a desired position in the current title or track (Time search)

You can play a disc from the desired position by specifying the time from the beginning of the current title (for DVD VIDEO) or the disc (for SVCD/Video CD/Audio CD).

For DVD VIDEO/Audio CD: During playback For SVCD/Video CD: In any condition except SVCD/Video CD

playback with PBC

1 Press ON SCREEN twice.

The menu bar appears on the TV screen.

2 Press 2/3 to move to , then press

ENTER.

The pull-down menu for entering time appears.

3 Press the numeric buttons (0 to 9) to enter the

desired time.

The specified time is displayed in the pull-down menu.

Example (for DVD VIDEO)

To play back from 2(H):34(M):00(S) Press 2, 3, then 4.

Example (for SVCD/Video CD/Audio CD)

To play back from 23(M):40(S) Press 2, 3, then 4.

You do not have to press “0” to enter the trailing zeros (for the last two digits in the example above).

To correct a mistake

Press 2 repeatedly to move back to the digit where you entered a wrong number, and reenter the correct one.

4 Press ENTER.

The player starts playback from the specified time.

To dismiss the menu bar

Press ON SCREEN.

Hint

“10” and “+10” buttons are not used with this function.

NOTES

• Some DVD VIDEO discs do not contain time information, and the time search function cannot be used.

• The time search function cannot be used during program playback.

Screen example for DVD VIDEO

8.5Mbps

TIME _:__:__

Screen example for Audio CD

OFF PROG. RND.

TIME __:__

TITLE 33 TOTAL 1:25:58CHAP 33

CHAP.

1/3 1/3OFF 1/5

TIME 25:58TRACK 33

Changing the playback order

To play back in a specific order (Program play)

By programming tracks, you can play up to 99 tracks in any order. You may program the same track more than once.

1 In stop mode, press ON SCREEN twice.

The menu bar appears on the TV screen.

2 Press 2/3 to move to .

Screen example for Audio CD

OFF PROG. RND.

PROG.

TIME 25:58TRACK 33

3 Press ENTER.

The program table appears. The [PRGM] indicator lights up in the display window.

4 Press the numeric buttons to specify tracks

in the desired order.

To select 5: press 5. To select 23: press +10, +10, then 3. To select 40: press +10, +10, +10, then 10.

Advanced operations

To check the program contents

During playback, press 7. Playback stops and the program table is shown. When the player is playing back an Audio CD and the program table is not shown, you can bring up the table by carrying out steps 1 to 3. During SVCD/Video CD playback, you can check the program contents via the menu bar.

To stop program playback

Press 7.

To clear the program

While stopped and the program table is shown, press 7.

To exit the program mode

After clearing the program, press ON SCREEN.

NOTES

• When the disc tray is opened or the player is turned off, the program is cleared.

• During Audio CD playback, you can select previous or next tracks by pressing ¢/4.

• During VCD/SVCD playback, you cannot search for the portion on the discs by pressing ¡/1.

• During program playback, you can repeat playback.

To play back in random order (Random play)

The total program time

PROGRAM

No. TrackDisc 1 2 1 2 3 5 3 7 4 4 4 2 5 3 3 6 5 4 7 6 6 8 9 10

USE NUMERIC KEYS TO PROGRAM TRACKS. CANCEL DELETES THE LAST STEP.

To correct the program

Press 5/∞ to move to the track to be corrected, then press TV/VIDEO - CANCEL. The track is erased and the

subsequent programmed tracks move up. Pressing 7 clears all the programmed tracks.

Total Program Time 00:25:12

7 DELETES ALL.

Selected track number

5 Press 3/SELECT to start program playback.

With an Audio CD disc, the program table remains on the TV screen during program playback. (Pressing ON SCREEN brings up the status bar.) When all of the programmed tracks have finished playback, the player stops and the program table appears again. Note that the program remains.

• During program playback, you cannot edit the program contents.

1 In stop mode, press ON SCREEN twice.

The menu bar appears on the TV screen.

2 Press 2/3 to move to .

Screen example for Audio CD

OFF PROG. RND.

RND.

TIME 25:58TRACK 33

3 Press ENTER.

The player starts random playback. With an SVCD/Video CD disc, the menu bar is automatically dismissed. During random playback, the [RND] indicator lights up in the display window. After playing all tracks of the disc, the player stops the disc and exits the random playback mode.

To stop and quit random playback

Press 7. The player stops playback and exits the random playback mode.

NOTES

• During random playback, you can repeat playback.

• Random playback mode will be canceled in the following cases:

- When ejecting the loaded disc

- When the Control screen appears on the TV

- When turning off the power

Advanced operations

To repeat a desired part (A-B repeat playback)

First make sure:

• The player is in playback mode except SVCD/Video CD playback with PBC.

1 Press ON SCREEN twice.

The menu bar appears on the TV screen.

2 Press 2/3 to move to , then press

ENTER.

The pull-down menu for repeat mode selection appears.

3 Press 5/∞ to select [A-B].

Advanced operations

Repeat playback

To repeat the current selection or all tracks

For DVD VIDEO: During playback For SVCD/Video CD/Audio CD: In any condition except SVCD/

Video CD playback with PBC

Press REPEAT.

If you press REPEAT in stop mode, press 3/SELECT to start playback. Each time you press REPEAT, the repeat mode cycles among All repeat, Repeat 1 and off. The indication on the display window shows the selected repeat mode.

: Repeats the current title for DVD VIDEO or all tracks for

SVCD/Video CD/Audio CD.

1: Repeats the current chapter for DVD VIDEO or the

current track for SVCD/Video CD/Audio CD.

No indication: The repeat mode is off.

A window which indicates the current repeat mode will be displayed on the TV screen. The mode indication on the window is same as the one on the menu bar. (Repeat mode example on the TV screen)

CHAP

4 Press ENTER at the beginning of the part you

want to repeat (point A).

The pull down menu disappears.

A-

The repeat icon shows .

A-

5 Press ENTER at the end of the part you want

to repeat (point B).

A-B

The repeat icon shows . The player locates “A” and starts repeat playback between “A” and “B.”

The [ ] indicator lights in the display window.

To quit A-B repeat playback

Press 2/3 to move to , and press ENTER. The A-B repeat mode turns off, then normal playback continues.

NOTES

• The A and B points must be set in the same title/chapter/track.

• When you press 7

repeat is canceled.

twice during DVD VIDEO playback, A-B

To stop repeat playback

Press 7. When a DVD VIDEO disc is set, the unit stops playback and quits the repeat mode. When an SVCD, Video CD or Audio CD disc is set, the unit stops playback but does not quit the repeat mode.

To quit repeat playback

Press REPEAT until the repeat mode indicator goes off in the display window.

Hint

When the program playback mode is active with an SVCD, Video CD or Audio CD, the repeat mode changes in the same manner.

Note, however, that in the “” mode the player repeats all the programmed tracks instead of all tracks on the disc.

Changing the language, sound and scene angle

To select the subtitle language (SUBTITLE)

Advanced operations

2 Press 5/∞ or AUDIO to select the desired

audio.

Each time you press 5/∞ or AUDIO, the audio changes.

For DVD VIDEO (example)

For SVCD

Some DVD VIDEO and SVCD discs contain more than one subtitle language. You can choose a desired one from them.

Hint

At the beginning of the part where the subtitles are recorded, appears on the TV screen (except when the [ON SCREEN GUIDE] preference is set to [OFF]).

1 During playback, press SUBTITLE.

The subtitle selection window appears on the TV screen.

1/3

ENGLISH

2 Press 5/∞ or SUBTITLE to select the subtitle.

Each time you press 5/∞ or SUBTITLE, the subtitle language changes.

3 Press ENTER.

Subtitles are displayed in the selected language. The subtitle selection window is dismissed.

NOTES

• An SVCD disc can have up to four subtitles. Pressing 5/∞

cycles through those channels regardless of whether the subtitles are recorded or not.

• The subtitle selection window will automatically disappear if you do not change the subtitle for several seconds.

• For DVD VIDEO, the selected language may be abbreviated on the TV screen. See “Appendix C: Table of languages and their abbreviations” on page 36.

To change the audio language or sound (AUDIO)

For Video CD

3 Press ENTER.

You can hear the selected audio. The audio selection window is dismissed.

NOTES

• The audio selection window will automatically disappear if you do not change the audio for several seconds.

• For DVD VIDEO, the selected language may be abbreviated on the TV screen. See “Appendix C: Table of languages and their abbreviations” on page 36.

• Some discs may not allow this operation during playback.

To select a scene angle of DVD VIDEO (ANGLE)

You can enjoy a variety of scene angles if the DVD VIDEO disc contains “multi-angle” parts, where multiple cameras were used to shoot the same scene from different angles.

Hint

At the beginning of a “multi-angle” part, appears on the TV screen (except when the [ON SCREEN GUIDE] preference is set

to [OFF]).

1 During playback, press ANGLE.

The angle selection window appears on the TV screen.

1/3

Advanced operations

The audio selection setting allows you to change the audio language of a movie.

Hint

At the beginning of the part where multiple audio tracks are

recorded, appears on the TV screen (except when the [ON SCREEN GUIDE] preference is set to [OFF]).

1 During playback, press AUDIO.

The audio selection window appears on the TV screen.

1/3

ENGLISH

2 Press 5/∞ or ANGLE to select the desired

angle.

Each time you press 5/∞ or ANGLE, the angle changes.

3 Press ENTER.

You can see the picture from the selected angle. The angle selection window is dismissed.

NOTE

The angle selection window will automatically disappear if you do not change the angle for several seconds.

Advanced operations

2 Press 2/3 to select the desired preset.

Each time you press the button, the VFP mode changes as follows. Set the video type most suitable to the current program or the room conditions.

Selected preset

USER 1

GAMMA

BRIGHTNESS

CONTRAST

SATURATION

TINT

SHARPNESS

Y DELAY

MID

+ 4

+10

LOW

+ 2

Advanced operations

Special picture/sound effect

To zoom in pictures

1 During playback or while paused, press

ZOOM.

Pressing ZOOM causes the player to zoom in on the image. Each time you press ZOOM, the magnification is changed (1.5, 2 and 4 times).

2 Press 5/∞/2/3 to move the zoomed position.

To return to the normal playback

Select the normal size by pressing ZOOM repeatedly.

NOTE

While zoomed, the picture may look coarse.

To adjust the picture character (VFP)

The VFP (Video Fine Processor) function allows you to adjust the picture character according to the type of programming, picture tone or personal preferences.

1 During playback, press VFP - PROGRESSIVE

SCAN.

The VFP mode selection window appears on the TV screen.

• If you press the VFP-PROGRESSIVE button too long, the button works for changing the scanning mode (see page 6) instead of the VFP function.

Parameter

[NORMAL]: for watching TV in a general room. [CINEMA]: for watching a movie software in a room with

suppressed light.

[USER 1] [USER 2]: you can adjust parameters that affect the

picture character and store the settings as a user preset. See the next step.

3 To define a user setting, press 5/∞ to select a

parameter to be edited from the following.

•GAMMA

Adjust this if the neutral color is bright or dark. The brightness of dark and bright portion is maintained. Available range: LOW/MID/HIGH.

• BRIGHTNESS

Adjust this if the picture is bright or dark on the whole. Available range: –16 (darkest) to +16 (brightest).

•CONTRAST

Adjust this if the far and near position is unnatural. Available range: –12 to +12.

• SATURATION

Adjust this if the picture is whitish or blackish. Available range: –16 (blackest) to +16 (whitest).

•TINT

Adjust this if the appearance of flesh tone is unnatural. Available range: –16 to +16.

• SHARPNESS

Adjust this if the picture is indistinct. Available range: LOW/HIGH.

•Y DELAY

Adjust this if the picture looks separately/overlapped. Available range: –2 to +2.

4 Press ENTER.

A window for setting parameters appears.

SATURATION + 4

Selected parameter

5 Press 5/∞ to adjust the level of the

parameter.

The higher value enhances the effect for each item other than “GAMMA” and “SHARPNESS.”

6 Press ENTER.

Repeat steps 3 to 6 if you want to set other parameters.

To dismiss the VFP mode selection window

Press VFP - PROGRESSIVE SCAN.

NOTE

The window for VFP mode selection and parameter setting disappear if no operation is made for about 10 seconds.

To change sound field (SOUND EFFECT)

Using the Sound Effect function, you can change the sound field.

1 During playback, press SOUND EFFECT.

The Sound Effect indication appears on the TV screen.

2 Press SOUND EFFECT to select the desired

mode.

Each time you press the button, the Sound Effect mode changes as follows:

SOUND EFFECT:1 SOUND EFFECT:2

Advanced operations

Menu bar functions

To bring up the menu bar

1 When a disc is inserted, press ON SCREEN.

A status bar for the type of disc inserted will appear on the TV screen. See page 12 for details about the status bar.

2 Press ON SCREEN again.

A menu bar for the type of disc inserted will appear under the status bar.

(for DVD VIDEO)

8.5Mbps

(for SVCD)

OFF

TITLE 33 TOTAL 1:25:58CHAP 33

CHAP.

PROG. RND.

1/3 1/3OFF 1/5

ST1

TIME 25:58TRACK 33

-/4

OFF SOUND EFFECT:3

The [SE] indicator lights on the display window when the Sound Effect function takes effect.

• As the value becomes bigger, the Sound Effect works stronger.

To deactivate the Sound Effect

Press SOUND EFFECT repeatedly until “OFF” appears on the TV screen.

NOTE

The Sound Effect indication disappears if no operation is made for about few seconds.

(for Video CD)

TIME 25:58TRACK 33

OFF

(for Audio CD)

OFF PROG. RND.

STPROG. RND.

TIME 25:58TRACK 33

To dismiss the menu bar and status bar

Press ON SCREEN.

Basic operation procedure

1 Press 2/3 to select the icon you want to

work with.

The selected icon is pointed by .

2 Press ENTER.

With many icons, an appropriate pull-down window appears, however, there are some exceptions.

NOTES

• A mark or text on the menu icon for the function or mode currently selected is shown in green.

• Some functions are not available during playback. (You cannot move to the associated icon when it is not available.)

Advanced operations

Menu bar functions for DVD VIDEO

Time mode selection

During playback, selects the time mode shown in the display window and in the status bar.

Press ENTER to select the time mode from the following.

• TOTAL: Current title elapsed time

• T.REM: Current title remaining time

• TIME: Current chapter elapsed time

• REM: Current chapter remaining time

Repeat mode (See also page 18)

Selects the repeat mode during playback.

1. Open the pull-down window.

2. Press 5/∞ to select the repeat mode from the following.

• CHAPTER: Current chapter repeat

• TITLE: Current title repeat

• A-B: A-B repeat

• OFF: Repeat mode deactivated

3. Press ENTER to make the selected repeat function active.

Time search (See also page 16)

Specifies a time from the beginning of the current title as the point from which to begin playback.

CHAP.

During playback, specifies a desired chapter to be played back from.

1. Open the pull-down window.

2. Press numeric buttons (0 to 9) to enter a desired chapter number. (For example, to specify “10,” press 1, then 0.)

3. Press ENTER to begin playback from the specified chapter.

During playback, selects the audio language or sound track.

1. Open the pull-down window.

2. Press 5/∞ to select a desired audio language or sound track.

3. Press ENTER to begin playback with the selected audio.

Chapter search

Audio selection (See also page 19)

Menu bar functions for SVCD/Video CD/ Audio CD

Time mode selection

Selects the time mode shown in the display window and in the status bar.

Press ENTER to select the time mode from the following.

• TIME: Current track elapsed time

• REM: Current track remaining time (while in stop mode, current

• TOTAL: Disc elapsed time

• T.REM: Disc remaining time (while in stop mode, disc total time)

Selects the repeat mode.

1. Open the pull-down window.

2. Press 5/∞ to select the repeat mode from the following.

3. Press ENTER to make the selected repeat function active.

Specifies a time from the beginning of the disc as the point from which to begin playback.

PROG.

While stopped, specifies the playback order of tracks.

While stopped, activates random playback.

During SVCD/Video CD playback, selects the audio channel(s).

1. Open the pull-down window.

2. Press 5/∞ to select a desired audio channel(s).

3. Press ENTER to play back with the selected audio channel(s).

track total time)

Repeat mode (See also page 18)

• TRACK: Current track repeat

• ALL: All track repeat

• A-B: A-B repeat

• OFF: Repeat mode deactivated

Time search (See also page 16)

Program playback (See also page 17)

RND.

Random playback (See also page 17)

Audio selection (See also page 19)

Subtitle selection (See also page 19)

During playback, selects the subtitle language.

1. Open the pull-down window.

2. Press 5/∞ to select a desired subtitle language.

3. Press ENTER to begin playback with the selected subtitle.

Angle selection (See also page 19)

During playback, selects a desired scene angle in a multi-angle part.

1. Open the pull-down window.

2. Press 5/∞ to select a scene angle.

3. Press ENTER to begin playback with the selected scene angle.

Subtitle selection (See also page 19)

During SVCD playback, selects the subtitle.

1. Open the pull-down window.

2. Press 5/∞ to select a desired subtitle.

3. Press ENTER to begin playback with the selected subtitle.

Audio/Video files playback

Notes for making files/groups

Outline

The player can play back MP3/WMA/JPEG/MPEG-4 (Simple profile) files on a personally recorded media as follows:

CD-R/RW, memory card, commercially available CD The player can also play back MPEG-4 (Advanced simple profile) and DivX files recorded on CD-R/RW, DVD-R/-RW. Some DVD-R and DVD-RW discs mastered as multi border (multi-session) may not be compatible with the player. You can select and play back files using the Control display on the TV screen.

• The player may be unable to play back the media due to the

characteristics or recording conditions.

Precautions

About files and folders (groups) on the disc or the memory card

• Files are sometimes grouped into folders by genre, album, etc.

In this manual, “group” is also referred to as “folder.”

• A folder which has one or more files is regarded as a group.

• The player can detect and play back the groups which are

located up to the fifth layer.

• The files in the Control display are arranged by the alphabetical

order of extensions as follows: “asf”, “avi”, “divx”, “jpeg”, “mp3”, and “wma”.

• Time required for reading the media contents may vary for

different media, depending on the numbers of folders (groups) and files recorded, etc.

• Files which do not belong to any folder are grouped into “group

1.”

• The player recognizes up to150 files per group, and up to 250

groups per disc/memory card. Files other than MP3/WMA/ JPEG/MPEG-4/DivX files count in the 999 total.

Max. 250 groups per media

Max.150 files

File 1.mp3 File 2.mp3 File 3.mp3

Group 2

File 1.jpg File 2.jpg File 3.jpg

Group 4

File 4.jpg

Notes for making your own disc

• Use “UDF format” as the disc format for DVD-R/-RW.

• Use “ISO 9660” as the disc format for CD-R/RW.

• The player does not support “packet writing” for CD-R/RW.

• The player supports discs recorded with up to five multiple

sessions.

• Some disc may not play due to media characteristics or

recording conditions.

per group

Group 1

File 4.jpg

File 5.jpg File 6.jpg

Group 3

• If a file name includes even one 2-byte character, the player may not show the file name correctly.

• The player supports up to 12 characters as the group/file names.

• The player can only recognize files with one of the following extensions, which can be in any combination of upper and lower case:

- For MP3 files, “.MP3”, “.mp3”.

- For WMA files, “.WMA”, “.wma”.

- For JPEG files, “.JPG”, “.JPEG”, “.jpg”, “.jpeg”.

- For MPEG-4 files, “.ASF”, “.asf”.

- For DivX files, “.DIVX”, “.DIV”, “.divx”, “.div” and “.AVI”, “.avi”.

• For MP3 files:

- It is recommended that you record your material at a 44.1 kHz

sampling rate, using the 128 kbps data transfer rate.

- ID3 Tag is not available.

- MP3i and MP3 Pro are not available.

• For WMA files:

- WMA Tag is not available.

- Make sure that the copyright feature is set to off.

- We recommend you to record your material at a bit rate of 64

kbps or higher.

- The player supports WMA files recorded with a bit rate of 48

kbps or higher. The player cannot play back WMA files recorded with a bit rate under 48 kbps.

• For JPEG files:

- We recommend you to record your material at a 640 x 480

pixel resolution.

- This player supports the baseline JPEG format.

- The player does not support a baseline-formatted picture of

more than 5120 x 3413 pixels. Make sure that the pictures pixel size is 5120 x 3413 pixels or less.

- This player cannot play back a progressive JPEG file of more

than 2048 x 1536 pixels.

• For MPEG-4 files:

- The player supports the AVI files whose resolution is 640 x

480 pixels or less, and created using 4 Mbps ASP codec.

- The size of the playback screen will be the same size as it is

recorded.

- Some recorded files may not be able to be played back

depending on file characteristics, kind of digital still/video cameras, or recording conditions.

- The player can playback the following MPEG-4 files:

MPEG-4 V2: Simple (single) stream MPEG-4 V3: Fully supported

(MPEG-4 V1 file is not compatible.)

• For DivX files:

- The player supports DivX 5.x, 4.x and 3.11.

- The player supports the DivX files whose resolution is 720 x

480 pixels or less (30 fps), and 720 x 576 pixels or less (25 fps).

- Audio stream should conform to MPEG 1 Audio Layer-2 or

MPEG Audio Layer-3 (MP3).

- The player does not support GMC (Global Motion

Compression) and Q-Pel (Quarter Pixel).

- The file encoded in the interlaced scanning mode may not be

played back correctly.

- The player has its own Registration Code for DivX playback.

If necessary, you can confirm the Registration Code of your player using the OTHERS menu. (See page 31.)

Audio/Video files playback

Notes for inserting and removing memory cards

• Before you insert a memory card into a card slot, open the door on the front panel and make sure of the slot type and the direction of insertion as illustrated.

• Always use the single type of memory card at a time. When inserting the two or more types of memory card, “CHECK FOR CARD” appears on the TV screen.

• After inserting a memory card, close the door for playback. If the door is open, “CLOSE THE DOOR” appears on the TV screen and the player does not start the memory card playback.

• Stop both the memory card playback and the disc playback before inserting or removing memory card. When inserting or removing memory card during the disc playback, you cannot operate the player temporarily by static electricity and/or noise. In this case, disconnect the power plug and connect it again.

• When playing back a disc, always remove a memory card and close the card door.

• When playing back a disc, the electrostatic noise may restart the playback from the beginning.

Press here to remove the inserted CompactFlash with the player held.

Metal terminal

(To the middle part)

(To the lower part)

• When inserting or removing a memory card, hold the player firmly.

• When inserting an xD-Picture card, make sure that the front edge of the card is facing to the slot properly.

SM (To the upper part)

SD or MMC

Ridge

NOTE

Make sure that the TV - DVD switch on the

TV DVD

remote control unit is set to “DVD ” when using the 5/∞/2/3 and numeric buttons for controlling the player.

Basic operations

When you insert a disc or memory card with groups and files, the Control display that shows the contents of the medium automatically appears on the TV screen. You can specify and play back the desired group/file from the Control display using the following procedure.

1 Make sure that the cursor bar is in the left

(group) column on the Control display.

Current media

SD Memory Card

GROUP WMA MP3 MPEG4

Current group

• If it is in the right column, press 2 to move it to the left

column.

• If you want to select the other medium while both a disc and memory cards are inserted, press DVD/CARD before starting playback. When the player accesses a memory card, the [M CARD] indicator lights on the display window.

SLIDESHOW

MIX

Group column

Select these sections to show the upper layer.

BGM SLIDE SHOW OFF

-MOVIE01.ASF MOVIE02.ASF PICT01.JPG PICT02.JPG PICT03.JPG MUSIC01.MP3 MUSIC02.WMA

File column

Selected track

• Make sure the disc playback is stopped when inserting or removing the memory card.

• When inserting or removing the memory card, pay attention not to push any button on the player accidentally.

Audio/Video files playback

2 Press 5/∞ to move the bar to a desired

group, then press ENTER or 3/SELECT.

• In the right column, files in the selected group are shown.

3 Press 5/∞ to select the desired file, then

press ENTER.

The selected file is played back.

• When you press 3/SELECT, the continuous playback starts

from the selected file. The playback stops after playing back of all files in the same group.

• You can also change the files on the list by pressing 4/ ¢ or the numeric buttons.

To pause playback

Press 8. Pressing 3/SELECT resumes normal playback.

To reverse or advance playback rapidly

Press 1/¡ during playback of MP3/WMA/DivX.

• Each time you press 1 or (¡), the player reverses (or

advances) playback, rapidly changing the playback speed as follows:

- For MP3/WMA files x2, x4, x6, and x8

- For DivX files During rapid forward or reverse playback using 1/¡, [11]/[¡1], [12]/[¡2], [13]/[¡3], or [1 4]/[¡4] appears on the TV screen. The higher the value is, the faster the playback speed is.

- [JPEG DATA ERROR] means that this player cannot play back the file.

- [JPEG DATA CORRUPTED] means that the file has error but the player can play back it.

- [OUT OF MEMORY] means that the pixel resolution of the JPEG file is too high. (See “Notes for making files/groups” on page 23.)

- [NEXT] means the player skips to the next file.

- [PREVIOUS] means the player skips to the previous file.

- [SELECT] means the file is selected on the thumbnail screen.

Direct selection for JPEG files

You can select a particular JPEG file from the thumbnail screen.

1 Press THUMBNAIL/LIST while a JPEG file is

selected on the Control display.

The thumbnail screen appears on the TV. Up to nine thumbnails from the selected file at a time can be displayed on the screen.

• When selecting a group on the Control display, the thumbnail screen does not appear.

2 Press 5/∞/2/3 to select the desired picture

on the thumbnail screen, then press ENTER.

The desired picture is played back.

• You can change the thumbnails by pressing 4/¢. All the JPEG files in the single group are displayed every nine thumbnails.

To zoom in a picture

Press ZOOM.

• Each time you press ZOOM, the magnification is changed—

- 1.5, 2 times, and 4 times for JPEG files

- 2 times, and 4 times for MPEG-4 files

- 2 times for DivX files

• The four-time magnification may not work for some JPEG/ MPEG-4 files according to their resolutions.

• Pressing 5/∞/2/3 moves the zoomed position during playback of JPEG file.

To cancel the zoom function, select the normal size by pressing ZOOM repeatedly.

To rotate/reflect a still picture

While the still picture is played back:

• Pressing 3 rotates the picture by 90° clockwise.

• Pressing 2 rotates the picture by 90° counterclockwise.

• Pressing ∞ reflects the picture vertically.

• Pressing 5 reflects the picture horizontally.

To stop playback

Press 7. The Control display appears on the TV.

NOTES

• Opening the card door or the disc tray stops playback.

• During slide show playback, you cannot rotate/reflect a picture.

• It may take time to show the Control display due to the layer configuration of the files and groups.

• The elapsed time may be incorrectly indicated on the display window due to the recording condition of the file.

• The display window cannot show the file number more than

100. When the files numbered over 100th are played back, the player re-counts file number again from 0.

• When the screen saver starts, the Control display disappears.

• The playback information appears on the TV as follows:

- [READING INDEX] means that the player is reading the

information of the selected MPEG-4/DivX file.

- [CODEC. NOT SUPPORTED ] means that the player cannot

play back the selected MPEG-4/DivX file.

Repeat playback

During playback or while stopped, press REPEAT.

• Each time you press REPEAT while a file is selected, the repeat mode changes as follows:

Control display

REPEAT 1

REPEAT GROUP

REPEAT ALL

No indication The repeat mode is off.

If you press REPEAT while stopped, you need to press ENTER or 3/SELECT to start playback.

Display window

To stop repeat playback

Press 7. Note that the repeat mode remains active.

To quit repeat playback

During playback, press REPEAT until no repeat icon is shown on the display window.

• While stopped, press REPEAT until the repeat mode indication on the Control display goes off.

Function

Repeats the current file.

Repeats all files in the current group.

Repeats all files on the media.

Audio/Video files playback

NOTE

TV DVD

Make sure that the TV - DVD switch on the remote control unit is set to “DVD ” when using the 5/∞/2/3 and numeric buttons for controlling the player.

Slide show playback

You can display files (still pictures) one after another automatically.

Press 3/SELECT while a JPEG file is selected on the Control display.

The slide show starts from the beginning of the media.

• The display time varies in size of each file.

To change the effect on displaying images

You can select the effect of slide show.

Press SLIDE EFFECT. “SLIDE EFFECT MODE :” and the current mode appear on the TV screen.

• Each time you press the button, the effect is changed as follows:

Mode Type of wipe

Scroll wipe 1: The next image slides in from top to

bottom.

Scroll wipe 2: The next image slides in from bottom

to top.

Shutter wipe 1: The next image slides in vertically

from both sides to center.

Shutter wipe 2: The next image slides in vertically

from center to both sides.

Blind wipe 1: The next image slides in vertically

through 4 slits.

Slide wipe 1: The next image slides in from left to

right.

Slide wipe 2: The next image slides in from right to

left.

Door wipe 1: The next image slides in horizontally

from both sides to center.

Door wipe 2: The next image slides in horizontally

from center to both sides.

RANDOM

NONE Cancels the effect.

Window wipe: The next image slides in from each side to center.

Blind wipe 2: The next image slides in horizontally through 4 slits.

The player selects and applies the effect to each image randomly.

To stop slide show playback in the middle

Press 7. The TV screen returns to the Control display.

• Pressing 3/SELECT resumes slide show playback from the last

picture displayed.

To keep showing the current picture

Press 8.

• Pressing 3/SELECT resumes slide show playback.

NOTES

• During slide show playback, you cannot use the thumbnail and rotate/reflect functions.

• During the slide show playback of progressive JPEG files, you cannot change the effect.

Changing the picture of the opening display

You can change and set the opening display to your favorite image. See page 30.

1 Play back a JPEG file to be displayed as the

opening display.

When selecting a JPEG file from the thumbnail screen or the slide show playback, press 8 to pause the slide show.

2 Press SET UP and 2/3 to show PICTURE

menu of the on-screen menu.

3 Press 5/∞ to select [BACKGROUND], then

press ENTER.

4 Press 5/∞ to select [SAVE AS

BACKGROUND], then press ENTER.

5 Press 5/∞ to select [YES], then press ENTER.

The player starts reading the selected JPEG file, and the opening screen is changed after reading the file.

• The previous picture for the opening screen is overwritten by the newly saved file.

To dismiss the menu screen

Press SET UP.

To resume the JVC’s opening screen

Select [STANDARD] in step 4.

BGM slide show playback

During slide show playback of JPEG files on the memory card, you can play back Audio CDs or MP3 files as background music (BGM). When you play back MP3 files as background music, make a group containing both JPEG files and MP3 files on the memory card.

• You cannot play Audio CDs with DTS or WMA files as background music.

• BGM slide show is available for JPEG files on the single group.

• BGM slide show may not work correctly for the progressive

JPEG format.

Audio/Video files playback

4 Select JPEG file on the Control display, then

press

3 (SELECT).

The player plays back the MP3 file from the beginning in the group and BGM slide show starts.

• You can change the MP3 files by pressing 4/¢.

• You cannot select MP3 files on the other group.

• The playback of MP3 files stops after all the JPEG files are

played back.

To repeat BGM slide show playback

Press REPEAT before BGM slide show playback.

• Each time you press REPEAT, the repeat mode changes as follows:

Slide show with Audio CD playback

1 Insert an Audio CD.

• When a memory card is playing back, playback will stop.

2 Insert a memory card containing JPEG files. 3 Close the door cover.

The Control display of the memory card appears on the TV.

• When the memory card containing JPEG files is already selected, press DVD/CARD.

• When the memory card has two or more groups containing JPEG files, select the JPEG file in the group.

4 Select “BGM SLIDE SHOW OFF” on the

Control display by pressing press ENTER to change to “BGM SLIDE SHOW ON.”

• Each time you press ENTER, the playback mode alternates between “BGM SLIDE SHOW ON (BGM slide show playback)” and “BGM SLIDE SHOW OFF (normal playback)”.

5/∞/2/3, then

5 Select a JPEG file on the Control display,

then press

The first track on the Audio CD is played back and BGM slide show starts.

• During BGM slide show, you can select the track on the Audio CD by pressing 4/¢ or numeric buttons.

• The playback of the Audio CD stops after all the JPEG files are played back.

• When a track on an Audio CD is played back, the time and track indication is not displayed on the window.

3/SELECT.

Control display

REPEAT 1

REPEAT GROUP

No indication The repeat mode is off.

Display

window

Function

Repeats the current JPEG file.

Repeats all JPEG files in the current group.

To stop BGM slide show playback in the middle

Press 8. JPEG playback pauses. When you press 8 again, BGM playback also pauses.

• Pressing 3/SELECT or 8 resumes music slide show playback

from the last picture displayed.

To stop BGM slide show playback

Press 7. BGM slide show playback is canceled (“BGM SLIDE SHOW OFF” is displayed on the Control display).

Slide show with MP3 playback

• Before starting the following procedure, remove the disc from the disc tray.

1 Insert a memory card containing a group with

both JPEG files and MP3 files.

2 Close the door cover.

The Control display for the media appears on the TV.

3 Select “BGM SLIDE SHOW OFF” on the

Control display by pressing press ENTER to change to “BGM SLIDE SHOW ON.”

• Each time you press ENTER, the playback mode alternates between “BGM SLIDE SHOW ON (BGM slide show playback)” and “BGM SLIDE SHOW OFF (normal playback)”.

5/∞/2/3, then

Audio/Video files playback

Changing the initial settings

OTHERS

How to set preferences

1 Press SET UP.

One of the preference on-screen displays appears on the TV screen. You can see four icons at the top right of the on-screen display for the settings.

: LANGUAGE menu

NOTE

Make sure that the TV - DVD switch on the

TV DVD

remote control unit is set to “DVD ” when using the 5/∞/2/3 and numeric buttons for controlling the player.

Selecting preferences

This section refers to the settings which are already made when you purchase the player. Read this section when you want to connect this player to a wide-vision TV set, or when you want to otherwise change the settings according to your preferences and viewing environment.

About the Preference display

The Preference display consists of the LANGUAGE, PICTURE, AUDIO and OTHERS setting displays, each having setting items.

LANGUAGE


MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

SELECT

ENTER

ENGLISH

OFF

ENGLISH

USE 5∞23 TO SELECT, USE ENTER TO CONFIRM. TO EXIT, PRESS CHOICE/SET UP.

: PICTURE menu

: AUDIO menu

: OTHERS menu

2 Press 2/3 to select the appropriate icon.

The appropriate display appears on the TV screen.

3 Press 5/∞ to move to select the item you

want to edit.

The color of the selected item changes.

4 Press ENTER.

A pull-down menu appears over the selected item.

Selected item

5 Press 5/∞ to select from the options then

press ENTER.

The selected option is set.

• For details about each setting, see the following.

Changing the initial settings

AUDIO

DIGITAL AUDIO OUTPUT

ANALOG DOWN MIX

D RANGE CONTROL

OUTPUT LEVEL

SELECT

ENTER

STREAM/PCM

STEREO

NORMAL

STANDARD

USE 5∞23 TO SELECT, USE ENTER TO CONFIRM TO EXIT, PRESS CHOICE/SET UP.

Press SET UP.

NOTES

• Some items cannot be changed during disc playback.

• When a preference display is shown on a wide TV screen, the

upper and lower parts of the preference display sometimes may be cut off. If this happens, adjust the picture size control of the TV.

• When a preference display is shown, you cannot start playing back a disc.

To dismiss a preference display

LANGUAGE menu

MENU LANGUAGE

You can select the default menu language to be displayed if it is contained on a DVD VIDEO disc.

Setting options

ENGLISH, SPANISH, FRENCH, CHINESE, GERMAN, ITALIAN, JAPANESE, language code from AA to ZU

• If the disc does not have a menu in the selected language, the disc’s default language will be used.

• For details about language codes, see “Appendix C: Table of languages and their abbreviations” on page 36.

• You cannot change the setting during playback.

AUDIO LANGUAGE

You can select the default audio language to be played if it is contained on a DVD VIDEO disc.

Setting options

ENGLISH, SPANISH, FRENCH, CHINESE, GERMAN, ITALIAN, JAPANESE, language code from AA to ZU

• If the disc does not have the selected language, the disc’s default language will be used.

• For details about language codes, see “Appendix C: Table of languages and their abbreviations” on page 36.

• You cannot change the setting during playback.

Changing the initial settings

[4:3 LB] (Letter Box conversion): select when you connect the

player to a normal (4:3) TV. When playing back a DVD VIDEO disc recorded in wide picture format, the picture is shown with black bars at the top and bottom.

[4:3 PS] (Pan Scan conversion): select when you connect the

player to a normal (4:3) TV. When playing back a DVD VIDEO disc recorded in wide picture format, the picture is zoomed to fill the screen vertically, and the left and right sides of the image are chopped off. Note, however, that the picture will be shown in the 4:3 LB mode even if you select the 4:3 PS mode depending on the disc.

SUBTITLE

You can select the default subtitle language to be displayed if it is contained on a DVD VIDEO disc.

Setting options

OFF, ENGLISH, SPANISH, FRENCH, CHINESE, GERMAN, ITALIAN, JAPANESE, language code from AA to ZU

• If the disc does not have a subtitle in the selected language, the disc’s default language will be used.

• For details about language codes, see “Appendix C: Table of languages and their abbreviations” on page 36.

• You cannot change the setting during playback.

ON SCREEN LANGUAGE

You can select the on-screen display language of the player.

Setting options

ENGLISH, FRENCH, SPANISH

• Some on-screen messages are shown in English regardless of the setting.

• You cannot change the on-screen language shown on the Control display.

PICTURE menu

MONITOR TYPE

You can select the monitor type to match your TV when you play back DVD VIDEO discs recorded for wide-screen televisions.

Setting options

16:9, 4:3 LB, 4:3 PS [16:9] (Wide television screen):

player to a wide-screen (16:9) TV.

select when you connect the

PICTURE SOURCE

This mode selects whether the content on the disc is processed by field (video source) or by frame (film source). You can obtain optimal picture quality according to the source type to be played back by selecting an appropriate option. This setting is available for both the interlaced mode and progressive scanning mode.

Setting options

VIDEO(NORMAL), VIDEO(ACTIVE), FILM, AUTO [VIDEO(NORMAL)]:

disc with relatively a few movements.

[VIDEO(ACTIVE)]: select when playing back a video source disc

with relatively a lot of movements.

[FILM]: select when playing back a film source disc. [AUTO]: select when playing back a disc containing both video

and film source materials. The player recognizes the picture type (film or video source) of the current disc according to the disc information. Normally, select this option.

select when playing back a video source

SCREEN SAVER

You can set the screen saver function to ON or OFF. (See page

14.)

Setting options

ON, OFF

Changing the initial settings

BACKGROUND

You can change and set the opening display to your favorite image using this menu.

Setting options

STANDARD, USER, SAVE AS BACKGROUND [STANDARD]:

opening display (initial setting).

[USER]: select when you use your favorite image as the opening

display. This item will be taken effect after you register a new image in the next item.

[SAVE AS BACKGROUND]: select when you register a new

image. To register a new image, see “Changing the picture of the opening display” on page 26.

select when you use the JVC original image as the

AUDIO menu

DIGITAL AUDIO OUTPUT

To connect the player’s digital output to an external device equipped with a digital input, this item must be set correctly. See “Appendix A: Digital output signal chart” on page 35 for details about the relation between the setting and output signals.

Setting options

PCM ONLY, DOLBY DIGITAL/PCM, STREAM/PCM [PCM ONLY]:

the player to the linear PCM digital input of other audio equipment.

[DOLBY DIGITAL/PCM]: select when you connect the digital

input of a Dolby Digital decoder or an amplifier with a built-in Dolby Digital decoder. When this option is selected, playing back a disc recorded by the MPEG Multichannel format outputs a linear PCM digital signal.

[STREAM/PCM]: select when you connect the digital input of an

amplifier with a built-in DTS, MPEG Multichannel or Dolby Digital decoder, or the stand-alone unit of such a decoder.

• With some DVD VIDEO discs that are not fully copy-protected, a 20 or 24 bit digital signal may be output.

• When playing a DVD VIDEO or Audio CD disc with DTS, use a DTS decoder to get correct signals from your speakers.

select when you connect the DIGITAL OUT jack of

D. RANGE CONTROL

This setting provides optimal audio quality from the analog AUDIO OUT terminals for listening to DVD VIDEO discs recorded in Dolby Digital format, at low or middle volume.

Setting options

WIDE RANGE, NORMAL, TV MODE [WIDE RANGE]:

widest dynamic range so that you can enjoy powerful playback sound.

[NORMAL]: normally, select this option. [TV MODE]: select if DVD VIDEO disc sound level is lower than

TV program sound level. Thus you can hear sound at a lower volume clearly.

when selected, audio is played back with the

OUTPUT LEVEL

This setting allows you to attenuate the level of the signal output from the player’s analog AUDIO OUT terminals.

Setting options

STANDARD, LOW

• If the sound output from the speaker is distorted, select [LOW].

OTHERS menu

RESUME

You can select the resume playback mode. See pages 12 and 13 for details about the resume playback function.

Setting options

ON, OFF, DISC RESUME

when selected, the player can resume playback of the disc

[ON]:

from the position where playback was last interrupted, if the disc is still in the disc tray.

[OFF]: when selected, the resume function is deactivated. [DISC RESUME]: when selected, the player can resume playback

of the last 30 discs played. The player retains a memory of the interrupted positions of the last 30 discs played, even though they have been removed from the disc tray.

ANALOG DOWN MIX

To correctly play the audio on a DVD VIDEO disc recorded with surround multichannel audio, you must set this item properly according to your audio system configuration.

Setting options

DOLBY SURROUND, STEREO [DOLBY SURROUND]:

surround audio with the player’s analog AUDIO OUT terminals connected to a surround decoder.

[STEREO]: select when listening to conventional two-channel

stereo audio with the player’s AUDIO OUT terminals connected

Changing the initial settings

to a stereo amplifier/receiver or television set, or in case you want to record the audio from a DVD VIDEO disc to MiniDisc, cassette, etc.

select when listening to multichannel

ON SCREEN GUIDE

The player can display “on-screen guide” icons or characters on the picture, which show what is happening to the disc or the player.

Example of “on-screen guide” icons: , ,

Setting options

ON, OFF

when selected, the on-screen guide is activated.

[ON]:

AUTO STANDBY

When the player is stopped for more than 30 minutes or 60 minutes, the player enters standby mode automatically.

Setting options

60, 30, OFF

AV COMPULINK MODE

You must set this item correctly to use the AV COMPU LINK system.

Setting options

DVD1, DVD2, DVD3

• See page 33 for details about the AV COMPU LINK function.

Changing the initial settings

DivX REGISTRATION

The player has its own Registration Code for DivX playback. You can confirm the code of your player.

• Once you played back a disc created by using the Registration Code, the player’s code is overwritten by a totally different new one for copyright protection purpose.

PARENTAL LOCK

When this option is selected, pressing ENTER on the remote control unit brings up the PARENTAL LOCK display shown below. This allows you to restrict children from playing DVD VIDEO discs.

• See this page for details about the parental lock setting.

Numeric buttons

3 While is pointing to [COUNTRY CODE],

press ENTER to bring up the pull-down menu.

4 Press 5/∞ to select the country code.

Select the code of the country whose standards were used to rate the DVD VIDEO disc content. See “Appendix B: Country/Area code list for Parental Lock” on page 36.

5 Press ENTER.

moves to [SET LEVEL].

6 Press ENTER to bring up the pull-down

menu.

In the pull-down menu, [NONE] and levels [8] to [1] are available. [NONE] does not restrict playback. Level [1] is the strictest level. Discs rated higher than the selected level are restricted.

Limiting playback by children

This function restricts playback of DVD VIDEO discs which contain violent (and other) scenes according to the level set by the user. For example, if a movie which includes violent scenes supports the parental lock feature, such scenes which you do not want to let children view can be cut or replaced with other scenes.

To set Parental Lock for the first time

1 Bring up the OTHERS menu. 2 Press 5/∞ to move to select [PARENTAL

LOCK] then press ENTER.

The Parental Lock on-screen display appears on the TV screen.

7 Press 5/∞ to select a desired parental lock

level, then press ENTER.

moves to [PASSWORD].

8 Press the numeric buttons (0 to 9) to enter a

4-digit password.

Changing the initial settings

9 Press ENTER.

The parental lock feature is set.

moves to [EXIT]. Pressing ENTER again returns to the

[OTHERS] menu of the preference display.

Hint

If you want to change the password at step 8, do it before pressing ENTER.

Changing the initial settings

Numeric buttons

To change the settings

You can change the parental lock settings later.

1 Bring up the OTHERS menu. 2 Press 5/∞ to move to select [PARENTAL

LOCK] and press ENTER.

The parental lock on-screen display appears on the TV screen.

3 While is pointing to [PASSWORD], press

the numeric buttons to enter your current 4digit password then press ENTER.

moves to [COUNTRY CODE] if you enter the correct password. If you enter a wrong password, “WRONG! RETRY...” appears on the TV screen, and you cannot go to the next step. If you forget your password, enter “8888.” The current password is deleted and you can set a new password.

4 To change the [COUNTRY CODE] or [SET

LEVEL], press ENTER to bring up the associated pull-down menu when is pointing to the desired item.

To temporarily release the Parental Lock

If the parental level is set to a strict value, some discs may not play at all. When you insert such a disc and try to play it, the following parental lock on-screen display appears on the TV screen, asking you whether you want the parental lock to be temporarily released or not.

1 Press 5/∞ to move to [TEMPORARY

RELEASE], then press ENTER.

PARENTAL LOCK

TEMPORARY RELEASE

NOT RELEASE

SELECT

ENTER

PASSWORD

_ _ _ _

USE 5∞ TO SELECT, USE ENTER TO CONFIRM

2 Press the numeric buttons (0 to 9) to enter

your 4-digit password.

The Parental Lock is released, and the player starts playback. If you enter a wrong password, “WRONG! RETRY...” appears on the TV screen. Enter the correct password.

NOTE

When you enter the wrong password 3 times at step 2 above, moves to [NOT RELEASE] automatically and 5/∞ do not work.

5 Press 5/∞ to select the desired option then

press ENTER.

Changing the initial settings

If you change the country code, you must reselect the parental lock level.

6 While is pointing to [PASSWORD], press

the numeric buttons to enter a 4-digit password.

The password entered in this step becomes the new password. If you want to keep the same password as before, enter the same password.

7 Press ENTER.

moves to [EXIT]. Pressing ENTER again returns to the [OTHERS] menu of the preference display.

NOTE

If you enter the wrong password more than 3 times in step 3 above, moves to [EXIT] automatically and 5/∞ do not work.

Additional information

AV COMPU LINK remote control system

The JVC AV COMPU LINK system allows you to enjoy video or audio with the simplest operation. If your video/audio player (such as a DVD player, CD player and VCR) and television or/and amplifier/receiver support the JVC AV COMPU LINK system and are tied with the JVC AV COMPU LINK cable(s), simply starting the player will automatically make all necessary settings on the television and/or amplifier/receiver to allow you to enjoy the playback.

To AV COMPU LINK (ll, EX or lll)

• If you connect the player to a television and receiver via AV COMPU LINK, set the player’s AV COMPU LINK setting to DVD1 .

Receiver

To AV C OM P U LINK

The player

Connection and setup

Using an AV COMPU LINK cable, connect the AV COMPU LINK terminals of each component to one another.

• The player’s AV COMPU LINK setting is controlled using the OTHERS menu in the preference display. See page 30.

• For information on the connection between a TV and a receiver, refer to the receiver’s instructions.

To AV COMPU LINK (ll, EX or lll)

The player

• If you connect the player to a television via AV COMPU LINK, set the player’s AV COMPU LINK setting as follows.

- When connecting to the VIDEO-1 input terminal of the

television: DVD2

- When connecting to the VIDEO-2 input terminal of the

television: DVD3

To AV COMPU LINK (ll, EX or lll)

• If you connect the player to a television and VCR via AV COMPU LINK, set the VCR’s Remote Control Code and the player’s AV COMPU LINK setting as follows.

- When connecting to the VIDEO-1 input terminal of the

television: The player’s AV COMPU LINK setting: DVD2 VCR’s Remote Control Code: B

- When connecting to the VIDEO-2 input terminal of the

television: The player’s AV COMPU LINK setting: DVD3 VCR’s Remote Control Code: A

The player

To AV COMPU LINK

VCR

IMPORTANT!

When you make video connection between the player and another device (such as a receiver and TV) via the composite, Svideo or component jacks, as well as AV COMPU LINK connection, see also the instruction manual of the other device.

Notes for connection

• If you connect the player to a receiver via AV COMPU LINK in a system including a Dolby Digital decoder, some functions may not be performed automatically.

• Connect the AUDIO OUT jacks of the player to the audio input jacks of a receiver indicating “DVD.” Otherwise, the system will not work correctly.

• There may be no description about connections to the player in the instruction manual of a television or VCR. However, a television or VCR with AV COMPU LINK terminals indicating “II,” “EX” or “III” can be connected to the player.

Operation

The JVC AV COMPU LINK system allows you to enjoy video and/ or audio by simply pressing Play on the source component (the component which plays back the video or audio, such as a DVD player or VCR). You do not even have to switch on power on the TV or receiver.

1 Turn on the main power of the television. 2 Insert a disc (or tape) into the source

component.

3 Press 3 of the source component.

The following actions are performed automatically:

• Turning on the television power.

• Setting the source of the television to the external input

(VIDEO-1 or VIDEO-2).

• Turning on receiver power.

• Setting the source of the receiver to the component which has

started playback.

Additional information

Troubleshooting

Power

Power does not come on.

\ Power plug is not inserted securely. Plug in securely.

Operation

“REGION CODE ERROR!” is shown on the TV screen.

\ Region code of the inserted disc does not match the player.

Check the region code of the disc printed on the disc jacket.

Operation is not possible.

\ Microcomputer malfunction due to lightning or static electricity.

Turn off the power and unplug the power cord, then connect the power cord again.

\ Moisture condensation caused by a sudden change of

temperature or humidity. Turn off the power, then turn it on a few hours later.

\ The disc does not allow the operation, or an unplayable disc is

inserted. Check and replace the disc (see page 2).

[TRAY LOCK] is displayed on the display window and the disc tray does not open.

\ When you press 0 while pressing down 7 on the player in

standby mode, the tray lock function is activated. The disc tray cannot be opened or closed in this status. To release this status, press 0 while pressing down 7 on the player in standby mode. ([LOCK OFF] is displayed on the display window.)

Audio

DVD VIDEO disc playback sound level is lower than TV broadcast sound level.

\ Set the [D.RANGE CONTROL] preference to [TV MODE] (see

page 30).

Analog audio output is distorted.

\ Set the [OUTPUT LEVEL] preference to [LOW] (see page 30).

MP3/WMA/JPEG/MPEG-4/DivX

No sound and/or no picture comes out.

\ MP3/WMA/MPEG-4 disc is recorded with the “packet writing

(UDF format).” It cannot be played.

\ Check the files you want to play back.

Files (tracks) are not played in the recorded order.

\ This player plays the files in the alphabetic order. So, the

playback order can vary.

WMA files cannot be played back.

\ The file is copy protected. \ The file is recorded with a bit rate under 48 kbps. The player

does not support such WMA files.

MPEG-4 files cannot be played back.

\ The format of the file is not asf.

DivX files are played back without sound.

\ This player can play back the MP3 sound for the audio part of

the DivX files. Select the proper audio CODEC when making DivX files.


Picture is noisy.

\ The player is connected to a VCR directly and the copyguard

function is activated. Connect the player so that the picture signal flows directly to the TV.

\ With some discs, the picture may be blurred when [PICTURE

SOURCE] is set to [FILM] or [AUTO]. Set [PICTURE SOURCE] to [VIDEO(NORMAL)] or [VIDEO(ACTIVE)].

Picture is distorted when using COMPONENT VIDEO OUT or S-VIDEO output jack(s).

\ Both the component connection and S-video connection are

made. Disconnect the unused one.

No picture is displayed on the TV screen, or the picture is devided in two parts.

\ The Progressive scanning mode is activated. Change the

scanning mode to the Interlaced scanning mode by doing one of the following:

- When the VIDEO SIGNAL SELECTOR is set to “480p,” set the VIDEO SIGNAL SELECTOR to “480i.”

- When the VIDEO SIGNAL SELECTOR is set to “REMOTE,” press and hold down VFP - PROGRESSIVE SCAN for a few

Additional information

seconds.

Specifications

Specifications and appearance are subject to change without prior notice.

General

Readable discs DVD VIDEO, DVD-R (Video format), DVD-RW

Readable cards SD card, Multi Media Card, Smart Media,

Video format NTSC, 480i (Interlaced scan)/480p (Progressive

Other

Power requirements* AC 120 V , 60 Hz Power consumption* 10 W (POWER ON), 1.1 W (STANDBY mode) Mass 2.1 k

Dimensions (W

Video outputs

COMPONENT (pin jacks)

VIDEO OUT (pin jack) 1.0 Vp-p (75 S-VIDEO OUT (S jack)

Horizontal resolution 500 lines or more

Audio outputs

ANALOG OUT (pin jack)

DIGITAL OUT (COAXIAL)

DIGITAL OUT (OPTICAL)

(Video format), SVCD, Video CD, Audio CD (CDDA), CD-R/RW (CD-DA, SVCD, Video CD, MP3/ WMA format, JPEG, MPEG-4 (Advanced simple profile/Simple profile), DivX)

CompactFlash, Memory Stick, xD-Picture card (MP3/WMA format, JPEG, MPEG-4 (Simple Profile))

scan) selectable

(4.7 lbs)

H × D)

435 mm

47 mm × 259 mm

/16 inch × 1-7/8 inch × 10-1/4 inch)

(17-

Y Output: 1.0 Vp-p (75 P

B/PR

Output: 0.7 Vp-p (75 Ω)

Ω

Y Output: 1.0 Vp-p (75 C Output: 286 mVp-p (75

2.0 Vrms (10 k

0.5 Vp-p (75

–21 dBm to –15 dBm (peak)

Ω

)

Ω

)

termination)

)

Ω

)

Additional information

Audio characteristics

Frequency response

Dynamic range 16 bit: More than 98 dB

Wow and flutter Unmeasurable (less than ± 0.002%) Total harmonic distortion

* Notes for PX model (Check the specification indication

on the rear panel.)

Power requirements AC 110 V to 240 V , 50 Hz/60 Hz Power consumption 10 W (POWER ON), 1.1 W (STANDBYmode)

• Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

•“DTS” and “DTS 2.0+ Digital Out” are trademarks of Digital Theater Systems, Inc.

• USE OF THIS PRODUCT IN ANY MANNER THAT COMPLIES WITH THE MPEG-4 VISUAL STANDARD IS PROHIBITED, EXCEPT FOR USE BY A CONSUMER ENGAGING IN PERSONAL AND NON-COMMERCIAL ACTIVITIES.

•“Official DivX Certified “Plays DivX

(in compliance with DivX Certified “DivX, DivX Certified, and associated logos are trademarks of DivXNetworks, Inc. and are used under license.”

• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

CD (sampling frequency 44.1 kHz):

DVD (sampling frequency 48 kHz):

DVD (sampling frequency 96 kHz)

20 bit/24 bit: More than 100 dB

less than 0.007%

5, DivX® 4, DivX® 3, and DivX® VOD video content

2 Hz to 20 kHz

2 Hz to 22 kHz (4 Hz to 20 kHz for DTS and Dolby Digital bitstream signals)

2 Hz to 44 kHz

product”

technical requirements)”

Appendix A: Digital output signal chart

Source type

PCM ONLY DOLBY DIGITAL/PCM STREAM/PCM

DVD with 48 kHz, 16/20/24 bit linear PCM

DVD with 96 kHz, 16/22/24 bit linear PCM

DVD with DTS 48kHz, 16 bit, stereo linear PCM DTS bitstream

DVD with Dolby Digital 48 kHz, 16 bit, stereo linear PCM Dolby Digital bitstream

SVCD/Video CD/Audio CD 44.1 kHz, 16 bit, stereo linear PCM

Audio CD with DTS 48kHz, 16 bit, stereo linear PCM DTS bitstream

CD-R/RW or memory card recorded MP3/WMA, CD-R/RW or DVD-R/-RW recorded DivX

CD-R/RW or memory card recorded MPEG-4

48/ kHz, 16 bit, stereo linear PCM

Output

Linear PCM

Cannot be outputted

(for page 30)

Additional information

Appendix B: Country/Area code list for Parental Lock

AD Andorra AE United Arab Emirates AF Afghanistan AG Antigua and Barbuda

AI Anguilla AL Albania AM Armenia AN Netherlands Antilles AO Angola AQ Antarctica AR Argentina AS American Samoa

AT Austria AU Australia

AW Aruba

AZ Azerbaijan BA Bosnia and Herzegovina BB Barbados BD Bangladesh BE Belgium BF Burkina Faso BG Bulgaria BH Bahrain

BI Burundi

BJ Benin BM Bermuda BN Brunei Darussalam BO Bolivia BR Brazil BS Bahamas BT Bhutan BV Bouvet Island

BW Botswana

BY Belarus BZ Belize CA Canada CC Cocos (Keeling) Islands CF Central African Republic CG Congo CH Switzerland

CI Côte d’Ivoire CK Cook Islands CL Chile

CM Cameroon

CN China CO Colombia CR Costa Rica CU Cuba CV Cape Verde CX Christmas Island CY Cyprus CZ Czech Republic DE Ger many DJ Djibouti DK Denmark

DM Dominica

DO Dominican Republic DZ Algeria EC Ecuador EE Estonia EG Egypt EH Western Sahara

ER Eritrea

ES Spain ET Ethiopia

FI Finland FJ Fiji FK Falkland Islands

FM Micronesia (Federated States

of)

FO Faroe Islands

FR France FX France, Metropolitan

GA Gabon GB United Kingdom GD Grenada GE Georgia GF French Guiana GH Ghana

GI Gibraltar GL Greenland

GM Gambia GN Guinea GP Guadeloupe GQ Equatorial Guinea GR Greece GS South Georgia and the South

Sandwich GT Guatemala GU Guam GW Guinea-Bissau GY Guyana HK Hong Kong HM Heard Island and McDonald

Islands HN Honduras HR Croatia

HT Haiti

HU Hungary

ID Indonesia IE Ireland

IL Israel IN India IO British Indian Ocean Territory IQ Iraq IR Iran (Islamic Republic of) IS Iceland IT Italy

JM Jamaica JO Jordan JP Japan

KE Kenya KG Kyrgyzstan KH Cambodia

KI Kiribati KM Comoros KN Saint Kitts and Nevis

KP Korea, Democratic People's

Republic of KR Korea, Republic of KW Kuwait

KY Cayman Islands KZ Kazakhstan

LA Lao People’s Democratic

Republic LB Lebanon LC Saint Lucia

LI Liechtenstein LK Sri Lanka LR Liberia LS Lesotho LT Lithuania LU Luxembourg LV Latvia LY Libyan Arab Jamahiriya

MA Morocco MC Monaco MD Moldova, Republic of MG Madagascar MH Marshall Islands

ML Mali

MM Myanmar MN Mongolia MO Macau MP Northern Mariana Islands MQ Martinique MR Mauritania MS Montserrat MT Malta MU Mauritius MV Maldives

MW Malawi

MX Mexico MY Malaysia MZ Mozambique

NA Namibia

NC New Caledonia

NE Niger NF Norfolk Island

NG Nigeria

NI Nicaragua NL Netherlands

NO Norway

NP Nepal

NR Nauru NU Niue

NZ New Zealand

OM Oman

PA Panama PE Peru PF French Polynesia

PG Papua New Guinea

PH Philippines PK Pakistan PL Poland

PM Saint Pierre and Miquelon

PN Pitcairn PR Puerto Rico PT Portugal

PW Palau

PY Paraguay

QA Qatar

RE Réunion

RO Roma nia

RU Russian Federation

(for page 31)

RW Rwanda SA Saudi Arabia SB Solomon Islands SC Seychelles SD Sudan SE Sweden SG Singapore SH Saint Helena

SI Slovenia

SJ Svalbard and Jan Mayen

SK Slovakia

SL Sierra Leone SM San Mar ino SN Senegal SO Somalia SR Suriname

ST Sao Tome and Principe SV El Salvador SY Syrian Arab Republic

SZ Swazil and TC Turks and Caicos Islands TD Chad

TF French Southern Territories TG Togo TH Thailand

TJ Tajikistan

TK Tokelau TM Turkmenistan TN Tunisia TO Tonga

TP East Timor TR Turkey

TT Trinidad and Tobago

TV Tuvalu TW Taiwan

TZ Tanzania, United Republic of UA Ukraine UG Uganda UM United States Minor Outlying

Islands US United States UY Uruguay UZ Uzbekistan

VA Vatican City State (Holy See)

VC Saint Vincent and the

Grenadines VE Venezuela VG Virgin Islands (British)

VI Virgin Islands (U.S.) VN Vietnam VU Vanuatu WF Wallis and Futuna Islands WS Samoa YE Yemen

YT Mayotte

YU Yugoslavia

ZA South Africa ZM Zambia ZR Zaire ZW Zimbabwe

Appendix C: Table of languages and their abbreviations

AA Afar FA Persian KM Cambodian OM (Afan) Oromo SU Sundanese AB Abkhazian FI Finnish KN Kannada OR Oriya SV Swedish AF Afrikaans FJ Fiji KO Korean (KOR) PA Panjabi SW Swahili AM Ameharic FO Faroese KS Kashmiri PL Polish TA Tamil AR Arabic FY Frisian KU Kurdish PS Pashto, Pushto TE Telugu AS Assamese GA Irish KY Kirghiz PT Portuguese TG Tajik AY Aymara GD Scots Gaelic LA Latin QU Quechua TH Thai AZ Azerbaijani GL Galician LN Lingala RM Rhaeto-Romance TI Tigrinya BA Bashkir GN Guarani LO Laothian RN Kirundi TK Turkmen BE Byelorussian GU Gujarati LT Lithuanian RO Rumanian TL Tagalog BG Bulgarian HA Hausa LV Latvian, Lettish RU Russian TN Setswana BH Bihari HI Hindi MG Malagasy RW Kinyarwanda TO Tongan

Additional information

BI Bislama HR Croatian MI Maori SA Sanskrit TR Turkish BN Bengali, Bangla HU Hungarian MK Macedonian SD Sindhi TS Tsonga BO Tibetan HY Armenian ML Malayalam SG Sangho TT Tatar BR Breton IA Interlingua MN Mongolian SH Serbo-Croatian TW Twi CA Catalan IE Interlingue MO Moldavian SI Singhalese UK Ukrainian CO Corsican IK Inupiak MR Marathi SK Slovak UR Urdu CS Czech IN Indonesian MS Malay (MAY) SL Slovenian UZ Uzbek CY Welsh IS Icelandic MT Maltese SM Samoan VI Vietnamese DA Danish IW Hebrew MY Burmese SN Shona VO Volapuk DZ Bhutani JI Yiddish NA Nauru SO Somali WO Wolof EL Greek JW Javanese NE Nepali SQ Albanian XH Xhosa EO Esperanto KA Georgian NL Dutch SR Serbian YO Yoruba ET Estonian KK Kazakh NO Norwegian SS Siswati ZU Zulu EU Basque KL Greenlandic OC Occitan ST Sesotho

(for pages 19 and 29 )

Appendix D: Glossary

Additional information

480i/480p

Indicates the number of scanning lines and scanning format of an image signal. 480i indicates 480 scanning lines with interlace format, and 480p indicates 480 scanning lines with progressive format.

ASF

ASF is an abbreviation of “Advanced Streaming Format,” and is a data compression format for streaming developed by Microsoft Corporation. ASF can contain the various data types such as audio, video, and text.

Aspect ratio

A ratio which defines the shape of the rectangular picture in a TV. It is the width of the picture relative to the height. A conventional TV picture is 4:3 in aspect ratio.

Bitstream

The digital form of multichannel audio data (e.g., 5.1-channel) before it is decoded into its various channels.

Chapter/title

Chapter is the smallest division and title is the largest division on DVD VIDEO. A chapter is a division of a title and similar to a track for Video CD or Audio CD.

Component video

Video signals with three channels of separate information that makes up the picture. There are some types of component video, such as R/G/B and Y/C

Composite video

A single video signal commonly used in most consumer video products that contains all luminance, color, and synchronization information.

DivX

One of the encoding methods for making MPEG-4 files.

B(PB)/CR(PR).

Dynamic range

The difference between the loudest and softest sounds.

Interlaced scanning

In a conventional video system, a picture is shown on the display monitor in between lines of two halves. The Interlaced scanning system places lines of the second half of the picture in-between lines of the first half of the picture.

JPEG

A popular file format for still image compression and storage. JPEG stands for Joint Photographic Experts Group. There are three sub-types of the JPEG format as follows.

• baseline JPEG: used for digital cameras, the web, etc.

• progressive JPEG: used for the web

• lossless JPEG: an old type, rarely used now

Linear PCM audio

PCM stands for “pulse code modulation.” Linear PCM is the usual method for digitally encoding audio without compression, and is used for the audio tracks on DVD VIDEO discs, Audio CDs, etc.

MP3

MP3 is an audio data compression format, which stands for MPEG-1 Audio Layer 3. Using MP3, you can achieve a data reduction of about 1:10.

MPEG-4

MPEG-4 is an audio/video data compression format, which is highly efficient and more stable than MPEG-1 and MPEG-2.

NTSC (National television system committee)

A black and white and color television system format used in the U.S.A., Canada, Mexico and Japan.

PAL (Phase Alternation by Line)

A color television system format used extensively in Western Europe.

Dolby Digital (AC3)

A six-channel system consisting of left, center, right, left rear, right rear and LFE (Low-Frequency Effect channel, for use with a sub-woofer) channels. All processing is done in the digital domain. Not all Dolby Digital discs contain six (5.1) channels of information.

Dolby Surround/Dolby Pro Logic

Dolby Surround records four channels of front and rear audio in two channels in a way that allows a decoder to recover the original four channels for playback. Because the audio is recorded in two channels, it can be played back naturally by a two-channel stereo system. Dolby Pro Logic introduces directional circuits in decoder-side processing (increasing the level of specific channels and lowering the level of silent channels) for greater spatial perspective, and adds a center speaker used primarily for dialog. The result is enhanced channel separation.

Down-mix

Internal stereo mix of multichannel surround audio by a DVD player. The down-mix signals are output from stereo output connectors.

DTS

A Digital Surround audio encoding format configured with six (5.1) channels, similar to Dolby Digital. It requires a decoder, either in the player or in an external receiver. DTS stands for Digital Theater Systems. Not all DTS discs contain six (5.1) channels of information.

PBC

PBC stands for “Playback control” and is a method of controlling disc play for Video CDs (VCD). You are able to interact with the disc through menus.

Progressive scanning

Progressive scanning displays all the horizontal lines of a picture at one time, as a single frame. A progressive scanning DVD player converts the interlaced (480i) video from DVD into progressive (480p) format for connection to a progressive display. It dramatically increases the vertical resolution.

S-video

A video signal which improves picture quality over standard composite connections. Used on Super VHS, DVD, high end TV monitors, etc.

Track

The smallest division on SVCD, Video CD and Audio CD discs.

WMA

WMA is an abbreviation of “Windows Media Audio,” and is an audio data compression format developed by Microsoft Corporation. Sound quality of data compressed using WMA is the same as that of MP3, though the WMA file size is smaller than that of MP3.

Additional information

XV-NP10S DVD PLAYER/MEMORY CARD READER

VICTOR COMPANY OF JAPAN, LIMITED

0404KTYMDWJSC

JVC XV-NP10S User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of contents

Before operation

Preparations

Basic operations

Advanced operations

Audio/Video files playback

Changing the initial settings

Additional information

Specifications
