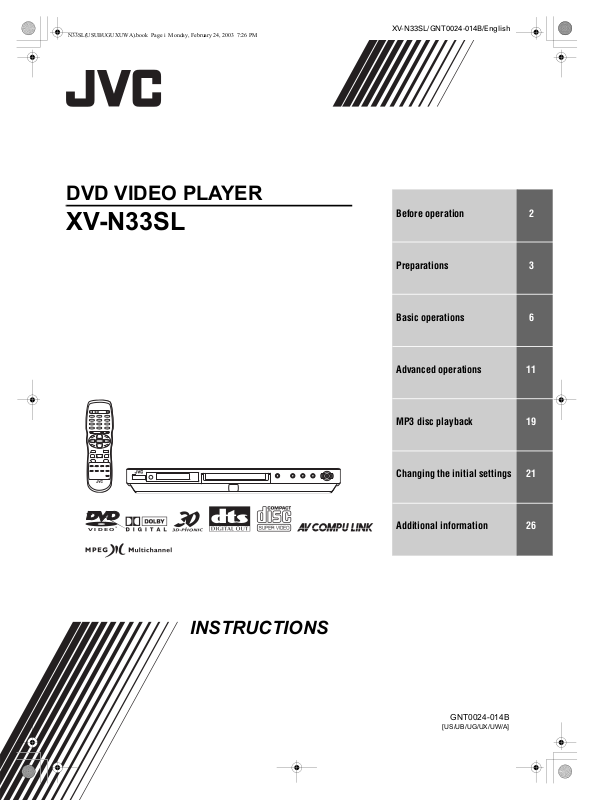

JVC XV-N33SL User Manual
DVD VIDEO PLAYER
XV-N33SL
Before operation 2
Preparations 3
Basic operations 6
Advanced operations 11
MP3 disc playback 19
VIDEO
Changing the initial settings 21
Additional information 26
INSTRUCTIONS
GNT0024-014B
[US/UB/UG/UX/UW/A]
Warnings, Cautions and Others
CAUTION
To reduce the risk of electrical shocks, fire, etc.:
1. Do not remove screws, covers or cabinet.
2. Do not expose this appliance to rain or moisture.
Caution –– STANDBY/ON button!
Disconnect the mains plug to shut the power off completely.
The STANDBY/ON button in any position does not
disconnect the mains line. The power can be remote
controlled.
Caution: Proper Ventilation
To avoid risk of electric shock and fire and to protect from damage,
locate the apparatus as follows:
Front:No obstructions and open spacing.
Sides:No obstructions in 3 cm from the sides.
Top:No obstructions in 5 cm from the top.
Back:No obstructions in 15 cm from the back
Bottom:No obstructions, place on the level surface.
CAUTION
• Do not block the ventilation openings or holes.
(If the ventilation openings or holes are blocked by a newspaper or
cloth, etc., the heat may not be able to get out).
• Do not place any naked flame sources, such as lighted candles, on
the apparatus.
• When discarding batteries, environmental problems must be
considered and local rules or laws governing the disposal of these
batteries must be followed strictly.
• Do not expose this apparatus to rain, moisture, dripping or
splashing and that no objects filled with liquids, such as vases,
shall be placed on the apparatus.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover. There are no user
serviceable parts inside the Unit; leave all servicing to qualified
service personnel.
3. CAUTION: Visible and invisible laser radiation when open and
interlock failed or defeated. Avoid direct exposure to beam.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED
INSIDE THE UNIT.
Wall or
obstructions
Spacing 15 cm or more
XV-N33SL
Front
Stand height
5 cm or more
Floor
Supplied accessories
Check that you have all the following accessories supplied to you.
If anything is missing, consult your dealer immediately.
• Audio/video cable (Yellow/White/Red) (× 1)
• Remote control unit (× 1)
• R6P(SUM-3)/AA(15F) battery (× 2)
• AC power plug (× 1)
(except for Australia and Hong Kong models)
Table of contents
Supplied accessories................................................................1
About this manual .....................................................................1
Precautions ................................................................................ 1
Before operation................................................... 2
About discs ..............................................................................2
About this manual
• The display window information and OSD (On Screen Display)
menu items are put in brackets [ ] in the operation procedures.
• Usable disc(s) for each operation/function is (are) referred to by
the icons;
Precautions
Notes on the power cord
• When you are away on travel or otherwise for an extended
period of time, remove the plug from the wall outlet. A small
amount of power (0.7W) is always consumed while the power
cord is connected to the wall outlet.
• When unplugging the unit from the wall outlet, always pull the
plug, not the power cord.
• Do not handle the power cord with wet hands!
Avoid moisture, water and dust
• Do not place the unit in moist or dusty places.
• If water gets inside the unit, turn off the power and remove the
plug from the wall outlet, then consult your dealer. Using the
unit in this state may cause a fire or electrical shock.
Avoid high temperatures
• Do not expose the unit to direct sunlight or place it near a
heating device.
Notes on installation
• Select a place which is level, dry and neither too hot nor too
cold between 5°C and 35°C.
• Leave sufficient distance between the unit and the TV.
• Do not install the unit in a place subject to vibrations.
To prevent malfunction of the unit
• There are no user-serviceable parts inside. If anything goes
wrong, unplug the power cord and consult your dealer.
• Do not insert any metallic objects, such as wires, hairpins,
coins, etc. into the unit.
• Do not block the vents. Blocking the vents may damage the unit.
To clean the cabinet
• Use a soft cloth. Follow the relevant instructions on the use of
chemically-coated cloths.
• Do not use benzene, thinner or other organic solvents and
disinfectants. These may cause deformation or discoloring.
Preparations ......................................................... 3
Connections............................................................................. 3
Using the remote control unit................................................... 5
Basic operations .................................................. 6
Turning on/off the unit.............................................................. 6
Initial setup ..............................................................................6
Basic playback......................................................................... 7
Resuming playback .................................................................8
Various speed playback ..........................................................9
Locating the beginning of a scene or song ............................ 10
Advanced operations......................................... 11
Playing from a specific position .............................................11
Changing the playback order.................................................12
Repeat playback .................................................................... 14
Changing the language, sound and scene angle ..................15
Special picture/sound effect ..................................................16
Menu bar functions ................................................................17
MP3 disc playback ............................................. 19
Operations .............................................................................19
Changing the initial settings ............................. 21
Selecting preferences............................................................ 21
Limiting playback by children................................................. 24
Additional information ....................................... 26

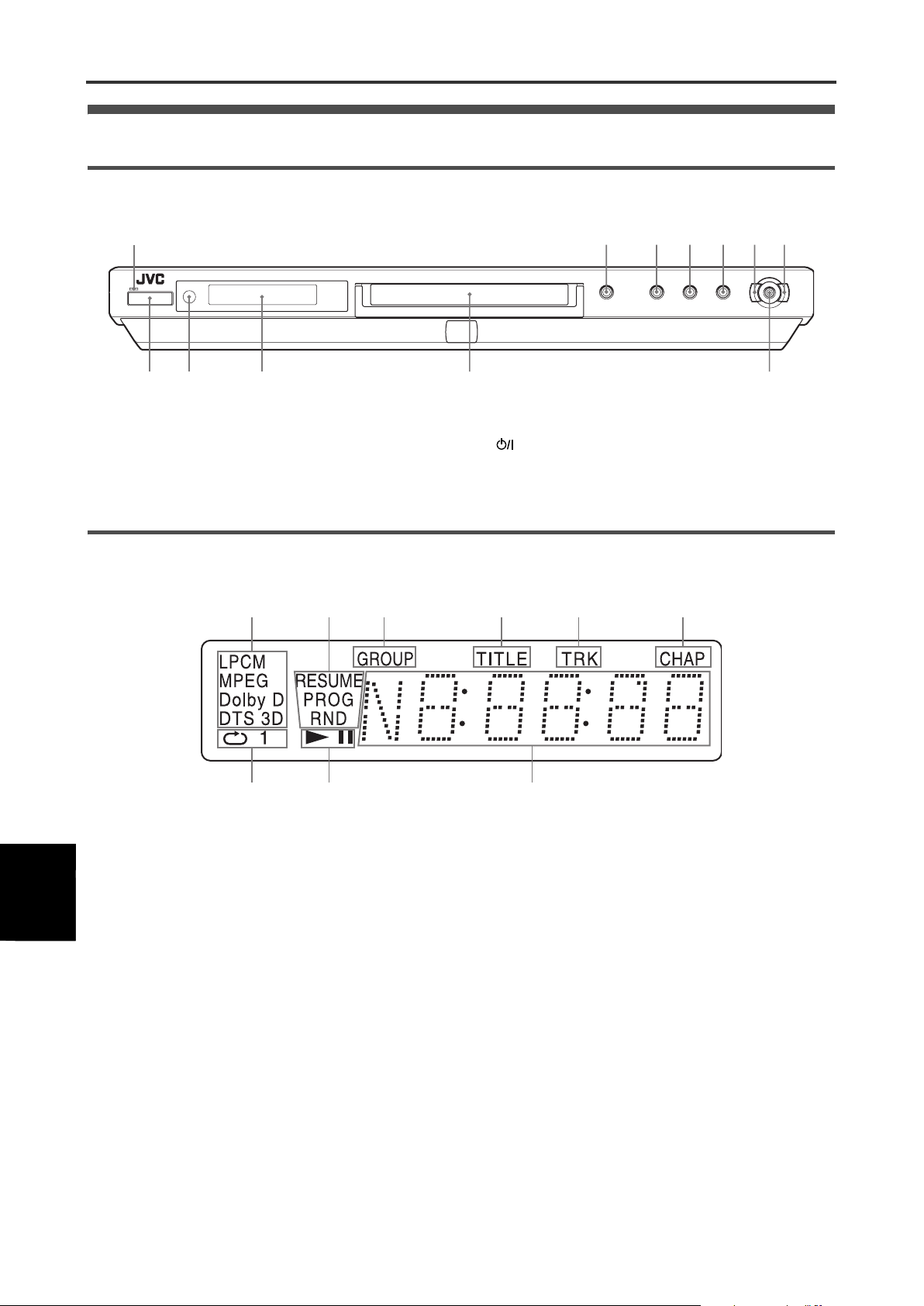

Names of parts and controls..................................................26
AV COMPU LINK remote control system ..............................28
Troubleshooting..................................................................... 29
Specifications ........................................................................29
Appendix A: Country/Area code list for Parental Lock........... 30
Appendix B: Table of languages and their abbreviations ......31
Appendix C: Digital output signal chart.................................. 31
Appendix D: Glossary............................................................ 32
1
B
e
f
o
r
e
o
p
e
r
a
t
i
o
n
Before operation
About discs
Playable disc types
Discs with the following marks can be played back on the unit.
DVD VIDEO SVCD Video CD
VIDEO
The DVD Logo is a trademark.
The unit can also play back the following discs:
• DVD-R, DVD-RW and +RW discs written in the DVD VIDEO
format and finalized
• CD-R and CD-RW discs written in the SVCD, Video CD or
Audio CD format and finalized
• CD-R and CD-RW discs written in MP3 in accordance with the
“ISO 9660” format (See page 19 for details.)
NOTE
If a disc gets dirty, scratched or warped, or due to the disc
characteristics or recording conditions, it may take considerable
time for the unit to read the content, or the unit may not be able to
play back such discs.
The unit can play back audio signals recorded in MIX-MODE CD,
CD-G, CD-EXTRA and CD TEXT.
Region code of DVD VIDEO
DVD VIDEO players and DVD VIDEO discs have their own
Region Code numbers. This unit can playback DVD VIDEO discs
whose Region Code numbers include the unit’s Region Code,
which is indicated on the region code symbol on the rear panel.
Example of playable DVD discs when the unit’s Region Code is
“2”:
ALL
2
52
1
3
Audio CD
2
4
2
3
1
5
6
4
Digital audio formats
The unit supports the following digital audio formats (see page 32
“Glossary” for descriptions of each audio format):
Linear PCM, Dolby Digital, DTS (Digital Theater Systems)
NOTES
• Depending on the unit’s [DIGITAL AUDIO OUTPUT] setting,
digital audio signals may not be output as they are recorded on
the disc. See “DIGITAL AUDIO OUTPUT” on page 23 for
details.
• To play back DTS-encoded DVD VIDEO or DTS-encoded Audio
CD discs correctly, connect the unit to an amplifier with a built-in
DTS decoder. If the unit is connected to an amplifier without a
DTS decoder, playback sound will be distorted.
Notes on discs
• With some DVD VIDEO discs, the unit starts playback
automatically after inserting the disc.
• The image may be sometimes poor or noisy due to defects in
the disc itself.
• With some discs, operations described in this manual may not
be possible.
Care and handling of discs
If a disc gets dirty, dusty, scratched or warped, playback sound
and picture may be deteriorated. Take proper precautions when
handling discs.
Handling
• Do not touch the surface of the disc.
• Do not damage, stick paper to, or use any adhesive on either
the label side or playback side.
Storing discs
• Keep discs in their cases. If discs are piled on top of one
another without their protective cases, they can be damaged.
• Do not put discs in a location where they may be exposed to
direct sunlight, or where the humidity or temperature is high.
Avoid leaving discs in a car!
Color system format
This unit is compatible with the PAL and NTSC systems, and can
play back discs whose Region Code numbers include “2.” You
can select “PAL” or “NTSC” while using the VIDEO SIGNAL
SELECTOR on the rear panel (for details, see page 5).
Unplayable discs
The unit does not play back discs listed below. If you try to play
back these discs, noise may generate causing damage to
speakers.
• DVD-RW discs written in the VR format
• DVD-ROM, DVD-RAM, DVD AUDIO, CD-ROM, PHOTO CD,
SACD
In addition, the unit does not play:
• Unfinalized discs
• Discs of irregular shape or discs with tape, seals or paste on
either the label side or playback side. Playing back these discs
may damage the unit.
2
Cleaning discs
• Wipe with a soft dry cloth, moving from the center outwards. If a
disc is difficult to clean, wipe with a cloth moistened with water.
• Never use record cleaners, petrol, alcohol or any anti-static
agents.
Notes on copyright
Check the copyright laws in your country before recording from
DVD VIDEO, SVCD, Video CD, Audio CD and MP3 discs.
Recording of copyrighted material may infringe copyright laws.
This product incorporates copyright protection technology that
is protected by method claims of certain U.S. patents and other
intellectual property rights owned by Macrovision Corporation
and other rights owners. Use of this copyright protection
technology must be authorized by Macrovision Corporation,
and is intended for home and other limited viewing uses only
unless otherwise authorized by Macrovision Corporation.
Reverse engineering or disassembly is prohibited.
Preparations
RIGHT
LEFT
COAXIAL
VIDEO
S-VIDEO
Y
P
B
P
R
OPTICAL
P
C
M
/S
T
R
E
A
M
C
O
M
P
O
N
E
N
T
V
ID
E
O
O
U
T
V
ID
E
O
O
U
T
A
U
DIO
O
U
T
D
IG
IT
A
L O
U
T
RIGHT
LEFT
COAXIAL
VIDEO
S-VIDEO
Y
P
B
P
R
OPTICAL
P
C
M
/S
T
R
E
A
M
C
O
M
P
O
N
E
N
T
V
ID
E
O
O
U
T
V
ID
E
O
O
U
T
A
U
D
IO
O
U
T
D
IG
IT
A
L
O
U
T
RIGHT
LEFT
COAXIAL
VIDEO
S-VIDEO
Y
P
B
P
R
OPTICAL
P
C
M
/S
T
R
E
A
M
C
O
M
P
O
N
E
N
T
V
ID
E
O
O
U
T
V
ID
E
O
O
U
T
A
U
D
IO
O
U
T
D
IG
IT
A
L
O
U
T
Connections
Before using the unit, connect the unit to a TV and/or amplifier.
Before making connections
• Do not connect the AC power cord until all other
connections have been made.
• Connect VIDEO OUT of the unit directly to the video input
of your TV. Connecting VIDEO OUT of the unit to a TV via a
VCR may cause a monitor problem when playing back a
copy-protected disc. You may also have a monitor problem
when connecting the unit to an integrated TV/Video
system.
B Connecting to a TV with an S-video jack
If your TV has an S-VIDEO input, you can get better picture
quality by connecting it with the S-VIDEO output of the unit using
an S-video cable instead of connecting the video input of the TV
to the VIDEO jack of the unit.
TV
S-VIDEO
VIDEO
LEFT
AUDIO
RIGHT
IN
VIDEO SIGNAL SELECTOR
See page 5.
White
• In the following description, “TV” may be substituted with
“monitor” or “projector.”
• Terminal names used for other components may be different
from those used in the following description.
Red
P
C
S
T
N
VIDEO SIGNAL
SELECTOR
LINK
L
PU
A
OM
AV C
The unit
Preparations
Connecting to a TV
The following sections A to C describe TV connections where
only a TV is connected to the unit so that you will hear audio from
the TV.
A Connecting to a conventional TV
VIDEO SIGNAL SELECTOR
See page 5.
TV
VIDEO
LEFT
AUDIO
RIGHT
IN
Red
The unit
Yellow
Red
NOTE
If your TV has a monaural audio input instead of stereo, you need
to use an optional audio cable which converts stereo audio output
to monaural.
Ye l l o w
White
L
A
P
C
S
T
N
VIDEO SIGNAL
SELECTOR
White
Audio/video cable (supplied)
MPU LINK
AV CO
NOTE
When using the S-VIDEO output jack, do not connect the
COMPONENT VIDEO OUT jacks on the unit.
C Connecting to a TV with component jacks
You can enjoy picture of high-fidelity color reproduction by
connecting the COMPONENT VIDEO OUT jacks on the unit to
your TV.
TV
IN
S-VIDEO
VIDEO
LEFT
AUDIO
RIGHT
Red
The unit
White
Red
White
Audio cable
Red
(not supplied)
S-video cable (not supplied)
VIDEO SIGNAL SELECTOR
See page 5.
Red
R
P
B
P
Y
COMPON
T IN
EN
Blue
White
Green
L
A
P
C
S
T
N
VIDEO SIGNAL
SELECTOR
Red
Green
Blue
Audio cable (not supplied)
PU LINK
AV COM
Component
video cable
(not supplied)
NOTES
• Connect “Y” to “Y,” “PB” to “PB” (CB), “PR” to “PR” (CR) correctly.
• When using the COMPONENT VIDEO OUT jacks, do not
connect the S-VIDEO output jack on the unit.
• When the component video input jacks on the TV are of the
BNC type, use an adapter to convert a pin jack to a BNC jack
(not supplied).
3
Preparations
P
reparations
RIGHT
LEFT
COAXIAL
VIDEO
S-VIDEO
Y
P
B
P
R
OPTICAL
P
CM
/S
T
R
E
A
M
C
O
M
P
O
N
E
N
T
V
ID
E
O
O
U
T
V
ID
E
O
O
U
T
A
U
D
IO
O
U
T
D
IG
IT
A
L
O
U
T
RIGHT
LEFT
COAXIAL
VIDEO
S-VIDEO
Y
P
B
P
R
OPTICAL
P
C
M
/S
T
R
E
A
M
C
O
M
P
O
N
E
N
T
V
ID
E
O
O
U
T
V
ID
E
O
O
U
T
A
U
D
IO
O
U
T
D
IG
IT
A
L
O
U
T
Connecting to optional audio equipment
Connecting to a stereo audio amplifier/receiver
Connect the unit’s AUDIO OUT (LEFT/RIGHT) jacks to any linelevel inputs (such as AUX, DVD, CD, etc.) of an audio amplifier or
receiver.
Amplifier or receiver
IN
LEFT
DVD
RIGHT
White
Red
The unit
White
Red
Connecting to a digital audio device
You can enjoy sound of enhanced quality by connecting the unit’s
DIGITAL OUT (either OPTICAL or COAXIAL) jack to a digital
input of an amplifier, etc., using an optical or coaxial digital cable.
The digital audio signal on a disc will be transferred directly from
the unit. If the connected digital audio equipment is a Dolby
Digital or DTS decoder or an amplifier with a built-in decoder, you
can enjoy high-quality surround sound.
NOTE
Sound recorded on DTS-encoded DVD VIDEO or DTS-encoded
Audio CD discs are not output from the analog (AUDIO OUT
LEFT/RIGHT) jacks of the unit.
L
A
P
MPU LINK
AV CO
C
S
T
N
L
VIDEO SIGNA
SELECTOR
Audio cable (not supplied)
NOTES
• Connect the unit and the digital audio device by using either an
optical digital cable or a coaxial digital cable.
• It is not recommended to use the digital jacks for dubbing.
When recording the sounds (DVD VIDEO, SVCD, Video CD or
Audio CD) played back on the unit, record them through the
analog jacks.
• Depending on the disc, no signal may be output from the
DIGITAL OUT. Make an analog connection in this case.
• Set [DIGITAL AUDIO OUTPUT] in the [AUDIO] preference
display correctly according to the connected digital audio
equipment. If setting made for [DIGITAL AUDIO OUTPUT] is
incorrect, loud noise may be generated causing damage to
the speakers (see page 23).
Digital equipment
IN
OPTICAL
IN
DIGITAL
COAXIAL
Coaxial digital cable
L
A
P
MPU LINK
AV CO
C
S
T
N
SIGNAL
VIDEO
SELECTOR
(not supplied)
Optical digital cable
(not supplied)
Audio cable (not supplied)
When using the DIGITAL OUT
(OPTICAL) jack, remove the
protection cap. Do not lose the
removed cap.
When the DIGITAL OUT
(OPTICAL) jack is not used,
replace the protection cap in the
jack.
DVD
LEFT
RIGHT
The unit
4
Preparations
Selecting NTSC or PAL
Set the VIDEO SIGNAL SELECTOR on the rear panel to “NTSC”
or “PAL” to match the color system of your TV. Make sure that the
color system of a DVD VIDEO/SVCD/video CD disc labeled on
the package matches your TV.
If you use a multi-color system TV, you can play discs recorded
on both PAL and NTSC systems by setting the VIDEO SIGNAL
SELECTOR appropriately.
NTSC
PA L
VIDEO SIGNAL
SELECTOR
NOTE
Change the VIDEO SIGNAL SELECTOR position in stop mode
or with no disc inserted. The changed setting is not effective if
you change the selector position in playback mode.
Connecting the power cord
When all the audio/video connections have been made, connect
the AC power plug to the wall outlet. Make sure that the plugs are
inserted firmly.
The STANDBY indicator lights in red.
Warning
• Disconnect the power cord:
- if you are not going to use the unit for a long time.
- before cleaning the unit.
- before moving the unit.
• Do not:
- connect or disconnect the power cord with wet hands.
- pull the power cord when disconnecting it, as this may
damage the cord and cause fire, electric shock, or other
accidents.
Caution
• Do not alter, twist or pull the power cord, or put anything heavy
on it, which may cause fire, electric shock, or other accidents.
• If the cord is damaged, consult a dealer and have the power
cord replaced with a new one.
Using the remote control unit
To install batteries
Open the compartment cover, and place the two supplied
R6P(SUM-3)/AA(15F) batteries in the remote control unit
according to the polarity markings (“+” and “–”) inside the
compartment. Then replace the cover.
Preparations
The batteries will last about six months with normal use.
If the functions of the remote control unit become erratic,
repalace the batteries.
Precautions of the safe use of batteries
Observe the following precautions for the safe use of batteries. If
they are used improperly their lives will be shortened, they may
burst or their contents may leak.
• Remove the batteries from the remote control unit if it is not
going to be used for a long period of time.
• Remove dead batteries and dispose of them properly.
• Never leave dead batteries lying around, take them apart, mix
them with other refuse, or throw them into an incinerator.
• Never touch liquid that has leaked out of a battery.
• Do not mix new and old batteries, or batteries of different types,
when replacing them.
Remote sensor
Point the top of the remote control unit toward the remote sensor
as directly as possible. If you operate it from a diagonal position,
the operating range (approx. 5 m) may be shorter.
Remote sensor
5
Basic
operati
ons
Basic operations
STANDBY indicator
730
STANDBY/ON
OPEN/CLOSE
ENTER
CHOICE
7
STANDBY/ON
5/∞/2/3
3
DIMMER
About invalid operation icon
When you press a button, and if the unit does not accept its
operation, appears on your TV screen. Operations are
occasionally unacceptable even if is not displayed.
Note that some operations may not be accepted. For example,
some discs may not allow rapid advance/reverse or slowmotion playback.
Turning on/off the unit
Press STANDBY/ON on the remote control
unit or press STANDBY/ON on the front
panel.
The STANDBY indicator on the front panel, which lights in
red during standby, goes off.
The opening display appears on the TV screen, and the following
messages may appear at the bottom of the opening display.
Initial setup
When you turn on the unit for the first time after purchase, the
following message appears on the TV screen.
EXECUTE DVD PLAYER SETUP? - BASIC PICTURE/AUDIO
SETTING
YES - PRESS ENTER NO - CANCEL
You can set the display language, TV monitor type and digital
output before using the unit, by following the procedure below.
1 Press ENTER.
The first page of the DVD PLAYER SET UP display appears.
The pull-down menu of the [ON SCREEN LANGUAGE] is
already open.
DVD PLAYER SET UP
MENU LANGUAGE
AUDIO LANGUAGE
SUBTITLE
ON SCREEN LANGUAGE
SELECT
ENTER
ENGLISH
ENGLISH
ENGLISH
ENGLISH
ENGLISH
CHINESE
SPANISH
USE 5∞23 TO SELECT, USE ENTER TO CONFIRM
ON SCREEN LANGUAGE options
2 Press 5/∞ to select the desired language.
You can select the on-screen language for the preference
displays, etc. from among ENGLISH, CHINESE and
SPANISH.
3 Press ENTER.
The second page is shown, in which the pull-down menu of
the [MONITOR TYPE] is already open.
DVD PLAYER SET UP
MONITOR TYPE
PICTURE SOURCE
SCREEN SAVER
SELECT
ENTER
4:3 L.B.
16:9 NORMAL
AUTO
16:9 AUTO
4:3 LB
ON
4:3 PS
16:9 MULTI NORMAL
16:9 MULTI AUTO
4:3 MULTI LB
4:3 MULTI PS
USE 5∞23 TO SELECT, USE ENTER TO CONFIRM
MONITOR TYPE options
NOW READING
Message area
• NOW READING (The unit is reading the disc information.)
• REGION CODE ERROR! (The region code of the DVD VIDEO
disc does not match the unit. The disc cannot be played back.)
• OPEN
•CLOSE
•NO DISC
NOTE
Even if you turn off the unit, the unit is not disconnected from the
AC power source as long as it is connected to the wall outlet. This
state is called standby mode. In this state, the unit consumes a
very small amount of power.
6
4 Press 5/∞ to select the desired monitor type.
For a normal (conventional) TV, select [4:3 LB] or [4:3 PS].
For a wide-screen TV, select [16:9 NORMAL] or [16:9 AUTO]
(see page 22) .
5 Press ENTER.
The third page is shown, in which the pull-down menu of the
[DIGITAL AUDIO OUTPUT] is already open.
DVD PLAYER SET UP
DIGITAL AUDIO OUTPUT
ANALOG DOWN MIX
D RANGE CONTROL
OUTPUT LEVEL
SELECT
ENTER
DIGITAL AUDIO OUTPUT options
DOLBY DIGITAL/PCM
PCM ONLY
DOLBY PROLOGIC
DOLBY DIGITAL/PCM
STREAM/PCM
ON
USE 5∞23 TO SELECT, USE ENTER TO CONFIRM
6 Press 5/∞ to select a desired digital output
signal type.
Set this item correctly when you connect the unit to an
external surround decoder or D/A converter. (If you do not
connect the unit to such a device, you do not have to set this
item.)
• When connecting to a Dolby Digital decoder, select
[DOLBY DIGITAL/PCM].
• When connecting to a DTS decoder, select [STREAM/
PCM].
• When connecting to other digital device, select [PCM
ONLY].
7 Press ENTER.
The TV screen returns to the opening display.
To bring up the DVD PLAYER SET UP display later
Press CHOICE for a few seconds until the DVD PLAYER SET UP
display appears.
Basic operations
Basic playback
1 Press 0 to open the disc tray.
2 Place a disc in the disc tray.
With the label side up
E
IV
S
S
RE
G
O
PR
To change the brightness of the display window
Press DIMMER.
You can select the display window brightness from three levels.
• To insert an 8-cm disc, place it in the inner recess.
3 Press 3.
The unit starts playback from the beginning.
If a menu is shown on the TV screen
When inserting a DVD VIDEO, SVCD or Video CD disc, a menu
may be shown on the TV screen. From the menu, you can select
a desired item to be played back.
For DVD VIDEO
1Press 5/∞/2/3 to select a desired item.
2Press ENTER.
The unit starts playback of the selected item.
For SVCD/Video CD
Press the numeric buttons to select a desired item.
The unit starts playback of the selected item.
NOTES
• Do not insert an unplayable disc (see page 2).
• When inserting a disc on the disc tray, be sure to position the
disc inside the recess. Otherwise, the disc may be damaged
when the disc tray is closed, or you may not be able to remove
the disc from the unit.
About PBC (Playback Control)
Some SVCD/Video CD discs support the PBC function.
The PBC function allows you to enjoy menu-driven operation
and high-resolution still images which have a resolution four
times greater than moving pictures.
• To play a PBC-compatible SVCD/Video CD disc without
activating the PBC function, press the numeric buttons
instead of 3 to start playback.
• To activate the PBC function again,
1) press TOP MENU or MENU,
or
2) press 7 to stop playback, then press 3.
Basic
operations
7
Basic operations
Basic
operati
ons
K
QUICK PLAYBAC
7380
To stop playback completely
Press 7.
Hint
If you press 0 during playback, the unit stops playback and
opens the disc tray.
4¢
DISPLAY
4
78
ON SCREEN
¢
1¡
3
To check the playback status
You can see the current selection number (the title/chapter
number for DVD VIDEO or track number for SVCD/Video CD/
Audio CD), time information (the track or chapter time while
stopped, or elapsed track or chapter time during playback) and
the transport status (stop, playback, pause, etc.) on the TV
screen.
Press ON SCREEN.
Example: for DVD VIDEO
Transfer rate
8.5Mbps
Note that pressing ON SCREEN again brings up the menu bar
under the status bar, from which you can access various
functions. See page 17 for details about the menu bar.
To turn off the status bar
Press ON SCREEN repeatedly until the status bar goes off.
Current chapter
number
TITLE 33 TOTAL 1:25:58CHAP 33
Current title number
Current transport
status
Current chapter
time
To stop playback temporarily
Press 8.
To resume playback, press 3. (See the following item.)
About On-screen guide icons
You may see the following icons displayed over the picture.
They have the following meanings.
: Appears at the beginning of a scene recorded from
multiple angles (see page 15).
: Appears at the beginning of a scene recorded with
multiple audio languages (see page 15).
: Appears at the beginning of a scene recorded with
multiple subtitle languages (see page 15).
Resuming playback
The unit can memorize the position on a disc where you interrupt
playback, and resume playback from that position later.
There are three resume modes; ON, OFF and DISC RESUME.
The mode is initially set to ON when you purchased the unit.
• You can select the mode using the preference display (see
page 23).
When the resume mode is “ON”
When you press 7, the unit stops playback and memorizes the
interrupted position. The TV screen shows [RESUME STOP] and
the [RESUME] indicator lights up in the display window.
The memory of the interrupted position is not cleared if you turn
off the unit.
When you turn off the unit after setting the resume function,
simply press 3. The unit is turned on, and playback starts from
the interrupted position. If you turn on the unit by pressing
STANDBY/ON then press 3, playback starts from the beginning
of the disc.
Note that the memory is cleared if you open the disc tray.
To change the display window contents
Press DISPLAY.
Example: for DVD VIDEO
Each time you press DISPLAY, the total time display and the
title/chapter number display appear alternately.
Total time
8
Title number
Chapter number
When the resume mode is “DISC RESUME”
When you press 7, the unit stops playback and memorizes the
interrupted position. The TV screen shows [RESUME STOP] and
the [RESUME] indicator lights up in the display window.
The memory of the interrupted position is not cleared if you open
the disc tray or turn off the unit.
Hint
The unit memorizes interrupted positions for the last 30 discs
played. Storing a new interrupted position will erase the
interrupted position stored for the first disc.
To clear the memory
Press 7 while the disc is stopped.
Basic operations
To resume playback
When the resume mode is “ON”
While the disc you interrupted playback is
still on the disc tray, press 3.
The unit resumes playback from the position where playback
was interrupted. The TV screen shows [RESUME PLAY].
To play back from the beginning
Press 7 before pressing 3 to start playback.
When the resume mode is “DISC RESUME”
1 Press 0 to insert a disc for which the unit has
stored an interrupted position.
The TV screen shows [RESUME STOP].
2 Press 3.
The TV screen shows [RESUME PLAY] and the unit resumes
playback from the position where playback was interrupted.
To play back from the beginning
After inserting the disc, press 7 before pressing 3 to start
playback.
NOTES
• If you change the [RESUME] setting from [DISC RESUME] to
[OFF] or [ON], you cannot resume playback of a disc whose
“resuming” position is stored. However, when you again set
[RESUME] to [DISC RESUME], you will then be able to resume
playback of the disc.
• If you interrupt the playback of a disc for which an interrupted
position has already been stored, the memory will be updated
with the new interrupted position.
• For a double-sided DVD VIDEO disc, the unit regards each side
as a different disc. Therefore, to resume playback of such a
disc, the disc must be inserted with the same side down.
• When the unit memorizes an interrupted point for a disc, it also
memorizes Audio, Subtitle and Angle settings.
• The unit may not resume playback exactly from the intterupted
point. In the case of an SVCD/Video CD disc with PBC function,
the unit may resume playback from a point slightly earlier or
later than the point where playback was interrupted.
NOTES
• x1.5 Quick Playback can also be achieved by pressing ¡
once. (See next section.)
• At the x1.5 Quick Playback mode, the digital sound is output in
stereo linear PCM format. Note that the sound of a DTSencoded DVD VIDEO disc is not output.
• Depending on a disc, the sound may not be in tune, or the
sound quality may alter during the x1.5 Quick Playback mode.
To advance or reverse playback rapidly
while monitoring
During playback, press ¡ or 1 on the
remote control unit.
You can select from 1.5 times, 5 times, 20 times and 60 times
normal speed. Pressing 3 returns the unit to normal
playback.
During playback, hold down ¢ or 4.
Playback is advanced or reversed at 5 times normal speed.
NOTE
During rapid playback, the sound will be muted except when
playing an Audio CD, and when playing a DVD VIDEO or Video
CD at 1.5 times normal speed.
To advance a still picture frame by frame
While paused, press 8.
Each time you press 8, the still picture advances to the next
frame.
Pressing 3 returns to normal playback.
To play back in slow motion
Basic
operations
Various speed playback
x1.5 Quick Playback with sound
During playback, press QUICK PLAYBACK on
the unit.
The lamp on the QUICK PLAYBACK button turns on, and the
disc is played back at about 1.5 times normal speed.
The sound is not muted, and the subtitle does not go off.
To return to the normal playback
Press QUICK PLAYBACK again.
The lamp on the button goes off.
You can select from 1/32 times, 1/16 times, 1/4 times and 1/2
times normal speed.
During playback, press 8, then press ¡ (to
play forward slow motion), or 1 (to play
reverse slow motion, for DVD VIDEO disc
only).
Pressing 3 returns to normal playback.
NOTES
• During slow motion playback, the sound will be muted.
• Reverse slow motion playback is not possible for an SVCD and
Video CD.
9
Loading...
