JVC XV-521BK User Manual

Download

D VD VIDEO PLAYER

XV-521BK

TV POWER

OPEN

THEATER

3D-PHONIC

/CLOSE

DVD POWER

POSITION

AUDIOSUBTITLE

TV/VIDEO

ANGLE

DIGEST STROBE ZOOM

123

TV 1 TV 2 TV 3

456

TV 4 TV 5 TV 6

789

TV 7 TV 8 TV 9

10 +100

TV RETURN

TV 0 TV 100+

AMP

SLOW

VOLTVVOL

PLAY MODE

DISPLAY RETURN

CANCEL

TIME CHOICE

SHIFT

PLAY

F.SKIP

STOP

CURSOR

RIGHT

LEFT

DOWN

REMOTE CONTROL

DVD PLAYER

STANDBY

POWER

3D PHONIC SKIP

D I G I T A L

DOLBY

TITLE CHAP. RESUME

EACH

THEATER

OPEN/CLOSE

Introduction 1

Preliminary knowledge 4

Getting started 12

Basic operations 17

Advanced operations 20

SHUTTLE

1¡

PLAY

STOP PAUSE

4¢

VDEO CD / CD

DVD

Initial settings 35

INSTRUCTIONS

Additional information 41

For Customer Use:

Enter below the Model No. and Serial No. which are located on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No. Serial No.

LVT0435-011A

[1U]

Warnings, Cautions and Others

Mises en garde, précautions et indications diverses

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

For U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

ATTENTION

Afin d'éviter tout risque d'électrocution, d'incendie, etc.:

1. Ne pas enlever les vis ni les panneaux et ne pas ouvrir le coffret de l'appareil.

2. Ne pas exposer l'appareil à la pluie ni à l'humidité.

Caution –– POWER switch!

Disconnect the mains plug to shut the power off completely. The POWER switch in any position does not disconnect the mains line. The power can be remote controlled.

Attention –– Commutateur POWER!

Déconnecter la fiche de secteur pour couper complètement le courant. Le commutateur POWER ne coupe jamais complètement la ligne de secteur, quelle que soit sa position. Le courant peut être télécommandé.

IMPORTANT FOR LASER PRODUCTS IMPORTANT POUR LES PRODUITS LASER

1. CLASS 1 LASER PRODUCT

2. DANGER: Visible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

3. CAUTION: Do not open the top cover. There are no user service- able parts inside the Unit; leave all servicing to qualified service personnel.

1. PRODUIT LASER CLASSE 1

2. ATTENTION: Radiation laser visible quand l'appareil est ouvert ou que le verrouillage est en panne ou désactivé. Eviter une exposition directe au rayon.

3. ATTENTION: Ne pas ouvrir le couvercle du dessus. Il n'y a aucune pièce utilisable à l'intérieur. Laisser à un personnel qualifié le soin de réparer votre appareil.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

For Canada/pour le Canada

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY INSERT ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQUAU FOND

For Canada/pour le Canada

THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS B LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL APPARATUS AS SET OUT IN THE INTERFERENCE-CAUSING EQUIPMENT STANDARD ENTITLED "DIGITAL APPARATUS", ICES-003 OF THE DEPARTMENT OF COMMUNICATIONS. CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE BRUITS RADIOELECTRIQUES APPLICABLES AUX APPAREILS NUMERIQUES DE CLASSE B PRESCRITES DANS LA NORME SUR LE MATERIEL BROUILLEUR: "APPAREILS NUMERIQUES", NMB-003 EDICTEE PAR LE MINISTRE DES COMMUNICATIONS.

Table of contents

Introduction

Page 1

Features .................................................................... 1

Supplied accessories ............................................... 1

About this instruction manual ............................... 2

Notes on handling ................................................... 3

Preliminary knowledge

Page 4

Names of parts and controls

Front panel ................................................................... 4

Remote control unit .................................................... 5

Display window ........................................................... 7

Rear panel .................................................................... 7

Operational Principles

On-screen displays...................................................... 8

To prevent the monitor from burning out

[SCREEN SAVER] ...................................................... 9

On-screen guide icons .............................................. 10

How to use numeric buttons.................................... 10

About discs

Playable disc types.................................................... 11

Disc structure ............................................................. 11

Getting started

Page 12

Connections

Before making any connections .............................. 12

To connect to a TV..................................................... 12

To connect to a TV with the component video

input jacks ................................................................ 13

To connect to an audio amplifier or receiver ......... 13

To connect to audio equipment with a digital

input ......................................................................... 14

To connect the power cord....................................... 14

Using the remote control unit

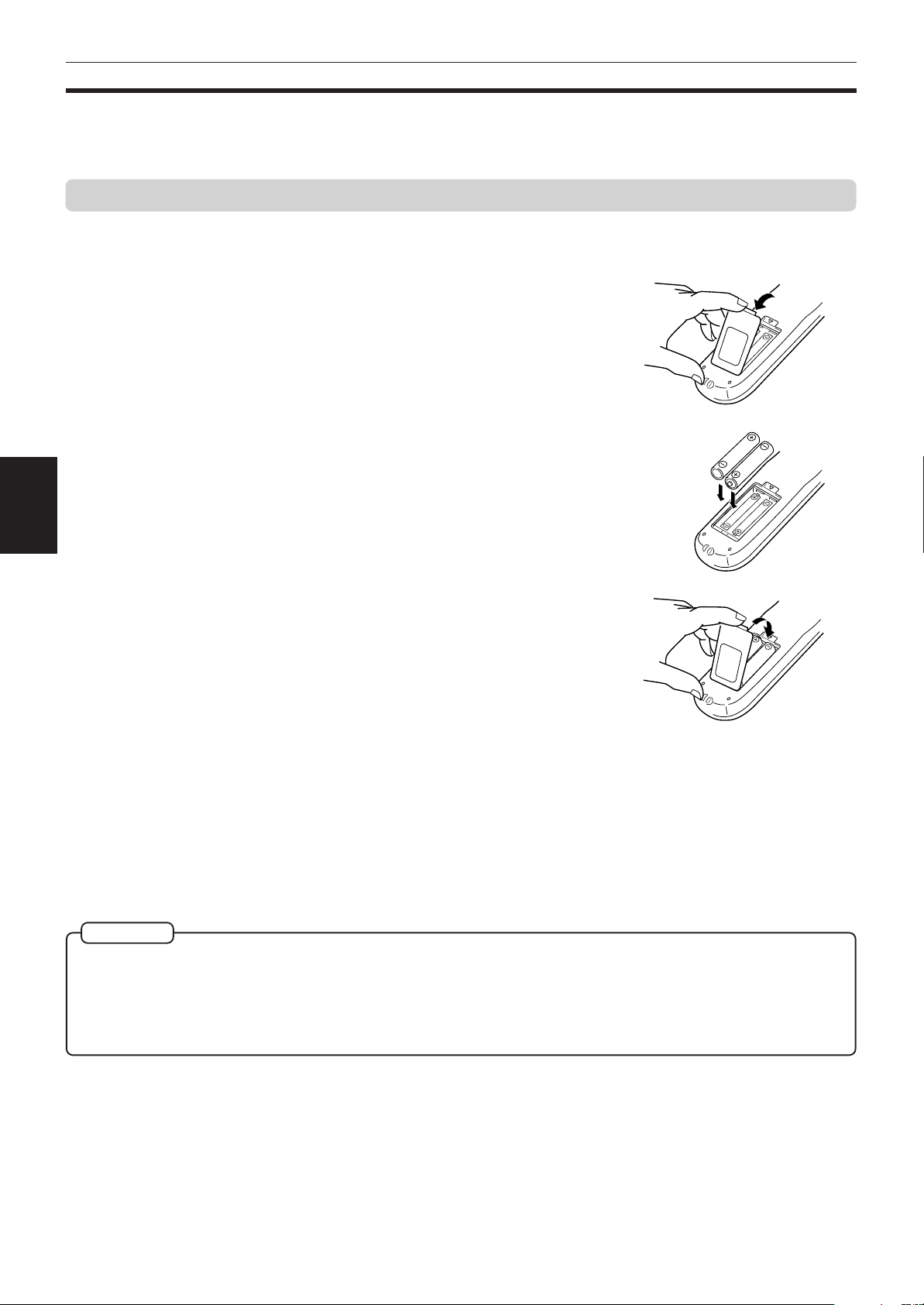

To install batteries in the remote control unit ........ 15

To use the remote control unit for TV operation ... 16 To control the volume of a JVC’s amplifier or

receiver .................................................................... 16

Basic operations

Page 17

Turning on/off the unit .......................................... 17

Inserting and removing discs ............................... 17

Basic playback

To start playback ....................................................... 18

To stop playback completely ................................... 18

To stop playback temporarily .................................. 18

To advance or reverse playback rapidly while

monitoring ............................................................... 18

To locate the beginning of the scene or song ........ 19

To resume playback

To memorize the interrupted position .................... 19

To resume playback .................................................. 19

Advanced operations

Page 20

Playing from a specific position on a disc

To locate a desired scene from the DVD menu...... 20

To locate a desired scene from the menu of the

Video CD with PBC.................................................. 20

To locate a desired selection using the numeric

buttons ..................................................................... 21

To locate a desired selection using 4 or ¢ ...... 21

To locate a desired scene by specifying the chapter

number [CHAP. SEARCH] ....................................... 22

To locate a desired position in the current title or

track [TIME SEARCH].............................................. 22

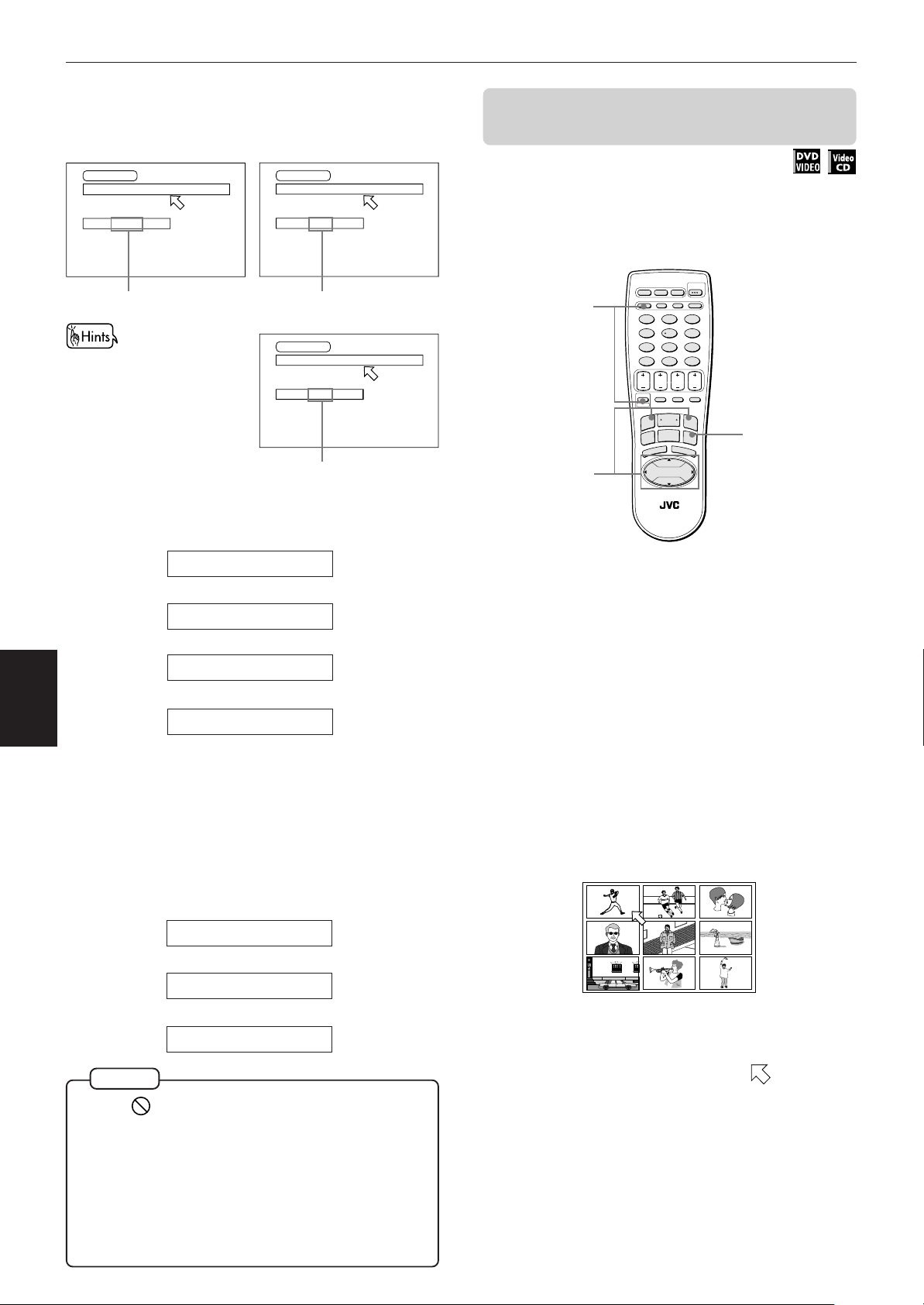

To locate a desired scene from the digest display

[DIGEST] .................................................................. 23

Special picture playback

To advance a still picture frame-by-frame.............. 24

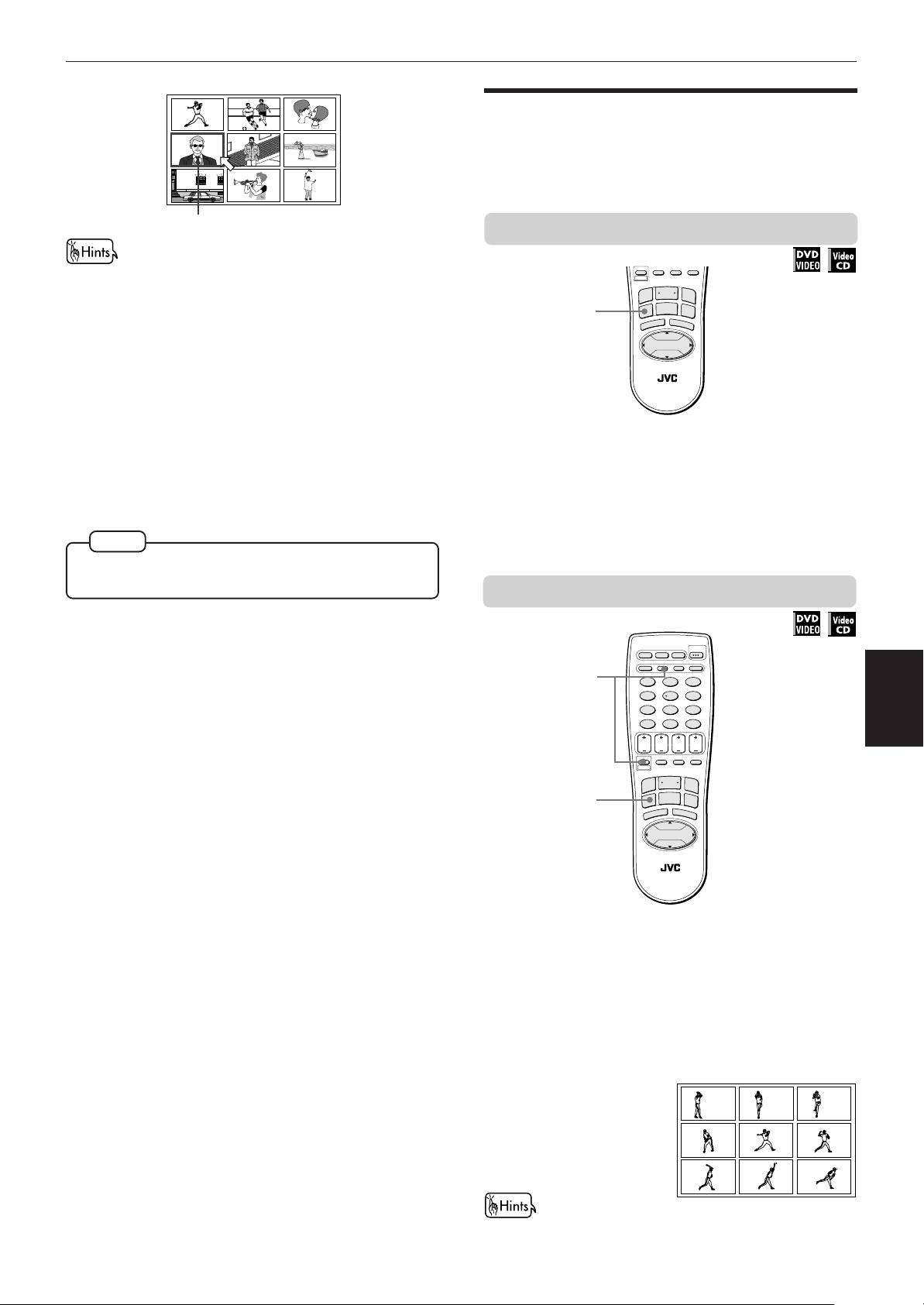

To display still pictures [STROBE] ........................... 24

To playback in slow-motion [SLOW] ....................... 25

To zoom a scene [ZOOM] ......................................... 26

Changing the playback order

To playback in the desired order [PROGRAM] ....... 26

To playback in random order [RANDOM]............... 27

Repeat playback

To repeat the current selection

or all disc contents [REPEAT] ................................ 28

To repeat a desired part [A-B REPEAT] ................... 29

Selecting a scene angle of DVD VIDEO

To select a scene angle from the normal screen

[ANGLE] ................................................................... 30

To select a scene angle from the angle list display

[ANGLE] ................................................................... 30

Changing the language and sound

To select the subtitle language [SUBTITLE] ........... 31

To change the audio language or sound [AUDIO]. 31

Selecting the picture character

To select the picture character

[THEATER POSITION] ............................................. 32

Enjoying virtual surround sound

To simulate surround sound [3D PHONIC] ............. 32

Checking the status

To check the disc/time information ......................... 33

To check the DVD function status ............................ 34

Initial settings

Page 35

Selecting preferences

How to set preferences............................................. 35

LANGUAGE page ...................................................... 35

AUDIO page ............................................................... 36

DISPLAY page............................................................ 37

SYSTEM page ............................................................ 38

Limiting playback by children

To set Parental Lock for the first time

[PARENTAL LOCK] .................................................. 39

To change the settings [PARENTAL LOCK]............. 40

To temporarily release the Parental lock

[PARENTAL LOCK] .................................................. 40

Additional information

Page 41

AV COMPU LINK remote control system

Connection and setup ............................................... 41

Operation ................................................................... 42

Care and handling of discs.................................... 42

Troubleshooting ..................................................... 43

Specifications ......................................................... 44

Table of languages and their

abbreviations ....................................... Appendix A

Country code list for parental lock ...... Appendix B

SLOW

DOWN

LEFT

RIGHT

AMP

VOL

IOS

CANCEL

SHIFT

TIME

CHOICE

PLAY MODE

V R

V 7

V 8

V 1

V 3

DISPLAY

RETURN

/VIDE

-P

NIC

ITIO

10 +10

-S

XV5

21J REM

ENTER

¢

Introduction

Features

Picture functions

7 Strobe function

The unit can display nine continuous still pictures on the TV screen.

7 Digest function

You can select the desired title from the opening scenes displayed on the TV screen.

7 Angle function*

Introduction

You can select a desired angle from multiple camera angles recorded on the DVD VIDEO disc.

7 Zoom function

You can view scenes close-up.

7 Parental lock*

You can restrict the playback of DVD VIDEO discs with scenes which you do not want children to see, such as adult or violent films.

7 Theater position

You can select the picture character according to the lighting of your room.

Supplied accessories

• Audio/video cable (x 1)

• S-video cable (x 1)

• AV compulink cord (x 1)

• Remote Control Unit (x 1)

Audio functions

7 High quality digital sound

You can enjoy high quality sound with Dolby Digital or Linear-PCM.

7 Surround function*

The unit is compatible with Dolby Digital surround and DTS surround. (DTS surround is available for digital output only.)

7 3D Phonic function

You can enjoy surround sound with your 2-channel system.

Other functions

7 Multi-language subtitles and sound*

You can select a subtitle or sound language from those recorded on the DVD VIDEO disc.

7 Multi-disc playback

You can enjoy Audio CD discs and Video CD discs, as well as DVD VIDEO discs.

7 Operation from the on-screen display

User-friendly on-screen displays allow you to operate the unit easily.

• R6P(SUM-3)/AA(15F) batteries (x 2)

• Instruction manual (x 1)

• AC power cord (x 1)

• AC plug adapter (x 1)

Functions with (*) mark only work on a DVD VIDEO disc that is compatible with each function.

About this instruction manual

This instruction manual basically explains operations as follows:

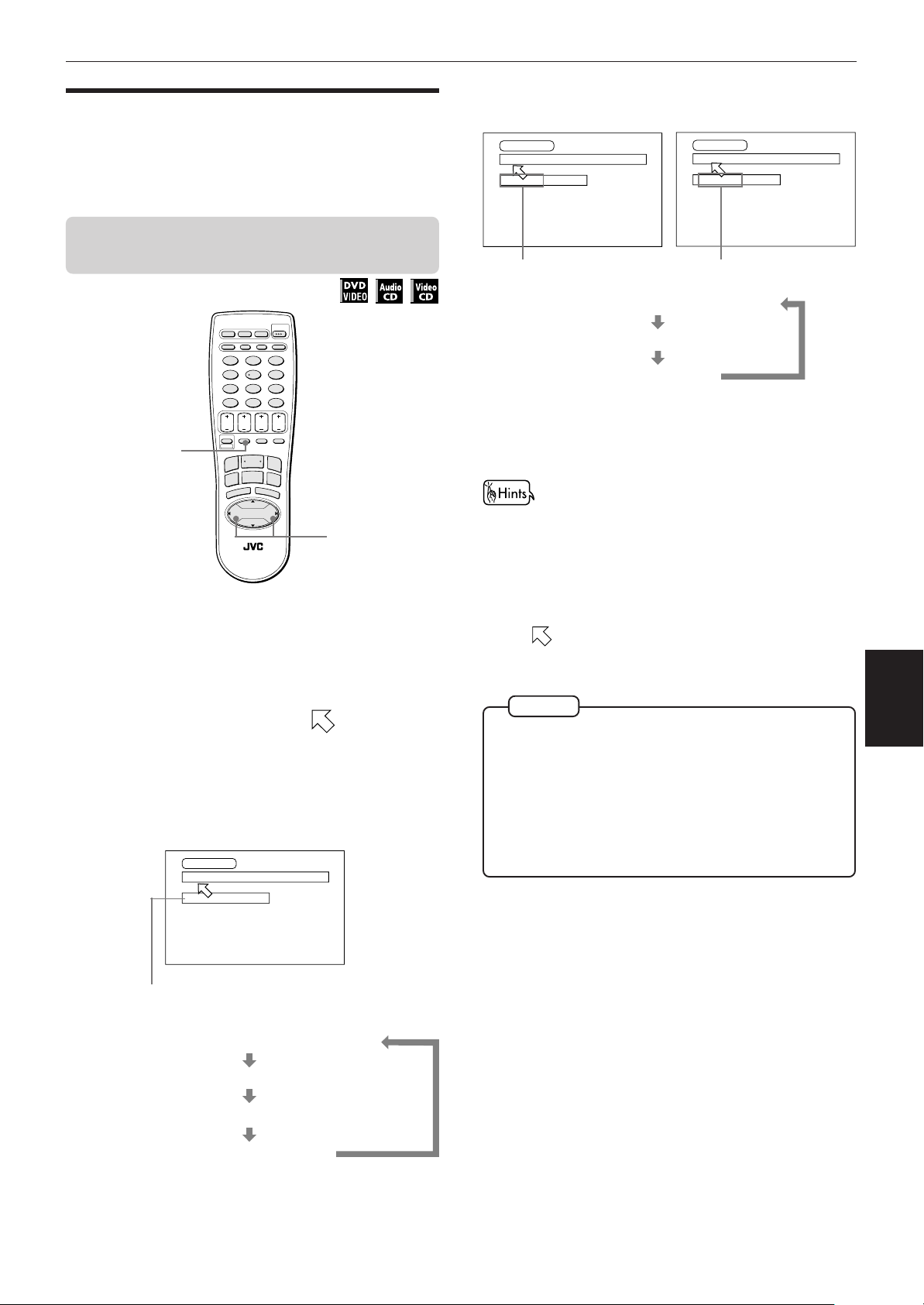

To playback in random order [RANDOM]

You can play titles or tracks in random order by using the Random function.

TV POWER

OPEN

THEATER

3D-PHONIC

DVD POWER

/CLOSE

POSITION

AUDIOSUBTITLE

TV/VIDEO

ANGLE

DIGEST STROBE ZOOM

123

TV 1 TV 2 TV 3

456

TV 4 TV 5 TV 6

789

TV 7 TV 8 TV 9

10 +100

TV RETURN

TV 0 TV 100+

AMP

SLOW

VOLTVVOL

PLAY MODE

DISPLAY RETURN

CANCEL

TIME CHOICE

SHIFT

PLAY

B.SKIP

¢

STOP

PAUSE

TIT

LEFT

CURSOR

RIGHT

DOWN

REMOTE CONTROL

The number indicates the procedural step.

While stopped

Press PLAY MODE - CANCEL.

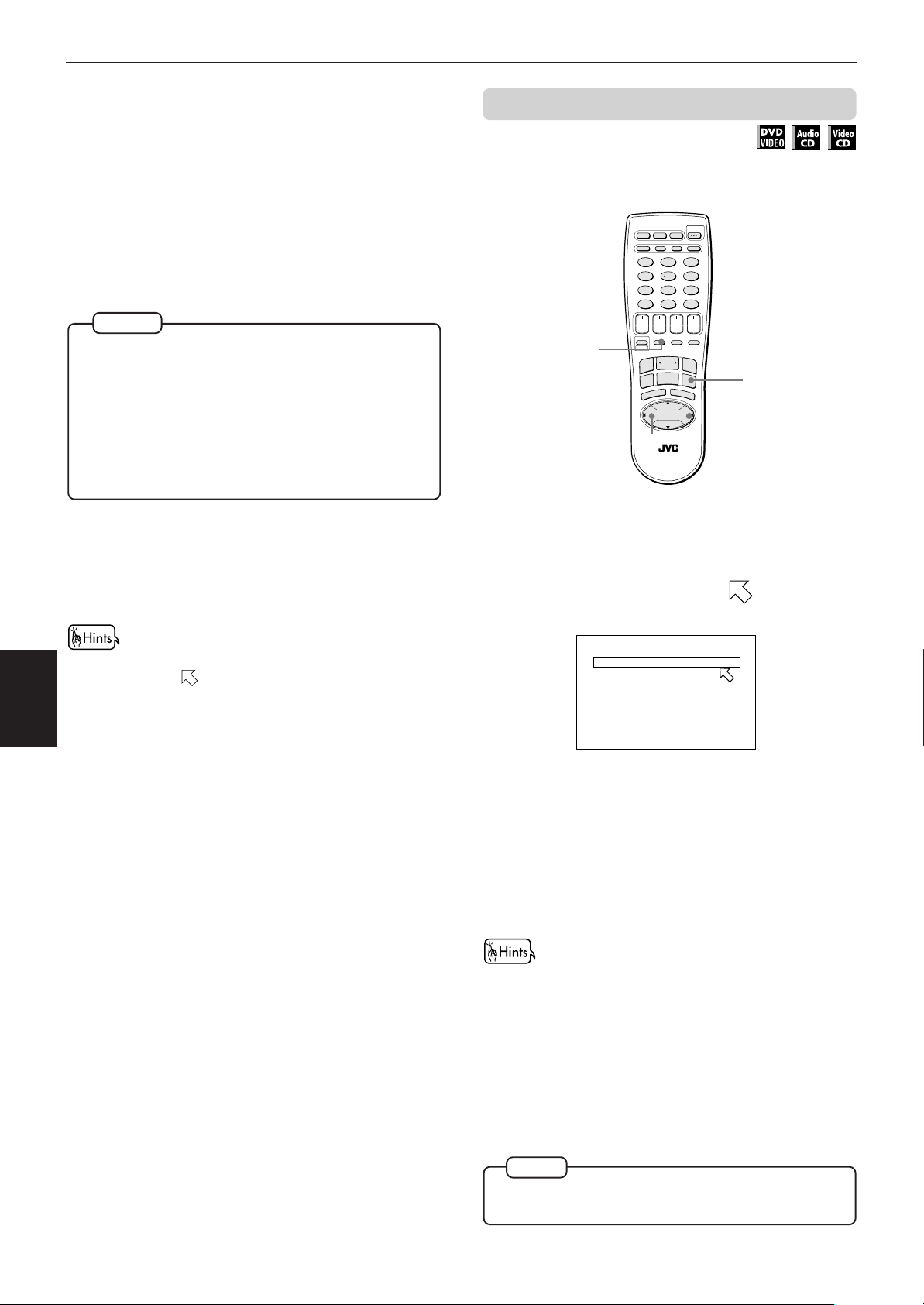

The play mode menu appears on the TV screen.

Use CURSOR 2/3 to move to

[RANDOM].

Introduction

These symbols indicate the types of discs which the operation can be

Introduction

used for.

The number indicates the

following procedural step(s) in which the button(s) is(are) used. You may also use the corresponding buttons on the front panel of the unit if available.

Other convenient procedures, etc.

Additional supplemental remarks

REPEAT PROGRAM RANDOM

The “RANDOM” indicator appears in the display window on the front panel.

Press ENTER.

The unit starts random playback. After playing all titles/tracks of the disc, random

playback ends.

The same title or track will not be played back more than once during random play.

• To stop/quit random playback in the middle

Press STOP to stop playback. The unit is still in random playback mode, so pressing PLAY starts random playback again. To quit random playback, press STOP again while stopped. The “RANDOM” indicator in the display window turns off.

NOTE

Some DVD VIDEO discs may not be played back correctly in random mode.

The names of buttons on the remote control unit (or on the front panel of the unit) are all given in uppercase letters.

Introduction

Notes on handling

Important cautions

Installation of the unit

• Select a place which is level, dry and neither too hot nor too cold (between 5˚C and 35˚C, 41˚F and 95˚F).

• Leave sufficient distance between the unit and the TV.

• Do not use the player in a place subject to vibrations.

Power cord

• Do not handle the power cord with wet hands!

Introduction

• A small amount of power (3.0 watts) is always consumed while the power cord is connected to the wall outlet.

• When unplugging the player from the wall outlet, always pull the plug, not the power cord.

To prevent malfunction of the unit

• There are no user-serviceable parts inside. If anything goes wrong, unplug the power cord and consult your dealer.

• Do not insert any metallic object into the unit.

• Do not use any non-standard shape disc available on the market, because it may damage the unit.

• Do not use a disc with tape, seals, or paste on it, because damage to the unit may result.

Note about copyright laws

• Please check the copyright laws in your country before recording from DVD VIDEO, Audio CD, and Video CD discs. Recording of copyrighted material may infringe copyright laws.

Note about the copyguard system

• The DVD VIDEO disc is protected by the copyguard system. When you connect the unit to your VCR directly, the copyguard system activates and the picture may not be played back correctly.

Safety precautions

Avoid moisture, water and dust

Do not place the unit in moist or dusty places.

Avoid high temperatures

Do not expose the unit to direct sunlight or place it near a heating device.

When you’re away

When away on travel or otherwise for an extended period of time, remove the plug from the wall outlet.

Do not insert foreign objects into the unit

Do not insert wires, hairpins, coins, etc. into the unit.

Do not block the vents

Blocking the vents may damage the unit.

Care of the cabinet

When cleaning the unit, use a soft cloth and follow the relevant instructions on the use of chemically-coated cloths. Do not use benzene, thinner or other organic solvents and disinfectants. These may cause deformation or discoloring.

If water gets inside the unit

Turn off the power switch and remove the plug from the wall outlet, then call the store where you made your purchase. Using the unit in this state may cause a fire or electrical shock.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Manufactured under license from Dolby Laboratories. “Dolby” and double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. © 1992-1997 Dolby Laboratories, Inc. All rights reserved.

Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942 and other world-wide patents issued and pending. “DTS”, “DTS Digital Surround”, are trademarks of Digital Theater Systems, Inc. © 1996 Digital Theater Systems, Inc. All Rights Reserved.

Preliminary knowledge

Names of parts and controls

Refer to the corresponding pages indicated in () for details.

Front panel

1 POWER button

2 STANDBY indicator

3 Remote sensor

4 Disc tray

Preliminary knowledge

5 0 (OPEN/CLOSE) button

6 7 (STOP) button

7 # (PLAY) button

8 8 (PAUSE) button

= SHUTTLE knob

DVD PLAYER

STANDBY

POWER

3D PHONIC SKIP

DOLBY

D I G I T A L

9 3D PHONIC button

1 POWER button (17)

Turns the unit on or off (standby).

2 STANDBY indicator

Lights when the power cord is connected and the unit is on standby. When the unit is turned on, the STANDBY indicator goes off.

3 Remote sensor

Receives the signal from the remote control unit.

4 Disc tray (17)

Used to load a disc.

5 0 (OPEN/CLOSE) button (17)

Used to open and close the disc tray.

6 7 (STOP) button (18)

Stops playback. Also used to erase all programmed tracks for the program play.

7 # (PLAY) button (18)

Starts playback. Also, used as a SELECT button for the PBC of Video CDs.

8 8 (PAUSE) button (18)

Pauses playback.

TITLE CHAP. RESUME

THEATER

EACH

0 Display window

9 3D PHONIC button (32)

Produces a simulated surround effect.

0 Display window

Indicates the current status of the unit.

- 4/¢ (SKIP) buttons (19, 21)

Used to skip a chapter, title or track. Also, used for the page selection of a menu screen (for DVD VIDEO/Video CD). Holding down 4 or ¢ during playback reverses or advances playback rapidly.

= SHUTTLE knob (19, 25)

Performs rapid advance/reverse playback operations. Also used for slow-motion playback of a picture (for DVD VIDEO/Video CD).

OPEN/CLOSE

SHUTTLE

1¡

PLAY

STOP PAUSE

4¢

DVD

VDEO CD / CD

- 4/¢ (SKIP) buttons

Knowledge

Preliminary

Preliminary knowledge

Remote control unit

! Infrared signal-emitting window

Knowledge

Preliminary

0 4 (B.SKIP) - B. SEARCH button

1 3D PHONIC button

2 OPEN/CLOSE button

3 SUBTITLE - DIGEST button

4 AUDIO - STROBE button

5 Numeric buttons

6 SLOW button

7 AMP VOL button

8 SHIFT button

9 PLAY MODE - CANCEL button

- 8 (PAUSE) button

= TITLE button

~ CURSOR (5 UP, ∞ DOWN,

LEFT, 3 RIGHT) button

OPEN

3D-PHONIC

/CLOSE

AUDIOSUBTITLE

DIGEST STROBE ZOOM

THEATER POSITION

ANGLE

TV POWER

DVD POWER

TV/VIDEO

123

TV 1 TV 2 TV 3

456

TV 4 TV 5 TV 6

789

TV 7 TV 8 TV 9

10 +100

TV RETURN

SLOW

SHIFT

B.SEARC

B.SKIP

PAUSE

TV 0 TV 100 +

AMP VOLTVVOL

PLAY MODE

TITLE

LEFT CURSOR RIGHT

CANCEL

DISPLAY RETURN

TIME CHOICE

PLAY

STOP

DOWN

F.SKIP

ENTER

TV ch

@ THEATER POSITION button

# DVD POWER - TV POWER button

$ TV/VIDEO button % ANGLE - ZOOM button

^ TV ch button

& TV VOL button * RETURN - CHOICE button



( DISPLAY - TIME button

) ¢ (F.SKIP) - F. SEARCH button _ 3 (PLAY) button

+ ENTER button ¡ 7 (STOP) button ™ MENU button

REMOTE CONTROL

Preliminary knowledge

1 3D PHONIC button (32)

Produces a simulated surround effect.

2 OPEN/CLOSE button (17)

Opens and closes the disc tray.

3 SUBTITLE - DIGEST button (23, 31)

Used to display the subtitle selection display on the TV screen, as well as used to turn the subtitle on or off (for DVD VIDEO). Pressing this button while holding down the SHIFT button displays beginning scenes of each title, chapter or track on the TV screen (for DVD VIDEO/Video CD).

4 AUDIO - STROBE button (24, 31)

Selects the audio (for DVD VIDEO/Video CD). Pressing this button while holding down the SHIFT button displays nine continuous still pictures (for DVD VIDEO/Video CD).

5 Numeric buttons (10, 16)

Used to select a title or track number, as well as used to enter a time for the Time search and a chapter number for the Chapter search. Also used to select a TV channel in conjunction with the SHIFT button.

6 SLOW button (25)

Used for slow-motion playback of a picture (for DVD VIDEO/ Video CD).

7 AMP VOL button (16)

Used to control the volume of a JVC audio amplifier/ receiver.

8 SHIFT button

Used together with other buttons for activating their second functions.

9 PLAY MODE - CANCEL button (27)

Displays an on-screen display for controlling the advanced playback functions. Pressing this button while holding down the SHIFT button cancels the last selection of the program.

0 4 (B.SKIP) - B. SEARCH button (19, 21, 23)

Skips back a chapter, title or track. Also used for the page selection of a menu screen (for DVD VIDEO/Video CD). Holding down this button during playback reverses playback rapidly. Pressing the button while holding down the SHIFT button during playback also reverses playback rapidly. If you press the button while holding down the SHIFT button during rapid reverse playback, the speed increases.

- 8 (PAUSE) button (18)

Pauses playback.

= TITLE button (20)

Displays the title menu of a DVD VIDEO disc on the TV screen.

~ CURSOR (5 UP, ∞ DOWN, 2 LEFT, 3 RIGHT) buttons

Used to select an item form a menu or on-screen display, or to change the setting of an item in the on-screen display.

! Infrared signal-emitting window

Point this window toward the remote sensor on the front panel when pressing buttons.

@ THEATER POSITION button (32)

Selects a picture character from 4 options (for DVD VIDEO/ Video CD).

# DVD POWER - TV POWER button (17)

Turns the unit on or off (standby). Pressing this button while holding down the SHIFT button turns the TV on or off.

$ TV/VIDEO button (16)

Switches the TV input mode.

% ANGLE - ZOOM button (26, 30)

Changes camera angles during playback of a DVD VIDEO disc containing multiple camera angles. Pressing this button while holding down the SHIFT button zooms in the picture (for DVD VIDEO/Video CD).

^ TV ch button (16)

Changes the TV channels.

& TV VOL button (16)

Adjusts the TV volume.

* RETURN - CHOICE button (20, 35)

Returns to the previous menu (for DVD VIDEO/Video CD). Pressing this button while holding down the SHIFT button displays Preference on-screen display on the TV screen.

( DISPLAY - TIME button (33, 34)

Displays the status information (only for DVD disc) or the time information (for any disc types). When the time information appears, pressing this button while holding the SHIFT button changes the time mode.

) ¢ (F.SKIP) - F. SEARCH button (19, 21, 23)

Skips forward a chapter, title or track. Also used for the page selection of a menu screen (for DVD VIDEO/Video CD). Holding down this button during playback advances playback rapidly. Pressing the button while holding down the SHIFT button during playback also advances playback rapidly. If you press the button while holding down the SHIFT button during rapid advance playback, the speed increases.

_ 3 (PLAY) button (18)

Starts playback. Also used as a SELECT button for PBC of Video CDs.

+ ENTER button

Executes the selected item in a menu or on-screen display.

¡ 7 (STOP) button (18)

Stops playback. Also used to erase all the programmed tracks for the program play.

™ MENU button (20)

Displays a DVD menu on the TV screen.

Knowledge

Preliminary

Preliminary knowledge

Display window

3D-PHONIC

Knowledge

Preliminary

Rear panel

3 Disc indicator

RANDOM RESUME

TITLE CHAP.

TRACK

PROGRAM

DVD VCD

EACH REMAIN

1 Title/chapter/track indicator

4 Function indicator

REPEAT 1A-B

THEATER

2 Time display

1 Title/chapter/track indicator

Displays title/chapter, or track number.

2 Time display

Shows the cumulative or remaining time of the track or disc, or the total disc time.

3 Disc indicator

Indicates the type of the disc set in the tray. When a DVD VIDEO or Video CD disc is set, “DVD” or “VCD” is indicated. When an Audio CD is set, there is no indication.

4 Function indicator

Activated function indicators light up.

6 DIGITAL OUT jacks (OPTICAL/COAXIAL)

7 COMPONENT VIDEO OUT jacks (Y/P

COAXIAL

S-VIDEO VIDEO

VIDEO OUT

COMPONENT

AUDIO OUT

RPB

DIGITAL OUT PCM/STREAM

OPTICAL

3 AUDIO OUT jacks

(LEFT/RIGHT)

2 VIDEO OUT jack

1 S-VIDEO OUT jack

1 S-VIDEO OUT jack (12)

Outputs an S-video signal.

2 VIDEO OUT jack (12)

Outputs a composite video signal.

3 AUDIO OUT jacks (L/R) (12)

Output stereo analog audio signals.

4 AV COMPU LINK jacks (41)

Connect with other JVC equipment supporting the AV Compulink function to facilitate integrated operations.

B/PR)

AC IN

AV COMPU LINK

4 AV COMPU LINK jacks

5 AC IN connector

5 AC IN connector (14)

Connects to the wall outlet using the supplied AC power cord.

6 DIGITAL OUT jacks (14)

Output digital audio signals. You must select the signal type correctly according to the external device connected to via the Preference display.

7 COMPONENT VIDEO OUT jacks (Y/PB/PR) (13)

Output component video signals.

Operational Principles

MENU LANGUAGE

ENGLISH ENGLISH ENGLISH ENGLISH

EXIT

AUDIO LANGUAGE SUBTITLE ON SCREEN LANGUAGE

AUDIO DISPLAY SYSTEM

LANGUAGE

PRESS KEY

MONITOR TYPE

4:3 LB

OFF

EXIT

SCREEN SAVER ON SCREEN GUIDE

AUDIO DISPLAY SYSTEM

LANGUAGE

PRESS KEY

Country Code

—

----

EXIT

Set Level PASS WORD

PRESS KEY ENTER

PARENTAL LOCK

On-screen displays

The unit provides several on-screen displays. With some displays, you can set or select preferences or functions, while the others are display-only.

Opening displays

The Opening display appears automatically in some conditions. At the bottom, the following information are indicated depending on the unit’s status.

• NOW READING: The unit is now reading the disc

information (TOC).

• REGION CODE ERROR!: The DVD VIDEO disc loaded

cannot be played because the region code of the disc does not match the unit.

• OPEN: The disc tray is now opening.

• CLOSE: The disc tray is now closing.

Preference displays

When the unit is stopped, pressing the RETURNCHOICE button while holding the SHIFT button accesses the preference display for setting the preferences. There are four pages: LANGUAGE, AUDIO, DISPLAY and SYSTEM as shown in the right. See page 35 for detailed information.

Opening display

NOW READING

LANGUAGE AUDIO

LANGUAGE

Preliminary knowledge

AUDIO DISPLAY SYSTEM

DIGITAL AUDIO OUTPUT DOWN MIX COMPRESSION

PRESS KEY

DOLBY

/PCM

DIGITAL

Lo / Ro

EXIT

Knowledge

Preliminary

PARENTAL LOCK displays

When no disc is inserted or a DVD VIDEO disc is stopped, pressing the ENTER button while holding down the SHIFT button accesses the PARENTAL LOCK display in which you can set the level for limiting playback. See page 39 for detailed information.

DISPLAY SYSTEM

LANGUAGE

AUTO STANDBY RESUME AV COMPULINK MODE

PRESS KEY

PARENTAL LOCK

AUDIO DISPLAY SYSTEM

DVD 1

OFF OFF

EXIT

Preliminary knowledge

REPEAT PROGRAM RANDOM

CD CONTROL

REPEAT A-B REPEAT TIME SEARCH

1 00:08

TRACK TIME

EACH REMAIN

Play mode displays

Pressing the PLAY MODE button accesses the play mode display in which you can control playback functions. Different displays appear depending on the disc type and the unit’s status.

Knowledge

Status displays

Preliminary

Pressing the DISPLAY-TIME button during playback accesses the status display. For a DVD VIDEO disc, pressing the DISPLAY-TIME button toggles between the DVD VIDEO function status display, and the disc/time display and off. For a Video CD or Audio CD disc, pressing the DISPLAYTIME button switches the disc/time display on and off.

While stopped During DVD VIDEO playback

DVD CONTROL

REPEAT A-B REPEAT TIME SEARCH CHAP. SEARCH

During Audio CD playback During Video CD playback

VCD CONTROL

REPEAT A-B REPEAT TIME SEARCH PBC CALL

DVD VIDEO function status Disc/time (DVD VIDEO )

1 / 2 1 / 2 1 / 2

ENGLISH ENGLISH

TITLE CHAP. TIME BITRATE

1 25 2:25:25 3.3

Mbps

Disc/time (Audio CD/Video CD without PBC)

To prevent the monitor from burning out [SCREEN SAVER]

A television monitor screen may be burned out if a static picture is displayed for a long time. To prevent this, the unit automatically activates the screen saver function if a static picture, such as an on-screen display or menu, is displayed for over 5 minutes.

• Pressing any button on the unit or the remote

control unit will release the screen saver function and return to the previous display.

• You can select one of several screen saver modes

available (see page 37).

• The screen saver function is not activated during

Audio CD playback or after stopping Audio CD playback.

DVD/Video CD/CD PLAYER

Disc/time (Video CD with PBC)

TRACK TIME

1 25:25 PBC

On-screen guide icons

DIGEST STROBE ZOOM

Preliminary knowledge

During DVD playback, you may see icons displayed over the picture. These have the following meanings.

: Displayed at the beginning of a scene recorded from multiple angles. (See

page 30.)

: Displayed at the beginning of a scene recorded with multiple audio

languages. (See page 31.)

: Displayed at the beginning of a scene recorded with multiple subtitle

languages. (See page 31.)

You can set the unit not to display on-screen icons above via the preference settings described on page 38.

How to use numeric buttons

123

TV 1 TV 2 TV 3

456

TV 4 TV 5 TV 6

789

TV 7 TV 8 TV 9

10 +100

TV RETURN

TV 0 TV 100+

About invalid operation icon

When you press a button, if the unit does not accept its operation, appears on your television screen. Operations are occasionally unacceptable even if

is not displayed.

Note that some operations may not be accepted. For example, some discs may not allow rapid advance/reverse or slow-motion playback.

To select a track/title number

• To select a number between 1 and 10

Press the corresponding button for the number.

• To select a number higher than 10

Use the +10 button.

Examples: To select 13 +10 → 3 To select 34 +10 → +10 → +10 → 4 To select 40 +10 → +10 → +10 → 10

To enter a time or chapter number

The method for entering a time for Time search or chapter number for Chapter search is different from above. See the corresponding sections in this manual for the details.

Knowledge

Preliminary

To select a TV channel.

Press the corresponding numeric buttons (between 0 and 9) while holding down the SHIFT button.

Preliminary knowledge

About discs

Playable disc types

Playable and non-playable disc types are as follows:

Playable discs

DVD VIDEO Video CD Audio CD

The DVD VIDEO Logo is a trademark.

• CD-R and CD-RW discs recorded with the audio CD format can be played back, though some may not be played back because of the disc characteristics or recording condition.

Knowledge

Preliminary

• DVD VIDEO players and DVD VIDEO discs have their own Region Code numbers. This unit only can play back DVD VIDEO discs whose Region Code numbers include “1”. Examples of playable DVD VIDEO discs:

ALL

This unit accommodates the NTSC television system and can playback discs recorded with the NTSC system. Note that the unit cannot playback discs recorded with the PAL system.

1 3

CD-R

CD-RW

Non-playable discs

DVD-ROM, DVD-RAM, DVD AUDIO, DVD-R, DVD-RW, CD-ROM, PHOTO CD, CD-EXTRA, CD-G, CD-TEXT

• Playing back discs listed as “Non-playable discs” above may generate noise and damage speakers.

• This unit can play back audio recorded in CD-G, CD-EXTRA and CD-TEXT discs.

Disc structure

A DVD VIDEO disc is comprised of “titles,” while an Audio CD, Video CD is comprised of “tracks.” Each title may be divided into some “chapters.” For example, if a DVD VIDEO disc contains some movies, each movie may have its own title number, and each movie may be divided into some chapters. In a DVD VIDEO karaoke disc, each song usually has its own title number and does not have chapters. In general, each title has independent content, while each chapter in the same title has continuity.

(Example: DVD VIDEO disc)

Title 1 Title 2

Chapter 1 Chapter 2 Chapter 3 Chapter 1 Chapter 2

(Example: Audio CD/Video CD)

Track 1 Track 2 Track 3 Track 4

Getting started

Connections

*In the following description, “TV” may be substituted with “monitor” or “projector.” *Before using the unit, you have to connect the unit to a TV and/or amplifier.

Before making any connections

• Do not connect the AC power cord until all other connections have been made.

• Since different components often have different terminal names, carefully read the instructions supplied with the component you are going to connect.

To connect to a TV

You can enjoy using the unit by simply connecting it to a TV. To improve audio sound quality, connect the audio outputs to your separate audio equipment. (See the following pages.)

* If the TV has an AV COMPU LINK terminal,

you can use the AV COMPU LINK function See “AV COMPU LINK remote control

The unit

system” on page 41 for details.

started

Getting

COAXIAL

S-VIDEO VIDEO

VIDEO OUT

COMPONENT

AUDIO OUT

RPB

Red

White

AV COMPU LINK

S-video cable (supplied)

Yellow

White

S-VIDEO

VIDEO

LEFT

RIGHT

AUDIO

DIGITAL OUT PCM/STREAM

OPTICAL

Yellow

Red

Audio/video cable (supplied)

Connect the unit to a TV equipped with stereo audio input and video input jacks using the supplied audio/video cables.

• If your TV has a monaural audio input instead of stereo, you need to use an optional audio cable which converts stereo audio output to monaural.

• If your TV has an S-video input, you should connect it with the S-VIDEO output of the unit using the supplied Svideo cable in addition to the (standard) video connection to get better picture quality.

NOTES

• Connect VIDEO OUT of the unit directly to the video input of your TV. Connecting VIDEO OUT of the unit to a TV via a VCR may

cause a monitor problem when playing back a copy-protected disc.

• Connect the unit to an NTSC television. Do not connect the unit to a PAL television.

Getting started

To connect to a TV with the component video input jacks

You can enjoy high picture quality by connecting the unit’s COMPONENT VIDEO OUT jacks to the COMPONENT VIDEO IN jacks of your TV with the video cables.

PCM/STREAM

OPTICAL

started

Getting

• Connect “Y” to “Y,” “P

NOTES

• When the component video input jacks of the TV are of the BNC type, use an adapter to convert the pin jacks to BNC jacks

(optional).

• If you do not connect the unit with the S-video cable, some functions of your TV may not work.

• Connect the unit to an NTSC television. Do not connect the unit to a PAL television.

DIGITAL OUT

COAXIAL

S-VIDEO VIDEO

Green

Blue

Component video cable (not supplied)

Red

The unit

VIDEO OUT

COMPONENT

AUDIO OUT

RPB

AV COMPU LINK

WhiteRed

Audio cable (not supplied)

B” to ”PB,” and “PR” to “PR” correctly.

S-video cable (supplied)

White

Red

S-VIDEO

VIDEO

LEFT

RIGHT

AUDIO

Blue

YPBP

RedGreen

To connect to an audio amplifier or receiver

You can enjoy high-quality audio by connecting the unit's audio output to your amplifier or receiver.

The unit

DIGITAL OUT PCM/STREAM

OPTICAL

• Connect the unit's AUDIO OUT to any line-level inputs (such as AUX, DVD, CD, etc.) of an audio amplifier or receiver.

COAXIAL

S-VIDEO VIDEO

VIDEO OUT

COMPONENT

Red

RPB

AUDIO OUT

AV COMPU LINK

White

Audio cable (not supplied)

White

Red

Amplifier or receiver

LEFT

AUDIO

RIGHT

Getting started

To connect to audio equipment with a digital input

You can enhance the sound quality by connecting the unit’s DIGITAL OUT to the digital input of an amplifier, DAT or MD by using an optional digital cable. The digital audio signal from a disc is directly transferred. If you connect the unit to a Dolby Digital or DTS decoder or an amplifier with a built-in decoder by using an optional digital cable, you can enjoy high-quality surround sound. When you make the digital connection, also make the analog connection, because, depending on the disc type, no audio may be reproduced from the DIGITAL OUT.

When using the DIGITAL OUT (OPTICAL) jack, remove the protection cap. Do not lose the removed cap. When the DIGITAL OUT (OPTICAL) jack is not used, fix the protection cap into the jack.

Optical digital cable (not supplied)

Coaxial digital cable

The unit

(not supplied)

DIGITAL OUT

PCM/STREAM

OPTICAL

COAXIAL

S-VIDEO VIDEO

VIDEO OUT

COMPONENT

AUDIO OUT

RPBY

AV COMPU LINK

Digital equipment

White

WhiteRed

Audio cable (not supplied)

Red

LEFT

AUDIO

RIGHT

OPTICAL

DIGITAL

COAXIAL

NOTES

• When you connect the unit's DIGITAL OUT to digital audio equipment, before using, make the “DIGITAL AUDIO OUTPUT”

setting in the “AUDIO” page of the preference display correctly according to the connected audio equipment. If the “DIGITAL AUDIO OUTPUT” is not set correctly, loud noise may be generated from speakers, causing damage to your speakers. See “DIGITAL AUDIO OUTPUT” on page 36.

• With the digital connection, the unit’s settings for COMPRESSION and DOWN MIX in the AUDIO page of the preference display

are invalid. Settings for these items must be made from the decoder.

To connect the power cord

When all the audio/video connections have been made, insert the smaller plug of the supplied AC power cord to the unit’s AC IN connector, then insert the other end to the wall outlet. Make sure that plugs are inserted firmly. The STANDBY indicator lights and setup is completed.

started

Getting

Warning

• Disconnect the power cord if you are not going to use the unit for a long time.

• Disconnect the power cord before cleaning the unit.

• Disconnect the power cord before moving the unit.

• Do not connect or disconnect the power cord with wet hands.

• Do not pull the power cord when disconnecting it, as this may damage the cord and cause fire, electric shock, or other accidents.

Caution

• Do not damage, alter, twist, or pull the power cord, as this may cause fire, electric shock, or other accidents.

• To prevent any accidents or damages caused by an unsuitable AC power cord, only use the supplied power cord. If the cord is damaged, contact a dealer and get the new power cord.

• Do not put anything heavy, or the unit, on the power cord, as this may cause fire, electric shock, or other accidents.

Getting started

Using the remote control unit

Using the remote control, you can operate not only all the functions of the unit but also basic functions of your TV.

To install batteries in the remote control unit

The battery compartment is located on the back of the remote control unit.

1 Press down on the point shown by the arrow at the top of the compartment cover,

and pull up the cover to open the compartment.

2 Place the two accessory R6P (SUM-3)/AA(15F) batteries in the remote control

according to the polarity markings (“+” and “–”) inside the compartment and on the batteries.

started

Getting

3 Place the cover over the compartment, and press down lightly.

• The batteries will last about six months with normal use. If the functions of the remote control become erratic,

replace the batteries. See below for more information.

Precautions for the safe use of batteries

Observe the following precautions for the safe use of batteries. If they are used improperly their life will be shortened, they may burst or their contents may leak.

Precaution

• Remove the batteries from the remote control if it is not going to be used for a long period of time.

• Remove dead batteries and dispose of them properly.

• Never leave dead batteries lying around, take them apart, mix them with other refuse, or throw them into an incinerator.

• Never touch liquid that has leaked out of a battery.

• Do not mix new and old batteries, or batteries of different types, when replacing them.

Getting started

To use the remote control unit for TV operation

You can operate your TV from the remote control unit.

Setting the remote control signal for operating your TV.

1 Holding down TV/VIDEO, enter the manufacturer code of your TV listed below by using the numeric buttons (0 - 9).

Do not release TV/VIDEO. Keep holding it until the next step is completed.

Manufacturer code list

No. Manufacturer

01 JVC

02 MAGNAVOX

03 MITSUBISHI

04 PANASONIC

05 RCA

06 SHARP

07 SONY

08 TOSHIBA

09 ZENITH

No. Manufacturer

10 HITACHI

11 PANASONIC

12 SAMSUNG

13 SANYO

14 SANYO

15 SAMSUNG

Example:

To enter the manufacturer code “01”: Press “0” then “1.”

2 Press 7 (STOP) while holding down TV/VIDEO.

The following buttons can be used for operating the TV:

TV POWER

SHIFT

VOL

SHIFT

TV 0 TV 100+

SHIFT

TV/VIDEO

TV ch

DVD POWER

TV 9TV 1

+10

TV RETURN

Turns the TV on or off.

Changes the TV channels.

Adjusts the TV volume.

Selects the TV channels. *For some TVs, pressing “+10” while holding down SHIFT functions as the “100+.” “+10” functions as the ENTER button if your TV requires pressing the ENTER button after selecting a channel number.

Returns to the previously selected channel (only valid for JVC TVs).

Switches input mode (either TV or VIDEO).

started

Getting

3 Try to operate your TV by pressing DVD POWER - TV POWER while holding SHIFT.

If your TV turns on or off, you have successfully set the control signal.

NOTES

• The remote control unit is initially set for operating a JVC TV.

• If there is more than one code listed for the manufacturer of your TV, try them one by one until you succeed.

To control the volume of a JVC’s amplifier or receiver

You can control the volume of a JVC’s amplifier or receiver by using the AMP VOL button on the remote control unit.

AMP VOL

Basic operations

In the following description, the buttons on the remote control unit are mainly used, however, you may use the corresponding buttons on the front panel of the unit if available.

Turning on/off the unit

Press POWER on the front panel or press DVD POWER - TV POWER on the remote control unit.

DVD PLAYER

STANDBY

POWER

3D PHONIC

TITLE CHAP. RESUME

EACH

• You can turn on the unit by pressing the PLAY button on the front panel or the remote control unit. In this operation, the unit starts playback if the disc is set in the disc tray. If no disc is set, the disc tray opens.

• You can also turn on the unit by pressing the OPEN/CLOSE button on the front panel or the remote control unit. In this case, the disc tray opens.

NOTE

Even if you press the POWER or DVD POWER - TV POWER button to turn off the unit, the unit is not disconnected from the AC power source as long as it is connected to the wall outlet. This state is called the standby mode. In this state, the unit is designed to consume a very small quantity of power.

Basic

operations

Inserting and removing discs

THEATER

OPEN/CLOSE

OPEN

/CLOSE

DIGEST STROBE ZOOM

TV RETURN

SLOW

SHIFT

TV POWER

THEATER

3D-PHONIC

DVD POWER

POSITION

AUDIOSUBTITLE

TV/VIDEO

ANGLE

123

TV 1 TV 2 TV 3

456

TV 4 TV 5 TV 6

789

TV 7 TV 8 TV 9

10 +100

TV 0 TV 100+

AMP

VOLTVVOL

PLAY MODE

DISPLAY RETURN

CANCEL

TIME CHOICE

LEFT

PLAY

STOP

CURSOR

DOWN

REMOTE CONTROL

F.SKIP



RIGHT

DVD POWER TV POWER

Press OPEN/CLOSE to open the disc tray.

Place the disc in the tray.

With the label side up

Y A L P

S O L

C /

N E P

E S U

A P

P O T

D C

/ D C

E D V /

D V

D P I

K S



Press OPEN/CLOSE to close the disc tray.

4¢

R E

T A E

E M

U S E

B D N

A T S

W O P

C I N

O H

P D 3

P A H C

C S I D

• To insert an 8-cm disc, place it in the inner recess.

NOTES

• The unit can playback DVD VIDEO, Audio CD, and Video CD discs only. Do not load other disc types. For details about playable disc types, see page 11.

• When loading a disc in the tray, be sure to position the disc inside the recess. Otherwise, the disc may be damaged when the tray is closed, and the disc may not be removed from the unit.

Basic playback

Now you can play a disc. First, let’s enjoy simple playback according to following procedure.

To start playback

Basic operations

Press PLAY.

The unit starts playback from the beginning.

NOTES

• During playback, the display window shows the title/chapter or track number being played.

• With Video CD discs with PBC control or some DVD discs, the menu display may appear on the TV screen after starting playback. In such a case, select an item to be played back from the menu.

For operation using a menu, see page 20.

• With some DVD discs, the unit starts playback automatically after inserting the disc.

To stop playback completely

Press STOP.

The unit stops playback.

To stop playback temporarily

Press PAUSE.

The unit pauses playback. To continue playback, press PLAY.

OPEN

THEATER

3D-PHONIC

/CLOSE

POSITION

AUDIOSUBTITLE

ANGLE

DIGEST STROBE ZOOM

123

TV 1 TV 2 TV 3

456

TV 4 TV 5 TV 6

789

TV 7 TV 8 TV 9

10 +100

TV RETURN

TV 0 TV 100+

AMP

SLOW

VOLTVVOL

PLAY MODE

DISPLAY RETURN

CANCEL

TIME CHOICE

SHIFT

PLAY

F.SKIP

STOP

ENTER

LEFT

CURSOR

RIGHT

DOWN

REMOTE CONTROL

TV POWER

DVD POWER

TV/VIDEO

TV ch



Basic control buttons

Basic

operations

To advance or reverse playback rapidly while monitoring

7 During playback

From the remote control unit

Hold down 4 or ¢.

Holding down ¢ advances playback rapidly, while holding down 4 reverses playback at 5 times the normal speed.

Releasing the button returns the unit to normal playback.

or Press 4 or ¢ while holding down the SHIFT button.

Each press of 4 or ¢ while holding down the SHIFT button increases the playback speed from 2x to 60x the normal speed.

Pressing PLAY returns the unit to normal playback.

From the front panel

Use the SHUTTLE knob.

To advance playback rapidly, turn the shuttle knob to the right and hold, and to reverse play rapidly, turn the shuttle knob to the left and hold. By releasing the shuttle knob, the unit returns to normal playback. The playback speed changes according to the amount you turn the shuttle knob.

E CHAP. RESUME

EACH

THEATER

OPEN/CLOSE

STOP PAUSE

SHUTTLE knob

1¡

PLAY

SKIP

4¢

DVD

SHUTTLE

VDEO CD / CD

Holding down the 4 or ¢ button on the front panel also advances or reverses playback rapidly.

Basic operations

To locate the beginning of the scene or song

7 During playback

Press 4 or ¢.

Press 4 to locate the beginning of the current chapter, title, or track, and press ¢ to locate the beginning of the next chapter, title, or track.

NOTE

When you play a Video CD disc with the PBC function or a DVD VIDEO disc, the unit may locate a different place, but it will generally locate the beginning of the title or chapter or track.

To resume playback

The unit can memorize the position on a disc where you interrupt playback, and resume playback from that position next time you press PLAY.

To memorize the interrupted position

Set the RESUME setting on the SYSTEM page of the preference display to ON.

(See page 38 for details about how to set.)

At the position you want to interrupt playback, press STOP, or press DVD POWER - TV POWER on the

remote control or POWER on the front panel.

The unit memorizes the interrupted position, while [RESUME] lights in the display window.

Basic

operations

If you interrupt playback by pressing STOP in step 2 above and then turn off the power, the memory is not cleared.

To resume playback

7 While the disc you interrupt playback last time is still in the disc tray.

Press PLAY.

The unit starts playback from the position where you interrupted playback last time.

¶ To clear the resume position memory

Operate one of the followings:

* Take out the disc from the tray * Press STOP while stopped * Turn on the unit by pressing DVD POWER - TV POWER (on the remote control) or POWER (on the front

panel).

NOTES

• Do not press POWER (on the front panel) or DVD POWER - TV POWER (on the remote control) to turn on the unit if you want

to resume playback, which will clear the resume position memory.

• The resume function does not work with Audio CD discs.

• The resume function does not work if RESUME on the SYSTEM page of the preference display is set to OFF.

• In the case of a Video CD disc with PBC function, the unit may resume playback from a point slightly earlier than the resume

point you stored.

• The resume function does not work in the program or random mode.

Advanced operations

Playing from a specific position on a disc

You can play a disc from the selected track, title or chapter, or from the specified time.

To locate a desired scene from the DVD menu

DVD VIDEO discs generally have their own menus which show the disc contents. These menus contain various items such as titles of a movie, names of songs, or artist information, and display them on the TV screen. You can locate a desired scene by using the menu.

OPEN

/CLOSE

DIGEST STROBE ZOOM

TV RETURN

SLOW

SHIFT

7 Whenever a DVD VIDEO disc is loaded

Press MENU or TITLE.

The menu appears on the TV screen.

TV POWER

THEATER

3D-PHONIC

DVD POWER

POSITION

AUDIOSUBTITLE

TV/VIDEO

ANGLE

123

TV 1 TV 2 TV 3

456

TV 4 TV 5 TV 6

789

TV 7 TV 8 TV 9

10 +100

TV 0 TV 100+

AMP

VOLTVVOL

PLAY MODE

DISPLAY RETURN

CANCEL

TIME CHOICE

LEFT

PLAY

STOP

CURSOR

DOWN

REMOTE CONTROL

F.SKIP



TER

RIGHT

Advanced operations

NOTES

• When appears on the TV screen by pressing TITLE in step 1:

The disc does not have a menu listing the titles.

• When appears on the TV screen by pressing MENU in step 1:

The disc does not have a menu

• The menu button does not work while stopped.

To locate a desired scene from the menu of the Video CD with PBC

Some Video CD discs are compatible with the PBC function. PBC is an abbreviation of “PlayBack Control.” A Video CD disc recorded with PBC has its own menus, such as a list of the songs of the disc and items recorded on the disc. You can also locate a specific scene by using the menu.

OPEN

/CLOSE

DIGEST STROBE ZOOM

TV RETURN

SLOW

SHIFT

7 When a Video CD disc with PBC is stopped

TV POWER

THEATER

3D-PHONIC

DVD POWER

POSITION

AUDIOSUBTITLE

TV/VIDEO

ANGLE

123

TV 1 TV 2 TV 3

456

TV 4 TV 5 TV 6

789

TV 7 TV 8 TV 9

10 +100

TV 0 TV 100+

AMP

VOLTVVOL

PLAY MODE

DISPLAY RETURN

CANCEL

TIME CHOICE

LEFT

PLAY

STOP

CURSOR

DOWN

REMOTE CONTROL

F.SKIP



RIGHT

Advanced

operations

About menu

Normally, a DVD VIDEO disc which contains more than one title may have a “title” menu which lists the titles. In this case, the menu appears on the TV screen by pressing the TITLE button. Some DVD VIDEO discs may also have a different menu which appears by pressing the MENU button.

See the instructions of each DVD VIDEO disc for its particular menu.

Use CURSOR 2/3/5/∞ to select a desired

Example

item, then press ENTER.

The unit starts playback of the selected item.

With some discs, you can also select items by entering the corresponding number using the numeric buttons, which may cause the unit to automatically start playback.

Press PLAY.

A disc menu

Example: appears on the TV screen (The PBC function is activated).

“Pbc” is indicated in the display window on the front panel.

Use the numeric buttons to select the desired

number of the item.

• See page 10 for details about how to use the

numeric buttons.

Playback starts from the selected item. You can return to the menu by pressing RETURN -

CHOICE.

Advanced operations

When “NEXT” or “PREVIOUS” appears on the TV screen, the unit generally works as follows:

• Pressing ¢ advances to the next page.

• Pressing 4 returns to the previous page. * The method of the operation is different

depending on the disc.

• To activate the PBC function when a PBC-compatible Video CD disc is being played back without the PBC function, press STOP then press PLAY.

• You can also activate the PBC function using the play mode menu display as follows.

1. Press PLAY MODE - CANCEL.

2. Use the CURSOR 2/3 to move to [PBC CALL], then press ENTER.

• If you want to playback a PBC-compatible Video CD disc without activating the PBC function, start playback by using the numeric buttons instead of the PLAY button. See the next paragraph.

To locate a desired selection using the numeric buttons

OPEN /CLOSE

DIGEST STROBE ZOOM

TV 1 TV 2 TV 3

TV 4 TV 5 TV 6

TV 7 TV 8 TV 9

10 +100

TV RETURN

SLOW

SHIFT

Advanced

operations

You can play a desired title (DVD VIDEO) or track (Audio CD/Video CD) by specifying the number.

7 For DVD VIDEO: While stopped

For Audio CD: Whenever an Audio CD disc is

loaded

For Video CD: During playback without PBC

function or while stopped

Use the numeric buttons to specify the desired

title or track number.

The unit starts playback from the selected title or track.

• See page 10 for details about how to use the numeric buttons.

The selected title or track number appears in the display window on the front panel.

TV POWER

THEATER

3D-PHONIC

DVD POWER

POSITION

AUDIOSUBTITLE

TV/VIDEO

ANGLE

123 456 789

TV 0 TV 100+

AMP

VOLTVVOL

PLAY MODE

DISPLAY RETURN

CANCEL

TIME CHOICE

LEFT

PLAY

STOP

CURSOR

DOWN

REMOTE CONTROL

F.SKIP



RIGHT

NOTES

• When appears on the TV screen.

The title or track you have specified is not contained in the disc.

• This function does not work during Video CD playback with PBC function

To locate a desired selection using 4 or ¢

OPEN

/CLOSE

DIGEST STROBE ZOOM

TV RETURN

SLOW

SHIFT

7 For DVD VIDEO: During playback

For Audio CD: During playback For Video CD: During playback without PBC

function

Press 4 or ¢.

With an Audio CD or Video CD, pressing the button skips a track. With a DVD VIDEO disc, pressing the button skips a chapter or title depending on the disc configuration.

The selection number appears in the display window on the front panel.

• To locate a subsequent selection, press ¢ once or repeatedly until the desired selection number appears in the display.

• To locate to beginning of the current selection, press 4 once.

• To locate a former selection, press 4 repeatedly until the desired selection number appears in the display.

NOTES

• This function may not work with some DVD VIDEO discs.

• This function does not work during Video CD playback with PBC function

TV POWER

THEATER

3D-PHONIC

DVD POWER

POSITION

AUDIOSUBTITLE

TV/VIDEO

ANGLE

123

TV 1 TV 2 TV 3

456

TV 4 TV 5 TV 6

789

TV 7 TV 8 TV 9

10 +100

TV 0 TV 100+

AMP

VOLTVVOL

PLAY MODE

DISPLAY RETURN

CANCEL

TIME CHOICE

LEFT

PLAY

STOP

CURSOR

DOWN

REMOTE CONTROL

F.SKIP



RIGHT

Display window

TITLE

TRACK

Advanced operations

To locate a desired scene by specifying the chapter number [CHAP. SEARCH]

If the current title of a DVD VIDEO disc being played is divided into chapters, you can skip to a desired chapter by specifying the chapter number using the on-screen display.

OPEN /CLOSE

DIGEST STROBE ZOOM

TV RETURN

SLOW

SHIFT

7 During DVD VIDEO playback

Press PLAY MODE - CANCEL.

The DVD play mode menu appears on the TV screen.

Use CURSOR 2/3 to move to [CHAP.

SEARCH], then press ENTER.

“GO TO CHAPTER = ” appears under the menu.

TV POWER

THEATER

3D-PHONIC

DVD POWER

POSITION

AUDIOSUBTITLE

TV/VIDEO

ANGLE

123

TV 1 TV 2 TV 3

456

TV 4 TV 5 TV 6

789

TV 7 TV 8 TV 9

10 +100

TV 0 TV 100+

AMP

VOLTVVOL

PLAY MODE

DISPLAY RETURN

CANCEL

TIME CHOICE

LEFT

CURSOR

DOWN

PLAY

STOP

RIGHT

REMOTE CONTROL

F.SKIP



DVD CONTROL

REPEAT A-B REPEAT TIME SEARCH CHAP. SEARCH

GO TO CHAPTER =

NOTES

• When the chapter number is incorrect in step 3:

Overwrite the incorrect number with the correct number.

• When is displayed in the TV screen in step 4:

The chapter you have selected is not contained in the disc, or chapter search does not work on the disc.

• With some discs, the unit automatically starts searching

for the chapter after entering the chapter number in step

• To turn off the play mode menu:

Press PLAY MODE.

To locate a desired position in the current title or track [TIME SEARCH]

You can play a disc from the desired position by specifying the elapsed time from the beginning of the current title or track using the TIME SEARCH function. Note that some DVD VIDEO discs do not contain time information, and the TIME SEARCH function cannot be used.

TV POWER

THEATER

3D-PHONIC

DVD POWER

POSITION

AUDIOSUBTITLE

TV/VIDEO

ANGLE

123

TV 1 TV 2 TV 3

456

TV 4 TV 5 TV 6

789

TV 7 TV 8 TV 9

10 +100

TV 0 TV 100+

AMP

VOLTVVOL

PLAY MODE

DISPLAY RETURN

CANCEL

TIME CHOICE

LEFT

CURSOR

DOWN

REMOTE CONTROL

PLAY

F.SKIP



STOP

RIGHT

OPEN

/CLOSE

DIGEST STROBE ZOOM

TV RETURN

SLOW

SHIFT

Advanced

operations

Use the numeric buttons (0 ~ 9) to enter the

desired chapter number.

Example:

To select chapter number 8:

Press “8” → ENTER.

To select chapter number 37:

Press “3” → “7” → ENTER.

Press ENTER.

The unit starts playback from the selected chapter.

The “10” and “+10” buttons are not used in this function.

7 For DVD VIDEO: During playback

For Audio CD: During playback For Video CD: During playback without PBC

function

Press PLAY MODE - CANCEL.

The play mode menu appears on the TV screen.

Use CURSOR 2/3 to move to [TIME

SEARCH], then press ENTER.

“GO TO” appears under the menu.

Use the numeric buttons (0 ~ 9) to enter the

time.

You can specify the elapsed time of the current title or track to set the location which you want to playback from.

Advanced operations

Press ENTER.

The unit starts playback from the specified time.

(for DVD VIDEO) (for Audio CD)

DVD CONTROL

REPEAT A-B REPEAT TIME SEARCH CHAP. SEARCH

GO TO 2 : 3 4 : 0 0

CD CONTROL

REPEAT A-B REPEAT TIME SEARCH

GO TO 0 2 : 3 4

To locate a desired scene from the digest display [DIGEST]

The unit can display the opening scene of each title or chapter on a DVD VIDEO or each track of a Video CD. You can select a desired scene from those displayed on the TV screen.

Selected time

(for Video CD)

VCD CONTROL

• “10” and “+10” buttons are

REPEAT A-B REPEAT TIME SEARCH PBC CALL

not used in this function.

• You can specify the time in

GO TO 0 2 : 3 4

hour/minute/second format for DVD VIDEO discs, and in minute/second format for Audio and Video CD discs.

Selected time

Example (for DVD VIDEO): To playback from 2(H):34(M):00(S)

GO TO _ : _ _ : _ _

→→

Press “2”.

GO TO 2 : _ _ : _ _

Press “3”.

GO TO 2 : 3 _ : _ _

→→

Press “4”.

Advanced

operations

You do not have to press “0” to enter the trailing zeros (for the last two digits in the example above). Of course, it is possible to enter them.

• When you make a mistake

Move the cursor to the incorrect value, then press the correct button to re-select the value.

GO TO 2 : 3 4 : _ _

Press ENTER.

TV POWER

THEATER

3D-PHONIC

DVD POWER

POSITION

AUDIOSUBTITLE

TV/VIDEO

ANGLE

123

TV 1 TV 2 TV 3

456

TV 4 TV 5 TV 6

789

TV 7 TV 8 TV 9

10 +100

TV 0 TV 100+

AMP

VOLTVVOL

PLAY MODE

DISPLAY RETURN

CANCEL

TIME CHOICE

LEFT

PLAY

STOP

CURSOR

DOWN

REMOTE CONTROL

F.SKIP



RIGHT

OPEN

/CLOSE

DIGEST STROBE ZOOM

TV RETURN

SLOW

SHIFT

7 For DVD VIDEO: While stopped or during playback

For Video CD: While stopped or during playback

without PBC function.

Press SUBTITLE - DIGEST while holding

down SHIFT.

Up to nine opening scenes are displayed.

• While a DVD VIDEO disc is stopped: The opening scene of each title appears on the TV screen.

• During DVD VIDEO disc playback: The opening scene of each chapter in the current title appears on the TV screen.

• When a Video CD disc is loaded: The opening scene of each track appears on the TV screen .

GO TO 2 : 3 5 : _ _

→

Press CURSOR 2.

GO TO 2 : 3 _ : _ _

→

Press “4”.

GO TO 2 : 3 4 : _ _

NOTES

• When appears on the TV screen in step 2:

The time you have selected is not contained on the disc, or the time search function does not work on the disc.

Also note that the time search function does not work during Video CD playback with the PBC function.

• To turn off the play mode menu:

Press PLAY MODE.

• The TIME SEARCH function cannot be used during

program playback.

Use CURSOR 2/3/5/∞ to select the desired

scene.

The selected scene is indicated by . If there are more than 9 scenes, the digest screen

will have more than one page. In this case, pressing ¢ advances to the next page, while pressing 4 returns to the previous page.

Advanced operations

Special picture playback

The unit provides special picture playback functions including Frame-by-frame, Strobe, Slow-motion and Zoom.

Selected scene

• When the lower right scene is selected, pressing CURSOR 3 advances to the next page if available. Similarly, when the upper left scene is selected, pressing CURSOR 2 returns to the previous page (if available).

• When there are more than one digest page, after pressing SUBTITLE - DIGEST while holding down SHIFT, pressing ¢ before all 9 scenes of the first page appear on the TV screen will advance to the next page. Similarly, pressing 4 before all the scenes of the second or latter page appear on the TV screen will return to the previous page.

Press ENTER.

The unit starts playback from the selected title or track.

NOTE

With some discs, depending on the contents, it may take some time until all the scenes appear on the screen.

To advance a still picture frame-by-frame

PLAY MODE DISPLAY RETURN

CANCEL

TIME CHOICE

SHIFT

.SK

PAU

LEFT

CURSOR

PLAY

STOP

DOWN

REMOTE CONTROL

F.SKIP



ENTER

RIGHT

7 While paused (still)

Press PAUSE.

Each time you press PAUSE, the still picture advances to the next frame.

Pressing PLAY returns to the normal playback mode.

To display still pictures [STROBE]

TV POWER

THEATER

3D-PHONIC

DVD POWER

POSITION

AUDIOSUBTITLE

TV/VIDEO

ANGLE

123

TV 1 TV 2 TV 3

456

TV 4 TV 5 TV 6

789

TV 7 TV 8 TV 9

10 +100

TV 0 TV 100+

AMP

VOLTVVOL

PLAY MODE

DISPLAY RETURN

CANCEL

TIME CHOICE

PLAY

F.SKIP



STOP

LEFT

CURSOR

RIGHT

DOWN

OPEN

/CLOSE

DIGEST STROBE ZOOM

TV RETURN

SLOW

SHIFT

Advanced

operations

REMOTE CONTROL

7 During playback

At the point you want to view as continuous

photographs, press PAUSE.

The unit pauses playback.

Press AUDIO - STROBE while holding down

SHIFT.

Nine continuous still pictures appear on the TV screen.

• Pressing PAUSE when the nine still pictures appear will advance to the next nine still pictures.

Advanced operations

• To cancel strobe play

Press AUDIO - STROBE while holding down SHIFT.

NOTES

• Pressing and holding PAUSE for more than 1 second also activates the Strobe function.

• If you press AUDIO - STROBE while holding down SHIFT during playback, nine still pictures also appear but they advance in realtime.

To playback in slow-motion [SLOW]

7 During playback

From the remote control unit

TV POWER

THEATER

3D-PHONIC

DVD POWER

POSITION

AUDIOSUBTITLE

TV/VIDEO

ANGLE

123

TV 1 TV 2 TV 3

456

TV 4 TV 5 TV 6

789

TV 7 TV 8 TV 9

10 +100

TV 0 TV 100+

AMP

VOLTVVOL

PLAY MODE

DISPLAY RETURN

CANCEL

TIME CHOICE

LEFT

PLAY

F.SKIP



STOP

CURSOR

RIGHT

DOWN

OPEN

/CLOSE

DIGEST STROBE ZOOM

TV RETURN

SLOW

SHIFT

• To return to normal playback

Press PLAY.

• To pause slow-motion playback

Press PAUSE.

NOTES

• The sound is muted during slow-motion playback.

• Reverse slow-motion playback is not possible for a Video CD.

Press SLOW.

Advanced

operations

To play forward slow-motion, press SLOW “+“, and to play reverse slow-motion (for DVD VIDEO discs only), press SLOW “–“. First, the unit plays the slowest speed, and each time you press the button, the playback speed increases.

From the front panel

HAP. RESUME

EACH

Press PAUSE, then use the SHUTTLE knob.

To play forward slow-motion, turn the SHUTTLE knob to the right. To play reverse slow-motion (for DVD VIDEO discs only), turn it to the left. The more you turn the knob, the more the slowmotion speed increases.

THEATER

OPEN/CLOSE

REMOTE CONTROL

1¡

PLAY

STOP PAUSE

SKIP

4¢

SHUTTLE

DVD

VDEO CD / CD

Advanced operations

To zoom a scene [ZOOM]

OPEN

/CLOSE

DIGEST STROBE ZOOM

TV RETURN

SLOW

SHIFT

7 During playback or while paused

Press ANGLE - ZOOM while holding down

SHIFT.

“ZOOM” appears on the TV screen. The unit zooms in to the center part of the scene

to produce a double-sized image.

TV POWER

THEATER

3D-PHONIC

DVD POWER

POSITION

AUDIOSUBTITLE

TV/VIDEO

ANGLE

123

TV 1 TV 2 TV 3

456

TV 4 TV 5 TV 6

789

TV 7 TV 8 TV 9

10 +100

TV 0 TV 100+

AMP

VOLTVVOL

PLAY MODE

DISPLAY RETURN

CANCEL

TIME CHOICE

LEFT

PLAY

STOP

CURSOR

DOWN

REMOTE CONTROL

F.SKIP



RIGHT

Changing the playback order

You can play titles or tracks in the desired order or in random order.

To playback in the desired order [PROGRAM]

You can play titles or tracks in the desired order by using the Program function.

TV POWER

THEATER

3D-PHONIC

DVD POWER

POSITION

AUDIOSUBTITLE

TV/VIDEO

ANGLE

123

TV 1 TV 2 TV 3

456

TV 4 TV 5 TV 6

789

TV 7 TV 8 TV 9

10 +100

TV 0 TV 100+

AMP

VOLTVVOL

PLAY MODE

DISPLAY RETURN

CANCEL

TIME CHOICE

LEFT

PLAY

STOP

CURSOR

DOWN

REMOTE CONTROL

F.SKIP



RIGHT

OPEN

/CLOSE

DIGEST STROBE ZOOM

TV RETURN

SLOW

SHIFT

ZOOM

Use CURSOR 2/3/5/∞ to move the

zoomed-in scene.

ZOOM

• To pause zoom play

Press PAUSE. To resume zoom play, press PLAY.

• To return to normal playback

Press ANGLE - ZOOM while holding down SHIFT.

NOTE

During Zoom play, the picture may be garbled or noisy.

7 While stopped

Press PLAY MODE - CANCEL.

The play mode menu appears on the TV screen.

Use CURSOR 2/3 to move to

[PROGRAM] and press ENTER.

REPEAT PROGRAM RANDOM

The program table appears under the menu bar (as shown above).

The “PROGRAM” indicator appears in the display window on the front panel.

Select the titles or tracks in the desired order

using the numeric buttons.

See page 10 for details about how to use the numeric buttons.

Up to 18 titles or tracks can be programmed. You may select the same title or track more than once.

1 3

The programmed title/track number is shown under each program number.

6 15 10

Advanced

operations

Advanced operations

REPEAT PROGRAM RANDOM

• When you specify a wrong selection

Press PLAY MODE - CANCEL while holding down the SHIFT. The last selection programmed is erased.

• To clear the program

Press STOP.

Press PLAY to start program play.

When all of the programmed titles/tracks have finished playback, the unit stops but the program remains.

NOTES

• Some DVD VIDEO discs may not be played back correctly in program mode.

• During program playback, pressing ¢ skip to the next selection of the program. Pressing 4 returns to the beginning of the current selection, however, you cannot skip back to the previous selection.

• By pressing PLAY MODE - CANCEL during program playback, the program table is displayed on the TV screen and the current program number is indicated in yellow.

• To quit program playback

Press STOP and press STOP again. The “PROGRAM” indicator in the display window turns off and the program is cleared.

To playback in random order [RANDOM]

You can play titles or tracks in random order by using the Random function.

TV POWER

THEATER

3D-PHONIC

DVD POWER

POSITION

AUDIOSUBTITLE

TV/VIDEO

ANGLE

123

TV 1 TV 2 TV 3

456

TV 4 TV 5 TV 6

789

TV 7 TV 8 TV 9

10 +100

TV 0 TV 100+

AMP

VOLTVVOL

PLAY MODE

DISPLAY RETURN

CANCEL

TIME CHOICE

LEFT

PLAY

F.SKIP



STOP

CURSOR

RIGHT

DOWN

OPEN

/CLOSE

DIGEST STROBE ZOOM

TV RETURN

SLOW

SHIFT

REMOTE CONTROL

7 While stopped

Press PLAY MODE - CANCEL.

The play mode menu appears on the TV screen.

Use CURSOR 2/3 to move to

[RANDOM].

While stopped and the play mode menu is displayed on the TV screen, by moving to [PROGRAM] and pressing ENTER, the program mode quits. Note that the program remains.

Advanced

operations

The “RANDOM” indicator appears in the display window on the front panel.

Press ENTER.

The unit starts random playback. After playing all titles/tracks of the disc, random

playback ends.

The same title or track will not be played back more than once during random play.

• To stop/quit random playback in the middle

NOTE

Some DVD VIDEO discs may not be played back correctly in random mode.

REPEAT ALL

CD CONTROL

REPEAT A-B REPEAT TIME SEARCH

Repeat playback

You can repeat playback of the current selection or all disc contents. You can also repeat playback of a desired part.

To repeat the current selection or all disc contents [REPEAT]

• For Audio/Video CD

(for Audio CD)

Selected repeat mode

Advanced operations

(for Video CD)

VCD CONTROL

REPEAT A-B REPEAT TIME SEARCH PBC CALL

REPEAT ALL

Selected repeat mode

TV POWER

THEATER

3D-PHONIC

DVD POWER

POSITION

AUDIOSUBTITLE

TV/VIDEO

ANGLE

123

TV 1 TV 2 TV 3

456

TV 4 TV 5 TV 6

789

TV 7 TV 8 TV 9

10 +100

TV 0 TV 100+

AMP

VOLTVVOL

PLAY MODE

DISPLAY RETURN

CANCEL

TIME CHOICE

LEFT

PLAY

F.SKIP



STOP

CURSOR

RIGHT

DOWN

OPEN

/CLOSE

DIGEST STROBE ZOOM

TV RETURN

SLOW

SHIFT

REMOTE CONTROL

7 In any condition except Video CD playback with PBC

Press PLAY MODE - CANCEL.

The play mode menu appears on the TV screen.

Use CURSOR 2/3 to move to [REPEAT],

then press ENTER.

Each time you press ENTER, the repeat mode changes as follows:

• For DVD VIDEO

DVD CONTROL

REPEAT A-B REPEAT TIME SEARCH CHAP. SEARCH

REPEAT ALL

REPEAT ALL (all track repeat)

REPEAT 1 (current track repeat)

No indication

(off)

• To stop repeat playback

Press STOP.

• If you press STOP in REPEAT ALL mode, the unit stops playback but remains in the mode.

• If you press STOP in REPEAT1, TITLE REPEAT or CHAPTER REPEAT mode, the unit stops playback and quits the mode.

• To quit repeat playback

With

pointed at [REPEAT], press ENTER

repeatedly until the mode is set to off.

NOTES

• Some DVD VIDEO discs do not allow the title repeat or/

and chapter repeat.

• Some DVD VIDEO discs automatically stops playback in

the middle of the disc.

• Repeat playback function cannot be used during Video

CD playback with PBC function.

• To turn off the play mode menu display

Press PLAY MODE - CANCEL.

Advanced

operations

* REPEAT TITLE (current title repeat)

* REPEAT CHAPTER (current chapter repeat)

* While stopped, you cannot select REPEAT TITLE or

REPEAT CHAPTER.

The selected repeat mode appears on the TV screen.

REPEAT ALL (all title repeat)

No indication (off)

Advanced operations

To repeat a desired part [A-B REPEAT]

TV POWER

THEATER

3D-PHONIC

DVD POWER

POSITION

AUDIOSUBTITLE

TV/VIDEO

ANGLE

123

TV 1 TV 2 TV 3

456

TV 4 TV 5 TV 6

789

TV 7 TV 8 TV 9

10 +100

TV 0 TV 100+

AMP

VOLTVVOL

PLAY MODE

DISPLAY RETURN

CANCEL

TIME CHOICE

PLAY

F.SKIP



STOP

LEFT

CURSOR

RIGHT

DOWN

OPEN

/CLOSE

DIGEST STROBE ZOOM

TV RETURN

SLOW

SHIFT

2, 3

REMOTE CONTROL

7 During playback

Press PLAY MODE - CANCEL.

The play mode menu appears on the TV screen.

• To quit A-B repeat playback

Press STOP. The unit stops playback and quits the AB repeat mode.

• During playback, pressing ENTER when is pointed at [AB REPEAT] quits the A-B repeat mode and continues playback.

• You can also quit the A-B repeat mode by pressing 4 or ¢.

NOTES

• To turn off the play mode menu

Press PLAY MODE - CANCEL.

• If appears when pressing ENTER in step 2 during DVD

playback

You cannot repeat the selected portion because of the disc contents.

• The A-B REPEAT function cannot be used during program

playback.

Advanced

operations

(for DVD VIDEO)

Point A

Use CURSOR 2/3 to move to [A-B REPEAT], then press ENTER at the beginning of the part you want to repeat (point A).

Make sure that REPEAT mode is off. If any one of the REPEAT modes is selected, you cannot move

to [A-B REPEAT].

Press ENTER at the end of the part you want to repeat (point B).

The unit locates “A” and starts repeat playback between “A” and “B.”

(for Audio CD)

DVD CONTROL

REPEAT A-B REPEAT TIME SEARCH CHAP. SEARCH

A 0:00:16 B 0:01:16

Point B

(for Video CD)

VCD CONTROL

REPEAT A-B REPEAT TIME SEARCH PBC CALL

CD CONTROL

REPEAT A-B REPEAT TIME SEARCH

A 0:00:16 B 0:01:31

Point BPoint A

A 0:00:16 B 0:01:31

Point BPoint A

Advanced operations

Selecting a scene angle of DVD VIDEO

You can enjoy a variety of scene angles if the DVD VIDEO disc contains “multi-angle” parts, where multiple cameras were used to shoot the same scene from different angles.

At the beginning of “multi-angle” parts, appears on the TV screen.

To select a scene angle from the normal screen [ANGLE]

TV POWER

THEATER

3D-PHONIC

DVD POWER

POSITION

AUDIOSUBTITLE

TV/VIDEO

ANGLE

123

TV 1 TV 2 TV 3

456

TV 4 TV 5 TV 6

789

TV 7 TV 8 TV 9

10 +100

TV 0 TV 100+

AMP

VOLTVVOL

PLAY MODE

DISPLAY RETURN

CANCEL

TIME CHOICE

B.SK

LEFT

CURSOR

DOWN

PLAY

STOP

RIGHT

REMOTE CONTROL

F.SKIP

ENTER



OPEN

/CLOSE

DIGEST STROBE ZOOM

TV RETURN

SLOW

SHIFT

To select a scene angle from the angle list display [ANGLE]

OPEN

/CLOSE

DIGEST STROBE ZOOM

TV 1 TV 2 TV 3

TV 4 TV 5 TV 6

TV 7 TV 8 TV 9

10 +100

TV RETURN

SLOW

SHIFT

TV POWER

THEATER

3D-PHONIC

DVD POWER

POSITION

AUDIOSUBTITLE

TV/VIDEO

ANGLE

123 456 789

TV 0 TV 100+

AMP

VOLTVVOL

PLAY MODE

DISPLAY RETURN

CANCEL

TIME CHOICE

LEFT

PLAY

F.SKIP



STOP

CURSOR

RIGHT

DOWN

REMOTE CONTROL

7 During DVD VIDEO playback

Press and hold ANGLE - ZOOM for more than

1 second.

Up to nine camera angles recorded on a disc appear on the TV screen.

The selected camera angle

7 During DVD VIDEO playback

Press ANGLE - ZOOM.

The Angle selectin display appears on

1 / 3

the TV screen.

Press ANGLE - ZOOM or CURSOR 2/3 to

select the desired angle.

Each time you press ANGLE or CURSOR 2/3, the angle changes.

NOTES

• The Angle selection display will automatically disappear if you do not change the angle for 10 seconds.

• To turn off the Angle selection display manually, press ENTER.

• When appears on the TV screen

The current scene is not recorded from multiple angles.

Example:

1 / 3

2 / 3

3 / 3

Use CURSOR 5/∞/2/3 to select the desired

angle.

Press ENTER.

7 The selected angle appears on the TV screen.

NOTES

• When appears on the TV screen in step 1:

The current scene is not recorded from multiple angles.

• During the operation above, audio is muted.

Advanced

operations

Advanced operations

1 / 3 ENGLISH

Changing the language and sound

For DVD VIDEO discs, you can select the subtitle language, as well as the audio language/sound included on a disc. For Video CD discs, you can select the audio channel(s).

To select the subtitle language [SUBTITLE]

7 During DVD VIDEO playback

TV POWER

THEATER

3D-PHONIC

DVD POWER

POSITION

AUDIOSUBTITLE

TV/VIDEO

ANGLE

123

TV 1 TV 2 TV 3

456

TV 4 TV 5 TV 6

789

TV 7 TV 8 TV 9

10 +100

TV 0 TV 100+

AMP

VOLTVVOL

PLAY MODE

DISPLAY RETURN

CANCEL

TIME CHOICE

LEFT

PLAY

STOP

CURSOR

DOWN

REMOTE CONTROL

F.SKIP



RIGHT

Example:

1/3 ENGLISH

2/3 FRENCH

3/3 SPANISH

1 / 3ON

–/3 (off)

Advanced

operations

• For DVD VIDEO, the selected language may be

• The Subtitle selection display will automatically

• To turn off the Subtitle selection display manually, press

• When appears on the TV screen:

OPEN

/CLOSE

1, 2

DIGEST STROBE ZOOM

TV RETURN

SLOW

SHIFT

Press SUBTITLE.

The Subtitle selection display appears on the TV screen.

To turn the subtitle on and off, press SUBTITLE.

To select the desired subtitle language, press CURSOR 2/3.

Each time you press CURSOR 2/3, the subtitle language changes.

NOTES

abbreviated on the TV screen. See “Appendix A: Table of languages and their abbreviations” at the end of this manual.

disappear if you do not change the subtitle for 10 seconds.

ENTER.

You cannot select the subtitle.

ENGLISH

To change the audio language or sound [AUDIO]

By AUDIO selection, you can choose the audio language of movies or choose to enjoy karaoke with or without the vocal.

TV POWER

THEATER

3D-PHONIC

DVD POWER

POSITION

AUDIOSUBTITLE

TV/VIDEO

ANGLE

123

TV 1 TV 2 TV 3

456

TV 4 TV 5 TV 6

789

TV 7 TV 8 TV 9

10 +100

TV 0 TV 100+

AMP

VOLTVVOL

PLAY MODE

DISPLAY RETURN

CANCEL

TIME CHOICE

PLAY

F.SKIP



STOP

ENT

LEFT

CURSOR

RIGHT

DOWN

1, 2

OPEN

/CLOSE

DIGEST STROBE ZOOM

TV RETURN

SLOW

SHIFT

REMOTE CONTROL

7 During playback

Press AUDIO - STROBE.

The Audio selection display appears on the TV screen.

(DVD VIDEO)

Press AUDIO - STROBE or CURSOR 2/3 to

select the desired audio.

• For DVD VIDEO

Each time you press AUDIO

- STROBE or CURSOR 2/3, the audio language or sound changes.

• For Video CD

Each time you press AUDIO

- STROBE or CURSOR 2/3, the playback audio changes as follows.

NOTES

• For DVD VIDEO, the selected language may be abbreviated on the TV screen. See “Appendix A: Table of languages and their abbreviations” at the end of this manual.

• The Audio selection display will automatically disappear if you do not change the audio for 10 seconds.

• To turn off the Audio selection display manually, press ENTER.

•

When appears on the TV screen (for a DVD VIDEO disc):

You cannot select the audio.

(Video CD)

STEREO

Example:

1/3 ENGLISH

2/3 FRENCH

3/3 SPANISH

STEREO

Advanced operations

Selecting the picture character

You can select the quality of the image from among four options (OFF, 1, 2 and 3) according to the type of programming, picture tone or personal preferences.

To select the picture character [THEATER POSITION]

OPEN

THEATER

3D-PHONIC

/CLOSE

POSITION

AUDIOSUBTITLE

ANGLE

DIGEST STROBE ZOOM

123

TV 1 TV 2 TV 3

456

TV 4 TV 5 TV 6

789

TV 7 TV 8 TV 9

10 +100

TV RETURN

TV 0 TV 100+

AMP

SLOW

VOLTVVOL

PLAY MODE

DISPLAY RETURN

CANCEL

TIME CHOICE

SHIFT

PLAY

KIP

STOP

LEFT

CURSOR

RIGHT

DOWN

ENTER

F.SKIP

TV POWER DVD POWER

TV/VIDEO



Enjoying virtual surround sound

Using the 3D Phonic function, you can get a simulated surround effect from your stereo system.

To simulate surround sound [3D PHONIC]

1, 2

OPEN

/CLOSE

DIGEST STROBE ZOOM

TV RETURN

SLOW

SHIFT

TV POWER

THEATER

3D-PHONIC

DVD POWER

POSITION

AUDIOSUBTITLE

TV/VIDEO

ANGLE

123

TV 1 TV 2 TV 3

456

TV 4 TV 5 TV 6

789

TV 7 TV 8 TV 9

10 +100

TV 0 TV 100+

AMP

VOLTVVOL

PLAY MODE

DISPLAY RETURN

CANCEL

TIME CHOICE

LEFT

PLAY

STOP

CURSOR

DOWN

REMOTE CONTROL

F.SKIP



ENTER

RIGHT

REMOTE CONTROL

7 During playback

Press THEATER POSITION to select the

desired picture character.

Each time you press the button, the picture character changes as follows:

THEATER 1

Selected picture character

THEATER 1

THEATER 2

THEATER 3

THEATER OFF

“THEATER OFF” is the normal position. Selecting a higher number tones down the picture character.

7 During playback

Press 3D PHONIC.

Select the desired effect mode by pressing 3D

PHONIC.

Each time you press 3D PHONIC, the effect mode changes as follows:

3D PHONIC DRAMA

Selected effect mode

3D PHONIC ACTION*

3D PHONIC DRAMA

3D PHONIC THEATER

3D PHONIC OFF

Advanced

operations

• ACTION:

Suitable for action movies and sports programs in which sounds dynamically move.

• DRAMA:

Natural and warm sound. You can enjoy movies in a relaxed mood.

• THEATER:

You can enjoy sound effects like in a major theater in Hollywood.

Advanced operations

* When you play a DVD VIDEO disc recorded in Dolby

Digital which contains more than 2 channels, ACTION does not appear.

NOTES

• With a Video CD disc, if the AUDIO setting is set to L or R, you cannot activate the 3D Phonic function (i.e. the 3D Phonic mode is fixed to OFF).

Conversely, when the 3D Phonic function is active, changing the AUDIO setting to L or R from STEREO cancels the 3D Phonic function.

• The 3D phonic function works correctly when playing back discs recorded in the Dolby Surround or Dolby Digital 5.1-CH format.

It also works when playing back discs other than those above, but does not provide the correct effect.

• The 3D Phonic function does not affect the DTS or Dolby Digital bitstream signal from the DIGITAL OUT jack.

• The sound effect will not be set or operate, even if 3D PHONIC is pressed, for the sound of DVD VIDEO discs recorded in Linear PCM.

• When you set the 3D PHONIC function to on, the DOWN MIX and COMPRESSION settings in the AUDIO page of the preference display are disabled.

Checking the status

You can check the disc/time information, as well as the DVD functions, of the disc.

To check the disc/time information

TV POWER

THEATER

3D-PHONIC

DVD POWER

POSITION

AUDIOSUBTITLE

TV/VIDEO

ANGLE

123

TV 1 TV 2 TV 3

456

TV 4 TV 5 TV 6

789

TV 7 TV 8 TV 9

10 +100

TV 0 TV 100+

AMP

VOLTVVOL

PLAY MODE

DISPLAY RETURN

CANCEL

TIME CHOICE

LEFT

PLAY

STOP

CURSOR

DOWN

REMOTE CONTROL

F.SKIP



RIGHT

OPEN

/CLOSE

DIGEST STROBE ZOOM

TV RETURN

SLOW

SHIFT

Advanced

operations

7 During playback

Press DISPLAY - TIME once for a Audio CD or

Video CD disc, or twice for a DVD VIDEO disc.

The disc/time display appears on the TV screen.

During playback of a DVD VIDEO disc, pressing DISPLAY - TIME while holding down SHIFT directly turns on the disc/time display.

(for DVD VIDEO)

TITLE CHAP. TIME BITRATE

1 25 2:25:25 3.3

Time

Current chapter number

Current title number

(for Audio CD or Video CD playing without PBC)

1 00:08

TRACK TIME

EACH

Mbps

Transmission rate

Time mode

Time

Current track number

(for Video CD playing with PBC)

1 25:25 PBC

TRACK TIME

PBC on status

Time

Current track number

ENGLISH ENGLISH

1 / 2 1 / 2 1 / 2

To change the time display mode (only for

Audio CD or Video CD without PBC), press DISPLAY - TIME while holding down SHIFT.

The time display mode cycles as below.

Advanced operations

To check the DVD function status

7 During DVD VIDEO playback

(for Audio CD)

EACH

(current track elapsed time)

EACH REMAIN

(current track remaining time)

TOTAL

(disc elapsed time)

TOTAL REMAIN

(disc remaining time)

(for Video CD without PBC)

EACH

(current track elapsed time)

EACH REMAIN

(current track remaining time)

The selected time information is displayed on the TV screen, as well as in the front panel display window.

TV POWER

THEATER

3D-PHONIC

DVD POWER

POSITION

AUDIOSUBTITLE

TV/VIDEO

ANGLE

123

TV 1 TV 2 TV 3

456

TV 4 TV 5 TV 6

789

TV 7 TV 8 TV 9

10 +100

TV 0 TV 100+

AMP

VOLTVVOL

PLAY MODE

DISPLAY RETURN

CANCEL

TIME CHOICE

LEFT

CURSOR

DOWN

PLAY

STOP

RIGHT

REMOTE CONTROL

F.SKIP



TER

Press DISPLAY – TIME.

OPEN

/CLOSE

DIGEST STROBE ZOOM

TV RETURN

SLOW

SHIFT

The DVD function status display appears on the TV screen.

7 While stopped

You can check the total disc time and current (selected) track time of an Audio CD/Video CD only from the front panel display window.

Press DISPLAY - TIME while holding down

SHIFT.

When EACH and REMAIN are indicated, the current (selected) track time appears. When only REMAIN is indicated, the total disc time appears.

You can change the current (selected) track by pressing 4 or ¢.

• To turn off the disc/time display

Press DISPLAY-TIME.

The current selections of the camera angle, audio language and subtitle language are displayed.

• To turn off the DVD function status display

Press DISPLAY-TIME twice.

Advanced

operations

Initial settings

Selecting preferences

You can set various preferences for playback via four dedicated displays.

How to set preferences

Press CURSOR 2/3 to select the setting you

want.

• To turn off the preference display, press RETURN-CHOICE while holding down SHIFT, or move to [EXIT] and press ENTER.

• For details about each setting, see the following paragraphs:

OPEN

/CLOSE

DIGEST STROBE ZOOM

TV RETURN

SLOW

SHIFT

When a DVD or Video CD disc is stopped or

TV POWER

THEATER

3D-PHONIC

DVD POWER

POSITION

AUDIOSUBTITLE

TV/VIDEO

ANGLE

123

TV 1 TV 2 TV 3

456

TV 4 TV 5 TV 6

789

TV 7 TV 8 TV 9

10 +100

TV 0 TV 100+

AMP

VOLTVVOL

PLAY MODE

DISPLAY RETURN

CANCEL

TIME CHOICE

LEFT

PLAY

STOP

CURSOR

DOWN

REMOTE CONTROL

F.SKIP



RIGHT

no disc is inserted, press RETURN-CHOICE while holding down SHIFT.

One of the preference pages appears on the TV screen.

There are four preference pages: LANGUAGE, AUDIO, DISPLAY and SYSTEM. To turn the page, move

to the desired tab using CURSOR 2/3.

LANGUAGE page

MENU LANGUAGE

You can select the default “display” language to be displayed if it is contained on the disc.

AUDIO DISPLAY SYSTEM

Each time you press CURSOR 3, the language setting changes in the following order:

ENGLISH = SPANISH = FRENCH = CHINESE = GERMAN = ITALIAN = JAPANESE = language code from AA to ZU

(See “Table of languages and their abbreviations” at the end of this manual.)

Pressing CURSOR 2 changes the language setting in the reverse order of the above.

* If the selected language is not recorded, the disc’s

default display language will be displayed.

LANGUAGE

MENU LANGUAGE AUDIO LANGUAGE SUBTITLE ON SCREEN LANGUAGE

PRESS KEY

ENGLISH ENGLISH ENGLISH ENGLISH

EXIT

LANGUAGE

AUDIO DISPLAY SYSTEM

Initial

settings

LANGUAGE

MENU LANGUAGE AUDIO LANGUAGE SUBTITLE ON SCREEN LANGUAGE

PRESS KEY

ENGLISH ENGLISH ENGLISH ENGLISH

EXIT

DISPLAY SYSTEM

AUDIO DISPLAY SYSTEM

LANGUAGE

MONITOR TYPE SCREEN SAVER ON SCREEN GUIDE

PRESS KEY

Move to select the item you want to set

4:3 LB

OFF ON

EXIT

by using CURSOR 5/∞.

LANGUAGE

MENU LANGUAGE AUDIO LANGUAGE SUBTITLE ON SCREEN LANGUAGE

PRESS KEY

AUDIO

LANGUAGE

DIGITAL AUDIO OUTPUT DOWN MIX COMPRESSION

PRESS KEY

LANGUAGE

AUTO STANDBY RESUME AV COMPULINK MODE

PRESS KEY

AUDIO DISPLAY SYSTEM

ENGLISH ENGLISH ENGLISH ENGLISH

EXIT

AUDIO DISPLAY SYSTEM

DOLBY

/PCM

DIGITAL

Lo / Ro

EXIT

OFF OFF

DVD 1

EXIT

AUDIO LANGUAGE

You can select the default audio language to be played if it is contained on the disc.

AUDIO DISPLAY SYSTEM

Each time you press CURSOR 3, the language setting changes in the following order:

ENGLISH = SPANISH = FRENCH = CHINESE = GERMAN = ITALIAN = JAPANESE = language code from AA to ZU

(See “Table of languages and their abbreviations” at the end of this manual.)

Pressing CURSOR 2 changes the language setting in the reverse order of the above.

* If the selected language is not recorded, the disc’s

default audio language will be played.

LANGUAGE

MENU LANGUAGE AUDIO LANGUAGE SUBTITLE ON SCREEN LANGUAGE

PRESS KEY

ENGLISH ENGLISH ENGLISH ENGLISH

EXIT

Initial settings

SUBTITLE

You can select the default subtitle language to be displayed if it is contained on the disc.

AUDIO DISPLAY SYSTEM

Each time you press CURSOR 3, the language setting changes in the following order:

LANGUAGE

MENU LANGUAGE AUDIO LANGUAGE SUBTITLE ON SCREEN LANGUAGE

PRESS KEY

ENGLISH ENGLISH ENGLISH ENGLISH

EXIT

ENGLISH = SPANISH = FRENCH = CHINESE = GERMAN = ITALIAN = JAPANESE = language code from AA to ZU

(See “Table of languages and their abbreviations” at the end of this manual.)

Pressing CURSOR 2 changes the language setting in the reverse order of the above.

* If the selected language is not recorded, the disc’s

default subtitle language will be displayed.

ON SCREEN LANGUAGE

You can select the on-screen display language to be displayed.

AUDIO DISPLAY SYSTEM

Each time you press CURSOR 3, the language setting changes as follows:

ENGLISH

ESPAÑOL (Spanish)

FRANCAIS (French)

English

Spanish

French

ON SCREEN LANGUAGE

IDIOMA EN PANTALLA

LANGUE D’ECRAN

Pressing CURSOR 2 changes the language setting in the reverse order of the above.

LANGUAGE

MENU LANGUAGE AUDIO LANGUAGE SUBTITLE ON SCREEN LANGUAGE

PRESS KEY

ENGLISH ENGLISH ENGLISH ENGLISH

ENGLISH

ESPAÑOL

FRANCAIS

EXIT

AUDIO page

DIGITAL AUDIO OUTPUT

To connect the unit‘s digital output to an external device equipped with a digital input, this item must be set correctly.

• PCM ONLY:

When you connect the DIGITAL OUT jack of the unit to the linear PCM digital input of other audio equipment.

• STREAM/PCM:

When you connect to the digital input of an amplifier to a built-in DTS, Dolby Digital, or MPEG multichannel decoder.

• DOLBY DIGITAL/PCM:

When you connect to the digital input of a Dolby Digital decoder, or an amplifier with a built-in Dolby Digital decoder.

The following chart shows the relationship between types of playback discs and output signals.

Playback discs

DVD with 48-kHz, 16-bit linear PCM

DVD with 48-kHz, 20/24-bit linear PCM

DVD with 96-kHz, linear PCM

DVD with DTS

DVD with Dolby Digital

DVD with MPEG multichannel

Video CD

Audio CD

Audio CD with DTS

STREAM/PCM

48-kHz, 16-bit linear PCM

48-kHz, 20-bit linear PCM

No output

DTS bitstream

Dolby Digital bitstream

MPEG bitstream

44.1-kHz, 16-bit linear PCM

DTS bitstream

DOLBY DIGITAL/PCM

AUDIO DISPLAY SYSTEM

LANGUAGE

DIGITAL AUDIO OUTPUT DOWN MIX COMPRESSION

PRESS KEY

Output

←

No output

←

48-kHz, 16-bit

linear PCM

←

DOLBY

/PCM

DIGITAL

Lo / Ro

EXIT

PCM ONLY

←

48-kHz, 16-bit

linear PCM

←

Initial

settings

NOTES

• The unit does not provide the DTS decoding function.

• When playing a DVD VIDEO or Audio CD disc with DTS, use a DTS decoder to get correct signals from your speakers. Never use the unit's analog output jacks, which output incorrect signals that may damage your speakers.

If you connect the analog outputs and digital outputs simultaneously, be sure to select the source of the amplifier correctly, or set the level control of the amplifier connected to the analog outputs to minimum.

Initial settings

DOWN MIX

To playback a DVD VIDEO disc recorded with surround multichannel audio correctly, the DOWN MIX setting must be properly made according to your audio system. Note that this setting affects the output signal from the AUDIO (both DIGITAL and ANALOG) output jacks when playing back a DVD VIDEO disc recorded with surround multichannel audio.

• Lt/Rt

When you enjoy multichannel surround audio by connecting the unit’s AUDIO output (normally, the DIGITAL output) to a surround decoder.

• Lo/Ro

When you enjoy conventional 2-channel stereo audio by connecting the unit’s AUDIO output(s) to a stereo amplifier/receiver or television set, or when you duplicate audio of a DVD VIDEO disc recorded with surround audio to your MD,cassette, etc.

NOTE

The Down mix function does not work when the 3D PHONIC function is activated.

AUDIO DISPLAY SYSTEM

LANGUAGE

DIGITAL AUDIO OUTPUT DOWN MIX COMPRESSION

PRESS KEY

DOLBY

/PCM

DIGITAL

Lo / Ro

EXIT

COMPRESSION

You can compress the dynamic range of the sound if needed. Using this function, you can listen to sound at low volumes easily.

AUDIO DISPLAY SYSTEM

LANGUAGE

DIGITAL AUDIO OUTPUT DOWN MIX COMPRESSION

PRESS KEY

DOLBY

/PCM

DIGITAL

Lo / Ro

EXIT

DISPLAY page

MONITOR TYPE

You can select the monitor type to match your TV when you playback DVD VIDEO discs recorded for wide screen televisions.

• 4:3 LB

(Letter Box Conversion)

When you connect a normal TV to the unit. When you play a wide picture recorded on a DVD VIDEO disc, the picture is displayed with bands across the upper and lower portions of the screen.

• 4:3 PS (Pan Scan Conversion) When you connect a normal TV to the unit.

When you play a wide picture recorded on a DVD VIDEO disc, a portion of the picture is automatically cut off from the left and right sides of the image. Depending on the disc, it may not be possible to playback in this mode. In that case, the picture is played back as in 4:3

mode.

• 16:9 WIDE (Wide Television screen) When you connect a

wide-screen TV to the unit.

AUDIO DISPLAY SYSTEM

LANGUAGE

MONITOR TYPE SCREEN SAVER ON SCREEN GUIDE

PRESS KEY

4:3 LB

OFF

EXIT

Initial

settings

•ON

Audio is played back with the dynamic range compressed.

• OFF

Audio is played back as it was recorded.

NOTES

• The Compression function works only when playing back a disc recorded with DOLBY DIGITAL 1CH or 2CH. The setting is not effective for other discs.

• The Compression function does not work when the 3D PHONIC function is activated.

SCREEN SAVER

• MODE 1

The current picture gets dark.

• MODE 2

The “screen saver” picture appears and its brightness changes.

• OFF

The screen saver function is off.

NOTES

• The monitor screen of a projector or projection TV is easily burned out if the screen saver mode is set to OFF and a static picture is displayed for a long time.

• The screen saver function is not activated when the selected disc is an Audio CD.

AUDIO DISPLAY SYSTEM

LANGUAGE

MONITOR TYPE SCREEN SAVER ON SCREEN GUIDE

PRESS KEY

4:3 LB

OFF

EXIT

Initial settings

ON SCREEN GUIDE

The unit can display “onscreen guide” icons or characters on the picture, which show what is happening to the disc or the unit.

•ON

The on-screen guide will be displayed.

• OFF

The on-screen guide will not be displayed.

Examples of “on-screen guide” icons or characters:

, ,

LANGUAGE

MONITOR TYPE SCREEN SAVER ON SCREEN GUIDE

PRESS KEY

AUDIO DISPLAY SYSTEM

4:3 LB

OFF

EXIT

SYSTEM page

AUTO STANDBY

When the unit is stopped for more than 30 minutes or 60 minutes, the unit enters standby mode automatically.

•60

Time is set to 60 minutes.

•30

Time is set to 30 minutes.

• OFF

The auto standby function is off.

RESUME

You can select the resume function to be on or off. See page 19.

•ON

Pressing PLAY while stopped or on standby starts playback from the resume point if it is memorized.

AUDIO DISPLAY SYSTEM

LANGUAGE

AUTO STANDBY RESUME AV COMPULINK MODE

PRESS KEY

AUDIO DISPLAY SYSTEM

LANGUAGE

AUTO STANDBY RESUME AV COMPULINK MODE

PRESS KEY

DVD 1

OFF OFF

EXIT

OFF OFF

EXIT

• OFF

Pressing PLAY while stopped or on standby starts playback from the beginning of the disc.

AV COMPULINK MODE

If you use the AV Compulink system, you must set this item correctly. Select from the three options: “DVD1,” “DVD2” and “DVD3” according to the equipment to be connected. See page 41.

AUDIO DISPLAY SYSTEM

LANGUAGE

AUTO STANDBY RESUME AV COMPULINK MODE

PRESS KEY

DVD 1

Initial

settings

OFF OFF

EXIT

Initial settings

Country Code

----

EXIT

Set Level PASS WORD

NEW PASSWORD? ··· PRESS 0~9 KEY.

PARENTAL LOCK

Country Code

----

EXIT

Set Level PASS WORD

PRESS KEY ENTER

PARENTAL LOCK

Limiting playback by children

This function restricts playback of DVD VIDEO discs which contain violent (and other) scenes according to the level set by the user. For example, if a movie which includes violent scenes supports the parental lock feature, such scenes which you do not want to let children view can be cut or replaced with other scenes.

To set Parental Lock for the first time [PARENTAL LOCK]

TV POWER

THEATER

3D-PHONIC

DVD POWER

POSITION

AUDIOSUBTITLE

TV/VIDEO

ANGLE

123

TV 1 TV 2 TV 3

456

TV 4 TV 5 TV 6

789

TV 7 TV 8 TV 9

10 +100

TV 0 TV 100+

AMP

VOLTVVOL

PLAY MODE

DISPLAY RETURN

CANCEL

TIME CHOICE

B.SK

PAU

PLAY

F.SKIP



STOP

ENTER

LEFT

CURSOR

RIGHT

DOWN

1, 3, 5, 7

2, 4

OPEN

/CLOSE

DIGEST STROBE ZOOM

TV RETURN

SLOW

SHIFT

While points [Set Level], use CURSOR

2/3 to select the parental lock level.

Each time you press CURSOR 2/3, the parental level changes as follows:

. . .

–

“1” is the strictest level. “–” means no restriction. Discs rated higher than the selected level are restricted.

Press ENTER.

moves to [PASSWORD].

REMOTE CONTROL

7 While a DVD VIDEO disc is stopped or no disc is

inserted

Press ENTER while holding down SHIFT.

The Parental Lock on-screen display appears on the TV screen.

Initial

settings

points [Country Code].

While points [Country Code], use CURSOR 2/3 to select “US” for country code.

Press ENTER.

moves to [Set Level].

PARENTAL LOCK

Country Coce Set Level PASS WORD

PRESS KEY ENTER

—

----

EXIT

Enter your 4-digit password using the

numeric buttons (0 to 9).

Press ENTER.

The parental level and password are set.

moves to [EXIT].

Pressing ENTER again returns to the opening display.

If you enter an undesired password in step 6 above, reenter the password before pressing ENTER.

Initial settings

To change the settings [PARENTAL LOCK]

TV POWER

THEATER

3D-PHONIC

DVD POWER

POSITION

AUDIOSUBTITLE

TV/VIDEO

ANGLE

123

TV 1 TV 2 TV 3

456

TV 4 TV 5 TV 6

789

TV 7 TV 8 TV 9

10 +100

TV 0 TV 100+

AMP

VOLTVVOL

PLAY MODE

DISPLAY RETURN

CANCEL

TIME CHOICE

LEFT

PLAY

F.SKIP



STOP

CURSOR

RIGHT

DOWN

2, 5

1, 2, 3, 4, 5

OPEN

/CLOSE

DIGEST STROBE ZOOM

TV RETURN

SLOW

SHIFT

3, 4

REMOTE CONTROL

You can change the Parental lock settings later.

7 While a DVD VIDEO disc is stopped or no disc is

inserted

Press ENTER while holding down SHIFT.

The Parental Lock on-screen display appears on the TV screen.

points

[PASSWORD].

PARENTAL LOCK

Country Code Set Level PASS WORD

CURRENT PASSWORD? ··· PRESS 0~9 KEY

----

EXIT

Even if you want to change only the country code and/or parental level, do not forget to enter the password after changing the country code and/or parental level. Otherwise, the new country code and/or parental level will not become effective.

Pressing ENTER again returns to the opening display.

NOTES

• When you enter the wrong password more than 3 times

in step 2 above, moves to [EXIT] automatically and CURSOR 5/∞ does not work.

• If you forget your password in step 2

Enter “8888.”

To temporarily release the Parental lock [PARENTAL LOCK]

OPEN

/CLOSE

DIGEST STROBE ZOOM

TV RETURN

SLOW

SHIFT

TV POWER

THEATER

3D-PHONIC

DVD POWER

POSITION

AUDIOSUBTITLE

TV/VIDEO

ANGLE

123

TV 1 TV 2 TV 3

456

TV 4 TV 5 TV 6

789

TV 7 TV 8 TV 9

10 +100

TV 0 TV 100+

AMP

VOLTVVOL

PLAY MODE

DISPLAY RETURN

CANCEL

TIME CHOICE

LEFT

PLAY

F.SKIP



STOP

CURSOR

RIGHT

DOWN

Enter your current 4-digit password using the

numeric buttons (0 to 9) and press ENTER.

moves to [Country Code] if you enter the

correct password. If you enter the wrong password, “WRONG!

RETRY……” appears on the TV screen, and you cannot go to next step.

To change the country code, use CURSOR 2/

3 to select the desired country code and press ENTER.

moves to [Set Level].

When you change the country code, you must select the parental level.

To change the set level, use CURSOR 2/3 to

select the desired level while points [Set Level], and then press ENTER.

moves to [PASSWORD].

Enter the password using the numeric

buttons (0 to 9) and press ENTER.

moves to [EXIT].

The password entered in the above step becomes the new password. If you do not change the password, enter the same password as in the step

REMOTE CONTROL

When you set the parental level strictly, some discs may not be played back at all. When you insert such a disc and try to play it, the following Parental Lock onscreen display appears on the TV screen, asking you whether you want the parental lock to be temporarily released or not.

Use the CURSOR 5/∞ to move to [YES],

then press ENTER.

moves to the

PASSWORD field. When selecting

[NO], press OPEN/ CLOSE to remove the disc.

Enter your 4-digit password using the

PARENTAL LOCK

This DISC can’t play now! Temporary Level Change ?

PASSWORD

PRESS ENTER EXECUTE

YES

– – – –

numeric buttons (0 to 9).

If you enter the wrong password, “WRONG! RETRY…” appears on the TV screen, and you cannot go to next step.

The Parental lock is released, and the unit starts playback.

NOTE

When you enter the wrong password more than 3 times in step 2 above, moves to [NO] automatically and CURSOR 5/∞ do not work.

Initial

settings

Additional information

AV COMPU LINK remote control system

When you buy a separate TV, VCR, DVD player, receiver, or other component and connect them to each other, you have to operate each component individually. JVC’s AV COMPU LINK remote control system meets the demands of a system made up of single components and has the ease of operation of a single unit.

Connection and setup

Using the AV COMPU LINK cable, connect the AV COMPU LINK terminals of each component to one another.

To AV COMPU LINK (II or EX)

DVD player

• If you connect a DVD player to a television via AV COMPU LINK, set the DVD player’s AV COMPU LINK setting as follows.

• When connecting to VIDEO-1 input terminal of the television: DVD2

• When connecting to VIDEO-2 input terminal of the television: DVD3

To AV COMPU LINK (II or EX)

To AV COMPU LINK

DVD player

• If you connect a DVD player to a television and VCR via AV COMPU LINK, set the VCR’s Remote Control Code and DVD player’s AV COMPU LINK setting as follows.

• When connecting to VIDEO-1 input terminal of the television: DVD player’s AV COMPU LINK setting: DVD2 VCR’s Remote Control Code: B

• When connecting to VIDEO-2 input terminal of the television: DVD player’s AV COMPU LINK setting: DVD3 VCR’s Remote Control Code: A

To AV COMPU LINK (II or EX)

Additional

information

Receiver

• If you connect a DVD player to a television and receiver via AV COMPU LINK, set the DVD player’s AV COMPU LINK setting to DVD1.

VCR (Video Cassette Recorder)

DVD player

• The DVD player’s AV COMPU LINK setting is operated in the SYSTEM page of the preference display. See page 38 for operation.

• For information on the connection between the TV and the Receiver, refer to the Receiver’s Instructions.

IMPORTANT!

If you connect the component video output to your TV:

• set the DVD player’s AV COMPULINK setting to DVD1.

• make the video/audio connection between the DVD player and your receiver using the supplied audio/video cable, and do not make the S-VIDEO connection.

Additional information

Notes for connection

• If you connect a DVD player to a receiver via AV COMPU LINK in a system including a Dolby digital decoder, some

functions may not be performed automatically.

• The AV COMPU LINK terminal on some televisions indicates “II.” Do not connect the terminal indicating “II”

with the AV COMPU LINK terminal on a receiver. If connected, the system will not work correctly.

• Connect the AUDIO OUT jacks of the DVD player to the audio input jacks of a receiver that indicating “DVD.”

Otherwise, the system will not work correctly.

• There may be no description about connections to a DVD player in the instruction manual of a television or VCR.

However a television or VCR with AV COMPU LINK terminals indicating “II” or “EX” can be connected to a DVD player.

Operation

You can enjoy pictures and/or sound by just putting a source component (which plays back the pictures and/or sound such as a DVD player or VCR) into play mode. You do not have to operate the TV and receiver including not having to perform power switching.

Turn on the main power of the television.

Insert a disc into the source component.

Press PLAY of the source component.

The following actions are performed automatically:

• Turning on the power for the television.

• Setting the source of the television to the external input (VIDEO-1 or VIDEO-2).

• Turning on the power for the receiver.

• Setting the source of the receiver to the component which has started playback.

Care and handling of discs

How to handle discs

When handling a disc, do not touch the surface of the disc. Since discs are made of plastic, they are easily damaged. If a disc gets dirty, dusty, scratched or warped, the images and sound will not be picked up correctly, and such a disc may cause the player to malfunction.

Label side

Do not damage the label side, stick paper to or use any adhesive on its surface.

Storage

Make sure that discs are kept in their cases. If discs are piled on top of one another without their protective cases, they can be damaged. Do not put discs in a location where they may be exposed to direct sunlight, or in a place where the humidity or temperature is high. Avoid leaving discs in your car!

Additional

information

Maintenance of discs

If there are fingerprints or other dirt adhering to a disc, wipe with a soft dry cloth, moving from the center outwards. If a disc is difficult to clean, wipe with a cloth moistened with water. Never use record cleaners, petrol, alcohol or any anti-static agents.

CAUTION

Sometimes during play noise or images may be garbled. This is sometimes due to the disc. (It may not be up to industry standards.) These symptoms are caused by the discs, not by the malfunction of the unit.

Additional information

Troubleshooting

What appears to be a malfunction may not always be serious. Please go through the following list before requesting service.

Symptom

Power does not come on.

Remote control does not work.

No picture is displayed on the monitor.

Picture is noisy.

No audio is reproduced.

Possible case

Power plug is not inserted securely.

Too far from the unit.

The tip of the remote unit is not pointed in the right direction.

Batteries are exhausted.

Battery polarity is incorrect.

Connection of video cable is incorrect.

Input selection of TV is incorrect.

Disc is not playable.

The unit is connected to a VCR directly and the copyguard function is activated.

Connection is incorrect.

Input selection of amplifier is incorrect.

Remedy

Plug in securely.

More closer to the unit.

Point the infrared light- emitting window toward the remote sensor on the front panel.

Replace the batteries with new ones.

Take out the batteries and insert them again in the correct direction.

Connect the cable correctly.

Select correctly.

Use a playable disc. (See page 11.)

Connect the unit so that the picture signal flows directly to the TV.

Check the connections.

Select correctly.

No audio is reproduced when playing back a DVD disc recorded with 96-kHz, linear PCM audio.

Sound is distorted or noise is generated.

Picture does not fit the television screen.

Operation is not possible.

Additional

information

The audio signal is derived from the unit's DIGITAL OUT.

Disc is dirty.

MONITOR TYPE is not correctly set.

Television is not correctly set.

Microcomputer malfunction due to lightning or static electricity.

Moisture condensation caused by a sudden change of temperature or humidity.

Use the AUDIO OUT when playing back such discs.

Wipe the disc surface.

Select monitor type correctly. (See page 37.)

Set the television correctly.

Turn off the power and unplug the power cord, then connect the power cord again.

Turn off the power, then turn it on a few hours later.

Specifications

General

Readable discs: DVD VIDEO, Audio CD, Video CD Video format: NTSC

Other

Power requirements: AC 110 V - 240 V , 50 Hz/60 Hz Power consumption: 17 W (POWER ON), 3.4 W (STANDBY mode) Mass: 3.2 kg (7.1 lbs) Dimensions (W x H x D): 435 mm x 95 mm x 297 mm

(17-3/16 inch x 3-3/4 inch x 11-3/4 inch)

Video output

COMPONENT (pin jacks): Y Output: 1.0 Vp-p (75 Ω)

B/PR Output: 0.7 Vp-p (75 Ω)

VIDEO OUT (pin jack): 1.0 Vp-p (75 Ω) S-VIDEO OUT (S jack): Y Output: 1.0 Vp-p (75 Ω)

C Output: 286 mVp-p (75 Ω)

Horizontal resolution: 500 Lines Signal to noise ratio: 65 dB

Additional information

Audio output

ANALOG OUT (pin jack): 2.0 Vrms (10 kΩ) DIGITAL OUT: COAXIAL: 0.5 Vp-p (75 Ω termination)

OPTICAL: – 21 to –15 dBm (Peak)

Audio characteristics

Frequency response: CD (sampling frequency 44.1 kHz): 2 Hz to 20 kHz

DVD (sampling frequency 48 kHz): 2 Hz to 22 kHz DVD (sampling frequency 96 kHz): 2 Hz to 44 kHz

Dynamic range: 16 bit: More than 98 dB

20 bit: More than 106 dB

24 bit: More than 106 dB Wow and flutter: Unmeasurable (less than ± 0.002%) Total harmonic distortion: Less than 0.002%

* Specifications and appearance subject to change without prior notice.

Additional

information

Additional information

Appendix A: Table of languages and their abbreviations

When you select the subtitle language or sound, the languages shown below are displayed as abbreviations. To select the desired language, select the abbreviation corresponding the language you want to.

Additional

information

AA Afar AB Abkhazian AF Afrikaans AM Ameharic AR Arabic AS Assamese AY Aymara AZ Azerbaijani BA Bashkir BE Byelorussian BG Bulgarian BH Bihari BI Bislama BN Bengali, Bangla BO Tibetan BR Breton CA Catalan CO Corsican CS Czech CY Welsh DA Danish DZ Bhutani EL Greek EO Esperanto ET Estonian EU Basque FA Persian FI Finnish FJ Fiji FO Faroese FY Frisian GA Irish GD Scots Gaelic GL Galician GN Guarani GU Gujarati HA Hausa HI Hindi HR Croatian HU Hungarian HY Armenian IA Interlingua IE Interlingue

IK Inupiak IN Indonesian IS Icelandic IW Hebrew JI Yiddish JW Javanese KA Georgian KK Kazakh KL Greenlandic KM Cambodian KN Kannada KO Korean (KOR) KS Kashmiri KU Kurdish KY Kirghiz LA Latin LN Lingala LO Laothian LT Lithuanian LV Latvian, Lettish MG Malagasy MI Maori MK Macedonian ML Malayalam MN Mongolian MO Moldavian MR Marathi MS Malay (MAY) MT Maltese MY Burmese NA Nauru NE Nepali NL Dutch NO Norwegian OC Occitan OM (Afan) Oromo OR Oriya PA Panjabi PL Polish PS Pashto, Pushto PT Portuguese QU Quechua RM Rhaeto-Romance

RN Kirundi RO Rumanian RU Russian RW Kinyarwanda SA Sanskrit SD Sindhi SG Sangho SH Serbo-Croatian SI Singhalese SK Slovak SL Slovenian SM Samoan SN Shona SO Somali SQ Albanian SR Serbian SS Siswati ST Sesotho SU Sundanese SV Swedish SW Swahili TA Tamil TE Telugu TG Tajik TH Thai TI Tigrinya TK Turkmen TL Tagalog TN Setswana TO Tonga TR Turkish TS Tsonga TT Tatar TW Twi UK Ukrainian UR Urdu UZ Uzbek VI Vietnamese VO Volapuk WO Wolof XH Xhosa YO Yoruba ZU Zulu

Appendix B: Country code list for parental lock

This list is used for the parental Lock operation. For details, see page 39.

Additional information

AD Andorra AE United Arab Emirates AF Afghanistan AG Antigua and Barbuda AI Anguilla AL Albania AM Armenia AN Netherlands Antilles AO Angola AQ Antarctica AR Argentina AS American Samoa AT Austria AU Australia AW Aruba AZ Azerbaijan BA Bosnia and Herzegovina BB Barbados BD Bangladesh BE Belgium BF Burkina Faso BG Bulgaria BH Bahrain BI Burundi BJ Benin BM Bermuda BN Brunei Darussalam BO Bolivia BR Brazil BS Bahamas BT Bhutan BV Bouvet Island BW Botswana BY Belarus BZ Belize CA Canada CC Cocos (Keeling) Islands CF Central African Republic CG Congo CH Switzerland CI Côte d’Ivoire CK Cook Islands CL Chile CM Cameroon CN China CO Colombia CR Costa Rica CU Cuba CV Cape Verde CX Christmas Island CY Cyprus CZ Czech Republic DE Germany DJ Djibouti DK Denmark DM Dominica DO Dominican Republic DZ Algeria EC Ecuador EE Estonia EG Egypt EH Western Sahara ER Eritrea

ES Spain ET Ethiopia FI Finland FJ Fiji FK Falkland Islands

(Malvinas)

FM Micronesia

(Federated States of) FO Faroe Islands FR France FX France, Metropolitan GA Gabon GB United Kingdom GD Grenada GE Georgia GF French Guiana GH Ghana GI Gibraltar GL Greenland GM Gambia GN Guinea GP Guadeloupe GQ Equatorial Guinea GR Greece

GS South Georgia and the

South Sandwich Islands GT Guatemala GU Guam GW Guinea-Bissau GY Guyana HK Hong Kong HM Heard Island and

McDonald Islands HN Honduras HR Croatia HT Haiti HU Hungary ID Indonesia IE Ireland IL Israel IN India IO British Indian Ocean

Territory IQ Iraq IR

Iran (Islamic Republic of) IS Iceland IT Italy JM Jamaica JO Jordan JP Japan KE Kenya KG Kyrgyzstan KH Cambodia KI Kiribati KM Comoros KN Saint Kitts and Nevis KP Korea, Democratic

People’s Republic of KR Korea, Republic of KW Kuwait KY Cayman Islands KZ Kazakhstan LA

Lao People’s Democratic

Republic

LB Lebanon LC Saint Lucia LI Liechtenstein LK Sri Lanka LR Liberia LS Lesotho LT Lithuania LU Luxembourg LV Latvia LY Libyan Arab Jamahiriya MA Morocco MC Monaco MD Moldova, Republic of MG Madagascar MH Marshall Islands ML Mali MM Myanmar MN Mongolia MO Macau MP Northern Mariana

Islands MQ Martinique MR Mauritania MS Montserrat MT Malta MU Mauritius MV Maldives MW Malawi MX Mexico MY Malaysia MZ Mozambique NA Namibia NC New Caledonia NE Niger NF Norfolk Island NG Nigeria NI Nicaragua NL Netherlands NO Norway NP Nepal NR Nauru NU Niue NZ New Zealand OM Oman PA Panama PE Peru PF French Polynesia PG Papua New Guinea PH Philippines PK Pakistan PL Poland

PM Saint Pierre and

Miquelon PN Pitcairn PR Puerto Rico PT Portugal PW Palau PY Paraguay QA Qatar RE Réunion RO Romania RU Russian Federation RW Rwanda

SA Saudi Arabia SB Solomon Islands SC Seychelles SD Sudan SE Sweden SG Singapore SH Saint Helena SI Slovenia SJ Svalbard and Jan Mayen SK Slovakia SL Sierra Leone SM San Marino SN Senegal SO Somalia SR Suriname ST Sao Tome and Principe SV El Salvador SY Syrian Arab Republic SZ Swaziland TC Turks and Caicos Islands TD Chad TF French Southern

Territories TG Togo TH Thailand TJ Tajikistan TK Tokelau TM Turkmenistan TN Tunisia TO Tonga TP East Timor TR Turkey TT Trinidad and Tobago TV Tuvalu TW Taiwan, Province of

China TZ Tanzania, United

Republic of UA Ukraine UG Uganda UM United States Minor

Outlying Islands US United States UY Uruguay UZ Uzbekistan VA Vatican City State

(Holy See) VC Saint Vincent and the

Grenadines VE Venezuela VG Virgin Islands (British) VI Virgin Islands (U.S.) VN Vietnam VU Vanuatu WF Wallis and Futuna

Islands WS Samoa YE Yemen YT Mayotte YU Yugoslavia ZA South Africa ZM Zambia ZR Zaire ZW Zimbabwe

Additional

information

VICTOR COMPANY OF JAPAN, LIMITED

EN.

JVC

0700RIMUBNJSC

JVC XV-521BK User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

Preliminary knowledge

Getting started

Basic operations

Advanced operations

Initial settings

Additional information
