Page 1
NETWORK VIDEO RECORDER
VR
Hybrid Digital Recorder for Both
Analog and Network (IP) Cameras
-
N900U
Major Features
● Pre-installed XProtect Enterprise software for
user-friendly and easy operation
● Can be used as a stand-alone unit without PC or
an edge device for XProtect Enterprise
● Hybrid recording solution with built-in 4-channel
encoder
● VCR/DVR-like operation with front panel controls
including Jog/Shuttle and VGA monitor output
● Up to 9-channel recorder fully camera licensed
● Support Motion JPEG/MPEG-4 camera recording
Milestone XProtect
Enterprise embedded
Powered by Milestone
● Built-in 250GB HDD with an additional expansion
slot. External storage up to 4TB using the optional
2 units of VR-D0.
● Frame rate set up
Display frame rate: up to 60 ips at VGA
Recording frame rate: up to 120 ips at VGA
Distribution frame rate: up to 30 ips at VGA
● Open platform for systems enabling integration of
third-party devices
● Automatic IP camera detection
Page 2
Take your existing Analog or Digital
Surveillance System to the Next Generation
Just as lifestyles have changed, the global
infrastructure has been rapidly changing from
analog to digital, and in accordance with this
worldwide trend, surveillance systems are also
in a state of transition. In this environment,
JVC’s VR-N900U is the ideal enterprise
solution for creating or updating an existing
surveillance system for digital networks (IP),
whether using analog, digital, or a mixture
of both. The VR-N900U has an automatic IP
camera addressing mode to make installation
as uncomplicated as analog. User-friendly
operation is assured with the pre-installed
Hybrid recording solution
With the built-in 4-channel encoder unit, VR-N900U
accepts directly both analog and IP cameras without
any additional investment. This convergence of IP and
analogue allows you to dramatically upgrade to the latest
IP surveillance system while keeping your existing
analog equipment.
XProtect Enterprise software, and the added
versatility of a unique VCR/DVR-like design
that makes it possible to control basic
functions on the front panel. The VR-N900U is
a true hybrid recorder for use in a stand-alone
system or an edge device for an XProtect
Enterprise network solution.
Up to 9 channel inputs
From a mixture of up to 4 analog and 5 IP cameras is
possible, to a total of 9 IP cameras. Using additional
VN-E4 encoders, more analog cameras can be recorded.
Motion JPEG/MPEG-4 recording
The VR-N900U supports both Motion JPEG and MPEG-4
from dedicated cameras popular in the market today.
Integration with third party devices
VR-N900U is open platform to meet customer demand,
and supports not only JVC IP cameras but also dedicated
third party IP cameras and encoder units as well.
Page 3
■ VCR/DVR
-
Like Front Panel Design and Operations
Power
Switch
Live/Playback
Selection
Viewed images
can be switched
between live view
and playback view.
Various Camera
Controls
Camera selection,
PTZ controls, Preset
position selection, Search,
Zoom-in, Zoom-out, etc.
Pre-installed Milestone XProtect Enterprise
Collaboration between Milestone Systems AV and JVC,
produced an embedded version of Milestone XProtect
Enterprise for ease of use and enhanced security. In the
IP Network surveillance market, VR-N900U achieves userfriendly set-up/operation as an IP solution.
Automatic IP camera detection
A new IP camera discovery protocol allows to quick setup
the VR-N900U with all the cameras on the network.
Playback/Recording
Controls
Play/stop of recorded
images, Recording,
Key Lock/Unlock,
Image search, etc.
Jog/Shuttle Dial
Forward/reverse
playback, singlestep forward/reverse,
Playback speed and
direction setting,etc.
System scalability and compatibility
With the pre-installed Milestone software, you can use
VR-N900U as the edge device for XProtect Enterprise
solution. The VR-N900U is fully compatible with Milestone
software, therefore making the NVR an ideal edge device
for larger system solutions.
Other features
● Built-in Serial interface for USB memory/
dedicated UPS & external HDD unit
● Supports PTZ camera control
● Quick search by time, date (or timeline), or alarm
● Built-in Motion Detection
● Scheduled recording on weekly basis
● Frame rate:
Recording: Up to 120 ips (VGA)
Display: Up to 60 ips (VGA)
Distribution: Up to 30 ips (VGA)
● Audio interface: 2 inputs and 1 output
● Network interfaces (RJ-45):
10BaseT/100BaseTX for Client PCs x 1
1000BaseT for IP cameras x 1
■ Recording Time Schedule ■ Supported firmware to be
The actual recording time varies depending on the camera settings,
input image contents and condition of the hard disk. Use the table
below as a guide to the recording time.
• 9 channel recording without audio recording as reference (Hour)
Image Data/Image
Size ( kB )
32 – – 17 34 57 178 380 985
VGA
QVGA
Example: In case of 9 cameras / VGA 24kB each / 5 frame rate each, 48 hours recording is possible.
24 – – 24 48 80 245 514 1321
16 – – 37 75 125 380 783 1994
10 – – 62 123 205 622 1267 3204
27 – – 21 42 70 215 454 1172
15 – – 40 80 133 406 837 2128
8 – – 78 155 259 783 1590 4011
5 – – 126 252 420 1267 2559 6432
30 15 10 5 3 1 0.5 0.2
Frame rate per second (each camera)
connected to VR-N900U
Brand Product Supported Firmware
VN-C20U Ver. 1.0+
VN-C215V4U/VP4UV
JVC
VN-C625U Ver. 2.06+
VN-C655U(B) Ver. 2.07+
VN-E4 Ver. 1.2+
S1700 Ver. 4.22b build 28+
S1704 Ver. 4.22b build 28+
Verint
S1708_SSL Ver. 4.22b build 28+
S1900 Ver. 4.4j build 100+
S2700e Ver. 4.4h build 600+
206 Ver. 4.21
207 Ver. 4.22
AXIS
211/211A Ver. 4.3
216FD Ver. 4.34
225FD Ver. 4.31
Ver. 1.0+
Page 4
IP cameras
Camera
switch
(1G)
LAN
Office switch
(100M)
BNC
1
2
10
Up to 10 clients are able to
access to one VR-N900U unit
simultaneously
= Max. 10 users can be logged in
simultaneously
Analog cameras
A Variety of System
Configurations
Standalone application with bundled “VR-N900U Viewer” software
Total surveillance application with optional “Milestone Central Client” software
IP cameras
Get video from
image servers
BNC
Central
server (PC)
Analog cameras
Camera
switch
(1G)
Multiple NVRs
LAN
Central Client
Display & Search
(Event + Video
sychronization)
Thanks to mapping
function, an alert point
can be specified quickly.
Event monitoring application with optional “Milestone Matrix” software
Alarm Motion
Detect by camera
IP cameras
(dual stream)
Camera
switch
(1G)
BNC
Analog cameras
Get images directly
from IP cameras
(Only dual stream
cameras. http protocol)
Matrix
software
installed
This GUI automatically
pops up after alert
information.
(Up to 4 cameras /
Live display only )
Retail surveillance application with optional “Milestone Transact POS” software
IP cameras
Camera
switch
(1G)
BNC
Analog cameras
LAN
Server (PC)
Transact
Server
RS232C
(ASCII text)
POS
Smart
Client
+
Transact
Plug-in
Note: • The VR-N900U can be used as a slave unit for the Milestone XProtect Enterprise software.
• Screen images shown above are simulated and may be different from the actual GUI.

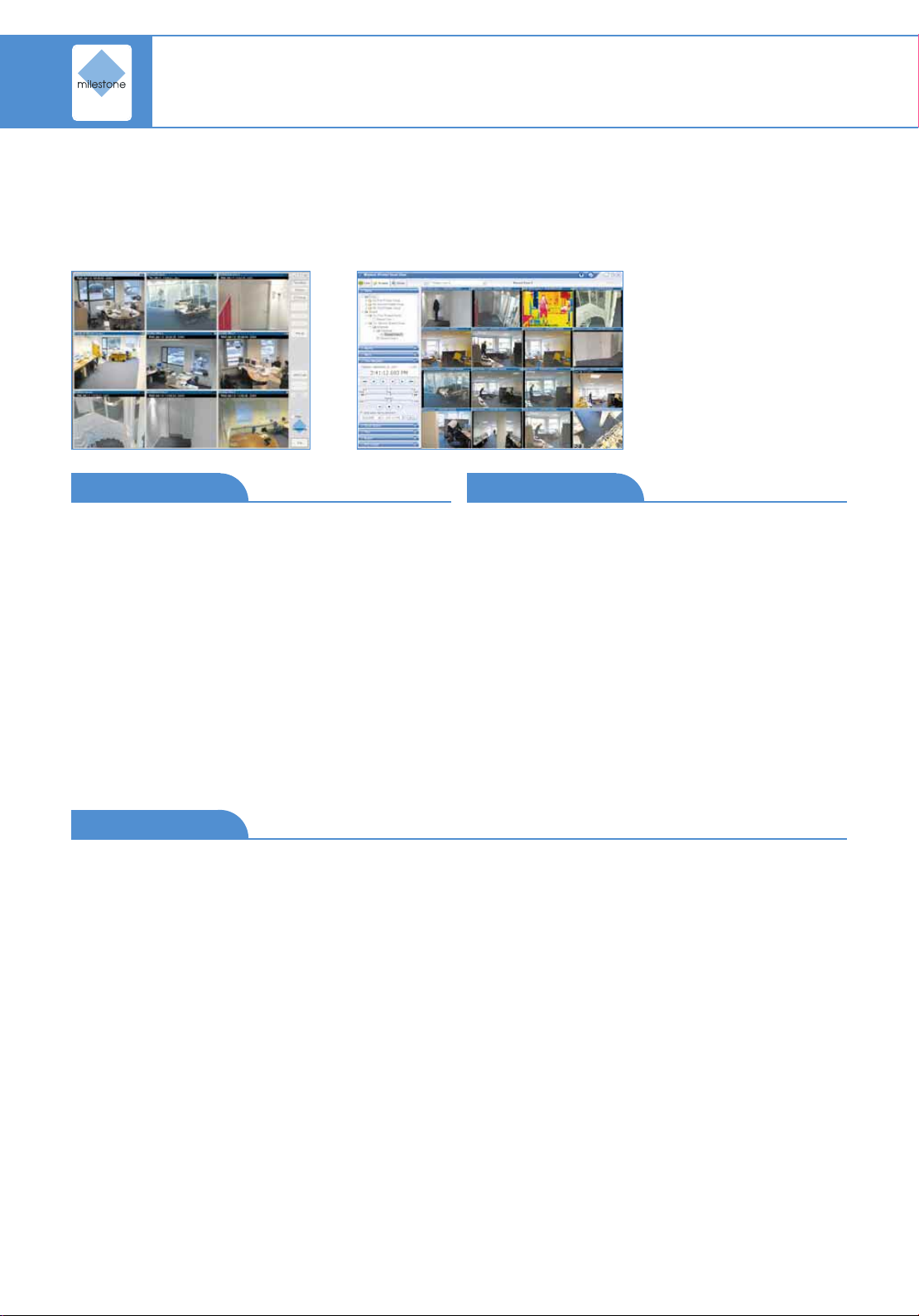

Page 5
Milestone XProtect Enterprise
Milestone XProtect
Enterprise embedded
For your reference, here is an explanation of the XProtect Enterprise software by
Milestone Systems A/S.
This software is comprehensive IP software for larger installations handling an unlimited
number of cameras, multiple servers and multiple sites. It is a top performance
solution in the high-end IP security market for integrating with other database systems.
Versatile Capabilities and Benefits
Advantages
● Compatibility: Supports both Motion JPEG and
MPEG-4 compressions
● Reliability: Currently serving more than 25,000
cameras installations worldwide.
● Strength: Utmost performance is possible by
multi-thread 32bit programming technology.
Standard PC can also be used.
● Remote: Multiple site surveillance (via PC or
PDA) is available at any time by remote access.
● Platform: Depending on requirements, it is
possible to upgrade to a total system by IP
technology and open architecture based on
license structure.
Features
Video & Audio Recording
● Simultaneous recording and playback
● Supports Motion JPEG/MPEG-4
● Simultaneous viewing of recorded image and live image
(max.64 cameras/one server)
● Display on two or three monitors
● Prompt database by Motion JPEG/MPEG-4 technology
● Independent frame rate set-up (REC/Live) depending on
hardware
● Picture quality depends on camera and server performance.
Search, Export & Secure Data
● Prompt search by date/ time & action/VMD
● Smart search
● Images as JPEG or AVI together with time/date
● Export audio as WAV or AVI
● Export image and viewing software by CD
● Protect export images by encoding or password setting
● Export image/text able to encode
● Export log can be searched by user/file
● Access log for remote client user can be searched
Integration
● System integration with POS/ATM (via XProtect
Transact/Retail)
● Automatic video distribution is possible with
XProtect Matrix.
● Central monitoring of large multi unit installations
is possible through XProtect Central.
● Supports mobile surveillance via XProtect PDA
Client
● Possible integration with external devices such
as access control, alarm, etc.
● Unlimited access on IP network via XProtect
Remote Client/Smart Client
Video Motion Detection (VMD)
● Separate adjustment available
● REC by video motion detection
● Speedy frame rate available by VMD
● Various outputs (Email / SMS / Alarm sound)
PTZ Control
● 50 preset positions for each camera
● PTZ go-to function for preset event positions
● Auto patrol
● Auto return
● Manual control by Remote Client
● REC/Live viewing is possible while recognizing the PTZ device.
● VMD-sensitive PTZ available
Administration
● On-the-fly configuration change available while recording
● Up to 8 event buttons per camera
● Database saving options for each hour
● Assign network drive from local server
● Supports DNS
● License: multi-site/multi-server per camera
For further information, please access Milestone website at http://www.milestonesys.com

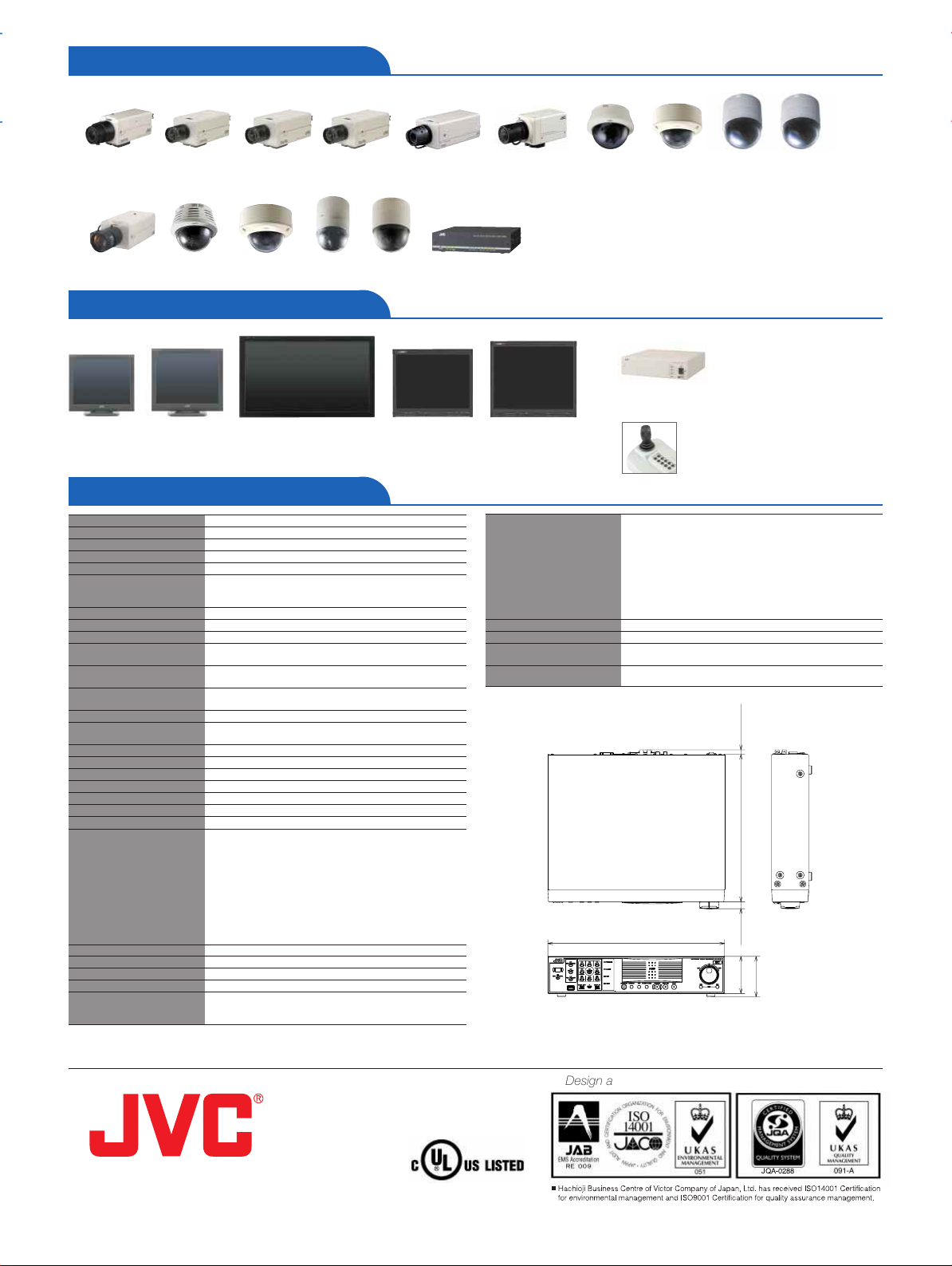

Page 6
JQA-0288
420 (16 9/16")
88 (3 1/2") 17 (11/16") 350 (13 13/16") 11 (7/16")
96 (3
13/16")
Wide Range of Cameras
●JVC Analog cameras
TK-C750 TK-C920 TK-WD310TK-C1530TK-C925 TK-C215VPTK-C215 TK-C676
● JVC IP Cameras/Encoder
TK-C1430/
C1480/C1460
TK-C655
● Cameras from other companies
●
Pelco PTZ Dome cameras (analog)
(Copyright by Pelco)
●
Verint Encoders and IP Cameras: S1700, S1704,
S1708, S1900, S2700e, S2700eVR (Copyright by Verint)
VN-C20 VN-E4VN-C655VN-C625VN-C215VP4VN-C215V4
●
AXIS Cameras: 206, 207, 211, 216, 225
(Copyright by AXIS)
Peripheral Equipment
● JVC Monitors
GD-17L1G
*
Please kindly consult your local JVC subsidiaries regarding availability.
GD-19L1G
GM-H40L2G
(This panel for Europe/Asia)
LM-150 LM-170
*
● JVC External HDD Unit
500GB, 1TB, 2TB
model selectable
VR-D0
● USB Joystick (non JVC product)
HFX1400
Specifications
Video recording Motion JPEG/MPEG4
REC frame rate Up to 120ips in VGA (total 9 cameras), Up to 180ips in QVGA (total 9 cameras)
Display frame rate Up to 60ips in VGA (total 9 cameras)
Distribution frame rate Up to 30ips in VGA (total 9 cameras)
Frame rate for analog inputs Up to 20ips (total 4 inputs), Up to 5ips setting (each input)
Storage capacity 250GB HDD, Optional 250GB HDD can be installed in the internal slot.
Video channels 9 video channels
Resolution (VGA output) 1024x768 / 1280x1024 / 1600x1200
Camera live view Up to 9 windows
PTZ support IP PTZ camera: VN-C625/VN-C655 Analogue PTZ camera:JVC-protocol &
Alarm recording Recording is controlled by alarm sensor signals input to the
Alarm recording frame rate Frame rate for alarm recordings can be specified independently from the frame
Scheduled recording Various recording settings are possible such as by weekly.
Manual recording Recording start/stop for all 9 channels can be controlled by the switch on the
Playback Playback can be controlled by Jog/Shuttle dial
Synchronized Playback Sync playback for 9 channels is possible.
Search for recordings Search by time, date, or event (Time and date only when operated with front panel)
Video clip export Export is possible with converting AVI data.
Time synchronization Date and time can be synchronized with an external NTP server.
System alarm notifications ALARM OUT x 1, WARNING OUT x 1, RECORD TALLY, OPTION OUT 1/2
Security Protected by username and password
Connectors (Interfaces) Ethernet 10BaseT/100BaseTX, RJ-45
Processors and memory CPU: Pentium 4 RAM: 512MB
Power 120 – 240V AC
Operating conditions 5 – 40°C (41 – 104°F), humidity 30 – 80% RH
Language support Main menu: English, Application menu: English, German, French, Italian, Spanish
Video access from remote PC Live view / Playback of recording image / Camera control / AVI data conversion
As an external option, up to 2 units of VR-D0U can be used.
(500GB/1TB/2TB selectable)
Pelco-D protocol through RS-485 connector (PTZ only)
rear terminal.
rate of normal recording.
front panel.
Ethernet 1000BaseT,RJ-45
Serial (equivalent to USB2.0) x 5 (UPS, external HDD, mouse, joystick,USB memory)
D-Sub for RS-485 (for analog PTZ camera control)
D-Sub 15pin for analog RGB monitor
Signal input and output terminal (alarm in x 4, alarm out x 1, alarm reset x 1,
BNC x 4 (Video input)
RCA x 2 (Audio input), RCA x 1 (Audio output)
(These operations are available after downloading the VR-N900U Viewer software
from the VR-N900U.)
emergency x 1,EXT REC IN x 1, OPE ON/OFF x 1,
common x 3, warning out x 1, REC tally x 1,
option out x 2)
DISTRIBUTED BY
Minimum system requirements for OS: Windows 2000 Professional,Windows 2000 Server and Advanced Server,
remote PC Windows XP Professional (32 or 64 bit), Windows Server 2003 (32 or 64 bit)
Supported protocols HTTP, SMTP (client), TCP, DHCP (client/IP lease),ARP, DNS (client), NTP
Included accessories Startup guide, CD with User's Manual, Power cords
Approvals EMC: EN55022 Class A, EN55024 FCC Parts 15 Class A
Dimensions (W x H x D) and weight 420mm x 370mm x 88mm (16.6" x 14.6" x 3.5") 7.7kg (17lbs) excluding
CPU: Intel Pentium 4 2.4GHz or higher (Xeon recommended)
RAM: 512MB (1GB recommended)
Network: Ethernet (more than 100M bit)
Graphic card: AGP or PCI-Express, 1024x768 (1280x1024 recommended),
more than 16bit colour
Hard disk: More than 50MB
Software: Microsoft .NET Framework 2.0, and DirectX 9.0, more than Microsoft
Internet Explorer 6.0 or later
Safety: EN60950-1, UL60950-1
power supply
● Dimensions
Milestone is a registered trademark of Milestone Systems. XProtect Enterprise is license sofware
by Milestone Systems. Windows is registered by Microsoft Corporation. Pentium 4 is a patent
product registered by Intel Corporation. All brand or product names may be trademarks and/or
Copyright © 2007, Victor Company of Japan, Limited. All Rights Reserved.
Design and specifications subject to change without notice.
registered trademarks of their respective owners.
Unit: mm(inch)
“JVC” is the trademark or registered trademark of Victor Company of Japan, Limited.
VEC-0321 VRN900U KN0702
Printed in Japan
Loading...
