FIXED HD IP DOME CAMERA

QUICK GUIDE

Contents

1 Introduction.......................................................................................................................... 2

Unpack Everything ................................................................................................................. 2

Preparation ............................................................................................................................ 2

Camera Installation .................................................................................................................2

Disassembling the Camera ............................................................................................... 3

Connecting the Wiring .......................................................................................................3

Adjusting the Camera Position ...........................................................................................5

Mounting the Camera ....................................................................................................... 6

Locking the Camera .......................................................................................................... 8

Network Configuration: Setting Network Camera Environment ................................................. 8

Setting IP ......................................................................................................................... 8

Connecting the Camera to a Personal Computer ................................................................ 8

Using “IP Finder” to Search Camera’s IP Address.............................................................11

2 Notice of Use ......................................................................................................................12

3 Warnings............................................................................................................................13

4 Dimensions ........................................................................................................................13

5 Specifications.....................................................................................................................14

n Contents of this manual

• Windows and Internet Explorer are registered trademarks of
Microsoft Corporation in the U.S.

• Pentium is a registered trademark of Intel Corporation in the U.S.

• AMD is trademark of Advanced Micro Devices Inc. in the U.S.

• Product names of other companies described in this manual are

trademarks or registered trademarks of the respective companies.
Symbols such as ™, ® and © are omitted in this manual.

• Design, specifications and other contents described in this manual
are subject to change for improvements without prior notice.

1

1 Introduction

Thank you for purchasing the camera. Before installing it, read the guide carefully and check the
model.

For more information, please refer to the INSTRUCTIONS on CD-ROM.

Unpack Everything

Ÿ FIXED HD IP DOME CAMERA
Ÿ WARRANTY CARD
Ÿ SAFETY PRECAUTIONS
Ÿ QUICK GUIDE
Ÿ 2-PIN TERMINAL BLOCK for power input, and 8-PIN TERMINAL

Ÿ CD-ROM containing INSTRUCTIONS and IP Finder software
Ÿ TEMPLATE : mounting template
Ÿ WRENCH : Hexagon screw driver
Ÿ 3 SCREW ANCHORs
Ÿ 3 SCREWs
Ÿ SCREW (for WIRE)
Ÿ WASHER (for WIRE)

BLOCK for alarm input/output

Preparation

The following tools might help you to complete the inst allation:

• Drill

• Screwdrivers

• Wire cutters

Camera Installation

Note

All the installation and operations here should conform to your local electricity
safety rules.

2

Disassembling the Camera

• Gently remove the screw to take off camera housing (4).

• Set the camera housing (5) and liner aside.

Connecting the Wiring

Connect the power supply cable to the power connectors.

Select one of the following options.

Ÿ Inset power cable for AC24V

Connect 24 V (~) cables to terminals ~AC24V.

Ÿ PoE

Connect the network cable to the RJ45 terminal using a switch.

Connectors and field wiring terminals for external Class 2

Note

circuits provided with marking indicating minimum Class of
wiring to be used. Class 2 shall be marked adjacent to the
field wiring terminals.

3

Washer (for Wire)
Screw (for Wire)

Safety Wire
(Fall Prevention Wire, not
supplied)

Ÿ Connect the wiring then place the camera to a proper position by

pushing the button.

4

Adjusting the Camera Position

The dome camera has three axes for positioning the camera. While monitoring the picture on the
monitor, adjust the camera position as follows:

• Pan Adjustment (A) For Wall Mount and Tilted Ceilings Rotate the lens base
(maximum360° ) until you are satisfied with the field of view.

• Horizontal Rotation (B) Rotate 3D assembly in the base. Do not turn assembly more than
360° as this assembly may cause the internal cables to twist and disconnect or break.

• Tilt Adjustment (C) After loosening the thumbnuts, position the camera as desired, then
finger –tighten the thumbnuts to set the position.

Caution

Do not turn the lens more than 360° as thi s may cause internal cables to
disconnect or break.

Caution

Retighten the locking screws to prevent loss of adjustment .

5

Mounting the Camera

Ÿ Place the guide pattern sticker (supplied) on the mounting surface and

mark three holes accordin g to the guide pattern sticker. Then fasten the
sticker to the mounting surface with screws.

Ÿ Connect the Safety Wire (Fall Prevention Wire, not supplied) to the camera

and the ceiling.

Ÿ Secure the camera bottom case (1) to the wall/ceiling with tapping scr ews,

supplied.

Ÿ Adjust the view angle (zoom, focus, and Horizontal Rotation).

To prevent the camera from falling off, ensure that it is connected to a firm place
(ceiling slab or channel) using a Safety Wire (Fall Prevention Wire is not
supplied).

Warning

Caution

Pay also careful attention to the length, strength, wiring, and material (insulating
properties) of the fall prevention wire to be used. The length should be as short
as possible within the permissible range of the mounting length. The wire
should be strong enough to withstand the total weight of this product. (Pay also
attention to the finishing at the end of the wire.)

Must be isolated camera and the wall/ceiling which are connected by the Safety
Wire (Fall Prevention Wire).

Safety Wire
(Fall Prevention Wire, not supplied)

6

l 4S Electrical junction box(Optional)

1. Secure the mounting kit (optional) to 4S Electrical box using 2 appropriate
screws.

2. Then secure the camera case to mounting kit using 2 appropriate screws.

3. Tuck the cables in the 4S Electrical box.

4. Adjust the view angle (zoom, focus, and Horizontal Rotation).

5. Attach the camera housing.

6. Turn the power on after you have installed the camera.

This mounting kit
is optional
accessory.

Note

Note

Depending on the material of your mounting surface, you may require different
screws and anchors than those supplied.

If tilt angle is less than 20 degrees from the horizontal, the image can flash by
reflection of IR-LED light. Keeping tilt angle over 20 degrees is recommended
when IR-LED light is used.

7

Locking the Camera

• Use soft, lint -free cloth to wipe the dome cover clean and remove fingerprints.

• Attach the inner liner and camera housing.

• Turn the power on after you have installed the camera.

Network Configuration: Setting Network Camera Environment

Setting IP

This is a network-based camera and must be assigned an IP address first.
The camera’s default IP address is 192.168.0. 2 and sub mask is 255.255.255.0. To change
IP address, open Network Settings page described later.

If your network uses a DHCP server, an IP address can be assigned automatically from the
DHCP server by enabling DHCP in the Network Settings page described later.

Connecting the Camera to a Personal Computer

1. Connect the network cable to the camera and then turn on the camera’s power.

2. Set the personal computer’s IP address. The camera’s default IP address is 192.168.0.2 and
sub mask is 255.255.255.0.

3. Check that the camera and computer are connected by pinging the IP address you have set. To
do this, start a command prompt (Windows: from the Start Menu, select Program. Then select
Accessories and choose Command Prompt.) Type: Ping 192.168.0.2. If the message “Reply
from…” appears, it means the connection is done.

4. Start Internet Explorer and enter IP address: 192.168.0.2. A login window will appear. Enter the
default user name: admin and password: jvc to log in.

5. Images of the camera can be viewed through Internet Explorer. Before viewing, follow these
steps to enable the display.

a. Enable Cookies as shown below:

8

• In Internet Explorer, click Internet Options on the Tools menu.

• On the Privacy tab, move the setting s slider to Low or Accept All Cookies.

• Click OK.

b. When a proxy server is used, click Internet Options on the Tools menu of

Internet Explorer, select Connect tab, click LAN button, and set proxy server.

c. Change Security in Internet options as shown below:

• On tool menu, click Internet Option.

• Press the Security tab.

• If the camera operates inside the Intranet, click the Intranet icon. If the camera

operates on the Internet, click the Internet icon.

• In Windows 7 only, Click【Tools】è【Internet Options】è【Security 】

Enable Protected Mode (require restarting Internet Explorer) è Unchecked

• Click Custom Level. This will open the Security Settings – Internet Zone
screen.

• Scroll down to the ActiveX controls and plug-ins radio buttons and set as
follows:

【Download signed ActiveX controls】è Prompt (recommended)
【Download unsigned ActiveX controls】è Prompt
【Initialize and script ActiveX not marked as safe for scripting】è Prompt

9

【Automatic prompting for ActiveX controls 】è Enable

【Run ActiveX controls and plug-ins】è Enable
【Script ActiveX controls marked safe for scripting*】è Enable

• Press OK to save the settings. Close all Internet Explorer windows and start a
new window. This will allow the new settings to take effect.

6. Type your setting IP address into the browser.

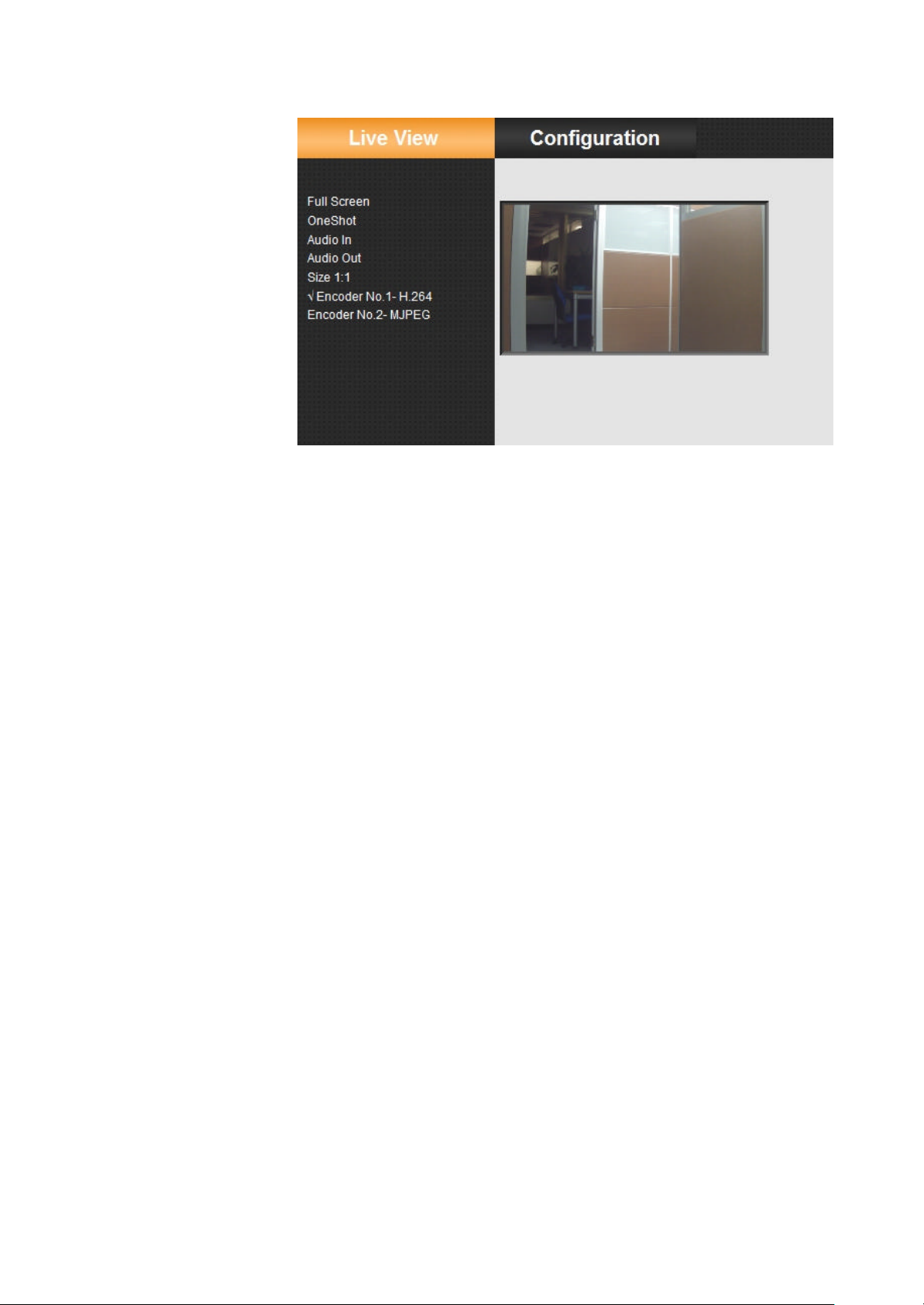

7. Then you should be able to see the camera image screen.

10

Using “IP Finder” to Search Camera’s IP Address

The IP Finder is a tool which helps users to find VN-T16/216 series network cameras in the LAN
which your computer is connected. Please note that IP Finder is only compatible with Windows 7,
windows Vista and Windows XP.

1. Insert the CD-ROM in the CD-ROM drive.

2. Copy the IP Finder’s folder to your computer.

3. Double click the IpFinder.exe in your computer’s IP Finder folder. An IP Camera Finder
window will pop out. The window will display a list of IP cameras which you are using
currently.

4. Press Search to search cameras.

11

2 Notice of Use

• This manual is designed for administrators and users of the network camera. Please read it
carefully before use. All requirements should be followed before using this camera.

• Keep this document for future reference.

• Please make sure the power source is AC24V / PoE. Only connect the camera to this power

system.

• The camera must be installed on a solid mounting surface.

• Keep the camera and other accessories dry.

• We are not responsible for any damage caused by inappropriate use.

• Because the camera controls auto exposure by shutter speed, flicker can be shown by

fluorescent light. To reduce the flicker, please select PAL mod e if the power is 50Hz, or NTSC
mode if the power is 60Hz. (Refer to INSTRUCTIONS “4 Overview of Navigation and
Controls” - “Video Type”)

12

3 Warnings

Installation and maintenance should be performed only by qualified and experienced technicians
to conform to all local codes and to maintain your warranty.

DANGER! AC24V models require the use of CSA Certified/UL Listed Class 2 power adapters to
ensure compliance with electrical safety standards. Power over Ethernet (PoE) should meet the
IEEE 802.3af PoE standard.

4 Dimensions

13

5 Specifications

Operational Specifications

Image device 1/2.7-type Mega -pixel CMOS sensor

Sensitivity Color:0.6 lx, B/W: 0 lx (50% )

Day/Night True D/N

IR-LED Yes (IR Distance 15m)

Auto Gain Control Off/On, selectable

White Balance

Electric Shutter

Noise Reduction Yes

3 Axis Gimbals Yes

Motion detection Yes

Lens Type 1/3-type 3-9mm F:1.2 IR cut filter built-in

BLC Yes

Audio Line in/out

Alarm 1 in / 1 out (Alarm out spec: 0.5A / AC120V max)

ATW (2800K∼8500K) and Manual

PAL:1/25~1/10000 sec
NTSC: 1/30~1/10000 sec

IP Specifications

Video Compression H.264 & MPEG4 & MJPEG

Real time stream:

Video Streaming

1080P H.264 or 720P H.264+D1 or D1+D1
Independent controllable frame rate and

bandwidth. Constant or variable bitrate control

14

Resolution

Image Frame Rate

NTSC: 1080P(1920 x 1080), 720P(1280 x 720),
D1(720 x 480), 4CIF(704 x 480), VGA(640 x 480),
CIF(352 x 240), QVGA(320 x 240)

PAL: 1080P(1920 x 1080), 720P(1280 x 720), D1(720
x 576), 4CIF(704 x 576), VGA(640 x 480), CIF(352 x

288), QVGA(320 x 240)

PAL: Up to 25fps
NTSC: Up to 30fps

Security

Multiple user access levels with password
protection

Users 1 Administrator, 5 Users

Video Access from
Web Browser

Full control of all camera settings available to
administrator

Windows XP or Windows 7 as OS,
Minimum Web
Browsing
Requirements

Internet Explorer Version 6.0-8.0,

CPU: Intel Pentium IV X2 2.4 GHz or equivalent

AMD,

Memory: 1G or above

Supported Protocols

IPv4, HTTP, TCP, RTSP, RTP, ICMP, UDP, IGMP,

RTCP, FTP, DNS, DHCP, ARP

Network interface

RJ-45, 100BASE-TX/10BASE-T,

FULL/HALF/Auto negotiation

Surveillance Protocol ONVIF Compatible (pass compliance test tool)

Onboard Storage SDHC (suggest class 10)

Electrical

Power Supply PoE IEEE 802.3af Class 0, AC24V

Power Consumption PoE 0.15A, AC 24V 800m A

Mechanical

Dimension Ø155mm x 112.7mm

15

Weight 1360g

Connectors

Environmental

Operating
Temperature

Operating Humidity 0% to 90%

Storage Temperature -20°C to 60°C

Power Input: removable terminal block

Network: RJ45 connector

Audio In/out: removable terminal block

Alarm In/out: removable terminal block

-10°C to 50°C

© 2012 JVC KENWOOD Corporation

16
