INSTRUCTIONS

Thank you for purchasing this JVC Monitor.

Model VM-4200

* This monitor does not have the following input terminals—VIDEO A, VIDEO B, and

COMPONENT/RGB B. To input video, S-video, and component signals, you need to install video input unit (IF-C42P1G), which is separately purchased. Ask your dealer to install the video input unit.

Contents

Page

Safety Precautions .................................................... 2

Parts Identification .................................................... 4

• Remote Control ................................................... 4

• Monitor: Front View ............................................. 5

• Monitor: Rear Views ............................................ 6

Preparations .............................................................. 8

• Checking the Accessories ................................... 8

• Installing the Batteries ......................................... 8

• Attaching the Ferrite Core ................................... 8

Installation ................................................................. 9

• Precautions ......................................................... 9

Connections ............................................................ 10

• Precautions ....................................................... 10

• Available Signals ............................................... 10

• Connection Diagrams ....................................... 11

Basic Operations ..................................................... 14

• Daily Operations ............................................... 14

• Changing the Aspect Ratio ............................... 15

Video Adjustments .................................................. 16

• Adjusting the Picture Quality ............................. 16

• Adjusting the Screen Size and Position ............ 17

• Adjusting the Color Temperature....................... 19

• Adjusting the White Balance ............................. 19

• Changing the Aspect Ratio ............................... 21

• Setting the Receivable Signal Types ................. 21

• Setting the COMPONENT/RGB B Input ........... 22

• Changing the Resistance of the RGB B Input

Terminals........................................................... 23

•

Resetting the Function Selection Menu Settings ..

Before using the monitor, read this manual carefully so that you know how to use the Monitor correctly. Refer to this manual whenever questions or problems about operation arise. Be sure to read and observe the safety precautions. Keep this manual where the user can see it easily. * Installation and removal require special expertise.

Consult your product dealer for details.

Other Convenient Functions ................................... 24

• Showing On-screen Display .............................. 24

• Confirming the Use Time .................................. 25

• Showing the On-screen When Changing

the Input Mode .................................................. 25

• Prohibiting the Monitor’s Button Operations...... 26

• Setting the Remote-Controllable Input .............. 27

• Setting the High-Definition Signal Types ........... 27

• Setting the Clock and the Power On/Off

Timer ................................................................. 28

• Using the Pixel Shift Function ........................... 29

• Using the Power Save Function ........................ 29

• Preventing the Afterimage Effect ...................... 30

• Refreshing the Screen ...................................... 31

• Checking the Timer Battery............................... 32

• Resetting All the Setup Menu Settings ............. 33

• Resetting All the Menu Settings ........................ 33

Menu Classifications ............................................... 34

• Main Menu ........................................................ 34

• Setup Menu ....................................................... 36

Troubleshooting....................................................... 38

• Self-diagnostic Indication .................................. 39

Specifications .......................................................... 40

Page

Safety Precautions

EUROPE EMC STANDARD NOTICE

Warning: This is a class A product. In a domestic environment this product may cause radio interference in which case the

user may be required to take adequate measure.

IMPORTANT INFORMATION

WARNING:TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO

OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE

APPARATUS.

IMPORTANT SAFEGUARDS

Electrical energy can perform many useful functions. This unit has been engineered and manufactured to assure your personal safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order not to defeat the safeguards incorporated into this product, observe the following basic rules for its installation, use and service. Please read these “Important Safeguards” carefully before use.

– All the safety and operating instructions should be read before the product is operated.

– The safety and operating instructions should be retained for future reference.

– All warnings on the product and in the operating instructions should be adhered to.

– All operating instructions should be followed.

– Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp

cloth for cleaning.

– Use a vacuum cleaner to get rid of the dust around the intakes (all the

openings) on the rear. If a vacuum is not available, use a cloth and wipe it off. Failure to do so will cause internal heat buildup and, therefore, cause damage to the product.

– Do not use attachments not recommended by the product manufacturer as they

may be hazardous.

– Do not use this product near water. Do not use immediately after moving from a

low temperature to high temperature, as this causes condensation, which may result in fire, electric shock, or other hazards.

– Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious injury to a child or

adult, and serious damage to the product. The product should be mounted according to the manufacturer’s instructions, and should use a mount recommended by the manufacturer.

– When the product is used on a cart, care should be taken to avoid quick stops, excessive force, and

uneven surfaces which may cause the product and cart to overturn, damaging equipment or causing possible injury to the operator.

– Slots and openings in the cabinet are provided for ventilation. These ensure reliable operation of the

product and protect it from overheating. These openings must not be blocked or covered. (The openings should never be blocked by placing the product on bed, sofa, rug, or similar surface. It should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided and the manufacturer’s instructions have been adhered to.)

For proper ventilation, separate the product from other equipment, which may prevent ventilation and keep distance more than 10 cm.

– This product should be operated only with the type of power source indicated on the label. If you are not sure of the

type of power supply to your home, consult your product dealer or local power company.

– Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or

against them. Pay particular attention to cords at doors, plugs, receptacles, and the point where they exit from the product.

– For added protection of this product during a lightning storm, or when it is left unattended and unused for long periods

of time, unplug it from the wall outlet and disconnect the cable system. This will prevent damage to the product due to lightning and power line surges.

– Do not overload wall outlets, extension cords, or convenience receptacles on other equipment as this can result in a

risk of fire or electric shock.

– Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short

out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

– Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltages

and other hazards. Refer all service to qualified service personnel.

– Unplug this product from the wall outlet and refer service to qualified service personnel under the following conditions:

a) When the power supply cord or plug is damaged.

b) If liquid has been spilled, or objects have fallen on the product.

c) If the product has been exposed to rain or water.

d) If the product operated normally by following the operating instructions. Adjust only those controls that are covered

by the Operation Manual, as an improper adjustment of controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.

e) If the product has been dropped or damaged in any way.

f) When the product exhibits a distinct change in performance – this indicates a need for service.

– When replacement parts are required, be sure the service technician has used replacement parts specified by the

manufacturer or with same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

– Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to

determine that the product is in proper operating condition.

– The product should be placed more than 30 cm away from heat sources such as radiators, heat registers, stoves, and

other products (including amplifiers) that produce heat.

– When connecting other products such as VCR’s, and personal computers, you should turn off the power of this product

for protection against electric shock.

– Do not place combustibles behind the cooling fan. For example, cloth, paper, matches, aerosol cans or gas lighters that

present special hazards when over heated.

– Use only the accessory cord designed for this product to prevent shock.

– Do not touch the handles on the rear soon after many hours of continuous use. They are so hot and will cause a burn on

the hand. If you need to touch the handles, for example, to move the product, wait until the handles are cooled enough.

Option terminal: This terminal is intended exclusively to be used to drive the fan motor.

–

Do not connect any plugs to the terminal other than JVC’s recommended optional parts.

Polarity of terminal

POWER CONNECTION

The power supply voltage rating of this product is AC 220 – 240 V.

Parts Identification

VIDEO

DISPLAY

OFF POWER

RM–C579 REMOTE CONTROL UNIT

ASPECT

MUTING

MENU/EXIT

VOLUME

COMPO.

/(RGB B)

B RGB A

INPUT SELECT

VIDEO

DISPLAY

OFF POWER

RM–C579 REMOTE CONTROL UNIT

ASPECT

MUTING

MENU/EXIT

VOLUME

COMPO.

/(RGB B)

B RGB A

INPUT SELECT

REGULAR FULL

ZOOMPANORAMIC

Remote Control

1 Remote control cable jack (page 11)

Connect the remote control cable (not supplied) when using this remote control as a wired remote control.

2 Remote signal transmission window

3 POWER ON/OFF button (page 14)

Use this button to turn on/off the Monitor.

4 DISPLAY button (page 14)

Use this button to display the input terminal, color system (for VIDEO A or VIDEO B input), scan system (for COMPONENT input) and horizontal/vertical frequency (for RGB A and RGB B input). Pressing the button again will make the display disappear.

5 INPUT SELECT (VIDEO A, VIDEO B, COMPO./(RGB B) and

RGB A) buttons (page 14)

Use these buttons to switch between inputs. To select the COMPONENT or RGB B input, you have to set “RGB/COMPO.” correctly on the menu (see page 22).

• Only RGB A input can be used without the video input unit. To reproduce images through the other inputs, you need to install video input unit (IF-C42P1G), which is separately purchased.

6 MUTING button (page 14)

7 2 / 3 / 5 / ∞ buttons

8 MENU/EXIT button

9 ASPECT button (page 15)

p VOLUME + / – buttons (page 14)

Use this button to turn off the volume immediately. Pressing the button again will resume the previous volume level.

Use these buttons to select menu items or make adjustments.

Use this button to display or erase menus. While a sub-menu is displayed, pressing this button will move you one screen back to the preceding menu.

Use this button to switch between aspect ratios. Each time you press the button, the aspect ratio changes as follows:

Use these buttons to adjust the volume level.

• The VOLUME – button can be also used to display the Setup Menu (see page 25).

Monitor: Front View

MENU INPUT

3456

Bottom View

1 Remote sensor/power lamp

Point the front end of the wireless remote control toward here. When the Monitor is turned on, the power lamp glows green. It glows orange in standby mode.

2 Self-diagnostic lamps (page 39)

These lamps light/flash if something abnormal occurs with the Monitor.

3 2 / 3 / 5 / ∞ buttons

Use these buttons to select menu items and to make adjustments.

• When no menu is displayed, you can use the 2 / 3

buttons to adjust the volume level.

4 MENU button

Use this button to display or erase menus. While a sub-menu is displayed, pressing this button will move you one screen back to the preceding menu.

5 INPUT button (page 14)

Use this button to switch between inputs. To select the COMPONENT or RGB B input, you have to set “RGB/COMPO.” correctly on the menu (see page 22).

• Only RGB A input can be used without the video input

unit. To reproduce images through the other inputs, you need to install video input unit (IF-C42P1G), which is separately purchased.

button (page 14)

Use this button to turn on and off the Monitor.

Parts Identification (Continued)

AC INAUDIO

OUT

RGB A

AUDIO

REMOTE

RS-232C

WIRED

MAKE

EXTERNAL

(

SPEAKER OUT

INTERNAL

POWER

OPTION

1 2 3 4 5

Monitor: Rear Views

1 RGB A input terminals (page 11)

• D-sub, 15 pin

Connect to the video output terminal of a personal computer.

• AUDIO IN (stereo mini jack)

Connect to the audio output terminal of a personal computer.

2 REMOTE terminals (pages 11 and 13)

• RS-232C (D-sub, 9 pin)

Connect to the RS-232C terminal of a personal computer. For the control method using this terminal, consult an authorized JVC dealer.

• MAKE terminal (mini DIN 4pin)

Connect an external control unit. (See page 13.)

• WIRED terminal (stereo mini jack)

Connect a wired remote control unit to this terminal.

Note:

• When the above three terminals are used at the same time, transmitted commands through the MAKE terminal have priority over those through the other terminals.

3 AUDIO OUT terminals (pin jack) (page 11)

Connect to the audio input terminals of external equipment such as an amplifier.

4 AC IN terminal (page 11)

5 POWER switch (page 14)

Connect the supplied power cord to this terminal.

Setting this switch to “| (on)” will put the Monitor into standby mode, allowing you to turn on and off the power

using the POWER or control or on the Monitor.

button either on the remote

6 OPTION terminal

This terminal cannot be used.

7 SPEAKER OUT L/R terminals (page 11)

Connect external speakers, such as unique JVC speakers (not supplied), etc.

8 INTERNAL/EXTERNAL (built-in speaker/external

speaker) selecting switch (page 11)

INTERNAL: To use built-in speakers. EXTERNAL: To use external speakers.

9 p q

VIDEO A

VIDEO

IN OUT

AUDIO

L/MONO

VIDEO B

VIDEO

IN Y/C IN

COMPONENT/RGB B

VIDEO

Y/G Pb/B Pr/R HD/Cs VD

AUDIO

L/MONO

AUDIO

L/MONO

Note:

* The terminals on this page are optional. To input

video, S-video, and component signals, you need to install video input unit (IF-C42P1G), which is separately purchased.

9 VIDEO A terminals (page 12)

• AUDIO (L/MONO, R) input terminals (pin jack)

Connect these terminals to the audio input terminals of a VCR, etc.

• VIDEO IN terminal (BNC)

Connect this terminal to the video output terminal of a VCR, etc.

• VIDEO OUT terminal (BNC)

Connect this terminal to the video input terminal of another Monitor.

Note:

• Since the video output terminals on this Monitor are

loop-through terminals, the devices connected to this video output terminal should be correctly terminated. Otherwise, pictures become abnormally bright or the Monitor screen gets affected abnormally.

p VIDEO B terminals (page 12)

• AUDIO (L/MONO, R) input terminals (pin jack)

Connect these terminals to the audio output terminals of a VCR, etc.

• Y/C (S video) IN terminal (mini DIN 4pin)

Connect this terminal to the S-video output terminal of a VCR, etc.

• VIDEO IN terminal (pin jack)

Connect this terminal to the video output terminal of a VCR, etc.

Note:

• When both the video and S-video terminals are

connected, the S-video terminal will have priority.

q COMPONENT/RGB B input terminals (page 12)

• AUDIO (L/MONO, R) input terminals (pin jack)

Connect these terminals to the audio output terminals of the other equipment.

• G, B, R, HD/Cs, VD (VIDEO) input terminals (BNC)

Connect these terminals to the following output terminals of a personal computer or other equipment:

– Analog RGB signal output terminals – Horizontal sync (HD) signal or composite (Cs) signal

output terminal

– Vertical sync (VD) signal output terminal

Notes:

• External sync signals are automatically detected when they come in.

• When both horizontal (HD)/vertical (VD) sync and composite (Cs) sync are connected, HD/VD sync signals will be used.

• Y, Pb, Pr (VIDEO) input terminals (BNC)

Connect these terminals to the component signal output terminals of NTSC or high-vision equipment.

Note:

• When these terminals are used as the component terminals (Y, Pb, Pr)—see “Setting the COMPONENT/ RGB B Input” on page 22, external sync signals (HD/Cs, VD) cannot be used.

Preparations

Checking the Accessories

The following accessories are included with the Monitor. Check for them. If any item is missing, please contact the dealer where you purchased the Monitor.

• Remote control (RM-C579) x 1

• Power cord x 2 (Use the one matching the wall outlet.)

• Batteries (AA/R6P) x 2

• Ferrite core x 1

Installing the Batteries

Put the batteries in the remote control as follows. If the remote control has become erratic in operation, change the batteries.

Remove the back cover.

While pushing the release lever on the cover, remove the cover in the direction of the arrow.

Place the batteries.

Put the two supplied batteries (AA/R6P), noting the ª and · markings, as shown.

Replace the back cover as illustrated.

Make sure the release lever on the cover is locked in place correctly.

Precautions for using batteries

If batteries are used improperly, the liquid could leak out, causing a fire, injury, etc. or dirtying the vicinity. Take notice of the following:

• Do not mix old and new batteries.

• Do not mix different types of battery as different types may have different

characteristics.

• Place the batteries according to the ª and · markings indicated on the battery

compartment.

• When installing the batteries, insert the · end first to avoid a short circuit.

• Use only the specified batteries.

• When you are not using the remote control for a long time, remove the batteries.

• When the batteries have reached the end of their life, replace them with new ones

immediately. Otherwise, the liquid may leak out, or malfunction may be caused by the leaked liquid. If the leaked liquid contacts your skin, wipe off the liquid with a soft cloth. If the affected skin is left as is, you may get a rough skin.

• Do not throw the batteries into fire or try recharging them.

• The service life of batteries is six months to one year for normal use. The supplied

batteries are only for checking the operation and their life may be shorter. When the remote control operation becomes erratic, replace with new batteries.

The instruction below applies only to the use in Holland.

Gebruike batterijen:

Attaching the Ferrite Core

Attach the ferrite core to the power cord. Using the power cord without the ferrite core may lead to noise (interference). Open the ferrite core, insert the power cord and close the ferrite core. Attach the ferrite core to the AC IN end of the power cord.

Ferrite core *

Power cord

Plug to AC IN

Installation

200

MENUINPUT

100

200

150

MENUINPUT

150

200

Precautions

• When installing the Monitor, be sure to use a dedicated Stand Unit, Wall Mounting Unit, or Monitor Hanger Unit, depending on a particular case. Ask your dealer for installation.

• When installing the Monitor, refer also to the user manual for each option to use. Do not tilt the Monitor rightward, leftward, or backward.

• Route the power cord and connection cables along wall or floor corners to avoid walking on them.

• For good heat dissipation, try to leave the following distances of space (minimum) around the Monitor.

• The ambient temperature of the installation place should be within the range of 0˚C to 40˚C (slightly variable depending on

ambient conditions for installation.)

• When installing the Monitor in a place, such as near the ceiling, the remote control may not work correctly because of possible effects from the surroundings. If this happens, use the remote control as a wired remote control or move the Monitor where it is free from these effects.

When installing the Monitor on a stand

Front View

Side View

Wall

Unit: mm

Take measures against the Monitor from overturning:

To protect against abnormal events such as earthquakes and to prevent unexpected accidents, take appropriate measures for preventing the Monitor from overturning; should it overturn, this could lead to personal injury. For detailed information, refer to the manual supplied for the stand.

When mounting the Monitor on the wall

Front View

Side View

When hanging the Monitor from the ceiling

Side View

Unit: mm

Notes:

• Do not allow the same image (pattern) to be continuously displayed on the screen for a long time; otherwise, the area on the screen corresponding to the image may vary in brightness, leaving an afterimage on the screen. To reduce the afterimage, you can use the Refresh function (see page 31).

• The Monitor is manufactured using very high-precision technology, allowing for more than 99.99% active pixels, however, be aware that only a slight number of pixels may be deficient or lit at all times.

• Do not install the Monitor in such a way that the Monitor and other AV equipment affect each other adversely. (For example, if a disturbed image or noise due to electromagnetic interference occurs, or if the infrared remote control malfunctions, change the installation place.)

Unit: mm

Connections

Precautions

• Before making connections, turn off all the equipment.

• Plugs should be firmly inserted; poor connection could cause noise.

• To unplug a cord, be sure to grasp its plug and pull it out.

• Connect the power cord after having finished all other connections.

• Refer also to the user manual of each piece of equipment.

Available Signals

Video signals

The following signals can be input to this Monitor:

• VIDEO A and VIDEO B terminals accept — PAL, PAL60, NTSC, NTSC4. 43, and SECAM signals.

• COMPONENT/RGB B terminals accept — 480i, 576i, 480p, 576p, 720/60p, 1080/50i, and 1080/60i (1035/60i) signals. You

need to set “RGB/COMPO.” to “COMPO.” on the menu (see page 21).

(To input the above signals, you need to install the video input unit (IF-C42P1G), which is separately purchased.)

Computer signals (Preset)

This Monitor has 18 preset video modes for the most popular industrial standard, and the signals of the following image resolutions can be input to the RGB input terminals.

Signal name Scan system

No.

1 PC98 640 400 24.8 56.4 Non-interlace

2 VGA400-70 640 400 31.5 70.1 Non-interlace

3 VGA480-60 640 480 31.5 59.9 Non-interlace

4 VGA480-72 640 480 31.7 72.8 Non-interlace

5 VGA480-75 640 480 37.5 75.0 Non-interlace

6 WVGA-60 852 480 31.7 60.3 Non-interlace

7 MAC13” 640 480 35.0 66.7 Non-interlace

8 SVGA-56 800 600 35.2 56.3 Non-interlace

9 SVGA-60 800 600 37.9 60.3 Non-interlace

10 SVGA-72 800 600 48.1 72.2 Non-interlace

11 SVGA-75 800 600 46.9 75.0 Non-interlace

12 XGA-60 1024 768 48.4 60.0 Non-interlace

13 XGA-70 1024 768 56.5 70.1 Non-interlace

14 XGA-75 1024 768 60.0 75.0 Non-interlace

15 XGA-85 1024 768 68.7 85.0 Non-interlace

16 XGA+-75 1152 864 67.5 75.0 Non-interlace

Screen resolution

Horizontal

Vertical

Horizontal

Frequency (kHz)

Vertical

Frequency (Hz)

17 RGB15K-60 ——15.7 59.9 Interlace

18 RGB15K-50 ——15.6 50.0 Interlace

Notes:

• When a signal other than listed above is input, a part of the screen may become void or an unnecessary picture may appear.

• Signals, though they are within the acceptable range of frequencies, may not be displayed normally, depending on the signal

type.

• Depending on the connected equipment, the Monitor may not be compatible with composite sync (Cs) or G on sync signals.

• When a preset mode signal is input, the vertical frequency displayed on the screen will have an “*” shown at its right top

position.

• When the No. 6 signal is input, change the aspect ratio to “FULL” with the ASPECT button (page 15) on the remote control or from the “FUNCTION SELECT” menu (page 21).

• When No. 8 to No. 16 signals are input, thin lines may become obscure for their signal frequencies are higher than the screen resolution.

VIDEO

DISPLAY

OFF POWER

RM–C579REMOTE CONTROL UNIT

ASPECT

MUTING

MENU/EXIT

VOLUME

COMPO.

/(RGB B)

B RGB A

INPUT SELECT

❊

AC INAUDIO

OUT

RGB A

AUDIO

REMOTE

RS-232C

WIRED

MAKE

POWER

ª·

Connection Diagrams

Typical connections

Personal computer

(used as the playback source)

To monitor output

Personal computer

(used to control the Monitor)

To audio output

To RS-232C

❊ For connection, see page 13.

Remote control

(supplied)

Amplifier, etc.

To audio input

Cable with stereo mini jacks

(not supplied)

Power cord (supplied)

To a wall outlet

Ferrite core (supplied)

• Make sure to attach the ferrite core to the power cord. See also page 8.

External speaker connection

External speakers

(Ex. TS-C421SPG)

To speaker input terminalsTo speaker input terminals

When using external speakers,

How to connect the cords

Note:

It is recommended to use the speaker unit—TS-C421SPG (not supplied) as the external speakers. You can also connect any speakers of the following specifications:

• Impedance: Between 6 Ω and 8 Ω

• Power handling capacity: More than 3 W

Caution:

• Do not short-circuit the 9 and ( speaker cords each other. (Refer

also to the instructions supplied with the speaker unit when connecting speakers.)

set this to EXTERNAL.

VIDEO A

VIDEO

IN OUT

AUDIO

L/MONO

VIDEO B

AUDIO

L/MONO

VIDEO

IN Y/C IN

COMPONENT/RGB B

VIDEO

Y/G Pb/B Pr/R HD/Cs VD

AUDIO

L/MONO

Connections (Continued)

AV connections

(used as the playback source)

The terminals on this page are optional. To input video, S-video, and component signals, you need to install video input unit (IF-C42P1G), which is separately purchased.

VCR 1

To audio output

To video output

To audio output

VCR 2

(used as the playback source)

To video output

To S-video output

To audio output

DVD player, etc.

(used as the playback source)

To video output

When connecting another PC to the COMPONENT/RGB B terminals, set the “RGB/COMPO.” setting to “RGB” (see page 22).

To audio output

To G output

To B output

Personal computer

(used as the playback source)

Notes:

• You can connect another VCR or Monitor to the VIDEO A OUT terminal. However, when connecting a VCR to the VIDEO A terminals, do not connect both IN and OUT terminals to the same VCR.

• When connecting a VCR to the VIDEO B terminals, you can use either the video or S-video terminals. If the both terminals are used, S-video terminal will have priority.

To R output

To HD/Cs output

To VD output

Connecting an external control unit

When connecting the external control unit to the MAKE terminal, you can operate the following functions through the MAKE terminal;

• Turn on or off the Monitor.

Preparation: The POWER switch on the rear must be set to “| (on)” (so that the Monitor is in standby mode).

• Select the input. Preparation: “REMOTE SWITCH” should be set correctly to select your desired input (see page 27).

Notes:

• There is no remote control on/off switch. When a plug is inserted to the MAKE terminal, remote control through the external control unit is automatically activated.

• When the other REMOTE terminals are used at the same time, transmitted commands through the MAKE terminal have priority over those through the other terminals.

• MAKE terminal

Pin number Signal name

1 GND

2 GND

3 SW2

4 SW1

5 SW DET

6 GND

IMPORTANT:

External control unit is not commercially available in the market. When you need it, consult your dealer.

Signals

transmitted

○○○○

= = =

• External control unit

TTL level

H: Power Off L: Power On

H: Input A* L: Input B*

H: Not connected L: Connected

* Input A and Input B will be determined by the “REMOTE

SWITCH” setting.

Basic Operations

VIDEO A VIDEO B

RGB A COMPONENT or RGB B

VIDEO A NTSC

: 10

VOLUME

–

POWER

VIDEO

DISPLAY

OFF POWER

RM–C579 REMOTE CONTROL UNIT

ASPECT

MUTING

MENU/EXIT

VOLUME

COMPO.

/(RGB B)

B RGB A

INPUT SELECT

MUTING

DISPLAY

Rear View

Daily Operations

Turn on the main power.

Set POWER on the back of the Monitor to “| (on)”. The POWER lamp on the upper left of the front panel glows orange.

Turn on the power.

Press POWER ON on the remote control to turn the power on. The POWER lamp changes to glow green.

• You can also use the (lower right) to turn on the Monitor.

Select an input.

• You can select only RGB A without the video input unit (IF-C42P1G).*

Select the desired input by pressing INPUT SELECT (VIDEO A, VIDEO B, COMPO./(RGB B) and RGB A).

• You can also select the input by pressing INPUT on the Monitor. Each time you press the button, the input mode changes in sequence.

button on the front panel

Ex. When selecting “VIDEO A” input

Input selected

Input video signal

Note:

• To select “COMPONENT” or “RGB B,” you need to set the “RGB/COMPO.” setting correctly.

Adjust the volume.

Note:

• While no menu is displayed, you can adjust the volume by pressing 2 / 3 on the Monitor.

To turn off the volume immediately

Press MUTING.

“MUTING ON” is displayed, and the sound goes out. Pressing the button again resumes the previous volume level.

To make the screen indication appear

Press DISPLAY. The types of input and signal are indicated on the screen for about 3 seconds. You can also make the screen indication appear using menus (page 24).

* You need to install the video input unit (IF-C42P1G), which

is separately purchased, to select “VIDEO A,” “VIDEO B,” and “COMPONENT (or RGB B)” as the input.

Changing the Aspect Ratio

REGULAR FULL

ZOOMPANORAMIC

VIDEO

DISPLAY

OFF POWER

RM–C579 REMOTE CONTROL UNIT

ASPECT

MUTING

MENU/EXIT

VOLUME

COMPO.

/(RGB B)

B RGB A

INPUT SELECT

ASPECT

With this Monitor, you can select among three types of wide screens (FULL, ZOOM, and PANORAMIC) in addition to the REGULAR screen of conventional 4:3 aspect ratio.

Press ASPECT to select the screen size.

Each time you press the button, the screen size changes as follows:

REGULAR: Displays at conventional 4:3 aspect ratio.

FULL: REGULAR size display is enlarged

horizontally.

Precautions for using the screen mode switching function

• This Monitor features a screen mode switching (aspect ratio change) function. If you select a mode different in aspect ratio from software such as TV programs, the picture may look different from original picture. Be aware of this point when you are selecting a screen mode.

• If you select a wide screen mode while viewing conventional video programs of the aspect ratio 4:3, some portions (edges) of the original picture will be cut off, or deformed. To enjoy the original picture as it is, select

“REGULAR” while viewing such programs.

• If you place the Monitor in a tea room, hotel, etc. for

business purposes or public viewing and modify the picture by using the screen mode switching (aspect ratio change) function, this could violate the copyright protected by the copyright law, which requires your special attention.

• If you make the screen very bright and watch programs selecting “REGULAR,” for a long period of time, the Monitor screen may happen to be burned in. If this occurs, watching programs using a wide screen mode for a while will reduce the burn-in gradually.

ZOOM: REGULAR size display is enlarged

vertically and horizontally at the same ratio.

PANORAMIC: REGULAR size display is enlarged

horizontally to the extent that the picture does not look abnormally.

Notes:

• When one of the following signals is being input, you cannot select the aspect ratio you want.

■ 1080/50i, 1080/60i, 1035/60i or 720/60p signal through the

COMPONENT/RGB B input terminals

You can only select FULL.

■ When any signal other than RGB15K-60 and RGB15K-50

through the RGB A or COMPONENT/RGB B input terminals

You can select only REGULAR and FULL.

• The aspect ratio can also be changed on the Function Selection Menu (page 21).

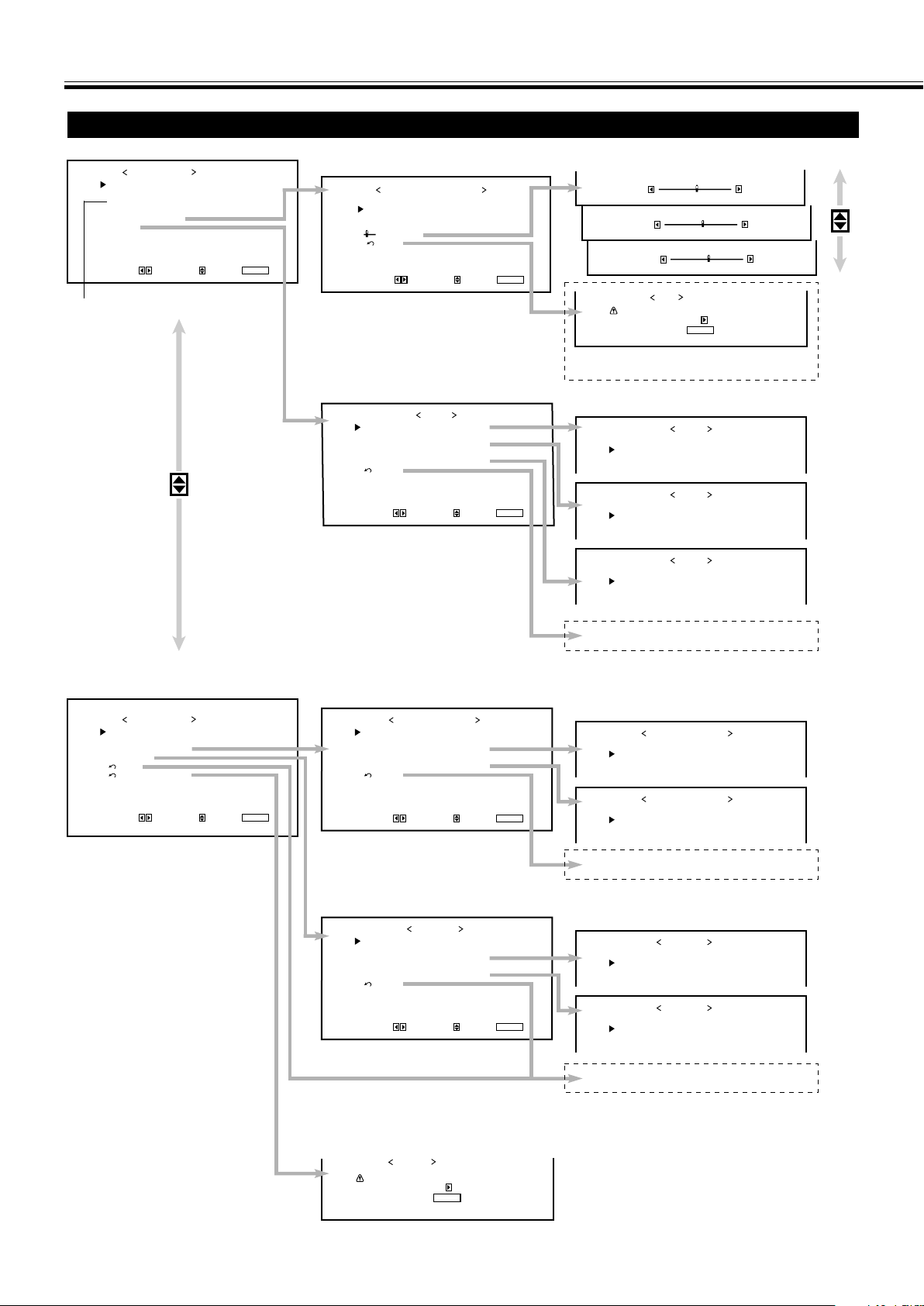

PICTURE ADJ. SIZE/POSITION ADJ. FUNCTION SELECT STATUS DISPLAY

ENTER:

MAIN MENU

SELECT:

EXIT:

Video Adjustments

CONTRAST BRIGHT CHROMA PHASE SHARPNESS sub menu reset

ADJUST:

PICTURE ADJ.

SELECT:

EXIT:

VIDEO A

: +01 : : –02 : :

2 / 3 5 /

VIDEO

DISPLAY

OFF POWER

RM–C579 REMOTE CONTROL UNIT

ASPECT

MUTING

MENU/EXIT

VOLUME

COMPO.

/(RGB B)

B RGB A

INPUT SELECT

MENU/EXIT

MENU INPUT

MENUINPUT

2 / 3

5 /

For video adjustments, use menus. You can use the buttons either on the remote control or on Monitor for menu operations.

• Refer also to “Menu Classifications” on pages 34 and 36.

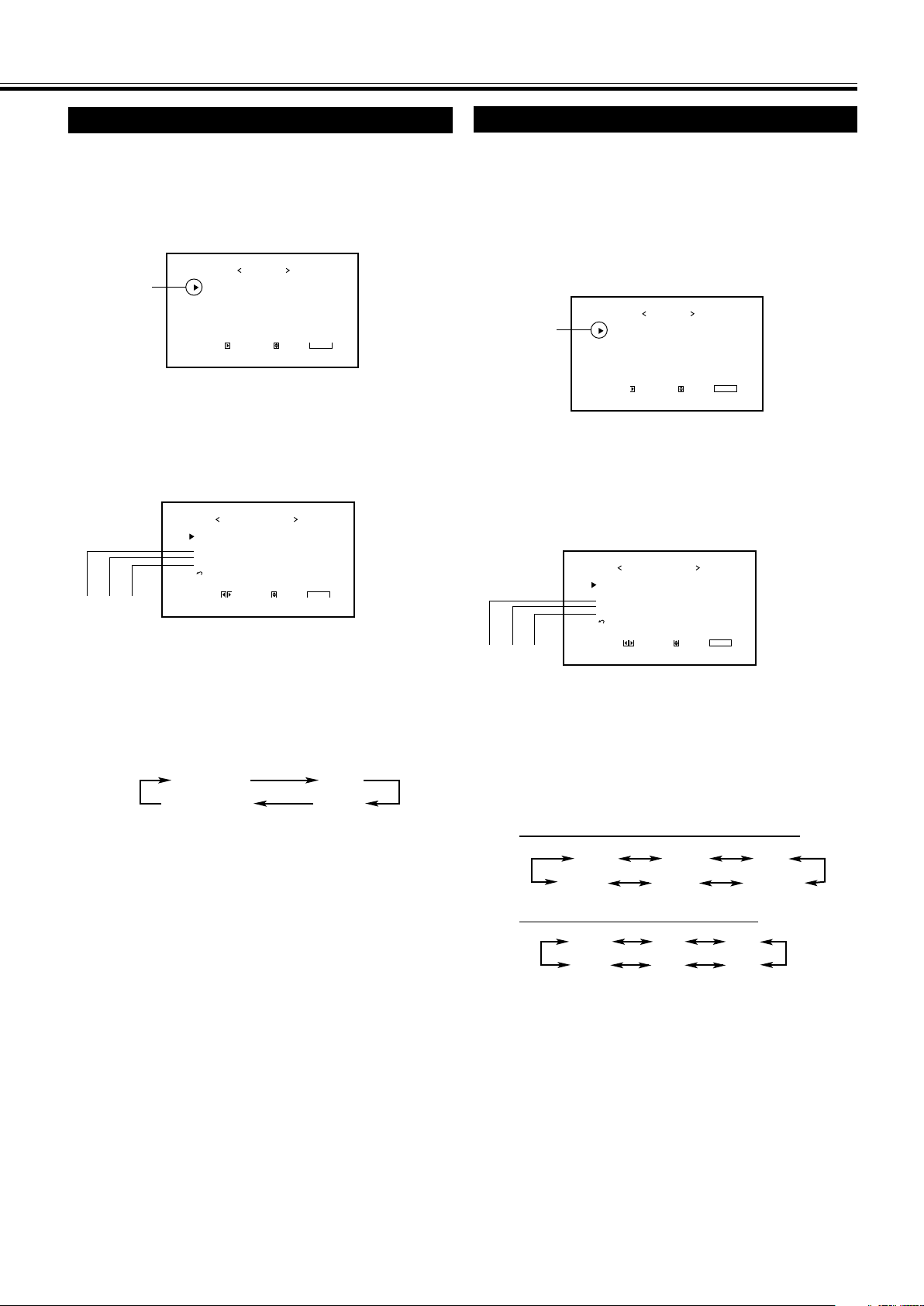

Adjusting the Picture Quality

Picture quality can be set for each input mode.

Press MENU/EXIT (or MENU on the Monitor) to display the Main Menu.

Cursor (3)

Press 5/∞ to move the cursor (3) to “PICTURE ADJ.”

Press 3 to display the Picture Adjustment Menu.

Press 5/∞ to move the cursor (3) to the item you want to adjust.

Item Adjustment Standard

range (Reset)

CONTRAST –20 to +20 +10

BRIGHT (brightness) –20 to +20 0

CHROMA*

PHASE*

–20 to +20 0

SHARPNESS –10 to +10 0

sub menu See “To make an adjustment

while viewing the adjustment bar” on the next page.

reset See “To reset the adjustments” on

the next page.

Adjustable when viewing the NTSC, PAL or SECAM

signal, or component signal.

*2Adjustable when viewing the NTSC signal or

component signals.

Press 2/3 to make adjustments.

Press MENU/EXIT (or MENU on the Monitor) twice to exit from the menu operations.

To make an adjustment while viewing the adjustment

CONTRAST BRIGHT

PHASESHARPNESS

CHROMA

Are you sure? "YES"

then key.

"NO" then key.

reset

–

:+01

CONTRAST

PICTURE ADJ. SIZE/POSITION ADJ. FUNCTION SELECT STATUS DISPLAY

ENTER:

MAIN MENU

SELECT:

EXIT:

H SIZE H POSITION V SIZE V POSITION DOT CLOCK CLOCK PHASE sub menu reset

ADJUST:

SIZE/POSITION ADJ.

SELECT:

EXIT:

: +01 : : –02 : : :

bar

After step 3 on page 16, proceed as follows:

1 Press 5/∞ to move the cursor (3) to “sub menu.” 2 Press 3 to display the Sub Menu.

The Sub Menu for CONTRAST appears on the screen.

Press 3 to display the Size/Position Adjustment Menu.

3 Press 5/∞ to select the Sub Menu you want to adjust.

Each time you press the button, the Sub Menu changes as follows:

4 Press 2/3 to adjust the selected item. 5 Repeat steps 3 and 4 to adjust the other items. 6 Press MENU/EXIT (or MENU on the Monitor) three times

to exit from the menu operations.

To reset the adjustments

After step 3 on page 16, proceed as follows:

1 Press 5/∞ to move the cursor (3) to “reset.” 2 Press 3.

The confirmation screen appears.

3 Press 3 again to reset the adjustments.

To cancel the reset, press MENU/EXIT (or MENU on the

Monitor).

Adjusting the Screen Size and Position

The screen size and position can be adjusted. Adjusted settings can be stored for each signal type; therefore, when the same signal comes in, the stored settings are recalled.

• When adjusting the size, the size cannot be adjusted proportionally, but can be enlarged rightward (or downward) only and reduced leftward (or upward) only. Therefore, it is necessary to adjust both the size and position alternately to adjust to the appropriate size.

Press MENU/EXIT (or MENU on the Monitor) to display the Main Menu.

* Appearing and being adjustable only when you use RGB A or

RGB B input.

Press 5/∞ to move the cursor (3) to the item you want to adjust.

Item Adjustment range

H (horizontal) SIZE*1–40 to +40

H POSITION*

V (vertical) SIZE*

V POSITION*

DOT CLOCK*

CLOCK PHASE*

sub menu See “To make an adjustment

reset See “To reset the adjustments” on

Size and position adjustments are so related that if one

is adjusted much, the other’s adjustable range will be reduced.

DOT CLOCK is the function to adjust the pixel

sampling number of the A/D converter to the resolution (the vertical pixel number) of the input signal. CLOCK PHASE is the function to adjust the sampling timing (phase) to the phase of the input signal. You can use the two functions to reduce flickering and blurring on the screen when using the RGB A or RGB B input.

Press 2/3 to adjust the selected item.

Varies depending on other settings

–40 to +40

Varies depending on other settings

–10 to +10

–20 to +20

while viewing the adjustment bar” on the next page.

the next page.

Cursor (3)

Press 5/∞ to move the cursor (3) to “SIZE/POSITION ADJ.”

Note:

• During size and position adjustments, the Monitor screen may be distorted. This is normal, but not a malfunction of the Monitor.

Press MENU/EXIT (or MENU on the Monitor) twice to exit from the menu operations.

(To be continued on the next page)

Video Adjustments (Continued)

:+01

H SIZE

Are you sure? "YES"

then key.

"NO" then key.

reset

H SIZE H POSITION

V POSITIONCLOCK PHASE

V SIZE

DOT CLOCK

2 / 3 5 /

VIDEO

DISPLAY

OFF POWER

RM–C579 REMOTE CONTROL UNIT

ASPECT

MUTING

MENU/EXIT

VOLUME

COMPO.

/(RGB B)

B RGB A

INPUT SELECT

MENU/EXIT

MENU INPUT

MENUINPUT

2 / 3

5 /

To make an adjustment while viewing the adjustment bar

After step 3 on page 17, proceed as follows:

1 Press 5/∞ to move the cursor (3) to “sub menu.” 2 Press 3 to display the Sub Menu.

The Sub Menu for H SIZE appears on the screen.

3 Press 5/∞ to select the Sub Menu you want to adjust.

Each time you press the button, the Sub Menu changes as follows:

4 Press 2/3 to adjust the selected item. 5 Repeat steps 3 and 4 to adjust the other items. 6 Press MENU/EXIT (or MENU on the Monitor) three times

to exit from the menu operations.

To reset the adjustments

After step 3 on page 17, proceed as follows:

1 Press 5/∞ to move the cursor (3) to “reset.” 2 Press 3.

The confirmation screen appears.

3 Press 3 again to reset the adjustments.

To cancel the reset, press MENU/EXIT (or MENU on the

Monitor).

Note:

• Adjustment values for both horizontal and vertical sizes of the screen are so related that if one is adjusted up to near the maximum value, the attainable value of the other will be decreased.

Adjusting the Color Temperature

PICTURE ADJ. SIZE/POSITION ADJ. FUNCTION SELECT STATUS DISPLAY

ENTER:

MAIN MENU

SELECT:

EXIT:

COLOR TEMP. ASPECT SIGNAL MODE RGB/COMPO. SYNC TERM. reset

FUNCTION SELECT

ADJUST:

SELECT:

EXIT:

: HIGH : PANORAMIC : AUTO : RGB : HIGH

STATUS DISPLAY CONTROL LOCK

REMOTE SWITCH

HD SIGNAL MODE WHITE BALANCE TIMER

SET-UP MENU 1/2

ADJUST:

SELECT:

EXIT:

OFF

: MODE1 : 1080i

R GAIN G GAIN B GAIN sub menu reset

ADJUST:

WHITE BALANCE:HIGH

SELECT:

EXIT:

: 000 : 001 : 002

–

The adjusted setting applies to all inputs.

Press MENU/EXIT (or MENU on the Monitor) to display the Main Menu.

Cursor (3)

Press 5/∞ to move the cursor (3) to “FUNCTION SELECT.”

Press 3 to display the Function Selection Menu.

“ * ” appears only when you have adjusted the White Balance (see the right column).

Adjusting the White Balance

G GAIN, B GAIN and R GAIN can be finely adjusted separately for “HIGH” and “LOW” settings of the color temperature.

On the remote control: Press MENU/EXIT while holding VOLUME – to display the Setup Menu.

On the Monitor: Press MENU while holding 2 to display the Setup Menu.

Cursor (3)

Press 5/∞ to move the cursor (3) to “WHITE BALANCE.”

• The Setup Menu consists of two pages. If you keep

pressing 5/∞, you can move to the other page from the current page.

Press 5/∞ to move the cursor (3) to “COLOR TEMP.”

Press 2/3 to make an adjustment.

Each time you press the button, the color temperature alternates between “HIGH” and “LOW.”

HIGH: To make the screen become bluish.

LOW: To make the screen become reddish.

Press MENU/EXIT (or MENU on the Monitor) twice to exit from the menu operations.

Note:

• To make a fine adjustment, adjust “WHITE BALANCE” (see the right column).

Press 3 to display the White Balance Adjustment Menu.

Press 5/∞ to move the cursor (3) to the item you want to adjust.

Press 2/3 to adjust the selected item.

Repeat steps 4 and 5 to adjust the other items.

Press MENU/EXIT (or MENU on the Monitor) twice to exit from the menu operations.

Notes:

• Adjustable range will vary among the Monitors.

•“MAX” may appear soon after you begin adjustment. This

is normal but not a malfunction.

Video Adjustments (Continued)

: 000

R GAIN

–

Are you sure? "YES"

then key.

"NO" then key.

reset

R GAIN G GAIN

B GAIN

2 / 3 5 /

VIDEO

DISPLAY

OFF POWER

RM–C579 REMOTE CONTROL UNIT

ASPECT

MUTING

MENU/EXIT

VOLUME

COMPO.

/(RGB B)

B RGB A

INPUT SELECT

MENU/EXIT

MENU INPUT

MENUINPUT

2 / 3

5 /

To make an adjustment while viewing the adjustment bars

After step 3 on page 19, proceed as follows:

1 Press 5/∞ to move the cursor (3) to “sub menu.” 2 Press 3 to display the Sub Menu.

The Sub Menu for R GAIN appears on the screen.

3 Press 5/∞ to select the Sub Menu you want to adjust.

Each time you press the button, the Sub Menu changes as follows:

4 Press 2/3 to adjust the selected item. 5 Repeat steps 3 and 4 to adjust the other items. 6 Press MENU/EXIT (or MENU on the Monitor) three times

to exit from the menu operations.

To reset the adjustments

After step 3 on page 19, proceed as follows:

1 Press 5/∞ to move the cursor (3) to “reset.” 2 Press 3.

The confirmation screen appears.

“SIGNAL MODE” appears only when VIDEO A, VIDEO B, or COMPONENT input is selected.

“RGB/COMPO.” appears only when the RGB B or COMPONENT input is selected.

“SYNC TERM.” appears only when the RGB B input is selected.

3 Press 3 again to reset the adjustments.

To cancel the reset, press MENU/EXIT (or MENU on the

Monitor).

Changing the Aspect Ratio

COLOR TEMP. ASPECT SIGNAL MODE RGB/COMPO. SYNC TERM. reset

FUNCTION SELECT

ADJUST:

SELECT:

EXIT:

: HIGH : PANORAMIC : AUTO : RGB : HIGH

PICTURE ADJ. SIZE/POSITION ADJ. FUNCTION SELECT STATUS DISPLAY

ENTER:

MAIN MENU

SELECT:

EXIT:

REGULAR FULL

ZOOMPANORAMIC

PICTURE ADJ. SIZE/POSITION ADJ. FUNCTION SELECT STATUS DISPLAY

ENTER:

MAIN MENU

SELECT:

EXIT:

AUTO NTSC

PAL

PAL60

SECAM

N4.43

(NTSC4.43)

AUTO 480i 576i

480p720p

1080i

(1035i)*

COLOR TEMP. ASPECT SIGNAL MODE RGB/COMPO. SYNC TERM. reset

FUNCTION SELECT

ADJUST:

SELECT:

EXIT:

: HIGH : PANORAMIC :AUTO : RGB : HIGH

Setting the Receivable Signal Types

The setting adjusted applies to all inputs.

• You can change the aspect ratio by pressing ASPECT. (See page 15.)

Press MENU/EXIT (or MENU on the Monitor) to display the Main Menu.

Cursor (3)

Press 5/∞ to move the cursor (3) to “FUNCTION SELECT.”

Press 3 to display the Function Selection Menu.

You can set the receivable signal types. Normally, select “AUTO.” A common setting will apply to both the VIDEO A input and the VIDEO B input, and a different setting will apply to the COMPONENT input.

Press MENU/EXIT (or MENU on the Monitor) to display the Main Menu.

Cursor (3)

Press 5/∞ to move the cursor (3) to “FUNCTION SELECT.”

Press 3 to display the Function Selection Menu.

*1 *2 *3

Press 5/∞ to move the cursor (3) to “ASPECT.”

Press 2/3 to select an aspect ratio you want.

Each time you press the button, the aspect ratio changes as follows:

* For detailed information on these aspect ratios, see

page 15.

Press MENU/EXIT (or MENU on the Monitor) twice to exit from the menu operations.

Note:

• When one of the following signals is being input, you cannot select the aspect ratio you want.

■ 1080/50i, 1080/60i, 1035/60i or 720/60p signal through the

COMPONENT/RGB B input terminals

Aspect ratio is fixed to FULL (“ASPECT” will not appear on the display).

■ When any signal other than RGB15K-60 and RGB15K-50

through the RGB A or COMPONENT/RGB B input terminals

You can select only REGULAR and FULL.

*1 *2 *3

Press 5/∞ to move the cursor (3) to “SIGNAL MODE.”

Press 2/3 to select the receivable video signal type.

Each time you press the button, the receivable video signal type changes as follows:

• When VIDEO A or VIDEO B input is selected:

• When COMPONENT input is selected:

* Changes according to the “HD SIGNAL MODE”

setting (see page 27).

Press MENU/EXIT (or MENU on the Monitor) twice to exit the menu operations.

Video Adjustments (Continued)

2 / 3 5 /

VIDEO

DISPLAY

OFF POWER

RM–C579 REMOTE CONTROL UNIT

ASPECT

MUTING

MENU/EXIT

VOLUME

COMPO.

/(RGB B)

B RGB A

INPUT SELECT

MENU/EXIT

PICTURE ADJ. SIZE/POSITION ADJ. FUNCTION SELECT STATUS DISPLAY

ENTER:

MAIN MENU

SELECT:

EXIT:

COLOR TEMP. ASPECT SIGNAL MODE RGB/COMPO. SYNC TERM. reset

FUNCTION SELECT

ADJUST:

SELECT:

EXIT:

: HIGH : PANORAMIC : AUTO : RGB : HIGH

MENU INPUT

MENUINPUT

2 / 3

5 /

Setting the COMPONENT/RGB B Input

After connecting the playback device such as a PC or a DVD player to the COMPONENT/RGB B terminals, you have to specify which type of signal comes into this terminal—RGB or component signals.

• Without setting “RGB/COMPO.” correctly, you cannot show any picture though you select the COMPONENT or RGB B input.

Press MENU/EXIT (or MENU on the Monitor) to display the Main Menu.

Cursor (3)

Press 5/∞ to move the cursor (3) to “FUNCTION SELECT.”

Press 3 to display the Function Selection Menu.

*1 *2 *3

Press 5/∞ to move the cursor (3) to “RGB/COMPO.”

Press 2/3 to select the type of signal.

Each time you press the button, the type of signal accepted alternates between “RGB” and “COMPO.”

RGB: When connecting the playback device such as

a PC, which can emit the RGB signals.

COMPO.: When connecting the playback device such as

a DVD player, which can emit the component signals.

Press MENU/EXIT (or MENU on the Monitor) twice to exit the menu operations.

“SIGNAL MODE” appears only when VIDEO A, VIDEO B, or COMPONENT input is selected.

“RGB/COMPO.” appears only when the RGB B or COMPONENT input is selected.

“SYNC TERM.” appears only when the RGB B input is selected.

Changing the Resistance of the RGB B

PICTURE ADJ. SIZE/POSITION ADJ. FUNCTION SELECT STATUS DISPLAY

ENTER:

MAIN MENU

SELECT:

EXIT:

Are you sure? "YES"

then key.

"NO" then key.

reset

COLOR TEMP. ASPECT SIGNAL MODE RGB/COMPO. SYNC TERM. reset

FUNCTION SELECT

ADJUST:

SELECT:

EXIT:

: HIGH : PANORAMIC : AUTO : RGB : HIGH

PICTURE ADJ. SIZE/POSITION ADJ. FUNCTION SELECT STATUS DISPLAY

ENTER:

MAIN MENU

SELECT:

EXIT:

COLOR TEMP. ASPECT SIGNAL MODE RGB/COMPO. SYNC TERM. reset

FUNCTION SELECT

ADJUST:

SELECT:

EXIT:

: HIGH : PANORAMIC : AUTO : RGB : HIGH

Input Terminals

You can set the resistance of the two of the RGB B input terminals to either HIGH (1 kΩ) or LOW (75 Ω):

• HD/Cs (Horizontal sync/Composite) terminal

• VD (Vertical sync) terminal.

HIGH is the normal setting. Change the setting to LOW when you use a long connecting cord and the picture flickers and blurs on the screen.

Press MENU/EXIT (or MENU on the Monitor) to display the Main Menu.

Resetting the Function Selection Menu Settings

You can reset all the Function Selection Menu settings at a time.

Press MENU/EXIT (or MENU on the Monitor) to display the Main Menu.

Cursor (3)

Press 5/∞ to move the cursor (3) to “FUNCTION SELECT.”

Press 3 to display the Function Selection Menu.

*1 *2 *3

Press 5/∞ to move the cursor (3) to “SYNC TERM.”

Press 2/3 to select the terminal resistance.

Each time you press the button, the resistance alternates between “HIGH” and “LOW.”

HIGH: Initial setting. Normally select this.

LOW: When using a long connecting cord and the

picture flickering and blurring on the screen.

Press 5/∞ to move the cursor (3) to “FUNCTION SELECT.”

Press 3 to display the Function Selection Menu.

*1 *2 *3

Press 5/∞ to move the cursor (3) to “reset.”

Press 3.

The confirmation screen appears.

Press 3 again to reset the adjustments.

To cancel the reset, press MENU/EXIT (or MENU on the Monitor).

Press MENU/EXIT (or MENU on the Monitor) twice to exit the menu operations.

Other Convenient Functions

VIDEO A NTSC

COMPONENT 480i

RGB B (BNC)

37.9kHz 60.3Hz*

PICTURE ADJ. SIZE/POSITION ADJ. FUNCTION SELECT STATUS DISPLAY

ENTER:

MAIN MENU

SELECT:

EXIT:

VOLUME –

VIDEO

DISPLAY

OFF POWER

RM–C579 REMOTE CONTROL UNIT

ASPECT

MUTING

MENU/EXIT

VOLUME

COMPO.

/(RGB B)

B RGB A

INPUT SELECT

2 / 3 5 /

MENU/EXIT

MENU INPUT

MENUINPUT

2 / 3

5 /

To set the other convenient functions, use menus. You can use the buttons either on the remote control or on Monitor for menu operations.

• Refer also to “Menu Classifications” on pages 34 and 36.

Showing On-screen Display

The input mode and signal type will be indicated on the screen.

• The following procedure can be done by using the buttons

on the Monitor. You can also show these information by pressing DISPLAY on the remote control. (See page 14.)

Press MENU (or MENU/EXIT on the remote control) to display the Main Menu.

Cursor (3)

Press 5/∞ to move the cursor (3) to “STATUS DISPLAY.”

Press 3 to display the current input terminal and received signal type.

Ex. When selecting “VIDEO A” input

Input selected

Input Video signal type

Ex. When selecting “COMPONENT” input

Ex. When selecting “RGB A” or “RGB B” input

When the signal being input is a preset video mode, an “*” will be shown after the frequency.

Note:

• If you want to make these information appear automatically when you change the input mode, see “Showing the On-screen When Changing the Input Mode” on page 25.

“REMOTE SWITCH” does not appear on the menu unless the video input unit (IF-C42P1G) is separately purchased and installed.

STATUS DISPLAY CONTROL LOCK

REMOTE SWITCH

HD SIGNAL MODE WHITE BALANCE TIMER

SET-UP MENU 1/2

ADJUST:

SELECT:

EXIT:

OFF

: MODE1 : 1080i

Confirming the Use Time

STATUS DISPLAY CONTROL LOCK

REMOTE SWITCH

HD SIGNAL MODE WHITE BALANCE TIMER

SET-UP MENU 1/2

ADJUST:

SELECT:

EXIT:

OFF

: MODE1 : 1080i

PIXEL SHIFT POWER SAVE COLOR-REVERSE REFRESH reset all reset HOUR METER x100h

SET-UP MENU 2/2

ADJUST:

SELECT:

EXIT:

: OFF : OFF

: 123

You can confirm the hours of use on the Setup Menu. This may be necessary when you ask for any service.

On the remote control: Press MENU/EXIT while holding VOLUME – to display the Setup Menu.

On the Monitor: Press MENU while holding 2 to display the Setup Menu.

Keep pressing 5/∞ until the second page of the Setup Menu appears.

• The Setup Menu consists of two pages. If you keep

pressing 5/∞, you can move to the other page from the current page.

Showing the On-screen When Changing the Input Mode

With this function, you can see the selected input mode and signal type when changing the input mode.

On the remote control: Press MENU/EXIT while holding VOLUME – to display the Setup Menu.

On the Monitor: Press MENU while holding 2 to display the Setup Menu.

Cursor (3)

Press 5/∞ to move the cursor (3) to

“STATUS DISPLAY.”

• The Setup Menu consists of two pages. If you keep

pressing 5/∞, you can move to the other page from the current page.

Hours of use

Confirm the hour of use.

• The displayed value for the hours of use is divided by

100. To calculate the actual hours of use, multiply the displayed value by 100.

Press MENU/EXIT (or MENU on the Monitor) once to exit from the menu operations.

Notes:

• The value for the hours of use is added by one hour unit. If you use the monitor within one hour, it will not be added to the hours of use.

• The period when the monitor is on standby (the power lamp glows orange) will not be added to the hours of use.

Press 2/3 to select the desired setting.

Each time you press the button, the Status Display function alternates between “ON” and “OFF.”

To cancel the Status Display function, select “OFF.”

Press MENU/EXIT (or MENU on the Monitor) once to exit from the menu operations.

Other Convenient Functions (Continued)

STATUS DISPLAY CONTROL LOCK

REMOTE SWITCH

HD SIGNAL MODE WHITE BALANCE TIMER

SET-UP MENU 1/2

ADJUST:

SELECT:

EXIT:

OFF

: MODE1 : 1080i

VOLUME –

VIDEO

DISPLAY

OFF POWER

RM–C579 REMOTE CONTROL UNIT

ASPECT

MUTING

MENU/EXIT

VOLUME

COMPO.

/(RGB B)

B RGB A

INPUT SELECT

2 / 3 5 /

MENU/EXIT

MENU INPUT

MENUINPUT

2 / 3

5 /

Prohibiting the Monitor’s Button Operations

This function allows you to prohibit the button operations on the Monitor to prevent malfunction or avoid tampering.

On the remote control: Press MENU/EXIT while holding VOLUME – to display the Setup Menu.

On the Monitor: Press MENU while holding 2 to display the Setup Menu.

Cursor (3)

Press 5/∞ to move the cursor (3) to “CONTROL LOCK.”

• The Setup Menu consists of two pages. If you keep

pressing 5/∞, you can move to the other page from the current page.

Press 2/3 to select the desired setting.

Each time you press the button, the Control Lock function alternates between “ON” and “OFF.”

To cancel the Control Lock function, select “OFF.”

Press MENU/EXIT (or MENU on the Monitor) once to exit from the menu operations.

Note:

• Even when the Control Lock function is in use, the following operations are possible:

– Operation to cancel the Control Lock function – All operations from the remote control

“REMOTE SWITCH” does not appear on the menu unless the video input unit (IF-C42P1G) is separately purchased and installed.

Setting the Remote-Controllable Input

STATUS DISPLAY CONTROL LOCK

REMOTE SWITCH

HD SIGNAL MODE WHITE BALANCE TIMER

SET-UP MENU 1/2

ADJUST:

SELECT:

EXIT:

OFF

: MODE1 : 1080i

STATUS DISPLAY CONTROL LOCK

REMOTE SWITCH

HD SIGNAL MODE WHITE BALANCE TIMER

SET-UP MENU 1/2

ADJUST:

SELECT:

EXIT:

OFF

: MODE1 : 1080i

This function is available only when the optional video input unit (IF-C42P1G) is installed.

When connecting the external control unit to the REMOTE MAKE terminal, you need to set the desired input to use, which you can select from the connected external control unit.

On the remote control: Press MENU/EXIT while holding VOLUME – to display the Setup Menu.

On the Monitor: Press MENU while holding 2 to display the Setup Menu.

Cursor (3)

Press 5/∞ to move the cursor (3) to

“REMOTE SWITCH.”

• The Setup Menu consists of two pages. If you keep

pressing 5/∞, you can move to the other page from the current page.

Setting the High-Definition Signal Types

You can select one of the High-Definition (HD) signal types through the COMPONENT/RGB B terminals — 1080i or 1035i. Normally set it to “1080i.”

• Without setting “RGB/COMPO.” correctly, you cannot show any picture though you select the COMPONENT input (see page 22).

On the remote control: Press MENU/EXIT while holding VOLUME – to display the Setup Menu.

On the Monitor: Press MENU while holding 2 to display the Setup Menu.

Cursor (3)

Press 5/∞ to move the cursor (3) to

“HD SIGNAL MODE.”

• The Setup Menu consists of two pages. If you keep

pressing 5/∞, you can move to the other page from the current page.

Press 2/3 to select the desired setting.

Each time you press the button, the Remote Switch Mode changes as follows:

MODE1: Input alternates between “VIDEO A” and

“VIDEO B” when controlled from the external

control unit.

MODE2: Input alternates between “VIDEO A” and

“RGB B/COMPO.” when controlled from the

external control unit.

MODE3: Input alternates between “VIDEO A” and

“RGB A” when controlled from the external

control unit.

MODE4: Input alternates between “VIDEO B” and

“RGB B/COMPO.” when controlled from the

external control unit.

MODE5: Input alternates between “VIDEO B” and

“RGB A” when controlled from the external

control unit.

MODE6: Input alternates between “RGB B/COMPO.”

and “RGB A” when controlled from the external control unit.

Press MENU/EXIT (or MENU on the Monitor) once to exit from the menu operations.

Press 2/3 to select the desired setting.

Each time you press the button, the HD signal type alternates between “1080i” and “1035i.”

• You can select either “1080i” and “1035i” according to the HD signal you input — whichever gives you proportionally shaped pictures.

Press MENU/EXIT (or MENU on the Monitor) once to exit from the menu operations.

VOLUME –

VIDEO

DISPLAY

OFF POWER

RM–C579 REMOTE CONTROL UNIT

ASPECT

MUTING

MENU/EXIT

VOLUME

COMPO.

/(RGB B)

B RGB A

INPUT SELECT

2 / 3 5 /

MENU/EXIT

Other Convenient Functions (Continued)

STATUS DISPLAY CONTROL LOCK

REMOTE SWITCH

HD SIGNAL MODE WHITE BALANCE TIMER

SET-UP MENU 1/2

ADJUST:

SELECT:

EXIT:

OFF

: MODE1 : 1080i

PRESENT TIME POWER-ON SET

OWER-ON TIME POWER-OFF SET POWER-OFF TIME reset

TIMER

ADJUST:

SELECT:

EXIT:

: ––

:––

: OFF : ––:–– : OFF : ––:––

PRESENT TIME POWER-ON SET

OWER-ON TIME POWER-OFF SET POWER-OFF TIME reset

TIMER

ADJUST:

SELECT:

EXIT:

14:25

: ON : 08:26 : ON : 21:20

MENU INPUT

MENUINPUT

2 / 3

5 /

Setting the Clock and the Power On/Off Timer

You can turn the Monitor on and off automatically with the Power On/Off timer.

• Since you cannot use the timer functions without setting the clock, set the clock at first.

• Setting the Clock

You can also adjust the clock with the following procedure.

On the remote control: Press MENU/EXIT while holding VOLUME – to display the Setup Menu.

On the Monitor: Press MENU while holding 2 to display the Setup Menu.

Cursor (3)

Press 5/∞ to move the cursor (3) to “TIMER,” then press 3 to display the Timer Menu.

• The Setup Menu consists of two pages. If you keep

pressing 5/∞, you can move to the other page from the current page.

Before the clock setting

Press 5/∞ to move the cursor (3) to

After the clock setting

“PRESENT TIME,” then press 3.

Press 5/∞ to move the cursor (3) to “HOURS,” then press 2/3 repeatedly to adjust the hour (24 hour clock).

Press 5/∞ to move the cursor (3) to “MINUTES,” then press 2/3 repeatedly to adjust the minute.

Press MENU/EXIT (or MENU on the Monitor) three times to exit from the menu operations.

“REMOTE SWITCH” does not appear on the menu unless the video input unit (IF-C42P1G) is separately purchased and installed.

• Using the Power On/Off Timer

STATUS DISPLAY CONTROL LOCK

REMOTE SWITCH

HD SIGNAL MODE WHITE BALANCE TIMER

SET-UP MENU 1/2

ADJUST:

SELECT:

EXIT:

OFF

: MODE1 : 1080i

PIXEL SHIFT POWER SAVE COLOR-REVERSE REFRESH reset all reset HOUR METER x100h

SET-UP MENU 2/2

ADJUST:

SELECT:

EXIT:

: OFF : OFF

: 123

STATUS DISPLAY CONTROL LOCK

REMOTE SWITCH

HD SIGNAL MODE WHITE BALANCE TIMER

SET-UP MENU 1/2

ADJUST:

SELECT:

EXIT:

OFF

: MODE1 : 1080i

PIXEL SHIFT POWER SAVE COLOR-REVERSE REFRESH reset all reset HOUR METER x100h

SET-UP MENU 2/2

ADJUST:

SELECT:

EXIT:

: OFF : OFF

: 123

Select the item you want to set in step 3 in “Setting the Clock” (page 28) and follow the instructions below.

POWER-ON SET

You can activate/deactivate the Power-On Timer.

Press 2/3 to select “ON” or “OFF.”

ON: The Monitor automatically turns on at the time

set in “POWER-ON TIME.”

OFF: The Power-On Timer is deactivated.

Press 2/3 to select the desired setting.

Each time you press the button, the Pixel Shift function alternates between “ON” and “OFF.”

To cancel the Pixel Shift function, select “OFF.”

Press MENU/EXIT (or MENU on the Monitor) once to exit from the menu operations.

POWER-ON TIME

You can adjust the time to turn on the Monitor.

Set the hour and minute following steps 4 to 6 in “Setting the Clock” (page 28).

POWER-OFF SET

You can activate/deactivate the Power-Off Timer.

Press 2/3 to select “ON” or “OFF.”

ON: The Monitor automatically turns off at the time

set in “POWER-OFF TIME.”

OFF: The Power-Off Timer is deactivated.

POWER-OFF TIME

You can adjust the time to turn off the Monitor.

Set the hour and minute following steps 4 to 6 in “Setting the Clock” (page 28).

Using the Pixel Shift Function

This function periodically shift the position (pixels) of the displayed picture on the screen so that you can avoid the screen from being burned in.

On the remote control: Press MENU/EXIT while holding VOLUME – to display the Setup Menu.

Using the Power Save Function

You can use this function to reduce the electrical consumption and to extend the lifetime of the Monitor’s screen.

• The brightness of the screen will be reduced.

On the remote control: Press MENU/EXIT while holding VOLUME – to display the Setup Menu.

On the Monitor: Press MENU while holding 2 to display the Setup Menu.

Cursor (3)

Press 5/∞ to move the cursor (3) to

“POWER SAVE” (on the second page).

• The Setup Menu consists of two pages. If you keep

pressing 5/∞, you can move to the other page from the current page.

On the Monitor: Press MENU while holding 2 to display the Setup Menu.

Cursor (3)

Press 5/∞ to move the cursor (3) to “PIXEL SHIFT” (on the second page).

• The Setup Menu consists of two pages. If you keep

pressing 5/∞, you can move to the other page from the current page.

Press 2/3 to select the desired setting.

SAVE1: The screen gets dim. SAVE2: The screen gets dimmer. OFF: The Power Save function is deactivate.

To cancel the Power Save function, select “OFF.”

Press MENU/EXIT (or MENU on the Monitor) once to exit from the menu operations.

Other Convenient Functions (Continued)

STATUS DISPLAY CONTROL LOCK

REMOTE SWITCH

HD SIGNAL MODE WHITE BALANCE TIMER

SET-UP MENU 1/2

ADJUST:

SELECT:

EXIT:

OFF

: MODE1 : 1080i

PIXEL SHIFT POWER SAVE COLOR-REVERSE REFRESH reset all reset HOUR METER x100h

SET-UP MENU 2/2

ADJUST:

SELECT:

EXIT:

: OFF : OFF

: 123

VOLUME –

VIDEO

DISPLAY

OFF POWER

RM–C579 REMOTE CONTROL UNIT

ASPECT

MUTING

MENU/EXIT

VOLUME

COMPO.

/(RGB B)

B RGB A

INPUT SELECT

2 / 3 5 /

MENU/EXIT

MENU INPUT

MENUINPUT

2 / 3

5 /

Preventing the Afterimage Effect

After showing the same still picture on the screen, reverse the color on the screen using this function so that you can avoid the screen from being burned in with the still picture. You can activate/deactivate the function with the ColorReverse On/Off Timer.

On the remote control: Press MENU/EXIT while holding VOLUME – to display the Setup Menu.

On the Monitor: Press MENU while holding 2 to display the Setup Menu.

“REMOTE SWITCH” does not appear on the menu unless the video input unit (IF-C42P1G) is separately purchased and installed.

Cursor (3)

Press 5/∞ to move the cursor (3) to “COLOR-REVERSE” (on the second page), then press 3.

• The Setup Menu consists of two pages. If you keep

pressing 5/∞, you can move to the other page from the current page.

Press 5/∞ to select the item you want to set and set the item as follows.

COLOR-REVERSE

You can activate/deactivate the function manually.

Press 2/3 to select the desired setting.

ON: The function is activated immediately after

exiting the menu operations.

OFF: The function is deactivated. TIMER: Select this when you use the Color-Reverse

On/Off Timer.

Note:

• Set the clock (see page 28) and select “TIMER,” before using the Color-Reverse On/Off Timer.

START SET

You can activate/deactivate the Color-Reverse On Timer.

Press 2/3 to select “ON” or “OFF.”

ON: The function is automatically activated at the

time set in “START TIME.”

OFF: The Color-Reverse On Timer is deactivated.

START TIME

STATUS DISPLAY CONTROL LOCK

REMOTE SWITCH

HD SIGNAL MODE WHITE BALANCE TIMER

SET-UP MENU 1/2

ADJUST:

SELECT:

EXIT:

OFF

: MODE1 : 1080i

PIXEL SHIFT POWER SAVE COLOR-REVERSE REFRESH reset all reset HOUR METER x100h

SET-UP MENU 2/2

ADJUST:

SELECT:

EXIT:

: OFF : OFF

: 123

You can adjust the time to activate the function.

• Set the hour and minute following steps 4 to 6 in “Setting the Clock” (page 28).

END SET

You can activate/deactivate the Color-Reverse Off Timer.

• Press 2/3 to select “ON” or “OFF.”

ON: The function is automatically deactivated at the

time set in “END TIME.”

OFF: The Color-Reverse Off Timer is deactivated.

END TIME

You can adjust the time to deactivate the function.

• Set the hour and minute following steps 4 to 6 in “Setting the Clock” (page 28).

Press MENU/EXIT (or MENU on the Monitor) repeatedly to exit from the menu operations.

To cancel the Color-Reverse function immediately

Repeat steps 1 to 3, then select “OFF” in “COLOR-REVERSE” by pressing 2/3.

Refreshing the Screen

After the power is turned off, a whitish image may be left on the screen. In that case, leave the monitor in a white back state for a while, and the image will disappear. You can activate/deactivate the function with the Refresh On/Off Timer.

On the remote control: Press MENU/EXIT while holding VOLUME – to display the Setup Menu.

On the Monitor: Press MENU while holding 2 to display the Setup Menu.

Cursor (3)

Press 5/∞ to select the item you want to set and set the item as follows.

REFRESH

You can activate/deactivate the function manually.

• Press 2/3 to select the desired setting.

ON: The function is activated immediately after

exiting the menu operations.

OFF: The function is deactivated. TIMER: Select this when you use the Refresh On/Off

Timer.

Note:

• Set the clock (see page 28) and select “TIMER,” before using the Refresh On/Off Timer.

START SET

You can activate/deactivate the Refresh On Timer.

• Press 2/3 to select “ON” or “OFF.”

ON: The function is automatically activated at the

time set in “START TIME.”

OFF: The Refresh On Timer is deactivated.

START TIME

You can adjust the time to activate the function.

• Set the hour and minute following steps 4 to 6 in “Setting the Clock” (page 28).

END SET

You can activate/deactivate the Refresh Off Timer.

• Press 2/3 to select “ON” or “OFF.”

ON: The function is automatically deactivated at the

time set in “END TIME.”

OFF: The Refresh Off Timer is deactivated.

END TIME

You can adjust the time to deactivate the function.

• Set the hour and minute following steps 4 to 6 on “Setting the Clock” (page 28).

Press MENU/EXIT (or MENU on the Monitor) repeatedly to exit from the menu operations.

To cancel the Refresh function immediately

Repeat steps 1 to 3, then select “OFF” in “REFRESH” by pressing 2/3.

Press 5/∞ to move the cursor (3) to “REFRESH” (on the second page) then press 3.

• The Setup Menu consists of two pages. If you keep

pressing 5/∞, you can move to the other page from the current page.

Other Convenient Functions (Continued)

VOLUME –

VIDEO

DISPLAY

OFF POWER

RM–C579 REMOTE CONTROL UNIT

ASPECT

MUTING

MENU/EXIT

VOLUME

COMPO.

/(RGB B)

B RGB A

INPUT SELECT

2 / 3 5 /

MENU/EXIT

PRESENT TIME POWER-ON SET

POWER-ON TIME

POWER-OFF SET POWER-OFF TIME reset

TIMER

ADJUST:

SELECT:

EXIT:

: 14:25 : ON : 08:26 : ON : 21:20

BATTERY LOW

PRESENT TIME POWER-ON SET

POWER-ON TIME

POWER-OFF SET POWER-OFF TIME reset

TIMER

ADJUST:

SELECT:

EXIT:

: ––:–– : OFF : ––:–– : OFF : ––:––

BATTERY EMPTY

MENU INPUT

MENUINPUT

2 / 3

5 /

Checking the Timer Battery

You can check the remaining time available from the timer battery on the TIMER, COLOR-REVERSE, and REFRESH menus.

When the battery becomes weak (BATTERY LOW)

“BATTERY LOW” appears on the screen.

When the battery runs out (BATTERY EMPTY)

“BATTERY EMPTY” appears on the screen.

“REMOTE SWITCH” does not appear on the menu unless the video input unit (IF-C42P1G) is separately purchased and installed.

The clock is reset and “PRESENT TIME” is shown as “-- : --.”

• You cannot replace the battery yourself. Please consult your dealer to replace it.

• Set the clock and the timer functions (Power On/Off Timer, Color-Reverse On/Off Timer, and Refresh On/Off Timer) again after replacing the battery.

• You can use functions other than the timer functions without replacing the battery.

Notes on the Color-Reverse/Refresh Timer

• Once you set the Color-Reverse/Refresh timer, the timer

function is still activated even if you turn off the power. If you turn on the power after the “START TIME” you set, Color-Reverse/Refresh function is activated. To cancel the function, select “OFF” in the menu (pages 30 and 31).

• The Color-Reverse timer is deactivated when you turn

on or off the Color-Reverse function manually. The Refresh timer works in the same way as mentioned above. Select “TIMER” in the menu to control the functions automatically ( pages 30 and 31).

Are you sure? "YES" then key. "NO"

then key.

all reset

Resetting All the Setup Menu Settings

Are you sure? "YES"

then key.

"NO" then key.

reset

STATUS DISPLAY CONTROL LOCK

REMOTE SWITCH

HD SIGNAL MODE WHITE BALANCE TIMER

SET-UP MENU 1/2

ADJUST:

SELECT:

EXIT:

OFF

: MODE1 : 1080i

PIXEL SHIFT POWER SAVE COLOR-REVERSE REFRESH reset all reset HOUR METER x100h

SET-UP MENU 2/2

ADJUST:

SELECT:

EXIT:

: OFF : OFF

: 123

STATUS DISPLAY CONTROL LOCK

REMOTE SWITCH

HD SIGNAL MODE WHITE BALANCE TIMER

SET-UP MENU 1/2

ADJUST:

SELECT:

EXIT:

OFF

: MODE1 : 1080i

PIXEL SHIFT POWER SAVE COLOR-REVERSE REFRESH reset all reset HOUR METER x100h

SET-UP MENU 2/2

ADJUST:

SELECT:

EXIT:

: OFF : OFF

: 123

You can reset all the following Setup Menu settings at a time, except the use time (HOUR METER).

On the remote control: Press MENU/EXIT while holding VOLUME – to display the Setup Menu.

Resetting All the Menu Settings

You can reset all the Menu settings and adjustments at a time, except the use time (HOUR METER).

On the remote control: Press MENU/EXIT while holding VOLUME – to display the Setup Menu.

On the Monitor: Press MENU while holding 2 to display the Setup Menu.

Cursor (3)

Press 5/∞ to move the cursor (3) to “reset” (on the second page).

• The Setup Menu consists of two pages. If you keep

pressing 5/∞, you can move to the other page from the current page.

Press 3.

The confirmation screen appears.

On the Monitor: Press MENU while holding 2 to display the Setup Menu.

Cursor (3)

Press 5/∞ to move the cursor (3) to “all

reset” (on the second page).

• The Setup Menu consists of two pages. If you keep

pressing 5/∞, you can move to the other page from the current page.

Press 3.

The confirmation screen appears.

To cancel the reset, press MENU/EXIT (or MENU on the Monitor).

Press 3 again to reset all the Setup Menu settings.

To cancel the reset, press MENU/EXIT (or MENU on the Monitor).

Press 3 again to reset all the Menu settings and adjustments.

The power is turned off, then turned on again automatically.

PICTURE ADJ. SIZE/POSITION ADJ. FUNCTION SELECT STATUS DISPLAY

ENTER:

MAIN MENU

SELECT:

EXIT:

COLOR TEMP. ASPECT SIGNAL MODE RGB/COMPO. SYNC TERM. reset

FUNCTION SELECT

ADJUST:

SELECT:

EXIT:

: HIGH : PANORAMIC : AUTO : RGB : HIGH

VIDEO A NTSC

H SIZE H POSITION V SIZE V POSITION DOT CLOCK CLOCK PHASE sub menu reset

ADJUST:

SIZE/POSITION ADJ.

SELECT:

EXIT:

: +01 : : – 02 : : :

CONTRAST BRIGHT CHROMA PHASE SHARPNESS sub menu reset

ADJUST:

PICTURE ADJ.

SELECT:

EXIT:

VIDEO A

: +01 : : – 02 : :

–

:+01

CONTRAST

–

:+01

BRIGHT

–

:+01

CHROMA

–

:+01

PHASE

–

:+01

SHARPNESS

:+01

H SIZE

:+01

H POSITION

:+01

V SIZE

+++

:+01

V POSITION

–

:+01

DOT CLOCK

Are you sure? "YES" "NO"

reset

then then

key.

Are you sure? "YES" "NO"

reset

then then

key.

Are you sure? "YES" "NO"

reset

then then

key.

–

:+01

CLOCK PHASE

Menu Classifications

Main Menu

Main Menu Picture Adjustment Menu

1*2

*1*

Size/Position Adjustment Menu

*4*

Function Selection Menu

*5*

Status Display

Ex. When “VIDEO A” input is selected.

*1Adjustable when viewing the NTSC, PAL or SECAM signal, or component signal.

Adjustable when viewing the NTSC signal or component signal.

Adjustable when RGB A or RGB B input is selected.

Adjustable when VIDEO A, VIDEO B, or COMPONENT input is selected.

Not adjustable when viewing the following component signals—720/60p, 1080/50i, and 1080/60i (1035/60i).

Adjustable when RGB B or COMPONENT input is selected.

Adjustable when RGB B input is selected.

Input currently selected

Input video signal

PICTURE ADJ. (Picture adjustment): See page 16.

CONTRAST Adjusts the contrast of the picture. BRIGHT Adjusts the brightness of the picture. CHROMA* PHASE*

Adjusts the color density of the picture.

Adjusts the color phase. SHARPNESS Adjusts the outlines of the picture. sub menu Displays the fine adjustment bar. reset Resets the Picture Adjustment Menu settings to defaults.

SIZE/POSITION ADJ. : See page 17.

H.SIZE Adjusts the horizontal screen size. H. POSITION Adjusts the horizontal screen position. V. SIZE Adjusts the vertical screen size. V.POSITION Adjusts the vertical screen position. DOT CLOCK*

Adjusts to eliminate stripes or flickering. Use with “CLOCK PHASE.”

Normally, no adjustment is needed.

CLOCK PHASE*

Adjusts to eliminate stripes or flickering. Use with “DOT CLOCK.”

Normally, no adjustment is needed. sub menu Displays the fine adjustment bar. reset Resets Size/position Adjustment Menu settings to defaults.

FUNCTION SELECT: See pages 19 to 23.

COLOR TEMP. Adjusts the color temperature.

Use when the picture is reddish or bluish. ASPECT* SIGNAL MODE*

Selects the horizontal to vertical ratio of the screen.

• Selects a color system (NTSC, PAL, SECAM, NTSC 4.43, PAL60) when VIDEO A or VIDEO B input is selected.

• Selects a scan system—480i, 576i, 480p, 720p, 1080i (1035i)—when COMPONENT input is selected. Normally, set to “AUTO.

”RGB/COMPO.*6Selects the usage of the COMPONENT/RGB B terminals either as the COMPONENT input

terminal or as the RGB B input terminal.

SYNC TERM.*

Adjusts the resistance of RGB B input terminals.

reset Resets the Function Selection Menu settings to defaults.

*1Adjustable when viewing the NTSC, PAL or SECAM signal, or component signal.

Adjustable when viewing the NTSC signal or component signal.

Adjustable when RGB A or RGB B input is selected.

Adjustable when VIDEO A, VIDEO B, or COMPONENT input is selected.

Not adjustable when viewing the following component signals—720/60p, 1080/50i, and 1080/60i (1035/60i).

Adjustable when RGB B or COMPONENT input is selected.

Adjustable when RGB B input is selected.

STATUS DISPLAY CONTROL LOCK REMOTE SWITCH HD SIGNAL MODE WHITE BALANCE TIMER

SET-UP MENU 1/2

ADJUST:

SELECT:

EXIT:

: OFF : OFF : MODE1 : 1080i

R GAIN G GAIN B GAIN sub menu reset

ADJUST:

WHITE BALANCE:HIGH

SELECT:

EXIT:

: 000 : 001 : 002

: 000

R GAIN

:+001

G GAIN

: –002

B GAIN

–

PIXEL SHIFT POWER SAVE COLOR-REVERSE REFRESH reset all reset HOUR METER x100h

SET-UP MENU 2/2

ADJUST:

SELECT:

EXIT:

: OFF : OFF

: 123

Are you sure? "YES" "NO"

reset

then then

key.

Are you sure? "YES" "NO"

all reset

then then

key.

PRESENT TIME POWER-ON SET

P OWER-ON TIME

POWER-OFF SET POWER-OFF TIME reset

TIMER

ADJUST:

SELECT:

EXIT:

: 14:25 : ON : 08:26 : ON : 21:20

COLOR-REVERSE START SET

START TIME

END SET END TIME reset

COLOR-REVERSE

ADJUST:

SELECT:

EXIT:

: OFF : ON : 08:06 : ON : 21:47

PRESENT TIME

HOURS

MINUTES

: 14:25 : 14 : 25

TIMER

POWER-ON TIME

HOURS

MINUTES

: 08:26 : 08 : 26

TIMER

POWER-OFF TIME

HOURS

MINUTES

: 21:20 : 21 : 20

TIMER

START TIME

HOURS

MINUTES

: 08:06 : 08 : 06

END TIME

HOURS

MINUTES

: 21:47 : 21 : 47

REFRESH START SET

START TIME

END SET END TIME reset

REFRESH

ADJUST:

SELECT:

EXIT:

: OFF : ON : 12:10 : ON : 14:24

REFRESH

START TIME

HOURS

MINUTES

: 12:10 : 12 : 10

END TIME

HOURS

MINUTES

: 14:24 : 14 : 24

Menu Classifications (Continued)

Setup Menu

White Balance Adjustment Menu

Timer Menu

Color-Reverse Menu

Reset Confirmation Screen

To “Reset Confirmation Screen”

* Appears only when the

video input unit (IF-C42P1G) is installed.

Refresh Menu

To “Reset Confirmation Screen”

STATUS DISPLAY Sets if you want the input terminal and the type of signal to be indicated on the screen just after

inputs are switched. (See page 25.) CONTROL LOCK Sets the Monitor so that it cannot be operated with the buttons on itself. (See page 26.) REMOTE SWITCH Set the selectable input terminals when controlling the Monitor with the external control unit (See

page 27.) HD SIGNAL MODE Select the High-Definition (HD) signal type. (See page 27.) WHITE BALANCE Adjusts R GAIN, G GAIN and B GAIN finely each for “HIGH” and “LOW” settings of the color

temperature. (See page 19.) TIMER Sets the clock and the Power On/Off Timer. (See page 28.) PIXEL SHIFT Sets a screen saver. (See page 29.) POWER SAVE Sets the power save function. (See page 29.) COLOR-REVERSE Use to reverse the color of the still picture to prevent its afterimage from being left on the screen.

(See page 30.) REFRESH Use to eliminate afterimages on the screen. (See page 31.) reset Resets the Setup Menu settings to defaults. (See page 33.) all reset Resets the all menu settings and adjustments to defaults. (See page 33.) HOUR METER Use to confirm the hours of use. (See page 25.)

Troubleshooting

Solutions to common problems related to the Monitor are described here. If none of the solutions presented here solves the problem, unplug the Monitor and consult an authorized dealer or service center.

Symptom Probable cause Corrective action Page

Power is not supplied.

Power is suddenly turned on or off.

Video image does not appear, or audio sound does not occur.

• Is the power cord disconnected?

•Is the POWER switch turned on?

•Is the Power On/Off Timer activated?

•Is the correct input selected?

•Are the devices connected correctly?

•Insert the power cord (plug) firmly.

•Turn on the POWER switch.

•Set the timer to “OFF” on the menu.

•Select the correct input by pressing

INPUT SELECT (VIDEO A, VIDEO B, COMPO./(RGB B) or RGB A) on the remote control (or INPUT on the Monitor).

•Connect the devices correctly.

11, 12

The picture becomes blurred.

Color is abnormally dark or bright.

Color is poor or unstable.

Color is suddenly reversed or whitened.

The picture is cut or shifted toward one side.

The remote control does not work.

The buttons on the Monitor do not work.

•Are signals being supplied from the connected devices?

•Is “RGB/COMPO.” set correctly if using the COMPONENT/RGB B terminals?

•Are input signals (scanning frequency, etc.) appropriate?

•Is brightness adjusted correctly?

•Is volume set at minimum?

•Are the diagnostic lamps turned on?

•Is the signal RGB input?

•Is the RGB B connecting cord long?

•Is brightness adjusted correctly?

•Is picture quality (colour density, etc.)

adjusted correctly?

“TEMP. OVER” lights (or flashes) at the

right bottom of the screen.

•Is the correct broadcast system (color system) selected?

•Are signals (scanning frequency, etc.) to connected devices appropriate?

•Is the Color-Reverse/Refresh timer activated?

•Is the size or position of the screen adjusted properly?

•Are the batteries correctly set?

•Are the batteries exhausted?

•Is there any object blocking the path

between the remote control and remote sensor?

•Is the Monitor too far away from you?

•Is the Control Lock function in use?

•Set the devices correctly.

•Set it correctly.

•Check if the signal is appropriate

(scanning frequency, etc.), and input the appropriate signal.

•Adjust brightness on the menu.

•Adjust volume.

•Refer to “Self-diagnostic indication,”

and take an appropriate action.

•Adjust DOT CLOCK and CLOCK PHASE using the menu.

•Set the SYNC TERM. “LOW.”

•Adjust BRIGHT (brightness) using the

menu.

•Adjust picture using the menu.

•Refer to “Self-diagnostic indication,”

and take an appropriate action.

•Set SIGNAL MODE (color system) to “AUTO.”

•Check if the signal is appropriate

(scanning frequency, etc.), and input the appropriate signal.

•Set “COLOR-REVERSE”/“REFRESH” to “OFF” on the menu.

•Adjust H.SIZE, V.SIZE, H.POSITION or V.POSITION using the menu.

•Insert batteries correctly, observing the polarities (ª and ·).

•Replace with new batteries.

•Remove any blocking object.

•Move toward the Monitor, then operate

the remote control.

•Set the Control Lock function to “OFF” using the menu.

—

30, 31

—

Self-diagnostic Indication

MENUINPUT

Self-diagnostic lamps (1 to 3)

Remote sensor

Power lamp

1 2 3

If the trouble still persists, follow the procedure below:

When something abnormal occurs with the Monitor, this function informs you of the condition of the Monitor with self-diagnostic lamps, allowing for smooth service work.

❑ If the screen monitor turns off and self-diagnostic

lamps light or flash

If the self-diagnostic lamps light or flash in red, check the

following before consulting the dealer where you purchased the Monitor.

• If self-diagnostic lamp 1 (upper) flashes, lamp 2 (middle)

lights, and lamp 3 (lower) flashes

This may be caused by the dusty intakes on the rear. If this happens, switch off the main power by POWER switch (set to “‡ (off)”), unplug the AC power cord, then clean the intakes by referring to the instruction on page 2. – After cleaning, switch on the Monitor’s main power

again. If self-diagnostic lamps do not go off, consult your dealer immediately.

Check which lamps are lighting or flashing.

On the Self-diagnostic Report Sheet (below), check the box next to “Lights” or “Flashes” of the corresponding lamp or lamps.

• Only one lamp may light or flash, or all three lamps may do so.

Switch off the POWER switch on the back of the Monitor.

Unplug the power cord.

Call your dealer and tell which lamps are lighting or flashing. (Copy and fax the Self-diagnostic Report Sheet below.)

Note:

If you switch on the main power immediately after switching it off (or after recovering from a brief power interruption), the self-diagnostic lamps may light (or flash), and no image may appear on the screen. In this case, switch off the main power again, wait for about 10 seconds, then switch it on again. If no self-diagnostic lamps light or flash, you can operate and use the Monitor as usual.

Self-diagnostic Report Sheet

❑ If the screen monitor dims a little and “TEMP. OVER”

lights (or flashes)

If “TEMP. OVER” lights or flashes at the right bottom of the

screen, check the following before consulting the dealer where you purchased the Monitor.

“TEMP. OVER” appears to warn you of the internal heat

buildup, which is usually caused by accumulated dust around the intakes or by improper installation. If the cause of the internal heat buildup is eliminated, this indication disappears and the screen recovers the brightness.

• If “TEMP. OVER” flashes in yellow

again. If “TEMP. OVER” still flashes, this trouble may be caused by improper installation or improper location of the Monitor. In this case, consult your dealer immediately to solve this improper installation and to improve the circumstances around the Monitor.

• If “TEMP. OVER” lights in red “TEMP. OVER” will be shown for abut two minutes, the

Monitor will shut off automatically, then the Selfdiagonal lamps light in red. If this happens, switch off the main power by POWER switch (set to “‡ (off)”), unplug the AC power cord, then consult your dealer immediately.

Store name where you purchased the Monitor

Model Name: Plasma Display Monitor VM-4200

The self-diagnostic lamps light or flash as listed on the following table. Please give me immediate advice or service if necessary.

Self-diagnostic lamps

NO. Lamp position Conditions

2 Middle

Your Name:

Telephone No.:

Address:

Upper1

Lower

TEMP. OVER

& Lights

& Lights & Lights

& Flashes & Flashes

& Flashes

Specifications

Model name VM-4200

Frame color Silver

Screen size Type 42 wide format

Aspect ratio 16:9 (Wide format)

Number of pixels displayed 852 (H) x 480 (V)

Number of colors displayed 16.77 million (256 colors for each of RGB)

Effective screen size 93.3 cm x 53.3 cm, 107.4 cm (W x H, Diagonally)

Weight 35.1 kg

External dimensions 103.5 cm x 64.0 cm x 8.9 cm (W x H x D) * Excluding protruding parts

Power requirements AC 220 – 240 V, 50 Hz/60 Hz

General

Rated input current 1.4 A

Compatible systems NTSC, NTSC 4.43,

VIDEO A, VIDEO B input PAL, PAL60, SECAM

COMPONENT input 480i, 576i, 480p, 576p, 720/60p,

1080/50i, 1080/60i (1035/60i)

Audio power output SPEAKER OUT: 6 Ω to 8 Ω

3 W + 3 W (TYP at impedance 6 Ω)

Operating conditions Temperature: 0 °C to 40 °C

Relative humidity: 20 % to 80 % (non-condensation) (Slightly variable depending on ambient conditions for installation)

VIDEO A

Video input BNC terminal x 1, 1 V(p-p), 75 Ω

Video output BNC terminal x 1, 1 V(p-p), 75 Ω

Audio input Pin jack terminal x 2 (L/R)

500 mV(rms), high impedance

VIDEO B

Y/C input Y/C terminal x 1

Y: 1 V(p-p), 75 Ω C: 0.286 V(p-p), 75 Ω (for NTSC)

Input/output terminals*

Video input Pin jack terminal x 1, 1 V(p-p), 75 Ω

Audio input Pin jack terminal x 2 (L/R)

C: 0.3 V(p-p), 75 Ω (for PAL/SECAM)

500 mV(rms), high impedance

*1This monitor does not have the following input terminals – VIDEO A, VIDEO B, and COMPONENT/RGB B.

You need to install the video input unit (IF-C42P1G), which is separately purchased, to select “VIDEO A,” “VIDEO B,” and “COMPONENT (or RGB B)” as the input.

To use the COMPONENT/RGB B terminals either as the COMPONENT input terminal or as the RGB B input terminal, you

need to set “RGB/COMPO.” correctly (see page 22).

• For easy understanding, pictures and illustrations are shown by being emphasized, omitted or composed, and may be more or

less different from actual products.

• Design and specifications are subject to change without notice.

• IBM and IBM PC are registered trademarks of International Business Machines Corporation. Macintosh is registered

trademarks of Apple Computer, Inc. All other product names mentioned herein are used for identification purposes only, and may be the trademarks or registered trademarks of their respective companies.

Model name VM-4200

COMPONENT/RGB B

COMPONENT input BNC terminal x 3

RGB input BNC terminal x 5

Audio input Pin jack terminal x 2 (L/R)

*1 *

Y: 1 V(p-p), 75 Ω

B/B-Y: 0.7 V(p-p), 75 Ω

R/R-Y: 0.7 V(p-p), 75 Ω

Analog RGB: R: 0.7 V(p-p), 75 Ω G: 0.7 V(p-p), 75 Ω B: 0.7 V(p-p), 75 Ω G on sync: 1 V(p-p),

75 Ω (negative sync)

Horizontal sync/ Composite sync (HD/Cs): HD: 0.3 V(p-p) to 5 V(p-p), 1 kΩ

(positive/negative polarity)/75 Ω

Cs: 0.3 V(p-p) to 5 V(p-p), 1 kΩ

(positive/negative polarity)/75 Ω

Vertical sync (VD): VD: 1 V(p-p) to 5 V(p-p), 1 kΩ

(positive/negative polarity)/75 Ω

500 mV(rms), high impedance

RGB A

Input/output terminals*

RGB input D-sub 3-row 15-pin terminal x 1,

Video signal: 0.7 V(p-p), 75 Ω G on sync: 1 V(p-p), 75 Ω (negative sync) Horizontal sync/Composite sync (HD/Cs): HD: 0.3 V(p-p) to 5 V(p-p), 470 Ω (positive/negative polarity) Cs: 0.3 V(p-p) to 5 V(p-p), 470 Ω (positive/negative polarity) Vertical sync (VD): VD: 1 V(p-p) to 5 V(p-p), 470 Ω (positive/negative polarity)

Audio input Stereo mini jack terminal x 1

500 mV(rms), high impedance

REMOTE terminals RS-232C: D-sub 9-pin terminal x 1

MAKE: Mini DIN 4 pin WIRED: Stereo mini jack terminal x 1

OPTION terminal Used exclusively for JVC's optional parts

AUDIO OUT terminals Pin jack terminal x 2 (L/R)

Output impedance 600 Ω

SPEAKER OUT (L/R) terminals Impedance 6 Ω to 8 Ω

Options (not supplied)

Stand Unit TS-C420P1W, TS-C420P4W, TS-C420P5W, TS-C420P7W Wall Mounting Unit TS-C420P2W, TS-C420P6W, TS-C420P9W Ceiling Suspension Unit TS-C420P3W Video Input Unit IF-C42P1G Speaker Unit TS-C421SPG

* Consult your dealer to see if other options are available.

Notice on transportation

This Monitor is precision equipment and needs dedicated packing material for transportation. Never use any packing material supplied from other than JVC or JVC-authorized dealers.

Specifications (Continued)

1 2

MENUINPUT

1035

57.5

1.5

997

933

640

577

533

Pin assignment (Specifications for terminals)

VM-4200 PLASMA DISPLAY MONITOR

• Y/C terminal

• MAKE terminal

Pin number Signal name

1 GND (Y)

2 GND (C)

1 GND

2 GND

3 SW2

4 SW1

5 SW DET

6 GND

• RS-232C terminal

This is a female type connector.

• RGB Input Terminal

Pin number Signal name

1 DCD

2RD

3TD

4 DTR

5 GND

Pin number Signal name

1 Red

2 Green

3Blue

4 N/C

5 GND

6 GND

7 GND

8 GND

Pin number Signal name

6 DSR

7RTS

8 CTS

9RI

Pin number Signal name

9 N/C

10 GND

11 GND

12 N/C

13 HD/Cs

14 VD

15 N/C

External GND

Dimensions

Top view

Front view

Side view

Unit: mm

VICTOR COMPANY OF JAPAN, LIMITED

Printed in Japan 0703-MK-MW-VP

JVC VM-4200 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
