MICRO COMPONENT MD SYSTEM MD 微型组合音响

UX-Q1S

Consists of CA-UXQ1S and SP-UXQ1S 由 CA-UXQ1S 和 SP-UXQ1S 组成

UX-Q1W

Consists of CA-UXQ1W and SP-UXQ1W 由 CA-UXQ1W 和 SP-UXQ1W 组成

English

中

文

For hiding the demonstration display, refer to page 9.

有关隐藏演示显示的详情，请参阅第 9 页。

INSTRUCTIONS

使用说明书

LVT1218-002A

[UB]

Introduction

Warnings, Cautions and Others

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

CAUTION — F button!

Disconnect the mains plug to shut the power off completely. The F button in any position does not disconnect the mains line. The power can be remote controlled.

CAUTION

• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

• Do not place any naked flame sources, such as lighted candles, on the apparatus.

• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

警告，注意及其他须知事项

注意

为了减少触电、火灾等危险：

1. 请勿擅自卸下螺丝钉、盖子或机壳。

2. 请勿让本机受雨淋或置于潮湿环境中。

注意－ F 开关！

想要完全关闭电源，须将电源插头从插座上拔下。无论 F 键处于何种位置，主电路仍旧没有关闭。电源开关可用遥控器进行控制。

注意

• 切勿堵塞通风口或通风孔。（如果通风口或通风孔被报纸或布等物堵塞，热量将无

法散出。）

• 切勿在本系统上放置明火，如点燃的蜡烛。

• 想要丢弃电池时，务必考虑环保问题以及严格遵守当地

关于处理废旧电池相关的法律规定和条例。

• 切勿让本机受雨淋、受潮湿、落上或溅上水滴，亦勿在

本机上面放置盛满液体的容器，如花瓶。

IMPORTANT FOR LASER PRODUCTS / 镭射产品的重要说明

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE THE UNIT.

1. 一级镭射产品。

2. 注意：请勿打开顶盖板，本机内部没有用户可自行维修

的部件；所有维修工作应由有资格的人员完成。

3. 注意：当内部锁定装置失效或者损坏后，打开盖板可能会产生可见或不可见的镭射辐射。应避免受到镭射光束的直接照射。

4. 标签的复制标示：注意标签位于机内。

G-1

CAUTION — Proper Ventilation

To avoid risk of electric shock and fire and to protect from damage, locate the apparatus as follows: Top/Front/Back/Sides: No obstructions should be placed in

Bottom: Place on the level surface. Maintain

In addition, maintain the best possible air circulation.

Front view

前视图

15cm

the areas shown by the dimensions below.

adequate air path for ventilation by placing on a stand with a height of 10 cm or more.

Main unit

本机

15cm

1cm

注意 — 正确的通风方法

为了防止触电，火灾及避免损坏，按如下要求放置机器：上面 / 前面 / 后面 / 侧面：在图中所示范围中，不应放置任何障

碍物。

底部：放置在水平面上。放置在一个高

或更高的台上以保留足够的通风道。

此外，如图所示，尽可能保持最佳的空气循环。

Side view

侧视图

15cm

Main unit

本机

Wall or

obstructions

墙壁或障碍物

10cm

15cm

10 cm

Front

前面

G-2

Table of Contents

marks refer to operation used frequently. You can quickly learn the general usage of this

product by reading those parts only.

Introduction

Notes on Operation .............................. 2

Special Cautions................................... 3

Notes on Handling................................... 3

Supplied Accessories.............................. 3

Preparation

Part Description .................................... 4

Remote Control .................................... 5

Connections.......................................... 6

Basic Operations

Basic Operations ................................ 10

Setting the Clock ................................... 10

Turning On/Off the Main

Unit.................................................... 11

Adjusting the Volume ............................ 11

Temporarily Turning Off the Sound

(FADE MUTING)............................... 11

Emphasizing Heavy Bass Sound

(AHB PRO) ....................................... 11

Sound Mode.......................................... 11

Adjusting the Sound Quality.................. 11

α Sound ................................................ 12

Changing the Color Patterns for

the Display Window and CD Tray ..... 12

Listening to Radio Broadcasts

Listening to Radio

Broadcasts........................................ 14

Listening to Other Equipment

Listening to Other Equipment..............22

Recording Sound

Recording Sound to MDs ....................23

Recording Sound to Cassette

Tapes ................................................27

Editing MDs

Giving (Editing) Titles ..........................29

Entering Titles .......................................30

Editing Tracks......................................31

Dividing a Track into Two Tracks

(DIVIDE) ............................................31

Joining Tracks (JOIN)............................ 32

Moving a Track (MOVE)........................ 32

Erasing a Track (ERASE)...................... 33

Erasing All Tracks

(ALL ERASE) ....................................33

Editing Tracks by Group......................34

Forming a Group (FORM GR)............... 34

Adding a Track to a Group

(ENTRY GR) .....................................35

Dividing a Group into Two Groups

(DIVIDE GR)...................................... 35

Joining Groups (JOIN GR) ....................36

Moving a Group (MOVE GR).................36

Canceling a Group

(UNGROUP/UNGR ALL)................... 37

Erasing a Group (ERASE GR) ..............38

Listening to CDs/MDs

Listening to CDs/MDs......................... 16

Listening to CDs ................................... 16

Listening to MDs ................................... 17

Group Playback of an MD ..................... 18

Repeat Playback ................................... 18

Program Playback................................. 18

Random Playback ................................. 19

Searching Titles .................................... 20

Listening to Cassette Tapes

Listening to Cassette

Tapes................................................ 21

Convenient Functions

Using the Timers .................................39

Auto Standby.......................................42

CD/MD Ejection Lock ..........................43

Reference

Restrictions on MDs ............................44

Handling CDs/MDs/Cassette Tapes....45

MD/CD Messages ...............................46

Troubleshooting...................................47

Specifications ......................................48

Notes on Operation

Introduction

Suitable Locations for the Main Unit

To minimize the need for servicing and maintain the high quality of this product, do not place the main unit in the following locations:

• In a position subject to high humidity or considerable dust

• On an uneven or unstable surface

• Near a heat source

• Near a computer, fluorescent light or other electric appliance

• In a small room with insufficient ventilation

• In a position exposed to direct sunlight

• In a position exposed to excessive cold

• In a position exposed to strong vibration

• Near a TV, amplifier, or tuner

• Near a magnetic source

CAUTION

• The operating temperature of this product is 5°C to 35°C. Use in temperatures outside this range may cause a malfunction or damage the product.

Condensation

Under the following conditions, you may not be able to operate this product properly due to condensation formed on the lens of the main unit:

• When you have just started an air conditioner to warm your room

• When you have placed the main unit at an area with high humidity

• When you have moved the main unit from a cold place to a warm place

When condensation forms, leave the main unit turned on, wait for approximately 1 or 2 hours, and then operate the main unit.

Cleaning the Main Unit

When the operation panel becomes dirty, dust it with a soft dry cloth. When the operation panel is very dirty, wipe it with a cloth dampened with a small amount of a neutral detergent, and then wipe it with a soft dry cloth.

CAUTION

• Do not wipe the operation panel with thinners, benzenes or other chemical agents. Do not spray insecticides onto the operation panel. These may cause discoloration and damage to the surface.

Listener's Etiquette

English Introduction

When using headphones, keep the volume at a moderate level so as not to over-stimulate your ears.

■ When enjoying sound from the speakers, adjust the volume to a suitable level to avoid disturbing your neighbors. Even low-volume sound carries a long way, especially at night. Show consideration to your neighbors by closing windows or using headphones.

About CDs/CD-Rs/CD-RWs

Confirm the marks on CDs/CD-Rs/CD-RWs

Use a CD/a CD-R/a CD-RW whose letter-

printed surface shows the , or logo. This product does not play back DVDs

or video CDs.

About CD-Rs/CD-RWs

You can play back a CD-R/a CD-RW only when the disc is finalized.

• You can play back a CD-R/a CD-RW which has been recorded in the audio CD format. However, playback is impossible in some cases due to the disc characteristics, recording condition, scratches or dirt on the disc, or dirt or condensation on the lens.

• Before using a CD-R/a CD-RW, carefully read the cautions regarding the disc.

• This product does not support playback or CD text display of sound files such as MP3s.

• To play back a CD-RW on this product, erase all tracks if the CD-RW was recorded in a format other than the audio CD format. Using the CD-RW without erasing all tracks may result in damage to the speakers or other parts caused by sudden loud volume.

Special Cautions

Notes on Handling

■ Important cautions

Installation of the system

• Select a place which is level, dry and neither too hot nor too cold; between 5°C and 35°C.

• Leave sufficient distance between the system and the TV.

• Do not use the system in a place subject to vibration.

Power cord

• Do not handle the power cord with wet hands!

• A small amount of power is always consumed while the power cord is connected to the wall outlet.

• When unplugging the power cord from the wall outlet, always pull on the plug, not the power cord.

To prevent malfunctions of the system

• There are no user-serviceable parts inside. If anything goes wrong, unplug the power cord and consult your dealer.

• Do not insert any metallic object into the system.

• Do not use any non-standard shape disc (like a heart, flower or credit card, etc.) available on the market, because it may damage the system.

• Do not use a disc with tape, stickers, or paste on it, because it may damage the system.

Label sticker

Avoid high temperatures

Do not expose the system to direct sunlight and do not place it near a heating device.

When you are away

When away on travel or for other reasons for an extended period of time, disconnect the power cord plug from the wall outlet.

Do not block the vents

Blocking the vents may damage the system.

Care of the cabinet

When cleaning the system, use a soft cloth and follow the relevant instructions on the use of chemically-coated cloths. Do not use benzene, thinner or other organic solvents including disinfectants. These may cause deformation or discoloring.

If water gets inside the system

Turn the system off and disconnect the power cord plug from the wall outlet, then call the store where you made your purchase. Using the system in this condition may cause fire or electrical shock.

■ When condensation or water drops adhere to the lens

In any of the following cases, condensation or water drops may adhere to the lens to prevent the system from working properly:

• Immediately after roomheating starts

• When the system is installed in a steamy or damp space

• When the system is suddenly moved from a cold place to a warm space

In any of these cases, leave the system turned on for 1 or 2 hours before use.

Sticker

Paste

Note about copyright laws

Check the copyright laws in your country before recording from CDs. Recording of copyrighted material may infringe copyright laws.

■ Safety precautions

Avoid moisture, water and dust

Do not place the system in moist or dusty places.

Supplied Accessories

Check to be sure you have all of the supplied accessories. The number in parentheses is the quantity of the pieces supplied. If anything is missing, contact your dealer immediately.

Remote control (1) Batteries (2) FM antenna (1) AM loop antenna (1)

Preparation

Part Description

Introduction

The numbers refer to the pages in which the parts are explained.

17, 23

21, 28

11, 14

9, 12

English Preparation

39, 41 11 42 18, 19 20

16 22

17 14, 22

Cassette holder: 21 PUSH-OPEN

MD slot: 17

Remote control sensor: 5

16, 21

232714, 16, 21

* This terminal is for connecting a pair of headphones equipped with a stereo mini plug (commercially avail-

able). While the headphones are connected, the speakers do not produce any sound.

14, 16, 21

CD tray: 16

Remote Control

The numbers refer to the pages in which the parts are explained.

Inserting Batteries into the Remote Control

10,15, 18, 30

15, 29, 31

18, 35

29, 34

18, 35

23 25

18, 19

15, 17,

30 19, 31, 34, 40

15, 31, 39, 41

15, 29, 31

16, 21

20 23 23

14, 22

10, 39

1112

R6P(SUM-3)/ AA(15F) type dry-cell batteries (2)

CAUTION

• Do not use a used battery and a new battery together.

• Do not use different types of batteries at the same time.

• Take out the batteries if the remote control is not to be used for a long time. Otherwise it may cause a leakage.

Remote control operation

• When operating the remote control, point it at the front panel of the main unit.

• The effective distance between the remote control and the remote control sensor on the main unit is approximately 5 m maximum.

• When the effective distance decreases, replace the batteries.

• Do not drop the remote control or subject it to excessive shock.

Introduction

Connections

Connect all necessary parts before connecting the power plug.

Connecting the Antennas

Connecting the AM antenna

1 Set up the AM loop antenna

(supplied).

Insert the tab into the slot.

2 Connect the antenna cord.

Main unit (side view)

Main unit (rear view)

■ When radio reception with the supplied AM loop antenna is poor

Electric wire: 3 - 5 m (commercially available)

Twist together electric wire and the AM loop antenna cord.

Main unit (rear view)

Stretch out the electric wire horizontally, preferably in a high place such as above a window or outdoors. Connect the AM loop antenna cord to the main unit together with the electric wire.

English Preparation

Connecting the antenna cord

When insulation covers the tips of the antenna cord, twist and pull off

Connect the ends of the antenna cord as shown above.

the insulation.

3 Turn the AM loop antenna to find

the best position for radio reception. Place the AM loop antenna as far from the main unit as possible.

• Do not place the AM loop antenna on a metallic table or close to a TV, computer, or other electric appliance. Doing so may affect radio reception.

When positioning the antennas, find the best position for reception while listening to an actual radio program (refer to "Listening to Radio Broadcasts" ( page 14).

(Continued) Connections

Connect all necessary parts before connecting the power plug.

Connecting the FM antenna

Main unit (rear view)

FM antenna (supplied)

Main unit (side view)

Stretch out the FM antenna to the best position for radio reception, and then fix it with adhesive tape.

■ When radio reception with the supplied FM antenna is poor, or when using a communal antenna

Main unit (side view)

Main unit (rear view)

Antenna cord (sold separately)

Converter (sold separately: compatible with

Ω/75 Ω)

300

Depending on the radio reception conditions, an FM feeder antenna (sold separately: compatible with 300 Ω) can be used. In the case, a converter (sold separately) is required.

Communal antenna terminal

Outdoor FM antenna (commercially available)

Coaxial cable (commercially available)

When using an antenna other than those supplied with this product, refer to the operation manuals for the antenna and converter for details of connection.

When positioning the antennas, find the best position for reception while listening to an actual radio program (refer to "Listening to Radio Broadcasts" ( page 14).

Introduction

Connecting the Speakers

There is no difference between the left and right speakers.

Main unit (rear view)

Speaker cord

Red

Black

After connecting the speakers, gently pull on the speaker cords to make sure the cords are firmly connected and do not pull out.

Speaker cord

Red

Black

English Preparation

Right speaker (rear view)

CAUTION

• Do not short-circuit the and speaker terminals. Doing so may damage the speakers.

• Do not connect other speakers together with the supplied speakers. The change in impedance may damage the main unit and the speakers.

You can detach the speaker cover.

Speaker cover

Left speaker (rear view)

NOTE

• Improper speaker cord connection spoils the stereo effect and sound quality.

• The impedance of speakers connected to this product must be within the range 4 Ω to 16 Ω.

• Cooling fan is built into the main unit for emitting generated heat. The internal cooling fan automatically rotates and stops. To ensure sufficient cooling, leave a space of more than 1 cm between the main unit and the speakers or other objects.

• The supplied speakers do not conform to magnetically shielded design. Place the speakers enough distance from a TV so that they do not cause color irregularity on the TV.

(Continued) Connections

Connect all necessary parts before connecting the power plug.

Connecting Other Equipment

Read this section when connecting other audio equipment to this product.

Other audio equipment

Audio cord (not supplied)

Connecting the Power Plug

AC outlet Main unit (rear view)

• After making all other necessary connections, connect in the power plug.

Demonstration display function

When you connect the power plug into the AC outlet, "DEMO START!" appears in the display window and the demonstration display starts.

When you press on the main unit, "DEMO

OFF" appears in the display window and the demonstration display is canceled. Turning on the main unit automatically cancels the demonstration display.

Resuming the demonstration display

Main unit (rear view)

CAUTION

• Before connecting other equipment, turn off both the main unit and other equipment.

With the power turned off, press on the main

unit.

Hiding the demonstration display

With the power turned off, hold down

until "DEMO CLEAR" appears. Disconnecting and then reconnecting the power plug does not start the demonstration display. To activate the demonstration display

again, hold down until "DEMO

START!" appears.

NOTE

• If not using this product for a long period, disconnect the power plug from the AC outlet for safety and to save electricity.

Basic Operations

About this manual

• This manual explains the operations assuming that you will use the remote control. Some buttons on the main unit are the same as those on the remote control. You can use either button in this case.

• Some diagrams in this manual are simplified or exaggerated for the purpose of explanation.

• You can operate some functions differently from the explanation given in this manual.

Number buttons

• You can use the number buttons to specify the hour. Refer to "Using the number buttons" shown below.

3 Press .

• To return to step 2, press .

4 Set the minute in the same manner

as steps 2 and 3.

Adjusting the clock

Press four times to display the clock, and then adjust the clock starting from step 2.

English Basic Operations

Setting the Clock

You can set the clock while the main unit is turned either on or off.

Example: To set the clock to 10:10 a.m.

1 Press .

2 Set the hour.

Back Next

• Holding down the button causes the hour to increment.

Displaying the clock while using the main unit

Press repeatedly.

NOTE

• The time display on the main unit is a 24-hour clock.

• The clock will gain or lose approximately 1 minute per month.

• Set the clock again after you have disconnected the power plug or a power cut has occurred.

Using the number buttons

Examples:3:

13: →

20: →

23: → →

(Continued) Basic Operations

Turning On/Off the Main Unit

Press (or on the main unit).

• With the power off, pressing either button turns on the main unit.

Remote control:

Main unit:

Pressing one of these buttons other than

or changes the sound source.

When a CD, MD or cassette tape has been loaded, playback starts.

A dj us ti ng th e Vo lu me

Press .

NOTE

• You can also adjust the volume by turning the VOLUME control on the main unit.

• You can adjust the volume within the range 0 to 40.

Temporarily Turning Off the Sound (FADE MUTING)

Sound Mode

Press .

• Each time you press , the display toggles as follows.

: For sharp sound.

: For soft sound.

: For background music.

: For refreshing sound.

: For melancholy sound.

: Cancels the sound

mode (factory setting).

• While the sound mode is set to an item other

than "NORMAL", is displayed in the display window.

NOTE

• This function does not affect recording sound.

Sound mode

A combination of JVC sound technologies enables you to select the desired sound pattern.

Press .

• "FADE MUTING" appears and the volume reduces to "0".

• To return to the previous volume, press again.

Emphasizing Heavy Bass Sound (AHB PRO)

Press .

• Each time you press , AHB PRO

function toggles between "ON" and "OFF".

• While AHB PRO function is activated, is displayed in the display

window.

• "AHB PRO" stands for "Active Hyper

Bass PRO".

Adjusting the Sound Quality

1 Press repeatedly to display

"NORMAL".

2 Press to display "BASS" or

"TREBLE".

: Adjusts the bass sound.

: Adjusts the treble sound.

While "BASS" or "TREBLE" is displayed in the display window, press

to adjust the sound quality.

• You can adjust the sound quality within the range -5 to +5.

• The display returns to the sound source display in a few seconds.

NOTE

• While the sound mode is activated, "NO OPERATE" is displayed and you cannot adjust the sound

quality ( page 11). Canceling the sound mode returns both the bass and treble sounds to "0".

Sound

Press .

Changing the Color Patterns for the Display Window and CD Tray

Press (or on the main unit).

• Each time you press , the display toggles as follows.

English Basic Operations

• Each time you press , the display toggles as follows.

: Produces a natural sound

field.

: Produces a comfortable

sound field.

: Produces a deeper

sound field.

: Cancels α sound (factory

preset).

•While α sound is activated, is displayed in the display window.

NOTE

• This function does not affect recording sound.

• While the sound mode is activated, using α sound cancels the sound mode ( page 11).

Conversely, while α sound is activated, using the sound mode cancels α sound.

α Sound α (alpha) waves are regarded as one type

of brain wave that is emitted when a person is relaxed. JVC's α DIMENSION SOUND function is designed to produce natural and easy-listening sound that makes you feel relaxed. The effect is completed by 1) LFO modulation which adds fluctuation with the α wave frequency to subtracted waves (leftright indirect sound) which provides sound circulation, and 2) natural sound collection for covering the middle range of waves in music signals which naturally tend to dissipate.

: For a rainbow-like

pattern.

: For a flower-image

pattern.

: Gradually changes

the color pattern in a cycle of approximately 20 seconds.

: For an ocean-image

pattern.

: For a fantasy pattern.

: For the color of your

choice. (The setting shown on the left is factory setting.)

Setting your favorite color for the display window and CD tray

1 Press repeatedly to display

"MANUAL".

2 Press or to select a com-

ponent color.

• Numerical value of the selected component color flashes.

(Continued on the next page)

(Continued) Basic Operations

3 Press to adjust the intensity of

the component color.

• You can adjust the color intensity within the range "0" to "3". You cannot set all three component colors (red, green, and blue) to "0" at the same time.

NOTE

• You can also adjust the color intensity by turning the VOLUME control on the main unit.

• After you have adjusted each component color, the display returns to the sound source display in approximately 8 seconds.

• You cannot set different colors for the display window and CD tray.

• When you operate a button on the main unit or remote control, the display window and CD tray light in pale blue for approximately 2 seconds.

• When recording finishes, the color of the display window and CD tray switches to the color set in "MANUAL" to inform you that recording has finished. When you operate the main unit after recording finishes, the color pattern for the display window and CD tray returns to the selected pattern.

Changing the brightness of the display window and CD tray (DIMMER)

Press .

• Each time you press , the display tog-

gles as follows.

: Color pattern

becomes dimmer.

: Color pattern

becomes darker, and switches to blue.

: Cancels the

brightness adjustment (factory setting).

NOTE

• Once you press to change the color pattern, the brightness returns to the factory setting.

• When you turn off the main unit, the brightness also returns to the factory setting.

• You cannot turn off the color pattern.

Listening to Radio Broadcasts

Introduction

This product can receive FM and AM radio broadcasts.

Number buttons

■ When the main unit is turned off

To select 10 kHz spacing, while holding down on

the main unit, press on the main unit to turn on the power. "AM 10 kHz SP (Spacing)" appears on

the display window.

To select 9 kHz spacing, while holding down

on the main unit, press on the main unit to turn on the power. "AM 9 kHz SP" appears on the dis-

play window.

NOTE

• If the spacing is switched, the memory in which the radio stations were stored will be erased.

Selecting a Radio Station

1 Press to select "FM" or "AM".

Example: Display while an FM radio broadcast

is received.

Stereo indicator

Preset number ( page 15)

English Listening to Radio Broadcasts

Setting the AM Tuner Spacing

Some countries space AM stations 9 kHz apart, and other countries use 10 kHz spacing.

On the main unit ONLY:

Frequency

2 Press or repeatedly to

select a radio station (frequency).

• You can also select a radio station using the

automatic tuning.

Automatic tuning:

Hold down or until the frequency starts changing, and then release the button.

When the main unit has received a broadcast, the frequency automatically stops changing. To quit the function while searching for a broad-

cast, press or .

• When the main unit has received an FM ste-

reo broadcast, "STEREO" lights up.

NOTE

• If an FM stereo broadcast is difficult to hear because of noise, you may be able to hear more

easily by pressing to switch the sound to mon-

aural reception. In this case, "MONO" lights up. To

return the sound to stereo reception, press

again or select another FM radio station.

(Continued) Listening to Radio Broadcasts

Storing Radio Stations (Preset)

You can store up to 30 FM radio stations and up to 15 AM radio stations.

■ While the broadcast from the radio station you want to preset is being received

1 Press .

• The preset number flashes for approximately 5 seconds.

2 While the preset number is flash-

ing, press the number buttons ( - or ) to select the

preset number you want to use.

• Refer to "Using the number buttons" ( page 10).

3 While the selected number is

flashing, press .

• "STORED" appears and the selected radio station is stored.

NOTE

• When you store a radio station to a preset number to which another radio station has previously been stored, the newly set radio station replaces the previously stored radio station.

Tuning In to a Preset Radio Station

■ While an FM or AM broadcast is being received

Use the number buttons to select the preset number of the radio station to which you want to tune in.

Refer to "Using the number buttons" ( page 10).

Entering radio station names

You can enter the name of a stored radio station using up to eight characters.

1 Press . 2 Entering a radio station name with

or the number buttons ( -

or ).

• To enter radio station names, refer to "Entering Titles" ( page 30).

3 Press .

• "STORED" appears in the display window and the entered radio station name is registered.

NOTE

• When you store a radio station after you have entered a radio station name, the entered radio station name with the same preset number is erased.

• You cannot enter radio station names after selecting a radio broadcast with or .

• If you change the AM tuner spacing ( page 14), radio station names remain unchanged. Enter radio station names again, if necessary.

Changing the Display in the Display Window

Press .

• Each time you press , the display tog-

gles as follows.

Display while a radio broadcast is being

received (

(Time display)

page 14

)

(With an MD loaded) Display of remaining time for MD recording

Clock display

Listening to Radio Broadcasts

Listening to CDs/MDs

Introduction

Number buttons

Listening to CDs

English Listening to CDs/MDs

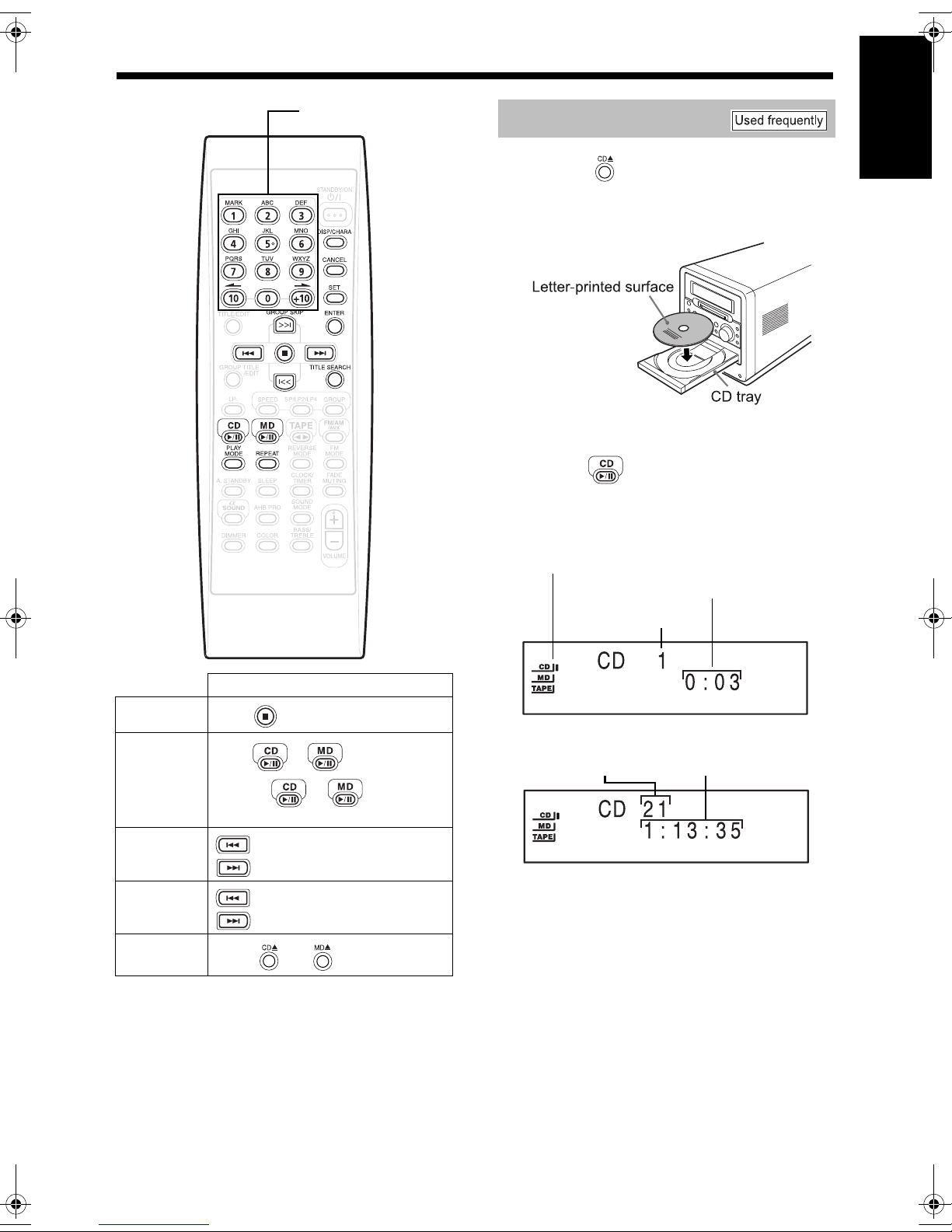

1 Press on the main unit.

• The CD tray comes out.

2 Place a CD on the CD tray.

• When you want to listen to an 8 cm CD,

place it on the inner hollow of the CD tray.

3 Press .

■ Display during CD playback

CD indicator (The CD indicator lights up while the CD is stopped. The CD indicator flashes while the CD is being played back or paused.)

Elapsed playing time

Stop

Pause

Search (Skip)

Fast forward/ Rewind (Search)

Eject

Operation

Press .

Press or during playback.

Pressing or again

resumes playback.

Press the button repeatedly.

Hold down the button during playback.

Press or on the main unit.

Track number

■ Display while the CD is stopped

Total number of tracks

Total playing time

(Continued) Listening to CDs/MDs

Listening to MDs

■ When the main unit is turned on

1 Insert an MD.

CAUTION

• Do not insert an MD while the main unit is turned off. Forcibly inserting an MD may damage the main unit.

2 Press .

■ Display while an MD is being played back

MD indicator (The MD indicator lights up while the MD is stopped. The MD indicator flashes while the MD is being played back or paused.)

Group

Track number

MDLP mode ( page 23)

• When the track title has been set to the

track, the track title appears first.

* When the track being played back does not

belong to a group, "G - -" appears.

CAUTION

• Do not insert another MD while the MD indicator is lighting up or flashing. Forcibly inserting an MD may damage the main unit.

■ Display while the MD is stopped

Total number of tracks

number*

MDLP mode ( page 23)

Elapsed playing time

Total number of groups*

• Long titles are scrolled. * When no group belongs to an MD, "G - -"

appears.

Changing the Display in the Display Window

Press .

• Each time you press , the display toggles as follows.

■ While a CD is being played back (or stopped)

Display while a CD is being played back or stopped ( page 16)

(With an MD loaded)

(Time display)

Clock display

■ While an MD is being played back

Display while an MD is being played back ( on the left)

Track title display

Group title display

Clock display

■ While an MD is stopped

Display while an MD is stopped ( on the left)

Disc title display

Clock display

NOTE

• While an MD is selected as the sound source, when you insert an MD to which nothing has been recorded, "BLANK DISC" appears.

Display of remaining time for MD recording

When no title has been set to a track, "NO TR TITLE" appears.

When the track being played back does not belong to a group, no group title display appears. When no title has been set to a group, "NO GR TITLE" appears.

When no title has been set to an MD, "NO TITLE" appears.

Total playing time

• When the MD title has been set to the MD, the MD title appears first.

Introduction

Specifying the Track (Direct Track Selection)

Press the number buttons ( -

or ) to select the track you want to listen to.

• Refer to "Using the number buttons" ( page

10).

Group Playback of an MD

You can play back just the tracks from a group which you want to listen to.

■ While the MD is stopped

1 Press repeatedly to select

"GROUP".

Group indicator

Repeat Playback

English Listening to CDs/MDs

This function allows you to repeatedly listen to the same track.

During CD/MD playback, press repeatedly to select the repeat mode.

• Each time you press , the display toggles as follows.

Example: While "REPEAT ALL" is selected

Repeat indicator

: For repeating all tracks in a CD/

MD. For repeating all tracks in the selected group when MD group playback is selected.

: For repeating one track.

2 Press .

• Group 1 playback starts.

• If there is no group, "GROUP" disappears and normal playback starts.

3 Press or to select a

group.

• When playback of all tracks in the selected group finishes, playback automatically stops.

Canceling group playback

While playback is stopped, press repeatedly to select an item other than "GROUP".

NOTE

• Ejecting the MD or turning off the main unit also cancels group playback.

: For canceling repeat playback.

NOTE

• Ejecting the CD or MD, or turning off the main unit also cancels repeat playback.

Program Playback

This function allows you program up to 32 tracks.

CD: Press , and then press .

MD: Press , and then press .

2 Press to select "PROGRAM".

Example: While CD program playback is

selected

Program indicator

(Continued on the next page)

(Continued) Listening to CDs/MDs

3 Press the number buttons ( -

or ) to select the track

numbers.

• Refer to "Using the number buttons" ( page 10).

Track number Program number

Total time for program playback

NOTE

• When you want to erase the program, press while playback is stopped. Programmed tracks are

erased one by one from the last track. Holding

down erases all programmed tracks.

• When you try to program the 33rd track, "MEMORY FULL" appears in the display window to indicate that 33 or more tracks cannot be programmed.

• When total time for program playback reaches 1 hour 40 minutes for a CD or 2 hours 31 minutes for an MD, "--:--" appears.

Erasing the all programmed tracks

While playback is stopped, hold down

NOTE

• Ejecting the CD or MD, or turning off the main unit also cancels the all programmed tracks. This operation also cancels program playback.

Random Playback

This function allows you to listen to tracks in random order.

CD: Press , and then press .

MD: Press , and then press .

2 Press repeatedly to select

"RANDOM".

Example: While MD random playback is

selected

4 CD: Press .

MD: Press .

NOTE

• You can set tracks in the program playback either from a CD or MD.

Confirming the programmed track order

While playback is stopped, press

or repeatedly.

• You can add a track as the last track in the

program, or erase the last track. ( step 3 shown above)

Canceling the program playback

While playback is stopped, press repeatedly to display an item other than "PROGRAM".

• This operation does not erase the program.

Random indicator

3 CD: Press .

MD: Press .

NOTE

• You can set tracks in the random playback either from a CD or MD.

• Pressing repeatedly does not return playback to the previous track.

• Each track is played back once.

Canceling the random playback

While playback is stopped, press repeatedly to display an item other

than "RANDOM".

NOTE

• Ejecting the CD or MD, or turning off the main unit also cancels random playback.

Introduction

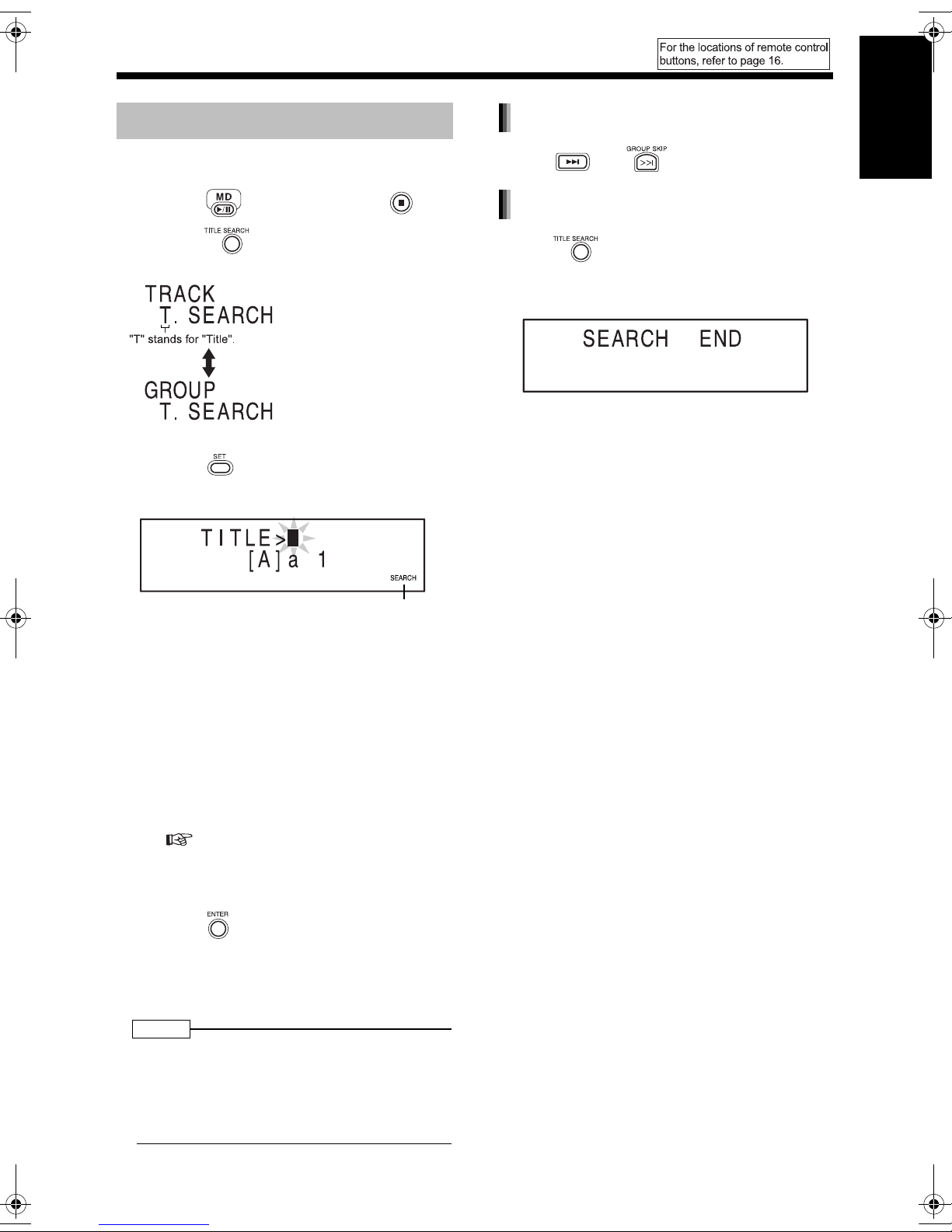

Searching Titles

This function allows you to search titles for tracks or groups in an MD.

1 Press , and then press .

2 Press repeatedly to select

the sarch type.

For searching track titles.

For searching group titles. (This function is available only when there are groups.)

3 Press .

Example: While track titles are being searched

Searching another track or group title

English Listening to CDs/MDs

Press (or ).

Quitting the title search

Press .

• The title search is cancelled and playback

returns to the beginning of the current track.

While group titles are being searched, "GROUP SEARCH" is displayed.

4 Enter the title you want to find.

• Enter the first one to five characters of the title. Example: Entering "F" searches titles start-

ing with "F" in order of track number. Entering "Frien" searches titles starting with "Frien" in order of track number.

• For entering titles, refer to "Entering Titles" ( page 30).

• When searching tracks or groups with no titles, enter nothing, and then proceed to step 5.

5 Press .

• "SEARCH" appears and the title search starts. When the title is found, playback of the track starts. When playback finishes, the next title search automatically starts.

NOTE

• A space is treated as a character. However, when no character exists after the space, the space is ignored.

• The title search function is case-sensitive.

• When no corresponding titles are found, "SEARCH END" appears.

Listening to Cassette Tapes

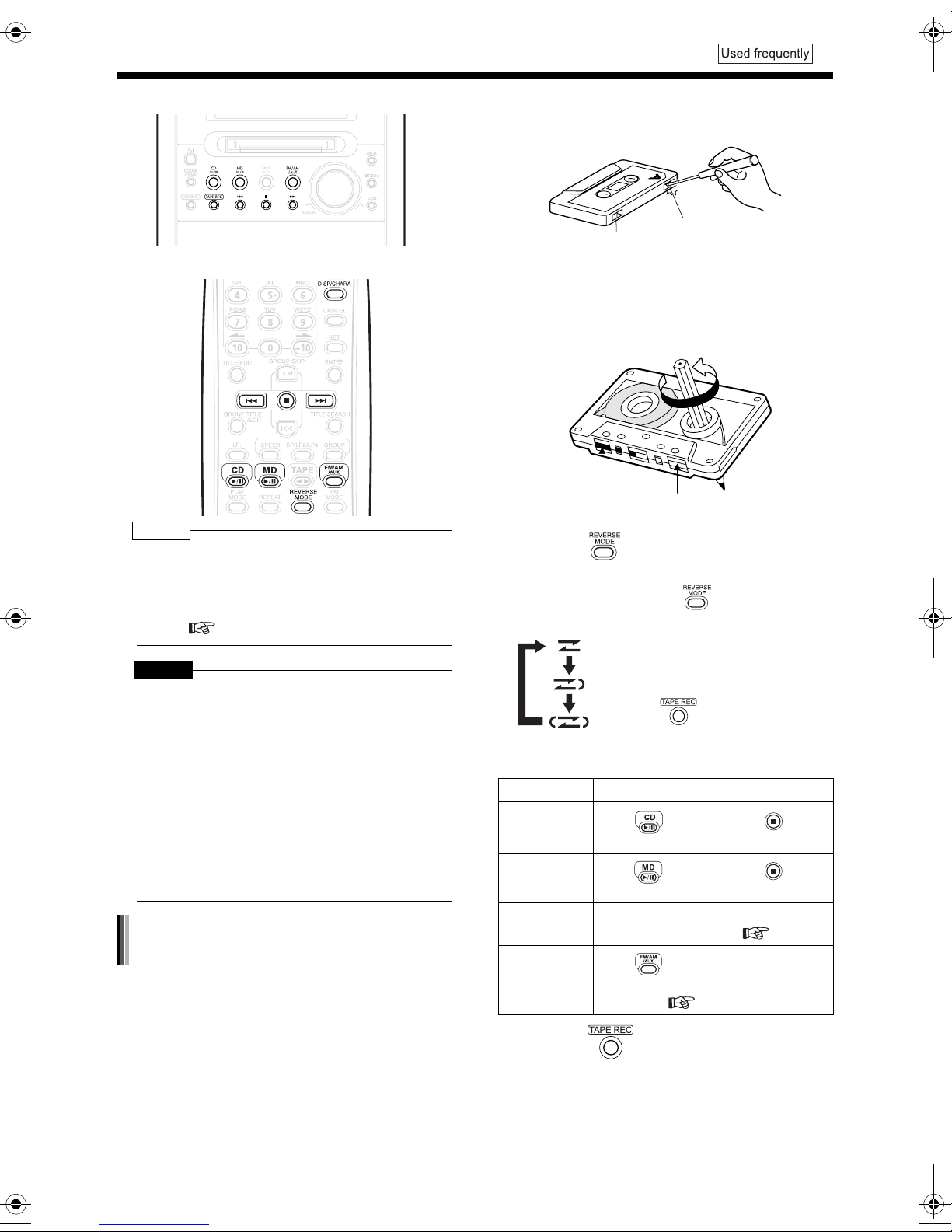

1 Insert a cassette tape.

Cassette tape indicator (The cassette tape indicator lights up while the cassette tape is stopped. The cassette tape indicator flashes while the cassette tape is being played back.)

Press .

Insert a cassette tape with the side you want to listen to facing up.

Stop

Fast forward/ Rewind

Operation

Press .

Press or . When a cassette tape is played back in the normal direction ( ), is fast

forward and is rewind. When the cassette tape is played back in the opposite direction ( ), is

fast forward and is rewind.

Cassette tape playback direction ( : normal direction/ : opposite direction)

CAUTION

• Before using a cassette tape, wind up any slack in the cassette tape. ( page 45)

• Do not use long cassette tapes such as C-120 or C-150. Long cassette tapes are thin and stretch easily, and may become tangled in the inner part of the main unit.

• This product is compatible with playback of TYPE I cassette tapes. Playback of TYPE II or TYPE IV cassette tapes is not recommended, because this product does not meet the specifications for these tapes. The main unit does not produce the proper sound from these cassette tape types.

Reverse mode

2 Press repeatedly to select the

reverse mode.

: For one return playback of both

sides.

: For repeated playback of both sides

(Playback continues until playback is stopped.)

: For one-way playback of either side.

Introduction

3 Press .

• Playback starts.

• When the main unit is turned off, pressing

automatically turns on the main unit.

• Each time you press , the cassette tape playback direction changes. The initial play-

back direction after you have inserted a cassette tape is always the normal direction.

• The cassette tape playback direction indicator facing right is displayed during normal playback. The indicator facing left is displayed during reverse playback.

Changing the Display in the Display Window

Press .

• Each time you press , the display toggles as follows.

Sound source name

(Time display)

Clock display

Listening to Other Equipment

You can listen to sound from other audio equipment connected to the AUX terminals on the rear

side of the main unit ( page 9).

1 Press repeatedly to select

"AUX".

Hold down until the input level appears.

• Each time you hold down , the display toggles as follows.

English Listening to Cassette Tapes/Listening to Other Equipment

(With an MD loaded) Display of remaining time for MD recording

For ordinary use. (factory setting)

2 Start other equipment playback.

• Refer to the operation manual for the connected equipment.

3 Adjust the volume and make other

necessary settings.

• For adjusting the volume and making other necessary settings, refer to "Basic Opera-

tions" ( pages 11 - 13).

Adjusting the Sound Input Level from Other Equipment

You can adjust the sound input level from the connected equipment.

• While the sound source is selected to AUX, you can adjust the sound input level.

For increasing the input level from the connected equipment.

Changing the Display in the Display Window

Press .

• Each time you press , the display toggles as follows.

Sound source name

(With an MD loaded)

(Time display)

Clock display

Display of remaining time for MD recording

Recording Sound

Recording Sound to MDs

Main unit

Remote control

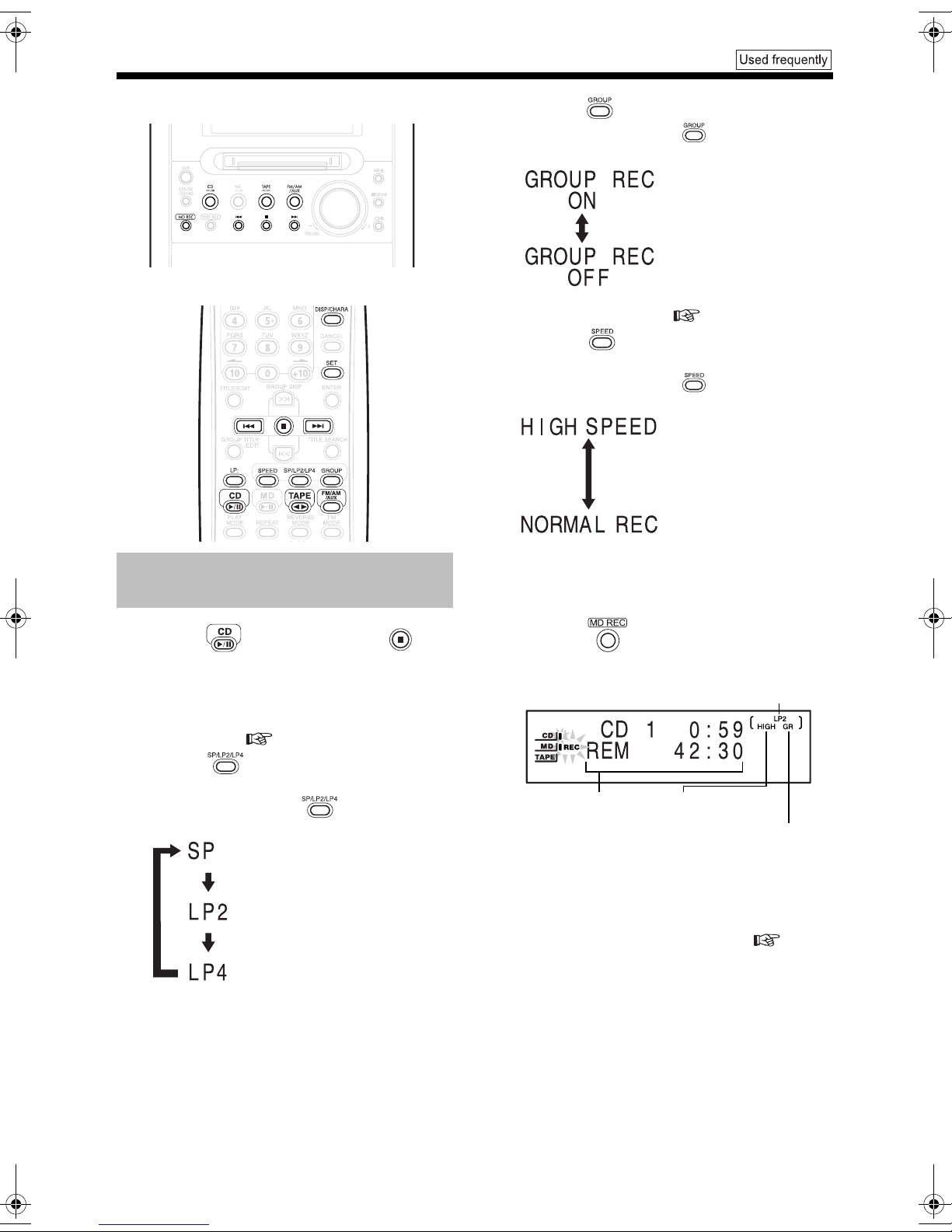

Recording All Tracks from a CD to an MD

4 Press to set group recording.

• Each time you press , the display toggles as follows.

: Activates group record-

ing (factory setting).

: Cancels group recording.

• You can form or cancel a group after the recording finishes. ( pages 34 and 37)

5 Press to select the recording

speed.

• Each time you press , the display toggles as follows.

: High speed recording

When CD playback time is 30 or more minutes, the recording speed is ×5, and when the playback time is less than 30 minutes, the recording speed is ×4.

: Normal speed recording

• Recorded sound quality is the same for both "HIGH SPEED" and "NORMAL REC".

• You cannot listen to the sound during high speed recording.

1 Press , and then press .

• The CD is selected as the sound source and playback is stopped.

2 Insert an MD.

• Close the write protect knob on the MD beforehand ( page 45).

3 Press to select the MDLP

mode.

• Each time you press , the display toggles as follows.

: For standard stereo recording

(Maximum recording time is 80 minutes with an MD 80).

:For

2 extended stereo recording

(Maximum recording time is 160

minutes with an MD 80).

:For

4 extended stereo recording

(Maximum recording time is 320

minutes with an MD 80).

• As you change the MDLP mode (SP→LP2→LP4), the sound quality also changes. When you want to record sound at the best possible quality, select the SP mode.

• When you use an MD car audio system, portable MD player or other MD player that is not compatible with the MDLP mode, select the SP mode.

6 Press on the main unit.

Example display during recording:

MDLP mode

Remaining time for recording

• When recording finishes, the color pattern of the display window and CD tray changes to the color pattern set in "MANUAL" to inform

you that recording has finished ( pages 12 and 13).

• When "HCMS CANNOT COPY" appears, refer to pages 44 and 46.

This indicator lights up during high speed recording.

This indicator lights up during group recording.

NOTE

• The recorded sound level is automatically adjusted.

• The CD rotates at high speed during high speed recording. Therefore, depending on the condition of the CD, the sound may be recorded improperly and affected by noise. If the sound is not recorded properly, select normal speed recording.

• The remaining time for recording differs depending on the selected MDLP mode.

• You cannot record sound while the repeat playback function is on. Starting the recording function automatically cancels repeat playback.

Quitting Recording

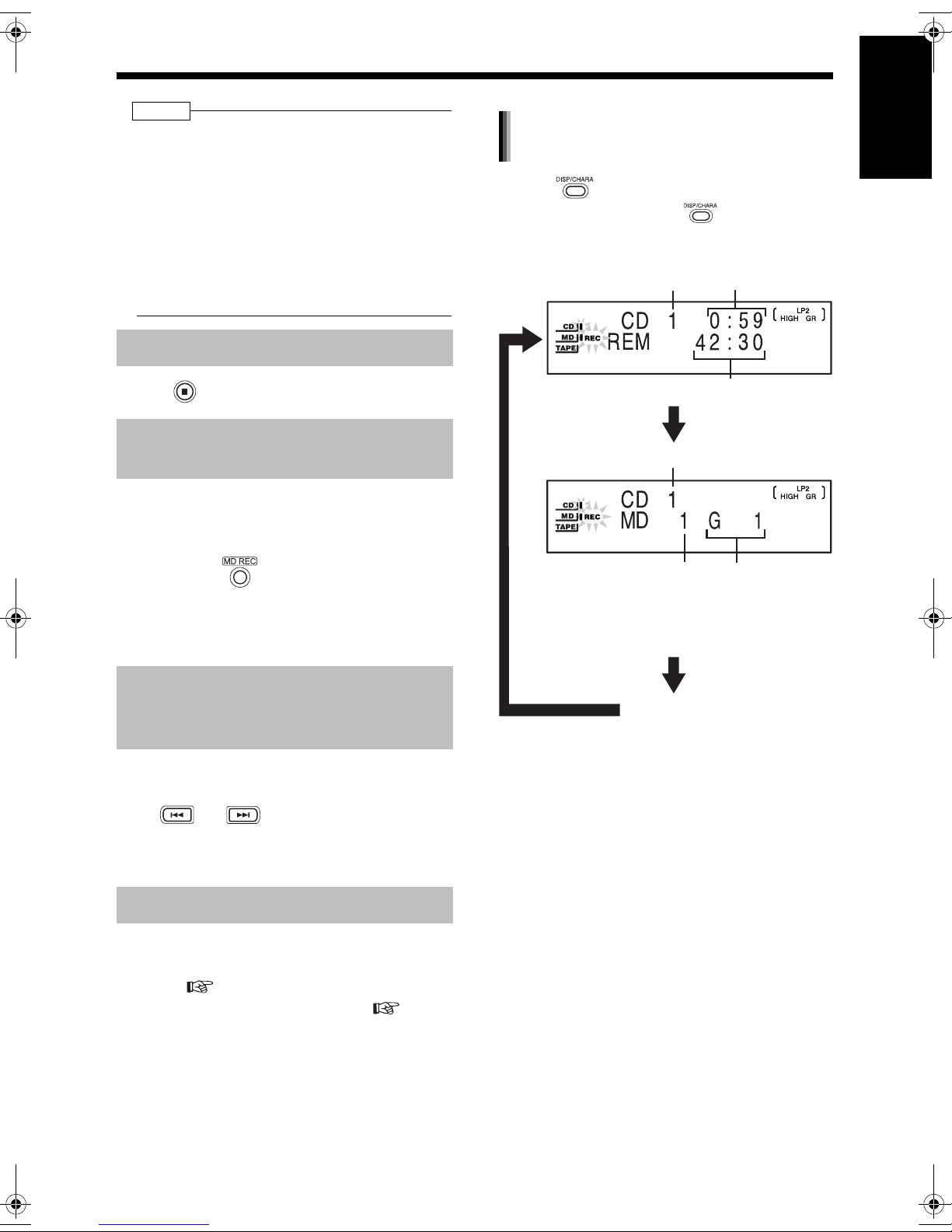

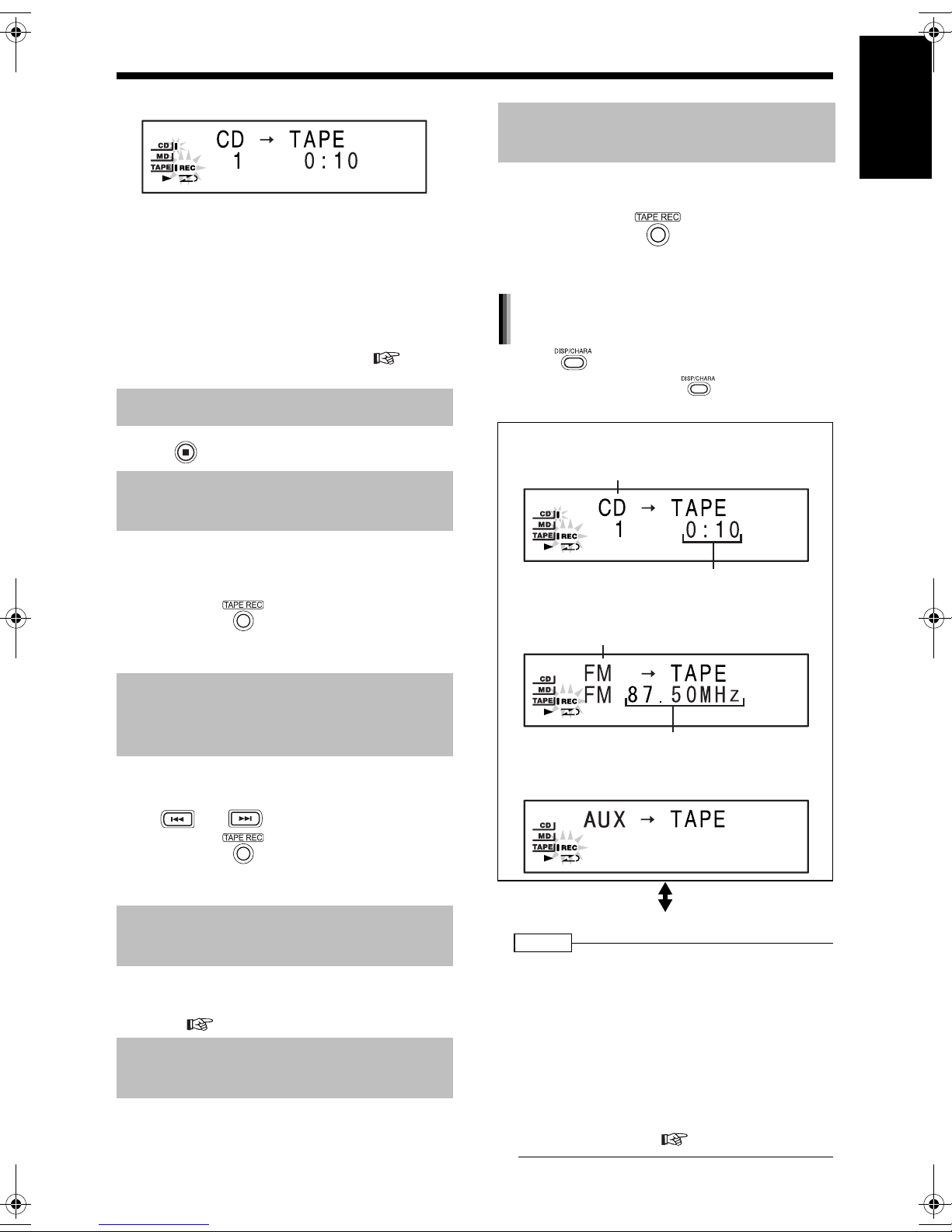

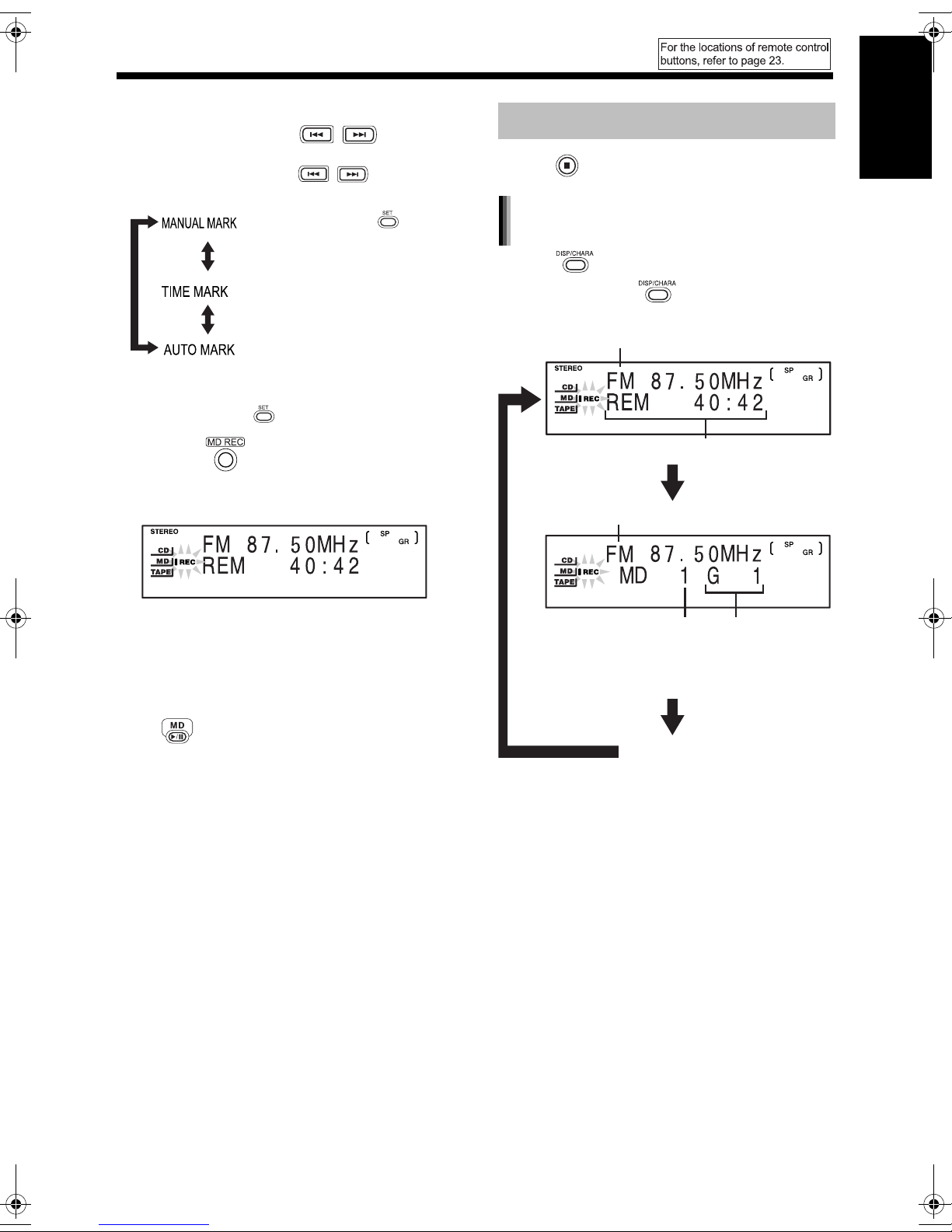

Changing the display in the display window during recording

Press .

• Each time you press , the display toggles as follows.

Remaining CD playback time of

Recording CD track number

the track

English Recording Sound

Press .

Recording Only One Track from a CD

Before proceeding to step 6 on page 23, start playback of the track you want to record.

• Pressing in step 6 returns playback to the beginning of the track, and only that track is recorded.

• When you select high speed recording, the

speed used is

Recording the Second or Subsequent Track to the Last Track from a CD

Before proceeding to step 6 on page 23, select the starting track number

with or .

• When you select high speed recording for recording from the selected track, the speed

used is

Remaining MD recording time

Recording CD track number

Recording MD track number

Clock display

Recording MD group number (When tracks have not been recorded in a group, " - -" appears.)

Program Recording from a CD

Before proceeding to step 5 on page 23, program the tracks you want to record ( page 18).

• Select normal speed recording ( step 5 on page 23). When you select high speed recording and proceed to step 6, "CANNOT REC × 1 REC ONLY" appears in the display window and recording does not start.

(Continued)

Recording Sound to MDs

Things You Should Know about MD Recording

• It may be unlawful to record or playback copyright material without the consent of the copyright owner.

• You can record tracks having different MDLP modes onto a single MD.

• You cannot use the monaural extended recording function with this product.

CAUTION

• You cannot play back tracks recorded in LP2 or LP4 with audio equipment that is not compatible with MDLP. When you attempt playback, "LP: " appears in front of the track title, and the main unit does not produce any sound. When you play back tracks recorded in LP2 or LP4 with audio equipment that is compatible with MDLP, "LP: " does not appear. To activate or cancel the "LP: " indicator, press

. ( page 25)

• You can record up to 254 tracks to an MD. If you try to record 255 or more tracks, "DISC FULL" appears.

• When you use a partially-recorded MD, this product searches for the blank portion and records the new tracks to that portion. Unlike cassette tape recording, you cannot record over old tracks on an MD.

• Changing in sound volume and quality on this product during recording does not affect the recorded sound.

• Sound from an audio CD is recorded as digital signals to an MD. Sound from the radio or AUX is converted from analog signals to digital signals during recording.

CAUTION

• Do not bump or sway the main unit during MD recording/editing. Be especially careful while "WRITING" is displayed. Such movement may interfere with MD playback.

CD-R/CD-RW recording

• When you record sound from a CD-R or CD-

RW (digital audio) onto an MD, pressing displays "SCMS CANNOT COPY" in the

display window, and analog normal speed recording automatically starts.

• You can manually select analog recording by

holding down for 4 or more seconds and

pressing once again while "ANALOG REC?" is displayed.

"LP: " indicator setting

Press .

• Each time you press , the display toggles as follows.

:For adding "LP: " to the track title.

:For deleting "LP: " from the track title

Recording Sound from Radio, Cassette Tape or Other Equipment

NOTE

• The recorded sound level is automatically adjusted.

• Sound-synchronized recording is employed for recording sound from other equipment (AUX). With sound-synchronized recording, this product automatically identifies sound signals from the sound source and starts recording. When sound from the sound source pauses for 30 or more seconds, this product automatically quits recording. The blank time between the last recorded track and the next recorded track is approximately 2 seconds.

1 Select a sound source.

Sound source Operation

Radio broadcast

Cassette tape playback

Sound from other equipment (AUX)

Select the radio station whose broadcast you want to record ( page

14).

Insert a cassette tape for playback,

press , and then press .

Press to select the reverse mode when necessary.

Press repeatedly to select AUX, and prepare playback on the other equipment ( page 22).

2 Insert an MD for recording.

• Confirm the MDLP, "LP: " indicator and

group recording settings. ( pages 23 and on the left)

• Close the write protect knob on the MD

( page 45).

3 Hold down on the main unit

for approximately 4 seconds to display the track mark options.

4 While the track mark options are

displayed, press to select a track mark option.

• Each time you press , the display

toggles as follows.

: Each time you press during

recording, a track mark is set (factory setting).

: Track marks are automatically set

in 5 minute intervals.

: When no sound is produced for 3

or more seconds, a track mark is automatically set. You can also insert a track mark by pressing

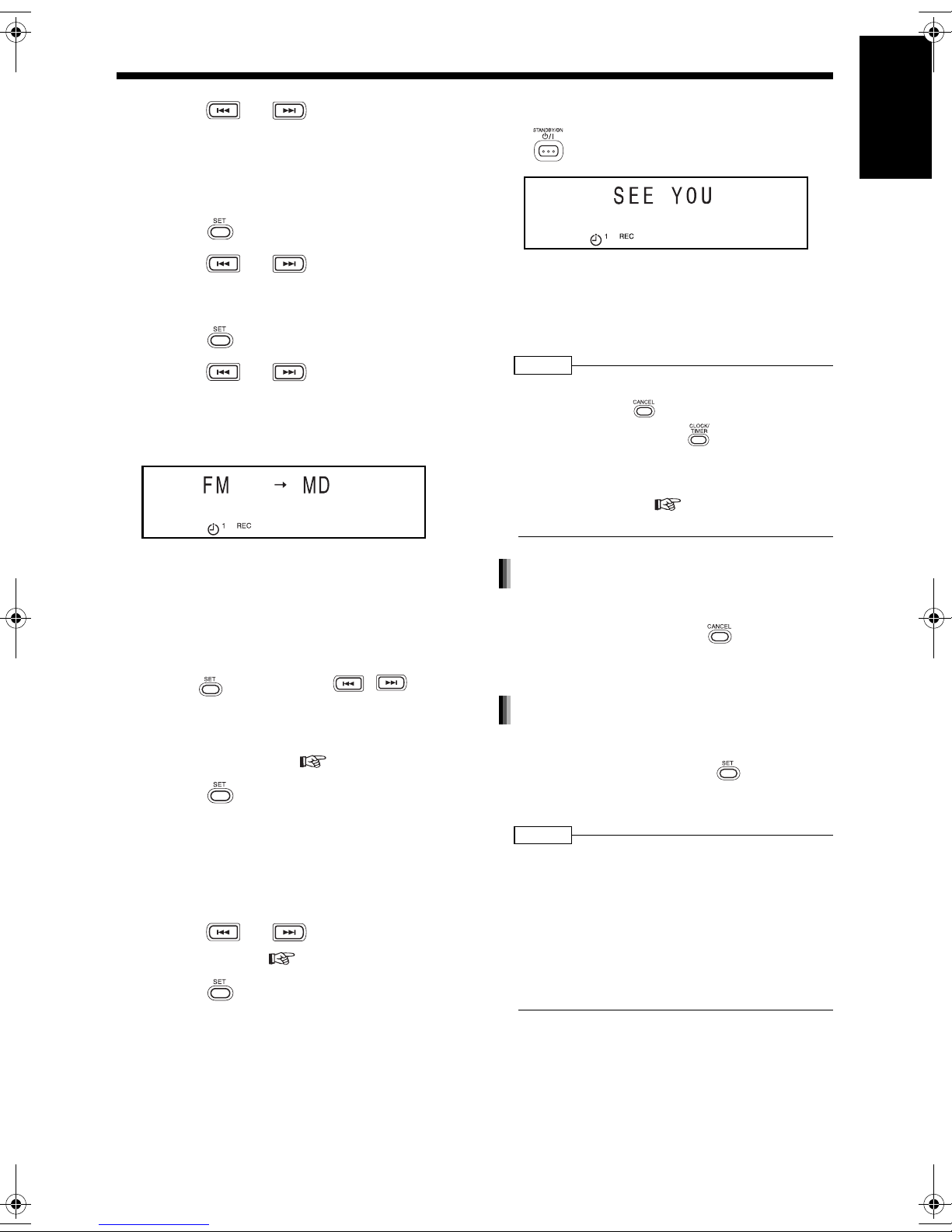

5 Press on the main unit.

Example: Display during FM radio broadcast

recording

Quitting Recording

English Recording Sound

Press .

Changing the display in the display window during recording

Press .

Each time you press , the display toggles as follows.

Recording sound source name

Remaining time for recording

Recording sound source name

• When recording the sound from other equipment, wait until "AUX → MD" appears, and then start playback of the connected equipment. Recording automatically starts when sound is input to the main unit. You can also start recording by pressing

. With this method, even when sound from the connected equipment pauses for 30 or more seconds, the main unit does not automatically quit recording.

Recording MD track number

Clock display

Recording MD group number (When tracks are not recorded in a group, " - -" appears.)

Recording Sound to Cassette Tapes

Main unit

Remote control

NOTE

• The sound input level during recording is automatically adjusted.

• When you record tracks from a CD or MD, a 4second blank is inserted between tracks in the recording. You can record tracks with no blank

time. ( page 28)

• When you want to use the cassette tape for recording again, cover the tag holes with adhesive tape.

Write protect tag for side B

Write protect tag for side A

1 Insert a cassette tape for record-

ing.

• Before inserting the cassette tape, wind the tape past the leader part of the cassette tape.

Magnetic tape (recordable part)

Leader tape (unrecordable part)

2 Press to select the reverse

mode.

• Each time you press , the display toggles as follows.

: For one-way recording on either side.

CAUTION

• It may be unlawful to record or playback copyright material without the consent of the copyright owner.

• Do not use long cassette tapes such as C-120 or C-150. Long cassette tapes are thin and stretch easily, and may become tangled in the inner part of the main unit.

• Since this product is not compatible with TYPE II and TYPE IV cassette tapes, do not use these types of cassette tapes. This product does not meet the specifications for these tapes, so sound is not properly recorded to these types of cassette tapes. You cannot obtain proper playback sound.

Preventing recorded sound from being erased

• Write protect tags are attached to a cassette tape for preventing the erasing of recorded sound. They enable you to avoid losing important recordings because once you snap off the write protect tags, you cannot record to the cassette tape or erase recorded material.

: For one return recording on both sides.

: Pressing automatically starts

one return recording on both sides.

Select a sound source for recording.

Sound source Operation

Radio broadcast

Sound from other equipment (AUX)

Press , and then press . (The CD is stopped.)

Press , and then press . (The MD is stopped.)

Select the radio station whose broadcast you want to record ( page 14).

Press repeatedly to select AUX, and prepare playback on the other equipment ( page 22).

4 Press on the main unit.

Example: Display while CD sound is recorded.

• When you record from a CD or MD, all tracks are recorded to the cassette tape.

• When you want to record sound from other equipment, start playback on the connected equipment.

• When recording finishes, the color pattern of the display window and CD tray switches to the color pattern set in "MANUAL" to inform

you that recording has finished ( 12 and 13).

pages

Quitting Recording

Press .

Recording Only One Track from a CD or MD

Erasing Recorded Sound from a Cassette Tape

Select the sound from other equipment (AUX) in step 3 on page 27,

and then press .

• Do not play back any tracks on the connected equipment.

Changing the display in the display window during recording

Press .

• Each time you press , the display toggles as follows.

■ While tracks from a CD or MD are being recorded

CD or MD

English Recording Sound

Before proceeding to step 4 on page 27, play back the track you want to record.

• Pressing in step 4 returns playback to the beginning of the track and only that

track is recorded.

Recording the Second or Subsequent Track to the Last Track from a CD or MD

Before proceeding to step 4 on page 27, select the starting track number

with or .

•Pressing in step 4 starts this product recording from the selected track to the last

track.

Program Recording from a CD or MD

Before proceeding to step 4 on page 27, program the tracks you want to record ( page 18).

Recording with No Blank Time between Tracks

Before proceeding to step 4 on page 27, pause playback of a CD or MD.

Elapsed playing time

■ While a radio broadcast (FM/AM) is being recorded

FM or AM

Frequency

■ While sound from other equipment (AUX) is being recorded

Clock display

NOTE

• If the cassette tape reverses direction while a track is being recorded from a CD or MD, this product starts recording that track again from the beginning onto the reverse side of the cassette tape. However, if 12 or less seconds of that track were recorded onto the first side of the cassette tape, recording to the reverse side of the cassette tape starts from the beginning of the previous track.

• Before recording a long track from an MD, such as a recorded concert, using one return recording, use the divide function to divide the track into sections equal to the length of one side

of the cassette tape. ( page 31)

Editing MDs

Giving (Editing) Titles

Things You Should Know about Editing

• You cannot edit an MD while its write protect knob is open ( page 45). When you attempt

to edit a protected MD, "DISC PROTECTED" appears.

• When you finish editing, "EDITING" appears, then "WRITING" flashes and the edited setting is recorded to the MD. While "WRITING" is displayed, be careful not to bump or sway the main unit. Such movement may interfere with MD playback.

• You cannot edit an MD during program playback, random playback, or group playback.

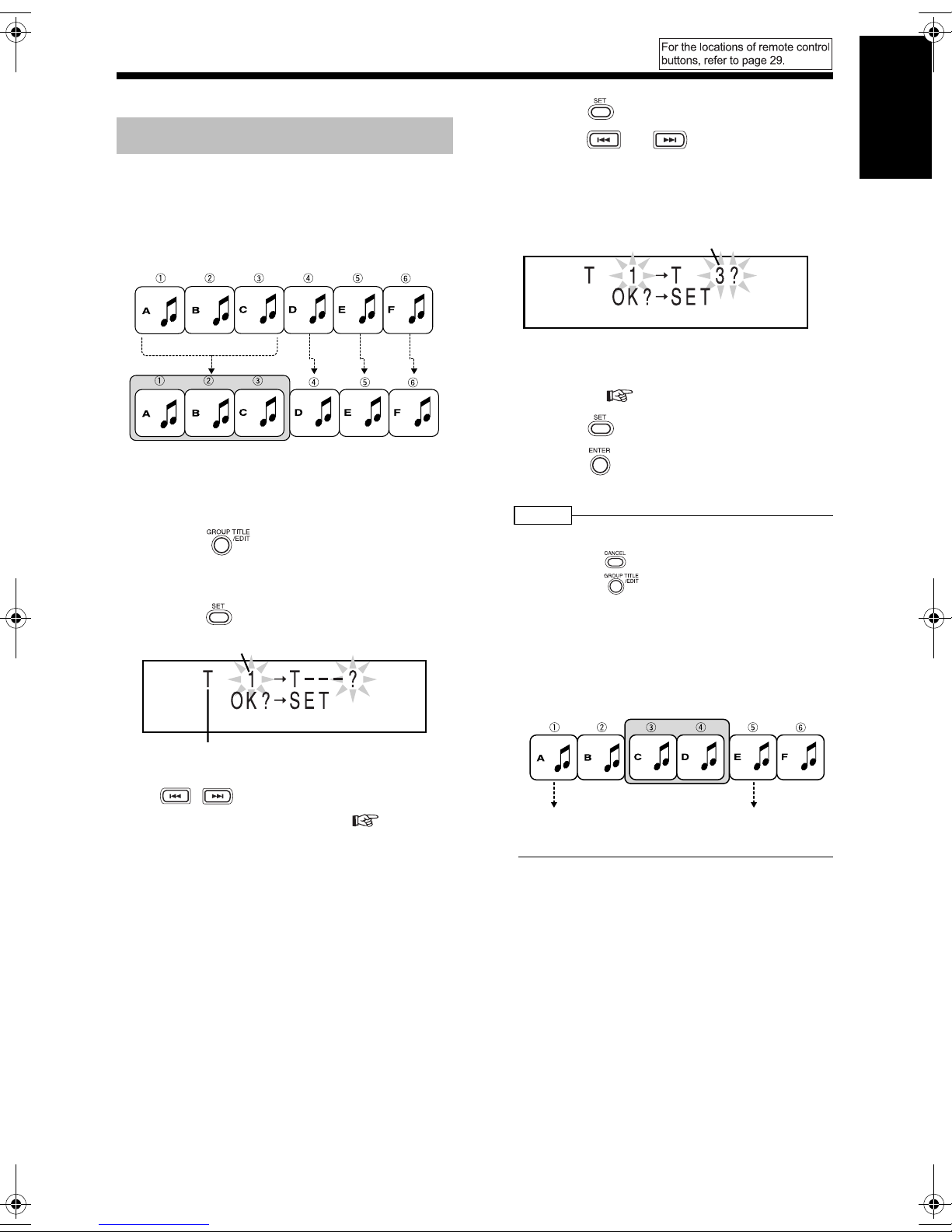

For editing group titles

• Press twice to display the group title editing mode.

• You can also select a group number with

or .

2 Press .

Character entry position (flashing)

A track number appears for entering a track title, or "GR" and a group number appear for entering a group title.

Giving (Editing) Titles

You can give titles to an MD (disc), tracks and groups.

■ While the track or group to which you want to give a title is being played back.

1 Display the title editing mode.

For editing an MD (disc) title or track titles

• Press to display the title editing mode.

• To edit a disc title, press repeatedly to display "DISC TITLE?".

• You can also select track numbers with

or .

Available character types: [ ] indicates the selected character type. [A]:Uppercase characters or symbols [a]:Lowercase characters or symbols [1]:Numerical characters

3 Enter a title using the number but-

tons.

• For entering a title, refer to "Entering Titles" ( page 30).

4 Press .

• The entered title is given to an MD, track or group.

To quit title editing

Press .

To give next title

Press .

Go to step 3.

5 Press on the main unit to

eject the MD.

Introduction

NOTE

• Number of characters that can be entered to an MD You can enter up to 1,792 characters to each MD, with up to 61 characters to each track. However, the actual number of characters that you can enter is less than the number indicated here because of restrictions of the MD writing method. Spaces are counted as characters. When you use long-play stereo recording (LP2 or LP4), the larger the number of tracks is, the smaller the number of characters that you can enter, because "LP: " and 4 spaces are automatically added to each track. You can set this product so that "LP: " is not

added to tracks. ( page 25)

Example: When editing 120 tracks recorded

using long-play stereo recording to an MD, you can enter 10 characters to each track.

• You cannot edit a title consisting of 62 or more characters. When you want to edit a title containing 62 or more characters, edit the title on the equipment on which the title was entered.

• You can set a title during recording.

• While recording from a CD (except when

recording only one track from a CD), you can enter up to 16 track titles before recording finishes.

• If you do not press before recording fin-

ishes, the entered titles are not stored.

• During group recording, you can enter titles for

the group.

To move the character entry position

•Press or .

• When you want to enter "NO", "TV" or two characters which are assigned to one button, enter

the first character, press to move the character entry position to the right, and then enter

the second character.

To erase a character

• Move the character entry position to the charac-

ter you want to erase, and press .

To enter a space

• Select the space from "Symbol" ( the chart below). You can also enter a space at the end of

a title by pressing .

To quit title entry

• Press or . The entered titles are not stored.

Available Characters

Button

Uppercase

character

Symbol*

ABC

Lowercase

character

Symbol*

abc

Numerical

character

English Editing MDs

Entering Titles

Example: To enter "F"

1) Press repeatedly until [ ] appears on "A".

2) Press repeatedly to display "F".

Character entry position (flashing)

Available character types:

[ ] indicates the selected character type. [A]:Uppercase characters or symbols [a]:Lowercase characters or symbols [1]:Numerical characters

• Several characters are assigned to one button. Press the button repeatedly until the desired character is displayed.

• For the available characters, refer to "Available Characters" shown on the right.

DEF

GHI

JKL

MNO

PQRS

TUV

WXYZ

*Available symbols

Spac e

def

ghi

jkl

mno

pqrs

tuv

wxyz

Editing Tracks

Dividing a Track into Two Tracks (DIVIDE)

Example: Dividing a tune into tune A and tune B

Track number

■ While the track you want to divide is being played back

1 Press repeatedly to select

"DIVIDE?".

4 Press or .

• You can adjust the dividing point within the range -128 to +128 position (approximately

-8 to +8 seconds in SP mode).

5 Press .

6 Press .

NOTE

• During editing, you can return to the previous step

by pressing . You can quit the editing operation

by pressing .

• You cannot divide a track in an MD containing

254 or more tracks. When you press in step 3, "DISC FULL" appears.

• When you divide a track that has a title, the title is added to both divided tracks.

2 Press .

• You can also select the track number with

, or the number buttons. Refer to

"Using the number buttons" ( page 10).

3 Press to specify the dividing

point.

• This product repeatedly plays back the 4 seconds of sound immediately following the dividing point.

"POSIT." stands for "POSITION".

• When the dividing point does not have to be adjusted, proceed to step 5.

• When you want to adjust the dividing point, proceed to step 4.

Introduction

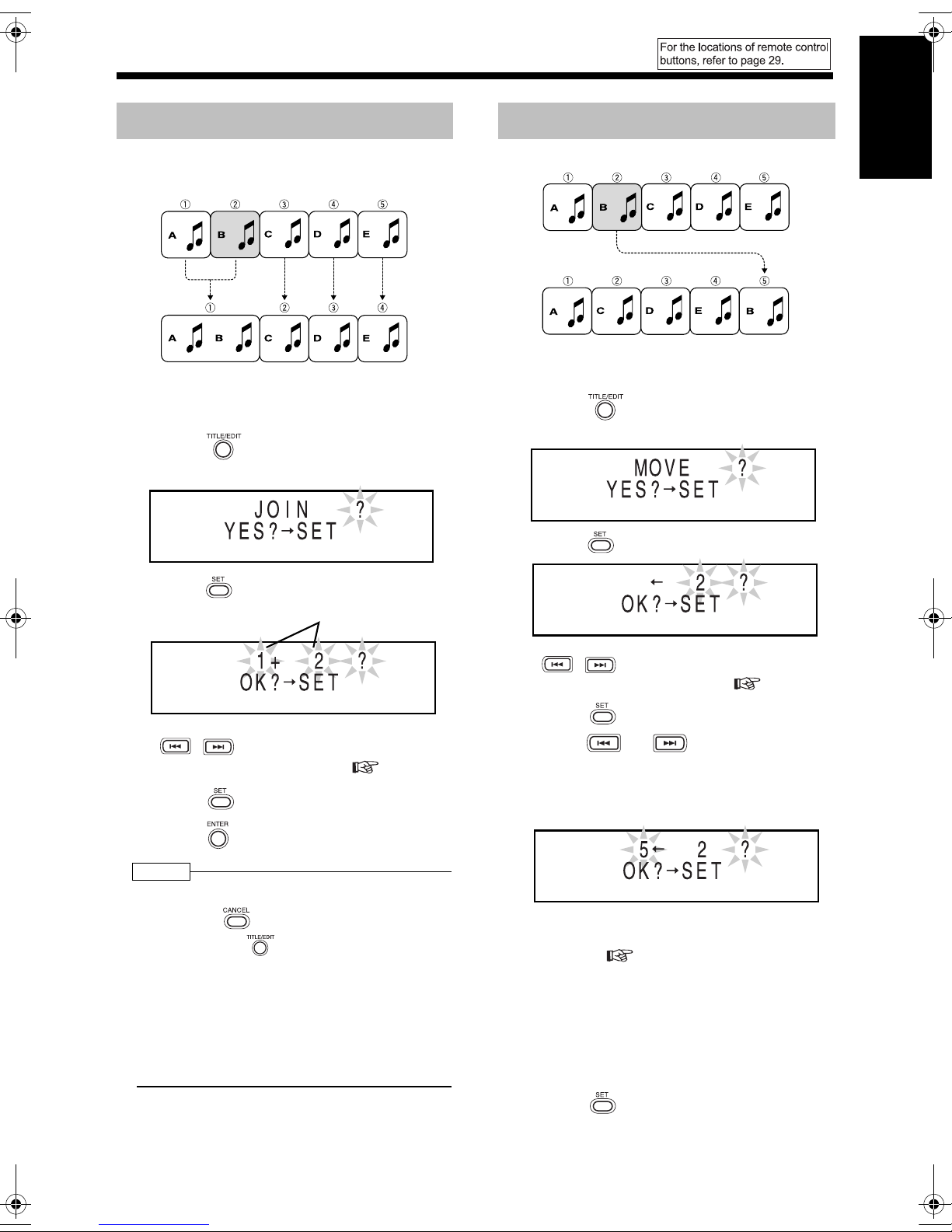

Joining Tracks (JOIN)

You can join two adjacent tracks into one track.

Example: Joining tune A and tune B

■ While the second track (track 2 in the example shown above) to which you want to join the first track is being played back

1 Press repeatedly to select

"JOIN?".

Moving a Track (MOVE)

English Editing MDs

Example: Moving tune B

■ While the track you want to move (track 2 in the example shown above) is being played back

1 Press repeatedly to select

"MOVE?".

2 Press .

Track number

• You can also select a track number with , or the number buttons. Refer to

"Using the number buttons" ( page 10).

3 Press .

4 Press .

NOTE

• During editing, you can return to the previous step

by pressing . You can quit the editing opera-

tion by pressing .

• You cannot join tracks that have different MDLP modes (SP/LP2/LP4), or tracks that have different recording types (digital/analog). If you attempt to join such tracks, "CANNOT JOIN" appears.

• When you join two tracks that have titles, the title of the first track remains as the title of the joined track.

• You can also select a track number with , or the number buttons. Refer to

"Using the number buttons" ( page 10).

3 Press . 4 Press or to select the

track number to which you want to move the specified track.

(Track 5 is selected in the example shown above)

• You can also select a track number with the

number buttons. Refer to "Using the number buttons" ( page 10).

• When you move a track to a track number

which is registered in a group, the track is registered in the group. When you move a track which is registered in a group to a track number which is not registered in a group, the track is removed from the group registration.

5 Press .

(Continued on the next page)

(Continued) Editing Tracks

6 Press .

NOTE

• During editing, you can return to the previous step

by pressing . You can quit the editing operation

by pressing .

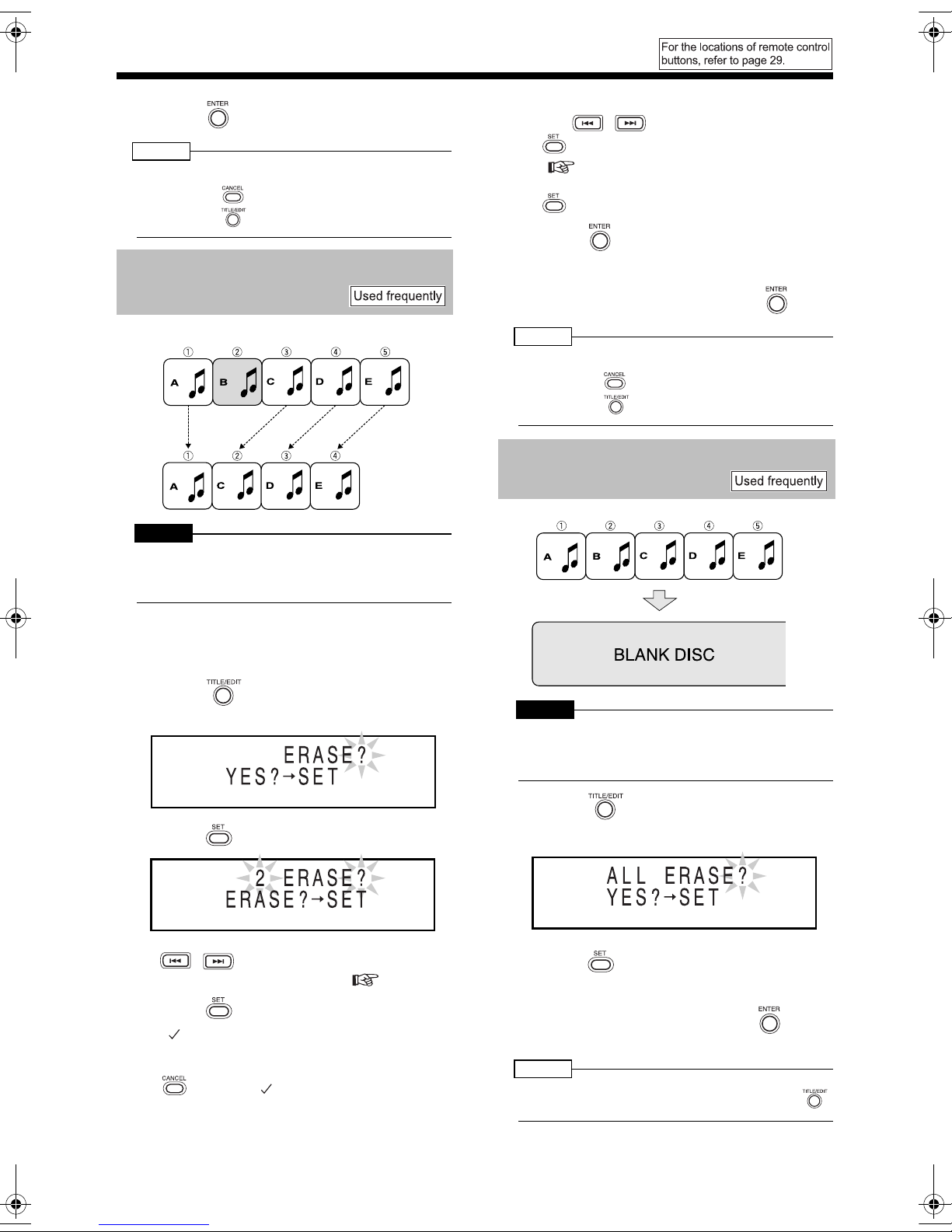

Erasing a Track (ERASE)

• You can select up to 15 tracks to be erased

with , or the number buttons, and

. Refer to "Using the number buttons"

( page 10).

• When you select the 16th track and press

, "MEMORY FULL" appears.

4 Press . 5 Confirm that you no longer need

the tracks, and then press .

Example: Erasing tune B

CAUTION

• Once you erase a track, you cannot retrieve it. Before erasing a track, confirm that you no longer need it.

■ While the track you want to erase (track 2 in the example shown above) is being played back

1 Press repeatedly to select

"ERASE?".

NOTE

• During editing, you can return to the previous step

by pressing . You can quit the editing operation

by pressing .

Erasing All Tracks (ALL ERASE)

All tracks are erased.

CAUTION

• Once you erase a track, you cannot retrieve it. Before erasing a track, confirm that you no longer need it.

2 Press .

• You can also select a track number with , or the number buttons. Refer to

"Using the number buttons" ( page 10).

3 Press .

• " " is added in front of the selected track

number.

• When you select a wrong track, press

to delete " ".

1 Press repeatedly to select

"ALL ERASE?".

2 Press . 3 Confirm that you no longer need

all tracks, and then press .

NOTE

• You can quit the editing operation by pressing .

Editing Tracks by Group

Introduction

You can sort tracks into 99 groups maximum.

Forming a Group (FORM GR)

You can group tracks together. A sequence of tracks that is not registered in any group can be grouped.

Example: Forming tune A, tune B and tune C into a group

Group 1

■ While the track which you want to specify as the first in the group (track 1 in the example shown above) is being played back

1 Press repeatedly to select

"FORM GR?".

• "GR" stands for "GROUP".

2 Press .

The first track number in the group

3 Press . 4 Press or to select the

track number which you want to specify as the last in the group.

(Track number 3 is selected in the example shown on the left.)

The last track number in the group

• You can also select a track number with the number buttons. Refer to "Using the number

buttons" ( page 10).

5 Press .

6 Press .

NOTE

• During editing, you can return to the previous step

by pressing . You can quit the editing operation

by pressing .

• If you select a track in another group, "GROUP TRACK" appears and you cannot proceed to the next step.

• If you select a sequence including a track that is registered in another group, "CANNOT FORM!" appears and you cannot proceed to the next step.

English Editing MDs

"T" stands for "TRACK".

• You can also select a track number with

, or the number buttons. Refer to

"Using the number buttons" ( page 10).

The first track

Group 1

The last track

(Continued) Editing Tracks by Group

Adding a Track to a Group (ENTRY GR)

You can add a track to the specified group as the last track of the group.

Example: Adding tune F to group 1

Group 1 Group 2

■ While the track which you want to add to a group (track 6 in the example shown above) is being played back

1 Press repeatedly to select

"ENTRY GR?".

2 Press .

Track number

Dividing a Group into Two Groups (DIVIDE GR)

Example: Dividing group 1 into two groups

Group 1

Group 1 Group 2

■ While the track which you want to specify as the first in the second group (track 4 in the example shown above) is being played back

1 Press repeatedly to select

"DIVIDE GR?".

2 Press .

Group number Track number

• You can also select a track number with , or the number buttons. Refer to

"Using the number buttons" ( page 10).

3 Press .

4 Press or to select the

group to which you want to add the track.

(Group 1 is selected in the example shown above)

5 Press . 6 Press .

NOTE

• During editing, you can return to the previous step by pressing . You can quit the editing operation

by pressing .

• If you select a track already belonging to the group, "CANNOT ENTRY!" appears and you cannot proceed to the next step.

"G" stands for "GROUP".

• You can also select a track number with

, or the number buttons. Refer to

"Using the number buttons" ( page 10).

• You can also select a group number with

or .

3 Press .

4 Press .

NOTE

• During editing, you can return to the previous step by pressing . You can quit the editing operation

by pressing .

• If you select the first track in the group or a track not belonging to the group, you cannot proceed to the next step.

• When you divide a group that has a title, the same title is given to both divided sections.

Introduction

Joining Groups (JOIN GR)

You can join two adjacent groups.

Example: Joining group 1 and group 2

Group 1 Group 2

Group 1

■ While the track in the second group to which you want to join the first group (group 2 in the example shown above) is being played back

1 Press repeatedly to select

"JOIN GR?".

2 Press .

Moving a Group (MOVE GR)

English Editing MDs

Example: Moving group 2

Group 1 Group 2

■ While a track in the group you want to move (group 2 in the example shown above) is being played back

1 Press repeatedly to select

"MOVE GR?".

2 Press .

• Two adjacent group numbers appear. When no group is formed in the MD, "--" appears.

• You can also select a group number with

or .

3 Press . 4 Press .

NOTE

• During editing, you can return to the previous step

by pressing . You can quit the editing operation

by pressing .

• You cannot join two groups separated by a track not belonging to either group. "CANNOT JOIN" appears, and display returns to the previous step.

Group 1 Group 2

Track not belonging to either group

• When you join two groups that have titles, the title of the first group remains as the title of the joined group.

• You can also select a group number with

or .

3 Press .

4 Press or to select the

group number to which you want to move the specified group.

(Group 1 is selected in the example shown above)

5 Press .

6 Press .

NOTE

• During editing, you can return to the previous step

by pressing . You can quit the editing operation

by pressing .

(Continued) Editing Tracks by Group

Canceling a Group (UNGROUP/UNGR ALL)

Canceling a specified group (UNGROUP)

Example: Canceling group 1

Group 1 Group 2

Group 1

■ While a track in the group you want to cancel (group 1 in the example shown above) is being played back

1 Press repeatedly to select

"UNGROUP?".

2 Press .

Example: When you want to cancel group 1

Canceling all groups (UNGR ALL)

Example: Canceling all groups

Group 1 Group 2

1 Press repeatedly to select

"UNGR ALL?".

• "UNGR" stands for "UNGROUP".

2 Press .

3 Press .

NOTE

• You can quit the editing operation by pressing

• You can also select a group number with

or .

3 Press .

4 Press .

NOTE

• During editing, you can return to the previous step

by pressing . You can quit the editing operation

by pressing .

Introduction

Erasing a Group (ERASE GR)

You can erase a group including all tracks in the group.

Example: Erasing group 2

Group 1 Group 2

Group 1

CAUTION

• Once you erase a track, you cannot retrieve it. Before erasing a track, confirm that you no longer need it.

■ While a track in the group you want to erase (group 2 in the example shown above) is being played back

English Editing MDs

1 Press repeatedly to select

"ERASE GR?".

2 Press .

• You can also select a group number with

or .

3 Press . 4 Confirm that you no longer need

the tracks, and then press .

NOTE

• During editing, you can return to the previous step

by pressing . You can quit the editing operation

by pressing .

Convenient Functions

Using the Timers

Sleep Timer

Set the clock beforehand. ( page 10)

Recording Timer

You can use the recording timer function to record FM/AM broadcasts or sound from other equipment to an MD or cassette tape. You can enter up to three timer settings in total for the recording timer and the playback timer

( page 41).

NOTE

• Timer settings remain unchanged until the timer is replaced by new setting.

1 Prepare to record.

Radio Preset the radio station whose

broadcast you want to record. ( page 15)

Other equipment

Follow the operation manual for the equipment.

When the specified time passes, the main unit automatically turns off.

Press .

• Each time you press , the time display (in minutes) toggles as follows.

Cancel (Sleep indicator disappears.)

Example: To set the sleep timer to 60 minutes

Sleep indicator

NOTE

• When you set the sleep timer, the display window automatically dims.

• Before the clock has been set (While "0:00" is

flashing), when you press , "CLOCK ADJUST!" appears.

MD recording

Cassette tape recording

Insert an MD. ( page 17)

Insert a cassette tape. ( page 21)

2 Press repeatedly to select

"TIMER1", "TIMER2" or "TIMER3".

Example: When "TIMER1" is selected

Timer number

3 Press . 4 Set the starting time and ending

time.

Example:To set the recording time from 6:30

a.m. to 6:45 a.m.

Changing the sleep timer setting

• Press repeatedly to select the time again.

Confirming the sleep timer setting (remaining time)

• With the sleep timer activated, press once.

• For setting the clock, refer to "Setting the Clock" ( page 10).

Entering the hour → → Entering the

minute →

Introduction

5 Press or to select

"ONCE" or "EVERYDAY".

ONCE : The recording timer works once.

EVERYDAY: The recording timer works every

day.

6 Press . 7 Press or to select "REC

TIMER".

• "REC" stands for "Recording".

8 Press . 9 Press or to select the

combination of a sound source and recording medium.

Example: To record an FM broadcast to an MD

• When you want to record sound from other equipment, you cannot use the recording timer function to start playback on any equipment other than this product.

■ When you want to record an FM/AM radio broadcast

• Press , and then press , or the number buttons to select the preset

number of the radio station whose broadcast you want to record. Refer to "Using

the number buttons" ( page 10).

10 Press .

• When you use an MD as the recording medium, proceed to step 11.

• When you use a cassette tape as the recording medium, the settings appear in the display window. Confirm the settings, and then proceed to step 13.

11 Press or to select the

MDLP mode ( page 23).

12 Press .

• The settings appear in the display window.

13 When the main unit is on, press

English Convenient Functions

to turn off the main unit.

• While the recording timer is functioning, the volume is set to "0" and no sound is produced from the speakers or headphones.

• The recording timer is available only when the main unit is turned off.

NOTE

• During operation, you can return to the previous step by pressing . You can quit the recording

timer settings by pressing . The settings are

not stored.

• When you want to change the track mark options, make the change before or after setting

the recording timer. ( step 3 and 4 on pages 25 and 26)

Canceling the recording timer

In step 2 on page 39, select the timer number you

want to cancel, and then press . Even when you cancel the recording timer, the set-

ting remains stored.

Activating the recording timer again

In step 2 on page 39, select the timer number you

want to activate, and then press repeatedly until all of the setting procedure finishes. Then turn

off the main unit.

NOTE

• When you want to activate two or three recording timers, leave a blank time of 2 or more minutes between the ending time of the first recording timer and the starting time of the second recording timer. If the blank time is less than 2 minutes, the second recording timer does not work.

• When the power plug is disconnected or the power is cut, the recording timer settings may be lost. If the settings are lost, set the clock and recording timer again.

(Continued) Using the Timers

Playback Timer

1 Prepare the sound source you

want to play back

Cassette tape

Radio Preset the radio station whose broadcast

Other equipment

Make sure that a CD is loaded. ( page 16)

Insert an MD. ( page 17)

Insert a cassette tape. ( page 21)

you want to listen to. ( page 15)

Follow the operation manual for the equipment.

2 Press repeatedly to select

"TIMER1", "TIMER2" or "TIMER3".

Example: When "TIMER2" is selected

Timer number

3 Press . 4 Set the starting time and ending

time.

Example: When you want to set the playback

time from 7:00 a.m. to 7:30 a.m.

9 Press or to select the

sound source you want to play back.

Example: When you want to listen to an AM

broadcast

• When you want to listen to sound from other

equipment, you cannot use the playback timer function to start playback on any equipment other than this product.

• You cannot use the playback timer function

together with program playback, repeat playback, random playback, or group playback of a CD or MD.

■ When you want to listen to an FM/AM radio broadcast

• Press , and then press , or the number buttons to select the preset

number of the radio station whose broadcast you want to listen to ( page 15).

Refer to "Using the number buttons" ( page 10).

■ When you want to play back a CD or MD

• Press , and then press , or the number buttons to select the number

of the track you want to play back first. Refer to "Using the number buttons"

( page 10).

• For setting the clock, refer to "Setting the Clock" ( page 10).

Entering the hour → → Entering the

minute →

5 Press or to select

"ONCE" or "EVERYDAY".

ONCE : The playback timer works once. EVERYDAY: The playback timer works every

day.

6 Press . 7 Press or to select "PLAY

TIMER".

8 Press .

10 Press . 11 Press or to adjust the

playback volume.

12 Press .

• The settings appear in the display window.

13 When the main unit is turned on,

press to turn off the main unit.

• The playback timer is available only when the main unit is off.

Introduction

NOTE

• During operation, you can return to the previous

step by pressing . You can quit the playback

timer settings by pressing . The settings are not stored.

• When the playback timer starts, the volume gradually increases to the selected level.

Canceling the playback timer function

In step 2 on page 41, select the timer number you

want to cancel, and then press . Even when you cancel the playback timer, the set-

ting remains stored.

Auto Standby

Activating the playback timer again

English Convenient Functions

In step 2 on page 41, select the timer number you

want to activate, and then press repeatedly until all of the setting procedure finishes. Then turn

off the main unit.

NOTE

• When you want to activate two or three playback timers, leave a blank time of 2 or more minutes between the ending time of the first playback timer and the starting time of the second playback timer. If the blank time is less than 2 minutes, the second playback timer does not work.

• When the power plug is disconnected or the power is cut, the playback timer settings may be lost. If the settings are lost, set the clock and playback timer again.

When an operation other than playback and recording finishes and no operation is carried out within 3 minutes, the main unit automatically turns off.

If no sound is produced for 3 or more minutes when a sound source other than the FM/AM radio is selected, the main unit automatically turns off.

■ When a sound source other than the FM/ AM radio is selected

Press .

"A. STANDBY" stands for "Auto Standby".

Auto standby indicator

Auto standby performance

While a CD, MD, or cassette tape is being played back or recorded:

When playback or recording finishes, auto standby starts the countdown (The "A.STANDBY" indicator flashes). When no operation is carried out within 3 minutes, the main unit automatically turns off. When you start playback or recording within 3 minutes, auto standby starts the countdown again after playback or recording finishes.

While you are listening to sound from other equipment

When no sound is produced, auto standby starts the countdown (The "A.STANDBY" indicator flashes). When no operation is carried out within 3 minutes, the main unit automatically turns off.

"A. STANDBY OFF" starts to flash 20 seconds before the main unit is to turn off.

Canceling auto standby

Press once again.

NOTE

• Leaving the volume at "0" is not the same as producing no sound, and therefore does not start the auto standby function.

CD/MD Ejection Lock

You can prohibit ejection of a CD and MD.

■ When the main unit is turned off

While holding down , press on the main unit.

Even if you press or , "LOCKED" appears in the display window and the CD or MD does not come out.

In addition, when you press or , while the main unit is turned off, "LOCKED" appears in the display window and the main unit does not turn on.

Canceling the CD/MD ejection lock

■ When the main unit is turned off

Carry out the operation explained above once again.

Reference

Introduction

Restrictions on MDs

MDs employ an original recording method different from those used for cassette tapes and digital audio tapes. Because the MD recording method has some restrictions, the following phenomena may occur. The phenomena are not a malfunction of this product.

Phenomenon Possible cause

"DISC FULL" appears even though recordable time as printed on the MD remains.

"DISC FULL" appears even though the track numbers and recordable time have not reached the limit.

You cannot join tracks or groups.

The remaining recordable time does not increase even after you have erased some tracks.

Sound drops out intermittently during fast forward or fast reverse.

Recorded time plus remaining time is shorter than the total recordable time printed on the MD.

Regardless of remaining recordable time, MDs have a limit on the number of recordable tracks. You cannot record 255 or more tracks to an MD. (You can record up to 254 tracks to an MD.)

Repeated partial erasure and recording creates numerous time blanks on an MD. When you record a track to such an MD, the track is split up and a small portion of the track is inserted into each time blank. When the number of such split portions increases, "DISC FULL" may appear. When a split portion is 8 or less seconds in SP mode (the standard stereo recording mode), you cannot join it with another track. In addition, when you erase such portions, remaining recordable time does not increase. With a track split among many time blanks, fast forward or fast reverse may produce intermittent sound dropouts. You cannot join tracks that have different MDLP modes (SP/LP2/LP4).

MD recording is possible only when there is a time blank of 12 or more seconds consecutively (in SP mode (the standard stereo recording mode) ) on the MD. Actual recording time is shortened on an MD that contains numerous time blanks.

English Reference

You can make a clear digital recording from a CD to an MD. However, you are prohibited from duplicating the digitally recorded sound from that MD to another MD using the original digital signals. In short, you cannot make "a copy of a copy". This rule is called the Serial Copy Management System (SCMS). This product is designed to comply with this rule.

Serial Copy Management System (SCMS)

The Serial Copy Management System protects copyright and allows only first-generation digital copies from the digitally recordable source.

CAUTION

• The SCMS does not permit you to record sound from a digitally recorded MD to other media as digital sound.

• You cannot digitally record a digitally recorded CD-R/CD-RW to an MD. "SCMS CANNOT COPY" appears and the digital sound is converted to analog.

High Speed Copy Management System (HCMS)

You can record sound to an MD at a higher speed than normal recording. Therefore, restrictions are required in order to protect copyright. When you use this product to record a track of a CD with the high speed recording function, this product does not permit you to use the high speed recording function to record the same track of a CD to an MD within 74 minutes of the start of the first recording. For instance, when you record the first track of a CD to an MD with the high speed recording function, you cannot record the same track to an MD for 74 minutes after the first high speed recording started. In addition, when recording tracks from a CD with the high speed recording function, you cannot record 101 or more tracks within 74 minutes after recording starts. You can record up to 100 tracks in such a case.

Handling CDs/MDs/Cassette Tapes

Handling CDs

• Do not put adhesive tape or stickers, or write on a CD.

• Do not bend a CD.

• Be sure not to use heart/flower shaped CDs or other irregularly shaped CDs. The use of such CDs damages the main unit.

Cleaning CDs

Signal surface

Wipe a CD from the center outward with a soft cloth.

• Be sure not to use thinners, benzenes, cleaners for analog records, or other chemical agents.

Scratches concentrated on a certain part cause sound dropout.

Handling MDs

• Do not open the shutter. Forcibly opening the shutter will break the MD.

Handling cassette tapes

• A slack tape may become caught in the inner part of the main unit and damage the main unit. Before using a cassette tape, wind up any slack in the cassette tape as shown on the right. Do not pull out the tape or touch the tape's surface.

Cleaning the tape deck head

Clean the head, pinch rollers and capstans approximately every 10 hours of playback time before the volume falls or sound quality deteriorates

Capstans

Pinch roller Head Pinch roller

otton-tipped swab moistened with alcohol

Preventing the loss of important recorded sound

• A write protect knob is attached to an MD for preventing accidental erasure of recorded sound.

Write protect knob

Close the write protect knob before recording or editing.

NOTE

• Do not put labels such as those indicating CD/track titles or other notes on any part of an MD other than the specified position. If you insert an MD with a label extending beyond the specified area, a label that is peeling off, or any other improperly attached label, it may damage the main unit.

Open the write protect knob to avoid erasing sound.

Cleaning the main unit cabinet

• Gently dust the cabinet surface with a soft dry cloth. When the cabinet is very dirty, dampen the cloth with a neutral detergent diluted with water, wring out the cloth well, and then wipe the cabinet with the dampened cloth followed by a soft dry cloth.

• Do not wipe the cabinet with thinners or benzenes. Wiping it with these agents may cause discoloration of the cabinet or removal of the paint. Do not spray insecticides or other highly volatile agents onto the cabinet. Do not leave pieces of rubber or plastic on the cabinet for a long period.

MD/CD Messages

Introduction

MD message Meaning Possible solution

CANNOT ENTRY! You are trying to add a track that already

CANNOT FORM! You are trying to form a new group with a

CANNOT GROUP! There is no more space for group information.

CANNOT JOIN You are trying to join tracks that have different

CANNOT LISTEN You are trying to adjust the volume during high

CANNOT TITLE You are trying to enter a total of 1,793 or more

READ ERROR The MD information cannot be read. Momentarily turn off the main unit. If the same

DISC FULL There is no more space in the MD. You are try-

DISC PROTECTED You are trying to edit or record a track in an MD

EMERGENCY

STOP

GROUP FULL You are trying to form 100 or more groups. You can form up to 99 groups.

GROUP TRACK You are trying to form a group with a track

LOAD ERROR The MD is not properly loaded. Insert the MD properly.

MD NO DISC No MD is loaded. Insert an MD.

PLAYBACK DISC You are trying to record to an MD which is

SCMS CANNOT

COPY

TRACK

PROTECTED

HCMS CANNOT

COPY

BLANK DISC There are no tracks in the MD. –

belongs to the group.

sequence of tracks included in other groups.

(Group information is stored in the same area as title information.)

MDLP modes (SP/LP2/LP4), or tracks of only 8 or less seconds which are recorded in SP mode (the standard stereo recording mode)).

speed recording.

characters to the MD.

ing to record 255 or more tracks.

whose write protect knob is open.

A malfunction occurred during recording.

already belonging to another group.

designed only for playback.

You are trying to make a digital audio duplication of a CD-R or CD-RW.

You are trying to divide, join, or erase tracks which are recorded in the Net MD format.

The tracks are write-protected on equipment other than this product.

You are trying to record a track with the high speed recording function within 74 minutes of starting to record that same track with the high speed recording function.

Select groupable tracks. ( page 35)

Select groupable tracks. ( page 34)

You cannot add more group information. (Find and erase unnecessary titles from the MD or tracks.)

The MD system restricts such operation.

You cannot listen to sound from a CD during high speed recording.

You cannot enter more titles.

message appears again, the MD may be malfunctioning. Replace the MD.

Replace the MD with a recordable MD.

( page 44)

Close the write protect knob on the MD.

(

page 45).

Press (Stop) to quit recording, press (Eject) to eject the MD, and then start recording

again.

Select groupable tracks. ( page 34)

Replace the MD with a recordable MD.

Normal speed analog recording is automatically

used. ( page 25)

Edit the tracks on equipment compatible with Net MD.

Edit the tracks on the equipment on which the tracks were recorded.

An internal timer is functioning for copyright protection. Wait 74 minutes, or change from high speed recording to normal speed recording.

English Reference

CD message Meaning Possible solution

CANNOT PLAY You are trying to play back an unplayable CD or

a CD that has many scratches.

CD NO DISC No CD is loaded. Place a CD on the CD tray.

Replace the CD.

Troubleshooting

Check the following points before contacting the JVC service center.

Problem Possible cause Possible solution

No sound is produced from the speakers.

The clock display is flashing.

CD/MD playback does not start.

A certain point cannot be played back properly.

The volume of cassette tape playback is low.

You cannot record MD/ cassette tape playback.

A radio broadcast cannot be received.

A whirring noise is produced.

The timer does not function.

You cannot operate the remote control.

Improper connection. Connect all cords properly as in "Con-

Headphones are connected. Disconnect the headphone plug. 4

The main unit is turned off because of a power cut. The power plug is disconnected.

The CD is upside down. Place the CD on the CD tray with the

Moisture has condensed on the lens.

The CD is scratched or dirty. Clean or replace the CD. 45

An error occurred on the MD. Record to the MD again. 23

The head or capstans are dirty. Clean the head or capstans. 45

The MD/cassette tape is writeprotected.

No antenna is connected. Connect an antenna. 6

The main unit is located close to a TV, computer, or other electric appliance.

You did not set the clock. Set the clock. 10

The main unit is turned on. After setting the timer, turn off the

The remote control batteries are running low.

nections".

Reset the clock. 10

letter-printed surface facing up.

Leave the main unit turned on, wait for approximately 1 or 2 hours, and then operate the main unit.

Close the write protect knob on the MD.

Cover the write protect tag holes on the cassette tape with adhesive tape.

Place the main unit away from a TV, computer, or other electric appliance.

main unit.

Replace the batteries with new batteries.

Reference

page

40, 41

Operations are disabled. The built-in microprocessor may

malfunction due to external electrical interference.

Disconnect the power plug, and then connect it back in.

–

Introduction

Specifications

Specifications are subject to change without prior notice.

■MD/CD receiver (CA-UXQ1S/ CA-UXQ1W)

Amplifier

Output power 20 W + 20 W at 4

(10% THD)

Input terminals

<Analogue> AUX×1,

500 mV/47 k 250 mV/47 kΩ:LEVEL2

Output terminals

<Analogue> Speaker×1, 20 W/4

Impedance 4 Ω - 16 Headphone (×1), 25 mW/32 Impedance 16 Ω - 1 k

Tuner

Frequency FM:87.50 MHz - 108.00 MHz

(0.05 MHz spacing) AM:531 kHz - 1,710 kHz (9 kHz spacing) 530 kHz - 1,710 kHz (10 kHz spacing)

CD player

Playable discs Audio CDs

MD recorder

Ω

:LEVEL1

Ω

Cassette deck

Frequency response

Normal (type I) 60 Hz - 14,000 Hz

Wow and flutter 0.15% (WRMS)

English Reference

General

Power requirement AC 220 V , 50 Hz

Power consumption 55 W (at operation)

1 W (on standby)

Dimensions 165 mm (W) × 200 mm (H)

Ω

Mass (approx.) 5.1 kg

■Speaker (SP-UXQ1S/SP-UXQ1W)

System 2-way bass reflex type

Speakers Woofer: 10 cm × 1

Power handling 20 W

capacity

Impedance 4

Frequency range 56 Hz - 20 kHz

Sound pressure 84 dB/W•m

Dimensions 135 mm (W) × 200.5 mm (H)

Mass (approx.) 1.9 kg

× 355 mm (D)

Tweeter: 4 cm × 1

Ω

level

× 211.5 mm (D)

(1 unit)

Audio playing MiniDisc digital audio system

system

Recording system Magneto-optical overwrite

system

Reading system Non-contact, semiconductor

laser pickup

Recording/Playback time (when using an 80-minute MD)

SP: 80 minutes

LP2: 160 minutes

LP4: 320 minutes

Sampling frequency 44.1 kHz

Audio compression ATRAC (Adaptive TRansform

system Acoustic Coding)/ATRAC3

(MDLP)

■Micro component MD system (UX-Q1S/UX-Q1W)

General

Dimensions 435 mm (W) × 200.5 mm (H)

× 355 mm (D)

Mass (approx.) 8.9 kg

• U.S. and foreign patents licensed from Dolby Laboratories.

UX-Q1S/UX-Q1W MICROCOMPONENTMDSYSTEM

EN,CS

2004VictorCompanyofJapan,Limited

0804SKMMODJEM

JVC CA-UXQ1W, LVT1218-002A, SP-UXQ1S, SP-UXQ1W, UX-Q1S Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
