JVC UX-P450 User Manual

®

English

MICRO COMPONENT SYSTEM

微型組合音響

UX-P450

—Consists of CA-UXP450 and SP-UXP450

由

—

CA-UXP450

及

SP-UXP450

中

文

組成

SUPER VIDEO

INSTRUCTIONS

使用說明書

®

GVT0129-008A

[US/UN]

Warnings, Cautions and Others/

警告，注意及其他須知事項

•

CAUTION—STANDBY/ON button!

Disconnect the mains plug to shut the power off completely (all lamps and indications go off). The STANDBY/ON button in any position does not disconnect the mains line.

• When the unit is on standby, the STANDBY/ON lamp lights

in red. When the unit is turned on, the STANDBY/ON lamp lights in green.

The power can be remote controlled.

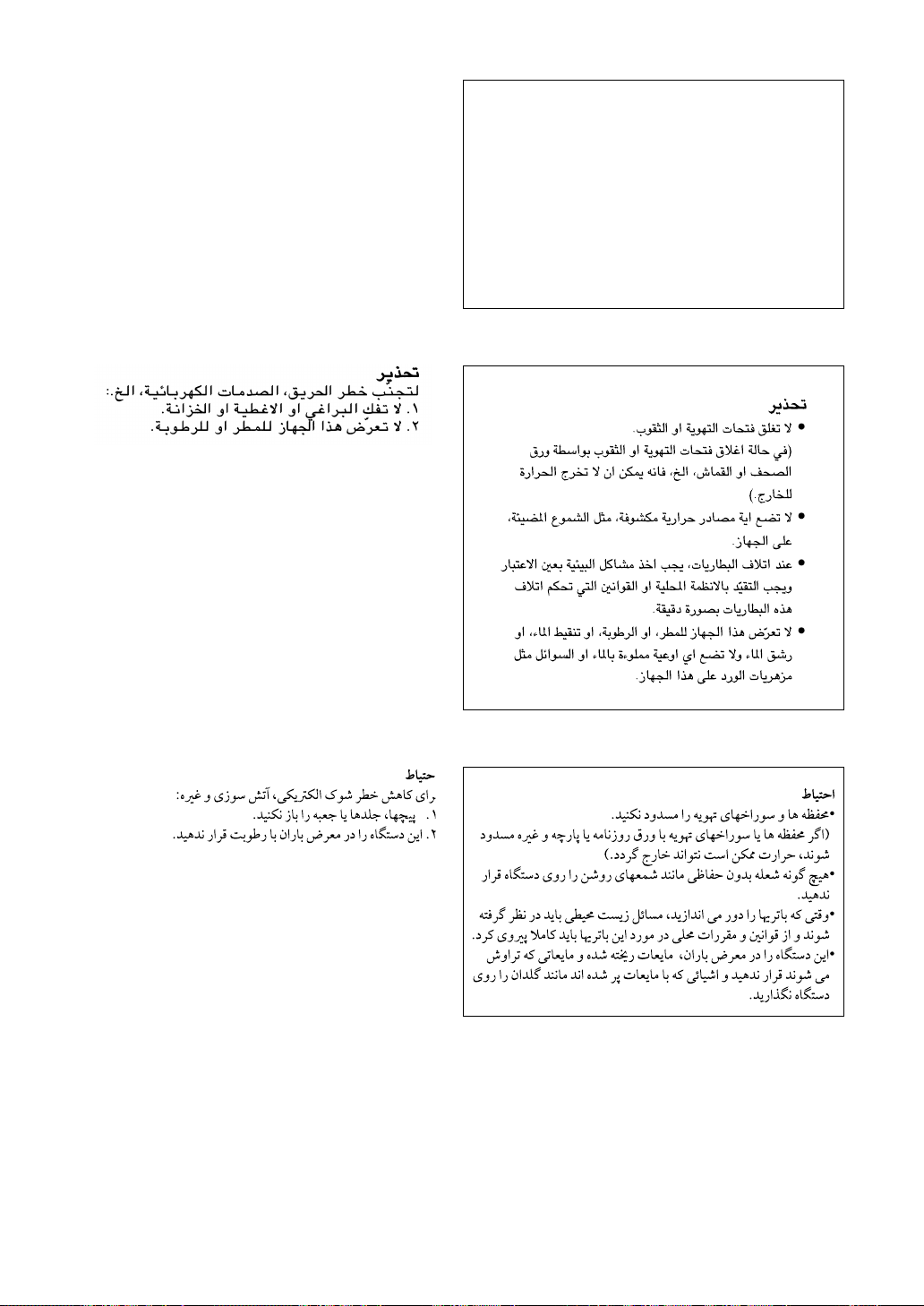

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

CAUTION

Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.) Do not place any naked flame sources, such as lighted candles, on the apparatus. When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly. Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: and interlock failed or defeated. Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE THE UNIT.

Visible and invisible laser radiation when open

注意

— STANDBY/ON

STANDBY/ON

無論沒有被切斷，若要將電源完全關閉，應把電源插頭拔离插座

（所有的燈和信息均熄滅）。

•

當主機正處于備用狀態，當主機開啟后，

•

電源開關可用遙控器控制。

注意

為了減少触電，火災等危險：

1.

切勿擅自卸下螺絲釘，蓋子或機殼。切勿讓本機受雨淋或置潮濕環境中。

2.

注意

•

切勿堵塞通風口或通風孔。 ( 如果通風口或通風孔被報紙或布等堵塞，熱量將無法散

出。) 切勿在本設備上放置任何裸露的火源，如點燃的蜡燭。

•

處理廢棄電池時，必須考慮環境問題，并嚴格遵守當地關于處理廢棄電池的有關法律或規定。

切勿將本裝置暴露于雨水所及，潮濕，滴水或濺起水花的

•

地方，亦不要將任何裝滿液体的物件 ( 如花瓶 ) 放置在本裝置上。

STANDBY/ON

開關 !

開關在任何位置，電源線的電源還是

STANDBY/ON

燈為綠色。

燈為紅色。

鐳射產品的重要說明

一級鐳射產品。

1.

注意：切勿打開頂蓋板。本机內部沒有用戶可自行維修的部

2.

件；所有維修工作應由有資格的人員完成。注意：當內部鎖定裝置失效或者損坏后，打開蓋板可能會產

3.

生可見或不可見的鐳射輻射。應避免受到鐳射光束的直接照射。標簽的復制標示：注意標簽位于機內。

4.

Caution: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:

1. Front: No obstructions and open spacing.

2. Sides/ Top/ Back: No obstructions should be placed in the areas shown by the dimensions below.

3. Bottom: Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of 10 cm or more.

15 cm

15 cm 15

SP-UXP450

1 cm 1

CA-UXP450 SP-UXP450

1 cm

15

1

15 cm 15

10 cm 10

G-1

注意 : 正确通風

為免發生触電和火警的危險，及防止本機受損，請將本機如下放置：

1.

前面：沒有障礙物及地方開闊。

2.

側面 / 頂面 / 背面：在圖中所示范圍中，不應放置任何障礙物。

3.

底部：放置在水平面上。放置在一個高上，以保証足夠的通風道。

15 cm 15

•

CA-UXP450

•

15 cm 15

10

厘米或以上的臺

Introduction

How to Read This Manual

Installation

• Install in a place which is level, dry and neither too hot nor too cold—between 5°C and 35°C.

• Install the System in a location with adequate ventilation to prevent internal heat buildup inside the System.

DO NOT install the System in a location near heat sources, or in a place subject to direct sunlight, excessive dust or vibration.

• Leave sufficient distance between the System and the TV.

• Keep the speakers away from the TV to avoid interference with TV.

Power sources

• When unplugging the System from the wall outlet, always pull on the plug, not the AC power cord.

DO NOT handle the AC power cord with wet hands.

Moisture condensation

Moisture may condense on the lenses inside the System in the following cases:

• After starting to heat the room

• In a damp room

• If the System is brought directly from a cold to a warm place

Should this occur, the System may malfunction. In this case, leave the System turned on for a few hours until the moisture evaporates, unplug the AC power cord, then plug it in again.

Others

• Should any metallic object or liquid fall into the System, unplug the AC power cord and consult your dealer before operating any further.

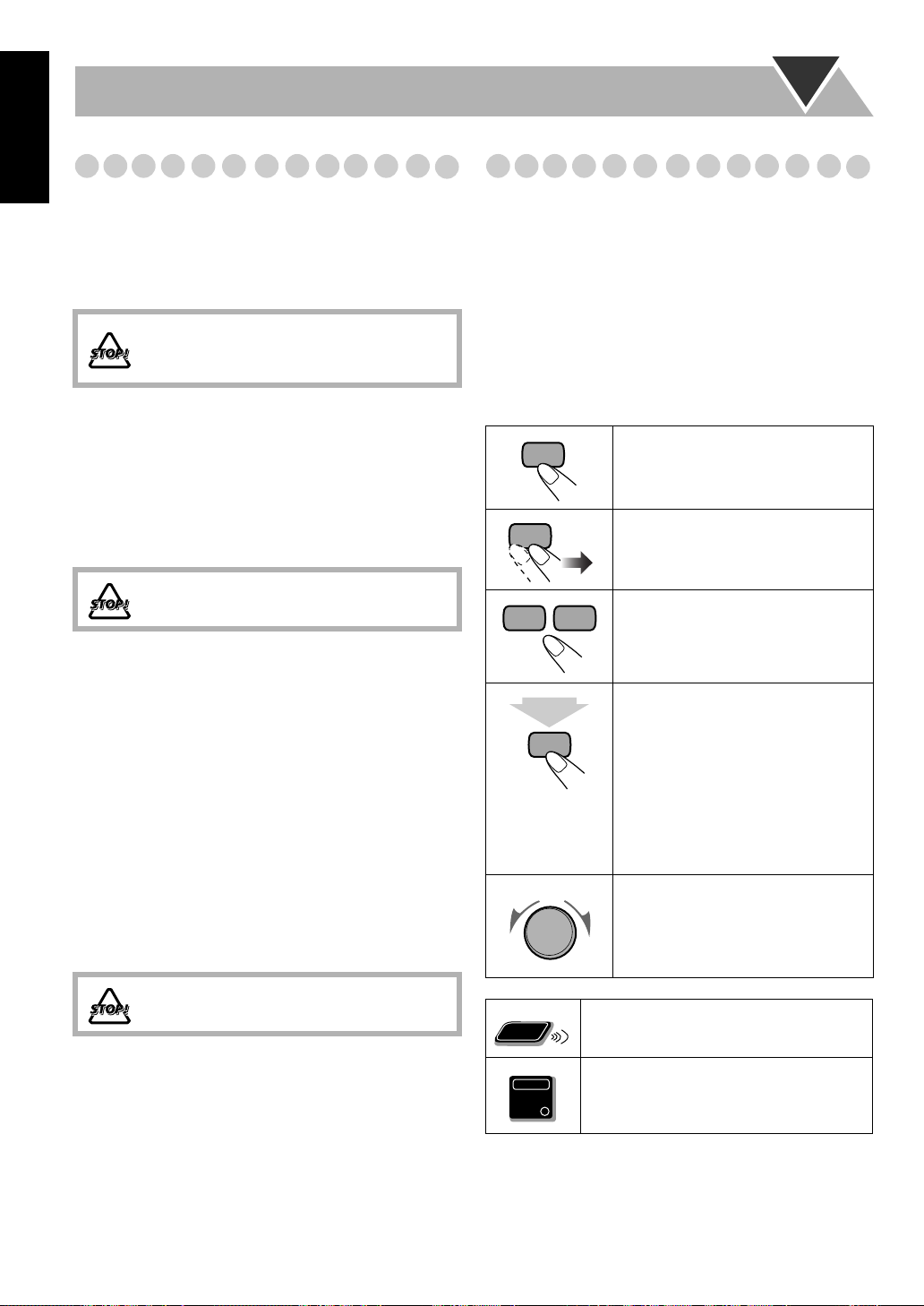

To make this manual as simple and easy-to-understand as possible, we have adapted the following methods:

• Button and control operations are explained as listed in the table below.

•

Some related tips and notes are explained later in the sections “Additional Information” and “Troubleshooting,” but not in the same section explaining the operations.

about the functions, or if you have a doubt about the functions, go to these sections and you will find the answers.

2 sec.

If you want to know more

Indicates that you press the button

.

briefly

Indicates that you press the button

briefly and repeatedly

option you want is selected.

Indicates that you press one of the buttons.

Indicates that you button for specified seconds.

• The number inside the arrow indicates the period of press (in this example, 2 seconds).

• If no number is inside the arrow, press and hold until the entire procedure is complete or until you get a result you want.

Indicates that you turn the control toward the specified direction(s).

until an

press and hold

the

DO NOT disassemble the System since there are no user serviceable parts inside.

• If you are not going to operate the System for an extended period of time, unplug the AC power cord from the wall outlet.

If anything goes wrong, unplug the AC power cord and consult your dealer.

2

Indicates that this operation is only possible using the remote control.

Indicates that this operation is only possible using the buttons and controls on the main unit.

Getting Started

Step 1:Unpack the package and

check the accessories.

Step 2: Prepare the remote control.

Step 1: Unpack

After unpacking, check to be sure that you have all the following items. The number in parentheses indicates the quantity of each piece supplied.

• FM antenna (1)

• AM loop antenna (1)

• Composite video cord (1)

• Remote control (1)

• Batteries (2)

• AC plug adaptor (1) If any item is missing, consult your dealer immediately.

Step 2: Prepare the Remote Control

Insert the batteries into the remote control by matching the polarity (+ and –) correctly.

1

English

Step 3: Hook up the components such

as AM/FM antennas, speakers, etc. (see pages 4 to 6).

Finally plug the AC power cord.

• If the wall outlet does not match the AC plug, use the supplied AC plug adaptor.

Now you can operate the System.

2

3

R6(SUM-3)/AA(15F)

• DO NOT use an old battery together with a new one.

• DO NOT use different types of batteries together.

• DO NOT expose batteries to heat or flame.

• DO NOT leave the batteries in the battery compartment when you are not going to use the remote control for an extended period of time. Otherwise, the remote control will be damaged from battery leakage.

3

English

TV

AUX

DECODER

LEFT

RIGHT

AUDIO OUT

OPTICAL

DIGITAL IN

AV

COMPU LINK

VIDEO INPUT

Y

P

B

P

R

Illustrations of the input/output terminals below are typical examples. When you connect other components, refer also to their manuals since the terminal names actually printed on the rear may vary.

Turn the power off to all components before connections.

Audio cord (not supplied)

White

Red

Optical digital cord (not supplied)

Component video cord (not supplied)

Red

Blue

Green

AV COMPU LINK cord (not supplied) (cord with monaural mini plug)

• For details, see “AV COMPU LINK remote control system” on page 6.

Before connecting optical digital cord

OR

S-video cord (not supplied)

Composite video cord (supplied)

Yellow

OR

VCR, etc.

Remove the protective cap from the DVD OPTICAL DIGITAL OUT terminal.

Vinyl-covered wire (not supplied)

Extend it horizontally.

For better FM/AM reception

AM loop antenna

Keep it connected.

Disconnect the supplied FM antenna, and connect to an outdoor FM antenna using a 75 Ω wire with coaxial type connector.

Outdoor FM antenna (not supplied)

Step 3: Hook Up

If you need more detailed information, see page 6.

4

AM loop antenna (supplied)

Turn it until the best reception is obtained.

English

Before plugging in the System

Set the correct voltage for your area with the voltage selector on the rear. Use a screwdriver to rotate the voltage selector so that the voltage marker is pointing at the same voltage as where you are plugging in the unit. (See also the back cover page.)

FM antenna (supplied)

Extend it so that you can obtain the best reception.

DO NOT plug in before setting the voltage selector and all connection procedures are complete.

Voltage marker

OPEN

PUSH

AUTO REVERSE

VIDEO OUT

VIDEO

S-VIDEO

OUT

SELECT

PAL NTSC

Y

P

B

P

R

To a wall outlet Plug the AC power cord only after all connections and selector settings on the rear are complete.

5

English

To connect the AM loop antenna

1 Hold

2 Insert

• If the AM loop antenna wire or speaker cords are covered with vinyl, remove the vinyl to expose the tip of the antenna by twisting the vinyl.

• Make sure the antenna conductors do not touch any other terminals, connecting cords and power cord. Also, keep the antennas away from metallic parts of the System, connecting cords, and the AC power cord. This could cause poor reception.

To connect the speaker cords

Connect the right speaker to the RIGHT terminals, and the left speaker to the LEFT terminals.

1 Hold

2 Insert

• When connecting the speaker cords, match the polarity of the speaker terminals: Red cord to (+) and black cord to (–).

• DO NOT connect more than one speaker to each terminal.

• DO NOT allow the conductor of the speaker cords to be in touch with the metallic parts of the System.

3 Release

IMPORTANT

The speakers are magnetically shielded to avoid color distortions on TVs. However, if not installed properly, it may cause color distortions. So, pay attention to the following when installing the speakers.

• When placing the speakers near a TV set, turn off the TV’s main power switch or unplug it before installing the speakers. Then wait at least 30 minutes before turning on the TV’s main power switch again.

Some TVs may still be affected even though you have followed the above. If this happens, move the speakers away from the TV.

AV COMPU LINK remote control system

This system allows you to use JVC’s TV with simple operations; by starting playing back a disc, the TV automatically turns on and changes the input mode to the appropriate position so that you can view the playback picture.

• To use AV COMPU LINK, you need to connect the System and the TV by using a cord with monaural miniplugs (not supplied) in addition to the video input/output connection through the COMPONENT jacks, S-VIDEO jack or VIDEO (composite) jack on the rear.

Setting the Video Output Selector

You can select the video output to match it to the color system of your TV.

VIDEO

OUT

NTSC: PAL:

SELECT

PAL NTSC

• When using a multi-color system

Changing the Scanning Mode

This System supports progressive scanning. If you connect a progressive TV through the COMPONENT jacks, you can enjoy a high quality picture from the built-in DVD player by selecting “PROGRE.”

For an NTSC TV.

For a PAL TV.

TV, either position will work.

Remote ONLY

PROGRESSIVE

0

PROGRE

INTER

(at the same time)

PROGRE

INTER

Progressive scanning. For a progressive TV.

Interlaced scanning. For a conventional TV.

6

Before Operating the System

Playable Disc Types

This unit has been designed to play back the following discs:

Disc Type Mark (Logo)

DVD Video

DVD Audio

Video CD

(VCD)

Super Video

CD (SVCD)

Audio CD

CD-R

CD-RW

DVD-R

DVD-RW

In addition to the above discs, this System can play back audio data recorded on CD Text, CD-G (CD Graphics), and CD-Extra.

• The following discs cannot be played back: DVD-ROM, DVD-RAM, DVD+R, DVD+RW, CD-I (CD-I Ready), CD-ROM, Photo CD, etc. Playing back these discs will generate noise and damage the speakers.

DIGITAL VIDEO

SUPER VIDEO

COMPACT

DIGITAL AUDIO

The System can play back CD-R or CD-RW recorded in the Audio CD, Video CD, SVCD, MP3, WMA, and JPEG formats.

The System can play back DVD-R or DVDRW recorded in the video format.

Video

Format

NTSC

• In this manual, “ﬁle” and “track” are interchangeably used for MP3/WMA/JPEG operations.

*

Note on Region Code

DVD players and DVDs have their own Region Code numbers. This System can play back only DVDs recorded with the NTSC or PAL color system whose Region Code numbers including “3.” EX.:

If a DVD with the improper Region Code numbers is loaded, “RGN ERR (Region Code Error)” appears on the display and playback will not start.

Region

Code*

Number

3

or

ALL

or

PAL

DVD Video—digital audio formats

The System can play back the following digital audio formats.

•

Linear PCM:

format used for CDs and most studio masters.

•

Dolby Digital:

Dolby Laboratories, which enables multi-channel encode to create the realistic surround sound.

•

DTS (Digital Theater Systems):

audio, developed by Digital Theater Systems, Inc., which enables multi-channel like Dolby Digital. As the compression ratio is lower than for Dolby Digital, it provides wider dynamic range and better separation.

When playing a multi-channel encoded DVD, the System properly converts these multi-channel signals into 2 channels, and emits the downmixed sound from the speakers.

•

To enjoy the powerful sound of these multi-channel encoded DVDs,

with a proper built-in decoder to the digital output terminal on the rear.

• Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, “MLP Lossless”, and the double-D symbol are trademarks of Dolby Laboratories.

• “DTS” and “DTS2.0 trademarks of Digital Theater Systems, Inc.

• This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.

Uncompressed digital audio, the same

Compressed digital audio, developed by

Compressed digital

connect a proper decoder or an ampliﬁer

+DIGITAL OUT

” are registered

English

7

English

Display Indicators

The indications on the display teach you a lot of things while you are operating the System. Before operating the System, be familiar with when and how the indicator illuminates on the display.

12 4356 7

SLEEP

MONO ST MP3 WMA 3D

123 REC

PHONIC

REC

RANDOM PRGM ALL B.S.P.

BONUS A.STANDBY

pq

1

Rhythm Ax indicator

• Lights when Rhythm Ax is activated.

2

Daily Timer indicators

• : lights when Daily Timer stands by or is being preset.

• 1/2/3: lights when a Daily Timer (1, 2, or 3) stands by; ﬂashes while setting or working.

• REC: lights when the Recording Timer stands by; flashes while setting or working.

3

SLEEP

indicator

• Lights when the Sleep Timer is activated.

4

FM reception indicators

• MONO: lights while receiving an FM stereo station in monaural.

• ST (stereo): lights while an FM stereo station with sufﬁcient signal strength is tuned in.

5

MP3/WMA indicators

• MP3: lights when an MP3 track is detected.

• WMA: lights when a WMA track is detected.

6

3D PHONIC indicator

• Lights when 3D Phonic is activated.

7

REC indicator

• Lights while recording.

8

Tape operation indicators

•2 3 (tape direction): – Lights to indicate the current tape running direction. – Flashes slowly during playback and recording. – Flashes quickly while rewinding a tape.

• (reverse mode): – : tape play continues endlessly. – : tape automatically reverses once. – : tape play stops at the end of one side.

9

Disc operation indicators

• RANDOM: lights when Random Play is activated.

• PRGM (program): lights when Program Play is activated.

•

(repeat)/ – : lights when Disc Repeat is activated. – : lights when any Repeat other than the above is

activated.

ALL:

ALL

w

p

BONUS indicator

• Lights when detected

q

B.S.P. (Browsable Still Picture) indicator

• Lights when playing a DVD Audio.

w

Main display

• While listening to radio: Band (or preset number) and station frequency appear.

• While selecting “AUX”: “AUX” appears.

• While playing a tape: “TAPE” appears.

• While playing a disc: See “Indications on the main display while operating a disc” on page 9.

e

A(auto). STANDBY indicator

• Lights when Auto Standby is activated.

• Flashes when disc playback stops with Auto Standby activated.

e98

a DVD Audio with a bonus group is

.

Browsable

Still Pictures are detected while

8

Indications on the main display while operating a disc

While playing back a disc: While disc play is stopped:

English

• DVD Video:

Elapsed playing timeCurrent chapter no.

• DVD Video:

• By pressing DISPLAY, you can show the current title and chapter numbers for a few seconds.

• DVD Audio:

Current track no.

Elapsed playing time

• DVD Audio:

• By pressing DISPLAY, you can show the current group and track numbers for a few seconds.

• Audio CD: • Audio CD:

Current track no.

• SVCD/VCD:

Elapsed playing time

• SVCD/VCD:

Total title no.

Track no.

Total group no. Group no.

Total playing timeTotal track no.

Current track no.

* “PBC” appears while playing a disc with PBC.

• MP3/WMA:

Current track no.

• By pressing DISPLAY, you can show the current group

Elapsed playing time*

Elapsed playing time

* Changes to “PBC” when stopping PBC playback.

• MP3/WMA:

Current group no.

and track numbers for a few seconds.

• JPEG: • JPEG:

Current group no.

Current ﬁle no.

Current group no.

• If Resume is turned “ON” (see page 36), “RESUME” appears when you stop playback.

Total playing time*Total track no.

Current track no.

Current ﬁle no.

9

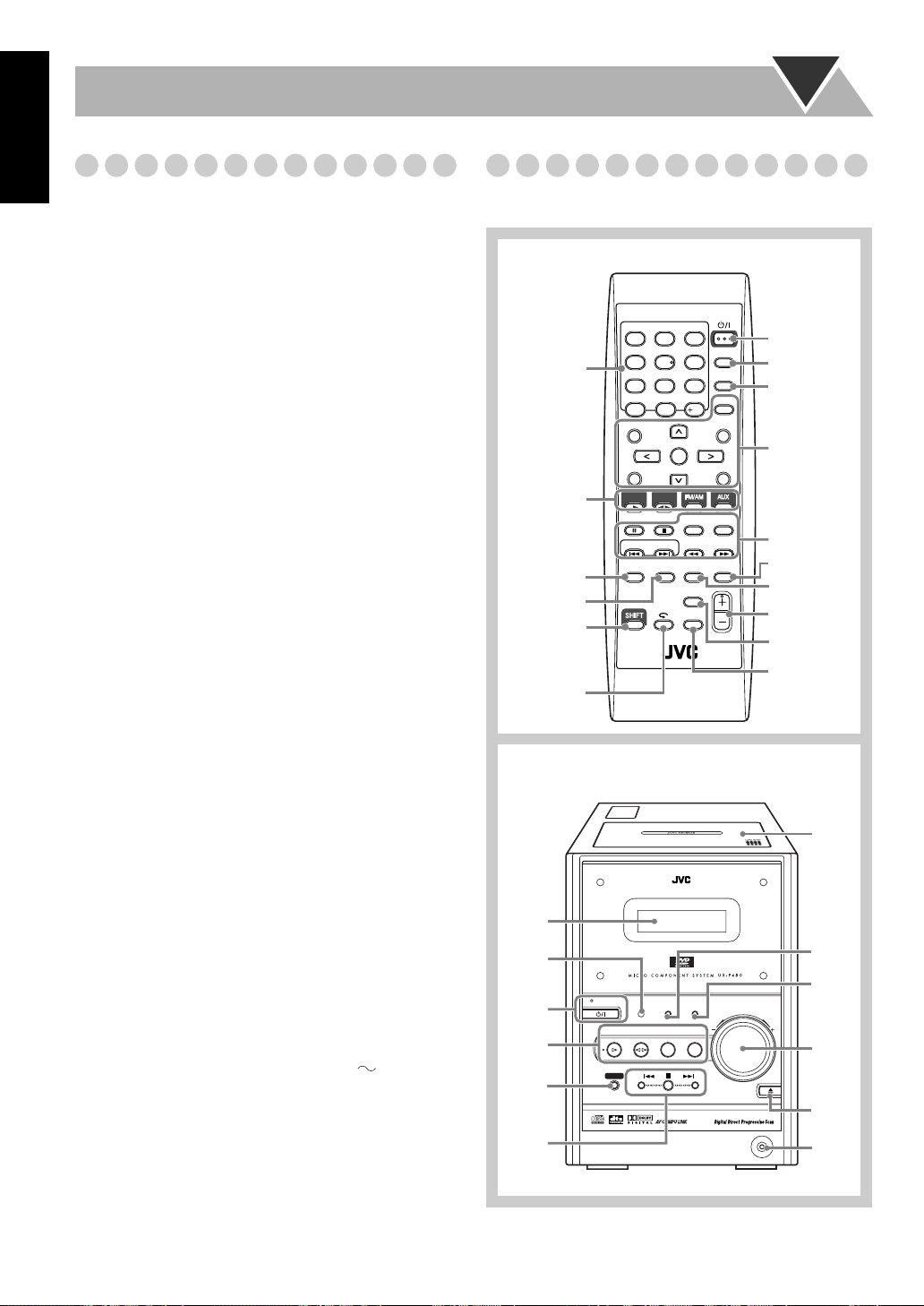

Daily Operations

STANDBY/ON

—Playback

English

10 keys

ENTER

TOP MENU

2

8 7

GROUP/TITLE

4/¢

SHIFT

1

STANDBY/ON

1

SET MENU

,, ,

RETURN

1/¡ 3D PHONIC

3

In this manual, the operation using the remote control is mainly explained; however, you can use the buttons and controls on the main unit if they have the same (or similar) name and marks.

1

Turn on the power.

The STANDBY/ON lamp on the main unit lights in green.

• Without pressing STANDBY/ON , the System turns on by pressing one of the source selecting buttons in the next step.

Select the source.

2

Playback automatically starts if the selected source is ready to start.

• If you press AUX, start playback source on the external component.

Adjust the volume.

3 4

Operate the target source as explained later.

To turn off (stand by) the unit

The STANDBY/ON lamp on the main unit lights in red.

• A small amount of power is always consumed even while on standby.

10

2

3

4

DVD/CD

VOLUME

For private listening

Connect a pair of headphones to the PHONES jack on the main unit. The sound will no longer come out of the speakers. Be sure to turn down the volume before connecting or putting the headphones.

• Disconnecting the headphones will activate the speakers again.

DO NOT turn off (stand by) the System with the volume set to an extremely high level; Otherwise, the sudden blast of sound can damage your hearing, speakers and/or headphones when you turn on the System or start playback.

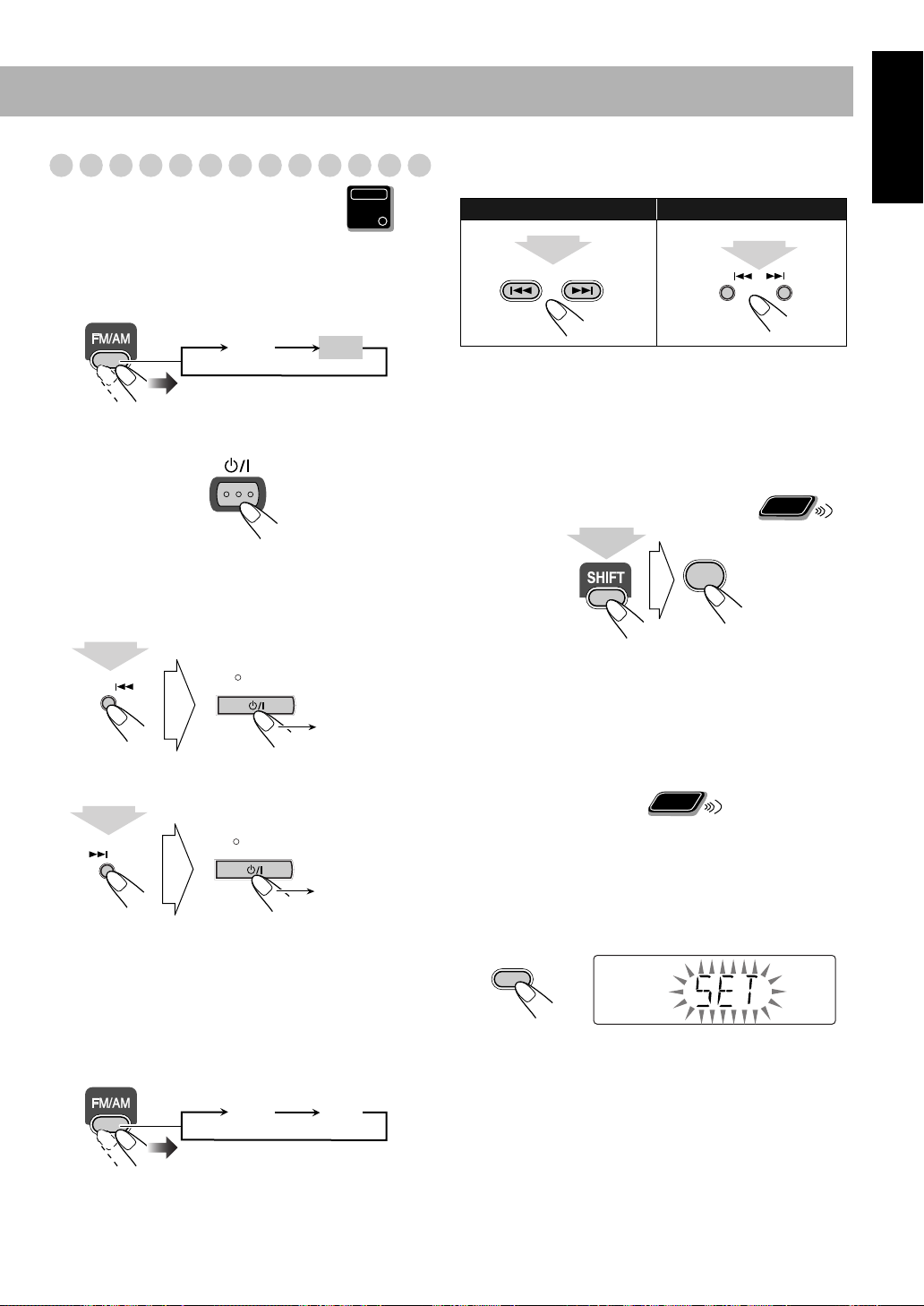

Listening to the Radio

Main Unit

To set the AM tuner interval spacing

Before operating the tuner, it is required to select the appropriate AM space interval used for your area.

Select the AM band.

1

ONLY

To tune in to a station

While FM or AM is selected...

Remote control:

2 sec.

GROUP/TITLE

Main unit:

DOWN

English

2 sec.

UP

FM AM

Turn off the power.

2

STANDBY/ON

3

Select the appropriate AM space interval for your area.

• You can only use the button and the control on the front panel.

DOWN

While holding...

UP

While holding...

STANDBY/ON

AM 9KHZ

(9 kHz interval)

AM 10KHZ

(10 kHz interval)

Frequency starts changing on the display. When a station (frequency) with sufficient signal strength is tuned in, the frequency stops changing.

•

When you repeatedly press the button, the frequency changes step by step.

To stop searching manually,

If the received FM station is hard to listen

press either button.

FM MODE

Remote ONLY

9

(at the same time)

The MONO indicator lights on the display. Reception will improve though stereo effect is lost—Monaural reception mode.

To restore the stereo effect,

MONO indicator goes off).

To preset the stations

You can preset 30 FM and 15 AM stations.

1

Tune in to a station you want to preset.

• You can also store the monaural reception mode for FM preset stations if selected.

2

Activate the preset number entry mode.

SET

press the button again (the

Remote

ONLY

To select the band (FM or AM)

FM AM

• Finish the following process while the indication on the display is flashing.

11

English

AUDIO ANGLE

SUB TITLE

ZOOM VFP

FM MODEREV. MODE

DVD LEVEL

1

4

7

10

2

5

8

3

6

9

10

AUDIO ANGLE

SUB TITLE

ZOOM VFP

FM MODEREV. MODE

DVD LEVEL

1

4

7

10

2

5

8

3

6

9

10

3

Select a preset number for the station you store.

Examples:

To select preset number 5, press

5. To select preset number 15, press +10, then 5. To select preset number 30, press +10, +10, then 10.

• You can also use the ¡

or 1

buttons.

To start:

To rewind tape:

Before or after play...

GROUP/TITLE

To stop:

Rewind the tape to the right.

4

Store the station.

SET

Remote

To tune in to a preset station

1

Select the band (FM or AM).

ONLY

FM AM

Select a preset number for the station you store.

2

• You can also use the ¡ 1

buttons.

or

Rewind the tape to the left.

To change the tape running direction

3 (forward play)

2 (reverse play)

To reverse the tape automatically

REV. MODE

7

(at the same time)

Tape is played from the forward side to the reverse side. When the reverse side is played back, playback stops.

Tape is automatically reversed, and playback repeats until you stop it.

Tape will not be reversed. When the current side of the tape reaches its end, playback stops.

Playing Back a Tape

To insert a tape

You can play back tapes of types I, II, and IV.

Push Insert Close

12

With the tape side facing outside

Playing Back a Disc

IMPORTANT: Before playing a disc, make sure of the following...

• Turn on the TV and select an appropriate input mode on the TV to view the pictures or on-screen displays on the TV screen.

• For disc playback, you can change the initial setting to your preference. See “Setup Menu Operations” on page 33.

If “ ” appears on the TV screen when you press a button,

tried to do, or data required for that operation is not recorded on the disc.

the disc cannot accept the operation you have

Before operating a disc, be familiar how a disc is recorded.

DVD/CD

• DVD Video comprises of “

Chapters

“ “

Groups

comprise of only “

,” DVD Audio/MP3/WMA/JPEG comprise of

” which includes “

Tracks

Titles

” which includes

Tracks

.”

,” and CD/SVCD/VCD

• For JPEG playback, see “Operations on the CONTROL Screen” on page 27.

To insert a disc

You can insert a disc while playing another source.

On-screen guide icons

• During DVD Video playback, the following icons may appear on the TV:

At the beginning of a scene containing multiangle views.

At the beginning of a scene containing multiaudio sounds.

At the beginning of a scene containing multisubtitles.

• The following icons will be also shown on the TV to indicate your current operation.

, , , , ,

English

To close the disc tray,

• If you press DVD/CD 3

press 0

again.

, disc tray closes automatically and playback starts (depending on how the disc is programmed internally).

To start:

To pause: To stop:

To release, press DVD/CD 3

•

While playing DVD/SVCD/VCD:

.

This System can store

the stop point, and when you start playback again by pressing DVD/CD 3

(even while on standby), it starts from the position where you have stopped—Resume Play. (“RESUME” appears on the display when you stop playback.)

To stop completely while Resume is activated,

press 7

twice. (To cancel Resume, see “RESUME” on page 36.)

• When operating the System, the on-screen guide icon (see the following table) appears on the TV. To deactivate the on-screen guide icons, see “ON SCREEN GUIDE” on page 36.

To select a title/group

While playing...

(at the same time)

• Group name appears for MP3/WMA discs.

To select a chapter/track

While playing...

GROUP/TITLE

• First time you press 4

can go back to the beginning of the current chapter/track.

To locate a particular portion

While playing a disc except MP3/WMA...

SLOW

–

SLOW

+

x2

Remote

ONLY

GROUP/TITLE

Remote ONLY

x10 x20 x60

x5

x10 x20 x60

x5

, you

• No sound comes out while searching on DVD Video/ SVCD/VCD.

To return to normal playback,

press DVD/CD 3

.

13

English

AUDIO ANGLE

SUB TITLE

ZOOM VFP

FM MODEREV. MODE

DVD LEVEL

1

4

7

10

2

5

8

3

6

9

10

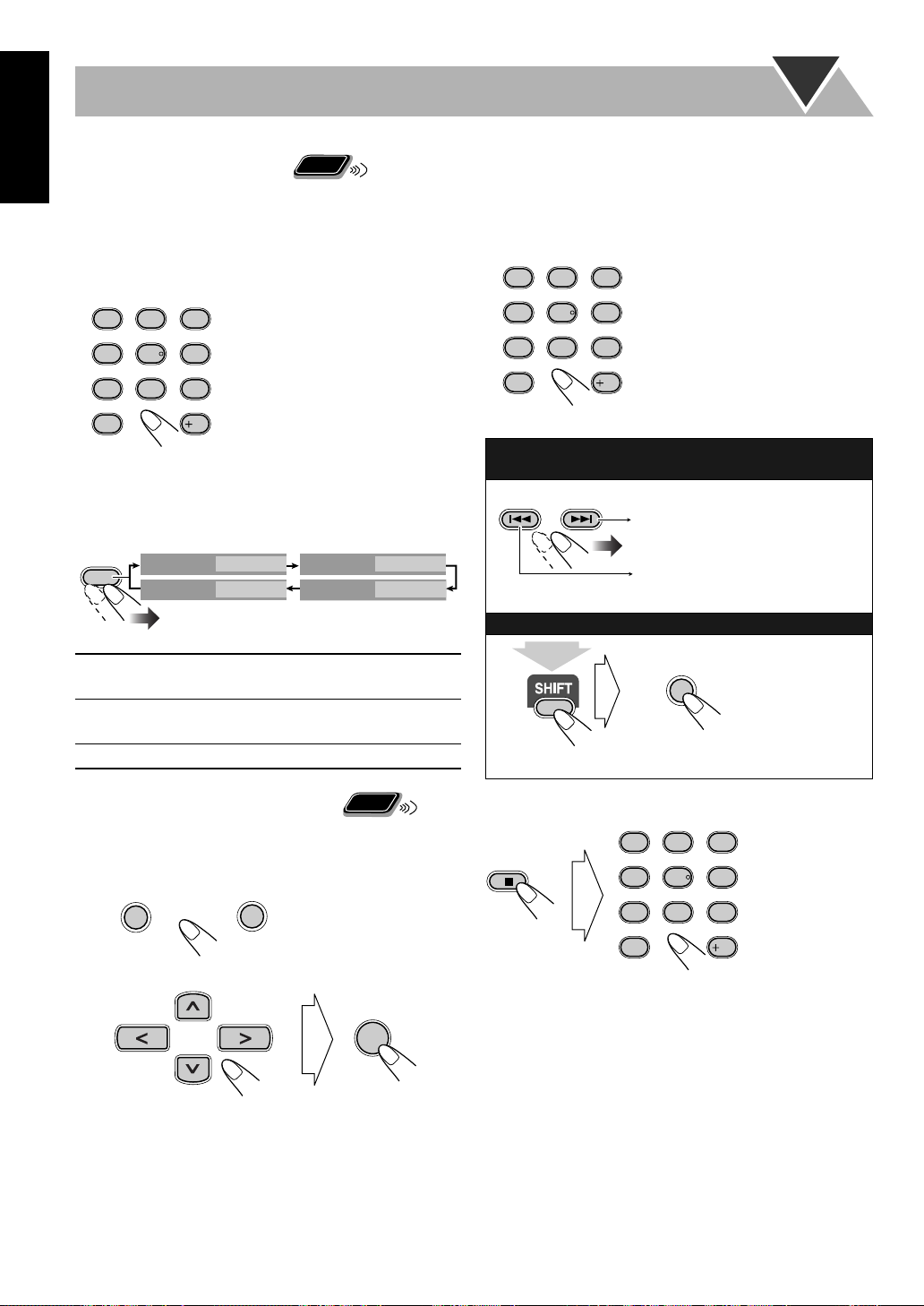

To locate an item directly

Remote ONLY

You can select a title/chapter/track directly and start playback.

• For DVD Video, you can select

playback playback

, while you can select .

a title before starting

a chapter after starting

Examples:

To select number 5, press 5. To select number 15, press +10, then 5. To select number 30, press +10, +10, then 10.

7

For SVCD/VCD with PBC:

While playing a disc with PBC, “PBC” appears on the display. When disc menu appears on the TV, select an item on the menu. Playback of the selected item starts.

AUDIO ANGLE

SUB TITLE

1

2

ZOOM VFP

DVD LEVEL

4

5

FM MODEREV. MODE

8

7

10

Examples:

3

To select number 5, press 5. To select number 15, press +10,

6

then 5. To select number 30, press +10,

9

+10, then 10.

10

To move to the next or previous page of the current menu:

To use 3D Phonic

While playing...

3D

PHONIC

3D PHONIC

(Canceled)

• The selected mode can only be shown on the TV.

ACTION

Suitable for action movies and sports programs.

DRAMA

Creates natural and warm sound. Enjoy movies in a relaxed mood.

THEATER Enjoy sound effects like in a major theater.

To play back using the disc menu

7

For DVD Video/DVD Audio:

Show the disc menu.

1

TOP MENU

2

Select an item on the disc menu.

SET UP

ACTION

OFF

MENU

3D PHONIC

ONLY

ENTER

DRAMA

THEATER

Remote

GROUP/TITLE

Moves to the next page.

Moves to the previous page.

To return to the previous menu:

CANCEL

RETURN

(at the same time)

To cancel PBC

Stop playback.

AUDIO ANGLE

SUB TITLE

1

ZOOM VFP

DVD LEVEL

4

7

10

3

2

6

5

FM MODEREV. MODE

9

8

10

Playback starts with the selected track.

To reactivate PBC,

“ON”), then press DVD/CD 3

press 7

(twice if Resume is turned

.

Select a track.

• With some discs, you can also select items by entering the number using the 10 keys.

14

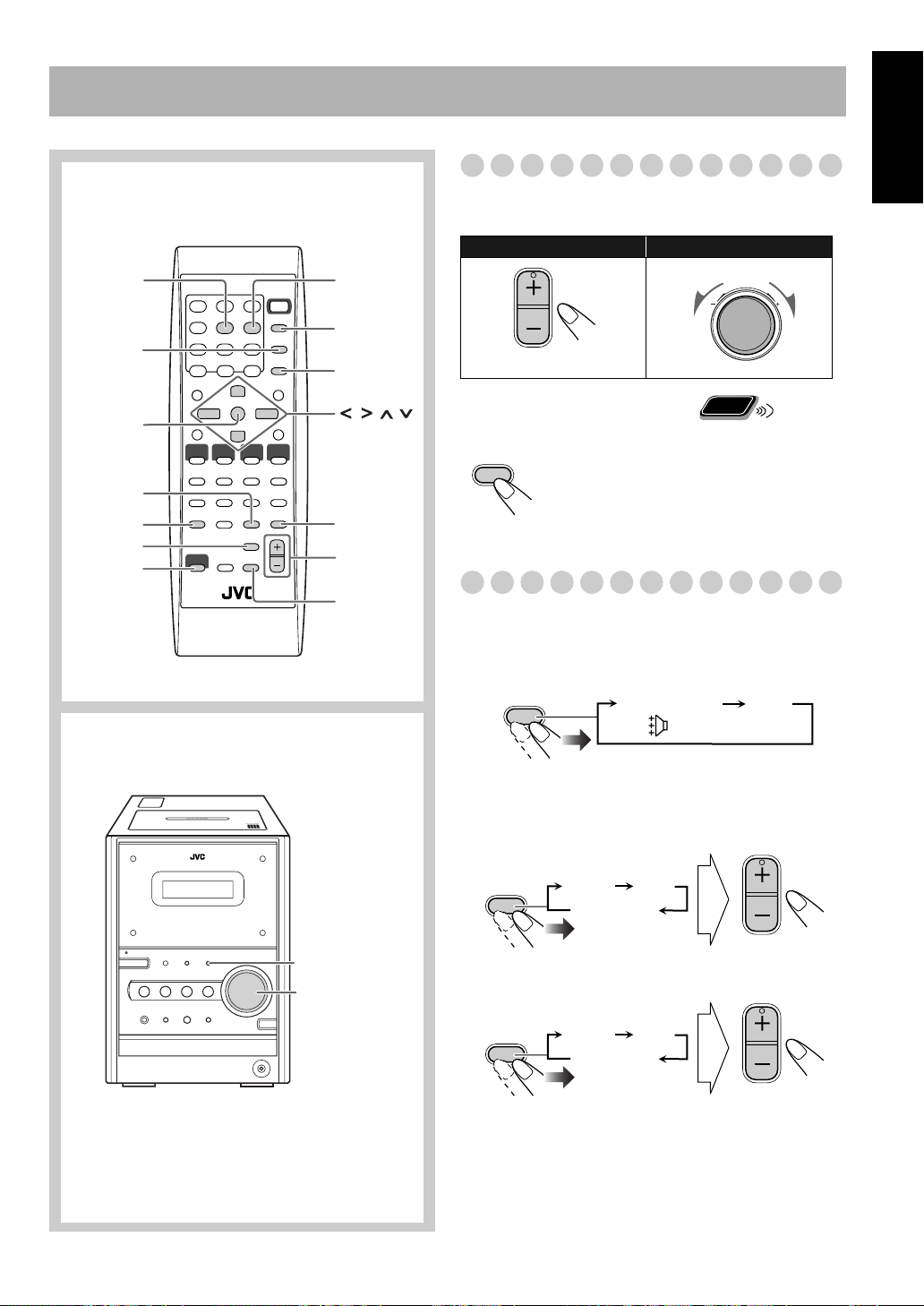

Daily Operations—Sound & Other Adjustments

VOLUME

Remote control

DVD LEVEL

CLOCK/

TIMER

ENTER

BASS/TREBLE

DISPLAY

DIMMER

SHIFT

VFP

SLEEP A.STANDBY

SET

,, ,

RHYTHM AX

VOLUME +/–

FADE MUTING

Adjusting the Volume

You can adjust the volume level from level 0 (VOL MIN) to level 40 (VOL MAX).

Remote control: Main unit:

Remote

To drop the volume in a moment

FADE

MUTING

To restore the volume,

adjust the volume level.

ONLY

press again, or

Adjusting the Sound

To emphasize rhythm feeling—RHYTHM AX

This function emphasizes bass attack feeling, and also

changes the subwoofer level.

English

Main unit

RHYTHM AX

VOLUME +/–

RHYTHM AX

RHYTHMAX OFF

(Canceled)

To adjust the tone

You can adjust the bass and treble level from –5 to +5.

To adjust the bass

BASS/

TREBLE

BASS

Canceled

To adjust the treble

BASS/

TREBLE

BASS

Canceled

TRE

VOLUME

TRE

VOLUME

15

English

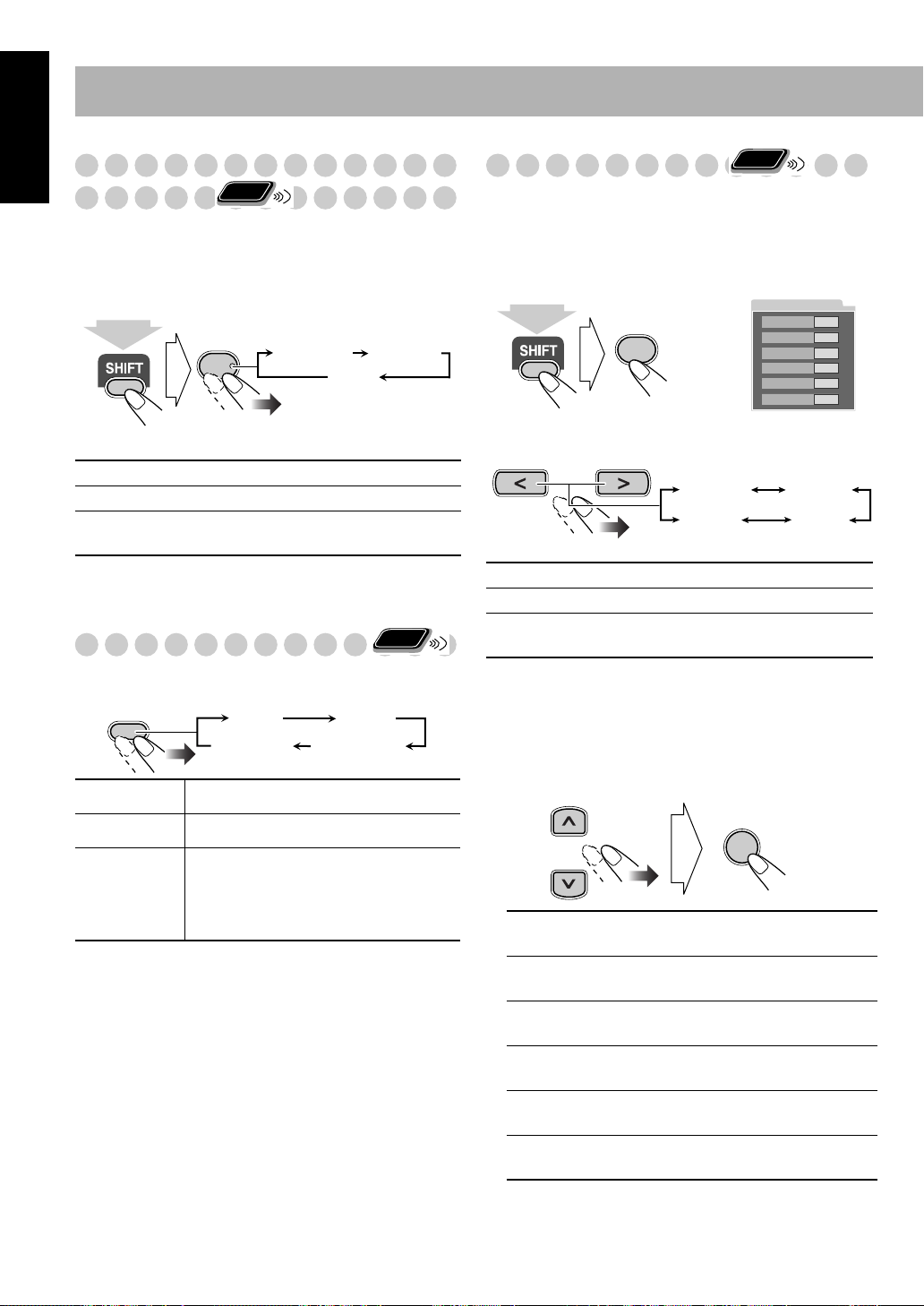

Presetting Automatic DVD Video Sound

Remote

Increase Level

ONLY

The DVD Video sound is sometimes recorded at a lower level than for other discs and sources. You can set the increase level for the currently loaded DVD Video, so you do not have to adjust the volume every time you change the source.

DVD LEVEL

5

(at the same time)

NORMAL MIDDLE

HIGH

NORMAL Original recording level.

MIDDLE Output level is increased (less than “HIGH”).

HIGH Output level is increased (more than

“MIDDLE”).

Remote

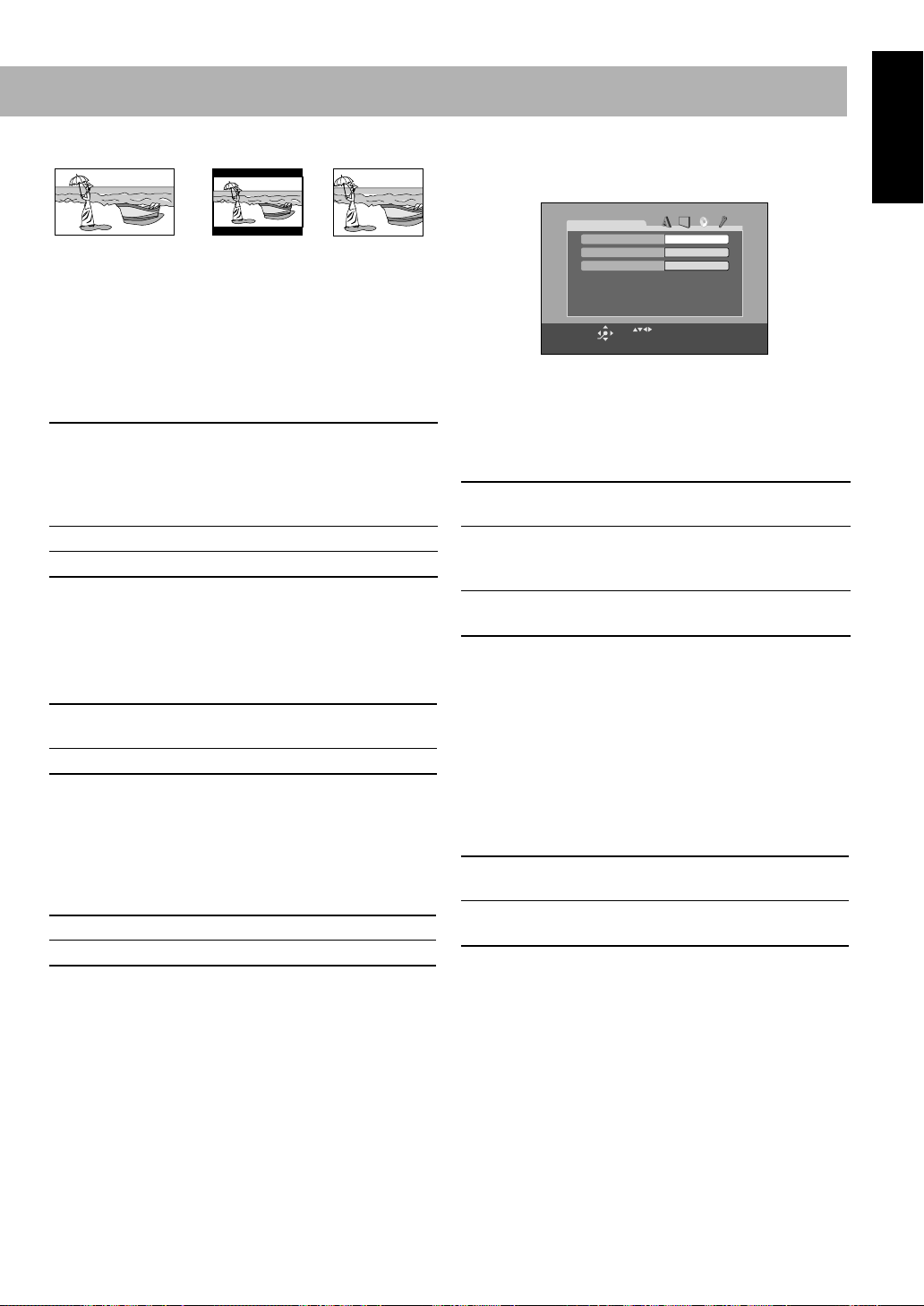

Changing the Picture Tone

ONLY

While showing a playback picture on the TV, you can select the preset picture tone, or adjust it and store your own taste.

To select a preset picture tone

While playing, display VFP setting screen.

1

VFP

6

(at the same time)

NORMAL

GAMMA

BRIGHTNESS

CONTRAST

SATURATION

TINT

SHARPNESS

On the TV

0

2 Select a preset picture tone.

NORMAL CINEMA

USER2 USER1

• Once the current DVD is ejected, this setting is canceled and set automatically to “NORMAL.”

Remote

Changing the Display Brightness

ONLY

You can dim the display window.

DIMMER

DIM1

DIM OFF

(Canceled)

DIM2

AUTO DIM

DIM1 Dims the display.

DIM2 Erases the display illumination.

AUTO DIM Erases the display illumination when

disc playback starts.*

• The display illuminates when playback stops.

* “AUTO DIM” does not work for CD/MP3/WMA.

NORMAL Normally select this.

CINEMA Suitable for a movie source.

USER1/USER2 You can adjust parameters and can

store the settings (see below).

To erase the screen,

press VFP again while holding SHIFT.

To adjust the picture tone

Select “USER1” or “USER2.”

1

• Follow steps 1 and 2 explained above.

2 Select a parameter you want to adjust.

ENTER

GAMMA Adjust if the neutral color is bright or

dark (–3 to +3).

BRIGHTNESS Adjust if the entire picture is bright

or dark (–8 to +8).

CONTRAST Adjust if the far and near positions

are unnatural (–7 to +7).

SATURATION Adjust if the picture is whitish or

blackish (–7 to +7).

TINT Adjust if the human skin color is

unnatural (–7 to +7).

SHARPNESS Adjust if the picture is indistinct

(–8 to +8).

16

3 Adjust the parameter.

ENTER

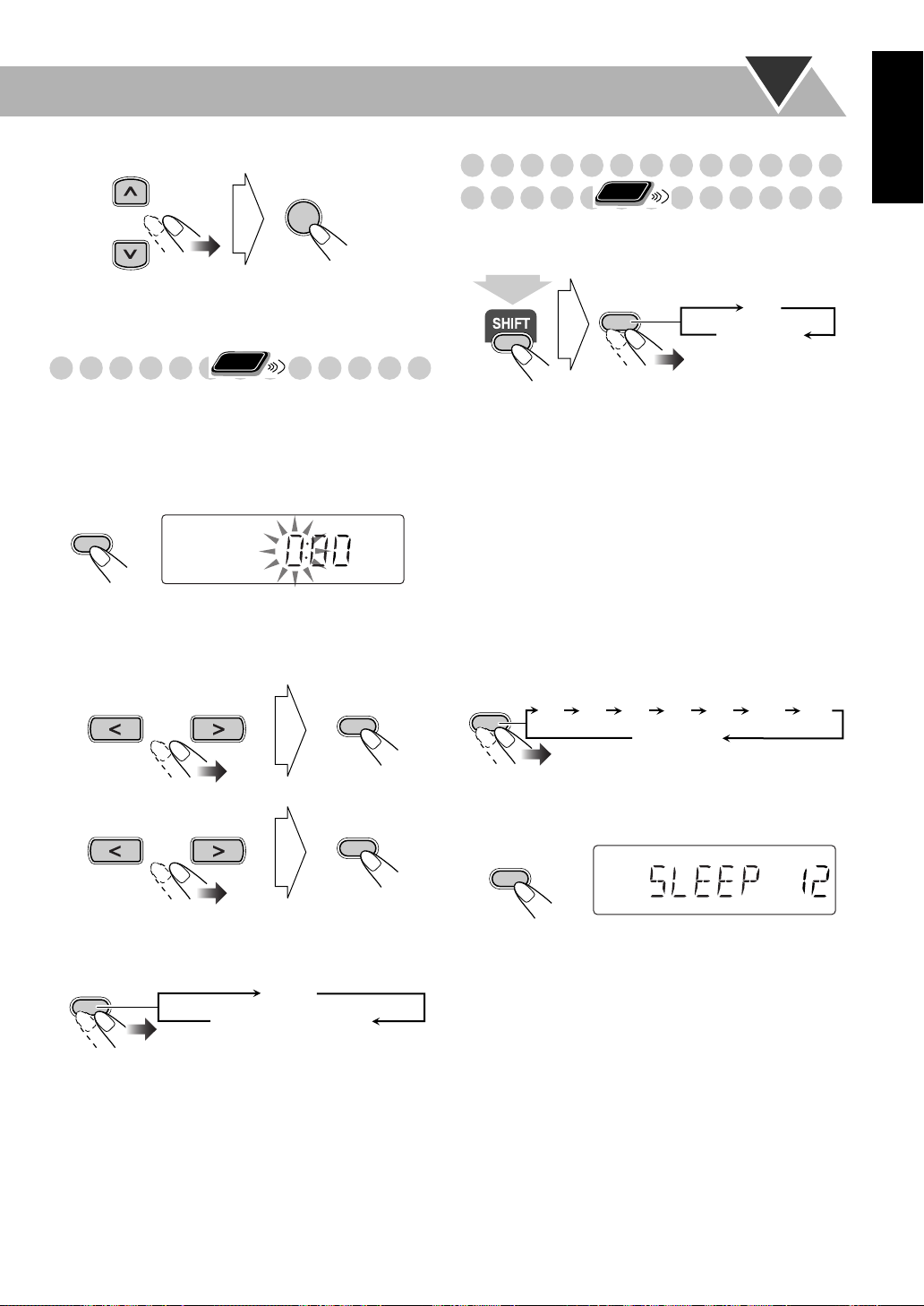

Turning Off the Power

Remote

Automatically

To turn off the unit after playback is over—Auto Standby

ONLY

English

4 Repeat steps 2 to 3 to adjust other parameters.

To erase the screen,

Setting the Clock

Without setting the built-in clock, you cannot use Daily Timers, Recording Timer (see page 31) and Sleep Timer.

• To correct a misentry during the process, press CANCEL or CLOCK/TIMER. You can return to the previous step.

press VFP again while holding SHIFT.

Remote ONLY

1 Activate the clock setting mode.

CLOCK/

TIMER

• If you have already adjusted the clock before, press the button repeatedly until the clock setting mode is selected.

2 Adjust the hour.

SET

3 Adjust the minute.

SLEEP

A.STANDBY

On

Canceled

(at the same time)

When Auto Standby is in use, the A.STANDBY indicator lights on the display. When disc play stops, the A.STANDBY indicator starts flashing. If no operation is done for about 3 minutes while the indicator is flashing, the System turns off (stands by) automatically.

• Auto Standby does not work while you are listening to radio (FM/AM) and the external component (AUX).

To turn off the unit after a certain period of time —Sleep Timer

1

Specify the time (in minutes).

SLEEP

A.STANDBY

10 20 30 60 90 120

150

Canceled

2 Wait until the set time goes off.

SET

Now the built-in clock starts working.

To check the current clock time during play

DISPLAY

Clock

Source information

• While playing a DVD and MP3/WMA, you cannot check the current clock time (see page 9) .

To check the time remaining until the shut-off time

SLEEP

A.STANDBY

SLEEP

• If you press the button repeatedly, you can change the shutoff time.

17

Unique DVD/VCD Operations

English

Remote control

SUB TITLE

AUDIO

ZOOM

,, ,

DVD/CD 3

87

SHIFT

ANGLE

10 keys

ENTER

SLOW –/+

Remote

Selecting the View Angle

ONLY

While playing back a chapter (of DVD Video) containing multi-view angles, you can view the same scene from different angles.

• You can also select the multi-view angles using the onscreen bar (see page 24).

While playing...

ANGLE

3

Ex.:

1/3

1

1/3

1

(at the same time)

2/3

2

2/3

2

3/3

3

3/3

3

Remote

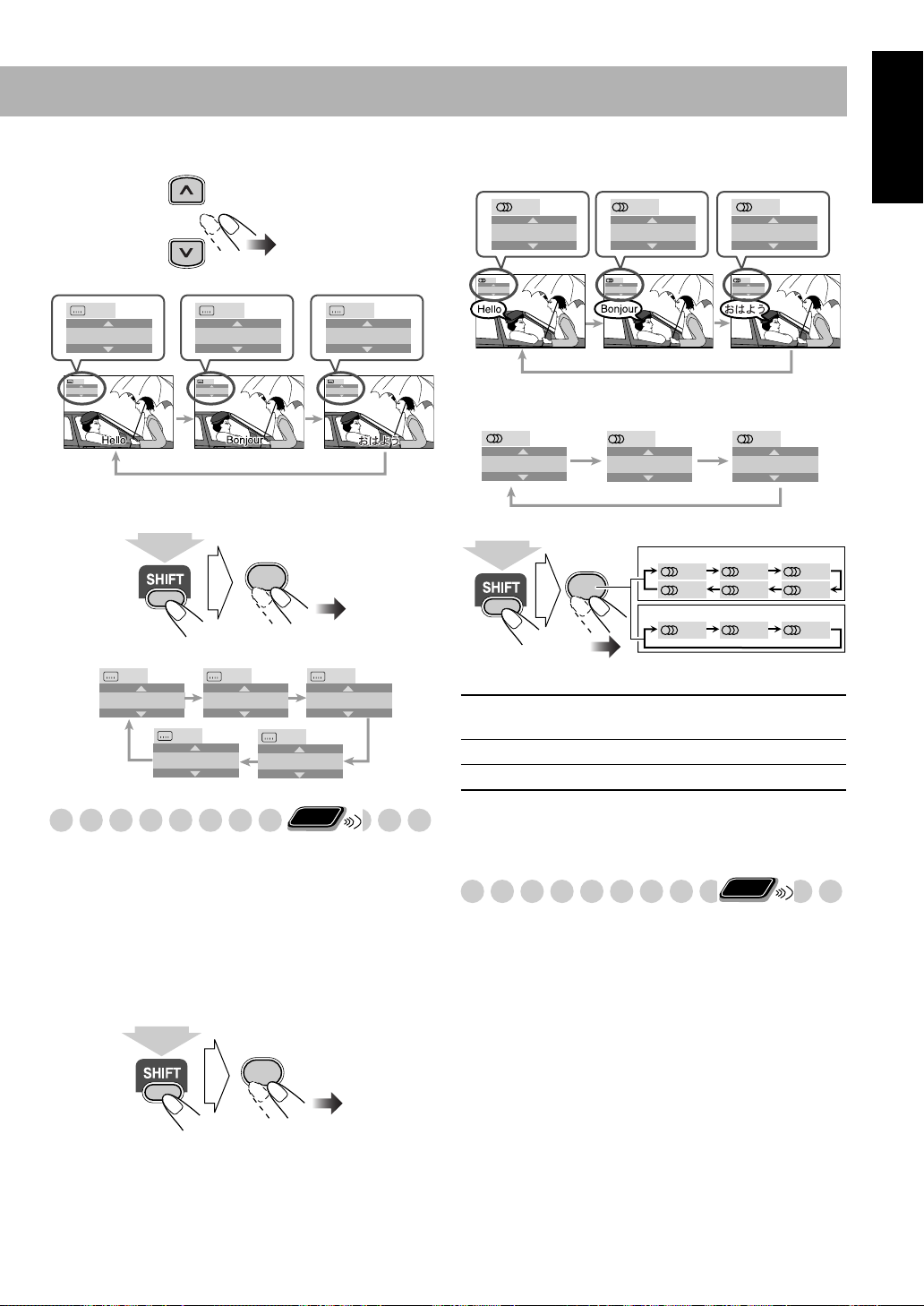

Selecting the Subtitle Language

For DVD Video:

While playing back a chapter (of DVD

ONLY

Video) containing subtitles in different languages, you can select the subtitle language to display on the TV.

For SVCD:

While playing, you can select the subtitles even

if no subtitles are recorded on the disc.

• You can also select the subtitle language using the onscreen bar (see page 24).

While playing a DVD Video...

1

Display the subtitle selection window.

1/3

SUB TITLE

(at the same time)

1/3

2

ENGLISH

18

Select the subtitle language.

2

While playing a DVD Video...

Ex.:

1/3

ENGLISH

2/3

FRENCH

English

3/3

JAPANESE

Ex.:

1/3

ENGLISH

1/3 3/3

ENGLISH

2/3

FRENCH

2/3

FRENCH

3/3

JAPANESE

While playing an SVCD video...

SUB TITLE

2

(at the same time)

–/4

OFF

Selecting the Audio Track

For DVD Video:

audio languages, you can select the language to listen to.

For DVD Audio:

audio channels, you can select the audio channel to listen to.

For Karaoke SVCD/VCD:

can select the audio channel to play.

• You can also select the audio track using the on-screen bar (see page 24).

While playing back a chapter containing

While playing back a track containing

1/4

1

4/4

4

3/4

3

Remote ONLY

When playing back a track, you

2/4

2

1/3

ENGLISH

FRENCH

2/3

3/3

JAPANESE

While playing a DVD Audio...

Ex.:

1/3

1

2/3

3/3

2

3

While playing a Karaoke SVCD or VCD...

AUDIO

1

(at the same time)

SVCD

ST1 ST2 L1

R2 L2 R1

VCD

ST L R

ST1/ST2STTo listen to normal stereo (2 channel)

playback.

L1/L2/L

R1/R2/R

To listen to the left audio channel.

To listen to the right audio channel.

• SVCD can have 4 audio channels. Karaoke SVCD usually uses these 4 channels to record two 2-channel recordings (ST1/ST2).

Remote

Playing Back a Bonus Group

ONLY

Some DVD Audios have a special group called “bonus group” whose contents are not open to the public.

• To play back a bonus group, you have to enter the specific “key number” (a kind of password) for the bonus group. The way of getting the key number depends on the disc.

AUDIO

1

(at the same time)

1

Select the bonus group.

• The bonus group is usually recorded as the last group (for example, if a disc contains 4 groups including a bonus group, “group 4” is the bonus group).

• For how to select the group, see “To select a title/group” on page 13.

19

English

Enter the key number.

2

AUDIO ANGLE

SUB TITLE

1

2

ZOOM VFP

DVD LEVEL

4

5

8

7

PROGRESSIVE

0

Follow the interactive instructions shown on the

3

screen.

To cancel the key number entry,

Select slow motion speed.

2

SLOW

3

6

FM MODEREV. MODE

9

ENTER

press 7

.

–

SLOW

+

SLOW

Forward slow motion starts.

Reverse slow motion* starts.

+

1/32 1/16 1/8 1/4 1/2

–

1/32 1/16 1/8 1/4 1/2

*Not available for SVCD/VCD.

Remote

Special Effect Playback

ONLY

Still picture playback

To start still picture playback:

While playing...

To resume normal playback:

Frame-by-frame playback

1

While playing...

Still picture playback starts.

Advance the still picture frame by frame.

2

To resume normal playback,

press DVD/CD 3

Slow-motion playback

DVD/CD

To resume normal playback,

press DVD/CD 3

.

To replay the previous scenes (One-Touch Replay)

• This function is only used while playing DVD Video.

While playing back...

The playback position moves back about 10 seconds before the current position (only within the same title).

Remote

ZOOM

4

ONLY

(at the same time)

ZOOM 1 ZOOM 2

ZOOM OFF

ZOOM

4

ZOOM 3 ZOOM 4

ZOOM 5ZOOM 6

Zoom

While playing back...

1

.

While playing...

1

20

Still picture playback starts.

2

Move the zoomed-in position.

To cancel Zoom,

press ZOOM repeatedly (while holding

SHIFT) until “ZOOM OFF” appears on the TV.

Advanced Disc Operations

Remote control

10 keys

,

DVD/CD 3

8

4/¢

SHIFT

ENTER

CANCEL

7

PLAY MODE

REPEAT REPEAT A-B

Programming the Playing Order—

Remote

Program Play

You can arrange the playing order of the chapters or tracks (up to 99) before you start playback.

Before starting playback, activate Program Play.

1

PLAY

MODE

PRGM

ONLY

PROGRAM RANDOM

Canceled

On the display

PROGRAM

No Group/Title Track/Chapter

1

2 3 4 5 6 7 8 9

10

USE NUMERIC KEYS TO PROGRAM TRACKS. USE CANCEL TO DELETE THE PROGRAM.

English

Main unit

DVD/CD 3

4

, 7,

¢

On the TV

2

Select chapters or tracks you want for Program Play.

• For DVD/MP3/WMA:

1

Select a title or group number.

2

Select a chapter or track number.

3

Repeat the above steps 1

and 2

.

• For SVCD/VCD/CD:

1

Select tracks.

To enter the numbers directly:

AUDIO ANGLE

SUB TITLE

1

2

ZOOM VFP

DVD LEVEL

4

5

FM MODEREV. MODE

8

7

10

Examples:

To enter number 5, press 5.

3

To enter number 15, press +10, then 5.

6

To enter number 30, press +10,

9

+10, then 10.

10

0

21

English

GROUP/TITLE

Start playback.

3

DVD/CD

To skip a step:

Playback starts in the order you have programmed.

To pause: To stop:

To release, press DVD/CD 3

To check the programmed contents

Before or after playback...

In the reverse order.

In the programmed order.

Remote

Playing at Random—Random Play

You can play all chapters or tracks at random.

• Random Play cannot be used for some DVDs.

1

Before starting playback, activate Random Play.

PLAY

MODE

PROGRAM RANDOM

ONLY

Canceled

.

Start playback.

2

RANDOM

DVD/CD

Playback starts in random order. Random Play ends when the entire disc has been played.

• You can also use 4

contents.

or ¢

To modify the program

Before or after playback...

To erase the last step:

CANCEL

RETURN

To add steps in the program:

Repeat step 2.

To exit from Program Play

Before or after playback...

PLAY

MODE

PROGRAM RANDOM

to check the programmed

To erase the entire program:

Canceled

To skip a chapter/ track:

To pause: To stop:

To release, press DVD/CD 3

To exit from Random Play

Before or after playback...

PLAY

MODE

PROGRAM RANDOM

.

Canceled

22

Remote

A-

A-B

Playing Repeatedly

ONLY

• You can also select the repeat mode using the on-screen bar (see page 25).

Repeat Play

You can repeat playback.

• For DVD Video:

While playing...

REPEAT A-B

REPEAT

REP CHAP REP TTL

• For DVD Audio:

While playing or before playback...

REPEAT A-B

REPEAT

REP TRK REP GRP

• For MP3/WMA:

While playing or before playback...

REPEAT A-B

REPEAT

REP TRK REP GRP

REP OFF

(Canceled)

• For CD/SVCD/VCD:

While playing (without PBC for SVCD/VCD) or before playback...

REPEAT A-B

REPEAT

REP CHAP

REP TTL

REP TRK

REP GRP

REP ALL

* Repeats the current chapter.

* Repeats the current track.

REP TRK

Repeats the current title.

Repeats the current group.

Repeats the disc or program.

*During Program Play and Random Play, “REP STEP”

appears instead of these indications, and repeat modes change as follows for all the discs.

REP STEP REP ALL

REP OFF

(Canceled)

*

REP OFF

(Canceled)

*

REP OFF

(Canceled)

*

REP OFF

(Canceled)

REP ALL

A-B Repeat

You can repeat playback of a desired portion by specifying the beginning (point A) and the ending (point B).

• A-B Repeat cannot be used for MP3/WMA and for some DVDs.

• A-B Repeat can be used within the same title while playing a DVD Video, and within the same track for the other discs.

While playing (without PBC for SVCD/VCD), select

1

the start point (A).

REPEAT A-B

REPEAT

(at the same time)

2

Select the end point (B).

REPEAT A-B

REPEAT

(at the same time)

To cancel A-B Repeat,

press REPEAT A-B again while

holding SHIFT.

• A-B Repeat will also be canceled when you stop play or skip the chapter or track.

Prohibiting Disc Ejection—Child Lock

You can lock the disc tray so that no one can eject the loaded disc.

• This is possible while the System is on standby.

While the disc tray is closed...

(at the same time)

To cancel the prohibition,

“UNLOCKED” appears on the display.

starts flashing on the

display.

• appears on the TV if the TV is turned on.

stops flashing.

• appears on the TV.

• You can search for the end point using the ¡

button.

repeat the same procedure.

Main Unit

ONLY

English

23

On-Screen Disc Operations

TITLE

2

CHAP

3

GROUP 1

TOTAL

1:25:58

TIME

OFF

CHAP.

TRACK

1/3

PAGE 1 / 5

English

Remote control

ZOOM

,, ,

ON SCREEN

DVD/CD 3

8

4/¢

SHIFT

On-screen bars

DVD Video

1

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

DVD Audio

8.5Mbps

OFF

1

DVD-AUDIO

TIME

OFF

SVCD

TRACK

4

1

SVCD

TIME

OFF

TIME OFF ST1

VCD

4

1

VCD

TIME

OFF

TIME OFF ST

TITLE 2

TITLE

4

GROUP 14

TITLE

1/3

TITLE

1/3

14

2

14

-/ 4

1/3

1/ 3

1/3

CHAP 3

CHAP

23

2

TRACK 23

PAGE

TRACK 3

CHAP

23

TRACK 3

CHAP

23

TIME 0:00:58

TOTAL

1/3 1/3

TIME 0:00:58

1/ 3

2

TIME 00:58

TOTAL

1/3 1/3

2

TIME 00:58

TOTAL

1/3 1/3

10 keys

ENTER

CANCEL

7

REPEAT

¡

3

1:25:58

3

1:25:58

3

1:25:58

On-screen Bar Information

You can check the disc information (except for MP3/WMA/ JPEG disc) and use some functions through the on-screen bar.

1

Disc type

2

Playback information

Indication Meanings

Mbps Current transfer rate

(Megabits per second)

Current title

Current chapter

Current group

TRACK

14

3

Operation modes

Indication Meanings

/ Forward/Reverse search

/ Forward/Reverse slow-motion

4

Function icons (on the pull-down menu)

Indication Meanings

Current track

Time indications

Playback

Pause

Stop

Select to change the time indication.

Select to repeat playback.

Select for time search.

Select for chapter search.

Select for track search.

Select to change the audio language or channel (see also page 19).

Select to change subtitle language (see also page 18).

Select to change the view angle (see also page 18).

Select to change the page.

CD

TIME OFF

24

TIME

1

CD

OFF

4

TITLE

2

TIME 00:58

TRACK 3

TOTAL

CHAP

23

14

1/3 1/3

1/3

1:25:58

3

Remote

TIME

Operations Using the On-screen Bar

ONLY

Ex.: Selecting a subtitle (French) for DVD Video

While a disc is selected as the source...

1

Display the on-screen bar with the pull-down menu.

ON SCREEN

8.5Mbps

DVD-VIDEO

8.5Mbps

DVD-VIDEO

TIME

OFF

TIME OFF CHAP. 1/31/ 3 1/1

TITLE

TITLE 2

14

1/3

CHAP 3

CHAP

TIME 0:00:58

TOTAL

23

1/3 1/3

1:25:58

For detailed operations of the following functions, see also “Operations Using the On-screen Bar” on the left.

To change the time information

You can change the time information in the on-screen bar and the display window on the main unit.

1 While playing, display the on-screen bar with the pull-

down menu.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

8.5Mbps

OFF

TITLE 2

TITLE

CHAP

14

1/3

CHAP 3

23

1/3 1/3

TIME 0:00:58

TOTAL

1:25:58

English

Goes off

2

Select (highlight) the item you want.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

Display the pop-up window.

3

ENTER

4

Select the desired option in the pop-up window.

5

Finish the setting.

8.5Mbps

OFF

ENTER

TITLE 2

CHAP

TITLE

14

1/3

CHAP 3

TITLE 2

CHAP

ITLE

14

1/3

1/31/ 3 1/1

CHAP 3

TITLE 2

CHAP

ITLE

14

1/3

1/32/ 3 1/1

Pop-up window goes off.

To erase the on-screen bar

ON SCREEN

CHAP 3

TOTAL

23

1/3 1/3

TIME 0:00:58

TOTAL

23

1/3 1/3

ENGLISH

TIME 0:00:58

TOTAL

23

1/3 1/3

FRENCH

TIME 0:00:58

1:25:58

2 Make sure is selected (highlighted). 3 Change the time indication.

ENTER

TIME 0:00:58

REM 0:11:23

TOTAL 1:01:58T.REM 0:35:24

TIME

Elapsed playing time of the current chapter/track.

REM

Remaining time of the current chapter/ track.

TOTAL

T.REM

Elapsed disc time.

Remaining disc time.

To erase the on-screen bar

ON SCREEN

Repeat Play

• See also page 23.

1 While playing a disc (without PBC for SVCD/VCD),

display the on-screen bar with the pull-down menu.

• Except for DVD Video: Repeat Play can be selected before starting playback.

2 Select . 3 Display the pop-up window.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

OFF

8.5Mbps

OFF

TITLE 2

TITLE

TIME 0:00:58

CHAP 3

TOTAL

23

1/3 1/3

1:25:58

CHAP

14

1/3

25

English

H

C

ENTER

4 Select the repeat mode you want.

A-B

TITLE

GROUP

ALL

Repeats a desired portion (see below).

Repeats the current title.

Repeats the current group.

Repeats the disc (except for DVD) or program.

CHAPTER

TRACK

OFF

* Repeats the current chapter.

* Repeats the current track.

Cancels Repeat Play.

* During Program Play and Random Play, “STEP”

appears.

5 Finish the setting.

ENTER

A-B Repeat

• See also page 23.

1 While playing, display the on-screen bar with the pull-

down menu. 2 Select . 3 Display the pop-up window.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

4 Select “A-B.”

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

OFF

8.5Mbps

OFF

8.5Mbps

OFF

A–B

TITLE 2

TITLE

14

1/3

TITLE 2

14

1/3

CHAP 3

CHAP

CHAP 3

CHAP

TIME 0:00:58

TOTAL

23

1/3 1/3

TIME 0:00:58

TOTAL

23

1/3 1/3

1:25:58

Time Search

You can move to a particular point by specifying the elapsed playing time from the beginning.

1 While playing (without PBC for SVCD/VCD), display

the on-screen bar with the pull-down menu.

• Except for DVD: Time Search can be used before starting playback.

2 Select . 3 Display the pop-up window.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

8.5Mbps

OFF

TIME _ : _ _ : _ _

TITLE 2

TITLE

CHAP

14

1/3

4 Enter the time.

You can specify the time in hours/minutes/seconds.

AUDIO ANGLE

SUB TITLE

1

2

ZOOM VFP

DVD LEVEL

4

5

FM MODEREV. MODE

8

7

PROGRESSIVE

0

Examples:

3

To move to a point of 1 (hours): 02 (minutes): 00

6

(seconds), press 1, 0, 2, 0, then

0.

9

To move to a point of 54 (minutes): 00 (seconds), press 0, 5, 4, 0, then 0.

• It is always required to enter the hour digit (even “0” hour), but it is not required to enter trailing zeros (the last two digits in the examples above).

•

To correct a misentry,

press Cursor < to erase the last

entry.

5 Finish the setting.

The System starts playing the disc from the selected playing time.

CHAP 3

23

1/3 1/3

TIME 0:00:58

TOTAL

1:25:58

5 Select the start point (A).

ENTER

DVD-VIDEO

TIME

TIME A- CHAP. 1/3

6 Select the end point (B).

ENTER

A-B Repeat starts. The selected portion plays repeatedly.

• Before pressing ENTER, you can search for the end point using the

¡

button.

To cancel A-B Repeat,

repeat steps 1 to 3, and select “OFF”

in step 4.

26

8.5Mbps

TITLE 2

TITLE

Chapter/Track Search

C

14

1/3

You can search for the chapter (DVD Video) or track (DVD Audio) number to play.

1 While playing, display the on-screen bar with the pull-

down menu.

2 Select

CHAP.

or

TRACK

.

3 Display the pop-up window.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

8.5Mbps

OFF

TITLE 2

TITLE

CHAPTER _

CHAP

14

1/3

CHAP 3

23

1/3 1/3

TIME 0:00:58

TOTAL

1:25:58

4 Enter the desired chapter/track number.

AUDIO ANGLE

SUB TITLE

1

2

ZOOM VFP

DVD LEVEL

4

5

FM MODEREV. MODE

8

7

PROGRESSIVE

0

•

To correct a misentry, press the 10 keys until the

Examples:

3

To select chapter/track 5, press

5.

6

To select chapter/track 15, press 1, then 5.

9

To select chapter/track 30, press 3, then 0.

desired number shown in the pop-up window.

5 Finish the setting.

ENTER

The System starts playing the searched chapter or track.

Remote

Selecting Browsable Still Pictures

ONLY

While playing back a track (of DVD Audio) linked to browsable still pictures (BSP), you can select the still picture (turn the page) to be shown on the TV.

• If a track is linked to browsable still pictures (BSP), they are usually shown in turn automatically during playback.

1 While playing a DVD Audio, display the on-screen

bar with the pull-down menu.

2 Select .

PAGE 1 / 5

3 Display the pop-up window.

TIME 0:00:58

DVD-AUDIO

TIME

OFF

GROUP 14

TRACK

TRACK 23

1/ 3

PAGE

1/ 5

1

4 Select a still picture you want.

TIME 0:00:58

DVD-AUDIO

TIME

OFF

GROUP 14

TRACK

TRACK 23

1/ 3

PAGE

3/ 5

3

Remote

Operations on the

CONTROL Screen

ONLY

The CONTROL screen automatically appears on the TV when you load an MP3, WMA, or JPEG disc. You can search for and play the desired tracks through the CONTROL screen.

• If both types of files (MP3/WMA files and JPEG files) are recorded on a disc, select the file type to play (see page 35).

CONTROL screen

Ex.: When the MP3 disc is loaded.

6 7

1

2

3

4

Group : 2 / 3

Spring

Summer

Fall Winter

Track Information

Title Rain Artist

Album

Time : 00:00:14REPEAT TRACK

Track : 5 / 14 (Total 41)

Cloudy.mp3 Fair.mp3 Fog.mp3 Hail.mp3 Indian summer.mp3

Rain.mp3

Shower.mp3 Snow.mp3 Thunder.mp3 Typhoon.mp3 Wind.mp3 Winter sky.mp3

8 9

0

-

5

1 Current group number/total group number 2 Current group (in blue) 3 Group list 4 Track information (ID3 Tag Version 1.0: only for

MP3/WMA)

5 Current track (in blue) 6 Repeat Play setting 7 Elapsed playing time of the current track

(only for MP3/WMA)

8 Operation mode icon 9 Current track number/total number of tracks in the

current group (total number of tracks on the loaded disc)

0 Highlight (green) bar

- Track list

English

5 Finish the setting.

ENTER

27

English

ENTER

To move the highlight (green) bar between group list and track list:

Moves the bar to the track list.

Moves the bar to the group list.

To select a group/track in the list:

Move the highlight bar to a desired item.

• If you move the highlight bar while playing back an MP3/ WMA disc, the selected track starts playback automatically.

To start playback

To repeat slide-show for JPEG

While playing or before starting playback...

REPEAT A-B

REPEAT

REP GRP Repeats the current group.

REP ALL Repeats the disc.

• For Repeat Play of MP3/WMA, see page 23.

To zoom in the still picture

• You cannot zoom in the still picture during slide-show.

REP GRP REP ALL

REP OFF

(Canceled)

1 While playing back a still picture...

• During slide-show, press 8 to display the still picture, then...

For MP3/WMA:

Playback starts with the selected track.

• Pressing DVD/CD 3 also starts playback.

For JPEG:

ENTER

DVD/CD

• Once you start playing back a JPEG track, the CONTROL screen goes off.

• To cancel slide-show, and display the current still picture, press 8.

To skip a track: To stop playback:

GROUP/TITLE

The selected track (still picture) is displayed until you change it.

Slide-show playback starts. Each track (still picture) is shown on the screen for about 3 seconds, then changes one after another.

ZOOM

4

(at the same time)

ZOOM

4

ZOOM 1 ZOOM 2

ZOOM OFF

2 Move the zoomed-in position.

To cancel Zoom,

SHIFT) until “ZOOM OFF” appears on the TV.

press ZOOM repeatedly (while holding

28

Advanced Tape Operations

Remote control

REV. MODE

TAPE 2 3

DVD/CD

3

7

SHIFT

FM/AM

AUX

IMPORTANT

It may be unlawful to record or play back copyrighted material without the consent of the copyright owner.

Recording on a Tape

You can use type I tapes for recording.

• To play a tape, see page 12.

1

Insert a recordable cassette.

Push Insert

With the tape side facing outside

2

Check the tape running direction and Reverse Mode settings on the display.

Reverse mode indicator

Close

English

Main unit

TAPE 2 3

DVD/CD

REC

Tape direction indicator

To change the direction

Current source

3 (forward)

PUSH OPEN 0

To change the Reverse mode if necessary

2 (reverse)

REV. MODE

7

(at the same time)

FM/AM

3

AUX

()

7

To record on both sides.

•

When using Reverse Mode, start recording in the forward (

To record on only one side.

3

) direction.

29

English

3

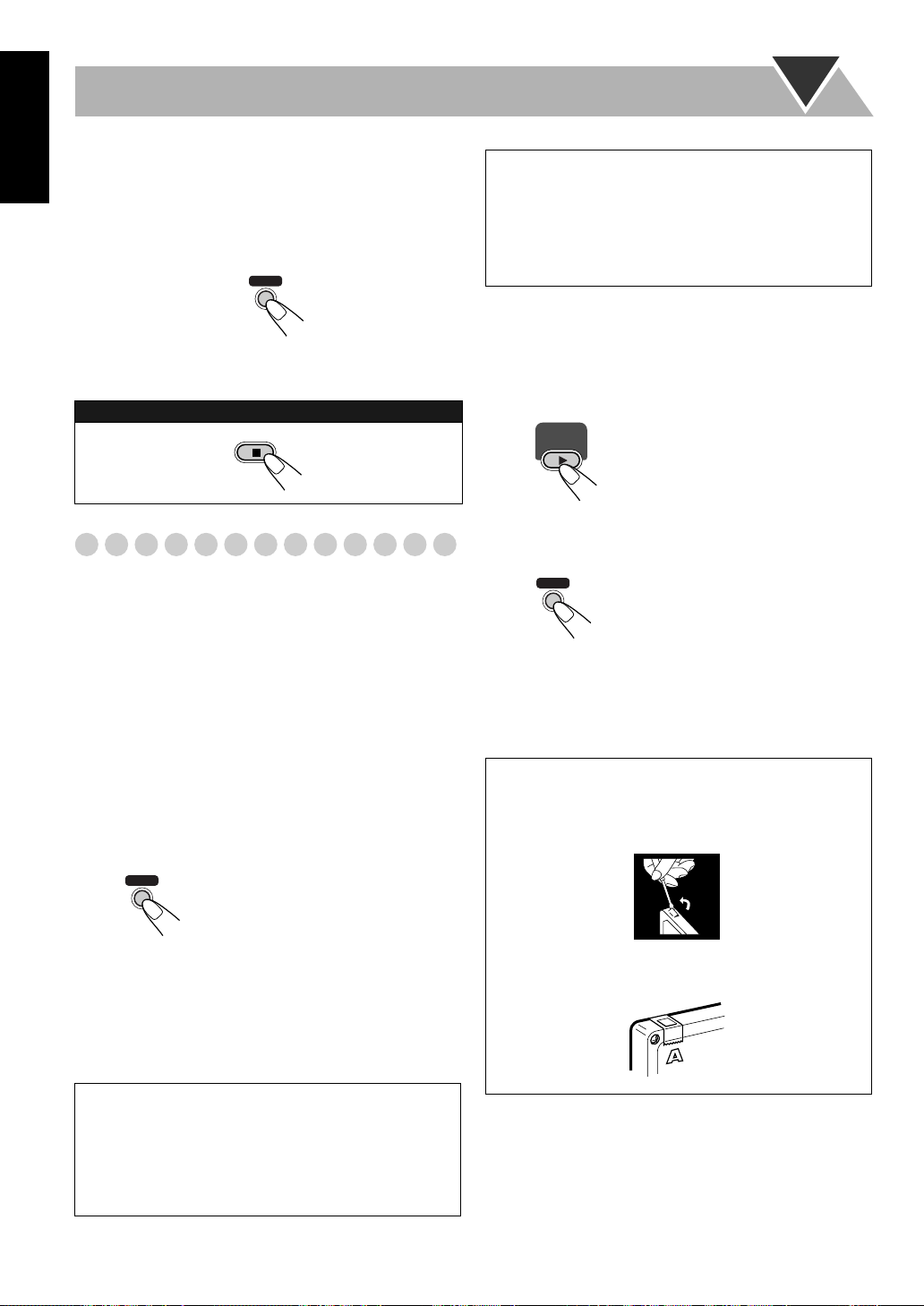

Select and start playing the source—“FM,” “AM,” “DVD/CD,” or “AUX.”

• When recording a disc, you can also use “Synchronized Disc Recording” (see below).

4

Start recording.

To stop recording:

REC

On the main unit

Synchronized Disc Recording

You can start and stop both disc play and tape recording at the same time.

To record the entire disc

Load a disc and insert a recordable cassette.

1

• If the current playing source is not the disc player, press DVD/CD 3

, then 7

.

To record Program Play or Random Play

1 Select Program Play (and make a program) or Random

Play, but do not start playback.

2 Press REC to start recording.

• When disc play stops, recording continues. It is required that recording be stopped manually.

To record only your favorite track

You can specify tracks to be recorded on the tape while listening to a disc (except for DVD Video).

1

Start playing a disc.

DVD/CD

While a track you want to record on the tape is

2

playing...

REC

On the main unit

Repeat steps 2 and 3 to record other tracks you want.

3

• You can exchange the discs if necessary.

The disc player returns to the beginning of that track and the track is recorded on the tape. After recording the track, the disc player and cassette deck automatically stop.

Check the tape running direction and Reverse Mode

2

settings on the display.

• See step 2 of “Recording on a Tape” on page 29.

Start recording.

3

REC

On the main unit

• When either disc play* or recording ends, both disc player and the cassette deck stop at the same time.

• If you press REC soon after the recording is stopped, “NO REC” may appear.

* For DVD Video: When a title is finished playing.

To record a “Live” disc

It will not be desirable to put 4-second blank portions between the tunes recorded on the tape. To record the entire disc without any interruption recorded, pause the disc play (press DVD/CD 3 before pressing REC.

The System automatically creates 4-second blanks between the tunes recorded on the tapes.

, then 8

)

30

To protect your recording

Cassettes have two small tabs on the back to protect from unexpected erasure or re-recording.

To protect your recording,

To re-record on a protected tape,

adhesive tape.

remove these tabs.

cover the holes with

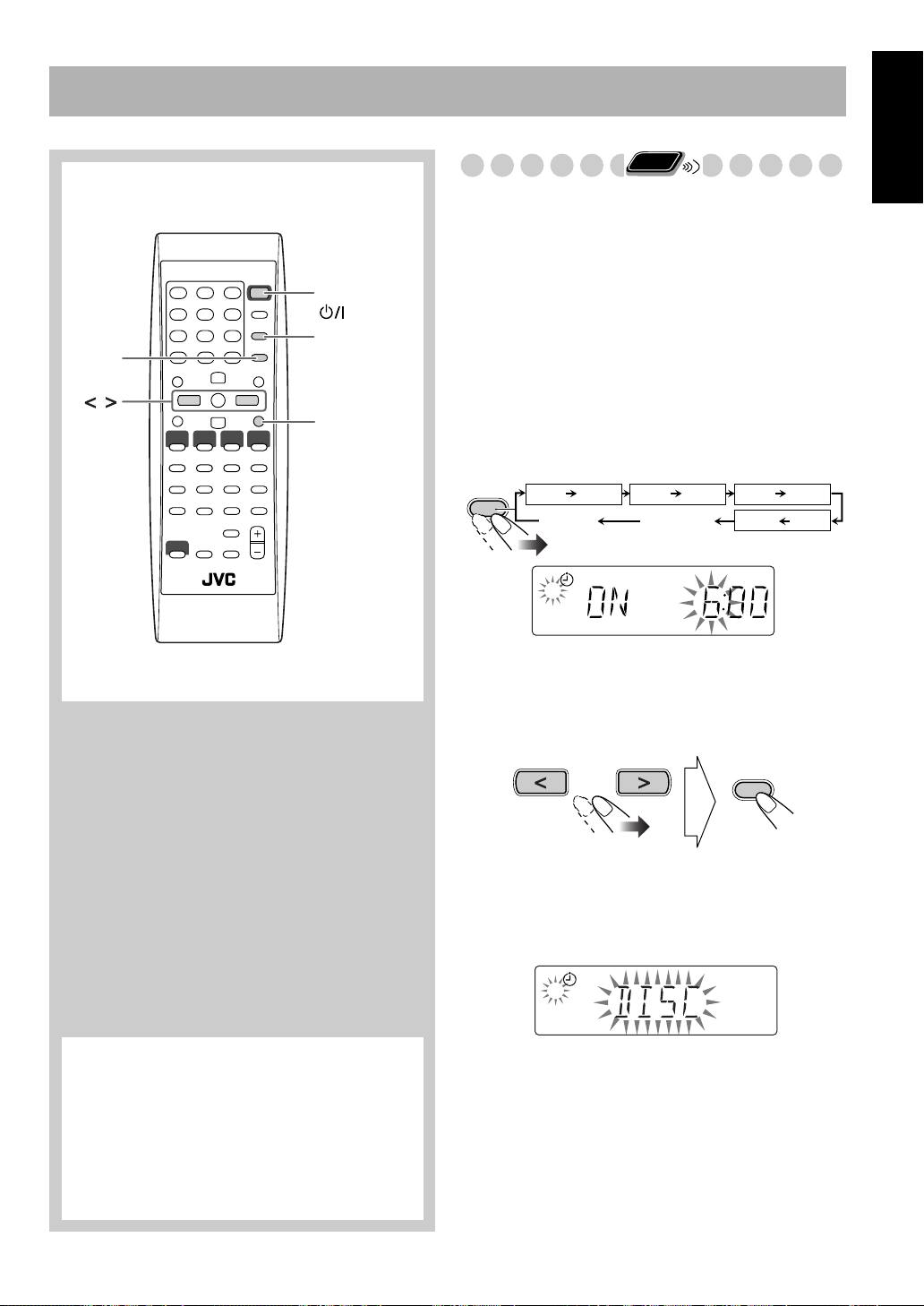

Timer Operations

Remote control

SET

,

STANDBY/ON

CLOCK/ TIMER

CANCEL

Remote

Setting the Timer

Using Daily Timer, you can wake up with your favorite song. On the other hand, with Recording Timer, you can make a tape of a radio broadcast automatically.

• You can store three Daily Timer settings and one Recording Timer setting; however, you can activate only one of Daily Timers and Recording Timer at the same time.

• To exit from the timer setting, press CLOCK/TIMER as required.

• To correct a misentry during the process, press CANCEL. You can return to the previous step.

1

Select one of the timer setting modes you want to set— Daily 1 ON time, Daily 2 ON time, Daily 3 ON time, or Recording Timer ON time.

CLOCK/

TIMER

Ex. When Daily Timer 1 setting mode is selected

Daily 1 Timer Daily 2 Timer Daily 3 Timer

DAILY 1*

ON (Time) ON (Time) ON (Time)

Canceled

1

ONLY

DAILY 2

*

Clock setting

(see page 17)

DAILY 3

*

ON (Time)

REC TMR

Recording Timer

English

* Daily Timer initial settings when shipped from the

factory

• DAILY 1:ON Time (6:00)/OFF Time (8:00)/ Source (TUNER FM 1)/Volume level (– –)

• DAILY 2:ON Time (12:00)/OFF Time (14:00)/ Source (TUNER FM 1)/Volume level (– –)

• DAILY 3:ON Time (18:00)/OFF Time (20:00)/ Source (TUNER FM 1)/Volume level (– –)

2

Make the timer setting as you want.

Repeat the following operations until you finish setting in the following order—

SET

For Daily Timers:

1

Set the hour then the minute for on-time.

2

Set the hour then the minute for off-time.

3

Select the playback source—“TUNER FM,” “TUNER AM,” “TAPE,” “DISC,” or “AUX.”

1

4

For “TUNER FM” and “TUNER AM”: Select a preset channel. For “DISC”: Select the title/group number, then the chapter/track number.

31

English

SET

3

5

Select the volume level.

• You can select the volume level (“VOL 0” to “VOL 50” and “VOL – –”).

If you select “VOL – –,” the volume is set to the last level when the unit has been turned off.

Once settings are complete, the Timer setting information appears in sequence.

For Recording Timer:

1

Set the hour then the minute for on-time.

2

Set the hour then the minute for off-time.

3

Select the playback source—“TUNER FM,” “TUNER AM,” or “AUX.”

4

For “TUNER FM” and “TUNER AM”: Select a preset channel.

Once settings are complete, the Timer setting information appears in sequence.

Turn off the unit (on standby) if you have set the timer with the System turned on.

STANDBY/ON

How Recording Timer actually works

When Recording Timer has been set, Timer ( ) indicator and the REC indicator are lit on the display. Recording Timer works only once.

When the on-time comes

The System turns on, tunes in to the specified station or changes the source to “AUX”, sets the volume level to the preset level, and starts recording.

When the off-time comes

The System stops recording, and turns off (stands by).

• The timer setting remains in memory until you change it.

To turn off the Timer after its setting is done

Since Daily Timer is activated at the same time everyday, you may need to cancel it on some particular days.

• Recording Timer can also be canceled temporarily.

1 Select the Timer you want to cancel.

CLOCK/

TIMER

Daily 1 Timer Daily 2 Timer Daily 3 Timer

DAILY 1*

ON (Time) ON (Time) ON (Time)

Canceled

DAILY 2

*

Clock setting

(see page 17)

DAILY 3

*

ON (Time)

Recording Timer

REC TMR

How Daily Timer actually works

Once the Daily Timer has been set, the timer ( ) indicator and timer number indicator (1/2/3) are lit on the display. Daily Timer is activated at the same time everyday until the timer is turned off manually (see the next column) or another timer is activated.

When the on-time comes

The System turns on, starts playing the specified source (except “AUX”), and sets the volume level to the preset level.

• While Daily Timer is working, the timer ( ) indicator and timer number indicator (1/2/3) flash on the display.

When the off-time comes

The System stops playback, and turns off (stands by) automatically.

• The timer setting remains in memory until you change it.

1

2 Turn off the selected Timer.

Ex.To cancel Daily

Timer 1

CANCEL

RETURN

To turn on the Timer 1 Select the Timer (DAILY 1/2/3, and REC TMR) you

want to activate.

CLOCK/

TIMER

Daily 1 Timer Daily 2 Timer Daily 3 Timer

DAILY 1

ON (Time) ON (Time) ON (Time)

Canceled

DAILY 2 DAILY 3

Clock setting

(see page 17)

ON (Time)

Recording Timer

REC TMR

2 Activate the selected Timer.

1

Ex. When Daily Timer 1 (DAILY 1) is

activated

3 Wait until the indication goes off.

32

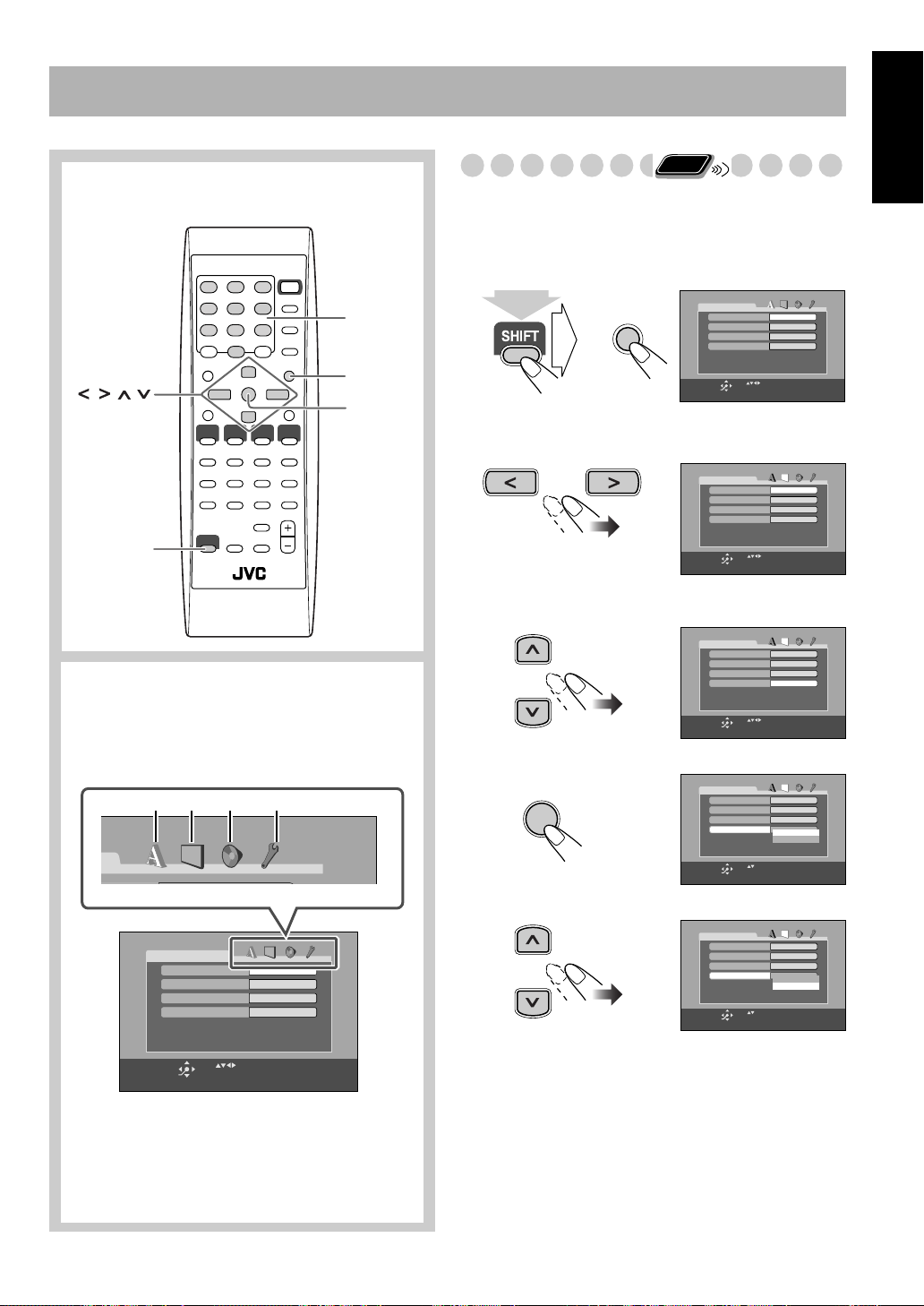

Setup Menu Operations

Remote control

,, ,

SHIFT

Setup Menu Icons

The icon for the selected Setup Menu will be highlighted.

10 keys

SET UP

ENTER

.

Operating Procedure

Remote ONLY

You can use the Setup Menus only when a disc is selected as the source and its playback is not yet started.

Ex.: Selecting “STILL PICTURE” for “FILE TYPE”:

1

Display the Setup Menu.

LANGUAGE

MENU

SET UP

(at the same time)

2

Select one of the Setup Menus.

3

Select the item you want to adjust.

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

SELECT

ENTER


MONITOR TYPE

PICTURE SOURCE

SCREEN SAVER

FILE TYPE

SELECT

ENTER


MONITOR TYPE

PICTURE SOURCE

SCREEN SAVER

FILE TYPE

SELECT

ENTER

ENGLISH

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

4:3 LB

AUTO

ON

AUDIO

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

4:3 LB

AUTO

ON

AUDIO

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

English

Ex.: LANGUAGE Setup Menu is selected.

12 3 4

LANGUAGE

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

SELECT

ENTER

ENGLISH

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

1 LANGUAGE Setup Menu 2 PICTURE Setup Menu 3 AUDIO Setup Menu 4 OTHERS Setup Menu

4

Display the pop-up window.

ENTER

Select the desired option in the pop-up window.

5


MONITOR TYPE

PICTURE SOURCE

SCREEN SAVER

FILE TYPE

SELECT

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

ENTER


MONITOR TYPE

PICTURE SOURCE

SCREEN SAVER

FILE TYPE

SELECT

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

ENTER

4:3 LB

AUTO

ON

AUDIO

AUDIO STILL PICTURE

4:3 LB

AUTO

ON

AUDIO

AUDIO STILL PICTURE

33

English

6

7

Finish the setting.

ENTER

Repeat steps 3

to 4 Setup Menu. Repeat steps 2

to 4

Menu.

to set other items on the same

to set other items on another Setup

SUBTITLE

Some discs have multiple subtitle languages. Select from—ENGLISH, SPANISH, FRENCH, CHINESE, GERMAN, ITALIAN, JAPANESE, AA – ZU (see “Language Code List” on page 43) or “OFF (no subtitle).”

ON SCREEN LANGUAGE

Select one of the languages shown on the TV from— ENGLISH, SPANISH and CHINESE.

To exit from the Setup Menu

MENU

SET UP

(at the same time)

LANGUAGE Setup Menu

You can select the initial languages for disc playback. You can also select the language shown on the TV screen while operating this System.

LANGUAGE

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

SELECT

ENTER

MENU LANGUAGE

Some discs have multiple menu languages. Select from—ENGLISH, SPANISH, FRENCH, CHINESE, GERMAN, ITALIAN, JAPANESE, AA – ZU (see “Language Code List” on page 43).

AUDIO LANGUAGE

Some discs have multiple audio languages. Select from—ENGLISH, SPANISH, FRENCH, CHINESE, GERMAN, ITALIAN, JAPANESE, AA – ZU (see “Language Code List” on page 43).

ENGLISH

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

PICTURE Setup Menu

You can select the desired options concerning a picture or monitor screen.


MONITOR TYPE

PICTURE SOURCE

SCREEN SAVER

FILE TYPE

SELECT

ENTER

MONITOR TYPE

Select the monitor type of your TV to play DVD Video recorded with aspect ratio of 16:9.

For the multi-color system TV

When you use a multi-color system TV, you can change the color system of the System automatically by selecting “MULTI” options for the monitor type. In this case, the color system of the System is changed to match to that of the loaded disc regardless of the VIDEO OUT SELECT setting (see page 6).

Select one of the following:

16:9 / 16:9 MULTI

Select when the aspect ratio of your TV is 16:9 (wide TV).

4:3 LB (Letter Box) / 4:3 MULTI LB:

Select when the aspect ratio of your TV is 4:3 (conventional TV). While viewing a wide screen picture, the black bars appear on the top and the bottom of the screen.

4:3 PS (Pan Scan) / 4:3 MULTI PS:

Select when the aspect ratio of your TV is 4:3. While viewing a wide screen picture, the black bars do not appear; however, the left and right edges of the pictures will not be shown on the screen.

:

4:3 LB

AUTO

ON

AUDIO

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

34

Ex.: 16:9 Ex.: 4:3

LB

Ex: 4:3

PS

AUDIO Setup Menu

You can adjust the sound settings of the System.

AUDIO

DIGITAL AUDIO OUTPUT

DOWN MIX

D. RANGE COMPRESSION

STREAM/PCM

DOLBY SURROUND

AUTO

English

PICTURE SOURCE

You can obtain optimal picture quality by selecting an appropriate option—picture source type (either video source or film source).

Select one of the following:

AUTO:

Normally select this. When playing back a disc containing both video and film sources, the System automatically changes the processing to match it to the picture type (film or video source) of the current chapter.

FILM:

VIDEO:

To play a film source disc.

To play a video source disc.

SCREEN SAVER

You can activate or deactivate screen saver while operating the built-in disc player.

Select one of the following:

ON:

The pictures on the TV becomes dark when no operation is done for about 5 minutes.

OFF:

To cancel the screen saver.

FILE TYPE

If both audio tracks (MP3 or WMA files) and still picture (JPEG files) are recorded on a disc, you can select which to play.

Select one of the following:

AUDIO:

STILL PICTURE:

To play MP3/WMA files.

To play JPEG files.

SELECT

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

ENTER

DIGITAL AUDIO OUTPUT

When using the digital output terminal on the rear, set this correctly according to the connected component.

Select one of the following:

PCM ONLY:

To connect to a linear PCM digital equipment such as an MD recorder.

DOLBY DIGITAL /PCM:

To connect to a Dolby Digital decoder or an amplifier with a built-in Dolby Digital decoder.

STREAM/PCM:

To connect to a DTS decoder or an amplifier with a built-in DTS decoder.

• See also “DVD OPTICAL DIGITAL OUT Signals” on page 45.

DOWN MIX

When playing a multi-channel DVD, the System converts the signals into 2 channels. Downmix setting is effective for the speaker output (and digital audio output if “DIGITAL AUDIO OUTPUT” is set to “PCM ONLY”) from this System.

Select one of the following:

DOLBY SURROUND:

STEREO:

To connect an amplifier with the Dolby Pro Logic decoder.

To connect a conventional stereo amplifier, receiver, MD player, TV, etc.

35

English

D. RANGE COMPRESSION

You can compress the dynamic range (the difference between the loudest sound and the softest sound) to enjoy a powerful sound even at a low volume level when listening to Dolby Digital software. This is useful at night.

• The effectiveness varies depends on software.

Select one of the following:

AUTO:

To enjoy powerful sounds with full dynamic range.

ON:

Best for watching a movie at a low volume level.

OTHERS Setup Menu

You can change some other convenient functions.

OTHERS

RESUME

ON SCREEN GUIDE

AV COMPULINK MODE

PARENTAL LOCK

SELECT

ENTER

RESUME

You can activate or deactivate Resume for disc playback (see page 13).

Select one of the following:

ON:

OFF:

To activate Resume.

To cancel Resume.

ON

DVD1

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

ON SCREEN GUIDE

You can activate or deactivate the on-screen guide icons (see page 13).

• When recording the picture on a VCR, select “OFF” to avoid recording the guide icons on your video tape.

Select one of the following:

ON:

OFF:

To activate the on-screen guide icons.

To cancel the on-screen guide icons.

AV COMPULINK MODE

When connecting the System to a JVC’s TV with the AV COMPU LINK remote control system, select the proper setting.

Select one of the following:

DVD1:

To connect to the VIDEO-3 Input jacks on the TV.

DVD2:

To connect to the VIDEO-1 Input jacks on the TV.

DVD3:

To connect to the VIDEO-2 Input jacks on the TV.

• For details, see “AV COMPU LINK remote control system” on page 6.

PARENTAL LOCK

Select this to enter the PARENTAL LOCK submenu. See the section that follows.

36

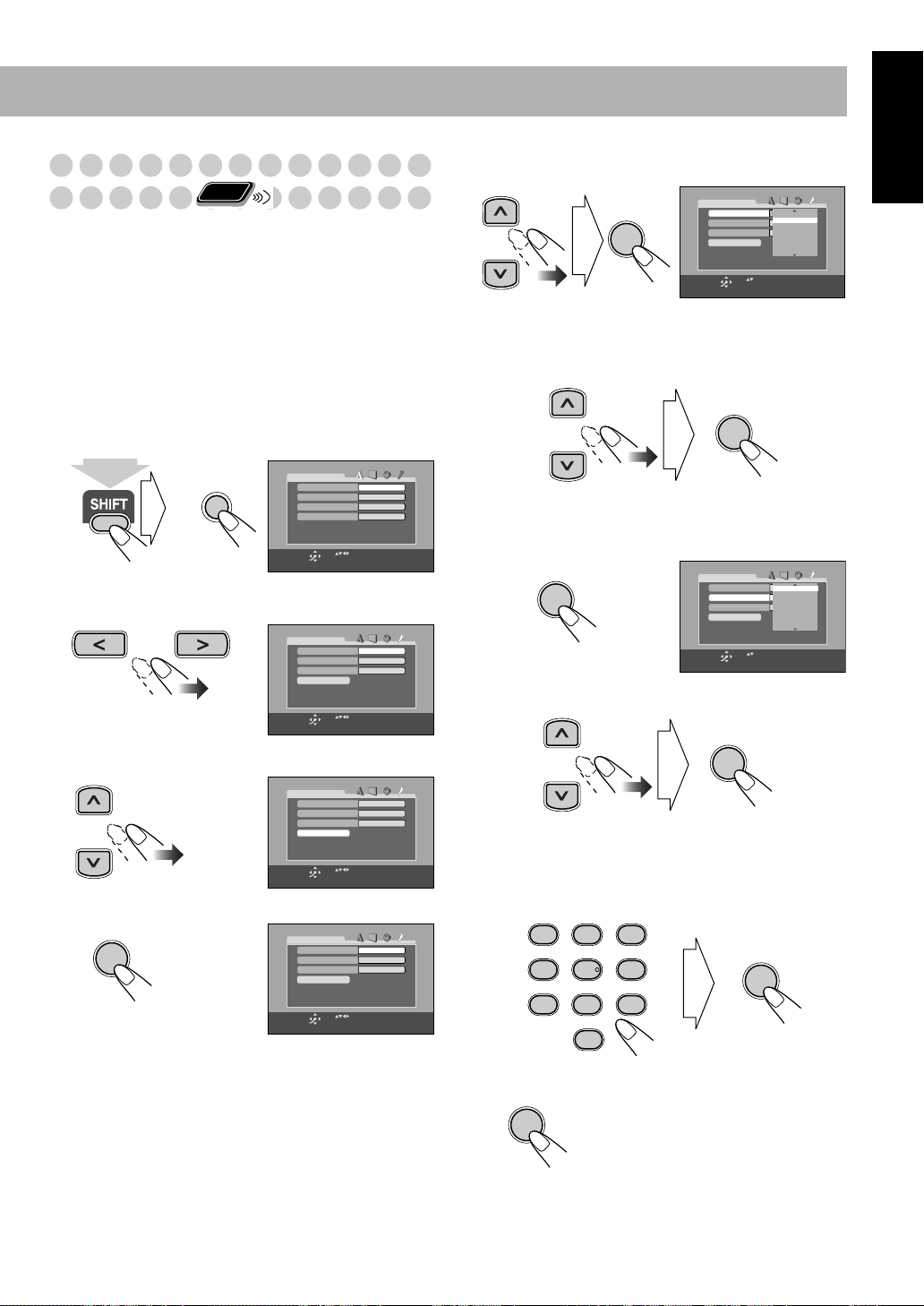

Restricting the Review

Remote

SET UP

ONLY

MENU

LANGUAGE

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

SELECT

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

ENTER

OTHERS

RESUME

ON SCREEN GUIDE

AV COMPULINK MODE

PARENTAL LOCK

SELECT

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

ENTER

OTHERS

RESUME

ON SCREEN GUIDE

AV COMPULINK MODE

PARENTAL LOCK

SELECT

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

ENTER

PARENTAL LOCK

COUNTRY CODE

SET LEVEL

PASSWORD

EXIT

SELECT

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

ENTER

ENGLISH

ON

DVD1

ON

DVD1

MY

NONE

_ _ _ _

—Parental Lock

You can restrict playback of DVD Video containing violent scenes and those unsuitable for your family members. Once you have set the rating level, such violent scenes (for which a higher level than you set is assigned) may be skipped or changed to another scene (depending on how the disc is programmed).

To set Parental Lock

Set the rating level—Level 1 (most restrictive) to Level 8 (least restrictive).

Display the Setup Menu.

1

(at the same time)

2

Select the OTHERS Setup Menus.

3

Select “PARENTAL LOCK.”

Enter the PARENTAL LOCK submenu.

4

ENTER

Select “COUNTRY CODE,” then display the pop-up

5

window.

ENTER

Select the country code of your area.

6

COUNTRY CODE

SET LEVEL

PASSWORD

EXIT

SELECT

ENTER

GB

MX MY

ONE

MZ

_ _ _ _

NA NC NE NF

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

PARENTAL LOCK

• See “Country/Area Codes List” on page 44 to find your country code.

ENTER

The System automatically enters “SET LEVEL” mode.

7

Make sure “SET LEVEL” is selected, then display the pop-up window.

ENTER

8

Set the rating level (NONE, 8 – 1).

PARENTAL LOCK

COUNTRY CODE

SET LEVEL

PASSWORD

EXIT

SELECT

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

ENTER

MYS

NONE 8

NONE

7

_ _ _ _

6 5 4 3

The System automatically enters “PASSWORD” entry mode.

9

Make sure “PASSWORD” is selected, then enter any 4-digit number for your password.

AUDIO ANGLE

SUB TITLE

1

ZOOM VFP

DVD LEVEL

4

7

PROGRESSIVE

3

2

6

5

FM MODEREV. MODE

9

8

ENTER

0

English

Finish the setting.

10

ENTER

37

English

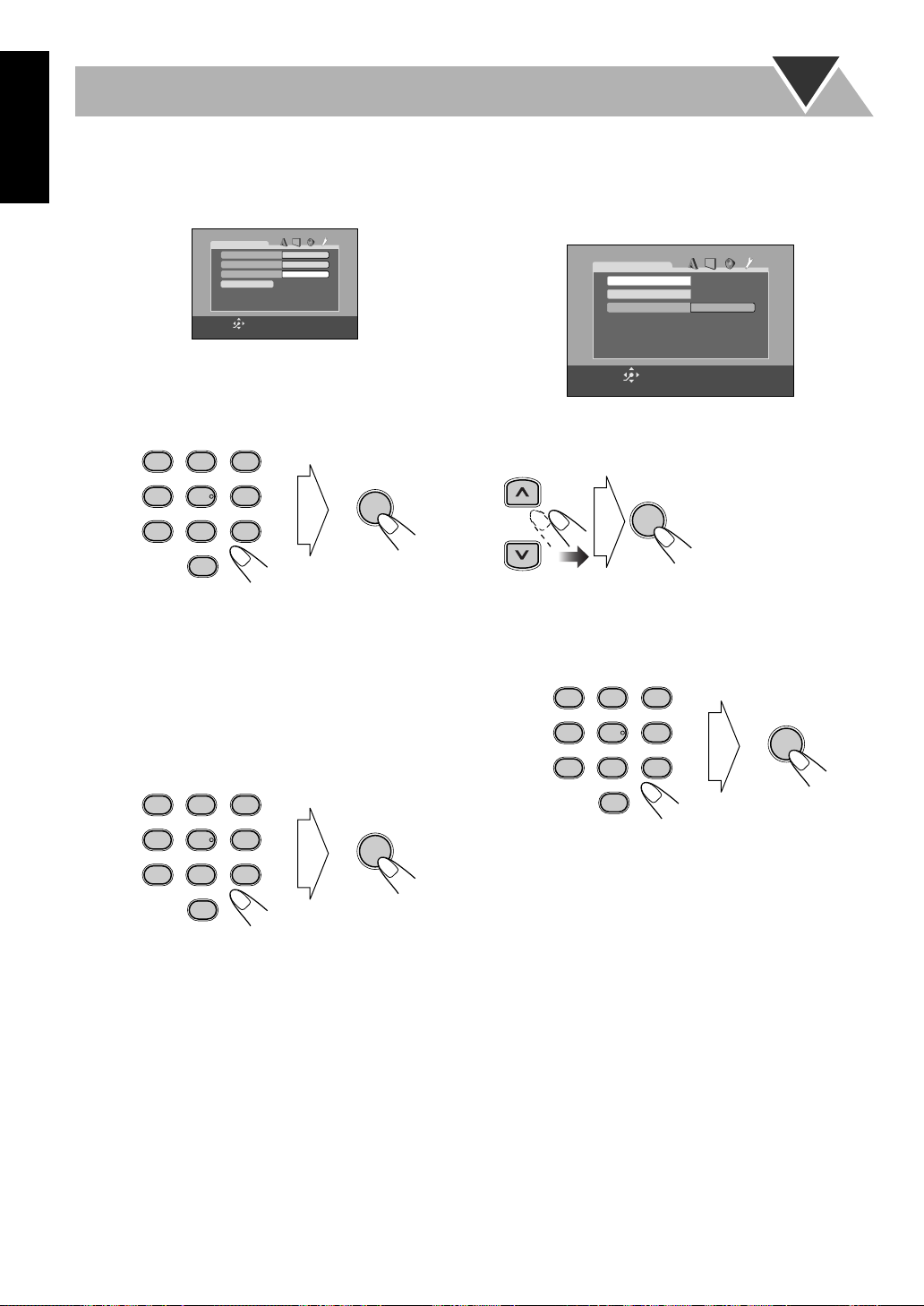

To change the setting

1 Display the PARENTAL LOCK submenu.

• Follow steps 1 to 4 of “To set Parental Lock.”

PARENTAL LOCK

COUNTRY CODE

SET LEVEL

PASSWORD

EXIT

SELECT

ENTER

MY

4

_ _ _ _

PASSWORD? ••• PRESS 0 ~ 9 KEYS

TO EXIT, PRESS [SET UP].

To release Parental Lock temporarily

When you set a strict rating level, some discs may not be played back at all. When you try to play such a disc, the following screen appears on the TV.

PARENTAL LOCK

TEMPORARY RELEASE

NOT RELEASE

PASSWORD

_ _ _ _

“PASSWORD” is automatically selected.

• You cannot select any item other than “EXIT” until you enter the correct password.

2 Enter your password.

AUDIO ANGLE

SUB TITLE

1

ZOOM VFP

DVD LEVEL

4

7

PROGRESSIVE

3

2

6

5

FM MODEREV. MODE

9

8

ENTER

0

• If you enter a wrong password, “– – – –” appears again. If you missed three times, “EXIT” is automatically selected. In this case, press ENTER to exit from the PARENTAL LOCK submenu.

• If you forget your password, enter “8888.”

3 Change the settings.

• Follow steps 5 to 8 of “To set Parental Lock.”

4 Enter your password again (after selecting

“PASSWORD” manually if necessary).

AUDIO ANGLE

SUB TITLE

1

ZOOM VFP

DVD LEVEL

4

7

PROGRESSIVE

3

2

6

5

FM MODEREV. MODE

9

8

ENTER

0

SELECT

USE 5∞TO SELECT. USE ENTER TO CONFIRM.

ENTER

1 Select “TEMPORARY RELEASE,” then ENTER.

“PASSWORD” is

ENTER

automatically selected.

• If you do not play back such a disc, select “NOT RELEASE,” then ENTER. Then eject the disc.

2 Enter your password.

AUDIO ANGLE

SUB TITLE

1

ZOOM VFP

DVD LEVEL

4

7

PROGRESSIVE

• If you enter a wrong password three times, “NOT RELEASE” is automatically selected. In this case, press ENTER. Then eject the disc.

3

2

6

5

FM MODEREV. MODE

9

8

ENTER

0

• If you want to change a password, enter a new four digit number in this step.

38

Additional Information

Learning More about This System

Getting Started

Changing the Scanning Mode

• To enjoy the progressive video picture, connect a TV with the progressive video input using component video cord.

Before Operating the System

Playable Disc Types:

• If you play back an NTSC disc with this setting set to “PAL,” you can watch the playback pictures (the disc will be reproduced using “PAL 60” format), but the TV screen may roll over upward and downward rapidly.

• If you play back a PAL disc with this setting set to “NTSC,” you can watch the playback pictures, but the following symptoms may occur: – The items on the disc menu will be blurred, and be shown

slightly shifted when highlighted.

– The aspect ratio of the picture may differ from the original

aspect ratio.

– The picture movement is not smooth.

Daily Operations—Playback

Listening to the Radio:

• If you store a new station into an occupied preset number, the previously stored station in that number will be erased.

• When you unplug the AC power cord or if a power failure occurs, the preset stations will be erased in a few days. If this happens, preset the stations again.

Playing Back a Tape:

• It is not recommended to use the C-120 or longer tapes. These tapes easily jams in the pinch rollers and the capstans, and may cause characteristic deterioration.

Playing Back a Disc:

• For MP3/WMA playback... – This System cannot play “packet write” discs. – MP3/WMA discs are required a longer readout time than

regular CDs. (It depends on the complexity of the group/file configuration.)

– Some MP3/WMA files cannot be played back and will be

skipped. This result from their recording processes and conditions.

– When making MP3/WMA discs, use ISO 9660 Level 1 or

Level 2 for the disc format.

– This System can play back MP3/WMA files with the

extension code <.mp3> or <.wma> (regardless of the letter case—upper/lower).

– It is recommended that you make each MP3 file at a

sampling rate of 44.1 kHz and at bit rate of 128 kbps. This System cannot play back files made at bit rate of less than 64 kbps.

– This System can recognize the total of 1000 tracks and of 99

groups (each group can contain up to 150 tracks). Those exceeding the maximum number cannot be recognized.

– Playback order of MP3/WMA tracks may be different from

the one you have intended while recording (see page 40). If a folder does not include MP3/WMA tracks, they are ignored.

(see pages 3 to 6)

(see pages 7 to 9)

(see pages 10 to 14)

• When using an 8 cm disc, place it on the inner circle of the disc tray.

•

On some DVD, SVCD, or VCD discs, the actual operations may be different from what is explained in this manual, due to the programming and disc structure; such differences are not a malfunction of this System.

• Some DVD Audio discs prohibit downmixed output. When you play back such a disc, “LR ONLY” appears on the display and the System plays back the left front and right front signals.

• 3D Phonic setting is also applied to the optical digital output signals through the DVD OPTICAL DIGITAL OUT terminal.

• When using Resume on SVCD or VCD with PBC, the playback might start on a position slightly different from where you have stopped.

• You can use Resume only for the DVD/SVCD/VCD except for some discs—depending how the disc is programmed.

Daily Operations—Sound & Other Adjustments

(see pages 15 to 17)

Adjusting the Volume:

• Be sure to turn down the volume before connecting or putting the headphones.

Adjusting the Sound:

• This function also affects the sound through the headphones.

Setting the Clock:

• “0:00” will flash on the display until you set the clock.

• The clock may gain or lose 1 to 2 minutes per month. If this happens, reset the clock.

Unique DVD/VCD Operations

• During slow-motion playback, no sound will be reproduced.

• While zoomed in, the picture may look coarse.

Advanced Disc Operations

Programming the Playing Order—Program Play:

• If you try to program a 100th track, “MEM FULL” appears on the display.

• While programming steps... Your entry will be ignored if you have tried to program an item number that does not exist on the disc (for example, selecting track 14 on a disc that only has 12 tracks).

Playing at Random—Random Play:

• The 4

button does not work for skipping chapters or tracks, but only work for going back to the beginning of the current chapter or track.

(see pages 18 to 20)

(see pages 21 to 23)

English

39

English

On-Screen Disc Operations

(see pages 24 to 28)

• For JPEG files playback... – It is recommended that you record a file at 640 x 480

resolution. (If a file has been recorded at a resolution of more than 640 x 480, it will take a long time to be shown.)

– This System can play only baseline JPEG files. Progressive

JPEG files or lossless JPEG files cannot be played.

Baseline JPEG format: Used for digital cameras, web,

etc. Progressive JPEG format: Used for web. Lossless JPEG format: An old type and rarely used

now.

– This System may not play back JPEG files properly which

are recorded by the devices other than digital still camera.

– If progressive or lossless JPEG files are played back, a black

screen appears. In this case, stop playback and select a baseline JPEG file. Note that it may take a long time to select another file.

Advanced Tape Operations

(see pages 29 to 30)

Recording on a Tape:

• The recording level is automatically set correctly. Thus, you can adjust the sound you are actually listening to without affecting the recording level.

• There is leader tape which cannot be recorded onto at the start and end of cassette tapes. Thus, when recording CDs or radio broadcasts, wind the leader tape first to ensure that the recording will be made without any music part lost.

• If you start recording with no cassette inserted, “NO TAPE” appears on the display. If a protected tape has been inserted, “NO REC” appears.

• When using Reverse Mode for recording, start recording in the forward (

3

) direction first; otherwise, recording will stop

when only one side (reverse) of the tape is recorded.

• You can also change Reverse Mode setting ( and ) after starting recording.

• You cannot open or close the disc tray while recording.

Synchronized Disc Recording:

• When the tape reaches its end in the forward direction (3 during recording with Reverse Mode set to , the last tune will be re-recorded at the beginning of the reverse side.

Timer Operations

(see pages 31 to 32)

• When using an external component—“AUX” for the playback source, set the timer built in the component at the same time.

• Before turning off the power, do not forget to prepare the required materials—a disc or tape for playback and a recordable tape for recording.

• When you unplug the AC power cord or if a power failure occurs, the timer will be canceled. You need to set the clock first, then the timer again.

• Without stopping the recording, you cannot change the source after Recording Timer start recording.

• If you set the Sleep Timer after Daily Timer starts playing the selected source, Daily Timer is canceled.

• If you set the Sleep Timer after Recording Timer starts recording, Recording Timer is canceled, but recording continues until Sleep Timer shuts off the power.

Setup Menu Operations

(see pages 33 to 38)

LANGUAGE:

• When the language you have selected for “MENU LANGUAGE,” “AUDIO LANGUAGE,” or “SUBTITLE” is not recorded on a disc, the original language is used as the initial language.

PICTURE—MONITOR TYPE:

• Even if “4:3 PS” is selected, the screen size may become 4:3 letter box with some DVD Video discs. This depends on how the discs are recorded.

• When you select “16:9” for a picture whose aspect ratio is 4:3, the picture slightly changes due to the process for converting the picture width.

AUDIO—DOWN MIX:

• This setting is not effective when DTS multi-channel software is played back.

OTHERS—ON SCREEN GUIDE:

• Setup Menus and on-screen bar will be displayed (and recorded) even though this function is set to “OFF.” Subtitles and the information for zooming in always appear on

)

the display regardless of this setting.

MP3/WMA/JPEG groups/tracks conﬁguration

This System plays back the tracks as follows.

40

02

01

Hierarchy

1

2

03 04

3

4

5

6

7

8

05

Level 1 Level 2 Level 3 Level 4 Level 5

ROOT

Group with its play order

01

1

Track with its play order

9

10

11

12

Maintenance

To get the best performance of the System, keep your discs, tapes, and mechanism clean.

Handling discs

• When removing the disc from its case, hold it at the edge while pressing the center hole lightly.

• Do not touch the shiny surface of the disc, or bend the disc.

• Put the disc back in its case after use to prevent warping.

• Be careful not to scratch the surface of the disc.

• Avoid exposure to direct sunlight, temperature extremes, and moisture.

To clean the disc:

Wipe the disc with a soft cloth in a straight line from center to edge.

Handling cassette tapes

• If the tape is loose in its cassette, take up the slack by inserting a pencil in one of the reels and rotate it. – If the tape is loose, it may get stretched, cut, or caught in the

cassette.

• Be careful not to touch the tape surface.

• Avoid the following places to store the tape—in dusty places, in direct sunlight or heat, in moist areas, on a TV or speaker, or near a magnet.

To keep the best recording and playback sound quality

• Use a cotton swab moistened with alcohol to clean the heads, capstans, and pinch rollers.

• Use a head demagnetizer (available at electronics and audio shops) to demagnetize the heads (when the System turned off).

Cleaning the System

• Stains should be wiped off with a soft cloth. If the System is heavily stained, wipe it with a cloth soaked in water-diluted neutral detergent and wrung well, then wipe clean with a dry cloth.

• Since the System may deteriorate in quality, become damaged or get its paint peeled off, be careful about the following: – DO NOT wipe it with a hard cloth. – DO NOT wipe it strongly. – DO NOT wipe it with thinner or benzine. – DO NOT apply any volatile substance such as insecticides

to it.

• DO NOT allow any rubber or plastic to remain in contact for a long time.

English

41

English

Troubleshooting

If you are having a problem with your System, check this list for a possible solution before calling for service.

General:

Adjustments or settings are suddenly canceled before you finish.

There is a time limit. Repeat the procedure again.

]

Operations are disabled.

]

The built-in microprocessor may malfunction due to external electrical interference. and then plug it back in.

Unplug the AC power cord

Unable to operate the System from the remote control.

The path between the remote control and the remote sensor

]

on the System is blocked.

]

The batteries are exhausted.

No sound is heard.

]

Speaker connections are incorrect or loose.

]

Headphones are connected.

No picture appears on the screen.

]

The video cord connections are incorrect or loose.

No picture is displayed on the TV, the picture is blurred, or the picture is divided into two parts.

]

The System is connected to a TV which does not support progressive scanning.

The left and right edges of the picture are missing on the screen.

]

Select “4:3 LB” for “MONITOR TYPE” (see page 34).

Radio Operations:

Hard to listen to broadcasts because of noise.

]

Antennas connections are incorrect or loose.

]

The AM loop antenna is too close to the System.

]

The FM antenna is not properly extended and positioned.

Disc Operations:

The disc does not play.

The disc is placed upside down. Place the disc with the label

]

side up.

ID3 Tag on an MP3/WMA disc cannot be shown.

]

There are two types of ID3 Tag—Version 1 and Version 2. This System can only show ID3 Tag Version 1.

MP3/WMA/JPEG groups and tracks are not played back as you expect.

]

The playing order is determined when the disc was recorded. It depends on the writing application.

MP3/WMA or JPEG tracks are not played back.

]

The inserted disc may include both type of tracks (MP3/ WMA ﬁles and JPEG ﬁles). In this case, you can only play back the ﬁles selected by the “FILE TYPE” setting (see page 35).

]

You have changed the “FILE TYPE” setting after you inserted a disc. In this case, reload the disc.

“NO AUDIO” appears.

]

This System cannot play back illegally produced DVD Audio discs.

“LR ONLY” appears.

]

Some DVD Audio discs prohibit downmixed output. When you play back such a disc, this System plays back the left front and right front signals only.

The disc sound is discontinuous.

]

The disc is scratched or dirty.

The disc tray does not open or close.

]

The AC power cord is not plugged in.

]

Child Lock is in use (see page 23).

Tape Operations:

The cassette holder cannot be opened.

]

Power supply from the AC power cord has been cut off while the tape was running. Turn on the System.

Recordings:

Impossible to record.

Small tabs on the back of the cassette are removed. Cover

]

the holes with adhesive tape.

Timer Operations:

Daily Timer and Recording Timer do not work.

]

The System has been turned on when the on-time comes. Timer starts working only when the System is turned off.

Daily Timer does not start playback.

]

The disc loaded is a DVD video. Change the disc.

]

Title/group number and chapter/track number are not entered while setting the Daily Timer. Do not skip these steps when you want to play a disc using Daily Timer.

Setup Menu Operations:

No subtitle appears on the display though you have selected the initial subtitle language.

]

Some DVDs are programmed to always display no subtitle initially. If this happens, select the subtitle after starting play (see page 18).

Audio language is different from the one you have selected as the initial audio language.

]

Some DVDs are programmed to always use the original language initially. If this happens, select the audio language after starting play (see page 19).

42

Language Code List

AA

Afar

AB

Abkhazian

AF

Afrikaans

AM

Ameharic

AR

Arabic

AS

Assamese

AY

Aymara

AZ

Azerbaijani

BA

Bashkir

BE

Byelorussian

BG

Bulgarian

BH

Bihari

BI

Bislama

BN

Bengali, Bangla

BO

Tibetan

BR

Breton

CA

Catalan

CO

Corsican

CS

Czech

CY

Welsh

DA

Danish

DZ

Bhutani

EL

Greek

EO

Esperanto

ET

Estonian

EU

Basque

FA

Persian

FI

Finnish

FJ

Fiji

FO

Faroese

FY

Frisian

GA

Irish

GD

Scots Gaelic

GL

Galician

GN

Guarani

GU

Gujarati

HA

Hausa

HI

Hindi

HR

Croatian

HU

Hungarian

HY

Armenian

IA

Interlingua

IE

Interlingue

IK

Inupiak

IN

Indonesian

IS

Icelandic

IW

Hebrew

JI

Yiddish

JW

KA

KK

KL

KM

KN

KO

KS

KU

KY

LA

LN

LO

LT

LV

MG

MI

MK

ML

MN

MO

MR

MS

MT

MY

NA

NE

NL

NO

OC

OM

OR

PA

PL

PS

PT

QU

RM

RN

RO

RU

RW

SA

SD

SG

SH

SI

SK

Javanese

Georgian

Kazakh

Greenlandic

Cambodian

Kannada

Korean (KOR)

Kashmiri

Kurdish

Kirghiz

Latin

Lingala

Laothian

Lithuanian

Latvian, Lettish

Malagasy

Maori

Macedonian

Malayalam

Mongolian

Moldavian

Marathi

Malay (MAY)

Maltese

Burmese

Nauru

Nepali

Dutch

Norwegian

Occitan

(Afan) Oromo

Oriya

Panjabi

Polish

Pashto, Pushto

Portuguese

Quechua

Rhaeto-Romance

Kirundi

Rumanian

Russian

Kinyarwanda

Sanskrit

Sindhi

Sangho

Serbo-Croatian

Singhalese

Slovak

SL

SM

SN

SO

SQ

SR

SS

ST

SU

SV

SW

TA

TE

TG

TH

TI

TK

TL

TN

TO

TR

TS

TT

TW

UK

UR

UZ

VI

VO

WO

XH

YO

ZU

English

Slovenian

Samoan

Shona

Somali

Albanian

Serbian

Siswati

Sesotho

Sundanese

Swedish

Swahili

Tamil

Telugu

Tajik

Thai

Tigrinya

Turkmen

Tagalog

Setswana

Tonga

Turkish

Tsonga

Tatar

Twi

Ukrainian

Urdu

Uzbek

Vietnamese

Volapuk

Wolof

Xhosa

Yoruba

Zulu

43

English

Country/Area Codes List

√

AD

Andorra

AE

United Arab Emirates

AF

Afghanistan

AG

Antigua and Barbuda

AI

Anguilla

AL

Albania

AM

Armenia

AN

Netherlands Antilles

AO

Angola

AQ

Antarctica

AR

Argentina

AS

American Samoa

AT

Austria

AU

Australia

AW Aruba AZ Azerbaijan BA Bosnia and Herzegovina BB Barbados BD Bangladesh BE Belgium BF Burkina Faso BG Bulgaria BH Bahrain BI Burundi BJ Benin BM Bermuda BN Brunei Darussalam BO Bolivia BR Brazil BS Bahamas BT Bhutan BV Bouvet Island BW Botswana BY Belarus BZ Belize CA Canada CC Cocos (Keeling) Islands CF Central African Republic CG Congo CH Switzerland CI Côte d’Ivoire CK Cook Islands CL Chile CM Cameroon CN China CO Colombia CR Costa Rica CU Cuba CV Cape Verde CX Christmas Island CY Cyprus CZ Czech Republic DE Germany DJ Djibouti

DK Denmark DM Dominica DO Dominican Republic DZ Algeria EC Ecuador EE Estonia EG Egypt EH Western Sahara ER Eritrea ES Spain ET Ethiopia FI Finland FJ Fiji FK Falkland Islands (Malvinas) FM Micronesia (Federated States of) FO Faroe Islands FR France FX France, Metropolitan GA Gabon GB United Kingdom GD Grenada GE Georgia GF French Guiana GH Ghana GI Gibraltar GL Greenland GM Gambia GN Guinea GP Guadeloupe GQ Equatorial Guinea GR Greece GS South Georgia and the South

Sandwich

GT Guatemala GU Guam GW Guinea-Bissau GY Guyana HK Hong Kong HM Heard Island and McDonald

Islands

HN Honduras HR Croatia HT Haiti HU Hungary ID Indonesia IE Ireland IL Israel IN India IO British Indian Ocean Territory IQ Iraq IR Iran (Islamic Republic of) IS Iceland IT Italy JM Jamaica

JO Jordan JP Japan KE Kenya KG Kyrgyzstan KH Cambodia KI Kiribati KM Comoros KN Saint Kitts and Nevis KP Korea, Democratic People’s

Republic of

KR Korea, Republic of KW Kuwait KY Cayman Islands KZ Kazakhstan LA Lao People’s Democratic

Republic

LB Lebanon LC Saint Lucia LI Liechtenstein LK Sri Lanka LR Liberia LS Lesotho LT Lithuania LU Luxembourg LV Latvia LY Libyan Arab Jamahiriya MA Morocco MC Monaco MD Moldova, Republic of MG Madagascar MH Marshall Islands ML Mali MM Myanmar MN Mongolia MO Macau MP Northern Mariana Islands MQ Martinique MR Mauritania MS Montserrat MT Malta MU Mauritius MV Maldives MW Malawi MX Mexico MY Malaysia MZ Mozambique NA Namibia NC New Caledonia NE Niger NF Norfolk Island NG Nigeria NI Nicaragua NL Netherlands NO Norway

44

NP Nepal NR Nauru NU Niue NZ New Zealand OM Oman PA Panama PE Peru PF French Polynesia PG Papua New Guinea PH Philippines PK Pakistan PL Poland PM Saint Pierre and Miquelon PN Pitcairn PR Puerto Rico PT Portugal PW Palau PY Paraguay QA Qatar RE Réunion RO Romania RU Russian Federation RW Rwanda SA Saudi Arabia SB Solomon Islands SC Seychelles SD Sudan

SE Sweden SG Singapore SH Saint Helena SI Slovenia SJ Svalbard and Jan Mayen SK Slovakia SL Sierra Leone SM San Marino SN Senegal SO Somalia SR Suriname ST Sao Tome and Principe SV El Salvador SY Syrian Arab Republic SZ Swaziland TC Turks and Caicos Islands TD Chad TF French Southern Territories TG Togo TH Thailand TJ Tajikistan TK Tokelau TM Turkmenistan TN Tunisia TO Tonga TP East Timor TR Turkey

TT Trinidad and Tobago TV Tuvalu TW Taiwan TZ Tanzania, United Republic of UA Ukraine UG Uganda UM United States Minor Outlying

Islands

US United States UY Uruguay UZ Uzbekistan VA Vatican City State (Holy See) VC Saint Vincent and the Grenadines VE Venezuela VG Virgin Islands (British) VI Virgin Islands (U.S.) VN Vietnam VU Vanuatu WF Wallis and Futuna Islands WS Samoa YE Yemen YT Mayotte YU Yugoslavia ZA South Africa ZM Zambia ZR Zaire ZW Zimbabwe

English

DVD OPTICAL DIGITAL OUT Signals

DIGITAL AUDIO

OUTPUT Playback disc STREAM/PCM DOLBY DIGITAL/PCM PCM ONLY DVD Video

with 48 kHz, 16/20/24 bit Linear PCM

with 96 kHz, Linear PCM 48 kHz, 16 bit Linear PCM

with Dolby Digital Dolby Digital bitstream 48 kHz, 16 bit Linear PCM

with DTS DTS bitstream 48 kHz, 16 bit Linear PCM

DVD Audio

with 48/96/192 kHz, 16/20/24 bit Linear PCM

with 44.1/88.2/176.4 kHz, 16/20/24 bit Linear PCM

with Dolby Digital Dolby Digital bitstream 48 kHz, 16 bit Linear PCM

with DTS DTS bitstream 48 kHz, 16 bit Linear PCM

SVCD, VCD, CD 44.1 kHz, 16 bit Linear PCM/48 kHz, 16 bit Linear PCM CD with DTS DTS bitstream 44.1 kHz, 16 bit Linear PCM MP3/WMA disc 32 kHz/44.1 kHz/48 kHz, 16 bit Linear PCM

* While playing some DVDs, digital signals may be emitted at 20 bits or 24 bits (at their original bit rate) through the DVD

OPTICAL DIGITAL OUT terminal if the discs are not copy-protected.

Output Signals

48 kHz, 16 bit Linear PCM*

48 kHz, 16 bit Linear PCM

44.1 kHz, 16 bit Linear PCM

45

English

Specifications

Parts Index

Amplifier section

Output Power:

40 W (20 W + 20 W) at 4 Ω (10% THD) Audio Input AUX: 400 mV/50 k Digital output: DVD OPTICAL DIGITAL OUT:

–21 dBm to –15 dBm (660 nm ±30 nm) Video output: Color system: NTSC/PAL selectable VIDEO (composite): 1 V(p-p)/75 S-VIDEO: Y (luminance) 1 V(p-p)/75

C (chrominance, burst) 0.286 V(p-p)/75

COMPONENT: (Y) 1 V(p-p)/75

) 0.7 V(p-p)/75

B/PR

(P

Speakers/Impedance: 4 Ω – 16

Tuner section

FM tuning range: 87.50 MHz – 108.00 MHz AM (MW) tuning range:

531 kHz – 1 710 kHz (at 9 kHz intervals)

530 kHz – 1 710 kHz (at 10 kHz intervals)

Tape section

Frequency response: 60 Hz – 14 000 Hz Wow and flutter: 0.15% (WRMS)

Disc player section

Playable disc: DVD Video/DVD Audio

CD/VCD/SVCD CD-R/CD-RW (CD/SVCD/VCD/MP3/ WMA/JPEG format)

DVD-R/DVD-RW (Video format) Dynamic range: 90 dB Horizontal resolution: 500 lines Wow and flutter: Immeasurable

Speakers

Speaker units: Full-range: 10 cm cone x 1 Impedance: 4 Dimensions (approx.): 145 mm x 230 mm x 191 mm

(W/H/D)

Mass (approx.): 2.2 kg each

Supplied Accessories

See page 3.

General

Power requirement:AC 110 V/AC 127 V/AC 220 V/

AC 230 V – AC 240 V (adjustable with the voltage selector), 50 Hz/60 Hz

Power consumption: 65 W (at operation)

4.1 W (on standby)

Dimensions (approx.): 170 mm x 230 mm x 311 mm

(W/H/D)

Mass (approx.): 4.8 kg

Refer to the pages to see how to use the buttons and controls.

Ω

Ω Ω Ω Ω Ω Ω

Remote control

11, 12, 14, 16, 18–21,

26, 37

10, 13, 22, 28

9, 17

14

11, 16–20,

23

20

Main unit

SUB TITLE

AUDIO ANGLE

1

ZOOM

4

REV. MODE

7

10 0

TOP MENU

ON SCREEN

DVD/CD

GROUP/TITLE

DISPLAY

RM-SUXP450U REMOTE CONTROL

2

DVD LEVEL

5

8

PROGRESSIVE

ENTER

TAPE

3D

PHONIC

3

VFP

6

FM MODE

9

10

REPEAT A-B

REPEAT

SLOW

BASS/

TREBLE

DIMMER

FADE

MUTING

RETURN

SET UP

–

STANDBY/ON

SLEEP

A.STANDBY

CLOCK/

TIMER

SET

MENU

CANCEL

PLAY

MODE

SLOW

RHYTHM AX

VOLUME

+

10

17

17, 31

14, 20, 25–31, 33

11, 13, 20–23, 28

15

10, 15

16

15

Ω

8

Remote

sensor

10, 11

10–13,

22, 28

30

11, 13

STANDBY/ON

DVD/CD

REC

3D

RHYTHM AX

PHONIC

FM/AM AUX

TAPE

DOWN

VOLUME

UP

PHONES

12

14

15

10, 11, 15

13, 23

10

46

Mains (AC) Line Instruction (not applicable for Europe, U.S.A., Canada, Australia, and U.K.)

主( AC) 電源線路 ( 不適用于歐洲、美國、加拿大、澳洲及英國型號 )

PUSH OPEN

E

S

R

E

V

E

R

O

T

U

A

VIDEO OUT

VIDEO

V

S-VIDEO

IDE

O

UT

SELE

CT

PAL NTSC

Y

P

B

P

R

UX-P450 MICRO COMPONENT SYSTEM

CAUTION for mains (AC) line

BEFORE PLUGGING IN, do check that your mains (AC) line voltage corresponds with the position of the voltage selector switch provided on the outside of this equipment and, if different, reset the voltage selector switch, to prevent from a damage or risk of fire/electric shock.

EN, CS

有關主 ( AC) 電源線路的重要事項

接插電源以前，務請檢查當地的主 ( AC)電源線路電壓是否和位于本机外面的電壓選擇開關設定的位置一致。如果不一致，即重新設定電壓選擇開關使符合當地電壓，以免損坏机器或引起火災 / 触電的危險。

VICTOR COMPANY OF JAPAN, LIMITED

0504AIMMDWJEM

MICRO COMPONENT SYSTEM

English

UX-P450

—Consists of CA-UXP450 and SP-UXP450

SUPER VIDEO

INSTRUCTIONS

GVT0129-009A

[UX]

Warnings, Cautions and Others

CAUTION—STANDBY/ON button!

Disconnect the mains plug to shut the power off completely (all lamps and indications go off). The STANDBY/ON button in any position does not disconnect the mains line.

• When the unit is on standby, the STANDBY/ON lamp lights in red.

• When the unit is turned on, the STANDBY/ON lamp lights in green. The power can be remote controlled.

G-1

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

CAUTION

• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

• Do not place any naked flame sources, such as lighted candles, on the apparatus.

• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

G-2

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2.

CAUTION:

personnel.

3.

CAUTION:

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE THE UNIT.

Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service

Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

Caution: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:

1. Front: No obstructions and open spacing.

2. Sides/Top/Back: No obstructions should be placed in the areas shown by the dimensions below.

3. Bottom: Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of 10 cm or more.

G-3

SP-UXP450 SP-UXP450CA-UXP450

CA-UXP450

Introduction

How to Read This Manual

Installation

• Install in a place which is level, dry and neither too hot nor too cold—between 5°C and 35°C.

• Install the System in a location with adequate ventilation to prevent internal heat buildup inside the System.

DO NOT install the System in a location near heat sources, or in a place subject to direct sunlight, excessive dust or vibration.

• Leave sufficient distance between the System and the TV.

• Keep the speakers away from the TV to avoid interference with TV.

Power sources

• When unplugging the System from the wall outlet, always pull on the plug, not the AC power cord.

DO NOT handle the AC power cord with wet hands.

Moisture condensation

Moisture may condense on the lenses inside the System in the following cases:

• After starting to heat the room

• In a damp room

• If the System is brought directly from a cold to a warm place

Should this occur, the System may malfunction. In this case, leave the System turned on for a few hours until the moisture evaporates, unplug the AC power cord, then plug it in again.

Others

• Should any metallic object or liquid fall into the System, unplug the AC power cord and consult your dealer before operating any further.

To make this manual as simple and easy-to-understand as possible, we have adapted the following methods:

• Button and control operations are explained as listed in the table below.

•

Some related tips and notes are explained later in the sections “Additional Information” and “Troubleshooting,” but not in the same section explaining the operations.

about the functions, or if you have a doubt about the functions, go to these sections and you will find the answers.

2 sec.

If you want to know more

Indicates that you press the button

.

briefly

Indicates that you press the button

briefly and repeatedly

option you want is selected.

Indicates that you press one of the buttons.

Indicates that you button for specified seconds.

• The number inside the arrow indicates the period of press (in this example, 2 seconds).

• If no number is inside the arrow, press and hold until the entire procedure is complete or until you get a result you want.

Indicates that you turn the control toward the specified direction(s).

until an

press and hold

the

DO NOT disassemble the System since there are no user serviceable parts inside.

• If you are not going to operate the System for an extended period of time, unplug the AC power cord from the wall outlet.

If anything goes wrong, unplug the AC power cord and consult your dealer.

2

Indicates that this operation is only possible using the remote control.

Indicates that this operation is only possible using the buttons and controls on the main unit.

Getting Started

Step 1:Unpack the package and

check the accessories.

Step 2: Prepare the remote control.

Step 1: Unpack

After unpacking, check to be sure that you have all the following items. The number in parentheses indicates the quantity of each piece supplied.

• FM antenna (1)

• AM loop antenna (1)

• Composite video cord (1)

• Remote control (1)

• Batteries (2)

• AC plug adaptor (1) If any item is missing, consult your dealer immediately.

Step 2: Prepare the Remote Control

Insert the batteries into the remote control by matching the polarity (+ and –) correctly.

1

English

Step 3: Hook up the components such

as AM/FM antennas, speakers, etc. (see pages 4 to 6).

Finally plug the AC power cord.

• If the wall outlet does not match the AC plug, use the supplied AC plug adaptor.

Now you can operate the System.

2

3

R6(SUM-3)/AA(15F)

• DO NOT use an old battery together with a new one.

• DO NOT use different types of batteries together.

• DO NOT expose batteries to heat or flame.

• DO NOT leave the batteries in the battery compartment when you are not going to use the remote control for an extended period of time. Otherwise, the remote control will be damaged from battery leakage.

3

English

TV

AUX

DECODER

LEFT

RIGHT

AUDIO OUT

OPTICAL

DIGITAL IN

AV

COMPU LINK

VIDEO INPUT

Y

P

B

P

R

Illustrations of the input/output terminals below are typical examples. When you connect other components, refer also to their manuals since the terminal names actually printed on the rear may vary.

Turn the power off to all components before connections.

Audio cord (not supplied)

White

Red

Optical digital cord (not supplied)

Component video cord (not supplied)

Red

Blue

Green

AV COMPU LINK cord (not supplied) (cord with monaural mini plug)

• For details, see “AV COMPU LINK remote control system” on page 6.

Before connecting optical digital cord

OR

S-video cord (not supplied)

Composite video cord (supplied)

Yellow

OR

VCR, etc.

Remove the protective cap from the DVD OPTICAL DIGITAL OUT terminal.

Vinyl-covered wire (not supplied)

Extend it horizontally.

For better FM/AM reception

AM loop antenna

Keep it connected.

Disconnect the supplied FM antenna, and connect to an outdoor FM antenna using a 75 Ω wire with coaxial type connector.

Outdoor FM antenna (not supplied)

Step 3: Hook Up

If you need more detailed information, see page 6.

4

AM loop antenna (supplied)

Turn it until the best reception is obtained.

English

Before plugging in the System

Set the correct voltage for your area with the voltage selector on the rear. Use a screwdriver to rotate the voltage selector so that the voltage marker is pointing at the same voltage as where you are plugging in the unit. (See also the back cover page.)

FM antenna (supplied)

Extend it so that you can obtain the best reception.

DO NOT plug in before setting the voltage selector and all connection procedures are complete.

Voltage marker

PUSH OPEN

AUTO REVERSE

VIDEO OUT

VIDEO

S-VIDEO

OUT

SELECT

PAL NTSC

Y

P

B

P

R

To a wall outlet Plug the AC power cord only after all connections and selector settings on the rear are complete.

5

English

To connect the AM loop antenna

1 Hold

2 Insert

• If the AM loop antenna wire or speaker cords are covered with vinyl, remove the vinyl to expose the tip of the antenna by twisting the vinyl.

• Make sure the antenna conductors do not touch any other terminals, connecting cords and power cord. Also, keep the antennas away from metallic parts of the System, connecting cords, and the AC power cord. This could cause poor reception.

To connect the speaker cords

Connect the right speaker to the RIGHT terminals, and the left speaker to the LEFT terminals.

1 Hold

2 Insert

• When connecting the speaker cords, match the polarity of the speaker terminals: Red cord to (+) and black cord to (–).

• DO NOT connect more than one speaker to each terminal.

• DO NOT allow the conductor of the speaker cords to be in touch with the metallic parts of the System.

3 Release

IMPORTANT

The speakers are magnetically shielded to avoid color distortions on TVs. However, if not installed properly, it may cause color distortions. So, pay attention to the following when installing the speakers.

• When placing the speakers near a TV set, turn off the TV’s main power switch or unplug it before installing the speakers. Then wait at least 30 minutes before turning on the TV’s main power switch again.

Some TVs may still be affected even though you have followed the above. If this happens, move the speakers away from the TV.

AV COMPU LINK remote control system

This system allows you to use JVC’s TV with simple operations; by starting playing back a disc, the TV automatically turns on and changes the input mode to the appropriate position so that you can view the playback picture.

• To use AV COMPU LINK, you need to connect the System and the TV by using a cord with monaural miniplugs (not supplied) in addition to the video input/output connection through the COMPONENT jacks, S-VIDEO jack or VIDEO (composite) jack on the rear.

Setting the Video Output Selector

You can select the video output to match it to the color system of your TV.

VIDEO

OUT

NTSC: PAL:

SELECT

PAL NTSC

• When using a multi-color system

Changing the Scanning Mode

This System supports progressive scanning. If you connect a progressive TV through the COMPONENT jacks, you can enjoy a high quality picture from the built-in DVD player by selecting “PROGRE.”

For an NTSC TV.

For a PAL TV.

TV, either position will work.

Remote ONLY

PROGRESSIVE

0

PROGRE

INTER

(at the same time)

PROGRE

INTER

Progressive scanning. For a progressive TV.

Interlaced scanning. For a conventional TV.

6

Before Operating the System

Playable Disc Types

This unit has been designed to play back the following discs:

Disc Type Mark (Logo)

DVD Video

DVD Audio

Video CD

(VCD)

Super Video

CD (SVCD)

Audio CD

CD-R

CD-RW

DVD-R

DVD-RW

In addition to the above discs, this System can play back audio data recorded on CD Text, CD-G (CD Graphics), and CD-Extra.

• The following discs cannot be played back: DVD-ROM, DVD-RAM, DVD+R, DVD+RW, CD-I (CD-I Ready), CD-ROM, Photo CD, etc. Playing back these discs will generate noise and damage the speakers.

DIGITAL VIDEO

SUPER VIDEO

COMPACT

DIGITAL AUDIO

The System can play back CD-R or CD-RW recorded in the Audio CD, Video CD, SVCD, MP3, WMA, and JPEG formats.

The System can play back DVD-R or DVDRW recorded in the video format.

Video

Format

NTSC

• In this manual, “ﬁle” and “track” are interchangeably used for MP3/WMA/JPEG operations.

*

Note on Region Code

DVD players and DVDs have their own Region Code numbers. This System can play back only DVDs recorded with the NTSC or PAL color system whose Region Code numbers including “2.” EX.:

If a DVD with the improper Region Code numbers is loaded, “RGN ERR (Region Code Error)” appears on the display and playback will not start.

Region

Code*

Number

2

or

ALL

or

PAL

DVD Video—digital audio formats

The System can play back the following digital audio formats.

•

Linear PCM:

format used for CDs and most studio masters.

•

Dolby Digital:

Dolby Laboratories, which enables multi-channel encode to create the realistic surround sound.

•

DTS (Digital Theater Systems):

audio, developed by Digital Theater Systems, Inc., which enables multi-channel like Dolby Digital. As the compression ratio is lower than for Dolby Digital, it provides wider dynamic range and better separation.

When playing a multi-channel encoded DVD, the System properly converts these multi-channel signals into 2 channels, and emits the downmixed sound from the speakers.

•

To enjoy the powerful sound of these multi-channel encoded DVDs,

with a proper built-in decoder to the digital output terminal on the rear.

• Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, “MLP Lossless”, and the double-D symbol are trademarks of Dolby Laboratories.

• “DTS” and “DTS2.0 trademarks of Digital Theater Systems, Inc.

• This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.

Uncompressed digital audio, the same

Compressed digital audio, developed by

Compressed digital

connect a proper decoder or an ampliﬁer

+DIGITAL OUT

” are registered

English

7

English

Display Indicators

The indications on the display teach you a lot of things while you are operating the System. Before operating the System, be familiar with when and how the indicator illuminates on the display.

12 4356 7

SLEEP

MONO ST MP3 WMA 3D

123 REC

PHONIC

REC

RANDOM PRGM ALL B.S.P.

BONUS A.STANDBY

pq

1

Rhythm Ax indicator

• Lights when Rhythm Ax is activated.

2

Daily Timer indicators

• : lights when Daily Timer stands by or is being preset.

• 1/2/3: lights when a Daily Timer (1, 2, or 3) stands by; ﬂashes while setting or working.

• REC: lights when the Recording Timer stands by; flashes while setting or working.

3

SLEEP

indicator

• Lights when the Sleep Timer is activated.

4

FM reception indicators

• MONO: lights while receiving an FM stereo station in monaural.

• ST (stereo): lights while an FM stereo station with sufﬁcient signal strength is tuned in.

5

MP3/WMA indicators

• MP3: lights when an MP3 track is detected.

• WMA: lights when a WMA track is detected.

6

3D PHONIC indicator

• Lights when 3D Phonic is activated.

7

REC indicator

• Lights while recording.

8

Tape operation indicators

•2 3 (tape direction): – Lights to indicate the current tape running direction. – Flashes slowly during playback and recording. – Flashes quickly while rewinding a tape.

• (reverse mode): – : tape play continues endlessly. – : tape automatically reverses once. – : tape play stops at the end of one side.

9

Disc operation indicators

• RANDOM: lights when Random Play is activated.

• PRGM (program): lights when Program Play is activated.

•

(repeat)/ – : lights when Disc Repeat is activated. – : lights when any Repeat other than the above is

activated.

ALL:

ALL

w

p

BONUS indicator

• Lights when detected

q

B.S.P. (Browsable Still Picture) indicator

• Lights when playing a DVD Audio.

w

Main display

• While listening to radio: Band (or preset number) and station frequency appear.

• While selecting “AUX”: “AUX” appears.

• While playing a tape: “TAPE” appears.

• While playing a disc: See “Indications on the main display while operating a disc” on page 9.

e

A(auto). STANDBY indicator

• Lights when Auto Standby is activated.

• Flashes when disc playback stops with Auto Standby activated.

e98

a DVD Audio with a bonus group is

.

Browsable

Still Pictures are detected while

8

Indications on the main display while operating a disc

While playing back a disc: While disc play is stopped:

English

• DVD Video:

Elapsed playing timeCurrent chapter no.

• DVD Video:

• By pressing DISPLAY, you can show the current title and chapter numbers for a few seconds.

• DVD Audio:

Current track no.

Elapsed playing time

• DVD Audio:

• By pressing DISPLAY, you can show the current group and track numbers for a few seconds.

• Audio CD: • Audio CD:

Current track no.

• SVCD/VCD:

Elapsed playing time

• SVCD/VCD:

Total title no.

Track no.

Total group no. Group no.

Total playing timeTotal track no.

Current track no.

* “PBC” appears while playing a disc with PBC.

• MP3/WMA:

Current track no.

• By pressing DISPLAY, you can show the current group

Elapsed playing time*

Elapsed playing time

* Changes to “PBC” when stopping PBC playback.

• MP3/WMA:

Current group no.

and track numbers for a few seconds.

• JPEG: • JPEG:

Current group no.

Current ﬁle no.

Current group no.

• If Resume is turned “ON” (see page 36), “RESUME” appears when you stop playback.

Total playing time*Total track no.

Current track no.

Current ﬁle no.

9

Daily Operations

STANDBY/ON

—Playback

English

10 keys

ENTER

TOP MENU

2

8 7

GROUP/TITLE

4/¢

SHIFT

1

STANDBY/ON

1

SET MENU

,, ,

RETURN

1/¡ 3D PHONIC

3

In this manual, the operation using the remote control is mainly explained; however, you can use the buttons and controls on the main unit if they have the same (or similar) name and marks.

1

Turn on the power.

The STANDBY/ON lamp on the main unit lights in green.

• Without pressing STANDBY/ON , the System turns on by pressing one of the source selecting buttons in the next step.

Select the source.

2

Playback automatically starts if the selected source is ready to start.

• If you press AUX, start playback source on the external component.

Adjust the volume.

3 4

Operate the target source as explained later.

To turn off (stand by) the unit

The STANDBY/ON lamp on the main unit lights in red.

• A small amount of power is always consumed even while on standby.

10

2

3

4

DVD/CD

VOLUME

For private listening

Connect a pair of headphones to the PHONES jack on the main unit. The sound will no longer come out of the speakers. Be sure to turn down the volume before connecting or putting the headphones.

• Disconnecting the headphones will activate the speakers again.

DO NOT turn off (stand by) the System with the volume set to an extremely high level; Otherwise, the sudden blast of sound can damage your hearing, speakers and/or headphones when you turn on the System or start playback.

Listening to the Radio

Main Unit

To set the AM tuner interval spacing

Before operating the tuner, it is required to select the appropriate AM space interval used for your area.

Select the AM band.

1

ONLY

To tune in to a station

While FM or AM is selected...

Remote control:

2 sec.

GROUP/TITLE

Main unit:

DOWN

English

2 sec.

UP

FM AM

Turn off the power.

2

STANDBY/ON

3

Select the appropriate AM space interval for your area.

• You can only use the button and the control on the front panel.

DOWN

While holding...

UP

While holding...

STANDBY/ON

AM 9KHZ

(9 kHz interval)

AM 10KHZ

(10 kHz interval)

Frequency starts changing on the display. When a station (frequency) with sufficient signal strength is tuned in, the frequency stops changing.

•

When you repeatedly press the button, the frequency changes step by step.

To stop searching manually,

If the received FM station is hard to listen

press either button.

FM MODE

Remote ONLY

9

(at the same time)

The MONO indicator lights on the display. Reception will improve though stereo effect is lost—Monaural reception mode.

To restore the stereo effect,

MONO indicator goes off).

To preset the stations

You can preset 30 FM and 15 AM stations.

1

Tune in to a station you want to preset.

• You can also store the monaural reception mode for FM preset stations if selected.

2

Activate the preset number entry mode.

SET

press the button again (the

Remote

ONLY

To select the band (FM or AM)

FM AM

• Finish the following process while the indication on the display is flashing.

11

English

AUDIO ANGLE

SUB TITLE

ZOOM VFP

FM MODEREV. MODE

DVD LEVEL

1

4

7

10

2

5

8

3

6

9

10

AUDIO ANGLE

SUB TITLE

ZOOM VFP

FM MODEREV. MODE

DVD LEVEL

1

4

7

10

2

5

8

3

6

9

10

3

Select a preset number for the station you store.

Examples:

To select preset number 5, press

5. To select preset number 15, press +10, then 5. To select preset number 30, press +10, +10, then 10.

• You can also use the ¡

or 1

buttons.

To start:

To rewind tape:

Before or after play...

GROUP/TITLE

To stop:

Rewind the tape to the right.

4

Store the station.

SET

Remote

To tune in to a preset station

1

Select the band (FM or AM).

ONLY

FM AM

Select a preset number for the station you store.

2

• You can also use the ¡ 1

buttons.

or

Rewind the tape to the left.

To change the tape running direction

3 (forward play)

2 (reverse play)

To reverse the tape automatically

REV. MODE

7

(at the same time)

Tape is played from the forward side to the reverse side. When the reverse side is played back, playback stops.

Tape is automatically reversed, and playback repeats until you stop it.

Tape will not be reversed. When the current side of the tape reaches its end, playback stops.

Playing Back a Tape

To insert a tape

You can play back tapes of types I, II, and IV.

Push Insert Close

12

With the tape side facing outside

Playing Back a Disc

IMPORTANT: Before playing a disc, make sure of the following...

• Turn on the TV and select an appropriate input mode on the TV to view the pictures or on-screen displays on the TV screen.

• For disc playback, you can change the initial setting to your preference. See “Setup Menu Operations” on page 33.

If “ ” appears on the TV screen when you press a button,

tried to do, or data required for that operation is not recorded on the disc.

the disc cannot accept the operation you have

Before operating a disc, be familiar how a disc is recorded.

DVD/CD

• DVD Video comprises of “ “

Chapters

“

Groups

comprise of only “

,” DVD Audio/MP3/WMA/JPEG comprise of

” which includes “

Tracks

Titles

” which includes

Tracks

.”

,” and CD/SVCD/VCD

• For JPEG playback, see “Operations on the CONTROL Screen” on page 27.

To insert a disc

You can insert a disc while playing another source.

To close the disc tray,

press 0

• If you press DVD/CD 3 and playback starts (depending on how the disc is programmed internally).

To start:

To pause: To stop:

To release, press DVD/CD 3

•

While playing DVD/SVCD/VCD:

the stop point, and when you start playback again by pressing DVD/CD 3

(even while on standby), it starts from the position where you have stopped—Resume Play. (“RESUME” appears on the display when you stop playback.)

To stop completely while Resume is activated,

twice. (To cancel Resume, see “RESUME” on page 36.)

• When operating the System, the on-screen guide icon (see the following table) appears on the TV. To deactivate the on-screen guide icons, see “ON SCREEN GUIDE” on page 36.

again.

, disc tray closes automatically

.

This System can store

press 7

On-screen guide icons

• During DVD Video playback, the following icons may appear on the TV:

At the beginning of a scene containing multiangle views.

At the beginning of a scene containing multiaudio sounds.

At the beginning of a scene containing multisubtitles.

• The following icons will be also shown on the TV to indicate your current operation.

, , , , ,

Remote

To select a title/group

ONLY

While playing...

GROUP/TITLE

(at the same time)

• Group name appears for MP3/WMA discs.

To select a chapter/track

While playing...

GROUP/TITLE

• First time you press 4

can go back to the beginning of the current chapter/track.

To locate a particular portion

While playing a disc except MP3/WMA...

SLOW

–

SLOW

+

x2

x10 x20 x60

x5

Remote ONLY

, you

English

x2

x10 x20 x60

x5

• No sound comes out while searching on DVD Video/ SVCD/VCD.

To return to normal playback,

press DVD/CD 3

.

13

English

AUDIO ANGLE

SUB TITLE

ZOOM VFP

FM MODEREV. MODE

DVD LEVEL

1

4

7

10

2

5

8

3

6

9

10

To locate an item directly

Remote ONLY

You can select a title/chapter/track directly and start playback.

• For DVD Video, you can select

playback playback

, while you can select .

a title before starting

a chapter after starting

Examples:

To select number 5, press 5. To select number 15, press +10, then 5. To select number 30, press +10, +10, then 10.

7

For SVCD/VCD with PBC:

While playing a disc with PBC, “PBC” appears on the display. When disc menu appears on the TV, select an item on the menu. Playback of the selected item starts.

AUDIO ANGLE

SUB TITLE

1

2

ZOOM VFP

DVD LEVEL

4

5

FM MODEREV. MODE

8

7

10

Examples:

3

To select number 5, press 5. To select number 15, press +10,

6

then 5. To select number 30, press +10,

9

+10, then 10.

10

To move to the next or previous page of the current menu:

To use 3D Phonic

While playing...

3D

PHONIC

3D PHONIC

(Canceled)

• The selected mode can only be shown on the TV.

ACTION

Suitable for action movies and sports programs.

DRAMA

Creates natural and warm sound. Enjoy movies in a relaxed mood.

THEATER Enjoy sound effects like in a major theater.

To play back using the disc menu

7

For DVD Video/DVD Audio:

Show the disc menu.

1

TOP MENU

2

Select an item on the disc menu.

SET UP

ACTION

OFF

MENU

3D PHONIC

ONLY

ENTER

DRAMA

THEATER

Remote

GROUP/TITLE

Moves to the next page.

Moves to the previous page.

To return to the previous menu:

CANCEL

RETURN

(at the same time)

To cancel PBC

Stop playback.

AUDIO ANGLE

SUB TITLE

1

ZOOM VFP

DVD LEVEL

4

7

10

3

2

6

5

FM MODEREV. MODE

9

8

10

Playback starts with the selected track.

To reactivate PBC,

“ON”), then press DVD/CD 3

press 7

(twice if Resume is turned

.

Select a track.

• With some discs, you can also select items by entering the number using the 10 keys.

14

Daily Operations—Sound & Other Adjustments

VOLUME

Remote control

DVD LEVEL

CLOCK/

TIMER

ENTER

BASS/TREBLE

DISPLAY

DIMMER

SHIFT

VFP

SLEEP A.STANDBY

SET

,, ,

RHYTHM AX

VOLUME +/–

FADE MUTING

Adjusting the Volume

You can adjust the volume level from level 0 (VOL MIN) to level 40 (VOL MAX).

Remote control: Main unit:

Remote

To drop the volume in a moment

FADE

MUTING

To restore the volume,

adjust the volume level.

ONLY

press again, or

Adjusting the Sound

To emphasize rhythm feeling—RHYTHM AX

This function emphasizes bass attack feeling, and also

changes the subwoofer level.

English

Main unit

RHYTHM AX

VOLUME +/–

RHYTHM AX

RHYTHMAX OFF

(Canceled)

To adjust the tone

You can adjust the bass and treble level from –5 to +5.

To adjust the bass

BASS/

TREBLE

BASS

Canceled

To adjust the treble

BASS/

TREBLE

BASS

Canceled

TRE

VOLUME

TRE

VOLUME

15

English

Presetting Automatic DVD Video Sound

Remote

Increase Level

ONLY

The DVD Video sound is sometimes recorded at a lower level than for other discs and sources. You can set the increase level for the currently loaded DVD Video, so you do not have to adjust the volume every time you change the source.

DVD LEVEL

5

(at the same time)

NORMAL MIDDLE

HIGH

NORMAL Original recording level.

MIDDLE Output level is increased (less than “HIGH”).

HIGH Output level is increased (more than

“MIDDLE”).

Remote

Changing the Picture Tone

ONLY

While showing a playback picture on the TV, you can select the preset picture tone, or adjust it and store your own taste.

To select a preset picture tone

While playing, display VFP setting screen.

1

VFP

6

(at the same time)

NORMAL

GAMMA

BRIGHTNESS

CONTRAST

SATURATION

TINT

SHARPNESS

On the TV

0

2 Select a preset picture tone.

NORMAL CINEMA

USER2 USER1

• Once the current DVD is ejected, this setting is canceled and set automatically to “NORMAL.”

Remote

Changing the Display Brightness

ONLY

You can dim the display window.

DIMMER

DIM1

DIM OFF

(Canceled)

DIM2

AUTO DIM

DIM1 Dims the display.

DIM2 Erases the display illumination.

AUTO DIM Erases the display illumination when

disc playback starts.*

• The display illuminates when playback stops.

* “AUTO DIM” does not work for CD/MP3/WMA.

NORMAL Normally select this.

CINEMA Suitable for a movie source.

USER1/USER2 You can adjust parameters and can

store the settings (see below).

To erase the screen,

press VFP again while holding SHIFT.

To adjust the picture tone

Select “USER1” or “USER2.”

1

• Follow steps 1 and 2 explained above.

2 Select a parameter you want to adjust.

ENTER

GAMMA Adjust if the neutral color is bright or

dark (–3 to +3).

BRIGHTNESS Adjust if the entire picture is bright

or dark (–8 to +8).

CONTRAST Adjust if the far and near positions

are unnatural (–7 to +7).

SATURATION Adjust if the picture is whitish or

blackish (–7 to +7).

TINT Adjust if the human skin color is

unnatural (–7 to +7).

SHARPNESS Adjust if the picture is indistinct

(–8 to +8).

16

3 Adjust the parameter.

ENTER

Turning Off the Power

Remote

Automatically

To turn off the unit after playback is over—Auto Standby

ONLY

English

4 Repeat steps 2 to 3 to adjust other parameters.

To erase the screen,

Setting the Clock

Without setting the built-in clock, you cannot use Daily Timers, Recording Timer (see page 31) and Sleep Timer.

• To correct a misentry during the process, press CANCEL or CLOCK/TIMER. You can return to the previous step.

press VFP again while holding SHIFT.

Remote ONLY

1 Activate the clock setting mode.

CLOCK/

TIMER

• If you have already adjusted the clock before, press the button repeatedly until the clock setting mode is selected.

2 Adjust the hour.

SET

3 Adjust the minute.

SLEEP

A.STANDBY

On

Canceled

(at the same time)

When Auto Standby is in use, the A.STANDBY indicator lights on the display. When disc play stops, the A.STANDBY indicator starts flashing. If no operation is done for about 3 minutes while the indicator is flashing, the System turns off (stands by) automatically.

• Auto Standby does not work while you are listening to radio (FM/AM) and the external component (AUX).

To turn off the unit after a certain period of time —Sleep Timer

1

Specify the time (in minutes).

SLEEP

A.STANDBY

10 20 30 60 90 120

150

Canceled

2 Wait until the set time goes off.

SET

Now the built-in clock starts working.

To check the current clock time during play

DISPLAY

Clock

Source information

• While playing a DVD and MP3/WMA, you cannot check the current clock time (see page 9) .

To check the time remaining until the shut-off time

SLEEP

A.STANDBY

SLEEP

• If you press the button repeatedly, you can change the shutoff time.

17

Unique DVD/VCD Operations

English

Remote control

SUB TITLE

AUDIO

ZOOM

,, ,

DVD/CD 3

87

SHIFT

ANGLE

10 keys

ENTER

SLOW –/+

Remote

Selecting the View Angle

ONLY

While playing back a chapter (of DVD Video) containing multi-view angles, you can view the same scene from different angles.

• You can also select the multi-view angles using the onscreen bar (see page 24).

While playing...

ANGLE

3

Ex.:

1/3

1

1/3

1

(at the same time)

2/3

2

2/3

2

3/3

3

3/3

3

Remote

Selecting the Subtitle Language

For DVD Video:

While playing back a chapter (of DVD

ONLY

Video) containing subtitles in different languages, you can select the subtitle language to display on the TV.

For SVCD:

While playing, you can select the subtitles even

if no subtitles are recorded on the disc.

• You can also select the subtitle language using the onscreen bar (see page 24).

While playing a DVD Video...

1

Display the subtitle selection window.

1/3

SUB TITLE

(at the same time)

1/3

2

ENGLISH

18

Select the subtitle language.

2

While playing a DVD Video...

Ex.:

1/3

ENGLISH

2/3

FRENCH

English

3/3

JAPANESE

Ex.:

1/3

ENGLISH

1/3 3/3

ENGLISH

2/3

FRENCH

2/3

FRENCH

3/3

JAPANESE

While playing an SVCD video...

SUB TITLE

2

(at the same time)

–/4

OFF

Selecting the Audio Track

For DVD Video:

audio languages, you can select the language to listen to.

For DVD Audio:

audio channels, you can select the audio channel to listen to.

For Karaoke SVCD/VCD:

can select the audio channel to play.

• You can also select the audio track using the on-screen bar (see page 24).

While playing back a chapter containing

While playing back a track containing

1/4

1

4/4

4

3/4

3

Remote

ONLY

When playing back a track, you

2/4

2

1/3

ENGLISH

FRENCH

2/3

3/3

JAPANESE

While playing a DVD Audio...

Ex.:

1/3

1

2/3

3/3

2

3

While playing a Karaoke SVCD or VCD...

AUDIO

1

(at the same time)

SVCD

ST1 ST2 L1

R2 L2 R1

VCD

ST L R

ST1/ST2STTo listen to normal stereo (2 channel)

playback.

L1/L2/L

R1/R2/R

To listen to the left audio channel.

To listen to the right audio channel.

• SVCD can have 4 audio channels. Karaoke SVCD usually uses these 4 channels to record two 2-channel recordings (ST1/ST2).

Remote

Playing Back a Bonus Group

ONLY

Some DVD Audios have a special group called “bonus group” whose contents are not open to the public.

• To play back a bonus group, you have to enter the specific “key number” (a kind of password) for the bonus group. The way of getting the key number depends on the disc.

AUDIO

1

(at the same time)

1

Select the bonus group.

• The bonus group is usually recorded as the last group (for example, if a disc contains 4 groups including a bonus group, “group 4” is the bonus group).

• For how to select the group, see “To select a title/group” on page 13.

19

English

Enter the key number.

2

AUDIO ANGLE

SUB TITLE

1

2

ZOOM VFP

DVD LEVEL

4

5

8

7

PROGRESSIVE

0

Follow the interactive instructions shown on the

3

screen.

To cancel the key number entry,

Select slow motion speed.

2

SLOW

3

6

FM MODEREV. MODE

9

ENTER

press 7

.

–

SLOW

+

SLOW

Forward slow motion starts.

Reverse slow motion* starts.

+

1/32 1/16 1/8 1/4 1/2

–

1/32 1/16 1/8 1/4 1/2

*Not available for SVCD/VCD.

Remote

Special Effect Playback

ONLY

Still picture playback

To start still picture playback:

While playing...

To resume normal playback:

Frame-by-frame playback

1

While playing...

Still picture playback starts.

Advance the still picture frame by frame.

2

To resume normal playback,

press DVD/CD 3

Slow-motion playback

DVD/CD

To resume normal playback,

press DVD/CD 3

.

To replay the previous scenes (One-Touch Replay)

• This function is only used while playing DVD Video.

While playing back...

The playback position moves back about 10 seconds before the current position (only within the same title).

Remote

ZOOM

4

ONLY

(at the same time)

ZOOM 1 ZOOM 2

ZOOM OFF

ZOOM

4

ZOOM 3 ZOOM 4

ZOOM 5ZOOM 6

Zoom

While playing back...

1

.

While playing...

1

20

Still picture playback starts.

2

Move the zoomed-in position.

To cancel Zoom,

press ZOOM repeatedly (while holding

SHIFT) until “ZOOM OFF” appears on the TV.

Advanced Disc Operations

Remote control

10 keys

,

DVD/CD 3

8

4/¢

SHIFT

ENTER

CANCEL

7

PLAY MODE

REPEAT REPEAT A-B

Programming the Playing Order—

Remote

Program Play

You can arrange the playing order of the chapters or tracks (up to 99) before you start playback.

Before starting playback, activate Program Play.

1

PLAY

MODE

PRGM

ONLY

PROGRAM RANDOM

Canceled

On the display

PROGRAM

No Group/Title Track/Chapter

1

2 3 4 5 6 7 8 9

10

USE NUMERIC KEYS TO PROGRAM TRACKS. USE CANCEL TO DELETE THE PROGRAM.

English

Main unit

DVD/CD 3

4

, 7,

¢

On the TV

2

Select chapters or tracks you want for Program Play.

• For DVD/MP3/WMA:

1

Select a title or group number.

2

Select a chapter or track number.

3

Repeat the above steps 1

and 2

.

• For SVCD/VCD/CD:

1

Select tracks.

To enter the numbers directly:

AUDIO ANGLE

SUB TITLE

1

2

ZOOM VFP

DVD LEVEL

4

5

FM MODEREV. MODE

8

7

10

Examples:

To enter number 5, press 5.

3

To enter number 15, press +10, then 5.

6

To enter number 30, press +10,

9

+10, then 10.

10

0

21

English

GROUP/TITLE

Start playback.

3

DVD/CD

To skip a step:

Playback starts in the order you have programmed.

To pause: To stop:

To release, press DVD/CD 3

To check the programmed contents

Before or after playback...

In the reverse order.

In the programmed order.

Remote

Playing at Random—Random Play

You can play all chapters or tracks at random.

• Random Play cannot be used for some DVDs.

1

Before starting playback, activate Random Play.

PLAY

MODE

PROGRAM RANDOM

ONLY

Canceled

.

Start playback.

2

RANDOM

DVD/CD

Playback starts in random order. Random Play ends when the entire disc has been played.

• You can also use 4

contents.

or ¢

To modify the program

Before or after playback...

To erase the last step:

CANCEL

RETURN

To add steps in the program:

Repeat step 2.

To exit from Program Play

Before or after playback...

PLAY

MODE

PROGRAM RANDOM

to check the programmed

To erase the entire program:

Canceled

To skip a chapter/ track:

To pause: To stop:

To release, press DVD/CD 3

To exit from Random Play

Before or after playback...

PLAY

MODE

PROGRAM RANDOM

.

Canceled

22

Remote

A-

A-B

Playing Repeatedly

ONLY

• You can also select the repeat mode using the on-screen bar (see page 25).

Repeat Play

You can repeat playback.

• For DVD Video:

While playing...

REPEAT A-B

REPEAT

REP CHAP REP TTL

• For DVD Audio:

While playing or before playback...

REPEAT A-B

REPEAT

REP TRK REP GRP

• For MP3/WMA:

While playing or before playback...

REPEAT A-B

REPEAT

REP TRK REP GRP

REP OFF

(Canceled)

• For CD/SVCD/VCD:

While playing (without PBC for SVCD/VCD) or before playback...

REPEAT A-B

REPEAT

REP CHAP

REP TTL

REP TRK

REP GRP

REP ALL

* Repeats the current chapter.

* Repeats the current track.

REP TRK

Repeats the current title.

Repeats the current group.

Repeats the disc or program.

*During Program Play and Random Play, “REP STEP”

appears instead of these indications, and repeat modes change as follows for all the discs.

REP STEP REP ALL

REP OFF

(Canceled)

*

REP OFF

(Canceled)

*

REP OFF

(Canceled)

*

REP OFF

(Canceled)

REP ALL

A-B Repeat

You can repeat playback of a desired portion by specifying the beginning (point A) and the ending (point B).

• A-B Repeat cannot be used for MP3/WMA and for some DVDs.

• A-B Repeat can be used within the same title while playing a DVD Video, and within the same track for the other discs.

While playing (without PBC for SVCD/VCD), select

1

the start point (A).

REPEAT A-B

REPEAT

(at the same time)

2

Select the end point (B).

REPEAT A-B

REPEAT

(at the same time)

To cancel A-B Repeat,

press REPEAT A-B again while

holding SHIFT.

• A-B Repeat will also be canceled when you stop play or skip the chapter or track.

Prohibiting Disc Ejection—Child Lock

You can lock the disc tray so that no one can eject the loaded disc.

• This is possible while the System is on standby.

While the disc tray is closed...

(at the same time)

To cancel the prohibition,

“UNLOCKED” appears on the display.

starts flashing on the

display.

• appears on the TV if the TV is turned on.

stops flashing.

• appears on the TV.

• You can search for the end point using the ¡

button.

repeat the same procedure.

Main Unit

ONLY

English

23

On-Screen Disc Operations

TITLE

2

CHAP

3

GROUP 1

TOTAL

1:25:58

TIME

OFF

CHAP.

TRACK

1/3

PAGE 1 / 5

English

Remote control

ZOOM

,, ,

ON SCREEN

DVD/CD 3

8

4/¢

SHIFT

On-screen bars

DVD Video

1

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

DVD Audio

8.5Mbps

OFF

1

DVD-AUDIO

TIME

OFF

SVCD

TRACK

4

1

SVCD

TIME

OFF

TIME OFF ST1

VCD

4

1

VCD

TIME

OFF

TIME OFF ST

TITLE 2

TITLE

4

GROUP 14

TITLE

1/3

TITLE

1/3

14

2

14

-/ 4

1/3

1/ 3

1/3

CHAP 3

CHAP

23

2

TRACK 23

PAGE

TRACK 3

CHAP

23

TRACK 3

CHAP

23

TIME 0:00:58

TOTAL

1/3 1/3

TIME 0:00:58

1/ 3

2

TIME 00:58

TOTAL

1/3 1/3

2

TIME 00:58

TOTAL

1/3 1/3

10 keys

ENTER

CANCEL

7

REPEAT

¡

3

1:25:58

3

1:25:58

3

1:25:58

On-screen Bar Information

You can check the disc information (except for MP3/WMA/ JPEG disc) and use some functions through the on-screen bar.

1

Disc type

2

Playback information

Indication Meanings

Mbps Current transfer rate

(Megabits per second)

Current title

Current chapter

Current group

TRACK

14

3

Operation modes

Indication Meanings

/ Forward/Reverse search

/ Forward/Reverse slow-motion

4

Function icons (on the pull-down menu)

Indication Meanings

Current track

Time indications

Playback

Pause

Stop

Select to change the time indication.

Select to repeat playback.

Select for time search.

Select for chapter search.

Select for track search.

Select to change the audio language or channel (see also page 19).

Select to change subtitle language (see also page 18).

Select to change the view angle (see also page 18).

Select to change the page.

CD

TIME OFF

24

TIME

1

CD

OFF

4

TITLE

2

TIME 00:58

TRACK 3

TOTAL

CHAP

23

14

1/3 1/3

1/3

1:25:58

3

Remote

TIME

Operations Using the On-screen Bar

ONLY

Ex.: Selecting a subtitle (French) for DVD Video

While a disc is selected as the source...

1

Display the on-screen bar with the pull-down menu.

ON SCREEN

8.5Mbps

DVD-VIDEO

8.5Mbps

DVD-VIDEO

TIME

OFF

TIME OFF CHAP. 1/31/ 3 1/1

TITLE

TITLE 2

14

1/3

CHAP 3

CHAP

TIME 0:00:58

TOTAL

23

1/3 1/3

1:25:58

For detailed operations of the following functions, see also “Operations Using the On-screen Bar” on the left.

To change the time information

You can change the time information in the on-screen bar and the display window on the main unit.

1 While playing, display the on-screen bar with the pull-

down menu.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

8.5Mbps

OFF

TITLE 2

TITLE

CHAP

14

1/3

CHAP 3

23

1/3 1/3

TIME 0:00:58

TOTAL

1:25:58

English

Goes off

2

Select (highlight) the item you want.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

Display the pop-up window.

3

ENTER

4

Select the desired option in the pop-up window.

5

Finish the setting.

8.5Mbps

OFF

ENTER

TITLE 2

CHAP

TITLE

14

1/3

CHAP 3

TITLE 2

CHAP

ITLE

14

1/3

1/31/ 3 1/1

CHAP 3

TITLE 2

CHAP

ITLE

14

1/3

1/32/ 3 1/1

Pop-up window goes off.

To erase the on-screen bar

ON SCREEN

CHAP 3

TOTAL

23

1/3 1/3

TIME 0:00:58

TOTAL

23

1/3 1/3

ENGLISH

TIME 0:00:58

TOTAL

23

1/3 1/3

FRENCH

TIME 0:00:58

1:25:58

2 Make sure is selected (highlighted). 3 Change the time indication.

ENTER

TIME 0:00:58

REM 0:11:23

TOTAL 1:01:58T.REM 0:35:24

TIME

Elapsed playing time of the current chapter/track.

REM

Remaining time of the current chapter/ track.

TOTAL

T.REM

Elapsed disc time.

Remaining disc time.

To erase the on-screen bar

ON SCREEN

Repeat Play

• See also page 23.

1 While playing a disc (without PBC for SVCD/VCD),

display the on-screen bar with the pull-down menu.

• Except for DVD Video: Repeat Play can be selected before starting playback.

2 Select . 3 Display the pop-up window.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

OFF

8.5Mbps

OFF

TITLE 2

TITLE

TIME 0:00:58

CHAP 3

TOTAL

23

1/3 1/3

1:25:58

CHAP

14

1/3

25

English

H

C

ENTER

4 Select the repeat mode you want.

A-B

TITLE

GROUP

ALL

Repeats a desired portion (see below).

Repeats the current title.

Repeats the current group.

Repeats the disc (except for DVD) or program.

CHAPTER

TRACK

OFF

* Repeats the current chapter.

* Repeats the current track.

Cancels Repeat Play.

* During Program Play and Random Play, “STEP”

appears.

5 Finish the setting.

ENTER

A-B Repeat

• See also page 23.

1 While playing, display the on-screen bar with the pull-

down menu. 2 Select . 3 Display the pop-up window.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

4 Select “A-B.”

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

OFF

8.5Mbps

OFF

8.5Mbps

OFF

A–B

TITLE 2

TITLE

14

1/3

TITLE 2

14

1/3

CHAP 3

CHAP

CHAP 3

CHAP

TIME 0:00:58

TOTAL

23

1/3 1/3

TIME 0:00:58

TOTAL

23

1/3 1/3

1:25:58

Time Search

You can move to a particular point by specifying the elapsed playing time from the beginning.

1 While playing (without PBC for SVCD/VCD), display

the on-screen bar with the pull-down menu.

• Except for DVD: Time Search can be used before starting playback.

2 Select . 3 Display the pop-up window.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

8.5Mbps

OFF

TIME _ : _ _ : _ _

TITLE 2

TITLE

CHAP

14

1/3

4 Enter the time.

You can specify the time in hours/minutes/seconds.

AUDIO ANGLE

SUB TITLE

1

2

ZOOM VFP

DVD LEVEL

4

5

FM MODEREV. MODE

8

7

PROGRESSIVE

0

Examples:

3

To move to a point of 1 (hours): 02 (minutes): 00

6

(seconds), press 1, 0, 2, 0, then

0.

9

To move to a point of 54 (minutes): 00 (seconds), press 0, 5, 4, 0, then 0.

• It is always required to enter the hour digit (even “0” hour), but it is not required to enter trailing zeros (the last two digits in the examples above).

•

To correct a misentry,

press Cursor < to erase the last

entry.

5 Finish the setting.

The System starts playing the disc from the selected playing time.

CHAP 3

23

1/3 1/3

TIME 0:00:58

TOTAL

1:25:58

5 Select the start point (A).

ENTER

DVD-VIDEO

TIME

TIME A- CHAP. 1/3

6 Select the end point (B).

ENTER

A-B Repeat starts. The selected portion plays repeatedly.

• Before pressing ENTER, you can search for the end point using the

¡

button.

To cancel A-B Repeat,

repeat steps 1 to 3, and select “OFF”

in step 4.

26

8.5Mbps

TITLE 2

TITLE

Chapter/Track Search

C

14

1/3

You can search for the chapter (DVD Video) or track (DVD Audio) number to play.

1 While playing, display the on-screen bar with the pull-

down menu.

2 Select

CHAP.

or

TRACK

.

3 Display the pop-up window.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

8.5Mbps

OFF

TITLE 2

TITLE

CHAPTER _

CHAP

14

1/3

CHAP 3

23

1/3 1/3

TIME 0:00:58

TOTAL

1:25:58

4 Enter the desired chapter/track number.

AUDIO ANGLE

SUB TITLE

1

2

ZOOM VFP

DVD LEVEL

4

5

FM MODEREV. MODE

8

7

PROGRESSIVE

0

•

To correct a misentry, press the 10 keys until the

Examples:

3

To select chapter/track 5, press

5.

6

To select chapter/track 15, press 1, then 5.

9

To select chapter/track 30, press 3, then 0.

desired number shown in the pop-up window.

5 Finish the setting.

ENTER

The System starts playing the searched chapter or track.

Remote

Selecting Browsable Still Pictures

ONLY

While playing back a track (of DVD Audio) linked to browsable still pictures (BSP), you can select the still picture (turn the page) to be shown on the TV.

• If a track is linked to browsable still pictures (BSP), they are usually shown in turn automatically during playback.

1 While playing a DVD Audio, display the on-screen

bar with the pull-down menu.

2 Select .

PAGE 1 / 5

3 Display the pop-up window.

TIME 0:00:58

DVD-AUDIO

TIME

OFF

GROUP 14

TRACK

TRACK 23

1/ 3

PAGE

1/ 5

1

4 Select a still picture you want.

TIME 0:00:58

DVD-AUDIO

TIME

OFF

GROUP 14

TRACK

TRACK 23

1/ 3

PAGE

3/ 5

3

Remote

Operations on the

CONTROL Screen

ONLY

The CONTROL screen automatically appears on the TV when you load an MP3, WMA, or JPEG disc. You can search for and play the desired tracks through the CONTROL screen.

• If both types of files (MP3/WMA files and JPEG files) are recorded on a disc, select the file type to play (see page 35).

CONTROL screen

Ex.: When the MP3 disc is loaded.

6 7

1

2

3

4

Group : 2 / 3

Spring

Summer

Fall Winter

Track Information

Title Rain Artist

Album

Time : 00:00:14REPEAT TRACK

Track : 5 / 14 (Total 41)

Cloudy.mp3 Fair.mp3 Fog.mp3 Hail.mp3 Indian summer.mp3

Rain.mp3

Shower.mp3 Snow.mp3 Thunder.mp3 Typhoon.mp3 Wind.mp3 Winter sky.mp3

8 9

0

-

5

1 Current group number/total group number 2 Current group (in blue) 3 Group list 4 Track information (ID3 Tag Version 1.0: only for

MP3/WMA)

5 Current track (in blue) 6 Repeat Play setting 7 Elapsed playing time of the current track

(only for MP3/WMA)

8 Operation mode icon 9 Current track number/total number of tracks in the

current group (total number of tracks on the loaded disc)

0 Highlight (green) bar

- Track list

English

5 Finish the setting.

ENTER

27

English

ENTER

To move the highlight (green) bar between group list and track list:

Moves the bar to the track list.

Moves the bar to the group list.

To select a group/track in the list:

Move the highlight bar to a desired item.

• If you move the highlight bar while playing back an MP3/ WMA disc, the selected track starts playback automatically.

To start playback

To repeat slide-show for JPEG

While playing or before starting playback...

REPEAT A-B

REPEAT

REP GRP Repeats the current group.

REP ALL Repeats the disc.

• For Repeat Play of MP3/WMA, see page 23.

To zoom in the still picture

• You cannot zoom in the still picture during slide-show.

REP GRP REP ALL

REP OFF

(Canceled)

1 While playing back a still picture...

• During slide-show, press 8 to display the still picture, then...

For MP3/WMA:

Playback starts with the selected track.

• Pressing DVD/CD 3 also starts playback.

For JPEG:

ENTER

DVD/CD

• Once you start playing back a JPEG track, the CONTROL screen goes off.

• To cancel slide-show, and display the current still picture, press 8.

To skip a track: To stop playback:

GROUP/TITLE

The selected track (still picture) is displayed until you change it.

Slide-show playback starts. Each track (still picture) is shown on the screen for about 3 seconds, then changes one after another.

ZOOM

4

(at the same time)

ZOOM

4

ZOOM 1 ZOOM 2

ZOOM OFF

2 Move the zoomed-in position.

To cancel Zoom,

SHIFT) until “ZOOM OFF” appears on the TV.

press ZOOM repeatedly (while holding

28

Advanced Tape Operations

Remote control

REV. MODE

TAPE 2 3

DVD/CD

3

7

SHIFT

FM/AM

AUX

IMPORTANT

It may be unlawful to record or play back copyrighted material without the consent of the copyright owner.

Recording on a Tape

You can use type I tapes for recording.

• To play a tape, see page 12.

1

Insert a recordable cassette.

Push Insert

With the tape side facing outside

2

Check the tape running direction and Reverse Mode settings on the display.

Reverse mode indicator

Close

English

Main unit

TAPE 2 3

DVD/CD

REC

Tape direction indicator

To change the direction

Current source

3 (forward)

PUSH OPEN 0

To change the Reverse mode if necessary

2 (reverse)

REV. MODE

7

(at the same time)

FM/AM

3

AUX

7

()

To record on both sides.

• When using Reverse Mode, start

recording in the forward (

To record on only one side.

3

) direction.

29

English

3

Select and start playing the source—“FM,” “AM,” “DVD/CD,” or “AUX.”

• When recording a disc, you can also use “Synchronized Disc Recording” (see below).

4

Start recording.

To stop recording:

REC

On the main unit

Synchronized Disc Recording

You can start and stop both disc play and tape recording at the same time.

To record the entire disc

Load a disc and insert a recordable cassette.

1

• If the current playing source is not the disc player, press DVD/CD 3

, then 7

.

To record Program Play or Random Play

1 Select Program Play (and make a program) or Random

Play, but do not start playback.

2 Press REC to start recording.

• When disc play stops, recording continues. It is required that recording be stopped manually.

To record only your favorite track

You can specify tracks to be recorded on the tape while listening to a disc (except for DVD Video).

1

Start playing a disc.

DVD/CD

While a track you want to record on the tape is

2

playing...

REC

On the main unit

Repeat steps 2 and 3 to record other tracks you want.

3

• You can exchange the discs if necessary.

The disc player returns to the beginning of that track and the track is recorded on the tape. After recording the track, the disc player and cassette deck automatically stop.

Check the tape running direction and Reverse Mode

2

settings on the display.

• See step 2 of “Recording on a Tape” on page 29.

Start recording.

3

REC

On the main unit

• When either disc play* or recording ends, both disc player and the cassette deck stop at the same time.

• If you press REC soon after the recording is stopped, “NO REC” may appear.

* For DVD Video: When a title is finished playing.

To record a “Live” disc

It will not be desirable to put 4-second blank portions between the tunes recorded on the tape. To record the entire disc without any interruption recorded, pause the disc play (press DVD/CD 3 before pressing REC.

The System automatically creates 4-second blanks between the tunes recorded on the tapes.

, then 8

)

30

To protect your recording

Cassettes have two small tabs on the back to protect from unexpected erasure or re-recording.

To protect your recording,

To re-record on a protected tape,

adhesive tape.

remove these tabs.

cover the holes with

Timer Operations

Remote control

SET

,

STANDBY/ON

CLOCK/ TIMER

CANCEL

Remote

Setting the Timer

Using Daily Timer, you can wake up with your favorite song. On the other hand, with Recording Timer, you can make a tape of a radio broadcast automatically.

• You can store three Daily Timer settings and one Recording Timer setting; however, you can activate only one of Daily Timers and Recording Timer at the same time.

• To exit from the timer setting, press CLOCK/TIMER as required.

• To correct a misentry during the process, press CANCEL. You can return to the previous step.

1

Select one of the timer setting modes you want to set— Daily 1 ON time, Daily 2 ON time, Daily 3 ON time, or Recording Timer ON time.

CLOCK/

TIMER

Ex. When Daily Timer 1 setting mode is selected

Daily 1 Timer Daily 2 Timer Daily 3 Timer

DAILY 1*

ON (Time) ON (Time) ON (Time)

Canceled

1

ONLY

DAILY 2

*

Clock setting

(see page 17)

DAILY 3

*

ON (Time)

REC TMR

Recording Timer

English

* Daily Timer initial settings when shipped from the

factory

• DAILY 1:ON Time (6:00)/OFF Time (8:00)/ Source (TUNER FM 1)/Volume level (– –)

• DAILY 2:ON Time (12:00)/OFF Time (14:00)/ Source (TUNER FM 1)/Volume level (– –)

• DAILY 3:ON Time (18:00)/OFF Time (20:00)/ Source (TUNER FM 1)/Volume level (– –)

2

Make the timer setting as you want.

Repeat the following operations until you finish setting in the following order—

SET

For Daily Timers:

1

Set the hour then the minute for on-time.

2

Set the hour then the minute for off-time.

3

Select the playback source—“TUNER FM,” “TUNER AM,” “TAPE,” “DISC,” or “AUX.”

1

4

For “TUNER FM” and “TUNER AM”: Select a preset channel. For “DISC”: Select the title/group number, then the chapter/track number.

31

English

SET

3

5

Select the volume level.

• You can select the volume level (“VOL 0” to “VOL 50” and “VOL – –”).

If you select “VOL – –,” the volume is set to the last level when the unit has been turned off.

Once settings are complete, the Timer setting information appears in sequence.

For Recording Timer:

1

Set the hour then the minute for on-time.

2

Set the hour then the minute for off-time.

3

Select the playback source—“TUNER FM,” “TUNER AM,” or “AUX.”

4

For “TUNER FM” and “TUNER AM”: Select a preset channel.

Once settings are complete, the Timer setting information appears in sequence.

Turn off the unit (on standby) if you have set the timer with the System turned on.

STANDBY/ON

How Recording Timer actually works

When Recording Timer has been set, Timer ( ) indicator and the REC indicator are lit on the display. Recording Timer works only once.

When the on-time comes

The System turns on, tunes in to the specified station or changes the source to “AUX”, sets the volume level to the preset level, and starts recording.

When the off-time comes

The System stops recording, and turns off (stands by).

• The timer setting remains in memory until you change it.

To turn off the Timer after its setting is done

Since Daily Timer is activated at the same time everyday, you may need to cancel it on some particular days.

• Recording Timer can also be canceled temporarily.

1 Select the Timer you want to cancel.

CLOCK/

TIMER

Daily 1 Timer Daily 2 Timer Daily 3 Timer

DAILY 1*

ON (Time) ON (Time) ON (Time)

Canceled

DAILY 2

*

Clock setting

(see page 17)

DAILY 3

*

ON (Time)

Recording Timer

REC TMR

How Daily Timer actually works

Once the Daily Timer has been set, the timer ( ) indicator and timer number indicator (1/2/3) are lit on the display. Daily Timer is activated at the same time everyday until the timer is turned off manually (see the next column) or another timer is activated.

When the on-time comes

The System turns on, starts playing the specified source (except “AUX”), and sets the volume level to the preset level.

• While Daily Timer is working, the timer ( ) indicator and timer number indicator (1/2/3) flash on the display.

When the off-time comes

The System stops playback, and turns off (stands by) automatically.

• The timer setting remains in memory until you change it.

1

2 Turn off the selected Timer.

Ex.To cancel Daily

Timer 1

CANCEL

RETURN

To turn on the Timer 1 Select the Timer (DAILY 1/2/3, and REC TMR) you

want to activate.

CLOCK/

TIMER

Daily 1 Timer Daily 2 Timer Daily 3 Timer

DAILY 1

ON (Time) ON (Time) ON (Time)

Canceled

DAILY 2 DAILY 3

Clock setting

(see page 17)

ON (Time)

Recording Timer

REC TMR

2 Activate the selected Timer.

1

Ex. When Daily Timer 1 (DAILY 1) is

activated

3 Wait until the indication goes off.

32

Setup Menu Operations

Remote control

,, ,

SHIFT

Setup Menu Icons

The icon for the selected Setup Menu will be highlighted.

10 keys

SET UP

ENTER

.

Operating Procedure

Remote ONLY

You can use the Setup Menus only when a disc is selected as the source and its playback is not yet started.

Ex.: Selecting “STILL PICTURE” for “FILE TYPE”:

1

Display the Setup Menu.

LANGUAGE

MENU

SET UP

(at the same time)

2

Select one of the Setup Menus.

3

Select the item you want to adjust.

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

SELECT

ENTER


MONITOR TYPE

PICTURE SOURCE

SCREEN SAVER

FILE TYPE

SELECT

ENTER


MONITOR TYPE

PICTURE SOURCE

SCREEN SAVER

FILE TYPE

SELECT

ENTER

ENGLISH

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

4:3 LB

AUTO

ON

AUDIO

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

4:3 LB

AUTO

ON

AUDIO

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

English

Ex.: LANGUAGE Setup Menu is selected.

12 3 4

LANGUAGE

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

SELECT

ENTER

ENGLISH

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

1 LANGUAGE Setup Menu 2 PICTURE Setup Menu 3 AUDIO Setup Menu 4 OTHERS Setup Menu

4

Display the pop-up window.

ENTER

Select the desired option in the pop-up window.

5


MONITOR TYPE

PICTURE SOURCE

SCREEN SAVER

FILE TYPE

SELECT

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

ENTER


MONITOR TYPE

PICTURE SOURCE

SCREEN SAVER

FILE TYPE

SELECT

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

ENTER

4:3 LB

AUTO

ON

AUDIO

AUDIO STILL PICTURE

4:3 LB

AUTO

ON

AUDIO

AUDIO STILL PICTURE

33

English

6

7

Finish the setting.

ENTER

Repeat steps 3

to 4 Setup Menu. Repeat steps 2

to 4

Menu.

to set other items on the same

to set other items on another Setup

SUBTITLE

Some discs have multiple subtitle languages. Select from—ENGLISH, SPANISH, FRENCH, CHINESE, GERMAN, ITALIAN, JAPANESE, AA – ZU (see “Language Code List” on page 43) or “OFF (no subtitle).”

ON SCREEN LANGUAGE

Select one of the languages shown on the TV from— ENGLISH, SPANISH and CHINESE.

To exit from the Setup Menu

MENU

SET UP

(at the same time)

LANGUAGE Setup Menu

You can select the initial languages for disc playback. You can also select the language shown on the TV screen while operating this System.

LANGUAGE

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

SELECT

ENTER

MENU LANGUAGE

Some discs have multiple menu languages. Select from—ENGLISH, SPANISH, FRENCH, CHINESE, GERMAN, ITALIAN, JAPANESE, AA – ZU (see “Language Code List” on page 43).

AUDIO LANGUAGE

Some discs have multiple audio languages. Select from—ENGLISH, SPANISH, FRENCH, CHINESE, GERMAN, ITALIAN, JAPANESE, AA – ZU (see “Language Code List” on page 43).

ENGLISH

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

PICTURE Setup Menu

You can select the desired options concerning a picture or monitor screen.


MONITOR TYPE

PICTURE SOURCE

SCREEN SAVER

FILE TYPE

SELECT

ENTER

MONITOR TYPE

Select the monitor type of your TV to play DVD Video recorded with aspect ratio of 16:9.

For the multi-color system TV

When you use a multi-color system TV, you can change the color system of the System automatically by selecting “MULTI” options for the monitor type. In this case, the color system of the System is changed to match to that of the loaded disc regardless of the VIDEO OUT SELECT setting (see page 6).

Select one of the following:

16:9 / 16:9 MULTI

Select when the aspect ratio of your TV is 16:9 (wide TV).

4:3 LB (Letter Box) / 4:3 MULTI LB:

Select when the aspect ratio of your TV is 4:3 (conventional TV). While viewing a wide screen picture, the black bars appear on the top and the bottom of the screen.

4:3 PS (Pan Scan) / 4:3 MULTI PS:

Select when the aspect ratio of your TV is 4:3. While viewing a wide screen picture, the black bars do not appear; however, the left and right edges of the pictures will not be shown on the screen.

:

4:3 LB

AUTO

ON

AUDIO

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

34

Ex.: 16:9 Ex.: 4:3

LB

Ex: 4:3

PS

AUDIO Setup Menu

You can adjust the sound settings of the System.

AUDIO

DIGITAL AUDIO OUTPUT

DOWN MIX

D. RANGE COMPRESSION

STREAM/PCM

DOLBY SURROUND

AUTO

English

PICTURE SOURCE

You can obtain optimal picture quality by selecting an appropriate option—picture source type (either video source or film source).

Select one of the following:

AUTO:

Normally select this. When playing back a disc containing both video and film sources, the System automatically changes the processing to match it to the picture type (film or video source) of the current chapter.

FILM:

VIDEO:

To play a film source disc.

To play a video source disc.

SCREEN SAVER

You can activate or deactivate screen saver while operating the built-in disc player.

Select one of the following:

ON:

The pictures on the TV becomes dark when no operation is done for about 5 minutes.

OFF:

To cancel the screen saver.

FILE TYPE

If both audio tracks (MP3 or WMA files) and still picture (JPEG files) are recorded on a disc, you can select which to play.

Select one of the following:

AUDIO:

STILL PICTURE:

To play MP3/WMA files.

To play JPEG files.

SELECT

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

ENTER

DIGITAL AUDIO OUTPUT

When using the digital output terminal on the rear, set this correctly according to the connected component.

Select one of the following:

PCM ONLY:

To connect to a linear PCM digital equipment such as an MD recorder.

DOLBY DIGITAL /PCM:

To connect to a Dolby Digital decoder or an amplifier with a built-in Dolby Digital decoder.

STREAM/PCM:

To connect to a DTS decoder or an amplifier with a built-in DTS decoder.

• See also “DVD OPTICAL DIGITAL OUT Signals” on page 45.

DOWN MIX

When playing a multi-channel DVD, the System converts the signals into 2 channels. Downmix setting is effective for the speaker output (and digital audio output if “DIGITAL AUDIO OUTPUT” is set to “PCM ONLY”) from this System.

Select one of the following:

DOLBY SURROUND:

STEREO:

To connect an amplifier with the Dolby Pro Logic decoder.

To connect a conventional stereo amplifier, receiver, MD player, TV, etc.

35

English

D. RANGE COMPRESSION

You can compress the dynamic range (the difference between the loudest sound and the softest sound) to enjoy a powerful sound even at a low volume level when listening to Dolby Digital software. This is useful at night.

• The effectiveness varies depends on software.

Select one of the following:

AUTO:

To enjoy powerful sounds with full dynamic range.

ON:

Best for watching a movie at a low volume level.

OTHERS Setup Menu

You can change some other convenient functions.

OTHERS

RESUME

ON SCREEN GUIDE

AV COMPULINK MODE

PARENTAL LOCK

SELECT

ENTER

RESUME

You can activate or deactivate Resume for disc playback (see page 13).

Select one of the following:

ON:

OFF:

To activate Resume.

To cancel Resume.

ON

DVD1

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

ON SCREEN GUIDE

You can activate or deactivate the on-screen guide icons (see page 13).

• When recording the picture on a VCR, select “OFF” to avoid recording the guide icons on your video tape.

Select one of the following:

ON:

OFF:

To activate the on-screen guide icons.

To cancel the on-screen guide icons.

AV COMPULINK MODE

When connecting the System to a JVC’s TV with the AV COMPU LINK remote control system, select the proper setting.

Select one of the following:

DVD1:

To connect to the VIDEO-3 Input jacks on the TV.

DVD2:

To connect to the VIDEO-1 Input jacks on the TV.

DVD3:

To connect to the VIDEO-2 Input jacks on the TV.

• For details, see “AV COMPU LINK remote control system” on page 6.

PARENTAL LOCK

Select this to enter the PARENTAL LOCK submenu. See the section that follows.

36

Restricting the Review

Remote

SET UP

ONLY

MENU

LANGUAGE

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

SELECT

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

ENTER

OTHERS

RESUME

ON SCREEN GUIDE

AV COMPULINK MODE

PARENTAL LOCK

SELECT

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

ENTER

OTHERS

RESUME

ON SCREEN GUIDE

AV COMPULINK MODE

PARENTAL LOCK

SELECT

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

ENTER

PARENTAL LOCK

COUNTRY CODE

SET LEVEL

PASSWORD

EXIT

SELECT

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

ENTER

ENGLISH

ON

DVD1

ON

DVD1

SA

NONE

_ _ _ _

—Parental Lock

You can restrict playback of DVD Video containing violent scenes and those unsuitable for your family members. Once you have set the rating level, such violent scenes (for which a higher level than you set is assigned) may be skipped or changed to another scene (depending on how the disc is programmed).

To set Parental Lock

Set the rating level—Level 1 (most restrictive) to Level 8 (least restrictive).

Display the Setup Menu.

1

(at the same time)

2

Select the OTHERS Setup Menus.

3

Select “PARENTAL LOCK.”

Enter the PARENTAL LOCK submenu.

4

ENTER

Select “COUNTRY CODE,” then display the pop-up

5

window.

ENTER

Select the country code of your area.

6

COUNTRY CODE

SET LEVEL

PASSWORD

EXIT

SELECT

ENTER

SA

PY QA

ONE

RE

_ _ _ _

RO RU RW SA

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

PARENTAL LOCK

• See “Country/Area Codes List” on page 44 to find your country code.

ENTER

The System automatically enters “SET LEVEL” mode.

7

Make sure “SET LEVEL” is selected, then display the pop-up window.

ENTER

8

Set the rating level (NONE, 8 – 1).

PARENTAL LOCK

COUNTRY CODE

SET LEVEL

PASSWORD

EXIT

SELECT

USE TO SELECT. USE ENTER TO CONFIRM TO EXIT, PRESS [SET UP].

ENTER

SA

NONE 8

NONE

7

_ _ _ _

6 5 4 3

The System automatically enters “PASSWORD” entry mode.

9

Make sure “PASSWORD” is selected, then enter any 4-digit number for your password.

AUDIO ANGLE

SUB TITLE

1

ZOOM VFP

DVD LEVEL

4

7

PROGRESSIVE

3

2

6

5

FM MODEREV. MODE

9

8

ENTER

0

English

Finish the setting.

10

ENTER

37

English

To change the setting

1 Display the PARENTAL LOCK submenu.

• Follow steps 1 to 4 of “To set Parental Lock.”

PARENTAL LOCK

COUNTRY CODE

SET LEVEL

PASSWORD

EXIT

SELECT

ENTER

SA

4

_ _ _ _

PASSWORD? ••• PRESS 0 ~ 9 KEYS

TO EXIT, PRESS [SET UP].

To release Parental Lock temporarily

When you set a strict rating level, some discs may not be played back at all. When you try to play such a disc, the following screen appears on the TV.

PARENTAL LOCK

TEMPORARY RELEASE

NOT RELEASE

PASSWORD

_ _ _ _

“PASSWORD” is automatically selected.

• You cannot select any item other than “EXIT” until you enter the correct password.

2 Enter your password.

AUDIO ANGLE

SUB TITLE

1

ZOOM VFP

DVD LEVEL

4

7

PROGRESSIVE

3

2

6

5

FM MODEREV. MODE

9

8

ENTER

0

• If you enter a wrong password, “– – – –” appears again. If you missed three times, “EXIT” is automatically selected. In this case, press ENTER to exit from the PARENTAL LOCK submenu.

• If you forget your password, enter “8888.”

3 Change the settings.

• Follow steps 5 to 8 of “To set Parental Lock.”

4 Enter your password again (after selecting

“PASSWORD” manually if necessary).

AUDIO ANGLE

SUB TITLE

1

ZOOM VFP

DVD LEVEL

4

7

PROGRESSIVE

3

2

6

5

FM MODEREV. MODE

9

8

ENTER

0

SELECT

USE 5∞TO SELECT. USE ENTER TO CONFIRM.

ENTER

1 Select “TEMPORARY RELEASE,” then ENTER.

“PASSWORD” is

ENTER

automatically selected.

• If you do not play back such a disc, select “NOT RELEASE,” then ENTER. Then eject the disc.

2 Enter your password.

AUDIO ANGLE

SUB TITLE

1

ZOOM VFP

DVD LEVEL

4

7

PROGRESSIVE

• If you enter a wrong password three times, “NOT RELEASE” is automatically selected. In this case, press ENTER. Then eject the disc.

3

2

6

5

FM MODEREV. MODE

9

8

ENTER

0

• If you want to change a password, enter a new four digit number in this step.

38

Additional Information

Learning More about This System

Getting Started

Changing the Scanning Mode

• To enjoy the progressive video picture, connect a TV with the progressive video input using component video cord.

Before Operating the System

Playable Disc Types:

• If you play back an NTSC disc with this setting set to “PAL,” you can watch the playback pictures (the disc will be reproduced using “PAL 60” format), but the TV screen may roll over upward and downward rapidly.

• If you play back a PAL disc with this setting set to “NTSC,” you can watch the playback pictures, but the following symptoms may occur: – The items on the disc menu will be blurred, and be shown

slightly shifted when highlighted.

– The aspect ratio of the picture may differ from the original

aspect ratio.

– The picture movement is not smooth.

Daily Operations—Playback

Listening to the Radio:

• If you store a new station into an occupied preset number, the previously stored station in that number will be erased.

• When you unplug the AC power cord or if a power failure occurs, the preset stations will be erased in a few days. If this happens, preset the stations again.

Playing Back a Tape:

• It is not recommended to use the C-120 or longer tapes. These tapes easily jams in the pinch rollers and the capstans, and may cause characteristic deterioration.

Playing Back a Disc:

• For MP3/WMA playback... – This System cannot play “packet write” discs. – MP3/WMA discs are required a longer readout time than

regular CDs. (It depends on the complexity of the group/file configuration.)

– Some MP3/WMA files cannot be played back and will be

skipped. This result from their recording processes and conditions.

– When making MP3/WMA discs, use ISO 9660 Level 1 or

Level 2 for the disc format.

– This System can play back MP3/WMA files with the

extension code <.mp3> or <.wma> (regardless of the letter case—upper/lower).

– It is recommended that you make each MP3 file at a

sampling rate of 44.1 kHz and at bit rate of 128 kbps. This System cannot play back files made at bit rate of less than 64 kbps.

– This System can recognize the total of 1000 tracks and of 99

groups (each group can contain up to 150 tracks). Those exceeding the maximum number cannot be recognized.

– Playback order of MP3/WMA tracks may be different from

the one you have intended while recording (see page 40). If a folder does not include MP3/WMA tracks, they are ignored.

(see pages 3 to 6)

(see pages 7 to 9)

(see pages 10 to 14)

• When using an 8 cm disc, place it on the inner circle of the disc tray.

•

On some DVD, SVCD, or VCD discs, the actual operations may be different from what is explained in this manual, due to the programming and disc structure; such differences are not a malfunction of this System.

• Some DVD Audio discs prohibit downmixed output. When you play back such a disc, “LR ONLY” appears on the display and the System plays back the left front and right front signals.

• 3D Phonic setting is also applied to the optical digital output signals through the DVD OPTICAL DIGITAL OUT terminal.

• When using Resume on SVCD or VCD with PBC, the playback might start on a position slightly different from where you have stopped.

• You can use Resume only for the DVD/SVCD/VCD except for some discs—depending how the disc is programmed.

Daily Operations—Sound & Other Adjustments

(see pages 15 to 17)

Adjusting the Volume:

• Be sure to turn down the volume before connecting or putting the headphones.

Adjusting the Sound:

• This function also affects the sound through the headphones.

Setting the Clock:

• “0:00” will flash on the display until you set the clock.

• The clock may gain or lose 1 to 2 minutes per month. If this happens, reset the clock.

Unique DVD/VCD Operations

• During slow-motion playback, no sound will be reproduced.

• While zoomed in, the picture may look coarse.

Advanced Disc Operations

Programming the Playing Order—Program Play:

• If you try to program a 100th track, “MEM FULL” appears on the display.

• While programming steps... Your entry will be ignored if you have tried to program an item number that does not exist on the disc (for example, selecting track 14 on a disc that only has 12 tracks).

Playing at Random—Random Play:

• The 4

button does not work for skipping chapters or tracks, but only work for going back to the beginning of the current chapter or track.

(see pages 18 to 20)

(see pages 21 to 23)

English

39

English

On-Screen Disc Operations

(see pages 24 to 28)

• For JPEG files playback... – It is recommended that you record a file at 640 x 480

resolution. (If a file has been recorded at a resolution of more than 640 x 480, it will take a long time to be shown.)

– This System can play only baseline JPEG files. Progressive

JPEG files or lossless JPEG files cannot be played.

Baseline JPEG format: Used for digital cameras, web,

etc. Progressive JPEG format: Used for web. Lossless JPEG format: An old type and rarely used

now.

– This System may not play back JPEG files properly which

are recorded by the devices other than digital still camera.

– If progressive or lossless JPEG files are played back, a black

screen appears. In this case, stop playback and select a baseline JPEG file. Note that it may take a long time to select another file.

Advanced Tape Operations

(see pages 29 to 30)

Recording on a Tape:

• The recording level is automatically set correctly. Thus, you can adjust the sound you are actually listening to without affecting the recording level.

• There is leader tape which cannot be recorded onto at the start and end of cassette tapes. Thus, when recording CDs or radio broadcasts, wind the leader tape first to ensure that the recording will be made without any music part lost.

• If you start recording with no cassette inserted, “NO TAPE” appears on the display. If a protected tape has been inserted, “NO REC” appears.

• When using Reverse Mode for recording, start recording in the forward (

3

) direction first; otherwise, recording will stop

when only one side (reverse) of the tape is recorded.

• You can also change Reverse Mode setting ( and ) after starting recording.

• You cannot open or close the disc tray while recording.

Synchronized Disc Recording:

• When the tape reaches its end in the forward direction (3 during recording with Reverse Mode set to , the last tune will be re-recorded at the beginning of the reverse side.

Timer Operations

(see pages 31 to 32)

• When using an external component—“AUX” for the playback source, set the timer built in the component at the same time.

• Before turning off the power, do not forget to prepare the required materials—a disc or tape for playback and a recordable tape for recording.

• When you unplug the AC power cord or if a power failure occurs, the timer will be canceled. You need to set the clock first, then the timer again.

• Without stopping the recording, you cannot change the source after Recording Timer start recording.

• If you set the Sleep Timer after Daily Timer starts playing the selected source, Daily Timer is canceled.

• If you set the Sleep Timer after Recording Timer starts recording, Recording Timer is canceled, but recording continues until Sleep Timer shuts off the power.

Setup Menu Operations

(see pages 33 to 38)

LANGUAGE:

• When the language you have selected for “MENU LANGUAGE,” “AUDIO LANGUAGE,” or “SUBTITLE” is not recorded on a disc, the original language is used as the initial language.

PICTURE—MONITOR TYPE:

• Even if “4:3 PS” is selected, the screen size may become 4:3 letter box with some DVD Video discs. This depends on how the discs are recorded.

• When you select “16:9” for a picture whose aspect ratio is 4:3, the picture slightly changes due to the process for converting the picture width.

AUDIO—DOWN MIX:

• This setting is not effective when DTS multi-channel software is played back.

OTHERS—ON SCREEN GUIDE:

• Setup Menus and on-screen bar will be displayed (and recorded) even though this function is set to “OFF.” Subtitles and the information for zooming in always appear on

)

the display regardless of this setting.

MP3/WMA/JPEG groups/tracks conﬁguration

This System plays back the tracks as follows.

40

02

01

Hierarchy

1

2

03 04

3

4

5

6

7

8

05

Level 1 Level 2 Level 3 Level 4 Level 5

ROOT

Group with its play order

01

1

Track with its play order

9

10

11

12

Maintenance

To get the best performance of the System, keep your discs, tapes, and mechanism clean.

Handling discs

• When removing the disc from its case, hold it at the edge while pressing the center hole lightly.

• Do not touch the shiny surface of the disc, or bend the disc.

• Put the disc back in its case after use to prevent warping.

• Be careful not to scratch the surface of the disc.

• Avoid exposure to direct sunlight, temperature extremes, and moisture.

To clean the disc:

Wipe the disc with a soft cloth in a straight line from center to edge.

Handling cassette tapes

• If the tape is loose in its cassette, take up the slack by inserting a pencil in one of the reels and rotate it. – If the tape is loose, it may get stretched, cut, or caught in the

cassette.

• Be careful not to touch the tape surface.

• Avoid the following places to store the tape—in dusty places, in direct sunlight or heat, in moist areas, on a TV or speaker, or near a magnet.

To keep the best recording and playback sound quality

• Use a cotton swab moistened with alcohol to clean the heads, capstans, and pinch rollers.

• Use a head demagnetizer (available at electronics and audio shops) to demagnetize the heads (when the System turned off).

Cleaning the System

• Stains should be wiped off with a soft cloth. If the System is heavily stained, wipe it with a cloth soaked in water-diluted neutral detergent and wrung well, then wipe clean with a dry cloth.

• Since the System may deteriorate in quality, become damaged or get its paint peeled off, be careful about the following: – DO NOT wipe it with a hard cloth. – DO NOT wipe it strongly. – DO NOT wipe it with thinner or benzine. – DO NOT apply any volatile substance such as insecticides

to it.

• DO NOT allow any rubber or plastic to remain in contact for a long time.

English

41

English

Troubleshooting

If you are having a problem with your System, check this list for a possible solution before calling for service.

General:

Adjustments or settings are suddenly canceled before you finish.

There is a time limit. Repeat the procedure again.

]

Operations are disabled.

]

The built-in microprocessor may malfunction due to external electrical interference. and then plug it back in.

Unplug the AC power cord

Unable to operate the System from the remote control.

The path between the remote control and the remote sensor

]

on the System is blocked.

]

The batteries are exhausted.

No sound is heard.

]

Speaker connections are incorrect or loose.

]

Headphones are connected.

No picture appears on the screen.

]

The video cord connections are incorrect or loose.

No picture is displayed on the TV, the picture is blurred, or the picture is divided into two parts.

]

The System is connected to a TV which does not support progressive scanning.

The left and right edges of the picture are missing on the screen.

]

Select “4:3 LB” for “MONITOR TYPE” (see page 34).

Radio Operations:

Hard to listen to broadcasts because of noise.

]

Antennas connections are incorrect or loose.

]

The AM loop antenna is too close to the System.

]

The FM antenna is not properly extended and positioned.

Disc Operations:

The disc does not play.

The disc is placed upside down. Place the disc with the label

]

side up.

ID3 Tag on an MP3/WMA disc cannot be shown.

]

There are two types of ID3 Tag—Version 1 and Version 2. This System can only show ID3 Tag Version 1.

MP3/WMA/JPEG groups and tracks are not played back as you expect.

]

The playing order is determined when the disc was recorded. It depends on the writing application.

MP3/WMA or JPEG tracks are not played back.

]

The inserted disc may include both type of tracks (MP3/ WMA ﬁles and JPEG ﬁles). In this case, you can only play back the ﬁles selected by the “FILE TYPE” setting (see page 35).

]

You have changed the “FILE TYPE” setting after you inserted a disc. In this case, reload the disc.

“NO AUDIO” appears.

]

This System cannot play back illegally produced DVD Audio discs.

“LR ONLY” appears.

]

Some DVD Audio discs prohibit downmixed output. When you play back such a disc, this System plays back the left front and right front signals only.

The disc sound is discontinuous.

]

The disc is scratched or dirty.

The disc tray does not open or close.

]

The AC power cord is not plugged in.

]

Child Lock is in use (see page 23).

Tape Operations:

The cassette holder cannot be opened.

]

Power supply from the AC power cord has been cut off while the tape was running. Turn on the System.

Recordings:

Impossible to record.

Small tabs on the back of the cassette are removed. Cover

]

the holes with adhesive tape.

Timer Operations:

Daily Timer and Recording Timer do not work.

]

The System has been turned on when the on-time comes. Timer starts working only when the System is turned off.

Daily Timer does not start playback.

]

The disc loaded is a DVD video. Change the disc.

]

Title/group number and chapter/track number are not entered while setting the Daily Timer. Do not skip these steps when you want to play a disc using Daily Timer.

Setup Menu Operations:

No subtitle appears on the display though you have selected the initial subtitle language.

]

Some DVDs are programmed to always display no subtitle initially. If this happens, select the subtitle after starting play (see page 18).

Audio language is different from the one you have selected as the initial audio language.

]

Some DVDs are programmed to always use the original language initially. If this happens, select the audio language after starting play (see page 19).

42

Language Code List

AA

Afar

AB

Abkhazian

AF

Afrikaans

AM

Ameharic

AR

Arabic

AS

Assamese

AY

Aymara

AZ

Azerbaijani

BA

Bashkir

BE

Byelorussian

BG

Bulgarian

BH

Bihari

BI

Bislama

BN

Bengali, Bangla

BO

Tibetan

BR

Breton

CA

Catalan

CO

Corsican

CS

Czech

CY

Welsh

DA

Danish

DZ

Bhutani

EL

Greek

EO

Esperanto

ET

Estonian

EU

Basque

FA

Persian

FI

Finnish

FJ

Fiji

FO

Faroese

FY

Frisian

GA

Irish

GD

Scots Gaelic

GL

Galician

GN

Guarani

GU

Gujarati

HA

Hausa

HI

Hindi

HR

Croatian

HU

Hungarian

HY

Armenian

IA

Interlingua

IE

Interlingue

IK

Inupiak

IN

Indonesian

IS

Icelandic

IW

Hebrew

JI

Yiddish

JW

KA

KK

KL

KM

KN

KO

KS

KU

KY

LA

LN

LO

LT

LV

MG

MI

MK

ML

MN

MO

MR

MS

MT

MY

NA

NE

NL

NO

OC

OM

OR

PA

PL

PS

PT

QU

RM

RN

RO

RU

RW

SA

SD

SG

SH

SI

SK

Javanese

Georgian

Kazakh

Greenlandic

Cambodian

Kannada

Korean (KOR)

Kashmiri

Kurdish

Kirghiz

Latin

Lingala

Laothian

Lithuanian

Latvian, Lettish

Malagasy

Maori

Macedonian

Malayalam

Mongolian

Moldavian

Marathi

Malay (MAY)

Maltese

Burmese

Nauru

Nepali

Dutch

Norwegian

Occitan

(Afan) Oromo

Oriya

Panjabi

Polish

Pashto, Pushto

Portuguese

Quechua

Rhaeto-Romance

Kirundi

Rumanian

Russian

Kinyarwanda

Sanskrit

Sindhi

Sangho

Serbo-Croatian

Singhalese

Slovak

SL

SM

SN

SO

SQ

SR

SS

ST

SU

SV

SW

TA

TE

TG

TH

TI

TK

TL

TN

TO

TR

TS

TT

TW

UK

UR

UZ

VI

VO

WO

XH

YO

ZU

English

Slovenian

Samoan

Shona

Somali

Albanian

Serbian

Siswati

Sesotho

Sundanese

Swedish

Swahili

Tamil

Telugu

Tajik

Thai

Tigrinya

Turkmen

Tagalog

Setswana

Tonga

Turkish

Tsonga

Tatar

Twi

Ukrainian

Urdu

Uzbek

Vietnamese

Volapuk

Wolof

Xhosa

Yoruba

Zulu

43

English

Country/Area Codes List

√

AD

Andorra

AE

United Arab Emirates

AF

Afghanistan

AG

Antigua and Barbuda

AI

Anguilla

AL

Albania

AM

Armenia

AN

Netherlands Antilles

AO

Angola

AQ

Antarctica

AR

Argentina

AS

American Samoa

AT

Austria

AU

Australia

AW Aruba AZ Azerbaijan BA Bosnia and Herzegovina BB Barbados BD Bangladesh BE Belgium BF Burkina Faso BG Bulgaria BH Bahrain BI Burundi BJ Benin BM Bermuda BN Brunei Darussalam BO Bolivia BR Brazil BS Bahamas BT Bhutan BV Bouvet Island BW Botswana BY Belarus BZ Belize CA Canada CC Cocos (Keeling) Islands CF Central African Republic CG Congo CH Switzerland CI Côte d’Ivoire CK Cook Islands CL Chile CM Cameroon CN China CO Colombia CR Costa Rica CU Cuba CV Cape Verde CX Christmas Island CY Cyprus CZ Czech Republic DE Germany DJ Djibouti

DK Denmark DM Dominica DO Dominican Republic DZ Algeria EC Ecuador EE Estonia EG Egypt EH Western Sahara ER Eritrea ES Spain ET Ethiopia FI Finland FJ Fiji FK Falkland Islands (Malvinas) FM Micronesia (Federated States of) FO Faroe Islands FR France FX France, Metropolitan GA Gabon GB United Kingdom GD Grenada GE Georgia GF French Guiana GH Ghana GI Gibraltar GL Greenland GM Gambia GN Guinea GP Guadeloupe GQ Equatorial Guinea GR Greece GS South Georgia and the South

Sandwich

GT Guatemala GU Guam GW Guinea-Bissau GY Guyana HK Hong Kong HM Heard Island and McDonald

Islands

HN Honduras HR Croatia HT Haiti HU Hungary ID Indonesia IE Ireland IL Israel IN India IO British Indian Ocean Territory IQ Iraq IR Iran (Islamic Republic of) IS Iceland IT Italy JM Jamaica

JO Jordan JP Japan KE Kenya KG Kyrgyzstan KH Cambodia KI Kiribati KM Comoros KN Saint Kitts and Nevis KP Korea, Democratic People’s

Republic of

KR Korea, Republic of KW Kuwait KY Cayman Islands KZ Kazakhstan LA Lao People’s Democratic

Republic

LB Lebanon LC Saint Lucia LI Liechtenstein LK Sri Lanka LR Liberia LS Lesotho LT Lithuania LU Luxembourg LV Latvia LY Libyan Arab Jamahiriya MA Morocco MC Monaco MD Moldova, Republic of MG Madagascar MH Marshall Islands ML Mali MM Myanmar MN Mongolia MO Macau MP Northern Mariana Islands MQ Martinique MR Mauritania MS Montserrat MT Malta MU Mauritius MV Maldives MW Malawi MX Mexico MY Malaysia MZ Mozambique NA Namibia NC New Caledonia NE Niger NF Norfolk Island NG Nigeria NI Nicaragua NL Netherlands NO Norway

44

NP Nepal NR Nauru NU Niue NZ New Zealand OM Oman PA Panama PE Peru PF French Polynesia PG Papua New Guinea PH Philippines PK Pakistan PL Poland PM Saint Pierre and Miquelon PN Pitcairn PR Puerto Rico PT Portugal PW Palau PY Paraguay QA Qatar RE Réunion RO Romania RU Russian Federation RW Rwanda SA Saudi Arabia SB Solomon Islands SC Seychelles SD Sudan

SE Sweden SG Singapore SH Saint Helena SI Slovenia SJ Svalbard and Jan Mayen SK Slovakia SL Sierra Leone SM San Marino SN Senegal SO Somalia SR Suriname ST Sao Tome and Principe SV El Salvador SY Syrian Arab Republic SZ Swaziland TC Turks and Caicos Islands TD Chad TF French Southern Territories TG Togo TH Thailand TJ Tajikistan TK Tokelau TM Turkmenistan TN Tunisia TO Tonga TP East Timor TR Turkey

TT Trinidad and Tobago TV Tuvalu TW Taiwan TZ Tanzania, United Republic of UA Ukraine UG Uganda UM United States Minor Outlying

Islands

US United States UY Uruguay UZ Uzbekistan VA Vatican City State (Holy See) VC Saint Vincent and the Grenadines VE Venezuela VG Virgin Islands (British) VI Virgin Islands (U.S.) VN Vietnam VU Vanuatu WF Wallis and Futuna Islands WS Samoa YE Yemen YT Mayotte YU Yugoslavia ZA South Africa ZM Zambia ZR Zaire ZW Zimbabwe

English

DVD OPTICAL DIGITAL OUT Signals

DIGITAL AUDIO

OUTPUT Playback disc STREAM/PCM DOLBY DIGITAL/PCM PCM ONLY DVD Video

with 48 kHz, 16/20/24 bit Linear PCM

with 96 kHz, Linear PCM 48 kHz, 16 bit Linear PCM

with Dolby Digital Dolby Digital bitstream 48 kHz, 16 bit Linear PCM

with DTS DTS bitstream 48 kHz, 16 bit Linear PCM

DVD Audio

with 48/96/192 kHz, 16/20/24 bit Linear PCM

with 44.1/88.2/176.4 kHz, 16/20/24 bit Linear PCM

with Dolby Digital Dolby Digital bitstream 48 kHz, 16 bit Linear PCM

with DTS DTS bitstream 48 kHz, 16 bit Linear PCM

SVCD, VCD, CD 44.1 kHz, 16 bit Linear PCM/48 kHz, 16 bit Linear PCM CD with DTS DTS bitstream 44.1 kHz, 16 bit Linear PCM MP3/WMA disc 32 kHz/44.1 kHz/48 kHz, 16 bit Linear PCM

* While playing some DVDs, digital signals may be emitted at 20 bits or 24 bits (at their original bit rate) through the DVD

OPTICAL DIGITAL OUT terminal if the discs are not copy-protected.

Output Signals

48 kHz, 16 bit Linear PCM*

48 kHz, 16 bit Linear PCM

44.1 kHz, 16 bit Linear PCM

45

English

Specifications

Parts Index

Amplifier section

Output Power:

40 W (20 W + 20 W) at 4 Ω (10% THD) Audio Input AUX: 400 mV/50 k Digital output: DVD OPTICAL DIGITAL OUT:

–21 dBm to –15 dBm (660 nm ±30 nm) Video output: Color system: NTSC/PAL selectable VIDEO (composite): 1 V(p-p)/75 S-VIDEO: Y (luminance) 1 V(p-p)/75

C (chrominance, burst) 0.286 V(p-p)/75

COMPONENT: (Y) 1 V(p-p)/75

) 0.7 V(p-p)/75

B/PR

(P

Speakers/Impedance: 4 Ω – 16

Tuner section

FM tuning range: 87.50 MHz – 108.00 MHz AM (MW) tuning range:

531 kHz – 1 602 kHz (at 9 kHz intervals)

530 kHz – 1 600 kHz (at 10 kHz intervals)

Tape section

Frequency response: 60 Hz – 14 000 Hz Wow and flutter: 0.15% (WRMS)

Disc player section

Playable disc: DVD Video/DVD Audio

CD/VCD/SVCD CD-R/CD-RW (CD/SVCD/VCD/MP3/ WMA/JPEG format)

DVD-R/DVD-RW (Video format) Dynamic range: 90 dB Horizontal resolution: 500 lines Wow and flutter: Immeasurable

Speakers

Speaker units: Full-range: 10 cm cone x 1 Impedance: 4 Dimensions (approx.): 145 mm x 230 mm x 191 mm

(W/H/D)

Mass (approx.): 1.8 kg each

Supplied Accessories

See page 3.

General

Power requirement:AC 110 V/AC 127 V/AC 220 V/

AC 230 V – AC 240 V (adjustable with the voltage selector), 50 Hz/60 Hz

Power consumption: 65 W (at operation)

4.1 W (on standby)

Dimensions (approx.): 170 mm x 230 mm x 311 mm

(W/H/D)

Mass (approx.): 4.8 kg

Refer to the pages to see how to use the buttons and controls.

Ω

Ω Ω Ω Ω Ω Ω

Remote control

11, 12, 14, 16, 18–21,

26, 37

10, 13, 22, 28

9, 17

14

11, 16–20,

23

20

Main unit

SUB TITLE

AUDIO ANGLE

1

ZOOM

4

REV. MODE

7

10 0

TOP MENU

ON SCREEN

DVD/CD

GROUP/TITLE

DISPLAY

RM-SUXP450U REMOTE CONTROL

2

DVD LEVEL

5

8

PROGRESSIVE

ENTER

TAPE

3D

PHONIC

3

VFP

6

FM MODE

9

10

REPEAT A-B

REPEAT

SLOW

BASS/

TREBLE

DIMMER

FADE

MUTING

RETURN

SET UP

–

STANDBY/ON

SLEEP

A.STANDBY

CLOCK/

TIMER

SET

MENU

CANCEL

PLAY

MODE

SLOW

RHYTHM AX

VOLUME

+

10

17

17, 31

14, 20, 25–31, 33

11, 13, 20–23, 28

15

10, 15

16

15

Ω

8

Remote

sensor

10, 11

10–13,

22, 28

30

11, 13

STANDBY/ON

DVD/CD

REC

3D

RHYTHM AX

PHONIC

FM/AM AUX

TAPE

DOWN

VOLUME

UP

PHONES

12

14

15

10, 15

13, 23

10

46

Mains (AC) Line Instruction (not applicable for Europe, U.S.A., Canada, Australia, and U.K.)

PUSH OPEN

E

S

R

E

V

E

R

O

T

AU

VIDEO OUT

VIDEO

S-VIDEO

OUT

SELECT

PAL NTSC

Y

P

B

P

R

CAUTION for mains (AC) line

BEFORE PLUGGING IN, do check that your mains (AC) line voltage corresponds with the position of the voltage selector switch provided on the outside of this equipment and, if different, reset the voltage selector switch, to prevent from a damage or risk of fire/electric shock.

VICTOR COMPANY OF JAPAN, LIMITED

EN, AR, PE

0604AIMMDWJEM

JVC UX-P450 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Introduction

Getting Started

Before Operating the System

Daily Operations—Sound & Other Adjustments

Unique DVD/VCD Operations

Advanced Disc Operations

On-Screen Disc Operations

Advanced Tape Operations

Timer Operations

Setup Menu Operations

Additional Information

Warnings, Cautions and Others

IMPORTANT FOR LASER PRODUCTS

Contents

Introduction

Getting Started

Before Operating the System

Daily Operations—Sound & Other Adjustments

Unique DVD/VCD Operations

Advanced Disc Operations

On-Screen Disc Operations

Advanced Tape Operations

Timer Operations

Setup Menu Operations

Additional Information
