Thank you for purchasing this JVC colour video monitor. Before using it, read and follow
all instructions carefully to take full advantage of the monitor’s capabilities.
SAFETY PRECAUTIONS
In order to prevent any fatal accidents caused by misoperation
or mishandling the monitor, be fully aware of all the following
precautions.
WARNINGS
To prevent fire or shock hazard, do not expose this
monitor to rain or moisture. Dangerous high voltages
are present inside the unit. Do not remove the back
cover of the cabinet. When servicing the monitor,
consult qualified service personnel. Never try to service
it yourself.
WARNING : THIS APPARATUS
MUST BE EARTHED.
PRECAUTIONS
● Use only the power source specified on the unit.
● When not using this unit for a long period of time, or when
cleaning it, be sure to disconnect the power plug from the
AC outlet.
● Do not allow anything to rest on the power cord. And do not
place this unit where people will tread on the cord. Do not
overload wall outlets or power cords as this can result in a
fire or electric shock.
● Avoid using this unit under the following conditions:
– in extremely hot, cold or humid places,
– in dusty places,
– near appliances generating strong magnetic fields,
– in places subject to direct sunlight,
– in badly ventilated places,
– in automobiles with doors closed
● Do not cover the ventilation slots while in operation as this
could obstruct the required ventilation flow.
● When dust accumulates on the screen surface, clean it with
a soft cloth.
● Unplug this unit from the AC outlet and refer servicing to
qualified service personnel under the following conditions:
Machine Noise Information Ordinance 3. GSGV, January
18, 1991: The sound pressure level at the operator
position is equal or less than 70 dB(A) according to ISO
7779.
– when the power cord is frayed or the plug is damaged,
– if liquid has been spilled into the unit,
– if the unit has been dropped or the cabinet has been
damaged,
– when the unit exhibits a distinct change in performance.
● Do not attempt to service this unit yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Always refer servicing to qualified service
personnel.
● When replacement parts are required, have the service
personnel verify in writing that the replacement parts he/she
uses have the same safety characteristics as the original
parts. Use of manufacturer’s specified replacement parts
can prevent fire, shock, or other hazards.
● Upon completion of any servicing or repair work to this unit,
please ask the service personnel to perform the safety check
described in the manufacturer’s service literature.
● When this unit reaches the end of its useful life, improper
disposal could result in a picture tube implosion. Ask
qualified service personnel to dispose of this unit.
SCREEN BURN
● It is not recommended to keep a certain still image displayed on screen for a long time as well as displaying extremely bright
images on screen. This may cause a burning (sticking) phenomenon on the screen of cathode-ray tube. This problem does not
occur as far as displaying normal video playback motion images.
2
LCT0054-002A-H 02.07.25, 3:44 PM2
POWER CONNECTION
WARNING
Do not cut off the main plug from this equipment.
If the plug fitted is not suitable for the power points in your
home or the cable is too short to reach a power point, then
obtain an appropriate safety approved extension lead or
adapter or consult your dealer.
If nonetheless the mains plug is cut off, remove the fuse and
dispose of the plug immediately, to avoid a possible shock
hazard by inadvertent connection to the main supply.
The wire which is coloured green-and-yellow must be connected
to the terminal which is marked with the letter E or the safety
earth symbol ˙ or coloured green or green-and-yellow.
The wire which is coloured blue must be connected to the
terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the
terminal which is marked with the letter L or coloured red.
If a new main plug has to be fitted, then follow the instruction
given below:
WARNING:
THIS APPARATUS MUST BE EARTHED.
IMPORTANT.
The wires in the mains lead on this product are coloured in
accordance with the following cord:
Green-and-yellow : Earth
Blue : Neutral
Brown : Live
As these colours may not correspond with the coloured
making identifying the terminals in your plug, proceed as
follows:
CONTENTS
When replacing the fuse, be sure to use only a correctly rated
approved type, re-fit the fuse cover.
IF IN DOUBT —— CONSULT A COMPETENT ELECTRI-
CIAN.
How To Replace The Fuse
Open the fuse compartment with the blade screwdriver, and
replace the fuse.
Fuse
SAFETY PRECAUTIONS .......................................................................................... 2
CONTROLS AND FEATURES ................................................................................... 4
HOW TO HANDLE BASIC OPERATIONS ................................................................ 6
HOW TO USE THE MENU FUNCTIONS ................................................................... 7
HOW TO INITIALISE THE SETTING ....................................................................... 10
BASIC CONNECTION EXAMPLE ............................................................................ 11
TROUBLESHOOTING ............................................................................................. 13
SPECIFICATIONS .................................................................................................... 14
LCT0054-002A-H 02.07.25, 3:44 PM3
3
TM-2100PN-K
PHASE CHROMA BRIGHT CONTRAST MENU
INPUT SELECT
VOLUME/SELECT
–+
BA
POWER
ON
OFF
Y/ C VIDEO VIDEO
1 3
2 4 6 8
5 7 9 11
12 13 14
10
TM-2100PN-K
PHASE CHROMA BRIGHT
CONTRAST
MENU
INPUT SELECT
VOLUME/SELECT
– +
BA
POWER
ON
OFF
Y/ C VIDEO VIDEO
15
CONTROLS AND FEATURES
FRONT VIEW
<Front Panel>
1 Phase button [PHASE ]
Press this button to set the picture hue adjustment mode.
Adjust the value with the VOLUME/SELECT buttons. Also
used as a control button in the menu function mode.
2 Chroma button [CHROMA ]
Press this button to set the picture colour density adjustment mode. Adjust the value with the VOLUME/SELECT
buttons. Also used as a control button in the menu
function mode.
3 Brightness button [BRIGHT ]
Press this button to adjust picture brightness. Adjust the
value with the VOLUME/SELECT buttons. Also used as a
control button in the menu function mode.
4 Contrast button [CONTRAST ]
Press this button to adjust picture contrast. Adjust the
value with the VOLUME/SELECT buttons. Also used as a
control button in the menu function mode.
5 Menu button [MENU]
Displays and exits the <MENU> screen.
Pressing the PHASE button with the Menu button
depressed will display the <SET-UP MENU> screen.
6 Volume/Select buttons [VOLUME/
SELECT – +]
Adjusts the speaker volume. Also used as a control button
in the menu function mode.
9 Input A (VIDEO) button [INPUT SELECT A
VIDEO ]
Selects the video signal input to the VIDEO A terminal
(BNC connector) and the audio signal input to the AUDIO
A terminal (RCA connector) on the rear panel. When
selected, the input A (VIDEO) indicator
$ lights.
10 Power indicator
Lights in green when the power is ON.
Lit : When the power is on.
Unlit : When the power is off.
11 Power switch [POWER ]
Press this switch to turn the power on or off.
_ ON : Power is turned on.
— OFF : Power is turned off.
12 Input B (Y/C) indicator
Lights in green when the Input B (Y/C) is selected.
13 Input B (VIDEO) indicator
Lights in green when the Input B (VIDEO) is selected.
14 Input A (VIDEO) indicator
Lights in green when the Input A (VIDEO) is selected.
15 Speaker
A built-in speaker is located inside the right side panel
when the monitor is viewed from the front.
7 Input B (Y/C) button [INPUT SELECT B Y/C ]
Selects the video signal input to the VIDEO B (Y/C)
terminal (mini DIN 4 pin connector) and the audio signal
input to the AUDIO B terminal (RCA connector) on the
rear panel. When selected, the input B (Y/C) indicator
lights.
8 Input B (VIDEO) button [INPUT SELECT B
VIDEO ]
Selects the video signal input to the VIDEO B terminal
(BNC connector) and the audio signal input to the AUDIO
B terminal (RCA connector) on the rear panel. When
selected, the input B (VIDEO) indicator
4
LCT0054-002A-H 02.07.25, 3:44 PM4
# lights.
@
OUTIN
A
B
VIDEO
A
B
AUDIO
REMOTE
OUTIN
OUT
IN
OUT
IN
IN
OUT
Y/ C
OUT
IN
22
23
OUTIN
A
B
VIDEO
A
B
AUDIO
REMOTE
OUTIN
OUT
IN
OUT
IN
IN
OUT
Y/ C
OUT
IN
16
17
18
19
20
21
REAR VIEW
<Rear Panel>
To AC outlet
(230 V AC, 50 Hz/60 Hz)
16 Video A terminals [VIDEO A IN/OUT]
Video signal input (IN) and output (OUT) terminals.
The output terminal is bridge-connected.
IN : Video signal input terminal
OUT : Bridge-connected video signal output terminal
Notes:
* For corresponding audio signals, use the AUDIO A
terminals
* Also refer to the BASIC CONNECTION EXAMPLE on
pages 11 and 12.
(.
17 Video B terminals [VIDEO B IN/OUT]
Video signal input (IN) and output (OUT) terminals.
The output terminal is bridge-connected.
IN : Video signal input terminal
OUT : Bridge-connected video signal output terminal
Notes:
* For corresponding audio signals, use the AUDIO B
terminals
* Also refer to the BASIC CONNECTION EXAMPLE on
pages 11 and 12.
).
18 Video B (Y/C) terminals [VIDEO B Y/C IN/
OUT]
Y/C (S-Video) signal input (IN) and output (OUT) terminals.
The output terminal is bridge-connected.
IN : Y/C-separated (S-video) signal input terminal
OUT : Bridge-connected Y/C-separated (S-video) signal
output terminal
Notes:
* For corresponding audio signals, use the AUDIO B
terminals
* Also refer to the BASIC CONNECTION EXAMPLE on
pages 11 and 12.
).
19 Audio A terminal [AUDIO A IN/OUT]
Input (IN) and output (OUT) terminals for the audio signal
corresponding the VIDEO A terminals
terminal is bridge-connected.
IN : Audio signal input terminal
^. The output
Notes:
* For corresponding video signals, use the VIDEO A
terminal
^.
* Also refer to the BASIC CONNECTION EXAMPLE on
pages 11 and 12.
20 Audio B terminals [AUDIO B IN/OUT]
Input (IN) and output (OUT) terminals for the audio signals
corresponding to the VIDEO B terminals
C) terminals
*. The output terminal is bridge-connected.
& or VIDEO B (Y/
IN : Audio signal input terminal
OUT : Bridge-connected audio signal output terminal
Notes:
* For corresponding video signals, use the VIDEO B
terminals
* Also refer to the BASIC CONNECTION EXAMPLE on
pages 11 and 12.
& or VIDEO B (Y/C) terminals *.
21 Remote terminals [REMOTE IN/OUT]
Input (IN) and output (OUT) terminals for external control.
The output terminal is bridge-connected. External control
is available either to select the ASPECT RATIO or to
select ON or OFF in BRIGHTNESS P.S. function mode.
Set the external control in the <SET-UP MENU> screen
mode.
External control
functions
External control switch
Open circuit Short circuit
(open) (short)
ASPECT RATIO 4–3 (4:3) 16–9 (16:9)
BRIGHTNESS P.S. OFF ON
Note:
* Also refer to the BASIC CONNECTION EXAMPLE on
pages 11 and 12.
22 AC Inlet [AC IN]
Power input connector. Connect the provided AC power
q to an AC outlet (230 V AC, 50 Hz/60 Hz).
cord
23 Power cord
Connects the provided power cord (230 V AC, 50 Hz/
60 Hz) to the AC IN connector.
OUT : Bridge-connected audio signal output terminal
LCT0054-002A-H 02.07.25, 3:44 PM5
5
PHASE CHROMA BRIGHT CONTRAST
INPUT SELECT
B
A
Y/ C VIDEO VIDEO
+
–

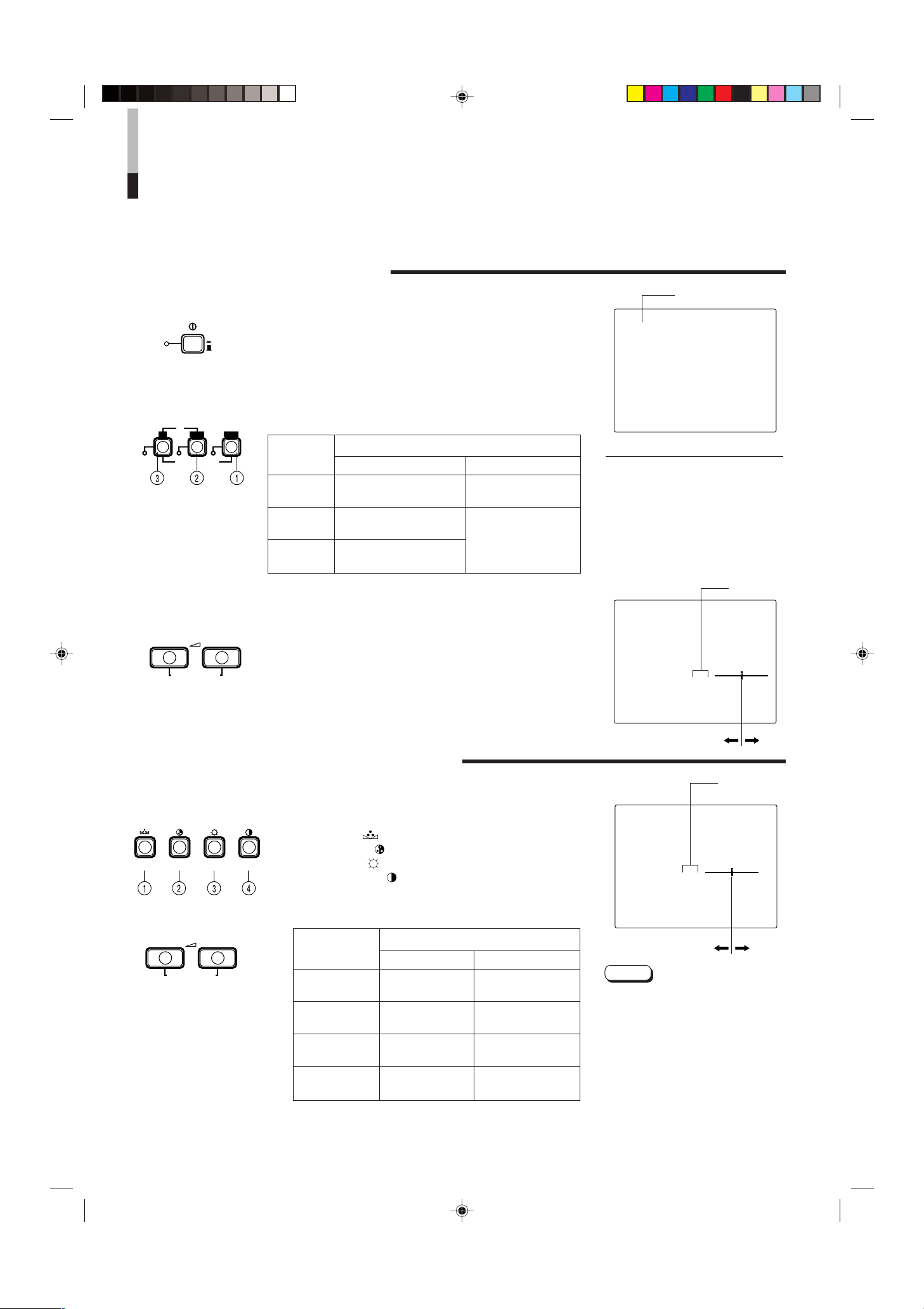

HOW TO HANDLE BASIC
VOLUME/SELECT
– +
+
–
VOLUME/SELECT
– +
POWER
ON
OFF
OPERATIONS
BASIC OPERATION
1. Press the POWER switch to turn on the power.
_ON : Power turns ON. (Power indicator: lit)
—OFF : Power turns OFF. (Power indicator: unlit)
2. Press the INPUT SELECT button to choose input.
Selects video/audio signals input to terminals on the rear
panel.
INPUT
SELECT
button
1 Input A
(VIDEO)
2 Input B
(VIDEO)
3 Input B
(Y/C)
3. Press the VOLUME/SELECT buttons to adjust the
speaker volume.
Press this button to display the speaker volume level on the
screen.
+ : The Built-in speaker volume is increased. (00 = 50)
– : The Built-in speaker volume is decreased. (50 = 00)
* Screen indication will disappear about 10 seconds after
operating.
Terminals on the rear panel
Video signal input Audio signal input
VIDEO A terminal AUDIO A terminal
VIDEO B terminal
AUDIO B terminal
VIDEO B (Y/C) terminal
Colour system indication
(PAL or NTSC)
PAL
With regard to Colour system indication
● With the COLOR SYSTEM setting set
to AUTO mode, when you turn on the
power or select inputs, the colour
system indication appears for about 3
seconds on the screen while PAL or
NTSC signals are being detected.
It does not appear when receiving B/
W signal or when no signal is input.
See page 7 for COLOR SYSTEM
setting.
VOLUME : 20
00 ~ 50
PICTURE ADJUSTMENT
1. Press select button corresponding to the item you
want to adjust.
2. Adjust with the VOLUME/SELECT buttons.
The item you select is displayed on the screen.
1 PHASE ( ) : Phase control
2 CHROMA ( ) : Chroma control
3 BRIGHT ( ) : Brightness control
4 CONTRAST ( ) : Contrast control
VOLUME/SELECT button
Items
PHASE
(Phase)
CHROMA
(Chroma)
BRIGHT
(Brightness)
CONTRAST
(Contrast)
* Screen indication will disappear about 10 seconds
after operating.
– +
reddish greenish
lighter deeper
darker brighter
lower higher
–20 ~ +20
PHASE : 00
Notes:
● Phase control is effective only in the
NTSC colour system mode.
● Chroma control is not effective when
receiving B/W or when no signal is
input.
● When the Chroma control is set to
level “ –20”, the picture turns
monochrome.
● “ NO EFFECT” is displayed (For
about 3 seconds) when your selected
function has no effect.
6
LCT0054-002A-H 02.07.25, 3:44 PM6
PHASE CHROMA BRIGHT CONTRAST MENU VOLUME/SELECT
– +
EXIT
6500 9300
AUTO NTSC AUTO PAL
4 – 3 16 – 9
OFF ON
00 +1 +2 +3 +4 +5
HOW TO USE THE MENU FUNCTIONS
MENU
PHASE CHROMA
SHARPNESS
COLOR TEMP.
COLOR SYSTEM
ASPECT RATIO
BRIGHTNESS P.S.
VOLUME/SELECT
– +
MENU
DISPLAY AND SELECTION IN THE <MENU>
SCREEN MODE (SETTING)
You can set the following menu items.
Set them depending on your needs.
• SHARPNESS • ASPECT RATIO
• COLOR TEMP. • BRIGHTNESS P.S.
• COLOR SYSTEM
1. Press the MENU button.
The <MENU> screen is displayed.
2. Press the PHASE ( ) or CHROMA ( ) button
to select MENU items.
A selection mark (3) is put next to the selected item.
<MENU> screen
1
< MENU >
‰ SHARPNESS : 00
COLOR TEMP. : 6500
COLOR SYSTEM : AUTO
ASPECT RATIO : 4–3
BRIGHTNESS P.S. : OFF
2
3
4
Front panel Function
button displayed
Contents
PHASE ( ) ▼ Forwards selection mark (3)
CHROMA ( ) 5 Reverses selection mark (3)
3. Press the VOLUME/SELECT buttons to set.
Front panel Function
button displayed
VOLUME/
SELECT (+)
VOLUME/
SELECT (–)
+ Increases (to max. value)
3 Forwards the setting value
– Decreases (to min. value)
2 Reverses the setting value
Menu items Purpose Setting range
SHARPNESS Picture sharpness
COLOR TEMP.
COLOR
SYSTEM
Colour temperature of
white balance
Colour system
ASPECT RATIO Aspect ratio
BRIGHTNESS Brightness Peak
P.S. Suppressor function
* Normally set the COLOR SYSTEM to the AUTO mode. If reception in the AUTO mode is not good,
set it to the exclusive mode (NTSC or PAL) corresponding to the received colour system.
Contents
4. If you want to set the other menu items, repeat
procedures 2 and 3.
5. Press the MENU button to quit.
Front panel Function
button displayed
MENU EXIT
Quits (or Releases) the
<MENU> screen
Contents
<Front panel button>
1 Selection mark (
menu item you select.
33
3): Indicates the
33
2 Menu item: Menu items you can
select.
3 Setting display: Indicates the
current settings (value).
4 Function display: The functions of
the front panel buttons (7 buttons on
the left.) correspond to the function
displayed.
Function
displayed
▼ Forwards the menu item
5 Reverses the menu item
– Lowers the adjustment
+ Raises the adjustment
3 Forwards the setting value
2 Reverses the setting value
EXIT Exits the <MENU> screen
Notes:
● BRIGHTNESS P.S. (or B.P.S.) stands for
Brightness Peak Suppressor. This function
is used to suppress (cut) the white peak
portion of the picture, so as to reduce the
picture’s burning on the screen (cathode
ray tube).
● When the BRIGHTNESS P.S. (or B.P.S.)
function is ON, the suppressed white peak
portion (for example, the lit part of a
fluorescent lamp) seems to be blurred.
If required, lower the setting for the B.P.S.
LEVEL in the <SET- UP MENU> screen
mode, or turn off the BRIGHTNESS P.S.
function.
● When the screen aspect ratio is set to 16-9
(16:9) the picture will be vertically reduced.
● If REMOTE is displayed in the ASPECT
RATIO or BRIGHTNESS P.S. setting values
in the <MENU> screen, REMOTE SELECT
is set to “ASPT” or “B.P.S.” in the <SET-UP
MENU> screen. In this case, it is not
possible to adjust the setting ranges for
ASPECT RATIO and BRIGHTNESS P.S.
If you need to make adjustments, use the
external control function or turn off the
REMOTE SELECT setting.
Contens
value (to the minimum)
value (to the maximum)
LCT0054-002A-H 02.07.25, 3:44 PM7
7
PHASE CHROMA BRIGHT CONTRAST MENU VOLUME/SELECT
– +
EXIT
HOW TO USE THE MENU
MENUPHASE
H. POSITION
V. POSITION
WHITE BALANCE
CONTROL LOCK
B.P.S. LEVEL
REMOTE SELECT
VOLUME/SELECT
– +
PHASE CHROMA
FUNCTIONS
(cont’d)
DISPLAY AND SELECTIONS IN THE <SET-UP
MENU> MODE (SETTING)
You can set the following set-up menu items.
● H. POSITION ● WHITE BALANCE ● B.P.S. LEVEL
● V. POSITION ● CONTROL LOCK ● REMOTE SELECT
Notes:
● Parameters for H. POSITION and V. POSITION can be set separately depending on
the video input (Input A (VIDEO), Input B (VIDEO) or Input B (Y/C)) selected by the
input select buttons on the front panel.
Select the required video input with the input select buttons on the front panel in
advance.
● WHITE BALANCE can be set individually at 6500 or 9300 for the colour temperature
value.
Set COLOR TEMP. to the value 6500 or 9300 in the <MENU> screen in advance.
1. While pressing the MENU button, press the
PHASE (
) button.
The <SET-UP MENU> screen is displayed.
2. Press the PHASE ( ) or CHROMA ( ) button
to select the desired menu item.
A selection mark (3) is put next to the selected item.
Front panel Function
button displayed
PHASE ( ) ▼ Forwards selection mark (3)
CHROMA ( ) 5 Reverses selection mark (3)
Contents
3. Press the VOLUME/SELECT buttons to set.
Front panel Function
button displayed
+ Increases (to max. value)
VOLUME/
SELECT (+)
VOLUME/
SELECT (–)
3 Forwards the setting value
CUTO Selects CUT OFF setting
screen
– Decreases (to min. value)
2 Reverses the setting value
DRV Selects DRIVE setting screen
Note:
Contents
<SET-UP MENU> screen
1
<SET–UP MENU>
‰ H. POSITION : 00
V. POSITION : 00
WHITE BALANCE
CONTROL LOCK : OFF
B. P. S. LEVEL : 10
REMOTE SELECT : OFF
2
<Front panel button>
1 Selection mark (
menu item you select.
33
3): Indicates the
33
2 Menu item: Menu items you can
select.
3 Setting display: Indicates the
current settings (value).
4 Function display: The functions of
the front panel buttons (7 buttons on
the left.) correspond to the function
displayed.
Function
displayed
▼ Forwards the menu item
5 Reverses the menu item
– Lowers the adjustment
+ Raises the adjustment
3 Forwards the setting value
2 Reverses the setting value
EXIT
DRV Selects DRV adjustment
CUTO
R Adjusts red signal level
G Adjusts green signal level
B Adjusts blue signal level
DISP
Contens
value (to the minimum)
value (to the maximum)
Exits the <SET-UP MENU>
screen (release)
Selects CUT OFF
adjustment
Turns the ON-SCREEN
display on or off. (This
function is effective only in
the DRIVE or CUT OFF
adjustment mode.)
3
4
8
LCT0054-002A-H 02.07.25, 3:45 PM8
● For the WHITE BALANCE setting, select the CUT OFF or
DRIVE setting screen, then select the buttons (PHASE/
CHROMA/BRIGHT) corresponding to the function indicated
(R/G/B).
Set-up menu items Purpose Settings
–09 –08 • • • • • • –01 00 +01 • • • • • • +08 +09
–09 –08 • • • • • • –01 00 +01 • • • • • • +08 +09
–09 –08 • • • • • • –01 00 +01 • • • • • • +08 +09
–09 –08 • • • • • • –01 00 +01 • • • • • • +08 +09
–09 –08 • • • • • • –01 00 +01 • • • • • • +08 +09
–09 –08 • • • • • • –01 00 +01 • • • • • • +08 +09
–09 –08 • • • • • • –01 00 +01 • • • • • • +08 +09
–09 –08 • • • • • • –01 00 +01 • • • • • • +08 +09
OFF ON
00 01 • • • • • • • 09 10 11 • • • • • • • 19 20
OFF ASPT OFF B.P.S.
MENU
H. POSITION Adjusts the horizontal position of
the screen (+ : Horizontal position
shifts to the right/–: Horizontal
position shifts to the left)
V. POSITION Adjusts the vertical position on the
screen (+: Vertical position moves
down/–: Vertical position moves up)
WHITE BALANCE Adjusts the white balance Selects DRIVE (DRV) or CUT OFF (CUTO) adjustment.
Screen setting is changed to the selected setting mode.
Select R/G/B buttons corresponding to the function display
to adjust.
DRIVE R.DRIVE Adjusts red level
G.DRIVE Adjusts green level
B.DRIVE Adjusts blue level
CUT OFF R. CUT OFF Adjusts red cut off
G. CUT OFF Adjusts green cut off
B. CUT OFF Adjusts blue cut off
CONTROL LOCK Sets the operation buttons on the
front panel to control lock mode
B. P. S. LEVEL Sets the level for Brightness Peak
Suppressor function
REMOTE SELECT Sets the external control function
(ASPECT RATIO or BRIGHTNESS
P.S.)
* ASPT : ASPECT RATIO
B.P.S.: BRIGHTNESS P.S.
4. To set the other set-up menu items, repeat the
procedures 2 and 3.
5. Press the MENU button to quit.
Front panel Function
button displayed
MENU EXIT
Quits (or Releases) the
<MENU> screen
Contents
Notes:
● When the CONTROL LOCK function
is set to ON, pressing operation
buttons on the front panel will display
the message “CONTROL LOCK ON!”
on the screen for about 3 seconds.
● The CONTROL LOCK function is
maintained even when the power is
turned off.
● To turn off the CONTROL LOCK
function, while holding the MENU
button press the PHASE button. Then
set the CONTROL LOCK function to
OFF.
● Even when the CONTROL LOCK
function is set to ON, the following
operations are available:
– Power Switch operation.
– Sound volume adjustment with the
VOLUME/SELECT button.
– Display or exit of the <SET-UP
MENU> screen.
– External control of ASPECT RATIO
or BRIGHTNESS P.S. when
REMOTE SELECT is set to ON .
LCT0054-002A-H 02.07.25, 3:45 PM9
9
HOW TO INITIALISE THE
PHASE MENU
POWER
ON
OFF
CONTRAST
VOLUME/SELECT
– +
POWER
ON
OFF
SETTING
SCREEN DISPLAY AND SELECTIONS IN THE
<SET-UP MENU> RESET MODE
You can set <MENU> and <SET-UP MENU> screen items, picture adjustment items and
the volume level to their factory-set (initial) values.
1. Press the Power ( ) Switch to turn the power
OFF (
—
).
2. While pressing both MENU button and PHASE ( )
button, press the Power ( ) switch to turn the power
_
ON (
).
The <SET-UP MENU> RESET screen is displayed.
Note:
● The <SET-UP MENU> PRESET screen will not be
displayed if the MENU or PHASE buttons are pressed
for a very short time. Keep pressing them until the
display screen appears.
3. Setting
Initialisation is required.
Press the CONTRAST (
* Initialisation is completed, and the <SET-UP MENU>
RESET screen disappears.
) button.
<SET-UP MENU> RESET screen
<SET–UP MENU> RESET
Are you sure ?
“Yes ” then <CONTRAST>
“No” then <+> or <–>
Initial settings
Functions (Items)
Sorts
SHARPNESS 00
COLOR TEMP. 6500
COLOR SYSTEM
ASPECT RATIO 4–3
BRIGHTNESS P.S. OFF
<MENU> screen
H. POSITION 00
V. POSITION 00
WHITE BALANCE
R. CUT OFF 00
G. CUT OFF 00
B. CUT OFF 00
R. DRIVE 00
G. DRIVE 00
B. DRIVE 00
CONTROL LOCK OFF
<SET-UP MENU> screen
B.P.S. LEVEL 10
REMOTE SELECT OFF
Initialisation
(setting)
AUTO
10
Initialisation is not required.
Press the VOLUME/SELECT [+] or [–] button.
* Initialisation is aborted, and the <SET-UP MENU>
RESET screen disappears.
PHASE 00
CHROMA 00
CONTRAST 00
BRIGHT 00
Picture adjustment
VOLUME 20
Volume
LCT0054-002A-H 02.07.25, 3:45 PM10
Video Monitor
TM-2100PN-K
<second one>
VCR
REMOTE
(Remote cable)
VCR
Video Monitor
Video Camera
(Audio signal cable)
Audio
Video
(Video signal cable)
: Signal Flow
Audio
Video
(Video signal cable)
(Audio signal cable)
REMOTE
(Remote cable)
OUTIN
A
B
VIDEO
A
B
AUDIO
REMOTE
OUTIN
OUT
IN
OUT
IN
IN
OUT
Y/ C
OUT
IN
TM-2100PN
PHASECHROMA BRIGHTCONTRAST MENU
INPUT SELECT
VOLUME/SELECT
– +
BA
POWER
_ON
—OFF
Y/ C VIDEO VIDEO
BASIC CONNECTION EXAMPLE
Notes:
* Before connecting your system, make sure that all units are turned off.
* The illustration below shows some examples of different connections. Terminal connections may differ depending on the
component connected. Be sure to refer to the instructions provided with the unit(s) you are connecting.
* Each pair of input (IN) and output (OUT) terminals are bridge-connected.
* If you’re not connecting any equipment to a bridged output (OUT) terminal, be sure not to connect any other cables to the
bridged output (OUT) terminal as this will cause the terminating resistance switch to open (auto terminate function).
* When making a bridge connection, connect the input (IN) and output (OUT) terminals on the monitor to separate video
components.
(For example, if both terminals are connected to the same VCR, resonance may occur except during playback. This is caused by
the same video signal “looping” between the VCRs, and is not a malfunction.)
* Select the video input (Input A (VIDEO), Input B (Y/C) or Input B (VIDEO)) with the INPUT SELECT button on the front panel.
* The ASPECT RATIO or BRIGHTNESS P.S. function can be controlled via the REMOTE terminal. To do this, set REMOTE
SELECT in the <SET-UP MENU> mode. (Refer to pages 8 and 9.)
7 VIDEO A Connection Example
(Select Input A (VIDEO) button)
External control switch
open circuit (open)
External control switch
External control
functions
ASPECT RATIO 4–3 (4:3) 16–9 (16:9)
BRIGHTNESS P.S.
Open circuit Short circuit
short circuit (short)
RCA pin
(open) (short)
OFF ON
LCT0054-002A-H 02.07.25, 3:45 PM11
11
Video Monitor
TM-2100PN-K
<second one>
VCR
VCR
Video Monitor
Video Camera
(Audio signal cable)
Audio
: Signal Flow
Audio
(Audio signal cable)
REMOTE
(Remote cable)
OUTIN
A
B
VIDEO
A
B
AUDIO
REMOTE
OUTIN
OUT
IN
OUT
IN
IN
OUT
Y/ C
OUT
IN
Y/C (S-video)
(Y/C (S-video) signal cable)
Y/C (S-video)
(Y/C (S-video) signal cable)
REMOTE
(Remote cable)
TM-2100PN
PHASECHROMA BRIGHTCONTRAST MENU
INPUT SELECT
VOLUME/SELECT
– +
BA
POWER
_ON
—OFF
Y/ C VIDEO VIDEO
Video Monitor
TM-2100PN-K
<second one>
VCR
VCR
Video Monitor
Video Camera
(Audio signal cable)
Audio
: Signal Flow
Audio
Video
(Video signal cable)
(Audio signal cable)
REMOTE
(Remote cable)
OUTIN
A
B
VIDEO
A
B
AUDIO
REMOTE
OUTIN
OUT
IN
OUT
IN
IN
OUT
Y/ C
OUT
IN
Video
(Video signal cable)
REMOTE
(Remote cable)
TM-2100PN
PHASECHROMA BRIGHTCONTRAST MENU
INPUT SELECT
VOLUME/SELECT
– +
BA
POWER
_ON
—OFF
Y/ C VIDEO VIDEO
BASIC CONNECTION EXAMPLE
(cont’d)
7 VIDEO B (VIDEO) Connection Example
(Select Input B (VIDEO) button)
External control switch
open circuit (open)
RCA pin
short circuit (short)
External control switch
External control
functions
Open circuit Short circuit
(open) (short)
ASPECT RATIO 4–3 (4:3) 16–9 (16:9)
BRIGHTNESS P.S.
OFF ON
7 VIDEO B (Y/C) Connection Example
(Select Input B (Y/C) button)
External control switch
open circuit (open)
short circuit (short)
External control switch
External control
functions
Open circuit Short circuit
(open) (short)
ASPECT RATIO 4–3 (4:3) 16–9 (16:9)
BRIGHTNESS P.S.
OFF ON
RCA pin
12
LCT0054-002A-H 02.07.25, 3:45 PM12
TROUBLESHOOTING
Solutions to common problems related to your monitor are described here. If none of the solutions presented here
solves the problem, unplug the monitor and consult a JVC-authorised dealer or service centre for assistance.
Problems
No power supply.
No picture with the
power on.
No sound.
Shaking picture.
No colours, wrong
colour, or dark picture.
Unnatural, irregularly
coloured, or distorted
picture.
Dark stripes appear
at the top and bottom
of the screen, picture
vertically squeezed.
White peak portion of
the picture (for
example, the lit part
of a fluorescent lamp)
is dark, unclear, and
the colour is blurred.
Front panel button
does not function.
Points to be checked
Is the power plug loosened or disconnected?
Is the video signal output from the connected
component?
Is the input signal selected properly?
Is the video cable disconnected?
Is the audio signal output from the connected
component?
Is the volume output set to minimum?
Is the audio cable disconnected?
Is the monitor close to a device generating a
strong magnetic field?
Is the colour system selected properly?
Has the picture control setting (CONTRAST,
BRIGHT, CHROMA or PHASE) been changed?
Is the monitor close to a speaker, magnet or any
other device generating a strong magnetic field?
Is the aspect ratio set to 16:9?
Is the BRIGHTNESS P.S. function set to ON?
Are the operation buttons on the front panel
locked? ( Has CONTROL LOCK function set to
ON?)
Measures (Remedy)
Firmly insert the power plug.
Set the connected component correctly.
Select the required video signal input with the
Input select button. (See page 6.)
Connect the video signal cable firmly.
(See pages 11 and 12.)
Set the connected component correctly.
Adjust the speaker volume with the VOLUME/
SELECT buttons. (See page 6.)
Connect the audio signal cable firmly.
(See pages 11 and 12.)
Move the device away from the monitor until the
picture stabilises.
Set the COLOR SYSTEM in the <MENU> screen
mode to [AUTO] mode. (See page 7.)
Set each picture control to the standard setting.
(See page 6.)
Move the device away from the monitor and turn
the monitor’s power off. Wait at least 30 minutes,
then turn the power on again.
Set the ASPECT RATIO in the <MENU> screen
mode to [4 : 3 (4 - 3)] (See page 7.)
When controlling externally, ASPECT RATIO
should be set to [4 : 3 (4-3)].
(See pages 11 and 12.)
Set the BRIGHTNESS P.S. function in the
<MENU> screen mode to OFF. (See page 7.)
When controlling externally, BRIGHTNESS P.S.
function should be set to OFF.
(See pages 11 and 12.)
Set the CONTROL LOCK to OFF in the <SETUP MENU> screen mode. (See pages 8 and 9.)
The following are not malfunctions:
● When a bright still image (such as a white cloth) is displayed for a long period, it may appear to be coloured. This is due to the
structure of the cathode ray tube and will be deleted when another image is displayed.
● You experience a mild electric shock when you touch the picture tube. This phenomenon is due to a normal buildup of static
electricity on the CRT and is not harmful.
● The monitor emits a strange sound when the room temperature changes suddenly. This is only a problem if an abnormality
appears on the screen as well.
LCT0054-002A-H 02.07.25, 3:45 PM13
13
SPECIFICATIONS
MODEL TM-2100PN-K
Type Colour video monitor
Colour system PAL, NTSC (3.58)
Picture tube 54 cm measured diagonally,
flat-square type,
90° deflection, in-line gun,
vertical line trio type
(phosphor stripe pitch 0.69 mm)
Effective screen size Width 406.4 mm
Height 304.8 mm
Diagonal 508 mm
Scanning frequency H : 15.734 kHz (NTSC), 15.625 kHz (PAL)
V : 59.94 Hz (NTSC), 50 Hz (PAL)
Horizontal resolution 450 TV lines or more
(Y/C input mode)
Input terminals VIDEO A Composite video: 1 line, BNC connector x 2,
1 V(p-p), 75 Ω negative sync
(bridge connection possible, auto termination)
VIDEO B Composite video: 1 line, BNC connector x 2,
1 V(p-p), 75 Ω negative sync
(bridge connection possible, auto termination)
Y/C-separated: 1 line, mini-DIN 4-pin connector x 2
Y: 1.0 V(p-p), 75 Ω
C: 0.286 V(p-p), 75 Ω (NTSC), 0.3 V(p-p), 75 Ω (PAL)
(bridge connection possible, auto termination)
AUDIO A 1 line (monaural), RCA pin x 2, 0.5 V(rms), high-impedance
(bridge connection possible)
AUDIO B 1 line (monaural), RCA pin x 2, 0.5 V(rms), high-impedance
(bridge connection possible)
REMOTE 1 line, RCA pin x 2 (bridge connection possible)
Audio power output 1 W (monaural)
Built-in speaker 8 cm round x 1, impedance of 8 Ω
Environmental conditions Operation temperature: 0 – 40 °C
Operation humidity: 20 – 80% (non-condensing)
Power requirements 230 V AC, 50 Hz/ 60 Hz
Power consumption 0.72A (230 V AC)
Dimensions Width 476 mm
Height 407.5 mm
Depth 492 mm
Weight 28.5 kg
Accessory AC power cord (2 m) x 1
* Illustrations used in this manual are for explanatory purposes only. The appearance of the actual product may differ slightly.
* Dimensions and weight are approximate.
* E. & O. E. Design and specifications subject to change without notice.
14
LCT0054-002A-H 02.07.25, 3:45 PM14
4
2
3
4
3
1
2
1
OUT
IN
Y/C
4791.3 9.5
105
492
135 128.5
50.2
3.5
416.4
*
476
382.8
314.8
*
407.5
TM-2100PN-K
PHASE CHROMA BRIGHT
CONTRAST
MENU
INPUT SELECT
VOLUME/SELECT
– +
BA
POWER
ON
OFF
Y/ C VIDEO VIDEO
7 Dimensions
Unit : mm
< Front View >
* Asterisks (∗) are used to indicate front panel
dimensions.
< Side View >
7 Y/C (Mini DIN 4 pin) terminal
specification
Pin No. Signal
1 GND (Y)
2 GND (C)
3Y
4C
LCT0054-002A-H 02.07.25, 3:45 PM15
15
TM-2100PN-K COLOUR VIDEO MONITOR
2002 VICTOR COMPANY OF JAPAN, LIMITED
©
LCT0054-002A-H 02.07.25, 3:45 PM16
VICTOR COMPANY OF JAPAN, LIMITED
Printed in Thailand
0702-Y-U-JMT
Loading...
