COLOR VIDEO MONIT OR
TM-2000SU
TM-1600SU
For Customer Use:
Enter below the Model No. and Serial No. which is located
on the rear of the cabinet. Retain this information for future
reference.
Model No. :
Serial No. :
TM-2000SU
INSTRUCTIONS
BA
Y/ C VIDEO VIDEO
INPUT SELECT
ON
OFF
POWER
PHASE CHROMA BRIGHT CONTRAST MENU
(TM-2000SU shown)
– +
VOLUME/SELECT
Thank you for purchasing this JVC color video monitor. Before using it, read and follow all
instructions carefully to take full advantage of the monitor's capabilities.
SAFETY PRECAUTIONS
WARNING :
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT
EXPOSE THIS MONITOR TO RAIN OR MOISTURE.
CAUTION :
To reduce the risk of electric shock, do not remove cover.
Refer servicing to qualified service personnel.
This monitor is equipped with a 3-blade grounding-type
plug to satisfy FCC rule. If you are unable to insert the
plug into the outlet, contact your electrician.
FCC INFORMATION (U.S.A. only)
CAUTION: Changes or modification not approved by
JVC could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and
receiver.
– Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV
technician for help.
■ PRECAUTIONS
● Use only the power source specified on the unit.
(120 V AC, 50/60 Hz)
● Keep flammable material, water, and metal objects away
from the unit – especially the interior of the unit.
● This unit incorporates high voltage circuitry.
For your own safety and that of your equipment, do not
attempt to modify or disassemble this monitor.
There are no user-serviceable parts inside.
● Unplug the monitor when you’re not going to be using it for a
long period.
SCREEN BURN
● It is not recommended to keep a certain still image displayed
on screen for a long time as well as displaying extremely
bright images on screen. This may cause a burning
(sticking) phenomenon on the screen of cathode-ray tube.
This problem does not occur as far as displaying normal
video playback motion images.
■ HANDLING
● Avoid shocks or vibrations. These may damage the unit
and cause it to malfunction.
● Do not block the ventilation slots.
● Do not expose this unit to high temperatures.
Extended exposure to direct sunlight or a heater could
deform the cabinet or cause the performance of internal
components to deteriorate.
● Do not place the unit near appliances generating strong
electric or magnetic fields. There can generate picture
noise and instability.
● Keep the monitor clean by wiping the cabinet and CRT
screen with a piece of soft cloth. Do not apply thinner or
benzine. These chemicals can damage the finish and
erase printed letters. When the unit is excessively dirty, use
a diluted neutral cleanser, then wipe away the cleanser
with a dry cloth.
2
CONTENTS
SAFETY PRECAUTIONS .......................................................................................... 2
CONTROLS AND FEATURES................................................................................... 4
HOW TO HANDLE BASIC OPERATIONS ................................................................ 6
HOW TO USE THE MENU FUNCTIONS................................................................... 7
HOW TO INITIALIZE THE SETTING ....................................................................... 10
BASIC CONNECTION EXAMPLE............................................................................11
TROUBLESHOOTING ............................................................................................. 13
SPECIFICATIONS.................................................................................................... 14
3
CONTROLS AND FEATURES
TM-2000SU
PHASE CHROMA BRIGHT CONTRAST MENU
INPUT SELECT
VOLUME/SELECT
– +
BA
POWER
ON
OFF
ON
OFF
Y/ C VIDEO VIDEO
TM-1600SU
PHASE CHROMA BRIGHT CONTRAST MENU
INPUT SELECT
VOLUME/SELECT
– +
BA
POWER
Y/ C VIDEO VIDEO
[TM-2000SU]
[TM-1600SU]
FRONT VIEW
<Front Panel>
BA
– +
Y/ C VIDEO VIDEO
ON
OFF
PHASE CHROMABRIGHT CONTRAST MENU
TM-2000SU
(Front view of TM-2000SU shown)
INPUT SELECT
VOLUME/SELECT
POWER
1 Phase button [PHASE ]
Press this button to set the picture hue adjustment mode.
Adjust the value with the VOLUME/SELECT buttons. Also
used as a control button in the menu function mode.
2 Chroma button [CHROMA ]
Press this button to set the picture color density adjustment mode. Adjust the value with the VOLUME/SELECT
buttons. Also used as a control button in the menu
function mode.
3 Brightness button [BRIGHT ]
Press this button to adjust picture brightness. Adjust the
value with the VOLUME/SELECT buttons. Also used as a
control button in the menu function mode.
4 Contrast button [CONTRAST ]
Press this button to adjust picture contrast. Adjust the
value with the VOLUME/SELECT buttons. Also used as a
control button in the menu function mode.
5 Menu button [MENU]
Displays and disappears the <MENU> screen.
Pressing the PHASE button with the Menu button
depressed will display the <SET-UP MENU> screen.
6 Volume/Select buttons [VOLUME/
SELECT – +]
Adjusts the speaker volume. Also used as a control button
in the menu function mode.
7 Input B (Y/C) button [INPUT SELECT B Y/C ]
Selects the video signal input to the VIDEO B (Y/C)
terminal (mini DIN 4 pin connector) and the audio signal
input to the AUDIO B terminal (RCA connector) on the rear
panel. When selected, the input B (Y/C) indicator
@ lights.
8 Input B (VIDEO) button [INPUT SELECT B
VIDEO ]
Selects the video signal input to the VIDEO B terminal
(BNC connector) and the audio signal input to the AUDIO
B terminal (RCA connector) on the rear panel. When
selected, the input B (VIDEO) indicator
# lights.
9 Input A (VIDEO) button [INPUT SELECT A
VIDEO ]
Selects the video signal input to the VIDEO A terminal
(BNC connector) and the audio signal input to the AUDIO
A terminal (RCA connector) on the rear panel. When
selected, the input A (VIDEO) indicator
$ lights.
10 Power indicator
Lights in green when the power is ON.
Lit : When the power is on.
Unlit : When the power is off.
11 Power switch [POWER ]
Press this switch to turn the power on or off.
_ ON : Power is turned on.
— OFF : Power is turned off.
12 Input B (Y/C) indicator
Lights in green when the Input B (Y/C) is selected.
13 Input B (VIDEO) indicator
Lights in green when the Input B (VIDEO) is selected.
14 Input A (VIDEO) indicator
Lights in green when the Input A (VIDEO) is selected.
15 Speaker
A built-in speaker is located inside the right side panel
when the monitor is viewed from the front.
4
REAR VIEW
<Rear Panel>
OUTIN
OUTIN
Y/ C
OUT
OUT
OUT
VIDEO
AUDIO
REMOTE
A
B
IN
OUT
IN
A
IN
B
IN
16 Video A terminals [VIDEO A IN/OUT]
Video signal input (IN) and output (OUT) terminals.
The output terminal is bridge-connected.
IN : Video signal input terminal
OUT : Bridge-connected video signal output terminal
Notes:
* For corresponding audio signals, use the AUDIO A
terminals
* Also refer to the Basic connection Example on pages 11
and 12.
(.
17 Video B terminals [VIDEO B IN/OUT]
Video signal input (IN) and output (OUT) terminals.
The output terminal is bridge-connected.
IN : Video signal input terminal
OUT : Bridge-connected video signal output terminal
Notes:
* For corresponding audio signals, use the AUDIO B
terminals
* Also refer to the Basic connection Example on pages 11
and 12.
).
18 Video B (Y/C) terminals [VIDEO B Y/C IN/
OUT]
Y/C (S-Video) signal input (IN) and output (OUT) terminals.
The output terminal is bridge-connected.
IN : Y/C-separated (S-video) signal input terminal
OUT : Br idge-connected Y/C-separated (S-video) signal
output terminal
Notes:
* For corresponding audio signals, use the AUDIO B
terminals
* Also refer to the Basic connection Example on pages 11
and 12.
).
19 Audio A terminal [AUDIO A IN/OUT]
Input (IN) and output (OUT) terminals for the audio signal
corresponding the VIDEO A terminals
terminal is bridge-connected.
IN : Audio signal input terminal
OUT : Bridge-connected audio signal output terminal
^. The output
To AC outlet
(120 V AC, 50/60 Hz)
Notes:
* For corresponding video signals, use the VIDEO A
terminal
* Also refer to the Basic connection Example on pages 11
and 12.
20 Audio B terminals [AUDIO B IN/OUT]
Input (IN) and output (OUT) terminals for the audio signals
corresponding to the VIDEO B terminals
C) terminals
IN : Audio signal input terminal
OUT : Bridge-connected audio signal output terminal
Notes:
* For corresponding video signals, use the VIDEO B
terminals
* Also refer to the Basic connection Example on pages 11
and 12.
21 Remote terminals [REMOTE IN/OUT]
Input (IN) and output (OUT) terminals for external control.
The output terminal is bridge-connected. External control
is available either to select the ASPECT RATIO or to
select ON or OFF in BRIGHTNESS P.S. function mode.
Set the external control in the <SET-UP MENU> screen
mode.
External control
functions
ASPECT RATIO 4–3 (4:3) 16–9 (16:9)
BRIGHTNESS P.S. OFF ON
Note:
* Also refer to the Basic connection Example on pages 11
and 12.
22 AC Inlet [AC IN]
Power input connector. Connect the provided AC power
cord
e to an AC outlet (120 V AC, 50/60 Hz).
23 Power cord
Connects the provided power cord (120 V AC, 50/60 Hz)
to the AC IN connector.
OUTIN
A
OUTIN
VIDEO
B
IN
Y/ C
OUT
IN
OUT
A
AUDIO
IN
OUT
B
IN
OUT
REMOTE
(Rear view of TM-2000SU shown)
^.
& or VIDEO B (Y/
*. The output terminal is bridge-connected.
& or VIDEO B (Y/C) terminals *.
External control switch
Open circuit Short circuit
(open) (short)
5
+
–

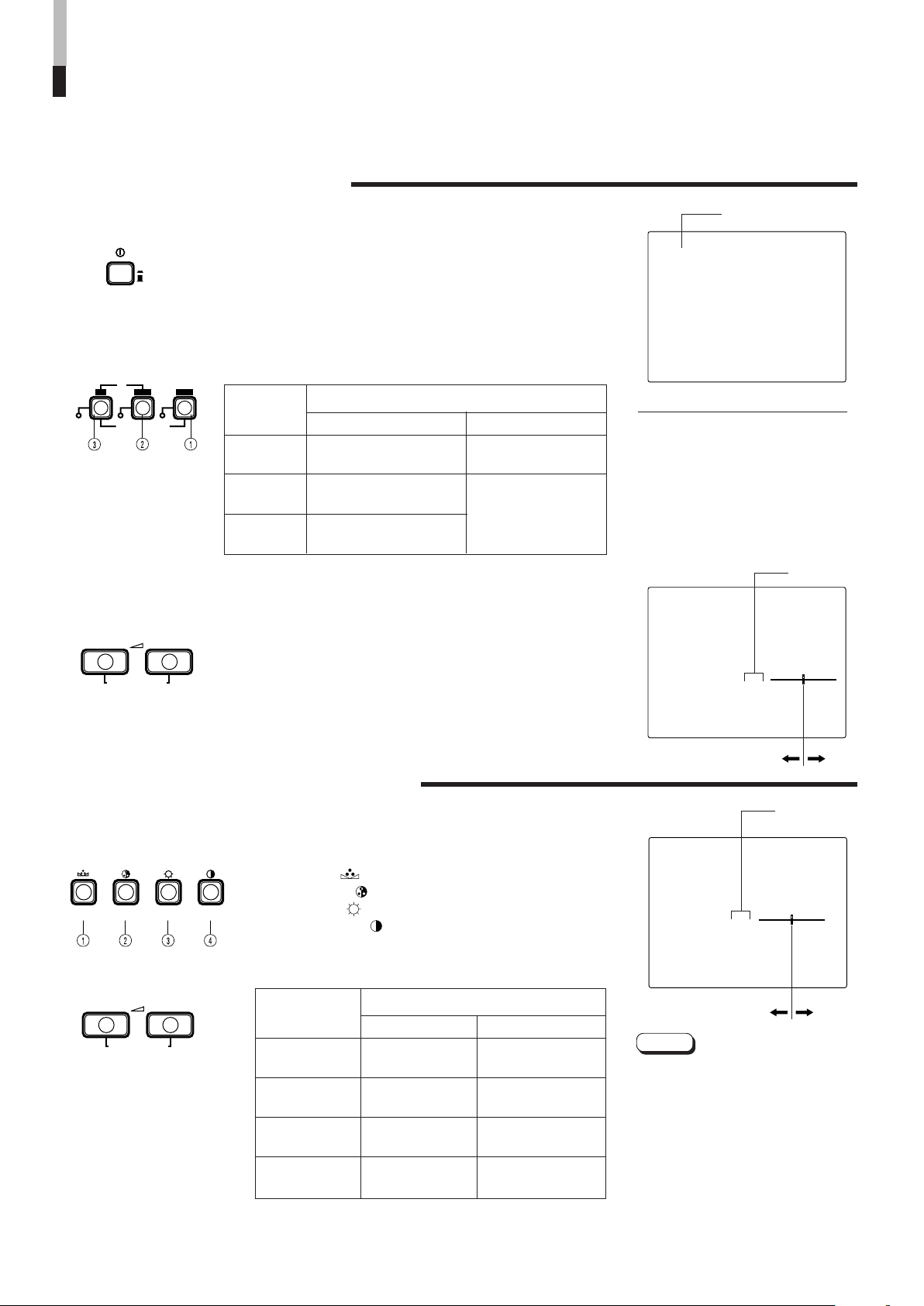

HOW TO HANDLE BASIC
+
–
OPERATIONS
BASIC OPERATION
1. Press the POWER switch to turn on the power.
ON
OFF
POWER
2. Press the INPUT SELECT button to choose input.
BA
Y/ C VIDEO VIDEO
INPUT SELECT
3. Press the VOLUME/SELECT button to adjust the
speaker volume.
– +
VOLUME/SELECT
_ON : Power turns ON. (Power indicator: lit)
—OFF : Power turns OFF. (Power indicator: unlit)
Selects video/audio signals input to terminals on the rear
panel.
INPUT
SELECT
button
1 Input A
(VIDEO)
2 Input B
(VIDEO)
3 Input B
(Y/C)
Press this button to display the speaker volume level on the
screen.
+ : The Built-in speaker volume is increased. (00 = 50)
– : The Built-in speaker volume is decreased. (50 = 00)
* Screen indication will disappear about 10 seconds after
operating.
Terminals on the rear panel
Video signal input Audio signal input
VIDEO A terminal AUDIO A terminal
VIDEO B terminal
AUDIO B terminal
VIDEO B (Y/C) terminal
Color system indication
(PAL or NTSC)
NTSC
With regard to Color system indication
● With the COLOR SYSTEM setting set
to AUTO mode, when you turn on the
power or select inputs, the color
system indication appears for about 3
seconds on the screen while PAL or
NTSC signals are being detected.
It does not appear when receiving B/
W signal or when no signal is input.
See page 7 for COLOR SYSTEM
setting.
VOLUME : 20
00 ~ 50
PICTURE ADJUSTMENT
1. Press select button corresponding to the item you
want to adjust.
PHASE CHROMA BRIGHT CONTRAST
2. Adjust with the VOLUME/SELECT button.
– +
VOLUME/SELECT
The item you select is displayed on the screen.
1 PHASE ( ) : Phase control
2 CHROMA ( ) : Chroma control
3 BRIGHT ( ) : Brightness control
4 CONTRAST ( ) : Contrast control
VOLUME/SELECT button
Items
PHASE
(Phase)
CHROMA
(Chroma)
BRIGHT
(Brightness)
CONTRAST
(Contrast)
* Screen indication will disappear about 10 seconds
after operating.
–+
reddish greenish
lighter deeper
darker brighter
lower higher
–20 ~ +20
PHASE : 00
Notes:
● Phase control is effective only in the
NTSC color system mode.
● Chroma control is not effective when
receiving B/W or when no signal is
input.
● When the Chroma control is set to
level " –20", the picture turns
monochrome.
● " NO EFFECT" is displayed (For
about 3 seconds) when your selected
function has no effect.
6
HOW TO USE THE MENU FUNCTIONS
DISPLAY AND SELECTION IN THE <MENU> SCREEN
MODE (SETTING)
You can set the following menu items.
Set them depending on your needs.
• SHARPNESS • ASPECT RATIO
• COLOR TEMP. • BRIGHTNESS P.S.
• COLOR SYSTEM
1. Press the MENU button.
The <MENU> screen is displayed.
MENU
2. Press the PHASE ( ) or CHROMA ( ) button
to select MENU items.
A selection mark (3) is put next to the selected item.
PHASE CHROMA
SHARPNESS
COLOR TEMP.
COLOR SYSTEM
ASPECT RATIO
BRIGHTNESS P.S.
Front panel Function
button displayed
Contents
PHASE ( ) ∞ Advance selection mark (3)
CHROMA ( ) 5 Reverse selection mark (3)
3. Press the VOLUME/SELECT button to set.
– +
VOLUME/SELECT
Menu items Purpose Setting range
SHARPNESS Picture sharpness
COLOR TEMP.
COLOR
SYSTEM
ASPECT RATIO Aspect ratio
BRIGHTNESS Brightness Peak
P.S. Suppressor function
* Normally set the COLOR SYSTEM to the AUTO mode. If reception in the AUTO mode is not good,
set it to the exclusive mode (NTSC or PAL) corresponding to the received color system.
Front panel Function
button displayed
VOLUME/
SELECT (+)
VOLUME/
SELECT (–)
+ Increase (to max. value)
3 Advance the setting value
– Decrease (to min. value)
2 Reverse the setting value
00 +1 +2 +3 +4 +5
Color temperature of
white balance
Color system
6500 9300
AUTO NTSC AUTO PAL
4 – 3 16 – 9
OFF ON
Contents
4. If you want to set the other menu items, repeat
procedures 2 and 3.
5. Press the MENU button to quit.
MENU
Front panel Function
button displayed
MENU EXIT
Quit (or Release) the <MENU>
screen
Contents
<MENU> screen
1
<MENU>
‰ SHARPNESS : 00
COLOR TEMP. : 6500
COLOR SYSTEM : AUTO
ASPECT RATIO : 4–3
BRIGHTNESS P.S. : OFF
2
EXIT
– +
PHASE CHROMA BRIGHT CONTRAST MENU VOLUME/SELECT
<Front panel button>
1 Selection mark (
menu item you select.
33
3): Indicates the
33
2 Menu item: Menu items you can
select.
3 Setting display: Indicates the
current settings (value).
4 Function display: The functions of
the front panel buttons (7 buttons on
the left.) correspond to the function
displayed.
Function
displayed
∞ Advance the menu item.
5 Reverse the menu item.
– Lower the adjustment
+ Raise the adjustment
3 Advance the setting value.
2 Reverse the setting value.
EXIT Exits the <MENU> screen.
Notes:
● BRIGHTNESS P.S. (or B.P.S.) stands for
Brightness Peak Suppressor. This function
is used to suppress (cut) the white peak
portion of the picture, so as to reduce the
picture's burning on the screen (cathode
ray tube).
● When the BRIGHTNESS P.S. (or B.P.S.)
function is ON, the suppressed white peak
portion (for example, the lit part of a
fluorescent lamp) seems to be blurred.
If required, lower the setting for the B.P.S.
LEVEL in the <SET- UP MENU> screen
mode, or turn off the BRIGHTNESS P.S.
function.
● When the screen aspect ratio is set to 16-9
(16:9) the picture will be vertically reduced.
● When setting value of ASPECT RATIO or
BRIGHTNESS P.S. is set to REMOTE,
REMOTE SELECT is activated in the
<SET- UP MENU> mode, change the
setting in this case. When required, use the
external control function or turn off the
REMOTE SELECT setting.
Contens
value. (to the minimum)
value. (to the maximum)
3
4
7
HOW TO USE THE MENU
FUNCTIONS
(cont'd)
DISPLAY AND SELECTIONS IN THE <SET-UP MENU>
MODE (SETTING)
You can set the following set-up menu items.
● H. POSITION ● WHITE BALANCE ● B.P.S. LEVEL
● V. POSITION ● CONTROL LOCK ● REMOTE SELECT
Notes:
● Parameters for H. POSITION and V. POSITION can be set separately depending on
the video input (Input A (VIDEO), Input B (VIDEO) or Input B (Y/C)) selected by the
input select buttons on the front panel.
Select the required video input with the input select buttons on the front panel in
advance.
● WHITE BALANCE can be set individually at 6500 or 9300 for the color temperature
value.
Set COLOR TEMP. to the value 6500 or 9300 in the <MENU> screen in advance.
1. While pressing the MENU button, press the
PHASE (
MENUPHASE
) button.
The <SET-UP MENU> screen is displayed.
2. Press the PHASE ( ) or CHROMA ( ) button
to select the desired menu item.
A selection mark (3) is put next to the selected item.
PHASE CHROMA
H. POSITION
V. POSITION
WHITE BALANCE
CONTROL LOCK
B.P.S. LEVEL
REMOTE SELECT
Front panel Function
button displayed
PHASE ( ) ∞ Advance selection mark (3)
CHROMA (
) 5 Reverse selection mark (3)
Contents
3. Press the VOLUME/SELECT button to set.
– +
VOLUME/SELECT
Front panel Function
button displayed
+ Increase (to max. value)
VOLUME/
SELECT (+)
VOLUME/
SELECT (–)
3 Advance the setting value
CUTO Selects CUT OFF setting
screen
– Decrease (to min. value)
2 Reverse the setting value
DRV Selects DRIVE setting screen
Note:
Contents
<SET-UP MENU> screen
1
<SET–UP MENU>
‰ H. POSITION : 00
V. POSITION : 00
WHITE BALANCE
CONTROL LOCK : OFF
B. P. S. LEVEL : 10
REMOTE SELECT : OFF
2
PHASE CHROMA BRIGHT CONTRAST MENU VOLUME/SELECT
<Front panel button>
1 Selection mark (
menu item you select.
EXIT
33
3): Indicates the
33
– +
2 Menu item: Menu items you can
select.
3 Setting display: Indicates the
current settings (value).
4 Function display: The functions of
the front panel buttons (7 buttons on
the left.) correspond to the function
displayed.
Function
displayed
∞ Advance the menu item.
5 Reverse the menu item.
– Lower the adjustment
+ Raise the adjustment
3 Advance the setting value.
2 Reverse the setting value.
EXIT
DRV Selects DRV adjustment
CUTO
R Adjusts red signal level
G Adjusts green signal level
B Adjusts blue signal level
DISP
Contens
value. (to the minimum)
value. (to the maximum)
Exit the <SET-UP MENU>
screen (release)
Selects CUT OFF
adjustment
Turns the ON-SCREEN
display on or off. (This
function is effective only in
the DRIVE or CUT OFF
adjustment mode.)
3
4
● For the WHITE BALANCE setting, select the CUT OFF or
DRIVE setting screen, then select the buttons (PHASE/
CHROMA/BRIGHT) corresponding to the function indicated
(R/G/B).
8
Set-up menu items Purpose Settings
–09 –08 • • • • • • –01 00 +01 • • • • • • +08 +09
–09 –08 • • • • • • –01 00 +01 • • • • • • +08 +09
H. POSITION Adjusts the horizontal position of
the screen (+ : Horizontal position
shifts to the right/–: Horizontal
position shifts to the left)
V. POSITION Adjusts the vertical position on the
screen (+: Vertical position moves
down/–: Vertical position moves up)
WHITE BALANCE Adjusts the white balance Selects DRIVE (DRV) or CUT OFF (CUTO) adjustment.
Screen setting is changed to the selected setting mode.
Select R/G/B buttons corresponding to the function display
to adjust.
DRIVE R.DRIVE Adjusts red level
G.DRIVE Adjusts green level
B.DRIVE Adjusts blue level
CUT OFF R. CUT OFF Adjusts red cut off
G. CUT OFF Adjusts green cut off
B. CUT OFF Adjusts blue cut off
CONTROL LOCK Sets the operation buttons on the
front panel to control lock mode
B. P. S. LEVEL Sets the level for Brightness Peak
Suppressor function
REMOTE SELECT Sets the external control function
(ASPECT RATIO or BRIGHTNESS
P.S. )
–09 –08 • • • • • • –01 00 +01 • • • • • • +08 +09
–09 –08 • • • • • • –01 00 +01 • • • • • • +08 +09
–09 –08 • • • • • • –01 00 +01 • • • • • • +08 +09
–09 –08 • • • • • • –01 00 +01 • • • • • • +08 +09
–09 –08 • • • • • • –01 00 +01 • • • • • • +08 +09
–09 –08 • • • • • • –01 00 +01 • • • • • • +08 +09
OFF ON
00 01 • • • • • • • 09 10 11 • • • • • • • 19 20
OFF ASPT OFF B.P.S.
* ASPT : ASPECT RATIO
B.P.S.: BRIGHTNESS P.S.
4. To set the other set-up menu items, repeat the
procedures 2 and 3.
5. Press the MENU button to quit.
MENU
Front panel Function
button displayed
MENU EXIT
Quit (or Release) the <MENU>
screen
Contents
Notes:
● When the CONTROL LOCK function
is set to ON, pressing operation
buttons on the front panel will display
the message "CONTROL LOCK ON!"
on the screen for about 3 seconds.
● The CONTROL LOCK function is
maintained even when the power is
turned off.
● To turn off the CONTROL LOCK
function, while holding the MENU
button press the PHASE button. Then
set the CONTROL LOCK function to
OFF.
● Even when the CONTROL LOCK
function is set to ON, the following
operations are available:
– Power Switch operation.
– Sound volume adjustment with the
VOLUME/SELECT button.
– Display or disappear of the <SET-
UP MENU> screen.
– External control of ASPECT RA TIO
or BRIGHTNESS P.S. when
REMOTE SELECT is set to ON .
9
HOW TO INITIALIZE THE
SETTING
SCREEN DISPLAY AND SELECTIONS IN THE <SET-UP
MENU> RESET MODE
You can set <MENU> and <SET-UP MENU> screen items, picture adjustment items and
the volume level to their factory-set (initial) values.
1. Press the Power ( ) Switch to turn the power
OFF (
POWER
—
ON
OFF
).
2. While pressing both MENU button and PHASE ( )
buttons, press the Power ( ) switch to turn the
_
POWER
).
The <SET-UP MENU> RESET screen is displayed.
ON
OFF
Note:
● The <SET-UP MENU> RESET screen will not be
displayed if the MENU or PHASE buttons are pressed
for a very short time. Keep pressing them until the
display screen appears.
power ON (
PHASE MENU
3. Setting
䢇 Initialization is required.
CONTRAST
Press the CONTRAST (
* When initialization is completed, and the <SET-UP
MENU> RESET screen disappears.
) button.
<SET-UP MENU> RESET screen
<SET–UP MENU> RESET
Are you sure ?
“Yes” then <CONTRAST>
“No” then <+> or <–>
Initial settings
Functions (Items)
Sorts
SHARPNESS 00
COLOR TEMP. 6500
COLOR SYSTEM
ASPECT RATIO 4–3
BRIGHTNESS P.S. OFF
<MENU> screen
H. POSITION 00
V. POSITION 00
WHITE BALANCE
R. CUT OFF 00
G. CUT OFF 00
B. CUT OFF 00
R. DRIVE 00
G. DRIVE 00
B. DRIVE 00
CONTROL LOCK OFF
<SET-UP MENU> screen
B.P.S. LEVEL 10
REMOTE SELECT 00
Initialization
(setting)
AUTO
10
䢇 Initialization is not required.
– +
VOLUME/SELECT
Press the VOLUME/SELECT [+] or [–] button.
* Initialization is aborted, and the <SET-UP MENU>
RESET screen disappears.
PHASE 00
CHROMA 00
CONTRAST 00
BRIGHT 00
Picture adjustment
VOLUME 20
Volume
BASIC CONNECTION EXAMPLE
Notes:
● Before connecting your system, make sure that all units are turned off.
● The illustration below shows some examples of different connections. Terminal connections may differ depending on the
component connected. Be sure to refer to the instructions provided with the unit(s) you are connecting.
● Each pair of input (IN) and output (OUT) terminals are bridge-connected.
● If you’re not connecting any equipment to a bridged output (OUT) terminal, be sure not to connect any other cables to the
bridged output (OUT) terminal as this will cause the terminating resistance switch to open (auto terminate function).
● When making a bridge connection, connect the input (IN) and output (OUT) terminals on the monitor to separate video
components.
(For example, if both terminals are connected to the same VCR, resonance may occur except during playback. This is caused
by the same video signal “looping” between the VCRs, and is not a malfunction.)
● Select the video input (Input A (VIDEO), Input B (Y/C) or Input B (VIDEO)) with the input select button on the front panel.
● The ASPECT RATIO or BRIGHTNESS P.S. function can be controlled via the REMOTE terminal. To do this, set REMOTE
SELECT in the <SET-UP MENU> mode. (Refer to page 8 and 9.)
7 VIDEO A Connection Example
(Select Input A (VIDEO) button)
Video
(Video signal cable)
Video Camera
Video Monitor
Audio
(Audio signal cable)
VCR
External control switch
open circuit (open)
short circuit (short)
External control switch
External control
functions
ASPECT RATIO 4–3 (4:3) 16–9 (16:9)
BRIGHTNESS P.S.
Open circuit Short circuit
(open) (short)
OFF ON
RCA pin
REMOTE
(Remote cable)
VIDEO
AUDIO
REMOTE
OUTIN
A
B
IN
OUT
Video
(Video signal cable)
OUTIN
VCR
Y/ C
Audio
IN
A
IN
B
IN
OUT
OUT
OUT
(Audio signal cable)
Video Monitor
REMOTE
(Remote cable)
BA
– +
Y/ C VIDEO VIDEO
_ON
—OFF
INPUT SELECT
PHASECHROMA BRIGHTCONTRAST MENU
VOLUME/SELECT
TM-2000SU
TM-2000SU or
TM-1600SU
<second one>
POWER
: Signal Flow
11
7 VIDEO B (VIDEO) Connection Example
(Select Input B (VIDEO) button)
Video Camera
Video
(Video signal cable)
Video Monitor
Audio
VCR
(Audio signal cable)
External control switch
open circuit (open)
RCA pin
short circuit (short)
External control switch
External control
functions
ASPECT RATIO 4–3 (4:3) 16–9 (16:9)
BRIGHTNESS P.S.
Open circuit Short circuit
(open) (short)
OFF ON
REMOTE
(Remote cable)
VIDEO
AUDIO
REMOTE
A
OUTIN
Video
OUTIN
(Video signal cable)
B
IN
Y/ C
OUT
IN
A
OUT
VCR
Audio
IN
B
IN
OUT
OUT
(Audio signal cable)
Video Monitor
REMOTE
(Remote cable)
TM-2000SU
BA
– +
Y/ C VIDEO VIDEO
INPUT SELECT
PHASECHROMA BRIGHTCONTRAST MENU
VOLUME/SELECT
POWER
TM-2000SU or
TM-1600SU
<second one>
_ON
—OFF
: Signal Flow
7 VIDEO B (Y/C) Connection Example
(Select Input B (Y/C) button)
Video Camera
Y/C (S-video)
(Y/C (S-video) signal cable)
Video Monitor
Audio
VCR
External control switch
open circuit (open)
External control switch
External control
functions
ASPECT RATIO 4–3 (4:3) 16–9 (16:9)
BRIGHTNESS P.S.
(Audio signal cable)
RCA pin
short circuit (short)
Open circuit Short circuit
(open) (short)
OFF ON
REMOTE
(Remote cable)
VIDEO
AUDIO
REMOTE
A
B
IN
OUT
IN
A
OUTIN
OUTIN
VCR
Y/ C
Y/C (S-video)
(Y/C (S-video) signal cable)
OUT
Audio
IN
B
IN
OUT
OUT
(Audio signal cable)
Video Monitor
REMOTE
(Remote cable)
TM-2000SU
TM-2000SU or
TM-1600SU
<second one>
PHASECHROMA BRIGHTCONTRAST MENU
BA
– +
Y/ C VIDEO VIDEO
_ON
—OFF
INPUT SELECT
VOLUME/SELECT
POWER
: Signal Flow
12
TROUBLESHOOTING
Solutions to common problems related to your monitor are described here. If none of the solutions presented here
solves the problem, unplug the monitor and consult a JVC-authorized dealer or service center for assistance.
Problems
No power supply.
No picture with the
power on.
No sound.
Shaking picture.
No colors, wrong
color, or dark picture.
Unnatural, irregularly
colored, or distorted
picture.
Dark stripes appear
at the top and bottom
of the screen, picture
vertically squeezed.
White peak portion of
the picture (for
example, the lit part
of a fluorescent lamp)
is dark, unclear, and
the color is blurred.
Front panel button
does not function.
Points to be checked
Is the power plug loosened or disconnected?
Is the video signal output from the connected
component?
Is the input signal selected properly?
Is the video cable disconnected?
Is the audio signal output from the connected
component?
Is the volume output set to minimum?
Is the audio cable disconnected?
Is the monitor close to a device generating a
strong magnetic field?
Is the color system selected properly?
Has the picture control setting (CONTRAST,
BRIGHT, CHROMA or PHASE) been changed?
Is the monitor close to a speaker, magnet or any
other device generating a strong magnetic field?
Is the aspect ratio set to 16:9?
Is the BRIGHTNESS P.S. function set to ON?
Are the operation buttons on the front panel
locked? ( Has CONTROL LOCK function set to
ON?)
Measures (Remedy)
Firmly insert the power plug.
Set the connected component correctly.
Select the required video signal input with the
Input select button. (See page 6.)
Connect the video signal cable firmly. (See pages
11 and 12.)
Set the connected component correctly.
Adjust the speaker volume with the VOLUME/
SELECT button. (See page 6.)
Connect the audio signal cable firmly. (See pages
11 and 12.)
Move the device away from the monitor until the
picture stabilizes.
Set the COLOR SYSTEM in the <MENU> screen
mode to [AUTO] mode. (See page 7.)
Set each picture control to the standard setting.
(See page 6.)
Move the device away from the monitor and turn
the monitor’s power off. Wait at least 30 minutes,
then turn the power on again.
Set the ASPECT RATIO in the <MENU> screen
mode to [4 : 3 (4 - 3)] (See page 7.)
When controlling externally, ASPECT RATIO
should be set to [4 : 3 (4-3)].
(See pages 11 and 12.)
Set the BRIGHTNESS P.S. function in the
<MENU> screen mode to OFF. (See page 7.)
When controlling externally, BRIGHTNESS P.S.
function should be set to OFF.
(See pages 11 and 12.)
Set the CONTROL LOCK to OFF in the <SETUP MENU> screen mode. (See pages 8 and 9.)
The following are not malfunctions:
● When a bright still image (such as a white cloth) is displayed for a long period, it may appear to be colored. This is due to the
structure of the cathode ray tube and will be deleted when another image is displayed.
● You experience a mild electric shock when you touch the picture tube. This phenomenon is due to a normal buildup of static
electricity on the CRT and is not harmful.
● The monitor emits a strange sound when the room temperature changes suddenly. This is only a problem if an abnormality
appears on the screen as well.
● If two or more monitors are operated next to each other, their images may shake or be distorted. This phenomenon is due to
mutual interference; it is not a malfunction.
Move the monitors away from each other until the interference disappears or turn the power off on any monitor that is not being
used.
13
SPECIFICATIONS
MODEL
Type
Color system
Picture tube
90° deflection, in-line gun,
(phosphor stripe pitch 0.69 mm)
Effective screen size
Scanning frequency
Horizontal resolution 450 TV lines or more
Input terminals
Audio power output
Built-in speaker
Environmental conditions
Power requirements
Power consumption
Dimensions
Weight
Accessory
VIDEO A
VIDEO B
AUDIO A
AUDIO B
REMOTE
Width 16" (406.4 mm)
Height 12" (304.8 mm)
Diagonal 20" (508 mm)
Width 18-3/4" (476 mm)
Height 16-1/8" (407.5 mm)
Depth 19-3/8" (492 mm)
TM-2000SU TM-1600SU
20" measured diagonally,
flat-square type,
vertical line trio type
(Y/C input mode)
(bridge connection possible, auto termination)
(bridge connection possible, auto termination)
Y/C-separated: 1 line, mini-DIN 4-pin connector x 2
C: 0.286 V (p-p), 75 Ω (NTSC), 0.3 V (p-p), 75 Ω (PAL)
(bridge connection possible, auto termination)
1 line (monaural), RCA pin x 2, 0.5 V (rms), high-impedance
1 line (monaural), RCA pin x 2, 0.5 V (rms), high-impedance
1 line, RCA pin x 2 (bridge connection possible)
Operation temperature: 0 °C – 40 °C (32 °F – 104 °F)
Operation humidity: 20 % – 80 % (non-condensing)
1.3 A (120 V AC) 0.6 A (120 V AC)
62.7 lbs (28.5 kg) 37.9 lbs (17.2 kg)
Color video monitor
PAL, NTSC (3.58)
16" measured diagonally,
flat-square type,
90° deflection, in-line gun,
vertical line trio type
(phosphor stripe pitch 0.42 mm)
Width 13" (330 mm)
Height 9-7/8" (250 mm)
Diagonal 16-1/4" (410 mm)
H : 15.734 kHz (NTSC), 15.625 kHz (PAL)
V : 59.94 Hz (NTSC), 50 Hz (PAL)
550 TV lines or more
(Y/C input mode)
Composite video: 1 line, BNC connector x 2,
1 V (p-p), 75 Ω negative sync
Composite video: 1 line, BNC connector x 2,
1 V (p-p), 75 Ω negative sync
Y: 1.0 V (p-p), 75 Ω
(bridge connection possible)
(bridge connection possible)
1 W (monaural)
3-1/8" (8 cm) round x 1, impedance of 8 Ω
120 V AC, 50 Hz / 60 Hz
Width 15-5/8" (395 mm)
Height 13-1/4" (334 mm)
Depth 16-5/8" (420.5 mm)
AC power cord [7.9 ft (2.4 m)] x 1
* Illustrations used in this manual are for explanatory purposes only. The appearance of the actual product may differ slightly.
* Dimensions and weight are approximate.
* E. & O. E. Design and specifications subject to change without notice.
14
7 Dimensions
[TM-2000SU]
Unit : inch (mm)
< Front View >
18-3/4 (476)
*
16-1/2 (416.4)
12-1/2 (314.8)
BA
– +
Y/ C VIDEO VIDEO
PHASE CHROMA BRIGHT CONTRAST MENU
TM-2000SU
15-1/8 (382.8)
* Asterisks (∗) are used to indicate front panel
dimensions.
VOLUME/SELECT
INPUT SELECT
POWER
< Side View >
18-7/8 (479)1/16 (1.3) 3/8 (9.5)
2 (50.2)
*
16-1/8 (407.5)
ON
OFF
1/8 (3)
3/16 (3.5)
4-1/4 (105)
5-3/8 (135)
19-3/8 (492)
1/8 (3)
5-1/8 (128.5)
[TM-1600SU]
Unit : inch (mm)
< Front View >
15-5/8 (395)
*
10-1/8 (256)
13-1/4 (336.3)
TM-1600SU
PHASE CHROMA BRIGHT CONTRAST MENU
– +
VOLUME/SELECT
13-5/8 (346)
* Asterisks (∗) are used to indicate front panel
dimensions.
BA
Y/ C VIDEO VIDEO
INPUT SELECT
< Side View >
16-5/8 (420.5)
16-1/8 (407.2)
*
13-1/4 (334)
ON
OFF
POWER
3/16 (3.5)
3/16 (4.5)
(55)
1/16 (1.0)
12-1/8 (306.5)2-1/4
7 Y/C (Mini DIN 4 pin) terminal
specification
2
IN
1
2
OUT
1
4
3
Y/C
4
Pin No. Signal
1 GND (Y)
2 GND (C)
3Y
3
4C
15
TM-2000SU/TM-1600SU COLOR VIDEO MONITOR
1999 VICTOR COMPANY OF JAPAN, LIMITED
©
JVC PROFESSIONAL PRODUCTS COMPANY
DIVISION OF US JVC CORP.
1700 Vallery Road Wayne, NJ07470
JVC CANADA INC.
21 Finchdene Square, Scarborough Ontario M1X 1A7
Printed in Thailand
LCT0216-002A-H
0999-Tu-V-JMT
Loading...
