COLOR VIDEO MONIT OR
TM-1650SU
INSTRUCTIONS
For Customer Use:
Enter below the Serial No. which is located on the rear of
the cabinet. Retain this information for future reference.
Model No. : TM-1650SU
Serial No. :
TM-1650SU
PHASE CHROMA BRIGHT CONTRAST MENU
– +
VOLUME/SELECT
RGB/
COMPO.
BA
Y/ C
VIDEO
INPUT SELECT
VIDEO
ON
OFF
POWER
UNDER
SCAN
Thank you for purchasing this JVC color video monitor. Before using it, read and follow all
instructions carefully to take full advantage of the monitor's capabilities.
SAFETY PRECAUTIONS
WARNING :
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT
EXPOSE THIS MONITOR TO RAIN OR MOISTURE.
CAUTION :
To reduce the risk of electric shock, do not remove cover.
Refer servicing to qualified service personnel.
This monitor is equipped with a 3-blade grounding-type
plug to satisfy FCC rule. If you are unable to insert the
plug into the outlet, contact your electrician.
FCC INFORMATION (U.S.A. only)
CAUTION: Changes or modification not approved by
JVC could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and
receiver.
– Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV
technician for help.
■ PRECAUTIONS
● Use only the power source specified on the unit.
(120 V AC, 50/60 Hz)
● Keep flammable material, water, and metal objects away
from the unit – especially the interior of the unit.
● This unit incorporates high voltage circuitry.
For your own safety and that of your equipment, do not
attempt to modify or disassemble this monitor.
There are no user-serviceable parts inside.
● Unplug the monitor when you’re not going to be using it for a
long period.
■ HANDLING
● Avoid shocks or vibrations. These may damage the unit
and cause it to malfunction.
● Do not block the ventilation slots.
● Do not expose this unit to high temperatures.
Extended exposure to direct sunlight or a heater could
deform the cabinet or cause the performance of internal
components to deteriorate.
● Do not place the unit near appliances generating strong
electric or magnetic fields. There can generate picture
noise and instability.
● Keep the monitor clean by wiping the cabinet and CRT
screen with a piece of soft cloth. Do not apply thinner or
benzine. These chemicals can damage the finish and
erase printed letters. When the unit is excessively dirty, use
a diluted neutral cleanser, then wipe away the cleanser
with a dry cloth.
SCREEN BURN
● It is not recommended to keep a certain still image displayed on screen for a long time as well as displaying extremely bright
images on screen. This may cause a burning (sticking) phenomenon on the screen of cathode-ray tube. This problem does not
occur as far as displaying normal video playback motion images.
2
CONTENTS
SAFETY PRECAUTIONS................................................................................. 2
CONTROLS AND FEATURES ......................................................................... 4
HOW TO HANDLE BASIC OPERATIONS ....................................................... 7
HOW TO USE THE MENU FUNCTIONS ......................................................... 8
HOW TO INITIALIZE THE SETTING ............................................................. 12
BASIC CONNECTION EXAMPLE ................................................................. 13
TROUBLESHOOTING.................................................................................... 15
SPECIFICATIONS .......................................................................................... 16
3
CONTROLS AND FEATURES
TM-1650SU
PHASE CHROMA BRIGHT CONTRAST MENU
INPUT SELECT
VOLUME/SELECT
– +
BA
POWER
ON
OFF
Y/ C
RGB/
COMPO.
VIDEO VIDEO
UNDER
SCAN
1
3
5
6
7 8
9 10
161514 17 18
13
12
11
2
4
FRONT VIEW
<Front Panel>
19
RGB/
BA
UNDER
COMPO.
SCAN
– +
Y/ C
VIDEO
VIDEO
ON
OFF
TM-1650SU
PHASE CHROMA BRIGHT CONTRAST MENU
Phase button [PHASE ]
1
Press this button to set the picture hue adjustment mode.
Adjust the value with the VOLUME/SELECT buttons. Also
used as a control button in the menu function mode.
Chroma button [CHROMA ]
2
Press this button to set the picture color density adjustment mode. Adjust the value with the VOLUME/SELECT
buttons. Also used as a control button in the menu
function mode.
3
Brightness button [BRIGHT ]
Press this button to adjust picture brightness. Adjust the
value with the VOLUME/SELECT buttons. Also used as a
control button in the menu function mode.
Contrast button [CONTRAST ]
4
Press this button to adjust picture contrast. Adjust the
value with the VOLUME/SELECT buttons. Also used as a
control button in the menu function mode.
5
Menu button [MENU]
Displays and disappears the <MENU> screen.
Pressing the PHASE button with the Menu button
depressed will display the <SET-UP MENU> screen.
Volume/Select buttons [VOLUME/
6
SELECT – +]
Adjusts the speaker volume. Also used as a control button
in the menu function mode.
7
Under Scan button [UNDER SCAN]
Reduces the screen size to display the whole screen.
Press the button again to quit Under Scan.
INPUT SELECT
VOLUME/SELECT
POWER
Input B (Y/C) button [INPUT SELECT B Y/C ]
9
Selects the video signal input to the VIDEO B (Y/C)
terminal and the audio signal input to the AUDIO B
terminal on the rear panel. When selected, the input B
(Y/C) indicator
Input B (VIDEO) button [INPUT SELECT B
10
^ lights.
VIDEO ]
Selects the video signal input to the VIDEO B terminal
and the audio signal input to the AUDIO B terminal on the
rear panel. When selected, the input B (VIDEO) indicator
& lights.
Input A (VIDEO) button [INPUT SELECT A
11
VIDEO ]
Selects the video signal input to the VIDEO A terminal and
the audio signal input to the AUDIO A terminal on the rear
panel. When selected, the input A (VIDEO) indicator *
lights.
Power indicator
12
Lights in green when the power is ON.
Lit : When the power is on.
Unlit : When the power is off.
Power switch [POWER ]
13
Press this switch to turn the power on or off.
g ON : Power is turned on.
G OFF : Power is turned off.
UNDER SCAN indicator
14
Lights in green when UNDER SCAN is selected.
Input RGB/COMPO. indicator
15
Lights in green when Input RGB/COMPO. is selected.
4
Input RGB/COMPO. button [INPUT SELECT
8
RGB/ COMPO. ]
Selects the video signal input to the RGB/COMPO.
(analog RGB/Y, B-Y, R-Y) terminal and the audio signal
input to the AUDIO RGB/COMPO. terminal on the rear
panel. When selected, the input RGB/COMPO. indicator
% lights.
Note:
● RGB or COMPONENT signals can be selected in the
<MENU> screen.
Input B (Y/C) indicator
16
Lights in green when Input B (Y/C) is selected.
17
Input B (VIDEO) indicator
Lights in green when Input B (VIDEO) is selected.
Input A (VIDEO) indicator
18
Lights in green when Input A (VIDEO) is selected.
Speaker
19
A built-in speaker is located inside the right side panel
when the monitor is viewed from the front.
REAR VIEW
<Rear Panel>
Y/C
OUT
OUT
OUT
ASPECT
OUTIN
20
OUTIN
21
22
B-Y
/B
23
R-Y
/R
24
25
26
27
A
VIDEO
B
IN
OUT
Y/G
RGB /
COMPO.
RGB
SYNC
IN
A
IN
AUDIO
B
RGB /
IN
COMPO.
INPUT
REMOTE
A/B
Video A terminals [VIDEO A IN/OUT]
20
Video signal input (IN) and output (OUT) terminals.
The output terminal is bridge-connected.
IN : Video signal input terminal
OUT : Bridge-connected video signal output terminal
To AC outlet
(120 V AC, 50/60 Hz)
RGB/COMPO. terminals
23
Input terminals for analog RGB/Y, B-Y, R-Y signals.
* The RGB SYNC input terminal is for the external
OUTIN
A
OUTIN
VIDEO
B
IN
Y/C
OUT
B-Y
Y/G
/B
RGB /
COMPO.
R-Y
RGB
/R
SYNC
IN
OUT
A
IN
OUT
AUDIO
B
RGB /
IN
OUT
COMPO.
INPUT
ASPECT
REMOTE
A/B
28
29
synchronization (composite synchronization) signal
when an analog RGB signal is input.
Notes:
* For corresponding audio signals, use the A UDIO A
terminals
r.
* Also refer to BASIC CONNECTION EXAMPLE
on page 13.
21
Video B terminals [VIDEO B IN/OUT]
Video signal input (IN) and output (OUT) terminals.
The output terminal is bridge-connected.
IN : Video signal input terminal
OUT : Bridge-connected video signal output terminal
Notes:
* For corresponding audio signals, use the AUDIO B
terminals
t.
* Also refer to BASIC CONNECTION EXAMPLE
on page 13.
Video B (Y/C) terminals [VIDEO B Y/C IN/
22
OUT]
Y/C (S-Video) signal input (IN) and output (OUT)
terminals.
The output terminal is bridge-connected.
IN : Y/C-separated (S-video) signal input terminal
OUT : Bridge-connected Y/C-separated (S-video) signal
output terminal
Notes:
● For corresponding audio signals, use the AUDIO RGB/
COMPO. terminal
y.
● When an analog RGB signal is input, be sure to input
the external synchronization signal to the RGB SYNC
terminal.
● Also refer to BASIC CONNECTION EXAMPLE
on page 14.
Audio A terminal [AUDIO A IN/OUT]
24
Input (IN) and output (OUT) terminals for the audio signal
corresponding to the VIDEO A terminals
). The output
terminal is bridge-connected.
IN : Audio signal input terminal
OUT : Bridge-connected audio signal output terminal
Notes:
* For corresponding video signals, use the VIDEO A
terminal
* Also refer to BASIC CONNECTION EXAMPLE
on page 13.
).
Notes:
* For corresponding audio signals, use the AUDIO B
terminals
* Also refer to BASIC CONNECTION EXAMPLE
on page 14.
t.
5
CONTROLS AND FEATURES (cont'd)
REAR VIEW
<Rear Panel>
Y/C
OUT
OUT
OUT
ASPECT
OUTIN
20
OUTIN
21
22
B-Y
/B
23
R-Y
/R
24
25
26
27
A
VIDEO
B
IN
OUT
Y/G
RGB /
COMPO.
RGB
SYNC
IN
A
IN
AUDIO
B
RGB /
IN
COMPO.
INPUT
REMOTE
A/B
Audio B terminals [AUDIO B IN/OUT]
25
Input (IN) and output (OUT) terminals for the audio signals
corresponding to the VIDEO B terminals
(Y/C) terminals
w. The output terminal is bridge-
q or VIDEO B
connected.
IN : Audio signal input terminal
OUT : Bridge-connected audio signal output terminal
Notes:
* For corresponding video signals, use the VIDEO B
terminals
q or VIDEO B (Y/C) terminals w.
* Also refer to BASIC CONNECTION EXAMPLE
on page 13.
Audio RGB/COMPO. terminals [AUDIO RGB/
26
COMPO. IN/OUT]
Input (IN) and output (OUT) terminals for the audio signals
corresponding to the RGB/COMPO. terminals
output terminal is bridge-connected.
IN : Audio signal input terminal
OUT : Bridge-connected audio signal output terminal
Notes:
● For corresponding video signals, use the RGB/COMPO.
terminals
● Also refer to BASIC CONNECTION EXAMPLE
on page 14.
e.
e. The
To AC outlet
(120 V AC, 50/60 Hz)
Remote terminals [REMOTE INPUT A/B,
27
ASPECT]
Remote terminals for external control. Selecting INPUT A
or INPUT B and the ASPECT RATIO is available via
external control. External control is set in the <SET-UP
MENU> screen.
To use external control, you must build a switch cable and
connect it to the REMOTE terminals.

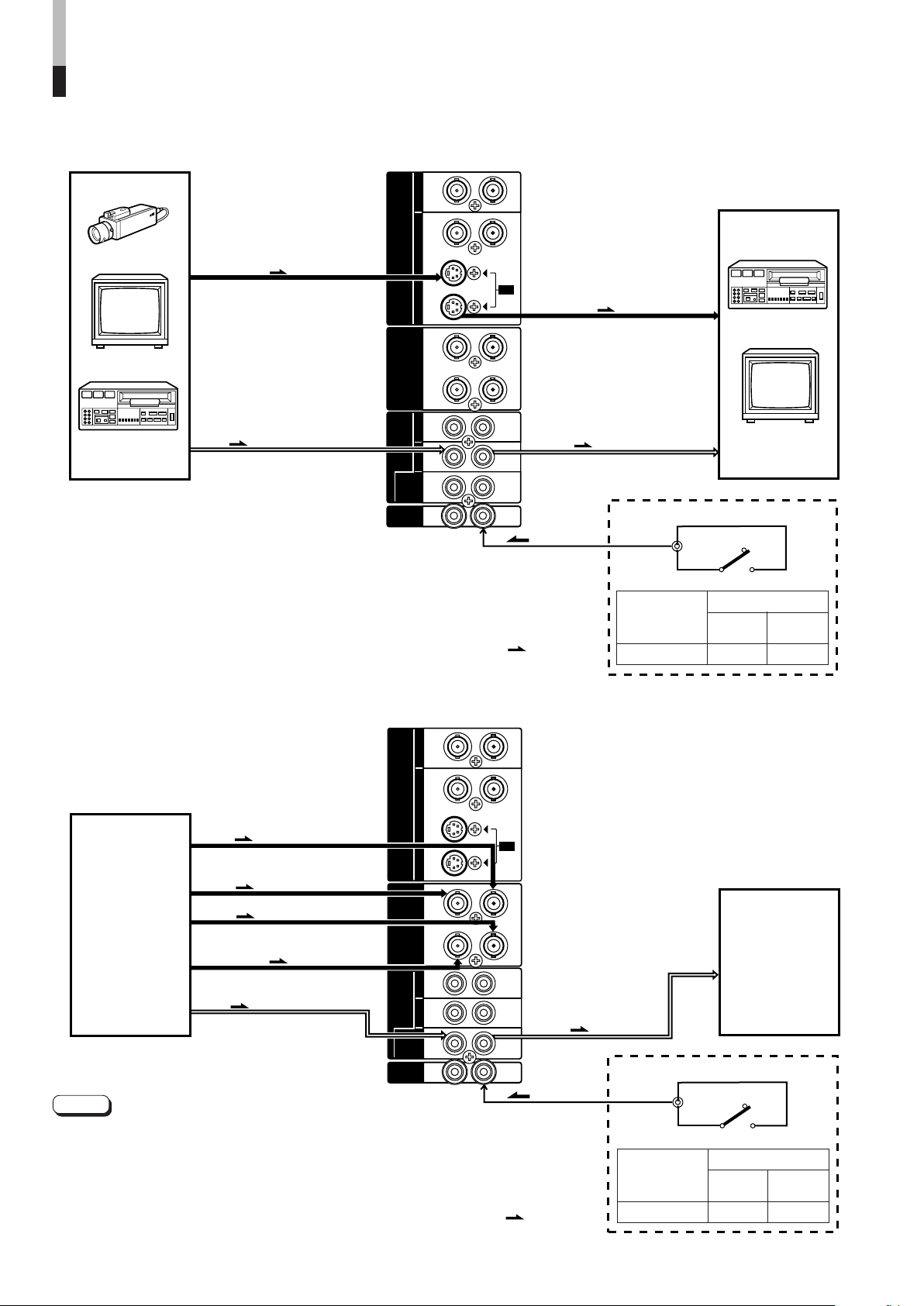

● Also refer to BASIC CONNECTION EXAMPLE on
28
AC Inlet [AC IN]
Power input connector. Connect the provided AC power
cord
29
Power cord
Connects the provided power cord (120 V AC, 50/60 Hz)
to the AC IN connector.
OUTIN
A
OUTIN
VIDEO
B
IN
Y/C
OUT
B-Y
Y/G
/B
RGB /
COMPO.
R-Y
RGB
/R
SYNC
IN
OUT
A
IN
OUT
AUDIO
B
RGB /
IN
OUT
COMPO.
INPUT
ASPECT
REMOTE
A/B
28
29
External control
functions
ASPECT RATIO 4–3 (4:3) 16–9 (16:9)
INPUT A/B INPUT A INPUT B
External control switch
Open circuit Closed circuit
(open) (short)
Note:
pages 13 and 14.
o to an AC outlet (120 V AC, 50/60 Hz).
6
+
–
HOW TO HANDLE BASIC
+
–
OPERATIONS
BASIC OPERATION
1. Press the POWER switch to turn on the power.
ON
OFF
POWER
2. Press the INPUT SELECT button to choose input.
RGB/
COMPO.
BA
Y/ C
VIDEO VIDEO
INPUT SELECT
3. Press the VOLUME/SELECT button to adjust the
speaker volume.
– +
VOLUME/SELECT
gON : Power turns ON. (Power indicator: lit)
GOFF : Power turns OFF. (Power indicator: unlit)
Select video/audio signals input to terminals on the rear
panel. The selected INPUT SELECT indicator lights in green.
INPUT
SELECT
button
1 Input A
(VIDEO)
2 Input B
(VIDEO)
3 Input B
(Y/C)
4 Input
RGB/
COMPO.
* RGB or COMPONENT signals can be selected in the <MENU> screen.
Press this button to display the speaker volume level on the
screen.
+ : The Built-in speaker volume is increased. (00 = 50)
– : The Built-in speaker volume is decreased. (50 = 00)
* Screen indication will disappear about 10 seconds after
operating.
VIDEO A terminal AUDIO A terminal
VIDEO B terminal
VIDEO B (Y/C) terminal
RGB/COMPO. terminal AUDIO RGB/COMPO.
(RGB/Y, B-Y, R-Y) terminal
Terminals on the rear panel
Video signal input Audio signal input
AUDIO B terminal
STATUS indication
(PAL or NTSC)
PAL
About the STATUS indication
● With the COLOR SYSTEM setting set
to AUTO mode, when you turn on the
power or select inputs, the color
system indication appears for about
3 seconds on the screen while PAL or
NTSC signals are being detected.
It does not appear when receiving a
B/W signal or when no signal is input.
Refer to page 8 for more information
about COLOR SYSTEM setting and
page 10 for more information about
STATUS indication setting.
00 ~ 50
VOLUME : 20
PICTURE ADJUSTMENT
1. Press select button corresponding to the item you
want to adjust.
The item you select is displayed on the screen.
1 PHASE ( ) : Phase control
2 CHROMA ( ) : Chroma control
PHASE CHROMA BRIGHT CONTRAST
3 BRIGHT ( ) : Brightness control
4 CONTRAST ( ) : Contrast control
2. Adjust with the VOLUME/SELECT button.
PHASE : 00
– +
VOLUME/SELECT
CHROMA
(Chroma)
BRIGHT
(Brightness)
CONTRAST
(Contrast)
* Screen indication will disappear about 10 seconds after operating.
VOLUME/SELECT button
Items
PHASE
(Phase)
–+
reddish greenish
lighter deeper
darker brighter
lower higher
Notes:
● Phase control is effective only in the
NTSC color system mode.
● Chroma control is not effective when
receiving B/W or when no signal is
input. (Except when a component
signal is input.)
● When CHROMA is adjusted to “– 40,”
the picture becomes less colorful.
● "NO EFFECT" is displayed (for about
3 seconds) when your selected
function has no effect.
–40 ~ +40
7
HOW TO USE THE MENU FUNCTIONS
DISPLAY AND SELECTION IN THE <MENU>
SCREEN MODE (SETTING)
You can set the following menu items.
Set them depending on your needs.
• SHARPNESS • ASPECT RATIO • BLUE CHECK
• COLOR TEMP. • RGB/COMPONENT
• COLOR SYSTEM • COMPO. LEVEL
1. Press the MENU button.
The <MENU> screen is displayed.
* The screen automatically disappears when no operation is
MENU
performed after about 5 minutes.
2. Press the PHASE ( ) or CHROMA ( ) button
to select MENU items.
A selection mark (3) is put next to the selected item.
PHASE CHROMA
SHARPNESS
COLOR TEMP.
COLOR SYSTEM
ASPECT RATIO
RGB/COMPONENT
COMPO. LEVEL
BLUE CHECK
Front panel Function
button displayed
Contents
PHASE ( ) ∞ Forward selection mark (3)
CHROMA ( ) 5 Reverse selection mark (3)
3. Press the VOLUME/SELECT button to set.
– +
VOLUME/SELECT
Menu items Purpose Setting range
SHARPNESS Picture sharpness
COLOR TEMP.
COLOR
SYSTEM
ASPECT RATIO Aspect ratio
RGB/COMPONENT
COMPO. LEVEL Component level
BLUE CHECK Blue check ON/OFF
Front panel Function
button displayed
VOLUME/
SELECT (+)
VOLUME/
SELECT (–)
Color temperature of
white balance
Color system
Input RGB/COMPO. signal
system
+ Increase (to max. value)
3
– Decrease (to min. value)
2
Forward the setting value
Reverse the setting value
00 +1 +39 +40
9300 6500
AUTO NTSC AUTO PAL
4 – 3 16 – 9
RGB COMPO.
+01 +9 +10
0
–01 –39 –40
OFF ON
Contents
4. If you want to set the other menu items, repeat
procedures 2 and 3.
5. Press the MENU button to quit.
MENU
Front panel Function
button displayed
MENU EXIT
Quit (or Release) the <MENU>
screen
Contents

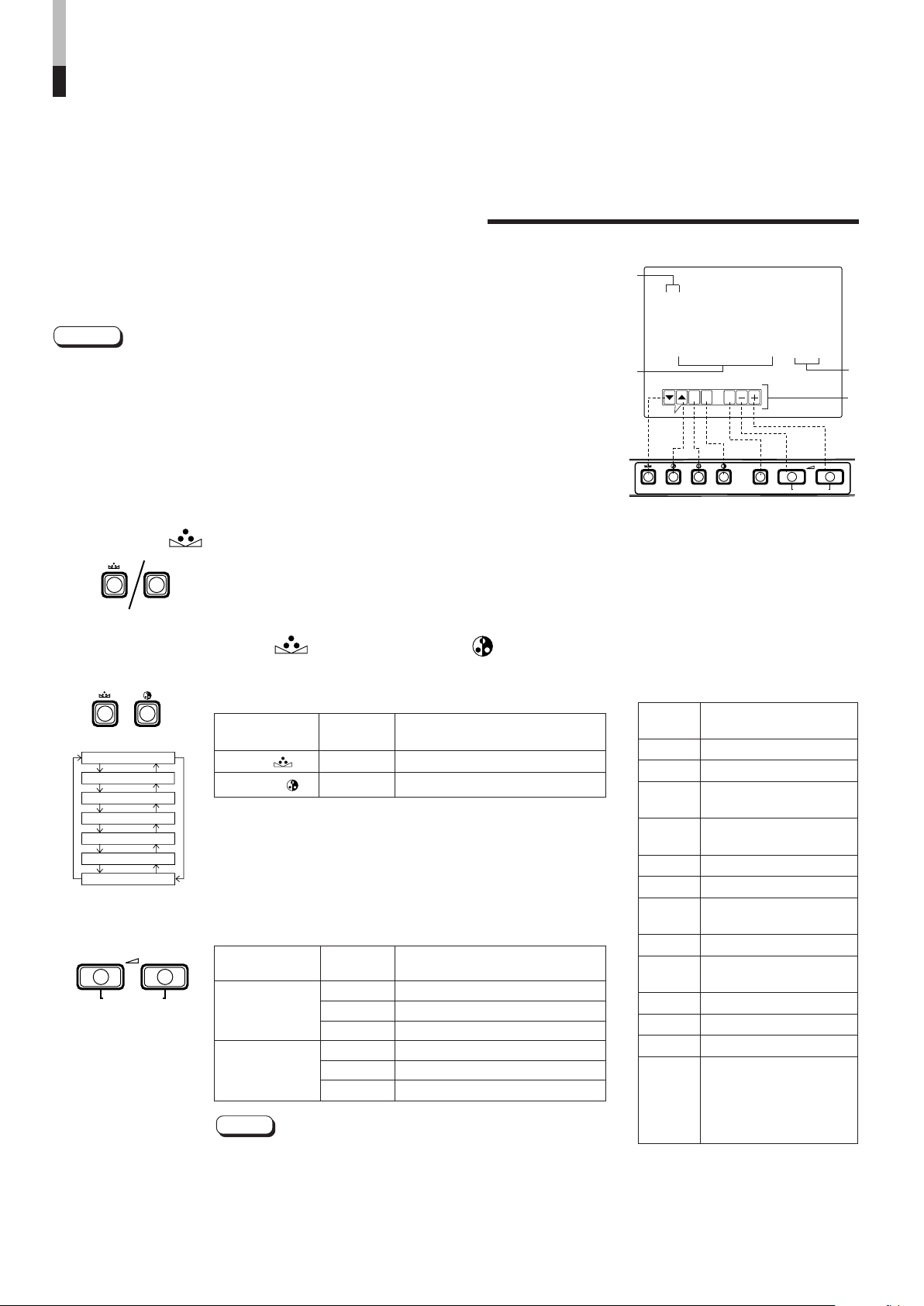

<MENU> screen
1
<MENU >
‰ SHARPNESS : 00
COLOR TEMP. : 6500
COLOR SYSTEM :
ASPECT RATIO : 4–3
RGB/COMPONENT :
COMPO. LEVEL : 00
BLUE CHECK :
AUTO
RGB
OFF
2
EXIT
– +
PHASE CHROMA BRIGHT CONTRAST MENU VOLUME/SELECT
<Front panel button>
1 Selection mark (
menu item you select.
3
): Indicates the
2 Menu item: Menu items you can
select.
3 Setting display: Indicates the current
settings (value).
4 Function display: The functions of
the front panel buttons (7 buttons on
the left) correspond to the function
displayed.
Function
displayed
∞ Forward the menu item.
5 Reverse the menu item.
– Lower the adjustment
+ Raise the adjustment
3
2
EXIT Exits the <MENU> screen.
Notes:
● When the screen aspect ratio is set to
16 - 9 (16:9) in ASPECT RATIO, the
picture will be vertically reduced.
● When REMOTE is displayed in the
ASPECT RATIO or RGB COMPONENT
status, it is not possible to set these items
because ASPECT REMOTE or INPUT
REMOTE in the <SET-UP MENU> is set to
valid. Use the external control function or
set ASPECT REMOTE or INPUT REMOTE
to invalid (OFF) to make setting possible.
● The BLUE CHECK function is not
memorized. After the power is turned off
and on again, BLUE CHECK is automatically set to OFF. Refer to page 9 for more
information about the BLUE CHECK
function.
● When selecting COMPONENT, adjust
CHROMA GAIN (COLOR) in the COMPO.
LEVEL item first, then input a standard
signal from the device used with the
monitor and adjust CHROMA GAIN with
BLUE CHECK. Refer to page 9 for more
information about initializing COMPO.
LEVEL.
Contents
value. (to the minimum)
value. (to the maximum)
Forward the setting value.
Reverse the setting value.
3
4
8
How to use the BLUE CHECK function
Input the standard color-bar signal for your TV system and display it on the screen. When the BLUE CHECK function is ON, the
red and green signals are cut and only the blue signal is displayed. The BLUE CHECK function adjusts and checks CHROMA
(COLOR) GAIN and PHASE.
Make sure that COMPO. LEVEL has been initialized when a component signal is input.
[Procedure]
1. Input the standard color-bar signal for your TV system and display it on the screen.
2. Set the BLUE CHECK function in the <MENU> screen to ON and then press the
MENU button to quit the <MENU> screen.
3. Press the CHROMA button to adjust the chroma so that the blue bars on the left and
right sides of the screen have the same brightness.
4. (Only when an NTSC signal is input) Press the PHASE button to adjust the phase so
that the two blue bars at the center of the screen have the same brightness.
5. (Only when an NTSC signal is input) Repeat procedures 3 and 4 for the adjustment so
that all four blue bars on the screen have the same brightness.
When the adjustment is complete, set the BLUE CHECK function to OFF.
䢇 Initializing COMPO. LEVEL (when a component signal is input)
When a component signal is input, be sure to adjust (initialize) the COLOR offset in
COMPO. LEVEL.
Blue
Note:
● The BLUE CHECK function is not
memorized. After the power is turned
off and on again, BLUE CHECK is
automatically set to OFF.
Blue
Blue
Blue
[Procedure]
1. Input the standard color-bar signal for your TV system and display it on the screen.
2. Set the BLUE CHECK function in the <MENU> screen to ON.
3. Select COMPO. LEVEL in the <MENU> screen and then adjust it with VOLUME +/–
buttons so that the blue bars on the left and right sides of the screen have the same
brightness.
4. Quit the <MENU> screen with the BLUE CHECK function ON.
5. Make sure that the blue bars on the left and right sides of the screen have the same
brightness.
6. Repeat procedures 3, 4 and 5 for the adjustment so that the blue bars on the left and
right sides of the screen have the same brightness.
Blue
Blue
Blue
Blue
9
HOW TO USE THE MENU
FUNCTIONS
(cont'd)
DISPLAY AND SELECTIONS IN THE <SET-UP
MENU> MODE (SETTING)
You can set the following set-up menu items.
• H. POSITION • CONTROL LOCK • ASPECT REMOTE
• V. POSITION • STATUS DISPLAY
• WHITE BALANCE • INPUT REMOTE
Notes:
● Parameters for H. POSITION and V. POSITION can be set separately depending on
the video input (Input A (VIDEO), Input B (VIDEO), Input B (Y/C) or Input RGB/
COMPO.) selected by the input select buttons on the front panel.
Select the required video input with the input select buttons on the front panel in
advance.
● WHITE BALANCE can be set individually at 6500 or 9300 for the color temperature
value.
Set COLOR TEMP. to the value 6500 or 9300 in the <MENU> screen in advance.
1. While pressing the MENU button, press the
PHASE (
MENUPHASE
) button.
The <SET-UP MENU> screen is displayed.
* The screen automatically disappears when no operation is
performed after about 5 minutes.
2. Press the PHASE ( ) or CHROMA ( ) button
to select the desired menu item.
A selection mark (3) is put next to the selected item.
PHASE CHROMA
H. POSITION
V. POSITION
WHITE BALANCE
CONTROL LOCK
STATUS DISPLAY
INPUT REMOTE
ASPECT REMOTE
Front panel Function
button displayed
PHASE ( ) ∞ Forward selection mark (3)
CHROMA ( ) 5 Reverse selection mark (3)
Contents
3. Press the VOLUME/SELECT button to set.
– +
VOLUME/SELECT
Front panel Function
button displayed
VOLUME/
SELECT (+)
VOLUME/
SELECT (–)
+ Increase (to max. value)
3
CUTO Selects CUT OFF setting screen
– Decrease (to min. value)
2
DRV Selects DRIVE setting screen
Forward the setting value
Reverse the setting value
Contents
Notes:
● For the WHITE BALANCE setting, select the CUT OFF or
DRIVE setting screen, then select the buttons (PHASE/
CHROMA/BRIGHT) corresponding to the function indicated
(R/G/B).
● Press the EXIT (MENU) button to return to the <SET-UP
MENU> screen.
<SET-UP MENU> screen
1
<SET-UP MENU>
‰ H. POSITION : 00
V. POSITION : 00
WHITE BALANCE
CONTROL LOCK : OFF
STATUS DISPLAY : ON
INPUT REMOTE : OFF
ASPECT REMOTE : OFF
2
EXIT
PHASE CHROMA BRIGHT CONTRAST MENU VOLUME/SELECT
<Front panel button>
1 Selection mark (
menu item you select.
3
): Indicates the
2 Menu item: Menu items you can
select.
3 Setting display: Indicates the current
settings (value).
4 Function display: The functions of
the front panel buttons (7 buttons on
the left) correspond to the function
displayed.
Function
displayed
∞ Forward the menu item.
5 Reverse the menu item.
– Lower the adjustment
+ Raise the adjustment
3
2
EXIT
DRV Selects DRV adjustment.
CUTO
R Adjusts red signal level.
G Adjusts green signal level.
B Adjusts blue signal level.
DISP
Contents
value. (to the minimum)
value. (to the maximum)
Forward the setting value.
Reverse the setting value.
Exit the <SET-UP MENU>
screen. (release)
Selects CUT OFF
adjustment.
Turns the ON-SCREEN
display on or off. (This
function is effective only in
the DRIVE or CUT OFF
adjustment mode.)
3
4
– +
10
Set-up menu items Purpose Settings
–05 –04 • • • • • • –01 00 +01 • • • • • • +04 +05
–05 –04 • • • • • • –01 00 +01 • • • • • • +04 +05
H. POSITION Adjusts the horizontal position of
the screen (+ : Horizontal position
shifts to the right/–: Horizontal
position shifts to the left)
V. POSITION Adjusts the vertical position on the
screen (+: Vertical position moves
down/–: Vertical position moves up)
WHITE BALANCE Adjusts the white balance Selects DRIVE (DRV) or CUT OFF (CUTO) adjustment.
Screen setting is changed to the selected setting mode.
Select R/G/B buttons corresponding to the function display
to adjust.
DRIVE R.DRIVE Adjusts red level
B.DRIVE Adjusts blue level
CUT OFF R. CUT OFF Adjusts red cut off
G. CUT OFF Adjusts green cut off
B. CUT OFF Adjusts blue cut off
CONTROL LOCK Sets the operation buttons on the
front panel to control lock mode
STATUS DISPLAY Sets the status display of the color
system
INPUT REMOTE Sets external control of input
selection (INPUT A/B)
ASPECT REMOTE Sets external control of the aspect
ratio
–20 –19 • • • • • –01 00 +01 • • • • • +19 +20
–20 –19 • • • • • –01 00 +01 • • • • • +19 +20
–20 –19 • • • • • –01 00 +01 • • • • • +19 +20
–20 –19 • • • • • –01 00 +01 • • • • • +19 +20
–20 –19 • • • • • –01 00 +01 • • • • • +19 +20
OFF ON
ON OFF
OFF A/B
OFF ON
4. To set the other set-up menu items, repeat the
procedures 2 and 3.
5. Press the MENU button to quit.
MENU
Front panel Function
button displayed
MENU EXIT
Quit (or Release) the <MENU>
screen
Contents
Notes:
● When the CONTROL LOCK function is
set to ON, pressing operation buttons
on the front panel will display the
message "CONTROL LOCK ON!" on
the screen for about 3 seconds.
● The CONTROL LOCK function is
maintained even when the power is
turned off.
● To turn off the CONTROL LOCK
function, while holding the MENU button
press the PHASE button. Then set the
CONTROL LOCK function to OFF.
● Even when the CONTROL LOCK
function is set to ON, the following
operations are available:
– Power Switch operation
– Volume control with the VOLUME/
SELECT buttons
– External control when INPUT
REMOTE or ASPECT REMOTE is
valid
– Display or disappear of the <SET-UP
MENU> screen.
● The STATUS DISPLAY function can be
set to display (ON) or not display (OFF)
the present color system when the
power is turned on or the input signal is
changed. Refer to page 7 for more
information.
● When the INPUT REMOTE function is
valid (A/B), pressing the Input A, Input B
or Input RGB/COMPO. buttons will
display the message "REMOTE ON!" on
the screen for about 3 seconds.
● The INPUT REMOTE function is valid
(A/B) after quitting the <SET-UP
MENU> screen.
11
HOW TO INITIALIZE THE
SETTING
SCREEN DISPLAY AND SELECTIONS IN THE
<SET-UP MENU> RESET MODE
You can set <MENU> and <SET-UP MENU> screen items, picture adjustment items and
the volume level to their factory-set (initial) values.
1. Press the Power ( ) Switch to turn the power
OFF (G).
ON
OFF
POWER
2. While pressing both MENU button and PHASE ( )
button, press the Power ( ) switch to turn the power
g
ON (
PHASE MENU
).
POWER
The <SET-UP MENU> RESET screen is displayed.
* The screen automatically disappears when no operation
ON
OFF
is performed after about 5 minutes.
Note:
● The <SET-UP MENU> RESET screen will not be
displayed if the MENU or PHASE buttons are pressed
for a very short time. Keep pressing them until the
display screen appears.
3. Setting
䢇 Initialization is required.
Press the CONTRAST (
* Initialization is completed, and the <SET-UP MENU>
CONTRAST
䢇 Initialization is not required.
– +
VOLUME/SELECT
RESET screen disappears.
Press the VOLUME/SELECT [+] or [–] button.
* Initialization is aborted, and the <SET-UP MENU>
RESET screen disappears.
) button.
<SET-UP MENU> RESET screen
<SET–UP MENU> RESET
Are you sure ?
“Yes” then <CONTRAST>
“No” then <+> or <–>
Initial settings
Functions (Items)
Sorts
SHARPNESS 00
COLOR TEMP. 6500
COLOR SYSTEM
ASPECT RATIO 4–3
RGB/COMPONENT
COMPO. LEVEL 00
<MENU> screen
BLUE CHECK OFF
H. POSITION 00
V. POSITION 00
WHITE BALANCE
R. CUT OFF 00
G. CUT OFF 00
B. CUT OFF 00
R. DRIVE 00
B. DRIVE 00
CONTROL LOCK OFF
STATUS DISPLAY ON
<SET-UP MENU> screen
INPUT REMOTE OFF
ASPECT REMOTE OFF
PHASE 00
CHROMA 00
CONTRAST 00
BRIGHT 00
Picture adjustment
VOLUME 20
Volume
Initialization
(setting)
AUTO
RGB
12
BASIC CONNECTION EXAMPLE
Notes:
• Before connecting your system, make sure that all units are turned off.
• The illustration below shows some examples of different connections. Terminal connections may differ depending on the
component connected. Be sure to refer to the instructions provided with the unit(s) you are connecting.
• Each pair of input (IN) and output (OUT) terminals are bridge-connected.
• If you’re not connecting any equipment to a bridged output (OUT) terminal, be sure not to connect any other cables to the bridged output (OUT)
terminal as this will cause the terminating resistance switch to open (auto terminate function).
• When making a bridge connection, connect the input (IN) and output (OUT) terminals on the monitor to separate video components.
(For example, if both terminals are connected to the same VCR, resonance may occur except during playback. This is caused by the same video
signal "looping" between the VCRs, and is not a malfunction.)
• Select the video input (INPUT A (VIDEO), INPUT B (VIDEO), INPUT B (Y/C) or INPUT RGB/COMPO.) with the INPUT SELECT buttons on the
front panel.
• The ASPECT RATIO or INPUT A/B settings can be controlled via the REMOTE terminal by setting ASPECT REMOTE or INPUT REMOTE in the
<SET-UP MENU> screen to valid. (Refer to pages 10 and 11.)
䡵 VIDEO A Connection Example (Select Input A (VIDEO))
Video
(Video signal cable)
Video Camera
Video Monitor
Audio
(Audio signal cable)
VCR
䡵 VIDEO B (VIDEO) Connection
Example (Select Input B (VIDEO))
Video Camera
Video
(Video signal cable)
VIDEO
RGB /
COMPO.
AUDIO
RGB /
COMPO.
REMOTE
A
B
IN
OUT
OUTIN
Video
(Video signal cable)
OUTIN
Video
(Video signal cable)
Y/C
VCR
Y/G
RGB
SYNC
B-Y
/B
R-Y
/R
Audio
IN
A
IN
B
IN
INPUT
A/B
OUT
OUT
OUT
ASPECT
(Audio signal cable)
Audio
(Audio signal cable)
Video Monitor
VCR
Video Monitor
Audio
(Audio signal cable)
VCR
External control switch
open circuit (open)
RCA pin
closed circuit (short)
External control switch
External control
functions
INPUT A/B
Open circuit Closed circuit
(open) (short)
INPUT A INPUT B
REMOTE
(Remote cable)
REMOTE
(Remote cable)
: Signal Flow
Video Monitor
External control switch
open circuit (open)
RCA pin
closed circuit (short)
External control switch
External control
functions
ASPECT RATIO 4–3 (4:3) 16–9 (16:9)
Open circuit Closed circuit
(open) (short)
13
BASIC CONNECTION EXAMPLE (cont'd)
䡵 VIDEO B (Y/C) Connection Example (Select Input B (Y/C))
Video Camera
Video Monitor
VCR
Y/C (S-video)
(Y/C (S-video) signal cable)
Audio
(Audio signal cable)
VIDEO
RGB /
COMPO.
AUDIO
RGB /
COMPO.
REMOTE
A
B
IN
OUT
Y/G
RGB
SYNC
IN
A
IN
B
IN
INPUT
A/B
OUTIN
OUTIN
Y/C
Y/C (S-video)
(Y/C (S-video) signal cable)
B-Y
/B
R-Y
/R
OUT
Audio
OUT
(Audio signal cable)
OUT
ASPECT
REMOTE
(Remote cable)
VCR
Video Monitor
External control switch
open circuit (open)
RCA pin
closed circuit (short)
External control switch
: Signal Flow
External control
functions
ASPECT RATIO 4–3 (4:3) 16–9 (16:9)
Open circuit Closed circuit
(open) (short)
䡵 RGB/COMPO. Connection Example
B/B–Y
(Signal cable)
Device
outputting
analog RGB
signal or Y/
B-Y/R-Y
component
signal
Note:
● RGB or COMPONENT signals can be selected in the
<MENU> screen.
G/Y
(Signal cable)
R/R–Y
(Signal cable)
RGB SYNC
(Signal cable)
Audio
(Audio signal cable)
(RGB only)
VIDEO
RGB /
COMPO.
AUDIO
RGB /
COMPO.
REMOTE
OUT
OUT
OUTIN
OUTIN
Y/C
B-Y
/B
R-Y
/R
Other audio
device (e.g.
audio amplifier)
A
B
IN
OUT
Y/G
RGB
SYNC
IN
A
IN
B
Audio
INPUT
A/B
IN
OUT
ASPECT
(Audio signal cable)
REMOTE
(Remote cable)
: Signal Flow
External control switch
open circuit (open)
RCA pin
closed circuit (short)
External control switch
External control
functions
ASPECT RATIO 4–3 (4:3) 16–9 (16:9)
Open circuit Closed circuit
(open) (short)
14
TROUBLESHOOTING
Solutions to common problems related to your monitor are described here. If none of the solutions presented here
solves the problem, unplug the monitor and consult a JVC-authorised dealer or service center for assistance.
Problems
No power supply.
No picture with the
power on.
No sound.
Shaking picture.
No colors, wrong
color, or dark picture.
Unnatural, irregularly
colored, or distorted
picture.
Dark stripes appear
at the top and bottom
of the screen, picture
vertically squeezed.
The overall picture
size is too small.
Function buttons on
the front panel do not
function.
The INPUT SELECT
buttons do not
function.
Points to be checked
Is the power plug loosened or disconnected?
Is the video signal output from the connected
component?
Is the input signal selected properly?
Is the video cable disconnected?
Is the audio signal output from the connected
component?
Is the volume output set to minimum?
Is the audio cable disconnected?
Is the monitor close to a device generating a
strong magnetic field?
Is the color system selected properly?
Has the picture control setting (CONTRAST,
BRIGHT CHROMA or PHASE) been changed?
Is the RGB/COMPONENT signal selected
properly?
Is the monitor close to a speaker, magnet or any
other device generating a strong magnetic field?
Is the aspect ratio set to 16:9?
Has the UNDER SCAN button been pressed so
the UNDER SCAN indicator lights?
Has control of the buttons been locked? (Has
the CONTROL LOCK function been set to ON?)
Is input selection under external control? (Has
the INPUT REMOTE function been set to valid
(A/B)?)
Measures (Remedy)
Firmly insert the power plug.
Set the connected component correctly.
Select the required video signal input with the
Input select button. (See page 7.)
Connect the video signal cable firmly.
(See pages 13 and 14.)
Set the connected component correctly.
Adjust the speaker volume with the VOLUME/
SELECT button. (See page 7.)
Connect the audio signal cable firmly.
(See pages 13 and 14.)
Move the device away from the monitor until the
picture stabilizes.
Set COLOR SYSTEM in the <MENU> screen to
AUTO. (See page 8.)
Set each picture control to the standard setting.
(See page 7.)
Check the RGB/COMPONENT setting in the
<MENU> screen. (See page 8.)
Move the device away from the monitor and turn
the monitor’s power off. Wait at least 30 minutes,
then turn the power on again.
Set ASPECT RATIO in the <MENU> screen to
[4 : 3 (4 – 3)]. (See page 8.)
When controlling externally, ASPECT RATIO
should be set to [4 : 3 (4 – 3)].
(See pages 13 and 14.)
Press the UNDER SCAN button to turn off the
indicator. (See page 4.)
Set CONTROL LOCK in the <SET-UP MENU>
screen to OFF. (See pages 10 and 11.)
Set INPUT REMOTE in the <SET-UP MENU>
screen to OFF. (See pages 10 and 11.)
The following are not malfunctions:
● When a bright still image (such as a white cloth) is displayed for a long period, it may appear to be colored. This is due to the
structure of the cathode ray tube and will be deleted when another image is displayed.
● You experience a mild electric shock when you touch the picture tube. This phenomenon is due to a normal buildup of static
electricity on the CRT and is not harmful.
● The monitor emits a strange sound when the room temperature changes suddenly. This is only a problem if an abnormality
appears on the screen as well.
● If two or more monitors are operated next to each other, their images may shake or be distorted. This phenomenon is due to
mutual interference; it is not a malfunction. Move the monitors away from each other until the interference disappears or turn the
power off on any monitor that is not being used.
15
SPECIFICATIONS
䡲 Type : Color video monitor
䡲 Color system : PAL, NTSC (3.58)
䡲 Picture tube : 16” measured diagonally,
flat-square type,
90° deflection, in-line gun,
vertical line trio type (phosphor
stripe pitch 0.42 mm)
䡲 Effective screen size : Width 13” (330 mm)
Height 9-7/8” (250 mm)
Diagonal 16-1/4” (410 mm)
䡲 Scanning frequency : (H) 15.734 kHz (NTSC)
15.625 kHz (PAL)
(V) 59.94 Hz (NTSC)
50 Hz (PAL)
䡲 Horizontal resolution : 550 TV lines or more
(Y/C input mode)
䡲 Input terminals
VIDEO A : Composite video:
1 line, BNC connector x 2,
1 V (p-p), 75 Ω, negativ e sync
(bridge connection possible,
auto termination)
VIDEO B : Composite video:
1 line, BNC connector x 2,
1 V (p-p), 75 Ω, negativ e sync
(bridge connection possible,
auto termination)
Y/C-separated:
1 line, mini-DIN 4-pin
connector x 2
Y: 1.0 V (p-p), 75 Ω
C(BURST): 0.286 V (p-p),
75 Ω (NTSC),0.3 V (p-p),
75 Ω (PAL)
(bridge connection possible,
auto termination)
RGB/COMPO. : Analog RGB:
1 line, BNC connector x 3
R, G, B: 0.7 V (p-p), 75 Ω
RGB sync:
0.3 V (p-p) – 4 V (p-p), 75 Ω
Y, R-Y, B-Y component:
1 line
Y: 1 V (p-p), 75 Ω, negative sync
R-Y, B-Y: 0.7 V (p-p), 75 Ω
AUDIO A : 1 line (monaural), RCA pin x 2
0.5 V (rms), high-impedance
(bridge connection possible)
AUDIO B : 1 line (monaural), RCA pin x 2
0.5 V (rms), high-impedance
(bridge connection possible)
AUDIO RGB/COMPO. : 1 line (monaural), RCA pin x 2,
0.5 V (rms), high-impedance
(bridge connection possible)
REMOTE INPUT A/B : 1 line, RCA pin x 1
REMOTE ASPECT : 1 line, RCA pin x 1
䡲 Audio power output : 1 W (monaural)
䡲 Built-in speaker : 3-1/8” (8 cm) round x 1
impedance of 8 Ω
䡲 Environmental
conditions : Operation temperature:
0 °C – 40 °C (32 °F – 104 °F)
Operation humidity:
20 % – 80 % (non-condensing)
䡲 Power requirements : 120 V AC, 50 Hz / 60 Hz
䡲 Power consumption : 1.2 A (120 V AC)
䡲 Dimensions : Width 15-5/8” (395 mm)
Height 13-1/4” (334 mm)
Depth 16-5/8” (420.5 mm)
䡲 Weight : 37.9 lbs (17.2 kg)
䡲 Accessory : AC power cord [7.9 ft (2.4 m)] x 1
* Illustrations used in this manual are for explanatory pur poses only. The appearance of the actual product may differ slightly.
* Dimensions and weight are approximate.
* E. & O. E. Design and specifications subject to change without notice.
16
䡵 Dimensions
Unit : inch (mm)
< Front View >
15-5/8 (395)
*
RGB/
BA
Y/ C
INPUT SELECT
*
VIDEO
VIDEO
ON
OFF
POWER
13-1/4 (336.3)
10-1/8 (256)
UNDER
SCAN
COMPO.
TM-1650SU
PHASE CHROMA BRIGHT CONTRAST MENU
– +
VOLUME/SELECT
13-5/8 (346)
* Asterisks (*) are used to indicate front panel
dimensions.
13-1/4 (334)
< Side View >
3/16 (4.5)
3/16 (3.5)
2-1/4
(55)
16-5/8 (420.5)
16-1/8 (407.2)
1/16 (1.0)
12-1/8 (306.5)
䡵 Y/C (Mini DIN 4 pin) terminal
specification
24
IN
1
24
OUT
1
3
Y/C
3
Pin No. Signal
1 GND (Y)
2 GND (C)
3Y
4C
17
TM-1650SU COLOR VIDEO MONITOR
2000 VICTOR COMPANY OF JAPAN, LIMITED
©
JVC PROFESSIONAL PRODUCTS COMPANY
DIVISION OF US JVC CORP.
1700 Vallery Road Wayne, NJ07470
JVC CANADA INC.
21 Finchdene Square, Scarborough Ontario M1X 1A7
LCT0371-002B-H
0700-Tu-V-JMT
Loading...
