JVC TK-WD310U User Manual

COLOR VIDEO CAMERA
TK-WD310
For Customer Use:
Enter below the Serial No. which is located on the body. Retain this information for future reference.
Model No. TK-WD310
Serial No.
This instruction manual is made from 100% recycled paper.
LWT0127-001A
IMPORTANT SAFEGUARDS
1. Read all of these instructions.
2. Save these instructions for later use.
3. All warnings on the product and in the operating instructions should be adhered to.
4. Unplug this appliance system from the wall outlet before clean­ing. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
5. Do not use attachments not recommended by the appliance manufacturer as they may cause hazards.
6. Do not use this appliance near water - for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet base­ment, or near a swimming pool, etc.
7. Do not place this appliance on an unstable cart, stand, or table. The appliance may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart or stand recommended by the manufacturer, or sold with the appli­ance. Wall or shelf mounting should follow the manufacturer’s instructions, and should use a mounting kit approved by the manu­facturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven sur­faces may cause the appliance and cart com­bination to overturn.
PORTABLE CART WARNING
(symbol provided by RETAC)
S3125A
I
8. Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to insure reliable operation of the appliance and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the appliance on a bed, sofa, rug, or other similar surface. This appliance should never be placed near or over a radiator or heat register. This appliance should not be placed in a built­in installation such as a bookcase unless proper ventilation is provided.
9. This appliance should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. For appliance designed to operate from battery power, refer to the operating instructions.
10. For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it form the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.
11. Do not allow anything to rest on the power cord. Do not locate this appliance where the cord will be abused by persons walk­ing on it.
II
12. Follow all warnings and instructions marked on the appliance.
13. Do not overload wall outlets and extension cords as this can result in fire or electric shock.
14. Never push objects of any kind into this appliance through cabi­net slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the appliance.
15. Do not attempt to service this appliance yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
16. Unplug this appliance from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the appliance. c. If the appliance has been exposed to rain or water. d. If the appliance does not operate normally by following the
operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjust­ment of other controls may result in damage and will often require extensive work by a qualified technician to restore the appliance to normal operation.
e. If the appliance has been dropped or the cabinet has been
damaged.
f. When the appliance exhibits a distinct change in performance
- this indicates a need for service.
III
17. When replacement parts are required, be sure the service tech­nician has used replacement parts specified by the manufac­turer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
18. Upon completion of any service or repairs to this appliance, ask the service technician to perform routine safety checks to determine that the appliance is in safe operating condition.
IV
Safety Precautions
FOR USA AND CANADA
RISK OF ELECTRIC SHOCK
CAUTION
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash wish arrowhead symbol, within an equi­lateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's en­closure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is in­tended to alert the user to the presence of important oper­ating and maintenance (servicing) instructions in the litera­ture accompanying the appliance.
Information for USA
This device complies with part 15 of the FCC Rules. Changes or modifica­tions not approved by JVC could void the user’s authority to operate the equipment.
V
Due to design modifications, data given in this instruction book are sub­ject to possible change without prior notice.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
AVERTISSEMENT: POUR EVITER LES RISQUES D’INCENDIE OU D’ELECTRO-CUTION, NE PAS EXPOSER L’APPAREIL A L’HUMIDITE OU A LA PLUIE.
INFORMATION (FOR CANADA) RENSEIGNEMENT (POUR CANADA)
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la Class B est conforme á la norme NMB-003 du Canada.
VI

INTRODUCTION

Thank you for purchasing this product. (These instrustions are for TK-WD310U and TK-WD310E.) Before beginning to operate this unit, please read the instruction manual carefully in order to make sure that the best possible perfor­mance is obtained.

Features

Backlight compensation over a wide area is realized by the 14-bit Wide
Dynamic Range feature. The Wide Dynamic Range feature controls the exposure time using a maximum of 5 sampling timing for the image within a single screen. Even when shooting in areas with large difference in lightning, subjects with difference in brightness can be viewed in a clear and natural state.
1/3-inch high-resolution DPS device adopted as shooting element to
realize high picture quality with no smearing or blooming in areas with high luminance. In addition, 2.5lx (during F1.2, 50%, AGC SUPER set­ting) is realized for minimum subject brightness.
Horizontal resolution of 480 lines (typ.) and vertical resolution of over
400 lines allow display of finely detailed video.
New device adopted for use even under strong electric field conditions.Compatible with CS mount and VIDEO auto iris/DC auto iris.
* When using the C mount lens, C mount adapter is required.
Various settings in each menu screen are possible.
Menu settings can be performed easily using single button operations.
3 white balance modes of ATW, AWB and MANUAL are available.
ATW mode that adjusts the white balance automatically according to the changes in lighting conditions (color temperature) or AWB/MANUAL mode that automatically or manually adjusts and locks the white bal­ance of specific lighting conditions can be selected.
Camera title setting and display can be made.Compact design allows installation in narrow spaces.
2
EASY INSTALLATION
The factory default settings are intended to give easy instal­lation. Please attach a lens, a power supply, a video cable and mount the camera securely. You should now have good images. The additional information contained in this handbook is intended to give additional flexibility to more demanding installations.
Before starting an important recording, be sure to perform a
test recording in order to confirm that a normal recording is possible.
We do not accept liability for the loss of a recording in the
case of it becoming impossible to record due to a problem in the video camera, VCR or video tape.
We do not accept liability for any damage to the camera in
cases when it is dropped because of incomplete installation due to not observing the installation instructions correctly. Please be careful when installing the camera.
Characters and symbols used in this instruction manual.
CAUTION : Cautionary notes concerning operation of the
unit.
MEMO : Reference such as restrictions of features, etc.
: Reference page or item.
3

Contents

INTRODUCTION
Features ..................................................................................... 2
Contents ..................................................................................... 4
Operating Precautions ............................................................... 5
Names and Operations of Parts ................................................. 8
CONNECTION/INSTALLATION
Basic System ........................................................................... 13
Mounting the lens ..................................................................... 14
Connections on the back ..........................................................16
Mounting the camera ............................................................... 18
Auto iris lens adjustment ..........................................................20
Back focus adjustment ............................................................. 22
MENU SETTING
Menu settings ........................................................................... 24
Menu tree .................................................................................26
About menus ............................................................................27
FOCUS ADJUST screen .......................................................... 27
VIDEO ADJUST screen ........................................................... 28
WDR CUSTOM SETTINGS screen ...................................... 29
MANUAL WHITE BALANCE screen ..................................... 33
CAMERA SETTINGS screen ...................................................34
LENS ADJUST screen .......................................................... 34
CAMERA TITLE EDIT screen ............................................... 36
FACTORY SETTINGS screen ..................................................38
OTHERS
Troubleshooting ........................................................................ 39
Speifications ............................................................................. 40
4
INTRODUCTION

Operating Precautions

To save energy, when it is not being used turn the system’s
power off.
This camera has been designed for indoor use.
When you use it outdoors, be sure to use an appropriate housing.
Do not install or use the camera in the following places.
• In a place exposed to rain or moisture.
• In a place with vapor or oil soot, for example in a kitchen.
• When the ambient temperature rises above or falls below the acceptable range (from –10°C to 50°C).
• Near a source of radiation, X-rays, strong radio waves or mag­netism.
• In a place where corrosive gasses are generated.
• In a place subject to vibration.
• In a place with excessive dirt.
If this camera and the cables connected to this camera are used where there are strong electromagnetic waves or where there is magnetism present, for example near a radio or TV transmit­ter, power transformer or an electric motor, the picture may pro­duce noise and the colours may be affected.
This camera incorporates an AGC circuit. As a result, when it is used under low light conditions, the camera sensitivity is auto­matically boosted and the picture may look uneven. However, this is not a malfunction.
When this camera is used in the ATW mode, the recorded colours may be slightly different from the actual colours due to the operational principles of the auto-tracking white balance cir­cuit. However, this is not a malfunction.
Hunting may occur depending on the used lens. However, this is not a malfunction of the unit.
The screen surroundings may appear dark depending on the used lens.
5
INTRODUCTION
Operating Precautions (continued)
The white balance (ATW) of this device is optimally set for sun­light. Proper white balance may not be achieved for artificial lighting such as fluorescent lighting, etc.
If you use this camera in locations where the camera is ex­posed to fluorescent light, a slow color change may occur. (White balance normal = 5,400 K, range is 2,500 K to 10,000 K.)
AGC SUPER: in this mode, ATW white balance may be inaccurate.
White balance performance decreases under poor lighting con­ditions.
Observe the following when carrying out camera maintenance.
•Turn the power OFF before proceeding to carry out mainte-
nance. If it is contaminated seriously, clean the contaminated part with a cloth (or a tissue) which has been soaked in a solution of water and a neutral detergent.
The unit is to be powered by a DC 12 V or an AC 24 V power supply. The AC 24 V power supply should conform to the following: U type : Class 2 only E type : Isolated power supply only
The beat may sometimes appear on the screen if gain is raised when the line lock is in use, but the phenomenon takes place due to the fluctuation of power frequency and is not a malfunc­tion.
At Low light levels, video iris lens may “Hunt”. Please adjust iris level on lens to minimise hunting.
Recommended range of operating temperature is 0°C to 35°C degrees. The camera will function outside these parameters to –10°C to 50°C degrees. But processing errors may be appar­ent.
6
Line-Lock is set for 50 Hz ±0.02 Hz. If line frequency is outside this tolerance, picture may jitter and some interference may be visible in high contrast scenes.
Blemishes: Small spots are normal, the camera contains com­pensation functions for blemishes above 120 mV (p-p) in value. Please contact your JVC authorised dealer for further informa­tion.
7
INTRODUCTION

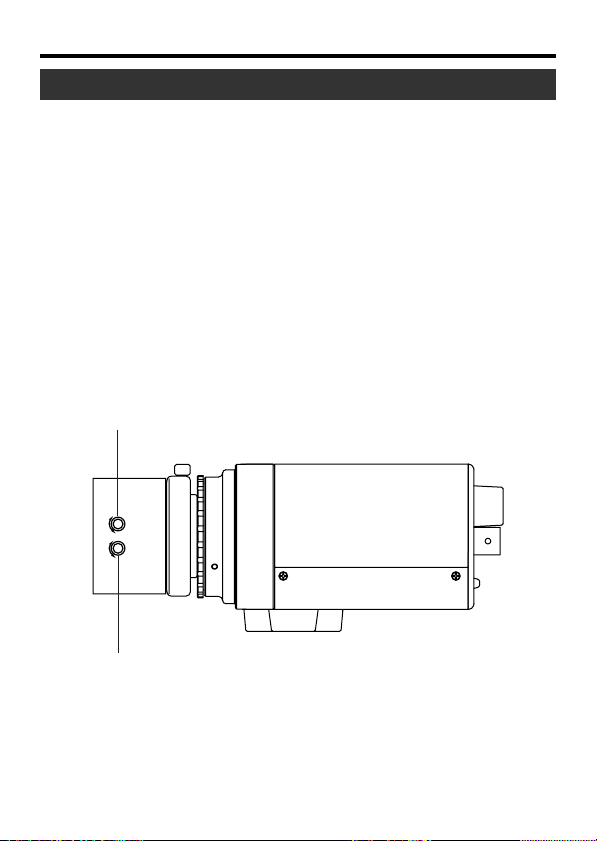

Names and Operations of Parts

[Front and Bottom]
1
2
4
5
3
7
6
1 Lens mount
For use with CS mount lens. (C-mount lenses require a conversion ring.)
2 Backfocus adjustment ring
Adjusting the back focus during lens installation. Please refer to “Back focus adjustment” on Page 22 for in­structions on how to adjust the back focus.
8
3 [BF LOCK] Back focus locking screw (× 2: 2 mm)
This serves to fix the back focus-adjusting ring.
4 Camera-mounting bracket
The bracket has been attached on the bottom of the camera before shipment. It can also be attached on the top according to the circumstance. To re-attach the bracket use the threaded holes at the top, with the camera mounting bracket locking screws 7.
5 Camera-mounting screw hole (1/4 inch)
Use this hole when mounting the camera onto a fixer, pan/tilt unit, and the like. (Use a screw shorter than 7 mm.) ( Page 18)
MAX. 7mm
6 Rotation prevention hole
Make use of this rotation-preventive hole to prevent any fall when mounting the camera. Make sure that the camera is se­curely mounted.
7 Camera mounting bracket fixing screws (× 2: M2.6 × 6 mm)
Be sure to use a 6 mm long screw.
Names and Operations of Parts
9
