1/3" CCD COLOUR VIDEO CAMERA
TK-T2101RE
TK-T8101WPRE
TK-T8100WPRE
■ 1/3" CCD high-resolution camera with 10-bit DSP newest generation
■ 650 TVL horizontal resolution (TK-T2101RE and TK-T8101WPRE)
■ Lolux sensitivity: 0.05 lux colour, 0 lux with IR LED
■ Varifocal lens included (TK-T2101RE: 2.8 – 10.5mm, TK-T8101WPRE: 3.3 – 12mm, TK-T8100WPRE: 3.6mm)
■ Automatic High Light Compensation for extreme white light
■ Easy wide dynamic range function for backlight compensation
■ Built-in motion detection and privacy mask areas
■ Ultra-compact design
■ IP66 rated for outdoor installation (TK-T8101WPRE and TK-T8100WPRE)
■ Setup-free, easy installation (TK-T8100WPRE)
■ 24VAC / 12VDC power supply
Like the best criminals
Our cameras come to life at night
IR LoLux Security Cameras
Powerful new infra-red camera range
LoLux
High Light
Compensation
Built-in
IR LED
TK-T8101WPRE
TK-T8100WPRE
TK-T2101RE
TK-T8101WPRE
TK-T2101RE
TK-T8101WPRE
TK-T8101WPRE
TK-T2101RE
TK-T8100WPRE
KCN-1868B TK-T2101RE/TK-T8101WPRE/TK-T8100WPRE 2013/5
Design and specifications subject to change without notice.
All brand or product names may be trademarks and/or registered trademarks of their respective owners.
Copyright © 2013, JVC KENWOOD Corporation
DISTRIBUTED BY
Dimensions
TK-T2101RE TK-T8101WPRE TK-T8100WPRE
Camera
Signal system PAL PAL PAL
Image device 1/3 type High-resolution IT CCD 1/3 type High-resolution IT CCD 1/3 type High-resolution IT CCD
Effective pixels 570,000 (976H x 582V) 570,000 (976H x 582V) 440,000 (752H x 582V)
Scanning system 2:1 Interlace V: 50 Hz, H: 15.625 KHz 2:1 Interlace V: 50 Hz, H: 15.625 KHz 2:1 Interlace V: 50 Hz, H: 15.625 KHz
Sync system Internal Internal Internal
Video output Composite video signal: 1.0V (p-p), 75 ohms (BNC) Composite video signal: 1.0V (p-p), 75 ohms (BNC) Composite video signal: 1.0V (p-p), 75 ohms (BNC)
Video S/N ratio 50 dB 50 dB 50 dB
Horizontal resolution 650 TV lines 650 TV lines 600 TV lines
Minimum illumination (typical) 0.05 lx (50%, F1.2) 0.025 lx (25%, F1.2) 0.05 lx (50%, F1.4) 0.025 lx (25%, F1.4)
0 lx (with IR LED ON)
B&W mode 0.015 lx (50%, F1.2) 0 lx (with IR LED ON) 0.015 lx (50%, F1.4) 0 lx (with IR LED ON)
Iris control DC iris DC iris Fixed
White balance ATW / Manual / User / Push / Push lock ATW / Manual / User / Push / Push lock ATW
Shutter speed 1/50 to 1/10,000 1/50 to 1/10,000 AES (1/28,000)
Day/Night True D/N with IR cut-off filter True D/N with IR cut-off filter Dual band filter
Digital noise reduction YES YES YES
BLC OFF / BLC / HLC OFF / BLC / HLC –
AGC AUTO / MANUAL AUTO / MANUAL AUTO
Motion detect 4 areas 4 areas –
Privacy mask Max. 8 areas Max. 8 areas –
IR LED 14 LEDs 28 LEDs 24 LEDs
IR wavelength 850 nm 850 nm 850 nm
IR distance 15M 20M 15M
On screen menu
English, French, German, Spanish, Russia,
Portuguese, Simplified Chinese, Japanese
English, French, German, Spanish, Russia,
Portuguese, Simplified Chinese, Japanese
–
Lens
Focal length
2.8mm to 10.5mm, 3.75x vari-focal
[100(H) x 73(V) to 24(H) x 21(V)]
3.3mm to 12mm
[100(H) x 73(V) to 24(H) x 21(V)]
3.6mm
View angle
Horizontal: 101.8 (wide) to 27.4 (tele) degrees
Vertical: 73.7 (wide) to 20.6 (tele) degrees
Horizontal: 89.8 (wide) to 23.9 (tele) degrees
Vertical: 63.6 (wide) to 17.9 (tele) degrees
Horizontal: 72 degrees
Vertical: 52 degrees
Aperture ratio F1.2 F1.4 F2.0
General
Power supply 24VAC (50Hz/60Hz) / 12VDC 24VAC (50Hz/60Hz) / 12VDC 12VDC
Power consumption 5W 7W 3W
Operating temperature range -10°C to 50°C -10°C to 50°C -10°C to 50°C
Dust and water proof – IP66 IP66
Vandal protection – Vandal protected –
Dimensions
112 mm x 97 mm 83 mm x 206 mm 72 mm x 159 mm
Weight (approx.) 300 g 680 g 370 g

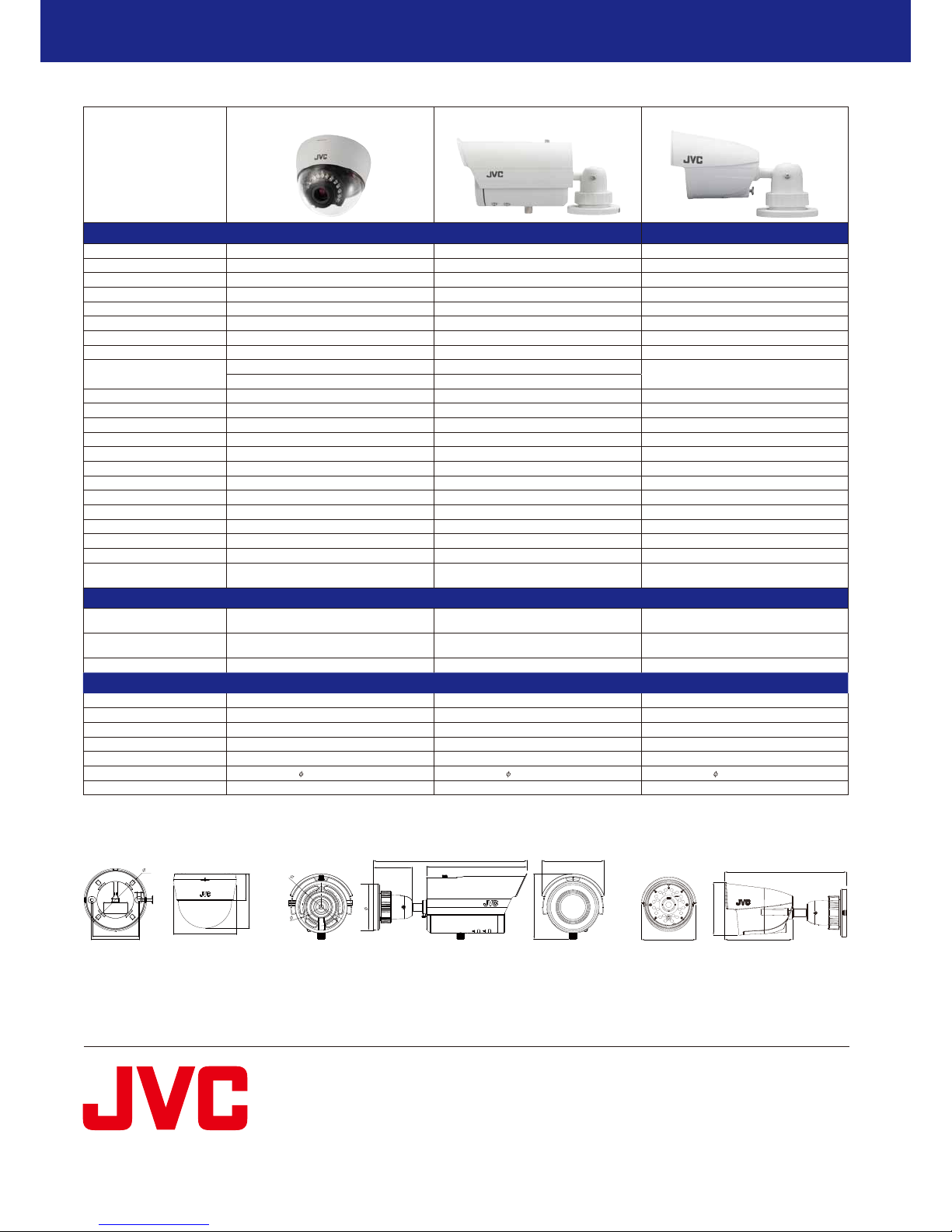

Specifications
7
5
82
86
112
112
97
47.2
205.5
134.5
51.5
82.9
87
62
50
5
158.9
71
68.8
88.4
205.5
134.5
51.5
82.9
87
62
50
5
158.9
71
68.8
88.4
158.9
71
68.8
88.4
TK-T2101RE TK-T8101WPRE TK-T8100WPRE
Unit: mm
