JVC UX-GP7V, CA-UXGP7V, SP-UXGP7V Instructions Manual

MICRO COMPONENT SYSTEM

UX-GP7V

—Consists of CA-UXGP7V and SP-UXGP7V

SUPER VIDEO

INSTRUCTIONS

GVT0258-005A

[US/UN/UB/UG/UX/A/UH]

Warnings, Cautions and Others

CAUTION

The button in any position does not disconnect the mains
line.
Disconnect the mains plug to shut the power off completely (the
STANDBY lamp goes off).
The MAINS plug or an appliance coupler is used as the
disconnect device, the disconnect device shall remain readily
operable.

• When the System is on standby, the STANDBY lamp lights red.

• When the System is turned on, the STANDBY lamp goes off.
The power can be remote controlled.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover or cabinet. There are
no user serviceable parts inside the unit; leave all servicing to
qualified service personnel.

3. CAUTION: Visible and/or invisible class 1M laser radiation
when open. Do not view directly with optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE
THE UNIT.

CAUTION

• Do not block the ventilation openings or holes.
(If the ventilation openings or holes are blocked by a

newspaper or cloth, etc., the heat may not be able to get
out.)

• Do not place any naked flame sources, such as lighted
candles, on the apparatus.

• When discarding batteries, environmental problems must
be considered and local rules or laws governing the disposal
of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping
or splashing and that no objects filled with liquids, such as
vases, shall be placed on the apparatus.

CAUTION

Excessive sound pressure from earphones or headphones can
cause hearing loss.

G-1

Caution: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent
damage, locate the apparatus as follows:

1. Front: No obstructions and open spacing.

2. Sides/Top/ Back: No obstructions should be placed in the
areas shown by the dimensions below.

3. Bottom: Place on the level surface. Maintain an adequate
air path for ventilation by placing on a stand with a height
of 10 cm or more.

Front view

Side view

[European Union only]

G-2

Introduction

Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete

understanding and to obtain the best possible performance from the System.

Precautions

Installation

• Install the System in a location with adequate ventilation
to prevent internal heat build-up in the System.

DO NOT install the System in a location near
heat sources, or in a place subject to direct
sunlight, excessive dust or vibration.

• Install in a place which is level, dry and neither too hot
nor too cold—between 5°C and 35°C.

• Leave sufficient distance between the System and the TV.

• Keep the speakers away from the TV to avoid
interference with the TV.

Power sources

• When unplugging the System from the wall outlet, always
pull on the plug, not the power cord.

DO NOT handle the power cord with wet
hands.

Moisture condensation

Moisture may condense on the lens inside the System in the
following cases:

• After starting to heat the room

• In a damp room

• If the System is brought directly from a cold to a warm
place.

Should this occur, the System may malfunction. In this
case, leave the System turned on for a few hours until the
moisture evaporates, unplug the power cord, then plug it
in again.

Internal heat

• Make sure there is good ventilation around the System.
Poor ventilation could overheat and damage the System.

How to Read This Manual

• Button and control operations are explained in the table
below.

• Some related tips and notes are explained later in

the sections “Learning More about This System”
and “Troubleshooting,” but not in the same section

INFO

explaining the operations (
content has some information).

Indicates that you press the button briefly.

Indicates that you press the button briefly
and repeatedly until the option you want
is selected.

Indicates that you press one of the buttons.

2

Remote
ONLY

Main Unit

ONLY

sec.

Indicates that you press and hold the
button for a specified period.

Indicates that you turn the control in the
specified direction(s).

Indicates that this operation is only
possible using the remote control.

Indicates that this operation is only
possible using the main unit.

How to cancel the demonstration

Press and hold DEMO button on the main unit (until
“DEMO CLR” appears on the display) while on standby.

• Refer to the attached sheet “Information about the
demonstration function.”

indicates that the

DO NOT block the ventilation openings or
holes. If they are blocked by a newspaper or
cloth, etc., the heat may not be able to get out.

Others

Should any metallic object or liquid fall into the System,
unplug the power cord and consult your dealer before
operating any further.

DO NOT disassemble the System since there
are no user serviceable parts inside.

• If you are not going to operate the System for an
extended period of time, unplug the power cord from the
wall outlet.

If anything goes wrong, unplug the power cord and consult
your dealer.

1

Contents

Connections ............................................................ 4

Display Indicators .................................................... 7

Daily Operations—Playback .................................... 8

Listening to the Radio ......................................................... 9

Playing Back a Disc ............................................................. 10

Playing Back an Apple iPod ............................................... 12

Playing Back a Digital Audio Player ................................. 13

Daily Operations—Sound & Other Adjustments ......... 14

Adjusting the Volume ......................................................... 14

Adjusting the Sound ........................................................... 14

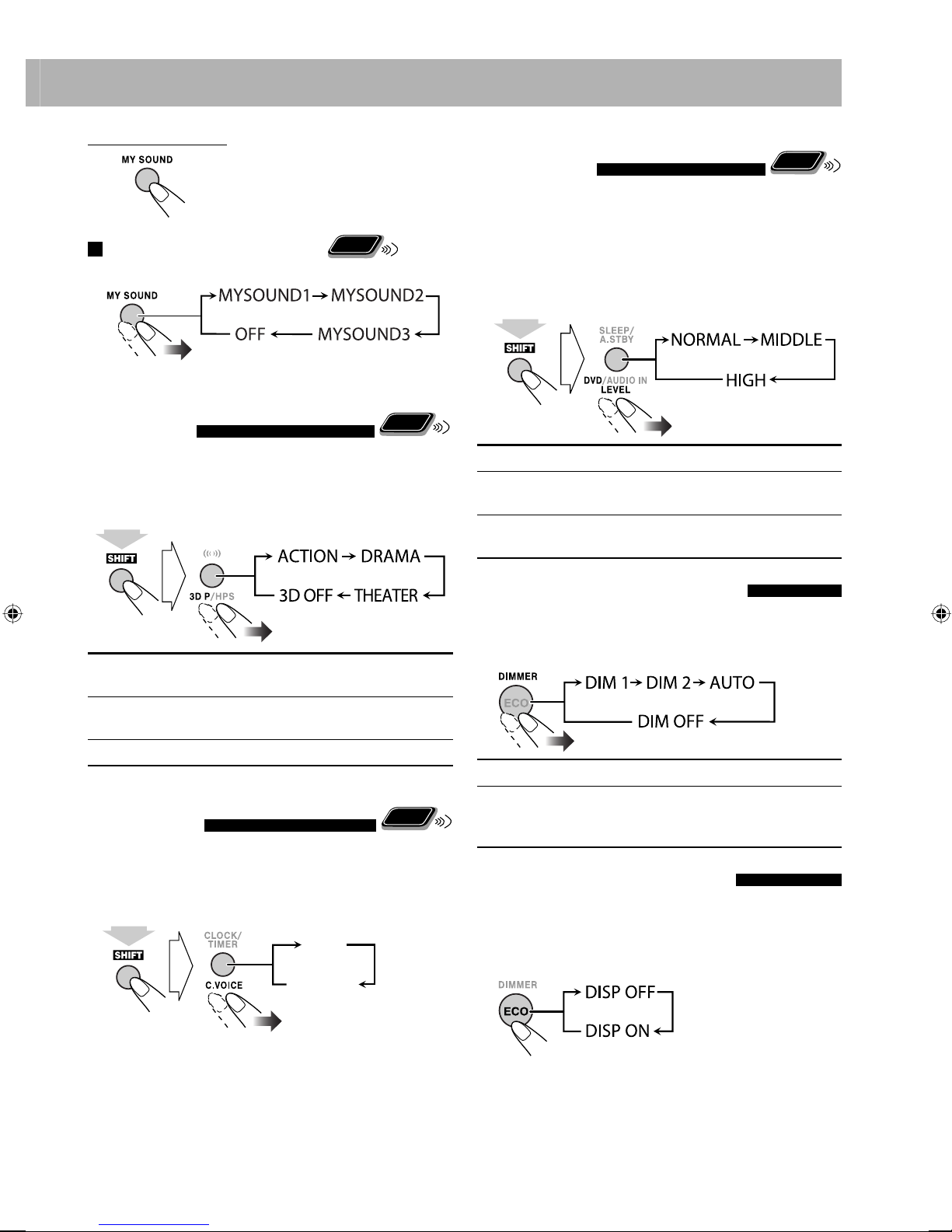

Creating a Soothing Tone for your Ear

—MY SOUND ................................................................. 15

Creating 3-Dimensional Sound Field—3D Phonic ........ 16

Making Dialogues Clear—Clear Voice ............................ 16

Presetting Automatic DVD Sound Increase Level ......... 16

Changing the Display Brightness ...................................... 16

Setting the ECO (ecology) Mode ....................................... 16

Changing the Color System and Scanning Mode ........... 17

Changing the Picture Tone ................................................ 17

Setting the Clock .................................................................. 18

Turning Off the Power Automatically ............................. 18

Advanced Playback Operations ................................. 22

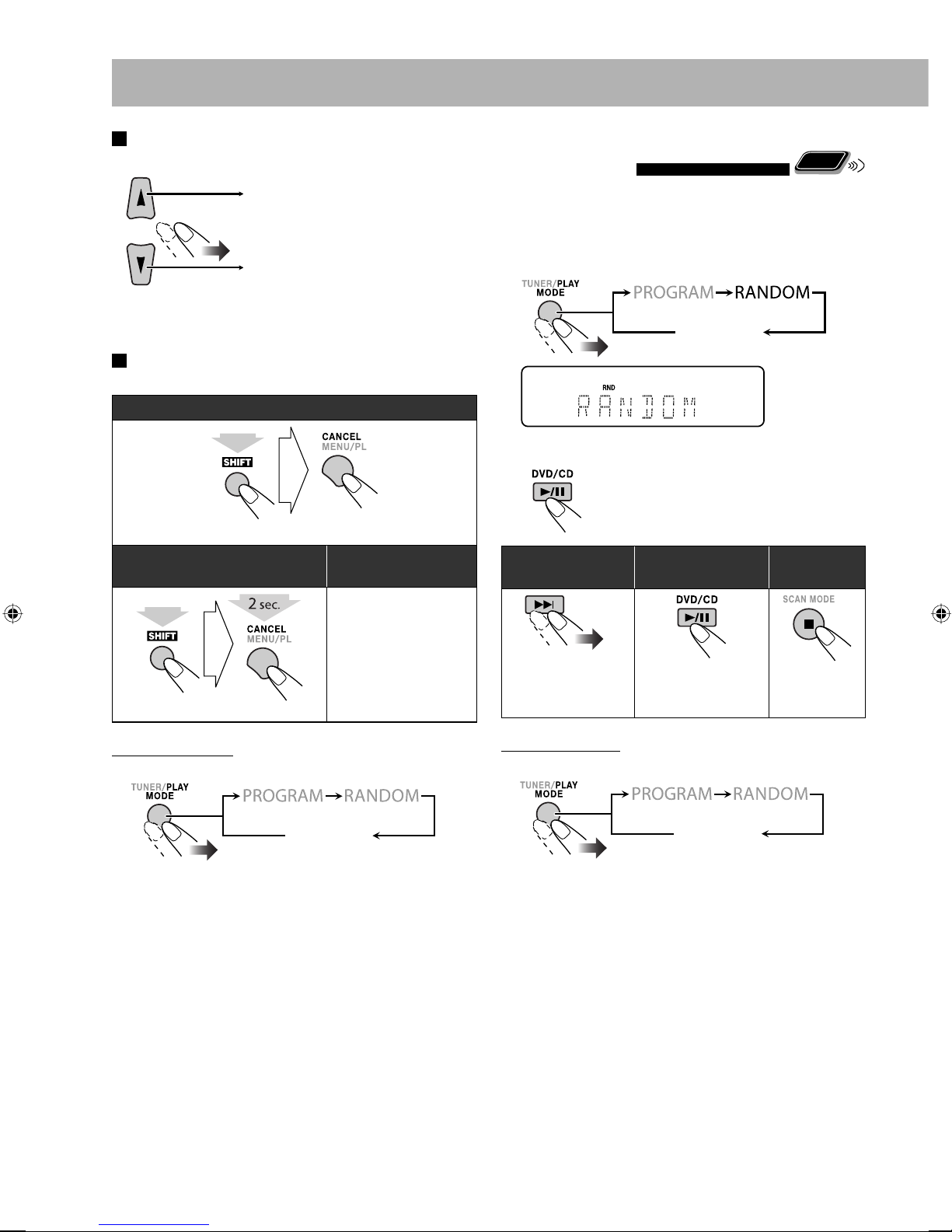

Programming the Playing Order—Program Play ........... 22

Playing at Random—Random Play .................................. 23

Playing Repeatedly .............................................................. 24

Prohibiting Disc Ejection—Child Lock ............................ 24

On-Screen Operations .............................................. 25

On-screen Bar Operations ................................................. 25

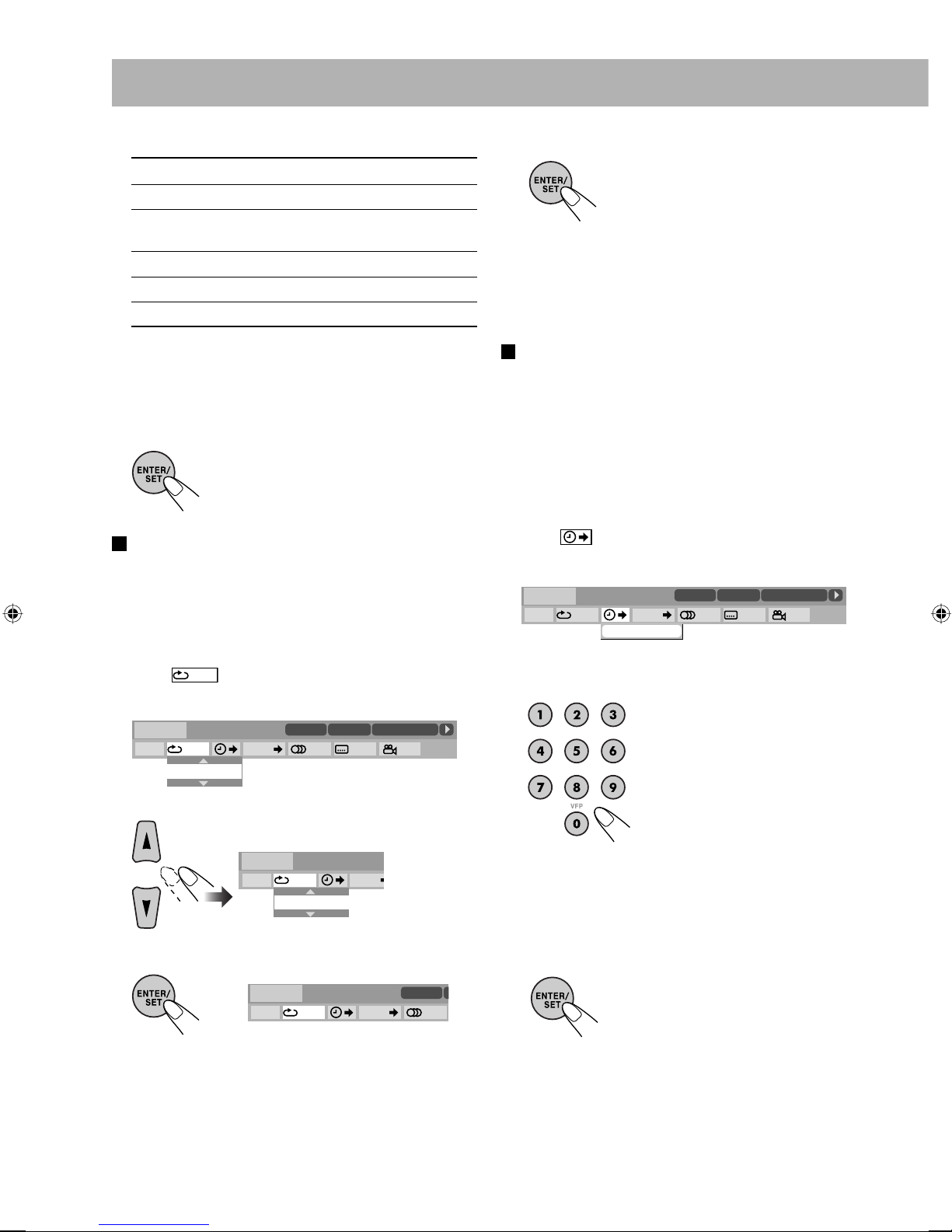

Control Screen Operations ................................................ 28

Daily Timer Operations ............................................. 30

Setting the Daily Timer ....................................................... 30

Setup Menu Operations ............................................ 32

Initial Settings ...................................................................... 32

Additional Information ............................................ 34

Learning More about This System .................................... 34

Troubleshooting .................................................................. 37

Maintenance ......................................................................... 38

Language Code List ............................................................. 39

Optical Digital Out Signals ................................................ 40

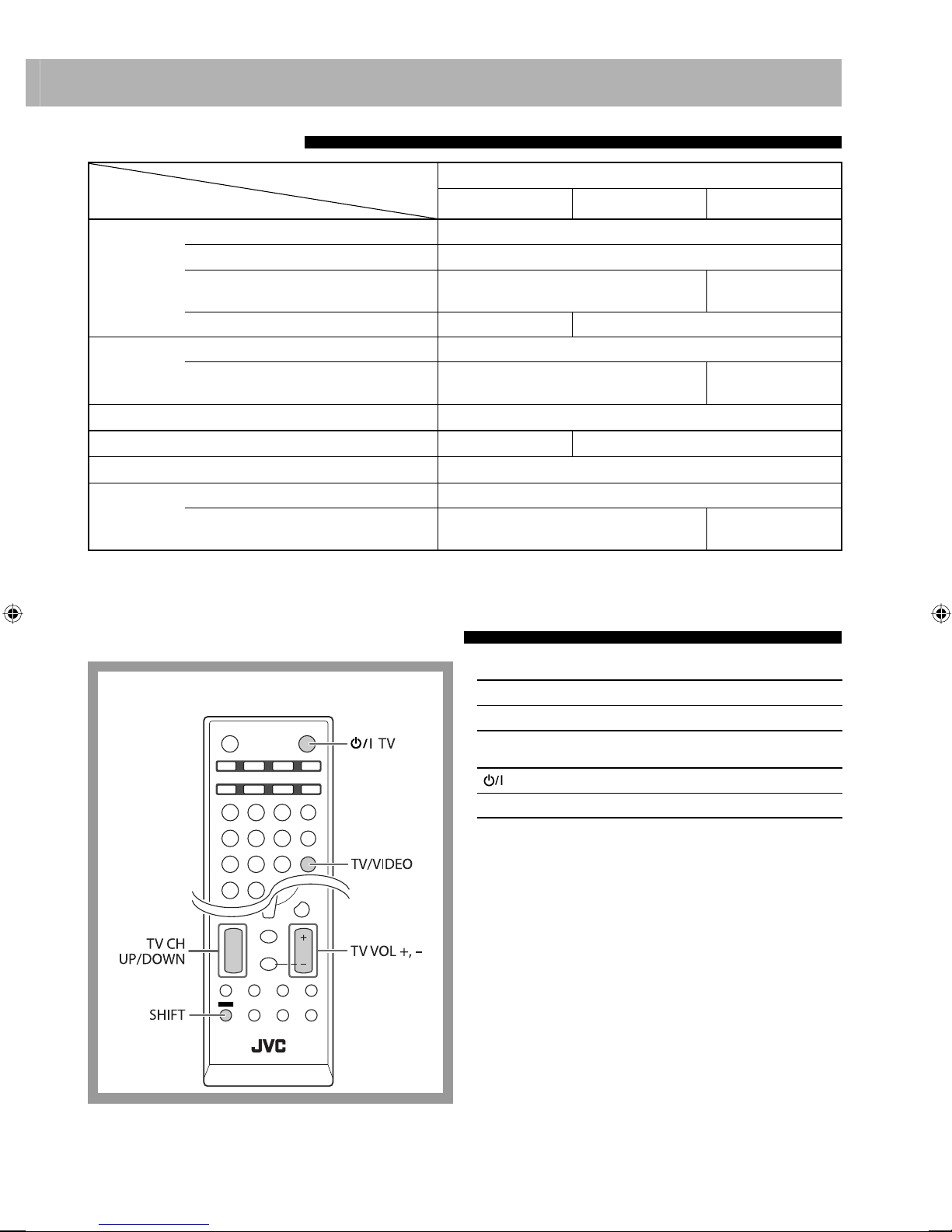

Operating JVC’s TVs Using the Remote Control ........... 40

Specifications ....................................................................... 41

Unique Video Disc/File Operations ............................ 19

Selecting the Audio Track .................................................. 19

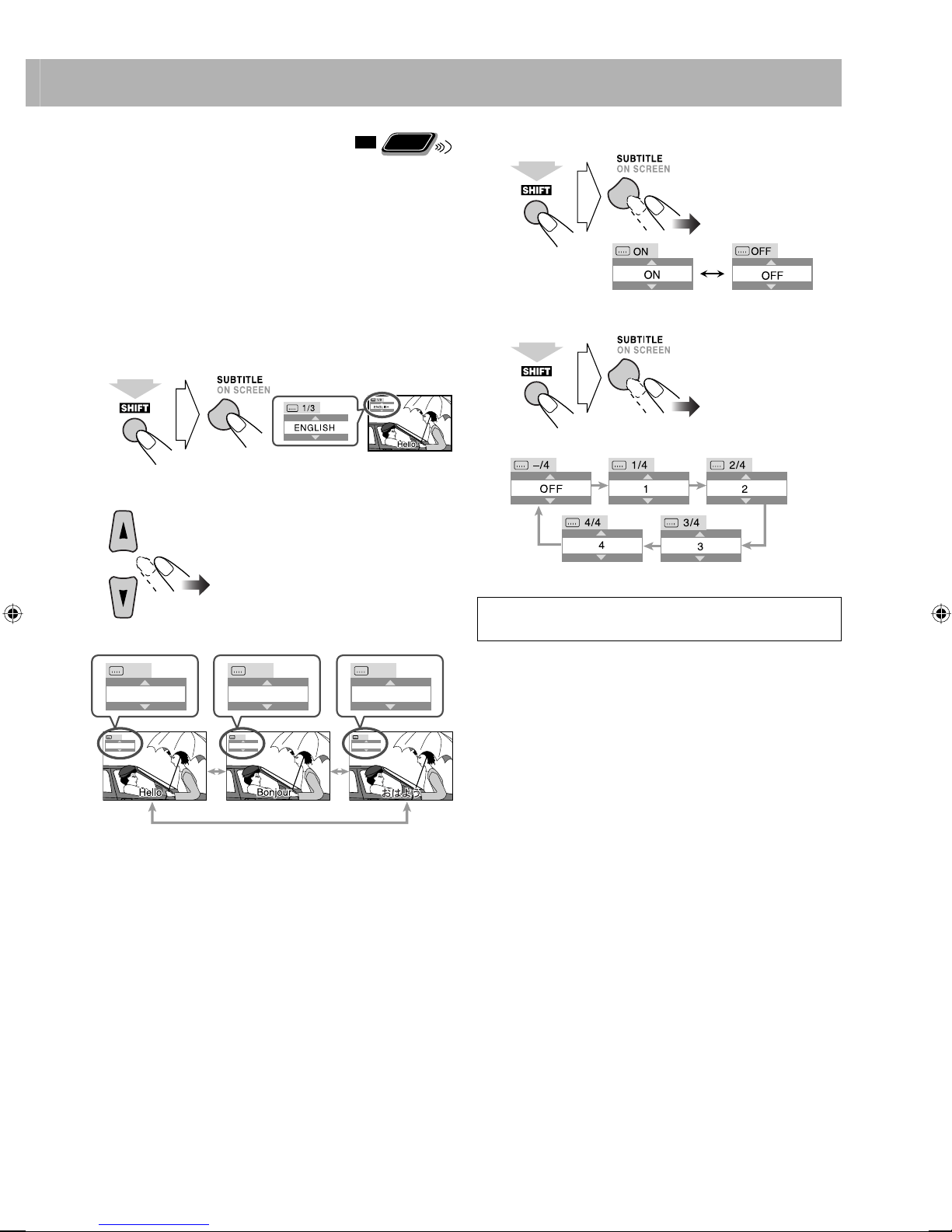

Selecting the Subtitle Language ......................................... 20

Special Effect Playback ........................................................ 21

Parts Index ............................................................. 42

2

Playable Disc/File Types

COMPACT

DIGITAL VIDEO

• CD-R/-RW: Recorded in the Audio CD, Video
CD, and SVCD formats. MP3, WMA, WAV,
JPEG, MPEG-1, MPEG-2 and DivX files written in
accordance with the “ISO 9660” format can also be
played.

• DVD-R/-RW, +R/+RW: Recorded in the DVD Video
format. MP3, WMA, WAV, JPEG, MPEG-1, MPEG-2
and DivX files written in the UDF-Bridge format can
also be played.

• DVD-R/-RW: Recorded in the DVD Video Recording
(VR) format.

In addition to the above discs/files, this System can
play back audio data recorded on CD-Extra and CD-G
(CD-Graphics).

• The following discs cannot be played back:
DVD-RAM, CD-I (CD-I Ready), CD-ROM, and Photo

CD.

Playing back these discs will generate noise and damage

the speakers.

• CD Text and DVD Text can be played, but Text
information will not be shown on the display.

• In this manual, “file” and “track” are used
interchangeably.

• It is possible to play back finalized +R/+RW (DVD Video
format only) discs. DVD indicator lights on the front
display panel when a +R/+RW disc is loaded.

• This System can play back EVERIO files (see page 34)
recorded on DVD and CD*.

• “DVD Logo” is a trademark of DVD Format/Logo
Licensing Corporation.

* Only when the maximum bit rate is less than 2 Mbps.

SUPER VIDEO

DIGITAL AUDIO

Note on Region Code

DVD players and DVDs have their own Region Code
numbers. This System can play back only DVDs with an
appropriate Region Code number.

• For details, see “Specifications” on page 41.

• “RG ERROR” appears if DVD with other Region Code is
loaded.

Ex.: For Southeast Asia and Hong Kong region

Caution for DualDisc playback

The Non-DVD side of a “DualDisc” does not comply with
the “Compact Disc Digital Audio” standard. Therefore,
the use of the Non-DVD side of a DualDisc in this product
may not be recommended.

IMPORTANT: Before playing a disc/file, make sure of the
following...

• Turn on the TV and select an appropriate input mode
on the TV to view the pictures or on-screen displays.

• For disc/file playback, you can change the initial setting
to your preference. See “Setup Menu Operations” on
page 32.

” appears on the TV screen when you press a

If “
button, the disc/file cannot perform the operation you

have tried to do.

• When playing a multi-channel encoded software, the
System properly converts the multi-channel signals into
2 channels, and emits the downmixed sound from the
speakers. To enjoy the powerful sound of these multi­channel encoded software, connect a proper decoder
or an amplifier with a proper built-in decoder to the
OPTICAL DIGITAL OUT terminal on the rear.

About color system

This System accommodates both NTSC and PAL system
and can play back discs/files recorded in either system.
To change the color system, see page 17.

3

Connections

INFO

Do not connect the power cord until all other
connections have been made.

• Connect VIDEO OUT directly to the video input of your
TV. Connecting VIDEO OUT to a TV via a VCR may
interfere with your viewing when playing back copy­protected discs/files. Connecting VIDEO OUT to an
integrated TV/VCR system may also interfere with your
viewing.

Rear panel

Supplied accessories

Check to be sure that you have all the following items.

• FM antenna (×1)

• AM loop antenna (×1)

• Composite video cord (×1)

• Remote control, RM-SUXGP7VU (×1)

• Batteries (×2)

• AC plug adapter (×1)—not supplied for Australia,

Thailand, Hong Kong region and the Middle East.
If any items are missing, consult your dealer
immediately.

~ From AM/FM antenna

See page 5.

Ÿ From the speakers

See page 5.

Front panel

! From the powered subwoofer

See page 6.

⁄ From the digital input of digital audio component

See page 5.

@ From the input of TV/monitor

See page 6.

¤ To a wall outlet

Plug in the power cord only after all connections have

been completed.

• If the wall outlet does not match the AC plug, use
the supplied AC plug adapter (not supplied for
Australia, Thailand, Hong Kong region and the
Middle East).

From the digital audio player

See page 6.

From the iPod

See page 6.

From the headphones

4

~ AM/FM antenna

Ÿ Speakers

To assemble the AM loop antenna

To connect AM/FM antenna

AM loop antenna (supplied)

Turn it until the best reception is obtained.

If the cords are covered with vinyl,
remove the vinyl to expose the tip of the
cord by twisting the vinyl.

• When connecting the speaker cords, match the polarity
of the speaker terminals: red to (+) and black to (–)

Press and hold

Insert Release

Red

Black

From right

speaker

From left

speaker

FM antenna (supplied)

Extend it so that you can obtain the
best reception.

For better FM reception

FM outdoor antenna
(not supplied)

Disconnect the supplied FM antenna, and connect to an
outdoor FM antenna using a 75 Ω wire with coaxial type
connector.

• DO NOT connect more than one speaker to
each terminal.

• DO NOT push or pull the speakers as this
will damage the foot spacers at the bottom of
the speakers.

! Digital audio component

Protective cap

• Set “DIGITAL AUDIO OUTPUT” in the “AUDIO”
menu correctly according to the connected digital audio
equipment (see page 33).

• The digital signal through the OPTICAL DIGITAL OUT
terminal is transmitted only when “DVD/CD” is selected
as the source.

Optical digital
cord (not
supplied)

5

⁄ To connect the powered subwoofer

From the powered subwoofer
(not supplied)

The connected subwoofer can reproduce the bass sounds
recorded in front left and right channels, but cannot
reproduce the LFE signals encoded in multi-channel
software.

• Before plugging the System to the power supply, make
sure that the powered subwoofer is turned off.

@ TV/monitor

Connect the COMPONENT jacks, S-VIDEO jack, or
VIDEO jack; whichever you want to use.

• You can get better picture quality in the order of—
Composite video ] S-Video ] Component video.

Green

When connecting an iPod

On the front panel

Dock adapter (supplied with
the iPod or sold separately)

• It is not encourageable to connect or disconnect the
iPod when the System is turned on.

• Be sure to reduce the volume on the System to the
minimum level before connecting an iPod. Adjust the
volume after starting playback.

Apple iPod
(separately purchased)

To detach the dock adapter from the dock

Pull up the dock adapter with your fingernail or a sharp
pointed tool using the slot.

• Be careful not to injure your fingertips or damage the
terminal of the dock.

Red

Blue

• This connection allows you to use the progressive
scanning mode. To select progressive (PROGRESS)
scanning mode (see page 17), use VIDEO OUT
(COMPONENT) jacks.

Composite video cord
(supplied)

S-Video cord
(not supplied)

• After connecting a TV, select the appropriate video
signal output according to the connection method. See
“Changing the Color System and Scanning Mode” on
page 17.

Component video cord
(not supplied)

When connecting a digital audio player

On the front
panel

Stereo mini plug
(not supplied)

From audio output (or headphone out, etc.)

Preparing the remote control

Insert the battery into the remote control by matching the
polarity ( + and –) correctly.

If the range or effectiveness of the remote control decreases,
replace both batteries.

Caution

Battery shall not be exposed to excessive heat such as
sunshine, fire, or the like.

When using the remote control

Point the top of the remote control towards the remote
sensor as directly as possible. If you operate it from a
diagonal position, the operating range (approx. 5 m) may
be shorter.

6

Display Indicators

The indications on the display tell you a lot of things while you are operating the System.
Before operating the System, be familiar with when and how the indicators illuminate on the display.

1 iPod indicator

• Lights when an iPod is selected as the source.

2 Disc format indicators

• SVCD: lights when playing back an SVCD.

• VCD: lights when playing back a VCD.

• CD: lights when playing back a CD.

• DVD: lights when playing back a DVD.

3 Playback mode indicators

• Repeat Mode indicators:
–

–

–

• RND: lights when Random Play is activated.

• PRGM: lights when Program Play is activated.

4

• Lights when EALA surround sound is activated.

5 PRGR (progressive) indicator

• Lights when the progressive scanning mode is

6 S.TURBO (Sound Turbo) indicator

• Lights when Sound Turbo II is activated.

7 RESUME indicator

• Lights when the System memorizes the position where

8 AHB indicator

• Lights when AHB Pro (Active Hyper Bass Pro) is

9

• Lights when MY SOUND is activated.

p Radio band indicators

• AM: lights when tuning in to an AM station.

• FM: lights when tuning in to an FM station.

: lights when One Track/File/Chapter/Step

1

Repeat is activated.

: lights when One Group/Title/Original Program/

Play List Repeat is activated.

: lights when All Track/File/Title/Original

Program Repeat is activated.

(EALA surround mode) indicator

selected.

the playback is interrupted.

activated.

(My Sound) indicator

q FM reception indicators

• S (stereo): lights while an FM stereo station with
sufficient signal strength is tuned in.

• M (monaural): lights while receiving an FM stereo
station in monaural.

w Daily Timer indicators

•

: lights when Daily Timer is on standby or is being

set; flashes while it is working.

• 1/2/3: lights when a Daily Timer (1, 2, or 3) is on
standby or is working; flashes while being set.

e 3D P. (3D Phonic) indicator

• Lights when 3D Phonic is activated.

r

(Clear Voice) indicator

• Lights when Clear Voice is activated.

t Audio format indicators

• MP3: lights when an MP3 file is detected.

• WMA: lights when a WMA file is detected.

y Main display

• While listening to the radio: band (or preset number)
and station frequency appear.

• While “AUDIO IN” is selected as the source:
“AUDIO IN” appears.

• While playing a disc or file: current status appears.

• While listening to an iPod: “CONNECT” appears.

u A.STBY (Auto Standby) indicator

• Lights when Auto Standby is activated.

• Flashes when playback stops with Auto Standby
activated.

i SLEEP indicator

• Lights when the Sleep Timer is activated.

7

Daily Operations—Playback

In this manual, operations using the remote control
are mainly explained; however, you can use the buttons
and controls on the main unit if they have the same (or
similar) name and marks.

Remote control

Number

buttons

1 Turn on the power.

The STANDBY lamp on the main unit turns off.

• Instead of pressing
turned on by pressing one of the source buttons.

AUDIO/TV, the System is

2 Select the source.

• Playback automatically starts if the selected source
is ready.

• You can change the display information by pressing
DISPLAY. For details, see page 18.

3 Adjust the volume.

To turn off (standby) the System

The STANDBY lamp on the main unit
lights in red.

• A small amount of power is always
consumed even while on standby.

For private listening

Connect a pair of headphones to the PHONES jack
on the main unit. The sound will no longer come out
of the speakers. “H-PHONE” appears on the display
for a while. Be sure to turn down the volume before

connecting or putting on the headphones.

• Disconnecting the headphones will activate the
speakers again.

DO NOT turn off (standby) the System
with the volume set at an extremely high
level; otherwise, the sudden blast of sound
may damage your hearing, speakers and/or
headphones when you turn on the System or
start playback.

8

How to select a number

Examples:

To select number 5, press 5.
To select number 10, press 10.
To select number 15, press
then 5.
To select number 30, press
then 0.
To select number 125, press

10, 1, 2, then 5.

10, 1,

10, 3,

10,

To select the band (FM or AM)

To tune in to a station

While FM or AM is selected...

Listening to the Radio

INFO

Main Unit

ONLY

To select the AM tuner interval spacing

Some countries space AM stations 9 kHz apart, and other
countries use 10 kHz spacing. Before operating the tuner,
select the appropriate AM tuner interval spacing used for
your area.

1 Select “TUNER AM,” then turn off (standby) the

System.

2 Select the AM tuner interval spacing.

To select 9 kHz:

(while holding...)

To select 10 kHz:

Frequency starts changing on the display.
When a station (frequency) with sufficient signal strength
is tuned in, the frequency stops changing.

• When you repeatedly press the button, the frequency
changes step by step.

To manually stop the search, press either button.

Remote

If the FM reception is poor

The M (monaural) indicator lights on the display.
Reception will improve though stereo effect is lost—
Monaural reception.
To restore the stereo effect, press the button again. The
M (monaural) indicator disappears.

To preset the stations

You can preset 30 FM and 15 AM stations.

ONLY

Remote
ONLY

1 Tune in to a station you want to preset.

• You can also store the monaural reception mode for

FM preset stations if it is selected.

2 Activate the preset number entry mode.

(while holding...)

9

• Finish the following process while the indication on

the display is flashing.

3 Select a preset number for the station you store.

• To select a number, see “How
to select a number” on page 9.

4 Store the station.

Playing Back a Disc

To insert a disc

• When using an 8 cm disc, place it on the inner circle of
the disc tray.

To close the disc tray, press 0 again.

• If you press DVD/CD 6, disc tray closes automatically
and playback starts (depending on how the disc is
programmed internally).

INFO

Main Unit

ONLY

Remote

To tune in to a preset station

ONLY

1 Select the band (FM or AM).

2 Select the preset number for the station you stored.

• To select a number, see “How
to select a number” on page 9.

To play back a disc

To start/pause: To stop:

If different types of playable files (audio/still picture/moving
picture) are recorded

• Select a file type to play (see page 11 and “FILE TYPE” in
“PICTURE” menu on page 33).

• You can use the control screen appears on the TV. (For
still/moving picture files, it appears while playback is
stopped.) For details, see page 28.

• The System can store the stop point, and when you start
playback again by pressing DVD/CD 6 (even while
on standby), it starts from the position where you have
stopped—Resume Play. (RESUME indicator lights on the
display when you stop playback.)

To stop completely while Resume is activated, press

7 twice. (To deactivate Resume, see “RESUME” in
“OTHERS” menu on page 33.)

On-screen guide icons

• During playback, the following icons may appear on
the TV:

At the beginning of a scene containing
multi-angle views.

At the beginning of a scene containing
multi-audio sounds.

At the beginning of a scene containing
multi-subtitles.

• The following icons will also be shown on the TV to
indicate your current operation.

, , , , ,

• To deactivate the on-screen guide icon, see “ON
SCREEN GUIDE” in “OTHERS” menu on page 33.

10

To select the file type

• For details, see page 33.

(while holding...)

To select a title/group

• Not applicable for DVD-VR.
While playing...

(while holding...)

Remote
ONLY

Remote
ONLY

Remote

To locate an item directly

ONLY

You can select a title/chapter/track/file directly and start
playback.

• For DVD Video, you can select a title before starting

playback, while you can select a chapter after starting
playback.

• To select a number, see “How to
select a number” on page 9.

Remote

To play back using the disc menu

ONLY

For DVD Video:

To select a chapter/track/file

• For VCD/SVCD, cancel PBC (see page 12).
While playing...

• When you press 4 for the

first time, you will go back to
the beginning of the current
chapter/track/file.

Remote

To locate a particular portion

• This does not function for JPEG files.
While playing...

• For MP3/WMA/WAV/MPEG-1/MPEG-2/DivX files,
the search speed and indications on the TV are different
from those above.

• No sound comes out if searching is carried out while
showing the moving picture.

To return to normal playback, press DVD/CD 6
(depending on the current source).

ONLY

1 Show the disc menu.

2 Select an item on the disc menu.

• For some discs, you can also select items by entering
the number using the number buttons.

For SVCD/VCD with PBC:

While playing a disc with PBC, “PBC” appears on the
display.
When disc menu appears on the TV, select an item on the
menu. Playback of the selected item starts.

• To select a number, see “How to
select a number” on page 9.

For DivX/MPEG-1/MPEG-2 files, each time you press
the 3 or 2 button, you can skip to a scene by 30 seconds
or 5 minutes depending on the files.

11

To move to the next or previous page of the current
menu:

Moves to the next page.
Moves to the previous page.

To return to the previous menu:

(while holding...)

To cancel PBC, press 7, then select a track by using the
number buttons (see page 9). Playback starts with the
selected track.
To reactivate PBC, press 7 (twice if RESUME is turned
on), then press DVD/CD 6.

• Do not carry the System with iPod dock open and iPod is
connected. You might drop it or it might cause damages
to the iPod dock.

• Remove the iPod from the dock when you do not use it.

• When you cannot operate the connected iPod through
the unit or using the remote control, operate the iPod
directly.

• You cannot send any data to your iPod from the System.

• When changing to other sources or turning off the
System, set the iPod to the menu screen. Failing to do
so might cause the iPod to freeze or lag during video
viewing.

• If there is no video output on the monitor, check the iPod
setting, then reconnect the iPod again. Make sure the
iPod is fitted in the iPod dock securely.

To select a track/file

While playing...

• When you press 2 for the first

time, you will go back to the
beginning of the current track/
file.

Playing Back an Apple iPod

JVC is not responsible for any loss of or damage to
iPod that might result from the use of this System.

• For details, refer also to the instruction manual for iPod.

• Before viewing a video/picture from your iPod on the
monitor, make the appropriate video setting on the iPod
and on the monitor. For details of the setting, see the
instruction manual for iPod.

• For connection, refer to page 6.

When an iPod is connected...

To start/pause: To turn off iPod (Sleep Mode):

• When you press iPod 6

again, playback starts from the
position where you have stopped
previously.

INFO

To fast-forward/reverse the track/file

While playing...

To stop searching, release the
button.

To display the menu/Return to the

previous menu

To select an item on the menu/screen:

Remote
ONLY

• After connecting an iPod, wait until the unit is ready for
operation (about 3 seconds).

• Do not touch or hit the iPod terminal pins or connector
pins in the iPod dock directly. It might cause damages to
the connector part.

• When you connect your iPod to the dock, make sure the
terminal on the dock is fully inserted into the iPod.

• The 5/∞ buttons work in the same way as operating

the iPod’s click wheel counterclockwise/clockwise.
(Refer to the iPod’s instruction manual for details.)

12

Shuffle Songs

• “SHUFFLE” appears on the display
for a while.

• The shuffle icon lights up on the
display/screen of the iPod.

To change the charge mode

Main Unit

ONLY

To cancel, press TUNER/PLAY MODE again until the
shuffle icon disappears.

Repeat Play

• “REPEAT” appears on the display
for a while.

(repeat all) or (repeat one)

•
lights up on the display/screen of
the iPod (applicable for iPod audio
file and video playlist).

To cancel, press REPEAT until the repeat icon disappears.

To view a video/picture from the iPod on the

monitor

Connect the System to the monitor using either component
cord or SCART cord. For details, see page 6.

To set the component or composite output for

video viewing

When an iPod is connected and before playback starts...

• To change the setting, return to the menu screen for the
newly selected output to take effect.

P.ON

P.OFF

The battery in the iPod is charged through
the iPod terminal when the iPod is
connected or during Standby Mode.

The battery is not charged.

To turn on iPod’s backlight

Playing Back a Digital Audio Player

• For connecting a digital audio player, see page 6.

You can listen to the digital audio player connected to the
AUDIO IN jack.

• Make sure to turn down the volume on the System to
minimum level before starting playback.

For iPod video output compatibilities, see page 35.

13

Remote

To adjust the audio input level

If the sound from the device connected to the
AUDIO IN jack is too loud or too quiet, you can preset the
audio input level through the AUDIO IN jack (without
changing the volume level).

While “AUDIO IN” is selected as the source...

(while holding...)

• As the number of the level increases, the preset input
level is increased.

ONLY

Daily Operations—Sound & Other Adjustments

Remote control

Adjusting the Volume

You can adjust the volume level from “VOL MIN” (level 0)
to “VOL MAX” (level 40).

Remote control: Main unit:

Remote

To drop the volume in a moment

To restore the volume, press again, or
adjust the volume level.

Adjusting the Sound

To activate EALA surround mode

ONLY

INFO

(Canceled)

Remote
ONLY

Main unit

As the number of the surround mode increases, the
surround effect becomes stronger.

To reinforce the heavy sound

This boosts the low and high frequency sound—Sound
Turbo II.

TURBOOFF

(Canceled)

• When Sound Turbo II is turned on, AHB Pro (see below)
is automatically turned on, and cannot be turned off.
(The AHB indicator does not light even though the
function is turned on.)

Remote

To reinforce the bass sound

While Sound Turbo II is off, the richness and fullness of the
bass sound is clearly maintained regardless of how you set
the volume—AHB Pro (Active Hyper Bass Pro).

ONLY

(while holding...)

(Canceled)

14

Remote

To adjust the tone

ONLY

You can adjust the bass and treble level from –3 to +3.

To adjust the bass

MY SOUND

SELECT START AND PRESS THE ENTER KEY

TO START MEASUREMENT

Canceled

To adjust the treble

Canceled

Creating a Soothing Tone for your Ear
—MY SOUND

Remote

ONLY

Each individual response to audio frequency differently.
MY SOUND is to store the response to audio frequency.

To setup MY SOUND

1 While playing...

2 Enter MY SOUND setup.

START EXIT

MY SOUND

MEASURING... DATA 1 2 3 4 5

PRESS THE ENTER KEY IMMEDIATELY

AFTER YOU HEAR THE TEST TONE.

ENTER EXIT

4 Follow the TV on-screen instructions to store in

PRESET 1, 2, or 3.

MY SOUND

PRESET

1

2

3

SELECT PRESET 1 TO 3 AND PRESS

THE ENTER KEY TO STORE.

EXIT

3 Follow the TV on-screen instructions to start the

measurement.

15

MY SOUND

PRESET DATA STORED.

EXIT

To exit MY SOUND setup

To select the preset MY SOUND

• This does not function for DivX files.

(Canceled)

Remote
ONLY

Presetting Automatic DVD Sound
Increase Level

DVD sound is sometimes recorded at a lower level than
other discs and sources. You can set the increase level for
the currently loaded DVD, so you do not have to adjust the
volume when you change the source.

• This only functions for DVD Video and DVD-VR.

While “DVD/CD” is selected as the source...

Remote
ONLY

Creating 3-Dimensional Sound Field
—3D Phonic

• This only functions while listening to a disc.

• This does not function for MPEG-1/MPEG-2/DivX files.

While playing...

(Canceled)

(while holding...)

ACTION

DRAMA

THEATER

Suitable for action movies and sports
programs.

Creates natural and warm sound. Enjoy
movies in a relaxed mood.

Enjoy sound effects like in a major theater.

Making Dialogues Clear
—Clear Voice

Clear Voice works for multi-channel software which
contains a center channel signal and for 2-channel software
with 3D Phonic activated.

• This only functions while listening to a disc.

On

Canceled

Remote
ONLY

Remote
ONLY

(while holding...)

NORMAL

MIDDLE

HIGH

Original recording level.

Output level is increased (less than
“HIGH”).

Output level is increased (more than
“MIDDLE”). [Initial setting]

Changing the Display Brightness

You can dim the display.

While the System is turned on...

(Canceled)

DIM 1/2

AUTO

Dims the display.

Dims the display during playback of still/
moving pictures.

• Dimmer is canceled when playback stops.

Setting the ECO (ecology) Mode

Setting the ECO mode allows you to reduce power
consumption by turning the display off while on standby.

While the System is on standby...

(while holding...)

16

Changing the Color System and Scanning

Remote

INFO

Mode

You can select the video output to match it to the color
system of your TV (NTSC or PAL).

• If you connect a progressive TV through the VIDEO
OUT (COMPONENT) jacks, you can enjoy a high
quality picture by selecting progressive scanning mode.

Before playback...

Remote

ONLY

ONLY

2 Select a preset picture tone.

NORMAL

CINEMA

USER1/USER2

To clear the screen, press VFP again while holding SHIFT.

Normally select this.

Suitable for a movie source.

You can adjust parameters and
can store the settings. (See the
following.)

(while holding...)

PAL/NTSC

PAL PRG/
NTSC PRG

Changing the Picture Tone

While showing a playback picture on the TV, you can
select a preset picture tone, or adjust it and store your own
preference.

Select for a conventional PAL or NTSC TV.

Select for a PAL or NTSC progressive TV.

• The PRGR (Progressive) indicator lights
on the display.

Remote
ONLY

To select a preset picture tone

1 While playing, display VFP setting screen.

(while holding...)

On the TV

To adjust the picture tone

1 Select “USER1” or “USER2.”

• Follow steps 1 and 2 explained in “To select a preset
picture tone.”

2 Select a parameter you want to adjust.

GAMMA

BRIGHTNESS

CONTRAST

SATURATION

TINT

SHARPNESS

Adjust if the neutral color is bright or
dark (–3 to +3).

Adjust if the entire picture is bright
or dark (–8 to +8).

Adjust if the brightness ratio is
unnatural (–7 to +7).

Adjust if the picture is whitish or
blackish (–7 to +7).

Adjust if the human skin color is
unnatural (–7 to +7).

Adjust if the picture is indistinct
(–8 to +8).

17

3 Adjust the parameter.

4 Repeat steps 2 and 3 to adjust other parameters.

To clear the screen, press VFP again while holding SHIFT.

Remote

Setting the Clock

Without setting the built-in clock, you cannot use Daily
Timers (see page 30).

• To exit the clock settings, press CLOCK/TIMER as

required.

• To correct a mis-entry during the process, press

CANCEL (while holding SHIFT). You can return to the
previous step.

INFO

ONLY

1 Activate the clock setting mode.

• If you have already adjusted the clock before, press
the button repeatedly until the clock setting mode is
selected.

2 Adjust the hour, then the minute.

Turning Off the Power
Automatically

Remote
ONLY

Auto Standby

• This only functions while playing a disc.

A.STBY indicator lights on the display.

When the playback stops, the A.STBY indicator starts
flashing. If no operation is done for about 3 minutes while
the indicator is flashing, the System turns off (standby)
automatically.

• Changing the source to “TUNER FM,” “TUNER AM,” or
“AUDIO IN” temporarily deactivates Auto Standby.

To cancel this function, press and hold SLEEP/A.STBY
again.

Sleep Timer

You can set the shut-off time so that you can go to bed
without turning off the System yourself.

Now the built-in clock starts working.

To check the current clock time during playback

Ex.: While playing a disc...

Source

Disc/file type*

Title and chapter

number**

Clock

* Only while playing back a disc.
** Only while playing back the following discs/files:

DVD-VR: Program number/Play List number and

chapter number.

MP3/WMA/WAV/JPEG/MPEG-1/MPEG-2/DivX

files: Group and file number.

DVD Video: Title and chapter number.

1 Specify the time (in minutes).

Canceled

2 Wait until the set time disappears.

To check the time remaining until the shut-off time,
press SLEEP/A.STBY once.

• If you press the button repeatedly, you can change the
shut-off time.

18

Remote control

DVD/CD 6

SLOW ,

ZOOM

Unique Video Disc/File Operations

Selecting the Audio Track

For DivX files/DVD Video: While playing back a chapter/
file containing several audio languages, you can select the
language to listen to.
For DVD-VR/SVCD/VCD: While playing back a track,
you can select the audio channel to listen to.

• For DVD Video/DVD-VR/SVCD/VCD: You can also
select the audio track using the on-screen bar (see page

26).

(while holding...)

While playing a DVD Video...

SUBTITLE

Ex.:

INFO

Remote
ONLY

AUDIO/MPX

1/3

ENGLISH

1/3

ENGLISH

2/3

FRENCH

2/3

FRENCH

While playing a DivX file...

1/3

2/3

While playing a DVD-VR or SVCD/VCD...

SVCD

ST1 ST2 L1
R2 L2 R1

DVD-VR/VCD

ST L R

ST1/ST2/ST

L1/L2/L

R1/R2/R

To listen to normal stereo
(2-channel) playback.

To listen to the left audio channel.

To listen to the right audio channel.

JAPANESE

3/3

JAPANESE

3/3

3/3

19

• SVCD can have 4 audio channels. SVCD usually uses
these 4 channels to record two 2-channel recordings
(ST1/ST2).

Remote

Selecting the Subtitle Language

ONLY

For DivX files/DVD Video: While playing back a chapter/
file containing subtitles in different languages, you can
select the subtitle language to display on the TV.
For DVD-VR: While playing, you can turn the subtitles on
or off.
For SVCD: While playing, you can select the subtitles even
if no subtitles are recorded on the disc.

• For DVD Video/DVD-VR/SVCD: You can also select the
subtitle language using the on-screen bar (see page 25).

While playing a DivX file/DVD Video...

1

(while holding...)

2

While playing a DVD-VR...

(while holding...)

While playing an SVCD...

(while holding...)

Ex.:

1/3 2/3

ENGLISH FRENCH JAPANESE

1/3

2/3

FRENCH JAPANESEENGLISH

To select multi-angle view, use the on-screen bar (see
page 25).

3/3

JAPANESE

3/3

20

Special Effect Playback

INFO

Still picture playback

To display the still picture:

While playing...

To resume normal playback, press the button again.

Remote

Frame-by-frame playback

• This function is used only while playing DVD Video/
DVD-VR/SVCD/VCD.

ONLY

1 While playing...

To replay the previous scenes

Remote
ONLY

(One-Touch Replay)

• This function is only used while playing DVD Video/
DVD-VR.

While playing....

The playback position moves back about
10 seconds before the current position
(only within the same title for DVD
Video).

Remote

Zoom

ONLY

1 While playing...

(while holding...)

2 Advance the still picture frame by frame.

To resume normal playback, press DVD/CD 6.

Remote

Slow-motion playback

• This function is used only while playing DVD Video/
DVD-VR/SVCD/VCD.

ONLY

1 While playing...

2 Select slow motion speed.

Forward slow motion starts.

Reverse slow motion* starts.

While playing a DVD Video/DVD-VR/SVCD/VCD and MPEG-1/

MPEG-2/DivX file:

ZOOM 1 ZOOM 2 ZOOM 3 ZOOM 4

ZOOM OFF

While playing a JPEG file (not available during slide-show):

ZOOM 1 ZOOM 2

ZOOM 6 ZOOM 5

ZOOM OFF

2 Move the zoomed-in position.

To cancel Zoom, press ZOOM (while holding SHIFT)
repeatedly until “ZOOM OFF” appears on the TV.

* Only available for DVD Video.

To resume normal playback, press DVD/CD 6.

21

Advanced Playback Operations

Remote control

Number

buttons

Programming the Playing Order

INFO

—Program Play

Remote
ONLY

You can arrange the playing order of the chapters/tracks/
files (up to 99) before you start playback.

• Program play cannot be used for DVD-VR and JPEG/
MPEG-1/MPEG-2/DivX files on a disc.

• Resume does not work for Program Play.

1 Before starting playback, activate Program Play.

Canceled

PROGRAM

No Group/Title Track/Chapter

1

2
3
4
5
6

On the display

7
8
9

10

On the TV

2 Select chapters/tracks/files you want for Program

Play.

1 For DVD Video and MP3/WMA/WAV files: Select

a title or group number.

2 Select a chapter or track/file number.

• To select a number, see “How to select a number” on

page 9.

Main unit

3 Repeat step 2 until you complete your program.
4 Start playback.

Playback starts in the order you have
programmed.

To skip: To pause: To stop:

To release, press

the same button
again.

22

To check the programmed contents

Before or after playback...

In the reverse order.

Playing at Random
—Random Play

You can play all chapters or tracks at random.

• Random Play cannot be used for DVD-VR and JPEG/
MPEG-1/MPEG-2/DivX files on a disc.

Remote
ONLY

In the programmed order.

• You can also use 4 or ¢ to check the programmed

contents.

To modify the program

Before or after playback...

To erase the last step:

(while holding...)

To erase the entire program: To add another step

in the program:

Repeat step 2 on page

22.

(while holding...)

1 Before starting playback, activate Random Play.

Canceled

2 Start playback.

Playback starts in random order. Random
Play ends when the entire disc has been
played.

To skip a chapter/
track:

To pause: To stop:

To release, press

the same button
again.

To exit Program Play

Before or after playback...

Canceled

To exit Random Play

Before or after playback...

Canceled

23

Remote

Playing Repeatedly

• For DVD Video/DVD-VR/SVCD/VCD/CD: You can
also select the repeat mode using the on-screen bar (see
pages 26 and 27).

INFO

ONLY

For DVD Video:

While playing...

REP CHAP *

REP TTL

REP TRK *

REP GRP

REP PG

REP PL

REP ALL

Repeats the current chapter.

Repeats the current title.

Repeats the current track/file.

Repeats the current group.

Repeats the current program.

Repeats the current Play List.

Repeats all the contents or programmed
tracks/files.

(Canceled)

For CD/SVCD/VCD:

While playing (without PBC for SVCD/VCD) or before
playback...

(Canceled)

For DVD-VR:

While playing an Original Program...

(Canceled)

While playing a Play List...

(Canceled)

For MPEG-1/MPEG-2/DivX/MP3/WMA/WAV files:

While playing or before playback...

* During Program Play and Random Play, “REP STEP”

appears instead of these indications, and the repeat mode
changes as follows for all discs.

REP STEP REP ALL

REP OFF

(Canceled)

Main Unit

Prohibiting Disc Ejection
—Child Lock

You can lock the disc tray so that no one can eject the
loaded disc.

• This function is available only while the System is on
standby.

While the disc tray is closed...

(while holding...)

ONLY

(Canceled)

For JPEG files during slide-show:

While playing or before playback...

(Canceled)

To cancel the prohibition, repeat the same procedure.
“UNLOCKED” appears on the display.

24

Remote control

On-Screen Operations

VCD

1

VCD

PROGRAM

TIME

TIME OFF ST

OFF

TITLE

1/3

14

TRACK 3

CHAP

2

TIME 0:00:58

TOTAL

23

1/3 1/3

1:25:58

3

DVD/CD 6

Number

buttons

ON SCREEN

Remote

On-screen Bar Operations

INFO

ONLY

You can check the disc information and playback status by
using the on-screen bar (not applicable for MP3/WMA/
WAV/JPEG files). You can also use some functions when
playing back DVD Video/DVD-VR/SVCD/VCD/CD.

On-screen Bar Information
DVD Video

1

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/31/1

Dolby D
3/2.1ch

OFF

TITLE 2

TITLE

2

TIME 0:00:58

CHAP 3

CHAP

14

1/3

TOTAL

23

1/3 1/3

1:25:58

3

4

DVD-VR

SVCD

1

PROGRAM

SVCD

TIME

OFF

TIME OFF ST1

1/3

TITLE

CHAP

14

1/3

-/4

TRACK 3

23

1/3 1/3

2

TIME 0:00:58

TOTAL

1:25:58

3

4

4

CD

1

CD

TIME

TIME OFF

OFF

RANDOM

TITLE

CHAP

14

1/3

TRACK 3

23

1/3 1/3

2

TIME 0:00:58

TOTAL

4

MPEG-1/MPEG-2/DivX files on a disc

Time 00:00:58

FILE

CHAP

1 Disc/source
2 Playback information

Dolby D Audio format
3/2.1ch, 2/0.0 ch Channel number
PROGRAM, RANDOM Current play mode

TITLE

2

CHAP
TRACK

TIME 0:00:58

Current title

3

Current chapter

14

Current track
Current program
Current Play List

Time indication

3 Operation modes

Playback
/ Forward/Reverse search
/ Forward/Reverse slow-motion
Pause
Stop

4 Function icons (on the pull-down menu)

Select to change the time indications.

TIME

Select to repeat playback.

OFF

Select for time search.

Select for chapter search.

CHAP.

Select to change the audio language or

1/3

channel (see also page 19).

Select to change subtitle language (see also

1/3

page 20).

Select to change the view angle (see also page

1/3

10).

TOTAL

23

3

1:25:58

213

1:25:58

25

To operate using the On-screen Bar

Ex.: Selecting a subtitle (French) for DVD Video

While “DVD/CD” is selected as the source...

1 Display the entire on-screen bar.

To change the time information

You can change the time information on the on-screen bar
and the display on the main unit.

1 While playing, display the entire on-screen bar.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/31/1

Dolby D
3/2.1ch

OFF

TITLE 2

TITLE

CHAP

14

1/3

CHAP 3

23

1/3 1/3

TIME 0:00:58

TOTAL

1:25:58

disappears

* This does not appear for MPEG-1/MPEG-2/DivX files.

2 Select (highlight) the item you want.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/31/1

Dolby D
3/2.1ch

OFF

TITLE 2

TITLE

CHAP

14

1/3

CHAP 3

23

1/3 1/3

TIME 0:00:58

TOTAL

1:25:58

3 Display the pop-up window.

TITLE 2

CHAP

1/3

1/31/31/1

TOTAL

23

1/3 1/3

ENGLISH

1:25:58

TOTAL 1:01:58

CHAP 3

4 Select the desired option in the pop-up window.

TOTAL 1:01:58

CHAP 3

TITLE 2

CHAP

ITLE

14

1/3

1/32/31/1

TOTAL

23

1/3 1/3

FRENCH

1:25:58

2 Make sure

TIME

is selected (highlighted).

3 Change the time indication.

TIME

REM

TOTAL

T. REM

To remove the on-screen bar

Repeat Play

• See also page 24.

Elapsed playing time of the current chapter/
track (not applicable for DVD-VR).

Remaining time of the current chapter/track
(not applicable for DVD-VR).

Elapsed disc time.

Remaining time of title (DVD Video)/
program (DVD-VR)/disc (SVCD/VCD).

1 While playing (without PBC for SVCD/VCD), display

the entire on-screen bar.

• Repeat mode can also be selected before starting
playback (not applicable for DVD Video/DVD-VR).

5 Finish the setting.

Pop-up window disappears.

To remove the on-screen bar

2 Select

OFF

.

3 Display the pop-up window

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/31/1

Dolby D
3/2.1ch

OFF

OFF

TITLE

TITLE 2

14

1/3

CHAP 3

CHAP

TOTAL 1:01:58

TOTAL

1:25:58

23

1/3 1/3

26

4 Select the repeat mode you want.

H

C

T

A-B

TITLE*

ALL

CHAPTER**

TRACK**

OFF

Repeats a desired portion (see below).

Repeats the current title.

Repeats the disc (not applicable for
DVD) or programmed track.

Repeats the current chapter.

Repeats the current track.

Cancels Repeat Play.

6 Select the end point (B).

A-B Repeat starts. The selected
portion plays repeatedly.

• You can search for the end point

using the ¡ button.

To cancel A-B Repeat, repeat steps 1 to 3, and select
“OFF” in step 4.

• A-B Repeat will also be canceled when you stop play or
skip the chapter or track.

* While playing a DVD-VR, “PG” appears, and while

playing a Play List, “PL” appears.

** During Program Play and Random Play, “STEP”

appears.

5 Finish the setting.

A-B Repeat

You can repeat playback of a desired portion by specifying
the beginning (point A) and the ending (point B).

• A–B Repeat cannot be used for MP3/WMA/WAV/JPEG/
MPEG-1/MPEG-2/DivX files and some DVDs.

1 While playing, display the entire on-screen bar.
2 Select

OFF

.

3 Display the pop-up window.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/31/1

Dolby D
3/2.1ch

OFF

OFF

TITLE 2

TITLE

CHAP

14

1/3

CHAP 3

23

1/3 1/3

TOTAL 1:01:58

TOTAL

1:25:58

4 Select “A-B.”

Time Search

You can move to a particular point by specifying the
elapsed playing time from the beginning.

• This function is not available during Program Play and
Random Play.

1 While playing (without PBC for SVCD/VCD), display

the entire on-screen bar.

• Time Search can also be used before starting playback

(not applicable for DVD Video/DVD-VR).

2 Select .
3 Display the pop-up window.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/31/1

Dolby D
3/2.1ch

OFF

TIME _ : _ _ : _ _

TITLE 2

TITLE

CHAP

14

1/3

CHAP 3

23

1/3 1/3

TIME 0:00:58

TOTAL

1:25:58

4 Enter the time.

You can specify the time in hours/minutes/seconds.

Examples:

To move to a point of 1 (hours):
02 (minutes): 00 (seconds), press
1, 0, 2, 0, then 0.
To move to a point of 54
(minutes): 00 (seconds), press 0, 5,
4, 0, then 0.

OFF

Dolby D
3/2.1ch

A–B

DVD-VIDEO

TIME

TIME OFF CHAP.

5 Select the start point (A).

DVD-VIDEO

TIME

TIME A- CHAP. 1/3

27

Dolby D
3/2.1ch

TITLE 2

TITLE

• It is always required to enter the hour digit (even “0”

hours), but it is not required to enter the final zeros
(the last two digits in the examples above).

• To correct a mis-entry, press 2 to erase the last entry.

5 Confirm your entry.

C

14

1/3

The System starts playing the disc
from the selected playing time.

Chapter Search

For DVD Video/DVD-VR: You can search for the chapter
number to play.

• This function is not available during Program Play and
Random Play.

1 While playing, display the entire on-screen bar.
2 Select

CHAP.

.

3 Display the pop-up window.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/31/1

Dolby D
3/2.1ch

TITLE 2

TITLE

CHAPTER _

14

CHAP

1/3

CHAP 3

23

1/3 1/3

TOTAL 1:01:58

TOTAL

1:25:58

Ex.: When Original Program is selected.

ORIGINAL PROGRAM

No Date Ch Time Title

1 03/12/08 12:15L
2 09/12/08 23:05
3 18/12/08 08:17
4 20/12/08 07:47
5 25/12/08 19:38 Mr. Lawrence
6 28/12/08 14:20

L
L
L
L
L

La fleur
The last struggle
free flyer
BOOM!

Satisfy U

12 3 4 5 6

Ex.: When Play List is selected.

4 Enter the desired chapter number.

Examples:

To select chapter 5, press 5.
To select chapter 10, press 1, then

0.
To select chapter 15, press 1, then

5.
To select chapter 30, press 3, then

0.

• To correct a mis-entry, press the number buttons

until the desired number is shown in the pop-up
window.

5 Confirm your entry.

The System starts playing the selected
chapter.

Remote

Control Screen Operations

You can search for and play the desired items through the
control screen for DVD-VR and MP3/WMA/WAV/JPEG/
MPEG-1/MPEG-2/DivX files.

ONLY

PLAY LIST

No Date Chap Length Title

1 03/12/08 002 0:23:24 Nebula G.
2 15/12/08 004 1:04:39
3 24/12/08 013 0:41:26
4 27/12/08 017 0:09:08

CDJ
Secret Garden
S. Walker

5

1 Listed number
2 Recording/creating date
3 Recording channels
4 Recording time
5 Title
6 Highlight bar (current selection)
7 Chapters included
8 Playback time

To select an item in the list and start playback

67 81 2

Control screen for DVD-VR

The control screen is superimposed onto the TV screen
when you call up Original Program (PG) or Play List (PL).

To select playback type

To display the Original
Programs:

To remove the list, press the same button again.

To display the Play Lists:

• If you move the highlight bar while playing back, the
selected item starts playback automatically.

28

Control screen for MP3/WMA/WAV/JPEG/MPEG-1/

MPEG-2/DivX files

The control screen appears on the TV when the System
detects MP3/WMA/WAV/JPEG/MPEG-1/MPEG-2/DivX
files on the loaded disc.

• For JPEG/MPEG-1/MPEG-2/DivX, it appears when
playback is stopped.

Ex.: While playing an MP3 file on a disc.

7

1

2

3

4

5

Group : 2 / 3

Spring

Summer

Fall
Winter

Track Information

Title
Rain
Artist

Album

RANDOM

REPEAT STEP

Track : 6 / 14 (Total 41)

Cloudy.mp3
Fair.mp3
Fog.mp3
Hail.mp3
Indian summer.mp3

Rain.mp3

Shower.mp3
Snow.mp3
Thunder.mp3
Typhoon.mp3
Wind.mp3
Winter sky.mp3

TIME : 00:00:14

6

1 Current source

FILE: Current source is “DVD/CD.”

2 Current group number/total group number
3 Current group
4 Group list
5 File information (only for MP3/WMA/WAV files)
6 Current file
7 Random Play/Program Play setting
8 Repeat Play setting
9 Elapsed playing time of the current file (not applicable

for JPEG files)

0 Operation status icon

- Current file number/total number of files in the

current group (total number of files on the loaded
disc)

= Highlight bar (current selection)
~ File list

• If different types of playable files (audio/still picture/
moving picture) are recorded on a disc, select a file type
to play (see page 11).

8
9

0

-

=
~

To move the highlight bar between group list and file list

Moves the bar to the file list.

Moves the bar to the group list.

To select an item in the list

Move the highlight bar to the desired
item.

• If you move the highlight bar
while playing back an MP3/WMA/
WAV file, the selected track starts
playback automatically.

To start playback

For JPEG:

The selected file (still picture) is
displayed until you change it.

Press one of the buttons
depending on the current source.

Slide-show playback starts. Each
file (still picture) is shown on the
screen for about 3 seconds, then
changes one after another.

• To cancel slide-show and
display the current still picture,
press the same button again.

For the other files:

Playback starts with the selected
track.

• Pressing DVD/CD 6 also
starts playback.

• Once you start to play back a picture, the control screen
disappears.

• To show the control screen, press TOP MENU/PG or
MENU/PL.

29

Remote control

Daily Timer Operations

Setting the Daily Timer

Using Daily Timer, you can wake up with your favorite
music.

AUDIO

CANCEL

CLOCK/TIMER

You can store three Daily Timer settings; however, you can
activate only one of the timers at any one time.

• To exit the timer settings, press CLOCK/TIMER as

required.

• To correct a mis-entry during process, press CANCEL

(while holding SHIFT). You can go back to the previous
step.

Initial Daily Timer settings when shipped from the factory:

• DAILY 1: ON Time (6:00)/OFF Time (8:00)/Source
(TUNER FM 1)/Volume level (– –)

• DAILY 2: ON Time (7:00)/OFF Time (9:00)/Source
(TUNER FM 1)/Volume level (– –)

• DAILY 3: ON Time (10:00)/OFF Time (12:00)/Source
(TUNER FM 1)/Volume level (– –)

1 Select one of the timer setting modes you want to

set—DAILY 1 ON time, DAILY 2 ON time, or DAILY
3 ON time.

INFO

Remote
ONLY

Daily Timer 1 Daily Timer 2 Daily Timer 3

ON

(Time)

Canceled Clock setting

Ex.: When Daily Timer 1 setting mode is selected

• When the clock has not been set, pressing
CLOCK/TIMER makes the System enter the clock
setting mode (see page 18).

ON

(Time)

(See page 18.)

ON

(Time)

2 Set the timer as you like.

Repeat the procedure for the following settings until

finished.

30

1 Set the hour then the minute for on-time.
2 Set the hour then the minute for off-time.
3 Select the playback source—“TUNER-FM,”

“TUNER-AM,” “DISC,” “AUDIO IN,” or “IPOD.”

4 For “TUNER-FM” or “TUNER-AM”: Select a preset

channel.

For “DISC”: Select the title/group number, then the

chapter/track/file number.

5 Select the volume level.

• You can adjust the volume level (“0” to “39” and
“VOL – –”). If you select “VOL – –,” the volume is set
to the same level as when the System was last turned
off.

Once settings are completed, the timer setting

information appears in sequence.

To turn on or off the Daily Timer

Since Daily Timer is activated at the same time everyday,
you may need to cancel it on some particular days.

To cancel the Daily Timer

1 Select the Timer (DAILY 1, DAILY 2, or DAILY 3)

you want to cancel.

Daily Timer 1 Daily Timer 2 Daily Timer 3

ON

(Time)

Canceled Clock setting

ON

(Time)

(See page 18.)

ON

(Time)

3 Turn off the System (on standby), if you have set the

timer with the System turned on.

How Daily Timer works

Once the Daily Timer has been set, the timer indicator

) and timer number indicator (1/2/3) are lit on

(
the display. Daily Timer is activated at the same time
everyday until the timer is turned off manually (see the
next column) or another timer is activated.

When the on-time comes

The System turns on, tunes in to the specified station or
starts playing from the specified source, and gradually
increases the volume level to the preset level after for 30
seconds.

• While Daily Timer is working, the timer indicator (
flashes on the display.

When the off-time comes

The System stops playback, and turns off (on standby)
automatically.

• The timer setting remains in memory until you change
it.

Ex.: To cancel Daily Timer 1

2 Turn off the selected Timer.

(while holding...)

To turn on the Daily Timer

1 Select the Timer (DAILY 1, DAILY 2, or DAILY 3)

you want to activate.

Daily Timer 1 Daily Timer 2 Daily Timer 3

)

ON

(Time)

Canceled Clock setting

ON

(Time)

(See page 18.)

2 Activate the selected Timer.

ON

(Time)

31

Ex.: When Daily Timer 1 (DAILY 1) is

activated

3 Wait until the indication disappears.

Remote control

SET UP

Setup Menu Operations

Initial Settings

You can change the settings of the System.

• The Setup Menu can be used only when “DVD/CD” is
selected as the source.

1 Press SET UP while playback is stopped.

LANGUAGE

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

2 Press 3 (or 2)to select the menu.
3 Press ∞ (or 5) to move to select the item.
4 Press ENTER/SET.
5 Press ∞ (or 5) to select the options, then press

ENTER/SET.

To remove a preference display

Press SET UP.

INFO

ENGLISH

ENGLISH

OFF

ENGLISH

Remote
ONLY

Menu Item Contents

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

LANGUAGE

ON SCREEN LANGUAGE

MONITOR TYPE

16:9 4:3 LB

You can select the initial menu language for DivX files/DVD Video. (See page 39.)

You can select the initial audio language for DivX files/DVD Video. (See page 39.)

You can select the initial subtitle language for DivX files/DVD Video. (See page

39.)

You can select “ENGLISH,” “CHINESE,” or “SPANISH” as the on-screen language.

You can select the monitor type to match your TV when you play back picture
recorded for wide-screen televisions.
16:9 NORMAL/16:9 MULTI NORMAL (Wide-screen television): Select this when
the aspect ratio of your wide-screen TV is fixed to 16:9.
16:9 AUTO/16:9 MULTI AUTO (Wide-screen television): Select this when your

4:3 PS


TV is an ordinary wide-screen TV.
4:3 LB/4:3 MULTI LB (Letter Box conversion): For a conventional (4:3) TV.
Displays a wide-screen picture to fit the width of the TV screen keeping the aspect
ratio.
4:3 PS/4:3 MULTI PS (Pan Scan conversion): For a conventional (4:3) TV. The
picture is zoomed in to fill the screen vertically and the left and right sides of the
picture are cut off.

32

Menu Item Contents

PICTURE SOURCE

SCREEN SAVER


FILE TYPE

DIGITAL AUDIO OUTPUT

AUDIO

DOWN MIX

D. RANGE COMPRESSION

RESUME

ON SCREEN GUIDE

OTHERS

DivX REGISTRATION

You can obtain optimal picture quality by selecting the source type of the video
source.
AUTO: Normally, select this option. The System recognizes the picture type (film
or video source) of the current picture according to its information.

FILM: For a film source picture.
VIDEO: For a video source picture.

You can set the screen saver function (ON or OFF). If no operation is done for
about 5 minutes, the TV screen dims.

You can select the file type to play.

AUDIO: To play MP3/WMA/WAV files.
STILL PICTURE: To play JPEG files.
VIDEO: To play MPEG-1/MPEG-2/DivX files.

Set this item correctly when using the OPTICAL DIGITAL OUT terminal on the
rear.
PCM ONLY: When connecting to audio equipment which is compatible with only
linear PCM signals.
DOLBY DIGITAL/PCM: When connecting to a Dolby Digital decoder or an
amplifier with a built-in Dolby Digital decoder.
STREAM/PCM: When connecting to a DTS decoder or an amplifier with a built­in DTS decoder.

This setting is effective for digital audio output if “DIGITAL AUDIO OUTPUT” is
set to “PCM ONLY.”

DOLBY SURROUND: Select this when connecting to a surround decoder.
STEREO: Select this when connecting to a stereo receiver, MD player, etc.

You can enjoy powerful audio even at a low volume level while playing Dolby
Digital software.

AUTO: Select to apply the effect to multi-channel encoded software.
ON: Select to always use this function.

You can select Resume.
ON: The System resumes playback from the position where playback has been
stopped.
OFF: Resume is deactivated.

Activate (ON) or deactivate (OFF) the on-screen guide (see page 10).

The System has its own Registration Code.
If necessary, you can confirm it.
Once you have played back a DivX file in which the Registration Code is recorded,
the System’s Registration Code is overwritten for copyright protection.

33

Additional Information

Learning More about This System

Connections (see pages 4 to 6)

• Make sure the antenna conductors do not touch any
other terminals, connecting cords or the power cord.
Also, keep the antennas away from metallic parts of the
System, connecting cords, and the power cord. These
could cause poor reception.

• Use only speakers with the same speaker impedance
as indicated by the speaker terminals on the rear of the
System.

• The speakers are magnetically shielded to avoid color
distortions on TVs. However, if not installed properly,
it may cause color distortions. So, pay attention to the
following when installing the speakers.

– When placing the speakers near a TV set, turn off the

TV’s main power switch or unplug it before installing
the speakers.
Then wait at least 30 minutes before turning on the
TV’s main power switch again.

– Some TVs may still be affected even though you have

followed the above instructions. If this happens, move
the speakers away from the TV.

Daily Operations—Playback (see pages 8 to 13)

Listening to the Radio:

• If you store a new station into an occupied preset
number, the previously stored station in that number will
be erased.

• When you unplug the power cord or if a power failure
occurs, the preset stations will be erased in a few days. If
this happens, preset the stations again.

Playing Back a Disc:

• When you change the source to “DVD/CD,” it may take a
while to activate the source.

• On some discs, the actual operations may be different
from what is explained in this manual due to the
programming and disc structure; such differences are not
a malfunction of this System.

• The System recognizes up to 150 tracks (files) per group,
and 99 groups per disc. The total number of tracks (files)
that the System can detect is 4 000.

– If there are any unplayable files in a folder, those files

are also counted in the total file number.

– Playable files which do not belong to any groups are

handled as GROUP 1.

• For DVD-VR playback...

– This System can play only a disc of UDF-Bridge format.
– For details about DVD-VR format and Play List, refer

to the manual of the recording equipment.

• For MP3/WMA/WAV playback...
– MP3/WMA/WAV discs require a longer readout time

than regular CDs. (It depends on the complexity of the
group/file configuration.)

– Some MP3/WMA/WAV files cannot be played back

and will be skipped. This results from their recording
processes and conditions.

– This System can play only a disc of ISO 9660 Level 1 or

Level 2.

– This System can play back MP3/WMA/WAV files

with the extension code <.mp3>, <.wma>, or <.wav>
(regardless of the letter case—upper/lower).

– It is recommended that you make each MP3/WMA/

WAV files as following conditions:

– For MP3/WMA files: At a sample rate of 44.1 kHz

and at a data transfer rate of 128 kbps. This System
cannot play back files made at a bit rate of less than
64 kbps.

– For WAV files: At a sample rate of 44.1 kHz and at a

quantization rate of 16 bit Linear PCM.

• For JPEG files playback...
– It is recommended that you record a file at 640 x 480

resolution. (If a file has been recorded at a resolution
of more than 640 x 480, it will take a long time to be
shown.)

– This System can play back JPEG files with the extension

code <.jpg> or <.jpeg> (regardless of the letter case—
upper/lower).

– This System may not play back JPEG files properly if

they are recorded from a device other than a digital
camera.

• For MPEG-1/MPEG-2 playback...
– This System can play back MPEG-1/MPEG-2 files with

the extension code <.mpg>, <.mpeg>, or <.mod>*.

* <.mod> is an extension code used for the MPEG-2 files

recorded by JVC Everio camcorders. The MPEG-2 files
with the <.mod> extension code cannot be played back if
HD format is used or its maximum bit rate is more than
2 Mbps.

– The stream format should conform to MPEG system/

program stream.

– 720 x 576 pixels (25 fps) / 720 x 480 pixels (30 fps) is

recommended for the highest resolution.

– This System also supports the resolutions of 352 x 576 /

480 x 576 / 352 x 288 pixels (25 fps) and 352 x 480 /
480 x 480 / 352 x 240 pixels (30 fps).

– The file format should be MP@ML (Main Profile at

Main Level)/SP@ML (Simple profile at Main Level)/
MP@LL (Main Profile at Low Level).

– Audio streams should conform to MPEG1 Audio

Layer-2 or MPEG2 Audio Layer-2.

34

• For DivX playback...
– This System can play only a disc of UDF-Bridge format.

“Multi-border” is not supported.

– The System supports all versions of DivX® video

(including DivX® 6).

– The System supports DivX files whose resolution is

720 x 480 pixels or less (30 fps), and 720 x 576 pixels or
less (25 fps).

– Audio stream should conform to Dolby Digital,

MPEG1 Audio Layer-2 or MPEG Audio Layer-3
(MP3).

– This System can play back DivX files with the extension

code <.divx> <.div> <.avi> (regardless of the letter
case—upper/lower).

– The System does not support GMC (Global Motion

Compression).

– The file encoded in the interlaced scanning mode may

not be played back correctly.

• Sound distortion may occur when playing back audio
sources with high recording levels. When distortion
occurs, it is recommended to turn off the equalizer of the
iPod. For information on operating the iPod, see the iPod
instruction manual.

• If the iPod does not play correctly, update your iPod
software to the latest version.

For details about updating your iPod, check on the Apple

web site <http://www.apple.com>.

Daily Operations—Sound & Other Adjustments

(see pages 14 to 18)

Adjusting the Sound:

• This function also affects the sound through the
headphones.

• MY SOUND setup is prohibited for certain file format.

Playing Back an iPod:

• Compatible iPod:

iPod model Audio

iPod shuffle (2nd Generation) 512MB/
1GB/2GB

iPod nano 1GB/2GB/4GB

iPod nano (2nd Generation) 2GB/4GB/
8GB

iPod nano (3rd Generation) 4GB/8GB

iPod mini 4GB

iPod mini (2nd Generation) 4GB/6GB

iPod (4th Generation) 20GB/40GB

iPod classic 80GB/160GB

iPod with color display 20GB/60GB

iPod with dock connector 10GB/15GB/
20GB/30GB/40GB

iPod with touch wheel 10GB/20GB

iPod with scroll wheel 5GB/10GB

iPod with click wheel 20GB/40GB

iPod photo (4th Generation) 20GB/
30GB/40GB/60GB

iPod video (5th Generation) 30GB/
60GB/80GB

iPod touch 8GB/16GB/32GB

Video

Composite

Component

——

√

——

√

——

√

√√√

——

√

——

√

——

√
√√√

——

√

——

√

——

√

——

√

——

√

∗

√√

√√

—

—

√√√

Changing the Scanning Mode:

• If you play back an NTSC disc/file with the color system
set to “PAL (PRG),” the disc/file will be reproduced using
“PAL 60” format; however, if the TV does not support
this format, the screen may not display properly.

• If you play back a PAL disc/file with the color system set
to “NTSC (PRG),” you can watch the playback pictures,
but the following symptoms may occur:

– The items on the menu will be blurred, and be shown

slightly shifted when highlighted.

– The aspect ratio of the picture may differ from the

original aspect ratio.

– The picture movement is not smooth.

• You cannot change the scanning mode to progressive in
the following cases:

– When your TV does not support the progressive video

input.

– When you have not connected your TV to the unit

using a component video cord.

• When you play back an NTSC disc/file in progressive
scanning mode either NTSC PRG or PAL PRG, the
System outputs the NTSC signal regardless of the color
system settings.

Setting the Clock:

• “0:00” will flash on the display until you set the clock.

• The clock may gain or lose 1 to 2 minutes per month. If
this happens, reset the clock.

* Only for still picture.

35

Unique Video Disc/File Operations (see pages 19

to 21)

Selecting the Audio Track:

• On some discs/files, you cannot change audio language
during playback.

Special Effect Playback:

• During slow-motion playback, no sound will be emitted.

• While zoomed in, the picture may look coarse.

Setup Menu Operations (see pages 32 and 33)

General:

• If the upper and lower parts of the menu are cut off,
adjust the picture size control of the TV.

LANGUAGE menu:

• When the language you have selected for “MENU
LANGUAGE,” “AUDIO LANGUAGE,” or “SUBTITLE”
is not recorded, the original language is used as the initial
language.

Advanced Playback Operations (see pages 22 to

24)

Programming the Playing Order—Program Play:

• While programming steps...
Your entry will be ignored if you have tried to program

an item number that does not exist (for example,
selecting track 14 on a disc that only has 12 tracks).

Playing Repeatedly:

• A-B Repeat is available only within the same title/
program/track.

On-Screen Operations (see pages 25 to 29)

On-screen Bar Operations:

• For DVD-VR, “PG” or “PL” appears instead of “TITLE”
on the on-screen bar.

Daily Timer Operations (see pages 30 and 31)

Setting the Daily Timer:

• If you do not specify the preset station or track number
correctly while setting a timer, the currently selected
station or the first track will be played when the timer is
activated.

• When you unplug the power cord or if a power failure
occurs, the timer will be canceled. You need to set the
clock first, then the timer again.

• If you set DVD Video as the source, Daily Timer will not
work correctly.

• If you set the Sleep Timer after Daily Timer starts playing
the selected source, Daily Timer is canceled.

PICTURE menu—MONITOR TYPE:

• Even if “4:3 PS/4:3 MULTI PS” is selected, the screen size
may become 4:3 letter box while playing a disc/file. This
depends on how the discs are recorded.

• When you select “16:9 NORMAL/16:9 MULTI
NORMAL” or “16:9 AUTO/16:9 MULTI AUTO” for
a picture whose aspect ratio is 4:3, the picture changes
slightly due to the process of converting the picture
width.

OTHERS menu—ON SCREEN GUIDE:

• The setup menu and on-screen bar will be displayed (and
recorded) even if this function is set to “OFF.”

Subtitles and the information for zoom-in always appear

on the display regardless of this setting.

36

Troubleshooting

General

Adjustments or settings are suddenly canceled before you
finish.

] There is a time limit. Repeat procedure again.

Operations are disabled.

] The built-in microprocessor may malfunction due to

external electrical interference. Unplug the power cord
and then plug it back in.

Unable to operate the System from the remote control.

] The path between the remote control and the remote

sensor on the System is blocked.

] The batteries are exhausted.

No sound is heard.

] Speaker connections are incorrect or loose.
] Headphones are connected.

No picture appears on the TV screen.

] The video cord connections are incorrect or loose.

No picture is displayed on the TV screen, the picture is
blurred, or the picture is divided into two parts.

] The System is connected to a TV which does not

support progressive video input.

] Incorrect scanning mode is selected (see page 17).

The left and right edges of the picture are missing on the
screen.

] Select “4:3 LB/4:3 MULTI LB” for “MONITOR TYPE”

(see page 32).

Radio Operations

Hard to hear broadcasts because of noise.

] Antenna connections are incorrect or loose.
] The AM loop antenna is too close to the System.
] The FM antenna is not properly extended and

positioned.

Groups and tracks are not played back as you expect.

] The playing order is determined when the groups

and tracks were recorded. It depends on the writing
application.

MP3, WMA, WAV, JPEG, MPEG-1, MPEG-2 or DivX
files are not played back.

] The disc may contain different types of files (ex. MP3/

WMA/WAV/JPEG). In this case, you can only play back
the files selected by pressing FILE TYPE (while holding
SHIFT) (see page 33).

] You have changed the “FILE TYPE” setting after the

System read the disc. In this case, reload the disc and
connect it again.

The disc sound is discontinuous.

] The disc is scratched or dirty.

No subtitle appears on the display though you have
selected the initial subtitle language.

] Some DVDs/DivX files are programmed not to display

any subtitle initially. If this happens, press SUBTITLE
(while holding SHIFT) after starting play back (see page

20).

Audio language is different from the one you have
selected as the initial audio language.

] Some DVDs/DivX files are programmed to always use

the original language initially. If this happens, press
AUDIO/MPX (while holding SHIFT) after starting
playback (see page 19).

The disc tray does not open or close.

] The power cord is not plugged in.
] Child Lock is in use. “LOCKED” appears in the display

(see page 24).

iPod Operations

The iPod doesn’t play back though the iPod lights up on
the display.

] The battery is empty. Leave it connected for more than

10 minutes.

Disc Playback Operations

The disc does not play.

] You have inserted a disc whose Region Code is not “2.”

(“RG ERROR” appears on the display.)

] The disc is placed upside down. Place the disc with the

label side facing up.

ID3 Tag on an MP3 file cannot be shown.

] There are two types of ID3 Tag—Version 1 and Version

2. This System can only show ID3 Tag Version 1.

37

Timer Operations

Daily Timer does not work.

] The System has been turned on when the on-time came.

Timer starts working only when the System is turned
off.

Daily Timer does not start playback.

] The loaded disc is a DVD Video. Change the disc.

Maintenance

To get the best performance of the System, keep your discs
and mechanism clean.

Handling Discs

• Remove the disc from its case by holding it at the edge
while pressing the center hole lightly.

• Do not touch the shiny surface of the disc, or bend the
disc.

• Put the disc back in its case after use to prevent warping.

• Be careful not to scratch the surface of the disc when
placing it back in its case.

• Avoid exposure to direct sunlight, extreme temperature,
and moisture.

To clean the disc:

Wipe the disc with a soft cloth in a straight line from center
to edge.

Cleaning the System

• Stains should be wiped off with a soft cloth. If the System
is heavily stained, wipe it with a cloth soaked in water­diluted neutral detergent and wrung well, then wipe clean
with a dry cloth.

• Since the System may deteriorate in quality, become
damaged or get its paint peeled off, be careful about the
following:

– DO NOT wipe it with a hard cloth.
– DO NOT wipe it forcefully.
– DO NOT wipe it with thinner or benzine.
– DO NOT apply any volatile substance such as

insecticides to it.

– DO NOT allow any rubber or plastic to remain in

contact for a long time.

• Manufactured under license from Dolby Laboratories. “Dolby”,
“Pro Logic”, and the double-D symbol are trademarks of Dolby
Laboratories.

• “DTS” is a registered trademark of DTS, Inc. and
“DTS2.0+Digital Out” is a trademark of DTS, Inc.

• “Official DivX® Ultra Certified product” “Plays all versions of
DivX® video (including DivX® 6) with enhanced playback of
DivX® media files and the DivX® Media Format” “DivX, DivX
Ultra Certified, and associated logos are trademarks of DivX,
Inc. and are used under licence.”

• Microsoft and Windows Media are either registered trademarks
or trademarks of Microsoft Corporation in the United States
and/or other countries.

• iPod is a trademark of Apple Inc., registered in the U.S. and
other countries.

• This product incorporates copyright protection technology
that is protected by U.S. patents and other intellectual property
rights. Use of this copyright protection technology must be
authorized by Macrovision, and is intended for home and
other limited viewing uses only unless otherwise authorized by
Macrovision. Reverse engineering or disassembly is prohibited.

• “CONSUMERS SHOULD NOTE THAT NOT ALL HIGH
DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE
WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS
TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525
OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT
IS RECOMMENDED THAT THE USER SWITCH THE
CONNECTION TO THE ‘STANDARD DEFINITION’
OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR
TV SET COMPATIBILITY WITH THIS MODEL 525p AND
625p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER
SERVICE CENTER.”

To remove the speaker grilles

Holes Projection

Speaker grille

38

Language Code List

Afar

AA

Abkhazian

AB

Afrikaans

AF

Ameharic

AM

Arabic

AR

Assamese

AS

Aymara

AY

Azerbaijani

AZ

Bashkir

BA

Byelorussian

BE

Bulgarian

BG

Bihari

BH

Bislama

BI

Bengali, Bangla

BN

Tibetan

BO

Breton

BR

Catalan

CA

Corsican

CO

Welsh

CY

Danish

DA

Bhutani

DZ

Greek

EL

Esperanto

EO

Estonian

ET

Basque

EU

Persian

FA

Finnish

FI

Fiji

FJ

Faroese

FO

Frisian

FY

Irish

GA

Scots Gaelic

GD

Galician

GL

Guarani

GN

Gujarati

GU

Hausa

HA

Hindi

HI

Croatian

HR

Armenian

HY

Interlingua

IA

Interlingue

IE

Inupiak

IK

Indonesian

IN

Icelandic

IS

Hebrew

IW

Yiddish

JI

Javanese

JW

Georgian

KA

Kazakh

KK

Greenlandic

KL

Cambodian

KM

Kannada

KN

Korean (KOR)

KO

Kashmiri

KS

Kurdish

KU

Kirghiz

KY

Latin

LA

Lingala

LN

Laothian

LO

Lithuanian

LT

Latvian, Lettish

LV

Malagasy

MG

Maori

MI

Macedonian

MK

Malayalam

ML

Mongolian

MN

Moldavian

MO

Marathi

MR

Malay (MAY)

MS

Maltese

MT

Burmese

MY

Nauru

NA

Nepali

NE

Dutch

NL

Norwegian

NO

Occitan

OC

(Afan) Oromo

OM

Oriya

OR

Panjabi

PA

Pashto, Pushto

PS

Portuguese

PT

Quechua

QU

Rhaeto-Romance

RM

Kirundi

RN

Rumanian

RO

Kinyarwanda

RW

Sanskrit

SA

Sindhi

SD

Sangho

SG

Serbo-Croatian

SH

Singhalese

SI

Slovenian

SL

Samoan

SM

SN

SO

SQ

SR

SS

ST

SU

SV

SW

TA

TE

TG

TH

TI

TK

TL

TN

TO

TR

TS

TT

TW

UK

UR

UZ

VI

VO

WO

XH

YO

ZU

Shona

Somali

Albanian

Serbian

Siswati

Sesotho

Sundanese

Swedish

Swahili

Tamil

Telugu

Tajik

Thai

Tigrinya

Turkmen

Tagalog

Setswana

Tonga

Turkish

Tsonga

Tatar

Twi

Ukrainian

Urdu

Uzbek

Vietnamese

Volapuk

Wolof

Xhosa

Yoruba

Zulu

39

Optical Digital Out Signals

Playback disc/file

DIGITAL AUDIO OUTPUT Output Signals

STREAM/PCM DOLBY DIGITAL/PCM PCM ONLY

DVD Video

DVD-R/-RW
in DVD-VR
format

SVCD/VCD/CD

CD with DTS

with 48 kHz, 16/20/24 bit Linear PCM

with 96 kHz, Linear PCM 48 kHz, 16 bit Linear PCM

with Dolby Digital

with DTS DTS bitstream 48 kHz, 16 bit Linear PCM

with 48 kHz, 16/20/24 bit Linear PCM

with Dolby Digital

Dolby Digital bitstream

Dolby Digital bitstream

44.1 kHz, 16 bit Linear PCM/48 kHz, 16 bit Linear PCM

DTS bitstream 44.1 kHz, 16 bit Linear PCM

MP3/WMA/WAV/MPEG-1/MPEG-2

DivX

* While playing some DVDs, digital signals may be emitted at 20 bits or 24 bits (at their original bit rate) through the

OPTICAL DIGITAL OUT terminal if the discs are not copy-protected.

with MP2, MP3 32/44.1/48 kHz, 16 bit Linear PCM

with Dolby Digital

Dolby Digital bitstream

48 kHz, 16 bit Linear PCM*

48 kHz, 16 bit

Linear PCM

48 kHz, 16 bit Linear PCM*

48 kHz, 16 bit

Linear PCM

32/44.1/48 kHz, 16 bit Linear PCM

32/44.1/48 kHz,

16 bit Linear PCM

Operating JVC’s TVs Using the Remote Control

You can use the remote control to operate JVC’s TVs.

Remote control

TV/VIDEO

TV CH UP, DOWN

Change the input mode.

Change the channel.

While holding SHIFT, press...

TV

TV VOL +, –

Turn on/off TV

Adjust the TV volume.

40

Specifications

Amplifier section—CA-UXGP7V

Output Power:

Audio Input:

Audio Output:

Digital output:

Digital input:
Video out:
Color system:

Composite video:
S-VIDEO:

VIDEO OUT

(COMPONENT):

Speaker impedance:

Tuner section

FM tuning range:
AM (MW) tuning range:
For Saudi Arabia:

For other countries:

Disc player section

Region codes:

60 W (30 W + 30 W) at 4 Ω
(10% THD)

AUDIO IN: Stereo min.
(∅ 3.5 mm)
500 mV/50 kΩ (at “IN_LVL1”)
250 mV/50 kΩ (at “IN_LVL2”)
125 mV/50 kΩ (at “IN_LVL3”)

SUBWOOFER OUT: 500 mV/
10 kΩ

OPTICAL DIGITAL OUT:
–21 dBm to –15 dBm (660 nm
±30 nm)

Apple iPod

NTSC/PAL (interlaced/
progressive)

1 V (p-p)/75 Ω
Y (luminance): 1 V (p-p)/75 Ω
C (chrominance, burst):

PAL: 0.3 V(p-p)/75 Ω
NTSC: 0.286 V(p-p)/75 Ω

(Y) 1 V (p-p)/75 Ω
(PB/PR) 0.7 V (p-p)/75 Ω

4 Ω – 16 Ω

87.50 MHz – 108.00 MHz

531 kHz – 1 602 kHz (at 9 kHz
intervals)

530 kHz – 1 600 kHz (at 10 kHz
intervals)

531 kHz – 1 710 kHz (at 9 kHz
intervals)

530 kHz – 1 710 kHz (at 10 kHz
intervals)

• Middle East: 2

• South East Asia, Hong Kong
region: 3

• Australia: 4

Playable disc:

Dynamic range:
Horizontal resolution:
Wow and flutter:

• DVD Video/CD/VCD/SVCD

• CD-R/CD-RW (CD/SVCD/
VCD/MP3/WMA/WAV/
JPEG/MPEG-1/MPEG-2/
DivX format)

• DVD-R/-RW (DVD-VR/
DVD Video/MP3/WMA/
WAV/JPEG/MPEG-1/
MPEG-2/DivX format)

• +R/+RW (DVD Video/MP3/
WMA/WAV/JPEG/MPEG-1/
MPEG-2/DivX format)

80 dB
500 lines
Immeasurable

iPod section

Output power:

DC 5 V 500 mA

General

Power requirements:
For Australia:
For Hong Kong region

and Thailand:

Power consumption:

Dimensions (approx.):

Mass (approx.):

AC 110 V – 240 V , 50/60 Hz
AC 240 V
AC 220 V

35 W (at operation)
7 W (at standby)
12 W (at standby with iPod
charging)
1 W or less (at ECO mode)

165 mm × 251 mm × 255 mm
(W/H/D)

2.6 kg

, 50 Hz
, 50 Hz

Speakers—SP-UXGP7V

Speaker units:

Impedance:
Dimensions (approx.):

Mass (approx.):

Tweeter: 1.5 cm dome x 1
Woofer: 10 cm cone x 1
4 Ω
160 mm × 250 mm × 169 mm

(W/H/D)

1.8 kg each

Supplied Accessories

See page 4.

Design and specifications are subject to change without
notice.

41

Remote control

Name Page

AUDIO/TV

7
1, ¡
4, ¢
5, ∞, 2, 3, ENTER/SET

(One Touch Replay)

3D P/HPS
AHB PRO
AUDIO IN
AUDIO/MPX
AUDIO/TV VOL +, –
BASS/TREBLE
C.VOICE
CANCEL
CLOCK/TIMER
DISPLAY
DVD/CD 6
DVD/AUDIO IN LEVEL
ECO, DIMMER
FADE MUTING
FILE TYPE
GROUP/TITLE SKIP
iPod 6
MENU/PL
MY SOUND
Number buttons
ON SCREEN
REPEAT
RETURN
SCAN MODE
SET UP
SHIFT
SLEEP/A.STBY
SLOW 9, (
S.TURBO II
SUBTITLE
TOP MENU/PG
TUNER
TUNER/PLAY MODE
TV CH UP, DOWN
TV/VIDEO
VFP
ZOOM

y
s
4
o
8
a
z
z
l
u
j
k
j
x
g
x
d
3
t
1
p
9
o
2
g
/
5
h
e
7
;
9
r
t
4
l
h
7
i
w
q
s
f
6

8, 31, 40
10, 12, 15, 22, 23
11, 27
9, 11, 12, 22, 23
9 – 13, 15, 17, 18, 20 – 22, 26 – 32
21
14
16
14
8, 13
19, 37
8, 14, 15, 40
15
16
18, 23, 30, 31
18, 30, 31
8, 13, 18
8, 10 – 12, 21 – 23, 29
13, 16
16
14
11, 37
11
8, 12
11, 12, 28, 29
15, 16
9 – 11, 27, 28
26
13, 24
12
13, 17
32
11 – 14, 16 – 21, 23, 30, 31, 37
18
21
14
20, 37
11, 28, 29
8 – 10
9, 13, 22, 23
40
40
17
21

Parts Index

Remote control

This remote control can also operate
JVC’s TVs (see page 40).

Main unit

Main unit

Name Page

7
0
4 DOWN, UP ¢

AUDIO IN jack
AUDIO IN
Direct Dock for iPod
Disc tray
Display
DVD/CD #/8
ECO/DIMMER
FM/AM (TUNER)
iPod #/8
PHONES jack
Remote sensor
SOUND TURBO II, DEMO
STANDBY lamp
VOLUME +, –

2
7
=
5, #
^
!
8
@
0
3
6
~
4
9

­$
1
%

9
10, 11, 13, 24
10, 24
9, 11, 12, 22
6, 13
8, 13
6
10
7
8, 10 – 12, 21, 29
16
8, 9
8
8
6
1, 14
8
14

42

UX-GP7V

MICRO COMPONENT SYSTEM

EN

0908WMKMDWJMM© 2008 Victor Company of Japan, Limited
