DVD DIGITAL THEATER SYSTEM

TH-D70

Consists of XV-THD70, SP-THD7W, SP-THD7F, SP-THD7C and SP-THD7S

TH-D50

Consists of XV-THD50, SP-THD5W, SP-THD5F, SP-THD5C and SP-THD5S

(TH-D70 only)

INSTRUCTIONS

LVT1704-010A

[UJ]

Warnings, Cautions and Others

CAUTION — button!

Disconnect the mains plug to shut the power off completely (the STANDBY lamp goes off). When installing the apparatus, ensure that the plug is easily accessible. The button in any position does not disconnect the mains line.

• When the system is on standby, the STANDBY lamp lights red.

• When the system is turned on, the STANDBY lamp goes off.

The power can be remote controlled.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

CAUTION

• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

• Do not place any naked flame sources, such as lighted candles, on the apparatus.

• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover or cabinet. There

are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION:

Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE THE UNIT.

CAUTION!

To avoid personal injury or accidentally dropping the unit, have two persons unpack, carry, and install the unit.

TH-D70: 46 kg TH-D50: 23.7 kg

CAUTION:

Excessive sound pressure from earphones or headphones can cause hearing loss.

G-1

Caution: Proper Ventilation

To avoid risk of electric shock and fire and to protect from damage, place the apparatus on a level surface. The minimal clearances are shown below:

Wall or

obstructions

15 cm

Front view

XV-THD70/ XV-THD50

15 cm

Front

No obstructions

15 cm

[European Union only]

Side view

XV-THD70/ XV-THD50

Wall or

obstructions

15 cm

G-2

How to read this manual

• Illustrations and button names of the TH-D70 are mainly used for explanation.

• The following icons and illustrations are used to make the explanations simple and easy-to-understand.

Icons for System operations

Operations from the center unit

Operations from the remote control

The function can be operated from the on-screen bar ( 27).

Icons for the references and notes

Reference page for the function/ operation

Caution for the function/operation

Note for the function/operation

Tip for the function/operation

Icons for operating information

The function is available while playing.

The function is available while paused.

The function is available while stopped.

There is a time limit on performing the target operation.

Illustrations for button operations

Press the button briefly.

Press the button repeatedly.

«Hold

Press and hold the button.

Press button A, then press button B.

Hold

Press button B while holding button A.

Table of contents

Before using this System ............................................... 2

Playable discs/devices/files............................................ 3

Playable disc types ...................................................... 3

Playable digital devices ............................................... 3

Playable file types ....................................................... 4

Getting started ............................................................... 5

Checking the supplied accessories .............................. 5

Putting batteries into the remote control ..................... 5

Setting the voltage selector.......................................... 5

Connecting the speakers and subwoofer ..................... 5

Speaker layout ............................................................. 7

Connecting the antennas.............................................. 8

Connecting a TV ......................................................... 8

Connecting external components ................................ 9

Connecting the AC power cord................................. 10

Basic and common operations.................................... 11

Sound and monitor settings ........................................ 13

Sound settings and adjustments................................. 13

Setting the audio input for external components....... 14

Selecting the color system and scanning mode......... 15

FM/AM tuner operations............................................ 16

Setting the AM tuner interval spacing....................... 16

Manual tuning............................................................ 16

Preset tuning .............................................................. 16

Selecting the FM reception mode.............................. 16

XM Satellite Radio operations ................................... 17

Preparations ............................................................... 17

Manual tuning............................................................ 18

Preset tuning .............................................................. 18

Changing the channel information ............................ 18

iPod playback .............................................................. 19

Disc/file playback ........................................................ 21

Basic playback........................................................... 21

Using the disc menu .................................................. 23

Locating a desired scene or song ............................... 23

Changing the playback mode .................................... 24

Advanced operations ................................................. 25

Special playback for DVD Audio.............................. 26

Operation from the TV screen................................... 27

Personal settings .......................................................... 29

Karaoke operations ..................................................... 32

Basic procedure for Karaoke ..................................... 32

Selecting the audio channel ....................................... 33

Sound adjustments for Karaoke................................. 33

Reserving Karaoke songs .......................................... 33

Operating external components ................................. 34

Setting the manufacturer’s code ................................ 34

Operating external components ................................. 34

References .................................................................... 35

Manufacturer’s code list ............................................ 35

Language code list..................................................... 35

Messages and icons shown on the TV....................... 36

Troubleshooting......................................................... 36

Specifications ............................................................ 38

Before using this System

Precautions

There are no user-serviceable parts inside. If anything goes wrong, unplug the power cord and consult your dealer.

Notes on installing the System

• Select a location which is level, dry and neither too hot nor too cold between 5°C and 35°C.

• Do not install the System in a location subject to vibrations.

• Do not put heavy objects on the System.

Avoid moisture, water, dust, and high temperatures

• Do not install the System in moist or dusty locations.

• If water gets inside the System, turn off the power and remove the plug from the wall outlet, then consult your dealer. Using the System in this state may cause a fire or electrical shock.

• Do not expose the System to direct sunlight or place it near a heating device.

To prevent malfunctions or damage to the System

• Do not insert any metallic objects, such as wires, hairpins, coins, etc. into the System.

• Do not block the vents.

Notes on the power cord

• When you are away on travel or otherwise for an extended period of time, remove the plug from the wall outlet. A small amount of power is always consumed while the power cord is connected to the wall outlet.

• When unplugging the System from the wall outlet, always pull the plug, not the power cord.

• Disconnect the power cord before cleaning or moving the System.

• Do not modify, twist or pull the power cord, or put anything heavy on it. Doing so may cause fire, electric shock, or other accidents.

About copyright laws

Observe the copyright laws in your country before recording from original sources. Recording of copyrighted material may infringe copyright laws.

About the copyguard system

The discs are protected by the copyguard system. When connecting the System to a TV via a VCR, or to a TV with a built-in VCR, the copyguard system activates and distortion of the picture may occur.

Notes on installing and using the speakers

• Place the speakers and subwoofer on a flat and level surface.

• The speakers are magnetically shielded to avoid color distortions on TVs. If the color on a TV is distorted, perform the following procedure: – Turn off the TV’s main power switch or unplug it

before installing the speakers. Then wait at least 30 minutes before turning on the TV’s main power

switch again. Some TVs may still be affected even though you have followed the above procedure. If this happens, move the speakers away from the TV.

• The subwoofer is not magnetically shielded. To avoid color distortion, do not place it near the TV or monitor.

• When moving the speakers and subwoofer, do not pull the speaker cords. Doing so may cause the speakers and/or subwoofer to fall over, causing damage or injury.

• When installing the speakers on a wall, be sure to have them installed by qualified personnel. DO NOT install the speakers on a wall by yourself.

• Do not lean against the speakers, as they could fall down or break, possibly causing an injury. Be especially careful that children do not lean against them.

About the adjustment of volume

Always set the volume to the minimum level before starting any source. If the volume is set at a high level, the sudden blast of sound could permanently damage your hearing and/ or blow out the speakers.

To clean the System

• Use a soft cloth. Follow the relevant instructions on the use of chemically-coated cloths.

• If the System is heavily stained, apply a small amount of water or neutral detergent to the cloth and wipe clean, then wipe with a dry cloth.

• Do not use benzene, thinner or other organic solvents and disinfectants. These may cause deformation or discoloring.

Playable discs/devices/files

Some discs/files may require operations that differ from those explained in this manual. Some discs/devices/files may not be recognized or played back correctly due to their characteristics.

Playable disc types

Type of disc Types of media

• Discs on the market

DVD Video

DVD Audio

Super Video CD (SVCD)/Video CD (VCD)

Audio CD

A disc recorded in the DVD VR format

Audio/video files on a disc ( 4)

This System accommodates the NTSC and PAL system. It is possible to play back finalized +R/+RW (DVD Video format only) discs. “DVD” lights on the display when a +R/+RW disc is loaded. DVD-R/-RW: This System does not support “multiborder” discs. CD-R/-RW: – This System supports “multi-session” discs (up to

20 sessions).

– This System cannot play “packet write” discs.

• DVD-R/-R DL/-RW

•+R/+RW

• DualDisc* (DVD side only)

• Discs on the market

• DVD-R/-R DL/-RW

•+R/+RW

• Discs on the market

• CD-R/-RW

• Discs on the market

• CD Text (Audio part only)

• CD-R/-RW

•DVD-R/-RW

• DVD-R/-R DL/-RW in UDF Bridge format

• CD-R/-RW in ISO 9660 format

Unplayable discs—unwarranted

Playing back the following discs generates noise and damages the speakers.

• DVD-ROM, DVD-RAM, DualDisc* (non-DVD side)

• CD-ROM, CD-I (CD-I Ready), Photo CD, SACD

• Unfinalized discs (except DVD VR)

• Discs with an irregular shape or discs with tape, stickers or paste on either the label side or playback side

• Warped, dirty, or scratched discs

The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

Playable digital devices

JVC bears no responsibility for any loss of data in an iPod and/or USB mass storage class device while using this System.

iPod

See “Compatible iPod types” ( 19).

USB mass storage class device

A USB flash memory device, hard disk drive, multimedia card reader, digital camera, etc. can be used with this System through a USB connection.

This System is compatible with USB 2.0 Full Speed. This System cannot recognize a USB mass storage class device whose rating exceeds 5 V/500 mA.

Region code of DVD Video

DVD Video players and DVD Video discs have their own Region Code numbers. This System can play back DVD Video discs whose Region Code numbers include “1.”

Ex.:

Playable file types

The following files in a disc or a USB mass storage class device can be played back.

Type of file Playable files Extensions

MP3 <.mp3>

Audio

Picture JPEG <.jpg>, <.jpeg>

Movie

If a file on a USB mass storage class device exceeds the following conditions, it may not be played back correctly: – Maximum data transfer rate: 2 Mbps – Maximum frame rate: 30 fps for progressive – Maximum file size: 2 GB The System recognizes up to 150 tracks (files) per group, and 99 groups per disc/device. The total number of tracks (files) that the System can detect is

4000.

Information about the recording conditions for the files on a disc/ device

MP3/WMA files

• The System supports MP3/WMA files recorded at a bit rate of 32 – 320 kbps and a sampling frequency of 16 kHz,

22.05 kHz, 24 kHz*, 32 kHz, 44.1 kHz or 48 kHz.

• It is recommended to record each file at a sample rate of

44.1 kHz and at a data transfer rate of 128 (96*) kbps.

For WMA only

WMA <.wma>

WAV <.wav>

ASF <.asf>

MPEG-1 <.mpg>, <.mpeg>

MPEG-2

DivX (6.x, 5.x,

4.x and 3.11)

<.mpg>, <.mpeg>, <.mod>

<.divx>, <.div>, <.avi>

WAV files

• The System supports WAV files recorded at a quantization rate of 8 bit or 16 bit and a sampling frequency of 8 kHz, 11.025 kHz, 12 kHz, 16 kHz,

22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz or 48 kHz.

• It is recommended to record each file at a sample rate of

44.1 kHz and at a quantization rate of 16 bit Linear PCM.

JPEG files

• It is recommended to record a file at 640 x 480 resolution. (If a file has been recorded at a resolution of more than 640 x 480, it will take a longer time to be displayed.)

• This System can only play baseline JPEG files.

ASF files

• The System supports MPEG-4 files with the following conditions: File format: ASF Visual profile: MPEG-4 SP (Simple Profile) Audio CODEC: G.726 Max. picture size: 352 x 288 (CIF) Max. bit rate: 384 kbps

MPEG1/MPEG2 files

• The stream format should conform to the MPEG system/ program stream.

• 720 x 576 pixels (25 fps)/720 x 480 pixels (30 fps) is recommended for the highest resolution.

• This System also supports resolutions of 352 x 576/ 480 x 576/352 x 288 pixels (25 fps) and 352 x 480/ 480 x 480/352 x 240 pixels (30 fps).

• The file format should be MP@ML (Main Profile at Main Level)/SP@ML (Simple Profile at Main Level)/MP@LL (Main Profile at Low Level).

• Audio streams should conform to MPEG1 Audio Layer-2 or MPEG2 Audio Layer-2.

DivX files

• The System supports DivX files whose resolution is 720 x 480 pixels or less (30 fps), and 720 x 576 pixels or less (25 fps).

• Audio stream should conform to Dolby Digital (including multi-channel) or MPEG1 Audio Layer-3 (MP3).

• The System does not support GMC (Global Motion Compression).

• Files encoded in the interlaced scanning mode may not be played back correctly.

Getting started

Checking the supplied accessories

If anything is missing, contact your dealer immediately.

• Remote control (x 1)

• Batteries (x 2)

• FM antenna (x 1)

• AM loop antenna (x 1)

• Composite video cord (x 1)

• AC plug adapter (x 1)

• Docking station for iPod (x 1)

• Speaker cords – TH-D70: 4 m (x 4), 10 m (x 2) – TH-D50: 3 m (x 4), 8 m (x 2)

•Feet – TH-D70: For surround speakers (x 8) – TH-D50: For front and surround speakers (x 16)

• Screws (TH-D70 only): M5 x 115 mm (x 6), M4 x 25 mm (x 4)

Putting batteries into the remote control

R03 (UM-4)/AAA (24F) type dry-cell batteries (supplied)

Connecting the speakers and subwoofer

Center unit

Connecting the speakers and the subwoofer to the System

To center speake

(SP-THD7C/SP-THD5C)

To front right speaker (SP-THD7F/SP-THD5F)

To surround right speaker (SP-THD7S/SP-THD5S)

To front left speake

(SP-THD7F/SP-THD5F)

To subwoofe

(SP-THD7W/

SP-THD5W)

To surround left speake (SP-THD7S/SP-THD5S)

Do not expose batteries to heat or flame. If the range or effectiveness of the remote control decreases, replace both batteries.

Setting the voltage selector

Before plugging in, set the correct voltage for your area with the voltage selector switch on the rear of the center unit.

Ex.: When setting to “220V-240V”

Connecting the speaker cords

Connect the speaker cords both to the center unit and to each speaker.

On the center unit:

Speaker cord

On the speaker:

Speaker cord

• Connect the black cords to the r terminals.

• Connect the white cords to the q terminals.

Do not connect the power cord until all other connections have been made.

If you connect speakers other than those supplied for the System, use speakers of the same speaker impedance (SPEAKER IMPEDANCE) indicated on the rear of the center unit. DO NOT connect more than one speaker to one speaker terminal. TH-D70 only: – You can install the front speakers on the wall.

When installing them on the wall, do not attach the stands and base plates.

– When installing the front speakers on the floor,

they are to be assembled before use (see below).

Assembling the front speakers —TH-D70 only

Front speaker

(SP-THD7F) (2)

Stand (2)

Assembled speakers:

You can assemble the front speakers either with or without stands.

Base plate (2)

1 When assembling a speaker with stand:

Speaker

Screws M4 x 25 mm (supplied)

Stand

When assembling a speaker without stand:

Stand

Bottom

cover

Detach the bottom cover and the screws (M4 x 30 mm) from the stand, then attach them to the bottom of the speaker.

Connect the speaker cord. (5)

Speaker

Before assembling:

Take care not to drop any component part while assembling; otherwise, it may cause an injury or damage to the floor. Prepare a Phillips screwdriver (not supplied).

Base plate

Stand or speaker directly

Screws M5 x 115 mm (supplied)

When holding a speaker, always grasp the lower portion.

Getting started

Speaker layout

You can enjoy surround sound by placing the speakers as illustrated (Speaker layout A or B).

Speaker layout A

Select “S.SPK R” as the speaker position mode for this layout. ( 13)

Center (C)

Front left (L)

Surround left

(SL)

To obtain the best possible surround sound from this System, place all the speakers except the subwoofer at the same distance from the listening position. If it is impossible, adjust the delay time from DELAY menu. ( 31)

Speaker layout B

Select “S.SPK F” as the speaker position mode for this layout. ( 13)

Surround left (SL)

Surround right (SR)

Front right (R)

Subwoofer (SW)

Surround right (SR)

Subwoofer (SW)

When placing the speakers horizontally

Lay the speakers horizontally so that the JVC logos are positioned as illustrated below.

Ex.:

SL SR

TH-D50 only: you can also lay the front speakers as illustrated below.

LSL SRR

TH-D70: Do not lay down the front speakers horizontally. You can turn the JVC logos to make them legible.

Attaching the feet

When placing the speakers horizontally, attach the feet to the bottom of the speakers as illustrated.

Peel off

Front left (L)

Center (C)

Front right (R)

Place the surround speakers close to the center speaker. It is recommended to place the surround speakers horizontally (see the right column).

Do not connect the power cord until all other connections have been made.

Connecting the antennas

XM Mini-Tuner system—TH-D70 only

XM Mini-Tuner Home Dock antenna (not supplied)

XM Mini-Tuner (not supplied)

For better reception, install the XM Mini-Tuner Home Dock antenna in the following location: – Near a south-facing window with aiming the

antenna at the sky directly – Where “Channel 1” can be heard clearly – Where the Antenna Aiming display shows a value

higher than 0 for either satellite or terrestrial signal

strength ( 17)

AM and FM antennas

Make sure the antenna conductors do not touch any other terminals, connecting cords or power cords.

AM loop antenna

(supplied)

FM antenna (supplied)

Turn it until the best reception is obtained.

Extend it horizontally.

For better FM reception

Connecting a TV

Connect the TV to the appropriate video out jacks to view the playback picture.

The picture quality order is as follows: HDMI > Component video > S-video > Composite video Make the following settings after connecting the TV: – Color system and scanning mode ( 15) – MONITOR TYPE ( 30)

Connection using the HDMI terminal

From HDMI input

You can make the following settings for the TV when the HDMI connection is used: – HDMI DVI COLOR ( 30) – HDMI OUT ( 30) – HDMI AUDIO OUT ( 30) –DOWN MIX ( 30)* Use a certified HDMI cable, which has the HDMI logo. You can use a monitor with a DVI terminal by connecting with a DVI-HDMI conversion cable. When you play HDCP (High-Bandwidth Digital Content Protection) source, it takes a few seconds for the sound and picture to be transmitted to the speakers and TV while the confirmation process is completed. On some TVs, no sound may come out during playback of sources such as DVD Audio even when the HDMI AUDIO OUT setting is “ON” ( 30).

This setting is available only when the speaker position

mode is set to “S.SPK F” ( 13).

terminal

HDMI cable (not supplied)

Standard type (75 Ω coaxial) connector

FM outdoor antenna

(not supplied)

FM outdoor antenna cord

(not supplied)

Continued on the next page

Getting started

Connection using the component video jacks

From component

video input

Component video

cord (not supplied)

Do not connect the TVs via both the COMPONENT jacks and HDMI MONITOR OUT terminal at the same time. For the BNC connection, use a plug adapter (not supplied).

Green

Blue

Red

Connection using the S-video or composite video jack

Composite video cord

(supplied)

S-video cord (not supplied)

A From Composite video input B From S-video input

Align the

5 marks.

Connecting external components

Connection for “VIDEO1”—TH-D70

Select “VIDEO1” as the source ( 12) for playing a component connected as follows.

Video connection

HDMI cable

DVD player,

etc.

To view a video from the external component connected as above, connect a TV via the HDMI MONITOR OUT terminal. ( 8) No sound signal comes into HDMI VIDEO 1 IN terminal. Make audio connection to listen to the sound (see the right column).

(not supplied)

From HDMI video output

Audio connection

Connecting a digital component

DBS (Direct Broadcast Satellite) tuner, etc.

A From digital coaxial output B From digital optical output

Digital coaxial cable

(not supplied)

Digital optical cable

(not supplied)

The initial setting for the audio input setting is “COAX.” When using OPTICAL terminal, change the setting to “OPT” before playing back. ( 14)

Connecting an analog component

RCA pin plug cord (not supplied)

DVD player,

etc.

A From center channel audio output B From front left/right channel audio outputs C From subwoofer output D From surround left/right channel audio outputs

To listen to the sound from AUDIO MULTI IN jacks, perform the following procedure: – Place the speakers by following “Speaker layout

A” ( 7).

– Select “S.SPK R” as the speaker position mode.

(13) Select “5.1CH” as the audio input setting before playing back. ( 14)

Connection for “VIDEO2”—TH-D70

Select “VIDEO2” as the source ( 12) for playing a component connected as follows.

Video connection

Composite video cord*

(supplied)

VCR, etc.

A From composite video output B From S-video output

Connect an external component with the same kind of cable

as the one used to connect the TV. (see the left column)

S-video cord (not supplied)

Align the

5 marks.

Do not connect the power cord until all other connections have been made.

Audio connection

Connecting a digital component

DBS (Direct Broadcast Satellite) tuner, etc.

A From digital coaxial output B From digital optical output

Digital coaxial cable

(not supplied)

Digital optical cable

(not supplied)

The initial setting for the audio input setting is “OPT.” When using COAXIAL jack, change the setting to “COAX” before playing back. ( 14)

Connecting an analog component

RCA pin plug cord

VCR, etc.

(not supplied)

From audio output

Select “2CH” as the audio input setting before playing back. ( 14)

Connecting a cassette recorder

Cassette recorder

From audio input

RCA pin plug cord

(not supplied)

From audio output

The surround mode affects the signals emitted from the AUDIO OUT jacks. When recording on to a tape, set the surround mode to “OFF.” ( 14) When “5.1CH” is selected as the audio input setting for “VIDEO1,” only the left and right audio signals are emitted.

Connection for “VIDEO”—TH-D50

Select “VIDEO” as the source ( 12) for playing a component connected as follows.

Video connection

Composite video cord*

(supplied)

VCR, etc.

A From composite video output B From S-video output

Connect an external component with the same kind of cable as the one used to connect the TV. ( 9)

Audio connection

Connecting a digital component

Digital optical cable

DBS (Direct Broadcast Satellite) tuner, etc.

(not supplied)

From digital optical output

Select “OPT” as the audio input setting before playing back. ( 14)

Connecting an analog component

RCA pin plug cord

VCR, etc.

(not supplied)

From audio output

Select “2CH” as the audio input setting before playing back. ( 14)

S-video cord (not supplied)

Align the

5 marks.

Connecting the AC power cord

Plug in the System only after all the connections have been completed.

If the AC outlets do not match the AC plugs, use the supplied AC plug adapter.

Available video output terminals for each source

Terminal

Source

HDMI √√ COMPONENT √ S-VIDEO √√√ VIDEO (Composite video) √√√

DVD USB

IPod

VIDEO2 (TH-D70)

VIDEO (TH-D50)

VIDEO1

(TH-D70 only)

Basic and common operations

How to use the number buttons

To select 3: Press 3. To select 10: Press 10. To select 14: Press h 10, 1, then 4. To select 24: Press h 10, 2, then 4. To select 40: Press h 10, 4, then 0. To select 114: Press h 10, h 10, 1, 1, then 4.

Set the remote control mode before operation.

Display

To change the display brightness

Listening with headphones

When the headphones are connected, the System automatically deactivates the speakers and cancels the surround mode ( 14) temporarily.

• “H.PHONE” appears on the display.

Be sure to turn down the volume before connecting or putting on the headphones.

STANDBY lamp:

• Goes off when the System is turned on.

• Lights when the System is turned off.

Point at the remote sensor directly.

A TH-D70 only: XM Satellite Radio indicators

( 17)

XM: Lights when “XM” is selected as the source.

: Shows XM Satellite Radio signal strength.

CAT: Lights while selecting a channel by category.

B Digital audio signal format indicators C FM/AM tuner band indicators ( 16) D Lights when one of the surround modes is activated.

( 14)

E Frequency unit indicators for FM/AM F Source signal and speaker signal indicators

(front left), (center), (front right), (low

frequency effect), (surround left), (surround right), (monaural surround): Light when the signal comes in for the digital input or when the System is ready to receive the signal for the analog input.

SW (subwoofer): Always lights. _: Lights while reproducing the channel’s sound

through the corresponding speaker.

G Speaker position mode indicators ( 13) H Lights when both the System and the TV (with HDMI

connection) are ready to communicate each other.

I Scanning mode indicators ( 15)

HD: Lights when the System is emitting high-definition video signals (720p or 1080i). PRGR.: Lights when the progressive scanning mode is activated.

J Digital device indicators K File type indicators L Lights when the chapter (CHAP.) or track (TRK)

number is displayed.

M Lights when selecting a program number (PG) or

playlist number (PL) of a DVD VR disc by using TITLE/GROUP. ( 23)

N Special playback indicators for DVD Audio

( 26)

BONUS: Lights when a bonus group is detected. B.S.P: Lights when browsable still pictures are

detected.

O FM reception mode indicators ( 16)

MONO: Lights when receiving an FM stereo station in monaural. ST: Lights when receiving an FM stereo station with sufficient signal strength is tuned in.

P Lights during program play (PRG) or random play

(RND). ( 24)

Q Lights when the System memorizes the position where

the playback is interrupted. ( 22)

R Lights when the Karaoke function is activated.

( 32, 33)

S Repeat mode indicators ( 24, 27)

Turning the power on or off

To turn off the System by using the sleep timer

– – (off) = 10 = 20 = 30 = 60 = 90 = 120 = 150 = 180 = (back to the beginning)

(unit: minutes)

To check the remaining time, press the button once.

Selecting the source

Adjusting the volume

To turn off the volume instantly

“MUTING” appears on the display.

To restore the volume, press the button again, or adjust the volume level.

To do Indication

Play back a disc DVD 21

Play back a file on a USB mass storage

USB 21

class device

Play back an iPod IPod 19

Listen to an XM

Satellite Radio*

FM, or AM station

Play back an

XM*1, FM or AM

VIDEO1*

16,

17*

external component

• TH-D70: VIDEO1/

VIDEO2*

VIDEO2

• TH-D50: VIDEO

VIDEO*

To select the source from the center unit

TH-D70 only

TH-D50: The FM/AM button is used instead of FM/AM/XM.

Make sure that the appropriate audio input setting have been made for the source (VIDEO1/VIDEO2 or VIDEO). ( 14)

Prohibiting disc ejection

1 Turn off the System. 2 Lock the disc tray.

«Hold

(On the center unit)

To unlock the disc tray, perform the above procedure again. “UNLOCKED” appears on the display.

“LOCKED” appears on the display.

Sound and monitor settings

As the speaker position mode is changed, the

Set the remote control mode before operation.

Sound settings and adjustments

following settings are also changed automatically: – The output level settings of the speakers and of

subwoofer (see below) are initialized. – The surround mode ( 14) is set to “AUTO

SUR.”

Adjusting the output level of the speakers and subwoofer

• When the speaker position mode is “S.SPK R”:

• When the speaker position mode is “S.SPK F”:

The items you can adjust differ depending on the selected speaker position mode (see the left column).

FRNT L = FRNT R = CENTER = SURR L = SURR R = SUBWFR = (back to the

beginning)

CENTER = SURR = SUBWFR = (back to the beginning)

Selecting the speaker position mode

Select the speaker position mode according to your speaker layout ( 7).

1 Turn off the System. ( 12)

«Hold

3 Select the appropriate speaker position mode

according to your speaker layout ( 7).

For speaker layout A

S.SPK R

(Surround speaker: Rear)

• The R indicator lights on the display.

For speaker layout B

S.SPK F

(Surround speaker: Front)

2 Adjust the output level.

Different output level settings can be stored for the following two groups of sources:

– TH-D70:DVD, USB, IPod, VIDEO1*

TH-D50:DVD, USB, IPod and VIDEO

– TH-D70:FM, AM and VIDEO1*

TH-D50:FM and AM You can also make adjustments from the LEVEL menu ( 31) when the speaker position mode is “S.SPK R.”

With “COAX” or “OPT” selected as the audio input setting

( 14)

With “5.1CH” selected as the audio input setting

( 14)

and VIDEO2

Adjusting the bass and treble sounds

TRE Adjusts the treble sound

BASS Adjusts the bass sound

2 Adjust the level.

• The F indicator lights on the display.

Using the surround mode

Select one of the available surround modes.

The surround modes you can select depend on the playback source and the selected speaker position mode ( 13). For details on each surround mode, see “Available surround modes” on the right column.

• During 2-channel playback with “S.SPK R” speaker

position mode:

AUTO SUR = MOVIE = MUSIC = STADIUM = ALL ST = OFF = (back to the beginning)

When the source is “FM” or “AM,” you can only select “ALL ST.”

• During multi-channel playback with “S.SPK R”

speaker position mode:

AUTO SUR = currently selected mode* = OFF =

(back to the beginning)

When “AUTO SUR” is selected, the System

automatically selects a proper multi-channel surround mode, such as “DOLBY D (Dolby Digital)” or “DTS (DTS Digital Surround).”

• During playback with “S.SPK F” speaker position

mode:

AUTO SUR = MOVIE = WIDE/2CH = SUPER W = OFF = (back to the beginning)

When the source is “FM” or “AM,” the surround mode cannot be activated.

Available surround modes

Surround mode for “S.SPK R”

AUTO SUR (Auto Surround)

MOVIE (Dolby Pro Logic II Movie)

MUSIC (Dolby Pro Logic II Music)

STADIUM

ALL ST (All Channel Stereo)

OFF (Off) Deactivates surround mode

Surround mode for “S.SPK F”

AUTO SUR (Auto Surround)

MOVIE

WIDE/2CH For 2-channel music sources

SUPER W (Super Wide)

OFF (Off) Deactivates surround mode

Selects an appropriate surround mode according to the incoming signals

For movie sources

For music sources

Adds clarity and spreads the sound, as if in an outdoor stadium

Reproduces a larger stereo sound field using all the activated speakers

Selects an appropriate surround mode according to the incoming signals

For movie or multi-channel music sources

Reproduces broader sound field

To check the surround mode currently selected, press

SURROUND once.

TH-D70 only: When the source is “VIDEO1” with “5.1CH” selected as the audio input setting (see the right column), the surround mode setting is ineffective. All incoming signals are emitted through the corresponding speakers. “MULTI CH” appears on the display. During playback of ASF, MPEG-2 or MPEG-1 files, the surround mode setting is ineffective. During playback of DivX, the surround mode setting is effective only for multi-channel files with “S.SPK R” selected as the speaker position mode. For DVD Audio, when “LR ONLY” appears on the display, activate the surround mode for the multichannel reproduction. While the Karaoke function ( 32) is in use, the surround mode is canceled.

Setting the audio input for external components

Set the audio input of the external component for “VIDEO1/VIDEO2” (TH-D70) or “VIDEO” (TH-D50).

Select “AIN. (audio input).”

Item*

Current setting

3 TH-D70 only: Select a source you want to set the

audio input for.

AIN.1: For “VIDEO1”

AIN.2: For “VIDEO2”

Continued on the next page

Sound and monitor settings

See page 13 for button locations.

4 Select an appropriate audio input according to

the audio connection. ( 9)

2CH

5.1CH

COAX

OPT

You can select the following settings for each source (underlined items are the initial settings for each source):

– “VIDEO1”: 5.1CH*

– “VIDEO2”: 2CH, COAX*3 and OPT* –“VIDEO”: 2CH and OPT If your System is the TH-D70, make the audio input setting for both “VIDEO1” and “VIDEO2.”

“AIN.1:” or “AIN.2:” appears for TH-D70, and “AIN.” for

TH-D50.

TH-D70 only: When the speaker position mode is set to “S.SPK F,” “5.1CH” cannot be selected.

TH-D70 only: It is not possible to select the same audio input setting for “VIDEO1” and “VIDEO2.” For example, when “COAX” is assigned to “VIDEO1,” it cannot be selected for “VIDEO2.”

For connection via the AUDIO IN jacks

For connection via the AUDIO MULTI IN jacks

For connection via the COAXIAL jack

For connection via the OPTICAL terminal

, COAX*3 and OPT*

Selecting the color system and scanning mode

Select the color system and scanning mode for the sources “DVD” and “USB” according to the type of TV and to connection method.

To use the progressive scanning mode, connect a TV supporting progressive video signals to the HDMI MONITOR OUT terminal or COMPONENT jacks. (8)

1 Select “DVD” or “USB” as the source.

( 12)

«Hold

The number of scanning lines

3 Select an appropriate color system and

scanning mode, then confirm the selection.

Select Confirm

• When connecting the TV via the HDMI MONITOR OUT terminal, the following items are selectable:

AUTO, NT 480P, NT 720P, NT 1080I, PAL 576P, PAL 720P and PAL 1080I

– Normally select “AUTO.”

When “AUTO” is selected, the System automatically emits the video signal to get the best picture quality on your TV. The HD indicator lights when the System is emitting “720P” (NT/PAL) or “1080I” (NT/PAL) video signals.

• When connecting the TV via COMPONENT jacks, S-VIDEO or VIDEO jack, the following items are selectable:

NT 480I, NT 480P, PAL 576I and PAL 576P

– When connecting the TV via the S-VIDEO or

VIDEO jack, selecting a progressive scanning mode does not affect the picture.

If another TV is connected through the HDMI MONITOR OUT terminal, you cannot change the color system and scanning mode for the TV connected through the COMPONENT jacks, SVIDEO or VIDEO jack.

You can get better picture quality in the progressive scanning than in the interlaced scanning. When the color system or scanning mode does not correspond to that of the TV, the picture is not displayed normally.

Color system

NT: NTSC

PAL: PAL

480

Scanning mode I: Interlaced P: Progressive

FM/AM tuner operations

Set the remote control mode before operation.

• Select the desired band (“FM” or “AM”) you want to listen to. ( 12)

* TH-D50: The FM/AM button is

used instead of FM/AM/XM.

Setting the AM tuner interval spacing

You can also tune in to a station automatically. Press and hold TUNING 9/TUNING ( until the station search starts. The system automatically tunes in the

first-found station of sufficient signal strength. You can also tune in to the station by pressing cursor 5/Y.

Preset tuning

You can preset 30 FM stations and 15 AM stations.

Storing the preset stations

1 Tune in to the station you want to preset. 2

3 Select a preset number, then store the station to

that number.

Enter a preset number*

• “STORED” appears on the display.

Tuning in to a preset station

Select a preset number.*

“_ _” flashes on the display. Perform the next

step while “_ _” is flashing.

Store

Some countries space AM stations 9 kHz apart, and some countries use 10 kHz spacing. You can only change the AM tuner interval spacing while selecting “AM” as the band.

• This operation is available when the System is turned off.

To change the interval

spacing into 10 kHz

«Hold

(On the center unit)

To change the interval

spacing into 9 kHz

«Hold

(On the center unit)

Manual tuning

Tuning in to a station

You can also select a preset number by pressing PRESET(/CAT) UP* DOWN*2.

For details on using the number buttons, see “How to use the

number buttons” ( 11).

TH-D50: The PRESET UP or PRESET DOWN button is used instead of PRESET/CAT UP or PRESET/CAT DOWN.

or PRESET(/CAT)

Selecting the FM reception mode

When the stereo FM program currently tuned in is noisy, you can change the FM reception mode to improve the reception.

Normally select this.

AUTO

MONO

• When a stereo station is tuned in, the ST indicator lights on the display.

Select to improve reception. (You will lose the stereo effect.)

XM Satellite Radio operations

XM Satellite Radio operations are available on

TH-D70 only.

Set the remote control mode before operation.

• Select “XM” as the source. ( 12)

About XM Satellite Radio

XM Satellite Radio offers an extraordinary variety of commercial-free music, plus the best in sports, news, talk and entertainment. XM is broadcast in superior digital audio from coast to coast. From rock to reggae, from classical to hip hop, XM has something for every music fan. XM’s dedication to playing the richest selection of music is matched by its passion for live sporting events, talk radio, up-to-the-minute news, stand-up comedy, children’s programming, and much more. For U.S. customers, information about XM Satellite Radio is available online at www.xmradio.com. For Canadian customers, information about XM Canada is online at www.xmradio.ca.

For messages appearing on the display, see “Messages shown on the display while listening to the XM Satellite Radio” ( 36).

Preparations

Make sure that you have the following items to enable you to listen to the XM Satellite Radio stations:

• The XM Mini-Tuner system—XM Mini-Tuner and XM Mini-Tuner Home Dock antenna

• A subscription to XM Satellite Radio

How to subscribe

Hardware and required monthly subscription sold separately. Other fees and taxes, including a one-time activation fee may apply. Subscription fee is consumer only. All fees and programming subject to change. Channels with frequent explicit language are indicated with an XL. Channel blocking is available for XM radio receivers by calling 1800-XMRADIO (US residents) and 1-877-GET-XMSR (Canadian residents). For a full listing of the XM commercial-free channels and advertising-supported channels, visit lineup.xmradio.com (US residents) and xmradio.ca (Canadian residents). Only available in the 48 contiguous United States and Canada.

To start subscribing, you need to have the XM Satellite Radio ID code. To find the ID code, see “How to find the XM Satellite Radio ID code” below.

• The following channels are available without subscription: – Channel 0: For checking the XM Satellite Radio ID

code

– Channel 1: “XM Preview” channel

Select “XM” as the source before starting subscription, and keep the source “XM” until subscribing is completed.

How to find the XM Satellite Radio ID code

Tune in to “Channel 0” to check your XM Satellite Radio ID code.

The 8-digit (alphanumeric) ID code is displayed.

• To cancel the ID code display, select any channel other than “Channel 0.”

Finding the best position for the XM Mini-Tuner Home Dock antenna

You can place the XM Mini-Tuner Home Dock antenna optimally by checking the signal strength shown on the display.

«Hold

Antenna Aiming display

2 Aim the XM Mini-Tuner Home Dock antenna

to the direction at where you get best signal strength value—either “S” (Satellite) or “T” (Terrestrial).

• The signal strength value is from 0 (worst) to 4 (best).

• The most reliable reception is achieved when signal strength values are at least 3 on both Satellite and Terrestrial. Terrestrial coverage is available only in large metropolitan cities.

Manual tuning

Preset tuning

To search a channel

While searching, the invalid and unsubscribed channels are skipped. TUNING 9/TUNING ( are not used to select a XM Satellite Radio channel.

To select a channel within the category

1 Enter the category search mode.

2 Select the desired category name, then select the

channel.

Select category Select channel

3 Exit from the category search mode.

To select a channel number directly

2 Select the desired channel

number.

For details on using the number buttons,

see “How to use the number buttons” ( 11).

You can preset 30 XM Satellite Radio channels.

Storing the preset channels

1 Tune in to the channel you want to preset. 2

“_ _” flashes on the display. Perform the next

step while “_ _” is flashing.

3 Select a preset number, then store the channel

to that number.

Store

Enter a preset number*

• “STORED” appears on the display.

Tuning in to a preset channel

Select a preset number.*

You can also select a preset number by pressing PRESET(/CAT) UP or PRESET(/CAT) DOWN when the System is not in the category search mode (the CAT indicator is turned off). To exit from the category search mode, see the left column.

For details on using the number buttons, see “How to use the

number buttons” ( 11).

Changing the channel information

You can change the type of channel information which appears on the display.

CH (channel number) = CHAN (channel name) = NAME (artist name/feature) = TITLE (song/program title) = CAT (category name) = (back to the beginning)

If you turn off the power or select another source, the display is changed back to the channel name information. When tuning in to another channel, the channel name appears on the display temporarily.

Some characters cannot be displayed correctly.

iPod playback

Set the remote control mode before operation.

Before selecting the video source to play

Make the appropriate setting for video output on the iPod.

Compatible iPod types

Starting playback

Be sure to reduce the volume on the System to the minimum level before connecting an iPod. Adjust the volume after playback has started.

1 Attach the dock adapter to the docking station.

Dock adapter (supplied for

iPod or separately purchased)

Docking station for

iPod

(supplied)

To detach the dock adapter from the docking station:

Push the slot then pull up to remove the dock adapter.

Disconnect the docking station from the center unit when attaching/detaching the dock adapter. Take care not to damage the terminal on the docking station when attaching/detaching the dock adapter.

2 Connect an iPod while the System is turned off.

iPod model AUDIO VIDEO

iPod nano 1GB/2GB/4GB √

iPod nano (2nd Generation) 2GB/4GB/8GB

iPod mini 4GB/6GB √

iPod (4th Generation) 20GB/40GB

iPod photo (4th Generation) 20GB/30GB/40GB/60GB

iPod video (5th Generation) 30GB/60GB/80GB

* Only still pictures are available.

If the iPod does not play correctly, update your iPod software to the latest version. For details about updating your iPod, check on the Apple web site <http://www.apple.com>.

• iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

√

√√ *

√√

• Connect the plug with the arrow-mark side facing up.

3 Turn on the System, then select “IPod” as the

source. ( 12)

“CONNECT” appears on the display. If an iPod is not connected firmly, “NO CONNE” appears.

4 Start playing the iPod.

•Press 3 (play button) again if the iPod does not start

playback.

Play/pause/search/skip

To do

Start playback

Pause

Fast-forward/fast-reverse search within the current track

Skip to the next/previous item*

* Operate on your iPod to skip to the next/previous item while

playing back a video.

• The iPod enters sleep mode when you turn off the System or select another source.

• To show still pictures in the iPod, play them back in slideshow mode on the iPod.

DO NOT connect or disconnect the iPod when the System is turned on. DO NOT touch the iPod terminal pins or the connector pins. When the iPod is not charged through the System, the iPod may not be turned on from the System. If the sound is distorted when audio sources with high recording levels are played, you are recommended to deactivate the equalizer on your iPod. To view a video/picture from the iPod on the TV, connect the System to the TV via the composite or Svideo jacks. ( 9) You cannot send any data to your iPod from the System. The iPod battery is charged only when “IPod” is selected as the source.

«Hold

If the iPod which is not listed in “Compatible iPod types” ( 19) is connected, the iPod may not be operated from the System. In this case, deactivate the iPod battery charge function so that the iPod may be operated, but the iPod cannot be charged through the System.

To deactivate the battery charge function

«Hold

To use the battery charge function, perform the above procedure again. “P.ON” appears on the display.

“P.OFF” appears on the display.

Disc/file playback

The following icons show the available disc/file types for the target function:

Initial settings

Make the following settings before playing back discs/ files.

• Color system and scanning mode ( 15)

• MONITOR TYPE ( 30)

• ON SCREEN LANGUAGE ( 29)

Set the remote control mode before operation.

For disc playback

For playback of a file on a USB mass storage class device

Operating the touch sensor panel

You can operate the playback control buttons on the center unit simply by touching them. When you touch any one of these buttons, it lights briefly in blue.

If a still picture is displayed for about 5 minutes, the System automatically dims the screen (screen saver function). You can deactivate the screen saver function. ( 30)

When several types of files (music, picture or movie) are recorded on a disc or device, select the file type you want to play. (30)

For messages and icons shown on the display, see “Messages and icons shown on the TV” (36).

Basic playback

Playing back a disc

1 Select “DVD” as the source. ( 12) 2 3 Place a disc on the tray.

Label side up

4 Start playback.

• JPEG: Slide-show starts.

• MP3/WMA/WAV: The file control display appears

Playing back a file on a USB mass storage class device

1 Connect a USB mass storage class device while

the System is turned off.

2 Turn on the System, then select “USB” as the

source. ( 12)

Playback starts automatically. Press 3 (play button) to start playback if the file is not played back automatically.

• JPEG: Slide-show starts.

• MP3/WMA/WAV: The file control display appears

(On the center unit)

When placing an 8 cm disc

on the TV. ( 28)

USB mass storage

class device

on the TV. ( 28)

DO NOT connect or disconnect the device when the System is turned on. You cannot connect a computer to the USB MEMORY terminal of the System. DO NOT connect the device through a USB hub. iPod does not play through the USB MEMORY terminal. When iPod is connected to the USB MEMORY terminal, “RESTRICT” appears on the display. This System may not play back some USB mass storage class devices and does not support DRM (Digital Rights Management). When connecting with a USB cable, use the shielded cable whose length is less than 1 m.

Changing the playback information

Each time you press the button, the playback information alternates between “type A” and “type B” on the display as follows:

Ex.: When a DVD Video disc is played back

Information type A

Chapter number

Information type B

Time information

Play/stop/pause/search

To do

Start playback

Stop playback

Pause

Fast-forward/fast-

reverse search*

To return to normal playback, press 3 (play button).

Pressing and holding 4/x also fast-forwards/fastreverses tracks or files.

Resume function

The System memorizes the position where the playback has been interrupted by one of the following operations:

•Pressing 7 once

• Turning off the power ( 12)

• Changing the source ( 12)

To resume playback, press 3 (play button) or the corresponding source button.

To clear the memorized position, press 7 twice.

• Opening the disc tray or disconnecting the USB mass storage class device also clears the memorized position.

«Hold

Title number Chapter number

Disc/ file type

Information type A Information type B

Title (T) number and chapter (C) number

Chapter number with

time information*

Program (PG)

number/Playlist (PL) number and chapter (C) number

Track number with

1*2

time information*

Group (G) number and track (T) number

File number

For DVD Video, DVD Audio, DVD VR, VCD, SVCD or CD, you can change the time information mode ( 27). For MP3, WMA, WAV, ASF, MPEG1, MPEG2 or DivX, elapsed playing time is shown.

While playing a VCD or SVCD with PBC ( 23), only track number is displayed.

Group (G) number and file (F) number

This function does not work in program play and random play. ( 24) You can deactivate the resume function. (31)

Disc/file playback

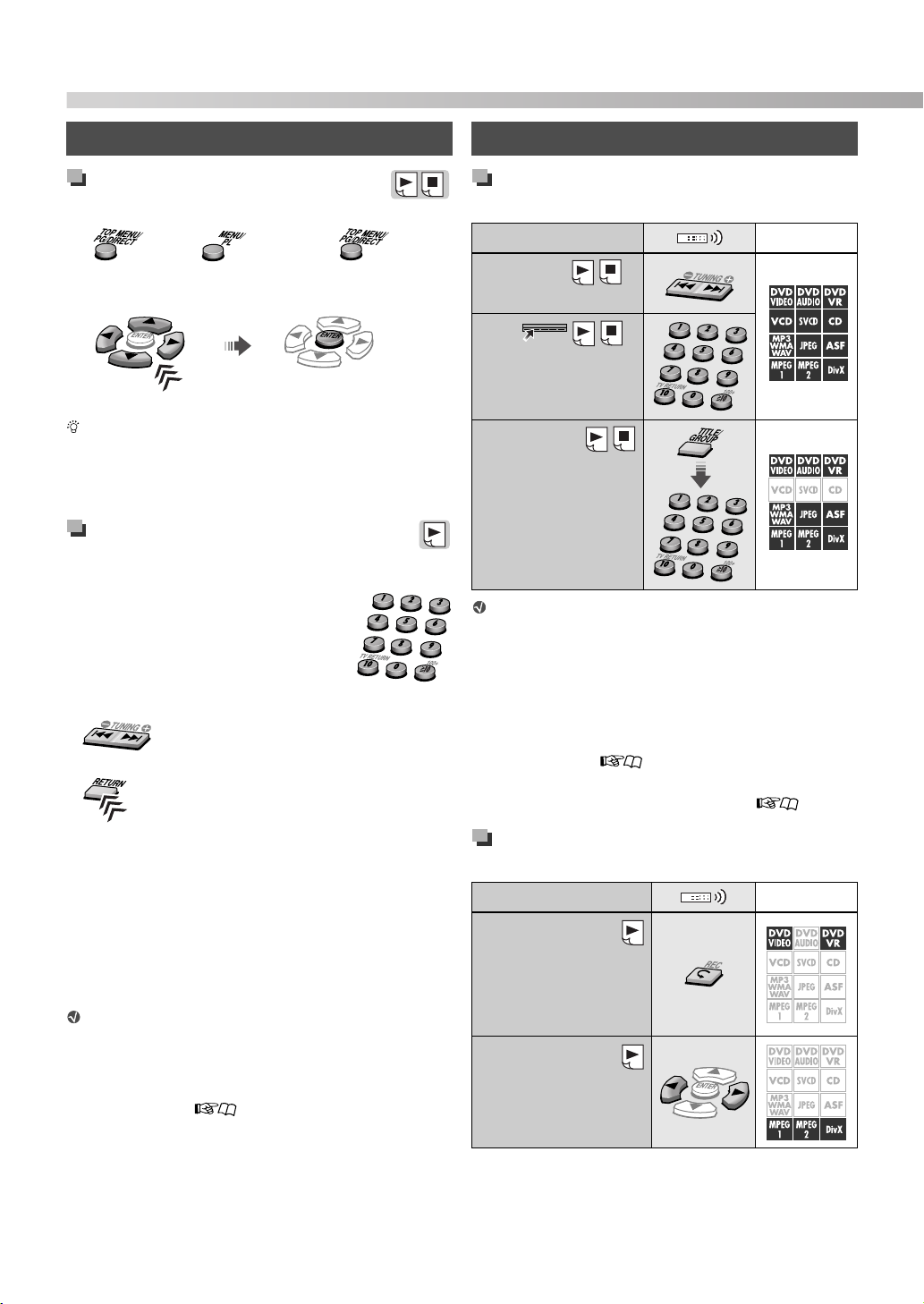

Using the disc menu

For DVD Video/DVD Audio

For a DVD Video disc For a DVD Audio disc

2 Select the desired item, then confirm the

selection.

Select Confirm

For some discs, you can also select items by using the number buttons.

* TH-D50: The TOP MENU/PG button is used instead of TOP

MENU/PG/DIRECT.

For VCD/SVCD with PBC

The Play Back Control function (PBC) allows you to operate the VCD/SVCD using menus.

Select the number of the desired item while the menu is displayed on the TV.

• To move to the next or previous page

• To return to the previous menu

of the current menu

Locating a desired scene or song

Selecting the beginning of a desired scene or song

To do Disc/file

Skip chapter/track/file

Select the chapter/

track/file number*

Select the title/ program or playlist/

group number*

• Enter the number while “– –” is flashing on the display

The features above may not work for some discs/ files.

For DVD Video, DVD VR, VCD, and SVCD discs, this

function is not available while playback is stopped.

For DVD Video and DVD VR discs, you can select a title/ program while playback is stopped.

For details on using the number buttons, see “How to use the number buttons” ( 11).

When selecting the chapter/track/file number from the onscreen bar, see “Using the on-screen bar” ( 27).

3 *4

To perform playback without PBC

• While playback is stopped, select the desired track by using the number buttons.*

• While playback is stopped, select the desired track by pressing x repeatedly, then press 3 (play button).

To activate the PBC function, press TOP MENU(/PG/ DIRECT)*

or MENU(/PL).

While playing back a VCD or SVCD with PBC (“PBC” appears on the display), some functions such as time search, do not work.

For details on using the number buttons, see “How to use the

number buttons” ( 11).

TH-D50: The TOP MENU/PG button is used instead of TOP MENU/PG/DIRECT.

Selecting the desired position of a scene or song

To do Disc/file

Move the playback position back by 10 seconds (one-touch

replay)*

Skip in approximately

5-minute intervals*

1 *2

This function works only within the same title/program/file.

This function is not available during repeat play.

See page 21 for button locations.

Changing the playback mode

Program play and random play cannot be used for a USB mass storage class device.

Programing the playing order—program play

Program window

2 Select the desired chapters/

tracks.

• For DVD Video, DVD Audio, MP3 and WMA: Enter a title/group

number, then a chapter/track number.*

• For VCD, SVCD and CD: Enter a track number.*

To clear the programs

One by one All programs at once

«Hold

To check the program contents

To return to normal playback

Press the button repeatedly until both the program window and disappear from the TV.

To program the tracks in the bonus group on a DVD Audio disc, perform the “Playing back a bonus group” procedure ( 26) before operation. You can program up to 99 steps.

For details on using the number buttons, see “How to use the

number buttons” ( 11).

Playing at random—random play

To return to normal playback

Press the button repeatedly until both the program window and disappear from the TV.

To play the tracks in the bonus group on a DVD Audio disc during random play, perform the “Playing back a bonus group” procedure ( 26) before operation.

Playing repeatedly— repeat play

The repeat modes you can select depend on the playback discs/files.

On the display

ALL

No indication

You can repeat the desired part from the on-screen bar (A-B repeat). ( 27) For VCD and SVCD discs, this function is available only when PBC ( 23) is deactivated. This function is not available while playing back reserved songs for Karaoke ( 33).

For DVD Video and DVD VR discs, this function is not

available while playback is stopped.

On the TV Meaning

REPEAT GROUP

REPEAT ALL

REPEAT TRACK, REPEAT STEP

Repeat current group

Repeat current title

Repeat current program

Repeat current playlist

Repeat all titles/ programs/tracks/files

Repeat current track

Repeat current chapter

Repeat mode is deactivated

Disc/file playback

Advanced operations

Changing the language/sound/scene angle

To do Disc/file

Select the subtitle

language*

• To show/hide the subtitle, press SUBTITLE.

Select the audio

language* channel

Select the view angle

For DVD Audio, the functions take effect for the moving picture part only.

For DVD VR and SVCD discs, the subtitle indication

appears and can be changed by performing the above procedure even if no subtitles are recorded.

Some subtitle or audio languages are abbreviated in the pop-up window. See “Language code list” ( 35).

1 *2

/audio

«Hold

Special picture playback

To do

Play back frame by frame

Play back in slow-

motion*

Enlarge the picture*2 *

Hold

• Change the scene magnification, then move the zoomed-in area.

To return to normal playback

• While playing back frame by frame or in slow-motion,

press 3 (play button).

• While zooming in the picture, select “OFF” by pressing

ZOOM repeatedly while holding SHIFT.

For DVD Audio, the functions take effect for the moving picture part only.

For DVD Video and DVD Audio, reverse slow-motion is also

available by pressing

For JPEG files, you can zoom in only during pause.

On some files, using cursor (3/2/K/5) cannot move the zoomed-in area during playback.

( SLOW repeatedly.

Disc/file

See page 21 for button locations.

Adjusting the picture quality (VFP)

You can adjust the picture mode.

2 Select the desired preset, then finish the setting.

Select

NORMAL Normally select this.

CINEMA Suitable for movies

USER1/ USER2

To adjust the picture tone

You can adjust parameters that affect picture appearance. (See below.)

Finish

1 Select “USER1” or “USER2” (see above). 2 Select a parameter, then confirm the selection.

Select

Confirm

Special playback for DVD Audio

Playing back a bonus group

Some DVD Audio discs have a “bonus group.” To play back a bonus group, you have to enter the specific “key number” (a password).

1 Select a bonus group.

The key number entry screen appears.

On the TV On the display

2 Enter the key number, then confirm the entry.

Confirm

Enter the number

When the key number is accepted, playback starts and the BONUS indicator goes off.

• If playback does not start, enter correct key number again.

To clear the key number entry

GAMMA

BRIGHTNESS

CONTRAST Controls the contrast

SATURATION Controls the color depth

TINT Controls the tint

SHARPNESS Controls the sharpness

Controls the brightness of the neutral color

Controls the brightness of the entire picture

3 Adjust the parameter, then confirm the

selection.

Select

Confirm

4 Repeat steps 2 and 3 to adjust others. 5

When connecting the TV to the HDMI MONITOR OUT terminal ( 8), the VFP setting has no effect.

Selecting browsable still pictures

While playing back a track linked to browsable still pictures (B.S.P), you can select the still pictures (turn the page).

• If a track is linked to browsable still pictures, they are usually shown automatically during playback.

Select the desired still picture.

Disc/file playback

Operation from the TV screen

Using the on-screen bar

You can use various functions from the onscreen bar.

Basic operation procedure

2 Select the desired item (see the right column),

then confirm the selection.

Select Confirm

After confirming the selection...

• When the pull-down menu appears, select the desired

item by pressing cursor 5/Y repeatedly, then confirm the selection by pressing ENTER.

Ex.:

• When a number-entry box appears, enter the number

by using the number buttons (0-9), then confirm the entry by pressing ENTER.

Ex.:

To correct a misentry:

– setting: press cursor 2 repeatedly to clear the

misentry, then re-enter the number.

– setting: re-enter the number.

• When changing the time information mode ( ),

select the desired item by pressing ENTER repeatedly.

To clear the on-screen bar

Ex.:

Status bar

Function bar

On-screen bar functions

Selects the time information mode shown on the display and the status bar.

TIME*

: Elapsed time of chapter/track

: Remaining time of chapter/track

REM* TOTAL: Elapsed time of title (DVD Video)/

group (DVD Audio)/program (DVD VR)/disc (VCD/CD/SVCD)

T.REM: Remaining time of title (DVD

Video)/group (DVD Audio)/ program (DVD VR)/disc (VCD/ CD/SVCD)

Selects repeat mode.

/////

///: See also “Playing repeatedly—repeat play” ( 24).

: Repeats the desired part

(A-B repeat).*

After selecting this, select the beginning point (A) by pressing ENTER, then the end point (B) by pressing ENTER again.

Specifies the playback point by the time.

Specifies a chapter to play back from.

Specifies a track to play back from.

Selects the audio language or audio channel during playback.

Selects the subtitle language during playback.

Selects the desired scene angle in a multiangle part during playback.

Selects the desired browsable still picture.

Not available for DVD VR discs

A-B repeat is not available in the following cases: –Between the different titles/programs of DVD Video or

DVD VR discs. –During program play or random play. –During the playback of VCD or SVCD with PBC

( 23) activated.

The contents of the on-screen bar differ according to the type of discs/files.

TH-D50: The ON SCREEN button is used instead of CAT/

ON SCREEN.

During playback of ASF, MPEG-1, MPEG-2 or DivX files, the function bar does not appear.

See page 21 for button locations.

Using the file control display

The file control display appears in the following cases. – Audio files: Always appears. – Movie and picture files: When TOP

MENU(/PG/DIRECT)* or playback is stopped.

File control display

Ex.:

Current group/total group number

Playback mode (24)

or MENU(/PL) is pressed

Elapsed playing time of current track (except JPEG)

Playback status

( 36)

Using the program list/ playlist (for DVD VR)

Program list

Item number

Date recorded

Playlist

Recording source

Start time of recording

Track information

Current group

Current track (file)/total track (file) number in current group

Current track (file)

Total track (file) numbe

To play back the desired track/file

Select a desired group/track/file, then start playback.

Select Play

• For JPEG:

– To start a slide-show from the selected file, press 3

(play button).

– To play the selected file only, press ENTER.

TH-D50: The TOP MENU/PG button is used instead of TOP

MENU/PG/DIRECT.

When the source is “DVD,” “FILE” appears, and when the source is “USB,” “USB” appears.

For MP3/WMA/WAV only.

Item number

Date created

The title may not be displayed depending on the recording

equipment.

Number of chapters

Total playing time

To play back the desired item

To display the

program list

To display the playlist

The System starts playing the first item.

2 Select the desired item.

* TH-D50: The TOP MENU/PG button is used instead of TOP

MENU/PG/DIRECT.

Personal settings

Set the remote control mode before operation.

For disc playback

For playback of a file on a USB mass storage class device

You can change the settings of the System according to your preferences and playing environment.

2 Select the menu.

3 Select the item, then confirm.

Select Confirm

Repeat this procedure until all the options have been confirmed.

To close the setup screen

Language menu (LANGUAGE)

MENU LANGUAGE Select the language for the DVD/DivX menu. See “Language code list”

AUDIO LANGUAGE Select the language for the audio language.

SUBTITLE Select the language for the subtitle language.

ON SCREEN LANGUAGE Select the language for the screen.

( 35) for the code of each language, such as “AA,” etc.

Picture menu (PICTURE)

MONITOR TYPE Select 16:9 wide-screen playback to fit on your monitor.

For wide TV:

16:9 NORMAL/16:9 MULTI NORMAL: For fixed 16:9 wide TV 16:9 AUTO/16:9 MULTI AUTO: For ordinary wide TV

or conventional (4:3) TV:

:3 LB/4:3 MULTI LB 4:3 PS/4:3 MULTI PS

• When selecting “MULTI” options as the monitor type for the multi-color system TV, the System emits PAL or NTSC video signal according to the disc/file, regardless of the color system setting

( 15).

Underlined items are the initial settings.

PICTURE SOURCE

SCREEN SAVER Activate (ON) or deactivate (OFF) the screen saver function.

FILE TYPE Select the file type to play when several types of files are recorded on a disc/device.

HDMI DVI COLOR

HDMI OUT Select the type of video signal output from the HDMI MONITOR OUT terminal.

Select the source type of the disc/file contents when selecting the progressive scanning mode ( 15).

: Normally select this.

AUTO FILM: For a film source movie VIDEO: For a video source movie

AUDIO: For audio files STILL PICTURE: For picture files VIDEO: For movie files

Select the picture appearance for a TV with an HDMI connection.

STANDARD: No effect applied. ENHANCE

AUTO RGB: Select this when no picture appears on the TV with “AUTO.”

: Select when you need automatic picture adjustment.

: Normally select this.

Audio menu (AUDIO)

DOWN MIX This menu is available only when the speaker position mode is set to “S.SPK F” ( 13).

Select the audio signal output to the TV connected to the HDMI MONITOR OUT terminal.

DOLBY SURROUND: For the TV equipped with Dolby Pro Logic decoder STEREO

D. RANGE COMPRESSION

HDMI AUDIO OUT This setting is effective only for the source “DVD” or “USB.”

You can enjoy powerful audio even at low volume level while playing Dolby Digital software.

AUTO: Select this to apply the compression only to the multi-channel software (except 1channel and 2-channel sources). ON: Select this to always apply the compression.

Select whether the System emits the audio signal from the HDMI MONITOR OUT terminal (ON) or not (OFF

• For selecting whether the external component emits the audio signal through its HDMI terminal,

: For ordinary TV

make the setting on the external component.

Underlined items are the initial settings.

Speaker setting menu (SPK.SETTING)

SPK.SETTING menu is available only when the speaker position mode is set to “S.SPK R” ( 13).

LEVEL Adjust the output level of each speaker while monitoring the test tone.

FRONT LEFT/RIGHT SPEAKER, CENTER SPEAKER, SURROUND RIGHT/LEFT SPEAKER: Select the speaker, then adjust the output level. TEST TONE: Turns on/off the test tone.

DELAY Adjust the delay time of the speakers.

FRONT LEFT/RIGHT SPEAKER, CENTER SPEAKER, SURROUND RIGHT/LEFT SPEAKER: Select the

speaker, then adjust the distance from the listening position to the speakers.

• 1ms increase (or decrease) in delay time

corresponds to about 30 cm decrease (or increase) in distance.

•Set to 0ms for the furthest speaker from

your position as the basis for the delay time setting.

SUBWOOFER Make the subwoofer settings.

LEVEL: Adjust the output level of the subwoofer. CROSS OVER: Select an appropriate crossover frequency according to the size of the

cone speaker unit built into the small speaker connected.

120Hz: Select this when the cone speaker unit size is 8 cm or more.

: Select this when the cone speaker unit size is between 6 cm and 8 cm.

150Hz 200Hz: Select this when the cone speaker unit size is 5 cm or less.

Ex.:

Front left

0 ms

Surround left

2 ms

Center

1 ms

2.1 m

Subwoofer

Front right 0 ms

3.0 m

2.7 m

2.4 m

Surround right 2 ms

Other setting menu (OTHERS)

RESUME Activate (ON) or deactivate (OFF) the resume function.

ON SCREEN GUIDE Activate (ON) or deactivate (OFF) the on-screen guide icons.

DivX REGISTRATION The System has its own Registration Code for DivX playback. You can confirm the code of

your System.

• Once you play back a DivX file created by using the Registration Code, the System’s code is overwritten by a totally different new one for copyright protection purposes.

Karaoke operations

Set the remote control mode before operation.

Basic procedure for Karaoke

1 Connect the microphone(s) to the

MIC 1 or/and MIC 2 jack on the center unit.

2 Select “DVD” as the source. 3 Activate the Karaoke function.

4 Start playing a disc.

• You can select the audio channel for a disc. See

“Selecting the audio channel” ( 33).

• For the sound adjustment for Karaoke, see “Sound

adjustments for Karaoke” ( 33).

5 Sing into the microphone. 6 Adjust the microphone’s volume and the

System’s volume.

Always set MIC LEVEL to MIN when connecting or disconnecting the microphone. Do not keep the microphones connected while they are not in use.

(On the center unit)

• For the adjustment of the System’s volume, see

“Adjusting the volume” ( 12).

• To deactivate the Karaoke function, press KARAOKE

again. The indicator goes off.

No sound through the microphone is heard from the speakers while the disc is not played back, but when the headphones are connected, the sound will come out of the headphones. (For TH-D70, the sound through the microphone will come out of the component connected through the AUDIO OUT jacks whether the disc is being played back or not.) While the Karaoke function is in use, the surround mode is canceled. The Karaoke function is canceled when you start playing back DVD Audio, DVD VR, JPEG, ASF, MPEG-1, MPEG-2 or DivX.

Karaoke operations

See page 32 for button locations.

Selecting the audio channel

The audio channel can be selectable with most of the Karaoke discs.

Each time you press AUDIO, the audio channel changes as follows:

• Example for a VCD: – ST: To listen to L (left) and R (right) audio channels. – L: To listen to L (left) audio channel. – R: To listen to R (right) audio channel.

Sound adjustments for Karaoke

The following items can be adjustable when the Karaoke function is activated.

Reducing the voice recorded on a disc/ file—voice masking

“V. MASK” appears on the display.

To restore the voice, press the button again.

The voice may not be reduced enough with some discs/files.

Reserving Karaoke songs

You can reserve the songs up to 12.

2 Select the desired chapters/

tracks/files.

• For VCD, SVCD and CD: Enter a track number.*

• For discs/files other than above: Enter a title/group number, then a chapter/track/file number.*

3 Repeat step 2 to reserve the rest of your

selection.

To clear a reserved song

Select

To add a song

Gr/Tt

Tr/Chap 1 2 3 4 5

Reservation list

Clear

Shifting the pitch of the playback sound—key control

You can shift the pitch of the playback sound from –6 to +6.

For DVD Video/VCD/ SVCD/CD:

• Select “0” to return to the normal playback.

The setting is applied only to the current title/track/ file. Depending on the type of the recorded source (such as DTS Digital Surround software, etc.), you may not be able to shift the pitch.

For MP3/WMA:

Applying an echo to your voice—echo

ECHO 1 = ECHO 2 = ECHO 3 = ECHO OFF (canceled) =

(back to the beginning)

• As the number increases, the effect will be emphasized.

Select the position to add a song

Enter the chapter/ track/file number

4 Start playback.

The reservation list goes off when you press

RESERVE. To show the list, press the button again.

You can additionally reserve a song after the song currently played back. To reserve a song, stop playback and perform the procedure in step 2 above, then start playback. When you start playing back the reserved songs, make sure the reservation list appears on the TV screen; otherwise, you cannot start playback.

For details on using the number buttons, see “How to use the

number buttons” ( 11).

Operating external components

Set the remote control mode before operation.

For TV

For DBS tuner or CATV converter

For VCR

Preparation

Make the audio input setting before operation. ( 14)

Setting the manufacturer’s code

Before operating external components from the remote control, set the manufacturer’s code.

1 Set the remote control mode (see above). 2 Press and hold for the target component

until the setting is finished.

For TV For DBS tuner or

CATV converter

«Hold

Enter the manufacturer’s code.

See “Manufacturer’s code list” for the manufacturer’s code. ( 35)

5 Release .

If there is more than one code listed for the corresponding brand, try each one until you enter the correct one. Reset the codes after replacing batteries of the remote control.

For VCR

«Hold

Operating external components

Set the remote control mode before operating each external component (see the left column).

Operating the TV

TV VOL +/– Adjusts the volume

TV/VIDEO Selects the input mode (either

CH +/– Changes the channels

1-10, 0, h 10 (100+)

TV RETURN Alternates between the

Operating the DBS tuner or CATV converter

VCR/DBS

CH +/– Changes the channels

1-10, 0, h 10 (100+)

Operating the VCR

VCR/DBS

3 (play button) Starts playback 7 Stops playback 8 Pauses y Fast-forwards the tape 1 Rewinds the tape

REC Press this button together with 3

CH +/– Changes the TV channels

0 - 9 Selects the TV channels

Turns the power on and off

TV or VIDEO)

Selects the channels

previously selected channel and the current channel

Turns the power on and off

Selects the channels

Turns the power on and off

(play button) to start recording or together with 8 to enter recordingpause.

References

Manufacturer’s code list

JVC 01* Samsung 12

Hitachi 10 Sanyo 13, 14

Magnavox 02 Sharp 06

Mitsubishi 03 Sony 07

Panasonic 04, 11 Toshiba 08

Philips 15 Zenith 09

RCA 05

DBS tuner or CATV converter

Echostar 21

G.I. 01*, 02, 03, 04, 05, 06, 07, 08

Hamlin 15, 16, 17, 18

Jerrold 01, 02, 03, 04, 05, 06, 07, 08

Pioneer 13, 14

RCA 19

Scientific Atlanta 09, 10

Sony 20

Zenith 11, 12

VCR

JVC 01*, 02, 03 Philips 09

Emerson 11, 26 RCA 05, 06

Fisher 29 Samsung 24

Funai 10, 14, 15, 16 Sanyo 21, 22, 23

Gold Star 12 Sharp 27, 28

Hitachi 04 Shintom 30

Mitsubishi 13 Sony 18, 19, 20

NEC 25 Zenith 08

Panasonic 07, 17

* Initial setting

Manufacturers’ codes are subject to change without notice.

Language code list

AA Afar IW Hebrew RO Rumanian

AB Abkhazian JI Yiddish RW Kinyarwanda

AF Afrikaans JW Javanese SA Sanskrit

AM Ameharic KA Georgian SD Sindhi

AR Arabic KK Kazakh SG Sangho

AS Assamese KL Greenlandic

AY Aymara KM Cambodian

AZ Azerbaijani KN Kannada SI Singhalese

BA Bashkir

BE Byelorussian SM Samoan

BG Bulgarian KS Kashmiri SN Shona

BH Bihari KU Kurdish SO Somali

BI Bislama KY Kirghiz SQ Albanian

Bengali,

Bangla

BO Tibetan LO Laothian ST Sesotho

BR Breton LT Lithuanian SU Sundanese

CA Catalan

CO Corsican SW Swahili

CY Welsh MG Malagasy TA Tamil

DA Danish MI Maori TE Telugu

DZ Bhutani MK Macedonian TG Tajik

EL Greek ML Malayalam TH Thai

EO Esperanto MN Mongolian TI Tigrinya

ET Estonian MO Moldavian TK Turkmen

EU Basque MR Marathi TL Tagalog

FA Persian MS Malay (MAY) TN Setswana

FI Finnish MT Maltese TO Tonga

FJ Fiji MY Burmese TR Turkish

FO Faroese NA Nauru TS Tsonga

FY Frisian NE Nepali TT Tatar

GA Irish NL Dutch TW Twi

GD Scots Gaelic NO Norwegian UK Ukrainian

GL Galician OC Occitan UR Urdu

GN Guarani

GU Gujarati VI Vietnamese

HA Hausa OR Oriya VO Volapuk

HI Hindi PA Panjabi WO Wolof

HR Croatian

HY Armenian YO Yoruba

IA Interlingua PT Portuguese ZU Zulu

IE Interlingue QU Quechua

IK Inupiak

IN Indonesian

IS Icelandic RN Kirundi

Korean

(KOR)

LA Latin SR Serbian

LN Lingala SS Siswati

Latvian,

Lettish

OM (Afan) Oromo

Pashto,

Pushto

Rhaeto-

Romance

Serbo-

Croatian

SL Slovenian

SV Swedish

UZ Uzbek

XH Xhosa

Messages and icons shown on the TV

OPEN/CLOSE Opening or closing the disc tray

NOW READING Reading the disc/file information

READING INDEX...

REGION CODE ERROR!

NO DISC

NO USB DEVICE

CANNOT PLAY THIS DISC

CANNOT PLAY THIS DEVICE

RESTRICTED DEVICE

NOT SUPPORT The file cannot be played back.

Reading the DivX file

The Region Code of the DVD Video disc does not match the code the System supports.

(3)

No disc or an unfinalized disc is loaded.

No USB mass storage class device is loaded.

An unplayable disc is loaded.

An unplayable USB mass storage class device is connected.

iPod is connected to the USB MEMORY terminal.

Messages shown on the display while listening to the XM Satellite Radio

NO SIGNL No signal is received.

The XM Mini-Tuner is not properly

CHECK XM TUNER

CHECK ANTENNA

OFF AIR

UPDATING Updating the latest encryption.

- - - - -

Preset number and “- - - - -”

CH- - -

Preset number and “CH- - -”

installed or the XM Mini-Tuner Home Dock is not properly connected.

XM antenna is not properly connected.

Loading the channel information and audio data.

The selected channel is not currently broadcasting any signal.

No text information for the selected channel is available.

The selected channel does not exist or is not subscribed yet.

Troubleshooting

The operation is unacceptable.

Playback

Pause

Fast-forward/fast-reverse

Forward/reverse slow-motion playback

The scene contains multi-audio languages.

The scene contains multi-subtitle languages.

The scene contains multi-angle views.

You can change the setting so that the on-screen guide icons do not appear on the TV. ( 31)

Power does not come on.

ZThe power plug is not inserted securely. Plug it in

securely.

Unable to operate the System from the remote control.

ZThe path between the remote control and the remote

sensor on the center unit is blocked.

ZThe batteries are exhausted.

No sound is heard.

ZThe speaker connections and/or audio cord connections

are incorrect or loose. ( 5, 9)

ZHeadphones are connected.

The sound is distorted.

ZThe speaker layout ( 7) does not match the speaker

position mode ( 13).

No picture appears on the TV.

ZThe video cord connections are incorrect or loose.

( 8 – 10)

The picture does not fit the TV.

ZThe monitor type is not set correctly. ( 30)

No picture is displayed on the TV, the picture is blurred, or the picture is divided into two parts.

ZInappropriate color system and scanning mode is

selected. ( 15)

Continued on the next page

References

No picture is displayed on the TV or no sound comes out through the HDMI connection.

ZThe connected TV is not HDCP-compatible. (“HDCP

ERR” appears on the display.)

ZDisconnect the HDMI cable and connect it again, or use

a shorter cable.

Video and audio are distorted.

ZThe disc is scratched or dirty. ZAudio/video files have not been properly copied on to the

USB mass storage class device.

ZA VCR is connected between the center unit and the TV.

Connect the center unit and TV directly. ( 8, 9)

VCD/SVCD operation cannot be performed.

ZSome functions do not work for VCDs/SVCDs when the

PBC function is used.

No sound is heard from the external components, or the video and audio do not match.

ZThe selected audio input is not appropriate. Select the

audio input to match the component connected. ( 14)

The iPod does not play even though “CONNECT” appears on the display.

ZThe battery of the iPod is exhausted. Leave the iPod

connected for at least 10 minutes.

The iPod cannot be operated from the System.

ZThe iPod battery charge function is deactivated.

( 20)

ZThe iPod is not compatible with the System. Check the

compatibility. ( 19)

iPod is not charged.

ZThe source is not “IPod.” ZThe iPod battery charge function is deactivated.

( 20)

The broadcast is hard to hear because of noise.

ZAntenna connections are incorrect or loose. ( 8) ZThe AM loop antenna is too close to the System. ZThe FM Antenna is not properly extended and positioned.

(8)

• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

• “CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.”

• USE OF THIS PRODUCT IN ANY MANNER THAT COMPLIES WITH THE MPEG-4 VISUAL STANDARD IS PROHIBITED, EXCEPT FOR USE BY A CONSUMER ENGAGING IN PERSONAL AND NON-COMMERCIAL ACTIVITIES.

• DivX, DivX Ultra Certified, and associated logos are trademarks of DivX, Inc. and are used under license.

• Official DivX

Ultra Certified product

• Plays all versions of DivX® video (including DivX® 6)

with enhanced playback of DivX

media files and the

DivX® Media Format

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

• DVD Logo is a trademark of DVD Format/Logo Licensing Corporation.

• Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, “MLP Lossless”, and the doubleD symbol are trademarks of Dolby Laboratories.

• “DTS” and “DTS Digital Surround” are registered trademarks of DTS, Inc.

• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

• HDCP is the abbreviation of “High-bandwidth Digital Content Protection,” and is the high-reliable copy control technology licensed by Digital Content Protection, LLC.

•XM Ready

is a registered trademark of XM Satellite

Specifications

Center unit (XV-THD70/XV-THD50)

Output power

Front:

140 W per channel, RMS at 4 Ω at 1 kHz, with 10 % total harmonic distortion.

Center:

130 W, RMS at 4 Ω at 1 kHz, with 10 % total harmonic distortion.

Surround:

130 W per channel, RMS at 4 Ω at 1 kHz, with 10 % total harmonic distortion.

Subwoofer:

140 W, RMS at 4 Ω at 100 Hz, with 10 % total harmonic distortion.

Audio section

Digital Input*

DIGITAL IN

OPTICAL: –21 dBm to –15 dBm (660 nm

±30 nm)

Only for XV-THD70 COAXIAL: 0.5 V(p-p)/75 Ω

Analog input: For XV-THD70:

Analog output: Only for XV-THD70:

Video section

Video System: NTSC/PAL Horizontal Resolution: 500 lines Signal-to-Noise Ratio: 64 dB Video Output Level

Composite: 1.0 V(p-p)/75 Ω S-video-Y: 1.0 V(p-p)/75 Ω S-video-C: For NTSC: 0.286 V(p-p)/75 Ω

Component-Y: 1.0 V(p-p)/75 Ω

Component-P Video Input Sensitivity/Impedance (VIDEO IN for XV-THD50/VIDEO 2 IN for XV-THD70)

Composite: 1.0 V(p-p)/75 Ω

S-video-Y: 1.0 V(p-p)/75 Ω

S-video-C: For NTSC: 0.286 V(p-p)/75 Ω

HDMI

HDMI Input (VIDEO 1 IN) (Only for XV-THD70):

HDMI Output (MONITOR OUT):

For NTSC: 480p/720p/1080i

For PAL: 576p/720p/1080i

B/PR: 0.7 V(p-p)/75 Ω

VIDEO 2 AUDIO IN For XV-THD50: AUDIO IN

AUDIO OUT

For PAL: 0.3 V(p-p)/75 Ω

PASS THROUGH (up to 225 MHz)

USB storage

USB Specification: Compatible with USB 2.0 Full

Compatible Device: Mass Storage Class Compatible File System: FAT16, FAT32 Bus Power Supply: Max. 500 mA

Tuner section

Tuner Range

FM: 87.50 MHz to 108.00 MHz AM: At 10 kHz intervals: 530 kHz to 1 710 kHz At 9 kHz intervals: 531 kHz to 1 710 kHz

General

Power Requirements:

AC 110 V/127 V/220 V - 240 V , 50/60 Hz

Power Consumption: 160 W (during operation)

Dimensions (W Mass: 6.8 kg

Corresponding to Linear PCM, Dolby Digital, and DTS

Digital Surround (with sampling frequency — 32 kHz,

44.1 kHz, 48 kHz)

× H × D): 435 mm × 115 mm × 270 mm

Speed

(selectable with the voltage selector)

4.0 W (in standby mode)

Subwoofer

For SP-THD7W (TH-D70) Type: Bass-Reflex Type Speaker: 20 cm cone

Power Handling Capacity: 140 W Impedance: 4 Ω Frequency Range: 28 Hz to 200 Hz Sound Pressure Level: 75 dB/W Dimensions (W Mass: 8.5 kg

For SP-THD5W (TH-D50) Type: Bass-Reflex Type Speaker: 16 cm cone Power Handling Capacity: 140 W

Impedance: 4 Ω Frequency Range: 30 Hz to 200 Hz Sound Pressure Level: 75 dB/W Dimensions (W Mass: 6.3 kg

× H × D): 353.5 mm × 351 mm × 248 mm

× H × D): 353.5 mm × 351 mm × 174 mm

× 1

•m

× 1

•m

References

Satellite speakers (For TH-D70)

Front speakers (SP-THD7F)

Type:

2-Way 3-Speaker Bass-Reflex Type (Magnetically

Shielded Type) Speaker: 8 cm cone

Power Handling Capacity: 140 W Impedance: 4 Ω Frequency Range: 75 Hz to 20 000 Hz Sound Pressure Level: 83 dB/W Dimensions (W

280 mm

280 mm Mass: 8.9 kg each (with stand)

Center speaker (SP-THD7C)

Type:

1-Way 2-Speaker Bass-Reflex Type (Magnetically

Shielded Type) Speaker: 8 cm cone Power Handling Capacity: 140 W Impedance: 4 Ω Frequency Range: 75 Hz to 20 000 Hz Sound Pressure Level: 84 dB/W Dimensions (W Mass: 2.2 kg

Surround speakers (SP-THD7S)

Type:

1-Way Bass-Reflex Type (Magnetically Shielded Type) Speaker: 8 cm cone Power Handling Capacity: 140 W Impedance: 4 Ω Frequency Range: 75 Hz to 20 000 Hz Sound Pressure Level: 77 dB/W Dimensions (W Mass: 1.0 kg each

× H × D): × 1 100 mm × 280 mm (with stand) × 594 mm × 280 mm (without stand)

× H × D): 435 mm × 100 mm × 118 mm

× H × D): 98.5 mm × 215 mm × 118 mm

3 cm dome

6.5 kg each (without stand)

× 2

× 1

•m

× 2

•m

× 1

•m

Satellite speakers (For TH-D50)

Front speakers (SP-THD5F)

Typ e:

1-Way Bass-Reflex Type (Magnetically Shielded Type) Speaker: 8 cm cone Power Handling Capacity: 140 W Impedance: 4 Ω Frequency Range: 90 Hz to 20 000 Hz Sound Pressure Level: 80 dB/W Dimensions (W

Mass: 1.0 kg each

Center speaker (SP-THD5C)

Typ e:

1-Way 2-Speaker Bass-Reflex Type (Magnetically

Shielded Type) Speaker: 8 cm cone Power Handling Capacity: 140 W Impedance: 4 Ω Frequency Range: 90 Hz to 20 000 Hz Sound Pressure Level: 84 dB/W•m Dimensions (W Mass: 2.0 kg

Surround speakers (SP-THD5S)

Typ e:

1-Way Bass-Reflex Type (Magnetically Shielded Type) Speaker: 8 cm cone Power Handling Capacity: 140 W Impedance: 4 Ω Frequency Range: 90 Hz to 20 000 Hz Sound Pressure Level: 76 dB/W Dimensions (W

Mass: 0.85 kg each

× H × D): 98.5 mm × 214.5 mm ×

93.5 mm

× H × D): 435 mm × 99 mm × 93.5 mm

× H × D): 98.5 mm × 214.5 mm ×

93.5 mm

× 1

•m

× 2

× 1

•m

Dimensions of the wall-mount attachment on the center and surround speakers:

SP-THD7C/SP-THD5C

Designs and specifications are subject to change without notice.

SP-THD7S/SP-THD5S

Unit: mm

Mains (AC) Line Instruction

CAUTION for mains (AC) line

BEFORE PLUGGING IN, do check that your mains (AC) line voltage corresponds with the position of the voltage selector switch provided on the outside of this equipment and, if different, reset the voltage selector switch, to prevent from a damage or risk of fire/electric shock.

TH-D70/TH-D50

DVD DIGITAL THEATER SYSTEM

0607RYMMDWJMM

JVC SP-THD5S, V-THD50, SP-THD7C, SP-THD7S, SP-THD7W User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
