DVD DIGITAL CINEMA SYSTEM

TH-D51

Consists of XV-THD51, SP-THD51W, SP-THD51F and SP-THD51C

INSTRUCTIONS

LVT1767-001A

[B]

Warnings, Cautions and Others

IMPORTANT for the U.K.

DO NOT cut off the mains plug from this equipment. If

the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer.

BE SURE to replace the fuse only with an identical approved type, as originally fitted.

If nonetheless the mains plug is cut off ensure to remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply.

If this product is not supplied fitted with a mains plug then follow the instructions given below:

IMPORTANT.

DO NOT make any connection to the terminal which is

marked with the letter E or by the safety earth symbol or coloured green or green-and-yellow.

The wires in the mains lead on this product are coloured in accordance with the following code:

Blue: Neutral Brown: Live

As these colours may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

IF IN DOUBT - CONSULT A COMPETENT ELECTRICIAN.

CAUTION — button!

Disconnect the mains plug to shut the power off completely (the STANDBY lamp goes off). When installing the apparatus, ensure that the plug is easily accessible. The button in any position does not disconnect the mains line.

• When the System is on standby, the STANDBY lamp lights red.

• When the System is turned on, the STANDBY lamp goes off.

The power can be remote controlled.

CAUTION

• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

• Do not place any naked flame sources, such as lighted candles, on the apparatus.

• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

CAUTION:

Excessive sound pressure from earphones or headphones can cause hearing loss.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover or cabinet. There

are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION:

Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE THE UNIT.

Dear Customer, This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety. European representative of Victor Company of Japan, Limited is: JVC Technology Centre Europe GmbH Postfach 10 05 52 61145 Friedberg Germany

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

G-1

Caution: Proper Ventilation

To avoid risk of electric shock and fire and to protect from damage, place the apparatus on a level surface. The minimal clearances are shown below:

Front view

Wall or

obstructions

XV-THD51

15 cm

No obstructions

15 cm

Information for Users on Disposal of Old Equipment

[European Union]

This symbol indicates that the electrical and electronic equipment should not be disposed as general household waste at its end-of-life. Instead, the product should be handed over to the applicable collection point for the recycling of electrical and electronic equipment for proper treatment, recovery and recycling in accordance with your national legislation.

By disposing of this product correctly, you will help to conserve natural resources and will help prevent potential negative effects on the environment and human health which could otherwise be caused by inappropriate waste handling of this product. For more information about collection point and recycling of this product, please

Attention:

This symbol is only valid in the European Union.

contact your local municipal office, your household waste disposal service or the shop where you purchased the product.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Front

Side view

XV-THD51

Wall or

obstructions

15 cm

(Business users)

If you wish to dispose of this product, please visit our web page www.jvc-europe.com to obtain information about the take-back of the product.

[Other Countries outside the European Union]

If you wish to dispose of this product, please do so in accordance with applicable national legislation or other rules in your country for the treatment of old electrical and electronic equipment.

G-2

How to read this manual

The following icons and illustrations are used to make the explanations simple and easy-to-understand.

Icons for System operations

Operations from the center unit

Operations from the remote control

The function can be operated from the on-screen bar ( 21).

Icons for the references and notes

Reference page for the function/ operation

Caution for the function/operation

Note for the function/operation

Tip for the function/operation

Icons for operating information

The function is available while playing.

The function is available while paused.

The function is available while stopped.

There is a time limit on performing the target operation.

Illustrations for button operations

Press the button briefly.

Press the button repeatedly.

«Hold

Hold

Press and hold the button.

Press button A, then press button B.

Press button B while holding button A.

Table of contents

Before using this System ............................................... 2

Playable discs/devices/files............................................ 3

Playable disc types ...................................................... 3

Playable digital devices............................................... 3

Playable file types ....................................................... 4

Getting started ............................................................... 5

Checking the supplied accessories .............................. 5

Putting batteries into the remote control ..................... 5

Attaching the stands to the front speakers ................... 5

Speaker layout and connection .................................... 5

Connecting the AM (MW) and FM antennas.............. 7

Connecting a TV ......................................................... 7

Connecting external components ................................ 8

Connecting the AC power cord................................... 8

Basic and common operations...................................... 9

Sound and monitor settings........................................ 11

Sound settings and adjustments................................. 11

Monitor settings......................................................... 12

Audio/video settings for external components.......... 13

iPod playback .............................................................. 14

Disc/file playback ........................................................ 15

Basic playback........................................................... 15

Using the disc menu .................................................. 17

Locating a desired scene or song...............................17

Changing the playback mode .................................... 18

Advanced operations ................................................. 19

Special playback for DVD Audio.............................. 20

Operation from the TV screen................................... 21

Personal settings .......................................................... 23

Tuner operations ......................................................... 25

Tuning in to a station................................................. 25

Presetting stations...................................................... 25

Selecting the FM reception mode.............................. 25

Receiving FM stations with Radio Data System....... 26

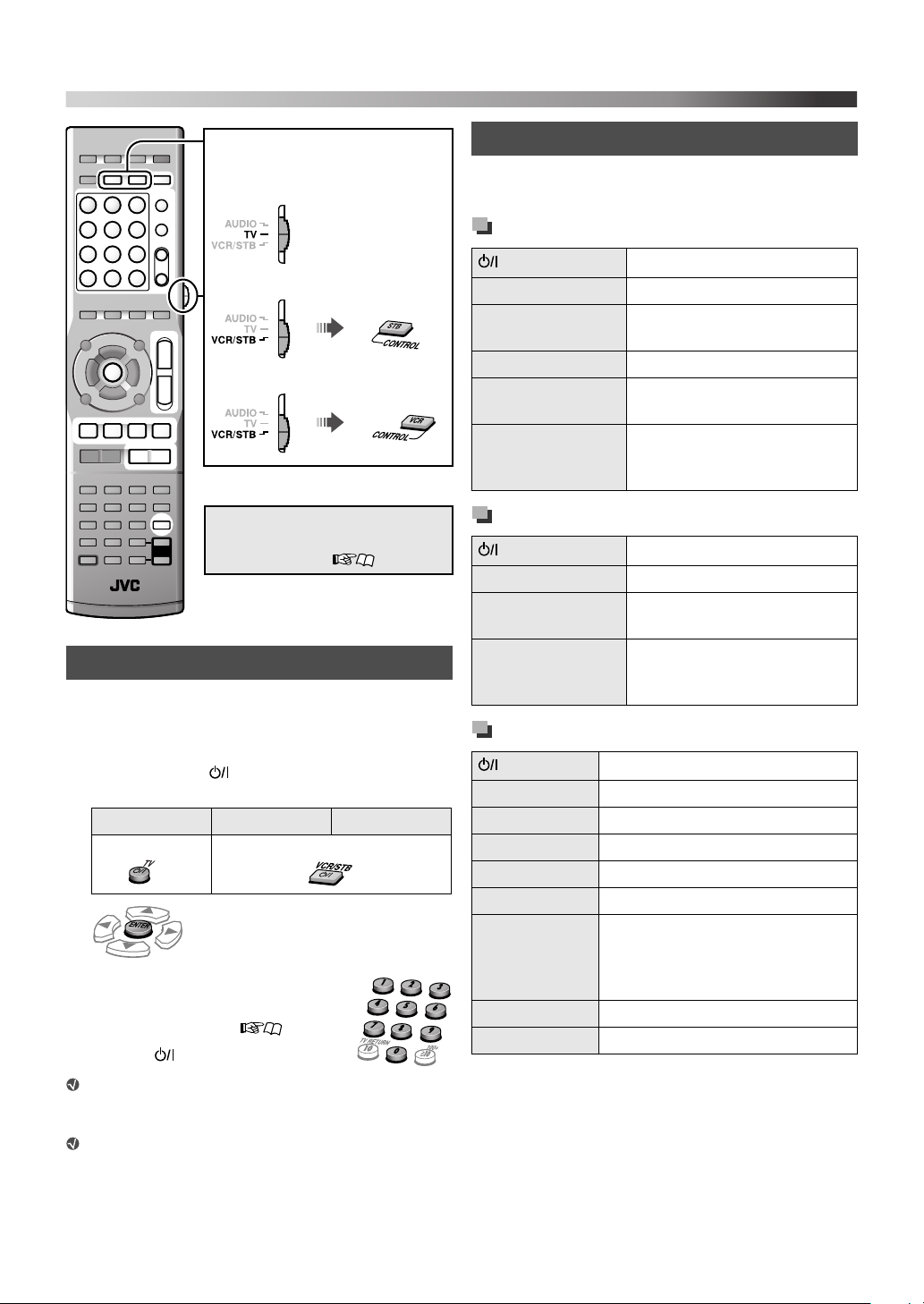

Operating external components................................. 29

Setting the manufacturer’s code ................................ 29

Operating external components................................. 29

References .................................................................... 30

Manufacturer’s code list ............................................ 30

Messages and icons shown on the TV....................... 31

Available surround modes......................................... 31

Language code list..................................................... 32

Troubleshooting......................................................... 33

Specifications ............................................................ 34

Before using this System

Precautions

There are no user-serviceable parts inside. If anything goes wrong, unplug the power cord and consult your dealer.

Notes on installing the System

• Select a location which is level, dry and neither too hot nor too cold between 5°C and 35°C.

• Do not install the System in a location subject to vibrations.

• Do not put heavy objects on the System.

Avoid moisture, water, dust, and high temperatures

• Do not install the System in moist or dusty locations.

• If water gets inside the System, turn off the power and remove the plug from the wall outlet, then consult your dealer. Using the System in this state may cause a fire or electrical shock.

• Do not expose the System to direct sunlight or place it near a heating device.

To prevent malfunctions or damage to the System

• Do not insert any metallic objects, such as wires, hairpins, coins, etc. into the System.

• Do not block the vents.

Notes on the power cord

• When you are away on travel or otherwise for an extended period of time, remove the plug from the wall outlet. A small amount of power is always consumed while the power cord is connected to the wall outlet.

• When unplugging the System from the wall outlet, always pull the plug, not the power cord.

• Disconnect the power cord before cleaning or moving the System.

• Do not modify, twist or pull the power cord, or put anything heavy on it. Doing so may cause fire, electric shock, or other accidents.

About copyright laws

Observe the copyright laws in your country before recording from original sources. Recording of copyrighted material may infringe copyright laws.

About the copyguard system

The discs are protected by the copyguard system. When connecting the System to a TV via a VCR, or to a TV with a built-in VCR, the copyguard system activates and distortion of the picture may occur.

Notes on installing and using the speakers

• Place the speakers and subwoofer on a flat and level surface.

• The speakers are magnetically shielded to avoid color distortions on TVs. If the color on a TV is distorted, perform the following procedure: – Turn off the TV’s main power switch or unplug it

before installing the speakers. Then wait at least 30 minutes before turning on the TV’s main power

switch again. Some TVs may still be affected even though you have followed the above procedure. If this happens, move the speakers away from the TV.

• The subwoofer is not magnetically shielded. To avoid color distortion, do not place it near the TV or monitor.

• When moving the speakers and subwoofer, do not pull the speaker cords. Doing so may cause the speakers and/or subwoofer to fall over, causing damage or injury.

• When installing the speakers on a wall, be sure to have them installed by qualified personnel. DO NOT install the speakers on a wall by yourself.

• Do not lean against the speakers, as they could fall down or break, possibly causing an injury. Be especially careful that children do not lean against them.

About the adjustment of volume

Always set the volume to the minimum level before starting any source. If the volume is set at a high level, the sudden blast of sound could permanently damage your hearing and/ or blow out the speakers.

To clean the System

• Use a soft cloth. Follow the relevant instructions on the use of chemically-coated cloths.

• If the System is heavily stained, apply a small amount of water or neutral detergent to the cloth and wipe clean, then wipe with a dry cloth.

• Do not use benzene, thinner or other organic solvents and disinfectants. These may cause deformation or discoloring.

Playable discs/devices/files

Some discs/files may require operations that differ from those explained in this manual. Some discs/devices/files may not be recognized or played back correctly due to their characteristics.

Playable disc types

Type of format Types of media

• Discs on the market

DVD Video

DVD Audio

Super Video CD (SVCD)/Video CD (VCD)

Audio CD (CD-DA)

DVD VR • DVD-R/-RW

Audio/video files (4)

It is possible to play back finalized +R/+RW (DVD Video format only) discs. “DVD” lights on the display panel when a +R/+RW disc is loaded. DVD-R/-RW: This System does not support “multiborder” discs. CD-R/-RW: – This System supports “multi-session” discs (up to

20 sessions).

– This System cannot play “packet write” discs.

Region code of DVD Video

DVD Video players and DVD Video discs have their own Region Code numbers. This System can play back DVD Video discs whose Region Code numbers include “2.”

Ex.:

• DVD-R/-R DL/-RW

• +R/+RW

• DualDisc* (DVD side only)

• Discs on the market

• DVD-R/-R DL/-RW

• +R/+RW

• Discs on the market

• CD-R/-RW

• Discs on the market

• CD Text (Audio part only)

• CD-R/-RW

• DVD-R/-R DL/-RW in UDF Bridge format

• CD-R/-RW in ISO 9660 format

Unplayable discs—unwarranted

Playing back the following discs generates noise and damages the speakers.

• DVD-ROM, DVD-RAM, DualDisc* (non-DVD side)

• CD-ROM, CD-I (CD-I Ready), Photo CD, SACD

• Unfinalized discs (except DVD VR)

• Discs with an irregular shape or discs with tape, stickers or paste on either the label side or playback side

• Warped, dirty, or scratched discs

The Non-DVD side of a “DualDisc” does not comply with

the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

Playable digital devices

JVC bears no responsibility for any loss of data in an iPod and USB mass storage class device while using this System.

iPod

iPod model AUDIO VIDEO

iPod nano 1GB/2GB/4GB √

iPod nano (2nd Generation) 2GB/4GB/8GB

iPod mini 4GB/6GB √

iPod (4th Generation) 20GB/40GB

iPod photo (4th Generation) 20GB/30GB/40GB/60GB

iPod video (5th Generation) 30GB/60GB/80GB

* Only still pictures are available.

If the iPod does not play correctly, update your iPod software to the latest version. For details about updating your iPod, check on the Apple web site <http://www.apple.com>.

iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

USB mass storage class device

A USB flash memory device, hard disk drive, multimedia card reader, digital camera, etc. can be used with this System through USB connection.

This System is compatible with USB 2.0 Full Speed. This System cannot recognize a USB mass storage class device whose rating exceeds 5 V/500 mA.

√

√√ *

√√

Playable file types

The following files in a disc or a USB mass storage class device can be played back.

Type of file Extensions

MP3 <.mp3>

Audio

Picture JPEG <.jpg>, <.jpeg>

Movie

If a file on a USB mass storage class device exceeds the following conditions, it may not be played back correctly: – Maximum data transfer rate: 2 Mbps – Maximum frame rate: 30 fps for progressive – Maximum file size: 2 GB The System recognizes up to 150 tracks (files) per group, and 99 groups per disc/device. The total number of tracks (files) that the System can detect is 4 000.

Information about the recording conditions for the files on a disc/ device

MP3/WMA files

• The System supports MP3/WMA files recorded at a bit rate of 32 kbps – 320 kbps and a sampling frequency of 16 kHz, 22.05 kHz, 24 kHz*, 32 kHz, 44.1 kHz, or 48 kHz.

• It is recommended to record each file at a sample rate of

44.1 kHz and at a data transfer rate of 128 (96*) kbps.

For WMA only

WAV files

• The System supports WAV files recorded at a quantization rate of 8 bit or 16 bit and a sampling frequency of 8 kHz, 11.025 kHz, 12 kHz, 16 kHz,

22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, or 48 kHz.

• It is recommended to record each file at a sample rate of

44.1 kHz and at a quantization rate of 16 bit Linear PCM.

WMA <.wma>

WAV <.wav>

ASF <.asf>

MPEG-1 <.mpg>, <.mpeg>

MPEG-2

DivX (6.x, 5.x,

4.x and 3.11)

<.mpg>, <.mpeg>, <.mod>

<.divx>, <.div>, <.avi>

JPEG files

• It is recommended to record a file at 640 x 480 resolution. (If a file has been recorded at a resolution of more than 640 x 480, it will take a longer time to be displayed.)

• This System can only play baseline JPEG files.

ASF files

• The System supports MPEG-4 files with the following conditions: File format: ASF Visual profile: MPEG-4 SP (Simple Profile) Audio CODEC: G.726 Max. picture size: 352 x 288 (CIF) Max. bit rate: 384 kbps

MPEG1/MPEG2 files

• The stream format should conform to the MPEG system/ program stream.

• 720 x 576 pixels (25 fps)/720 x 480 pixels (30 fps) is recommended for the highest resolution.

• This System also supports resolutions of 352 x 576/ 480 x 576/352 x 288 pixels (25 fps) and 352 x 480/ 480 x 480/352 x 240 pixels (30 fps).

• The file format should be MP@ML (Main Profile at Main Level)/SP@ML (Simple Profile at Main Level)/MP@LL (Main Profile at Low Level).

• Audio streams should conform to MPEG1 Audio Layer-2 or MPEG2 Audio Layer-2.

DivX files

• The System supports DivX files whose resolution is 720 x 480 pixels or less (30 fps), and 720 x 576 pixels or less (25 fps).

• Audio stream should conform to Dolby Digital (including multi-channel) or MPEG1 Audio Layer-3 (MP3).

• The System does not support GMC (Global Motion Compression).

• Files encoded in the interlaced scanning mode may not be played back correctly.

Getting started

Checking the supplied accessories

If anything is missing, contact your dealer immediately.

• Remote control (x 1)

• Batteries (x 2)

• FM antenna (x 1)

• AM (MW) loop antenna (x 1)

• Docking station for iPod (x 1)

• Feet (x 8) (For front speakers)

• Stands (x 2) (For front speakers)

• Screws: M5 x 12 mm (x 4) (For front speakers)

Putting batteries into the remote control

R03 (UM-4)/AAA (24F) type dry-cell batteries (supplied)

Battery shall not be exposed to excessive heat such as sunshine, fire or the like. If the range or effectiveness of the remote control decreases, replace both batteries.

Speaker layout and connection

You can enjoy the sound of the center channel, surround right channel, and surround left channel with the center surround speaker.

Speaker layout

Center surround (CS)

Front left (L) Front right (R)

Subwoofer (SW)

* Place each front speaker with the curved-side facing

outward.

Select “S.SPK F” as the speaker position mode for this layout. ( 11)

Attaching the feet

When placing the front speakers vertically, attach the feet as illustrated.

Peel off.

Feet (supplied)

Attaching the stands to the front speakers

To place the front speakers horizontally, attach a stand to each one.

Screws

Stand (supplied)

You can install the front and center surround speakers on the wall. When installing the front speakers on the wall, do not attach the stands.

M5 x 12 mm (supplied)

You can turn the JVC logos to make them legible.

Do not connect the power cord until all other connections have been made.

Speaker connection

Center unit

Connecting the speaker cords

Connect the speaker cords to the center unit.

Speaker cord

• Connect the black cords to the r terminals.

• Connect the gray cords to the q terminals.

If you connect the speakers other than those supplied for the System, use speakers of the same speaker impedance (SPEAKER IMPEDANCE) indicated on the rear of the center unit. DO NOT connect more than one speaker cord to one speaker terminal.

From front right speaker (SP-THD51F)

From front left speaker

(SP-THD51F)

From subwoofer (SP-THD51W)

Optional speaker layout and connection

You can connect separately purchased speakers to the System as the center, surround right, and surround left speakers.

• See “Attaching the feet” ( 5) and “Connecting the speaker cords” on the left column before connecting.

Speaker layout

Front left (L)

Center (C)

Front right (R)

Subwoofer (SW)

Surround left

(LS)

* Place each front speaker with the curved-side facing

outward.

Surround right (RS)

Select “S.SPK R” as the speaker position mode for this layout. ( 11) To obtain the best possible surround sound from this System, place all the speakers except the subwoofer at the same distance from the listening position. If it is impossible, adjust the delay time from DELAY menu. ( 24)

Speaker connection

From center speaker

(separately purchased)

From front right speaker (SP-THD51F)

From front left speaker

(SP-THD51F)

From center surround speaker

(SP-THD51C)

From subwoofer

(SP-THD51W)

From surround right speaker (separately purchased)

* You can use the supplied center surround speaker as the

center speaker. When you connect the center surround speaker, connect only the CENTER speaker cord to the CENTER speaker terminal of the center unit.

When you connect the supplied center surround speaker as the center speaker, be sure to keep the followings for the unused cords and handle them with care. – Do insulate the SURROUND RIGHT and SURROUND

LEFT speaker cords with insulating tape.

– Do not let the unused cords touch any materials.

From surround left speaker

(separately purchased)

Getting started

Connecting the AM (MW) and FM antennas

Make sure the antenna conductors do not touch any other terminals, connecting cords or power cords. Keep the AM loop antenna cable wrapped around the AM loop antenna frame, otherwise the effectiveness and sensitivity of the AM loop antenna may be reduced.

AM (MW) loop

antenna (supplied)

FM antenna

(supplied)

Extend it horizontally.

For better FM reception

Standard type (75 Ω coaxial) connector (IEC or DIN 45325)

Turn it until the best reception is obtained.

FM outdoor antenna

(not supplied)

FM outdoor antenna cord

(not supplied)

Connecting a TV

Connect the TV to the appropriate video out jacks to view the playback picture.

Make the following settings after connecting the TV: – Scanning mode ( 12) – Monitor out ( 13) – MONITOR TYPE ( 23)

Connection using the HDMI terminal

From HDMI input

You can make the following settings for the TV when the HDMI connection is used: – HDMI DVI COLOR ( 23) – HDMI OUT ( 23) – HDMI AUDIO OUT ( 24) – DOWN MIX ( 24)* Use a certified HDMI cable, which has the HDMI logo. You can use a monitor with a DVI terminal by connecting with a DVI-HDMI conversion cable. When you play HDCP (High-Bandwidth Digital Content Protection) source, allow a few seconds for the sound and picture to be transmitted to the speakers and TV while the confirmation process is completed. On some TVs, no sound may come out during playback of sources such as DVD Audio even when the HDMI AUDIO OUT setting is “ON” ( 24).

This setting is available only when the speaker position

mode is set to “S.SPK F” ( 11).

terminal

HDMI cable (not supplied)

Do not connect the power cord until all other connections have been made.

Connection using the component video jacks

From component

video input

Component video

cord (not supplied)

If your TV does not support progressive video input, connect a TV via the AV (scart) connector (see below). For the BNC connection, use a plug adapter (not supplied).

Green

Blue

Red

Connection using the scart connector

Scart cable

(not supplied)

To scart connector

* Some TVs’ scart connectors emit audio signals. In such a

case, you can enjoy the TV sound through this System by selecting TV SOUND as the source to play. ( 10)

No sound signal comes out from the AV (scart) connector.

Connecting external components

Video connection

Composite video cord

(not supplied)

VCR, etc.

A From composite video output B From S-video output

S-video cord

(not supplied)

Align the

5 marks.

To view a video from the external component connected as above: – Connect a TV via the AV (scart) connector (see

the left column).

– Select an appropriate video input setting

according to the video connection. ( 13)

Audio connection

Connecting a digital component

Digital optical cable

(not supplied)

STB (Set Top Box), etc.

From digital optical output

Select “OPT” as the audio input setting before playing back. ( 13)

Connecting an analog component

RCA pin plug cord

VCR, etc.

(not supplied)

From audio output

Select “2CH” as the audio input setting before playing back. ( 13)

Connecting the AC power cord

Select “VIDEO” as the source ( 10) for playing a component connected as follows.

Available video output terminals for each source

Terminal

Source

HDMI √ —— COMPONENT √ ——

AV (scart) √

DVD USB

Plug in the System only after all other connections have been completed.

√: Available —: Not available

IPod VIDEO

(Composite signal only)

√

(Composite signal only)

√

Basic and common operations

How to use the number buttons

To select 3: Press 3. To select 10: Press 10. To select 14: Press h 10, 1, then 4. To select 24: Press h 10, 2, then 4. To select 40: Press h 10, 4, then 0. To select 114: Press h 10, h 10, 1, 1, then 4.

Set the remote control mode before operation.

Point at the remote sensor directly.

Display

To change the display brightness

A Digital audio signal format indicators B Tuner band indicators ( 25) C Lights when one of the surround modes is activated.

( 12)

D Frequency unit indicators for FM/AM E Signal and speaker indicators

(front left), (center), (front right), (low

frequency effect), (surround left), (surround right), (monaural surround): Lights when the signal comes in for the digital input or when the System is ready to receive the signal for the analog input.

SW (subwoofer): Always lights. _: Lights while reproducing the channel’s sound

through the speaker.

F Speaker position mode indicators ( 11) G Lights when both the System and the TV (with HDMI

connection) are ready to communicate each other.

H Scanning mode indicators ( 12)

HD: Lights when “720P” or “1080I” is selected. PRGR.: Lights when the progressive scanning mode is

activated.

I Digital device indicators J File type indicators

STANDBY lamp:

• Goes off when the System is turned on.

• Lights when the System is turned off.

K Lights when the chapter (CHAP.) or track (TRK)

number is displayed.

L Lights when selecting a program number (PG) or

playlist number (PL) of a DVD VR disc by using TITLE/GROUP. ( 17)

M Special playback indicators for DVD Audio

( 20)

BONUS: Lights when a bonus group is detected. B.S.P: Lights when browsable still pictures are

detected.

N Program type (for Radio Data System) indicators

( 26)

O FM reception mode indicators ( 25)

MONO: Lights when receiving an FM stereo station in monaural. ST: Lights when receiving an FM stereo station.

P Lights during program play (PRG) or random play

(RND). ( 18)

Q Lights when the System memorizes the position where

the playback is interrupted. ( 16)

R Repeat mode indicators ( 18, 21)

Turning the power on or off

To turn off the System by using the sleep timer

– – (off) = 10 = 20 = 30 = 60 = 90 = 120 = 150 = 180 = (back to the beginning)

(unit: minutes)

To check the remaining time, press the button once.

Selecting the source

Adjusting the volume

To turn off the sound instantly

“MUTING” is shown on the display.

To restore the sound, press the button again, or adjust the volume level.

To do Indication

Play back a disc DVD 15

Play back a file on a USB mass storage class device

Play back an iPod IPod 14

Listen to an FM or AM (MW) station

Play back an external component

Listen to the sound from the TV connected via the AV (scart) connector.

To select the source from the center unit

Make sure that the appropriate audio and video input settings have been made for the source. For details about the settings, see “Setting the audio input” and “Setting the video input”( 13).

«Hold

USB 15

FM or AM 25

VIDEO* 29

TV SOUND 8

Prohibiting disc ejection

1 Turn off the System. 2 Lock the disc tray.

«Hold

(On the center unit)

To unlock the disc tray, perform the above procedure again. “UNLOCKED” appears on the display.

Listening with headphones

Be sure to turn down the volume before connecting or putting on the headphones.

When headphones are connected, the System automatically deactivates the speakers and cancels the surround mode ( 12) temporarily.

• “H.PHONE” appears on the display.

While a multi-channel source is played back, the channel signals are down-mixed.

“LOCKED” appears on the display.

Sound and monitor settings

Adjusting the output level of the

Set the remote control mode before operation.

speakers and subwoofer

• When the speaker position mode is “S.SPK F”:

• When the speaker position mode is “S.SPK R”:

The items you can adjust differ depending on the selected speaker position mode (see the left column).

CENTER = SURR = SUBWFR = (back to the beginning)

FRNT L = FRNT R = CENTER = SURR L = SURR R = SUBWFR = (back to the beginning)

2 Adjust the output level.

Sound settings and adjustments

Selecting the speaker position mode

For optional speaker layout ( 6), change the speaker position mode.

1 Turn off the System. ( 10)

«Hold

3 Select “S.SPK R.”

S.SPK F

(Surround speaker: Front)

S.SPK R

(Surround speaker: Rear)

As the speaker position mode is changed, the following settings are also changed automatically: – The output level settings of the speakers and of

subwoofer (see the right column) are initialized.

– The surround mode ( 12) is set to “AUTO

SUR.”

Initial setting

• The F indicator lights on the display.

For optional speaker layout

• The R indicator lights on the display.

Different output level settings can be stored for the two groups of sources—FM/AM and the others. You can also make adjustments from the LEVEL menu ( 24) when the speaker position mode is “S.SPK R.”

Adjusting the bass and treble sounds

TRE Adjusts the treble sound

BASS Adjusts the bass sound

2 Adjust the level.

Using the surround mode

Select one of the available surround modes.

The surround modes you can select depend on the playback source and the selected speaker position mode ( 11). For details on each surround mode, see “Available surround modes” (31).

• During playback with “S.SPK F” speaker position mode:

AUTO SUR = MOVIE = WIDE/2CH = SUPER W = OFF = (back to the beginning)

When the source is “FM” or “AM,” the surround mode cannot be activated.

Monitor settings

Setting the scanning mode

Select the scanning mode for the sources “DVD” and “USB” according to the type of TV and to connection method.

1 Select “DVD” or “USB” as the source.

(10)

«Hold

3 Select an appropriate scanning mode, then

confirm the selection.

• When the speaker position mode is “S.SPK R”:

During 2-channel playback:

AUTO SUR = MOVIE = MUSIC = STADIUM = ALL ST = OFF = (back to the beginning)

When the source is “FM” or “AM,” you can only select “ALL ST.”

During multi-channel playback:

AUTO SUR = currently selected mode* = OFF = (back to the beginning)

When “AUTO SUR” is selected, the System

automatically selects a proper multi-channel surround mode, such as “DOLBY D (Dolby Digital)” or “DTS (DTS Digital Surround).”

To check the surround mode currently selected, press

SURROUND once.

During playback of ASF, MPEG-2, or MPEG-1 files, the surround mode setting is ineffective. During playback of DivX, the surround mode setting is effective only for multi-channel files with “S.SPK R” selected as the speaker position mode. For DVD Audio, when “LR ONLY” appears on the display, activate the surround mode for the multichannel reproduction.

Select Confirm

• When connecting the TV via the HDMI MONITOR OUT terminal ( 7), select

“AUTO,” “1080I,” “720P,” or “576P.”

• When connecting the TV via the COMPONENT jacks ( 8), select “576P.”

• When connecting the TV via the AV (scart) connector ( 8), select “RGB” or “Y/C.”

Select for the TV accommodating the

RGB

Y/C

1080I

576P

720P

AUTO

You can get better picture quality in the following orders: – 1080I > 720P > 576P – RGB >Y/C If the HDMI MONITOR OUT terminal and the AV (scart) connector are both connected to a TV or TVs, you cannot change the scanning mode for the AV (scart) connector. When the scanning mode does not correspond to that of the TV, the picture is not displayed normally.

interlaced RGB/composite video signal.

Select for the TV accommodating the interlaced S-video signal.

To watch the picture in interlaced scanning mode.

To watch the picture in progressive scanning mode.

The System automatically emits the video signal to give you the best picture quality on your TV.

Sound and monitor settings

See page 11 for button locations.

Setting the monitor out parameter

Select the video output jack type of the TV you will use to watch the playback. ( 7)

2 Select “MON. (monitor).”

Item Current setting

3 Select an appropriate video output according to

the TV connection.

SCART

HDMI

COMP

For connection via the AV (scart) connector

For connection via the HDMI MONITOR OUT terminal

For connection via the COMPONENT jacks

Audio/video settings for external components

Setting the video input

Set the video input of the external component for “VIDEO.”

2 Select “VIN. (video input).”

Item

Current setting

3 Select an appropriate video input according to

the video connection. ( 8)

For connection via the S-

VIDEO jack

For connection via the

VIDEO (composite) jack

Setting the audio input

Set the audio input of the external component for “VIDEO.”

Select “AIN. (audio input).”

Item

Current setting

3 Select an appropriate audio input according to

the audio connection. ( 8)

2CH

OPT

For connection via the AUDIO IN jacks

For connection via the DIGITAL IN terminal

iPod playback

Set the remote control mode before operation.

Before selecting the video source to play

Make the appropriate setting for video output on the iPod.

Starting playback

DO NOT connect or disconnect the iPod when the System is turned on. Be sure to reduce the volume on the System to the minimum level before connecting an iPod. Adjust the volume after playback has started.

1 Connect an iPod while the System is turned off.

Play/pause/search/skip

To do

Start playback

Pause

Fast-forward/fast-reverse search within the current track

Skip to the next/previous item*

* While playing back a video

• The iPod enters sleep mode when you turn off the System or select another source.

• To show the still pictures in the iPod, play them back in slide-show mode on the iPod.

DO NOT touch the iPod terminal pins or the connector pins. When the iPod is not charged through the System, the iPod may not be turned on from the System. If the sound is distorted when audio sources with high recording levels are played, you are recommended to deactivate the equalizer on your iPod. To view a video/picture from the iPod on the TV, connect the System to the TV via the AV (scart) connector. ( 8) You cannot send any data to your iPod from the System. The iPod battery is charged only when “IPod” is selected as the source.

«Hold

Docking station for

iPod (supplied)

* Attach the dock adapter (supplied for the iPod or

separately purchased) before placing the iPod. (33)

• Connect the plug with the arrow-mark side facing up.

2 Turn on the System, then select “IPod” as the

source. ( 10)

“CONNECT” appears on the display. If the iPod is not connected firmly, “NO CONNE” appears.

3 Start playing the iPod.

• Press 3 (play button) again if the iPod does not start

playback.

If the iPod which is not listed in “Playable digital devices” ( 3) is connected, the iPod may not be operated from the System. In this case, deactivate the iPod battery charge function so that the iPod may be operated, but the iPod cannot be charged through the System.

To deactivate the battery charge function

«Hold

To use the battery charge function, perform the above procedure again. “P.ON” appears on the display.

“P.OFF” appears on the display.

Disc/file playback

The following icons show the available disc/file types for the target function:

Initial settings

Make the following settings before playing back discs/ files.

• Scanning mode ( 12)

• Monitor out ( 13)

• MONITOR TYPE ( 23)

• ON SCREEN LANGUAGE ( 23)

Set the remote control mode before operation.

For disc playback

For playback of a file on a USB mass storage class device

Basic playback

Playing back a disc

1 Select “DVD” as the source. ( 10) 2 3 Place a disc on the tray.

Label side up

4 Start playback.

• JPEG: Slide-show playback starts.

• MP3/WMA/WAV: The file control display appears

Playing back a file on a USB mass storage class device

1 Connect a USB mass storage class device while

the System is turned off.

(On the center unit)

When placing an 8 cm disc

on the TV. ( 22)

Operating the touch sensor panel

You can operate the playback control buttons on the center unit simply by touching them. When you touch any one of these buttons, it lights briefly in blue.

If a still picture is displayed for about 5 minutes, the System automatically dims the screen (screen saver function). You can deactivate the screen saver function. ( 23)

When several types of files (music, picture or movie) are recorded on a disc or device, select the file type you want to play. (23)

For messages and icons shown on the display, see “Messages and icons shown on the TV” (31).

AUX

Digital Audio Player

2 Turn on the System, then select “USB” as the

source. ( 10)

Playback starts automatically. Press 3 (play button) to start playback if the file is not played back automatically.

• JPEG: Slide-show playback starts.

• MP3/WMA/WAV: The file control display appears on the TV. ( 22)

DO NOT connect or disconnect the device when the System is turned on. You cannot connect a computer to the USB MEMORY terminal of the System. DO NOT connect the device through a USB hub. iPod does not play through the USB MEMORY terminal. When iPod is connected to the USB MEMORY terminal, “RESTRICT” appears on the display. This System may not play back some USB mass storage class devices and does not support DRM (Digital Rights Management). When connecting with a USB cable, use the USB 2.0 cable whose length is less than 1 m.

Changing the playback information

Each time you press the button, the playback information alternates between “type A” and “type B” on the display as follows:

Ex.: When a DVD Video disc is played back

Information type A

Chapter number

Information type B

Time information

Play/stop/pause/search

To do

Start playback

Stop playback

Pause

Fast-forward/fast-

reverse search*

To return to normal playback, press 3 (play button).

Pressing and holding 4/x also fast-forwards/fastreverses tracks or files.

Resume function

The System memorizes the position where the playback has been interrupted by one of the following operations:

•Pressing 7 once

• Turning off the power ( 10)

• Changing the source ( 10)

To resume playback, press 3 (play button) or the corresponding source button.

To clear the memorized position, press 7 twice.

• Opening the disc tray or disconnecting the USB mass storage class device also clears the memorized position.

«Hold

Title number Chapter number

Disc/ file type

Information type A Information type B

Title (T) number and chapter (C) number

Chapter number with

time information*

Program (PG)

number/Playlist (PL) number and chapter (C) number

Track number with

1*2

time information*

Group (G) number and track (T) number

File number

For DVD Video, DVD Audio, DVD VR, VCD, SVCD, or CD, you can change the time information mode ( 21). For MP3, WMA, WAV, ASF, MPEG1, MPEG2, or DivX, elapsed playing time is shown.

While playing a VCD or SVCD with PBC ( 17), only track number is displayed.

Group (G) number and file (F) number

This function does not work in program play and random play. ( 18) You can deactivate the resume function. (24)

Disc/file playback

Using the disc menu

For DVD Video/DVD Audio

For a DVD Video disc For a DVD Audio disc

2 Select the desired item, then confirm the

selection.

Select Confirm

For some discs, you can also select items by using the number buttons.

For VCD/SVCD with PBC

The Play Back Control function (PBC) allows you to operate the VCD/SVCD using menus.

Select the number of the desired item while the menu is displayed on the TV.

• To move to the next or previous page

• To return to the previous menu

To perform playback without PBC

• While playback is stopped, select the desired track by

To activate the PBC function, press TOP MENU(/PG) or MENU(/PL).

of the current menu

using the number buttons.*

pressing x repeatedly, then press 3 (play button).

While playing back a VCD or SVCD with PBC (“PBC” is shown on the display), some functions such as time search do not work.

For details on using the number buttons, see “How to use the number buttons” ( 9).

Locating a desired scene or song

Selecting the beginning of a desired scene or song

To do Disc/file

Skip chapter/track/file

Select the chapter/

track/file number*

Select the title/ program or playlist/

group number*

• Enter the number while “– –” is flashing on the display

The features above may not work for some discs/ files.

For DVD Video, DVD VR, VCD, and SVCD discs, this

function is not available while playback is stopped.

For DVD Video and DVD VR discs, you can select a title/ program while playback is stopped.

For details on using the number buttons, see “How to use the number buttons” ( 9).

When selecting the chapter/track/file number from the onscreen bar, see “Using the on-screen bar” ( 21).

Selecting the desired position of a scene or song

To do Disc/file

Move the playback position back by 10 seconds (one-touch

replay)*

1 *2

3 *4

Skip in approximately

5-minute intervals*

This function works only within the same title/program/file.

This function is not available during repeat play.

See page 15 for button locations.

Changing the playback mode

Program play and random play cannot be used for a USB mass storage class device.

Programing the playing order—program play

Program window

2 Select the desired chapters/

tracks.

• For DVD Video, DVD Audio, MP3 and WMA: Enter a title/group

number, then a chapter/track number.*

• For VCD, SVCD and CD: Enter a track number.*

To clear the programs

One by one All programs at once

«Hold

To check the program contents

To return to normal playback

Press the button repeatedly until both the program window and disappear from the TV.

To program the tracks in the bonus group on a DVD Audio disc, perform the “Playing back a bonus group” procedure ( 20) before operation. You can program up to 99 steps.

For details on using the number buttons, see “How to use the

number buttons” ( 9).

Playing at random—random play

To return to normal playback

Press the button repeatedly until both the program window and disappear from the TV.

To play the tracks in the bonus group on a DVD Audio disc during random play, perform the “Playing back a bonus group” procedure ( 20) before operation.

Playing repeatedly— repeat play

The repeat modes you can select depend on the playback discs/files.

On the display

ALL

No indication

You can repeat the desired part from the on-screen bar (A-B repeat). ( 21) For VCD and SVCD discs, this function is available only when PBC ( 17) is deactivated.

For DVD Video and DVD VR discs, this function is not

available while playback is stopped.

On the TV Meaning

REPEAT GROUP

REPEAT ALL

REPEAT TRACK, REPEAT STEP

Repeat current group

Repeat current title

Repeat current program

Repeat current playlist

Repeat all titles/ programs/tracks/files

Repeat current track

Repeat current chapter

Repeat mode is deactivated

Disc/file playback

Advanced operations

Changing the language/sound/scene angle

To do Disc/file

Select the subtitle

1 *2

«Hold

language*

• To show/hide the subtitle, press SUBTITLE.

Select the audio language/audio

channel*

Select the view angle

For DVD Audio, the functions take effect for the moving picture part only.

For DVD VR and SVCD discs, the subtitle indication

appears and can be changed by performing the above procedure even if no subtitles are recorded.

Some subtitle or audio languages are abbreviated in the pop-up window. See “Language code list” ( 32).

Special picture playback

To do

Play back frame-by-frame

Play back in

slow-motion*

Enlarge the picture*2 *

Hold

• Change the scene magnification, then move the zoomed-in area.

To return to normal playback

• While playing back frame-by-frame or in slow-motion,

press 3 (play button).

• While zooming in on the picture, select “OFF” by pressing

ZOOM repeatedly while holding SHIFT.

For DVD Audio, the functions take effect for the moving picture part only.

For DVD Video and DVD Audio, reverse slow-motion is also

available by pressing

For JPEG files, you can zoom in only during pause.

On some files, using cursor (3/2/K/5) cannot move the zoomed-in area during playback.

( SLOW repeatedly.

Disc/file

See page 15 for button locations.

Adjusting the picture quality (VFP)

You can adjust the picture quality.

2 Select the desired preset, then finish the setting.

Select

NORMAL Normally select this.

CINEMA Suitable for movies

USER1/ USER2

To adjust the picture tone

You can adjust parameters that affect picture appearance. (See below.)

Finish

1 Select “USER1” or “USER2” (see above). 2 Select a parameter, then confirm the selection.

Select

GAMMA

BRIGHTNESS

CONTRAST Controls the contrast

SATURATION Controls the color depth

TINT Controls the tint

SHARPNESS Controls the sharpness

Controls the brightness of the neutral color

Controls the brightness of the entire picture

Confirm

3 Adjust the parameter, then confirm the

selection.

Special playback for DVD Audio

Playing back a bonus group

Some DVD Audio discs have a “bonus group.” To play back a bonus group, you have to enter the specific “key number” (a password).

The way of getting the key number depends on the disc.

1 Select a bonus group.

The key number entry screen appears.

On the TV On the display

2 Enter the key number, then confirm the entry.

Confirm

Enter the number

When the key number is accepted, playback starts and the BONUS indicator goes off.

• If playback does not start, enter correct key number again.

To clear the key number entry

Selecting browsable still pictures

While playing back a track linked to browsable still pictures (B.S.P), you can select the still pictures (turn the page).

• If a track is linked to browsable still pictures, they are usually shown automatically during playback.

Select the desired still picture.

Select

Confirm

4 Repeat steps 2 and 3 to adjust others. 5

When connecting the TV to the HDMI MONITOR OUT terminal ( 7), the VFP setting has no effect.

Disc/file playback

Operation from the TV screen

Using the on-screen bar

You can use various functions from the onscreen bar.

Basic operation procedure

2 Select the desired item (see the right column),

then confirm the selection.

Select Confirm

After confirming the selection...

• When the pull-down menu appears, select the desired

item by pressing cursor 5/Y repeatedly, then confirm the selection by pressing ENTER.

Ex.:

• When a number-entry box appears, enter the number

by using the number buttons (0-9), then confirm the entry by pressing ENTER.

Ex.:

To correct a misentry:

– setting: press cursor 2 repeatedly to clear the

misentry, then re-enter the number.

– setting: re-enter the number.

• When changing the time information mode ( ),

select the desired item by pressing ENTER repeatedly.

To clear the on-screen bar

Ex.:

Status bar

Function bar

On-screen bar functions

Selects the time information mode shown on the display and the status bar.

TIME*

: Elapsed time of chapter/track

: Remaining time of chapter/track

REM* TOTAL: Elapsed time of title (DVD Video)/

group (DVD Audio)/program (DVD VR)/disc (VCD/CD/SVCD)

T.REM: Remaining time of title (DVD

Video)/group (DVD Audio)/ program (DVD VR)/disc (VCD/ CD/SVCD)

Selects repeat mode.

/////

///: See also “Playing repeatedly—repeat play” ( 18).

: Repeats the desired part

2 *3 *4

(A-B repeat).* After selecting this, select the beginning point (A) by pressing ENTER, then the end point (B) by pressing ENTER again.

Specifies the playback point by the time.

Specifies a chapter to play back from.

Specifies a track to play back from.

Selects the audio language or audio channel during playback.

Selects the subtitle language during playback.

Selects the desired scene angle in a multiangle part during playback.

Selects the desired browsable still picture.

Not available for DVD VR discs

During playback of DVD Video or DVD VR discs, A-B repeat play is available only within the same title/program.

A-B repeat play is not available during program and random playback.

During playback of VCD and SVCD discs, A-B repeat play is

available only when PBC ( 17) is deactivated.

The contents of the on-screen bar differ according to the type of discs/files.

During playback of ASF, MPEG-1, MPEG-2, or DivX files,

the function bar does not appear.

See page 15 for button locations.

Using the file control display

The file control display appears in the following cases. – Audio files: Always appears. – Movie and picture files: When TOP

MENU(/PG) or MENU(/PL) is pressed or playback is stopped.

File control display

Ex.:

Current group/total group number

Playback mode (18)

Elapsed playing time of current track (except JPEG)

Playback status

( 31)

Using the program list/ playlist (for DVD VR)

Program list

Item number

Date recorded

Playlist

Recording source

Start time of recording

Track information

Current group

Current track (file)/total track (file) number in current group

Current track (file)

Total track (file) numbe

To play back the desired track/file

Select a desired group/track/file, then start playback.

Select Play

• For JPEG:

– To start a slide-show from the selected file, press 3

(play button).

– To play the selected file only, press ENTER.

When the source is “DVD,” “FILE” appears, and when the

source is “USB,” “USB” appears.

For MP3/WMA/WAV only.

Item number

Date created

The title may not be displayed depending on the recording

equipment.

Number of chapters

Total playing time

To play back the desired item

To display the

program list

To display the playlist

The System starts playing the first item.

2 Select the desired item.

Personal settings

You can change the settings of the System according

Set the remote control mode before operation.

For disc playback

For playback of a file on a USB mass storage class device

Language menu (LANGUAGE)

MENU LANGUAGE Select the language for the DVD/DivX menu. See “Language code list”

AUDIO LANGUAGE Select the language for the audio language.

SUBTITLE Select the language for the subtitle language.

ON SCREEN LANGUAGE Select the language for the screen.

to your preferences and playing environment.

2 Select the menu.

3 Select the item, then confirm.

Select Confirm

Repeat this procedure until all the options have been confirmed.

To close the setup screen

( 32) for the code of each language, such as “AA,” etc.

Picture menu (PICTURE)

MONITOR TYPE Select 16:9 wide-screen playback to fit your monitor.

For conventional (4:3) TV:For wide TV:

16:9 NORMAL: For fixed 16:9

ide TV

16:9 AUTO: For ordinary wide TV

PICTURE SOURCE

SCREEN SAVER Activate (ON) or deactivate (OFF) the screen saver function.

FILE TYPE Select the file type to play when several types of files are recorded on a disc/device.

HDMI DVI COLOR

HDMI OUT Select the type of video signal output from the HDMI MONITOR OUT terminal.

Select the source type of the disc/file contents when selecting the progressive scanning mode ( 12).

: Normally select this.

AUTO FILM: For a film source movie VIDEO: For a video source movie

AUDIO: For audio files STILL PICTURE: For picture files VIDEO: For movie files

Select the picture appearance for a TV with HDMI connection.

STANDARD: No effect applied. ENHANCE: Select when you need automatic picture adjustment.

AUTO: Normally select this. RGB: Select this when no picture appears on the TV with “AUTO.”

4:3 LB 4:3 PS

Underlined items are the initial settings.

Audio menu (AUDIO)

DOWN MIX This menu is available only when the speaker position mode is set to “S.SPK F” ( 11).

Select the audio signal output to the TV connected to the HDMI MONITOR OUT terminal.

DOLBY SURROUND: For the TV equipped with Dolby Pro Logic decoder

: For ordinary TV

D. RANGE COMPRESSION

STEREO

You can enjoy powerful audio even at low volume level while playing Dolby Digital software.

AUTO: Select this to apply the compression only to the multi-channel software (except 1channel and 2-channel sources). ON: Select this to always apply the compression.

HDMI AUDIO OUT This setting is effective only for the source “DVD” or “USB.”

Select whether the System emits the audio signal from the HDMI MONITOR OUT terminal (ON) or not (OFF

Other setting menu (OTHERS)

RESUME Activate (ON) or deactivate (OFF) the resume function.

ON SCREEN GUIDE Activate (ON) or deactivate (OFF) the on-screen guide icons.

DivX REGISTRATION The System has its own Registration Code for DivX playback. You can confirm the code of

your System.

• Once you play back a DivX file created by using the Registration Code, the System’s code is overwritten by a totally different new one for copyright protection purposes.

Speaker setting menu (SPK.SETTING)

SPK.SETTING menu is available only when the speaker position mode is set to “S.SPK R” ( 11).

LEVEL Adjust the output level of each speaker while monitoring the test tone.

FRONT LEFT/RIGHT SPEAKER, CENTER SPEAKER, SURROUND RIGHT/LEFT SPEAKER: Select the speaker, then adjust the output level. TEST TONE: Turns on/off the test tone.

DELAY Adjust the delay time of the speakers.

FRONT LEFT/RIGHT SPEAKER, CENTER SPEAKER, SURROUND RIGHT/LEFT SPEAKER: Select the

speaker, then adjust the distance from the listening position to the speakers.

• 1ms increase (or decrease) in delay time

corresponds to about 30 cm decrease (or increase) in distance.

•Set to 0ms for the furthest speaker from

your position as the basis for the delay time setting.

SUBWOOFER Make the subwoofer setting.

LEVEL: Adjust the output level of the subwoofer. CROSS OVER: Select an appropriate crossover frequency according to the size of the

cone speaker unit built into the small speaker connected.

120Hz: Select this when the cone speaker unit size is 8 cm or more.

: Select this when the cone speaker unit size is between 6 cm and 8 cm.

150Hz 200Hz: Select this when the cone speaker unit size is 5 cm or less.

Ex.:

Front left

0 ms

Surround left

Center

1 ms

2.1 m

2 ms

Subwoofer

Front right 0 ms

3.0 m

2.7 m

2.4 m

Surround right 2 ms

Tuner operations

Set the remote control mode before operation.

• Select the band (“FM” or “AM”) you want to listen to. ( 10)

Presetting stations

You can preset 30 FM stations and 15 AM (MW) stations.

Storing stations

1 Tune in to the station you want to preset. 2

3 Select a preset number, then store the station to

that number.

Enter a preset number*

• “STORED” appears on the display.

Tuning in to a preset station

Select a preset number.*

“_ _” flashes on the display. Perform the next

step while “_ _” is flashing.

Store

Tuning in to a station

Tuning manually

You can also tune in to the station by pressing cursor 5/Y.

Tuning automatically

«Hold «Hold

The System tunes in the first-found station of sufficient signal strength. You can also tune in to the station by pressing and holding cursor 5/Y.

You can also select a preset number by pressing PRESET UP or PRESET DOWN.

For details on using the number buttons, see “How to use the number buttons” ( 9).

Selecting the FM reception mode

When the stereo FM program currently tuned in is noisy, you can change the FM reception mode to improve the reception.

Normally select this.

AUTO

MONO

• When a stereo station is tuned in, the ST indicator lights on the display.

Select to improve reception. (You will lose the stereo effect.)

Receiving FM stations with Radio Data System

Radio Data System allows FM stations to send an additional signal along with their regular program signals. For example, the stations send their station names, as well as information about what type of program they broadcast, such as sports or music, etc.

With the system, you can receive the following types of Radio Data System signals.

PS (Program Service)

PTY (Program Type)

RT (Radio Text)

Enhanced Other Network

Radio Data System is not available for AM (MW) broadcasts. Radio Data System may not operate correctly if the station tuned is not transmitting Radio Data System signal properly or if the signal strength is weak.

Shows commonly known station names.

Shows types of broadcast programs.

Shows text messages the station sends.

Provides the information about the types of the programs broadcast by the Radio Data System stations of the different networks.

( 28)

Searching for a program by PTY codes

One of the advantages of the Radio Data System service is that you can locate a particular kind of program from the preset stations ( 25) by specifying a PTY code.

While listening to an FM station...

“PTY” and “SELECT” flash alternately on the display.

2 Select a PTY code ( 27).

The System searches 30 preset FM stations, stops when it finds the one you have selected, and tunes in to that station.

• If no program is found, “NOT FOUND” appears on

• To continue searching after the first stop, press

PTY SEARCH.

• To stop searching during search, press PTY SEARCH.

While searching, “SEARCH” and the selected PTY code alternate on the display.

the display.

Changing the Radio Data System information

While listening to an FM station...

PS = PTY = RT = Frequency (Non-Radio

Data System signal) = (back to the beginning)

• While searching, “PS,” “PTY,” or “RT” appears on the display.

• If no Radio Data System signals are sent by a station, “NO PS,” “NO PTY,” or “NO RT” appears on the display.

If searching finishes at once, “PS,” “PTY,” or “RT” will not appear on the display. When PS, PTY, or RT signals appear on the display, some special characters and marks may not be displayed correctly.

Tuner operations

Description of the PTY codes

NEWS News FINANCE

Topical program expanding or

AFFAIRS

INFO

SPORT

EDUCATE Educational programs PHONE IN

DRAMA All radio plays and serials TRAVEL Travel information

CULTURE

SCIENCE

VARIED

POP M

ROCK M Rock music OLDIES

EASY M

LIGHT M

CLASSICS

OTHER M

WEATHER Weather reports and forecasts NONE

enlarging upon the news—debate, or analysis

Programs the purpose of which is to impart advice in the widest sense.

Programs concerned with any aspect of sports

Programs concerning any aspect of national or regional culture, including language, theater, etc.

Programs about natural sciences and technology

Used for mainly speech-based programs such as quizzes, panel games and personality interviews.

Commercial music of current popular appeal

Current contemporary music considered to be “easy-listening”

Instrumental music, and vocal or choral works

Performances of major orchestral works, symphonies, chamber music, etc.

Music not fitting into any of the other categories

CHILDREN

SOCIAL

RELIGION Religious programs

LEISURE Programs about recreational activities

JAZZ Jazz music

COUNTRY

NATION M

FOLK M

DOCUMENT

TEST

ALARM Emergency announcement

Stock Market reports, commerce, trading etc.

Programs targeted at a young audience

Programs about sociology, history, geography, psychology and society

Involving members of the public expressing their views either by phone or at a public forum

Songs which originate from, or continue the musical tradition of the American Southern States

Current popular music of the nation or region in that country’s language

Music from the so-called “golden age” of popular music

Music which has its roots in the musical culture of a particular nation

Programs concerning factual matters, presented in an investigative style

Broadcasts for testing emergency broadcast equipment or unit

No program type, undefined program, or difficult to categorize into particular types

Classification of the PTY codes for some FM stations may be different from the above list.

Switching temporarily to a program of your choice automatically

Another convenient Radio Data System service is called “Enhanced Other Network.” This allows the system to switch temporarily to a broadcast program of your choice (TA, News, and Info) from a different station.

• The Enhanced Other Network works while listening to an FM station providing the required signals.

The Enhanced Other Network function is only applicable to preset stations.

Select the program type(s).

Each time you press the button, the corresponding indicator on the display lights.

TA Traffic announcement in your area

News News

Info

How the Enhanced Other Network function actually works

Case 1

If there is no station broadcasting the program you have selected

The system continues tuning in to the current station.

When a station starts broadcasting the program you have selected, the system automatically switches to the station. The indicator of received PTY code starts flashing.

When the program is over, the system goes back to the previously tuned station, but the Enhanced Other Network function still remains activated.

Case 2

If the FM station you are listening to is broadcasting the program you have selected

The system continues to receive the station but the indicator of received PTY code starts flashing.

Program the purpose of which is to impart advice in the widest sense.

To stop listening to the program selected by Enhanced Other Network

Press TA/News/Info repeatedly again so that the program type indicator (TA/News/Info) goes off from the display. The system exits from Enhanced Other Network standby mode and goes back to the previously selected station.

When an emergency broadcast (ALARM signal) is sent from an FM station

The system automatically tunes in to the station and “ALARM” is shown on the display while the system receives the emergency broadcast. Note that an emergency broadcast cannot be received in the following cases:

• When you are listening to non-Radio Data System stations—all AM (MW) stations and some FM stations.

• When you select any source other than “FM.”

• When the system is in standby mode.

The TEST signal is used for equipment test—whether it can receive the ALARM signal correctly

The TEST signal makes the system work in the same way as the ALARM signal does. If the TEST signal is received, the system automatically switches to the station broadcasting the TEST signal. While receiving the TEST signal, “TEST” appears on the display.

In Enhanced Other Network standby mode, if you change the source to play, Enhanced Other Network standby mode is canceled temporarily. If you change the source to FM again, the system returns to Enhanced Other Network standby mode. Enhanced Other Network data sent from some stations may not be compatible with this system. Enhanced Other Network does not function for some FM stations with Radio Data System service. While listening to a program tuned in by the Enhanced Other Network function, the station does not change even if another network station starts broadcasting a program of the same Enhanced Other Network data. While listening to a program tuned in by the Enhanced Other Network function, you can only use TA/News/Info and DISPLAY as the tuner operation buttons.

When the program is over, the indicator of received PTY code stops flashing and remains lit, but the Enhanced Other Network function still remains activated.

Operating external components

Set the remote control mode before operation.

For TV

For STB

For VCR

Preparation

Make the audio/video input setting before operation. ( 13)

Setting the manufacturer’s code

Before operating external components from the remote control, set the manufacturer’s code.

1 Set the remote control mode (see above). 2 Press and hold for the target component

until the setting is finished.

For TV For STB For VCR

«Hold

4 Enter the manufacturer’s code.

See “Manufacturer’s code list” for the manufacturer’s code. ( 30)

5 Release .

If there is more than one code listed for the corresponding brand, try each one until you enter the correct one. Set the codes after replacing batteries of the remote control.

«Hold

Operating external components

Set the remote control mode before operating each external component (see the left column).

Operating the TV

TV VOL +/– Adjusts the volume

TV/VIDEO Selects the input mode (either

CH +/– Changes the channels

1-10, 0, h 10 (100+)

TV RETURN Alternates between the

Operating the STB

VCR/STB

CH +/– Changes the channels

1-10, 0, h 10 (100+)

RETURN Alternates between the

Operating the VCR

VCR/STB

3 (play button) Starts playback 7 Stops playback 8 Pauses y Fast-forwards the tape 1 Rewinds the tape

REC Press this button together with 3

CH +/– Changes the TV channels

0 - 9 Selects the TV channels

Turns the power on and off

TV or VIDEO)

Selects the channels

previously selected channel and the current channel

Turns the power on and off

Selects the channels

previously selected channel and the current channel

Turns the power on and off

(play button) to start recording or together with 8 to enter recording- pause.

References

Manufacturer’s code list

JVC 01* Magnavox 10 Samsung

Akai 02, 05 Mitsubishi 11, 33 Sanyo 05

Blaupunkt 03 Miver 03 Schneider 02, 05

Daewoo 10, 31, 32 Nokia 12, 34 Sharp 20, 39, 40

Fenner 04, 31, 32 Nordmende 13, 14, 18, 26, 27, 28 Sony 21, 22, 23, 24, 25

Fisher 05 Okano 09 Telefunken 13, 14, 18, 26, 27, 28

Grundig 06 Orion 15 Thomson 13, 14, 18, 26, 27, 28

Hitachi 07, 08 Panasonic 16, 17 Toshiba 29

Inno-Hit 09 Philips 10

Irradio 02, 05 Saba 13, 14, 18, 26, 27, 28

STB

Echostar 21 Jerrold

G.I.

Hamlin 15, 16, 17, 18 RCA 19 Zenith 11, 12

01*, 02, 03, 04, 05, 06, 07, 08

Pioneer 13, 14 Sony 20

01, 02, 03, 04, 05, 06, 07, 08

Scientific Atlanta

10, 19, 32, 35, 36, 37, 38

09, 10

VCR

JVC 01* Hitachi 08, 09 Saba 17, 18, 19, 23, 31

Aiwa 02, 20 Loewe 05, 10, 11 Samsung 24, 25

Bell+Howell 03, 16 Magnavox 04, 05 Sanyo 03, 16

Blaupunkt 04 Mitsubishi 12, 13, 14, 15 Sharp 26, 27

CGM 03, 05, 16 Nokia 16 Siemens 07

Daewoo 34 Nordmende 17, 18, 19, 31 Sony 28, 29, 30, 35

DIGITAL 05 Orion 20 Telefunken 17, 18, 19, 31, 32

Fisher 03, 16 Panasonic 21 Toshiba 33

G.E 06 Philips 05, 22

Grundig 07 Phonola 05

* Initial setting

Manufacturers’ codes are subject to change without notice.

References

Messages and icons shown on the TV

CANNOT PLAY THIS DEVICE

CANNOT PLAY THIS DISC

NO DISC

NO USB DEVICE

NOT SUPPORT The file cannot be played back.

NOW READING Reading the disc/file information

OPEN/CLOSE Opening or closing the disc tray

READING INDEX...

REGION CODE ERROR!

RESTRICTED DEVICE

The operation is unacceptable.

Playback

Pause

Fast-forward/fast-reverse

Forward/reverse slow-motion playback

The scene contains multi-audio languages.

The scene contains multi-subtitle languages.

The scene contains multi-angle views.

An unplayable USB mass storage class device is connected.

An unplayable disc is loaded.

No disc or an unfinalized disc is loaded.

No USB mass storage class device is loaded.

Reading the DivX file

The Region Code of the DVD Video disc does not match the code the System supports.

(3)

iPod is connected to the USB MEMORY terminal.

Available surround modes

Surround mode for “S.SPK F”

AUTO SUR (Auto Surround)

MOVIE

WIDE/2CH For 2-channel music sources

SUPER W (Super Wide)

OFF (Off) Deactivates surround mode

Surround mode for “S.SPK R”

AUTO SUR (Auto Surround)

MOVIE (Dolby Pro Logic II Movie)

MUSIC (Dolby Pro Logic II Music)

STADIUM

ALL ST (All Channel Stereo)

OFF (Off) Deactivates surround mode

Selects an appropriate surround mode according to the incoming signals

For movie or multi-channel music sources

Reproduces broader sound field

Selects an appropriate surround mode according to the incoming signals

For movie sources

For music sources

Adds clarity and spreads the sound as if in an outdoor stadium

Reproduces a larger stereo sound field using all the activated speakers

You can change the setting so that the on-screen guide icons do not appear on the TV. ( 24)

Language code list

AA Afar GD Scots Gaelic MI Maori SN Shona

AB Abkhazian GL Galician MK Macedonian SO Somali

AF Afrikaans GN Guarani ML Malayalam SQ Albanian

AM Ameharic GU Gujarati MN Mongolian SR Serbian

AR Arabic HA Hausa MO Moldavian SS Siswati

AS Assamese HI Hindi MR Marathi ST Sesotho

AY Aymara HR Croatian MS Malay (MAY) SU Sundanese

AZ Azerbaijani HY Armenian MT Maltese SV Swedish

BA Bashkir IA Interlingua MY Burmese SW Swahili

BE Byelorussian IE Interlingue NA Nauru TA Tamil

BG Bulgarian IK Inupiak NE Nepali TE Telugu

BH Bihari IN Indonesian NL Dutch TG Tajik

BI Bislama IS Icelandic NO Norwegian TH Thai

BN Bengali, Bangla IW Hebrew OC Occitan TI Tigrinya

BO Tibetan JI Yiddish OM (Afan) Oromo TK Turkmen

BR Breton JW Javanese OR Oriya TL Tagalog

CA Catalan KA Georgian PA Panjabi TN Setswana

CO Corsican KK Kazakh PS Pashto, Pushto TO Tonga

CY Welsh KL Greenlandic PT Portuguese TR Turkish

DA Danish KM Cambodian QU Quechua TS Tsonga

DZ Bhutani KN Kannada RM Rhaeto-Romance TT Tatar

EL Greek KO Korean (KOR) RN Kirundi TW Twi

EO Esperanto KS Kashmiri RO Rumanian UK Ukrainian

ET Estonian KU Kurdish RW Kinyarwanda UR Urdu

EU Basque KY Kirghiz SA Sanskrit UZ Uzbek

FA Persian LA Latin SD Sindhi VI Vietnamese

FI Finnish LN Lingala SG Sangho VO Volapuk

FJ Fiji LO Laothian SH Serbo-Croatian WO Wolof

FO Faroese LT Lithuanian SI Singhalese XH Xhosa

FY Frisian LV Latvian, Lettish SL Slovenian YO Yoruba

GA Irish MG Malagasy SM Samoan ZU Zulu

References

Troubleshooting

Power does not come on.

ZThe power plug is not inserted securely. Plug it in

securely.

Unable to operate the System from the remote control.

ZThe path between the remote control and the remote

sensor on the center unit is blocked.

ZThe batteries are exhausted.

No sound is heard.

ZThe speaker connections or audio cord connections are

incorrect or loose. ( 6, 8)

ZHeadphones are connected.

The sound is distorted.

ZThe speaker layout ( 5) does not match the speaker

position mode ( 11).

No picture appears on the TV.

ZThe video cord connections are incorrect or loose.

(7, 8)

The picture does not fit the TV.

ZThe monitor type is not set correctly. ( 23)

No picture is displayed on the TV, the picture is blurred, or the picture is divided into two parts.

ZThe scanning mode is set to the progressive mode even

though the TV connected to the System does not support progressive video input. ( 12)

ZInappropriate scanning mode is selected. ( 12)

No picture is displayed on the TV or no sound comes out through the HDMI connection.

ZThe connected TV is not HDCP-compatible. (“HDCP

ERR” appears on the display.)

ZDisconnect the HDMI cable and connect it again, or use

a shorter cable.

Video and audio are distorted.

ZThe disc is scratched or dirty. ZAudio/video files have not been properly copied on to the

USB mass storage class device.

ZA VCR is connected between the center unit and the TV.

Connect the center unit and TV directly. ( 7, 8)

VCD/SVCD operation cannot be performed.

ZSome functions do not work for VCDs/SVCDs when the

PBC function is used.

No sound is heard or no picture appears while playing the external components, or the video and audio do not match.

ZThe selected audio or video input is not appropriate.

Select the audio/video input to match the component connected. ( 13)

The iPod does not play even though “CONNECT” appears on the display.

ZThe battery of the iPod is exhausted. Leave the iPod

connected for at least 10 minutes.

The iPod cannot be operated from the System.

ZThe iPod battery charge function is deactivated.

( 14)

ZThe iPod is not compatible with the System. Check the

compatibility. ( 3)

iPod is not charged.

ZThe source is not “IPod.” ZThe iPod battery charge function is deactivated.

( 14)

The broadcast is hard to hear because of noise.

ZAntenna connections are incorrect or loose. ( 7) ZThe AM (MW) loop antenna is too close to the System. ZThe FM Antenna is not properly extended and positioned.

(7)

Attaching the dock adapter to the docking connection

To detach the dock adapter from the docking station:

Dock adapter (supplied for iPod or separately purchased)

Docking station

Push the slot then pull up to remove the dock adapter.

Disconnect the docking station from the center unit when attaching/detaching the dock adapter. Take care not to damage the terminal on the docking station when attaching/ detaching the dock adapter.

Specifications

Center unit (XV-THD51)

Output power

Front:

140 W per channel, RMS at 4 Ω at 1 kHz, with 10% total harmonic distortion.

Center:

130 W, RMS at 4 Ω at 1 kHz, with 10% total harmonic distortion.

Surround:

130 W per channel, RMS at 4 Ω at 1 kHz, with 10% total harmonic distortion.

Subwoofer:

140 W, RMS at 4 Ω at 100 Hz, with 10% total harmonic distortion.

Audio section

Digital Input*

DIGITAL IN

OPTICAL: –21 dBm to –15 dBm (660 nm

±30 nm)

Analog Input: AUDIO IN

Video section

Video System: PAL Horizontal Resolution: 500 lines Signal-to-Noise Ratio: 54 dB (Composite signal when “RGB” is selected) Video Output Level (AV—Scart)

Composite video: 1.0 V(p-p)/75 Ω Y: 1.0 V(p-p)/75 Ω C: 0.3 V(p-p)/75 Ω RGB: 0.7 V(p-p)/75 Ω

(VIDEO OUT)

Component (Y): 1.0 V(p-p)/75 Ω

B/PR): 0.7 V(p-p)/75 Ω

Video Input Sensitivity/Impedance (VIDEO IN)

Composite: 1.0 V(p-p)/75 Ω S-video (Y): 1.0 V(p-p)/75 Ω

(C): 0.3 V(p-p)/75 Ω

HDMI

HDMI Output (MONITOR OUT):

576p/720p/1080i

USB storage

USB Specification: Compatible with USB 2.0 Full

Speed Compatible Device: Mass Storage Class Compatible File System: FAT16, FAT32 Bus Power Supply: Max. 500 mA

Tuner section

Tuner Range

FM: 87.50 MHz to 108.00 MHz AM (MW): 522 kHz to 1 629 kHz

General

Power Requirements: AC 230 V , 50 Hz Power Consumption: 160 W (during operation)

1.0 W (in standby mode) Dimensions (W Mass: 6.8 kg

Corresponding to Linear PCM, Dolby Digital, and DTS

(with sampling frequency — 32 kHz, 44.1 kHz, 48 kHz)

× H × D): 435 mm ×115 mm ×270 mm

Subwoofer (SP-THD51W)

Type: Bass-Reflex Type Speaker: 16 cm cone Power Handling Capacity: 140 W Impedance: 4 Ω Frequency Range: 30 Hz to 200 Hz Sound Pressure Level: 72 dB/W Dimensions (W Mass: 4.9 kg

× H × D): 214 mm × 296 mm × 329 mm

× 1

•

References

Front speakers (SP-THD51F)

Type:

1-Way 2-Speaker Bass-Reflex Type (Magnetically

Shielded Type) Speaker: 5.5 cm cone Power Handling Capacity: 140 W Impedance: 4 Ω Frequency Range: 100 Hz to 20 000 Hz Sound Pressure Level: 80 dB/W Dimensions (W

Without the stand: 180 mm

With the stand: 180 mm Mass: 0.93 kg each (with the stand)

× H × D):

× 2

•

× 73 mm × 91 mm × 119 mm × 91 mm

Center surround speaker (SP-THD51C)

Type:

Center:

1-Way 2-Speaker Bass-Reflex Type (Magnetically Shielded Type)

Surround Left:

1-Way 2-Speaker Bass-Reflex Type (Magnetically Shielded Type)

Surround Right:

1-Way 2-Speaker Bass-Reflex Type (Magnetically Shielded Type)

Speaker:

Center: 5.5 cm cone

Surround Left: 5.5 cm cone

Surround Right: 5.5 cm cone Power Handling Capacity:

Center: 140 W

Surround Left: 140 W

Surround Right: 140 W Impedance:

Center: 4 Ω

Surround Left: 4 Ω

Surround Right: 4 Ω Frequency Range:

Center: 100 Hz to 20 000 Hz

Surround Left: 100 Hz to 20 000 Hz

Surround Right: 100 Hz to 20 000 Hz Sound Pressure Level:

Center: 80 dB/W

Surround Left: 80 dB/W

Surround Right: 80 dB/W Dimensions (W Mass: 2.1 kg

× H × D): 435 mm × 74 mm × 91 mm

× 2 × 2 × 2

•

Dimensions of the wall-mount attachment for the front and center surround speakers:

SP-THD51F

72.4

SP-THD51C

333

Unit: mm

Designs and specifications are subject to change without notice.

• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

• “CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.”

• USE OF THIS PRODUCT IN ANY MANNER THAT COMPLIES WITH THE MPEG-4 VISUAL STANDARD IS PROHIBITED, EXCEPT FOR USE BY A CONSUMER ENGAGING IN PERSONAL AND NON-COMMERCIAL ACTIVITIES.

• DivX, DivX Ultra Certified, and associated logos are trademarks of DivX, Inc. and are used under license.

• Official DivX

• Plays all versions of DivX

Ultra Certified product

video (including DivX® 6) with enhanced playback of DivX® media files and the DivX® Media Format

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

• DVD Logo is a trademark of DVD Format/Logo Licensing Corporation.

• Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, “MLP Lossless”, and the double-D symbol are trademarks of Dolby Laboratories.

• “DTS” and “DTS Digital Surround” are registered trademarks of DTS, Inc.

• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

• HDCP is the abbreviation of “High-bandwidth Digital Content Protection,” and is the high-reliable copy control technology licensed by Digital Content Protection, LLC.

SAFETY INSTRUCTIONS

“SOME DOS AND DON’TS ON THE SAFE USE OF EQUIPMENT”

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.

Do read the operating instructions before you attempt to use the equipment.

Do ensure that all electrical connections (including the mains plug, extension leads and interconnections between pieces of equipment) are properly made and in accordance with the manufacturer’s instructions. Switch off and withdraw the mains plug when making or changing connections.

Do consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.

Do be careful with glass panels or doors on equipment.

DON’T continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged in any way—switch off, withdraw the mains plug and consult your dealer.

DON’T remove any fixed cover as this may expose dangerous voltages.

DON’T leave equipment switched on when it is unattended unless it is specifically stated that it is designed for unattended operation or has a standby mode.

Switch off using the switch on the equipment and make sure that your family know how to do this.

Special arrangements may need to be made for infirm or handicapped people.

DON’T use equipment such as personal stereos or radios so that you are distracted from the requirements of traffic safety. It is illegal to watch television whilst driving.

DON’T listen to headphones at high volume as such use can permanently damage your hearing.

DON’T obstruct the ventilation of the equipment, for example with curtains or soft furnishings. Overheating will cause damage and shorten the life of the equipment.

DON’T use makeshift stands and NEVER fix legs with wood screws—to ensure complete safety always fit the manufacturer’s approved stand or legs with the fixings provided according to the instructions.

DON’T allow electrical equipment to be exposed to rain or moisture.

ABOVE ALL

—NEVER let anyone, especially children, push anything into holes, slots or any other opening in the case

—this could result in a fatal electrical shock.;

—NEVER guess or take chances with electrical equipment of any kind—it is better to be safe than sorry!

E43486-340B

TH-D51

DVD DIGITAL CINEMA SYSTEM

0807RYMMDWJMM

JVC SP-THD51F, SP-THD51C, XV-THD51, SP-THD51W User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Before using this System

Playable discs/devices/files

Playable disc types

Playable digital devices

Playable file types

Getting started

Checking the supplied accessories

Putting batteries into the remote control

Speaker layout and connection

Attaching the stands to the front speakers

Connecting the AM (MW) and FM antennas

Connecting a TV

Connecting external components

Connecting the AC power cord

Basic and common operations

Sound and monitor settings

Sound settings and adjustments

Monitor settings

Audio/video settings for external components

iPod playback

Disc/file playback

Basic playback

Using the disc menu

Locating a desired scene or song

Changing the playback mode

Advanced operations

Special playback for DVD Audio

Operation from the TV screen

Personal settings

Tuner operations

Presetting stations

Tuning in to a station

Selecting the FM reception mode

Receiving FM stations with Radio Data System

Operating external components

Setting the manufacturer’s code

Operating external components

References

Manufacturer’s code list

Messages and icons shown on the TV

Available surround modes

Language code list

Troubleshooting

Specifications
