JVC RMSTHM303J, RMSTHM303R User Manual
DVD DIGITAL THEATER SYSTEM
TH-M606/TH-M603
Consists of XV-THM606, SP-PWM606, SP-THM606F,
SP-THM606C and SP-THM606S/
Consists of XV-THM603, SP-PWM603, SP-THM606F,
SP-THM606C and SP-THM606S
TH-M505/TH-M501
Consists of XV-THM505, SP-PWM505, SP-THM505F,
SP-THM505C and SP-THM505S/
Consists of XV-THM501, SP-PWM501, SP-THM303F,
SP-THM303C and SP-THM303S
English
The figure is for the TH-M606.
TH-M303/TH-M301
Consists of XV-THM303, SP-PWM303, SP-THM303F,
SP-THM303C and SP-THM303S/
Consists of XV-THM301, SP-PWM301, SP-THM303F,
SP-THM303C and SP-THM303S
INSTRUCTIONS
The figure is for the TH-M505.
For Customer Use:
Enter below the Model No. and Serial
No. which are located either on the rear,
bottom or side of the cabinet. Retain this
information for future reference.
Model No.
Serial No.
LVT1147-001C
[J,C]
Warnings, Cautions and Others
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
CAUTION: Do not open the top cover. There are no user
2.
serviceable parts inside the unit; leave all servicing to qualified
service personnel.
CAUTION: Visible and invisible laser radiation when open and
3.
interlock failed or defeated. Avoid direct exposure to beam.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED
INSIDE THE UNIT.
CAUTION
To reduce the risk of electrical shocks, fire, etc.:
1. Do not remove screws, covers or cabinet.
2. Do not expose this appliance to rain or moisture.
CAUTION — F button!
(XV-THM606/ XV-THM603/ XV-THM505/
XV-THM501/ XV-THM303/ XV-THM301)
Disconnect the mains plug to shut the power off completely
(the STANDBY lamp goes off).
The F button in any position does not disconnect the mains
line.
• When the system is on standby, the STANDBY lamp lights
red.
• When the system is turned on, the STANDBY lamp goes off.
The power can be remote controlled.
CAUTION
(SP-PWM606/ SP-PWM603/ SP-PWM505/
SP-PWM501/ SP-PWM303/ SP-PWM301)
The power supply to the subwoofer is linked to the center unit.
The POWER ON lamp on the subwoofer lights green when the
power is turned on.
G-1
Warnings, Cautions and Others
For Canada
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
For Canada
THIS DIGITAL APPARATUS DOES NOT EXCEED THE
CLASS B LIMITS FOR RADIO NOISE EMISSIONS FROM
DIGITAL APPARATUS AS SET OUT IN THE
INTERFERENCE-CAUSING EQUIPMENT STANDARD
ENTITLED “DIGITAL APPARATUS,” ICES-003 OF THE
DEPARTMENT OF COMMUNICATIONS.
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s
attention to Section 820-40 of the NEC which provides
guidelines for proper grounding and, in particular, specifies
that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as
practical.
CAUTION!
To avoid personal injury or
accidentally dropping the
TH-M606: 48.8 kg/108 lbs
TH-M603: 42.1 kg/93 lbs
TH-M505: 32.0 kg/71 lbs
TH-M501: 31.7 kg/70 lbs
TH-M303: 26.2 kg/58 lbs
TH-M301: 26.2 kg/58 lbs
unit, have two persons
unpack, carry, and install
the unit.
G-2
Table of contents
Introduction .....................................2
Notes on handling .................................................................2
Supplied accessories ............................................................2
About discs ..................................... 3
Playable disc types ...............................................................3
Description of parts and controls ... 5
Connections ....................................8
Connecting the FM and AM antennas ....................................8
Assembling the front and surround speakers .......................9
Connecting the satellite (front, center, surround) speakers 10
Speaker layout ....................................................................14
Connecting a TV ..................................................................14
Connecting the powered subwoofer ....................................15
Connecting to an analog component ...................................15
Connecting to a digital component .....................................15
Connecting the power cord .................................................15
Operating external components with
the remote control ........................16

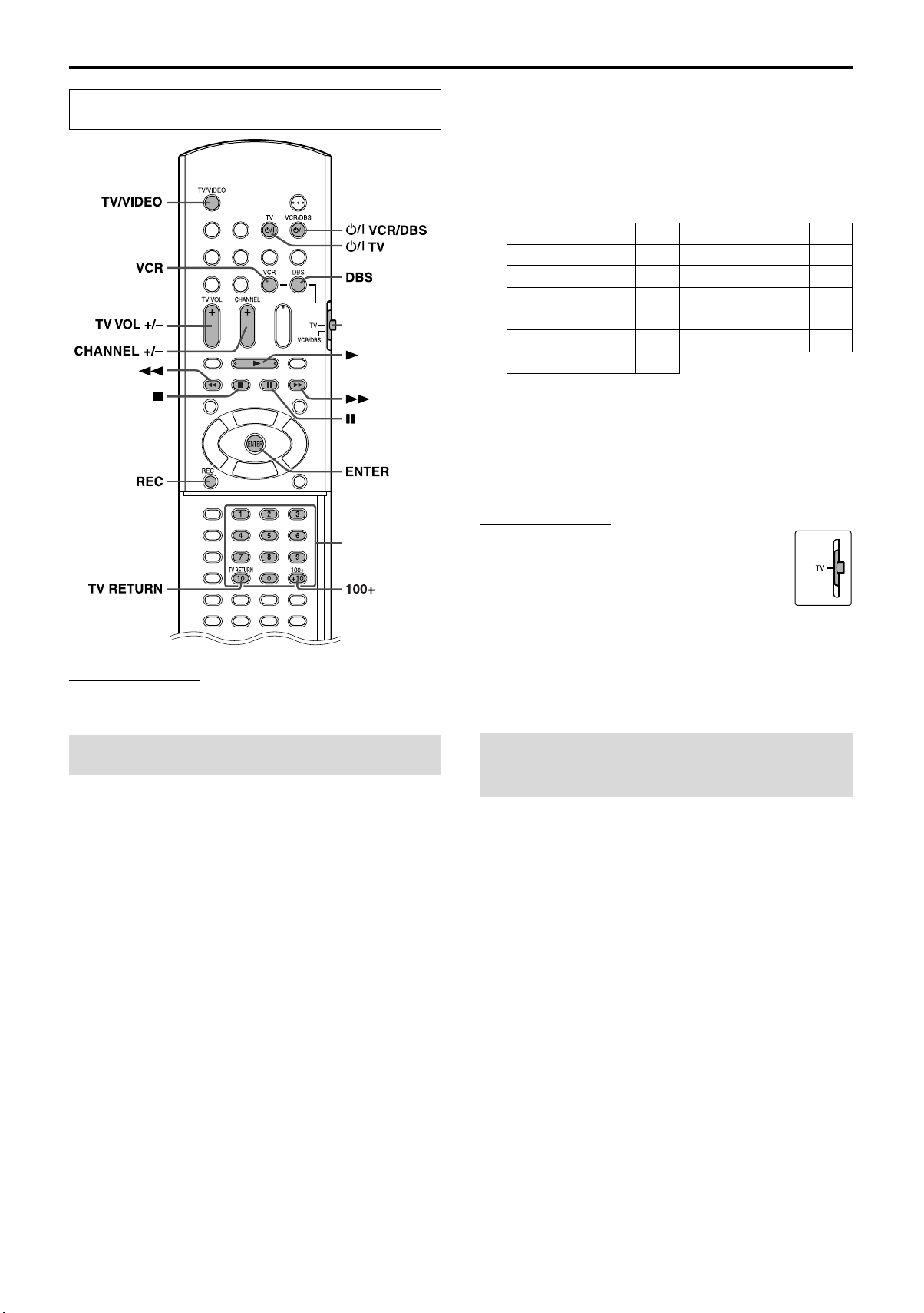

Operating the TV .................................................................16
Operating the DBS tuner or CATV converter .......................16
Operating the VCR ..............................................................17
Basic operations ...........................18
Turning the system on/off ...................................................18
Selecting the source to play ................................................19
Adjusting the volume [VOLUME] ........................................19
Listening with headphones (not supplied) ..........................19
Turning off the sound temporarily [MUTING] .....................19
Adjusting the brightness of the indications [DIMMER] .......19
Sleep Timer [SLEEP] ...........................................................20
Adjusting the output level of the subwoofer and center/
surround speakers [SUBWFR, CENTER, SURR L/R] ...........20
Adjusting the treble sound [TREBLE] ..................................20
Changing the scan mode ....................................................20

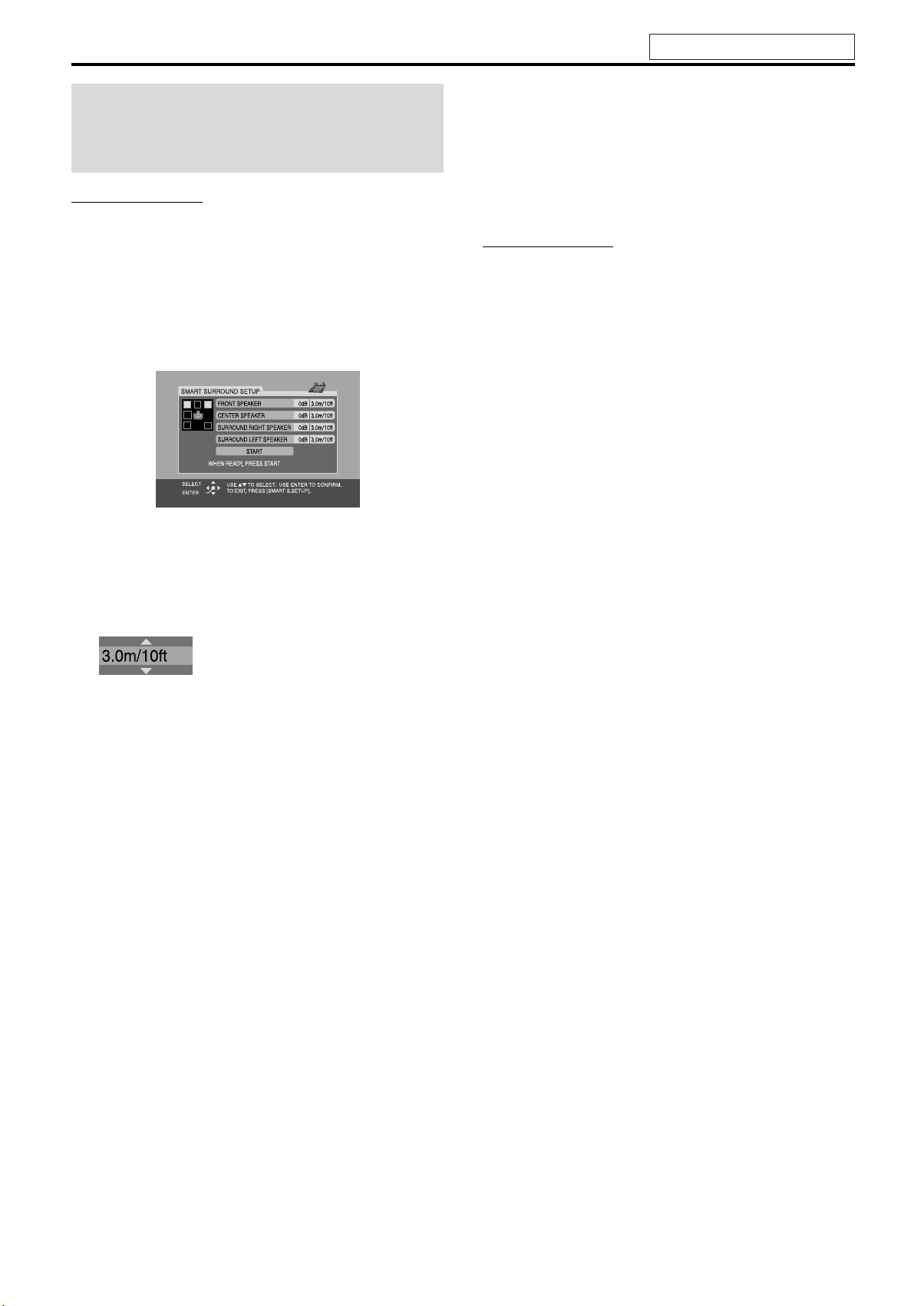

Optimizing the speaker settings [Smart Surround Setup] ...21
Playback ........................................ 22

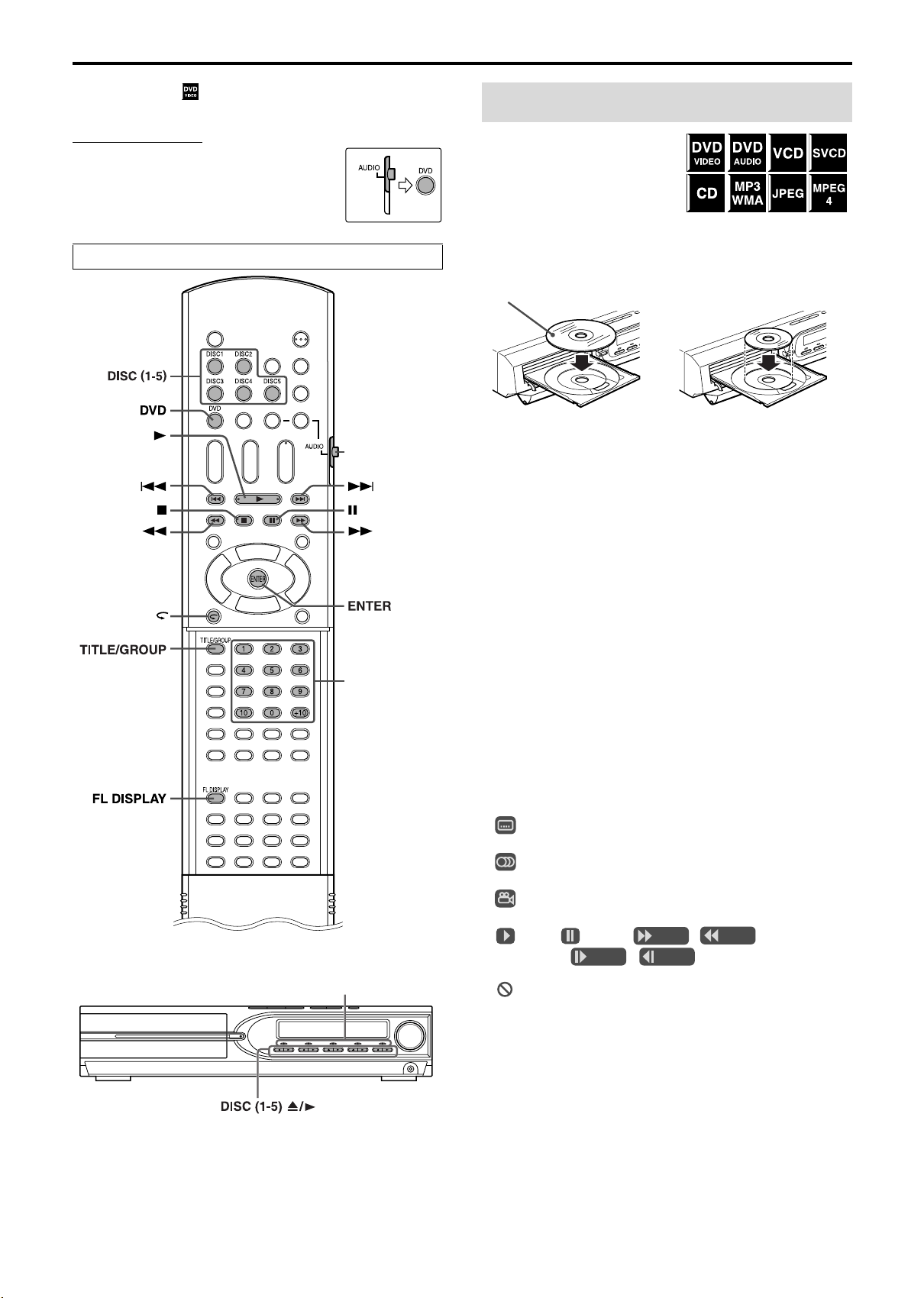

Basic playback ....................................................................22
One Touch Replay ...............................................................24
Fast-forward/fast-reverse search ........................................24
Skip to the beginning of a desired selection .......................24
Locating a desired title/group using number buttons .........25
Playing back a bonus group ................................................25
Advanced operations .................... 26
Using the surround mode ...................................................26

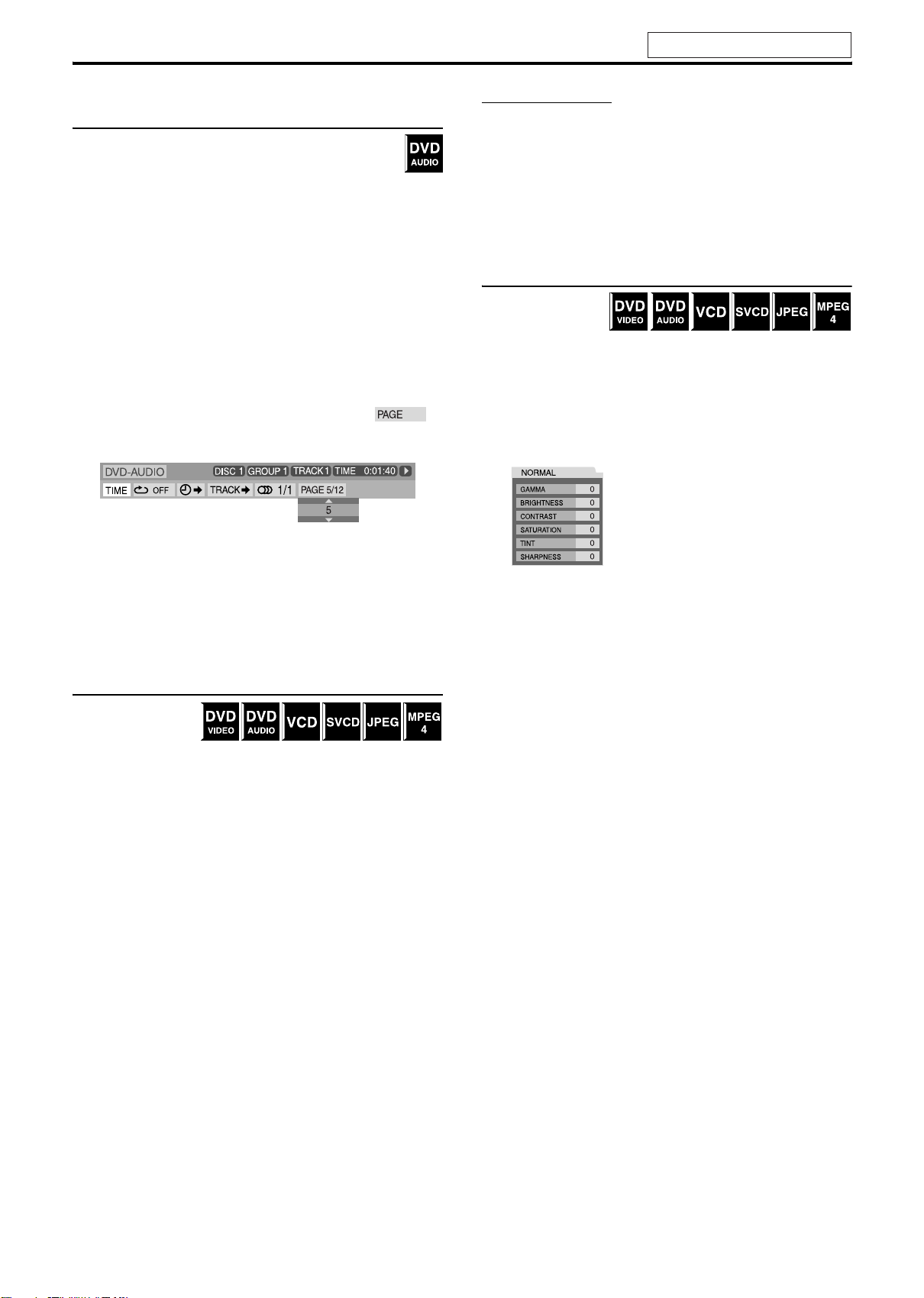

Using the on-screen bar .....................................................27
Playing from a specified position on a disc .........................29
Using the file control display ..............................................30
Resume Playback ...............................................................31
Selecting a view angle .........................................................31
Selecting the subtitle ..........................................................31
Selecting the audio .............................................................32
Special picture playback .....................................................32

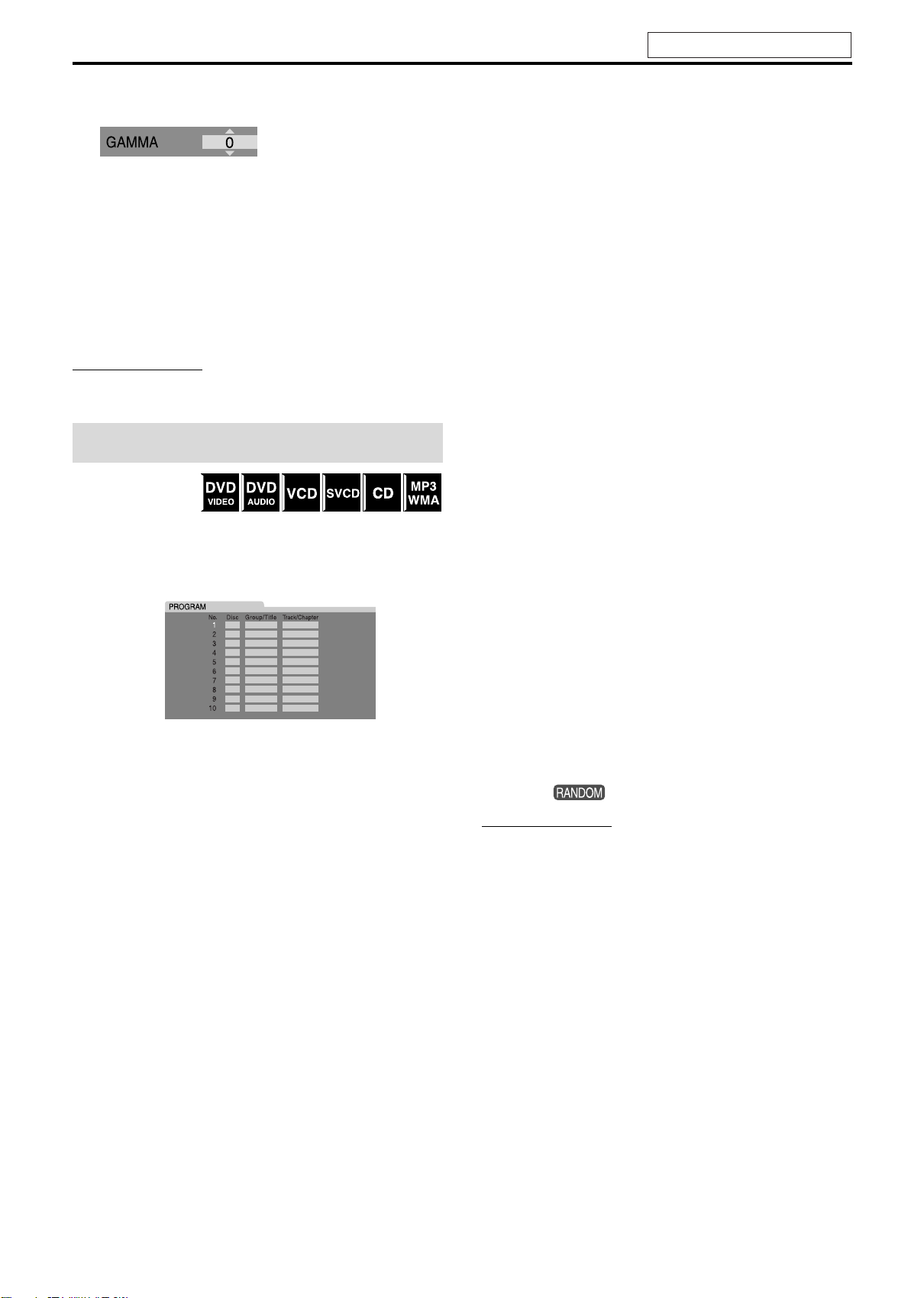

Program Playback ...............................................................34
Random Playback ...............................................................35

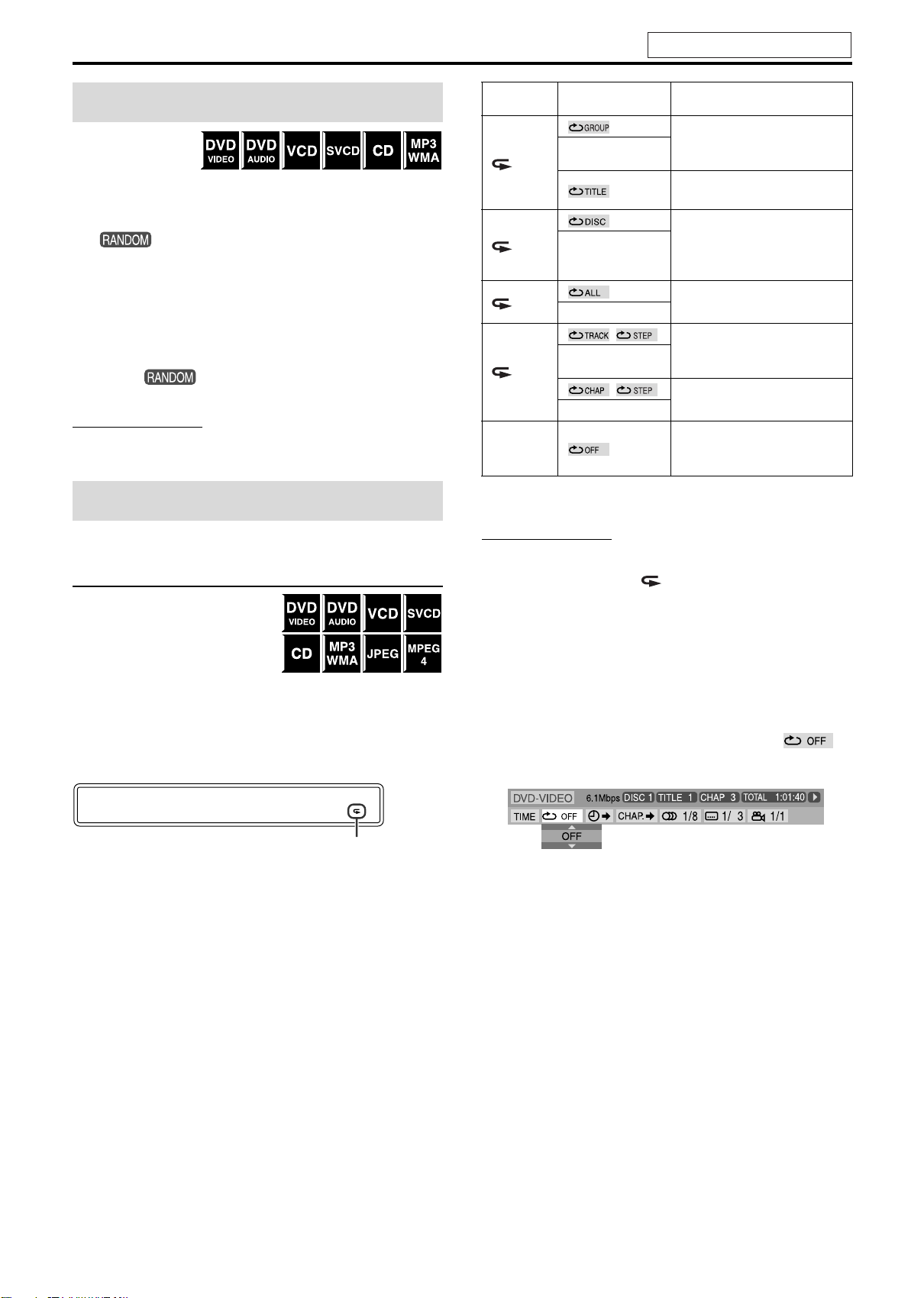

Repeat Playback .................................................................35
Tray lock .............................................................................36
Sound and other settings ....................................................37
Setting DVD preferences .............. 38
Using the setup menus .......................................................38
Menu description ................................................................38
Tuner operations ........................... 42
Manual tuning .....................................................................42
Preset tuning ......................................................................43
Selecting the FM reception mode ........................................43
Reducing the noise of AM broadcast ..................................43
AV COMPU LINK remote control
system ........................................... 44
References .................................... 45
Maintenance .......................................................................45
Troubleshooting ..................................................................45
Specifications .....................................................................46
1
Introduction
Notes on handling
7 Important cautions
Installation of the system
• Select a place which is level, dry and neither too hot nor too cold;
between 5°C and 35°C (41°F and 95°F).
• Leave sufficient distance between the system and the TV.
• Do not use the system in a place subject to vibration.
Power cord
• Do not handle the power cord with wet hands!
• A small amount of power is always consumed while the power
cord is connected to the wall outlet (center unit only).
• When unplugging the power cord from the wall outlet, always
pull on the plug, not the power cord.
To prevent malfunctions of the system
• There are no user-serviceable parts inside. If anything goes
wrong, unplug the power cord and consult your dealer.
• Do not insert any metallic object into the system.
• Do not use any non-standard shape disc (like a heart, flower or
credit card, etc.) available on the market, because it may damage
the system.
• Do not use a disc with tape, stickers, or paste on it, because it
may damage the system.
7 Safety precautions
Avoid moisture, water and dust
Do not place the system in moist or dusty places.
Avoid high temperatures
Do not expose the system to direct sunlight and do not place it near
a heating device.
When you are away
When away on travel or for other reasons for an extended period of
time, disconnect the power cord plug from the wall outlet.
Do not block the vents
Blocking the vents may damage the system.
Care of the cabinet
When cleaning the system, use a soft cloth and follow the relevant
instructions on the use of chemically-coated cloths. Do not use
benzene, thinner or other organic solvents including disinfectants.
These may cause deformation or discoloring.
If water gets inside the system
Turn the system off and disconnect the power cord plug from the
wall outlet, then call the store where you made your purchase.
Using the system in this condition may cause fire or electrical
shock.
Label sticker
Sticker
Paste
Note about copyright laws
Check the copyright laws in your country before recording from the
discs. Recording of copyrighted material may infringe copyright
laws.
Note about copyguard system
The discs are protected by copyguard system. When you connect
the system to your VCR directly, the copyguard system activates
and the picture may not be played back correctly.
Supplied accessories
Check to be sure you have all of the supplied accessories.
The number in parentheses is the quantity of the pieces supplied.
If anything is missing, contact your dealer immediately.
• Remote control (1)
• Batteries (2)
• FM antenna (1)
• AM loop antenna (1)
• Power cord (1)
• System cord (1)
• Composite video cord (1)
• Speaker cords (TH-M606/TH-M603/TH-M505 only)
For satellite (front left/right) and center speakers (3)
For satellite speakers (surround left/right) (2)
• Screws (TH-M606/TH-M603 only)
M5 x 25 mm (1 inch):
For satellite speakers (8)
2
About discs
Playable disc types
This system has been designed to play back the following discs:
DVD VIDEO, DVD AUDIO, Video CD (VCD), Super Video CD
(SVCD), Audio CD (CD), CD-R and CD-RW.
• This system accommodates the NTSC system, and also can play
discs recorded with PAL system. Note that the PAL video signal
on a disc is converted to an NTSC signal and output.
• This system can also play MP3, WMA, JPEG and MPEG4 files
recorded on CD-Rs and CD-RWs. (A pg. 22)
• This system can also play finalized DVD-R/-RWs recorded in
DVD VIDEO format. However, some discs may not be played
because of their disc characteristics or recording conditions.
Discs you can play:
DVD VIDEO CD
DVD AUDIO CD-R
VCD CD-RW
SVCD
DVD Logo is a trademark of DVD Format/Logo Licensing
Corporation.
Region code of DVD VIDEO
DVD VIDEO players and DVD VIDEO discs have their own
Region Code numbers. This system can play back DVD VIDEO
discs whose Region Code numbers include the system’s Region
Code, which is indicated on the rear panel.
Example of playable DVD:
• The following discs cannot be played back:
DVD-ROM, DVD-RAM, SACD, CD-ROM, CD-I (CD-I Ready),
Photo CD, etc.
Playing back these discs will generate noise and damage the
speakers.
• On some DVD VIDEOs, DVD AUDIOs, VCDs or SVCDs,
their actual operation may be different from what is
explained in this manual. This is due to the disc
programming and disc structure, not a malfunction of this
system.
Notes on CD-R and CD-RW
• User-edited CD-Rs (Recordable) and CD-RWs (Rewritable) can
be played back only if they are already “finalized”.
• This system can play CD-Rs or CD-RWs recorded on a personal
computer if they have been recorded in the audio CD format.
This system can also play CD-Rs or CD-RWs if MP3, WMA,
JPEG or MPEG4 files are recorded on them.
However, some discs may not be played back because of their
disc characteristics, recording conditions, or damage or stain on
them.
Especially, the configuration and characteristics of an MP3,
WMA, JPEG or MPEG4 disc are determined by the writing
(encoding) software and hardware used for recording. Therefore,
due to the software and hardware used, the following symptoms
may occur:
• Some discs may not be played back.
• Some tracks on an MP3 or WMA disc may be skipped or may
not be played back normally.
• Some files on a JPEG or MPEG4 disc may be played back
distortedly.
• Before playing back CD-Rs or CD-RWs, read their instructions
or cautions carefully.
• CD-RWs may require a longer readout time. This is caused by
the fact that the reflectance of CD-RWs is lower than that of
regular CDs.
2
ALL
If a DVD with an improper Region Code number is loaded,
“REGION CODE ERROR!” appears on the TV screen and
playback cannot start.
1
21
1
4
3
3
About discs
Notes on MP3/WMA/JPEG/MPEG4 discs
• MP3/WMA/JPEG/MPEG4 discs (either CD-R or CD-RW)
require a longer readout time. (It differs due to the complexity of
the directory/file configuration.)
• When making an MP3/WMA/JPEG/MPEG4 disc, select ISO
9660 Level 1 or Level 2 for the disc format.
• This system supports “multi-session” discs (up to 20 sessions).
• This system cannot play “packet write” discs.
• The system can only play MP3/WMA/JPEG/MPEG4 files with
the following file extensions;
MP3: “.MP3”, “.Mp3”, “.mP3” and “.mp3”
WMA: “.wma”, “.WMA” and any uppercase and lowercase
combination (such as “.Wma”)
JPEG: “.jpg”, “.jpeg”, “.JPG”, “.JPEG” and any uppercase and
lowercase combination (such as “.Jpg”)
MPEG4: “.asf”, “.ASF” and any uppercase and lowercase
combination (such as “.Asf”)
• If different type of files (audio (MP3/WMA), still picture
(JPEG), and video (MPEG4) files) are recorded on a disc, set the
FILE TYPE setting in the PICTURE menu to the appropriate
setting for the data to be read. (A pg. 39)
• The system recognizes up to 150 tracks (files) per group, 99
groups per disc, and the total number of the tracks (files) that the
system can play is 1000. For example, if you set FILE TYPE to
AUDIO (A pg. 39) and play a disc that contains 500 MP3 tracks,
200 JPEG files, and 600 WMA tracks, the system can play 500
MP3 tracks and the first 500 of 600 WMA tracks.
• Some MP3/WMA/JPEG/MPEG4 discs may not be played back
normally because of their disc characteristics or recording
conditions.
Notes on MP3/WMA discs only
• The system supports MP3 files recorded with a bit rate of 32 –
320 kbps and a sampling frequency of 16 kHz, 22.05 kHz,
24 kHz*, 32 kHz, 44.1 kHz, or 48 kHz.
• If the tag information (album name, artist, and track title, etc.) is
recorded on a disc, it appears in the file control display on the TV
screen. (A pg. 30)
• We recommend to record each piece of material (song) at a
sample rate of 44.1 kHz and at a data transfer rate of
128 (96*) kbps.
• Some tracks may be skipped or may not be played back
normally.
* For WMA only
Notes on JPEG discs only
• We recommend to record a file at 640 x 480 resolution. (If a file
has been recorded at a resolution of more than 640 x 480, it will
take a longer time to be displayed.)
• This system can only play baseline JPEG files.
• Some files on a JPEG disc may be played back distortedly.
Notes on MPEG4 disc only
• The system supports the types of simple profile as MPEG4 files
(MPEG4 SP).
• The system supports MPEG4 files recorded with the maximum
bit rate of 384 kbps and an audio codec of G.726. (To play the
MPEG4 file, it is required that G.726 formatted audio data is
contained in that file.)
• The maximum size of the played picture is at a 352 x 288 pixel
resolution (CIF).
• Some files may be skipped or may not be played normally.
This product incorporates copyright protection technology
that is protected by method claims of certain U.S. patents
and other intellectual property rights owned by Macrovision
Corporation and other rights owners. Use of this copyright
protection technology must be authorized by Macrovision
Corporation, and is intended for home and other limited
viewing uses only unless otherwise authorized by
Macrovision Corporation. Reverse engineering or
disassembly is prohibited.
“CONSUMERS SHOULD NOTE THAT NOT ALL HIGH
DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE
WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE
DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625
PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS
RECOMMENDED THAT THE USER SWITCH THE
CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT.
IF THERE ARE QUESTIONS REGARDING OUR TV SET
COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD
PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE
CENTER.”
USE OF THIS PRODUCT IN ANY MANNER THAT COMPLIES
WITH THE MPEG-4 VISUAL STANDARD IS PROHIBITED,
EXCEPT FOR USE BY A CONSUMER ENGAGING IN
PERSONAL AND NON-COMMERCIAL ACTIVITIES.
4
Description of parts and controls
The illustrations of the center unit and the subwoofer used in this manual are of TH-M606 unless otherwise noted.
Front panel (center unit)
Display window
pg. 24 pg. 26 pg. 43 pg. 23 pg. 27
pg. 33 pg. 42
pg. 20
Disc tray (inside): pg. 22
pg. 23
Rear panel (center unit)
pg. 23 pg. 23
pg. 23 pg. 23
pg. 22 pg. 22 pg. 22 pg. 24, 42 pg. 19
pg. 18
pg. 25
pg. 18
pg. 43 pg. 35
pg. 42
Remote sensor:
pg. 7
pg. 19
pg. 22 pg. 24
pg. 19
pg. 15 pg. 15 pg. 15
pg. 14 pg. 14 pg. 44 pg. 15
pg. 15
pg. 8
5
Description of parts and controls
Powered subwoofer
SP-PWM606/SP-PWM505/SP-PWM501
Front
POWER ON
lamp:
pg. 18
pg. 15
pg. 10, 12
Power cord:
pg. 15
Rear
SP-PWM603/SP-PWM303/SP-PWM301
Front
* Do not block the ventilation openings.
POWER ON
pg. 18
lamp:
pg. 15
pg. 11, 13
Power cord: pg. 15
Rear
NOTE
• For safety reasons, always ensure that there is sufficient space behind
the powered subwoofer.
6
Description of parts and controls
Remote control Putting batteries in the remote control
pg. 16
pg. 16
pg. 22
pg. 19
pg. 16
pg. 16
pg. 22,
43
pg. 29
pg. 20,
38
pg. 17,
24
pg. 25
pg. 32
pg. 31
pg. 31
pg. 33
pg. 35
pg. 38
pg. 37
pg. 19
pg. 23
pg. 26
pg. 21
pg. 18
pg. 16, 17
pg. 19
pg. 19
pg. 16 – 43
pg. 22
pg. 24, 42
pg. 22, 43
pg. 24
pg. 29
pg. 27
Number
buttons:
pg. 25
pg. 34
pg. 34, 35
pg. 20, 33
pg. 33
pg. 20
pg. 20
pg. 29
R6P (SUM-3)/AA (15F)
type dry-cell batteries
(supplied)
If the range or effectiveness of the remote control decreases,
replace both batteries.
CAUTION
• Do not expose batteries to heat or flame.
Operating the system from the remote
control
Aim the remote control directly to the front panel of the center unit.
• Do not hide the remote sensor.
pg. 20
7
pg. 20
pg. 20
NOTE
• To use the buttons
under the cover, slide
down the cover.
Connections
Connecting the FM and AM antennas
7 AM loop antenna
Setting up supplied AM loop antenna
Do not connect the power cord until all other connections have been made.
If reception is poor
Center unit
AM loop antenna
Outdoor single vinyl-covered wire antenna
(not supplied)
If the antenna cord is covered with the insulation
coat, twist and pull the insulation coat off and
remove.
Connecting AM loop antenna
1
Center unit
2
3
Antenna cord
7 FM antenna
Center unit
If reception is poor
Center unit
Standard type (75 C
coaxial) connector
NOTE
• We recommend that you use coaxial cable for the FM antenna as it is
well-shielded against interference.
FM antenna (supplied)
Extend the supplied FM antenna
horizontally.
Outdoor FM antenna
(not supplied)
Outdoor FM antenna cord
(not supplied)
• Turn the loop antenna until you have the best reception during
AM broadcast program reception.
NOTE
• Make sure the antenna conductors do not touch any other terminals,
connecting cords and power cords. This could cause poor reception.
8
Connections
Assembling the front and surround speakers
The following procedure explains the front speaker assembly. The
assembly of both the front and surround speakers are done in the
same manner.
This page is for
2
Black
Red
Copper
Silver
(×2)
NOTE
• The stands and the base plates are commonly used for both front and
surround speakers assembly.
Before assembling —
• Prepare a Phillips screwdriver (not supplied).
• Take care not to drop the base plate while assembling; otherwise,
it may cause damage to the floor or injury.
Surround speaker
(×2)
Stand (×4)Front speaker
Base plate (×4)
1
Stand
Base plate
Speaker cord
(supplied)
3
Speaker
Stand
Completion
Screw M5 x 25 mm (1 inch) (supplied)
Black
White
Screw M5 x 25 mm
(1 inch) (supplied)
Bottom
• You can route the speaker cords through one on the three
grooves on the base plate depending on the speaker layout.
• Depending on the installing condition, you can assemble the
front and surround speakers without the stands. In such a
case, attach the speaker directly to the base plate instead of
the stand.
9
with stand without stand
Connections
This page is for
Connecting the satellite (front, center, surround) speakers
Before connecting the speaker cords;
Twist and pull the insulation coat off and remove.
Powered subwoofer
SP-PWM606
Speaker cord (supplied)
• Connect the silver cords to the black (r) terminals.
• Connect the copper cords to the (q) terminals referring to the
table below:
FRONT SPEAKERS (RIGHT) Red
FRONT SPEAKERS (LEFT) White
CENTER SPEAKER Green
SURROUND SPEAKERS (RIGHT) Gray
SURROUND SPEAKERS (LEFT) Blue
Front speakers
SP-THM606F
4 m (13 feet) 10 m (33 feet)
4m (13feet)
Center speaker
SP-THM606C
CAUTION
• When you connect speakers other than the supplied ones, use
speakers with the same speaker impedance (SPEAKER
IMPEDANCE) indicated near the speaker terminals on the rear of
the powered subwoofer.
• DO NOT connect more than one speaker to one speaker terminal.
Copper
Surround speakers
SP-THM606S
Red
Black
Silver
Continued on next page
10
Connections
Before connecting the
speaker cords;
Twist and pull the insulation coat
off and remove.
Powered subwoofer
SP-PWM603
This page is for
Speaker cord (supplied)
• Connect the silver cords to the black (r) terminals.
• Connect the copper cords to the (q) terminals referring to the table below:
FRONT SPEAKERS (LEFT) White
FRONT SPEAKERS (RIGHT) Red
CENTER SPEAKER Green
SURROUND SPEAKERS (LEFT) Blue
SURROUND SPEAKERS (RIGHT) Gray
Center speaker
SP-THM606C
Front speakers
SP-THM606F
Red
Black
Silver
4m (13feet)
Copper
Surround speakers
SP-THM606S
4 m (13 feet) 10 m (33 feet)
CAUTION
• When you connect speakers other than the supplied ones, use
speakers with the same speaker impedance (SPEAKER
IMPEDANCE) indicated near the speaker terminals on the rear of
the powered subwoofer.
• DO NOT connect more than one speaker to one speaker terminal.
11
Connections
Note that the illustration below is for TH-M505.
Before connecting the speaker cords;
Twist and pull the insulation coat off and remove.
Powered subwoofer
TH-M505: SP-PWM505
(
TH-M501: SP-PWM501
Front speakers
TH-M505: SP-THM505F*
(
TH-M501: SP-THM303F*
1
2
)
)
This page is for
Speaker cord (supplied)
• Connect the silver cords to the black (r) terminals.
• Connect the copper cords to the (q) terminals referring to
the table below:
FRONT SPEAKERS (RIGHT) Red
FRONT SPEAKERS (LEFT) White
CENTER SPEAKER Green
SURROUND SPEAKERS (RIGHT) Gray
SURROUND SPEAKERS (LEFT) Blue
*1
For TH-M505
Silver
Black
4m (13feet)
Center speaker
(
4m (13feet)
TH-M505: SP-THM505C*1
TH-M501: SP-THM303C
*2
For TH-M501, the satellite speakers are equipped with their speaker
cords attached directly to their speaker unit instead of having speaker
terminals on their cabinet.
Copper
Red
*
2
)
Front/Center
speakers
Surround speakers
TH-M505: SP-THM505S*1
(
TH-M501: SP-THM303S
(Bottom)
10 m (33 feet)
Surround
speakers
2
)
*
Route the speaker cord
through the hole on the
bracket.
CAUTION
• When you connect speakers other than the supplied ones, use
speakers of the same speaker impedance (SPEAKER IMPEDANCE)
indicated near the speaker terminals on the rear of the powered
subwoofer.
• DO NOT connect more than one speaker to one speaker terminal.
• When installing the satellite speakers on the wall;
• Be sure to have them installed on the wall by a qualified personnel.
DO NOT install the satellite speakers on the wall by yourself to
avoid unexpected damage from their falling off the wall due to
incorrect installation or weakness in wall structure.
• Care must be taken in selecting a location for speaker installation
on a wall. Injury to personnel or damage to equipment may result
if the speakers installed interfere with daily activities.
Continued on next page
12
Connections
Before connecting the
speaker cords;
Twist and pull the
insulation coat off and
remove.
This page is for
Speaker cord (supplied)
• Connect the silver cords to the black (r) terminals.
• Connect the copper cords to the (q) terminals referring to the table below:
FRONT SPEAKERS (LEFT) White
FRONT SPEAKERS (RIGHT) Red
CENTER SPEAKER Green
SURROUND SPEAKERS (LEFT) Blue
SURROUND SPEAKERS (RIGHT) Gray
Front speakers
SP-THM303F
Powered subwoofer
TH-M303: SP-PWM303
(
TH-M301: SP-PWM301
CAUTION
• When you connect speakers other than the supplied ones, use
speakers of the same speaker impedance (SPEAKER IMPEDANCE)
indicated near the speaker terminals on the rear of the powered
subwoofer.
• DO NOT connect more than one speaker to one speaker terminal.
)
4m (13feet)
4 m (13 feet)
10 m (33 feet)
• When installing the satellite speakers on the wall;
Center speaker
SP-THM303C
Surround speakers
SP-THM303S
• Be sure to have them installed on the wall by a qualified personnel.
DO NOT install the satellite speakers on the wall by yourself to
avoid unexpected damage from their falling off the wall due to
incorrect installation or weakness in wall structure.
• Care must be taken in selecting a location for speaker installation
on a wall. Injury to personnel or damage to equipment may result
if the speakers installed interfere with daily activities.
13
Loading...
