JVC PD-42B50BU, PD-35B50BU, PD-42B50BJ, PD-35B50BJ User Manual

PD-42B50BU PD-35B50BU PD-42B50BJ PD-35B50BJ

ENGLISH

DEUTSCH

FRANÇAIS

NEDERLANDS

CASTELLANO

ITALIANO

PORTUGUÊS

PDP COLOUR TELEVISION

PDP FARBFERNSEHGERÄT PDP TELEVISEUR COULEUR PDP KLEURENTELEVISIE PDP TELEVISOR A COLOR PDP TELEVISORE A COLORI PDP TELEVISOR A CORES

INSTRUCTIONS

BEDIENUNGSANLEITUNG

MANUEL D’INSTRUCTIONS

GEBRUIKSAANWIJZING

MANUAL DE INSTRUCCIONES

ISTRUZIONI

INSTRUÇÕES



Warning

DO NOT cut off the mains plug from this equipment.

for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or adaptor or consult your dealer.

If nonetheless the mains plug is cut off, remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply.

If a new mains plug has to be fitted, then follow the instruction given below:

Important

Do not make any connection to the larger terminal which is marked with the letter E or

by the safety earth symbol or coloured green or green-and-yellow.

The wires in the mains lead on this product are coloured in accordance with the following code: Blue: Neutral Brown: Live



Guidelines for safe operation

This equipment has been designed and manufactured to comply with international safety standards. However, as with any electrical appliance, care must be taken to ensure optimal results and operational safety.

• Before attempting to use this equipment, read the operating instructions thoroughly.

• Ensure that all electrical connections (including the mains plug, extension leads, etc.) have been made in accordance with the manufacturer’s instructions.

• If ever in doubt about the installation, operation or safety of this equipment, consult your dealer.

• Handle all glass panels or covers with care.

• Never operate this equipment if it appears damaged or operates abnormally. Turn the power off, disconnect the main power plug and consult your dealer.

• Never remove any affixed panels or covers. Doing so may result in electrical shock.

• Never leave this equipment operating unattended unless otherwise specifically stated that it is designed to do so or in standby mode. Only use the designated power switch to turn off the power and ensure that all potential users are instructed how to do so. Make special arrangements for infirm or handicapped persons.

• Never watch TV while operating a motor vehicle. It is illegal to watch TV while driving.

• Never listen to headphones at high volume. Doing so may damage your hearing.

• Never obstruct the ventilation of this equipment. Doing so may cause overheating and result in a malfunction or damage.

• Never use makeshift stands or attempt to affix legs with wood screws. When using a manufacturer’s approved stand or legs, use only the fixtures provided and follow the installation instructions.

• Never allow this equipment to be exposed to rain or moisture.

• Never allow anyone, especially children, to insert anything into an opening in the case. Doing so may result in a fatal electrical shock.

• Never guess or take chances with electrical equipment of any kind. It is better to be safe than sorry.

If the plug fitted is not suitable

As these colours may not correspond with the coloured marking identifying the terminals in your plug proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

When replacing the fuse, use only a correctly rated approved type and always re-fit the fuse cover.

 If in doubt — consult a competent

electrician.

How to replace the fuse

Open the fuse compartment with a blade screwdriver, and replace the fuse.

Fuse

Thank you for buying this JVC colour television. To make sure you understand how to use your new TV, please read this manual thoroughly before you begin.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

WARNING

Always use the power cords which are supplied with the TV. Some power cords are supplied with this TV. Use the power cord which best suits the area in which you live, and insert it into a correctly earthed outlet. Failure to use the supplied power cord or to insert it into a correctly earthed outlet may result in electric shocks.

WARNING FOR TABLE TOP STAND:

To ensure safety in an emergency such as an earthquake, and to prevent accidents, ensure that measures are taken to prevent the TV dropping or falling over.

• Use the supplied screws to firmly attach the supplied hooks to the back of the TV, and use commercially available cord to fix the TV to rigid components such as walls and columns.

ENGLISH

Supplied hooks

CAUTION:

• Operate only from the power source specified (AC 110 – 240 V, 50 Hz) on the unit.

• Avoid damaging the AC plug and power cord.

• When you are not using this unit for a long period of time, it is recommended that you disconnect the power cord from the main outlet.

Distance recommendations

Avoid improper installation and never position the unit where good ventilation is impossible. When installing this TV, distance recommendations must be maintained between the set and the wall, as well as inside a tightly enclosed area or piece of furniture. Keep to the minimum distance guidelines shown for safe operation.

150 mm

200 mm

50 mm

150 mm

200 mm

50 mm

Burn-in

A characteristic of Plasma Display Panels (PDPs) is that displaying the same image for a long time causes a part of the image to stay on the screen (this is called phosphor burn-in).

Avoid burn-in as follows.



Use the PICTURE SHIFT function. To prevent burn-in, the picture displayed on the screen is shifted up, down and to the left and right at regular intervals. See page 45 for details.

• Even if the PICTURE SHIFT function is turned off, the picture may shift to the left or right when the channel or input is changed.

 The PICTURE MODE function is initially set to BRIGHT. Unless the TV is being

watched in an extremely bright room, we recommend you change the PICTURE MODE setting to either STANDARD or SOFT. Doing so will reduce the chance of burn-in and extend the life of the PDP. See “PICTURE MODE” on page 29.

 Do not display static images or characters for long periods of time.

While an image is displayed With power OFF

19:03

Burn-in example

19:03

• Reduce CONTRAST and BRIGHT on the PICTURE menu (page 29) when viewing.

 Do not view for long periods of time in the REGULAR mode (page 18).

Screen size is normally chosen to ensure that the picture is displayed on the entire screen. After viewing in the REGULAR mode in which black bands may occur at the left and right of the screen, it is recommended to change to the PANORAMIC mode to display the picture on the entire screen.

While an image is displayed With power OFF

Burn-in example

 Do not view for long periods of time using the MULTI-PICTURE function (page 20).

If Burn-in has occurred

If burn-in occurs, try the REFRESH function (page 37). If burn-in is minimal it may gradually become less noticeable.

Note: Once burn-in occurs it will never disappear completely.

Pixel defects

PDPs use collections of fine dots (“pixels”) to display images. While there is no problem with more than 99.99% of these pixels, please understand that a very small number of pixels may not light, or may light all the time.

Do not install the TV near electronic equipment that is susceptible to electromagnetic waves

It may cause interference in images, sound, etc. In particular, keep video equipment away from this product.

Effect on infrared devices

There may be interference while using infrared devices such as infrared cordless headphones.

Failure to take the following precautions may result in damage to the TV or remote control.

DO NOT block the TV’s ventilation openings or holes.

(If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

DO NOT place anything on top of the TV.

(such as cosmetics or medicines, flower vases, potted plants, cups, etc.)

DO NOT allow objects or liquid into the cabinet openings.

(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

DO NOT place any naked flame sources, such as lighted candles, on the TV.

The surface of the TV screen is easily damaged. Be very careful with it when handling the TV. Should the TV screen become soiled, wipe it with a soft dry cloth. Never rub it hard. Never use any cleaner or detergent on it.

ENGLISH

In the event of a fault, unplug the unit and call a service technician. Do not attempt to repair it yourself or remove the rear cover.

PICTURE MANAGEMENT demonstration

To start the PICTURE MANAGEMENT demonstration: Press the H button to display the menu bar. Then press the yellow button. A picture split in two (PICTURE MANAGEMENT turned on and PICTURE MANAGEMENT turned off) will appear on the screen.

To quit the PICTURE MANAGEMENT demonstration: Press the yellow button, b button, p p buttons or any of the number buttons.

CONTENTS

Checking the contents of packages .......5

Setting up your TV ...................................6

Installation.................................................. 6

Connecting the aerial and video cassette

recorder (VCR) ....................................... 7

Connecting the power cord to the AC

outlet....................................................... 8

Putting the batteries into the remote

control..................................................... 8

Initial settings ............................................. 9

T-V LINK functions................................... 12

TV buttons and functions......................14

Turn the TV on from standby mode ......... 14

Choose a TV channel .............................. 14

Adjust the volume .................................... 14

Using the Menu........................................ 14

Remote control buttons and

functions..............................................15

Turn the TV on or off from standby mode Choose a TV channel and watch images

from external devices ........................... 16

Adjust the volume .................................... 17

Information function ................................. 17

ZOOM function......................................... 18

3D SOUND function ................................. 19

Return to TV channel instantly................. 19

Using the FREEZE function ..................... 19

Using the MULTI-PICTURE function ....... 20

Favourite channel function....................... 22

Operating a JVC brand VCR or DVD

player.................................................... 23

... 15

Teletext function ....................................24

Basic operation ........................................ 24

Using the List Mode ................................. 24

Hold.......................................................... 25

Sub-page ................................................. 25

Reveal...................................................... 25

Size .......................................................... 25

Index ........................................................ 26

Cancel...................................................... 26

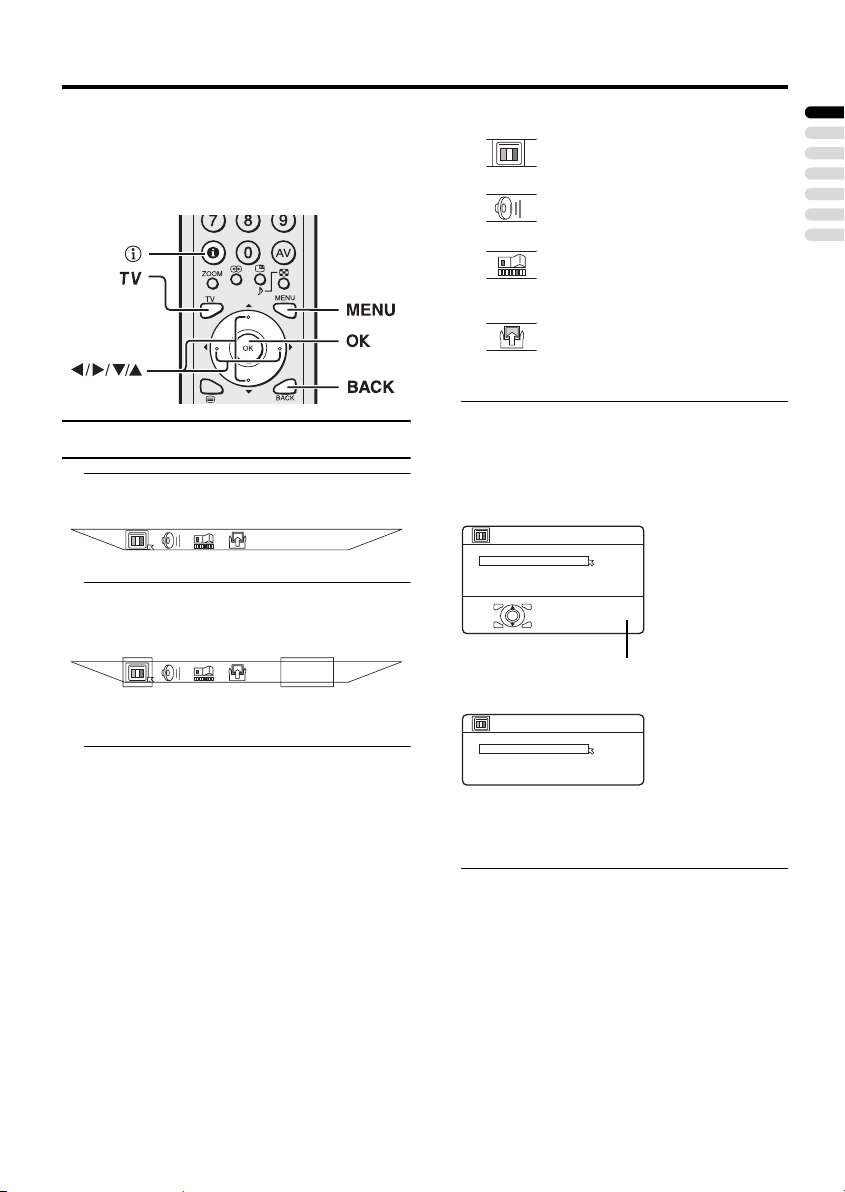

Using the TV’s menu..............................27

Basic operation ........................................ 27

PICTURE menu ......................................29

PICTURE MODE...................................... 29

CONTRAST ............................................. 29

BRIGHT.................................................... 29

SHARP..................................................... 29

COLOUR.................................................. 29

HUE.......................................................... 29

COLOUR TEMP....................................... 29

FEATURES .............................................. 30

SOUND menu ......................................... 33

STEREO / I • II ......................................... 33

BASS........................................................ 33

TREBLE ................................................... 33

BALANCE ................................................ 33

3D SOUND............................................... 33

A.H.B. (Active Hyper Bass) ...................... 33

BBE .......................................................... 34

SPEAKER ................................................ 34

FEATURES menu................................... 35

SLEEP TIMER ......................................... 35

CHILD LOCK............................................ 35

APPEARANCE......................................... 36

BLUE BACK ............................................. 36

REFRESH ................................................ 37

FAVOURITE SETTING ............................ 37

SET UP menu ......................................... 38

AUTO PROGRAM.................................... 38

EDIT/MANUAL ......................................... 38

LANGUAGE ............................................. 42

DECODER (EXT-2).................................. 42

EXT SETTING.......................................... 43

PICTURE SHIFT ...................................... 45

Displaying a computer screen.............. 46

Connecting to the computer ..................... 46

Looking at images from a computer......... 46

Table of signals for each type of

computer............................................... 46

Additional preparation ..........................48

Connecting external equipment ...............48

CH/CC numbers ..................................... 51

Troubleshooting ....................................53

Specifications ........................................55

Checking the contents of packages

Check that all components are present. Contact your retailer immediately if any components are missing.

Model PD-42B50BU/PD-35B50BU PD-42B50BJ/PD-35B50BJ

TV and Table top stand 0 1

TV and Wall mounting unit 1 0

Remote control unit 1 (RM-C1811H)

AA/R6 batteries 2 (used to check operation)

Ferrite core 1 (attach to power cord)

Hooks 2 (to prevent the TV from falling)

Mounting screws 2 (to fix the hooks)

Power cords 3 types (Use the power cord which best suits your area.)

ENGLISH

Setting up your TV

 Be sure to have someone help you when you lift up the TV. The TV is too

heavy to lift up by yourself. If the TV falls, it will cause injuries and damage.

Installation

 Only use JVC approved accessories with your model.

Warning for wall mounting unit:

• Use only authorized service personnel to install your TV in order to prevent accidents. Do not try to install your TV by yourself.

• We sell this product on the understanding that it will be assembled and installed by qualified service personnel.

• Please read the instruction manual for the wall mounting unit before starting installation in order to prevent accidents.

• We are not liable for any damage caused by faulty assembly, faulty wall mounting, insecure wall mounting, misuse, alterations, or natural disasters.

Cautions for installation

• Do not tilt the TV towards the left or right, or towards the back.

• Install the TV in a corner on a wall or on the floor so as to keep cords out of the way.

• The TV will generate a slight amount of heat during operation. Ensure that sufficient space is available around the TV to allow satisfactory cooling. See “Distance recommendations” on page 1.

Setting up your TV

Caution

• Turn off all the equipment including the TV before connecting anything.

Connecting the aerial and video cassette recorder (VCR)

• The connecting cables are not provided.

• For further details, refer to the manuals provided with the devices to be connected.

 If you are connecting a VCR,

follow A → B → C in the diagram opposite.

 If you are not connecting a VCR,

follow 1.

To use the T-V LINK functions, you must have a T-V LINK compatible VCR connected by a SCART cable C to the EXT2 terminal on the TV. For details about T-V LINK functions, see “T-V LINK functions” on page 12.

• You can watch a video using the VCR without doing C. For details, see your VCR instruction manual.

• To connect more equipment, please see “Connecting external equipment” on page 48.

• To connect additional audio equipment, see “Connecting speakers/amplifier” on page 49.

• If you connect a decoder to a T-V LINK compatible VCR, set the DECODER (EXT-2) function to ON. For details, see “DECODER (EXT-2)” on page 42. Otherwise, you will not be able to watch scrambled channels.

Aerial

75-ohm Coaxial

VCR

Cable

AV IN/OUT

Terminal

Back of the TV

21-pin SCART

To Aerial

Input

To Aerial

Output

ENGLISH

Cable

Setting up your TV

 Rear Panel

1 Aerial socket (page 7) 2 EXT-1 terminal (pages 7, 43, 48) 3 EXT-2 terminal (pages 7, 12, 43, 48) 4 EXT-3 terminal (pages 43, 48) 5 EXT-4 terminal (pages 43, 48) 6 AUDIO OUT terminal (page 49) 7 CENTRE CH input terminal (page 50) 8 Subwoofer out terminal (page 49) 9 AC INLET (page 8)

Connecting the power cord to the AC outlet

Attaching the ferrite cores

Using the power cord without ferrite core may lead to noise (interference). Attach the ferrite core to the AC plug end of the power cord for the TV.

Ferrite core

Power cord

Supplied ferrite core

Insert the AC plug on the power cord from the TV into AC outlet.

Caution

• Operate only from the power source specified (AC 110 – 240 V, 50 Hz) on the unit.

• Failure to use the supplied power cord or to insert it into a correctly earthed outlet may result in electric shocks.

Back of the TV

AC INLET

Use the supplied power cord which best suits the area in which you live.

Insert the AC plug into a correctly earthed outlet.

Putting the batteries into the remote control

Use two AA/R6 dry cell batteries. Insert the batteries from the - end, making sure the + and - polarities are correct.

• Follow the warnings printed on the batteries.

• Battery life is about six months to one year, depending on how much you use the remote control.

• The batteries we supply are only for setting up and testing your TV, please replace them as soon as you need to.

• If the remote control does not work properly, replace the batteries.

Power cord

Setting up your TV

MENU/OK

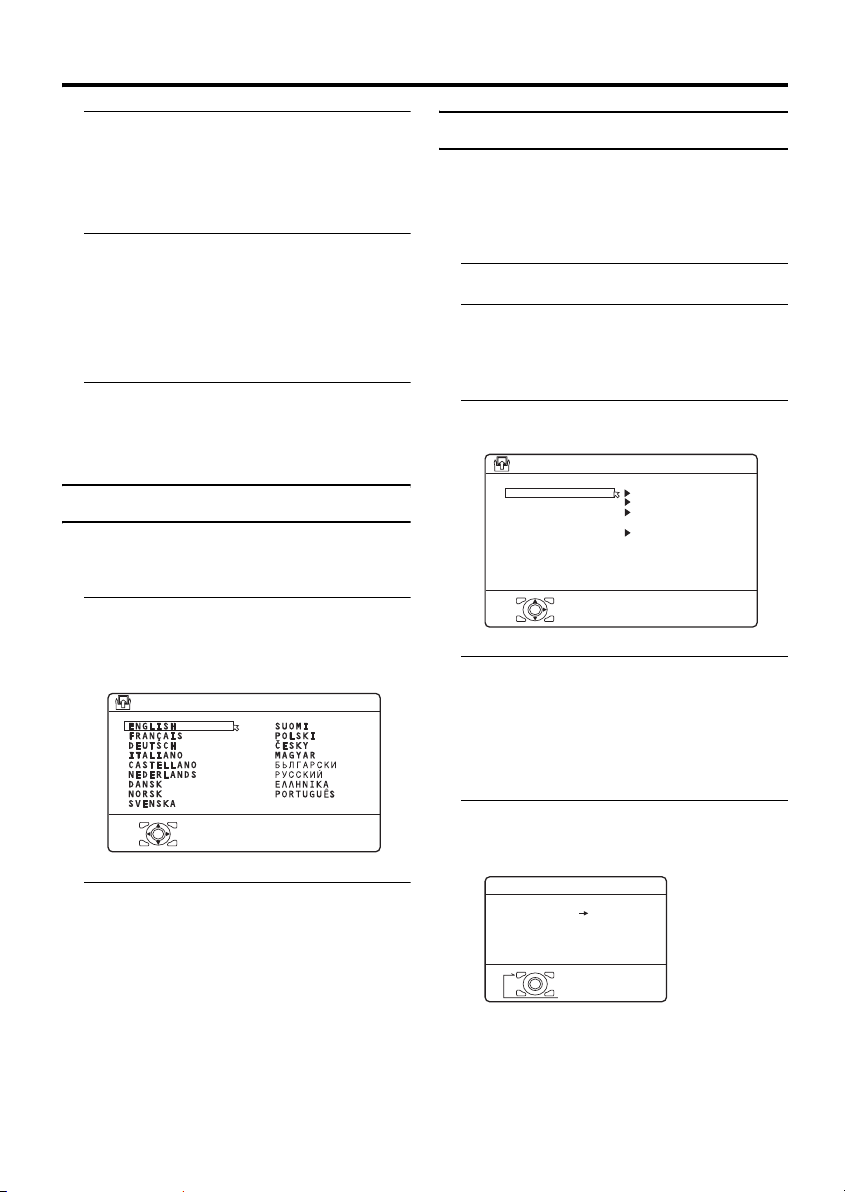

Initial settings

When the TV is first turned on, it goes into the initial settings mode, and you will see the JVC logo. Follow the instructions on the screen display to make the initial settings.

Yellow button

Blue button

7 button

1 Press the A button on the TV

The power lamp lights blue and the JVC logo appears.

2 Press the a button

The LANGUAGE menu appears.

> LANGUAGE

D0002(E)-EN

3 Press the 6 buttons to choose

ENGLISH. Then press the a button

The on-screen display will then be in English. The COUNTRY menu appears as a submenu of the AUTO PROGRAM function. There are two COUNTRY menus. Pressing the yellow button changes the COUNTRY menu as follows:

> COUNTRY

START

ENGLISH

A button Power lamp

PC IN(D-SUB)

• If the JVC logo does not appear this is because your TV has already been turned on for the first time: use the “LANGUAGE” and “AUTO PROGRAM” functions to make the initial settings. For details, see “SET UP menu” on page 38.

P MENU/OK TV/AV

> COUNTRY

EXT-5

D0003-EN

START

4 Press the 5 and 6 buttons to

choose the country where you are

• For users in the UK To receive SKY 1 you need a satellite tuner. You must have the satellite tuner set to SKY 1 before starting the AUTO PROGRAM function which follows.

Setting up your TV

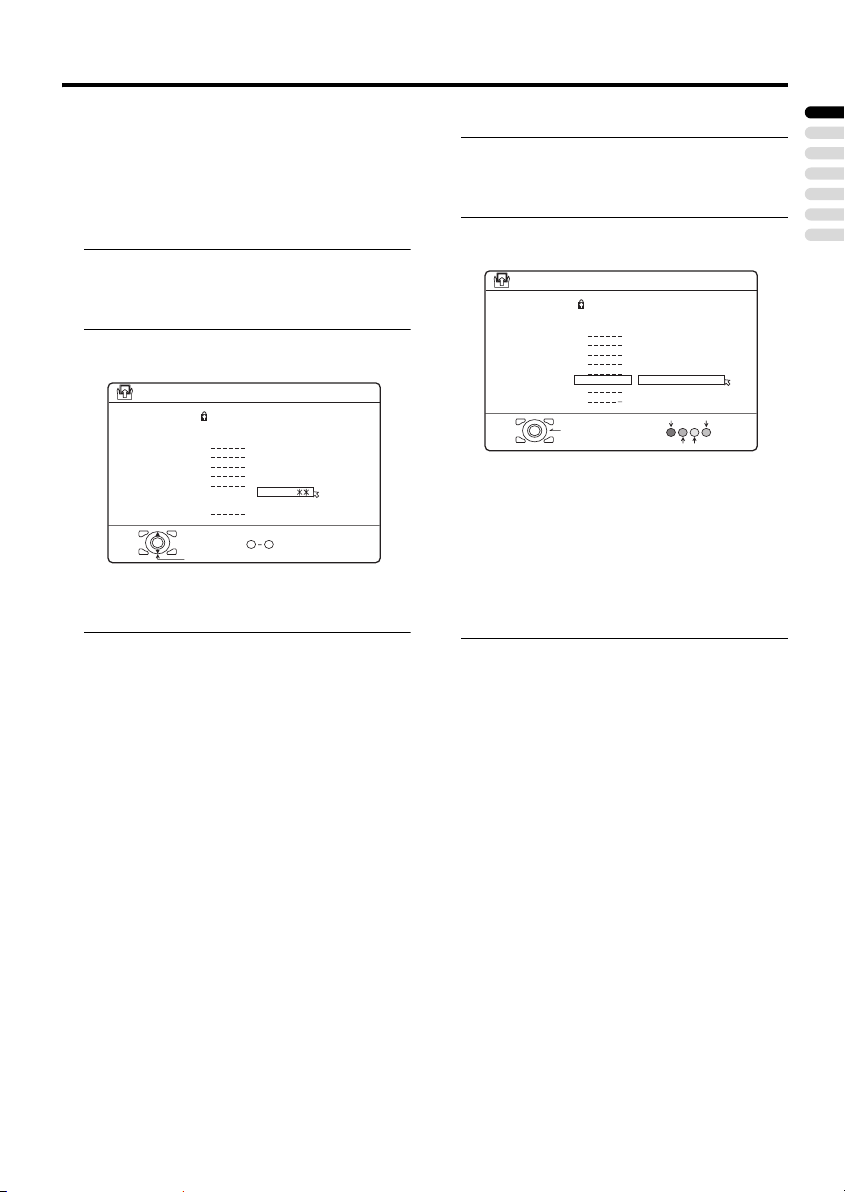

5 Press the blue button to start the

AUTO PROGRAM function

The AUTO PROGRAM menu appears and received TV channels are automatically stored in the programme numbers (PR).

>> AUTO PROGRAM

CH 28

14%

D0004-EN

• Perform the “ACI function” operation (see page 11) when “ACI START/ACI SKIP” is displayed.

• To cancel the AUTO PROGRAM function: Press the b button.

After the TV channels have been registered in the programme numbers (PR), the EDIT menu appears

> EDIT

D0038-EN

PR ID AV 01 02 03 04 05 06 07 08 09

MOVE

BBC1

CH/CC CH/CC CH/CC

CH/CC 31

INSERT

32 31

MANUAL

DELETE

• If you want to, you can now edit the programme numbers (PR) using the EDIT/MANUAL function. For details, see “EDIT/MANUAL” on page 38.

• If you do not want to edit programme numbers (PR), go to the next step.

6 Press the a button to display the

T-V LINK menu

T-V LINK

DOWNLOAD TV VCR

D0005-EN

EXIT

If you do not have a T-V LINK compatible VCR connected:

Press the b button to exit the T-V LINK menu. The T-V LINK menu disappears.

If you have a T-V LINK compatible VCR connected to the EXT-2 terminal:

Follow the operating procedure “Downloading the data to VCR” on page 11 to transmit the Programme number (PR) data.

Now, the initial settings are complete, and you can watch the TV

• When the COUNTRY setting is

UNITED KINGDOM:

BBC1, BBC2, ITV, Channel 4 and Channel 5 are automatically set to the programme numbers PR1 to PR5. If the TV doesn’t receive one of these TV channels, that programme number (PR) will not be set. Programme number PR6 is not normally set.

• When the COUNTRY setting is not

UNITED KINGDOM:

If your TV can detect the TV channel name from the TV channel broadcast signal, the TV channel name is assigned to the programme number (PR) to which the TV channel has been set. However, which TV channels are set to which programme numbers (PR) will depend on the area in which you live.

• If a TV channel you want to view is not set to a programme number (PR), you can set it using the MANUAL function. For details, see “EDIT/MANUAL” on page 38.

Setting up your TV

• The AUTO PROGRAM function does not set the programme number PR 0 (AV) for your video cassette recorder. You will need to set this using the MANUAL function.

• In some areas you may get TV reception from more than one transmitter, for example different ITV regions. In this case each TV channel could be set twice. If this happens, the first set of channels will have the stronger signal. If you want to delete the second set of channels, you will have to do it manually (see page 38).

For users in the UK:

If you have any problems setting up your new TV, please call the Helpline on 0870 330 5000.

For users in the Republic of Ireland:

If you have any problems setting up your new TV, please call the Helpline on 1890-582500.

 ACI function

This TV has an ACI function which decodes the ACI (Automatic Channel Installation) data. Using the ACI function allows all TV channels transmitted from the cable TV station to be properly registered quickly according to the data from the cable TV station.

If “ACI START/ACI SKIP” appears in the AUTO PROGRAM menu:

You can use the ACI (Automatic Channel Installation) function to decode the ACI data and complete the registration of all the TV channels in a short period of time.

Press the 6 buttons to choose ACI START. Then press the a button to start the ACI function

Depending on your cable TV station, there may be a broadcast selection menu set up by the cable TV station. Follow the menu instructions and use the 5 and 6 buttons to operate the menu. After you have made the setting, press the a button.

• If you have any questions about the items in the Broadcast Selection menu or how to operate the menu, please contact your cable TV station.

• If you don’t want to use the ACI function, press the 6 buttons to choose ACI SKIP and then press a.

• When the cable TV broadcast reception is poor, the ACI function will not work properly.

• If there is an error in the ACI data itself, the TV channel cannot be registered properly. If this happens, turn the ACI function off (ACI SKIP) and use the AUTO PROGRAM function. Alternatively, use the EDIT/MANUAL function to correct the Programme number (PR) setting.

If “ACI ERROR” is displayed in the AUTO PROGRAM menu:

“ACI ERROR” means that the ACI function is not working properly. Press the 2 button to start the ACI function again. If “ACI ERROR” still appears even after you have tried to start the ACI function several times, press the 3 button to start the AUTO PROGRAM function. It does not cause any problem because all the TV channels are registered to the Programme numbers (PR) by the AUTO PROGRAM function.

 Downloading the data to VCR

You can transmit to the latest Programme numbers (PR) data to a VCR with the T-V LINK function.

Caution

• This only works when a T-V LINK compatible VCR is connected to the EXT-2 terminal.

• This only works when the T-V LINK menu is being displayed.

T-V LINK

DOWNLOAD TV VCR

D0005-EN

EXIT

ENGLISH

Setting up your TV

1 Turn on the VCR

2 Press the a button

The data transmission begins.

DOWNLOAD TV VCR

TRANSFER. . . . .

D0037-EN

The T-V LINK menu disappears once the data transmission ends.

When the T-V LINK menu is changed over to another menu:

The TV has finished its menu. This new menu is operated from the VCR. See the VCR instruction manual for what to do next.

If “FEATURE NOT AVAILABLE” appears at the T-V LINK menu:

Check the following three items. Then press the 2 button to retry data transmission.

• Has a T-V LINK compatible VCR been connected to the EXT-2 terminal?

• Has the VCR power been turned on?

• Does the SCART cable that is connected to the EXT-2 terminal to TV LINK compatible VCR have all its proper connections?

T-V LINK functions

When you have a T-V LINK compatible VCR connected to the EXT-2 Terminal on the TV, it is easier to set up the VCR and to view videos. T-V LINK uses the following features:

To use T-V LINK functions:

A “T-V LINK compatible VCR” means a JVC video cassette recorder with the T-V LINK logo, or with one of the following logos. However, these VCRs may support some or all of the features described earlier. For details, see your VCR instruction manual.

“Q-LINK” (a trademark of Panasonic Corporation) “Data Logic” (a trademark of Metz Corporation) “Easy Link” (a trademark of Phillips Corporation) “Megalogic” (a trademark of Grundig Corporation) “SMARTLINK” (a trademark of Sony Corporation).

 Pre-set download

The VCR will automatically download the registered data on the TV channels from the TV. This means you do not need to set up the program channels on your VCR manually. The preset download function automatically begins when the initial setting is complete or whenever you carry out the AUTO PROGRAM or EDIT/MANUAL functions.

You can also carry out this function using your VCR controls.

When “FEATURE NOT AVAILABLE” is displayed:

If “FEATURE NOT AVAILABLE” is displayed, the download was not performed correctly. Before trying to download again, check that:

• the VCR power is turned on

• the VCR is T-V LINK compatible

• the VCR is connected to the EXT-2 terminal

• the SCART cable is fully wired.

 Direct Rec

“What You See Is What You Record” You can easily record to VCR the images

that you are watching on the TV. For details, read the manual for your VCR.

Use your VCR controls. “VCR IS RECORDING” is displayed.

In the following situations, the VCR will stop recording if the TV is turned off, if the TV channel or input is changed, or if the menu is displayed on the TV:

• when recording images from an external device connected to the TV (for example a camcorder)

• when recording a TV channel after it has been unscrambled on a decoder

• when recording a TV channel by using the TV’s output because the VCR’s own tuner cannot properly receive that channel.

When the VCR is not ready (for example when there is no tape inserted), “NO RECORDING” is displayed. You cannot carry out Direct Rec using your TV’s control. Generally, the VCR cannot record a TV channel that it cannot receive properly on its own tuner, even if you can view that TV channel on the TV. However, some VCRs can record a TV channel by using the TV’s output if that channel can be viewed on the TV. For details, see your VCR instruction manual.

Setting up your TV

ENGLISH

TV buttons and functions

Turn the TV on from standby mode

Press the A button or the P p buttons to turn the TV on from standby mode.

When the TV is turned on, the power lamp lights blue.

To turn the TV off:

Press the A button again. The power lamp goes off.

Caution

•The A button on the TV does not fully

isolate the TV from the AC supply. If you are not going to use the TV for a long period, be sure to disconnect the AC plug from the AC socket.

Choose a TV channel

Press the P p buttons to choose a

See the pages in brackets for details.

1 A (power) button 2 r (Volume) q buttons (page 14) 3 P p buttons (page 14) 4 MENU/OK button (pages 43, 48) 5 Power lamp (pages 9, 14) 6 TV/AV button (pages 43, 48) 7 EXT-5 terminal (pages 43, 48) 8 PC IN (D-SUB) terminal (pages 43, 48) 9 Headphone jack (mini jack) (page 48) 0 Remote control sensor

programme number (PR) or an EXT terminal

Press the TV/AV button to change between TV and external input.

Adjust the volume

Press the r (Volume) q buttons

The volume level indicator appears.

Using the Menu

Use the MENU/OK button

Refer to “Using the TV’s menu” (see page 27) for details of using the menu.

Remote control buttons and functions

1 Muting button 2 Number buttons 3 Information button

4 5

7 8

@ #

$ %

^ &

(

4 c button 5 i button 6 b button 7 7 buttons 8 g (Text) button 9 p p buttons 0 VCR/DVD/Teletext control buttons

- p buttons = d (Favourite) button ~ # (Standby) button ! VCR/TV/DVD switch @ G button # Colour buttons $ X (Multi) button % f/c (Freeze/Select) button ^ H button & a button * b button ( r (Volume) q buttons

Turn the TV on or off from standby mode

Press the # (standby) button to turn the TV on or off

When the TV is turned on, the power lamp lights blue.

• The power can be turned on by pressing

the b button, p p buttons or Number buttons.

ENGLISH

To turn the TV on or off, set the VCR/TV/ DVD switch on the remote control to the TV position and press the # button. If the VCR/TV/DVD switch on the remote control is set to a position other than TV, the TV will not be turned on or off even if the # button is pressed.

Remote control buttons and functions

Choose a TV channel and watch images from external devices

 Use the number buttons:

Enter the programme number (PR) of the channel using the number buttons.

Example:

•PR 6 → press 6

• PR 12 → press 1 and 2

 Use the p p buttons:

Press the p p buttons to choose the programme number (PR) you want or an EXT terminal.

 Use the AV button:

Press the AV button to choose an EXT terminal.

TV mode EXT modes

Programme

numbers

PR 1 – PR 99

• You can choose a video input signal from the S-VIDEO signal (Y/C signal) and regular video signal (composite signal). For details, see “S-IN (SVIDEO input)” on page 43.

• If you do not have a clear picture or no colour appears, change the colour system manually. See “COLOUR SYSTEM” on page 32.

• If you choose an EXT terminal with no input signal, the EXT terminal number becomes fixed on the screen.

• This TV set has a function which can automatically change over the input according to a special signal output from an external device. (The EXT-4 and EXT-5 terminals do not support this function.)

• Since this TV is designed to make full use of the resolution of the original video source, the motion may appear unnatural when the video source is input with 625p progressive-scanning component signals. If this happens, change the output setting of the connected device to 625i interlace-scanning component signal output. See the instructions that came with the device for more information.

• The PC sound is the same as the EXT5 sound.

To return to a TV channel:

Press the b button, the 6 buttons or the number buttons.

To use the programme number PR 0 (AV):

When the TV and VCR are connected only by the aerial cable, choosing the programme number PR 0 (AV) allows you to view images from the VCR. Set the VCR RF channel to the programme number PR 0 (AV) manually. For details, see “EDIT/ MANUAL” on page 38. Pressing the G button changes the choice as follows:

TV mode EXT modes

Programme

numbers

PR 1 – PR 99

PR 0

EXT-1

EXT-2

EXT-3

EXT-4

EXT-5

+ 41 hidden pages
