Thank you for purchasing the JVC Compact Component MD System. Be sure to read this instruction manual carefully before operating your new stereo system. For questions that are not be answered in the manual, contact your dealer.

Features

Here are some of the things that make your CA-MD9R powerful and easy to use. ❏ The controls and operations have been redesigned to make them very easy to use so you can

One Touch Operation

3CD Triple Tray

3MD Changer

Three timers

spend your time listening to music.

• With the One Touch Operation feature of JVC’s you can turn on the CA-MD9R and start the radio, the Cassette Deck, the CD Player, or the MD Recorder with a single touch.

• You can use the MULTI JOG dial to set the CD Player, MD Recorder, Tuner, Timer, and Sound Mode operations.

❏ CA-MD9R is compatible with RDS (Radio Data System) broadcasting.

• The EON data enables you to standby for information you want.

• The PTY Search function looks for programs in the category you want. In addition, Radio Text can be displayed using data sent by station.

❏ 3-Tray CD Player can operate 3 CDs.

• CDs can be changed during play.

• Continuous, random or program play of 3 CDs.

❏ 3-MD changer can operate 3 MDs.

• MDs can be changed during play.

• Continuous, random or program play of 3 MDs.

• Digital recording from CD to MD.

• Easy editing of your favorite songs with the powerful editing functions of your CA-MD9R.

❏ The three timers, Daily Timer, Recording Timer, and Sleep Timer are extremely easy to set.

How This Manual Is Organized

In this manual we have incorporated some special features:

• Basic information that is the same for many different functions is grouped in one place, and not repeated in each procedure. For instance, in the section on playing a CD, we do not repeat the information about setting the volume and the sound conditions, which are discussed in the Using the Amplifier section.

• Name of buttons and controls are written in all capital letters like this: SOUND MODE.

English

IMPORTANT CAUTIONS

1. Installation of the unit

• Select a place which is level, dry and neither too hot nor too cold. (Between 5°C and 35°C or 41°F and 95°F.)

• Leave sufficient distance between the unit and a TV.

• Do not use the unit in a place subject to vibrations.

2. Power cord

• Do not handle the power cord with wet hands!

• Some power (15 watts) is always consumed as long as the power cord is connected to the wall outlet.

• When unplugging the unit from the wall outlet, always pull the plug, not the power cord.

3. Malfunctions, etc.

• There are no user-serviceable parts inside. If anything goes wrong, unplug the power cord and consult your

dealer.

• Do not insert any metallic object into the unit.

EN.01-24.CA-MD9R[E]/F 6/16/98, 1:48 PM1

Table of Contents

Features.................................................................. 1

English

How This Manual Is Organized............................. 1

IMPORTANT CAUTIONS ................................... 1

Getting Started ..............................................................3

Accessories ............................................................ 3

How to Put Batteries in the Remote Control ......... 3

Using the Remote Control ..................................... 3

Connecting the FM Antenna..................................4

Connecting the AM (MW/LW) Antenna ...............4

Connecting the Speakers .......................................5

Connecting an External Component...................... 5

Demo Mode ........................................................... 6

One Touch Operation............................................. 6

Using the Amplifier ......................................................7

Turning the Power On and Off .............................. 7

Adjusting the Volume ............................................8

Reinforcing the Bass Sound ..................................8

Sound Modes ......................................................... 9

Using an External Component............................. 10

Using the Tuner ...........................................................11

Tuning in a Station............................................... 11

Presetting Stations ...............................................12

Changing the FM Reception Mode .....................13

Receiving FM Stations with RDS .......................13

Using the CD Player ...................................................18

Using the CD Player .....................................................

Programing the Playing Order of the Tracks ....... 21

Random Play ....................................................... 24

Repeating a Selection or CDs.............................. 24

Using the MD Recorder (Playing) ............................25

Using the MD Recorder................................................

Programing the Playing Order of the Tracks ....... 28

Random Play ....................................................... 31

Repeating a Selection or MDs ............................. 31

Using the MD Recorder (Editing) ............................. 41

DIVIDE Function ......................................................... 42

JOIN Function .............................................................. 44

MOVE Function ........................................................... 45

ERASE Function .......................................................... 47

ALL ERASE Function ................................................. 48

TITLE Function ............................................................ 49

Using the Cassette Deck (Playing) .......................... 51

Regular Play ........................................................52

Music Scan ..........................................................53

Other Useful Features of the Cassette Deck........ 53

Using the Cassette Deck (Recording) ..................... 54

Standard Recording .............................................55

CD Direct Recording ........................................... 56

Using the Timers ......................................................... 57

Setting the Clock .................................................57

Setting the Daily Timer .......................................59

Setting the Recording Timer................................62

Setting the Sleep Timer .......................................64

Timer Priority ...................................................... 65

Disc Lock Function .............................................66

Care and Maintenance .............................................. 67

Troubleshooting .......................................................... 68

MD Error Messages............................................. 69

Specifications .............................................................70

Additional Informations ............................................. 71

Some Words about MDs...................................... 71

ATRAC (Adaptive TRansform Acoustic Coding) .. 71

UTOC (User Table Of Contents)......................... 71

Serial Copy Management System (SCMS) ......... 72

Sound Skip Guard Memory................................. 72

Using the MD Recorder (Recording) .......................32

Standard Recording ......................................................

Long Recording (LONG REC) ........................... 35

One Touch CD Recording (CD REC) .................36

Three CD Recording (TRIPLE REC).................. 37

Listening Edit Recording (LISTENING) ............ 38

First Track Recording (1ST TRACK REC).........40

EN.01-24.CA-MD9R[E]/F 6/16/98, 1:48 PM2

Getting Started

Accessories

Check that you have all of the following items, which are supplied with the CA-MD9R.

AM (MW/LW) Loop Antenna (1) Remote Control (1) Batteries (2) FM Antenna (1)

If any of these items is missing, contact your dealer immediately.

How to Put Batteries in the Remote Control

Match the polarity (+ and –) on the batteries with the + and – markings in the battery compartment.

R6P (SUM-3)/AA (15F)

English

CAUTION: Handle batteries properly.

To avoid battery leakage or explosion:

• Remove batteries when the Remote Control will not be used for a long time.

• When you need to replace the batteries, replace both batteries at the same time.

• Do not use an old battery with a new one.

• Do not use different types of batteries together.

Using the Remote Control

The Remote Control makes it easy to use many of the functions of the CA-MD9R from a distance of up to 7 m (23 feet) away. You need to point the Remote Control at the remote sensor on the CA-MD9R.

IMPORTANT: Before using the Remote Control for operating this unit, make

sure that the Remote Control is set to the correct operation mode.

Remote sensor

CD REPEAT

COMPACT

DIGITAL AUDIO

CD PLAY MODE

STANDBY

TUNER

AUX

COMPACT COMPONENT MD SYSTEM MX-MD9R

DEMO

CLOCK /TIMER

BASS SOUND REC PAUSE TITLE EDIT

REPEAT

LONG REC

TRIPLE REC

PLAY MODE

LISTENING

1ST TRACK REC

SKIP

CD REC

DOLBY B NR

CD RECREC PAUSE

PHONES

AUTO REVERSE

PLAY& EXCHANGE

AUTO TAPE SELECTOR

DOLBY B NR

VOLUME

–

DISPLAY /CHARA

CANCEL SET

MULTI JOG

EN.01-24.CA-MD9R[E]/F 6/16/98, 1:48 PM3

CAUTION: Make all connections before plugging the unit into an AC power outlet.

Connecting the FM Antenna

English

ANTENNA

GND

AM EXT

ANTENNA

FM 75 COAXIAL

AM LOOP

FM 75 COAXIAL

GND

AM LOOP

AM EXT

A. Using the Supplied FM Antenna

The FM antenna provided can be connected to the FM 75Ω COAXIAL terminal as temporary measure. Extend the supplied FM antenna horizontally.

B. Using the Coaxial Type Connector (Not Supplied)

A 75Ω antenna with coaxial type connector (DIN 45332) should be connected to the FM 75Ω COAXIAL terminal.

FM Antenna

ANTENNA

Before attaching a 75 ohm coaxial lead

FM 75

COAXIAL

GND

AM EXT

If reception is poor, connect the outside

AM LOOP

antenna.

Outside FM Antenna Wire

(the kind with a round wire going to an outside antenna), disconnect the supplied FM antenna.

CAUTION: To avoid noise, keep antennas away from metallic parts of the CA-MD9R, connecting cord and the AC power cord.

Connecting the AM (MW/LW) Antenna

ANTENNA

Turn the loop until you

FM 75

COAXIAL

AM LOOP

GND

AM EXT

AM Loop Antenna

have the best reception

Snap the tabs on the loop into the slots of the base to attach the AM Loop.

AM Antenna Wire (not supplied)

EN.01-24.CA-MD9R[E]/F 6/16/98, 1:48 PM4

Note: Even when connecting an outside AM antenna, keep the indoor AM loop connected.

If reception is poor, connect the outside antenna.

CAUTION: Make all connections before plugging the unit into an AC power outlet.

Connecting the Speakers

For each speaker, connect one end of the speaker wire to the speaker terminals on the back of the CA-MD9R and the other end to the speaker.

1. Open the terminals and insert the speaker wires firmly (be sure to remove the insulation at the ends of each wire first), then close the terminals.

2. Connect the red (+) and black (–) terminals of the right side speaker to the red (+) and black (–) terminals marked RIGHT on the CA-MD9R. Connect the red (+) and black (–) terminals of the left side speaker to the red (+) and black (–) terminals marked LEFT on the CA-MD9R.

Right speaker

(Refer to instructions for speakers as well.)

Main Unit

SPEAKERS

RIGHT

LEFT

English

Left speaker

IMPORTANT: Use speakers with the correct impedance only. The correct impedance is indicated on the back panel.

CAUTION: If a TV is installed near the speakers, the picture on the TV may be distorted. If this happens, place the speakers away from the TV.

Connecting an External Component

You can connect another component to the AUX jacks, and reproduce the sound of the component through the CA-MD9R.

VCR (or another component)

Note: When you connect a VCR to the CA-MD9R, connect the VCR and the TV directly using

the video cords to watch a video tape or record a TV program.

To the audio output jacks

AUX

LEFT

RIGHT

EN.01-24.CA-MD9R[E]/F 6/16/98, 1:48 PM5

Demo Mode

English

DEMO

One Touch Operation

When the CA-MD9R is connected to an AC power outlet, a Demo automatically starts showing some of the main features.

To stop the Demo, press any button. “DEMO OFF” appears on the display and the Demo stops.

To restart the Demo, press the DEMO button.

One Touch Operation is JVC’s feature that lets you control the most frequently used functions of the CA-MD9R with a single touch. One Touch Operation starts playing a CD or a MD, turns on the radio, plays a tape, etc. with a single press of the play button for that source. What One Touch Operation does for you is to turn the power on, then start the source you have specified. If the unit is not ready, such as no CD or tape in place, the unit still powers on so you can insert a CD or tape. How One Touch Operation works in each case is explained in each related section.

The One Touch Operation buttons are:

On the unit

CD (1 to 3) button CD Player ‹/8 button 0 (open/close) button for the CD Player TUNER button AUX button MD (1 to 3) buttons MD Recorder ‹/8 button

0 (open/close) button for the MD Recorder ¤/‹ (Tape play) buttons

On the Remote Control

TUNER button AUX button Play button (£) (when TAPE, CD or MD is selected on the Remote Control) DISC (1 to 3) (when CD or MD is selected on the Remote Control)

EN.01-24.CA-MD9R[E]/F 6/16/98, 1:48 PM6

Using the Amplifier

AUX

SOUND

BASS

ACTIVE BASS EX.(extension)

SOUND MODE

STANDBY

TUNER

AUX

COMPACT COMPONENT MD SYSTEM MX-MD9R

DEMO

CLOCK

LONG REC

TRIPLE REC

1ST TRACK REC

CD REC

RDS

CONTROL

EON ON/OFF

1 2 3

TA/NEWS/ INFO

4 5 6

7 8 9

+10

MODE

SELECT

TAPE

DIRECTION

REC PAUSE

ACTIVE

BASS EX.

SOUND

MODE

RM-SEMD9RU REMOTE CONTROL

/TIMER

PTY

DISPLAY

MODE

PTY SELECT

TAPE CD MD

DISC DISC DISC

MUTE

VOLUME

SLEEP

FM MODE

TUNER

AUX

MUTE

AUX

VOLUME +/–

BASS SOUND REC PAUSE TITLE EDIT

REPEAT

PLAY MODE

LISTENING

SKIP

MUTE

VOLUME

English

VOLUME

–

DISPLAY

/CHARA

CANCEL SET

MULTI JOG

MULTI JOG dial

SET

Turning the Power On and Off

STANDBY

EN.01-24.CA-MD9R[E]/F 6/16/98, 1:49 PM7

Turning the CA-MD9R On ——————————————————————

Press the button.

“HELLO” appears on the display and the STANDBY indicator goes off. The CA-MD9R comes on ready to play the source it was for when the power was last turned off.

Turning the CA-MD9R Off (Standby) ——————————————————

Press the button again.

STANDBY

The STANDBY indicator lights up, “GOOD BYE” appears on the display for a while. The clock time appears when the unit is in the standby mode.

❏ Some power (15 watts) is always consumed even though the unit is in standby mode. ❏ To switch off the unit completely, unplug the AC power cord from the AC outlet. When you

unplug the AC power cord, the clock will be reset to 0:00 immediately, and preset stations will be erased in a few days.

–

VOLUME

Adjusting the Volume

English

Turn the VOLUME control clockwise to increase the volume or counterclockwise to decrease it. When using the Remote Control, press the VOLUME + button to increase the volume or press the VOLUME – button to decrease it. You can adjust the volume level between 0 (minimum) and 50 (maximum).

VOLUME

For private listening

Connect a pair of headphones to the PHONES jack. No sound comes out of the speakers. Be sure to turn down the volume before connecting or putting on headphones.

MUTING Function ————————————————————————

MUTE

Press the MUTE button on the Remote Control to turn down the volume level to 0.

To restore the volume level to its previous level, press this button again.

Reinforcing the Bass Sound

With the Active Bass Extension, you can maintain the richness and fullness of the bass sound regardless of how low you set the volume. You can use this function only for playback.

BASS SOUND

To use this function, press the BASS button on the unit or the ACTIVE BASS EX. (Active Bass Extension) button on the Remote Control. “ACT-BASS” appears on the display and the indicator on the BASS button lights up.

12345678910

ACTIVE

BASS EX.

12345678910

To cancel this function, press the button again. “OFF” appears on the display and the indicator on the BASS button goes off.

EN.01-24.CA-MD9R[E]/F 6/16/98, 1:49 PM8

Sound Modes

The CA-MD9R has some preset sound effects that give you control of the way your music sounds, so you can tailor it for your room and for the quality of the source. You can also create your own customized S.E.A. (Sound Effect Amplifier) settings and store it in the unit’s memory. ❏ You cannot use the Sound Modes for recording.

Live surround modes

D.(Dance) CLUB Increases resonance and bass. HALL Adds depth and brilliance to the sound, like in a concert hall. STADIUM Adds clarity and spreads the sound, like in an outdoor stadium.

S.E.A. effect modes

ROCK Boosts low and high frequencies. POP Good for vocal music. CLASSIC Best for classical music.

Selecting a Sound Mode ——————————————————————

English

BASS SOUND

SOUND

MODE

1. Press the SOUND button on the unit or SOUND MODE button on the Remote Control repeatedly

until the Sound Mode you want appears on the display.

Each time you press the button, the Sound Modes change as follow:

D. CLUB HALL STADIUM ROCK

OFF

(canceled)

When a Sound Mode is selected, the indicator on the SOUND button lights up.

To cancel the Sound Mode, press the SOUND or SOUND MODE button repeatedly until “OFF” appears on the display.

MANUAL CLASSIC POP

BASS SOUNDBASS SOUND

EN.01-24.CA-MD9R[E]/F 6/16/98, 1:49 PM9

English

BASS SOUND

SET

MULTI JOG

Creating Your Own Customized Sound Mode ——————————————

You can create you own customized Sound Mode and store it in the CA-MD9R’s memory. To do the following procedure, use the buttons on the unit.

1. Press the SOUND button repeatedly until “MANUAL” appears on the display.

STEREO TUNED

PROGRAM RANDOM

MD CD

REPEAT

12345678910111213141516

1 CD MD ALL

R·D·S EON

TA NEWS INFO

SLEEP DAILY

REC 1 2 3

EON

2. Press the SET button while “MANUAL” is shown on the display.

3. Press the or button to select the frequency range you want to adjust, while the

adjustable frequency range (LOW, MID, HIGH) in shown on the display.

❏ You can adjust 3 different frequency ranges:

LOW: for the low frequency range MID: for the middle frequency range HIGH: for the high frequency range

STEREO TUNED

PROGRAM RANDOM

MD CD

REPEAT

12345678910111213141516

1 CD MD ALL

TA NEWS INFO

R·D·S EON

TA NEWS INFO

SLEEP DAILY

REC 1 2 3

EON

4. Rotate the MULTI JOG dial to adjust the level of the selected range.

❏ The level can be adjusted between +3 and –3 in seven steps.

STEREO TUNED

PROGRAM RANDOM

MD CD

REPEAT

12345678910111213141516

1 CD MD ALL

TA NEWS INFO

R·D·S EON

SLEEP DAILY

REC 1 2 3

EON

SET

5. Press the SET button again to memorize your settings.

To select your own customized Sound Mode, press the SOUND button repeatedly (or the SOUND

MODE button on the Remote Control) so that “MANUAL” appears on the display.

Using an External Component

Listening to an External Component —————————————————

By playing the sound from an external component through the CA-MD9R, you can gain control over how the music sounds. Once the connected component is playing through the CA-MD9R, you can apply the sound effects. ❏ First make sure that the external component is properly connected to the CA-MD9R. (See page 5.)

AUX

1. Press the AUX button on the unit or on the Remote Control.

“AUX” appears on the display.

2. Start playing on the external component.

❏ To operate the external component, refer to the manual supplied with it.

3. Adjust the VOLUME control and select a Sound Mode if you want.

To cancel the setting

Change the source by starting any one of the CA-MD9R’s built-in sound sources, such as the CD Player or MD Recorder.

EN.01-24.CA-MD9R[E]/F 6/16/98, 1:49 PM10

Using the Tuner

TUNER

STANDBY

TUNER

AUX

DEMO

BASS SOUND REC PAUSE TITLE EDIT

REPEAT

LONG REC

TRIPLE REC

PLAY MODE

LISTENING

1ST TRACK REC

SKIP

CD REC

RDS CONTROL

RDS function buttons

Number buttons

COMPACT COMPONENT MD SYSTEM MX-MD9R

CLOCK /TIMER

RDS

CONTROL

PTY

EON ON/OFF

1 2 3

TA/NEWS/

PTY SELECT

INFO

4 5 6

7 8 9

+10

TAPE CD MD

MODE

SELECT

TAPE

DIRECTION

REC PAUSE

ACTIVE

DISC DISC DISC

BASS EX.

SOUND

MUTE

MODE

RM-SEMD9RU REMOTE CONTROL

DISPLAY

MODE

FM MODE

TUNER

VOLUME

SLEEP

MUTE

AUX

VOLUME

–

DISPLAY

/CHARA

DISPLA Y

CANCEL SET

SET

MULTI JOG

MULTI JOG dial

/CHARA

FM MODE MUTE TUNER

IMPORTANT: Before using the Remote Control for tuner and RDS operations.

• Set the Remote Control to the tuner operation mode by pressing the TUNER button. (For the tuner operations)

• Set the Remote Control to the RDS operation mode by pressing the RDS CONTROL button. (For the RDS operations)

English

You can listen to both FM and AM (MW/LW) stations. Stations can be tuned in manually, automatically, or from preset memory storage. ❏ Before listening to the radio:

• Check that both the FM and AM (MW/LW) antennas are firmly connected. (See page 4.)

One Touch Radio —————————————————————————

Just press the TUNER button to turn on the unit and start playing the most recent station tuned in. ❏ You can switch from any other sound source to the radio by pressing the TUNER button.

Tuning in a Station

Press the TUNER button to turn on the radio.

TUNER

EN.01-24.CA-MD9R[E]/F 6/16/98, 1:49 PM11

The frequency of the previously selected station appears on the display.

Switching between Frequency Bands—————————————————

Press the TUNER button on the unit.

Each time you press the button, the band alternates between FM and AM (MW/LW). ❏ If you press the TUNER button on the Remote Control, the band will not alternate.

English

Selecting a Radio Station —————————————————————

❏ Press the or button on the unit repeatedly.

The frequency changes in one step increments. “TUNED” appears on the display when a station is tuned in.

❏ Press and hold the

continuously until a station is tuned in. “TUNED” appears on the display.

❏ Possible only after presetting stations (For presetting methods, see “Presetting Stations” below).

Using the unit

Select a preset channel by rotating the MULTI JOG dial clockwise or counterclockwise.

or button for a few seconds, the frequency changes

MULTI JOG

PTY

EON ON/OFF

1 2 3

TA/NEWS/

PTY SELECT

INFO

4 5 6

7 8 9

+10

DISPLAY

MODE

Using the Remote Control

1. Press the TUNER button so that you can receive the most recent station tuned in.

2. Press the number button for the preset station you want.

Presetting Stations

TUNER

You can store up to 30 stations (FM and AM (MW/LW)). To do the following procedure, use the buttons on the unit.

Note: In some cases, test frequencies have been already memorized for the tuner since the factory examined the tuner preset function before shipment. This is not a malfunction. You can preset the stations you want into memory by following the presetting method.

1. Tune to a station you want to preset (see “Tuning in a Station” on page 11).

2. Press the SET button.

SET

On the display, “– –” (preset number position) will flash for 5 seconds.

❏ During these 5 seconds while the indication on the display is flashing, you can assign a

❏ Example: For channel 5, press 5. For channel 15, press +10 then 5. For channel 20, press

+10, then 10. For channel 30, press +10 two times, then 10.

channel number to the station and enter it into the memory.

STEREO TUNED

PROGRAM RANDOM

MD CD

REPEAT

12345678910111213141516

1 CD MD ALL

R·D·S EON

TA NEWS INFO

SLEEP

DAILY

REC 1 2 3

EON

3. Rotate the MULTI JOG dial clockwise or counterclockwise to select a preset number.

4. Press the SET button again.

“MEMORY” appears on the display and the selected station will be preset in the channel

MULTI JOG

SET

number you have specified.

❏ If a station has been previously stored in the same channel number, it will be erased and the

5. Repeat steps 1 to 4 for each station you want to store in memory using different preset numbers.

CAUTION: If the unit is unplugged or if a power failure occurs, the preset stations will be erased in a few days. If this happens, preset the station again.

EN.01-24.CA-MD9R[E]/F 6/16/98, 1:49 PM12

STEREO TUNED

PROGRAM RANDOM

MD CD

REPEAT

12345678910111213141516

1 CD MD ALL

newly selected station will be stored.

TA NEWS INFO

R·D·S EON

TA NEWS INFO

SLEEP

DAILY

REC 1 2 3

EON

Changing the FM Reception Mode

When an FM stereo broadcast is hard to receive or noisy, press the FM MODE MUTE button on the Remote Control (after pressing the TUNER button on the Remote Control) so that “MONO” appears on the display. (The STEREO indicator goes off.) Reception improves, but there are no stereo effects. In this monaural mode, noise comes out while tuning in stations (since muting is canceled).

FM MODE

MUTE

To restore the stereo effect, press the FM MODE MUTE button again so that “AUTO” appears on the display. In this stereo mode, no noise comes out while tuning in stations, and you can hear stereo sounds when a program is broadcast in stereo (the STEREO indicator lights up).

English

STEREO TUNED

MD CD

Receiving FM Stations with RDS

RDS (Radio Data System) allows the FM stations to send additional signals along with their regular program signals. For example, the stations send their station names and information about what type of program they broadcast, such as sports or music, etc. When tuned to an FM station providing the RDS signals, the RDS indicator lights up and the station name, if sent, is displayed. One convenient RDS service is “Enhanced Other Networks (EON)” (see page 16). This allows the unit to automatically switch to a program type of your choice when one starts in your local area. ❏ Not all FM stations provide RDS service, nor do all RDS stations provide the same services. If

in doubt, check with local radio stations for details on RDS services in your area.

❏ RDS may not work correctly if the station you are tuned in is not transmitting the signals

properly or if the signal strength is weak.

PROGRAM RANDOM REPEAT

12345678910111213141516

1 CD MD ALL

TA NEWS INFO

R·D·S EON

TA NEWS INFO

SLEEP DAILY

REC 1 2 3

EON

What Information RDS Can Provide ——————————————————

The CA-MD9R can use the following RDS service.

PS (Program Service name)

Identifies each station by a name.

RT (Radio Text)

Allows the RDS station to send text messages that appear on the display.

PTY (Program Type) (see next page for a description of the PTY codes)

Identifies the type of RDS program. This allows you to locate a specific type of program being broadcast.

EON (Enhanced Other Networks)

Provides the information about the program types sent by the other RDS stations than the one being received.

EN.01-24.CA-MD9R[E]/F 6/16/98, 1:49 PM13

English

Description of the PTY codes:

NONE: Undefined. NEWS: News. AFFAIRS: Topical program expanding or enlarging upon the news — debate, or analysis. INFO: Program the purpose of which is to impart advice in the widest sense. SPORT: Program concerned with any aspect of sports. EDUCATE: Educational programs. DRAMA: All radio plays and serials. CULTURE: Programs concerning any aspect of national or regional culture, including language,

theatre, etc.

SCIENCE: Programs about the natural sciences and technology. VARIED: Used for mainly speech-based programs like quizzes, panel games and personality

interviews.

POP M: Commercial music of current popular appeal. ROCK M: Rock music. M.O.R. M: Current contemporary music considered to be “easy-listening.” LIGHT M: Instrumental music, and vocal or choral works. CLASSICS: Performances of major orchestral works, symphonies, chamber music, etc. OTHER M: Music not fitting into any of the other categories. WEATHER: Weather reports and forecasts. FINANCE: Stock Market reports, commerce, trading etc. CHILDREN: Programs targeted at a young audience. SOCIAL A: Programs about sociology, history, geography, psychology and society. RELIGION: Religious programs. PHONE IN: Involving members of the public expressing their views either by phone or at a

public forum.

TRAVEL: Travel information. LEISURE: Programs about recreational activities. JAZZ: Jazz music. COUNTRY: Songs which originate from, or continue the musical tradition of the American

Southern States.

NATIONAL: Current popular music of the nation or region in that country’s language. OLDIES: Music from the so-called “golden age” of popular music. FOLK M: Music which has its roots in the musical culture of a particular nation. DOCUMENT: Program concerning factual matters, presented in an investigative style. TEST: Broadcast when testing emergency broadcast equipment or receivers. ALARM!: Emergency announcement.

Note:

Classification of the PTY codes for some FM stations may be different from the above list.

EN.01-24.CA-MD9R[E]/F 6/16/98, 1:49 PM14

RDS

CONTROL

DISPLAY

MODE

RDS

CONTROL

Changing the RDS Information————————————————————

You can see RDS information on the display while listening to an FM station. To view RDS information on the display, press the DISPLAY MODE button after pressing the RDS CONTROL button on the Remote Control. Each time you press the button the display changes to show the following information:

PS (Program Service): Station names will be displayed. “no PS” appears if no signal is sent.

PTY (Program Type): Types of broadcast programs will be displayed. “no PTY” appears if

RT (Radio Text): Text message sent by stations will be displayed. “no RT” appears if

Station Frequency: Station frequencies. (non-RDS information)

❏ While RDS information is being received from a station, “wait PS”, “wait PTY”, or “wait RT”

may appear on the display.

no signal is sent.

Searching for Programs by PTY Codes (PTY Search) ———————————

One of the advantages of the RDS service is that you can locate a particular kind of program by specifying the PTY codes.

❏ The PTY Search function is applicable to preset stations only. ❏ PTY Search can be used even while AM (MW/LW) broadcasts are being received.

To search for a program using the PTY codes, follow this procedure, using the Remote Control:

1. Press the RDS CONTROL button.

The number buttons on the Remote Control are set for the RDS operations.

English

PTY

PTY SELECT

PTY

2. Press the PTY SEARCH button.

“PTY SELECT” flashes on the display.

STEREO TUNED

PROGRAM RANDOM

MD CD

REPEAT

12345678910111213141516

1 CD MD ALL

TA NEWS INFO

R·D·S EON

TA NEWS INFO

SLEEP DAILY

REC 1 2 3

EON

3. Press the PTY SELECT button to select a PTY code while “PTY SELECT” is flashing on the display.

Each time you press the button, the PTY codes change as follows (r efer also to the list on pa ge 14):

NONE = NEWS = AFFAIRS = INFO = SPORT = EDUCATE = DRAMA = CULTURE = SCIENCE = VARIED = POP M = ROCK M = M.O.R. M = LIGHT M = CLASSICS = OTHER M = WEATHER = FINANCE = CHILDREN = SOCIAL A = RELIGION = PHONE IN = TRAVEL = LEISURE = JAZZ = COUNTRY = NATIONAL = OLDIES = FOLK M = DOCUMENT = TEST = ALARM! = (back to the beginning)

4. Press the PTY SEARCH button again.

While searching, “SEARCH” and the selected PTY code alternate on the display. The unit searches 30 preset channels, stops when it finds the one you have selected, and tunes in that station.

To continue searching after the first stop:

Press the PTY SEARCH button again while the indications on the display are flashing. If no program is found, “NOT FOUND” appears on the display and the unit returns to the last received station.

To stop searching any time during the process:

Press the PTY SEARCH button while searching.

EN.01-24.CA-MD9R[E]/F 6/16/98, 1:49 PM15

English

RDS

CONTROL

EON ON/OFF

TA/NEWS/ INFO

EON Function ——————————————————————————

The EON function allows the unit to switch temporarily to a broadcast program of your choice (NEWS, TA, and/or INFO) from a different station except when you are listening to a non-RDS stations (all AM (MW/LW) and some FM stations).

❏ The EON indicator lights up while receiving a station with the EON code. ❏ EON Standby reception is applicable for preset stations only.

To set EON Standby reception, use the Remote Control:

1. Press the RDS CONTROL button.

The number buttons on the Remote Control are set for the RDS operations.

2. Press the EON ON/OFF button.

The last EON data type selected — TA/NEWS/INFO — lights up.

3. Press the TA/NEWS/INFO button repeatedly until the EON data type you want is selected.

TA: Identifies that a traffic announcement is being broadcast in your area. NEWS: News INFO: Program the purpose of which is to impart advice in the widest sense.

Each time you press the TA/NEWS/INFO button, the EON data types change as follows:

TA NEWS INFO = TA NEWS INFO = TA NEWS INFO = TA NEWS INFO = TA NEWS INFO = TA NEWS INFO = TA NEWS INFO = (back to the beginning)

As soon as your selection is entered, the unit goes into EON Standby reception mode.

To cancel the EON function, press the EON ON/OFF button again so that the TA/NEWS/INFO indicator goes off. ❏ If you cancel the EON function while receiving a program selected by the EON function, the

unit goes back to the previously tuned station.

When this unit carries out EON Standby reception, this unit functions as follows:

CASE 1

If there is no station broadcasting the program you have selected

The unit continues tuning in the current station.

CASE 2

If there is a station broadcasting the program you have selected

The unit tunes in the program. The indicator of received PTY code starts flashing.

When a station starts broadcasting the program you have selected, the unit automatically switches to the station. The indicator of received PTY code starts flashing.

When the program is over, the unit goes back to the previously tuned station, but still remains in EON Standby reception mode.

EN.01-24.CA-MD9R[E]/F 6/16/98, 1:49 PM16

Notes:

• EON data sent from some stations may not be compatible with this unit.

• While listening to a program tuned in by the EON function, the station does not change even if another network station starts broadcasting a program of the same EON data.

• While listening to a program tuned in by the EON function, you can only use the EON ON/OFF and DISPLAY MODE button as the tuner operation buttons.

• If the stations alternate intermittently between the station tuned in by the EON function and the currently tuned station (“WAITING” flashes on the display), press the EON ON/OFF button to cancel the EON standby reception mode. If you do not press the button, the currently tuned station is received finally, and the indication of the EON data type flashing on the display disappears.

When program of the selected EON data is completed, “EON END” appears and the unit automatically goes back to the previously tuned station.

Alarm Function——————————————————————————

If an ALARM (Emergency) signal is received from a station while listening to the radio, the unit automatically switches to the station broadcasting the ALARM signal (“ALARM!” will flash on the display) except when you are listening to non-RDS stations (all AM (MW/LW) and some FM stations).

Test Function ——————————————————————————

The TEST signal is used for testing the ALARM function. Therefore it makes the unit work in the same way as the ALARM signal does. If an TEST signal is received, the unit automatically switches to the station broadcasting the TEST signal (“TEST” will flash on the display).

English

EN.01-24.CA-MD9R[E]/F 6/16/98, 1:49 PM17

Using the CD Player

English

CD REPEAT

CD PLAY MODE

CD REPEAT

COMPACT

DIGITAL AUDIO

CD PLAY MODE

TUNER

BASS SOUND REC PAUSE TITLE EDIT

RDS

CONTROL

PTY

DISPLAY

EON ON/OFF

MODE

1 2 3

TA/NEWS/

PTY SELECT

INFO

4 5 6

7 8 9

+10

TAPE CD MD

MODE

SELECT

TAPE

DIRECTION

REC PAUSE

STANDBY

AUX

COMPACT COMPONENT MD SYSTEM MX-MD9R

DEMO

CLOCK /TIMER

SLEEP

FM MODE

MUTE

TUNER

AUX

4 / £ / 7 / ¢

PLAY & EXCHANGE

7 (Stop)

‹/8

(Play/Pause)

CD (1 to 3)

0 (Eject)

VOLUME

–

DISPLAY

/CHARA

CD indicators

ACTIVE

DISC DISC DISC

BASS EX.

SOUND

MUTE

MODE

RM-SEMD9RU REMOTE CONTROL

VOLUME

DISC (1 to 3)

IMPORTANT: Before using the Remote Control for the CD operations, set the Remote Control to the CD

operation mode by pressing the CD button.

CD indicators on the unit

Each of the CD buttons (1 to 3) has the CD indicator. When a CD is loaded on the tray, the corresponding indicator turns on.

CD indicators on the display

Indicates that this CD is currently

Flashes while playing

selected

Always lights

Lights Lights

11 1

When an 8 cm CD is on the tray.

When a regular CD is on the tray.

When no CD is on the tray.

EN.01-24.CA-MD9R[E]/F 6/16/98, 1:49 PM18

The Player built in the CA-MD9R has 3 CD trays. You can use Continuous, Random, Program or Repeat Play for the CDs on CD1, CD2 and CD3 trays. Repeat Play can repeat all the tracks on all the CDs, the tracks on one of the CDs or one track on one CD. There is also the Disc Lock function, prohibiting CD ejection (see page 66.)

The Quickest Way to Start a CD Is with the One Touch Operation ——————

The power comes on, and operations are done automatically.

❏ Press the ‹/8 button (or the £ button on the Remote Control).

• If there is a CD on the currently selected tray, playback begins from the first track of this

• If there is no CD on the currently selected tray, playback begins from the first track of the

• If there is no CD on any of the CD trays, “CD NO DISC” appears on the display for a few

❏ Press one of the CD buttons (1 to 3) (or one of the DISC buttons (1 to 3) on the Remote

Control).

• If there is a CD on the CD tray for the CD number you have selected, playback begins from

❏ Press the 0 button.

• The power comes on, and the corresponding tray comes out automatically.

Using the CD Player

Loading CDs ———————————————————————————

1. Press the 0 button on the CD Player you want to load the CD onto.

The CD tray comes out automatically.

2. Place a CD, with its label side up, onto the tray.

English

CD.

following CD.

seconds. Put a CD on one of the trays and press the ‹/8 button (or the £ button on the Remote Control)

the first track of that CD. If there is no CD on the CD tray, “CD NO DISC” appears on the display for a few seconds. Put a CD on that tray, then press the CD button (1 to 3) for that tray (or the corresponding DISC button (1 to 3) on the Remote Control).

Tray

INCORRECTCORRECT

❏ To put an 8 cm CD on a tray, insert it so that it is aligned with the groove in the tray’s center.

Note: To avoid malfunctions when you play a CD, place the CD in the right place at the center of the tray.

3. Press the 0 button to close the tray.

4. Repeat steps 1 to 3 to load other CDs on the other trays.

❏ To continue putting CDs on the other trays, even if a tray is open, by pressing the 0 button

of another CD tray, the open tray will close automatically, and the new CD tray will slide out.

EN.01-24.CA-MD9R[E]/F 6/16/98, 1:49 PM19

English

DISC DISC DISC

Playing CDs ———————————————————————————

You can play the CDs continuously. (Continuous Play)

1. Prepare the CDs.

2. Press the CD button (1 to 3) (or the DISC button (1 to 3) on the Remote Control) for the CD you

want to play.

The first track of the selected CD will begin playing. When the selected CD finishes playing, the next CD begins playing automatically. When the last CD has finished playing, the unit stops playing the CDs.

❏ When you press the CD button (1 to 3) (or DISC button (1 to 3) on the Remote Control) while a

tray is open, the open tray will close automatically and Continuous Play playback begins from

the first track of the CD.

To use Continuous Play from the first track of the currently selected CD, just press the ‹/8 button (or the £ button on the Remote Control).

Playing order of CDs

❏ When playback starts from CD1, the playing order is CD1 = CD2 = CD3. When CD3 has

finished, the CD Player selects CD1 and stops.

❏ When playback starts from CD2, the playing order is CD2 = CD3 = CD1. When CD1 has

finished, the CD Player selects CD2 and stops.

❏ When playback starts from CD3, the playing order is CD3 = CD1 = CD2. When CD2 has

finished, the CD Player selects CD3 and stops.

• If no CD is on a tray, the CD Player skips that tray.

To stop play, press the 7 button. To remove the CD, press the 0 button for the CD tray you want to open. To pause, press the ‹/8 button on the unit. The indicator above the tray starts flashing. To cancel pause, press the ‹/8 button again (or press the £ button on the Remote Control).

Changing CDs while Playing ————————————————————

You can replace a CD not playing, while another CD is playing.

1. Press the 0 button for the CD not playing.

The tray comes out.

2. Replace the CD on the tray.

3. Press the 0 button to close the tray.

EN.01-24.CA-MD9R[E]/F 6/16/98, 1:49 PM20

MULTI JOG

Selecting a Track—————————————————————————

Using the unit Rotate the MULTI JOG dial while playing or pausing.

• Rotate the MULTI JOG dial clockwise to select the next tracks.

• Rotate the MULTI JOG dial counterclockwise to select the previous tracks.

❏ If you rotate the MULTI JOG dial over the last track of the selected CD, the unit jumps to the

first track of the next CD.

Using the Remote Control Press the 4 or ¢ button while playing or pausing.

❏ Each time you press the 4 or ¢ button, the track changes by one.

• Press the ¢ button to go ahead one track at a time.

• Press the 4 button to go back one track at a time.

❏ Holding down the 4 or ¢ button allows you to change tracks continuously.

Selecting a Passage within a Track (on the unit only) ——————————

Press and hold the or button while playing or pausing.

• Hold the passage you want to hear.

• Hold the you want to hear.

button to fast forward the track, and release the button when you reach the

button to reverse the track, and release the button when you reach the passage

English

Using the number buttons on the Remote Control allows you to go directly to the beginning of any track.

1. Press the CD button.

Locating a Track with the Remote Control Directly ————————————

DISC DISC DISC

The Remote Control is set to the CD operation mode.

2. Press the DISC button (1 to 3) for the CD containing the track you want to listen to.

PTY

EON ON/OFF

1 2 3

TA/NEWS/

PTY SELECT

INFO

4 5 6

7 8 9

+10

DISPLAY

MODE

❏ Example: For the third CD, press DISC 3.

3. Enter the number of the track you want to listen to with the number buttons.

The selected track starts playing. ❏ Example: For track 5, press 5. For track 15, press +10 then 5. For track 20, press +10, then

10. For track 32, press +10 three times, then 2.

Programing the Playing Order of the Tracks

You can change the order in which the CDs and tracks play. (Program Play)

❏ You can program up to 32 steps in any order from among the loaded CDs. ❏ You can only make or change a program when the CD Player is stopped.

Using the unit

CD PLAY MODE

1. Press the CD PLAY MODE button repeatedly on the CD Player until the PROGRAM indicator

lights up on the display.

“CD PROGRAM” also appears on the display. ❏ If you have already made a program, the last step of the previous program is displayed

instead of “CD PROGRAM” unless you have erased the program.

PROGRAM

❏ Each time you press the CD PLAY MODE button, CD play mode changes as follows:

EN.01-24.CA-MD9R[E]/F 6/16/98, 1:49 PM21

= CD PROGRAM = CD RANDOM = Off (Continuous Play) = (back to the beginning)

English

MULTI JOG

SET

2. Press one of the CD buttons (1 to 3) to select a CD.

The CD and track numbers start flashing.

T rack number

Step number

PROGRAM

CD number

❏ If the CD and track numbers stop flashing, press the CD button (1 to 3) again.

3. Rotate the MULTI JOG dial to select a track.

The track number appears on the display.

PROGRAM

4. Press the SET button.

The CD and track numbers stop flashing, and the step number is shown.

PROGRAM

CD PLAY MODE

5. Repeat steps 2 to 4 to select the other tracks for the program.

❏ To select another track from the same CD, repeat steps 3 and 4. ❏ To select another track from a different CD, repeat steps 2 and 4.

6. Press the ‹/8 button.

The unit plays the tracks in the order you have programed them.

Using the Remote Control

1. On the unit, press the CD PLAY MODE button repeatedly until the PROGRAM indicator lights up

on the display.

“CD PROGRAM” also appears on the display. ❏ If you have already made a program, the last step of the previous program is displayed

instead of “CD PROGRAM” unless you have erased the program.

PROGRAM

❏ Each time you press the CD PLAY MODE button, CD play mode changes as follows:

= CD PROGRAM = CD RANDOM = Off (Continuous Play) = (back to the beginning)

2. Press the CD button on the Remote Control.

The Remote Control is set to the CD operation mode.

EN.01-24.CA-MD9R[E]/F 6/16/98, 1:49 PM22

PTY SELECT

+10

PTY

DISPLAY

MODE

DISC DISC DISC

EON ON/OFF

1 2 3

TA/NEWS/ INFO

4 5 6

7 8 9

3. Press one of the DISC buttons (1 to 3).

The CD and track numbers start flashing.

PROGRAM

CD number

Track number

Step number

❏ If the CD and track numbers stop flashing, press the DISC button (1 to 3) again.

4. Press the number buttons to select the tracks.

❏ Example: For track 5, press 5. For track 15, press +10 then 5. For track 20, press +10 then

10. For track 32, press +10 three times, then 2.

The CD and track numbers stop flashing, and the step number is displayed.

PROGRAM

5. Repeat steps 3 and 4 to select other tracks for the program.

6. Press the £ button.

The unit plays the tracks in the order you have programed them.

English

❏ If you try to program a 33rd step, “CD FULL” will appear on the display. ❏ If you try to program a track from an empty tray, or a track number that does not exist on the CD

(for example, selecting track 14 on a CD that only has 12 tracks), such entries are ignored.

❏ You can skip to a particular program step during Program Play. Rotate the MULTI JOG dial

clockwise or counterclockwise on the unit, or press the 4 or ¢ buttons on the Remote Control.

❏ To play the Program Play repeatedly, press the CD REPEAT button. For details, see “Repeating

a Selection or CDs” on page 24.

To stop playing, press the 7 button. To exit Program Mode, press the CD PLAY MODE button twice to change to Continuous Play mode

while the CD Player is stopped.

Checking the Program ———————————————————————

While the CD Player is stopped, use the 4 or ¢ buttons on the Remote Control to check the contents of the program. Each time you press the ¢ button, the program contents are shown on the display in the programed order. Pressing the 4 button displays the programed steps in the reverse order.

Changing the Program ———————————————————————

Only possible while the CD Player is stopped. To delete a program, press the CANCEL button on the unit. Each time you press the button, the last step is erased. If you eject the CD, the steps programed from that disc are also erased. To add a track to the program, follow the procedure above (on either the unit or the Remote Control). The new tracks are added to the end of the program.

EN.01-24.CA-MD9R[E]/F 6/16/98, 1:49 PM23

Random Play

CD PLAY MODE

English

The tracks of all loaded CDs will play at random.

1. While the CD player is stopped, press the CD PLAY MODE button repeatedly until the RANDOM

indicator appears on the display.

“CD RANDOM” also appears on the display.

RANDOM

12345678910111213141516

❏ Each time you press the CD PLAY MODE button, CD play mode changes as follows:

= CD PROGRAM = CD RANDOM = Off (Continuous Play) = (back to the beginning)

2. Press the ‹/8 button on the unit (or the £ button on the Remote Control).

The tracks of all the CDs are played at random. When all of the tracks have been played, the CD Player stops.

❏ You can skip a particular track during Random Play. Rotate the MULTI JOG dial clockwise, or

press the ¢ button on the Remote Control.

❏ To play the Random Play repeatedly, press the CD REPEAT button. For details, see “Repeating

a Selection or CDs” (below).

To cancel Random Play, press the 7 button, then press the CD PLAY MODE button to select another mode.

Repeating a Selection or CDs

You can have all the CDs, the program or the individual track currently playing repeat as many times as you like. (Repeat Play)

CD REPEAT

Press the CD REPEAT button on the unit.

❏ Each time you press the button, the Repeat Modes change as follows:

= REPEAT ALL = REPEAT 1 CD = REPEAT 1 = canceled = (back to the beginning)

RANDOM

REPEAT

1 CD MD ALL

REPEAT ALL: Repeats all the tracks on the CDs, or all the tracks in the program. REPEAT 1 CD: Repeats all the tracks on one CD. REPEAT 1: Repeats one track on one CD.

❏ “REPEAT ALL” and “REPEAT 1” remain on the display even when you change the play mode. ❏ The three Repeat Modes above can be selected during Continuous Play, however, during

Program Play and Random Play, you can only select “REPEAT ALL” or “REPEAT 1” (“REPEAT 1 CD” is not available).

To exit Repeat Mode, press the CD REPEAT button until the Repeat Mode indicator on the display goes off.

12345678910111213141516

EN.01-24.CA-MD9R[E]/F 6/16/98, 1:49 PM24

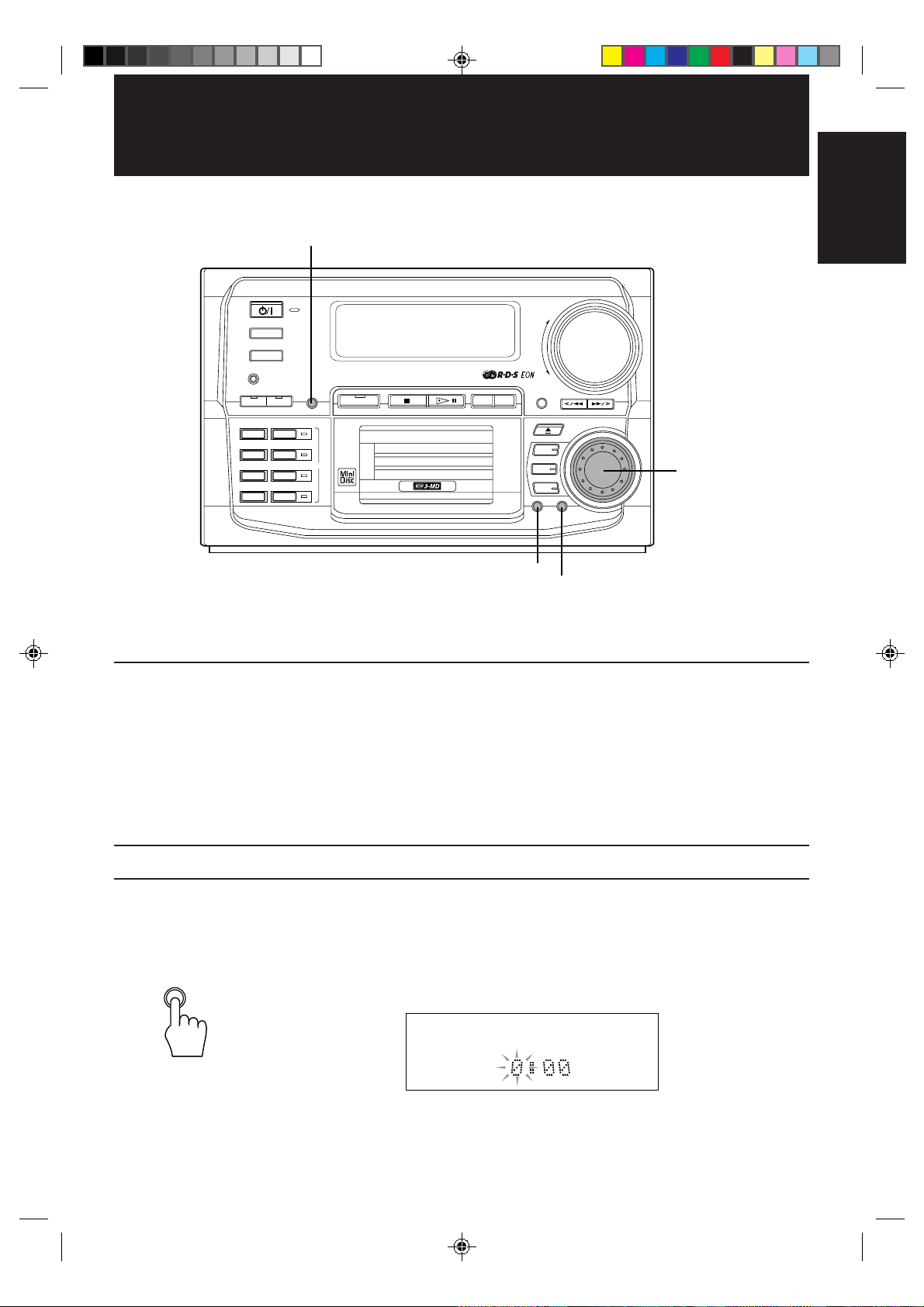

Using the MD Recorder (Playing)

REPEAT

PLAY MODE

RDS

CONTROL

PTY

EON ON/OFF

1 2 3

TA/NEWS/

PTY SELECT

INFO

4 5 6

7 8 9

+10

TAPE CD MD

MODE

SELECT

TAPE

DIRECTION

REC PAUSE

ACTIVE

DISC DISC DISC

BASS EX.

SOUND

MUTE

MODE

RM-SEMD9RU REMOTE CONTROL

7 (Stop)

STANDBY

TUNER

AUX

COMPACT COMPONENT MD SYSTEM MX-MD9R

DEMO

CLOCK

LONG REC

TRIPLE REC

1ST TRACK REC

CD REC

/TIMER

BASS SOUND REC PAUSE TITLE EDIT

REPEAT

PLAY MODE

LISTENING

SKIP

DISPLAY

MODE

SLEEP

FM MODE

MUTE

TUNER

AUX

‹ / 8 (Play/Pause)

MD 4 / £ / 7 / ¢

DISC (1 to 3)

VOLUME

–

DISPLAY

/CHARA

0 (Eject)

CANCEL SET

MULTI JOG

MULTI JOG dial

MD (1 to 3)

US and foreign patents licensed from Dolby Laboratories Licensing Corporation.

IMPORTANT: Before using the Remote Control for the MD operations, set the Remote Control to the MD

operation mode by pressing the MD button.

English

MD indicator on the unit

Each of the MD buttons (1 to 3) has the MD indicator.

MD indicators

When an MD is loaded in the loading slot, the corresponding indicator turns on.

MD indicators on the display

Flashes while playing.

Always lights up

EN.25-40.CA-MD9R[E]/F 6/16/98, 1:50 PM25

Lights up

Indicates that this

MD is currently

1 1

selected.

When an MD is loaded.

When no MD is loaded.

The MD Recorder has 3 MD loading slots. You can use Continuous, Random, Program or Repeat Play for the MDs in MD1, MD2 and MD3 loading slots. Repeat Play can repeat all the tracks on all the MDs, the tracks on one of the MDs or one track on one MD. There is also the Disc Lock function, prohibiting MD ejection (see page 66.)

English

The Quickest Way to Start a MD Is with the One Touch Operation ——————

The power comes on, and operations are done automatically.

❏ Press the ‹/8 button (or the £ button on the Remote Control).

❏ Press one of the MD buttons (1 to 3) (or one of the DISC buttons (1 to 3) on the Remote

❏ Press the 0 button.

Using the MD Recorder

Loading MDs ——————————————————————————

1. Press the 0 button to the right of the MD loading slots.

2. Place up to 3 MDs, into the slots as in the illustration below.

• If there is an MD in the currently selected loading slot, playback begins from the first track

of this MD.

• If there is no MD on the currently selected loading slot, playback begins from the first track

of the following MD.

• If there is no MD in any of the loading slots, “MD NO DISC” appears on the display for a

few seconds. Put an MD in one of the loading slots and press the ‹/8 button (or the £ button on the Remote Control).

Control).

• If there is an MD in the loading slot for the MD number you have selected, playback begins

from the first track of that MD. If there is no MD in the loading slot, “MD NO DISC” appears on the display for a few seconds. Put an MD in that loading slot, then press the MD button (1 to 3) for that loading slot (or the corresponding DISC button (1 to 3) on the Remote Control).

• The power comes on, and the loading slot cover opens automatically.

The MD loading slot cover opens automatically.

Insert an MD in the same way as indicated on the MD.

Label side

3. Press the 0 button to close the loading slot cover.

CAUTIONS:

•

DO NOT close the loading slot cover by hand; otherwise, the loading mechanism will be damaged.

•

DO NOT load an MD incorrectly. Always follow the indication on the MD.

EN.25-40.CA-MD9R[E]/F 6/16/98, 1:50 PM26

You can play the MDs continuously. (Continuous Play)

1. Prepare the MDs.

2. Press the MD button (1 to 3) (or the DISC button (1 to 3) on the Remote Control) for the MD you

want to play.

The first track of the selected MD will begin playing. When the selected MD finishes playing, the next MD will begin playing automatically. When the last MD has finished playing, the unit will stop playing the MDs.

English

Playing MDs———————————————————————————

DISC DISC DISC

❏ When you press the MD button (1 to 3) (or DISC button (1 to 3) on the Remote Control) while

the loading slot cover is open, the cover will close automatically and Continuous Play playback begins from the first track of the MD.

To use Continuous Play from the first track of the currently selected MD, just press the ‹/8 button (or £ button on the Remote Control).

Playing order of MDs

❏ When playback starts from MD1, the playing order is MD1 = MD2 = MD3. When MD3 has

finished, the MD Recorder selects MD1 and stops.

❏ When playback starts from MD2, the playing order is MD2 = MD3 = MD1. When MD1 has

finished, the MD Recorder selects MD2 and stops.

❏ When playback starts from MD3, the playing order is MD3 = MD1 = MD2. When MD2 has

finished, the MD Recorder selects MD3 and stops.

• If no MD is in the loading slot, the MD Recorder skips that slot.

To pause, press the ‹/8 button. To cancel pause, press the ‹/8 button again (or press the £ button on the Remote Control). To stop play, press the 7 button.

Changing MDs While Playing ————————————————————

You can replace an MD not being played, while another MD is playing.

1. Press the 0 button.

The MD loading slot cover opens.

2. Replace the MD in the loading slot.

3. Press the 0 button to close the loading slot cover.

Note: When you open the MD loading slot cover to replace MDs, the slot of the currently playing

EN.25-40.CA-MD9R[E]/F 6/16/98, 1:50 PM27

MD appears empty. Do not put any MD in this slot. If you put an MD in this slot and close the cover, the cover automatically opens after the unit check that there has already been an MD in this slot and “OCCUPIED” appears on the display.

English

MULTI JOG

DISC DISC DISC

DISPLAY

PTY

EON ON/OFF

1 2 3

TA/NEWS/

PTY SELECT

INFO

4 5 6

7 8 9

+10

Selecting a Track—————————————————————————

Using the unit Rotate the MULTI JOG dial while playing or pausing.

• Rotate the MULTI JOG dial clockwise to select the next tracks.

• Rotate the MULTI JOG dial counterclockwise to select the previous tracks.

❏ If you rotate the MULTI JOG dial over the last track of the selected MD, the unit jumps to the

first track of the next MD.

Using the Remote Control Press the 4 or ¢ button while playing or pausing.

❏ Each time you press the 4 or ¢ button, the track changes by one.

• Press the ¢ button to go ahead one track at a time.

• Press the 4 button to go back one track at a time.

❏ Holding down the 4 or ¢ button allows you to change tracks continuously.

Selecting a Passage within a Track (on the unit only) ——————————

Press and hold the or button while playing or pausing.

• Hold the

button to fast forward the track, and release the button when you reach the

passage you want to hear.

• Hold the

button to reverse the track, and release the button when you reach the passage

you want to hear.

Locating a Track with the Remote Control Directly ————————————

Using the number buttons on the Remote Control allows you to go directly to the beginning of any track.

1. Press the MD button.

The Remote Control is set to the MD operation mode.

MODE

2. Press the DISC button (1 to 3) for the MD containing the track you want to listen to.

❏ Example: For the third MD, press DISC 3.

3. Enter the number of the track you want to listen to with the number buttons.

The selected track starts playing. ❏ Example: For track 5, press 5. For track 15, press +10 then 5. For track 20, press +10, then

10. For track 32, press +10 three times, then 2.

Programing the Playing Order of the Tracks

You can change the order in which the MDs and tracks play. (Program Play)

❏ You can program up to 32 steps in any desired order from among the loaded MDs. ❏ You can only make or change a program when the MD Recorder is stopped.

Using the unit

PLAY MODE

EN.25-40.CA-MD9R[E]/F 6/16/98, 1:50 PM28

1. Press the PLAY MODE button repeatedly on the MD Recorder until the PROGRAM indicator

lights up on the display.

“MD PROGRAM” also appears on the display. ❏ If you have already made a program, the last step of the previous program is displayed

instead of “MD PROGRAM” unless you have erased the program.

PROGRAM MD

❏ Each time you press the PLAY MODE button, MD play mode changes as follows:

= MD PROGRAM = MD RANDOM = Off (Continuous Play) = (back to the beginning)

MULTI JOG

2. Press one of the MD buttons (1 to 3) to select an MD.

The MD and track numbers start flashing.

MD number

PROGRAM

T rack number

Step number

❏ If the MD and track numbers stop flashing, press the MD button (1 to 3) again.

English

3. Rotate the MULTI JOG dial to select a track.

The track number appears on the display.

PROGRAM MD

4. Press the SET button.

SET

The MD and track numbers stop flashing, and the step number is shown.

PROGRAM MD

PLAY MODE

5. Repeat steps 2 to 4 to select the other tracks for the program.

❏ To select another track from the same MD, repeat steps 3 and 4.

❏ To select another track from a different MD, repeat steps 2 and 4.

6. Press the ‹/8 button.

The unit plays the tracks in the order you have programed them.

Using the Remote Control

1. On the unit, press the PLAY MODE button repeatedly until the PROGRAM indicator lights up on

the display.

“MD PROGRAM” also appears on the display. ❏ If you have already made a program, the last step of the previous program is displayed

instead of “MD PROGRAM” unless you have erased the program.

PROGRAM MD

❏ Each time you press the PLAY MODE button, MD play mode changes as follows:

= MD PROGRAM = MD RANDOM = Off (Continuous Play) = (back to the beginning)

2. Press the MD button on the Remote Control.

The Remote Control is set to the MD operation mode.

EN.25-40.CA-MD9R[E]/F 6/16/98, 1:50 PM29

English

DISC DISC DISC

3. Press one of the DISC buttons (1 to 3).

The MD and track numbers start flashing.

MD number

PROGRAM MD

Track number

Step number

❏ If the MD and track numbers stop flashing, press the DISC button (1 to 3) again.

4. Press the number buttons to select the tracks.

❏ Example: For track 5, press 5. For track 15, press +10 then 5. For track 20, press +10 then

10. For track 32, press +10 three times, then 2.

The MD and track numbers stop flashing, and the step number is displayed.

PROGRAM MD

5. Repeat steps 3 and 4 to select other tracks for the program.

6. Press the £ button.

The unit plays the tracks in the order you have programed them.

❏ If you try to program a 33rd step, “MD FULL” will appear on the display. ❏ If you try to program a track from an empty loading slot, or a track number that does not exist

on the MD (for example, selecting track 14 on an MD that only has 12 tracks), such entries are ignored.

❏ You can skip to a particular program step during Program Play. Rotate the MULTI JOG dial

clockwise or counterclockwise on the unit, or press the 4 or ¢ buttons on the Remote Control.

❏ To play the Program Play repeatedly, press the REPEAT button. For details, see “Repeating a

Selection or MDs” on page 31.

To stop playing, press the 7 button. To exit Program Mode, press the PLAY MODE button twice to change to Continuous Play mode

while the MD Recorder is stopped.

Checking the Program ———————————————————————

While the MD Recorder is stopped, use the 4 or ¢ buttons on the Remote Control to check the contents of the program. Each time you press the ¢ button, the program contents are shown on the display in the programed order. Pressing the 4 button displays the programed steps in the reverse order.

Changing the Program ———————————————————————

Only possible while the MD recorder is stopped. To delete a program, press the CANCEL button on the unit. Each time you press the button, the last step is erased. If you open the loading slot cover, the program is erased. To add a track to the program, follow the procedure above (on either the unit or the Remote Control). The new tracks are added to the end of the program.

EN.25-40.CA-MD9R[E]/F 6/16/98, 1:50 PM30

Random Play

PLAY MODE

The tracks of all loaded MDs will play at random.

1. While the MD Recorder is stopped, press the PLAY MODE button repeatedly until the RANDOM

indicator appears on the display.

“MD RANDOM” also appears on the display.

RANDOM

12345678910111213141516

❏ Each time you press the PLAY MODE button, MD play mode changes as follows:

= MD PROGRAM = MD RANDOM = Off (Continuous Play) = (back to the beginning)

2. Press the ‹/8 button on the unit (or the £ button on the Remote Control).

The tracks of all the MDs are played at random. When all of the tracks have been played, the MD Recorder stops.

❏ You can skip a particular track during Random Play. Rotate the MULTI JOG dial clockwise, or

press the ¢ button on the Remote Control.

❏ To play the Random Play repeatedly, press the REPEAT button. For details, see “Repeating a

Selection or MDs” (below).

To cancel Random Play, press the 7 button, then press the PLAY MODE button to select another mode.

English

Repeating a Selection or MDs

You can have all the MDs, the program or the individual selection currently playing repeat as many times as you like. (Repeat Play)

REPEAT

Press the REPEAT button on the unit.

❏ Each time you press the button, the Repeat Modes change as follows:

= REPEAT ALL = REPEAT 1 MD = REPEAT 1 = Canceled = (back to the beginning)

REPEAT ALL: Repeats all the tracks on the MDs, or all the tracks in the program. REPEAT 1 MD: Repeats all the tracks on one MD. REPEAT 1: Repeats one track on one MD.

❏ “REPEAT ALL” and “REPEAT 1” remain on the display even when you change the play mode. ❏ The three Repeat Modes above can be selected during Continuous Play, however, during

Program Play and Random Play, you can only select “REPEAT ALL” or “REPEAT 1” (“REPEAT 1 MD” is not available).

To exit Repeat Mode, press the REPEAT button until the Repeat Mode indicator on the display goes off.

RANDOM

REPEAT

12345678910111213141516

1 CD MD ALL

EN.25-40.CA-MD9R[E]/F 6/16/98, 1:50 PM31

Using the MD Recorder (Recording)

English

LONG REC

TRIPLE REC

LISTENING

REC PAUSE

SKIP

CD REC

RDS

CONTROL

PTY

EON ON/OFF

1 2 3

TA/NEWS/

PTY SELECT

INFO

4 5 6

7 8 9

+10

TAPE CD MD

MODE

SELECT

TAPE

DIRECTION

REC PAUSE

ACTIVE

DISC DISC DISC

BASS EX.

SOUND

MUTE

MODE

RM-SEMD9RU REMOTE CONTROL

REC P AUSE

STANDBY

TUNER

AUX

COMPACT COMPONENT MD SYSTEM MX-MD9R

DEMO

CLOCK

LONG REC

TRIPLE REC

1ST TRACK REC

CD REC

/TIMER

BASS SOUND REC PAUSE TITLE EDIT

REPEAT

PLAY MODE

LISTENING

SKIP

DISPLAY

MODE

SLEEP

FM MODE

MUTE

TUNER

AUX

(Stop)

4 / £ / 7 / ¢

VOLUME

DISC (1 to 3)

‹/8 (Play/Pause)

VOLUME

–

DISPLAY

/CHARA

CANCEL SET

MULTI JOG

DISPLAY /CHARA

MD (1 to 3)1ST TRACK REC

IMPORTANT: Before using the Remote Control for the MD operations, set the Remote Control to the MD

operation mode by pressing the MD button.

Your CA-MD9R is supplied with very powerful functions to record on the MDs. (For Editing functions, see the next chapter from page 41.) You can do the following:

• Recording any source

- Standard Recording (just record what you are listening)

- LONG REC: To record a long radio program or another source continuously on 3 MDs.

• Recording CDs CD REC: To record automatically one CD on an MD by just pressing one button (One Touch Recording)

TRIPLE REC: To record automatically 3 CDs loaded on the CD trays onto 3 MDs. LISTENING: Lets you choose which track to record from CDs onto the MD while listening. 1ST TRACK REC: Lets you automatically record the first track of each CD loaded on the CD

trays.

EN.25-40.CA-MD9R[E]/F 6/16/98, 1:50 PM32

Things to Know Before You Start Recording ——————————————

❏ It may be unlawful to record or play back copyrighted material without the consent of the

❏ When you record onto partially recorded MD, its contents are not erased or overwritten. The

recording starts from the point following the last recorded track of the MD. If you want to record such an MD from the beginning, you have to erase its contents first (see “ALL ERASE Function” on page 48).

❏ When recording a source using the Standard Recording (see page 34), you can also record the

same source on a tape using the Standard Recording procedure for the Cassette Deck (see page

55).

❏ The recording level is automatically set correctly, so it is not affected by the VOLUME control.

Thus, during recording you can adjust the sound you are actually listening to without affecting the recording level.

❏ When recording, you can hear Sound Modes through the speakers or headphones. However, the

sound is recorded without Sound Modes (see page 9).

❏ To avoid erasing important recordings

Recordable MDs have an accidentally erasure prevention tab so that important recordings are not accidentally erased. When you finish recording or editing, slide open the erasure prevention tab on the cartridge side surface. New recording or editing is now no longer possible. To redo recording or editing, return the tab to the closed position.

Recording/Editing possible

Erasure prevention tab

Disc protected: Recording/Editing not possible

English

About the track marks

When playing an MD, you can move among the tracks using the or button or even select directly a track using the Remote Control. You can do that because there is a mark recorded at the front of each track enabling you to locate the track. This mark is called a “track mark” and the portion between two adjacent track marks is called a “track”. ❏ When recording from a digital source such as the CD Player, a track mark is recorded automatically at the

beginning of each track.

❏ When recording from a analog source such as the radio, no track mark is recorded. This means that, when

playing this MD, the MD Recorder will regard the entire recording as one track (track 1). You will not be able to select directly a song or navigate through them. You can put track marks manually.

To put a track mark manually, during the recording, press the SET button at the place you want to put a track mark.

The MD Recorder will also consider a blank of 3 seconds or more as a blank separating 2 tracks and consequently put a track mark.

Note:

To add track mark afterwards (when the recording is over), you can use the DIVIDE function (see page 42) to divide a long recording.

EN.25-40.CA-MD9R[E]/F 6/16/98, 1:50 PM33

Standard Recording

English

To record any source currently playing use the following procedure. ❏ You can also record the same source on the tape at the same time. (See page 55 for tape

recording.)

1. Insert a blank or recordable MD into one of the MD loading slots.

REC PAUSE

DISPLAY

/CHARA

2. Press the MD button (1 to 3) (or the DISC button (1 to 3) on the Remote Control) corresponding to

the slot number you put the MD, then press the 7 button.

3. Choose and start playing the source you want to record (CD, Tuner, Cassette Deck or the

external component).

4. Press the REC PAUSE button on the MD Recorder.

The indicator on the button lights up.

5. Press the ‹ / 8 button to start the recording.

❏ If some tracks have been recorded on the MD, this MD Recorder searches for the end point of

the previous recording, and starts recording after the end point.

To pause any time during recording process, press the ‹ / 8 button (or the REC PAUSE button on the Remote Control). The track mark will be recorded. To cancel the pause, press the ‹ / 8 button again (or the £ on the Remote Control).

To stop recording, press the 7 button.

Changing the Display Mode—————————————————————

You can check the remaining time of the MD while recording. Press and hold the DISPLAY/CHARA button on the unit. While you are holding the button, the remaining time of the MD will be shown on the display (as well as the source name you are recording).

STEREO TUNED

1 2 3 4 5

EN.25-40.CA-MD9R[E]/F 6/16/98, 1:50 PM34

Long Recording (LONG REC)

The LONG REC function allows you to record any source continuously onto 3 MDs, enabling you to make long recording of radio program, or to record three CDs continuously, etc. The Recording begins on MD1 (MD in the MD1 slot) and continues on MD2, then MD3.

1. Insert the MDs you want to record on into the MD loading slots.

❏ Always use the MD1 loading slot.

If there is no MD in the MD1 slot (or if the MD is not availa ble for recording: play only MD or full MD), the recording is automatically canceled when you press the LONG REC button in step

2. Prepare the source you want to record from.

For CD recording: Put CD(s) on the CD tray(s). Since the recording begins from CD1, be sure

For recording the other sources (Tuner, Cassette Deck or the external component):

LONG REC

3. Press the LONG REC button.

The indicator next to the LONG REC button lights up and the recording begins automatically. If you are recording from a CD, the CD on the CD1 tray starts playing automatically.

• If you are recording from a CD:

The display changes as follows:

12345678910111213141516

that a CD is loaded on the CD1 tray. You need to select the CD Player as the source by pressing the CD1 button then the 7 button.

Tune in the station or play the source you want to record.

12345678910111213141516

English

DISPLAY

/CHARA

Remaining time of the current track

Remaining time of the MD

• If you are recording from another source, “LONG REC” does not appears on the display even

if the unit is recording the source.

To stop recording, press the 7 button.

Note: When an MD is fully recorded, the MD Recorder automatically switches to the next MD.

While switching the MDs, no recording will be made.

Changing the Display Mode—————————————————————

If you press and hold the DISPLAY/CHARA button on the unit while recording, the display shows the following.

• While recording CDs

CD track number currently playing

MD track number currently being recorded

• While recording the other sources

STEREO TUNED

123456

1 2 3 4 5

EN.25-40.CA-MD9R[E]/F 6/16/98, 1:50 PM35

Source name

Remaining time of the MD

One Touch CD Recording (CD REC)

The CD REC function allows you to easily record CDs on the MD1.

English

1. Prepare CDs and a recordable MD into the MD1 loading slot.

❏ You can load the CDs on any CD trays, but always load the recordable MD into the MD1

loading slot. If not, this function does not work.

2. Be sure that the CD you want to start recording from is selected as the playing source.

❏ If not, select it by pressing the corresponding CD button (1 to 3), then the 7 button.

CD REC

DISPLAY

/CHARA

3. Press the CD REC button on the MD Recorder.

The indicator next to the CD REC button lights up and the recording begins automatically. Recording will stop when the MD in the MD1 loading slot is fully recorded.

12345678910111213141516

❏ If you press the CD REC button while playing a CD, the recording starts from the beginning

of the current track, and only the current track is recorded.

❏ If you press the CD REC button after making a program, you can automatically record the

program.

Changing the Display Mode—————————————————————

You can check the CD track number and the MD track number while recording. Press and hold the DISPLAY/CHARA on the unit. While holding the button, the following information appears on the display.

CD track number currently playing

123456

12345678910111213141516

Remaining time of the current track

Remaining time of the MD

To stop recording, press the 7 button.

EN.25-40.CA-MD9R[E]/F 6/16/98, 1:50 PM36

MD track number currently being recorded

Three CD Recording (TRIPLE REC)

The TRIPLE REC function allows you to easily record three CDs onto three MDs.

1. Prepare CDs and recordable MDs.

❏ Always place a CD on the CD1 tray and insert an MD into the MD1 loading slot. If not, this

function does not work.

❏ If you record from two CDs onto two MDs, use CD1 and 2 trays and MD1 and 2 slots.

TRIPLE REC

2. Press the TRIPLE REC button.

The indicator next to the TRIPLE REC button lights up and the recording begins automatically. ❏ The tracks of the CD1 are recorded onto the MD1, CD2 onto MD2, and CD3 onto MD3.

English

DISPLAY

/CHARA

12345678910111213141516

Remaining time of the current track

Remaining time of the MD

Changing the Display Mode—————————————————————

You can check the CD track number and the MD track number while recording. Press and hold the DISPLAY/CHARA on the unit. While holding the button, the following information appears on the display.

CD track number currently playing

12345

MD track number currently being recorded

To stop recording, press the 7 button.

EN.25-40.CA-MD9R[E]/F 6/16/98, 1:50 PM37

Listening Edit Recording (LISTENING)

The LISTENING function allows you to make a program while listening and checking each track of the loaded CDs, then to start recording the program.

English

❏ You can program up to 32 tracks.

1. Prepare CDs and a recordable MD into the MD1 loading slot.

❏ Always place a CD on the CD1 tray and insert the MD into the MD1 loading slot. If not, this

function does not work.

LISTENING

SKIP

2. Press the LISTENING button.

“L. EDIT” appears on the display and the unit plays the first track of the CD1.

123456789101112

Playing time of the current track

Remaining time of the MD

3. Decide if you want to include the current track in the program or skip it.

7 To include the current playing track in the program, press the LISTENING button again.

The current track is programed and the next track starts playing.

Playing time of the current track

23456789101112

The number of the track already played disappears

7 To skip the current track, press the SKIP button.

The current playing track is not programed and the next track starts playing.

Playing time of the current track

Remaining time of the MD

❏ If you do not press the LISTENING or SKIP button, the unit will play the current track

4. Repeat step 3 to program other tracks.

You can check the contents of all loaded CDs.

EN.25-40.CA-MD9R[E]/F 6/16/98, 1:50 PM38

3456789101112

The number of the track already played disappears

repeatedly.

Remaining time of the MD

5. When you finish checking all CDs or if there is no more remaining time for recording on the MD,

recording starts automatically.

“L. EDIT” appears on the display and recording starts.

123456789101112

English

DISPLAY

/CHARA

Remaining time of the current track

Remaining time of the MD

❏ If the remaining time of the MD becomes short, this unit will search a track fitting into the

remaining time. To include the selected track in the program, press the LISTENING button. To find another track, press the SKIP button.

To finish programing and to start recording before checking all the tracks of the loaded CDs, press the CD REC button. “L.EDIT” appears and the recording starts.

To stop recording, press the 7 button.

To erase the program, press the 7 button while checking the contents of the loaded CDs.

Changing the Display Mode—————————————————————

You can check the CD track number and the MD track number while recording. Press and hold the DISPLAY/CHARA button on the unit. While holding the button, the following information appears on the display.

CD track number currently playing

MD track number currently being recorded

EN.25-40.CA-MD9R[E]/F 6/16/98, 1:50 PM39

First Track Recording (1ST TRACK REC)

The 1ST TRACK REC function allows you to record the first track of each loaded CD. You can, for example, make a directory of all your best CDs.

English

1. Prepare CDs, and a recordable MD into the MD1 loading slot.

❏ Always place a CD on the CD1 tray and insert the recordable MD into the MD1 loading

slot. If not, this function does not work.

1ST TRACK REC

2. Press the 1ST TRACK REC button.

The indicator next to the 1ST TRACK REC button lights up and the recording starts.

DISPLAY

/CHARA

Appears only when using an 8 cm CD

Remaining time of the current track

Remaining time of the MD

When the first track of the CD1 is recorded, the first track of the CD2 will be recorded. Recording continues until the first track of each loaded CD is recorded.

3. Replace the CDs on the trays not selected.

❏ You can change CDs to continue the First Track Recording using more than 3 CDs.

Changing the Display Mode—————————————————————

You can check the CD track number and MD track number while recording. Press and hold the DISPLAY/CHARA button on the unit. While holding the button, the following information appears on the display.

CD track number currently playing

123456

MD track number being recorded

EN.25-40.CA-MD9R[E]/F 6/16/98, 1:51 PM40

Using the MD Recorder (Editing)

‹ / 8

7 (Stop)

(Play/Pause)

TITLE

EDIT

English

STANDBY

TUNER

AUX

COMPACT COMPONENT MD SYSTEM MX-MD9R

DEMO

CLOCK

LONG REC

TRIPLE REC

1ST TRACK REC

CD REC

/TIMER

BASS SOUND REC PAUSE TITLE EDIT

REPEAT

PLAY MODE

LISTENING

SKIP

VOLUME

–

DISPLAY

/CHARA

CANCEL SET

MULTI JOG

SETCANCEL

One of the great features of the MD is its capacity to be edited freely. The CA-MD9R offers you the following edit functions.

DIVIDE (see page 42):

To divide one track into two separate tracks.

DISPLAY/CHARA

MULTI JOG dial

JOIN (see page 44):

To join two adjacent tracks into one track.

MOVE (see page 45):

To move one track to another place (within the same disc).

ERASE (see page 47):

To erase one specific track.

ALL ERASE (see page 48):

To erase all the tracks.

Note:

By using the DIVIDE, ERASE, and JOIN functions, you can also erase an unwanted portion of a track. (see page 48)

TITLE (see page 49):

To put a name to an MD and a track.

EN.41-50.CA-MD9R[E]/F 6/16/98, 2:19 PM41

DIVIDE Function

English

BASS SOUND

TITLE EDIT

This function allows you to divide one track into two separate tracks. It is useful, for example, when you want to add track marks at a certain point within a track or if you want to separate a recording.

1. Be sure that the MD you want to edit is in one of the MD loading slots.

2. Select the MD you want to edit.

Press the corresponding MD button (1 to 3), then the 7 button.

3. Press the EDIT button repeatedly until “DIVIDE” appears on the display.

❏ Each time you press the button, the MD editing functions change as follow:

JOINDIVIDE MOVE ERASE

ALL ERASECanceled

MULTI JOG

SET

123456789101112

4. Press the SET button.

The playing time of the first track of the MD appears on the display.

123456789101112

5. Rotate the MULTI JOG dial to select the track you want to divide.

Ex. When you want to divide track 3.

6. Press the ‹ / 8 button.

Playback starts. ❏ If you have selected a wrong track, rotate the MULTI JOG dial to select the correct track.

123456789101112

SET

7. Press the SET button when you find the point where you want to divide the track.

The MD Recorder repeats the selected point — a portion of 3 seconds length following the dividing point.

❏ If the dividing point is satisfactory, go to step 9. ❏ If the dividing point is not satisfactory, go to step 8.

EN.41-50.CA-MD9R[E]/F 6/16/98, 2:19 PM42

123456789101112

MULTI JOG

BASS SOUND

TITLE EDIT

8. Rotate the MULTI JOG dial to precisely adjust the dividing point.

You can shift the dividing point up to ±128. This range (±128) corresponds to approximately ±8 seconds from the original point (Position 0).

Shifted position

123456789101112

When you stop rotating the MULTI JOG dial, the unit repeats the newly selected dividing point. When you find the right position, go to step 9.

9. Press the EDIT button.

12345678910111213

Total track number increases.

.Press the 0 button to eject the MD.

“WRITING” appears while the modification you have made is being recorded on the MD.

English

To join the divided track again, see the JOIN function on page 44.

Note: If “TRACK PROTECTED” appears on the display when you select “DIVIDE,” the track is

protected and cannot be modified. To cancel this protection, see page 69.

EN.41-50.CA-MD9R[E]/F 6/16/98, 2:20 PM43

JOIN Function

English

BASS SOUND

TITLE EDIT

SET

MULTI JOG

SET

This function allows you to join two adjacent tracks into one track.

1. Be sure that the MD you want to edit is in one of the MD loading slots.

2. Select the MD you want to edit.

Press the corresponding MD button (1 to 3), then the 7 button.

3. Press the EDIT button repeatedly until “JOIN” appears on the display.

❏ Each time you press the button, the MD editing functions change as follow:

JOINDIVIDE MOVE ERASE

ALL ERASECanceled

12345678910111213141516

4. Press the SET button.

12345678910111213141516

5. Rotate the MULTI JOG dial to select the two adjacent tracks you want to join.

12345678910111213141516

Two adjacent tracks selected

6. Press the SET button.

BASS SOUND

TITLE EDIT

12345678910111213141516

Two adjacent tracks selected

❏ If you have selected wrong tracks, press the CANCEL button then select the correct tracks

by rotating the MULTI JOG dial.

❏ If you cancel the editing, press the 0 button.

7. Press the EDIT button.

123456789101112131415

Total track number decreases.

8. Press the 0 button to eject the MD.

“WRITING” appears while the modification you have made is being recorded on the MD.

To divide the joined tracks, see the DIVIDE function on page 42.

Note: If “TRACK PROTECTED” appears on the display when you select “JOIN,” the tracks are

protected and cannot be modified. To cancel this protection, see page 69.

EN.41-50.CA-MD9R[E]/F 6/16/98, 2:20 PM44

MOVE Function

BASS SOUND

TITLE EDIT

This function allows you to move a track to the position you prefer on the same MD. It is useful to change the order of the tracks as you like.

1. Be sure that the MD you want to edit is in one of the MD loading slots.

2. Select the MD you want to edit.

Press the corresponding MD button (1 to 3), then the 7 button.

3. Press the EDIT button repeatedly until “MOVE” appears on the display.

❏ Each time you press the button, the MD editing functions change as follow:

JOINDIVIDE MOVE ERASE

ALL ERASECanceled

12345678910111213141516

English

SET

MULTI JOG

SET

4. Press the SET button.

12345678910111213141516

5. Rotate the MULTI JOG dial to select the track you want to move.

12345678910111213141516

Ex. When you want to move the track 2.

6. Press the SET button.

12345678910111213141516

❏ If you have selected a wrong track number, press the CANCEL button then select the correct

track number again.

7. Rotate the MULTI JOG dial to select the position where you want to move the track.

MULTI JOG

EN.41-50.CA-MD9R[E]/F 6/16/98, 2:20 PM45

Track number moved to

Track number moved from

12345678910111213141516

Ex. When you want to move track 2 to the track 5 position.

(Continued to the next page)

English

SET

BASS SOUND

TITLE EDIT

8. Press the SET button.

12345678910111213141516

❏ If you have selected wrong track numbers, press the CANCEL button then select the correct

track numbers again.

❏ If you cancel the editing, press the 0 button.

9. Press the EDIT button.

12345678910111213141516

.Press the 0 button to eject the MD.

“WRITING” appears while the modification you have made is being recorded on the MD.

Note: If “TRACK PROTECTED” appears on the display when you select “MOVE,” the track is protected and cannot be modified. To cancel this protection, see page 69.

EN.41-50.CA-MD9R[E]/F 6/16/98, 2:20 PM46

ERASE Function

BASS SOUND

TITLE EDIT

This function allows you to erase an unwanted track.

1. Be sure that the MD you want to edit is in one of the MD loading slots.

2. Select the MD you want to edit.

Press the corresponding MD button (1 to 3), then the 7 button.

3. Press the EDIT button repeatedly until “ERASE” appears on the display.

❏ Each time you press the button, the MD editing functions change as follow:

JOINDIVIDE MOVE ERASE

ALL ERASECanceled

English

SET

MULTI JOG

SET

12345678910111213141516

4. Press the SET button.

Track number to be erased

12345678910111213141516

5. Rotate the MULTI JOG dial to select the track you want to erase.

12345678910111213141516

Ex. When you want to erase track 5.

6. Press the SET button.

12345678910111213141516

❏ If you have selected a wrong track number, press the CANCEL button then select the correct ❏ If you want to cancel the editing, press the 0 button.

BASS SOUND

TITLE EDIT

7. Press the EDIT button.

8. Press the 0 button to eject the MD.

“WRITING” appears while the modification you have made is being recorded on the MD.

Note: If “TRACK PROTECTED” appears on the display when you select “ERASE,” the track is protected and cannot be modified. To cancel the protection, see page 69.

EN.41-50.CA-MD9R[E]/F 6/16/98, 2:20 PM47

track number.

123456789101112131415

Total track number decreases.

ALL ERASE Function

English

BASS SOUND

TITLE EDIT

This function allows you to erase all the tracks on an MD.

1. Be sure that the MD you want to edit is in one of the MD loading slots.

2. Select the MD you want to edit.

Press the corresponding MD button (1 to 3), then the 7 button.

3. Press the EDIT button repeatedly until “ALL ERASE” appears on the display.

❏ Each time you press the button, the MD editing functions change as follow:

JOINDIVIDE MOVE ERASE

ALL ERASECanceled

SET

BASS SOUND

TITLE EDIT

12345678910111213141516

4. Press the SET button.

12345678910111213141516

❏ If you want to cancel the editing, press the 0 button.

5. Press the EDIT button.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

All track numbers disappear.

6. Press the 0 button to eject the MD.

“WRITING” appears while the modification you have made is being recorded on the MD.

Note: If “TRACK PROTECTED” appears on the display when you select “ALL ERASE,” the tracks are protected and cannot be modified. To cancel the protection, see page 69.

Erasing a Portion of a Track —————————————————————

You can erase just a portion of one track by using the DIVIDE, ERASE and JOIN functions.

1. Be sure that the MD you want to edit is in one of the MD loading slots.

2. Select the MD you want to edit.

Press the corresponding MD button (1 to 3), then the 7 button.

3. Divide a track into 3 portions to isolate the portion to erase.

Use the DIVIDE function by referring to page 42.

4. Erase the middle portion.

Use the ERASE function by referring to page 47.

5. Join the two remaining portions.

Use the JOIN function by referring to page 44.

EN.41-50.CA-MD9R[E]/F 6/16/98, 2:20 PM48

TITLE Function

This function allows you to give a name containing up to 32 characters to each MD and to each track.

BASS SOUND

TITLE EDIT

DISPLAY

/CHARA

SET

Giving a Title to an MD ——————————————————————

After putting a name to a disc, it will appear when you play the disc.

1. Be sure that the MD you want to edit is in one of the MD loading slots.

2. Select the MD you want to edit.

Press the corresponding MD button (1 to 3), then the 7 button.

3. Press the TITLE button.

12345678910111213141516

4. Press the SET button.

Cursor position flashes

12345678910111213141516

“A” flashes.

5. Press the DISPLAY/CHARA button to select the character set you want.

❏ Each time you press the button, the character sets change as follows:

Capital letters and symbols

Small letters and symbols

Numbers

See page 50 for more information about these character sets.

English

MULTI JOG

SET

BASS SOUND

TITLE EDIT

6. Rotate the MULTI JOG dial to select a character you want.

7. Press the SET button to enter the selected character.

❏ If you have entered an incorrect character, press the CANCEL button to cancel the last entry.

8. Repeat steps 5 to 7 to enter up to 32 characters.

Next entry position The characters you can select.

12345678910111213141516

Title you are entering

❏ If you want to cancel the editing, press the 0 button.

9. Press the TITLE button to memorize the title.

“EDITING” appears on the display.

.Press the 0 button to eject the MD.

“WRITING” appears while the modification you have made is being recorded on the MD.

EN.41-50.CA-MD9R[E]/F 6/16/98, 2:20 PM49

English

BASS SOUND

TITLE EDIT

Giving a Title to a Track ——————————————————————

1. Be sure that the MD you want to edit is in one of the MD loading slots.

2. Select the MD you want to edit.

Press the corresponding MD button (1 to 3), then the 7 button.

3. Press the TITLE button.

4. Rotate the MULTI JOG dial to select the track you want to title.

Selected track number appears.

MULTI JOG

12345678910111213141516

5. Follow steps 4 to 10 of page 49.

Changing the Title ————————————————————————

You can change a title afterward:

1. Follow steps 1 to 3 of page 49 to change a MD title or steps 1 to 4 above to change a track title.

2. Press the SET button.

3. Press the

4. Repeat steps 5 to 7 of page 49.

5. Repeat steps 3 and 4 of the current procedure to correct more characters.

6. Repeat steps 9 and 10 of page 49.

To erase all the characters Press the CANCEL repeatedly in step 3 to erase all the characters, then go to step 6.

Characters Set for Title Editing:

or button to select the character you want to correct.

EN.41-50.CA-MD9R[E]/F 6/16/98, 2:20 PM50

Capital letters set Small letters set Numbers set

(Blank)(Blank)

Using the Cassette Deck (Playing)

PHONES

DOLBY B NR

CD RECREC PAUSE

CONTROL

EON ON/OFF

1 2 3

TA/NEWS/ INFO

4 5 6

7 8 9

MODE

SELECT

TAPE

DIRECTION

REC PAUSE

RDS

PTY SELECT

+10

PTY

DISPLAY

MODE

TAPE CD MD

SLEEP

FM MODE

TUNER

AUX

AUTO REVERSE

AUTO TAPE SELECTOR

DOLBY B NR

0 (Eject)

MUTE

1 / £ / 7 / ¡

DOLBY B NR

TAPE

TAPE DIRECTION

English

Tape Direction indicators

¤ ‹ (Play) 1 ¡

7 (Stop)

ACTIVE

BASS EX.

SOUND

DISC DISC DISC

MUTE

MODE

RM-SEMD9RU REMOTE CONTROL

VOLUME

IMPORTANT: Before using the Remote Control for the tape operations, set the Remote Control to the tape

operation mode by pressing the TAPE button.

Tape Direction Indicators

Tape Direction Indicator on the unit

The Tape Direction indicator tells you which direction the tape runs. During playback, the indicator flashes slowly. During fast left or fast right, the indicator flashes quickly. During Music Scan mode, the indicator flashes slowly and quickly alternately.

❏ Most tapes are now recorded with the Dolby NR system, so first check which type of the Dolby

NR system has been used on the tape. Only Dolby B NR is incorporated into the CA-MD9R.

❏ With Automatic Tape Selection, you can listen to type I, II (CrO

2) or IV (Metal) tapes without

changing any settings.

The use of tapes longer than 120 minutes is not recommended, since characteristic deterioration may occur and these tapes easily jam in the pinch-rollers and the capstans.

EN.51-72.CA-MD9R[E]/F 6/16/98, 1:51 PM51

English

Regular Play

One Touch Play —————————————————————————

❏ Press the ¤ or ‹ button (or the £ button on the Remote Control).

The power comes on and “TAPE” appears on the display. When a tape is already in the cassette holder, the tape is played in the direction of the button pressed. If there is no tape in the cassette holder, the CA-MD9R automatically turns on and “NO TAPE” appears on the display.

If the power is already on, you can use this basic procedure:

1. Press down the 0 button.

2. When the cassette holder opens, put a cassette in, with the exposed part of the tape down,

toward the base of the CA-MD9R.

❏ If the cassette holder does not open, turn off the unit, then back on and press down the 0

button again.

TAPE

DIRECTION

3. Close the holder gently.

4. Press the ¤ or ‹ button (or the £ button on the Remote Control).

The tape is played in the direction of the button pressed. ❏ The Cassette Deck automatically stops when one side of a tape has finished playing (except

if the deck is in auto reverse mode: see the next page).

Playing the front side Playing the reverse side

❏ To change the tape direction using the Remote Control, press the TAPE DIRECTION button.

Each time you press the button, the tape direction alternates.

To stop playing, press the 7 button. To remove the tape, press down the 0 button after stopping the play.

Fast Left and Fast Right ——————————————————————

❏ While the tape is stopped, press the 1 button and the tape will wind rapidly to the left side of

the cassette without playing.

❏ While the tape is stopped, press the ¡ button and the tape will wind rapidly to the right side of

the cassette without playing.

EN.51-72.CA-MD9R[E]/F 6/16/98, 1:52 PM52

Music Scan

To find the beginning of a music track during play, use the Music Scan function. Music Scan searches for blank portions that usually separate selections, then plays the next selection.

Finding the Beginning of the Current Selection —————————————

Press the 1 or ¡ button during play.

❏ Make sure that you press the 1 or ¡ button in the opposite direction to that in which the

tape is playing. Searching stops at the beginning of the current selection, and the current selection starts automatically.

Finding the Beginning of the Next Selection ——————————————

Press the 1 or ¡ button during play.

❏ Make sure that you press the 1 or ¡ button in the same direction as that in which the tape is

playing. Searching stops at the beginning of the next selection, and the next selection starts automatically.

Music Scan works by detecting a 4-second long blank at the beginning of each selection, so it will not work well if your tape has...

• No blank at the beginning of a selection.

• Noise (often caused by much use or poor quality dubbing) which fills the blank.

• Long, very soft passages or pauses in a selection. The scan will detect these as 4-second long blanks. If this happens, just scan again until you reach the selection you want.

Other Useful Features of the Cassette Deck

English

DOLBY B NR

❏ Use the auto reverse mode to make the tape automatically reverse at the end of a side and start

playing the other side. Each time you press the button, the auto reverse mode turns on (the indicator lights up) and off (the indicator goes off).

❏ Press the DOLBY B NR button to switch Dolby B NR* on (the indicator lights up) or off (the

indicator goes off). If a tape is recorded with the Dolby B NR system, playing it back with the Dolby B NR on will reduce tape noise and improve the clarity of the sound.

*Dolby noise reduction manufactured under license from Dolby Laboratories Licensing

Corporation. “DOLBY” and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

EN.51-72.CA-MD9R[E]/F 6/16/98, 1:52 PM53

Using the Cassette Deck (Recording)

English

DOLBY B NR

REC PAUSE

CD REC

¤ ‹ (Play)

7 (Stop)

PHONES

DOLBY B NR

CD RECREC PAUSE

AUTO REVERSE

AUTO TAPE SELECTOR

DOLBY B NR

IMPORTANT: Before using the Remote Control for the tape operations, set the Remote Control to the tape

operation mode by pressing the TAPE button.

Things to Know Before You Start Recording ——————————————

❏ It may be unlawful to record or play back copyrighted material without the consent of the

❏ Press the DOLBY B NR button — the indicator lights up — to reduce tape hiss. ❏ When you want to record onto both sides of a tape, turn on the auto reverse mode. However,

recording automatically stops after recording in the ¤ direction with the auto reverse mode on. Therefore, make sure that the tape direction is ‹ when recording with the auto reverse mode on.

❏ The recording level is automatically set correctly, so it is not affected by the VOLUME control.

Thus, during recording you can adjust the sound you are actually listening to without affecting the recording level.

❏ Two small tabs on the cassette tape, one for side A and

one for side B, can be removed to prevent accidental erasure or re-recording. To record on a cassette with the tabs removed, you must cover the holes with adhesive tape first. However, when a type II tape is used, only cover part of the hole as shown, since the other part of the hole is used to detect the tape type.

❏ When recording, you can hear Sound Modes through the speakers or headphones. However, the

sound is recorded without Sound Modes (see page 9).

❏ Type I and Type II tapes can be used for recording.

Note: The first and end portions of the tape are called leader tape, which cannot be recorded onto.

CAUTION: If recordings you have made have excessive noise or static, the unit may be too close to a TV which has been on during recording. Either turn off the TV or increase the distance between the TV and the CA-MD9R.

EN.51-72.CA-MD9R[E]/F 6/16/98, 1:52 PM54

When you start recording, the first part of the recording may not be done because of this leader tape. Before inserting the cassette, first wind the leader tape.

Standard Recording

You can record any sound source on the tape. ❏ You can also record the same source on the MD at the same time. (See page 34.)

Using the unit only

1. Insert a blank or erasable tape into cassette holder.

2. Press the button if you want to record on both sides of the tape.

The indicator above the button lights up. ❏ When using the auto reverse mode, press the ‹ button then the 7 button to start recording

3. Prepare the source, for example, by tuning in a radio station, loading CDs or MDs, or turning on

the external component.

4. Press the REC PAUSE button.

REC PAUSE

The indicator above the button lights up and the CA-MD9R enters recording pause mode.

5. Press the ‹ (or ¤) button to record the front side (or the reverse side).

❏ When using the auto reverse mode to record both sides of a tape, press the ‹ button to

English

in the forward (‹) direction.

begin the recording from the front side.

To pause, press the REC PAUSE button. Then press either the ¤ or ‹ button to restart recording. To stop recording, press the 7 button. To remove the tape, press down the 0 button after stopping the play.

EN.51-72.CA-MD9R[E]/F 6/16/98, 1:52 PM55

If you are recording an AM (MW/LW) broadcast and you hear interference, move the BEAT CUT switch on the back panel from position 1 (the normal mode) to position 2.

BEAT

CUT

CD Direct Recording

English

CD REC

Everything on the CD goes onto the tape in the order it is on the CD, or according to the order you have set in a program. You can even record in Random Play. In this case, the tracks of the 3 CDs are recorded randomly on the tape.

1. Prepare CDs. (See page 19.)

Check that the CD Player is not playing a CD.

2. Insert a blank or erasable cassette in the cassette holder.

❏ When you want to record on both sides of a tape, press the

reverse mode. In this case, press the ‹ button then the 7 button to start recording in the forward (‹) direction.

button to turn on the auto

3. Press the CD REC button.

“CD → TAPE” appears on the display then the unit plays the CD and starts recording.

At the end of the tape, the CA-MD9R automatically goes back to the beginning of the last selection and re-records it, this time gently fading out at the end. If you have the auto reverse mode, the reverse side starts with the last selection of the front side. The last selection of the reverse side will also fade out at the end. (A 10 second blank is created at the beginning of the reverse side.) When the recording is finished, the CD Player and Cassette Deck stop.

Fade out

Front side

Reverse side

To stop recording, press the 7 button on the Cassette Deck or CD Player (or the 7 button on the Remote Control).

Notes:

• When recording from a CD program (or random play) made from more than one CD, the tape will pause when the unit switches to another CD. Then, when the CD is ready, the unit releases the pause and continue the recording.

• When making Sleep Timer setting while doing CD Direct recording, set the time so that there is enough leeway to finish the recording before the power goes off. If the time is set to about the length of the CD, the power may go off before recording finishes.

• For CD Direct Recording using more than one CD, use a blank tape. If you use a prerecorded tape, prerecorded sound may not be erased between newly-recorded tracks.

Fade out

23495

678

10 sec. blank

EN.51-72.CA-MD9R[E]/F 6/16/98, 1:52 PM56

Using the Timers

CLOCK/TIMER

STANDBY

TUNER

AUX

COMPACT COMPONENT MD SYSTEM MX-MD9R

DEMO

CLOCK

LONG REC

TRIPLE REC

1ST TRACK REC

CD REC

/TIMER

BASS SOUND REC PAUSE TITLE EDIT

REPEAT

PLAY MODE

LISTENING

SKIP

VOLUME

DISPLAY /CHARA

CANCEL SET

CANCEL

English

–

MULTI JOG dial

MULTI JOG

SET

The timers let you control recording and listening functions automatically. Three types of timers are available:

❏ Daily Timer — Use this timer to set wake up everyday to music from any source. ❏ Recording Timer — Unattended recording of radio broadcasts. You can set the starting time and

❏ Sleep Timer — Fall asleep and have your CA-MD9R turn off automatically after a certain

Setting the Clock

The timers depend on the clock: the clock must be right for the timers to work as you expect. You can set the clock whether the unit is on or off.

Note that the clock must be set, or the timers cannot be set.

CLOCK /TIMER

1. Press the CLOCK/TIMER button until the clock indication appears and the hour digits starts

length of the recording. You can set up to 3 Recording Timer settings.

length of time.

flashing on the display.

EN.51-72.CA-MD9R[E]/F 6/16/98, 1:52 PM57

(Continued to the next page)

❏ Each time you press the button, the Clock/Timer setting mode changes as follows:

English

MULTI JOG

SET

DAILY on/off

DAILY Timer On Time

REC1 on/off

REC1 Timer On Time

REC2 on/off

REC2 Timer On Time

REC3 on/off

REC3 Timer On Time

Clock Setting

Normal Display (current source)

Turn on/off the Daily Timer Set the Daily Timer Turn on/off the Recording 1 Timer Set the Recording 1 Timer Turn on/off the Recording 2 Timer Set the Recording 2 Timer Turn on/off the Recording 3 Timer Set the Recording 3 Timer Set the clock Display before you press the button

These will not appear when you set the clock for the first time.

2. Rotate the MULTI JOG dial clockwise or counterclockwise to adjust the hour.

Rotate the MULTI JOG dial clockwise to advance the hour setting, rotate it counterclockwise to decrease the setting.

3. Press the SET button.

The minute digits starts flashing on the display.

MULTI JOG

SET

4. Rotate the MULTI JOG dial clockwise or counterclockwise to adjust the minute.

Rotate the MULTI JOG dial clockwise to advance the minute setting, rotate it counterclockwise to decrease the setting.

5. Press the SET button.

The clock starts at zero seconds from the set time.

Note:

If you press any other button than the specified ones while setting the clock, the procedure will be canceled and you will have to restart from the beginning.

CAUTION: If there is a power failure, the clock loses its setting. The clock becomes “0:00”, and the clock must be reset.
