JVC MX-KB30 User Manual

COMPACT COMPONENT SYSTEM

MX-KB30

Consists of CA-MXKB30 and SP-MXKB30

STANDBY/ON

SLEEP

AUX

FM MODE

FM /AM

CD1CD2CD

PROGRAM/RANDOM

REPEAT

TAPE

A/B

SOUND

VOLUME

MODE

FADE

ACTIVE

SOUND

MUTING

BASS EX.

TURBO

CA-MXKB30SP-MXKB30 SP-MXKB30

INSTRUCTIONS

For Customer Use:

Enter below the Model No. and Serial No. which are located either on the rear, bottom or side of the cabinet. Retain this infor mation for future reference.

Model No.

Serial No.

LVT1191-001A

[J]

Warnings, Cautions and Others

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

For U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving

antenna.

– Increase the separation between the

equipment and receiver.

– Connect the equipment into an outlet on

a circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced

radio/TV technician for help.

G-1

CLASS 1 LASER PRODUCT

DANGER

1.Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

CAUTION

1.Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

2.Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

CAUTION

To reduce the risk of electric shocks, fire, etc.:

1.Do not remove screws, covers or cabinets.

2.Do not expose this appliance to rain or moisture.

3.To prevent electric shock, match wide blade of plug to wide slot, fully insert.

CAUTION

1.Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

2.Do not place any naked flame sources, such as lighted candles, on the apparatus.

3.When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

4.Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

Caution — POWER switch!

Disconnect the main plug to shut the power off completely. The POWER switch in any position does not disconnect the main line. The power can be remote controlled.

15cm

(5 in)

Caution: Proper Ventilation

To avoid risk of electric shock and f ire, and to prevent damage, locate the apparatus as follows:

1. Front: No obstructions and open spacing.

2. Sides/ Top/ Back: No obstructions should be placed in the areas shown by the dimensions below.

3. Bottom: Place on the level surface. Maintain an adequate air path for

ventilation by placing on a stand wit h a height of 10cm (3 or more.

15cm

(5 in)

1cm

( in)

1cm

( in)

15cm

(5 in)

10cm

(3 in)

/16 in.)

Side viewFront view

15cm

(5 in)

15cm

(5 in)

G-2

Introduction

Thank you for purchasing the JVC Compact Component System. We hope it will be a valued addition to your home, giving you years of enjoyment. Be sure to read this instruction manual carefully before operating your new stereo system. In it you will find all the information you need to set up and use the system. If you have a query that is not answered by the manual, please contact your dealer.

Features

Here are some of the things that make your System both powerful and simple to use.

❏ The controls and operations have been redesigned to make them very easy to use, freeing you to just enjoy the

music.

• With JVC’s COMPU PLAY you can turn on the System and automatically start the Radio, Cassette Deck, or CD Player with a single touch.

❏ The great SEA (Sound Effect Amplifier) effects Rock, Pop and Classics are provided.

❏ The Active Bass EX. (Extension) circuitry faithfully reproduces low frequency sounds.

❏ The Sound Turbo function provides emphasized rich sound.

❏ A 45-station preset capability (30 FM and 15 AM) in addition to auto-seek and manual tuning.

❏ CD changer function can operate 3 discs.

• Discs can be changed during play using the Carrousel tray (rotational tray).

• Continuous, random or program play of 3 discs.

❏ Two Decks enabling tape dubbing.

❏ Timer functions; Daily Timer, REC (Recording) Timer, and Sleep Timer.

❏ You can connect various external units, such as an MD recorder.

❏ The CD Player can play back a CD-R and CD-RW.

How This Manual Is Organized

• Basic information that is the same for many different functions - e.g. setting the volume - is given in the section “Basic Operations”, and not repeated under each function.

• The names of buttons/controls and display messages are written in all capital letters: e.g. FM/AM, “NO DISC”.

• If the button names on the Unit and the Remote Control are the same, the description on where the button is used will be omitted.

• System functions are written with an initial capital letter only: e.g. Normal Play.

Use the table of contents to look up specific information you require. We have enjoyed making this manual for you, and hope it serves you in enjoying the many features built into your System.

IMPORTANT CAUTIONS

Installation of the System

• Select a place which is level, dry and neither too hot nor too cold. (Between 5°C and 35°C or 41°F and 95°F.)

• Leave sufficient distance between the System and a TV.

• Do not use the System in a place subject to vibrations.

Power cord

• Do not handle the power cord with wet hands!

• Some power is always consumed as long as the power cord is connected to the wall outlet.

• When unplugging the System from the wall outlet, always pull the plug, not the power cord.

Malfunctions, etc.

• There are no user serviceable parts inside. In case of system failure, unplug the power cord and consult your dealer.

• Do not insert any metallic object into the System.

Introduction ...................................................................................................................1

Features.................................................................................................................................................... 1

How This Manual Is Organized............................................................................................................... 1

IMPORTANT CAUTIONS..................................................................................................................... 1

Table of Contents ..........................................................................................................2

Getting Started ..............................................................................................................3

Accessories .............................................................................................................................................. 3

How To Put Batteries In the Remote Control.......................................................................................... 3

Using the Remote Control ....................................................................................................................... 3

Connecting the FM Antenna.................................................................................................................... 4

Connecting the AM Antenna................................................................................................................... 5

Connecting the Speakers ......................................................................................................................... 5

Connecting External Equipment.............................................................................................................. 6

Connecting to the Wall Outlet................................................................................................................. 6

DEMO Mode ........................................................................................................................................... 6

COMPU Play........................................................................................................................................... 6

Basic Operations...........................................................................................................7

Turning the Power On and Off................................................................................................................ 7

Adjusting the Volume.............................................................................................................................. 7

Fade-out Muting (FADE MUTING) ....................................................................................................... 8

Reinforcing the Bass Sound (ACTIVE BASS EX.)................................................................................ 8

Emphasizing the sound (SOUND TURBO)............................................................................................ 8

Selecting the Sound Mode (SOUND MODE)......................................................................................... 8

Entering the Number with the Remote Control (Numeric Keys)............................................................ 8

Using the Tuner .............................................................................................................9

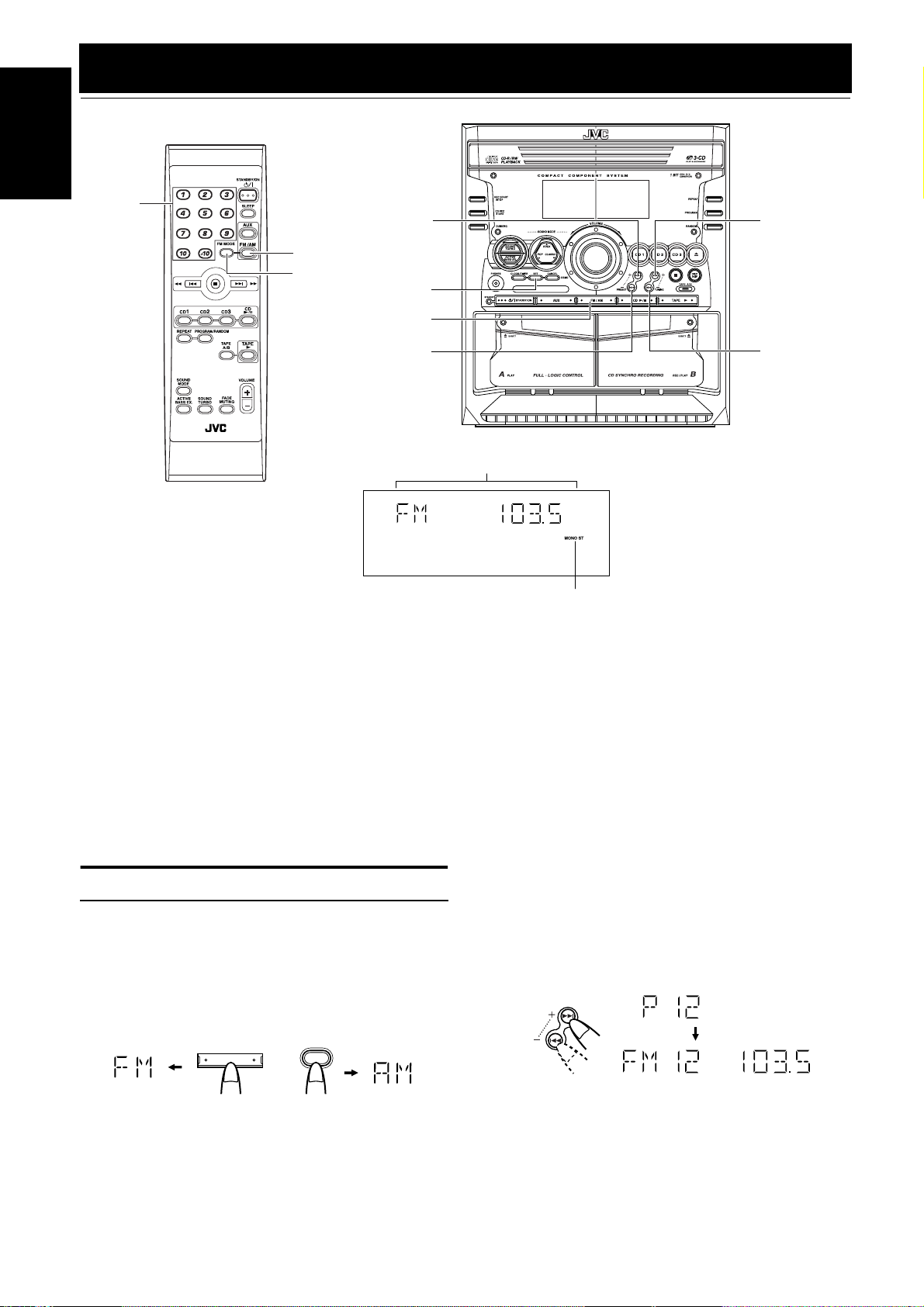

Tuning In a Station .................................................................................................................................. 9

Presetting Stations ................................................................................................................................. 10

To Change the FM Reception Mode ..................................................................................................... 10

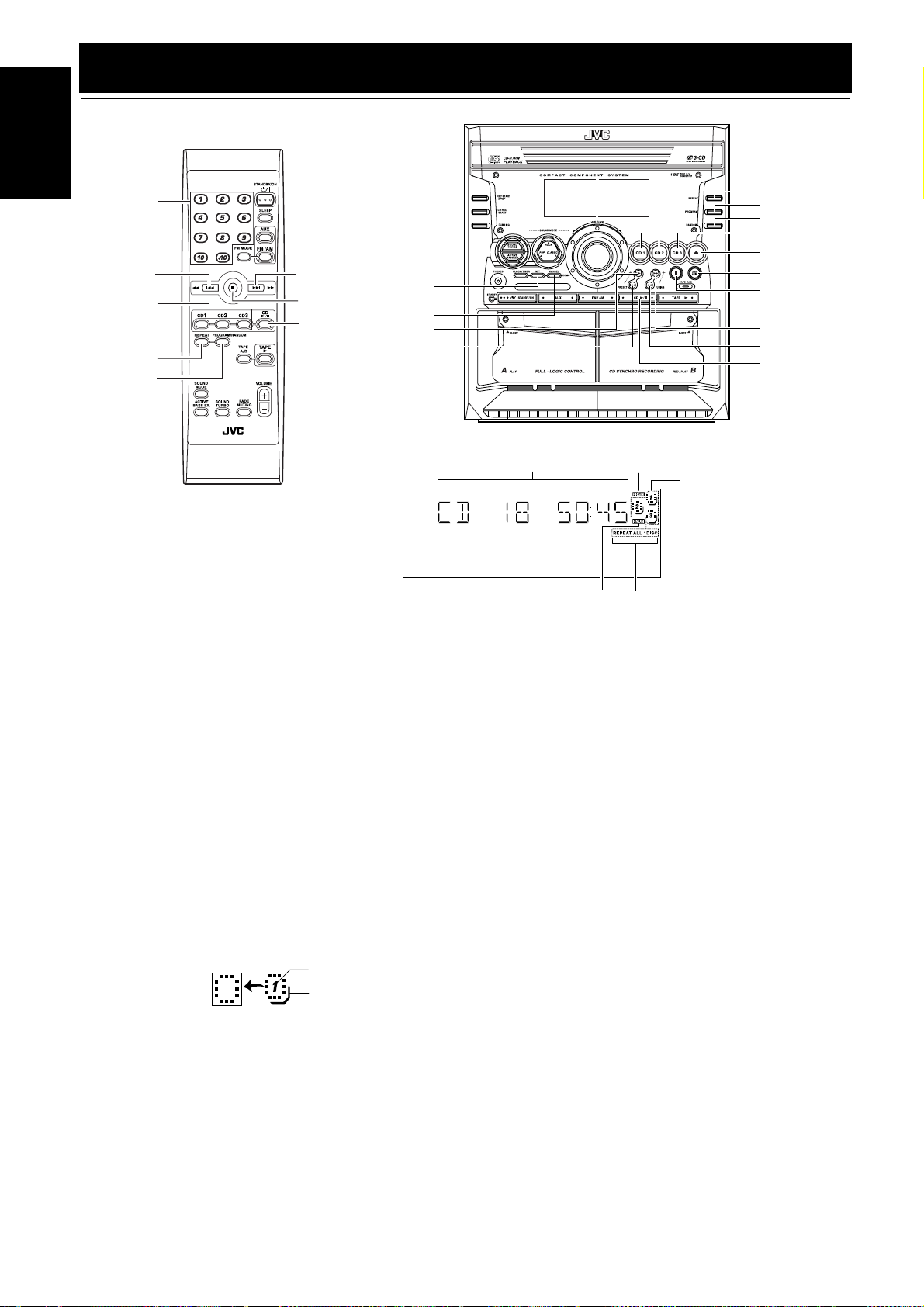

Using the CD Player ....................................................................................................11

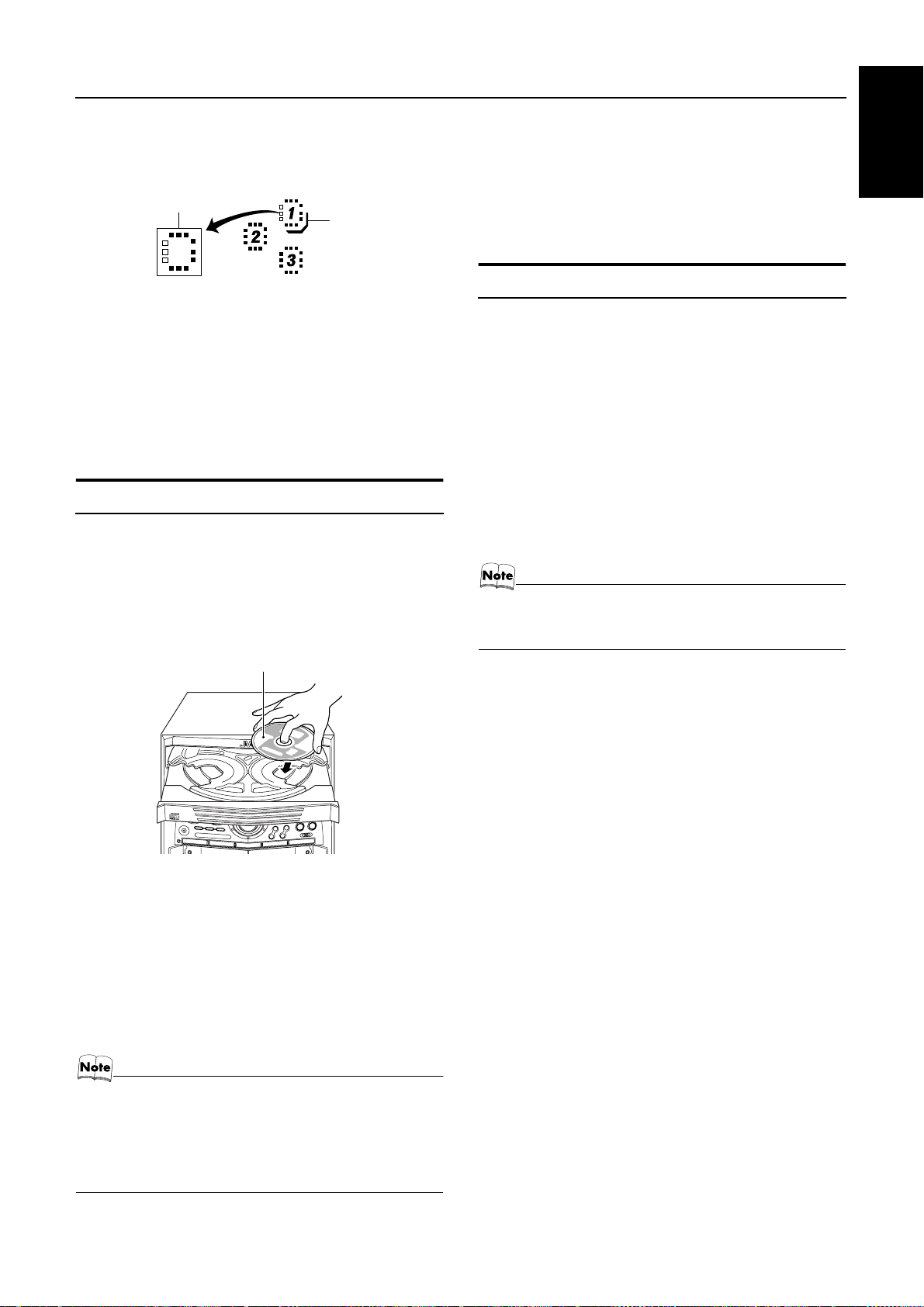

To Load CDs ......................................................................................................................................... 12

To Unload CDs...................................................................................................................................... 12

Basics of Using the CD Player-Normal Play......................................................................................... 13

Programming the Playing Order of the Tracks...................................................................................... 14

Random Play.......................................................................................................................................... 15

Repeating Tracks ................................................................................................................................... 15

Tray Lock Function ............................................................................................................................... 15

Using the Cassette Deck (Listening to a Tape) ........................................................16

Playing a Tape ....................................................................................................................................... 16

Using the Cassette Deck (Recording) .......................................................................17

Standard Recording ............................................................................................................................... 18

CD Synchro Recording.......................................................................................................................... 18

Tape to Tape Recording (DUBBING)................................................................................................... 18

Using an External Equipment ....................................................................................19

Listening to the External Equipment..................................................................................................... 19

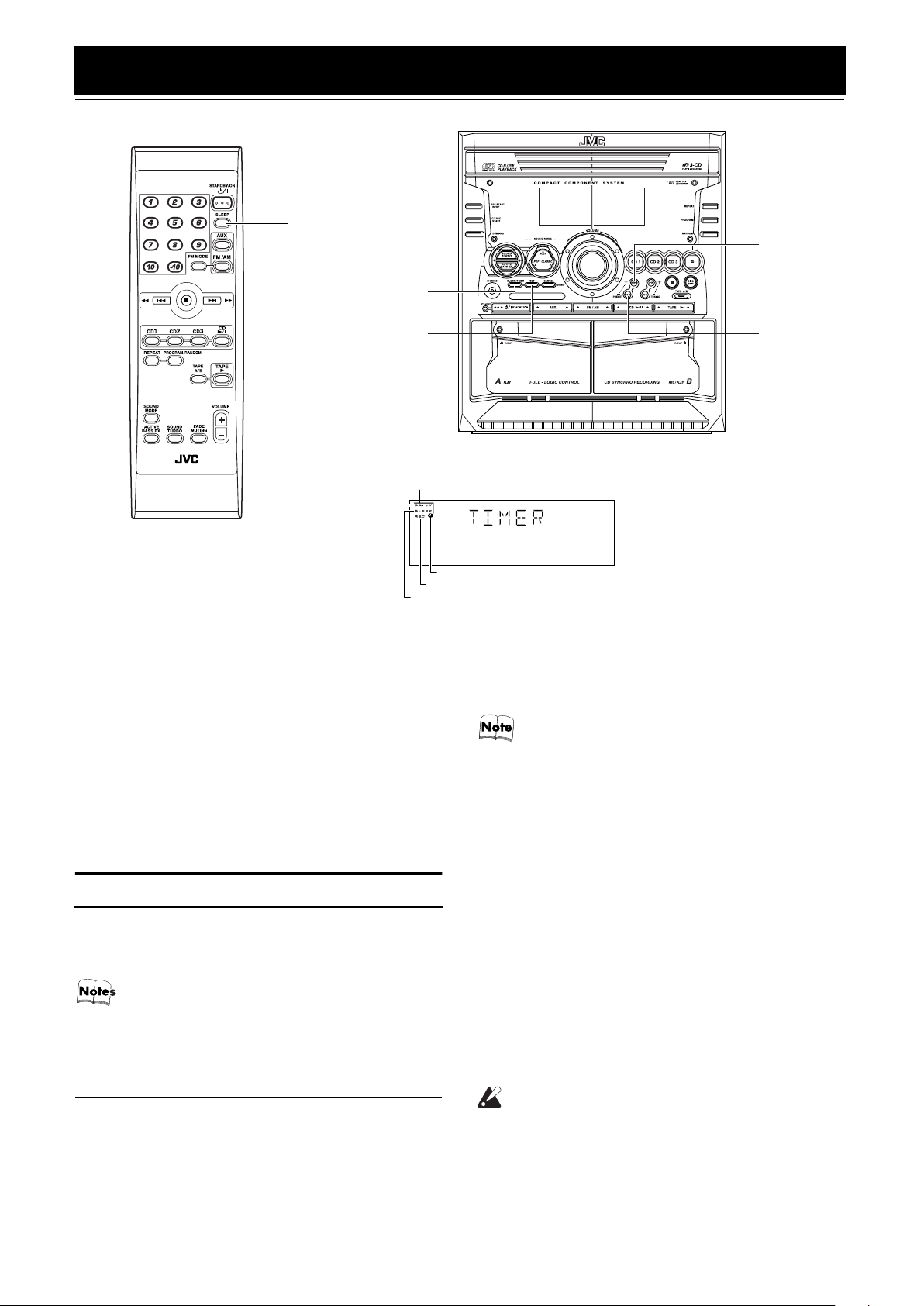

Using the Timers .........................................................................................................20

Setting the Clock ................................................................................................................................... 20

Setting the Daily Timer ......................................................................................................................... 21

Setting the REC (Recording) Timer ...................................................................................................... 22

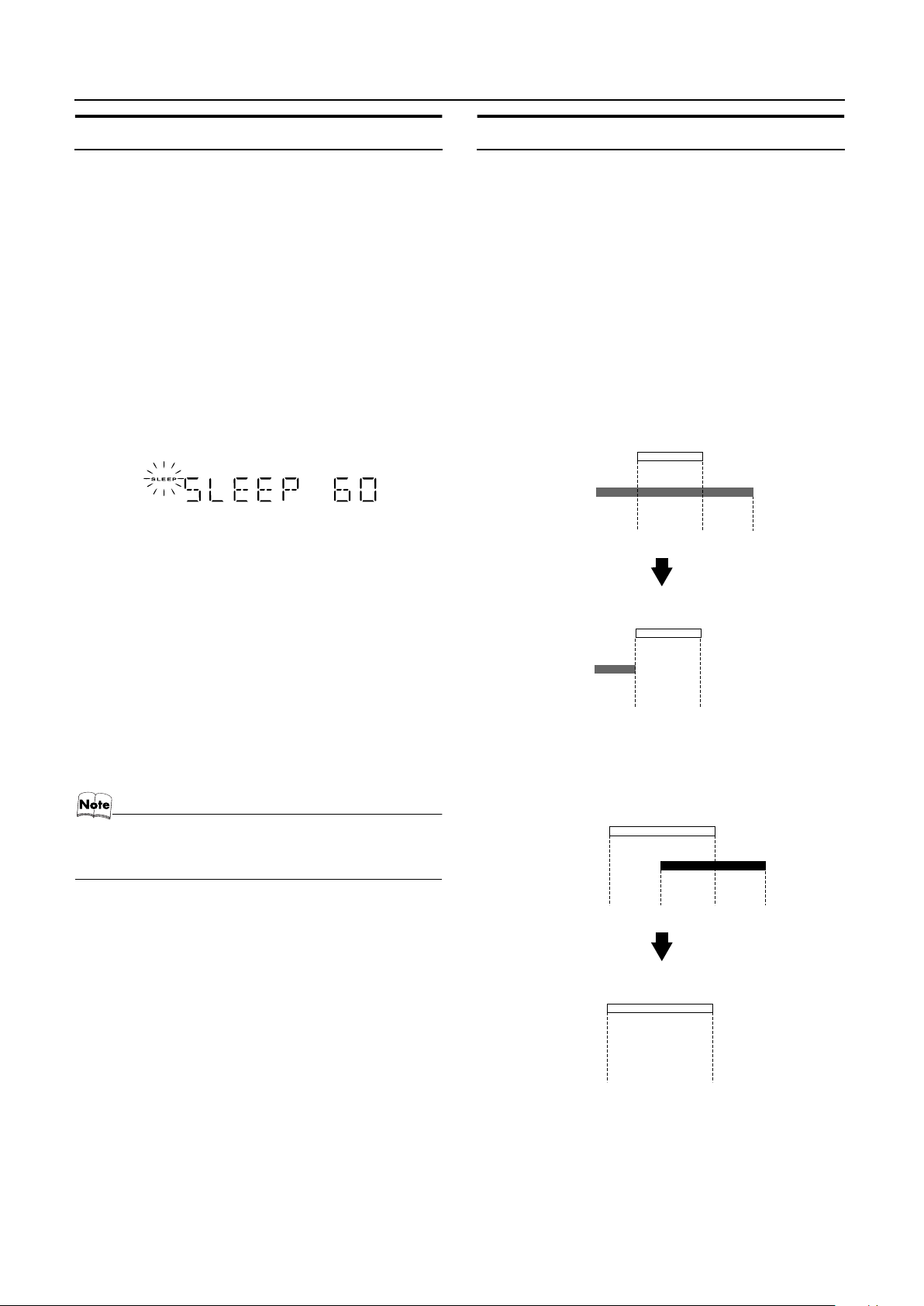

Setting the SLEEP Timer ...................................................................................................................... 24

Timer Priority ........................................................................................................................................ 24

Care And Maintenance................................................................................................25

Troubleshooting ..........................................................................................................26

Specifications ...............................................................................................Back cover

Getting Started

Accessories

Make sure that you have all of the following items, which are supplied with the System.

AM Loop Antenna (1) FM Wire Antenna (1) Remote Control (1) Batteries (2)

If any of these items are missing, contact your dealer immediately.

How To Put Batteries In the Remote Control

Match the polarity (+ and –) on the batteries with the + and – markings in the battery compartment.

R6P(SUM-3)/AA(15F)

CAUTION:

• Handle batteries properly.

❏ To avoid battery leakage or explosion:

• Remove batteries when the Remote Control will not be used for a long time.

• When you need to replace the batteries, replace both batteries at the same time with new ones.

• Do not use an old battery with a new one.

• Do not use different types of batteries together.

Using the Remote Control

The Remote Control makes it easy to use many of the functions of the System from a distance of up to 7m (23 feet) away. You need to point the Remote Control at the remote sensor on the System’s front panel.

Remote sensor

CAUTION:

• Make all connections before plugging the System into an AC power outlet.

Connecting the FM Antenna

Using the Supplied Wire Antenna

FM wire antenna (supplied)

Extend the supplied FM Wire Antenna horizontally.

Strip vinyl shield from cut line, twist wire core.

Getting Started

Using an FM 75-Ohm Antenna Cable (not Supplied)

If reception is poor, connect the outside antenna.

Outdoor FM antenna cable (not supplied)

• Before attaching a 75 ohm coaxial lead (the kind with a round wire going to an outdoor antenna), disconnect the supplied FM Wire Antenna.

Getting Started

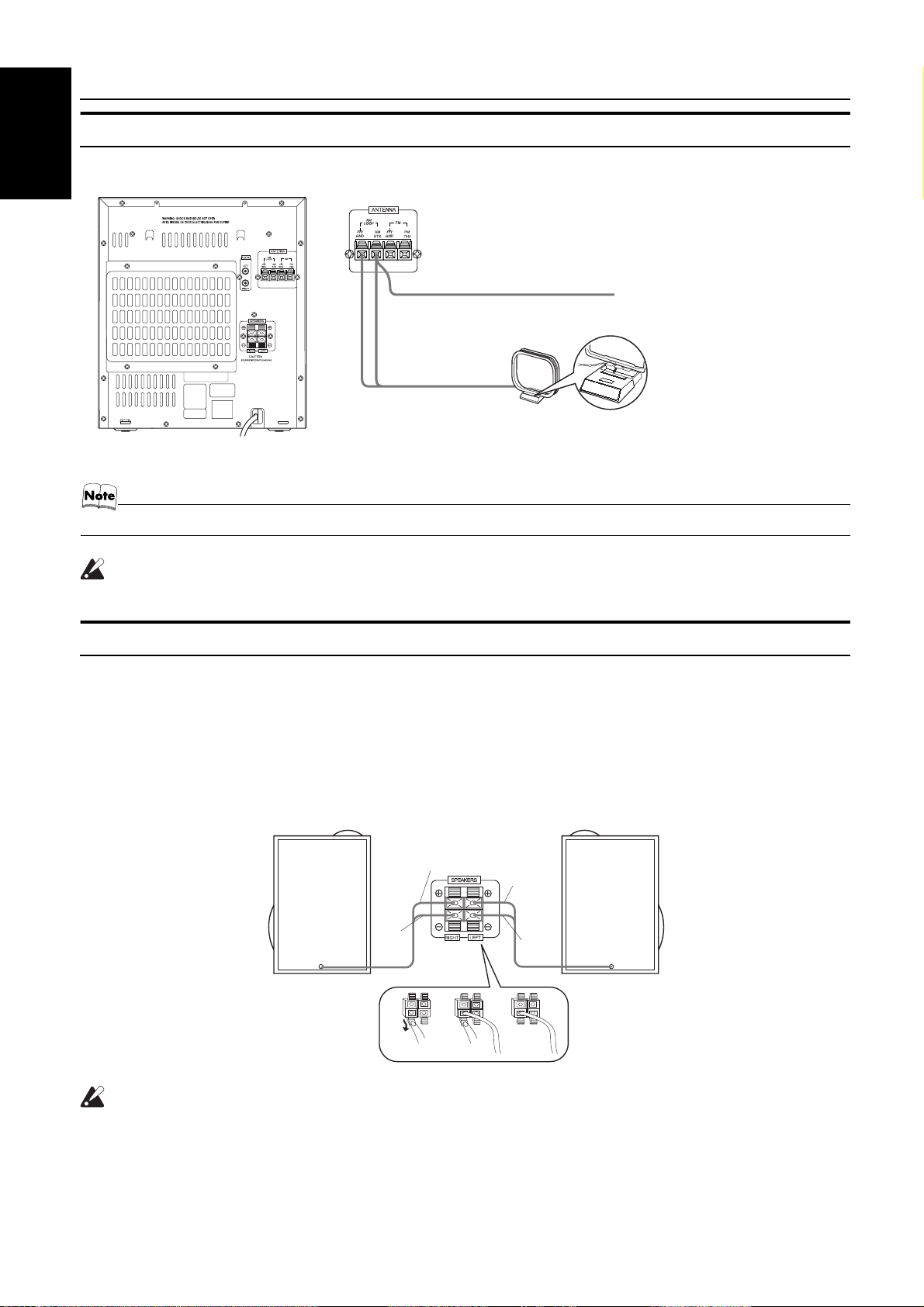

Connecting the AM Antenna

Rear Panel of the Unit

AM loop antenna (Supplied)

AM antenna wire (not supplied) If reception is poor, connect the outside antenna.

Turn the loop until you have the best reception.

Attach the AM loop to its base by snapping the tabs on the loop into the slot in the base.

• Even when connecting an outside AM antenna, keep the indoor AM loop connected.

CAUTION:

• To avoid noise, keep antennas away from the System, the connecting cord and the AC power cord.

Connecting the Speakers

Connect the right speaker to the RIGHT speaker terminals and the left speaker to the LEFT speaker terminals. “Right” / “Left” is labeled on the rear of the speaker.

1. Open each of the terminals to connect the speaker wire leads.

2. Connect the speaker cords to the Speaker terminals of the Unit. Connect the red (+) and black (–) cords of the right side speaker to the red (+) and black (–) terminals marked RIGHT on the System. Connect the red (+) and black (–) cords of the left side speaker to the red (+) and black (–) terminals marked LEFT on the System.

3. Close each of the terminals.

Right side (rear view) Left side (rear view)

Red

Black

Red

Black

CAUTIONS:

• A TV may display irregular colors if located near the speakers. If this happens, set the speakers away from the TV.

• Use speakers with the correct impedance only. The correct impedance is indicated on the rear panel.

Getting Started

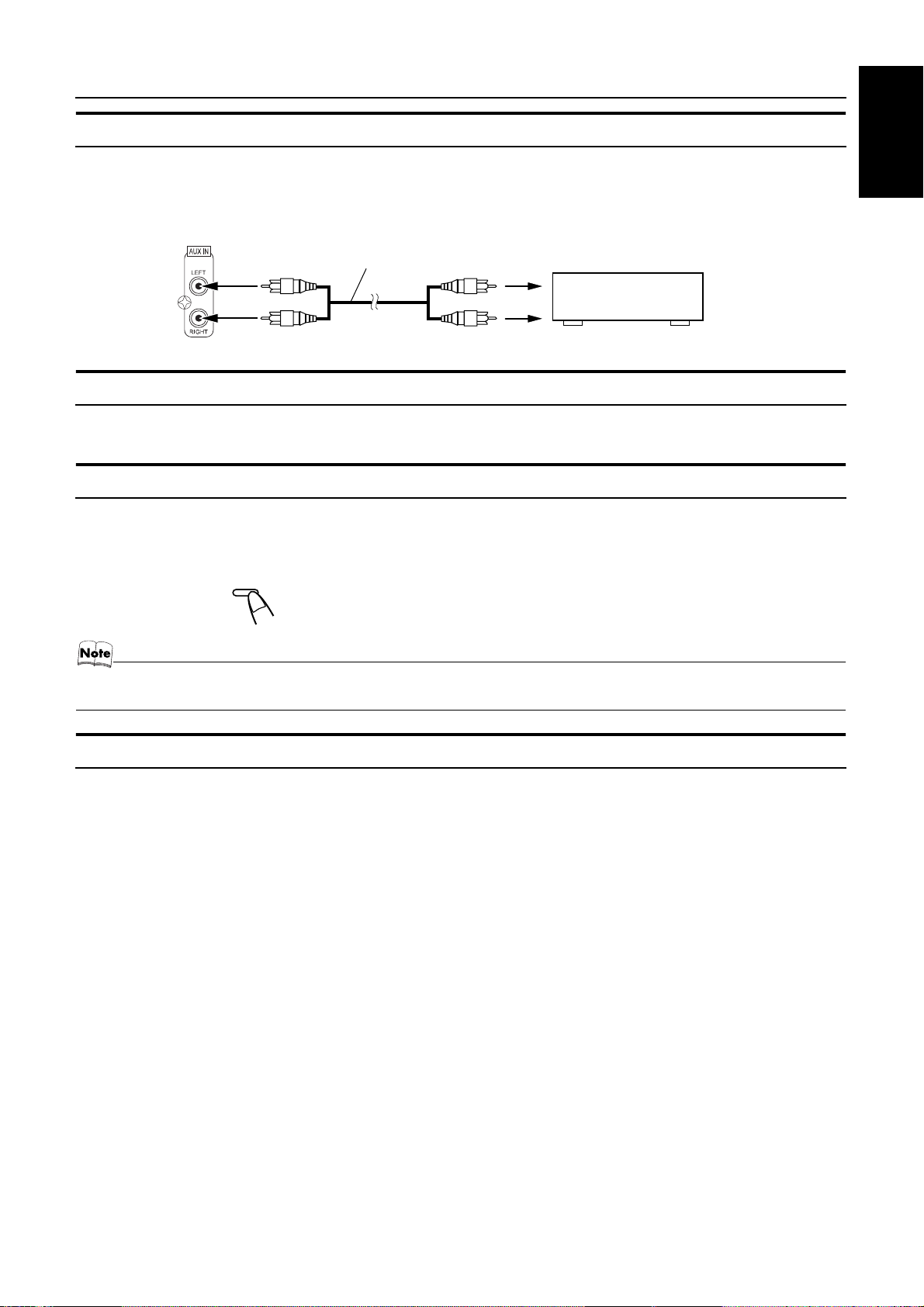

Connecting External Equipment

Connect a signal cord (not supplied) between the System’s AUX-IN terminals and the output terminals of the external MD recorder, tape deck, etc. You can then listen to the external source through the System.

Signal cord (not supplied)

Pin-plug x 2Pin-plug x 2

MD recorder, tape deck, etc. (not supplied)

Connecting to the Wall Outlet

Plug the AC power cord into the wall outlet. Now, your System is at your command!

DEMO Mode

When the System is connected to the wall outlet, a DEMO mode displaying some of the system’s features automatically starts.

To turn the DEMO display off, press any of the operation buttons. The DEMO display automatically stops. To turn the DEMO display on, press the DEMO button on the Unit for more than 2 seconds.

CANCEL

• While the System is turned on, the DEMO display will automatically starts if no operation is made for 2 minutes. To cancel this auto DEMO display function, press the CANCEL button on the Unit during DEMO display.

(For 2 seconds)

DEMO

COMPU Play

JVC’s COMPU PLAY feature lets you control the most frequently used System functions with a single touch. With One Touch Operation you can play a CD, a tape, turn on the radio, or listen to an external equipment with a single press of the play button for that function. One Touch Operation turns the power on for you, then starts the function you have specified. If the System is not ready (no CD or tape in place), the System still powers on so you can insert a CD or tape. How One Touch Operation works in each case is explained in the section dealing with that function. The COMPU PLAY buttons are:

On the Unit

CD 6 button FM/AM button TAPE 3 button AUX button CD1, CD2 and CD 3 buttons CD Open/Close 0 button

On the Remote Control

CD 6 button FM/AM button TAPE 3 button AUX button CD1, CD2 and CD 3 buttons

Basic Operations

)

STANDBY/ON

SOUND MODE

SOUND TURBO

ACTIVE BASS EX.

PHONES

STANDBY indicator

STANDBY/ON

Numeric

keys

CD1CD2CD

PROGRAM/RANDOM

REPEAT

FM MODE

TAPE

A/B

SLEEP

AUX

FM /AM

TAPE

Display

VOLUME

SOUND

MODE

ACTIVE

BASS EX.

SOUND

MODE

ACTIVE

BASS EX.

SOUND TURBO

FADE

MUTING

VOLUME

VOLUME +,–

FADE MUTING

SOUND

TURBO

BASS indicator

SOUND TURBO

indicator

* When the System is in use, the display shows other items as well.

For simplicity, we show here only the items described in this section.

Turning the Power On and Off

Turning the System On

Press the STANDBY/ON button.

STANDBY/ON

STANDBY

The display comes on and “WELCOME” is displayed once. The STANDBY indicator goes out. The System comes on ready to continue in the mode it was in when the power was last turned off.

• For example, if the last thing you were doing was listening to a CD, you are now ready to listen to a CD again. If you wish, you can change to another source.

• If you were listening to the Tuner last, the Tuner comes on playing the station it was last set to.

Turning the System Off

Press the STANDBY/ON button again.

STANDBY

“GOOD BYE” is displayed and the display goes out, except for the clock display. The STANDBY indicator lights up. (The display is dimmed.)

• Some power is always consumed even though power is turned off (called Standby mode).

STADBY/ ON

STANDBY/ON

Various information

Sound Mode indicator

Level bar

Status bar (Indicates various statuses.)

• To switch off the System completely, unplug the AC power cord from the wall outlet. When you unplug the AC power cord, the clock will be reset to AM 12:00 immediately.

Adjusting the Volume

Turn the VOLUME control on the Unit clockwise to increase the volume or turn it counterclockwise to decrease the volume. Press the VOLUME + button on the Remote Control to increase the volume or press the VOLUME – button on the Remote Control to decrease the volume.

You can set the volume level to MIN, 1-31, or MAX.

CAUTION:

• DO NOT turn on the System and/or start playing any source without first setting the VOLUME control to minimum, as a sudden blast of sound could damage your hearing, speakers and/or headphones.

For private listening

Connect a pair of headphones to the PHONES jack. No sound comes out of the speakers. Be sure to turn down the volume before connecting or putting on headphones.

Fade-out Muting (FADE MUTING)

You can mute the output with one touch operation.

To muting the output, press the FADE MUTING button on the Remote Control. The output is faded out. To release muting, press the FADE MUTING button once again. The output is faded in to the previous level.

• After Fade-out Muting, turning the VOLUME control on the unit or pressing the VOLUME button on the Remote Control will increase the volume from MIN. setting.

Reinforcing the Bass Sound (ACTIVE BASS EX.)

The richness and fullness of the bass sound is maintained regardless of how low you set the volume. You can use this effect only for playback.

To get the effect, press the ACTIVE BASS EX. (Extension) button. The “BASS” indicator lights up and “ACTIVE BASS EXTENSION” appears on the display. To cancel the effect, press the button again. The “BASS” indicator goes out and “OFF” appears on the display.

Emphasizing the sound (SOUND TURBO)

High and low frequencies are highly boosted.

Basic Operations

ROCK Boosts low and high frequencies. Good for

acoustic music.

POP Good for vocal music. CLASSIC Set for wide and dynamic sound stereo

systems.

OFF No sound effect applies.

On the Remote Control

Press the SOUND MODE button until Sound Mode you want appears on the display. The “SOUND MODE” indicator lights up in the display. Each time you press the button, the Sound Mode changes as follows:

ROCK = POP = CLASSIC = OFF = (back to the beginning)

To cancel the effect, press the SOUND MODE button until “OFF” appears on the display. The “SOUND MODE” indicator stays lit.

Entering the Number with the Remote Control (Numeric Keys)

You will use the number keys on the Remote Control to enter numbers for presetting stations, recalling the preset stations, or programming the playing tracks on CDs. How to enter the number with the number keys is explained here.

Examples:

• To enter number 5, press 5.

• To enter number 15, press +10, then 5.

• To enter number 20, press +10, then 10.

• To enter number 25, press +10, +10, then 5.

To get the effect, press the SOUND TURBO button. The SOUND TURBO indicator lights up and “SOUND TURBO ON” appears on the display. To cancel the effect, press the button again. The SOUND TURBO indicator goes out and “OFF” appears on the display.

• Selecting the Sound Turbo function turns the Active Bass EX. and Sound Mode to off. While the Sound Turbo will be turned off, if either Active Bass EX. or Sound Mode function is selected.

Selecting the Sound Mode (SOUND MODE)

You can select one of 3 SEA (Sound Effect Amplifier) modes. You can use this effect only for playback.

On the Unit

To get the effect, press one of the Sound Mode buttons, ROCK, POP, or CLASSIC. The selected Sound Mode name “ROCK”, “POP”, or “CLASSIC” appears on the display.The “SOUND MODE” indicator also lights up on the display. To cancel the effect, press the currently selected mode button again. When the effect is canceled, the “SOUND MODE” indicator stays lit. For example, if the current Sound Mode is ROCK, press the ROCK button again. “OFF” appears on the display, showing that no sound effect is applied.

Using the Tuner

Numeric

keys

FM/AM

FM MODE

FM/AM

SET

Band display, Frequency display, Preset channel

* When the System is in use, the display shows other items as well.

For simplicity, we show here only the items described in this section.

You can listen to FM and AM stations. Stations can be tuned in manually, automatically, or from preset memory storage.

❏ Before listening to the radio:

• Make sure that both the FM and AM antennas are correctly connected. (See pages 4 and 5).

One Touch Radio

Just press the FM/AM button to turn on the System and start playing the station you were last tuned to.

❏ You can switch from any other sound source to the radio by

pressing the FM/AM button.

Tuning In a Station

Press the FM/AM button.

The Band and Frequency you were last tuned to appear on the display. (If the last station was selected using the preset number, the preset number appears first.) Each time you press the button, the band alternates between FM and AM.

FM /AM

FM / AM

FM mode indicators

• Manual Tuning (Using the Unit only)

Briefly press the 22 or ¡ button on the Unit to move from frequency to frequency until you find the station you want.

• Auto Tuning (Using the Unit only)

If you hold down the 22 or ¡ button on the Unit for 1 second or more and then release it, the frequency changes down, or up, automatically until a station is found.

• Preset Tuning (Possible only after presetting stations) Preset tuning using the Unit:

Select the preset number you want, using the 4 or ¢ button.

Example:

Press the ¢ button until the preset number “P12” appears on the display. Then, the display will show the preset number’s band and frequency.

PRESET

(on the Unit) (on the Remote Control)

Select a station using one of the following

methods.

Preset tuning using the Remote Control:

Enter the preset number you want to recall using the numeric keys. See “Entering the Number with the Remote Control” on page 8.

Example:

Press +10, then 2 to recall the preset number 12. Then, the display will show the preset number’s band and frequency.

• In AM broadcast, reception sensitivity will be changed by turning the AM loop antenna. Turn the AM loop antenna for best reception.

Presetting Stations

Using the Tuner

CAUTION:

• Even if the System is unplugged or if the power failure occurs, the preset stations will be stored for a few days. However, in case the preset stations are erased, you will need to preset the stations again.

You can preset up to 30 FM stations and up to 15 AM stations.

• Preset numbers may have been set to factory test frequencies prior to shipment. This is not a malfunction. You can preset the stations you want into memory by following one of the presetting methods below.

• During presetting stations, if no button operation is made for 5 seconds, the display returns to the band/frequency display. In this case, repeat steps from the beginning.

TUNING

FM / AM

When changing the Band

SET

FM=30, AM=15

SET

Using the Unit

Select a band by pressing the FM/AM button.

Press the

station.

Press the SET button.

“SET” will blink for 5 seconds.

Press the

preset number.

: Increases the preset number by 1.

: Decreases the preset number by 1.

button to tune in a

button to select the

To Change the FM Reception Mode

When you are tuned in to an FM stereo broadcast, the “ST (Stereo)” indicator lights up and you can hear stereo effects. If an FM stereo broadcast is hard to receive or noisy, you can select Monaural mode. Reception improves, but you lose stereo effect.

Press the FM MODE button on the Remote Control so that the “MONO” indicator lights up on the display.

FM MODE

ST MONO

To restore the stereo effect, press the FM MODE button on

the Remote Control so that the “MONO” indicator goes off. Selecting other station will also cancel the FM Mono mode and restore the stereo effect.

Press the SET button.

“STORED” appears and, after 2 seconds, the display returns to the band/frequency display.

Repeat above steps 2 to 5 for each station

you want to store in memory with a preset number.

To change the preset stations, repeat the same steps as

above.

• In step 4, you can select the preset number using the numeric keys on the Remote Control. See “Entering the Number with the Remote Control” on page 8.

Using the CD Player

Numeric

keys

SET

CD1-CD3

REPEAT

PROGRAM

/RANDOM

CANCEL

¢ 4

Track number, Playing time,

Program number, etc.

REPEAT PROGRAM RANDOM CD1-CD3 CD Open/ Close 0 DISC SKIP

¡ 22

CD 6

Program indicator

Disc indicators

* When the System is in use, the display shows other items as well.

For simplicity, we show here only the items described in this section.

The CD Player has the rotational disc tray that can accommodate 3 CDs. You can use Normal, Program, Random, or Repeat Play.

Normal Play : Can continuously play all the tracks on all

the CDs.

Program Play : Can play all the programmed tracks on all

the CDs in the programmed order.

Random Play : Can play all the tracks on all the CDs in ran-

dom order.

Repeat Play : Can repeat all the tracks on all the CDs, the

tracks on one of the CDs, or just one of tracks on one CD.

Here are the basic things you need to know to play CDs and locate the different tracks on them.

About the Disc Indicator

Disc Rotation

indicator

Disc Number indicator

Selected Disc indicator

Random

indicator

Repeat indicator

Disc Rotation indicator:Runs when the selected CD is

playing or paused. This indicator goes out if a CD is not loaded for the selected disc number. Once the tray is ejected, the Disc Rotation indicators for all disc numbers are lit. However, when the empty disc number is selected, the Disc Rotation indicator for the disc number goes out.

The Disc indicator consists of the following three kinds of indicators:

Disc Number indicator: Lights all the time. Selected Disc indicator:Lights for the currently selected

disc number.

Using the CD Player

Example of indication:

When CD tray has ejected once and then CD1 is pressed. (DISC1 is selected)

Shows that the

disc is rotating.

Shows that this disc number is selected.

One Touch Play

The power comes on, and operations are done automatically. ❏ By pressing the CD 6 button, the System will come on, and if

a CD is loaded for the disc number that was lastly selected, it will start playing from the first track.

❏ By pressing the CD1-CD3 button, the System will come on, and

if a CD is already loaded for the selected disc number, it will start play from the first track.

To Load CDs

Press the CD Open/Close 0 button on the

Unit to open the tray.

Place a CD, with its label side up, onto the

tray.

Be sure that the CD is securely seated on the disc tray.

With the label side up

❏ When you use an 8 cm (3'') CD, place it on the inner circle of the

tray.

❏ You can load CDs while listening to the other source or while

listening to the CD being played back.

❏ When power is turned off with the tray opened, the tray is auto-

matically closed.

❏ If the CD cannot be read correctly (because it is scratched, for

example), “ 00. 00:00” appears on the display.

To Unload CDs

Take out the CD as shown below.

While the CD Player is stopped, press the CD

Open/Close tray.

Remove the CD, then press the DISC SKIP

button on the Unit.

The tray turns for the next CD.

Repeat step 2 to remove all the CDs.

Press the CD Open/Close 0 button on the

Unit to close the tray.

❏ You can remove CDs while listening to the other source.

• You can also remove the CDs during playback. However, in this case, you can only remove the CDs that are not being played back.

button on the Unit to open the

-R

Press the DISC SKIP button on the Unit and

place the next CD.

When you press the button, the tray turns for the next CD.

Repeat step 3 for the last CD.

Press the CD Open/Close 0 button on the

Unit.

The tray is closed.

• When placing a disc in the tray, be sure to position the disc inside the recess correctly. Otherwise, the message “NO DISC” will appear in the display, and the disc may be damaged or the unit may be damaged when the tray is opened, or it may be difficult to remove the disc from the unit.

Using the CD Player

Basics of Using the CD PlayerNormal Play

To Play CDs

Load CDs.

Press one of the Disc button (CD1-CD3) you

want to play.

The selected disc number (e.g. “CD DISC 1” ) appears on the display. The first track of the selected CD begins playing. When the first CD finishes playing, the next and the third CDs are continuously played back. When the last CD has finished playing, the CD Player automatically stops.

Examples:

CD1 = CD2 = CD3 = (stop) CD2 = CD3 = CD1 = (stop)

❏ You can start to play the currently selected disc by simply press-

ing the CD 6 button.

While playing the CD, the following will appear on the display.

• Removing/changing the CDs during playback

While playing back a CD (e.g. CD1), you can remove or change the other CDs (e.g. CD2 and CD3) by pressing the CD Open/Close 0 button. After removing or changing, press the same button to close the tray.

To Select a Track

During playback (using the 4 or ¢ button):

Briefly press the 4 or ¢ button to select the track you want to play. By pressing the button, you can skip to the next track or skip back to the previous track.

• The selected track starts playing.

• Press the ¢ button once to skip to the beginning of the next

track. (You can skip to the next CD (e.g. CD1 = CD2 = CD3).)

• Press the 4 button to skip to the beginning of the current

track. Press twice quickly to skip to the beginning of the previous track. (You cannot skip back to the previous CD.)

In Stop mode (using the

By briefly pressing the 4 or ¢ button, the CD Player operates in the same way as during playback, except the following point.

• The buttons are effective only for the currently selected CD.

Using the numeric keys on the Remote Control:

Using the numeric keys, you can directly select the track on the currently selected CD.

• The selected track starts playing. For example, press +10, then 5 to play back the track number 15. See “Entering the Number with the Remote Control” on page 8.

or ¢ button):

Track number Elapsed

playing time

• When the Disc button (CD1-CD3) is pressed with the tray opened, the tray is closed and the selected CD automatically begins playing.

To stop playing the CD, press the 7 button. The following in- formation for the CD is displayed.

Total track number Total playing time

(After 3 seconds)

Track number Playing time

To pause, press the CD 6 button. The playing time indication blinks on the display. To cancel pause, press the CD 6 button again. Play continues from the point where it was paused. To remove the CD, stop playing and press the CD Open/Close 0 button on the Unit.

Tips:

• Playing back the CD using the DISC SKIP button

You can also play the CDs using the DISC SKIP button. During playback, each time you press the button, the next CD is automatically played back. If the next disc tray is empty, the disc tray is automatically skipped.

CD is playing

Search Play

Holding down the following buttons, during playback, will fast forward/backwards the CD so you can quickly find a particular passage in the track you are listening to.

• 22 or ¡ button on the Unit

• 4 or ¢ button on the Remote Control

Programming the Playing Order of the Tracks

You can program the playing order of the tracks on all the CDs. Note that you can only make a program when the CD Player is stopped.

❏ You can program up to 32 tracks in any desired order including

the same tracks.

To Make a Program

Load CDs

In Stop mode, set the CD Player in Program

Play mode.

On the Unit

Press the PROGRAM button to light the “PRGM” indicator on the display. At the same time, “PROGRAM” appears on the display.

On the Remote Control

Press the PROGRAM/RANDOM button until “PROGRAM” appears on the display. The “PRGM” indicator also lights up on the display. Each time you press the button, the display changes as follows: PROGRAM = RANDOM = Normal display (Normal Play) = (back to the beginning)

• If a program is already made, the last step of the program will be displayed.

Press one of the Disc button (CD1-CD3) to

select the CD you want to program.

The display will change to the Program Entry display.

CD 1

Using the CD Player

Repeat steps 3 and 4 to program other tracks

on the same CD or the other CD.

To play the program, Press the CD

but-

ton.

For details, see “To Play the Program You Have Made” mentioned below.

To confirm the programmed contents, while the CD player is stopped, press the 4 or ¢ button on the Remote Control. To delete all the tracks in the program, while the CD Player is stopped, press the 7 button. To Modify the Program, while the CD Player is stopped, press the CANCEL button, the last track in the program is deleted. To add new tracks to the end of the program, repeat above steps 3 and

• If you try to program a track number that does not exists on the CD, your entry will be ignored.

• If you try to program the 33rd track, “FULL” appears on the display.

To Play the Program You Have Made

Press the CD 6 button. The System plays the tracks in the order you have programmed them.

• To use Repeat Play for Program Play, press the REPEAT button to select “ALL” or “1” before starting playback. For details, see “Repeating Tracks” on page 15.

❏ You can skip to a particular program track by pressing the 4

or ¢ button during Program Play.

❏ To stop playing, press the 7 button once. If you press the 7 but-

ton, while the CD Player is stopped, the program is deleted.

Disc number Track number

Select the track you want to program.

Using the Unit

While the display is blinking, press the 4 or ¢ button to select the track, then press the SET button within 5 seconds. The program order number will be assigned from P-1.

PRESET

Disc number Track number

SET

Program order number

Using the Remote Control

Press the numeric keys to directly enter the track number. Then, the program order number will be assigned from P-1.

• To delete the current program step, press the CANCEL button on the Unit.

To Exit and Re-enter Program Play

The program you have made is stored in memory. So, you can exit Program Play temporarily or re-enter Program Play unless you delete the program. To exit the program mode once, while the CD Player is stopped, press the PROGRAM button on the Unit or the PROGRAM/RANDOM button on the Remote Control to light off the “PRGM” indicator. By changing the source to the other (e.g. Tuner), the CD Player also exits Program Play mode. To re-enter Program Play mode, press the PROGRAM or PROGRAM/RANDOM button until the “PRGM” indicator lights up again.

• Even when the power is turned off (standby mode), the programmed tracks are not deleted. So, you can re-enter Program Play mode.

Using the CD Player

Random Play

The tracks of all the CDs will play in no special order when you use this mode.

• To use Repeat Play for Random Play, press the REPEAT button to select “REPEAT ALL” or “REPEAT 1” before starting playback. For details, see “Repeating Tracks”mentioned below.

In Stop mode, set the CD Player in Random

Play mode.

On the Unit

Press the RANDOM button to light the “RNDM” indicator. At the same time, “RANDOM” appears on the display.

On the Remote Control

Press the PROGRAM/RANDOM button until the “RANDOM” appears on the display. The “RNDM” indicator also lights up on the display. Each time you press the button, the display changes as follows: PROGRAM = RANDOM = Normal display (Normal Play) = (back to the beginning)

Press the CD

The tracks on all the CDs are played in random order.

To stop playing, press the 7 button. To skip a track during playback, press the ¢ button to

jump to the next track in the random sequence. To exit Random Play mode, while the CD Player is stopped, press the RANDOM button on the Unit or the PROGRAM/RANDOM button on the Remote Control again to light off the “RN- DM” indicator. Normal Play resumes.

button.

Tray Lock Function

In order to safely keep the CD in the CD Player, the tray can be electronically locked. When the electronic lock is on, the tray cannot be opened even if the CD Open/Close 0 button on the Unit is pressed.

Locking the Tray

Turn on the System and enter CD mode.

While pressing down the 7 button, press the

CD Open/Close

“LOCKED” appears on the display.

• If you try to open the tray by pressing the 0 button,

“LOCKED” appears on the display to let you know that the tray

has been locked.

Unlocking the Tray

Repeat above steps 1 and 2. “UNLOCKED” appears on the display.

Now, you can use the tray normally.

button on the Unit.

Repeating Tracks

You can repeat all tracks or individual track, as many times as you like.

Press the REPEAT button.

The Repeat indicator changes with each press of the button, as follows: REPEAT ALL= REPEAT 1DISC= REPEAT 1= Blank display = (back to the beginning)

REPEAT ALL: In Normal Play mode, repeats all the tracks on

REPEAT 1DISC

REPEAT 1: Repeats one track.

To stop playing, press the 7 button. Changing the source to the

other (e.g. Tuner) will also stop playing. To exit Repeat mode, press the REPEAT button until the Repeat indicator on the display goes out.

❏ Repeat mode remains in effect during the following Play Mode

changing: a. PROGRAM PLAY MODEÔNORMAL PLAY MODE

b. RANDOM PLAY MODE ÔNORMAL PLAY MODE c. PROGRAM PLAY MODEÔRANDOM PLAY MODE

all the CDs. In Program Play mode, repeats all the tracks in the program. In Random Play mode, repeats all the tracks on all the CDs in random order.

:Repeats all tracks on one CD. (Selectable in

Normal Play only)

• Even after the System is unplugged, the tray lock condition will be retained for a few days. To unlock the tray after powering up, you need to perform the unlocking operation.

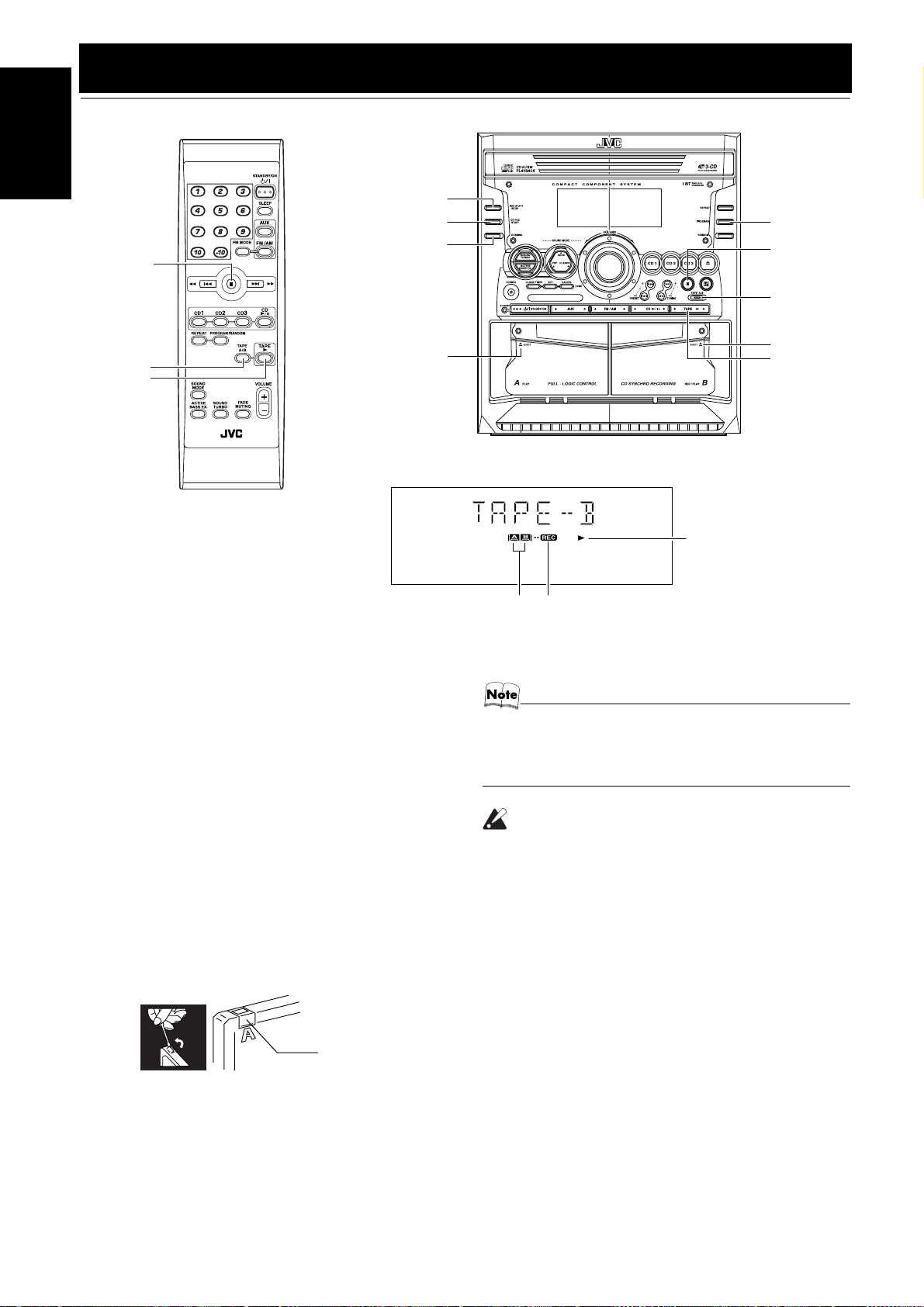

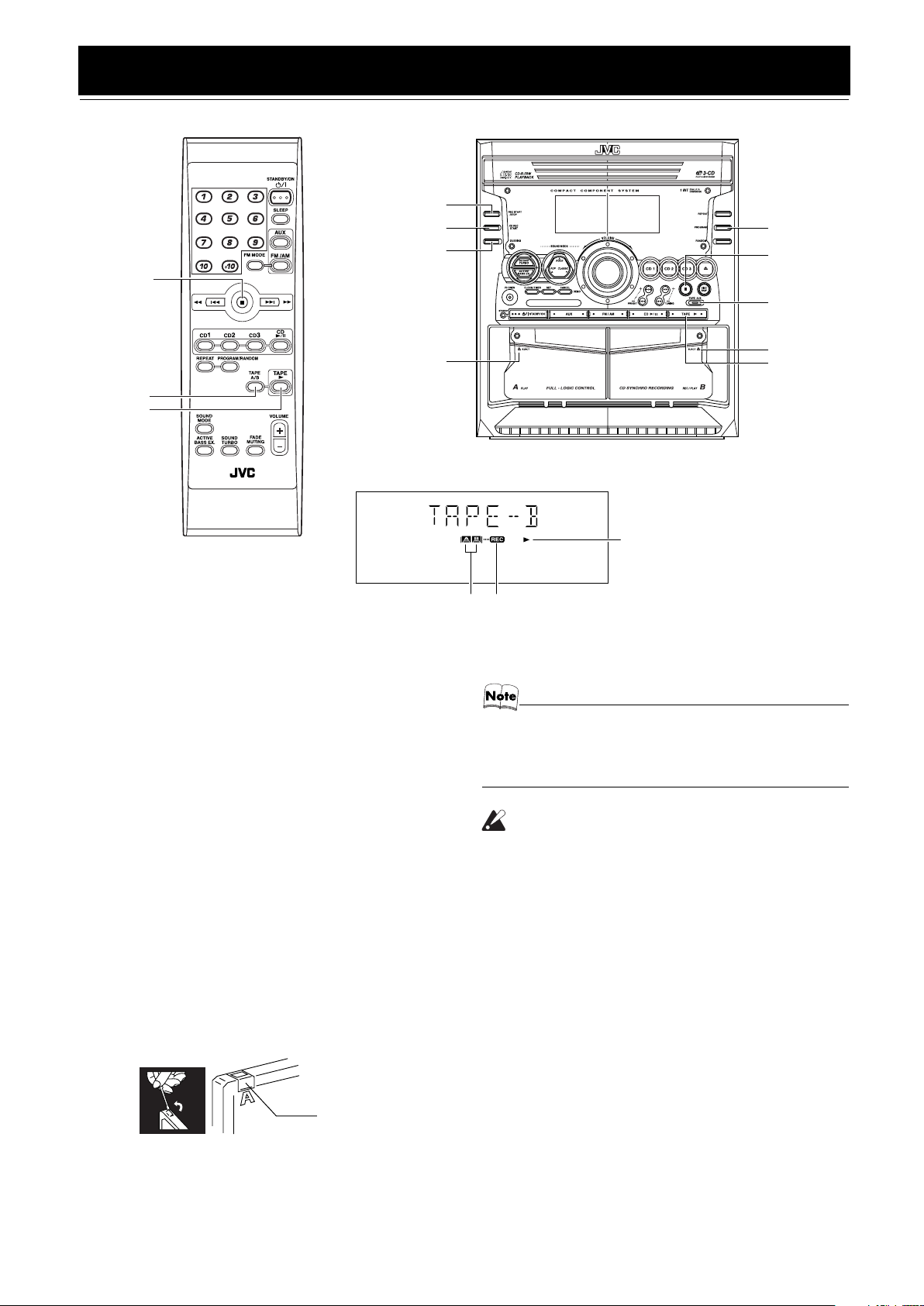

Using the Cassette Deck (Listening to a Tape)

0 EJECT

TAPE

TAPE A/B

* When the System is in use, the display shows other items as well.

For simplicity, we show here only the items described in this section.

The Cassette Deck allows you to play, record, and dub audio tapes.

❏ Listening to type I tape is suitable for this Cassette Deck.

The use of tapes longer than 120 minutes is not recommended, since characteristic deterioration may occur and these tapes easily jam in the pinch-rollers and the capstans.

(Deck A)

Deck indicators

One Touch Play

By pressing the TAPE 3 button, the System will come on, and if a tape is in the deck, it will start to play. If no tape is loaded, “NO TAPE” appears on the display, the System will come on and wait for you to insert a tape, or select another function.

Playing a Tape

You can use either Deck A or Deck B at a time for playback.

Press the 0 EJECT part for the deck you

want to use.

When the cassette holder opens, put a cas-

sette in, with the exposed part of the tape down, toward the base of the Unit.

The tape will travel from the left to right.

Tape travelling direction

• If the cassette holder does not open, turn the System off,

then back on and press the 0 EJECT part again.

TAPE A/B

TAPE 3 0 EJECT

(Deck B)

3: Tape indicator

Close the cassette holder gently.

When both Deck A and Deck B contain a tape, the last deck to have a tape inserted is selected. The selected Deck is shown by the Deck indicator “A” or “B”. For example, when the Deck A is selected, the Deck indicator

“A” lights up.

• To change the deck, press the TAPE A/B button. Each time

you press the button, Deck A or Deck B is alternately selected.

Press the TAPE 3 button.

The Tape indicator (3) blinks on the display and the tape is played back. The Cassette Deck automatically stops when one side of the tape has finished playing.

To stop playing, press the 7 button. To remove the tape, stop the tape, and press the 0 EJECT part

to open the Cassette Holder.

To Fast-Wind A Tape

During playback or in Stop mode, press the ¡ (FF) button on the Unit to fast-wind the tape onto the right side of the cassette without playing.(You can also use the ¢ button on the Remote Control.) During playback or in Stop mode, press the 22 (REW) button on the Unit to fast-wind the tape onto the left side of the cassette without playing.(You can also use the 4 button on the Remote Control.) During fast-winding the tape, the Tape indicator (3) goes out. During fast-winding, the status bar illumination at the bottom of the display moves counterclockwise. During rewinding, it moves clockwise.

• The Cassette Deck automatically stops when one side of the tape has finished playing.

❏ During fast-winding the tape, you can change the tape travelling

direction by pressing the ¡ (FF) or 22 (REW) button.

+ 43 hidden pages
