JVC MX-GT700 User Manual

For Customer Use:

Enter below the Model No. and Serial No. which are located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No.

Serial No.

COMPACT COMPONENT SYSTEM

DISC CHANGE

COMPU PLAY CONTROL

STANDBY/ON

STANDBY

CD-R/RW PLAYBACK

CLOCK /TIMER

DISPLAY

PHONES

REPEAT

REC START

/STOP

CD REC START

DUBBING

PROGRAM RANDOM

TAPE BTAPE A

AUX

TAPE

FM /AM

SUBWOOFER

LEVEL

SOUND MODE

MX-G500

EXTENDED SUPER BASS

FULL - LOGIC CONTROL

CD SYNCHRO RECORDING

CD 1

CD 2

CD 3

DISC CHANGE

COMPU PLAY CONTROL

STANDBY/ON

STANDBY

CD-R/RW PLAYBACK

TUNING

CLOCK /TIMER

DISPLAY

PHONES

REPEAT

REC START

/STOP

CD REC START

DUBBING

PROGRAM RANDOM

TAPE BTAPE A

AUX

TAPE

FM /AM

SUBWOOFER

LEVEL

SOUND MODE

MX-GT700

EXTENDED SUPER BASS

FULL - LOGIC CONTROL

CD SYNCHRO RECORDING

CD 1

CD 2

CD 3

DISC SKIP

VOLUME

–

RM–SMXG500A REMOTE CONTROL

STANDBY/ON

456

+10

SLEEP

SOUND MODE

TAPE A/B

FADE MUTING

FM/AM

AUX

TAPE

SUBWOOFER

LEVEL

FM MODE

DISC SKIP

VOLUME

–

RM–SMXG500A REMOTE CONTROL

STANDBY/ON

456

+10

SLEEP

SOUND MODE

TAPE A/B

FADE

MUTING

FM/AM

AUX

TAPE

SUBWOOFER

LEVEL

FM MODE

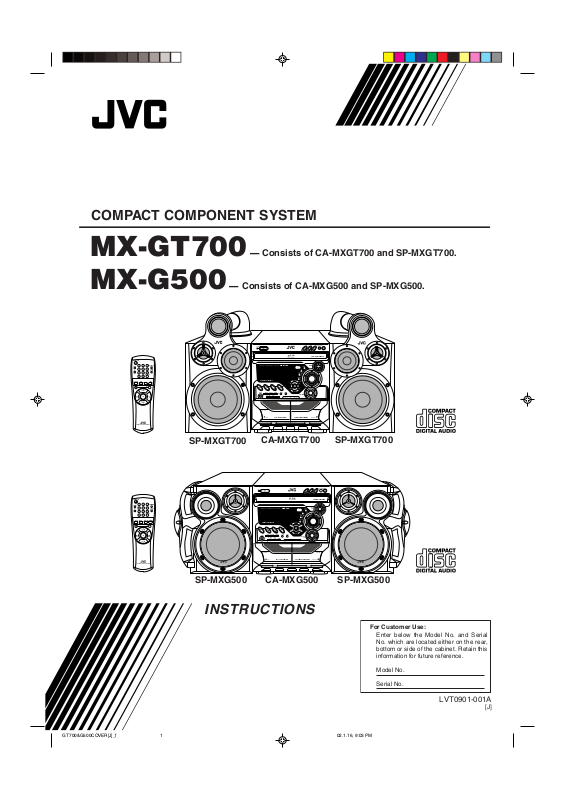

MX-GT700 — Consists of CA-MXGT700 and SP-MXGT700. MX-G500 — Consists of CA-MXG500 and SP-MXG500.

SP-MXGT700

SP-MXG500

CA-MXGT700

CA-MXG500

INSTRUCTIONS

SP-MXGT700

SP-MXG500

LVT0901-001A

[J]

Warnings, Cautions and Others

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION

For U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

Mises en garde, précautions et indications diverses

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

ATTENTION

Afin d’éviter tout risque d’électrocution, d’incendie, etc.:

1. Ne pas enlever les vis ni les panneaux et ne pas ouvrir le coffret de l’appareil.

2. Ne pas exposer l’appareil à la pluie ni à l’humidité.

Caution –– STANDBY/ON switch!

Disconnect the mains plug to shut the power off completely. The STANDBY/ON switch in any position does not disconnect the mains line. The power can be remote controlled.

Attention –– Commutateur STANDBY/ON!

Déconnecter la fiche de secteur pour couper complètement le courant. Le commutateur STANDBY/ON ne coupe jamais complètement la ligne de secteur, quelle que soit sa position. Le courant peut être télécommandé.

1. CLASS 1 LASER PRODUCT

2. DANGER: Invisible laser radiation when open and

interlock failed or defeated. Avoid direct exposure to beam.

3. CAUTION: Do not open the top cover. There are no user

serviceable parts inside the Unit; leave all servicing to qualified service personnel.

1. PRODUIT LASER CLASSE 1

2. ATTENTION: Radiation laser invisible quand l'appareil

est ouvert ou que le verrouillage est en panne ou désactivé. Eviter une exposition directe au rayon.

3. ATTENTION: Ne pas ouvrir le couvercle du dessus. Il n'y

a aucune pièce utilisable à l'intérieur. Laisser à un personnel qualifié le soin de réparer votre appareil.

– G-1 –

For Canada/pour le Canada

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES,

INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQUAU FOND.

For Canada/pour le Canada

THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS B LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL APPARATUS AS SET OUT IN THE INTERFERENCE-CAUSING EQUIPMENT STANDARD ENTITLED “DIGITAL APPARATUS,” ICES-003 OF THE DEPARTMENT OF COMMUNICATIONS.

CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE BRUITS RADIOELECTRIQUES APPLICABLES AUX APPAREILS NUMIRIQUES DE CLASSE B PRESCRITES DANS LA NORME SUR LE MATERIEL BROUILLEUR: “APPAREILS NUMERIQUES”, NMB-003 EDICTEE PAR LE MINISTRE DES COMMUNICATIONS.

– G-2 –

Introduction

We would like to thank you for purchasing one of our JVC products.

Before operating this unit, read this manual carefully and thoroughly to

obtain the best possible performance from your unit, and retain this manual

for future reference.

About This Manual

This manual is organized as follows:

• The manual mainly explains operations using the

buttons and controls on the unit. You can also use the buttons on the remote control if they have the same or similar names (or marks) as those on the unit. If operation using the remote control is different from that using the unit, it is then explained.

• Basic and common information that is the same for many functions is grouped in one place, and is not repeated in each procedure. For instance, we do not repeat the information about turning on/off the unit, setting the volume, changing the sound effects, and others, which are explained in the section “Common Operations” on pages 9 and 10.

• The following marks are used in this manual:

Gives you warnings and cautions to prevent damage or risk of fire/electric shock. Also gives you information which is not good for obtaining the best possible performance from the unit.

Gives you information and hints you had better know.

Power sources

• When unplugging from the wall outlet, always pull the plug, not the AC power cord.

DO NOT handle the AC power cord with wet hands.

Moisture condensation

Moisture may condense on the lens inside the unit in the following cases:

• After starting heating in the room

• In a damp room

• If the unit is brought directly from a cold to a warm place

Should this occur, the unit may malfunction. In this case, leave the unit turned on for a few hours until the moisture evaporates, unplug the AC power cord, and then plug it in again.

Others

• Should any metallic object or liquid fall into the unit, unplug the unit and consult your dealer before operating any further.

• If you are not going to operate the unit for an extended period of time, unplug the AC power cord from the wall outlet.

Precautions

Installation

• Install in a place which is level, dry and neither too hot nor too cold—between 5˚C (41˚F) and 35˚C (95˚F).

• Install the unit in a location with adequate ventilation to prevent internal heat built-up in the unit.

• Leave sufficient distance between the unit and the TV.

• Keep the speakers away from the TV to avoid interference with TV.

DO NOT install the unit in a location near heat sources, or in a place subject to direct sunlight, excessive dust or vibration.

DO NOT disassemble the unit since there are no user serviceable parts inside.

If anything goes wrong, unplug the AC power cord and consult your dealer.

– 1 –

Location of the Buttons and Controls ....................... 3

Front Panel ................................................................. 3

Remote Control .......................................................... 5

Getting Started ............................................................ 6

Unpacking .................................................................. 6

Putting the Batteries into the Remote Control ........... 6

Connecting Antennas ................................................. 6

Connecting Speakers .................................................. 7

Connecting Other Equipment ..................................... 8

Canceling the Display Demonstration ....................... 8

Common Operations .................................................. 9

Turning On or Off the Power ....................................... 9

Setting the Clock ........................................................ 9

Selecting the Sources................................................... 9

Adjusting the Volume ............................................... 10

Reinforcing the Bass Sound ..................................... 10

Selecting the Sound Modes ...................................... 10

Listening to the Radio .............................................. 11

Tuning in a Station ................................................... 11

Presetting Stations .................................................... 11

Tuning in a Preset Station ........................................ 11

Playing Back CDs ..................................................... 12

Loading CDs ............................................................ 12

Playing Back CDs—All Disc and One Disc ............ 12

Basic CD Operations ................................................ 13

Programming the Playing Order of the Tracks

—Program Play .................................................. 14

Playing at Random—Random Play ......................... 15

Repeating Tracks or CDs—Repeat Play .................. 15

Prohibiting Disc Ejection—Tray Lock .................... 15

Playing Back Tapes ................................................... 16

Playing Back a Tape ................................................. 16

Recording .................................................................. 17

Recording a Tape on Deck B.................................... 17

Dubbing Tapes .......................................................... 18

CD Synchronized Recording ..................................... 18

Using the Timers ....................................................... 19

Using Daily Timer .................................................... 19

Using Recording Timer ............................................ 20

Using Sleep Timer .................................................... 21

Timer Priority ........................................................... 21

Maintenance .............................................................. 22

Troubleshooting ........................................................ 23

Specifications............................................................. 24

– 2 –

Location of the Buttons and Controls

DISC CHANGE

STANDBY/ON

STANDBY

CD-R/RW PLAYBACK

CLOCK

/TIMER

DISPLAY

PHONES

REPEAT

REC START

/STOP

CD REC START

DUBBING

PROGRAM RANDOM

TAPE BTAPE A

AUX

TAPE

FM /AM

SUBWOOFER

LEVEL

SOUND

MODE

CD 1

CD 2

CD 3

EXTENDED SUPER BASS

FULL - LOGIC CONTROL

CD SYNCHRO RECORDING

COMPU PLAY CONTROL

8 9

p q

e r

t y

;

Become familiar with the buttons and controls on your unit.

Front Panel

– 3 –

Display Window

Continued

See pages in the parentheses for details.

Front Panel

1 STANDBY/ON button and STANDBY lamp (9) 2 CLOCK/TIMER button (9, 19 – 21) 3 DISPLAY button (9) 4 PRESET +/– buttons (11)

4 / ¢ (reverse search/forward search) buttons (9, 13 – 15, 19 – 21)

5 7 (stop) button (12 – 18) 6 TUNING +/– buttons (11)

1 / ¡ (fast forward/fast rewind) buttons (13, 16)

7 Display window 8 Remote sensor 9 TAPE 3 button and lamp (9, 16, 18)

Pressing this button also turns on the unit.

p CD 6 (play/pause) button and lamp (9, 12 – 15)

Pressing this button also turns on the unit.

q FM/AM button and lamp (9, 11)

Pressing this button also turns on the unit.

w AUX button and lamp (9)

Pressing this button also turns on the unit.

e PHONES jack (10) r REPEAT button (12, 13, 15)

PROGRAM button (14) RANDOM button (15)

t REC START/STOP button (17)

y TAPE A button (16)

u Deck A cassette holder (16, 18)

i Carrousel o 0 (Carrousel open/close) button (12, 13 – 15)

; DISC CHANGE button (12, 13)

CD REC START button (18) DUBBING button (18)

TAPE B button (16)

Pressing the 0 EJECT portion opens the holder.

Pressing this button also turns on the unit.

a Disc number buttons and lamps (CD1, CD2, and CD3)

(13 – 15, 18)

Pressing one of these buttons also turns on the unit.

s SET button (9, 11, 14, 19 – 21) d CANCEL/DEMO button (8, 9, 14, 20, 21) f SOUND MODE control (10) g VOLUME control (10) h SUBWOOFER LEVEL control (10) j Deck B cassette holder (16 – 18)

Pressing the EJECT 0 portion opens the holder.

Display window

1 Timer indicators

• DAILY (daily timer), REC (recording timer), SLEEP

(sleep timer), and (timer) indicators

2 Tape operation indicators

• A/B (operating deck), REC (recording), and 2 3 (tape

running) indicators

3 CD play mode indicators

• REPEAT (1, 1 DISC, ALL DISC), PRGM (program), and RANDOM indicators

4 Tuner operation indicators

• MONO and ST (stereo) indicators

5 SOUND MODE indicator 6 Disc indicators 7 Volume level, Subwoofer level and Sound Mode pattern

indicators

8 SUBWOOFER LEVEL indicator 9 CD track number indicators p Main display

• Shows the source name, frequency, etc.

– 4 –

Remote Control

DISC SKIP

VOLUME

–

RM–SMXG500A REMOTE CONTROL

STANDBY/ON

+10

SLEEP

SOUND

MODE

TAPE A/B

FADE

MUTING

FM/AM

AUX

TAPE

SUBWOOFER

LEVEL

FM MODE

p q

e r

y u

DISC CHANGE

COMPU PLAY CONTROL

STANDBY/ON

STANDBY

CD-R/RW PLAYBACK

CLOCK

/TIMER

DISPLAY

PHONES

REPEAT

REC START

/STOP

CD REC START

DUBBING

PROGRAM RANDOM

TAPE BTAPE A

AUX

TAPE

FM /AM

SUBWOOFER

LEVEL

SOUND MODE

EXTENDED SUPER BASS

FULL - LOGIC CONTROL

CD SYNCHRO RECORDING

PLAY

CD 3

CD 1

CD 2

Remote Control

1 STANDBY/ON button (9) 2 SLEEP button (21) 3 AUX button (9)

Pressing this button also turns on the unit.

4 Number buttons (11, 13) 5 TAPE 3 button (9, 16)

Pressing this button also turns on the unit.

6 FM/AM button (9, 11)

Pressing this button also turns on the unit.

7 CD 6 button (9, 12 – 15)

Pressing this button also turns on the unit.

8 4/1 (fast rewind/reverse search) button

(11, 13, 16)

9 VOLUME – button (10) p SUBWOOFER LEVEL button (10) q SOUND MODE button (10) w FM MODE button (11) e TAPE A/B button (16) r FADE MUTING button (10) t DISC SKIP button (12) y VOLUME + button (10) u ¢/¡ (fast forward/forward search) button

(11, 13, 16)

i 7 (stop) button (12 – 18)

When using the remote control, point it at the remote sensor on the front panel.

– 5 –

Getting Started

FM [75 ]

ANTENNA

FM [75 ]

ANTENNA

Continued

Unpacking

After unpacking, check to be sure that you have all the following items. The number in the parentheses indicates the quantity of the pieces supplied.

• AM loop antenna (1)

• FM antenna (1)

• Remote control (1)

• Batteries (2)

If any is missing, consult your dealer immediately.

Putting the Batteries into the Remote Control

Insert the batteries—UM-4/AAA/IEC R03—into the remote control, by matching the polarity (+ and –) on the batteries with the + and – markings on the battery compartment. When the remote control can no longer operate the unit, replace both batteries at the same time.

Connecting Antennas

FM antenna

FM antenna (supplied)

1 Attach the FM antenna to the FM [75 Ω]

coaxial terminal.

2 Extend the FM antenna.

3 Fasten it up in the position which gives you

the best reception, then fix it on the wall, etc.

About the supplied FM antenna

The FM antenna supplied with this unit can be used as temporary measure. If reception is poor, you can connect an outdoor FM antenna.

To connect an outdoor FM antenna

Before connecting it, disconnect the supplied FM antenna.

UM-4/AAA/IEC R03

Outdoor FM antenna (not supplied)

• DO NOT use an old battery together with a new one.

• DO NOT use different types of batteries together.

• DO NOT expose batteries to heat or flame.

• DO NOT leave the batteries in the battery compartment when you are not going to use the remote control for an extended period of time. Otherwise, it will be damaged from battery leakage.

A 75 Ω antenna with coaxial type connector should be used.

– 6 –

MAIN SPEAKER

SUBWOOFER

4-8

[ ]

-16

AM antenna

ANTENNA

FM 75

[ ]

2, 3

Connecting Speakers

For MX-GT700: DO NOT carry the speaker by holding the duct tube (on the top of the speaker).

Vinyl-covered wire (not supplied)

AM loop antenna (supplied)

Press and hold the clamp of the AM terminal on the rear of the unit.

Speaker cord (blue/black)

Blue

Speaker cord

(blue/black)

From right

main speaker’s terminals

Black

subwoofer’s

2, 3

Speaker cord (red/black)

Red

Speaker cord

(red/black)

From right

terminals

Insert the end of the AM loop antenna cord into the terminal.

• If the AM loop antenna wire is covered with vinyl, remove the vinyl by twisting it as shown in the diagram.

Release the finger from the clamp.

Turn the AM loop antenna until you have the best reception.

To connect an outdoor AM antenna

When reception is poor, connect a single vinyl-covered wire to the AM terminal and extend it horizontally. (The AM loop antenna must remain connected.)

For better reception of both FM and AM

• Make sure the antenna conductors do not touch any other terminals and connecting cords.

• Keep the antennas away from metallic parts of the unit, connecting cords, and the AC power cord.

From left

main

speaker’s

terminals

Press and hold the clamp of the speaker

From left

subwoofer’s

terminals

terminal on the rear of the unit.

Insert the end of the speaker cord into the terminal.

Match the polarity (colors): Blue (+) to blue (+) and black (–) to black (–); red (+) to red (+) and black (–) to black (–).

• If the wire is covered with vinyl, remove the vinyl by twisting it as shown in the diagram.

Release the finger from the clamp.

IMPORTANT: Use only speakers with the same speaker impedance as indicated by the speaker terminals on the rear of the unit.

– 7 –

DIGITAL OUT

OPTICAL

( )

AUX IN

Connecting Other Equipment

CANCEL /

DEMO

CANCEL /

DEMO

You can connect both analog and digital equipment.

• DO NOT connect any equipment while the power is on.

• DO NOT plug in any equipment until all connections are complete.

To connect an analog component

Be sure that the plugs of the audio cords are color coded: White plugs and jacks are for left audio signals, and red ones for right audio signals.

Audio/video equipment

To audio output

For playing the other equipment through this unit,

connect between the audio output jacks on the other equipment and AUX IN jacks by using audio cords (not supplied).

NOW, you can plug in the unit and other connected equipment FINALLY!

Cancelling the Display Demonstration

When connecting the AC power cord into a wall outlet, the unit automatically starts display demonstration.

On the unit ONLY:

To cancel the display demonstration, press

CANCEL/DEMO.

When you press other buttons

The display demonstration stops temporarily. It will start automatically again (if no operation is done for 2 minutes) until you cancel it by pressing CANCEL/DEMO.

To start the display demonstration manually

Press and hold CANCEL/DEMO again for more than 2 seconds.

To connect audio equipment with an optical digital input terminal

You can record CD sound onto the connected digital equipment.

Protective plug

Before connecting the other equipment, remove the protective plug from

Audio equipment with an optical digital

To optical digital input

input

Connect an optical digital cord (not supplied) between the optical digital input terminal on the other equipment and the DIGITAL OUT [OPTICAL] terminal.

the terminal.

– 8 –

Common Operations

ON TIME

(Daily Timer)

DAILY

Canceled

ON TIME

(Recording Timer)

CLOCK

REC

STANDBY/ON

STANDBY

STANDBY/ON

STANDBY

SET

DISPLAY

CLOCK

TIMER

SET

AUX

FM /AM

TAPE

Turning On or Off the Power

To turn on the unit, press STANDBY/ ON so that the STANDBY lamp goes off.

To turn off the unit (on standby), press

STANDBY/ON again so that the

STANDBY lamp lights up.

A little power is always consumed even while the unit is on standby.

To switch off the power supply completely, unplug the AC power cord from the AC outlet.

When you unplug the AC power cord or if a power failure occurs

The clock is reset to “– – : – –” soon, while the tuner preset stations (see page 11) will be erased in a few days.

Press 4 or ¢ to adjust the minute, then press SET.

To check the clock time

Press DISPLAY while playing any source.

• Each time you press the button, the source indication and the clock time alternate on the display.

To adjust the clock again

If you have adjusted the clock before, you need to press CLOCK/TIMER repeatedly until “CLOCK” is selected.

• Each time you press the button, the clock/timer setting modes change as follows:

Setting the Clock

Before operating the unit any further, first set the clock built in this unit. You can set the clock whether the unit is on or off.

On the unit ONLY:

Press CLOCK/TIMER.

The hour digits start flashing on the display.

Press 4 or ¢ to adjust the hour, then press SET.

The minute digits start flashing on the display.

If there is a power failure

The clock loses the setting and is reset to “– – : – –.” You need to set the clock again.

Selecting the Sources

To listen to the radio, press FM/AM. (See page 11.) To play back CDs, press CD 6. (See pages 12 – 15.) To play back tapes, press TAPE 3. (See page 16.) To select the external equipment as the source, press AUX.

When you press the play button for a particular source (AUX, FM/AM, CD 6, and TAPE 3), the unit turns on (and the unit starts playing the source if it is ready—COMPU PLAY CONTROL).

• If you want to correct the hour after pressing SET, press CANCEL/DEMO. The hour digits start flashing again.

– 9 –

Adjusting the Volume

FADE

MUTING

SUBWOOFER

LEVEL

SOUND

MODE

D.CLUB

(Dance CLUB)

OFF

(Canceled)

HALL STADIUM ROCK

POP

CLASSIC

D.CLUB

(Dance CLUB)

OFF

(Canceled)

HALL STADIUM ROCK

POP

CLASSIC

Selecting the Sound Modes

You can adjust the volume level only while the unit is turned on.

Turn the VOLUME control clockwise to increase the volume or counterclockwise to decrease it.

• The volume level can be adjusted in 32 steps (VOL MIN, VOL 1 — VOL 30, and VOL MAX).

When using the remote control, press VOLUME + to increase the volume or press VOLUME – to decrease it.

For private listening

Connect a pair of headphones to the PHONES jack. No sound comes out of the speakers. Be sure to turn down the volume before connecting or putting on headphones.

DO NOT turn off (on standby) the unit with the volume set to an extremely high level; otherwise, a sudden blast of sound can damage your hearing, speakers and/or headphones when you turn on the unit or start playing any source next time. REMEMBER you cannot adjust the volume level while the unit is on standby.

To turn down the volume level temporarily

Press FADE MUTING on the remote control. The volume level gradually decreases to “VOL MIN.” To restore the sound, press the button again.

Reinforcing the Bass Sound

This function only affects the playback sound, not your recording.

Turn the SUBWOOFER LEVEL control clockwise to increase the subwoofer sound or counterclockwise to decrease it.

• The subwoofer level can be adjusted in 4 steps (LEVEL 1 — LEVEL 4.) If you turn the control clockwise up to the LEVEL 4, “MAX” flashes on the display for a few seconds.

SUBWOOFER LEVEL indicator always lights up while the unit is on.

This function only affects the playback sound, not your recording.

You can select one of the 6 preset sound modes (3 surround modes and 3 SEA—Sound Effect Amplifier—modes).

To select the sound modes, turn the SOUND MODE control until the sound mode you want appears on the display.

SOUND MODE indicator also lights up on the display

• As you turn the control, the sound modes change as follows:

Surround modes*: D.CLUB : Increases resonance and bass. HALL : Adds depth and brilliance to the sound. STADIUM: Adds clarity and spreads the sound, like in an

outdoor stadium.

SEA (Sound Effect Amplifier) modes: ROCK : Boosts low and high frequency. Good for

acoustic music.

POP : Good for vocal music. CLASSIC : Good for classical music.

OFF : Cancels the sound mode.

* Surround elements are added to the SEA elements to create

being-there feeling in your room. When one of these modes is selected, the SOUND MODE indicator lights up as —

While one of the SEA modes (SEA elements without surround elements) is selected, the SOUND MODE indicator lights up as —

When using the remote control, press SOUND MODE to select the sound mode.

• Each time you press the button, the sound modes change as follows:

When using the remote control, press SUBWOOFER LEVEL to adjust the subwoofer level. Each time you press the button, the subwoofer level changes as LEVEL 1 = LEVEL 2 = LEVEL 3 = LEVEL 4 = (back to the beginning).

– 10 –

Listening to the Radio

FM MODE

SET

+10

SET

FM /AM

Tuning in a Station

Press FM/AM.

The unit automatically turns on and tunes in the previously tuned station (either FM or AM).

• Each time you press the button, the band alternates between FM and AM.

Start searching for stations. On the unit: Press and hold TUNING + or TUNING – for more than 1 second.

On the remote control: Press and hold 4/1 or ¢/¡ for more than 1 second.

The unit starts searching for stations and stops when a station of sufficient signal strength is tuned in. If a program is broadcast in stereo, the ST (stereo) indicator lights up.

On the unit ONLY:

Tune in the station you want to preset (in this example, of FM 87.50).

• See “Tuning in a Station.”

Press SET.

Press PRESET + or PRESET – to select a preset number.

Press SET again.

To stop during searching, press TUNING + or TUNING –

(or 4/1 or ¢/¡ on the remote control).

When you press TUNING + or TUNING – (or 4/1 or ¢/¡ on the remote control) briefly and repeatedly

The frequency changes step by step.

To change the FM reception mode

When an FM stereo broadcast is hard to receive or noisy, press FM MODE on the remote control so that “MONO” appears and MONO indicator also lights up on the display. Reception improves.

To restore the stereo effect, press FM MODE again so that “STEREO” appears. In this stereo mode, you can hear stereo sounds when a program is broadcast in stereo.

Presetting Stations

You can preset 30 FM and 15 AM stations.

In some cases, test frequencies have been already memorized for the tuner since the factory examined the tuner preset function before shipment. This is not a malfunction. You can preset the stations you want into memory by following the presetting method.

• There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step again.

The tuned station in step 1 is stored in the preset number selected in step 3.

• Storing a new station on a used number erases the previously stored one.

When you unplug the AC power cord or if a power failure occurs

The preset stations will be erased in a few days. If this happens, preset the stations again.

Tuning in a Preset Station

Press FM/AM.

The unit automatically turns on and tunes in the previously tuned station (either FM or AM).

• Each time you press the button, the band alternates between FM and AM.

Select a preset number. On the unit: Press PRESET + or PRESET –.

On the remote control: Press the number buttons.

Ex.: For preset number 5, press 5.

For preset number 15, press +10 then 5. For preset number 20, press +10, then 10. For preset number 25, press +10, +10, then 5. For preset number 30, press +10, +10, then 10.

– 11 –

DISC SKIP

DISC CHANGE

REPEAT ALL DISC* REPEAT 1 DISC*

REPEAT 1*

1 DISC

ALL DISC

(initial setting)

REPEAT

PRO

Playing Back CDs

This unit has been designed to playback the following CDs: Audio CD, CD-R, and CD-RW.

When playing a CD-R or CD-RW

User-edited CD-Rs (CD-Recordable) and CD-RWs (CD-ReWritable) can be played back when they are already

“finalized.”

• You can play back your original CD-Rs or CD-RWs recorded in music CD format ONLY. (If CD-RWs have been recorded in different format, erase all the data on CDRWs completely before re-recording on the discs.)

DO NOT play back CD-Rs or CD-RWs recorded the sound files such as MP3.

• Before playing back CD-Rs or CD-RWs, read their instructions or cautions carefully.

• Some CD-Rs or CD-RWs may not be played back on this unit because of their disc characteristics, damage or stain on them, or if the player’s lens is dirty.

Important notices:

• In general, you will have the best performance by keeping your CDs and the mechanism clean.

- Store CDs in their cases, and keep them in cabinets or on

shelves.

- Keep the unit’s carrousel closed when not in use.

• Continuous use of irregular shaped discs (heart-shape, octagonal, etc.) can damage the disc rotating mechanism.

Continued

If you wish to load a third disc, press DISC CHANGE on the unit or DISC SKIP on the remote control.

The disc tray rotates by 120˚.

Press 0 again.

The carrousel closes.

About the disc indicators

Each disc indicator corresponds to the disc tray of the same number.

Disc number

Disc indicator

• The disc marker lights up for the disc number you have selected.

• The disc indicator rotates while the corresponding CD is being played.

• The disc indicator goes off when the unit has detected that there is no CD on the corresponding disc tray.

Disc marker

Playing Back CDs—All Disc and One Disc

You can play all loaded CDs continuously—All Disc play, or one selected disc—One Disc play.

• CD-RWs may require a longer readout time since the reflectance of CD-RWs is lower than for regular CDs.

Loading CDs

Press 0.

The unit automatically turns on and the carrousel comes out.

Place one or two discs correctly on the front recesses of the disc tray, with its label side up.

CORRECT

• When using a CD single (8 cm), place it on the inner circle of the disc tray.

INCORRECT

All Disc play

Load CDs.

• If the current playing source is not the CD player, press

CD 6, then 7 before going to the next step.

Press REPEAT repeatedly so that the ALL DISC indicator lights up on the display.

Track number of the currently playing disc (Track numbers exceeding 16 are not displayed.)

Track number Elapsed playing time

• Each time you press the button, the indication on the display changes as follows:

* See page 15.

– 12 –

REPEAT

PROG

CD 1

CD 2

CD 3

REPEAT ALL DISC* REPEAT 1 DISC*

REPEAT 1*

1 DISC

ALL DISC

(initial setting)

+10

DISC CHANGE

DISC SKIP

CD 1

CD 2

CD 3

Press one of the disc number buttons (CD1, CD2 or CD3) for the disc you want to start to play from.

CD play starts from the first track of the selected disc.

• Pressing CD 6 instead of the disc number buttons

starts playing back if a CD is on the trays.

To stop during play, press 7.

To remove the disc, press 0.

Basic CD Operations

While playing a CD, you can do the following operations.

To exchange CDs during playback of another

Press DISC CHANGE to change the CD and the carrousel comes out. If you change CDs during play, the current play will not stop until all CDs you have changed are played.

To close the carrousel, press DISC CHANGE or 0.

CD playback sequence

When 3 CDs are loaded on the disc trays, they are played in one of the following sequences.

• When CD1 is pressed : CD1 ] CD2 ] CD3 (then stops)

• When CD2 is pressed : CD2 ] CD3 ] CD1 (then stops)

• When CD3 is pressed : CD3 ] CD1 ] CD2 (then stops) * When only 2 CDs are loaded, they are played in the same order,

but the disc tray without a CD is skipped.

One Disc play

When more than 2 CDs are loaded on the disc trays, you can select one particular disc to be played back.

Load CDs.

• If the current playing source is not the CD

player, press CD 6, then 7 before going to the next step.

Press REPEAT repeatedly so that the 1 DISC indicator lights up on the display.

• Each time you press the button, the indication on the display changes as follows:

To skip to the another CD in the carrousel

Press DISC SKIP on the remote control.

To stop play for a moment

Press CD 6. While pausing, “PAUSE” appears on the display.

To resume play, press CD 6 again.

To locate a particular point in a track

During play, press and hold 1 or ¡.

• 1: Fast reverses the disc.

• ¡: Fast forwards the disc. When using the remote control, press and hold 4/1 or ¢/¡.

To go to another track

Press 4 or ¢ repeatedly before or during playback.

• 4: Goes back to the beginning of the current

or previous tracks.

• ¢: Skips to the beginning of the next or succeeding

tracks.

* See page 15.

Press one of the disc number buttons (CD1, CD2 or CD3) you want to listen.

Playback stops when all tracks of the selected disc are played once and resumes to All Disc play.

To stop during play, press 7.

To remove the disc, press 0.

To exit from One Disc Play, press REPEAT repeatedly so

that ALL DISC indicator lights up on the display.

• Turning off the power,

• Ejecting the carrousel, or

• Changing the source to play.

The following operations will also cancel the One Disc play and restore All Disc play when—

If you press and hold 4 or ¢ on the unit before playing

The track number keeps changing until you release it.

To go to another track directly using the number buttons

Pressing the number button(s) before or during play allows you to start playing the track number you want.

Ex.: For track number 5, press 5.

For track number 15, press +10, then 5. For track number 20, press +10, then 10. For track number 32, press +10, +10, +10, then 2.

– 13 –

SET

CD 1

CD 2

CD 3

PROGRAM RA

CANCEL /

DEMO

Continued

Programing the Playing Order of the Tracks —–Program Play

You can arrange the order in which the tracks play before you start playing. You can program up to 32 tracks.

• To use Repeat play (see page 15) for Program play, press REPEAT after starting Program play.

On the unit ONLY:

Load CDs.

• If the current playing source is not the CD player, press

CD 6, then 7 before going to the next step.

Press PROGRAM so that “PROGRAM” appears on the display.

The PRGM (program) indicator also lights up on the display.

• All Disc play mode is selected automatically. You cannot select One Disc play mode for Program play.

• If a program has been stored in memory, the program is called up.

Press one of the disc number buttons (CD1, CD2, and CD3) to select the disc number you want to play.

Track number

Program other tracks you want.

• To program tracks from the same disc, repeat step 4.

• To program tracks from a different disc, repeat steps and 4.

Press CD 6.

The tracks are played in the order you have programed.

To stop during play, press 7.

To exit from Program play mode, press PROGRAM again

before or after play so that the unit enters All Disc play mode. (The program you have made is stored in memory until you turn off the unit, eject the carrousel, or erase the program.)

• Program play mode is also canceled when you press 0.

To modify the program

Before playing, you can erase the last programed track shown on the display by pressing CANCEL/ DEMO.

• Each time you press the button, the last programed track is erased from the program.

To check the program during play, press ¢ (or 4) so that the playing track will change according to the program (or reverse) order.

To add tracks in the program before play, simply select the disc numbers and/or track numbers you want to add by following steps 3 and 4 of the programing procedure.

To erase the entire program before or during play, press 7 twice.

• Turning the power off or ejecting the carrousel will also erase the stored memory.

Disc number Program step number

Press 4 or ¢ to select the track number, then press SET.

Each time you select a track and press SET, the selected track number is added to the track number indicator.

If you try to program a 33rd track

“FULL” will appear on the display.

If your entry is ignored

You have tried to program a track from an empty tray, or a track number that does not exist on the CD. Such entries are ignored.

– 14 –

Playing at Random—–Random Play

REPEAT ALL DISC REPEAT 1 DISC

REPEAT 1

1 DISC*

ALL DISC*

CD 1

CD 2

CD 3

REPEAT

PRO

Repeating Tracks or CDs—–Repeat Play

The tracks of the selected CD will play at random.

• To use Random play mode, you have to cancel the Program play mode.

Load a CD.

Press one of the disc number buttons (CD1, CD2, and CD3) for the disc you want to play, then press 7.

Press RANDOM so that “RANDOM” appears on the display.

The RANDOM indicator also lights up on the display.

• Activating Random play cancels Repeat play or All Disc play. (One Disc is automatically selected.)

• The tracks are played automatically at random. Random play ends when all tracks are played once.

To stop during play, press 7.

To exit from Random play mode, press RANDOM again

during play so that the unit enters All Disc play mode.

• Random play is also canceled when you press 0.

If you press 4 or ¢

Skips to the next track selected randomly.

You can have all the CDs, the program or the individual track currently playing repeat as many times as you like.

To repeat play, press REPEAT during or before playing.

• Each time you press the button, Repeat play mode changes as follows, and the following indicator lights up on the display:

REPEAT 1 : Repeats one track on one CD. REPEAT 1 DISC** : Repeats all the tracks on one CD. REPEAT ALL DISC : Repeats all the tracks on all the CDs.

* See page 12. ** REPEAT 1 DISC is not used for Program play.

To cancel Repeat play, press REPEAT repeatedly until the REPEAT indicator (REPEAT 1, REPEAT 1 DISC or REPEAT ALL DISC) goes off from the display.

• Repeat play and Random play cannot be used at the same time.

• Repeat play is also canceled when you press 0.

Prohibiting Disc Ejection—–Tray Lock

You can prohibit CD ejection from the unit and can lock the carrousel.

• This operation is possible only while the unit is on with CD selected as the source.

On the unit ONLY:

To prohibit disc ejection, press 0 for the carrousel while

holding 7. “LOCKED” appears for a while, and the carrousel is locked.

To cancel the prohibition and unlock the carrousel, press 0 for the carrousel while holding 7. “UNLOCKED” appears for a while, and the carrousel is unlocked.

If you try to eject CDs

“LOCKED” appears to inform you that the Tray Lock is in use.

– 15 –
