JVC MX-DK3, MX-DK15, MX-DK1 User Manual

Download

COMPACT COMPONENT SYSTEM

CA-MXDK5

MX-DK3

—Consists of CA-MXDK3,

SP-MXDK3F and SP-MXDK3W

MX-DK1

—Consists of CA-MXDK1 and

SP-MXDK1F

MX-DK15

—Consists of CA-MXDK15 and

SP-MXDK15F

(For CA-MXDK5) (For CA-MXDK5) (For CA-MXDK5)

(For CA-MXDK5)

INSTRUCTIONS

GVT0177-001B

[US,UN,UG,UX,A,UW]

Warnings, Cautions and Others

Caution–– (standby/on) button!

Disconnect the mains plug to shut the power off completely (the STANDBY lamp goes off). When installing the apparatus, ensure that the plug is easily accessible. The (standby/on) button in any position does not disconnect the mains line.

• When the System is on standby, the STANDBY lamp lights red.

• When the System is turned on, the STANDBY lamp goes off. The power can be remote controlled.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

CAUTION

• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

• Do not place any naked flame sources, such as lighted candles, on the apparatus.

• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

CAUTION

serviceable parts inside the Unit; leave all servicing to qualified service personnel.

CAUTION

3. open. Do not view directly with optical instruments.

: Do not open the top cover. There are no user

: Visible and/or invisible class 1M laser radiation when

G-1

Caution: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows

1. Front: No obstructions and open spacing.

2. Sides/ Top/ Back: No obstructions should be placed in the areas shown by the dimensions below.

3. Bottom: Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand with a height

The minimal clearance is shown as below:

Front view Side view

of 10 cm or more.

Wall or obstructions Wall or obstructions

15 cm

CA-MXDK5 CA-MXDK3 CA-MXDK1 CA-MXDK15

15 cm1 cm 1 cm

10 cm

24 kg

CAUTION!

To avoid personal injury or accidentally dropping the unit, have two persons unpack, carry, and install the unit.

MX-DK3

15 cm

CA-MXDK5 CA-MXDK3 CA-MXDK1 CA-MXDK15

Front No obstructions

10 cm

[European Union only]

G-2

Introduction

DIGITAL VIDEO

Precautions

Installation

• Install the System in a location with adequate ventilation to prevent internal heat buildup in the System.

DO NOT install the System in a location near heat sources, or in a place subject to direct sunlight, excessive dust or vibration.

• Install in a place which is level, dry and neither too hot nor too cold—between 5°C and 35°C.

• Leave sufficient distance between the System and the TV.

• Keep the speakers away from the TV to avoid interference with the TV.

Power sources

• When unplugging the System from the wall outlet, always pull on the plug, not the AC power cord.

DO NOT handle the AC power cord with wet hands.

Moisture condensation

Moisture may condense on the lenses inside the System in the following cases:

• After starting to heat the room

• In a damp room

• If the System is brought directly from a cold to a warm place.

Should this occur, the System may malfunction. In this case, leave the System turned on for a few hours until the moisture evaporates, unplug the AC power cord, then plug it in again.

Internal heat

• Make sure there is good ventilation around the unit. Poor ventilation could overheat and damage the unit.

•A cooling fan is inside the System (except for CA-MXDK1 and CA-MXDK15) to prevent heat buildup.

DO NOT block the ventilation openings or holes. If they are blocked by a newspaper or cloth, etc., the heat may not be able to get out.

Others

• Should any metallic object or liquid fall into the System, unplug the AC power cord and consult your dealer before operating any further.

DO NOT disassemble the System since there are no user serviceable parts inside.

• If you are not going to operate the System for an extended period of time, unplug the AC power cord from the wall outlet.

If anything goes wrong, unplug the AC power cord and consult your dealer.

Playable Disc Types

* *

COMPACT

DIGITAL AUDIO

DVD Logo is a trademark of DVD Format/Logo Licensing Corporation.

• CD-R/-RW/-ROM: Recorded in the Audio CD, Video CD and SVCD formats. MP3, WMA, JPEG, MPEG-1, MPEG-2, ASF* and DivX* files written in accordance with the “ISO 9660” format can also be played.

• DVD-R/-RW: Recorded in the DVD Video format or the DVD Video Recording (VR) format. MP3, WMA, JPEG, MPEG-1, MPEG-2, ASF* and DivX* files written in the UDF format can also be played.

* CA-MXDK5 only

In addition to the above discs, this System can play back audio data recorded on CD Text, and CD-Extra.

• It is possible to play back finalized +R/+RW (DVD Video Format only) discs. “DVD” lights on the front display panel when a +R/+RW disc is loaded.

• The following discs cannot be played back: DVD-ROM, DVD-RAM, CD-I (CD-I Ready), CD-G (CD Graphics), Photo CD, etc. Playing back these discs will generate noise and damage the speakers.

• For MX-DK3 and MX-DK1/MX-DK15: This unit cannot play back DVD-VR discs with CPRM (Content Protection for Recordable Media).

• In this manual, “file” and “track” are interchangeably used for MP3/WMA/MPEG-1/MPEG-2/ASF/DivX/JPEG operations.

About color system

This System accommodates both NTSC and PAL system and can play back discs recorded with either system. To change the color system, see page 6.

Note on Region Code

DVD players and DVDs have their own Region Code numbers. This System can play back only DVDs with Region Code numbers including “4” for Australia and Central and South America, “3” for Southeast Asia, and “2” for the Middle East. For your available Region code, check the rear panel of your main unit. EX.: For Southeast Asia

If a DVD with the improper Region Code numbers is loaded, “REGION ERR” appears on the display and playback will not start.

INFO

The System can play back the following digital audio formats.

•

LPCM

(Linear PCM),

(Digital Theater Systems),

DTS

Packing)

Caution for DualDisc playback

The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

IMPORTANT: Before playing a disc, make sure of the following...

• Turn on the TV and select an appropriate input mode on the TV to view the pictures or on-screen displays on the TV screen.

• For disc playback, you can change the initial setting to your preference. See “Setup Menu Operations” on page 34.

If “ ” appears on the TV screen when you press a button,

tried to do, or data required for that operation is not recorded on the disc.

the disc cannot perform the operation you have

DIGITAL

MLP

(Dolby Digital),

(Meridian Lossless

How to Read This Manual

• Button and control operations are explained in the table below.

•

Some related tips and notes are explained later in the sections “Learning More about This System” and “Troubleshooting,” but not in the same section explaining the operations ( indicates that the content has some information).

Indicates that you press the button

and repeatedly

selected.

Indicates that you press one of the buttons.

2 sec.

Remote ONLY

Main Unit

ONLY

Indicates that you for a specified period. The number inside the arrow indicates the time to hold (in the example, 2 seconds).

Indicates that you turn the control toward the specified direction(s).

Indicates that this operation is only possible using the remote control.

Indicates that this operation is only possible using the buttons and controls on the main unit.

INFO

briefly

until an option you want is

press and hold

the button

Contents

Connections .............................................................3

Preparing the Remote Control ............................................ 6

Changing the Color System and Scanning Mode .............. 6

Canceling the Demonstration ............................................. 6

Display Indication ...................................................7

Daily Operations—Playback .................................8

Daily Operations—Sound & Other Adjustments ... 12

Reinforcing the Bass Sound ............................................. 12

Presetting Automatic DVD Video Sound

Increase Level .............................................................. 12

Creating 3-dimensional Sound Field—3D Phonic ........... 13

Selecting the Sound Modes .............................................. 13

Creating Your Own Sound Modes—User Mode ............. 13

Changing the Picture Tone ............................................... 14

Changing the Display Brightness ..................................... 14

Setting the Clock .............................................................. 14

Unique DVD/VCD Operations ............................15

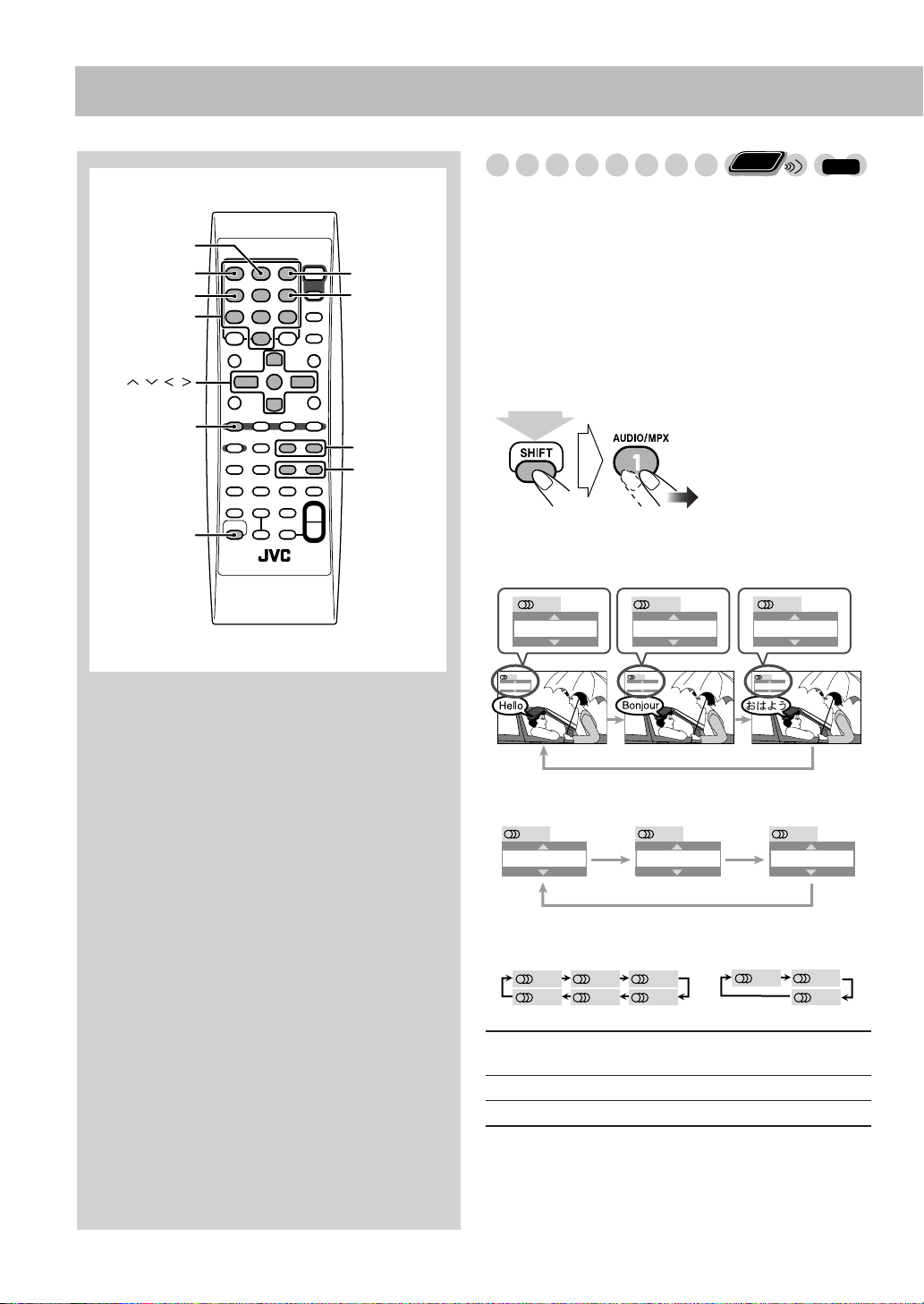

Selecting the Sound Track ................................................ 15

Selecting the Subtitle Language........................................ 16

Selecting the View Angle ................................................. 16

Selecting Browsable Still Pictures (CA-MXDK5 only) ... 16

Playing Back a Bonus Group (CA-MXDK5 only) ........... 17

Special Picture Playback................................................... 17

Advanced Disc Operations ...................................18

Programming the Playing Order—Program Play ............ 18

Playing at Random—Random Play ................................. 19

Playing Repeatedly .......................................................... 20

Prohibiting Disc Ejection—Child Lock ........................... 20

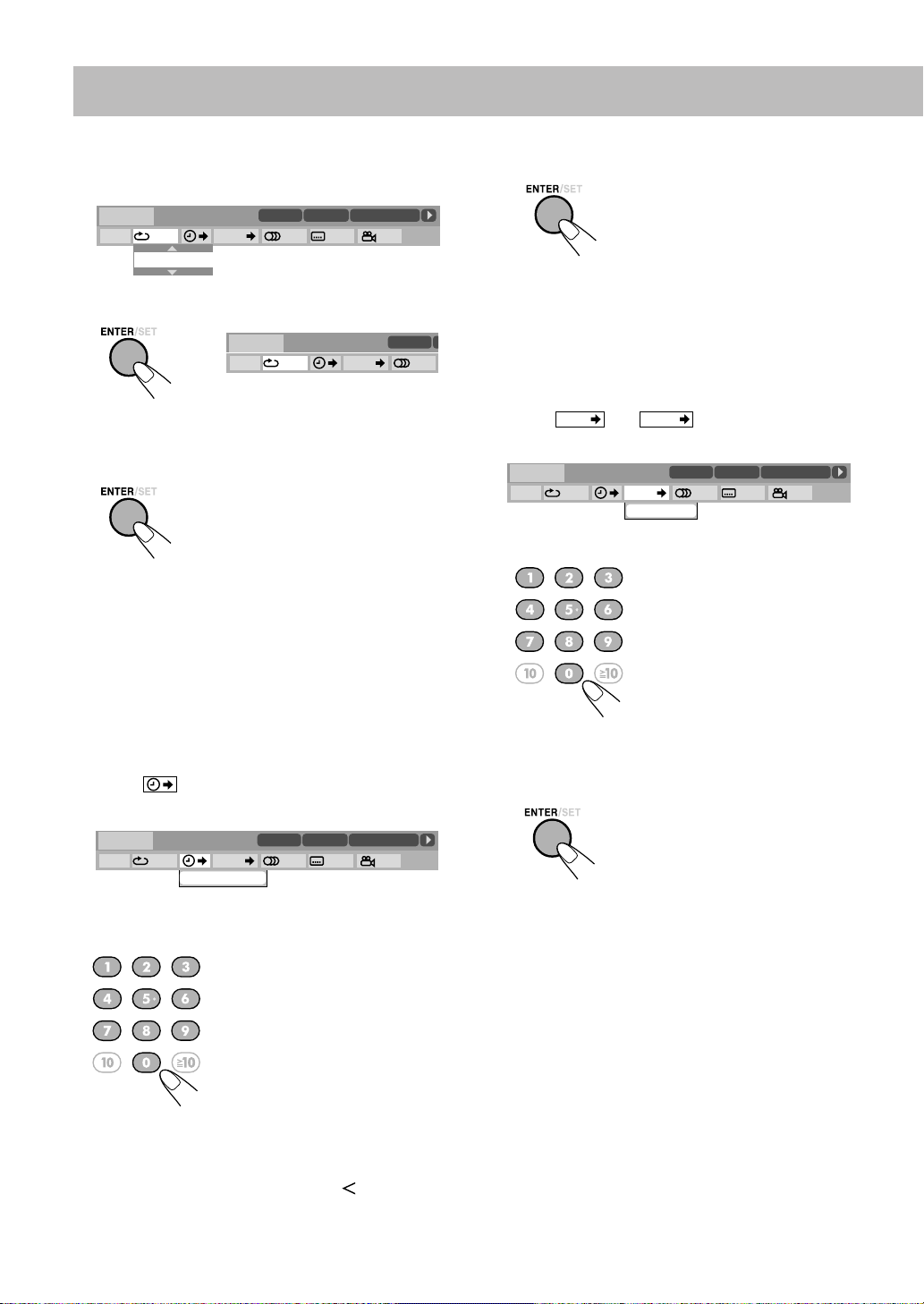

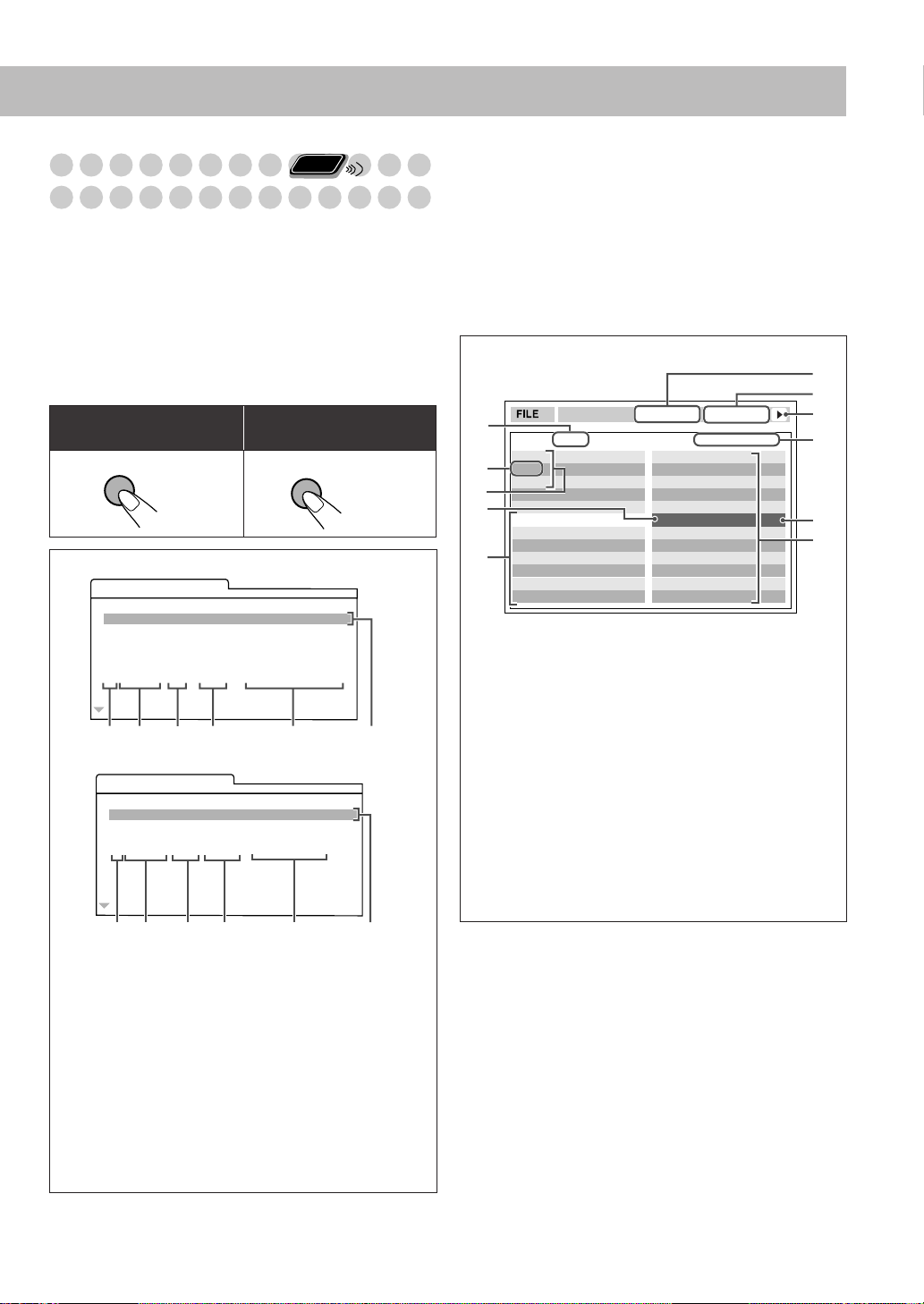

On-Screen Disc Operations .................................. 21

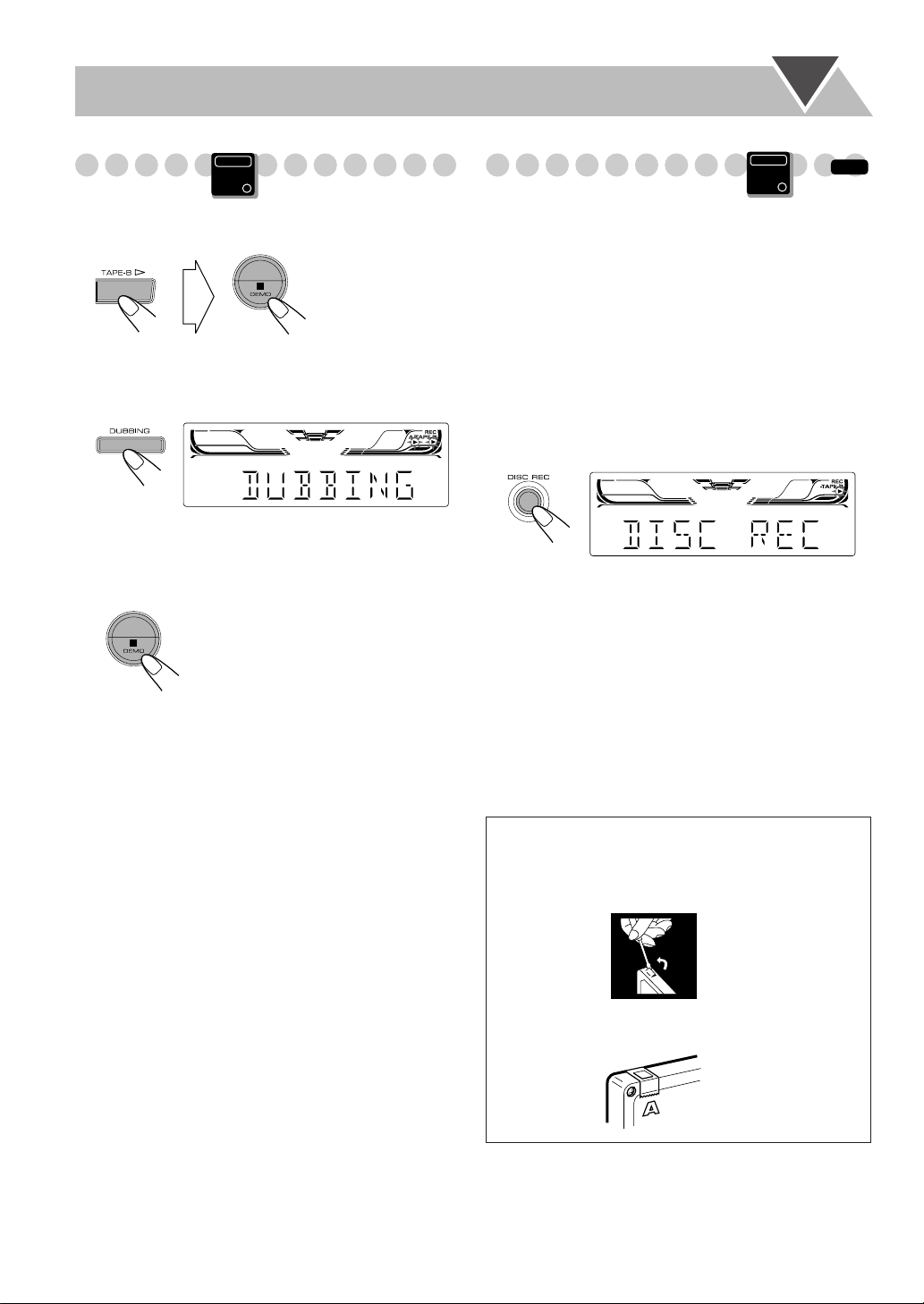

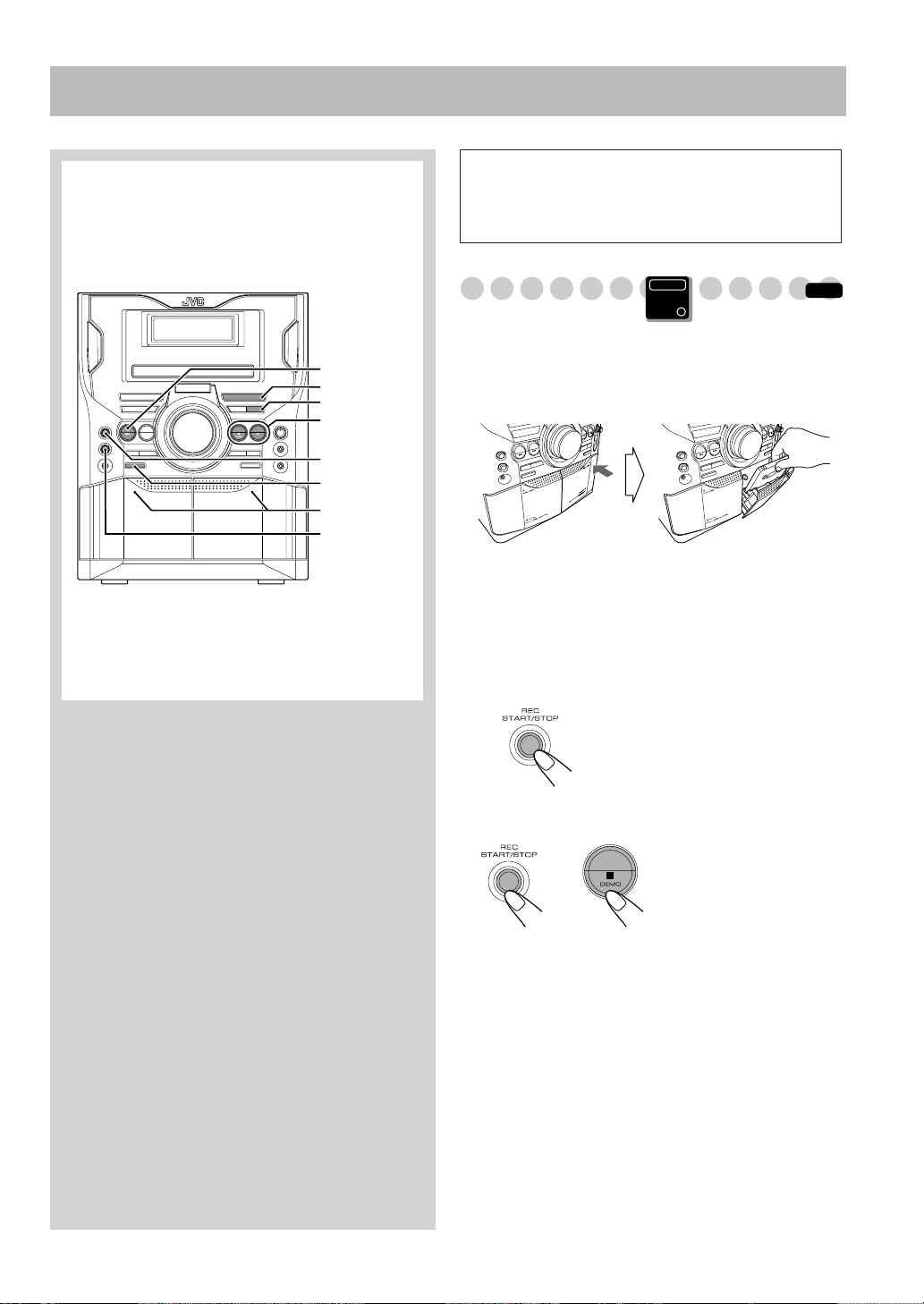

Recording Operations ..........................................26

Enjoying Karaoke .................................................28

Singing Along (Karaoke) .................................................. 28

Singing Along Using Stereo Discs—Vocal Masking ....... 29

Microphone Mixing .......................................................... 30

Reserving Karaoke Songs—Karaoke Program Play......... 31

Timer Operations ..................................................32

Setup Menu Operations .......................................34

Operating the TV ..................................................36

Additional Information ........................................37

Learning More about This System ................................... 37

Troubleshooting ............................................................... 40

Maintenance ..................................................................... 41

Specifications ................................................................... 42

Parts Index ............................................................44

Connections

Do not connect the AC power cord until all other connections have been made.

• Connect VIDEO OUT directly to the video input of your TV. Connecting VIDEO OUT to a TV via a VCR may cause a monitor problem when playing back a copy-protected disc. You may also have a monitor problem when connecting the player to an integrated TV/Video system.

~ From AM/FM antenna

See page 4.

Ÿ From the video input of TV/monitor

(component terminal for CA-MXDK5 only)

See page 4.

! From the digital input of digital audio

component such as CD recorder, etc.

See page 4.

Supplied Accessories

• FM antenna (1)

• AM loop antenna (1)

• Composite video cord (1)

• Remote control (1)

• Batteries (2)

• AC plug adaptor (1) (not supplied for the Middle East and Australia)

If any item is missing, consult your dealer immediately.

⁄ From auxiliary equipment

See page 4.

@ From subwoofers (CA-MXDK5 and

MX-DK3)

See page 5.

¤ From surround speakers

(CA-MXDK5 and MX-DK3)

See page 5.

# From main speakers

See page 5.

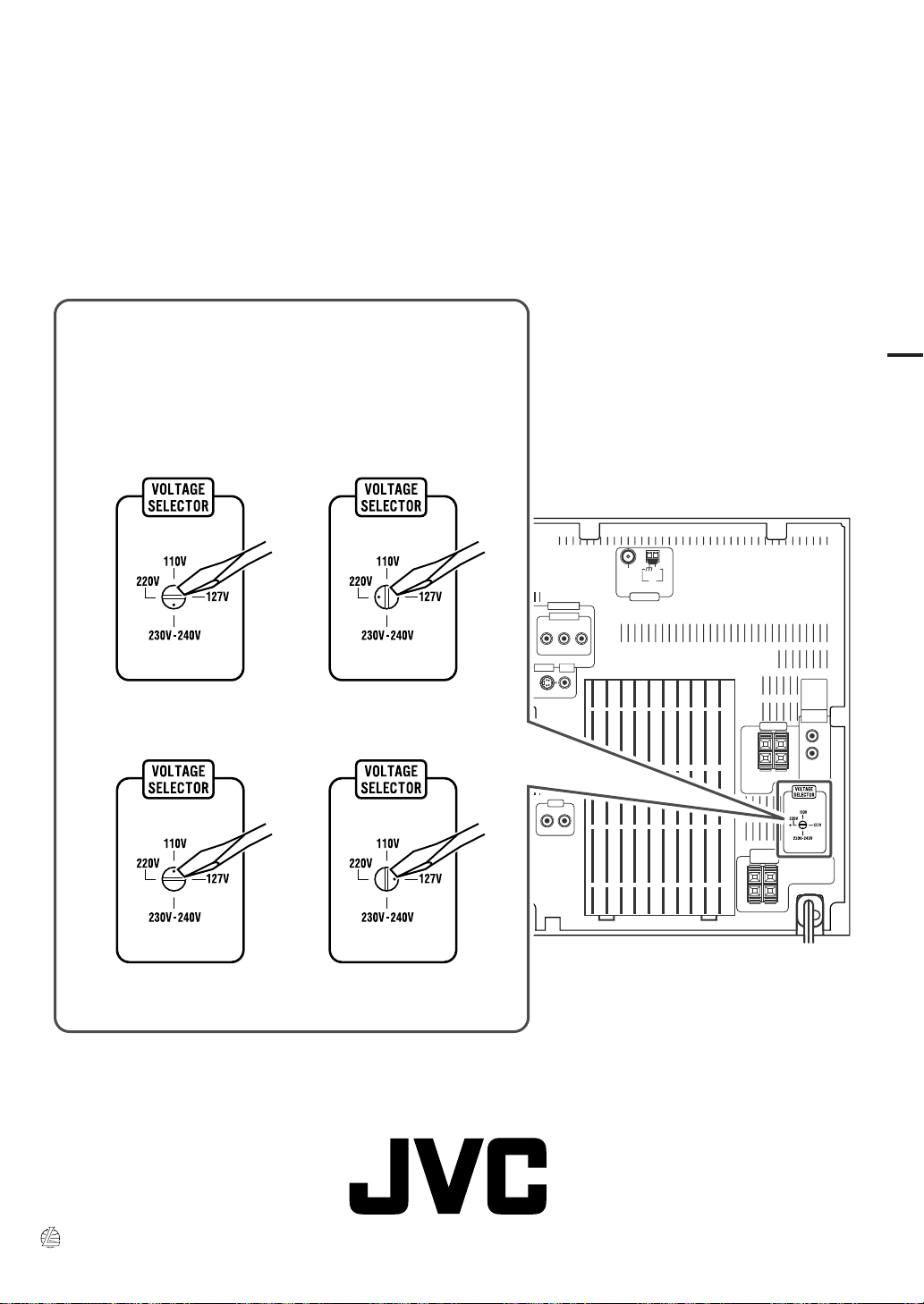

‹ Voltage Selector

Before plugging in, confirm the position the voltage selector points to. See page 6 and the back cover.

$ To a wall outlet

Plug in the AC power cord only after all connections are complete.

• Before plugging in, confirm the position the voltage selector points to. See page 6 and the back cover.

• If the wall outlet does not match the AC plug, use the supplied AC plug adaptor (not supplied for the Middle East and Australia).

* The illustration above is for CA-MXDK5.

AM/FM antenna

To assemble the AM loop antenna

TV/monitor

Green

Blue

Red

To connect AM/FM antenna

FM antenna (supplied)

Extend it so that you can obtain the best reception.

AM loop antenna (supplied)

Turn it until the best reception is obtained.

For better AM/FM reception

FM outdoor antenna (not supplied)

AM loop antenna (supplied)

Keep it connected.

Vinyl-covered wire (not supplied)

Extend it horizontally.

• Disconnect the supplied FM antenna, and connect to an outdoor FM antenna using a 75 connector (IEC or DIN45325).

• Make sure the antenna conductors do not touch any other terminals, connecting cords or the power cord. Also, keep the antennas away from metallic parts of the System, connecting cords, and the AC power cord. This could cause poor reception.

Ω

wire with coaxial type

Component video cord (not supplied)

S-video cord (not supplied)

• Connect the VIDEO jack, S-VIDEO jack, or COMPONENT jacks (CA-MXDK5 only) whichever you want to use.

• To select progressive scanning mode (see page 6), use COMPONENT jacks (CA-MXDK5 only).

• To select the video output to match the color system of your TV (PAL or NTSC), see page 6.

Digital audio component

Protective cap

• Set “DIGITAL AUDIO OUTPUT” in the “AUDIO” preference display correctly according to the connected digital audio equipment (see page 35). If setting is incorrect, loud noise may be generated causing damage to the speakers.

Digital audio signals are output from this System only when “DVD/CD” is selected as the source.

⁄

Auxiliary equipment

Red

Stereo audio cord

(not supplied)

Composite video cord (supplied)

White

Continued on the next page...

For the Australian model

Stereo mini plug

(not supplied)

Subwoofers (for CA-MXDK5 and MX-DK3)

• MX-DK3 has only one subwoofer.

• When connecting the speaker cords, match the polarity of the speaker terminals: (+) to (+) and (–) to (–).

CA-MXDK5

Surround speakers (for CA-MXDK5 and

MX-DK3)

From right surround speaker (not supplied)

From left surround speaker (not supplied)

• The surround speakers connected can reproduce the bass sounds recorded in front left and right channels, but cannot reproduce the surround signals recorded in DVD multichannel discs.

Main speakers

• When connecting the speaker cords, match the polarity of the speaker terminals: (+) to (+) and (–) to (–).

From right

subwoofer

MX-DK3

From the subwoofer

• Use only speakers with the same speaker impedance as indicated by the speaker terminals on the rear of the unit.

From left subwoofer

From right

main speaker

•

Use only speakers with the same speaker impedance as indicated by the speaker terminals on the rear of the unit

• The speakers are magnetically shielded to avoid color distortions on TVs. However, if not installed properly, it may cause color distortions. So, pay attention to the following when installing the speakers. – When placing the speakers near a TV set, turn off the TV’s

main power switch or unplug it before installing the speakers. Then wait at least 30 minutes before turning on the TV’s

main power switch again. Some TVs may still be affected even though you have followed the above. If this happens, move the speakers away from the TV.

• DO NOT connect more than one speaker to each terminal.

• DO NOT push or pull the speakers as this will damage the foot spacers at the bottom of the speakers.

From left main speaker

‹

Voltage Selector

Use a screwdriver to rotate the voltage selector so that the voltage mark is pointing to the same voltage as where you are plugging in the unit. (See also the back cover page.)

When your mains lead (AC) line voltage is 230-240V

When your mains lead (AC) line voltage is 220 V

• Dispose of batteries in the proper manner, according to federal, state, and local regulations.

When using the remote control

Point the top of the remote control toward the remote sensor as directly as possible. If you operate it from a diagonal position, the operating range (approx. 5 m) may be shorter.

Changing the Color System and

Remote

Scanning Mode

You can select the video output to match the color system of your TV (PAL or NTSC). Also, CA-MXDK5 supports progressive scanning. If you connect a progressive TV through the COMPONENT jacks, you can enjoy a high quality picture from the built-in DVD player by selecting “PAL/NTSC PRG.”

Enter the color system setting mode.

ONLY

INFO

Voltage mark

When your mains lead (AC) line voltage is 110V

Voltage mark

DO NOT plug in before setting the voltage selector on the rear of the unit and all connection procedures are complete.

Voltage mark

When your mains lead (AC) line voltage is 127 V

Preparing the Remote Control

Voltage mark

(While holding...)

Select the color system and scanning mode.

PAL PRG*PAL

NTSC PRG* NTSC

PAL/NTSC

PAL/NTSC PRG

* Only for CA-MXDK5. PROGRESSIVE indicator lights on

when progressive mode is selected.

Store the setting.

Canceling the Demonstration

Interlaced scanning. For a conventional TV.

* Progressive scanning.

For a progressive TV.

Main Unit

ONLY

R6(SUM-3)/AA(15F)

DO NOT recharge, short, disassemble, heat the battery or dispose of it in a fire.

When you plug in the AC power cord to a wall outlet, the System automatically starts the display demonstration.

2 sec.

DEMO OFF

DEMO START

To start the demonstration

, select DEMO START.

Display Indication

The indications on the display tell you a lot of things while you are operating the System.

Before operating the System, be familiar with when and how the indicator illuminates on the display.

PROGRESSIVE indicator (CA-MXDK5 only)

• Lights when the progressive scanning mode is selected (see page 6).

BONUS indicator (CA-MXDK5 only)

• Lights when DVD Audio with bonus group is detected (see page 17).

DVD LEV. 1/2/3 indicators

• Lights to indicate the DVD increase level

MIC indicator

• Lights when the Karaoke mode is activated (see page 28).

3D PHONIC indicator

• Lights when 3D Phonic is activated (see page 13).

V.MASK indicator

• Lights when the Vocal Masking mode is activated (see page 29).

RESUME indicator

• Lights when the Resume function is activated (see page 10).

SOUND TURBO indicator

• Lights when SOUND TURBO is activated (see page 12).

SURROUND indicator

• Lights when Surround mode is activated (see page 13).

Timer indicators (see pages 32 and 33)

• SLEEP: flashes when the Sleep Timer is activated.

• DAILY: lights when the Daily Timer is on standby; flashes while working or being set.

• REC: lights when the Recording Timer is on standby; flashes while working or being set.

•: lights when Sleep Timer is working or when Daily Timer or Recording Timer is on standby, working or being set.

(see page 12)

Source signal indicators

• D: lights when a source signal is Dolby Digital.

• DTS: lights when a source signal is DTS.

Tape operation indicators

• REC: lights while recording (see pages 26 and 27).

• TAPE: lights when TAPE-A or TAPE-B is selected.

• A: lights when TAPE-A is selected.

• B: lights when TAPE-B is selected.

•

2 3

(tape direction): – Lights to indicate the current tape running direction. – Flashes slowly during playback and recording. – Flashes quickly while rewinding a tape.

Main display

MP3 indicator

• Lights while playing back an MP3 track.

WMA indicator

• Lights while playing back a WMA track.

Disc operation indicators

• REP: lights when Repeat Play mode is activated.

• 1: lights when One Track/Chapter/Step Repeat is activated.

PRGM indicator

• Lights when Program Play mode is activated.

RND indicator

• Lights when Random Play is activated.

B.S.P. indicator (CA-MXDK5 only)

• Lights when browsable still picture on DVD Audio is available (see page 16).

;

ST (stereo) indicator

• Lights while an FM stereo station with sufficient signal strength is tuned in (see page 9).

MONO indicator

• Lights while receiving an FM stereo station in monaural (see page 9).

Daily Operations

In this manual, the operations using the remote control are mainly explained; however, you can use the buttons and controls on the main unit if they have the same (or similar) name and marks.

Number

buttons

RETURN

TOP MENU

, , ,

ENTER/SET

PREV.,NEXT

4,¢

TITLE/GROUP

SHIFT

FM MODE

7,8

1,¡

FADE MUTING

—Playback

Turn on the power.

The STANDBY lamp on the main unit goes off.

• Without pressing AUDIO, the System also turns on by pressing one of the source select buttons in the next step.

Select the source.

Playback automatically starts if the selected source is ready to start playback.

• If you press AUX, start playback on the external component.

Adjust the volume.

[

Operate the target source as explained later.

To turn off (standby) the System

The STANDBY lamp on the main unit lights in red.

•A small amount of power is always consumed even while on standby.

For private listening

Connect a pair of headphones to the PHONES jack on the main unit. The sound will no longer come out of the speakers.

connecting or putting on the headphones.

• Disconnecting the headphones will activate the speakers again.

Be sure to turn down the volume before

DO NOT turn off (standby) the System with the volume set to an extremely high level; otherwise, the sudden blast of sound can damage your hearing, speakers and/or headphones when you turn on the System or start playback.

Adjusting the Volume

The volume level can be adjusted in 32 steps (VOLUME MIN, VOLUME 1 – VOLUME 30, and VOLUME MAX).

Remote control:

Main unit:

Continued on the next page...

Remote

To drop the volume in a moment

To restore the volume,

ONLY

press again, or

adjust the volume level.

Listening to the Radio

To select the AM tuner interval spacing

Main Unit

ONLY

INFO

Some countries space AM stations 9 kHz apart, and other countries use 10 kHz spacing.

Select “AM,” then turn off (standby) the System.

Select the appropriate AM space interval for your

area.

If the FM station has poor reception

The MONO indicator lights on the display. Reception will improve though stereo effect is lost—monaural reception mode.

To restore the stereo effect,

button again (the MONO indicator goes off).

Remote

To preset stations

ONLY

You can preset 30 FM and 15 AM stations.

Tune in to a station you want to preset.

Select a preset number.

press the

(10 kHz interval)

(While holding...)

(9 kHz interval)

To select the band (FM/AM)

FM AM

Remote

To tune in to a station

While FM or AM is selected...

1 sec.

Frequency starts changing on the display. When a station (frequency) with sufficient signal strength is tuned in, the frequency search stops.

• When you repeatedly press the button, the frequency changes step by step.

To stop searching manually,

ONLY

Increases the frequencies.

Decreases the frequencies.

press either button.

Store the station.

To tune in to a preset station

Select the band (FM or AM).

FM AM

Select the preset number for the preset station.

Examples:

To select number 5, press 5. To select number 10, press 10. To select number 15, press h 1, then 5. To select number 30, press h 3, then 0.

• You can also use 1

or ¡

buttons.

10,

Playing Back a Disc

INFO

Before operating a disc, be familiar how a disc is recorded.

• DVD Video/DVD-VR consist of “ “

Chapters

ASF*/DivX* consist of “ “

Tracks Files

“

,” DVD Audio/MP3/WMA/MPEG-1/MPEG-2/

Groups

,” JPEG consist of “

,” and CD/SVCD/VCD consist of only “

Titles

” which include

Groups

” which include

Tracks

.”

• For DVD-VR/MP3/WMA/MPEG-1/MPEG-2/ASF*/ DivX*/JPEG playback, see also “Operations on the Control Screen” on page 24.

* Only for CA-MXDK5.

To insert discs

• When using an 8 cm disc, place it on the inner circle of the disc tray.

While playing a disc except CDs:

This System can store the

stop point, and when you start playback again by pressing DVD/CD 3

(even while on standby), it starts from the position where you have stopped—Resume Play. (RESUME appears on the display when you stop playback.)

press 7

To stop completely while Resume is activated,

twice. (To cancel Resume, see “RESUME” on page 35.)

Remote

To select a title/group

ONLY

While playing a disc...

Examples:

To select number 5, press 5. To select number 10, press 10. To select number 15, press h

10, 1, then 5.

To select number 30, press h

10, 3, then 0.

To select a chapter/track

While playing a disc...

To close the disc tray,

If you press DVD/CD 3

press OPEN/CLOSE 0

again.

, disc tray closes automatically and

playback starts.

To start:

To pause: To stop:

To release it, press DVD/CD 3

On-screen guide icons

• During disc playback, the following icons may appear for a while on the TV screen:

Appears at the beginning of a scene containing multi-angle views.

Appears at the beginning of a scene containing multi-audio languages.

Appears at the beginning of a scene containing multi-subtitle languages.

• The following icons will be also shown on the TV screen to indicate your current operation.

, , , , ,

• To deactivate the on-screen guide icons, see “ON SCREEN GUIDE” on page 35.

Remote

To locate a particular portion

ONLY

While playing a disc except for MP3/WMA/DivX...

While playing a DivX disc (CA-MXDK5 only)...

• For MP3/WMA/DivX (CA-MXDK5 only) discs, search speed and the indications on the TV are different.

• No sound comes out while searching on DVD Video/ SVCD/VCD.

To return to normal playback,

press DVD/CD 3

• CA-MXDK5 only: For DivX discs, each time you press the

or button, you can skip to a scene 30 seconds or

5 minutes before or after depending on the DivX file.

Remote

(While holding...)

o select

You can select a title/chapter/track directly and start playback. For DVD Video, you can select

playback playback

an item directly

, while you can select .

Examples:

To select number 5, press 5. To select number 10, press 10. To select number 15, press h 1, then 5. To select number 30, press h 3, then 0.

To play back using the disc menu

You can operate the disc play—DVD and SVCD/VCD with Playback Control (PBC)—using the disc menu shown on the TV screen.

For DVD Video/DVD Audio (CA-MXDK5 only):

Show the disc menu.

Select an item on the disc menu.

ONLY

a title before starting

a chapter after starting

10,

Remote

ONLY

To move to the next or previous page of the current menu:

To cancel PBC

Before playback...

You can also cancel PBC function by pressing the number button to select a track.

To reactivate PBC,

press 4

To return to the previous menu:

Playing Back a Tape

To insert a tape

You can play back type I tapes.

• The use of C-120 or longer tapes is not recommended.

• With some discs, you can also select items by entering the number using the number buttons.

For SVCD/VCD with PBC:

While playing a disc with PBC, “PBC” appears on the display instead of the playing time. When disc menu appears on the TV screen, select an item on the menu. Playback of the selected item starts.

Examples:

To select number 5, press 5. To select number 10, press 10. To select number 15, press h 1, then 5. To select number 30, press h 3, then 0.

Push Insert and close

To start: To stop: To fast-forward or

rewind:

10,

Daily Operations

—Sound & Other Adjustments

Remote Control

VFP

, , ,

ENTER/SET

DVD LEVEL

SHIFT

AHB LEVEL

*MX-DK1/

DVD LEVEL+,

–

MX-DK15

AHB

–

Reinforcing the Bass Sound

To change the bass level

For CA-MXDK5 and MX-DK3

ACTIVBASS 0 1 2

DIMMER CLOCK/

DISPLAY

• You can also use ACTIVE BASS EXTENSION +/– on the main unit.

For MX-DK1 and MX-DK15

SOUND MODE 3D PHONIC

SOUND TURBO

• You can also use ACTIVE BASS EXTENSION on the main unit.

To reinforce the heavy sound—SOUND TURBO

You can boost the low and high frequency sound.

A.BASS ON

A.BASS OFF

Main unit

*MX-DK1/

MX-DK15

SOUND TURBO

ACTIVE BASS EXTENSION –,

DVD LEVEL

3D PHONIC SOUND MODE

DVD LEVEL –,

ACTIVE BASS EXTENSION

Presetting Automatic DVD Video Sound Increase Level

The DVD Video sound is sometimes recorded at a lower level than other discs and sources. You can set the increase level for the currently loaded DVD Video, so you do not have to adjust the volume when you change the source.

For CA-MXDK5 and MX-DK3

DVD LEVEL2DVD LEVEL1

DVD LEVEL3

For MX-DK1 and MX-DK15

32DVD LEVEL1

As the number increases, sound level also increases.

Creating 3-dimensional Sound Field —3D Phonic

While playing a disc except DVD Audio...

3D ACTION 3D DRAMA

3D OFF 3D THEATER

3D PHONIC

3D ACTION

3D DRAMA

3D THEATER

ACTION

Suitable for action movies and sports programs.

Creates natural and warm sound. Enjoy movies in a relaxed mood.

Enjoy sound effects like in a major movie theater.

On the TV screen

Selecting the Sound Modes

You can select one of the preset Sound Modes.

Surround Modes

DANCE HALL

OFF

USER 1-3

STADIUM

SEA Modes

INFO

ROCK

POPCLASSIC

Creating Your Own Sound Modes

Remote

—User Mode

You can create your own Sound Modes to make sounds suit your taste. The changed settings can be stored as the USER 1, USER 2 and USER 3 Modes.

Select one of the preset Sound Modes.

If you want to add surround elements to your Sound

•

Mode,

select one of the Surround Modes.

Enter the SEA Control Mode.

Adjust the SEA pattern.

Select one of the tones—BASS or TRE (treble).

Adjust the level of the selected tone.

• You can adjust the bass and treble level from –3 to +3.

ONLY

INFO

Surround Modes*

DANCE

HALL

STADIUM

SEA (Sound Effect Amplifier) Modes

ROCK

POP

CLASSIC

User Modes

USER 1/2/3

OFF

* Surround elements are added to the SEA elements to create

being-there feeling in your room.

Increases resonance and bass.

Adds depth and brilliance to the sound.

Adds clarity and spreads the sound, as in an outdoor stadium.

Boosts low and high frequency. Good for acoustic music.

Good for vocal music.

Good for classical music.

Your individual mode stored in memory. See the next column “Creating Your Own Sound Modes—User Mode.”

No Sound Mode effect.

Repeat steps 1 tone.

Finish the SEA pattern setting.

Select one of the User Modes.

Store the setting.

and 2

to adjust the level of the other

Changing the Picture Tone

Remote ONLY

While showing a playback picture on the TV, you can select the preset picture tone, or adjust it and store your own settings.

To select a preset picture tone

While playing, display VFP setting screen.

NORMAL

GAMMA

BRIGHTNESS

CONTRAST

SATURATION

TINT

SHARPNESS

(While holding...)

Select a preset picture tone.

On the TV screen

Adjust the parameter.

Repeat steps 2 to 3 to adjust other parameters.

To remove the setting screen,

while holding SHIFT, press VFP again. The screen will automatically be erased after 9 seconds even if you do not press VFP.

Changing the Display Brightness

Remote ONLY

You can dim the display window.

NORMAL CINEMA

USER2 USER1

NORMAL

CINEMA

USER1/USER2

Normally select this.

Suitable for a movie source.

You can adjust parameters and can store the settings (see below).

To adjust the picture tone

Select “USER1” or “USER2.”

• Follow steps 1 and 2 explained above.

Select a parameter you want to adjust.

GAMMA

BRIGHTNESS

CONTRAST

SATURATION

TINT

SHARPNESS

Adjust if the neutral color is bright or dark (–3 to +3).

Adjust if the picture is bright or dark as a whole (–8 to +8).

Adjust if the far and near positions are unnatural (–7 to +7).

Adjust if the picture is whitish or blackish (–7 to +7).

Adjust if human skin color is unnatural (–7 to +7).

Adjust if the picture is indistinct (–8 to +8).

DIMMER ON

DIMMER OFF

(Normal)

(While holding...)

Remote

Setting the Clock

• To exit from the clock setting, press CLOCK/TIMER as

required.

• To go back to the previous step, while holding SHIFT,

press CANCEL.

Activate clock setting mode.

• If you have already adjusted the clock before, press the button repeatedly until the clock time starts flashing.

Adjust the hour, then minute.

To check the current time when the System is turned on

(While holding...)

ONLY

INFO

Remote Control

SUB TITLE

AUDIO/MPX

ZOOM

Number

buttons

, , ,

ENTER/SET

DVD/CD

SHIFT

Unique DVD/VCD Operations

Selecting the Sound Track

For DVD Video/DivX (CA-MXDK5 only):

back a chapter containing audio languages, you can select the language to listen to.

For DVD Audio (CA-MXDK5 only):

ANGLE PAGE

(CA-MXDK5 only)

7,8

SLOW –,

track containing audio channels, you can select the audio channel to listen to.

For DVD-VR or SVCD/VCD:

When playing back a track,

you can select the audio channel to play.

• You can also select the audio track using the on-screen bar (see page 21).

(While holding...)

While playing a DVD Video...

Ex.:

Remote ONLY

INFO

While playing

While playing back a

3/3

JAPANESE

3/3

JAPANESE

1/3

ENGLISH

1/3

ENGLISH

2/3

FRENCH

2/3

FRENCH

While playing a DVD Audio/DivX...(CA-MXDK5 only)

Ex.:

1/3

JAPANESE

2/3

JAPANESE

3/3

JAPANESE

While playing a DVD-VR or SVCD/VCD...

DVD-VR/VCDSVCD

ST1 ST2 L1

R2 L2 R1

ST1/ST2/ST

To listen to normal stereo (2 channel)

ST L

playback.

L1/L2/L

R1/R2/R

To listen to the left audio channel.

To listen to the right audio channel.

• SVCD can have 4 audio channels. Karaoke SVCD usually uses these 4 channels to record two 2-channel recordings (ST1/ST2).

Remote

Selecting the Subtitle Language

For DVD Video:

While playing back a chapter containing

ONLY

subtitles in different languages, you can select the subtitle language to display on the TV screen.

For SVCD:

While playing, you can select the subtitles even

if no subtitles are recorded on the disc.

For DVD-VR:

While playing, you can turn the subtitle on or

off.

• You can also select the subtitle language using the on-screen bar (see page 21).

While playing a DVD Video...

Display the subtitle selection window.

1/3

ENGLISH

(While holding...)

Select the subtitle language.

1/3

ENGLISH

While playing a DVD-VR...

Remote ONLY

OFF

(While holding...)

Selecting the View Angle

For DVD Video only:

While playing back a chapter containing multi-view angles, you can view the same scene from different angles.

• You can also select the view angle using the on-screen bar

(see page 21).

While playing...

(While holding...)

Ex.:

1/3

2/3

3/3

Ex.:

1/3 2/3

ENGLISH FRENCH JAPANESE

1/3

2/3

FRENCH JAPANESEENGLISH

While playing an SVCD...

(While holding...)

3/3

JAPANESE

3/3

1/3

2/3

Selecting Browsable Still Pictures

3/3

Remote ONLY

(CA-MXDK5 only)

For DVD Audio only:

browsable still pictures (B.S.P.), you can select the still picture (turn the page) to be shown on the TV screen.

• If a track is linked to browsable still pictures (B.S.P.), they

are usually shown in turn automatically during playback.

• You can also select the page using the on-screen bar (see

page 21).

(While holding...)

While playing back a track linked to

Each time you press the button, the still picture changes one after another (if available).

Remote

Playing Back a Bonus Group (CA-MXDK5 only)

For DVD Audio only:

special group called “bonus group” whose contents are not open to the public.

• To play back a bonus group, you have to enter the specific “key number” for the bonus group. The way of getting the key number depends on the disc.

Select the bonus group.

• The bonus group is usually recorded as the last group (for example, if a disc contains 4 groups including a bonus group, “group 4” is the bonus group).

• For how to select the group, see “To select a title/group” on page 10.

Enter the key number.

Some DVD Audio discs have a

ONLY

INFO

Remote

Slow-motion playback

• This does not function for MPEG-1/MPEG-2/ASF*/ DivX* discs. *Only for CA-MXDK5.

While playing...

Still picture playback starts.

Select slow motion speed.

1/32 1/16 1/8 1/4 1/2

*Only available for DVD Video.

ONLY

Follow the interactive instructions shown on the TV screen.

To cancel the key number entry,

Special Picture Playback

press .

INFO

Still picture playback

To start still picture playback:

While playing...

To resume normal playback:

Frame-by-frame playback

• For CA-MXDK5: This does not function for ASF discs.

While playing...

Still picture playback starts.

Advance the still picture frame by frame.

To resume normal playback,

Remote

Zoom

While playing...

(While holding...)

Move the zoomed-in position.

To cancel zoom,

repeatedly until “ZOOM OFF” appears on the TV.

ONLY

As the number increases, magnification also increases.

while holding SHIFT, press ZOOM

press DVD/CD 3

ZOOM 1 ZOOM 2 ZOOM 3 ZOOM 4

ZOOM OFF

ZOOM 5ZOOM 6

To resume normal playback,

press DVD/CD 3

Remote Control

Number

buttons

CANCEL

DVD/CD

PLAY MODE

4,¢

SHIFT

Advanced Disc Operations

Programming the Playing Order —Program Play

You can arrange the playing order of the chapters or tracks (up to 99) before you start playback.

• Program play cannot be used for DVD-VR/MPEG-1/ MPEG-2/ASF*/DivX*/JPEG discs.

• Resume does not work for Program Play.

Before starting playback, activate Program Play.

PROGRAM RANDOM

Canceled

7,8

REPEAT /A-B RPT

On the display

Remote ONLY

INFO

* Only for CA-MXDK5.

Main unit

OPEN/CLOSE

DVD/CD

8 7

4,¢

On the TV

Select a chapter or a track you want for Program

PROGRAM

No Group/Title Track/Chapter

2 3 4 5 6 7 8 9

USE NUMERIC KEYS TO PROGRAM TRACKS. USE CANCEL TO DELETE THE PROGRAM.

Play.

• For DVD/MP3/WMA:

Select a title or group number.

Select a chapter or track number.

• For SVCD/VCD/CD:

Select a track number.

Examples:

To select number 5, press 5. To select number 10, press 10. To select number 15, press h 1, then 5. To select number 30, press h 3, then 0.

Repeat step 2 above until you finish what you want to program.

Start playback.

Playback starts in the order you have programmed.

10,

Continued on the next page...

To check the programmed contents

Before playback...

in the reverse order

in the programmed order

To modify the program

Before or after playback...

To erase the last chapter/ track:

(While holding...)

To add chapters/tracks to the program:

Repeat step 2 on page 18.

To erase the entire program:

(While holding...)

To exit from Program Play

Before or after playback...

Remote ONLY

2 sec.

Remote

Playing at Random—Random Play

You can play the contents of all tracks at random.

• Random Play cannot be used for DVD-VR, MPEG-1, MPEG-2, ASF*, DivX*, JPEG and some DVDs.

* Only for CA-MXDK5.

Before starting playback, activate Random Play.

ONLY

PROGRAM RANDOM

Canceled

Start playback.

Playback starts in a random order. Random Play ends when all chapters/tracks are played.

To skip:

To pause: To stop:

PROGRAM RANDOM

Canceled

To go to the beginning of the current track, press 4

To release, press DVD/CD 3

To exit from Random Play

Before or after playback...

PROGRAM RANDOM

Canceled

Remote

Playing Repeatedly

ONLY

INFO

• You can also select the repeat mode using the on-screen bar (see page 22).

• For DVD-VR/JPEG, see page 25.

• For DVD Video:

While playing...

CHAP

TITLE

OFF

• For DVD Audio (CA-MXDK5 only):

While playing or before playback...

A-B Repeat

You can repeat playback of a desired portion by specifying the beginning (point A) and the ending (point B).

• A-B Repeat cannot be used for MP3/WMA/MPEG-1/ MPEG-2/ASF*/DivX* and for some DVDs.

* Only for CA-MXDK5.

While playing (without PBC for SVCD/VCD), select the start point (A).

• appears on

A-

the TV if the TV is turned on.

(While holding...)

TRACK

GROUP

OFF

• For MP3/WMA/MPEG-1/MPEG-2/ASF*/DivX* (*CA-MXDK5 only):

While playing or before playback...

(REPEAT) TRACK

(Canceled)

OFF

(REPEAT) GROUP

(REPEAT) ALL

• For CD/SVCD/VCD:

While playing or before playback (without PBC for SVCD/ VCD)...

TRACK

ALL

OFF

• For Program Play/Random Play mode:

While playing or before playback...

(REPEAT) ALL(REPEAT) STEP

(Canceled)

OFF

Select the end point (B).

A-B

• appears on the TV.

• You can search for the end point using the ¡

button.

(While holding...)

To cancel A-B Repeat,

press A-B RPT again while holding

SHIFT.

• A-B Repeat will also be canceled when you stop play or skip the chapter or track.

Prohibiting Disc Ejection —Child Lock

Main Unit

ONLY

You can lock the disc tray so that no one can eject the loaded disc.

• This is possible while the System is on standby.

While the disc tray is closed...

CHAP

TITLE

TRACK

GROUP

ALL

STEP

OFF

Repeats the current chapter.

Repeats the current title.

Repeats the current track.

Repeats the current group.

Repeats all tracks or all programmed tracks.

Repeats the current track.

Selects to cancel Repeat Play mode.

(While holding...)

To cancel the prohibition,

repeat the same procedure.

“UNLOCKED” appears on the display.

On-Screen Disc Operations

TITLE

CHAP

TRACK 23

TOTAL

1:25:58

TIME

OFF

CHAP.

TRACK

1/3

PAGE 1/15

Remote control

ZOOM

Number

buttons

PLPG

, , ,

ENTER/SET

DVD/CD

ON SCREEN

REPEAT

On-screen bars

DVD Video

DVD-VIDEO

TIME OFF CHAP. 1/31/31/1

Dolby D 3/2.1ch

DVD Audio (CA-MXDK5 only)

DVD-AUDIO

TIME

LPCM 3/2.1ch

OFF

TRACK

DVD-VR

TIME OFF CHAP. ST ON

Dolby D 2/0.0ch

SVCD

TIME OFF ST1

VCD

TIME OFF ST

TIME OFF

MPEG-1/MPEG-2/ASF*/DivX* (*CA-MXDK5 only)

1 23

FILE

TOTAL 1:01:58

CHAP 3

TITLE 2

TIME 0:15:58

GROUP 14

TRACK 23

PAGE

1/31/3

TOTAL 0:01:58

CHAP 3

PG 2

TIME 0:04:58

TRACK 3

-/ 4

TIME 0:04:58

TRACK 3

TIME 0:04:58

TRACK 3

TIME 0:00:58

TOTAL

CHAP

1:25:58

On-screen Bar Information

You can check the information on a disc (except for MP3/ WMA/JPEG disc) and use some functions through the on-screen bar.

Disc type

Playback information

Indication Meanings

Dolby D, LPCM

3/2.1ch, 2/0.0ch

GROUP 14

PG 2

PL 2

Playback conditions

Indication Meanings

/ Forward/Reverse search

/ Forward/Reverse slow-motion

Operation icons (on the pull-down menu)

Indication Meanings

Audio format

Channel number

Current title

Current chapter

Current group

Current track

Current title

Current play list

Time indications

Playback

Pause

Stop

Select to change the time indication.

Select to repeat playback.

Select for time search.

Select for chapter search.

Select for track search.

Select to change the audio language or channel (see also page 15).

Select to change subtitle language (see also page 16).

Select to change the view angle (see also page 16).

Select to change the page (see also page 16).

Operations Using the

TIME

On-screen Bar

Remote

ONLY

INFO

Basic operation procedures through the on-screen bar are as follows: Ex.: Selecting a subtitle (French) for DVD Video:

While a disc is selected as the source...

Display the on-screen bar with the pull-down menu.

Dolby D

DVD-VIDEO

3/2.1ch

Dolby D

DVD-VIDEO

3/2.1ch

TIME

OFF

TIME OFF CHAP. 1/31/31/1

TITLE

TITLE 2

1/3

CHAP 3

CHAP

TOTAL 1:01:58

TOTAL

1/3 1/3

1:25:58

Disappears

* This does not appear for MP3/WMA/JPEG/MPEG-1/

MPEG-2/ASF/DivX discs.

Select (highlight) the item you want.

DVD-VIDEO

TIME OFF CHAP. 1/31/31/1

Display the pop- up window.

Select the desired option in the pop-up window.

Finish the setting.

Dolby D 3/2.1ch

TITLE 2

CHAP 3

TITLE 2

1/31/31/1

TITLE 2

1/32/31/1

CHAP 3

ENGLISH

CHAP 3

FRENCH

TOTAL 1:01:58

Pop-up window disappears.

To remove the on-screen bar

For detailed operations of the following functions, see also “Operations Using the On-screen Bar” on this page.

Time information

You can change the time information in the on-screen bar and the display window on the main unit.

While playing, display the on-screen bar with the

pull-down menu.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/31/1

Make sure is selected (highlighted).

Change the time indication.

Repeat Play

• See also page 20.

While playing a disc (without PBC for SVCD/VCD), display the on-screen bar with the pull-down menu.

• Repeat play can be selected before starting playback, except for DVD Video.

Select . Display the pop-up window.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/31/1

ALL

A-B

TITLE

GROUP

CHAPTER

TRACK

OFF

Dolby D 3/2.1ch

TITLE 2

TITLE

CHAP

1/3

TOTAL Elapsed disc time.

T.REM Remaining disc time.

TIME

Elapsed playing time of the current chapter/track (except for DVD-VR).

REM

Remaining time of the current chapter/ track (except for DVD-VR).

OFF

Dolby D 3/2.1ch

OFF

TITLE 2

TITLE

CHAP

1/3

Repeats the disc (except for DVD).

Repeats a desired portion (see page 23).

Repeats the current title.

Repeats the current group.

Repeats the current chapter.

Repeats the current track.

Cancels Repeat Play.

While playing DVD-VR discs, “PG” or “PL” appears. During Program Play or Random Play, “STEP” appears.

CHAP 3

1/3 1/3

CHAP 3

1/3 1/3

TOTAL 1:01:58

TOTAL

TOTAL 1:01:58

TOTAL

1:25:58

A-B Repeat

Select “A-B” in step 3 of “Repeat Play” on page 22.

OFF

Dolby D 3/2.1ch

A–B

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/31/1

Select the start point (A).

TITLE 2

CHAP

TITLE

1/3

OFF

Dolby D 3/2.1ch

DVD-VIDEO

TIME

TIME A- CHAP. 1/3

CHAP 3

1/3 1/3

TOTAL 1:01:58

TOTAL

1:25:58

TITLE 2

TITLE

1/3

• Before pressing ENTER, you can search for the end

point using ¡

Select the end point (B).

A-B Repeat starts. The selected portion plays repeatedly.

To cancel A-B Repeat,

select “OFF” in step 1.

Time Search

You can move to a particular point by specifying the elapsed playing time from the beginning.

While playing (without PBC for SVCD/VCD), display the on-screen bar with the pull-down menu.

• Time Search can be used before starting playback, except for DVD.

Select .

2 3

Display the pop-up window.

OFF

Dolby D 3/2.1ch

TIME _ : _ _ : _ _

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/31/1

TITLE 2

TITLE

CHAP

1/3

CHAP 3

1/3 1/3

TOTAL 1:01:58

TOTAL

1:25:58

Finish the setting.

The System starts playing from the specified time.

Chapter/Track Search

You can search for the chapter (DVD Video) or track (DVD Audio – CA-MXDK5 only) number to play.

While playing, display the on-screen bar with the

pull-down menu.

CHAP.

Select

2 3

Display the pop-up window.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/31/1

Enter the desired chapter/track number.

•

To correct a misentry, press the number buttons until

Dolby D 3/2.1ch

the desired number is shown in the pop-up window.

Finish the setting.

TRACK

CHAPTER _

TITLE 2

TITLE

CHAP 3

CHAP

1/3 1/3

1/3

Examples:

To select number 5, press 5. To select number 10, press 1, then 0. To select number 15, press 1, then 5. To select number 30, press 3, then 0.

The System starts playing the searched chapter or track.

TOTAL 1:01:58

TOTAL

1:25:58

Enter the time.

You can specify the time in hours/minutes/seconds.

Examples:

To move to a point of 1 (hours): 02 (minutes): 00 (seconds), press 1, 0, 2, 0, then 0.

To move to a point of 54 (minutes): 00 (seconds), press 0, 5, 4, 0, then 0.

• It is always required to enter the hour digit (even “0” hour), but it is not required to enter trailing zeros (the last two digits in the examples above).

•

To correct a misentry,

press cursor to erase the last

entry.

Remote

Operations on the Control

ONLY

Screen

For DVD-VR/MP3/WMA/MPEG-1/MPEG-2/ASF*/ DivX*/JPEG:

through the control screen.

Control screen for DVD-R/RW in DVD-VR format

The control screen is superimposed on the TV screen when you call up Program List (PG) or Play List (PL).

To select playback type

To select the Program List:

TOP MENU/PG

When Program List is selected.

When Play List is selected.

1 List number 2 Recording date 3 Recording source (TV station, the input terminal of

4 Start time of recording 5 Title of the program/play list* 6 Highlight bar (current selection) 7 Creating date of play lists 8 Number of chapters 9 Playback time

* The title of the Program List or Play List may not be

displayed depending on the recording equipment.

You can search for and play the desired items

* Only for CA-MXDK5.

To select the Play List:

MENU/PL

ORIGINAL PROGRAM

No Date Ch ime itle

1 25/04/06 4ch 19:00 JVC DVD World 2004 2 17/05/06 8ch 10:30 3 22/05/06 8ch 17:00 Music Festival 4 26/05/06 L-1 13:19 children 001 5 20/06/06 4ch 22:00 6 25/06/06 L-1 8:23 children 002

12 3 4 5

PLAY LIST

No Date Chap Length Title

1 25/05/06 001 1:03:16 My JVC World 2 17/06/06 005 1:35:25 3 20/06/06 003 0:10:23 Favorite music 4 25/06/06 001 0:07:19 children001-002

17 8 9

the recording equipment, etc.)

Control screen for MP3/WMA/MPEG-1/MPEG-2/ ASF/JPEG/DivX discs

The control screen automatically appears on the TV screen when you load an MP3, WMA, MPEG-1, MPEG-2, ASF*, DivX* or JPEG disc.

* Only for CA-MXDK5.

If files of different types are recorded on a disc, select the file type to play (see “FILE TYPE” on page 35).

Ex.: When an MP3 disc is loaded.

2 3

Group : 2 / 3

Blue

Red

Green

Track Information

Title Rain Artist

Album

Track : 5 / 14 (Total 41)

Cloudy.mp3 Fair.mp3 Fog.mp3 Hail.mp3 Indian summer.mp3

Rain.mp3

Shower.mp3 Snow.mp3 Thunder.mp3 Typhoon.mp3 Wind.mp3 Winter sky.mp3

1 Current group number/total group number 2 Current group 3

Group list

Current track

Track information (ID3 Tag Version 1.0: only for MP3/WMA)

Repeat Play setting

Elapsed playing time of the current track (only for MP3/WMA/MPEG-1/MPEG-2/ASF)

Operation mode icon

9 Current track number/total number of tracks in the

current group (total number of tracks on the loaded disc)

0 Highlight bar

- Track list

6 7

Time : 00:00:14REPEAT TRACK

To move the highlight bar between group list and track list (for MP3/WMA/MPEG-1/MPEG-2/ASF/DivX/ JPEG)

Moves the bar to the track list.

Moves the bar to the group list.

To select an item in the list

Move the highlight bar to a desired item.

• If you move the highlight bar while playing back a DVD-VR/ MP3/WMA/MPEG-1/MPEG-2/ ASF disc, the selected track starts playback automatically.

To start playback

For JPEG:

The selected track (still picture) is displayed until you change it.

To repeat title/play list for DVD-VR

While playing a program in Program List

CHAP

OFF

While playing an item in Play List

CHAP

OFF

CHAP

PG/PL

ALL

Repeats the current chapter.

Repeats the current title/play list.

Repeats all programs in the disc.

To repeat slide-show for JPEG

While playing or before playback...

(

REPEAT) GROUP

(Canceled)

OFF

ALL

(

REPEAT) ALL

Slide-show playback starts. Each track (still picture) is shown on the screen for a few seconds, then changes one after another.

For the other discs:

Playback starts with the selected track.

• Pressing DVD/CD 3

also starts

playback.

• Once you start playing DVD-VR/MPEG-1/MPEG-2/ASF/ DivX/JPEG tracks, the control screen disappears.

• For JPEG discs, to cancel slide-show and display the current still picture, press 8

To stop playback

GROUP

ALL

Repeats the current group.

Repeats all files in the disc.

• For Repeat Play of MP3/WMA/MPEG-1/MPEG-2/ASF/ DivX, see page 20.

To zoom in the still picture (for JPEG)

• You cannot zoom in the still picture during slide-show.

1 While playback is paused...

ZOOM 1 ZOOM 2

ZOOM OFF

(While holding...)

As the number increases, magnification also increases.

2 Move the zoomed-in position.

To cancel zoom,

while holding SHIFT, press ZOOM

repeatedly until “ZOOM OFF” appears on the TV.

Recording Operations

Main unit

DVD/CD

TAPE-B

7,8

REC START/STOP

DUBBING

PUSH OPEN DISC REC

IMPORTANT It may be unlawful to record or play back copyrighted material without the consent of the copyright owner.

Recording on a Tape

You can use type I tapes for recording.

• To play a tape, see page 11.

Insert a recordable cassette in deck B.

Start playing the source—“FM,” “AM,” “DVD/CD,” “TAPE-A” or “AUX.”

• When recording from a disc, you can also use Synchronized Disc Recording (see page 27).

Main Unit

ONLY

Insert and closePush

INFO

Start recording.

To stop recording

Dubbing Tapes

Main Unit

ONLY

Synchronized Disc Recording

Main Unit

ONLY

INFO

Change the source to TAPE.

Insert the source cassette in deck A, and a recordable

cassette in deck B. Start dubbing.

• When either tape playback or recording ends, both cassette decks stop at the same time.

To stop dubbing

You can start and stop both disc play and tape recording at the same time.

Load a disc and insert a recordable cassette in deck B.

• If the current playing source is not the disc player, press

DVD/CD 3

For recording desired tracks from discs:

You can program tracks to record with your preferred order.

• Select Program Play (and make a program: see page 18) without starting playback.

Start recording.

The System automatically creates a 4-second blank between the tunes recorded on the tape.

• When either disc play or recording ends, both disc player and the cassette deck stop at the same time.

, then 7

To record without creating a 4-second blank

1 Press DVD/CD 3 2 Press 4 3 Press DISC REC to start recording.

, then press 8

to go back to the beginning of the track.

To protect your recording

Cassettes have two small tabs on the back to protect from unexpected erasure or re-recording.

To protect your recording,

To re-record on a protected tape,

adhesive tape.

remove these tabs.

cover the holes with

Enjoying Karaoke

Remote control

AUDIO/MPX

Number

buttons

KARAOKE

CANCEL

Source

buttons

SHIFT

Main unit

ECHO

RESERVE

KEY ,

VOLUME

+,-

NOTE

• This function is not available in the Australian model.

• MX-DK1 and MX-DK15 have only one microphone jack.

IMPORTANT

• Always set MIC LEVEL to MIN when connecting or disconnecting the microphone.

• MIC LEVEL adjustment is valid for both microphones connected to the MIC 1 and MIC 2 jacks.

DO NOT keep the microphones connected while they are not in use.

Singing Along (Karaoke)

You can enjoy singing along (Karaoke) and microphone mixing by using one or two microphones.

INFO

To sing along using Karaoke discs

You can enjoy Karaoke using Karaoke discs (except Karaoke CD).

• By pressing REC START/STOP, you can record your singing-along.

Turn MIC LEVEL to MIN.

*MX-DK1/

MX-DK15

Source buttons

MIC LEVEL MIC 1 MIC 2

VOLUME

REC START/STOP

MIC LEVEL

MIC

Karaoke function is not available in the Australian model.

* * *

Connect the microphone(s) (not supplied) to the MIC jack(s).

Activate the Karaoke Mode.

(While holding...)

Insert and start playing a Karaoke disc.

MIC MIX V. MASKING

MIC OFF

Continued on the next page...

Select the desired audio channel when using a Karaoke SVCD/VCD (see page 15).

(While holding...)

Sing into the microphone. Adjust the MIC LEVEL and VOLUME.

To cancel the Karaoke Mode,

select “MIC OFF” in step 3.

To adjust the key (disc playback only)

Singing Along Using Stereo Discs —Vocal Masking

You can enjoy singing along while playing a stereo disc. Vocal Masking reduces the lead vocal of a disc.

• You can use this function only with DVD/CD sources.

• When playing a Karaoke disc in Vocal Masking Mode, the vocal may not be reduced or the volume may be lower.

Turn MIC LEVEL to MIN.

Connect the microphone(s) (not supplied) to the MIC jack(s).

Insert and start playing a stereo disc.

INFO

To raise the key.

To lower the key.

(While holding...)

To cancel the adjustment,

display to “0.”

set the number shown on the

To apply an echo to your voice

During Karaoke Play...

ECHO 1 ECHO 2

ECHO 3ECHO OFF

(While holding...)

• As the number increases, echo level also increases.

Activate Vocal Masking Mode.

MIC MIX V. MASKING

(While holding...)

Sing into the microphone(s). Adjust the MIC LEVEL and VOLUME.

To cancel the Vocal Masking Mode,

step 4 or change the source to play.

select “MIC OFF” in

MIC OFF

Karaoke function is not available in the Australian model.

Microphone Mixing

You can enjoy microphone mixing by using one or two microphones.

Turn MIC LEVEL to MIN.

Connect the microphone(s) (not supplied) to the MIC

jack(s).

Start playing the source—FM, AM, disc player, tape, or auxiliary equipment connected to the AUX jack.

Activate the Karaoke Mode.

MIC MIX V. MASKING

MIC OFF

(While holding...)

Adjust the MIC LEVEL and VOLUME.

To use microphone only

Turn MIC LEVEL to MIN.

Connect the microphone(s) (not supplied) to the MIC

jack(s).

Select disc player, then stop playback.

Activate the Karaoke mode.

MIC MIX V. MASKING

MIC OFF

(While holding...)

Adjust the MIC LEVEL and VOLUME.

To cancel the Karaoke Mode,

• When you change the source to play, the Karaoke Mode is canceled. Repeat step 4 to activate the Karaoke Mode again.

select “MIC OFF” in step 4.

Karaoke function is not available in the Australian model.

To cancel the Karaoke mode,

select “MIC OFF” in step 4.

Reserving Karaoke Songs

Remote ONLY

Activate the Karaoke Mode.

—Karaoke Program Play

INFO

You can determine the playback order of up to 12 chapters or tracks on the disc player.

Change the source to the “DVD/CD.”

Activate Karaoke Program Play.

(While holding...)

Gr/Tt Tr/Chap 1 2 3 4 5

On the TV screen

• PRGM indicator flashes during this mode.

Select songs you want for Karaoke Program Play.

For DVD Video/MP3/WMA/MPEG-1/MPEG-2/ ASF*:

Press the number buttons to select a title or group.

Repeat step 1

to select a chapter or track.

Only for CA-MXDK5.

For SVCD/VCD/CD:

Press the number buttons to select a track.

Examples:

To select number 5, press 5. To select number 10, press 10. To select number 15, press h

10,

1, then 5. To select number 30, press h

10,

3, then 0.

MIC MIX V. MASKING

MIC OFF

(While holding...)

Start playback.

To check the programmed contents

(While holding...)

The Karaoke reserve screen appears.

To modify the program

While the Karaoke reserve screen is shown on the TV...

To erase the unwanted chapter/track:

(While holding...)

To erase the entire program:

2 sec.

(While holding...)

To add chapters/tracks to the program:

Repeat step 3.

Karaoke function is not available in the Australian model.

Remote Control

CANCEL

, ,

ENTER/SET

SHIFT

Timer Operations

• You need to set the built-in clock before using timer functions (see page 14).

Setting the Timer

Using Daily Timer, you can wake up with your favorite music. On the other hand, with Recording Timer, you can make a tape of a radio broadcast automatically.

• To go back to the previous step, while holding SHIFT,

SLEEP TIMER

press CANCEL.

Select one of the timer setting modes—ON for Daily Timer or Recording Timer.

DAILYTIMER

Canceled

Make the timer setting as you want.

Daily Timer

Remote ONLY

(time)

Clock setting

INFO

Recording Timer

REC TIMER

(time)

Repeat the procedure for the following settings until finished:

Set the hour then minute for on-time.

Set the hour then minute for off-time.

Select the playback source.

• For Daily Timer, you can select from “TUNER FM,” “TUNER AM,” “DISC,” “TAPE-A,” “TAPE-B” and “AUX.”

• For Recording Timer, you can select from “TUNER FM” and “TUNER AM.”

EX.: When “TUNER FM” is selected for Daily Timer.

Select a preset station for “TUNER FM” and “TUNER AM,” or select a group and track number for “DISC.”

For Daily Timer: Select the volume level.

• You can select the volume level (“VOLUME 5,” “VOLUME 10,” “VOLUME 15” and “VOLUME --”). If you select “VOLUME --,” the volume is set to the last level when the System has been turned off.

Continued on the next page...

Turn off the System (on standby) if you have set the timer with the System turned on.

How Daily Timer works

Once the Daily Timer has been set, the timer indicator () and DAILY indicator are lit on the display. Daily Timer is activated at the same time everyday until the timer is turned off manually (see below).

When the on-time comes

The System turns on, starts playing the specified source (except “AUX”), and increases the volume level gradually to the preset level for about 30 seconds.

When the off-time comes

The System stops playback, and turns off (standby) automatically.

• The timer setting remains in memory until you change it.

Turn off the selected timer.

(While holding...)

The timer indicator ( ) goes off.

To turn on the timer again,

ENTER/SET in step 2.

repeat step

Turning Off the Power Automatically

Sleep Timer

—

With Sleep Timer, you can fall asleep listening to music.

Specify the time (in minutes).

and press

Remote ONLY

How Recording Timer works

When Recording Timer has been set, the timer indicator () and the REC indicator are lit on the display. Recording Timer works only once.

When the on-time comes

The System turns on, tunes in to the specified station, sets the volume level to “VOLUME MIN,” and starts recording.

When the off-time comes

The System stops recording, and turns off (standby).

• The timer setting remains in memory until you change it.

Recording Timer will start working even if the System has been turned on.

To turn off the Timer after the setting is done

You can turn off the timer after it has been set.

• Since Daily Timer is activated at the same time everyday, you may need to cancel it on some particular days.

Select the timer you want to cancel (DAILYTIMER or

REC TIMER).

Daily Timer

DAILYTIMER

Canceled

(time)

Clock setting

Recording Timer

REC TIMER

(time)

SLEEP 10 SLEEP 20 SLEEP 30 SLEEP 60

Canceled

Wait until the set time goes off.

To check the time remaining until the shut- off time

• If you press the button repeatedly, you can change the shut-off time.

Timer Priority

Recording Timer has priority over the Daily Timer and Sleep Timer.

SLEEP 150

SLEEP 90SLEEP 120

INFO

6:00 6:30 7:00 7:30

Recording Timer

Daily Timer

Canceled

6:00 6:30 7:00 7:30

Recording Timer

Sleep Timer

Canceled

Setup Menu Operations

INFO

Initial Settings

The Setup Menu cannot be activated during playback.

, , ,

SET UP

LANGUAGE menu

Item

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

You can select the initial menu language of DVD Video. See page 41.

You can select the initial audio language of DVD Video. See page 41.

You can select the initial subtitle language of DVD Video. See page 41.

You can select “ENGLISH,” “CHINESE,” or “SPANISH” as the on-screen language.

ENTER/SET

How to set the Initial Settings

Press SET UP.

LANGUAGE

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

Press (or ) to select the menu. Press (or ) to move to select the item.

Press ENTER.

4 5

Press (or ) ENTER.

• For settings of the LANGUAGE menu, see “Language Code List” on page 41.

To erase a preference display

Press SET UP.

Contents

ENGLISH

to select the options, then press

PICTURE menu

Item

MONITOR TYPE

16:9 4:3 LB

4:3 PS

PICTURE SOURCE

Contents

You can select the monitor type to match your TV when you play back DVD Video discs recorded for wide-screen televisions. When you use a multi-color system TV, you can change the color system of the System automatically by selecting “MULTI” options as the monitor type.

16:9/16:9MULTI (Wide television screen): 4:3 LB/4:3MULTI LB (Letter Box conversion):

For a wide-screen (16:9) TV.

For a conventional (4:3) TV. Displays

a wide-screen picture to fit the width of the TV screen keeping the aspect ratio.

4:3 PS/4:3MULTI PS (Pan Scan conversion):

For a conventional (4:3) TV. The picture is zoomed in to fill the screen vertically and the left and right sides of the picture are cut off.

You can obtain optimal picture quality by selecting the source type of the disc contents.

AUTO:

Normally, select this option. The System recognizes the picture type (film or video

source) of the current disc according to the disc information.

FILM:

For a film source disc.

VIDEO:

For a video source disc.

Continued on the next page...

Item Contents

SCREEN SAVER

FILE TYPE

AUDIO menu

You can set the screen saver function to ON or

ON:

The on-screen display on the TV becomes dark when no operation is done for about

OFF

5 minutes.

OFF:

To cancel the screen saver.

You can select the file type to play.

AUDIO: STILL PICTURE: VIDEO:

To play MP3/WMA files.

To play JPEG files.

To play MPEG-1/MPEG-2/ASF*/DivX* files (*CA-MXDK5 only).

Item

DIGITAL AUDIO OUTPUT

DOWN MIX

D. RANGE COMPRESSION

OTHERS menu

Item

RESUME

ON SCREEN GUIDE

DivX REGISTRATION (CA-MXDK5 only)

Contents

Set this item correctly when using the OPTICAL DIGITAL OUTPUT terminal on the rear.

PCM ONLY:

When connecting to audio equipment which can decode only linear PCM

signals.

DOLBY DIGITAL/PCM:

When connecting to a Dolby Digital decoder or an amplifier

with a built-in Dolby Digital decoder.

STREAM/PCM:

When connecting to a DTS decoder or an amplifier with a built-in DTS,

MPEG Multichannel or Dolby Digital decoder.

This setting is effective for digital audio output if “DIGITAL AUDIO OUTPUT” is set to “PCM ONLY.”

DOLBY SURROUND: STEREO:

Select this when connecting to a stereo receiver, MD player, TV, etc.

Select this when connecting to a surround decoder.

Set this item to listen to DVD Video recorded in Dolby Digital format at low middle volume.

AUTO: ON:

You can enjoy powerful playback sound with full dynamic range.

Select this when you want to fully apply the compression effect to make the sound at

lower volume clear (useful at midnight).

Contents

You can select Resume.

ON:

The System resumes playback from the position where playback has been stopped if

the disc is still in the disc tray.

OFF:

Resume is deactivated.

Activate or deactivate the on-screen guide.

ON:

To activate the on-screen guide.

OFF:

To deactivate the on-screen guide.

The System has its own Registration Code. If necessary, you can confirm it. Once you have played back a disc in which the Registration Code is recorded, the System’s Registration Code is overwritten for copyright protection.

Operating the TV

Remote control

TV/VIDEO

SHIFT

TV CHANNEL

TV VOLUME +,-

Operating TV

You can operate JVC’s TV using this remote control.

To operate the TV

To turn on or off the TV:

To adjust TV volume:

(While holding...)

To select the TV channel:

To select the input mode (either TV or VIDEO):

(While holding...)

Additional Information

Learning More about This System

Introduction

Playable Disc Types:

• If you play back an NTSC disc with the scan mode set to “PAL (PRG),” you can watch the playback picture (the disc will be reproduced using “PAL 60” format), but the TV screen may not display properly.

• If you play back a PAL disc with the scan mode set to “NTSC (PRG),” you can watch the playback picture, but the following symptoms may occur: – The items on the disc menu will be blurred, and be shown

slightly shifted when highlighted.

– The aspect ratio of the picture may differ from the

original aspect ratio.

– The picture movement is not smooth.

• About audio format

Linear PCM:

–

format used for CDs and most studio masters.

–

Dolby Digital:

Dolby Laboratories, which enables multi-channel encode to create the realistic surround sound.

–

DTS (Digital Theater Systems):

audio, developed by Digital Theater Systems, Inc., which enables multi-channel like Dolby Digital. As the compression ratio is lower than for Dolby Digital, it provides wider dynamic range and better separation.

–

MLP:

compression of DVD Audio.

Connections

Changing the Color System and Scanning Mode:

• Do not change to progressive scanning mode in the following cases: – When your TV does not support the progressive video

input.

– When you have not connected your TV to the unit using

a component video cord.

• When you play back an NTSC disc in progressive scanning mode, the System outputs the NTSC signal regardless of color system settings.

Daily Operations—Playback

Listening to the Radio:

• If you store a new station into an occupied preset number, the previously stored station in that number will be erased.

• When you unplug the AC power cord or if a power failure occurs, the preset stations will be erased in a few days. If this happens, preset the stations again.

Playing Back a Disc:

• On some DVD, SVCD, or VCD discs, the actual operations may be different from what is explained in this manual, due to the programming and disc structure; such differences are not a malfunction of this System.

(see pages 1 and 2)

Uncompressed digital audio, the same

Compressed digital audio, developed by

Compressed digital

Compressed digital audio which enables lossless

(see pages 3 to 6)

(see pages 8 to 11)

• This System can recognize up to 4 000 files in a disc. Also, the System can recognize up to 150 files per group and up to 99 groups in a disc. – If there are any unplayable files in a folder, those files are

also counted in the total file number.

– Playable files which do not belong to any groups are

handled as Group 1.

• CA-MXDK5 only: Some DVD Audio discs prohibit downmix. When you play back such a disc, “LR ONLY” appears on the display and the System plays back the left front and right front signals.

• CA-MXDK5 only: When playing back a DVD Audio disc recorded in MLP (Meridian Lossless Packing; a lossless audio compression system that can completely recreate the PCM signals), the signals are recognized as the linear PCM signals, however, no indicator lights up in the display window.

• For DVD-VR playback... – When making a disc, use the UDF-Bridge format. – For details about DVD-VR format and playlist, refer to

the manual of the recording equipment.

– You cannot use reverse Slow-motion playback, Program

Play or Random Play.

• For MP3/WMA playback... – This System can play back MP3/WMA files with the

extension code <.mp3> or <.wma> (regardless of the letter case—upper/lower).

– MP3 discs require a longer readout time than regular

CDs depending on the complexity of the group/file configuration.

– Some MP3/WMA files cannot be played back and will

be skipped. This results from their recording processes and conditions.

– When making MP3/WMA discs, use ISO 9660 Level 1

or Level 2 for the disc format.

– It is recommended that you make each MP3/WMA file at

a sampling rate of 44.1 kHz and at bit rate of 128 kbps. This System cannot play back files made at a bit rate of less than 64 kbps.

• For MPEG-1/MPEG-2 playback... – The stream format should conform to MPEG system/

program stream.

– 720 x 576 pixels (25 fps)/720 x 480 pixels (30 fps) is

recommended for the highest resolution.

– This System also supports the resolutions of 352 x 576/

480 x 576/352 x 288 pixels (25 fps) and 352 x 480/480 x 480/352 x 240 pixels (30 fps).

– The file format should be MP@ML (Main Profile at

Main Level)/SP@ML (Simple profile at Main Level)/ MP@LL (Main Profile at Low Level).

– Audio streams should conform to MPEG1 Audio layer-2

or MPEG2 Audio Layer-2.

• For ASF playback... (CA-MXDK5 only) – This System can play back ASF files with the extension

code <.asf> (regardless of the letter case–upper/lower).

– This System supports ASF files whose resolution is 352

x 288 pixels or less.

– Some recorded files may not be able to be played back

depending on file characteristics, kind of digital still/ video cameras, or recording conditions.

– You cannot use the following functions—Slow-motion

playback, A-B Repeat, Program Play and Random Play.

• For DivX playback... (CA-MXDK5 only) – This System can play back DivX files with the extension

code <.divx> <.div> <.avi> (regardless of the letter case– upper/lower).

– When making a disc, use the UDF-Bridge format.

“Multi-border” is not supported.

– The System supports the DivX files whose resolution is

720 x 480 pixels or less (30 fps), and 720 x 576 pixels or less (25 fps).

– Audio stream should conform to MPEG 1 Audio Layer-2

or MPEG Audio Layer-3 (MP3).

– The System does not support GMC (Global Motion

Compression).

– The file encoded in the interlaced scanning mode may

not be played back correctly.

– You cannot use the following functions—Slow-motion

playback, A-B Repeat, Program Play and Random Play.

• For JPEG files playback... – This System can play back JPEG files with the extension

code <.jpg> or <.jpeg> (regardless of the letter case– upper/lower).

– It is recommended that you record a file at 640 x 480

resolution. (If a file has been recorded at a resolution of more than 640 x 480, it will take a long time to be shown.)

– This System can play only baseline JPEG files*.

Progressive JPEG files* or lossless JPEG files* cannot be played. * Baseline JPEG format: Used for digital cameras,

web, etc. Progressive JPEG format: Used for web. Lossless JPEG format: An old type and rarely used

now.

– This System may not play back JPEG files properly if

they are recorded on devices other than digital still camera.

Daily Operations—Sound & Other Adjustments

(see pages 12 to 14)

Creating 3-dimensional Sound Field—3D Phonic:

• While you use the headphones, 3D Phonic mode is canceled temporary.

• When you activate the mic mixing, 3D Phonic mode is canceled temporary.

• 3D Phonic setting is also applied to the optical digital output signals through the OPTICAL DIGITAL OUTPUT terminal.

Creating Your Own Sound Modes —User Mode:

• When you unplug the AC power cord or if a power failure occurs, the User Mode settings will be erased in a few days. If this happens, set the User Mode again.

Setting the Clock:

• “0:00” will flash on the display until you set the clock.

• The clock may gain or lose 1 to 2 minutes per month. If this happens, reset the clock.

Unique DVD/VCD Operations

Selecting the Sound Track:

• On some DVD Video discs, you cannot change audio languages while playing back.

Playing Back a Bonus Group (CA-MXDK5 only):

• You cannot select a track in the bonus group for Program Play.

Special Picture Playback:

• During slow-motion playback, no sound will be reproduced.

• While zoomed in, the picture may look coarse.

Advanced Disc Operations

Programming the Playing Order—Program Play:

• While programming steps... Your entry will be ignored if you have tried to program an item number that does not exist on the disc (for example, selecting track 14 on a disc that only has 12 tracks).

Playing Repeatedly:

• A-B Repeat cannot be used on some DVDs.

• A-B Repeat is possible only within the same title or within the same track.

(see pages 15 to 17)

(see pages 18 to 20)

On-Screen Disc Operations

Operations Using the On-screen Bar:

• For DVD-R/-RW in the VR format, “PG” or “PL” appears instead of “TITLE” on the on-screen bar.

Recording Operations

Recording on a Tape:

• The recording level is automatically set correctly. Thus, you can adjust the sound you are actually listening to without affecting the recording level.

• There is leader tape which cannot be recorded onto at the start and the end of cassette tapes. Thus, when recording discs or radio broadcasts, wind the leader tape first to ensure that the recording will be made without any music part lost.

• If no cassette or a protected tape is inserted, “NO REC” appears on the display.

• You cannot change the source during recording.

Synchronized Disc Recording:

• While recording, you cannot use ¢/4, ¡/1, DVD LEVEL, 3D PHONIC and source buttons.

• You can adjust volume control, sound setting (Active Bass Extension and Sound Turbo) and sound mode but the settings do not affect the recording sound.

• Everything on the disc goes onto the tape in the order on the disc, or according to the order you have made for Program Play.

• You cannot use Repeat Play during synchronized recording (Repeat Play will be canceled).

Enjoying Karaoke

Singing Along (Karaoke)

• CA-MXDK5 only: Key control cannot be activated while DVD Audio is played.

Singing Along Using Stereo Discs—Vocal Masking:

• Vocal Masking Mode setting is also applied to the optical digital output signals through the OPTICAL DIGITAL OUTPUT terminal.

• On some music, Vocal Masking does not provide the correct effect.

Reserving Karaoke Songs—Karaoke Program Play

• If DVD Audio (CA-MXDK5 only) or DVD-VR is loaded, you cannot use Karaoke Program Play.

(see pages 28 to 31)

(see pages 21 to 25)

(see pages 26 and 27)

Timer Operations

Setting the Timer:

• If you do not specify the preset station or track number correctly while setting a timer, the currently selected station or the first track will be played when the timer is activated.

• When you unplug the AC power cord or if a power failure occurs, the timer will be canceled. You need to set the clock first, then the timer again.

• Without stopping the recording, you cannot change the source after Recording Timer starts recording.

• If you set DVD Video/MPEG-1/MPEG-2/ASF/DivX as the source, Daily Timer will not work correctly.

Timer Priority:

• If you set the Sleep Timer after Daily Timer starts playing the selected source, Daily Timer is canceled.

• If you set the Sleep Timer after Recording Timer starts recording, Recording Timer is canceled, but recording continues until Sleep Timer shuts off the power.

Setup Menu Operations

How to set the Initial Settings:

• If the upper and lower parts of the menu are cut off, adjust the picture size control of the TV.

LANGUAGE menu:

• When the language you have selected for MENU LANGUAGE, AUDIO LANGUAGE, or SUBTITLE is not recorded on a disc, the original language is used as the initial language.

PICTURE menu—MONITOR TYPE:

• Even if “4:3 PS/4:3 MULTI PS” is selected, the screen size may become 4:3 letter box with some DVD Video discs. This depends on how the discs are recorded.

• When you select “16:9/16:9 MULTI” for a picture whose aspect ratio is 4:3, the picture slightly changes due to the process for converting the picture width.

AUDIO menu—DOWN MIX:

• This setting is not effective when DTS multi-channel software is played back.

OTHERS menu—ON SCREEN GUIDE:

• The setup menu and on-screen bar will be displayed (and recorded) even though this function is set to “OFF.” Subtitles and the information for zoom-in always appear on the display regardless of this setting.

(see pages 32 and 33)

(see pages 34 and 35)

Troubleshooting

If you are having a problem with your System, check this list for a possible solution before calling for service.

General:

Adjustments or settings are suddenly canceled before you finish.

]

There is a time limit. Repeat procedure again.

Operations are disabled.

]

The built-in microprocessor may malfunction due to external electrical interference. Unplug the AC power cord and then plug it back in.

Unable to operate the System from the remote control.

]

The path between the remote control and the remote sensor on the System is blocked.

]

The batteries are exhausted.

No sound is heard.

]

Speaker connections are incorrect or loose.

]

Headphones are connected.

No picture appears on the screen.

]

The video cord connections are incorrect or loose.

No picture is displayed on the TV screen, the picture is blurred, or the picture is divided into two parts.

]

CA-MXDK5 only: The System is connected to a TV which does not support progressive video input.

]

Incorrect color system is selected (see “Changing the Color System and Scanning Mode” on page 6).

The left and right edges of the picture are missing on the screen.

]

Select “4:3 LB/4:3 MULTI LB” for “MONITOR TYPE” (see page 34).

Radio Operations:

Hard to hear broadcasts because of noise.

]

Antennas connections are incorrect or loose.

]

The AM loop antenna is too close to the System.

]

The FM antenna is not properly extended and positioned.

Disc Operations:

The disc does not play.

]

You have inserted a disc whose Region Code is not correct. (“REGION ERR” appears on the display.)

]

The disc is placed upside down. Place the disc with the label side up.

ID3 Tag on an MP3 disc cannot be shown.

]

There are two types of ID3 Tag—Version 1 and Version 2. This System can only show ID3 Tag Version 1.

Groups and tracks are not played back as you expect.

]

The playing order is determined when the disc was recorded. It depends on the writing application.

MP3, WMA, MPEG-1, MPEG-2, ASF*, DivX* or JPEG files are not played back (*only for CA-MXDK5).

]

The inserted disc may include multiple types of tracks (ex. MP3/WMA ﬁles and JPEG ﬁles). In this case, you can only play back the ﬁles selected by the “FILE TYPE” setting (see page 35).

]

You have changed the “FILE TYPE” (see page 35) setting after you inserted a disc. In this case, reload the disc.

“NO AUDIO” appears.

]

This System cannot play back illegally produced DVD Audio discs.

“LR ONLY” appears.

]

Some DVD Audio discs prohibit downmixed output. When you play back such a disc, this System plays back the left front and right front signals only.

The disc sound is discontinuous.

]

The disc is scratched or dirty.

The disc playback sounds strange.

]

Cancel Key Control (see page 29).

No subtitle appears on the display though you have selected the initial subtitle language.

]

Some DVDs are programmed to always display no subtitle initially. If this happens, press SUB TITLE after starting play (see page 16).

Audio language is different from the one you have selected as the initial audio language.

]

Some DVDs are programmed to always use the original language initially. If this happens, press AUDIO/MPX after starting play (see page 15).

The disc tray does not open or close.

]

The AC power cord is not plugged in.

]

Child Lock is in use. “LOCKED” appears in the display window (see page 20).

Tape Operations:

The cassette holder cannot be opened.

]

Power supply from the AC power cord has been cut off while the tape was running. Turn on the System.

Recording Operations:

Impossible to record.

]

Small tabs on the back of the cassette are removed. Cover the holes with adhesive tape.

Timer Operations:

Daily Timer does not work.

]

The System has been turned on when the on-time comes. Timer starts working only when the System is turned off.

Maintenance

To get the best performance of the System, keep your discs, tapes, and mechanism clean.

Handling discs

• Remove the disc from its case by holding it at the edge while pressing the center hole lightly.

• Do not touch the shiny surface of the disc, or bend the disc.

• Put the disc back in its case after use to prevent warping.

• Be careful not to scratch the surface of the disc when placing it back in its case.

• Avoid exposure to direct sunlight, extreme temperatures, and moisture.

To clean the disc:

Wipe the disc with a soft cloth in a straight line from center to edge.

Handling cassette tapes

• If the tape is loose in its cassette, take up the slack by inserting a pencil in one of the reels and rotate it. – If the tape is loose, it may get stretched, cut, or caught in

the cassette.

• Be careful not to touch the tape surface.

• Avoid the following places to store the tape—in dusty places, in direct sunlight or heat, in moist areas, on a TV or speaker, or near a magnet.

To keep the best recording and playback sound quality:

• Use a cotton swab moistened with alcohol to clean the heads, capstans, and pinch rollers.

• Use a head demagnetizer (available at electronics and audio shops) to demagnetize the heads (when the System is turned off).

Cleaning the System

• Stains should be wiped off with a soft cloth. If the System is heavily stained, wipe it with a cloth soaked in water-diluted neutral detergent and wrung well, then wipe clean with a dry cloth.

• Since the System may deteriorate in quality, become damaged or get its paint peeled off, be careful about the following: – DO NOT wipe it with a hard cloth. – DO NOT wipe it forcefully. – DO NOT wipe it with thinner or benzine. – DO NOT apply any volatile substance such as

insecticides to it.

– DO NOT allow any rubber or plastic to remain in contact

for a long time.

Language Code List

Afar

Abkhazian

Afrikaans

Ameharic

Arabic

Assamese

Aymara

Azerbaijani

Bashkir

Byelorussian

Bulgarian

Bihari

Bislama

BN Bengali, Bangla HU Hungarian MK Macedonian SG Sangho TT Tatar BO Tibetan HY Armenian ML Malayalam SH Serbo-Croatian TW Twi BR Breton IA Interlingua MN Mongolian SI Singhalese UK Ukrainian CA Catalan IE Interlingue MO Moldavian SK Slovak UR Urdu CO Corsican IK Inupiak MR Marathi SL Slovenian UZ Uzbek CS Czech IN Indonesian MS Malay (MAY) SM Samoan VI Vietnamese CY Welsh IS Icelandic MT Maltese SN Shona VO Volapuk DA Danish IW Hebrew MY Burmese SO Somali WO Wolof DZ Bhutani JI Yiddish NA Nauru SQ Albanian XH Xhosa EL Greek JW Javanese NE Nepali SR Serbian YO Yoruba EO Esperanto KA Georgian NL Dutch SS Siswati ZU Zulu ET Estonian KK Kazakh NO Norwegian ST Sesotho EU Basque KL Greenlandic OC Occitan SU Sundanese

FA FI FJ FO FY GA GD GL GN GU HA HI HR

Persian Finnish Fiji Faroese Frisian Irish Scots Gaelic Galician Guarani Gujarati Hausa Hindi Croatian

Cambodian

Kannada

Korean (KOR)

Kashmiri

Kurdish

Kirghiz

Latin

Lingala

Laothian

Lithuanian

Latvian, Lettish

Malagasy

Maori

(Afan) Oromo

Oriya

Panjabi

Polish

Pashto, Pushto

Portuguese

Quechua

Rhaeto-Romance

Kirundi

Rumanian

Kinyarwanda

Sanskrit

Sindhi

SV SW TA TE TG TH TI TK TL TN TO TR TS

Swedish Swahili Tamil Telugu Tajik Thai Tigrinya Turkmen Tagalog Setswana Tonga Turkish Tsonga

Specifications

Amplifier section

Output Power:

CA-MXDK1/CA-MXDK15:

90 W per channel, min. RMS, driven into 6 Ω at 1 kHz with no more than 10% total harmonic distortion.

CA-MXDK5/CA-MXDK3:

MAIN SPEAKERS:

6 Ω at 1 kHz with no more than 10% total harmonic distortion.

SUBWOOFERS:

6 Ω at 63 Hz with no more than 10% total harmonic distortion.

Digital output:

OPTICAL DIGITAL OUTPUT:

Audio input sensitivity/Impedance

(Measured at 1 kHz, with tape recording signal 400 mV) AUX: 400 mV/47 k MIC 1/2: 3.0 mV/50 k

VIDEO OUT:

Color system: NTSC/PAL selectable VIDEO (composite): 1 V(p-p)/75 S-VIDEO: Y (luminance) 1 V(p-p)/75

COMPONENT (Interlace/Progressive: CA-MXDK5 only):

Speaker Terminals:

Tuner section

FM tuning range: 87.50 MHz – 108.00 MHz AM (MW) tuning range: 531 kHz – 1 710 kHz (at 9 kHz)

For Saudi Arabia only: 531 kHz – 1 602 kHz (at 9 kHz)

Disc player section

Playable disc: DVD Video/DVD Audio*/CD/VCD/SVCD

CD-R/-RW/-ROM (CD/VCD/SVCD/MP3/WMA/ MPEG-1/MPEG-2/ASF*/JPEG/DivX* format) DVD-R/-RW (DVD Video/DVD Video Recording (VR)/MP3/WMA/MPEG-1/MPEG-2/ASF*/JPEG/ DivX* format) +R/+RW (DVD Video format)

Dynamic range: 90 dB Horizontal resolution: 500 lines Wow and flutter: Immeasurable

Cassette deck section

Frequency response

Normal (type I): 50 Hz – 14 000 Hz

Wow and flutter: 0.15% (WRMS)

General

Power requirement: AC 110 V / AC 127 V / AC 220 V /

Power consumption: at operation: 165 W (CA-MXDK5)

100 W per channel, min. RMS, driven into

–21 dBm to –15 dBm (660 nm ±30 nm)

Ω

C (chrominance, burst) 0.286 V(p-p)/75

(Y) 1 V(p-p)/75 (PB/PR) 0.7 V(p-p)/75

Ω − 16 Ω

530 kHz – 1 710 kHz (at 10 kHz)

530 kHz – 1 600 kHz (at 10 kHz)

AC 230 V – AC 240 V , (adjustable with the voltage selector), 50 Hz / 60 Hz

on standby: 20 W (CA-MXDK5/

(Main speakers) (Subwoofers)

*CA-MXDK5 only

160 W (CA-MXDK3) 95 W (CA-MXDK1/

CA-MXDK15)

CA-MXDK3)

17 W (CA-MXDK1/

CA-MXDK15)

Dimensions (approx.): 265 mm x 337 mm x 370 mm (W/H/D) Mass (approx.): CA-MXDK5/CA-MXDK3: 8.4 kg

CA-MXDK1/CA-MXDK15: 7.9 kg

Speaker section (except for MX-DK5)

Main speakers (SP-MXDK3F/SP-MXDK1F/SP-MXDK15F)

Type: 3-Way 3-Speaker Bass Reflex Type

Speakers: Woofer: 16 cm cone x 1

Power handling capacity: 100 W (SP-MXDK3F)

Impedance: 6 Frequency range: 45 Hz – 20 000 Hz Sound pressure level: 85 dB/W•m Dimensions (approx.): 215 mm x 337 mm x 259 mm (W/H/D) Mass (approx.): 3.7 kg each

Subwoofer (SP-MXDK3W) (only for MX-DK3)

Ω

Type: 1-Way Bass Reflex Type

Ω Ω

Speaker: 16 cm cone x 1 Power handling capacity: 100 W

Ω

Impedance: 6

Ω

Dimensions (approx.): 215 mm x 337 mm x 259 mm (W/H/D) Mass (approx.): 3.5 kg

Design and specifications are subject to change without notice.

• Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, “MLP Lossless”, and the double-D symbol are trademarks of Dolby Laboratories.

• “DTS” and “DTS 2.0+DIGITAL OUT” are trademarks of Digital Theater Systems, Inc.

• “Official DivX® Certified product” “Plays all versions of DivX video (including DivX® 6) with standard playback of DivX® media files” “DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.”

• USE OF THIS PRODUCT IN ANY MANNER THAT COMPLIES WITH THE MPEG-4 VISUAL STANDARD IS PROHIBITED, EXCEPT FOR USE BY A CONSUMER ENGAGING IN PERSONAL AND NON-COMMERCIAL ACTIVITIES.

• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

“CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.”

(Magnetically-Shielded Type)

Midrange: 5 cm cone x 1 Tweeter: 2 cm dome x 1

80 W (SP-MXDK1F/SP-MXDK15F)

Ω

(Magnetically-Shielded Type)

Ω

OPTICAL DIGITAL OUTPUT Signals

DIGITAL AUDIO

OUTPUT

Playback disc STREAM/PCM DOLBY DIGITAL/PCM PCM ONLY DVD Video

with 48 kHz, 16/20/24 bit Linear PCM 48 kHz, 16 bit Linear PCM*

with 96 kHz, Linear PCM 48 kHz, 16 bit Linear PCM

with Dolby Digital Dolby Digital bitstream 48 kHz, 16 bit Linear PCM

with DTS DTS bitstream 48 kHz, 16 bit Linear PCM

DVD Audio

with 48/96/192 kHz, 16/20/24 bit Linear PCM

with 44.1/88.2/176.4 kHz, 16/20/24 bit Linear PCM

with Dolby Digital Dolby Digital bitstream 48 kHz, 16 bit Linear PCM

with DTS DTS bitstream 48 kHz, 16 bit Linear PCM

DVD-VR format discs

with 48 kHz, 16/20/24 bit Linear PCM 48 kHz, 16 bit Linear PCM*

with Dolby Digital Dolby Digital bitstream 48 kHz, 16 bit Linear PCM

SVCD, VCD, CD CD with DTS MP3/WMA/DivX MPEG-1/MPEG-2/ASF

*1While playing some DVDs, digital signals may be emitted at 20 bits or 24 bits (at their original bit rate) through the OPTICAL

DIGITAL OUTPUT terminal if the discs are not copy-protected.

Only for CA-MXDK5.

44.1 kHz, 16 bit Linear PCM/48 kHz, 16 bit Linear PCM

DTS bitstream 44.1 kHz, 16 bit Linear PCM

*2 disc

32/44.1/48 kHz, 16 bit Linear PCM

Output Signals

48 kHz, 16 bit Linear PCM

44.1 kHz, 16 bit Linear PCM

32 kHz, 16 bit Linear PCM

Parts Index

Remote control

Button Page Button Page

AUDIO

/¢

/¡

Number buttons

3D PHONIC

A-B RPT

AHB

AHB LEVEL

ANGLE

AUDIO/MPX

AUX

CANCEL

CLOCK

DIMMER

DISPLAY

DVD LEVEL

DVD LEVEL DVD/CD 3

ECHO

+/–

†1

8, 33 ENTER/SET

6, 10, 11, 13,

14, 16, 17, 19, 22-25, 31, 32, 34

9-11, 19 KARAOKE

9, 10, 17 KEY /

10, 11, 17, 19,

25, 30, 31, 33

10, 17, 19, 25 PAGE

9, 10, 11, 17,

18, 23, 31

13 PLAY MODE

20 PREV./NEXT

12 REPEAT

12 RESERVE

16 RETURN

15, 29 SCAN MODE

8 SET UP

14, 19, 31, 32 SHIFT

14 SLEEP

12 SLOW +/–

+/–

12 SOUND MODEg13

8, 10, 17, 18,

19, 25, 28-31 29 TAPE A 3

FADE MUTING

FM MODE

FM/AM

ON SCREEN

SOUND TURBOj12

SUB TITLE

†1

6, 9, 11, 13,

14, 17, 22, 23, 25, 32, 33, 34 9

8, 9

28-31

22, 23

;

18, 19

10, 11

20, 25

6, 11, 14,

15-17, 19, 20, 25, 28-31, 36

8, 11

Button Page Button Page

TAPE B 3

TITLE/GROUP

TIMER

TOP MENU

TV CHANNEL +/–

8, 11, 27 TV VOLUMEk36

10 TV/VIDEO

32, 33 VFP

11 VOLUME

36 ZOOM

Main unit

Button Page Button Page

4/¢ 7

8 0 OPEN/CLOSE 0 PUSH OPEN

3D PHONIC

ACTIVE BASS EXTENSION

AUX

AUX jack

DEMO

DISC REC

Display

DUBBING

CA-MXDK5/MX-DK3 only. *2 MX-DK1/MX-DK15 only.

CA-MXDK5 only.

†1

Not on the Australian model. †2 The Australian model only.

+/–

†2

8, 9 DVD/CD #

9, 10, 11, 27

9, 10, 11, 20,

26, 27, 30 10, 17, 27

10, 20 FM/AM

11, 26 MIC jack

13 MIC1/MIC2

12 PHONES jack

5 Remote sensor

6 SOUND MODE813

27 SOUND TURBO!12

7 TAPE A #

27 TAPE B #

DVD LEVEL

DVD LEVEL +/–

jacks MIC LEVEL

REC START/ STOP

VOLUME

*2†1

8, 29, 30

17, 25

8, 10, 17, 27,

28-30

8, 9

28-30

8, 11

8, 11, 27

8, 29, 30

(

Remote control

3 4

5 6 7 8 9 p

w e

Main unit

r t y

u i

; a s d f g h j k

7 8 9 0

# $ %

& *

0 (

The illustrations above are for CA-MXDK5.

Mains (AC) Line Instruction (not applicable for Europe, U.S.A., Canada and U.K.)

CAUTION for mains (AC) line

BEFORE PLUGGING IN, do check that your mains (AC) line voltage corresponds with the position of the voltage selector switch provided on the outside of this equipment and, if different, reset the voltage selector switch, to prevent from a damage or risk of fire/electric shock.

CA-MXDK5/MX-DK3/MX-DK1/MX-DK15 COMPACT COMPONENT SYSTEM

When your mains (AC) line voltage is 230-240 V

When your mains (AC) line voltage is 110 V

When your mains (AC) line voltage is 220 V

When your mains (AC) line voltage is 127 V

The illustration above is for CA-MXDK5.

0206WMKMDCJEM

JVC MX-DK3, MX-DK15, MX-DK1 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

INSTRUCTIONS

Warnings, Cautions and Others

Introduction

Connections

Display Indication

Unique DVD/VCD Operations

Advanced Disc Operations

On-Screen Disc Operations

Recording Operations

Enjoying Karaoke

Timer Operations

Setup Menu Operations

Operating the TV

Additional Information

Parts Index
