JVC MINI VIDEO PRINTER GV-HT1, GV-HT1E Instructions Manual

Download

G V -HT1

MINI VIDEO PRINTER

LYT0140-001A

INSTRUCTIONS

ENGLISH

Please visit our CyberCam Homepage on the World Wide Web and answer our Consumer Survey (in English only):

http://www.jvc-victor.co.jp/index-e.html

EN 1

IMPORTANT (for U. K. owners)

Connection to the mains supply in the United Kingdom. DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for

the power points in your home or the cable is too short to reach a power point, then obtain a proper safety approved extension lead/adapter or consult your dealer.

BE SURE to replace the fuse only with an identical approved type, as originally fitted, and to replace the fuse cover.

If nonetheless the mains plug is cut off remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply. If this product is not supplied fitted with a mains plug then follow the instructions given below: DO NOT make any connection to the Larger Terminal coded E or Green. The wires in the mains lead are coloured in accordance with the following code:

If these colours do not correspond with the terminal identifications of your plug, connect as follows: Blue wire to terminal coded N (Neutral) or coloured Black. Brown wire to terminal coded L (Live) or coloured Red.

If in doubt — consult a competent electrician.

Brown to L (Live) or Red

Blue to N (Neutral) or Black

This unit is produced to comply with Standard IEC Publ. 65.

This printer is designed to be used with PALtype colour television signals. It cannot be used for monitoring with a television of a different standard. Use the BN-V607 battery pack and, to recharge it, the optional multi-voltage AC Power Adapter/Charger. (An appropriate conversion adapter may be necessary to accommodate different designs of AC outlets in different countries.)

2 EN

Some Do's And Don'ts On The Safe Use Of Equipment

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.

DO read the operating instructions before you attempt to use the equipment. DO ensure that all electrical connections (including the mains plug, extension leads and

interconnections between pieces of equipment) are properly made and in accordance with the manufacturer's instructions. Switch off and withdraw the mains plug when making or changing connections.

DO consult your dealer if you are ever in doubt about the installation, operation or safety of

your equipment.

DO be careful with glass panels or doors on equipment. DON'T continue to operate the equipment if you are in any doubt about it working normally,

or if it is damanged in any way — switch off, withdraw the mains plug and consult your dealer.

DON'T remove any fixed cover as this may expose dangerous voltages. DON'T leave equipment switched on when it is unattended unless it is specifically stated that it

is designed for unattended operation or has a standby mode. Switch off using the switch on the equipment and make sure that your family knows how to do this. Special arrangements may need to be made for infirm or handicapped people.

DON'T use equipment such as personal stereos or radios so that you are distracted from the

requirements of road safety. It is illegal to watch television whilst driving.

DON'T listen to headphones at high volume, as such use can permanently damage your

hearing.

DON'T obstruct the ventilation of the equipment, for example with curtains or soft furnishings.

Overheating will cause damage and shorten the life of the equipment.

DON'T use makeshift stands and NEVER fix legs with wood screws — to ensure complete

safety always fit the manufacturer's approved stand or legs with the fixings provided according to the instructions.

DON'T allow electrical equipment to be exposed to rain or moisture. ABOVE ALL...

— NEVER let anyone especially children push anything into holes, slots or any other

opening in the case — this could result in a fatal electrical shock;

— NEVER guess or take chances with electrical equipment of any kind — it is better to be

safe than sorry!

EN 3

CAUTIONS

ABOUT THERMAL HEADS

•The thermal heads, necessary for printing, are located within the unit. The heads can become extremely warm. To prevent possible burns and injuries, do not touch the thermal heads.

•When the printer is used for extended periods, the thermal heads experience wear and tear just like VCR heads. As the thermal heads become worn, print quality will gradually decrease. When you notice a decline in quality, it is possible that the heads may need to be replaced. Consult your JVC dealer.

DUST

Due to dust or lint adhering to print paper, or to extreme variations in temperature, a small degree of colour smearing or lines may be visible in prints.

Failure to heed the following precautions may result in damage to the printer.

1. DO NOT place the printer . . .

... in an environment prone to extreme temperatures

or humidity. ... in direct sunlight. ... in a dusty environment. ... in an environment where strong magnetic fields

are generated. ... on a surface that is unstable or subject to

vibration.

2. DO NOT place heavy objects on the printer.

3. DO NOT place anything which might spill on top of the printer.

4. AVOID violent shocks to the printer during transport.

CAUTION:

Changes or modifications not approved by JVC could void user’s authority to operate the equipment.

Exercise caution when moving the printer. If you drop the unit, do not attempt to use it. If during use you notice that the cabinet is damaged, shut the printer down, remove power supply unit it and contact your JVC dealer. Use of the printer under these conditions can lead to fire or electric shock.

DO NOT place heavy objects on the AC power adapters cords, or leave the cord near any heatgenerating appliance, as this can damage the cords. Avoid excessive pulling or twisting of the power cords. If the power cords becomes cut or otherwise damaged, contact your JVC dealer. When unplugging the AC power adapter, DO NOT pull on the cord. Hold the plug itself and remove it from the AC outlet. Use of the printer with a damaged power cord can lead to fire, electric shock and unit malfunctions.

DO NOT remove the cover and attempt to repair or modify the printer. There are high-voltage components within the unit, and the risk of electric shock and unit malfunctions exists. If a problem occurs, contact your JVC dealer.

Illustrations of this printer may differ slightly from production models.

4 EN

CAUTIONS

About Batteries

DANGER! Do not attempt to take the batteries

apart, or expose them to flame or excessive heat, as there is a risk of fire or explosion.

WARNING! Do not allow the battery terminals, or the battery itself, to come in contact with metals, as this can result in a short circuit and possibly start a fire.

The Benefits Of Lithium-Ion Batteries

Lithium-ion battery packs are small but possess a large power capacity. However, when the battery pack becomes cool in an environment subject to cold temperatures (below 10°C), the battery pack has a characteristic that its usage time becomes shorter and may cease to function. If this happens, place the battery pack in your pocket or other warm, protected place for a short time, then reattach it to the camcorder. As long as the battery pack itself is not cold, it should not affect performance. (If you’re using some kind of heating pad, make sure the battery pack does not come in direct contact with the pad.)

Lithium-ion is vulnerable in colder temperatures.

Battery Packs

The supplied battery pack is a lithium-ion battery. Before using the supplied battery pack or an optional battery pack, be sure to read the following cautions:

1. Turn on the power.

2. Set “save mode” to “off” and remove the batteries when the power is automatically turned off.

1. To avoid hazard . . .

.... do not burn.

.... do not short-circuit the terminals.

.... do not modify or disassemble.

.... do not expose the battery to temperatures

exceeding 60°C, as this may cause the battery to overheat, explode or catch fire.

.... use only specified chargers.

2. To prevent damage and prolong service life . . .

.... do not subject to unnecessary shock.

.... charge in an environment where tempera-

tures are within the tolerances shown in the chart below. This is a chemical reaction type battery—cooler temperatures impede chemical reaction, while warmer temperatures can prevent complete charging.

.... store in a cool, dry place. Extended exposure

to high temperatures will increase natural discharge and shorten service life.

.... fully charge and then fully discharge the

battery once a year when storing the battery pack over a long period time.

.... remove from charger or powered unit when

not in use, as some machines use current even when switched off.

NOTES:

●

It is normal for the battery pack to be warm after charging, or after use.

Temperature Range Specifications

Charging ................................ 10°C to 35°C

Operation .............................. 0°C to 40°C

Storage .................................. –10°C to 30°C

●

Recharging time is based on room temperature of 20°C.

●

The lower the temperature, the longer recharging takes.

Terminals

EN 5

•This printer uses the following program under license from Okaya Systemware Co., Ltd. for IrDA infrared transmission:

IrDA Protocol Stack “Deep Core

” Okaya

Systemware Co., Ltd.

NOTICE

Use of images imported from television broadcasts and recorded materials for other than personal enjoyment without permission from the copyright owner constitutes an infringement on applicable copyright laws.

Sample Images

The sample images supplied with this printer are used under license from Kodak Japan Co., Ltd. who is the copyright owner. The image samples provided with this printer are Photo CD images from the Kodak Photo CD Sampler with FILM that were processed as described below using Adobe Photoshop 3.0J.

The original 768 x 512 image was trimmed to 598 x 488 and compressed using the JPEG format before recording.

Kodak Photo CD Sampler with FILM No. 2 “Marine” 18

Note:

•Note that prints of camcorder or Digital Still Camera images will not be as sharp as prints of the sample images.

•Company names and product names mentioned in this manual are the logos or registered trademarks of respective company.

Serious malfunctioning

If malfunctioning occurs, stop using the unit immediately and consult your local JVC dealer.

The printer is a microcomputer-controlled device. External noise and interference (from a TV, a radio, etc.) might prevent it from functioning properly. In such cases, first disconnect its power supply unit (battery pack, AC Power Adapter/Battery Charger, etc.) and then reconnect it and proceed as usual from the beginning.

6 EN

MAJOR FEA TURES

Easy to read LCD Display

The messages and icons displayed on the LCD panel show at a glance the operating state of the printer.

Printing from Camcorder

Any camcorder with an output terminal can be connected to the printer for instant printing of the desired photo anywhere.

Cordless connection to digital still cameras

This printer offers cordless connection to any digital still camera conforming to the infrared image transmission (IrTran-P) standard.

Battery powered for portable operation

Load the battery and you are ready to provide your friends with instant printouts of pictures taken at parties or outdoors.

Input for PC Connection

Used with optional software, this printer connects to a Windows® PC communications port (RS-232C) or Macintosh communications port (RS-422) for printing images.

This equipment is a portable printer that is light enough to bring along with a camcorder or digital still camera on a trip or outing. It can be used in a wide variety of applications.

EN 7

Calendar Printing

You can use pictures of your choice to print your own calendar.

You can print the picture of your choice on standard paper, stickers. A number of special effects are available in addition to normal printing.

Multipix

On a page you can print 2, 6 or 8 images.

Frame Print

Internal frames can be superimposed on an image for printing stickers.

12 1998

SUN MON TUE WED THU FRI SAT

12345

6789101112 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

8 EN

CONTENTS

CAUTIONS

MAJOR FEATURES

CONTROLS, INDICATORS AND CONNECTORS

Front View ....................................................................................10

Rear View .....................................................................................11

Bottom View ..................................................................................11

Operation buttons ............................................................................12

Memory and Print Operations ..............................................................12

Selecting and setting menu items ..........................................................12

Menu Setting List.............................................................................13

CONECTIONS (Video Connections)

Printing from source with video output terminals .......................................14

CONNECTIONS (IrDA Reception)

Printing from a digital still camera with IrTran-P ........................................15

SUPPLYING THE POWER

Charging the Battery.........................................................................16

Loading the Battery ..........................................................................17

Using AC power ..............................................................................17

INSTALLATION OF INK CASSETTE

Installing the Ink cassette...................................................................18

LOADING THE BLANK PAPER

Loading Blank Paper .........................................................................20

PREPARATION

PRINTING FROM VIDEO SOURCE WITH VIDEO TERMINALS

PRINTING FROM IrTran-P EQUIPPED DIGITAL STILL CAMERA

MISCELLANEOUS PRINTING OPERATIONS

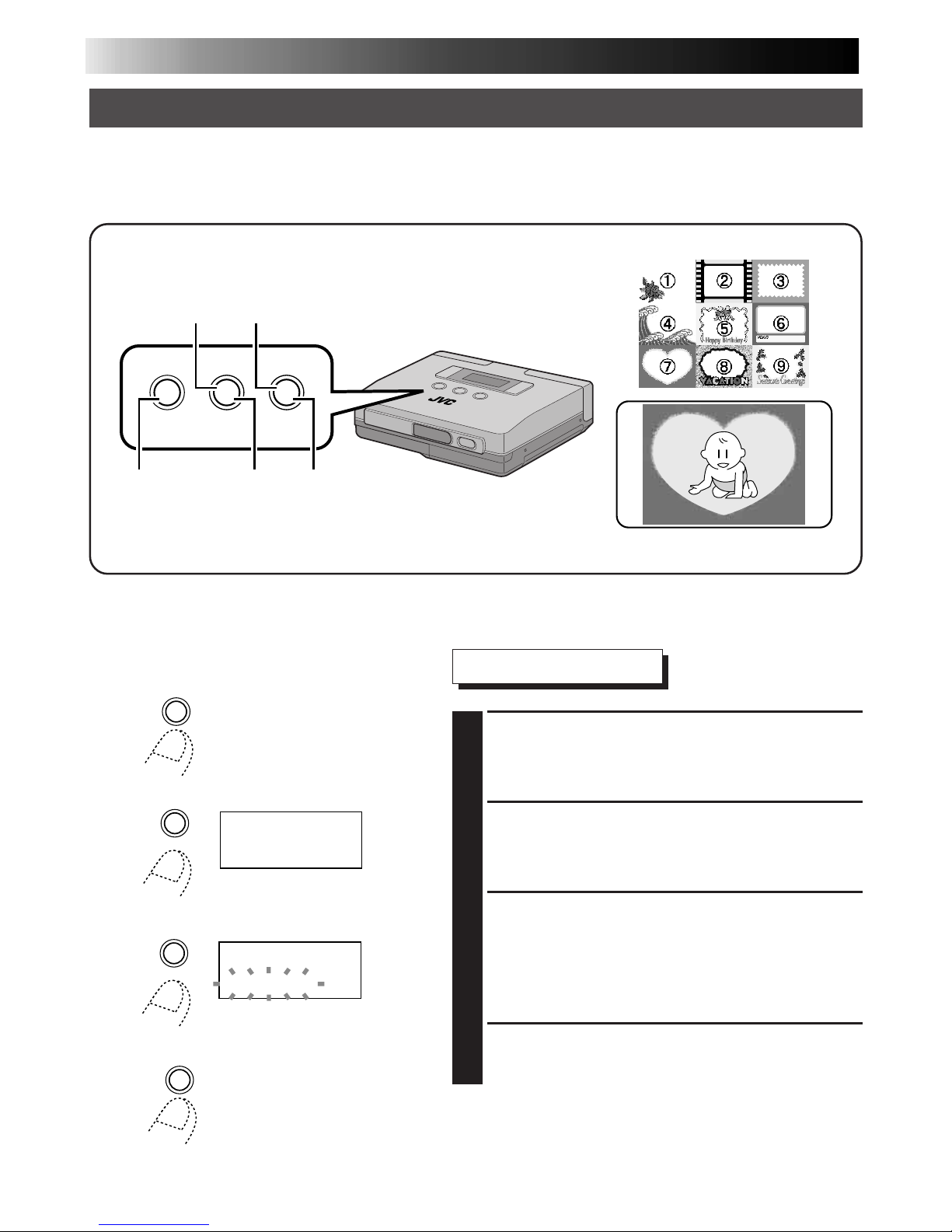

Superimposing the Frame of Choice on the Image – Frame Printing – ................26

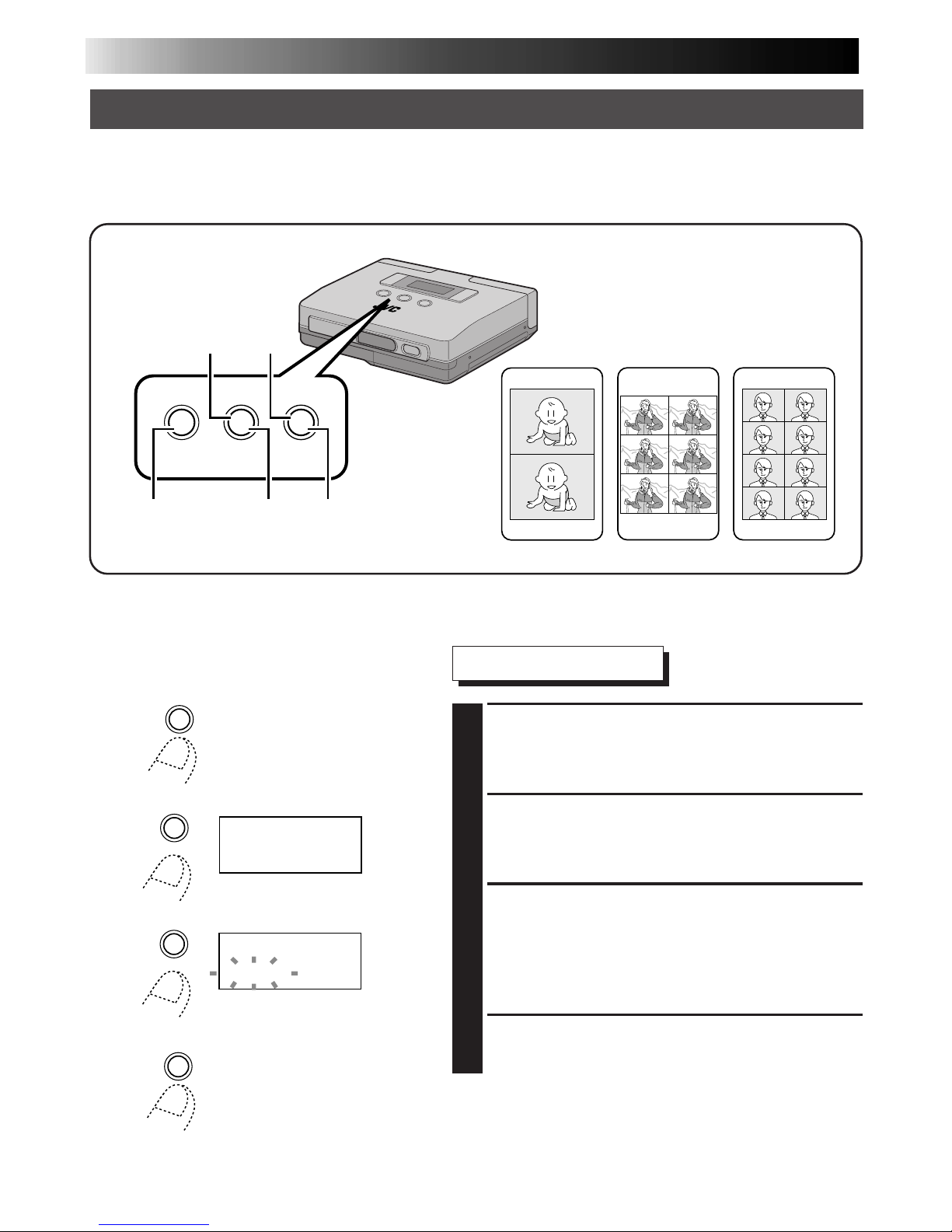

Printing Multiple Images on the Same Paper – MULTI Print – .........................28

Combining Image and Calendar – Calendar Printing –...................................30

Printing Using Special Effects – Special Effects – ........................................32

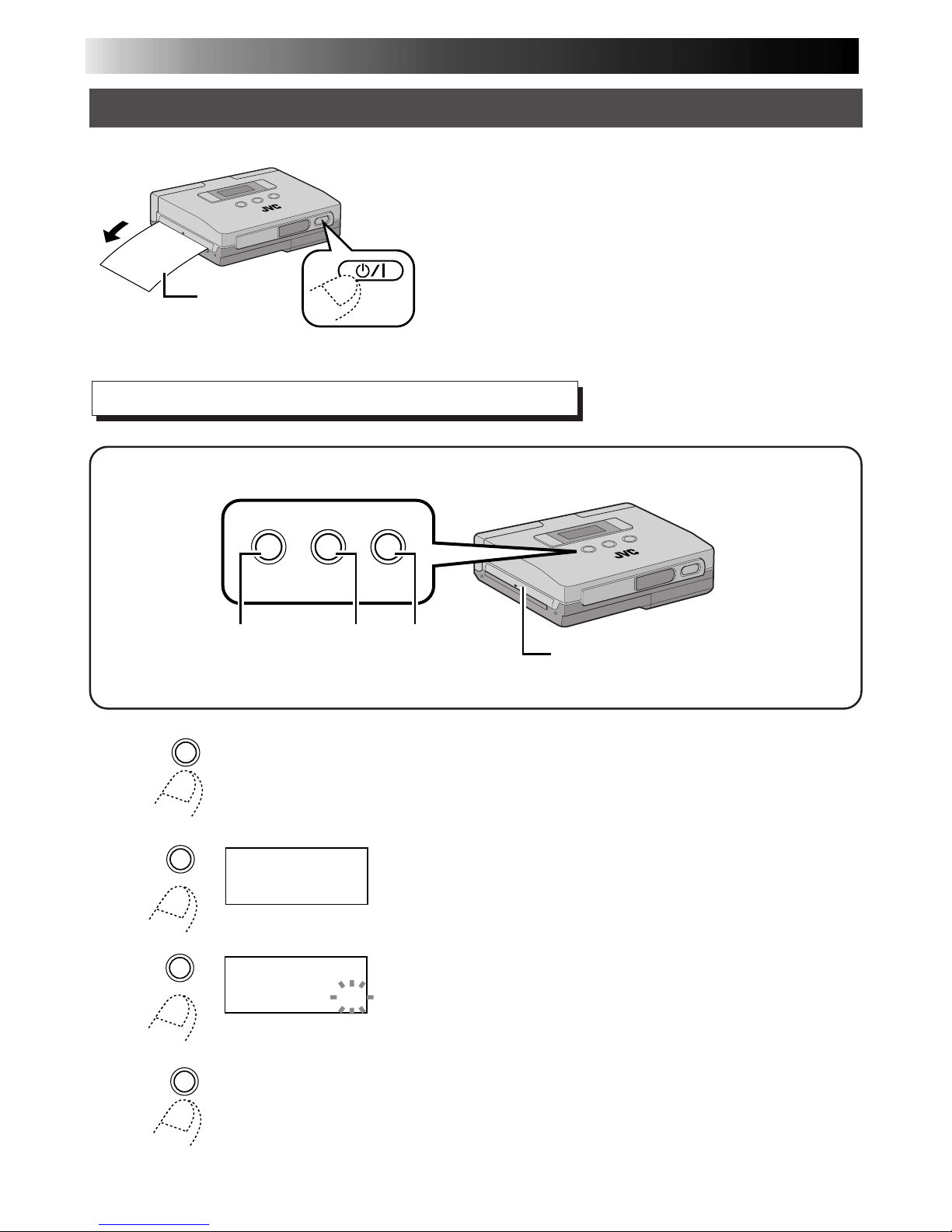

Manual Feed ..................................................................................34

Printing Reversed Images – Mirror Images – ............................................36

EN 9

ADJUSTMENTS

Adjusting Image Quality – Adjustments before Printing –..............................37

Saving Energy – Save Mode –..............................................................38

Switching between motion Picture and Still Picture – Memory Mode Selections –

...39

TROUBLESHOOTING

SPECIFICATIONS

INDEX

It should be noted that it may be unlawful to print from pre-recorded tapes or discs without the consent of the owner of copyright in the video recording, broadcast or cable programme and in any literary, dramatic, musical, or artistic work embodied therein.

PROVIDED ACCESSORIES

Ink cassette

Printing paper

Blank Paper Sheet Set

•Standard Print Paper (6 sheets)

•Sticker paper (6 sheets)

•Ink Cassette (12 prints)

Battery Pack BN-V607

(battery)

AC adapter/Charger AA-V68 DC cord,

approx. 0.8 m

Soft caseVideo cable 1 Video cable 2

10 EN

CONTROLS, INDICATORS AND CONNECTORS

MENU Button

Turns menu items on and off.

MEMORY/SELECT Button

MEMORY Button

Press to store an input image.

SELECT Button

Selects menu items.

PRINT/SET Button

PRINT Button

Press this button after storing an image to print it.

SET Button

Press to change setup items.

IrTran-P (IrDA receiving window)

Receives image data during infrared transmission.

STANDBY/ON Button

Turns the printer on and off.

Jack cover

DC IN

Connects AC Adapter/Charger by using a DC cord (provided).

Video output jack

· Outputs input image or print image for view ing on a TV or other monitor.

· Connect this output to a video input terminal on a TV.

Display Function See page

13, 40

–

LCD Panel

Displays messages and icons during operation to indicate printer operating status.

Message field Indicates menu settings and printer status.

Indicates remaining battery power.

Lights when a print error has occurred. The message field indicates the nature of the error.

Lights when still image memory mode has been selected.

Lights to indicate that an image has been stored in the printer.

Lights during printing.

Video input jack

Connects a video cable from the video output terminal on camcorder or other unit.

PC connection jack

With the use of optional software, the printer can be connected to a communications port on a PC compatible (RS-232C) or Macintosh (RS-422).

PC IN OUT DC IN

Front View

EN 11

Rear View

Bottom View

Ink cassette compartment

Open the lid to load or remove ink cassettes.

Battery compartment

Open the lid to load or remove batteries.

Paper out/manual feed slot

· Finished prints are ejected from this exit.

· Single sheets of paper are inserted here during manual feed.

Paper compartment door switch

Slide this switch to open the paper compartment.

Paper compartment door

Open this door to load paper.

12 EN

䢇Operation buttons

Use these buttons to perform operations from storing through to printing images, selecting and setting menu items. Use the buttons and follow the instructions given on the LCD panel.

CONTROLS, INDICATORS AND CONNECTORS (Continued)

䢇Selecting and setting menu items

䢇Memory and Print Operations

MEMORY

SELECT

SET

MEMORY

See page

Mode overview

Press to store input video image.

Press to print stored video image.

SELECT

SET

Turns menus on and off. Press once to select a menu.

Each press of the SELECT button displays a menu item on the LCD panel. Select desired item.

Press the SET button and the Selected mode indicator blinks. Each press of the SET button changes the blinking item on the LCD panel. Select the desired item. Press the MENU button after selecting the desired item with the SET button to confirm the selection.

See page

Mode overview

EN 13

䢇Menu Setting List

Superimpose frame

Enter print mode

Add special print effect

Suppress blur Manual feed print Print mirror image Save energy Remove jammed paper Switch language display

frame Set.

print mode

effect

memo. mode

man. feed

mirror

save mode

form feed

language

SettingDesired Action Menu item

off → frame 1 → frame 2 → frame 3 frame 4 → frame 5 → frame 6 frame 7 → frame 8 → frame 9

video → infrared → PC sample → frame list

standard → 2 div. → 6 div. 8 div. → calender

off → sepia → B/W

motion pic ↔ still pic off ↔ on

5min. ↔ off

0 +1, +2, +3, +4, +5 –1, –2, –3, –4, –5

off ↔ on

input pic. ↔ memo. pic.

English → français → Deutsch

bright.

tint

• Initial settings are indicated in gray. The printer returns to these settings when powered up after shutdown.

• Menu items that cannot be selected are not displayed.

• The ”PC" input mode requires the use of special software. For detailed information, consult your nearest JVC dealer.

• A sample video image is stored in the printer. You can select “sample” to print out this sample in the “input” menu.

Set video source

· Print sample

· Superimpose frame list

input

Adjust brightness or tint

· Brightness (adjust before storing the image)

· Tint (adjust after storing the image)

adj. image

Switch monitor display monitor

14 EN

CONNECTIONS (V ideo Connections)

Notes:• Make sure that the printer is properly connected to the video source. A loose video

cable connection will prevent printing.

•Do not place the printer on its side or on a leaning surface as this may cause paper jams.

Printing from source with video output terminals

Jack cover

TVVIDEO Source

Connect to video IN jack

Connect to video OUT jack

(black) (yellow)

(black)

(yellow)

Connect to video output terminals

Video cable (Supplied with a video source or optional)

Video cable 2 (Provided)

(yellow)

Connect to video input terminal

Video cable 1 (Provided)

PC IN OUT DC IN

EN 15

CONNECTIONS (IrDA Reception)

This is a standard for transmitting data using infrared transmission. Equipment that conform to this standard can transmit to each other regardless of make.

Printing from a Digital Still Camera with IrTran-P

Notes:•IrDA infrared communications allow only two pieces of equipment to communicate.

Transmission from one digital still camera to several printers simultaneously is not possible. Only the printer that first receives the data can print it.

•Transmission may become unstable or impossible due to external light, the state of battery depletion and the distance or angle between the equipment.

Up to 50 cm

Digital still camera with IrTran-P

Printer

Approx. 15˚ Approx. 15˚

IrDA receiver

The distance at which transmission is possible varies with the equipment used.

16 EN

SUPPL YING THE POWER

Charging the battery

Use the provided AA-V68 AC adapter/Charger for charging the battery. Batteries that have not been completely depleted can also be charged.

•Approximate charge time → Approx. 90 min for each BN-V607 battery

•Charging not possible → Charging is not possible when the DC cord is connected to the AC adapter.

•Number of prints per battery charge → 40 prints for each BN-V607 battery (at room temperature)

NOTES

•If you connect the DC cord to the AC adapter during battery charging, power is supplied to the printer

and charging stops.

•When charging the Battery for the first time or after a long storage period, the Charger Indicator may not

light. In this case, remove the Battery from the AC Power Adapter then try charging again.

•Since the AC Power Adapter processes electricity internally, it becomes warm during use. Be sure to use

it only in well-ventilated areas.

•If the battery operation time remains extremely short even after having been fully charged, the battery is

worn out and needs to be replaced. Please purchase a new one.

CONNECT AC ADAPTER/CHARGER

•Connect the power cord to a wall outlet.

INSERT THE BATTERY

•The charge indicator starts to blink.

•Charging has completed when the indicator stops blinking and is on continuously.

REMOVE THE BATTERY

•Remove the power cord.

DC output terminal

AC Adapter/Charger AA-V68

Power cord

Charge indicator 2

(Blinks during charging → Lights continuously when charging completes.)

Power lamp

Battery BN-V607

To AC outlet

Charge indicator

Place side with and symbols face down.

EN 17

Loading the Battery

The battery (BN-V607) is not charged when shipped. Charge it using the AC adapter before use.

Removing the Battery

•Open the battery compartment lid and take out the battery.

OPEN THE BATTERY COMPARTMENT LID

•Slide and open the battery compartment lid in the direction of the arrow.

INSERT THE CHARGED BATTERY

•Note that the battery may be damaged if it is inserted

incorrectly.

•Slide in the battery as far as it will go until it is properly seated.

CLOSE THE BATTERY COMPARTMENT LID

1, 3

Using AC power

When using the printer indoors, you can use the AC Adapter instead of a battery.

CONNECT DC CORD

•Connect the DC cord to the AC Adapter then to the printer.

SUPPLY AC POWER

•Connect the power cord to an AC outlet.

NOTE:

When using the provided DC cord, make sure you connect the end of the cable with the core filter to the camcorder. The core filter reduces the interference.

DC IN Jack

DC cord

Power lamp

DC IN

To AC outlet

18 EN

INST ALLATION OF INK CASSETTE

Installing the Ink cassette

Before printing, load printing paper and ink kit as shown below.

OPENING INK CASSETTE COMPARTMENT LID

•To open the ink cassette compartment lid, slide it in the direction of the arrow as far as it will go.

REMOVING SLACK IN THE INK RIBBON, IF ANY

•Insert a propelling pencil or a ball-point pen and rotate the roller in the indicated direction.

INSTALLING INK CASSETTE

•Hold the side with model label face up and slide in the ink cassette as far as it will go.

CLOSE THE INK CASSETTE COMPARTMENT LID

CAUTION:

Do not touch the inside of the ink cassette compartment toavoid burns and other injuries.

When removing ink cassette

•Grasp the knob at the center of the ink cassette and pull it towards you.

1, 4

INK

EN 19

Note: Pay attention to the following in handling printing paper and ink cassettes

Before printing

•Do not use printing paper that has been folded or curled to avoid paper jams.

•Do not use wet or humid printing paper as it will not print normally and could cause a paper jam.

•Do not touch or write on the print surface.

•Do not touch or pull out the ink sheets in the ink cassette.

•Make sure that children do not lick or ingest the ink sheets.

•Used ink cassettes should be replaced with new cartridges. Old cartridges cannot be reused. Do not attempt to reuse the cartridge by rewinding the rollers.

•Printing paper and ink cassettes must not be stored in a location exposed to high temperatures, high humidity or directsunlight.

•Read the instructions accompanying the printing paper and ink cassette and use them accordingly.

After printing

•The printer applies a coating to make the prints glossy.

•The prints should be handled with care since they are coated with a soft material that can easily be damaged by sharp objects such as a fingernail or the like.

•The colors will fade if the paper is exposed to volatile solvents (alcohol, toluene, ketone, etc.).

•Do not paste adhesive tape on the print surface. The image will be damaged when the tape is removed.

Care in storing prints

•Printed paper must not be stored in a location exposed to high temperatures, high humidity or direct sunlight.

•Store printing paper horizontally in the box. If stored vertically, the paper might curl and cause paper jams.

About blank Paper sheet Set (optional)

The following accessories are required in printing with this printer.

SET

PV-C20AU (Standard type)

PV-C12SAU (Sticker type)

PV-C12KAU (Standard type, Sticker type)

CONTENTS

Standard paper: 20 sheets Ink cassette (20 prints)

Sticker paper: 12 sheets Ink cassette (12 prints)

Standard paper: 6 sheets Sticker paper: 6 sheets Ink cassette (12 prints)

USES

To print the scene of your choice to make commemorative shots.

Make personalized stickers for pasting on cards, etc.

20 EN

LOADING THE BLANK PAPER

Loading Blank Paper

To print, load Blank paper sheet set.

OPEN PAPER COMPARTMENT DOOR

•Slide the paper compartment door switch in the direction of the arrow to open the paper compartment door.

LOAD BLANK PAPER

•Riffle through the paper so that each sheet is separated from the next and place it with the printing surface (white side) facing inside.

•Make sure that the paper does not rise above tab A .

CLOSE THE PAPER COMPARTMENT DOOR

•Make sure that the paper has been correctly loaded.

•The door clicks into place when the door is properly closed.

Notes:• Read the instructions on the printing paper and ink kit, and the “Caution on Loading

Printing Paper” on the inside of the printing paper compartment.

•Loading printing paper Since the paper cannot be properly fed if each sheet sticks together, riffle through the paper before loading it and make sure that the paper ends are aligned. If the message, “Load paper” is displayed when there is paper in the paper compartment, reload the paper.

Printing surface (white side)

OPEN

1, 3 2

OPEN

· Make sure that the paper does not rise above tab .

· Place the side with the text face up.

· Number of sheets: max. 15 sheets

Notes:

EN 21

1. Connect the printer to the video source to be

printed from. (墌pg. 14).

•To use IrTran-P, transmit the images after turning on the power as described in step 5.

Notes:

•The above completes all printer preparations.

•Please read the instructions on pages 22 to 39 before printing.

5. Turn on the power. (墌pg. 10).

•Insert the power plug of the AC adapter in a wall outlet.

•The printer can also be battery powered.

•Turn on the printer.

6. Select Language displayed on the LCD panel

You can select desired one of the following display languages: English, F renc h and German.

•Select the Language menu and choose the desired language (墌pg. 13).

1. Press the MENU button.

2. Press the SELECT button repeatedly until “language” appears on the LCD panel.

3. Press the SET button until desired language appears.

4. Press the MENU button twice.

4. Open the paper compartment door and place the

printing paper (墌pg. 20).

•Use the printing paper in the same box as the ink cassette.

3. Install the ink cassette in the printer (墌pg. 18).

PREP ARA TION

䢇 Before printing, make sure everything is set up and ready.

2. Have a Blank Paper Sheet Set ready (墌pg. 19).

22 EN

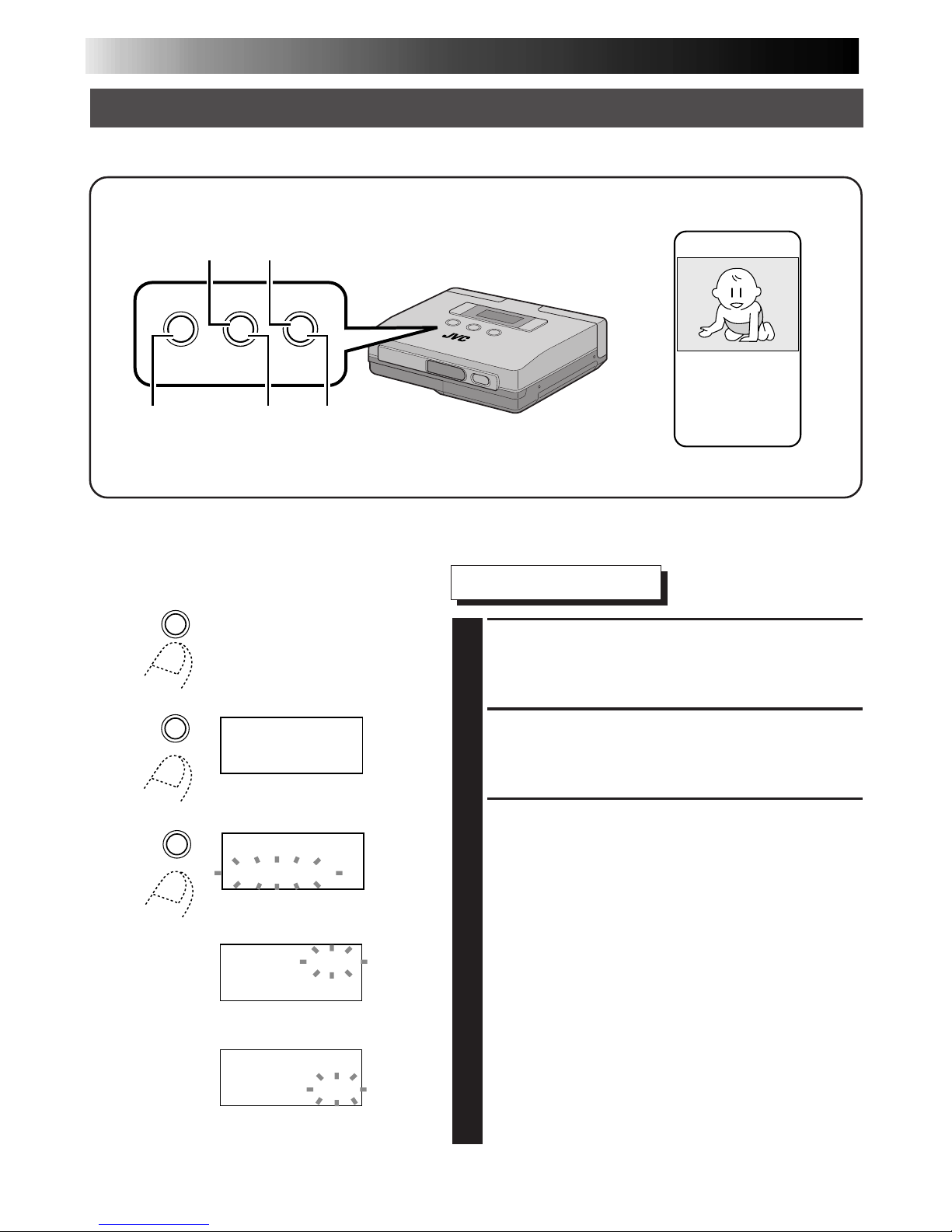

PRINTING FROM VIDEO SOURCE WITH VIDEO TERMINALS

This is the standard method for printing from a video sour ce with video terminals. It allo ws y ou to easily connect your Camcorder, VCR or other video source with video terminals to the printer.

Preparations

•Make the connections (墌pg. 14).

Selecting Menu Item

PRESS THE MENU BUTTON

•This action displays the printer menu on the LCD panel.

PRESS THE SELECT BUTTON

•Press the SELECT button repeatedly until “input” appears.

Note:

When “video” is already displayed on the LCD panel, press the MENU button and skip steps 3 and 4.

PRESS THE SET BUTTON

•The item on the second line of the LCD panel starts to flash.

•Press the SET button until “video” appears.

PRESS THE MENU BUTTON TWICE TO CONFIRM THE ENTRY

MEMORY

SELECT

SET

21, 4 3

LCD panel

nput

video

MEMORY

SELECT

SET

nput

Video

EN 23

NOTES:

•To print the same image again, press the PRINT button. One print is made each time the PRINT button is pressed.

•To print a different image, perform operations in steps 5 to 7.

•To store the picture again before printing, switch menu item “monitor” from “memo. pic” to “input pic.”

•Do not touch the printer or the paper during printing During printing paper will come out of the paper out/manual feed slot; do not touch the paper until printing stops to prevent paper jams. Do not open the paper compartment door or the ink cassette compartment lid during printing. When the printer is battery powered, do not open the battery compartment door. If opened, printing stops and the power is automatically turned off. When the printer is powered up again, the paper that was being printed when printing stopped is ejected.

Print Operations

SET THE VIDEO SOURCE TO PLAYBACK MODE

•For details, refer to the instruction manual supplied with the video source.

PRESS THE MEMORY BUTTON WHEN THE IMAGE YOU WISH TO PRINT APPEARS

•This action stores the image you wish to print.

•The message, “Please wait ...” is displayed on the LCD panel while the image is being stored. The message, “Store in memory” is displayed when the image has been stored.

•The memory icon

indicates the

following conditions.

on: image data has been stored in the printer off: no image data is stored in the printer

PRESS THE PRINT BUTTON

•The printer starts printing the stored image.

•The message, “Please wait ...” is displayed on the LCD.

Then the printer icon

appears.

•The printer icon indicates the following conditions.

on: image data is being printed off: printing has been completed

•When printing is completed, the message, “Remove paper” is displayed on the LCD panel. Do not touch the printer or printing paper until this message is displayed.

MEMORY

SELECT

SET

MEMORY

SELECT

SET

24 EN

PRINTING FROM IrTran-P EQUIPPED DIGITAL STILL CAMERA

Preparations

•Make the connections (墌pg. 15).

•Place the digital still camera and printer within a 50 cm distance of each other . Image transmission can be performed within a 15° angle of the printer receiving window.

•Read the instructions in the instruction manual supplied with the IrTran-P equipped digital still camera.

The printer can receive and print images from an IrTran-P equipped digital still camera. Since no cables are required, this printing method is ideal at wedding receptions, parties or the like.

Selecting Menu Item

PRESS THE MENU BUTTON

•This action displays the printer menu on the LCD panel.

PRESS THE SELECT BUTTON

•Press the SELECT button repeatedly until “input” appears.

PRESS THE SET BUTTON

•The item on the second line of the LCD panel starts to blink.

•Press the SET button until “infrared” appears.

PRESS THE MENU BUTTON TWICE TO CONFIRM THE ENTRY

MEMORY

SELECT

SET

21, 4 3

IrDA receiving window

MEMORY

SELECT

input

video

SET

nput

rfniared

EN 25

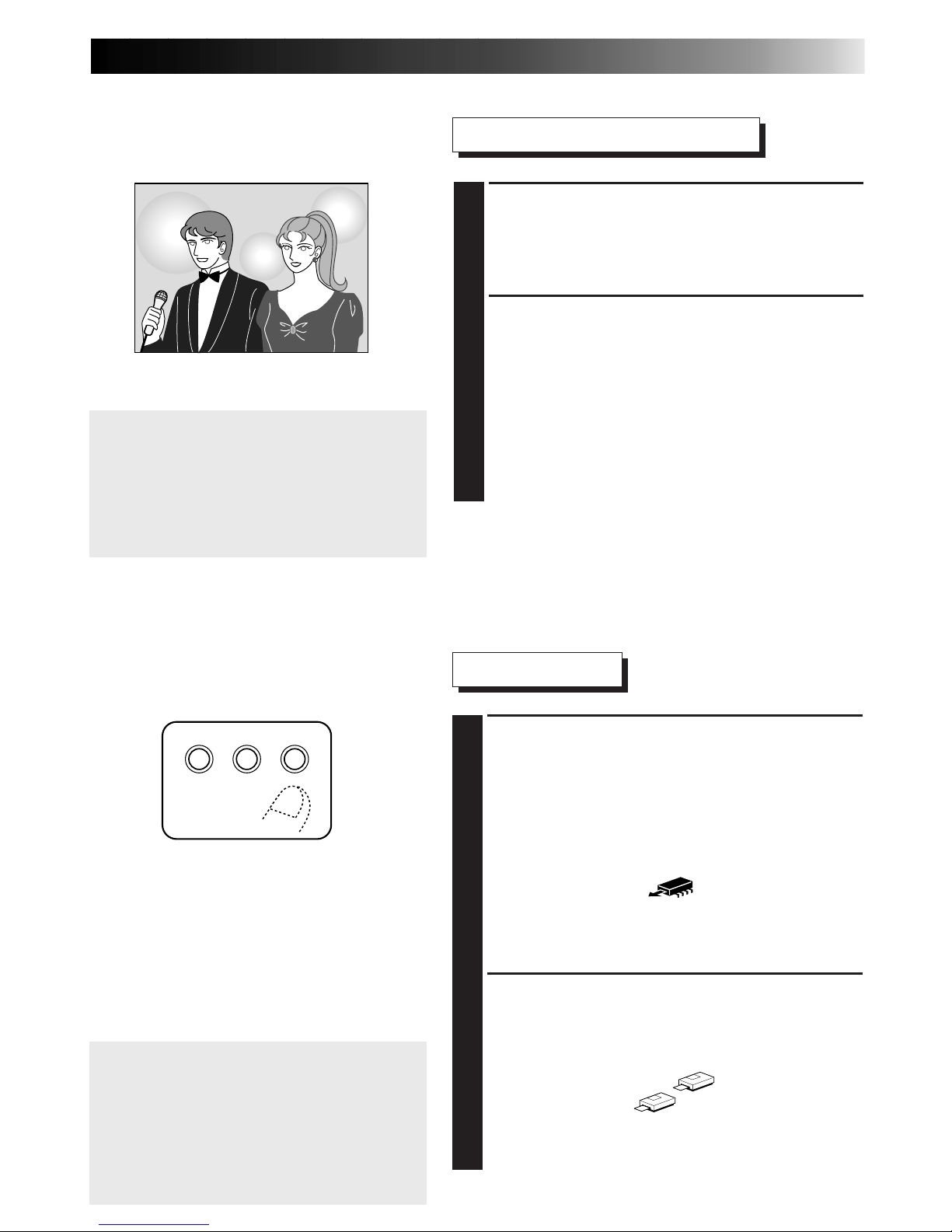

Digital Still Camera Operations

SELECT THE DIGITAL STILL CAMERA IMAGE YOU WISH TO PRINT

•For details, refer to the instruction manual supplied with the camera.

TRANSFER THE CAMERA IMAGE TO THE PRINTER

•Orient the infrared sending window on the digital still camera so that it faces the IrTran-P receiving window on the printer.

•Make sure that there are no objects between the printer and the camera.

•Transmit the data from the camera to the printer.

Print Operations

THE PRINTER STARTS RECEIVING THE IMAGE

•The image you wish to print is now being stored.

•While the image data is being stored, the message, “infrared receiving” is displayed on the LCD panel.

•The memory icon

indicates the

following conditions.

on: image data has been stored in the printer off: no image data is stored in the printer

PRESS THE PRINT BUTTON

•The printer starts printing the stored image.

•The message, “Please wait ...” is displayed on the LCD panel.

Then the printer icon

appears.

•The printer icon

indicates the

following conditions.

on: image data is being printed off: printing has been completed

NOTES:

•To print the same image again, press the PRINT button. One print is made each time the PRINT button is pressed.

•To print a different image, perform operations in steps 5 to 8.

Note:

Transmission may become unstable or impossible due to external light, the state of battery depletion and the distance or angle between the equipment.

MEMORY

SELECT

SET

26 EN

MISCELLANEOUS PRINTING OPERA TIONS

Superimposing the Frame of Choice on the Image – Frame Printing –

•You can print a frame around an image.

•Select one frame you wish to use out of the nine available frames. You can use sticker paper to print titles for greeting cards and so on.

Preparations

•Make the connections (墌pg. 14).

Selecting Menu Item

PRESS THE MENU BUTTON

•This action displays the printer menu on the LCD panel.

PRESS THE SELECT BUTTON

•Press the SELECT button repeatedly until “frame set.” appears.

PRESS THE SET BUTTON

•The item on the second line of the LCD panel starts to blinking.

•Press the SET button until the desired frame number appears.

PRESS THE MENU BUTTON TWICE TO CONFIRM THE ENTRY

MEMORY

SELECT

SET

21, 4 3

MEMORY

SELECT

f r ame se t

off

SET

r ame se t r

f ame

EN 27

Print Operations

SET THE VIDEO SOURCE TO PLAYBACK MODE

•For details, refer to the instruction manual supplied with the video source.

PRESS THE MEMORY BUTTON WHEN THE IMAGE YOU WISH TO PRINT APPEARS

•This action stores the image you wish to print.

•The message, “Please wait ...” is displayed on the LCD panel while the image is being stored.

•The memory icon

indicates the

following conditions.

on: image data has been stored in the printer off: no image data is stored in the printer

PRESS THE PRINT BUTTON

•The printer starts printing the stored image.

•The message, “Please wait ...” is displayed on the LCD panel.

Then the printer icon

appears.

•The printer icon

indicates the

following conditions.

on: image data is being printed off: printing has been completed

NOTES:

•To print the same image again, press the PRINT button. One print is made each time the PRINT button is pressed.

•To print a different image, perform operations in steps

to 7.

•The frame cannot be changed after printing.

•When the “input” menu item is displayed (see page 13), you can select “frame list” and print all 9 frames. This makes it easier to select a frame.

MEMORY

SELECT

SET

MEMORY

SELECT

SET

28 EN

MISCELLANEOUS PRINTING OPERATIONS (Cont.)

Printing Multiple Images on the Same Paper – MULTI Print –

You can print 2, 6 or up to 8 images on a single paper. This makes it easy to customize printing to suit the application. You can use sticker paper to print titles for season's greetings and so on.

Preparations

•Make the connections (墌pg. 14).

Selecting Menu Item

MEMORY

SELECT

SET

21, 4 3

PRESS THE MENU BUTTON

•This action displays the printer menu on the LCD panel.

PRESS THE SELECT BUTTON

•Press the SELECT button repeatedly until “print mode” appears.

PRESS THE SET BUTTON

•The item on the second line of the LCD panel starts to blink.

•Press the SET button until the desired number of images appears.

PRESS THE MENU BUTTON TWICE TO CONFIRM THE ENTRY

MEMORY

SELECT

rin m

ode

ardstand

SET

rint mode

2div

EN 29

Print Operations

SET THE VIDEO SOURCE TO PLAYBACK MODE

•For details, refer to the instruction manual supplied with the video source.

PRESS THE MEMORY BUTTON WHEN THE IMAGE YOU WISH TO PRINT APPEARS

•This action stores the image you wish to print.

•The image stored in memory is displayed in the selected number of multiple images.

•The message, “Please wait ...” is displayed on the LCD panel while the image is being stored.

•The memory icon

indicates the

following conditions.

on: image data has been stored in the printer off: no image data is stored in the printer

PRESS THE PRINT BUTTON

•The printer starts printing the stored image.

•The message, “Please wait ...” is displayed on the LCD panel. Then the printer icon

appears.

•The printer icon

indicates the

following conditions.

on: image data is being printed off: printing has been completed

NOTES:

•To print the same image again, press the PRINT button. One print is made each time the PRINT button is pressed.

•To print a different image, perform operations in steps

to 7.

•The multipix setting cannot be changed after printing.

•On a TV screen, multipix images are displayed horizontally across the screen.

MEMORY

SELECT

SET

MEMORY

SELECT

SET

30 EN

MISCELLANEOUS PRINTING OPERATIONS (Cont.)

Combining Image and Calendar – Calendar Printing –

You can turn your favorite picture into a calendar.

Preparations

•Make the connections (墌pg. 14).

Selecting Menu Item

PRESS THE MENU BUTTON

•This action displays the printer menu on the LCD panel.

PRESS THE SELECT BUTTON

•Press the SELECT button repeatedly until “print mode” appears.

PRESS THE SET BUTTON

•The item on the second line of the LCD panel starts to blink.

•Press the SET button until the “calendar” appears on the LCD panel.

•Do as follows to change calendar years and months.

· Press the SELECT button when “calendar” blinks.

· Press the SET button repeatedly until the desired year appears on the LCD panel. Years between 1998 and 2007 can be selected.

· Press the SELECT button.

· Press the SET button repeatedly until the desired month appears on the LCD panel.

· Press the MENU button to confirm the entry.

MEMORY

SELECT

SET

2,31,4 3

12 1998

SUN MON TUE WED THU FRI SAT

12345

6789101112 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

MEMORY

SELECT

prin modet standard

prin modet

calendar

SET

year 1998

mon t h Jan

year

Decmon t h

9981

EN 31

NOTES:

•T o print the same image again, press the PRINT button. One print is made each time the PRINT button is pressed.

•To print a different image, perform operations in steps

to 7.

•On a TV screen, the images are displayed horizontally across the screen.

PRESS THE MENU BUTTON TWICE TO CONFIRM THE ENTRY

•When entering the year and month in step 3, press the MENU button only once.

Print Operations

SET THE VIDEO SOURCE TO PLAYBACK MODE

•For details, refer to the supplied instruction manual.

PRESS THE MEMORY BUTTON WHEN THE IMAGE YOU WISH TO PRINT APPEARS

•This action stores the image you wish to print.

•The message, “Please wait ...” is displayed on the LCD panel while the image is being stored.

•The memory icon

indicates the

following conditions.

on: image data has been stored in the printer off: no image data is stored in the printer

PRESS THE PRINT BUTTON

•The printer starts printing the stored image.

•he message, “Please wait ...” is displayed on the LCD panel.

Then the printer icon

appears.

•The printer icon

indicates the

following conditions.

on: image data is being printed off: printing has been completed

MEMORY

SELECT

SET

MEMORY

SELECT

SET

32 EN

MISCELLANEOUS PRINTING OPERATIONS (Cont.)

Printing Using Special Effects – Special Effects –

You can print an image in “sepia” or “black and white”.

Preparations

•Make the connections (墌pg. 14).

Selecting Menu Item

PRESS THE MENU BUTTON

•This action displays the printer menu on the LCD panel.

PRESS THE SELECT BUTTON

•Press the SELECT button repeatedly until “effect” appears.

PRESS THE SET BUTTON

•The item on the second line of the LCD panel starts to blink.

•Press the SET button repeatedly until “sepia” or “B/W” appears.

PRESS THE MENU BUTTON TWICE TO CONFIRM THE ENTRY

Notes:

•When “sepia” is selected, the image is printed in sepia-tinted (reddish-brown) monochrome like an old faded photograph.

•When “B/W” is selected, the image is printed in black and white.

•The special effect appears only in the printed image, while the image on the monitor is displayed in color.

MEMORY

SELECT

SET

21, 4 3

MEMORY

SELECT

ffect

off

SET

effect

sep ai

EN 33

Print Operations

SET THE VIDEO SOURCE TO PLAYBACK MODE

•For details, refer to the instruction manual supplied with the video source.

PRESS THE MEMORY BUTTON WHEN THE IMAGE YOU WISH TO PRINT APPEARS

•This action stores the image you wish to print.

•The message, “Please wait ...” is displayed on the LCD panel while the image is being stored.

•The memory icon

indicates the

following conditions.

on: image data has been stored in the printer off: no image data is stored in the printer

PRESS THE PRINT BUTTON

•The printer starts printing the stored image.

•The message, “Please wait ...” is displayed on the LCD panel. Then the printer icon

appears.

•The printer icon

indicates the

following conditions.

on: image data is being printed off: printing has been completed

•The image is printed using the selected special effect.

NOTES:

•To print the same image again, press the PRINT button. One print is made each time the PRINT button is pressed.

•To print a different image, perform operations in steps

to 7.

•The settings cannot be changed when printing is completed. To change settings, store an image into a memory again.

MEMORY

SELECT

SET

MEMORY

SELECT

SET

34 EN

MISCELLANEOUS PRINTING OPERATIONS (Cont.)

Manual Feed

This function allows you to print one page at a time using manual feed.

Preparation

•Make the connections (墌pg. 14).

Selecting Menu Item

PRESS THE MENU BUTTON

•This action displays the printer menu on the LCD panel.

PRESS THE SELECT BUTTON

•Press the SELECT button repeatedly until “man. feed” appears.

PRESS THE SET BUTTON

•The item on the second line of the LCD panel starts to blink.

•Press the SET button until “on” appears.

PRESS THE MENU BUTTON TWICE TO CONFIRM THE ENTRY

MEMORY

SELECT

SET

1, 4 3

MEMORY

SELECT

an. feed

SET

efe.

EN 35

Print Operations

SET THE VIDEO SOURCE TO PLAYBACK MODE

•For details, refer to the instruction manual supplied with the video source.

PRESS THE MEMORY BUTTON WHEN THE IMAGE YOU WISH TO PRINT APPEARS

•This action stores the image you wish to print.

•The message, “Please wait ...” is displayed on the LCD panel while the image is being stored.

•The memory icon

indicates the

following conditions.

on: image data has been stored in the printer off: no image data is stored in the printer

INSERT PRINTING PAPER IN PAPER OUT/MANUAL FEED SLOT

•Slide in the printing paper with the printing surface up as far as it will go without curling it.

•Unless the printing paper is inserted straight, it will cause a paper jam.

PRESS THE PRINT BUTTON

•Gently press the edge of the printing paper into the printer.

•Release the paper when it is pulled into the printer.

•The printer starts printing the stored image.

•The message, “Please wait ...” is displayed on the LCD panel. Then the printer icon

appears.

•The printer icon

indicates the following

conditions.

on: image data is being printed off: printing has been completed

NOTES:

•You can add a frame, produce multipix prints or add special effects.

•To print the same image again, press the PRINT button. One print is made each time the PRINT button is pressed.

•To print a different image, perform operations in steps 5 to 8.

MEMORY

SELECT

SET

MEMORY

SELECT

SET

Paper

36 EN

Printing Reversed Images – Mirror Images –

You can, if you wish, reverse a printed image.

Preparations

•Make the connections (墌pg. 14).

Selecting Menu Item

PRESS THE MENU BUTTON

•This action displays the printer menu on the LCD panel.

PRESS THE SELECT BUTTON

•Press the SELECT button repeatedly until “mirror” appears.

PRESS THE SET BUTTON

•The item on the second line of the LCD panel starts to blink.

•Press the SET button until “on” appears.

NOTE:

Only the printed image will be reversed, a monitor connected to the printer will display the normal image.

PRESS THE MENU BUTTON TWICE TO CONFIRM THE ENTRY

Print Operations

•Observe the instructions on pages 22 to 35 to print the image.

MEMORY

SELECT

SET

21, 4 3

MEMORY

SELECT

mirror

off

SET

irror

MISCELLANEOUS PRINTING OPERATIONS (Cont.)

EN 37

MEMORY

SELECT

SET

21, 4 3

When “video” is set in the menu item “input”, you can adjust the brightness and tint before printing.

Adjusting Image Quality – Adjustments before Printing –

Preparations

•Make the connections (墌pg. 14).

•Select “video” in the “input” menu (墌pg. 22).

Selecting Menu Item

•The brightness of the image can be adjusted only before storing it.

•The tint of the image can be adjusted only after storing it.

PRESS THE MENU BUTTON

•This action displays the printer menu on the LCD panel.

PRESS THE SELECT BUTTON

•Press the SELECT button repeatedly until “adj. image” appears.

PRESS THE SET BUTTON

•The item on the second line of the LCD panel starts to blink.

•Adjusting image brightness

· Press the SELECT button until “bright.” appears.

· Press the SET button repeatedly to select the desired brightness. To increase brightness, select 0, +1, +2, +3, +4 or +5. The higher numbers indicate greater brightness. To decrease brightness, select 0, -1, -2,

-3, -4 or -5. The higher numbers indicate lower brightness.

•Adjusting image tint

· Press the SELECT button until “tint” appears.

· Press the SET button repeatedly to select the desired tint. To increase saturation, select 0, +1, +2, +3, +4 or +5. The higher numbers indicate greater saturation. To decrease saturation, select 0,

-1, -2, -3, -4 or -5. The higher numbers indicate lower saturation.

PRESS THE MENU BUTTON TWICE TO CONFIRM THE ENTRY

MEMORY

SELECT

adj . ageim

th.irbg 0

SET

adj mage.i

th.irbg 0

adj mage.i

th.irbg +1

adj mage.i

.nitt +1

ADJUSTMENTS

38 EN

ADJUSTMENTS (Cont.)

Saving Energy – Save Mode –

•The printer is equipped with a power saving feature to reduce battery power consumption.

•When the printer is turned on and not used for 5 minutes, the save mode automatically turns it off.

Preparations

•Make the connections (墌pg. 14).

Selecting Menu Item

PRESS THE MENU BUTTON

•This action displays the printer menu on the LCD panel.

PRESS THE SELECT BUTTON

•Press the SELECT button repeatedly until “save mode” appears.

PRESS THE SET BUTTON

•The item on the second line of the LCD panel starts to blink.

•Press the SET button until “5 min.” appears.

PRESS THE MENU BUTTON TWICE TO CONFRIM THE ENTRY

•When “5 min” is selected, the printer will automatically be turned off if it is left idle for 5 minutes.

•When “off” is selected, the printer will be on continuously.

Notes:

•When the printer is turned off, it will automatically be reset to the “5 min” setting.

•“save mode” cannot be selected when “PC” is selected in the “input” menu item (see page 13).

MEMORY

SELECT

SET

21, 4 3

MEMORY

SELECT

sav odeem

off

SET

sav odeem

5mi n .

EN 39

MEMORY

SELECT

SET

21, 4 3

MEMORY

SELECT

mem modeo.

notomi pic

SET

mem modeo.

notomi pic

mem modeo.

notomi pic

mem modeo.

lpitsl ic

Switching between Motion Picture and Still Picture – Memory Mode Selection –

•When “video” is set in the menu item “input”, you can select between motion picture or still picture.

•The motion picture setting has a feature for suppressing blur and thus lends itself to capturing images from camcorder or VCRs.

•The still picture setting turns off the blur suppressing function and is therefore best suited to storing still images from digital still cameras and so on.

Preparations

•Make the connections (墌pg. 14).

Selecting Menu Item

PRESS THE MENU BUTTON

•This action displays the printer menu on the LCD panel.

PRESS THE SELECT BUTTON

•Press the SELECT button repeatedly until “memo. mode” appears.

PRESS THE SET BUTTON

•The item on the second line of the LCD panel starts to blink.

•Press the SET button until “motion pic” appears.

NOTE:

The camera

icon is displayed in the still

picture mode.

PRESS THE MENU BUTTON TWICE TO CONFRIM THE ENTRY

40 EN

TROUBLESHOOTING

Meaning of Messages Displayed on the LCD panel

Message

Please wait...

Connect video in

No video signal

Memorise image

Charge battery

Insert ink cassette

Close cass. door

Change ink cassette

Insert paper

Close paper door

Paper jammed

Remove paper

Print is impossible

● Appears when: 䡲 Action:

●Image data is being stored or printing has started.

●The video source and the printer are not connected or the cable

has been disconnected.

䡲Connect the video cable according to the instructions on page

14.

●An attempt is made to store an image from a video source that has been turned off.

䡲Turn on the video source.

●An attempt is made to print before an image has been stored.

䡲Store image data before printing.

●The battery is depleted.

䡲Load a charged battery (BN-V607).

●An ink cassette has not been loaded or not been properly

loaded.

䡲Load ink cassette and close the lid.

●The ink cassette compartment lid is open.

䡲Close ink cassette compartment lid.

●The ink cassette is depleted.

䡲Load new ink cassette.

●No printing paper is loaded.

䡲Load printing paper properly and close the paper compartment

door.

●The paper compartment door is open.

䡲Load printing paper properly and close the paper compartment

door.

●A paper jam occurs during printing.

䡲Clear paper jam according to instructions on page 42.

●A paper jam occurs during printing.

䡲Clear paper jam according to instructions on page 42.

●Printing is attempted at low temperature (0°C or colder).

●Abnormal image data has been stored.

䡲Use the printer under specified conditions.

page

–

16–17

EN 41

JVC MINI VIDEO PRINTER GV-HT1, GV-HT1E Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
