DIGITAL PROGRESSIVE VIDEO CAMERA

GR-PD1

Please visit our Homepage on the World Wide Web for Digital Video Camera:

http://www.jvc-victor.co.jp/english/cyber/

For Accessories:

http://www.jvc-victor.co.jp/english/accessory/

ENGLISH

GETTING STARTED 10

VIDEO RECORDING & PLAYBACK

DIGITAL STILL CAMERA (D.S.C.) RECORDING & PLAYBACK

INSTRUCTIONS

ADVANCED FEATURES

REFERENCES

TERMS

LYT1193-001A

2 EN

Dear Customer,

Thank you for purchasing this digital video camera. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of this product.

Using This Instruction Manual

● All major sections are listed in the Table Of Contents on the cover page.

● Notes appear after most subsections. Be sure to read these as well.

● Basic and advanced features/operation are separated for easier reference.

It is recommended that you…

… refer to the Index (墌 pg. 82 – 85) and familiarise yourself with button locations, etc. before use. … read thoroughly the Safety Precautions and Safety Instructions that follow. They contain extremely

important information regarding the safe use of this product.

You are recommended to carefully read the cautions on pages 76 through 78 before use.

SAFETY PRECAUTIONS

IMPORTANT (for owners in the U.K.)

Connection to the mains supply in the United Kingdom. DO NOT cut off the mains plug from this equipment.

If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer.

BE SURE to replace the fuse only with an identical approved type, as originally fitted, and to replace the fuse cover.

If nonetheless the mains plug is cut off be sure to remove the fuse and dispose of the plug immediately, to avoid possible shock hazard by inadvertent connection to the mains supply. If this product is not supplied fitted with a mains plug then follow the instructions given below: DO NOT make any connection to the Larger Terminal coded E or Green. The wires in the mains lead are coloured in accordance with the following code:

Blue to N (Neutral) or Black Brown to L (Live) or Red

If these colours do not correspond with the terminal identifications of your plug, connect as follows: Blue wire to terminal coded N (Neutral) or coloured black. Brown wire to terminal coded L (Live) or coloured Red. If in doubt — consult a competent electrician.

WARNING: TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

CAUTIONS:

● To prevent shock, do not open the cabinet. No user serviceable parts inside. Refer servicing to qualified personnel.

● When you are not using the AC Power Adapter/ Charger for a long period of time, it is recommended that you disconnect the power cord from AC outlet.

NOTES:

● The rating plate (serial number plate) and safety caution are on the bottom and/or the back of the main unit.

● The rating plate (serial number plate) of the AC Power Adapter/Charger is on its bottom.

EN 3

CAUTIONS:

● This camcorder is designed to be used with PAL-type colour television signals. It cannot be used for playback with a television of a different standard. However, live recording and LCD monitor/viewfinder playback are possible anywhere.

● Use the JVC BN-V416U/V428U battery packs and, to recharge them or supply power to the camcorder from an AC outlet, use the provided multi-voltage AC Power Adapter/Charger. (An appropriate conversion adapter may be necessary to accommodate different designs of AC outlets in different countries.)

When the equipment is installed in a cabinet or on a shelf, make sure that it has sufficient space on all sides to allow for ventilation (10 cm or more on both sides, on top and at the rear).

Do not block the ventilation holes. (If the ventilation holes are blocked by a newspaper, or cloth etc. the heat may not be able to get out.)

No naked flame sources, such as lighted candles, should be placed on the apparatus.

When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly.

The apparatus shall not be exposed to dripping or splashing.

Do not use this equipment in a bathroom or places with water. Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases, potted plants, cups etc.) on top of this unit. (If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

SOME DO’S AND DON’TS ON THE SAFE USE OF EQUIPMENT

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured. DO read the operating instructions before you attempt to use the equipment. DO ensure that all electrical connections (including the mains plug, extension leads and interconnections

between pieces of equipment) are properly made and in accordance with the manufacturer’s instructions. Switch off and withdraw the mains plug when making or changing connections.

DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment. DO be careful with glass panels or doors on equipment. DON’T continue to operate the equipment if you are in any doubt about it working normally, or if it is

DON’T remove any fixed cover as this may expose dangerous voltages. DON’T leave equipment switched on when it is unattended unless it is specifically stated that it is designed

DON’T use equipment such as personal stereos or radios so that you are distracted from the requirements of

DON’T listen to headphones at high volume, as such use can permanently damage your hearing. DON’T obstruct the ventilation of the equipment, for example with curtains or soft furnishings. Overheating

DON’T use makeshift stands and NEVER fix legs with wood screws — to ensure complete safety always fit

DON’T allow electrical equipment to be exposed to rain or moisture. ABOVE ALL

— NEVER let anyone especially children push anything into holes, slots or any other opening in the case —

— NEVER guess or take chances with electrical equipment of any kind — it is better to be safe than sorry!

damaged in any way — switch off, withdraw the mains plug and consult your dealer.

for unattended operation or has a standby mode. Switch off using the switch on the equipment and make sure that your family knows how to do this. Special arrangements may need to be made for infirm or handicapped people.

road safety. It is illegal to watch television whilst driving.

will cause damage and shorten the life of the equipment.

the manufacturer’s approved stand or legs with the fixings provided according to the instructions.

this could result in a fatal electrical shock;

4 EN

SAFETY PRECAUTIONS

Do not point the lens or the viewfinder directly into the sun. This can cause eye injuries, as well as lead to the malfunctioning of internal circuitry. There is also a risk of fire or electric shock.

CAUTION!

The following notes concern possible physical damage to the camcorder and to the user.

When carrying, be sure to always securely attach and use the provided strap. Carrying or holding the camcorder by the viewfinder and/or the LCD monitor can result in dropping the unit, or in a malfunction.

Take care not to get your finger caught in the cassette holder cover. Do not let children operate the camcorder, as they are particularly susceptible to this type of injury.

Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the camcorder.

CAUTION!

Connecting cables (S/AV/Editing, USB, etc.) to the camcorder and leaving it on top of the TV is not recommended, as tripping on the cables will cause the camcorder to fall, resulting in damage.

䡲 This camcorder is designed exclusively for the digital video cassette, SD Memory Card and

MultiMediaCard. Only cassettes marked “ ” and memory cards marked “ ” or “ ” can be used with this unit.

Before recording an important scene…

… make sure you only use cassettes with the Mini DV mark . … make sure you only use memory cards with the mark or . … remember that this camcorder is not compatible with other digital video formats. … remember that this camcorder is intended for private consumer use only. Any commercial use without

proper permission is prohibited. (Even if you record an event such as a show, performance or exhibition for personal enjoyment, it is strongly recommended that you obtain permission beforehand.)

Provided Accessories

EN 5

AC Power Adapter/

Charger

AA-V40EG

AA-V40EK

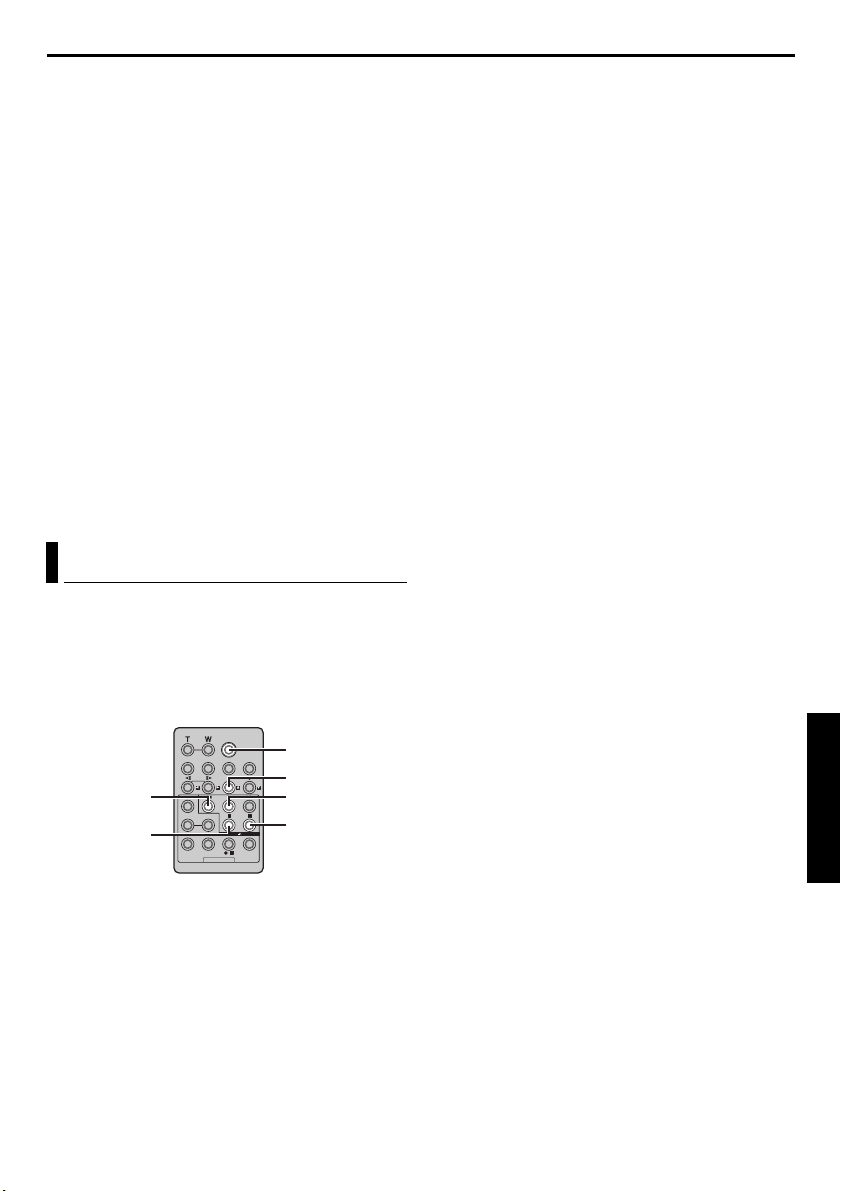

Remote Control Unit

RM-V717U

Lens Hood

(Already attached to the

camcorder; 墌 pg. 7)

S/AV/Editing Cable Editing Extension Cable Component Video Cable Audio Extension Cable

DC Cord Battery Pack

AAA (R03) Battery x 2

(for remote control unit)

Lens Cap

(墌 pg. 7 for attachment)

(墌 pg. 6 for attachment)

BN-V428U

CD-ROM USB Cable

Shoulder Strap

Memory Card 8 MB

(Already inserted in the

camcorder)

Handle

(墌 pg. 8 for attachment)

Audio Cable x 2

(for connection of

optional headphones

and external microphone

墌 pg. 8)

NOTES:

● In order to maintain optimum performance of the camcorder, provided cables may be equipped with one or more core filter. If a cable has only one core filter, the end that is closest to the filter should be connected to the camcorder.

● Make sure to use the provided cables for connections. Do not use any other cables.

Cleaning Cassette Core Filter

(墌 pg. 6 for attachment)

•Large x 1

•Medium x 2

•Small x 3

Cable Adapter

6 EN

How To Attach The Core Filter

Attach the core filters to the cables. The core filter reduces interference.

Types of core filters

Size Cable

Large i.LINK cable* Twice

Medium USB cable** Once

Small

* Optional

(If you have an optional JVC i.LINK cable VC-VDV206U or VC-VDV204U with core filters, it is not necessary to attach the provided core filter. If you are going to use any other i.LINK cable, attach the provided core filter.)

** Attach two core filters to both ends of the cable.

The procedure below is an example of winding cable once.

DC cord Audio cable

Tim es to

wind

Once

1 Release the stoppers on both ends of the core

filter.

Stopper

2 Run the cable through the core filter, leaving

approx. 3 cm of cable between the cable plug and the core filter. Wind the cable once around the outside of the core filter as shown in the illustration.

● Wind the cable so that it is not slack.

3 cm

How To Attach The Strap

1 Following the illustration, thread the strap

through the eyelet a.

2 Fold it back and thread it through the buckle b. 3 Repeat the procedure to attach the other end of

the strap to the other eyelet c.

4 Confirm the strap is not twisted.

Wind once.

3 Close the core filter until it clicks shut.

NOTES:

● Take care not to damage the cable.

● When connecting a cable, attach the end with the

core filter to the camcorder.

EN 7

How To Detach/Attach The Lens Hood

The provided lens hood helps block out glare when shooting under bright sunlight, the same way professional photographers do.

Screw

Lens hood

To det ach

1 Loosen the screw on the lens hood. 2 Turn the lens hood counterclockwise.

To att a ch

1 While slanting the lens hood, align the lens hood

with the camcorder’s lens, and then turn it clockwise.

2 Tighten the screw on the lens hood.

NOTE:

Normally, use the camcorder with the lens hood attached. Remove the lens hood only when you use the optional wide or telephoto conversion lens.

How To Attach The Lens Cap

To protect the lens, attach the provided lens cap to the lens hood when camcorder is not in use.

NOTE:

You cannot attach the lens cap directly to the camcorder.

Place here during shooting

8 EN

How To Use The Audio Cable

When using optional headphones or external microphone, connect to the provided audio cable (with a core filter attached), then connect the audio cable to the camcorder. The core filter reduces interference.

Microphone

Headphones

Audio cable (provided)

Core filter

To (headphones)

To MI C

How To Attach The Handle

Mount the Handle on the Shoe and tighten the screw. You can attach the optional Video Light or Stereo Microphone to the Shoe on the Handle or on the camcorder’s Shoe. When using the Microphone or Video Light, refer also to its instruction manual.

Screw

Open the connector cover.
