INSTRUCTIONS

WIDE LCD PANEL TV

LT-47DV8BJ LT-42DV8BJ

Trade Mark of the DVB Digital Video Broadcasting

Project (1991 to 1996) Number : 4818, 4819

LCT2300-001A-U

Handling the glossy finish of the TV

Be careful when handling the glossy finish of the TV

The glossy finish of the TV scratches easily.

z Protection films have been pasted onto the glossy finish of the TV to prevent scratches.

Peel off the films after the TV has been placed properly.

z If the glossy finish gets dirty, clear the dust off the glossy finish first. Then wipe softly with

the cleaning cloth provided. If you do not clear the dust first, or you wipe the glossy finish

too hard, or a cleaning cloth other than the one provided is used, the glossy finish may

be scratched.

Glossy finish

Dear Customer, This apparatus is in conformance with the valid European directives and standards regarding electromagnetic

compatibility and electrical safety. European representative of Victor Company of Japan, Limited is:

JVC Technology Centre Europe GmbH Postfach 10 05 52 61145 Friedberg Germany

Information for Users on Disposal of Old Equipment

[European Union]

This symbol indicates that the electrical and electronic equipment should not be disposed as general household waste at its end-of-life. Instead, the product should be handed over to the applicable collection point for the recycling of electrical and electronic equipment for proper treatment, recovery and recycling in accordance with your national legislation.

By disposing of this product correctly, you will help to conserve natural resources and will help prevent potential negative effects on the environment and human health which could otherwise be caused by inappropriate waste handling of this product. For more information about collection point and recycling of this product, please contact your local municipal office, your household waste disposal service or the shop where you purchased the product.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

(Business users)

If you wish to dispose of this product, please visit our web page www.jvc-europe.com

Attention:

This symbol is only valid in the European Union.

obtain information about the take-back of the product.

[Other Countries outside the European Union]

If you wish to dispose of this product, please do so in accordance with applicable national legislation or other rules in your country for the treatment of old electrical and electronic equipment.

As a small surprise on special

Message Board ABC

To my lovely wi fe Happy B i r t hda y !

Wi th a l l my l ove t oday and

always :-)

Off

Edit

Message Board ABC

To my love l y w if e Happy Bi r thda y!

Wi th al l my love t oday and

always:-)

Edit

Off

occasions!

Message board

Digital terrestrial broadcasting (DVB-T)

g Digital channels

Analogue terrestrial broadcasting (VHF / UHF) and analogue cable TV

g Analogue channels

PAG E

First things first!

Warning.........................................................3

Getting started

Names of all the parts ................................... 5

Basic connections ......................................... 7

Connecting external devices.........................9

Initial settings .............................................. 11

Editing analogue channels..........................15

Let’s try it out

Enjoy your new TV!.....................................17

Watching analogue channels......................19

Viewing teletext........................................... 21

Watching videos / DVDs ............................. 23

Message board ...........................................25

Try the advanced features

Useful functions ..........................................27

Operate JVC recorders and other devices.... 29

PREPARE USE SETTING TROUBLE?IMPORTANT

WATCHING DIGITAL CHANNELS (Separate manual)

Watching digital channels.......................... 1

Using EPG................................................. 5

Customising your TV ................................. 7

Troubleshooting....................................... 19

Technical Information............................... 21

Just the way you like it

Customising your TV...................................31

When you have trouble

Troubleshooting .......................................... 39

Technical Information .................................. 42

“CH/CC” List................................................45

Specifications.............................................. 46

Warning

Please follow all the guidelines below

Follow this manual regarding setup!

z Connect only to a 220 - 240 V, 50 Hz AC

outlet.

Make enough room for inserting and removing the power plug!

Place the TV as close to the outlet as possible!

z Even if the TV’s power lamp is unlit, the

main power supply is not cut off unless the power cord is unplugged. The main power supply for this TV is controlled by inserting or removing the power plug.

Never cut or damage the power cord!

z If the power plug is not the

right shape, or the power cord is not long enough, use an appropriate plug adapter or extension cable. (Consult your retailer.)

z If you have cut or damaged

the power cord.

g“Technical Information” (P. 42)

z To change the fuse in power plugs

g“Technical Information” (P. 42)

Do not allow the TV to fall!

z Do not rest your elbows on, or allow children to

hang from the TV. There is a risk that the TV will fall and cause injuries.

Never try to repair the TV yourself!

gIf the problem cannot be solved

in “Troubleshooting” (P. 39), unplug the power cord and contact your retailer.

Unplug the power cord when going out!

z The power buttons on

the remote control and the TV unit cannot completely turn off the TV. (Make appropriate arrangements for bedridden people.)

 For more details on installation, usage and safety g Consult your retailer

When attaching the TV to the wall, use the optional JVC wall mounting unit!

z Consult a qualified technician. z See the included manual on mounting

procedures.

z JVC assumes no responsibility for damage due

to improper mounting.

On disposal of the TV!

z Follow the instruction in

“Information for Users on Disposal of Old Equipment” (P. ii).

If the TV is damaged or behaving strangely, stop using it at once!

gUnplug the power cord and

contact your retailer.

Never place anything on the TV!

z Placing liquids, naked flames,

cloths, paper, etc. on the TV may cause a fire.

Never expose to rain or moisture!

z To prevent fire or electric

shock, never allow liquids to enter the unit.

Never insert objects into the cabinet openings!

z It may cause a fatal electric

shock. Take care when children are near.

Never obstruct the ventilation holes!

z It may cause overheating or a fire.

IMPORTANT PREPARE USE SETTING TROUBLE?

Take care when handling the glossy finish!

z For more details, see P. i.

Handle LCD panel with care!

z Use a soft, dry cloth when cleaning.

Never dismantle the rear panel!

z It may cause an electric shock.

Never listen to headphones at high volume!

z It may damage your hearing.

Hold the TV so as not to scratch the screen!

z Do not touch the screen when carrying the TV.

Do not carry the TV on your own!

z In order to prevent accidents,

ensure that the TV is carried by two or more people.

Names of all the parts

Switch between TV

TV/AV

/OK

(digital / analogue channels) and AV devices (P. 24) Display on-screen menu / set

Change channel / page

Vol ume

Power lamp

ON: Lit (Green)

Illumination lamp

z Illumination lamp

lights while the TV is on.

g“Illumination”

(P. 36)

OFF: Unlit

z The power lamp will light in

green or orange during recording. g

WATCHING DIGITAL CHANNELS

“Timer” (P. 10)

z When “Power Lamp” is set to “Off”, the

Power lamp will not light up.

Eco Sensor

g“Power Lamp” (P. 36)

g“What is “Eco Mode”?” (P. 43)

Change the direction of TV

Tidying the cables

Remote control sensor

Power On / Off

To headphones (P. 9)

Note

z Peel off the protection films pasted on the

glossy finish of the TV after the TV has been placed properly. (P. i)

Check accessories

INSTRUCTIONS

WIDELCDPANELTV

LT-42DP8BJ LT-37DP8BJ LT-32DP8BJ

TradeMarkoftheDVBDigitalVideo Broadcasting Project(1991to1996)Number:4820, 4821, 4822

WATCHING DIGITAL CHANNELS

Before reading this manual

Read the separate user manual (INSTRUCTIONS), “IMPORTANT” section (P. 3 - 4), and understand how to use the TV safely. After that follow the instructions in the “PREPARE” section (P. 5 - 16) to connect the aerial and other external devices to the TV, and configure the settings for the TV.

This manual only provides information on watching digital channels. Other information is explained in the “INSTRUCTIONS”. Please read both this manual and the “INSTRUCTIONS” manual.

User manual “INSTRUCTIONS” (this book)

LCT2288-001A-U

Digital terrestrial broadcasting (DVB-T)

Separate manual

g Digital channels

Analogue terrestrial broadcasting (VHF / UHF) and analogue cable TV

g Analogue channels

Contents

Watching digital channels.................................1

Display the programme information..............3

View subtitles................................................3

USE SETTING TROUBLE?

Select audio language..................................4

View teletext information...............................4

“WATCHING DIGITAL

Using EPG........................................................5

Customising your TV........................................7

Timer ................ .............................................9

Edit PR (Edit PR List).................................11

Configuration .................. ............................13

Setup ..................... .....................................15

Installation .................... ..............................17

Troubleshooting..............................................19

Technical Information......................................21

CHANNELS”

LCT2289-001A-U

Remote control (RM-C1911)

“AAA/R03” Batteries (For confirming the TV works)

Cleaning cloth (For details on using the

cleaning cloth, see P. i.)

Mute

Power On / Off

Channel information

(P. 19)

Colour buttons

Switch between “TV / VCR /

DVR / DVD / HC” (P. 29)

Switch digital / analogue

channels

Volum e

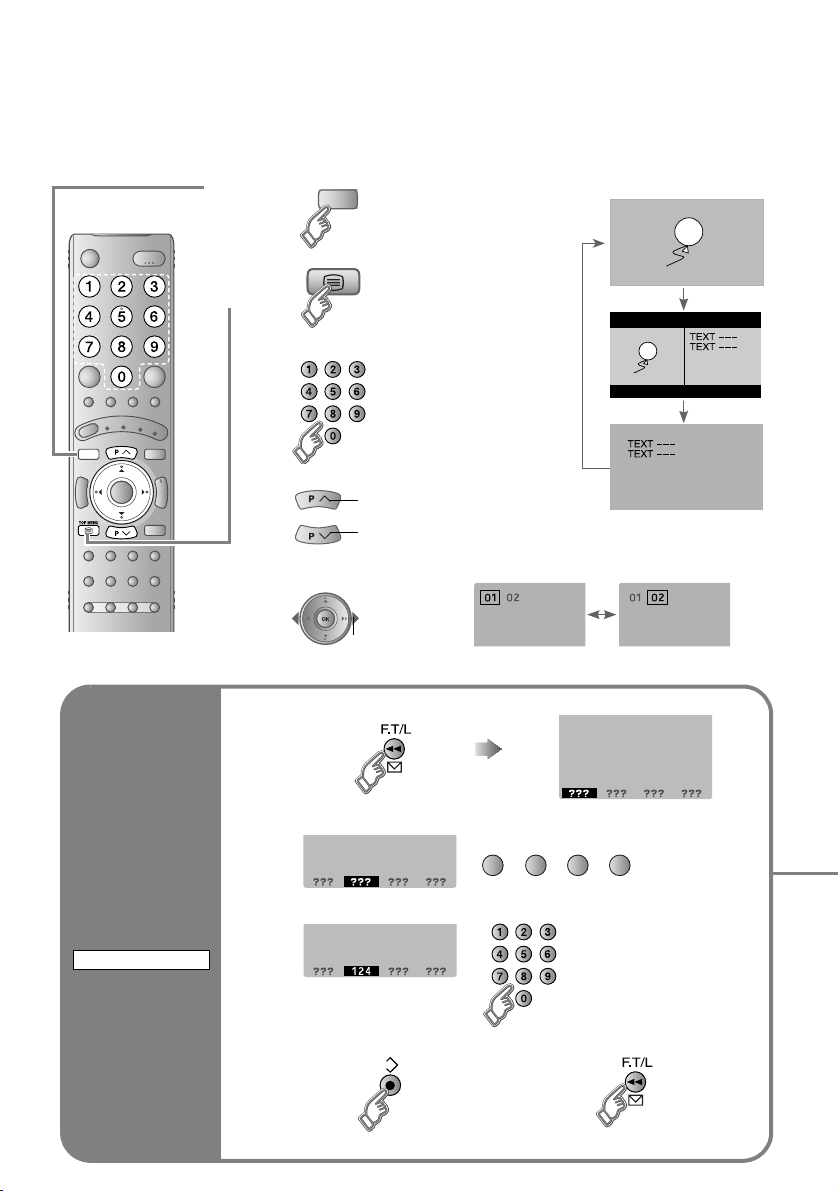

View teletext (P. 21)

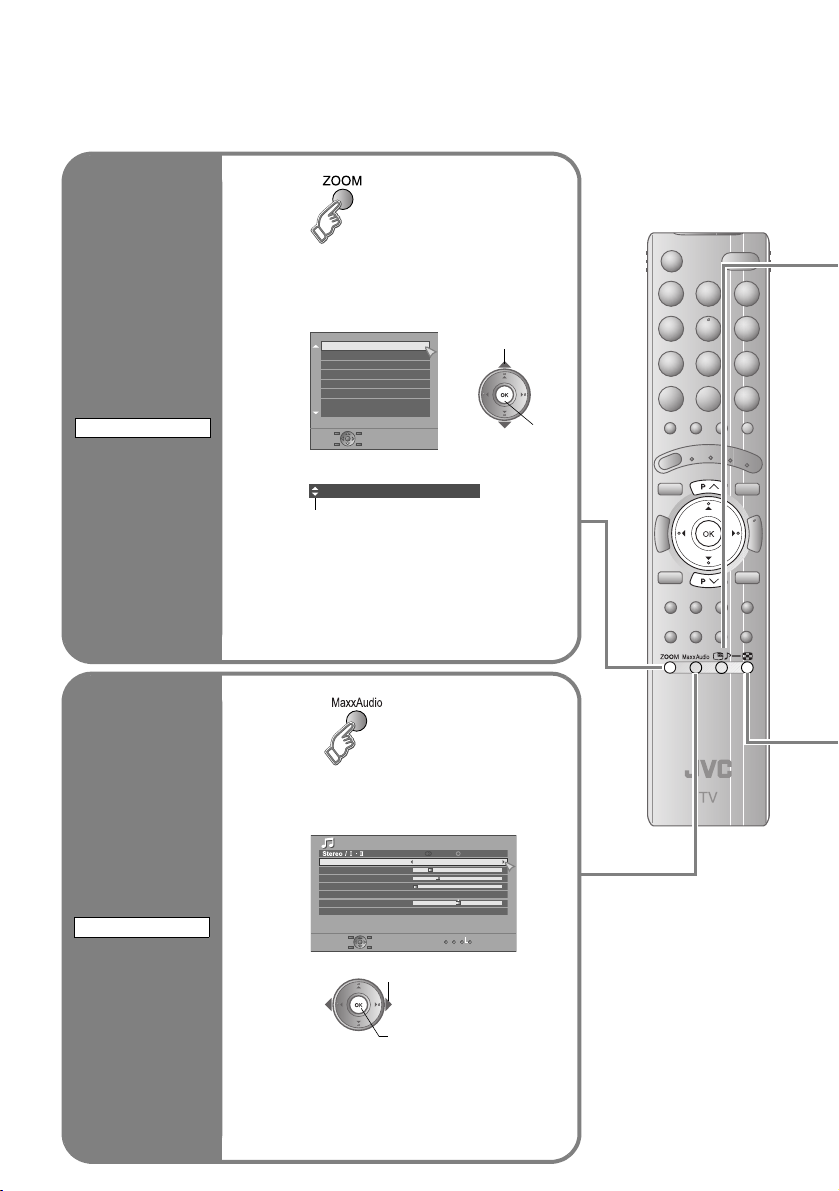

 When watching TV / Video

Change the aspect ratio (P. 27)

Change the “MaxxAudio” setting (P. 27)

Take a snapshot of the

screen (P. 28)

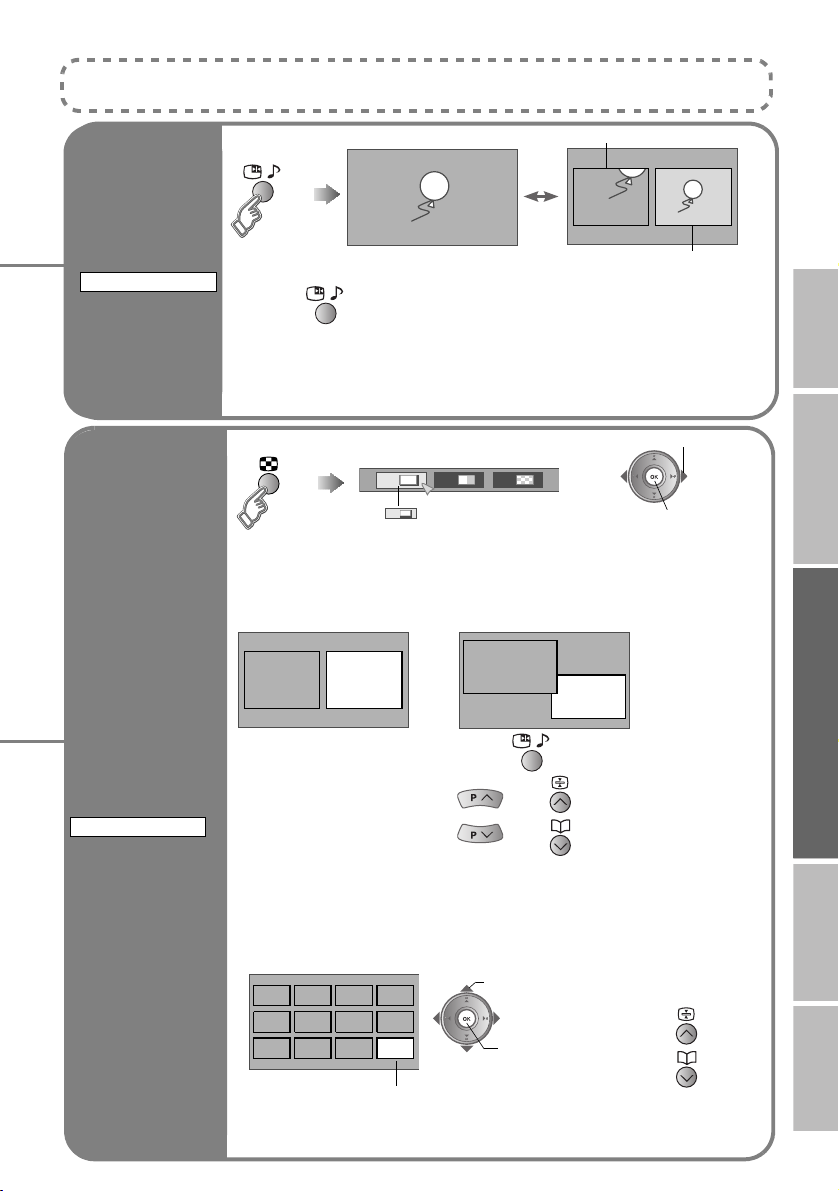

View in multi-picture mode (P. 28)

 Insert the batteries

Use two “AAA/R03” dry cell batteries. Insert the batteries from the - end, making sure the + and

- polarities are correct.

TV/DTV

Change channel / page To input characters (P. 25)

Watch video, etc. (P. 23)

Display on-screen menu (P. 31)

Select and confirm settings in menus

Change channel / page

To the previous menu

 When viewing analogue channels

Choose a favourite channel (P. 19)

 When viewing teletext (P. 21)

(Analogue channels)

 Message Board (P. 25)

Display the message board

 Operate JVC recorders and other

devices (P. 29)

IMPORTANT PREPARE USE SETTING TROUBLE?

WARNING:

Batteries shall not be exposed to excessive heat such as direct sunshine, fire or the like.

For more information, please read the separate manual (WATCHING DIGITAL CHANNELS).

“Watching digital channels” (P. 1)

Basic connections

Please read the user manuals of each device carefully before setup. It is necessary to connect an aerial to watch TV.

 Connect with other devices g “Connecting external devices” (P. 9)

Connect the aerial

AERIAL

z After all the connections have been made, insert the plug into an AC outlet.

 Power requirements

z Connect the power cord only to a 220 - 240 V, 50 Hz

AC outlet.

 When attaching the TV to the wall, use the

optional JVC wall mounting unit

z Consult a qualified technician. z See the included manual on mounting procedures. z JVC assumes no responsibility for damage due to

improper mounting.

z Four mounting holes (400 mm x 200 mm) for the

wall mounting unit.

Care when setting

 Installation requirements

z To avoid overheating, ensure the unit has ample

room.

150 mm 50 mm

200 mm

150 mm 50 mm

Connect a VCR / DVD recorder

EXT-2

EXT-1

VCR / DVD recorder

z After all the connections have been made, insert the plug into an AC outlet. z Connect “T-V LINK” compatible recording device to EXT-2. z “T-V LINK” g “What is “T-V LINK”?” (P. 11)

Watch pay-TV digital channels

IMPORTANT PREPARE USE SETTING TROUBLE?

AERIAL

Subscribe to a broadcasting company beforehand. A Viewing Card (B) will be sent by the broadcasting company after subscribing to it. It may be necessary for you to purchase a CAM (Conditional Access Module) (A) in addition to the Viewing Card. Consult your broadcasting company or retailer.

A Unplug the power cord B Insert “B” into “A”. C Insert “A”. D Plug the power cord, and turn the power on. E Perform necessary settings using “Common Interface”.

WATCHING DIGITAL CHANNELS

“Common Interface” ( P. 16 )

z Pay-TV analogue channels cannot be watched.

Connecting external

You can connect many different devices to the rear panel of the TV. Please read the user manuals of each device before setting up. (Connecting cables are not supplied with this TV.)

z Check for PC compatibility

g“PC signals that can be displayed” (P. 42)

z Use cable with ferrite cores and no longer than

of 3 m to avoid electromagnetic disturbance.

To “EXT-3”

R / L (PC IN)

Game consoles

Video camera

VCR / DVD recorder (“T-V LINK” compatible)

Satellite broadcast / Digital broadcast tuner

DVD player

Headphone

PC IN

(R)

(L)

EXT-3

EXT-2

(T-V LINK)

EXT-1

(Y)

(Pr)

(Pb)

(R)

(L)

(R)

(L)

AUDIO OUT

EXT-4

Amplifier

(L) (R)

z Audio signals received from

EXT-5, EXT-6 and EXT-7 cannot be sent to the AUDIO OUT terminal.

Headphones

devices

VCR / DVD / other devices

 DVI devices g “Connect DVI devices” (P. 42)

 “T-V LINK” g “What is “T-V LINK”?” (P. 11)

: Signal direction

AERIAL

EXT-7

(HDMI)

CI (Common Interface) slot “Watch pay-TV digital channels” (P. 8)

HD camcorder

(HDMI compatible)

Satellite broadcast /

Digital broadcast tuner

(HDMI compatible)

Amplifier

(Digital optical

compatible)

Not available. (For service

adjustments)

DIGITAL

AUDIO OUT

EXT-6

(HDMI)

DVD player

(HDMI compatible)

EXT-5

(HDMI)

EXT-1

• Composite signal

• Sound L / R

z Use S-VIDEO g “S-In” (P. 24)

EXT-2

• Composite signal

• Sound L / R

z Use S-VIDEO g “S-In” (P. 24) z Select dubbing sources

g “Dubbing” (P. 24)

z Connect a decoder

g “Decoder(EXT-2)” (P. 38)

EXT-3

z Use S-VIDEO g “S-In” (P. 24)

EXT-4

z “Component Auto Select” g (P. 38)

EXT-5 EXT-6 EXT-7

z “HDMI Setting” g (P. 38) z EXT-6 and EXT-7 inputs do not support

analogue sound.

z Use HDMI CEC

g “What is “HDMI CEC”?” (P. 43)

Watching videos

Output j Input h

• Composite signal

/ RGB / S-VIDEO

• Sound L / R

Dubbing videos using “T-V LINK”

• Composite signal

/ RGB / S-VIDEO

• Sound L / R

Watching videos

• Composite signal

/ S-VIDEO

• Sound L / R

Watching DVDs

• Component signal

(P. 46)

• Sound L / R

Connecting HDMI device

• HDMI signal

(P. 46)

AUDIO OUT

Listening to the TV on external speakers

Output j

• Sound L / R

DIGITAL AUDIO OUT

Listening to the digital audio of digital channels on external speakers

Output j

• Digital sound

(P. 46)

z The sound from analogue channels and

external devices cannot be output.

WATCHING DIGITAL CHANNELS

““Dolby Digital” output from the DIGITAL AUDIO OUT terminal” (P. 22)

IMPORTANT PREPARE USE SETTING TROUBLE?

Initial settings

Register digital / analogue channels on TV. These channels can be edited later. (In this manual, digital terrestrial broadcasting is indicated as digital channels, analogue terrestrial broadcasting and analogue cable TV as analogue channels.)

 To the previous screen g

 Exit g

 If the “JVC” logo does not appear or if you

TV/DTV

wish to make changes later

z Digital channel settings:

WATCHING DIGITAL CHANNELS

“Factory Settings” (P. 18) “Service Scan” (P. 17) “Menu Language” (P. 13)

z Analogue channel settings:

g “Auto Program” (P. 37)

“Language” (P. 37)

What is “T-V LINK”?

Connecting the TV to a “T-V LINK” compatible device allows:

z Channels on the TV to be instantly

registered on the device.

z The “Direct Rec” function to be used.

g“Technical Information” (P. 42)

 “T-V LINK” variations

“T-V LINK” (JVC), “Q-LINK” (Panasonic), “Megalogic” (Grundig), “Data Logic” (Metz), “SMARTLINK” (Sony), “Easy Link” (Philips)

TV/DTV

BACK

Begin

 The remote control doesn’t

work

IMPORTANT PREPARE USE SETTING TROUBLE?

z Shown only when powering on for the first time.

Set digital channels

Confirm “English” is set

First Time Installation > Language Setting

Step 1: Please choose language

Language English

Navigate

Select

Confirm “United Kingdom” is set

First Time Installation > Country Setting

Step 2: Please choose country

Country United Kingdom

Navigate

Select

Set the aerial power supply

Mode

Antenna Power

Start Scan

Scan digital channels

First Time Installation > Service Scan

Step 3: Please press OK

Service

Scan

Start Channel

Stop Channel

Mode

Start Scan

Select

Navigate

Scan completed! Store services?

Yes No

z Confirm the mode is set to

“TV”.

z Language for on-screen displays when

watching digital channel including the DTV menus.

z This TV can only receive British digital

channels.

z Only when using an aerial which

requires external power, select “On”.

Off

WATCHING DIGITAL CHANNELS

“Power supply for the

Automatic

indoor aerial”

_ _

Add

(P. 21)

First Time Installation > Service Scan

Step 3: Please press OK

Service

BBC ONE BBC TWO BBC THREE

UHF33 : 3 Services found

Select

Navigate

Scan

Start Channel

Stop Channel

Mode

Start Scan

Automatic

_ _

Add

 If digital channels are not found, the following message will appear.

No services found!

z After completing following steps, read “When the TV cannot find the digital

channels” (P. 14) and try scanning digital channels again

(Next page)

Initial settings

Confirm the language

Language

English

Français Deutsch Italiano Castellano Nederlands Dansk Norsk Svenska Suomi

Polski

Magyar

Português

Català Türkçe

 When not using analogue channels g g

z Language for Message Board and

menus (excluding the DTV menus)

TV/DTV

 When using analogue channels (or cable TV) g g D

 When change a language

Set analogue channels

Country

United Kingdom

Deutschland France Italia

Nederland Belgium

Auto Program

(blue)

Check what was registered

Edit

PR ID

______

BBC1

01 21CH

BBC2

02 22CH 03 23CH

ITV CH4

04 05

CH5 ______

06 07 08 09

Move

Set T-V LINK

T-V LINK

Ireland Switzerland Danmark Sverige

Norge Suomi

Start

24CH 25CH

26CH 27CH 28CH

Manual

DeleteInsert

Recording DeviceDownload T V

 To change the country

z If “ACI Start” appears, select and start

Auto Program

 To edit channels

g“Editing analogue

channels” (P. 15)

 When using “T-V LINK”

select

settings. (This will set up cable television channels.)

g“What is “ACI” (Automatic Channel

Installation)?” (P. 42)

select

 If not editing

channels

 When not using

“T-V LINK”

TV/DTV

z If “Feature Not Available”

appears g (P. 41)

Initial setting is complete

 Edit digital channels using “Edit PR”

WATCHING DIGITAL CHANNELS P. 1 1 - 1 2

 If digital channel reception is poor g “When the digital channel reception is poor” (P. 14)  If analogue channel reception is poor g “Troubleshooting” (P. 39)  Some digital channels cannot be watched on this TV.

WATCHING DIGITAL CHANNELS P. 2 1

When the TV cannot find the digital channels

Check the following points

z Is the TV connected correctly to the aerial? z Change the direction of the indoor aerial. z Is there a digital channels transmission tower nearby?

g Turn “Attenuator” to “On” (P. 38), since the radio waves are too strong.

Note

z “Attenuator” attenuates the radio waves of analogue broadcast as well as those of digital broadcast. If

some noise or snow appears when watching an analogue channel, please set “Attenuator” to “Off” temporarily.

IMPORTANT PREPARE USE SETTING TROUBLE?

z Re-configure the initial settings

using “Factory Settings”

 If you still cannot watch digital channels after following the steps above, there may be a problem

with your aerial or its cable. Or, the signal may be too weak. g Consult your retailer

WATCHING DIGITAL CHANNELS

P. 1 8

When the digital channel reception is poor

The “Missing or weak signal” message appears.

Check the following points

z Is the TV connected correctly to the aerial? z Change the direction of the indoor aerial. z Is there a digital channels transmission tower nearby?

gTurn “Attenuator” to “On” (P. 38), since the radio waves are too strong.

Note

z “Attenuator” attenuates the radio waves of analogue broadcast as well as those of digital broadcast. If

some noise or snow appears when watching an analogue channel, please set “Attenuator” to “Off” temporarily.

 You can check the broadcast signal level of the channel you are watching using “Signal Check”.

WATCHING DIGITAL CHANNELS

P. 1 8

 If you still cannot watch digital channels after following the steps above, there may be a problem

with your aerial or its cable. Or, the signal may be too weak. g Consult your retailer

Editing analogue channels

Edit the channels registered with “Auto Program” in “Initial settings” (P. 13).

Switch to analogue channels

TV/DTV

 To edit digital channels

WATCHING DIGITAL CHANNELS

P. 11 - 12

Display the “Edit” menu

Display the menu bar Select “Set Up” Select “Edit/Manual”

A select

B next

A select

B next

Edit channels

Edit

PR ID

______

01 21CH

BBC1

BBC2

02 22CH

ITV

03 23CH

CH4

CH5

______

06 07 08 09

Select channel Select edit function

select a channel

Move

 To the previous menu

24CH 25CH

26CH 27CH 28CH

Manual

DeleteInsert

Insert

 Exit

Delete

Manual

Move

Finish

7  9 /,1.

 When using

“T-V LINK”

5HFRUGLQJ'HYLFH'RZQORDG79

 When not using

“T-V LINK”

TV/DTV

z If “Feature Not Available”

appears g (P. 41)

z “T-V LINK” g “What is

“T-V LINK”?” (P. 11)

Move

Move a channel's position (PR)

select

Edit a channel name (ID)

 Naming a channel

A select character

B move position

C set

Insert

Insert a new channel directly by entering the CH/CC number

Enter a number

z “CH/CC” List g (P. 45)

Delete

Manual

PR ID AV

02 22CH 03 23CH 04 05 06 07 08 09

A Search a channel

Delete a channel

z Pressing the button deletes the channel.

______

BBC1

BBC2 ITV CH4 CH5 ______

set

 When selecting a preset name from the “ID List”

enter the first character

Receives the broadcast signal.

21CH

24CH 25CH

26CH 27CH 28CH

Fine tune

Fine-Search+

Fine+Search-

B Set

A select

(blue)

B set

 In United Kingdom, you cannot enter

“CC” numbers. In Ireland, you can select “CH” or “CC” before entering a number.

Select a “CH/CC”

z Press the red or green button. Auto-search

begins, and the nearest frequency is imported.

g Repeat the previous steps until the

desired channel is displayed.

IMPORTANT PREPARE USE SETTING TROUBLE?

Enjoy your new TV!

Watching analogue channels

PAG E

PR List

______

01 BBC1

02 03 04 05 06 07 08 09

BBC2 ITV CH4 CH5 ______

+10-10

PAG E

Viewing teletext

(Analogue channels)

Message

PAG E

board

Useful functions

 Change the aspect ratio  Enjoy the good sound  Take snapshots of the screen  Watch in multi-picture mode

Message Board ABC

To my l ovel y w i f e Happy B i rt hday ! Wi th a l l my l ove t oday and always :-)

Edit

Off

Watching videos / DVDs

PAG E

Customising your TV

IMPORTANT PREPARE USE SETTING TROUBLE?

PAG E

 Picture settings

(Picture Mode, Features, etc.)

 Sound settings

(Stereo/ t·u, MaxxAudio, etc.)

 Features settings

(Sleep Timer / Child Lock, etc.)

 Set Up settings

(Auto Program, Language, etc.)


Watching digital channels

WATCHING DIGITAL CHANNELS

P. 1 - 4

Customising your TV

(Digital channels)

WATCHING DIGITAL CHANNELS

P. 7 - 18

Watching analogue channels

Set to “TV”

 Mute

TV/DTV

Power on

The green power lamp on the TV lights

z Press again to turn the screen off and

put the TV into standby mode.

Switch to analogue channels

TV/DTV

Channel information and clock

Using PR list

 Switch between mono / stereo / bilingual

broadcasting

g “Stereo/ t·u” (P. 34)

Note

 Volume

Watching digital channels

WATCHING DIGITAL CHANNELS

P. 1 - 4

z To completely turn off the TV, unplug the power plug. z Using the TV buttons

Select a channel

 To the previous channel

g “Names of all the parts” (P. 5)

Using the number buttons, up / down buttons

FAVOURITE

CHANNEL

Note

z To soften the picture for daily use, change the setting in “Picture Mode”

g“Picture Mode” (P. 32)

Channel information

z Pressing the button once displays the

“PR List”.

PR List

______

01 BBC1

BBC2

ITV

CH4

CH5

______

06 07 08 09

+10-10

z Select a page g

BBC1

A select

B view

select

Time

12 : 00

z Time is displayed only when teletext

broadcasting can be received.

 Close PR List

 Press a channel number  Move up or down a channel

E.g.

1 :

15 :

down

While the channel is displayed Press the number to register it on

Programmed!

Hold down for 3 seconds

Set 1 - 4 ?

Disappears after a few seconds

(No indication)

IMPORTANT PREPARE USE SETTING TROUBLE?

Note

The following “Picture” and “Sound” menu settings applied to the channel will be stored in the favourite channel as well.

z Picture Mode / Super DigiPure / Colour System (P. 32 - 33) z MaxxVolume / Voice Enhancer (P. 34)

 Recall the favourite channel

Press the number you registered

Favourite 1 - 4 ?

 Check your favourite channels

g Press “ ” and confirm that the channels you have registered have a beside them

 Delete a favourite channel g “Favourite Setting” (P. 36)

Viewing

teletext

Viewing teletext

This TV can display TV broadcasts and teletext on the same analogue channel in two windows.

Switch to analogue channel

TV/DTV

(Analogue channels)

When watching analogue

channel

TV/DTV

 Enter a teletext page

 Move up or down a page

down

 View sub-pages

to sub-page

Display your favourites list

Select a coloured button to save your page to

(red) (green) (yellow) (blue)

LIST MODE

TEXT

.....

Bookmark your favourite page

LIST MODE

Enter the number of the page to save

Save

 Recall your favourite page g Press the coloured button as in step 2

 Exit g

For teletext information

on digital channels

Hold the current page

HOLD

 Release g Press “ ” again

Reveal hidden pages

REVEAL

Enlarge the text

SIZE

WATCHING DIGITAL CHANNELS

P. 4

Hold the current page

Display hidden information (answers to quizzes, etc.)

Double the size of the displayed text

IMPORTANT PREPARE USE SETTING TROUBLE?

To the index page

INDEX

Switch briefly from teletext to TV

CANCEL

Returns to page “100” or a previously designated page

Leave the current page open, while you switch to watch TV

z Useful when running a page search.

Watching videos / DVDs

 To T V

Select the video source

EXT Mode

0AV

EXT- 1

EXT- 2

EXT- 3

EXT- 4

HDMI1

HDMI2

HDMI3

DTV

E.g. For EXT-1

A select

B watch

Operate the connected device and play a video

 Operate JVC recorders and other devices (P. 29)

Setting external terminals

Display the “EXT Setting” menu

Display the menu bar Select “Set Up” Select “EXT Setting”

A select

B next

A select

B next

Select an “EXT” or arrow, and then proceed with setting

EXT Setting

EXT-1

EXT-3

DTV

Arrow

Dubbing

EXT-2

EXT-4

ID List

S-In

Select an “EXT”

select

Select the arrow

select

Finish

z Adjust the position of the PC image g “PC Position” (P. 38) z HDMI terminal setting g “HDMI Setting” (P. 38)

Using the TV’s buttons

TV/A

S-In

 Select a video source

V/AV

EXT Mode

0AV

EXT- 1

EXT- 2

EXT- 3

EXT- 4

HDMI1

HDMI2

HDMI3

DTV

Switch to S-Video input

(yellow)

z “ ” mark will appear at the selected “EXT”. z The device selection display will change from “E1” to “S1”.

 Select a digital / analogue channel

TV/AV

EXT Mode

0AV

EXT- 1

1 2

EXT- 2

EXT- 3

EXT- 4

HDMI1

HDMI2

HDMI3

DTV

To analogue channels

To digital channels

Select a channel

IMPORTANT PREPARE USE SETTING TROUBLE?

 Cancel this mode g Press “ ” (yellow) again

ID List

Edit names of connected devices

A Show the name list B Select a name from the list

A select

(blue)

B set

 Clear the name g Select the blank space in the list

Dubbing

Set up dubbing on “EXT-2”

select the dubbing source

Message board

The message board function allows you to display the message that were input beforehand on the TV screen when the TV is turned on.

Times when the message board comes in handy!

z On occasions such as birthdays (e.g. Happy birthday!) z Message to your children (e.g. I’m going out between 3 and 4 pm.) z An alternative to calendar (timetable) (e.g. 12/7 remember 7 o’clock parent night.)

 Key code table

z The message board will not be displayed the first time you

turn on the TV upon purchased.

z If you have trouble viewing the message board with its

translucent background, in the “Features” menu, change “Appearance” to “Type B”. (P. 36)

Message Board ABC

To my l ov e l y w i f e Happ y Bi r t hday !

Wi th a l l my l ov e t oday and

always :-)

Edit

Off

Hide the message board

 To hide temporarily

(green) (red)

z The message board is displayed

whenever the TV is turned on.

 To turn off

z The message board is not displayed

even if the TV is turned on.

z To display g

Composing message

Display the message-editing screen

Display the message board

Switch to the editing screen

(blue)

Input the message

Message Board ABC

To my l ov e l

ABC / abc

 To enter the characters  To move the cursor

z For characters that can be input, see “Key code table” (P. 25).

 To clear or change character

Set

All ClearDelete

To delete a character

To clear all characters (press for more than 1 second)

z You can enter up to maximum 210

characters (7 rows, 30 characters per row).

z Inserting a character in the text is not

allowed. The existing character will be overwritten.

z To input characters in a different

language, in the “Set Up” menu, change the “Language” selection. (P. 37)

Move the cursor

Start a new line

IMPORTANT PREPARE USE SETTING TROUBLE?

Save the message

(red)

To switch between uppercase and lowercase characters

z Only one message can be saved. To compose a new

message, re-edit the current message.

Useful functions

z When 1080p (1125p) /

720p (750p) signal is received, the zoom menu will not be displayed.

z 1080p (1125p) signal is

displayed as “Full Native”. 720p (750p) signal is displayed as “Full”.

Aselect

Bset

Change the aspect ratio

ZOOM

Select the aspect ratio

Zoom

Auto

Regular Panoramic 14 : 9 Zoom 16 : 9 Zoom 16 : 9 Zoom Subtitle Full Full Native

Enjoy the good sound

MaxxAudio

z In PC mode, “Regular” and “Full” can be selected. z “Full Native” can be selected from the “Zoom” menu

only when 1080i (1125i) signal is received.

z “Full Native” g “What is “Full Native”?” (P. 44) z Using “Auto” g “Auto in “Zoom”” (P. 44)

16 : 9 Zoom

Move the picture with S or T while this bar is displayed

Select the “MaxxAudio”

z You can adjust the “MaxxAudio” settings in the

z If you connect the Headphone to the TV,

setting

Sound

MaxxAudio Low

MaxxBass MaxxTreble MaxxStereo

MaxxVolume Balance VoiceEnhancer

A select

“Sound” menu. (P. 34)

“MaxxAudio” setting is turned to “Off”.

Off

Reset

B set

z For more functions g “Customising your TV” (P. 31 - 38)

Take snapshots of the screen

FREEZE

(Not available for digital

channels and PC)

 Cancel

gPress “ ” again, or change the channel

z Not available in the following cases:

- when the SUB-PICTURE is displayed

- when watching digital channels

- when in PC mode

- when 1080p (1125p) signal is received

z You cannot save or export the snapshot.

Current programme

Still picture

IMPORTANT PREPARE USE SETTING TROUBLE?

Watch in multi-picture mode

MULTI-PICTURE

Select the number of screens

1 212

Selecting “ ” returns to normal viewing mode

z Not available in the following cases:

- when in PC mode

- when 1080p (1125p) signal is received

A select

B set

 Watch in dual-picture mode

E.g. You can watch TV and video at the same time.

Main Sub

z Switch between the sound sources g

z Change the channel g (Main) , (Sub)

z When watching digital channels, there may be occasions where the aspect

ratio changes, for example during commercials. In this case, the layout of the screen in dual-picture mode changes automatically according to the aspect ratio signal.

(For wide aspect ratio signals)

Main

Sub

 Select an analogue channel in 12-screen mode

All registered analogue channels are displayed as still images.

A select a channel

z Move up or

down a page

Main

Only the selected frame has a moving picture.

z Not available for digital channels, EXT-5, EXT-6 or EXT-7 input.

B watch

Operate JVC recorders

The included remote control can be used to operate JVC recorders and other devices.

Select a device

VCRs DVD recorders HDD recorders

TV VCR/DVR

HC DVD

z The indicator lights for 3 seconds

each time the remote control is operated.

Home theatre system

DVD Players

Turn on the device

Operate the device

z Other buttons can be used to operate

the TV at any time.

Operate the VCR, DVD recorder or HDD recorder

VCR/DVR

Operate the DVD Player

DVD

Try changing the remote control code if you cannot operate a recorder.

 Code A or 1 (Default)  Code C or 3

Press and hold Press and hold

z Confirm the code for your recorder by checking the manual it came

with.

z Some models of JVC devices cannot be operated with this remote

control.

z JVC DVD recorders and HDD recorders are set to code “C” or “3” by

default.

Note

z If the battery is removed, the remote control code reverts back to

code A or 1.

Operate the home theatre system

and other devices

Select VCR / DVD recorder / HDD recorder

VCR

DVD recorders

HDD recorders

 Operate DVD / HDD recorder menus  Playback / Record etc.

IMPORTANT PREPARE USE SETTING TROUBLE?

Select

Display top

Display menu

Back to previous menu

Select a chapter

 Display the subtitle (DVD / HDD recorder mode) g Press “ ”

 Operate DVD menus  Playback etc.

Select

Display top

Display menu

Back to previous menu

Select a chapter

 Display the subtitle g Press “ ”

 Operate HC menus  Playback etc.

Select

Display top

Display menu

Back to previous menu

Select a chapter

Rewind / Playback / Fast-forward

Record / Stop / Pause

Rewind / Playback / Fast-forward

Stop / Pause

Rewind / Playback / Fast-forward

Stop / Pause

 Display the subtitle g Press “ ”

 Mute g Press “ ”

 Volu me g Press “ ”

 Select a surround mode g Press “ ”

Customising your TV

Display the menu bar

Display the desired menu


select

TV/DTV

Press to hide the bottom area of the menu (excluding DTV menus). Press again to display it.

Note

z Depending on the

situation (analogue channels, digital channels, video signal formats, external inputs, etc.), some items will be displayed in gray colour and will not work. You will not be able to change their setting as well.

DTV menu g

WATCHING DIGITAL CHANNELS

P. 7 - 18

Change or adjust the setting


Picture Mode

Bright- 1 Contrast Bright- 2 Sharp Colour Hue Colour Temp. Features

select

Standard

Normal

Reset

 To enter an item’s menu

select

(E.g. Features)

Close the menu

When “T-V LINK” menu appears.

7  9 /,1.

5HFRUGLQJ'HYLFH'RZQORDG79

z The menu

(excluding DTV menus) disappears after one minute of inactivity.

 To the previous

screen

change / adjust

Features

Super DigiPure Auto

Movie Theatre Auto Colour Management On Picture Management On Smart Picture On MPEG Noise Reduction On Colour System 4 : 3 Auto Aspect 1080i Auto Setting


Picture Mode

Bright- 1 Contrast Bright- 2 Sharp Colour Hue Colour Temp. Features

Standard

Normal

Reset

Picture Mode

You can select a preset picture setting according to the brightness of your room.

Bright : in a fairly bright room

Standard : in a room with standard brightness

Soft : in a dark room

 You can make further adjustments to the selected preset “Picture Mode” to your liking.

Bright-1

Contrast

Bright-2

Sharp

Colour

Hue

Colour Temp.

Backlight brightness (Darker l Brighter)

Contrast (Lower l Higher)

Brightness (Darker l Brighter)

Sharpness (Softer l Sharper)

Colour (Lighter l Deeper)

Tint (Reddish l Greenish) (NTSC only)

Colour temperature (Warm / Normal / Cool)

IMPORTANT PREPARE USE SETTING TROUBLE?

 To return to the default adjustments g (blue)

Features

g “Features (sub menu)” (P. 33)

 When using “T-V LINK”  When not using

“T-V LINK”

TV/DTV

z “What is “T-V LINK”?” (P. 11) z If “Feature Not Available” appears

g (P. 41)

Customising your TV

Features (sub menu)

Features

Super DigiPure Auto

Movie Theatre Auto Colour Management On Picture Management On Smart Picture On MPEG Noise Reduction On Colour System 4 : 3 Auto Aspect 1080i Auto Setting

Note

z “Smart Picture” is not available when “Picture Mode” is set to “Bright”

(P. 32).

Super DigiPure

For natural-looking outlines

Min : When the picture loses sharpness Auto : Automatically adjusts Max : When noise appears Off : Function is turned off

Movie Theatre

For smooth cinema film

On : Function is always on Off : Function is turned off Auto : Automatically adjusts

Colour Management

Picture Management

Smart Picture

MPEG Noise Reduction

Colour System

Main PAL

Sub Auto

4:3 Auto Aspect

4 : 3Auto Aspect

Panoramic

Regular

14 : 9

Zoom

Maintain a natural colour balance (On / Off)

Make it easier to view bright / dark pictures (On / Off)

Make it easier to view white areas (On / Off)

Reduce MPEG video noise (On / Off)

When there is no colour, change the colour system (PAL, NTSC3.58, NTSC4.43)

Main : Main picture Sub : Sub-picture in MULTI-PICTURE mode (P. 28)

z When watching videos etc., you can select “Auto”

(Automatically selects the colour system)

Select a default aspect ratio for Auto in “Zoom” (P. 27)

Panoramic Regular 14:9 Zoom

16 : 9

4 : 3 14 : 9

1080i Auto Setting

Full

Full Native

Select a default aspect ratio for Auto in “Zoom” (P. 27) when 1080i (1125i) signal is received

Full Full Native

Sound

MaxxAudio Low

MaxxBass MaxxTreble MaxxStereo

MaxxVolume Balance Voice Enhancer

Off

Reset

Note

z If you connect the Headphone to the TV, “MaxxAudio”

setting is turned to “Off”.

IMPORTANT PREPARE USE SETTING TROUBLE?

Stereo/ t·u

Select stereo, monaural or language (analogue channels) (v: Monaural / s: Stereo / t: SUB1 / u: SUB2)

MaxxAudio

MaxxAudio improves sound performance with four sound features (MaxxBass, MaxxTreble, MaxxStereo and MaxxVolume). You can select one of the four “MaxxAudio” settings. (Off, Low, Mid, High)

 You can make further adjustments to the four sound features of the selected preset

“MaxxAudio” to your liking.

MaxxBass Compensates low frequencies to widen the frequency band.

MaxxTreble Compensates high frequencies to widen the frequency band.

MaxxStereo Expands the stereo sound naturally.

MaxxVolume

z Adjustments made to the three sound features (MaxxBass, MaxxTreble and MaxxStereo) will be stored

in the selected “MaxxAudio” setting.

z To return to the default settings g (blue)

MaxxAudio is a registered trademark of Waves Audio Ltd. in the USA, Japan and other countries.

Balance

Voi ce Enhancer

Maintains a uniform sound volume even if the sound becomes loud suddenly (during commercial breaks etc.).

Speaker balance (Left stronger l Right stronger)

Enhances the voice levels to make vocals or dialogues clearer when the volume is set to low level. (On / Off)

Customising your TV

Features

Sleep Timer

Child Lock

Favourite Setting

Type AAppearance

OnBlue Back

BrightIllumination

OnPower Lamp

OffEco Mode

Sleep Timer

0 120

Off

Timer for turning off the TV

 Cancel g Set the time to “0”  Remaining time g Display this menu again

Child Lock

Stop children from watching specific channels (analogue channels)

 Lock a channel

Display the menu

0400

z OK button does not work.

Select a channel and lock it. ( : locked)

 View a locked channel

Use the number buttons to enter the channel number.

Child Lock

PR ID CH/CC

______

BBC1

01 21CH

02 22CH

BBC2

03 23CH

ITV

CH4

CH5 ______

06 07 08 09

24CH 25CH

26CH 27CH 28CH

A select

B set

Set an “ID No.”

select

A select a number

B to the next column

C set

Lock / Release

(blue)

When “ ” appears, press “ ” and enter your “ID No.” with the number buttons.

z If you forget your “ID No.”, perform step 1 again.

Appearance

Type of the on-screen displays, Message Board and menus (excluding on-screen displays for digital channels and DTV menus)

Typ e A : translucent Typ e B : not translucent

z You cannot change this setting when viewing a digital channel. Switch to

an analogue channel or an EXT mode.

IMPORTANT PREPARE USE SETTING TROUBLE?

Blue Back

Favourite Setting

PR 01

PR 03

PR 05

PR 07

Illumination

Power Lamp

Eco Mode

Displays a blue screen and mutes the sound when the signal is weak or absent (On / Off) (analogue channels)

Remove a channel from the Favourite channel list (analogue channels)

 For more details g “FAVOURITE CHANNEL” (P. 19)

select

Remove

(blue)

Lights the illumination lamp (P. 5) when the TV is on (Bright / Soft / Off)

Lights the power lamp (P. 5) while the TV is on (On / Off)

Automatically adjusts the picture contrast according to the brightness of your room (On / Off / Demo)

 For more details g “What is “Eco Mode”?” (P. 43)

Customising your TV

Set Up

Auto Program

Edit/Manual Language

(EXT-2) Component Auto Select EXT Setting HDMI Setting Attenuator PC Position Auto Demonstration

OffDecoder Off

Off

Auto Program

Automatically registers the channels (analogue channels)

 To change the country, perform step 1 only.

Select the country of installation

Auto Program

Country

United Kingdom

Deutschland France Italia

Nederland Belgium

Ireland Switzerland Danmark Sverige

Norge Suomi

Start

Start “Auto Program”

(blue)

z If “ACI Start” appears, select and start settings.

(This will set up cable television channels.)

g“What is “ACI” (Automatic Channel Installation)?” (P. 42)

Edit/Manual

Language

English

Français Deutsch Italiano Castellano Nederlands Dansk Norsk Svenska Suomi

Polski

Magyar

Português

Català Türkçe

Auto Program

g “Editing analogue channels” (P. 15)

Select a language for the Message Board and menus (excluding DTV menus)

select

z For the next page

(yellow)

Edit

PR ID AV

01 21CH

02 22CH 03 23CH 04 05 06 07 08 09

______

BBC1

BBC2 ITV CH4 CH5

______

24CH 25CH

26CH 27CH 28CH

 Edit channels

“Editing analogue channels” (P. 15)

Decoder(EXT-2)

Component Auto

Select

Select “On” when connecting the Decoder to EXT-2 through the VCR (On / Off)

IMPORTANT PREPARE USE SETTING TROUBLE?

Changes the TV input to “EXT-4” when a component signal is input to EXT-4 (On / Off)

z Not available when viewing PC

EXT Setting

HDMI Setting

HDMI CEC

HDMI

-1 Size Audio Auto

HDMI

-2 Size

-3

HDMI

Attenuator

PC Position

Auto

AutoSize

g “Setting external terminals” (P. 23)

Size : If picture size is not correct in 480p(525p), change this setting to 1

or 2. Normally set to “Auto”. Audio : If there is no sound, change this setting to “Digital” or “Analogue”. Normally set to “Auto”.

HDMI CEC : If you use a HDMI CEC compatible device, set this setting to “On”.

z For more details g “What is “HDMI CEC”?” (P. 43)

Select “On” when digital channels are not received because of too strong radio waves (On / Off)

Note

z “Attenuator” attenuates the radio waves of analogue broadcast as well as

those of digital broadcast. If some noise or snow appears when watching an analogue channel, please set “Attenuator” to “Off” temporarily.

Adjust the position of the PC image

adjust

 Reset

(blue)

Auto

Demonstration

Starts the “100Hz Clear Motion Drive” demonstration (On / Off) (P. 44)

Troubleshooting

For problems concerning digital

 Analogue channels

Severe noise or snow

z Is the TV connected correctly to

the aerial?

z Change the direction of the aerial. z Is the aerial or its cable

damaged?

gConsult your retailer

z Is the “Attenuator” set to “On”?

g“Attenuator” (P. 38)

Patterns, stripes or noise

z Is the aerial receiving interference

from high-voltage power lines or wireless transmitters?

gConsult your retailer

z Are connected devices too close

to the TV?

gInsert the minimum distance

between the aerial and the cause of interference until no interference

channels

WATCHING DIGITAL CHANNELS

P. 19 - 20

I can’t turn it on!

z Is the power cord connected to the AC outlet

correctly?

Ghosting

(Doubling of images)

z Are you receiving interference

from signals reflected off mountains or buildings?

gAdjust the direction of your

aerial, or change to a good-quality directional aerial

The remote control doesn’t work!

z Are the batteries flat? z Are you more than 7 meters

away from the TV?

z Is the “MODE (TV, VCR/DVR, DVD,

HC)” set to “TV”?

z When viewing teletext, the TV menu bar does not appear. z Depending on the stability of the signal, there may be a time

lag when changing channels.

Problem Actions

Basics

Remote control stops working

Aspect ratio changes unintentionally

Screen

PC screen alignment is off

Black or white dots appear on the screen

Enters “100Hz Clear Motion Drive” demonstration when watching TV.

Page

z Unplug TV, several minutes later plug it in again. –

z Press “ ” to return to your settings. 27

z Adjust the “PC Position”. 38

z LCD panels use fine dots (“pixels”) to display images.

While more than 99.99% of these pixels function properly, a very small number of pixels may not light, or may light all the time. Please understand that this is not a malfunction.

z Set “Auto Demonstration” to “Off”. 38

IMPORTANT PREPARE USE SETTING TROUBLE?

–


Poor picture quality

Strange picture when using an external device

Poor sound

Sound

No sound from the audio component

z Change the “Picture Mode” setting. z Unnatural colour >>> Adjust “Colour” and “Bright-1”.

z Noise >>> Set to the following functions.

Picture Mode: Standard Super DigiPure: Max

z Dull picture >>> Set to the following functions.

Picture Mode: Bright Super DigiPure: Min

If you connected S-Video output device, check the “S-In” setting.

If the top of the image is distorted, check the video signal quality itself.

If movement appears unnatural when receiving a signal from a DVD player etc., with 576p (625p), change the output setting of the external device to 576i (625i).

z Adjust the “MaxxAudio” setting. z If receiving a poor signal in “Stereo/ t·u”, switch to “v”

(monaural).

z Audio signals received from EXT-5, EXT-6 and EXT-7 cannot

be sent to the AUDIO OUT terminal.

Check your “Colour System”.

32 32 33

32 33

–

34 34

–

Troubleshooting

Problem

Wrong screen size

Dark bar or noise appear at the edges of the screen (1080p

HDMI

(1125p))

No picture, no sound

No sound

Green and distorted screen

Some functions do not

Functions Error message

work

Some inputs cannot be selected in the subpicture

Actions

z Switch “Size” in “HDMI Setting” to “1” or “2”. (480p (525p) only) z Read the user manual of the connected device and perform the

following:

Page

gCheck if the output setting of the device is correct. gChange the signal format of the device to other format.

z 1080p (1125p) signal is displayed as “Full Native”. When

viewing in “Full Native”, dark bar or noise may appear at the edges of the screen. This is resulted from the signal itself, not due to TV malfunction.

z Use the cable marked with HDMI logo. –

z Check if the device is compliant with HDMI. z Switch “Audio” in “HDMI Setting” to “Digital” or “Auto” for HDMI

devices, or “Analogue” or “Auto” for DVI devices. (Not available for EXT-6 and EXT-7)

z Wait a little for the signal to stabilize when switching the signal

format for an HDMI device.

z It is not a malfunction. Depending on the situation, some

function items will be displayed in gray colour and will not work.

z “EXT-4”, “EXT-5”, “EXT-6”, “EXT-7” inputs and PC mode cannot

be selected in the sub-picture.

z RGB input signal of “EXT-1” and “EXT-2” are not available in

dual-picture mode.

–

“Feature Not Available” appears

“ACI Error” appears

“No Recording”

“No Recording Possible”

“No Recording Media Problem”

“No Recording Device Busy”

z Is the “T-V LINK” compatible device connected to EXT-2? z Is the SCART CABLE “Fully Wired”? z Is the “T-V LINK” compatible device turned on?

After confirming all the conditions above, press “OK” button again.

z Press W to start “ACI” again.

If you still receive the “ACI Error” after numerous tries, press X to cancel “ACI”.

z A problem occurs at the recorder. –

z The displayed video cannot be recorded. –

z The recorder is not ready for recording.

Check the videotape or DVD disc.

z The recorder is recording another programme, or is playing. –

–

Technical Information

What is “T-V LINK”?

“T-V LINK” allows the TV to share information easily with a connected “T-V LINK” compatible device. By using T-V LINK:

z You can send the channel information programmed on the TV to the “T-V LINK” compatible device, so that both

the TV and the external device have the same channel settings. When connecting a new external device, channel information is loaded into it, allowing channel setup to be completed very quickly. For more details, refer to the external device’s manual.

z You can easily record the TV programme you are viewing on a “T-V LINK” compatible device by using the

“Direct Rec” feature. For more details, refer to the external device’s manual.

What is “ACI” (Automatic Channel Installation)?

Some cable companies transmit a signal called “ACI” which contains information that allows TV channels to be registered automatically on your TV. When an ACI signal is received, “ACI Start / ACI Skip” appears in the “Auto Program” screen.

If you accidentally cut the power cord

Attach a new plug following the steps below. If in doubt, contact your local retailer.

Important

z Never connect to the larger terminal marked with an “E”, the safety earth symbol “ ” or coloured green or

green-and-yellow.

z The wires in the mains lead on this product are coloured with the following code:

• Blue: Neutral wire (connect to the black terminal, or one marked “N”)

• Brown: Live wire (connect to the red terminal, or one marked “L”)

Change the fuse in the plug

Open the plug as illustrated on the right.

z When replacing the fuse, always use a correctly rated and approved type and

re-fit the fuse cover when finished.

If in doubt, contact your local retailer.

Fuse

IMPORTANT PREPARE USE SETTING TROUBLE?

PC signals that can be displayed

z If the signal doesn’t appear, check that the

vertical frequency on the PC is set to “60Hz”.

Resolution 640 x 480 (VGA) 1024 x 768 (XGA)

Vertical frequency (Hz) 60.0 60.0

Connect DVI devices

Connect a DVI device to EXT-5 (HDMI) using DVI-HDMI conversion cable. Connect analogue sound output of the DVI device to L and R terminals in EXT-4.

z Set “Audio” in “HDMI Setting” to “Analogue” or “Auto” g (P. 38) z EXT-6 and EXT-7 inputs do not support analogue sound (EXT-4).

For more information, please read the separate manual (WATCHING DIGITAL CHANNELS).

“Technical Information” (P. 21 - 22)

Technical Information

What is “Eco Mode”?

You can adjust this TV so that the screen automatically adjusts to the optimum contrast of light and dark according to the brightness of your room. This function reduces eyestrain and the power consumption of this TV.

z Set “Eco Mode” g “Eco Mode” (P. 36) z Make sure not to block the Eco Sensor on front of the TV (P. 5) z To fully reduce eyestrain and the power consumption of this TV. Set to the following functions.

Eco Mode: On or Demo (P. 36) Smart Picture: On (P. 33)

 Using “Demo” in “Eco Mode”, you can display the effect of the “Eco Mode” on the screen

Eco Mode

LightDark

What is “HDMI CEC”?

HDMI CEC (Consumer Electronics Control) allows the TV to connect and control multiple HDMI CEC enabled devices with a single remote. CEC (Consumer Electronics Control) is an optional protocol used in HDMI.

z HDMI CEC on this TV is compliant with “High-Definition Multimedia Interface Specification”. z The TV does not support HDMI CEC functions that are not listed below. z The TV does not guarantee to support use of all HDMI CEC enabled devices. z Devices that are not enabled to HDMI CEC cannot be controlled with this TV.

 Control the TV using the HDMI CEC enabled device

z Turn the TV on and switch to the video source of the operating device. z Switch to the video source of the operating device. z Turn the TV off with the HDMI CEC enabled device you are viewing.

* For operating instructions of the device, refer to the device’s manual.

 Control the HDMI CEC enabled device using the TV

z Turn off the operating device by turning off the TV.

* Some device may not support this function. For more details refer to the device’s manual.

 Send status of the TV to the HDMI CEC enabled device

z When switching the TV’s external input or channel. z When switching the TV’s menu language.

* Information regarding behaviour of the device when status is received, refer to the external device’s manual.

Turning On / Off HDMI CEC:

z Set HDMI CEC g “HDMI Setting” (P. 38)

* Factory default setting is “On”.

If “HDMI CEC” does not work correctly:

z When HDMI CEC enabled device is connected to EXT-1 or EXT-2 with SCART cable and EXT-5, EXT-6 or

EXT-7 with HDMI cable, you may not be able to control TV’s external input. To solve the problem set “HDMI CEC” to “Off”.

Auto in “Zoom”

When “Auto” is selected in Zoom, the aspect ratio will turn to the ratio obtained from the information the TV received.

z The aspect ratio will turn to the ratio obtained from WSS (Wide Screen Identification Signal), video signal, or

control signal of the external devices. Without receiving the aspect information, it will be the setting in “4:3 Auto Aspect” (P. 33).

z When 1080i (1125i) signal is received, it will be the setting in “1080i Auto Setting” (P. 33). z Not available in PC mode.

What is “Full Native”?

With the full HD LCD display and “Full Native”, you can enjoy full native HD resolution of 1920 x 1080. It exposes flaws in the video that were hidden when viewing on “Full”.

Full Full Native

* The illustrations are emphasised to make clear differences between “Full” and “Full Native”.

z Dark bar or noise may appear at the edges of the screen when viewing in “Full Native” for some videos. This is

resulted from the signal itself, not due to TV malfunction.

z You cannot change the screen size from “Full Native” when receiving the 1080p (1125p) signal.

100Hz Clear Motion Drive

Most conventional LCD panel uses 50 frames per second (50 Hz) to display an image which needs long holding time (time it takes to display single frame), causing blurring or ghost images when there is rapid or complex movement across the screen - a phenomenon common to all LCD panels.

This TV is equipped with JVC’s original “100Hz Clear Motion Drive” technology, which displays two frames (the original plus the new interpolated frame) in the time a 50 Hz set displays a single frame. Resulting to double the typical rate, 100 frames per second (100 Hz) and half the holding time without reducing brightness or contrast. By using this technology you will be able to reduce blurring or ghost images when there is rapid or complex movement across the screen.

By using “Auto Demonstration”, you can display the differences between conventional LCD (50 Hz) and LCD panel equipped with “100Hz Clear Motion Drive”.

The “100Hz Clear Motion Drive” ticker will run right to left

IMPORTANT PREPARE USE SETTING TROUBLE?

You can confirm the differences of the two LCD’s with actual moving images

On Off

Moving image of LCD panel equipped with “100Hz Clear Motion Drive” (100 frames per second)

*1 To simulate Moving image of conventional LCD, the TV will display two same frames at a time. * The illustrations are emphasized to make clear differences between LCD panel equipped with “100Hz Clear

Motion Drive” and conventional LCD.

z Set “Auto Demonstration” to “On” “Off”. g “Auto Demonstration” (P. 38) z When set to “On”, it automatically enters demonstration every time no operation is made for approximately 3

minutes. To stop automatic demonstration, set “Auto Demonstration” to “Off”.

z When the images are 60 frames per second (60 Hz), it will be produced as 120 frames per second (120 Hz).

Moving image of 50 Hz conventional LCD (50 frames per second)

“CH/CC” List

To use the “Insert” function (P. 16), find the “CH/CC” number corresponding to the TV’s Channel number from this table. If you want to know a particular TV channel’s menu, look in TV listings magazines or contact the broadcaster.

z When the Country setting is “United Kingdom”, the CC number channels and channels from CH 02 to CH 12

cannot be received.

CH Channel CH Channel CC Channel CC Channel

CH 02 E2, IR A CH 40 E40 CC 01 S1 CC 31 S31

CH 03 E3, IR B CH 41 E41 CC 02 S2 CC 32 S32

CH 04 E4, IR C CH 42 E42 CC 03 S3 CC 33 S33

CH 05 E5, IR D CH 43 E43 CC 04 S4 CC 34 S34

CH 06 E6, IR E CH 44 E44 CC 05 S5 CC 35 S35

CH 07 E7, IR F CH 45 E45 CC 06 S6 CC 36 S36

CH 08 E8, IR G CH 46 E4 6 CC 07 S7 CC 37 S37

CH 09 E9 CH 47 E4 7 CC 08 S8 CC 38 S38

CH 10 E10, IR H CH 48 E48 CC 09 S9 CC 39 S39

CH 11 E11, IR J CH 49 E49 CC 10 S10 CC 40 S40

CH 12 E12 CH 50 E50 CC 11 S11 CC 41 S41

CH 21 E21 CH 51 E51 CC 12 S12 CC 75 X

CH 22 E22 CH 52 E52 CC 13 S13 CC 76 Y

CH 23 E23 CH 53 E53 CC 14 S14 CC 77 Z

CH 24 E24 CH 54 E54 CC 15 S15 CC 78 Z+1

CH 25 E25 CH 55 E55 CC 16 S16 CC 79 Z+2

CH 26 E26 CH 56 E56 CC 17 S17

CH 27 E27 CH 57 E57 CC 18 S18

CH 28 E28 CH 58 E58 CC 19 S19

CH 29 E29 CH 59 E59 CC 20 S20

CH 30 E30 CH 60 E60 CC 21 S21

CH 31 E31 CH 61 E61 CC 22 S22

CH 32 E32 CH 62 E62 CC 23 S23

CH 33 E33 CH 63 E63 CC 24 S24

CH 34 E34 CH 64 E64 CC 25 S25

CH 35 E35 CH 65 E65 CC 26 S26

CH 36 E36 CH 66 E66 CC 27 S27

CH 37 E37 CH 67 E67 CC 28 S28

CH 38 E38 CH 68 E68 CC 29 S29

CH 39 E39 CH 69 E69 CC 30 S30

Specifications

Main unit

Broadcasting systems CCIR I

Colour systems

Channels and frequencies

Sound-multiplex systems NICAM (I )

Teletext systems

Power requirements AC 220 V - 240 V, 50 Hz Audio output (Rated power output) 10 W + 10 W Speakers (4.5 cm x 16 cm) oval x 2 (4.5 cm x 16 cm) oval x 2 Power consumption [standby] Screen size (visible area size measured diagonally) Dimensions (W x H x D: mm) [without stand] Weights [without stand] Accessories (See “Check accessories”, P. 5)

z A CAM (Conditional Access Module) for watching pay-TV digital channels can be installed. (P. 8) z DC power can be supplied to the indoor aerial. g

Terminal name Terminal type Signal type (IN)

Input / Output terminals

Input terminals

Output terminals

z We may change the design and specifications without notice.

Model LT-47DV8BJ LT-42DV8BJ

TV broadcast: PAL External input: PAL, NTSC 3.58/4.43 MHz

z Digital:

E21-E68 (Frequency: 470-854 MHz)

z Analogue:

UNITED KINGDOM: E21-E69 (UHF) IRELAND: IR A-IR J, E2-E12, E21-E69 (VHF/UHF)

Digital: MHEG 5 UK profile Analogue: FLOF (Fastext), WST (World Standard System)

281 W [0.5 W]

118 cm 105 cm

1121 x 773.7 x 296 [1121 x 726.5 x 129.8]

34.0 kg [30.0 kg]

WATCHING DIGITAL CHANNELS P. 2 1

232 W [0.5 W]

1007 x 707.2 x 296 [1007 x 660 x 129.1]

28.6 kg [25.6 kg]

Terminals / Connectors

Signal type

EXT-1

EXT-2

EXT-3

EXT-4 RCA connectors x 5

EXT-5 (HDMI-1) EXT-6 (HDMI-2) EXT-7 (HDMI-3) PC IN D-SUB (15 pins) x 1 Analogue PC signal (P. 42) AUDIO OUT RCA connectors x 2 Audio L / R

DIGITAL AUDIO OUT

Headphone

Euroconnector x 1 (SCART connector)

RCA connectors x 3, S-VIDEO connector x 1

HDMI connector x 3

OPTICAL connector x 1

Stereo mini-jack x 1 (3.5 mm in diameter)

Composite video, S-Video, Analogue RGB Audio L / R Composite video, S-Video, Analogue RGB Audio L / R Composite video, S-Video Audio L / R Analogue component (576i (625i), 480i (525i), Progressive: 576p (625p), 480p (525p), HD: 1080i (1125i), 720p (750p)) Audio L / R HDMI (576i (625i), 480i (525i), 576p (625p), 480p (525p), 720p (750p), 1080i (1125i), 1080p (1125p) / 50 Hz, 1080p (1125p) / 60 Hz)

(OUT)

TV out

Dubbing out

Digital audio (48 kHz, 16 bit linear PCM / Dolby Digital) Headphone output

Notes

“T-V LINK” compatible

“HDMI CEC” compatible (P. 43)

IMPORTANT PREPARE USE SETTING TROUBLE?

0707KTH-SW-MU

WATCHING DIGITAL CHANNELS

Before reading this manual

Digital terrestrial broadcasting (DVB-T)

This manual only provides information on watching digital channels. Other information is explained in the “INSTRUCTIONS”. Please read both this manual and the “INSTRUCTIONS” manual.

g Digital channels

Analogue terrestrial broadcasting (VHF / UHF) and analogue cable TV

g Analogue channels

Watching digital channels ................................. 1

Display the programme information.............. 3

View subtitles................................................ 3

Select audio language .................................. 4

View teletext information............................... 4

USE SETTING TROUBLE?

Using EPG ........................................................ 5

Customising your TV ........................................ 7

Timer............................................................. 9

Edit PR (Edit PR List) ................................. 11

Configuration .............................................. 13

Setup .......................................................... 15

Installation................................................... 17

Troubleshooting .............................................. 19

Technical Information...................................... 21

LCT2289-001A-U

Watching digital channels

Mute

Display programme

information (P. 3)

Switch digital / analogue

channels

Volum e

View teletext (P. 4)

Switch TV / Radio

Select audio (P. 4)

TV/DTV

Power On / Off

Enter channel number

Colour buttons

Select a channel with PR List

Select a channel

Display EPG (P. 5)

View subtitles (P. 3)

Change aspect ratio

INSTRUCTIONS

“Zoom” (P. 27)

For more information, please read the user manual (INSTRUCTIONS).

z Buttons on the remote control unit or the TV buttons.

g“Names of all the part” (P. 5 - 6)

z To watch pay-TV digital channels

g“Watch pay-TV digital channels” (P. 8)

z To soften the picture for daily use, change the “Picture Mode” setting.

g“Picture Mode” (P. 32)

z For options that can be used in everyday TV viewing.

g“Useful functions” (P. 27 - 28), “Customising your TV” (P. 31 - 38)

䡵 Sel

Power on

The green power

䡵 The remote control doesn’t

work

lamp on the TV lights

z Press again to turn the screen off and put

the TV into standby mode.

z To completely turn off the TV, unplug the

power plug.

Switch to digital channels

z Confirm the mode is set to

“TV”.

䡵 Switch TV/RADIO

TV/DTV

Select a channel

䡵 Enter a channel number 䡵 Move up or down a channel

z You can select only from

E.g.

1 :

15 :

ect with PR List

PR List

BBC ONE

BBC TWO

ITV1

Channel 4

five

ITV2

BBC THREE

BBC FOUR

ITV3

SKY THREE

z If you cannot display the PR List by pressing the “OK” button, press the “ ”

button three times to display the PR List.

䡵 Select with EPG (Electronic Programme Guide)

1. BBC ONE

2. BBC TWO

3. ITV1

4. Channel 4

5. five

6. ITV2

7. BBC THREE

8. BBC FOUR

9. ITV3

Channels

EPG

14:00

14:00 News 15:00 Golf 17:00 News 17:15 Music 18:00 Weather forecast 18:20 News 18:50 Soccer 20:20 News 20:30 Weather forecast

05/05/2007

Electronic Programme Guide

BBC ONE

14:00-15:00 News

05/05 06/05 07/05 08/05 09/05 10/05 11/0 5 12/05

your favourite channels

down

g “Favourite Mode” (P. 14)

z Close PR List

A select

B view

A select

B view

z Display only programmes which

match your selected genre

g “Genre” (P. 6)

z You can select

only from your favourite channels

g“Favourite Mode”

(P. 14)

USE SETTING TROUBLE?

Note

z Add a new station. g “Service Scan” (P. 17) z Edit the “PR List” (digital channel list) according to your liking.

g“Edit PR (Edit PR List)” (P. 11)

z Some digital channels cannot be watched on this TV. g (P. 21)

Watching digital channels

Display the programme information

Symbols

Name of station

14:00

Clock

Domestic news World news Economic information Sport news flash

CH33

BBC ONE

Now

: 14:00 - 15:00 : 15:00 - 17:00

More information

News Golf

Programme

Channel

䡵 Symbols description

: Reception level Red Yellow Green : Pay-TV channel

: Poor : Acceptable : Excellent : Subtitles are available (P. 3).

: TV programme : Radio programme : More information about the programme is

: Teletext is available (P. 4).

t·u : tu::Audio in another language is not available.

Other audio languages are available (P. 4).

Dolby Digital : Dolby Digital signal is output from the DIGITAL AUDIO OUT terminal (P. 22)

View subtitles

Symbols

z Whenever changing the

channel, “Programme Information” is displayed.

(No indication)

z “PR List” appears.

available.

Subtitle Selection

Off

: Don’t display

Off

: Display

z By default, the language set in “Subtitle Language”

(P. 13) is automatically selected. When not broadcast in that language, another broadcast language is automatically selected.

z When no subtitles are broadcasted, “No Subtitles” is

displayed.

Aselect

Bset

䡵 Switch to another language

Subtitle Selection

Off

English

Gaelic

Welsh

: Special subtitles for the hearing impaired

Undefined: When the subtitle’s language cannot

z The language that can be selected depends on

be identified

the broadcast.

Aselect “On”

Bnext

Aselect

Bset

Select audio language

By default, the language set in “Audio Language” (P. 13) is automatically selected. When not broadcast in that language, another broadcast language is automatically selected.

䡵 Switch to another language

Audio Selection

English

Gaelic

Welsh

: Special audio track for the visually impaired Undefined: When the audio’s language cannot be identified Dolby: Dolby Digital

z The language that can be selected depends on the broadcast. z Please read ““Dolby Digital” output from the DIGITAL AUDIO OUT terminal” (P. 22) before selecting “Dolby”.

Aselect

Bset

View teletext information

Enter the Teletext mode

Operate according to the screen indications. You can use the buttons shown below.

A select

B set

(red) (green) (yellow) (blue)

USE SETTING TROUBLE?

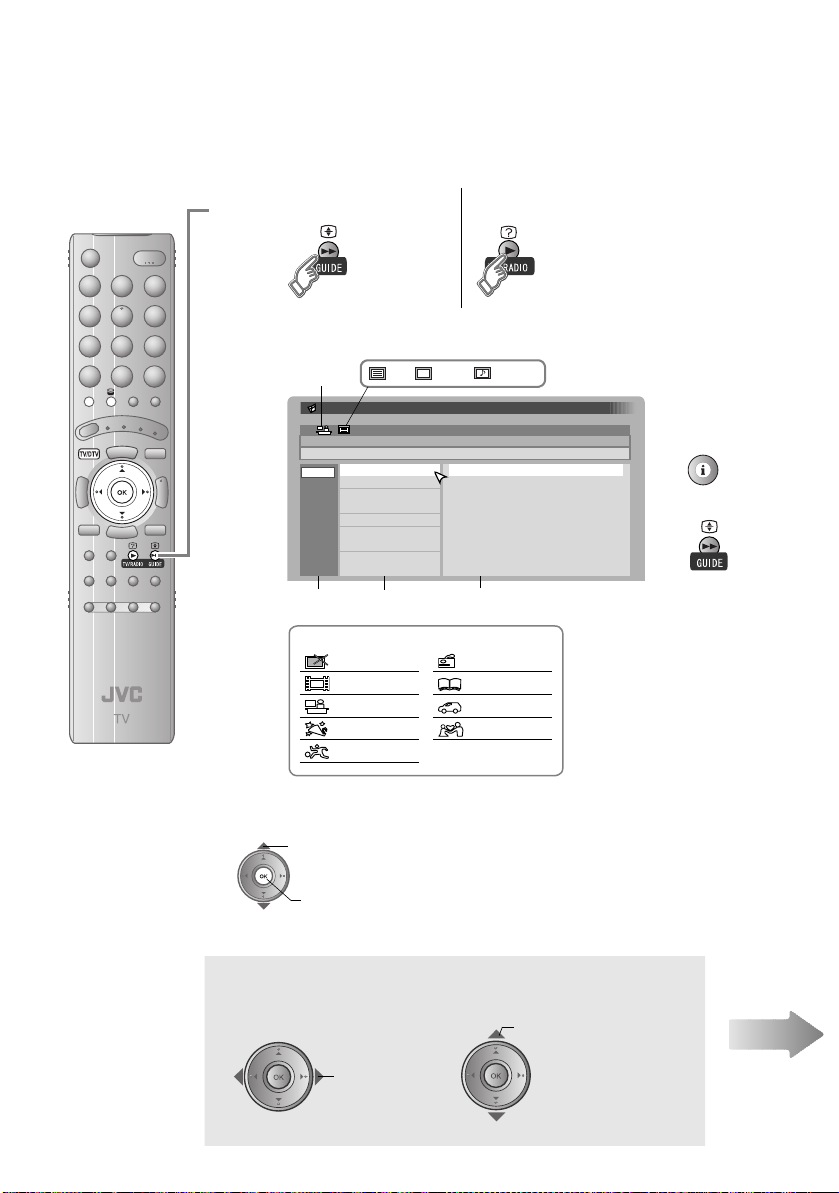

Using

EPG

Using EPG (Electronic Programme Guide)

You can find a digital channel programme from an eight-day programme guide, check its information, and make a reservation.

䡵 The channels

and programme names shown in the illustrations here are examples only.

Display EPG

䡵 Switch TV/RADIO

Find a programme

Genre

Electronic Programme Guide

BBC ONE

News

14:00-15:00

1. BBC ONE

05/05

2. BBC TWO

06/05

3. ITV1

07/05

4. Channel 4

08/05

5. five

09/05

6. ITV2

10/05

7. BBC THREE

11/ 05

8. BBC FOUR

12/05

9. ITV3

Date Channel Programme

Genre icon

General

Movie

News

Entertainment

Spor ts

䡵 Watch / listen to the programme

A select

: TV : Radio

14:00 News 15:00 Golf 17:00 News 17:15 Music 18:00 Weather forecast 18:20 News 18:50 Soccer 20:20 News 20:30 Weather forecast

Children

Education

Leisure

Drama

14:00

05/05/2007

z EPG will be

displayed only when viewing digital channels.

䡵 Check

programme information

䡵 Close EPG

B view

䡵 Reserve the programme

䡵 Select a column

(Date / Channel / Programme)

select

䡵 Select a date / a channel / a

programme

select

Genre

Display the genre list

(green)

Display only programmes which match your selected genre

Select a genre

All

General Movie News Entertainment Sports Children Education Leisure Drama

A select

B set / cancel

C search

Genre

z More than one genre can be selected.

Find a programme

Electronic Programme Guide

BBC ONE 15:00-17:00

Golf

1. BBC ONE

05/05

2. BBC TWO

06/05

3. ITV1

07/05

4. Channel 4

08/05

5. five

09/05

6. ITV2

10/05

7. BBC THREE

11/0 5

8. BBC FOUR

12/05

9. ITV3

z Only programmes in the selected genre are displayed.

Timer

Reserve a programme to watch and record

15:00 Golf

18:50 Soccer 22:30 Tennis

14:00

05/05/2007

Display the timer select menu

(red)

Please select timer

Record Remind

Record : Reserve a programme to record Remind : Reserve a programme to watch

䡵 Quick search

A select

(red)

B search

z Only one genre can be selected.

Your selected genres are displayed

A select

B set

USE SETTING TROUBLE?

Set “Timer”

gProceed to B in “Timer” (P. 9)

Electronic Programme Guide

BBC ONE

News

14:00-15:00

1. BBC ONE

05/05

2. BBC TWO

06/05

3. ITV1

07/05

4. Channel 4

08/05

5. five

09/05

6. ITV2

10/05

7. BBC THREE

11/05

8. BBC FOUR

12/05

9. ITV3

14:00

14:00 News 15:00 Golf 17:00 News 17:15 Music 18:00 Weather forecast 18:20 News 18:50 Soccer 20:20 News 20:30 Weather forecast

05/05/2007

(red): Reserve to record (blue): Reserve to watch

: Reservation time is shorter than the

broadcasting time

Customising your TV

Display the DTV menu

TV/DTV

Note

z You cannot display the

DTV menus while the “Record” timer is in progress.

Display the menu bar

Display the desired menu

DTV Menu

Timer

Edit PR

Configuration

Setup

Installation

Change the setting

Configuration

Navigate

Select “DVB” (DTV)

B set

Country United Kingdom

Menu Language

Audio Language

Subtitle Language

Enter PIN code

Favourite Mode

Select Exit

A select

14:00 05

Note

z If you cannot display the

DTV menu, switch to digital channels.

TV/DTV

select

/05/2007

English

Off

䡵 To the previous

screen

select

change

䡵 To enter an item’s menu

select

(E.g. Service Scan)

ServiceScan

Service

Navigate

Select Exit

Scan

StartChannel

StopChannel

Mode

StartScan

14:00

05/05/2007

Automatic

Add

(“Service Scan” menu)

Close the menu

䡵 When entering the PIN code

When watching digital channels or changing DTV menu settings, it may be necessary for you to enter a PIN code. Once a PIN code has been entered, there is no need to enter it again until the TV is turned off.

This function is locked. Please enter PIN code

z The default PIN code is “0000”. z You can set your own PIN code. g “Enter PIN code” (P. 14)

䡵 When a message with option selections appears

Scan completed! Store services?

Yes No

A select

B set

䡵 When an information message appears

PIN code changed

USE SETTING TROUBLE?

Customising your TV

Timer

14:00

Timer

PR Start End Date Mode

Timer list empty

05/05/2007

䡵 Switch TV/RADIO

z Up to 20 programmes can be reserved.

Select

Add Dalete EPGNavigate

Display the timer select menu

(red)

Please select timer

Record Remind

Record : Reserve a programme to record Remind : Reserve a programme to watch

A select

B set

Programme the timer setting

z If you select the programme using “EPG” (P. 5), all items will be set automatically.

Change the setting if necessary.

Record

PR BBC ONE

Start 17:15 End 18:00 Date 05/05/2007 Mode Once Audio PCM / Analogue Subtitle Off

PR : Select the channel Start / End / Date : Enter the time and date Mode : Select the reservation mode (Once, Daily, Weekly) Audio : Normally set to “PCM / Analogue”. For details, see ““Dolby Digital”

Subtitle : Set subtitle recording (Off, On)

select

output from the DIGITAL AUDIO OUT terminal” (P. 22).

Remind

PR BBC ONE

Start 17:15 Date Mode

select

05/05/2007

Once

䡵 To enter time

and date

䡵 Select a programme

using “EPG”

(yellow)

Set the timer

Timer

1 : BBC ONE 17 : 15 18 : 00 05/05 /2007 Once

Start

End Date Mode

14:00

05/05/2007

(red) Record

z A message will be displayed if there is problem with the reservation. z When you reserved the programme using EPG, EPG will be displayed. z When “Remind” timer is set, “End” will be displayed as “----”.

(blue) Remind

Radio

䡵 Cancel a reservation

select

(green)

A select “Yes”

B cancel reservation

䡵 Change a reservation

A select

Change the settings

B display the menu

Prepare for recording before the timer starts

Record

z If you use a “T-V LINK” compatible device, set it to the external input mode then to the

standby mode. At the start time, the device will start recording automatically. Make sure the recording times of other recordings on the recording device do not overlap with recording times on the TV. Some “T-V LINK” devices may not work correctly. It is recommended to do a recording test.

For details on “T-V LINK”

z If you use a “T-V LINK” incompatible device, manually set the device’s timer to record

the external input at the same recording times set on the TV. For details, refer to the device’s manual.

z The power lamp on the TV will start blinking 3 minutes before the start time (green or

red). Then, it will light during recording (green or orange).

z To stop the recording while a “Record” timer is in progress, press “ ” to display the

message “Stop Recording?”. Then press the “OK” button.

Remind

Set the recording device as follows. At the start time, the programme will be output from the EXT-2 terminal to the recording device.

INSTRUCTIONS

“What is “T-V LINK”?” (P. 42)

The “Remind” timer does not turn the TV on or off. Turn the TV on before the timer starts. At the start time, the channel will automatically change.

USE SETTING TROUBLE?

Customising your TV

Edit PR (Edit PR List)

Deleting unwanted channels, and changing the channel number or channel name can be done in the PR List (digital channel list) according to your liking.

Edit PR List

Name Delete FavouritesNumber Lock

Select PR Select Function

Edit channels

select

10.

14:00

BBC ONE BBC TWO ITV1 Channel 4 five ITV2 BBC THREE BBC FOUR ITV3 SKYE THREE

Edit PR Exit

05/05/2007

Select channelSelect edit function

A select

B next

Name

BBC ONE

Edit a channel name

A select character

B move position

Name

ABCDEFG

Number

Change a channel number

Number

001

Delete

The selected PR will be permanently deleted. Do you want to proceed?

Yes

Lock

Edit PR List

Name Delete FavouritesNumber Lock

Select PR Select Function

Favourites

Delete a channel

Stop children from watching specific channels

14:00

BBC ONE

BBC TWO

ITV1

Channel 4

five

ITV2

BBC THREE

BBC FOUR

ITV3

10.

SKYE THREE

Edit PR Exit

05/05/2007

Enter a number

A select “Yes”

B delete

Lock icon

A select “OK”

PR exists! Move it?

OK Cancel

B move

z Only when the same channel number exists. z The channels are rearranged in numerical order.

USE SETTING TROUBLE?

䡵 Release g

z To enable “Lock” function, turn the TV off and on again. z To watch the locked channels, the PIN code must be

entered.

g“When entering the PIN code” (P. 8)

z Enter PIN code if needed

g “When entering the PIN code” (P. 8)

Edit PR List

Name

Number

Select PR Select Function

14:00

05/05/2007

BBC ONE

BBC TWO

ITV1

Channel 4

five

ITV2

BBC THREE

BBC FOUR

ITV3

10.

SKYE THREE

Delete Favourites

Lock

Edit PR Exit

Favourite icon

䡵 Release g

z To move through only your favourite channels and

have them appear in the PR List.

g “Favourite Mode” (P. 14)

Customising your TV

tion

Configuration

Navigate

Select Exit

Country

Menu Language

Audio Language

Subtitle Language

14:00 05

Country United Kingdom

Menu Language

Audio Language

Subtitle Language

Enter PIN code

Favourite Mode

/05/2007

English

Off

Country of installation (United Kingdom only)

Language for on-screen displays when watching digital channel including the DTV menus (English only)

Select a default language for audio (English, Gaelic, Welsh)

z For visually impaired

Select a default language for subtitle (English, Gaelic, Welsh)

z For hearing impaired

Note

z When not broadcast in the default language, on-screen

displays and audio output in that language are not available. In this case, the language that can be displayed and heard depends on the broadcast.

Enter PIN code

Input the current code

This function is locked. Please enter PIN code

Input a new code twice

Enter new PIN code

Change PIN code

z Default is “0000”. z If you forget the code, input “0081”.

Confirmation

Favourite Mode

z If you cannot select “On”, register channels in “Favourites” first g “Favourites” (P. 12) z When you set “Favourite Mode” to “On”, you cannot change from TV to Radio if no radio channel is

registered to the favourite channels.

PIN code changed

Enable your favourite channels (On / Off)

USE SETTING TROUBLE?

Customising your TV

Setup

Navigate

Select Exit

Digital Audio

Output

PCM : The Linear PCM signal is output

Dolby Digital : The Dolby digital signal is output when the Dolby Digital signal is received

z Please read ““Dolby Digital” output from the DIGITAL AUDIO OUT terminal” (P. 22) before setting.

Banner Duration

14:00

05/05/2007

Digital Audio Output

Banner Duration

Receiver Upgrade

Common Interface

Antenna Power

PCM

2 sec

Auto

No CI Module

Off

Output the digital signal from the DIGITAL AUDIO OUT terminal.

Select the display time for channel information (2 sec / 5 sec / 8 sec)

Receiver Upgrade

The TV will automatically search for new tuner software and run the reception test (for digital channels) at midnight (3 AM) on a daily basis. You can select the desired operation with this setting.

z The Receiver Upgrade function works only when the TV is off (standby). z If new software is available, the TV will automatically download and upgrade the tuner software. z If the TV detects channels that became receivable or if the TV was not able to receive a certain channel,

a message about updating the PR List will be displayed when the TV is turned on.

g“Updating the PR List” (P. 21)

Auto : The search for new software and the reception test will operate at midnight. In

Manual : Only the search for new software will operate at midnight. The reception test

addition, the TV will start searching for new software whenever the TV is turned off. Normally set to “Auto”.

will not be run. In addition, you can start searching for new software whenever you want. To start searching, select “Manual” and press “OK” button.

Software Version

0.44.05

Search for new

Select “Search for new” and press “OK” button. Then, follow the instructions on the screen.

In standby: Upgrade the software automatically when the TV is turned off.

Common Interface

To watch pay-TV digital channels, use the CAM (Conditional Access Module) menu. This function can only be used when pay-TV can be received in your region.

When the CAM etc. is inserted after subscribing to the broadcasting company, this function is available.

INSTRUCTIONS

“Watch pay-TV digital channels” (P. 8)

z If the CAM etc. is not inserted, “No CI Module” will be displayed and this function cannot be used.

Press “OK” button to display the CAM menu and follow the instructions on the screen.

z The content of the menu is different depending on the broadcasting company.

gFor details, consult your broadcasting company

z The language shown in the menu may differ from the “Language” set for the TV.

Antenna Power

When using an indoor aerial which requires external power, set “Antenna Power” to “On”. The TV will supply DC 5V, 50mA (max) from the aerial socket through the cable to the aerial.

z Please read “Power supply for the indoor aerial” (P. 21) before setting.

USE SETTING TROUBLE?

Customising your TV

Installation

Service Scan

Signal Check

Factory Settings

Service Scan

Service

Select Exit

Navigate

Scan

Start Channel

Stop Channel

Mode

Start Scan

14:00

05/05/2007

Update the PR list

Automatic

Add

Scan Select a “Scan” type

Automatic : Scan all receivable channels

Manual : Scan between the “Start channel” and “Stop channel”

Network : Scan all receivable channels, then you can select the broadcasting stations

to register

Start channel If you select “Manual”, select the broadcast channel numbers to start and

Stop channel

stop scanning.

Mode Select a “Mode”

Add : Register only new channels and update the PR list. The current PR list

settings will not be changed. No channel will be deleted.

Reinstall : Re-install all channels. The current PR list settings and “Timer” settings will

be cancelled. The channels which the TV could not receive will be deleted.

䡵 To update the PR list

Set “Scan” to “Automatic” or “Network”. If you want to retain the current PR list settings and “Timer” settings, set “Mode” to “Add”. Then start “Service Scan”.

䡵 To start “Service Scan”.

Mode Add

Start Scan

Scan completed! Store services?

Yes No

A select “Start Scan”

B start scanning

A select “Yes”

B set

z If you set “Scan” to “Network”, the “Network” menu appears. Select broadcasting stations from a list.

Network Name BBC ITV

A select

B registered / cancel

C set

Signal Check

Service

BBC ONE BBCTWO BBCTHREE

Signal Quality Signal Strength

Navigate

Channel

Signal :Excellent

Exit

14:00

05/05/2007

You can check the broadcast signal level of the channel you are watching.

Signal level: Poor < Acceptable < Excellent

z To check another broadcast

channel

select

The “Channel” is the frequency of the digital broadcasting. It differs from the channel number displayed on the TV.

Factory Settings

All registered digital channels are deleted and the DTV menu settings are initialised. Digital channels are reregistered.

Are you sure you want to delete the PR list and reset all settings?

Yes No

USE SETTING TROUBLE?

A select “Yes”

Initial setting will start again.

INSTRUCTIONS

B start

“Initial settings” (P. 11 - 12)

z If “Attenuator” is set to “On”, “RF Attenuator” menu will appear during initial setting. Select “On” or “Off” and

press “OK” button. For more details on “Attenuator” g

INSTRUCTIONS

“Attenuator” (P. 38)

Troubleshooting

Messages Actions

z Is the TV connected correctly to the aerial? z Change the direction of the indoor aerial. z Is there a digital channels transmission tower nearby?

gTurn “Attenuator” to “On”.

“Missing or weak signal”

“Dolby Digital selected! No analogue audio available”

“Services have changed. Do you want to Update PR list?”

INSTRUCTIONS

“Attenuator” (P. 3 8 )

z Check digital channels signal with “Signal Check”. z If you still cannot watch the digital channels after following the

steps above, there may be a problem with your aerial or its cable. Or, the signal may be too weak.

g Consult your retailer

z When “Dolby Digital” is selected in “Digital Audio Output”, the

sound of a programme containing “Dolby Digital” signals cannot be output from the TV or the audio system connected to the AUDIO OUT terminal.

z When the channel is changed, a message will be displayed for

a few seconds.

z To listen with the TV or audio system

gSelect a language without “Dolby” from “Audio Selection” gSwitch “Digital Audio Output” to “PCM”

z Update the PR List (digital channels) g “Updating the PR List” z If the message appears even though PR List updating is not

required, set “Receiver Upgrade” to “Manual” to cancel the reception test at midnight.

Page

21 15

“Timer Starting Soon” or “Reminder Changing PR”

“Stop Recording?”

z While watching TV, the message appears when a timer

programme is about to start, indicating that the channel will be switched.

z The message appears when you perform operations related to

the digital channels while a “Record” timer is in progress. Press the “TV/DTV” button to continue recording or press the “OK” button to stop the recording.

–

Problem Actions

Page

Remote control stops working

Digital channel screen is frozen

TV/RADIO button do not work

No picture, no sound

Aspect ratio changes unintentionally

Forgot my PIN code!

Locked channels can be watched without inputting PIN code

z Unplug TV, several minutes later plug it in again. –

z Hold down “TV/AV” button and “MENU/OK” button on the TV

simultaneously for three or more seconds to restart.

z Set the “Favourite Mode” to “Off” (P. 14) and register both

Radio and TV channels in “Favourites” (P. 12). Then set “Favourite Mode” to “On”.

z Some digital channels cannot be watched on this TV. 21

z Press “ ” to return to your settings. –

z The default PIN code is “0000”. If you forget the numbers that

you used to change the default PIN code, first input “0081” in the “Enter PIN code” and then register a new PIN code.

z Once the PIN code is input, the lock function is released. If you

want to use the lock function again, turn the TV off and then turn it on again.

–

USE SETTING TROUBLE?

–

If you encounter other problems, please read the user manual (INSTRUCTIONS).

“Troubleshooting” (P. 39 - 41)

Updating

the PR

List

Technical Information

Power supply for the indoor aerial

When using an indoor aerial which requires external power, set “Antenna Power” to “On”. The TV will supply DC 5V, 50mA (max) from the aerial socket through the cable to the aerial.

z Supplying power to outdoor and indoor aerials which does not require external power, may cause damage to

the aerial. If you are uncertain whether the aerial needs external power, select “Off”.

z Connect the aerial directly to the TV. When a recording device is connected between the aerial and the TV,

power cannot be supplied to the aerial.

z Power is supplied to the aerial only when the TV is on. z To change the setting after “Initial settings” is complete g “Antenna Power” (P. 16)

Digital channels that cannot be watched on this TV

If a digital channel service uses new formats (such as DVB-H or MPEG4, etc.), or MHP, it cannot be watched even though the channel name appears. If the channel is selected, the picture will not appear and audio cannot be heard.

z You can delete these channels by using the “Delete” in the “Edit PR”

g “Edit PR (Edit PR List)” (P. 11)

Updating the PR List (Digital channel only)

The TV will run the reception test (for digital channel) at midnight (3AM) on a daily basis. If the TV detects channels that became receivable or if the TV was not able to receive a certain channel, a message about updating the PR List will be displayed when the TV is turned on.

z The reception test will only operate when the TV is in standby. It will not operate when the TV is turned on. z The reception test will not operate when “Receiver Upgrade” (P. 15) is set to “Manual”. z If the TV does not detect any channels that need to be updated, a message will not be displayed.

Services have changed.

Do you want to update PR list?

Yes No

䡵 To update the PR List right away

A select “Yes”

Run the “Service Scan” (P. 17)

B next

䡵 To update the PR List later

A select “No”

B close

z The “Service Scan” will take a few minutes.

z Next time you turn on the TV, the message will not

be displayed. But you can update the PR List using “Service Scan” (P. 17) whenever you want to.

“Dolby Digital” output from the DIGITAL AUDIO OUT terminal

Some digital channels are broadcasted with “Dolby Digital” signals. In these cases, “Dolby Digital” signals can be output from the DIGITAL AUDIO OUT terminal.

Connect an audio system with a “Dolby Digital” decoder to the DIGITAL AUDIO OUT

terminal.

INSTRUCTIONS

“Connecting external devices” (P. 10)

Change the “Digital Audio Output” setting from “PCM” to “Dolby Digital”. (P. 15)

z When changing the setting, the message “Dolby Digital selected! No analogue audio available” may be

displayed for a few seconds.

z Each time the channel is changed to a channel that is broadcast with “Dolby Digital” signals, the message

“Dolby Digital selected! No analogue audio available” may be displayed for a few seconds.

z Even if “Dolby Digital” is set, “linear PCM” signals will be output by a channel that is not broadcast with “Dolby

Digital” signals. Set the audio system so that it is compatible with both “Dolby Digital” and “linear PCM”. (For details, refer to the audio system instruction manual.)

䡵 Set “Digital Audio Output” to “PCM” in the following cases.

The sound of a channel broadcast with “Dolby Digital” signals cannot be heard even when “Dolby Digital” is set.

z When listening with the TV speakers. z When listening with an audio system that does not have a “Dolby Digital” decoder. z When listening with an audio system that is connected to the AUDIO OUT terminal. z When recording a programme.

䡵 When “(Dolby)” is displayed in the “Audio Selection” menu (P. 4), selecting “(Dolby)” will change

the “Digital Audio Output” setting to “Dolby Digital” temporarily.

z A message recommending you to change the “Digital Audio Output” setting to “Dolby Digital” is displayed for a

few seconds.

䡵 If you want to record a “Dolby Digital” signal using timer-record (P. 9), change “Audio” of the

timer-record setting from “PCM / Analogue” to “Dolby Digital”. However, if the setting is changed to “Dolby Digital”, you cannot record analogue sound with a recording device that is connected to the EXT-2 terminal.

z “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

USE SETTING TROUBLE?

For more information, please read the user manual (INSTRUCTIONS).

“Technical Information” (P. 42 - 44)

0707KTH-SW-MU

JVC LT-47DV8BJ, LT-42DV8BJ Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

LCT2300-001A-U

Contents

Warning

Names of all the parts

Basic connections

Initial settings

Editing analogue channels

Enjoy your new TV!

Watching analogue channels

Viewing teletext

Watching videos / DVDs

Message board

Useful functions

Customising your TV

Troubleshooting

Technical Information

“CH/CC” List

Specifications

Contents

LCT2289-001A-U

Watching digital channels

Using EPG (Electronic Programme Guide)

Customising your TV

Troubleshooting

Technical Information
