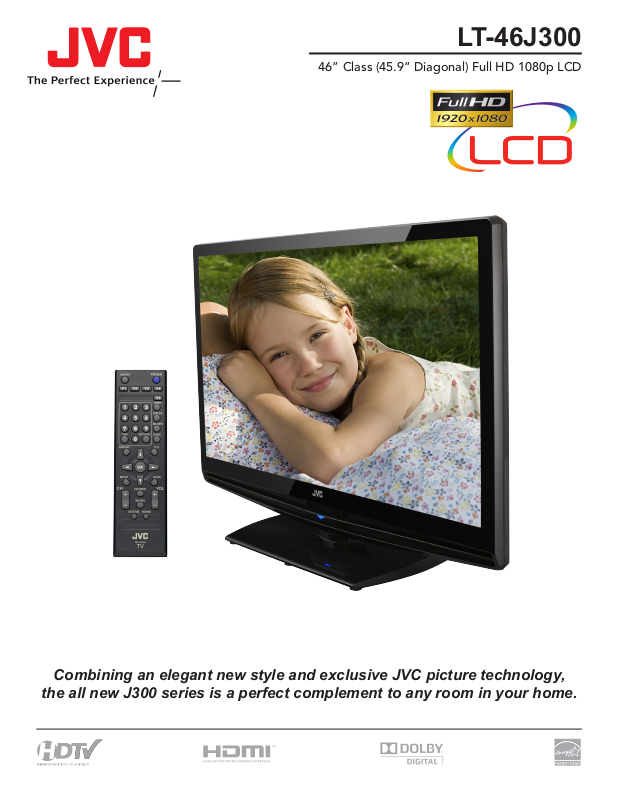

JVC LT-46J300 User Manual
LT-46J300
46” Class (45.9” Diagonal) Full HD 1080p LCD
Combining an elegant new style and exclusive JVC picture technology,
the all new J300 series is a perfect complement to any room in your home.
PRODUCT DIMENSIONS NOTES
44 3/8˝ / 1127 mm
31 1/2˝ /
799.7 mm
11 5/8˝ / 296 mm
29 1/4˝ /
743.5 mm
4 1/2˝ / 114.8 mm
19 5/8˝ / 500 mm
Features of JVC Full HD LCD Televisions
• 46” Class (45.9” Diagonal)
Full HD LCD – Featuring a
brand new all glossy black
cosmetic, our latest 32 inch
LCD panel is now 1920 x
1080p for full HD resolution.
It features high brightness,
a wide viewing angle and a
icker-free high resolution
picture that, coupled with
JVC’s exclusive picture scaling technologies, ensures all your
video sources are able to realize the full potential of 1080p.
• 1080p High Denition
3 20000:1 Dynamic Contrast Ratio 3 8msec Response Rate
3 430cd/m
2
Brightness 3 178º Viewing Angle
LCD Picture Specifications –
• No Hassle HD Picture – An ATSC/Digital Cable input
makes connecting to an HD signal a breeze. The ATSC tuner
allows you to receive over-the-air digital terrestrial broadcasts
with an antenna. The Clear QAM tuner allows you to receive
unscrambled Digital Cable signals.
• Picture Features – The J300 series is able to realize a
competitively superior image because of the following features:
• Color Management –
Sophisticated, pin-point color
sampling technology that helps
compensate for color range
limitations as well as color bleed
and interference.
• 3D Y/C Digital Comb Filter
w/Digital & MPEG NR – This
suite of lters helps reduce digital
noise commonly found in digital
broadcasts, DVDs and other less
than perfect sources.
• Black Level Expansion – This
technology helps maintain blacks
as dark as can be while retaining
all the subtle details of the
original picture.
• More Picture Features –
3 Dynamic Gamma Control
3 Natural Cinema
3 Smart Picture
3 4 selectable Video Status modes: Standard/Dynamic/
Theater/Game
3 Color Temperature Control: Cool/Natural/Warm
• Advanced Bitmap Menus – JVC’s advanced bitmap menus
combine a pleasing look with an enhanced user interface for
a better JVC product. Both intuitive and descriptive, every
feature is easy to use with step by step instructions.
• Connections for Current and Future Technologies –
3 3 HDMI w/HDCP Digital Video Inputs w/CEC
3 2 Component Video Inputs
3 1 PC Input (D-Sub 15 Pin)
3 1 S-Video & 2 AV Inputs
3 1 Optical Digital Audio Output
3 1 Fixed Audio Output
3 1 USB Input for Photo Viewer
• USB Photo Viewer – With easy access on the side panel,
connect your compatible USB mass storage device such as
an Everio camcorder to display your favorite images in high
resolution one by one or as a slide show.
• Sound Features Package –
3 20 Watts Total Audio Power
3 Oblique Cone Speakers
3 OmniSurround with preset listening modes:
Music/Movies/News/Mono/Off
3 Equalizer presets for: Speech/Jazz/Classic/Rock/User
• User Convenience Features –
3 Unied Remote w/Direct Input Buttons for
each of the 5 video inputs.
3 11 Selectable Video Aspect Modes
3 Favorite Channel Memory
3 Channel and Video Input Label capable
3 4 Picture Modes: Standard/Dynamic/
Theater/Game
3 Auto Demo Mode for Key Features
3 User friendly instruction book
3 ENERGY STAR® Compliant
Division of JVC AMERICAS CORP.
JVC U.S.A.
1700 Valley Road
Wayne, New Jersey, 07470
CONSUMER INFORMATION CENTER 1-800-252-5722
RM-C2055
• Specifications are subject to change without notice.
• Dolby and the double-D symbol are registered trademarks of Dolby
Laboratories.
• HDMI is a trademark of HDMI Licensing L.L.C.
• All images on this sheet are simulated to show effect.
• Photo viewer is not guaranteed to work with all USB mass storage devices.
• This LCD accepts 480i, 480p, 720p, 1080i and 1080p (24p/30p/60i/60p)
signals and displays at 1080p.
• This model is VESA compliant for easy wall mounting (200 x 200).
JVC CANADA, INC.
21 Finchdene Square
Scarborough, Ontario
Canada, M1X 1A7
