SPECIFICATION
ItemContents
LT-17AX5LT-23AX5
Dimensions (W × H × D)54.1cm × 41.6cm × 9.2cm (TV only)
54.1cm × 47.7cm × 12.6cm (Included Stand)
Mass9.0kg (TV only)
10.2kg (Included Stand)
TV RF SystemCCIR B/G, I, D/K, L
Color SystemPAL / SECAM / NTSC3.58 / NTSC4.43
Sound SystemA2 (B/G, D/K), NICAM (B/G, I, D/K), NTSC-M
Teletext SystemFLOF (Fastext), WST (World Standard System)
TV Receiving
Channels
Power InputTV
Power Consumption60W (Stand-by : 1W)120W (Stand-by : 1W)
Mini-DIN 4pin × 1
Y : 1V(p-p), positive (negative sync), 75Ω
C : 0.286V(p-p), (Burst signal), 75Ω
1V(p-p), positive (negative sync), 75Ω, RCA pin jack × 1
500mV(rms), high inpedance, RCA pin jack × 2
RCA pin jack × 3
Y : 1V(p-p), positive (negative sync), 75Ω
Pb/Pr : 0.7V(p-p), 75Ω
500mV(rms), high inpedance, RCA pin jack × 2
D-sub 15pin × 1
3.5mm mini jack
DC 24V
AC 110V ~ AC 240V, 50Hz / 60Hz
NOTE : Design & specifications are subject to change without notice.
1-2 (No.YA351)
SECTION 1
PRECAUTION
1.1SAFETY PRECAUTIONS
(1) The design of this product contains special hardware,
many circuits and components specially for safety
purposes. For continued protection, no changes should be
made to the original design unless authorized in writing by
the manufacturer. Replacement parts must be identical to
those used in the original circuits. Service should be
performed by qualified personnel only.
(2) Alterations of the design or circuitry of the products should
not be made. Any design alterations or additions will void
the manufacturer's warranty and will further relieve the
manufacturer of responsibility for personal injury or
property damage resulting therefrom.
(3) Many electrical and mechanical parts in the products have
special safety-related characteristics. These
characteristics are often not evident from visual inspection
nor can the protection afforded by them necessarily be
obtained by using replacement components rated for
higher voltage, wattage, etc. Replacement parts which
have these special safety characteristics are identified in
the parts list of Service manual. Electrical components
having such features are identified by shading on the
schematics and by ( ) on the parts list in Service
manual. The use of a substitute replacement which does
not have the same safety characteristics as the
recommended replacement part shown in the parts list of
Service manual may cause shock, fire, or other hazards.
(4) Don't short between the LIVE side ground and
ISOLATED (NEUTRAL) side ground or EARTH side
ground when repairing.
Some model's power circuit is partly different in the GND.
The difference of the GND is shown by the LIVE : ( ) side
GND, the ISOLATED (NEUTRAL) : ( ) side GND and
EARTH : ( ) side GND.
Don't short between the LIVE side GND and ISOLATED
(NEUTRAL) side GND or EARTH side GND and never
measure the LIVE side GND and ISOLATED (NEUTRAL)
side GND or EARTH side GND at the same time with a
measuring apparatus (oscilloscope etc.). If above note will
not be kept, a fuse or any parts will be broken.
(5) When service is required, observe the original lead dress.
Extra precaution should be given to assure correct lead
dress in the high voltage circuit area. Where a short circuit
has occurred, those components that indicate evidence of
overheating should be replaced. Always use the
manufacturer's replacement components.
(6) Do not check high voltage by drawing an arc. Use a high
voltage meter or a high voltage probe with a VTVM.
Discharge the picture tube before attempting meter
connection, by connecting a clip lead to the ground frame
and connecting the other end of the lead through a 10kΩ
2W resistor to the anode button.
(7) Isolation Check (Safety for Electrical Shock Hazard)
After re-assembling the product, always perform an isolation check on the exposed metal parts of the cabinet (antenna terminals, video/audio input and output terminals,
Control knobs, metal cabinet, screw heads, earphone jack,
control shafts, etc.) to be sure the product is safe to operate
without danger of electrical shock.
a) Dielectric Strength Test
The isolation between the AC primary circuit and all metal
parts exposed to the user, particularly any exposed metal
part having a return path to the chassis should withstand a
voltage of 3000V AC (r.m.s.) for a period of one second. (.
. . . Withstand a voltage of 1100V AC (r.m.s.) to an
appliance rated up to 120V, and 3000V AC (r.m.s.) to an
appliance rated 200V or more, for a period of one second.)
This method of test requires a test equipment not generally
found in the service trade.
b) Leakage Current Check
Plug the AC line cord directly into the AC outlet (do not use
a line isolation transformer during this check.). Using a
"Leakage Current Tester", measure the leakage current
from each exposed metal part of the cabinet, particularly
any exposed metal part having a return path to the chassis,
to a known good earth ground (water pipe, etc.). Any
leakage current must not exceed 0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.2mA AC
(r.m.s.).
Alternate Check Method
Plug the AC line cord directly into the AC outlet (do not
use a line isolation transformer during this check.). Use
an AC voltmeter having 1000
Ω per volt or more
sensitivity in the following manner. Connect a 1500
10W resistor paralleled by a 0.15µF AC-type capacitor
between an exposed metal part and a known good earth
ground (water pipe, etc.). Measure the AC voltage
across the resistor with the AC voltmeter. Move the
resistor connection to each exposed metal part,
particularly any exposed metal part having a return path
to the chassis, and measure the AC voltage across the
resistor. Now, reverse the plug in the AC outlet and
repeat each measurement. Any voltage measured must
not exceed 0.75V AC (r.m.s.). This corresponds to
0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.3V AC
(r.m.s.). This corresponds to 0.2mA AC (r.m.s.).
AC VOLTMETER
(HAVING 1000 /V,
OR MORE SENSITIVITY)
0.15 F AC-TYPE
PLACE THIS PROBE
1500 10W
GOOD EARTH GROUND
ON EACH EXPOSED
ME TAL PAR T
Ω
(No.YA351)1-3
1.2INSTALLATION
1.2.1 HEAT DISSIPATION
If the heat dissipation vent behind this unit is blocked, cooling efficiency may deteriorate and temperature inside the unit will rise.
Therefore, please make sure pay attention not to block the heat dissipation vent as well as the ventilation outlet behind the unit and
ensure that there is room for ventilation around it.
1.2.2 INSTALLATION REQUIREMENTS
Ensure that the minimal distance is maintained, as specified below, between the unit with and the surrounding walls.
Install the unit on stable flooring or stands.
Take precautionary measures to prevent the unit from tipping in order to protect against accidents and earthquakes.
Distance recommendations
Avoid improper installation and never position the unit where good ventilation
is impossible.
When installing this TV, distance recommendations must be maintained
between the set and the wall, as well as inside a tightly enclosed area or
150 mm
200 mm200 mm
150 mm
50 mm
piece of furniture.
Keep to the minimum distance guidelines shown for safe operation.
1.3PRECAUTIONS
(1) The picture brightness may become uneven on the entire screen according to the environmental temperature. Be sure to use
your monitor set in a specified temperature range for proper display presentation.
(2) Avoid disturbing the heat dissipation from the vent holes provided in the rear, on the top and at the sides. Failure to do so may
result in damaged electronics inside due to the accumulated heat within the unit.
(3) Be sure to install the unit in a well-ventilated place. Also make sure that the ambient temperature is kept in the range of 0 to 35°C.
(4) Avoid operation or storage in high temperature and humidity that exceed the specified limit. Otherwise, the display presentation
may be deteriorated.
(5) This monitor may display a blurred picture when exposed to an extreme environmental conditions. This phenomenon is due to
an intrinsic characteristic of the Liquid Crystal Display (LCD). This is not the failure.
(6) This monitor display uses a Cold Cathode Tube as a backlighting device. The brilliance of this tube (and the monitor display)
may be degraded by time.
1.4CAUTIONS FOR TRANSPORTATION
The goods may be damaged during transportation caused by poor handling such as throwing, toppling, dropping, etc, giving an excess
force against the LCD device. This may happen even if the packing is rigid and secured. To avoid such adverse situations, give a
proper instruction to the freighter for secured handling. The LCD panel uses a glass plate, which is very fragile against an external
force. Take utmost care to avoid vibration or shock to the panel.
1-4 (No.YA351)
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
2.1ABOUT LIQUID CRYSTAL DISPLAY
2.1.1 STRUCTURE OF LIQUID CRYSTAL PANEL
The Liquid Crystal Display used for this unit is of a TFT (Thin Film Transistor) type panel. The structure of this panel is that a TFT
array-formed substrate and the stripe pixel matrix type color filter substrate are pressed together with a liquid crystal filled in between
these materials.
2.1.2 LONG-TERM AFTERIMAGE ON THE LCD
A minute amount of ionic material could be mingled into a liquid crystal substrate in the manufacturing process. By applying the
electricity to the panel the ionic material may be migrated towards one part of the electrodes, causing a long-term afterimage to be
displayed. In practice, when a still image is displayed for a long time, the afterimage may be developed and persisted. To cure this
problem, turn off the unit and then turn on again and arrange displaying an appropriate still image on the portion where the afterimage
is being superimposed.
2.1.3 RESPONSE SPEED OF THE LCD
The LCD is slower than the CRT in terms of the display refresh rate, causing a fast moving picture may be displayed blurred. This is
not fault but caused by an intrinsic characteristic of the LCD.
2.1.4 VIEWING ANGLE OF THE LCD
This LCD uses a wide-angle liquid crystal panel, featuring a low rate of the brightness inversion. When viewed from a far outer angle,
the screen may be displayed with hue variation. Again, this is not fault but caused by an intrinsic characteristic of the LCD.
2.1.5 PIXEL DEFICIENCY OF THE LCD
The liquid crystal panel is manufactured with precise engineering procedure. However, there is a possibility of yielding a little amount
of defective pixels in part on the panel. This is unavoidable feature even if the latest technology is being used for manufacturing the
LCD module.
2.2IMPORTANT NOTICE WHEN REPLACING COMPONENT PARTS
2.2.1 REPLACING THE LCD MODULE
(1) The LCD panel is fragile against the static charge. Be sure to take an appropriate grounding using a grounding-strap etc. when
to replace the LCD panel.
(2) The LCD is made of glass, which is fragile against the mechanical shock. Use utmost care when handling the LCD panel.
(3) When replacing the panel, first place the panel on the base chassis and then make sure that there is no gap in between the panel
and the chassis. Fix the panel with fixing screws. Turn the unit on with an all-black signal being put in and check if the brightness
is even on the entire screen. If the brightness is not even in some part, slacken the fixing screw nearby until the brightness
becomes even with other parts.
(4) A tightening torque for the fixing screws must be set to 0.294Nm or the less. Applying the torque larger than this limit may result
in the damage on the LCD panel.
(5) Connecting or disconnecting the plugs with the set is being powered may cause the malfunction of the set. Makes sure that the
AC power plug is disconnected from the power source when attempting the replacement work.
2.2.2 REPLACING THE FUSE
Be sure to use the rated fuse. After replacing the fuse, confirm that the insulator is stuck on the shielding surface for secure insulation.
(No.YA351)1-5
SECTION 3
DISASSEMBLY
3.1DISASSEMBLY PROCEDURE
CAUTION:
• Prior to disassembly, unplug the power cord and AC
adapter from the AC outlet without fail. (Turn the power
"off".)
• When exchanging parts etc. with the front side (LCD
side) facing down, please place a protection sheet
below before starting, so as to prevent scratches on the
front side.
A x4
3.1.1 REMOVING THE CABLE COVER (L/R) AND NECK
COVER (Fig.1)
(1) Remove the 4 claws [A].
(2) Remove the CABLE COVER (L), CABLE COVER (R) and
NECK COVER.
CABLE COVER (L)
CABLE COVER (R)NECK COVER
1-6 (No.YA351)
Fig.1
3.1.2 REMOVING THE STAND ASS'Y (Fig.2)
• Remove the NECK COVER.
(1) Remove the 4 screws [B] and remove the STAND ASS’Y.
3.1.3 REMOVING THE TUNER MODULE (Fig.2)
• Remove the CABLE COVER (R).
(1) Remove the DUMMY COVER by pulling the claw [C].
(2) Remove the 1 claw [C] and remove the TUNER COVER.
(3) Remove the TUNER MODULE by pulling carefully.
3.1.4 REMOVING THE AV JACK MODULE (Fig.2)
• Remove the CABLE COVER (L).
(1) Loosen the 2 screws [D].
(2) Remove the AV JACK MODULE by pulling carefully.
Dx2
DUMMY COVER
C
TUNER COVER
Bx4
TUNER
MODULE
STAND ASS'Y
AV JACK MODULE
Fig.2
(No.YA351)1-7
3.1.5 REMOVING THE REAR COVER (Fig.3)
• Remove the CABLE COVER (L/R) and NECK COVER.
• Remove the STAND ASS’Y.
• Remove the TUNER MODULE.
• Remove the AV JACK MODULE.
(1) Remove the 4 screws [E] and remove the REAR COVER.
Ex4
1-8 (No.YA351)
REAR COVER
Fig.3
3.1.6 REMOVING THE MAIN PWB SHIELD (Fig.4, 5)
• Remove the REAR COVER.
(1) Remove the 1 screw [F] and remove the D-SUB COVER.
(Fig.4)
(2) Remove the 1 screw [G] and remove the AUDIO COVER.
(Fig.4)
(3) Remove the 2 screws [H] and remove the MODULE
BRACKETS. (Fig.4)
(4) Remove the 4 screws [I] and the 2 screws [J]. (Fig.5)
(5) Remove the MAIN PWB SHIELD by sliding to downside.
(Fig.5)
H
MODULE
H
BRACKET
D-SUB
COVER
AUDIO COVER
F
G
Fig.4
(No.YA351)1-9
+
MAIN PWB
SHIEELD
J
x2
Ix2
Fig.5
1-10 (No.YA351)
3.1.7 REMOVING THE MAIN PWB (Fig.6)
• Remove the REAR COVER.
• Remove the MAIN PWB SHIELD.
(1) Remove the 1 screw [K].
(2) Disconnect the connectors [P004] / [P006] / [P009] / [P014]
from the MAIN PWB.
(3) Disconnect the connector [P613] from the FRONT
CONTROL PWB.
(4) Remove the 6 screws [L] and remove the MAIN PWB.
NOTE:
• EIt is advisable to take note of the connecting location
(connector number) of the removed connectors.
[P004]
[P006]
[P009]
[P017]
K
MAIN PWB
FRONT
CONTROL
PWB
Lx6
[P613]
Fig.6
(No.YA351)1-11
3.1.8 REMOVING THE LCD PANEL UNIT [LT-17AX5, LT-17AX5/S, LT-17AX5/A] (Fig.7, 8)
• Remove the REAR COVER.
• Remove the MAIN PWB SHIELD.
• Remove the MAIN PWB.
(1) Remove the 5 screws [M]. (Fig.7)
(2) Remove the 1 claw [N], 4 claws [O] and 1 claw [P] and
remove the LCD PANEL UNIT and LCD BRACKET. (Fig.7)
(3) Remove the 4 screws [Q] and remove LCD BRACKET.
(Fig.8)
N
Ox4
P
1-12 (No.YA351)
Mx5
Fig.7
x2
Q
LCD BRACKET
Qx2
Fig.8
(No.YA351)1-13
3.1.9 REMOVING THE LCD PANEL UNIT [LT-23AX5, LT-23AX5/S, LT-23AX5/A] (Fig.9, 10)
• Remove the REAR COVER.
• Remove the MAIN PWB SHIELD.
• Remove the MAIN PWB.
(1) Remove the 6 screws [R]. (Fig.9)
(2) Remove the 3 claws [S], 4 claws [T], 3 claws [U] and 2
claws [V] and remove the LCD PANEL UNIT and LCD
BRACKET. (Fig.9)
(3) Remove the 8 screws [W] and remove LCD BRACKET.
(Fig.10)
Sx3
Ux3
Tx4
1-14 (No.YA351)
Fig.9
Vx2
Rx6
LCD BRACKET
Wx4
Wx4
Fig.10
(No.YA351)1-15
3.1.10 REMOVING THE INVERTER PWB [LT-17AX5, LT-17AX5/S, LT-17AX5/A] (Fig.11)
• Remove the REAR COVER.
• Remove the MAIN PWB SHIELD.
• Remove the MAIN PWB.
• Remove the LCD BRACKET.
(1) Remove the 4 screws [X].
(2) Disconnect the connectors from the INVERTER PWB and
remove the INVERTER PWB.
NOTE:
• It is advisable to take note of the connecting location
(connector number) of the removed connectors.
Xx4
INVERTER PWB
1-16 (No.YA351)
Fig.11
3.1.11 REMOVING THE SPEAKERS (Fig.12)
• Remove the REAR COVER.
(1) Disconnect the connector [P612] from the FRONT
CONTROL PWB.
(2) Strip off the sponges and remove the SPEAKERS.
NOTE:
• It is advisable to take note of the connecting location
(connector number) of the removed connectors.
[P612]
FRONT CONTROL PWB
SPONGE
SPEAKER
SPONGE
SPEAKER
Fig.12
(No.YA351)1-17
3.1.12 REMOVING THE FRONT CONTROL PWB (Fig.13)
• Remove the REAR COVER.
(1) Disconnect the connector [P611] from the FRONT
CONTROL PWB.
(2) Remove the 2 screws [Y].
(3) Remove the 3 screws [Z] and remove the FRONT
CONTROL PWB.
NOTE:
• EIt is advisable to take note of the connecting location
(connector number) of the removed connectors.
Yx
3.1.13 REMOVING THE IR SENSOR PWB (Fig.13)
• Remove the REAR COVER.
(1) Remove the 1 screw [a].
(2) Disconnect the connector [P005] from the IR SENSOR
PWB.
NOTE:
• It is advisable to take note of the connecting location
(connector number) of the removed connectors.
2
Zx3
[P611]
FRONT CONTROL PWB
[P005]
a
IR SENSOR PWB
Fig.13
1-18 (No.YA351)
3.2FIRMWARE VERSION CHECK
3.2.1 PROCEDURE FOR FIRMWARE VERSION CHECK
(1) Press the [MUTING] key and the [DISPLAY] key
simultaneously, and the FACTORY MODE screen Fig.1
will be displayed.
(2) The FIRMWARE VERSION is displayed in the upperleft on
the FACTORY MODE screen.
(3) Press the [POWER] key or the [BACK] key to exit the
FACTORY MODE.
CAUTION:
• Do not change setting values of FACTORY MODE
screen.
3.2.2 SERVICE CONTROL KEY LAYOUT ON THE REMOTE CONTROL UNIT
FACTORY MODE SCREEN
FIRMWARE Ver.
Build Date:Fab 16 2005 Time:20:52:58
V23JLBJ F/W Ver. 3.83
Factory Mode
ADC
TCD3
Scalar
Display
Color Process
: SELECT
OK : OPERATE
VIDEO
STATUS
POWER
INPUT
SLEEP
MTS
TIMER
POWER
NUTING
MUTING
100+
ASPECT
C.C.
DISPLAYBACK
DISPLAYBACK
(No.YA351)1-19
3.3REPLACEMENT OF CHIP COMPONENT
3.3.1 CAUTIONS
(1) Avoid heating for more than 3 seconds.
(2) Do not rub the electrodes and the resist parts of the pattern.
(3) When removing a chip part, melt the solder adequately.
(4) Do not reuse a chip part after removing it.
3.3.2 SOLDERING IRON
(1) Use a high insulation soldering iron with a thin pointed end of it.
(2) A 30w soldering iron is recommended for easily removing parts.
3.3.3 REPLACEMENT STEPS

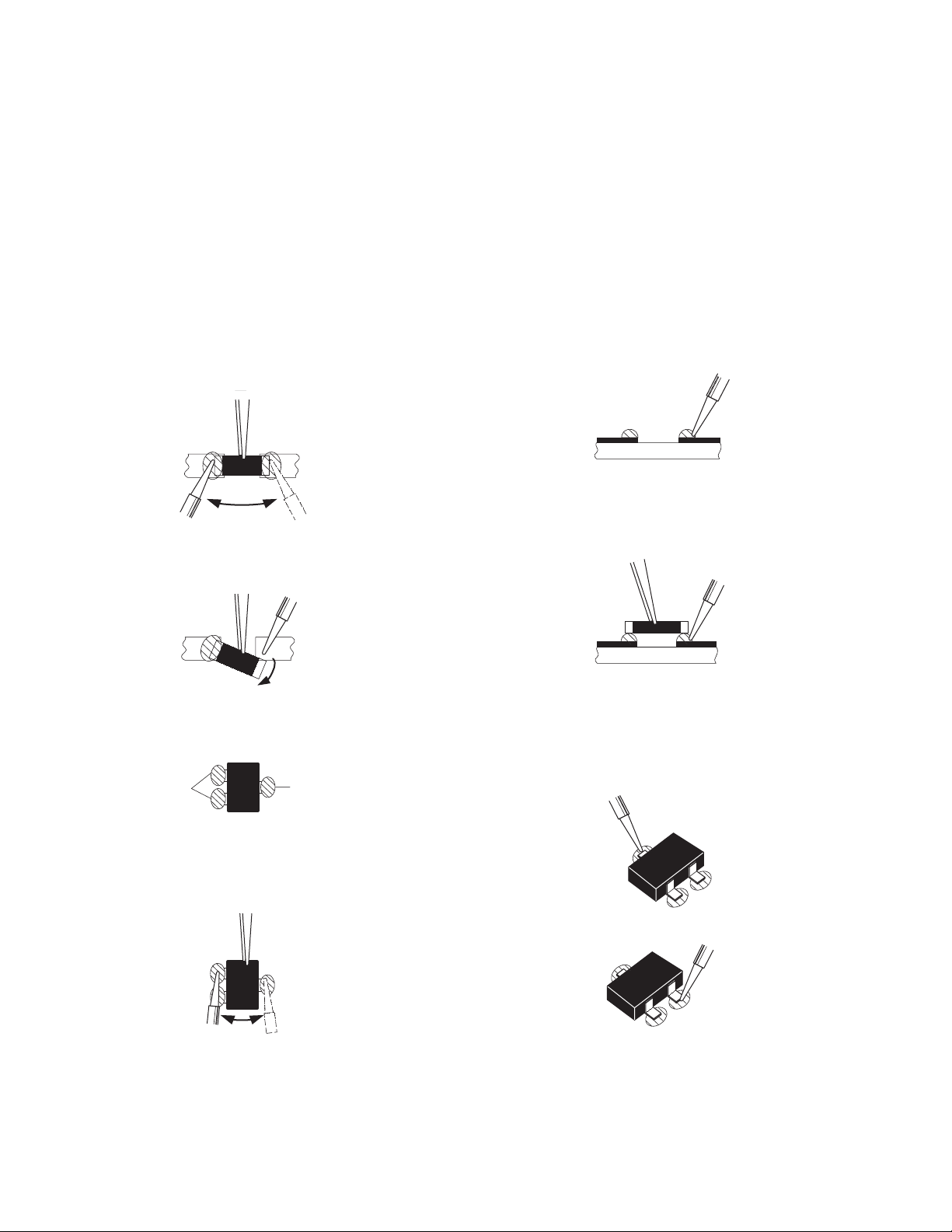

1. How to remove Chip parts
2. How to install Chip parts
[Resistors, capacitors, etc.]
(1) As shown in the figure, push the part with tweezers and
alternately melt the solder at each end.
(2) Shift with the tweezers and remove the chip part.
[Transistors, diodes, variable resistors, etc.]
(1) Apply extra solder to each lead.
SOLDER
SOLDER
[Resistors, capacitors, etc.]
(1) Apply solder to the pattern as indicated in the figure.
(2) Grasp the chip part with tweezers and place it on the
solder. Then heat and melt the solder at both ends of the
chip part.
[Transistors, diodes, variable resistors, etc.]
(1) Apply solder to the pattern as indicated in the figure.
(2) Grasp the chip part with tweezers and place it on the
solder.
(3) First solder lead A as indicated in the figure.
(2) As shown in the figure, push the part with tweezers and
alternately melt the solder at each lead. Shift and remove
the chip part.
NOTE :
After removing the part, remove remaining solder from the
pattern.
1-20 (No.YA351)
A
B
C
(4) Then solder leads B and C.
A
B
C
SECTION 4
ADJUSTMENT
This service manual does not describe ADJUSTMENT.
(No.YA351)1-21
[LT-17AX5, LT-17AX5/S, LT-17AX5/A]
SECTION 5
TROUBLESHOOTING
shows
MCU(I016)
hangs
End
Next
Reset the MCU(I016)
by pressing the power
key or replugging the
Replace I016
power cord
Still no
End
No picture appear
Does the LED
light up
No
LED light to
amber
No
Is it entering into
power saving mode
Restart PC signal
to ensure H. V. sync
are not absent
End
Yes
Yes
Yes
No
L021, L022 is 12V
I005 2pin is 12V
The voltage of
I005 1pin is 5V
I016 8pin, 10pin
and 14pin is 5V
The voltage of
Yes
The voltage of
Yes
Yes
The voltage of
Yes
Replace I016
No
No
No
No
Check I016 socket is
Replace F001
Replace
L021 & L022
Replace
I005
loosened
Next
Yes
Yes
Yes
Yes
Yes
No
No
No
No
No
No
Replace I025
Replace I009
Replace I028
Replace I001
Replace I004
Replace I003
The voltage of
I025 2pin is 3.3V
The voltage of
I009 2pin is 3.3V
The voltage of
I028 2pin is 2.5V
The voltage of
I001 2pin is 5V
The voltage of
I004 2pin is 1.8V
The voltage of
I003 2pin is 1.8V
The H. or V. sync
does not hold
Are the output of
I037(CLK, H, V, DE)
is normal
No
Are the input
waveforms of I037
is normal
Yes
Replace I037
End
Are flex cable
YesYes
attached firmly
at P014
No
Tighten two flex
cables at P014
End
Are flex cable
attached firmly at
the LCD panel
connectors
Yes
Replace LCD panel
End
No
Tighten flex cable
at P014
End
Yes
The voltage of
I019 2pin is 3.3V
Yes
Replace I037
End
No
Replace I019
1-22 (No.YA351)
[LT-23AX5, LT-23AX5/S, LT-23AX5/A]
shows
MCU(I016)
hangs
End
Next
Reset the MCU(I016)
by pressing the power
key or replugging the
power cord
Replace I016
End
Still no
No picture appear
Does the LED
light up
No
LED light to
amber
No
Is it entering into
power saving mode
Restart PC signal
to ensure H. V. sync
are not absent
End
Yes
Yes
Yes
No
L021, L022 is 24V
I005 2pin is 24V
The voltage of
I005 1pin is 5V
I016 8pin, 10pin
and 14pin is 5V
The voltage of
Yes
The voltage of
Yes
Yes
The voltage of
Yes
Replace I016
No
No
No
No
Check I016 socket is
Replace F001
Replace
L021 & L022
Replace
I005
loosened
Next
Yes
Yes
Yes
Yes
Yes
No
No
No
No
No
No
Replace I025
Replace I009
Replace I028
Replace I001
Replace I004
Replace I003
The voltage of
I025 2pin is 3.3V
The voltage of
I009 2pin is 3.3V
The voltage of
I028 2pin is 2.5V
The voltage of
I001 2pin is 5V
The voltage of
I004 2pin is 1.8V
The voltage of
I003 2pin is 1.8V
The H. or V. sync
does not hold
Are the output of
I037(CLK, H, V, DE)
is normal
No
Are the input
waveforms of I037
is normal
Yes
Replace I037
End
Are flex cable
YesYes
attached firmly
at P014
No
Tighten two flex
cables at P014
End
Are flex cable
attached firmly at
the LCD panel
connectors
Yes
Replace LCD panel
End
No
Tighten flex cable
at P014
End
Yes
The voltage of
I019 2pin is 3.3V
Yes
Replace I037
(SVP-EX52)
End
No
Replace I019
(No.YA351)1-23
Victor Company of Japan, Limited
AV & MULTIMEDIA COMPANY DISPLAY CATEGORY 12, 3-chome, Moriya-cho, Kanagawa-ku, Yokohama-city, Kanagawa-prefecture, 221-8528, Japan

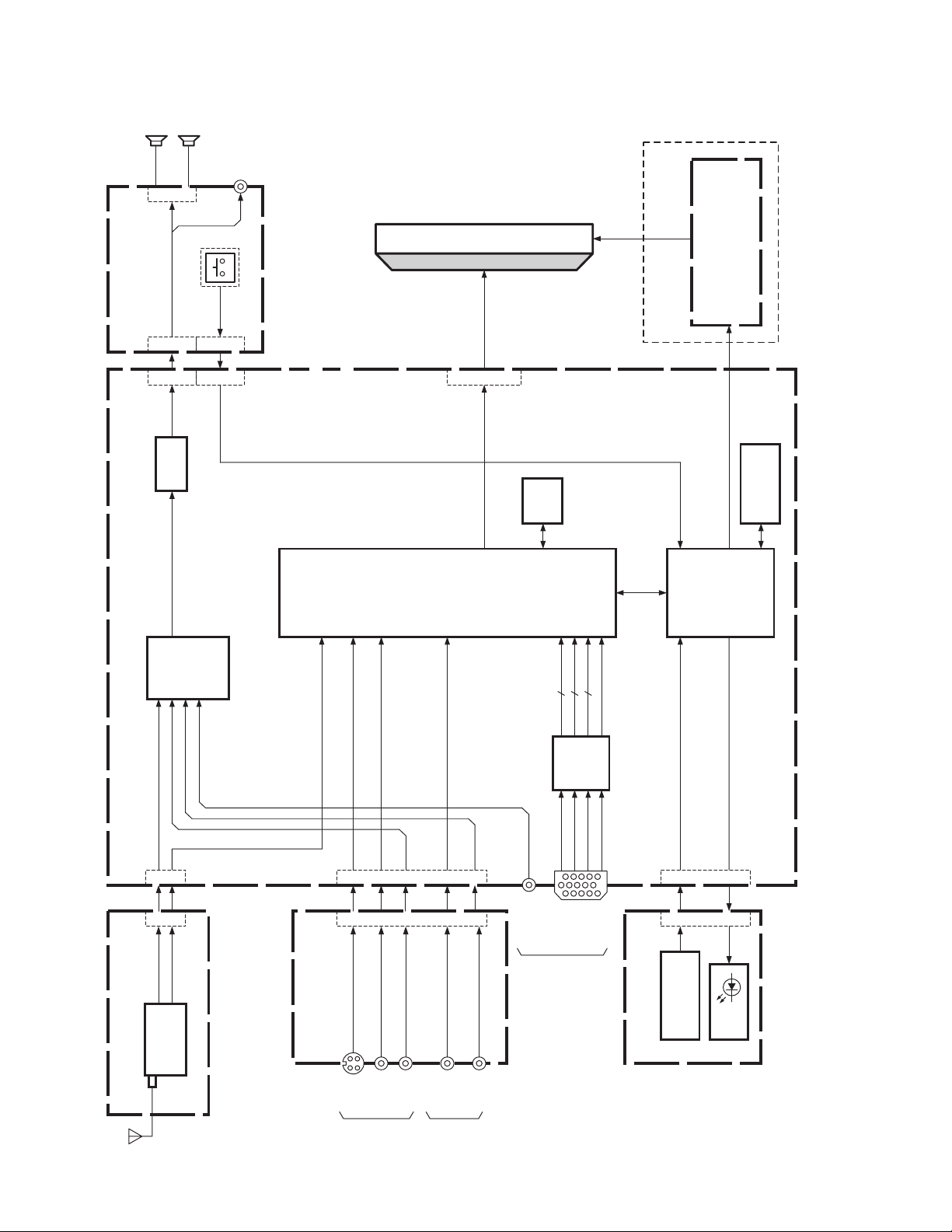

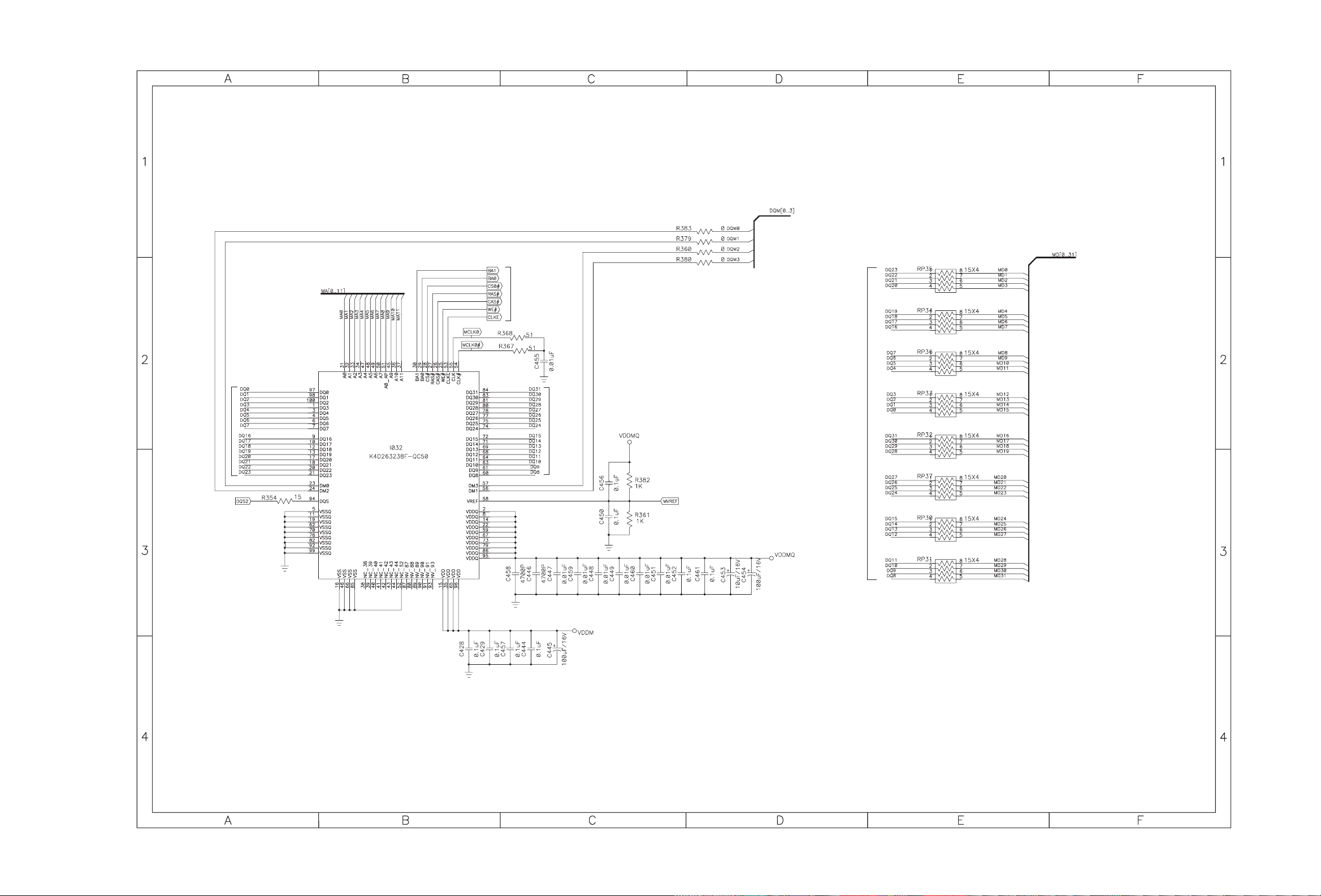

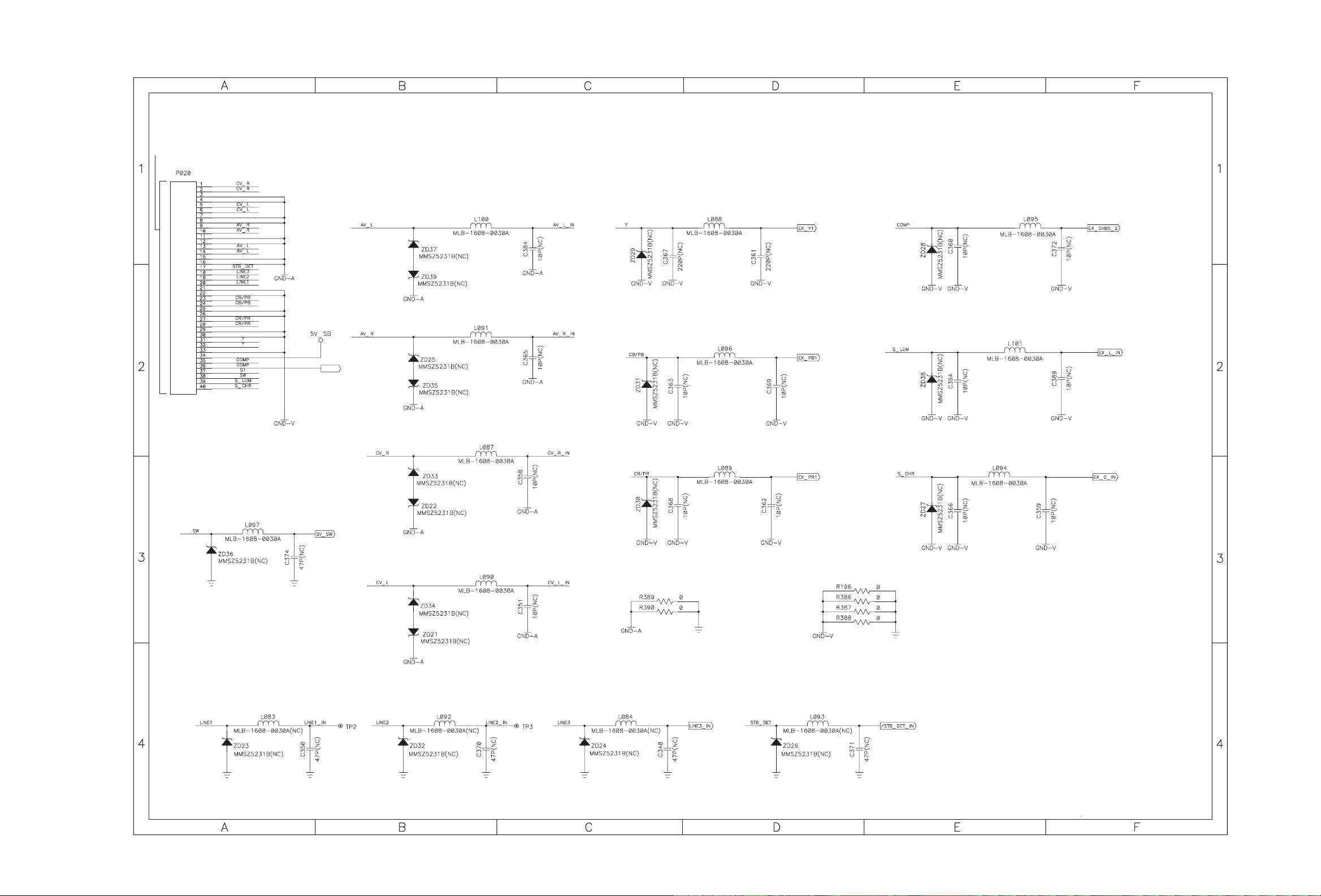

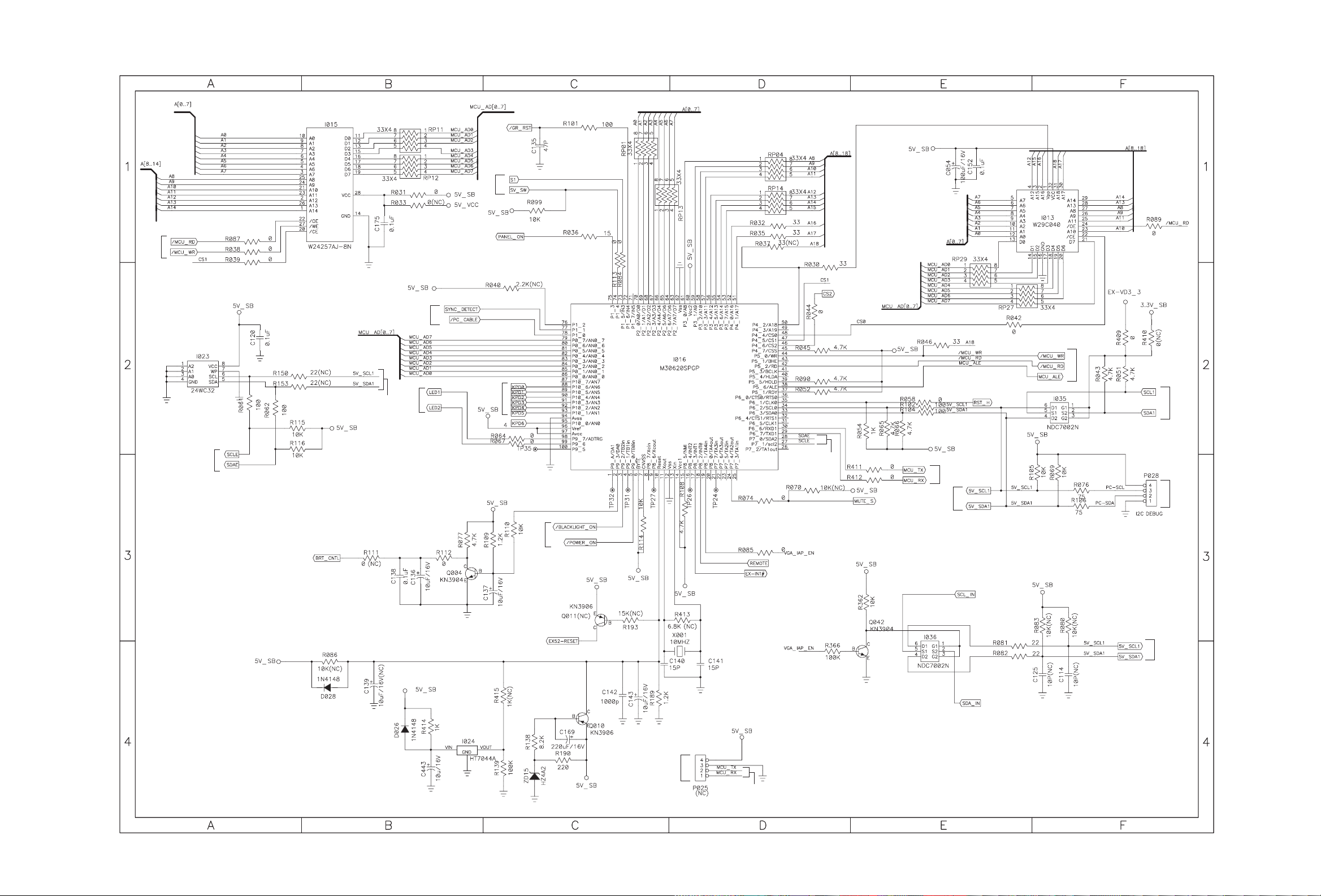

V JACK PWB, FRONT CONTROL PWB, TUNER PWB CIRCUIT DIAGRAM SHEET 12
MAIN
PWB
ASS'Y
(3/11)
P020
SHEET 3
SHEET 12
SHEET 12
SHEET 12
L
SHEET 12
Y
Pb
Pr
TUNER PWB ASS'Y
U/V FRONT END
MAIN PWB
ASS'Y(4/11)
P003
SHEET 4
L
SHEET 12
SHEET 12
SHEET 12
R
V
VIDEO-1
S-VIDEO
VIDEO-1
AV JACK PWB ASS'Y
SHEET 12
R
VIDEO-2
COMPONENT
VIDEO
MAIN PWB ASS'Y
P006 SHEET 4
(4/11)
TO SPEAKER
MAIN PWB ASS'Y
(11/11)
P012 SHEET 11
HEADPHONE
FRONT
CONTROL
PWB ASS'Y
(No.YA351)2-252-26(No.YA351)
PWB-0916-02
PATTERN DIAGRAMS
MAIN PWB AND IR SENSER PWB PATTERN
TOP
TOP
( )
()
2-28(No.YA351)(No.YA351)2-27
A
V JACK PWB, FRONT CONTROL PWB, TUNER PWB PATTERN
TOP
FRONT
()
TOP
( )
( )
(No.YA351)2-292-30(No.YA351)
TOP
Victor Company of Japan, Limited
AV & MULTIMEDIA COMPANY VIDEO DISPLAY CATEGORY 12, 3-chome, Moriya-cho, kanagawa-ku, Yokohama-city, kanagawa-prefecture, 221-8528, Japan
(No.YA351)
Printed in Japan
VPT
PARTS LIST
CAUTION
J The parts identified by the symbol are important for the safety . Whenever replacing these parts, be sure to use specified ones to secure the
safety.
J The parts not indicated in this Parts List and those which are filled with lines --- in the Parts No. columns will not be supplied.
J P.W. BOARD Ass'y will not be supplied, but those which are filled with the Parts No. in the Parts No. columns will be supplied.
ABBREVIATIONS OF RESISTORS, CAPACITORS AND TOLERANCES
RESISTORSCAPACITORS
CRCarbon ResistorC CAP.Ceramic Capacitor
FRFusible ResistorE CAP.Electrolytic Capacitor
PRPlate ResistorM CAP.Mylar Capacitor
VRVariable ResistorCH CAP.Chip Capacitor
HV RHigh Voltage ResistorHV CAP.High Voltage Capacitor
MF RMetal Film ResistorMF CAP.Metalized Film Capacitor
OM RMetal Oxide Film ResistorPP CAP.Polypropylene Capacitor
CMF RCoating Metal Film ResistorPS CAP.Polystyrol Capacitor
UNF RNon-Flammable ResistorTF CAP.Thin Film Capacitor
CH V RChip Variable ResistorMPP CAP.Metalized Polypropylene Capacitor
CH MG RChip Metal Glazed ResistorTAN. CAP.Tantalum Capacitor
COMP. RComposition ResistorCH C CAP.Chip Ceramic Capacitor
LPTC RLinear Positive Temperature Coefficient ResistorBP E CAP.Bi-Polar Electrolytic Capacitor
CH AL E CAP.Chip Aluminum Electrolytic Capacitor
CH AL BP CAP.Chip Aluminum Bi-Polar Capacitor
CH TAN. E CAP.Chip Tantalum Electrolytic Capacitor
CH AL BP E CAP.Chip Tantalum Bi-Polar Electrolytic Capacitor
RESISTORS
FGJ KMNRHZ P
±1%±2%±5%±10%±20%±30%
+30%
-10%
+50%
-10%
+80%
-20%
+100%
-0%
(No.YA351)3-1
CONTENTS
[LT-17AX5, LT-17AX5/S, LT-17AX5/A]
USING P.W. BOARD & REMOTE CONTROL UNIT ................................................................................................... 3-3

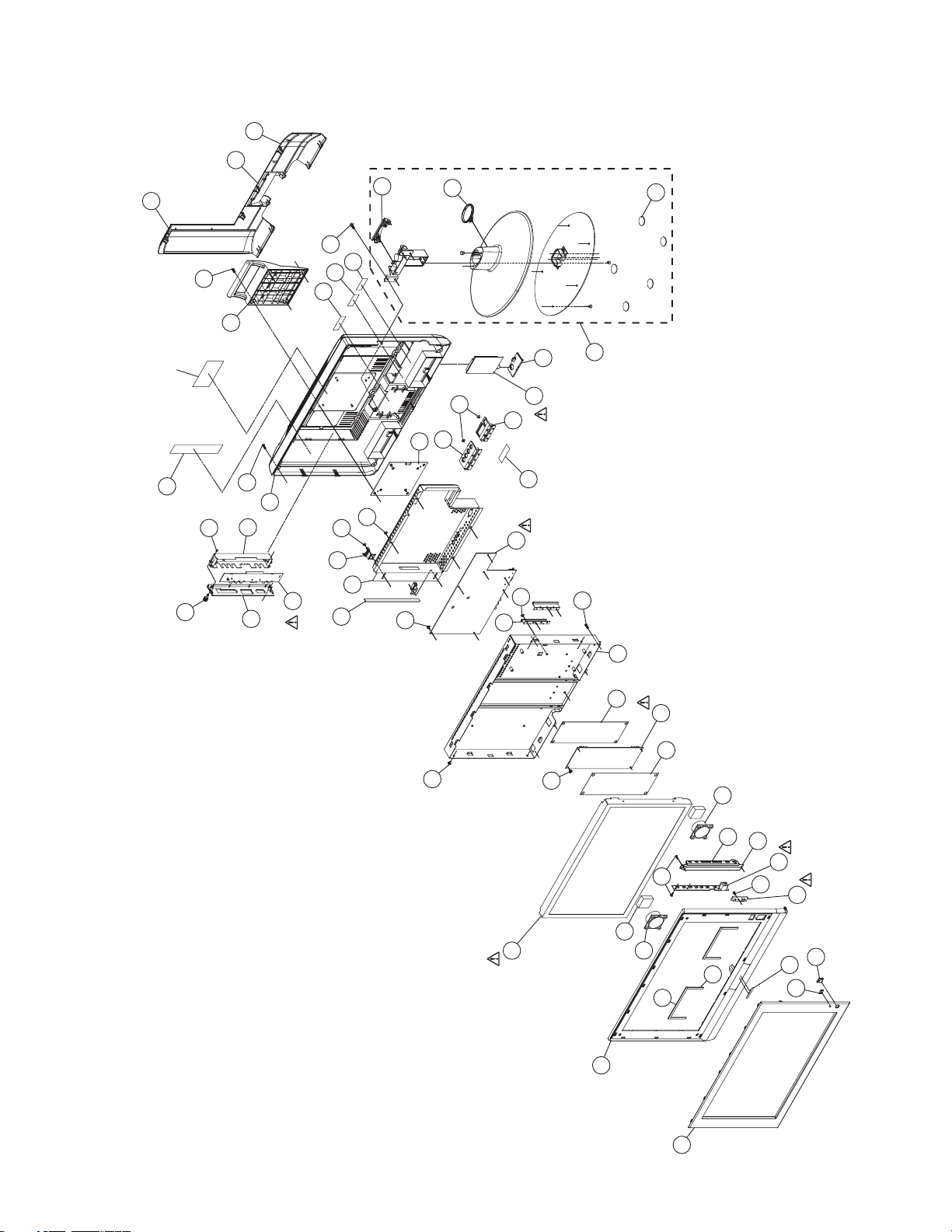

EXPLODED VIEW PARTS LIST ................................................................................................................................. 3-4
PRINTED WIRING BOARD PARTS LIST ................................................................................................................... 3-6
MAIN P.W. BOARD ASS'Y DA-5098801023 (PWB-0915-PART A-02) ............................................................. 3-6
IR SENSOR P.W. BOARD ASS'Y DA-5098801024 (PWB-0915-PART B-02) .................................................. 3-9
AV JACK P.W. BOARD ASS'Y DA-098801025 (PWB-0916-PART B-02) ......................................................... 3-9
FRONT CONTROL P.W. BOARD ASS'Y DA-5098801031 (PWB-0916-PART B-02) ....................................... 3-9

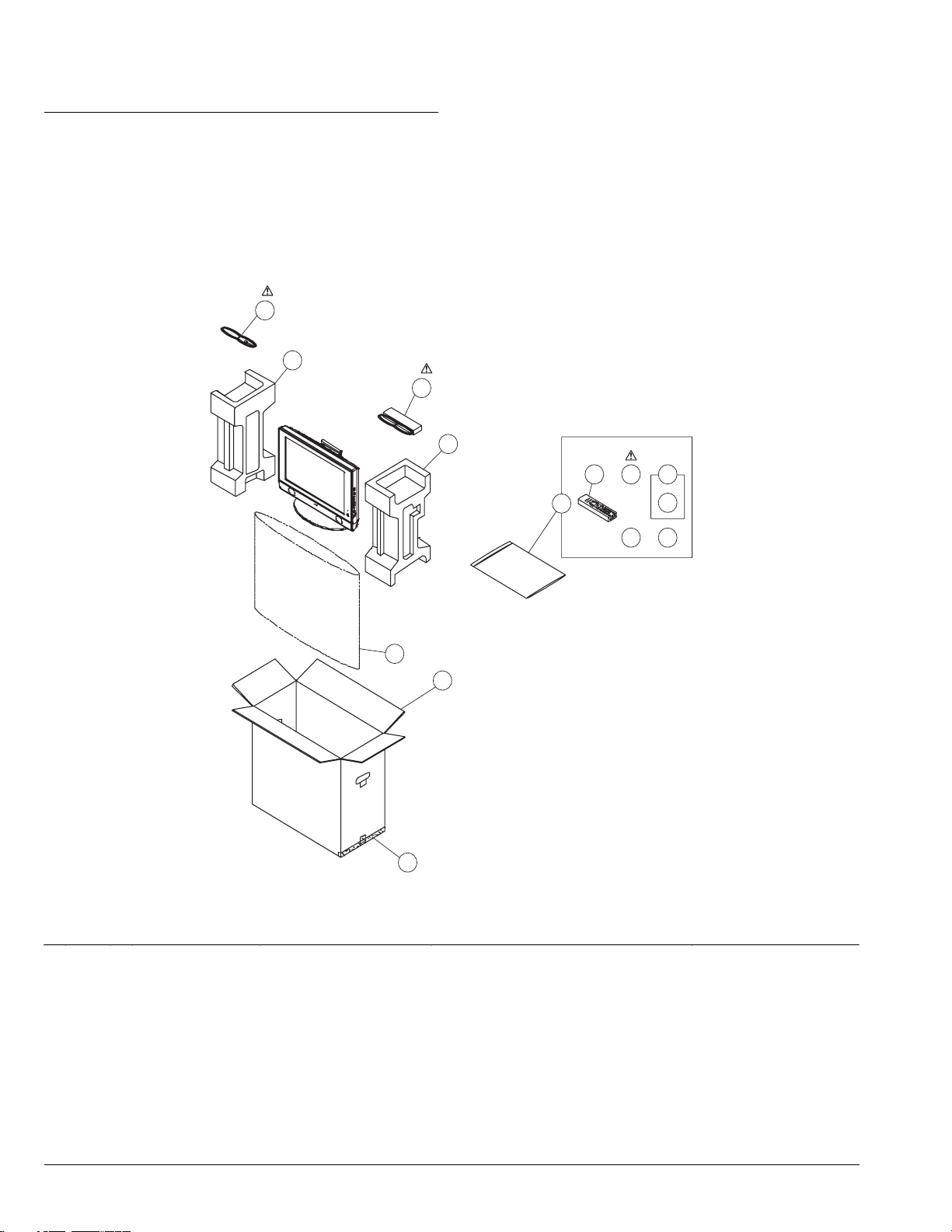

PACKING PARTS LIST ............................................................................................................................................. 3-10
[LT-23AX5, LT-23AX5/S, LT-23AX5/A]
USING P.W. BOARD & REMOTE CONTROL UNIT ................................................................................................. 3-11
EXPLODED VIEW PARTS LIST ............................................................................................................................... 3-12
PACKING PARTS LIST ............................................................................................................................................. 3-19
3-2(No.YA351)
[LT-17AX5, LT-17AX5/S, LT-17AX5/A]
USING P.W. BOARD & REMOTE CONTROL UNIT
P.W.B ASS'YLT-17AX5LT-17AX5/SLT-17AX5/A
MAIN P.W.B
IR SENSOR P.W.B
AV J A C K P.W. B
FRONT CONTROL P.W.B
TUNER P.W.B
INVERTER P.W.BDA-E053910011←←
REMOTE CONTROL UNITDA-E052731048←←
C001DA-E230003391CAPACITOR25V 0.1uF Z
C003DA-E216029302CAPACITOR35V 330uF M
C004DA-E230003391CAPACITOR25V 0.1uF Z
C005DA-E218027093CAPACITOR16V 100uF M
C007DA-E218027093CAPACITOR16V 100uF M
C008DA-E230003391CAPACITOR25V 0.1uF Z
C009DA-E218027093CAPACITOR16V 100uF M
C010DA-E230003391CAPACITOR25V 0.1uF Z
C011DA-E230003391CAPACITOR25V 0.1uF Z
C012DA-E218027093CAPACITOR16V 100uF M
C013DA-E240610191CAPACITOR50V 100pF J
C014DA-E240610191CAPACITOR50V 100pF J
C015DA-E240610191CAPACITOR50V 100pF J
SST39SF040-70-4C-NHM
Ref No.Part No.Part NameDescription Local
C016DA-E240610191CAPACITOR50V 100pF J
C017DA-E240610191CAPACITOR50V 100pF J
C020DA-E240610191CAPACITOR50V 100pF J
C022DA-E240610191CAPACITOR50V 100pF J
C024DA-E218027093CAPACITOR16V 100uF M
C025DA-E230003391CAPACITOR25V 0.1uF Z
C027DA-E218027093CAPACITOR16V 100uF M
C028DA-E230003391CAPACITOR25V 0.1uF Z
C029DA-E218027093CAPACITOR16V 100uF M
C030DA-E240610191CAPACITOR50V 100pF J
C031DA-E230003391CAPACITOR25V 0.1uF Z
C032DA-E230003391CAPACITOR25V 0.1uF Z
C034DA-E230003391CAPACITOR25V 0.1uF Z
C035DA-E216029302CAPACITOR35V 330uF M
C037DA-E218027093CAPACITOR16V 100uF M
C039DA-E230003391CAPACITOR25V 0.1uF Z
C043DA-E250810591CAPACITOR25V 1uF Z
C044DA-E230003391CAPACITOR25V 0.1uF Z
C045DA-E218027093CAPACITOR16V 100uF M
C046DA-E216028903CAPACITOR25V 470uF M
C048DA-E216028903CAPACITOR25V 470uF M
C052DA-E230002791CAPACITOR16V 0.47uF Z
C053DA-E218027293CAPACITOR16V 47uF M
C054DA-E218007993CAPACITOR16V 100uF M
C056DA-E230647391CAPACITOR50V 47000pF K
C057DA-E230647391CAPACITOR50V 47000pF K
C058DA-E230682391CAPACITOR50V 82000pF K
C059DA-E240610191CAPACITOR50V 100pF J
C061DA-E218008893CAPACITOR16V 22uF M
C062DA-E230003391CAPACITOR25V 0.1uF Z
C064DA-E240647091CAPACITOR50V 47pF J
C065DA-E230003391CAPACITOR25V 0.1uF Z
C066DA-E230610291CAPACITOR50V 1000pF K
C067DA-E230610291CAPACITOR50V 1000pF K
C068DA-E230682291CAPACITOR50V 8200pF K
C069DA-E230003391CAPACITOR25V 0.1uF Z
C070DA-E230003391CAPACITOR25V 0.1uF Z
C071DA-E230003391CAPACITOR25V 0.1uF Z
C072DA-E230003391CAPACITOR25V 0.1uF Z
C075DA-E230003391CAPACITOR25V 0.1uF Z
C077DA-E230647391CAPACITOR50V 47000pF K
C078DA-E230003391CAPACITOR25V 0.1uF Z
C082DA-E230610291CAPACITOR50V 1000pF K
C085DA-E230647391CAPACITOR50V 47000pF K
C086DA-E230610291CAPACITOR50V 1000pF K
C089DA-E230003391CAPACITOR25V 0.1uF Z
C090DA-E230003391CAPACITOR25V 0.1uF Z
C092DA-E230003391CAPACITOR25V 0.1uF Z
C094DA-E230003391CAPACITOR25V 0.1uF Z
C095DA-E230647391CAPACITOR50V 47000pF K
C097DA-E230003391CAPACITOR25V 0.1uF Z
C098DA-E230610291CAPACITOR50V 1000pF K
C099DA-E218007993CAPACITOR16V 100uF M
C100DA-E230610291CAPACITOR50V 1000pF K
C101DA-E230003391CAPACITOR25V 0.1uF Z
C102DA-E230003391CAPACITOR25V 0.1uF Z
C103DA-E230003391CAPACITOR25V 0.1uF Z
C104DA-E230003391CAPACITOR25V 0.1uF Z
C105DA-E240605091CAPACITOR50V 5pF
C106DA-E230003391CAPACITOR25V 0.1uF Z
C107DA-E218008893CAPACITOR16V 22uF M
C110DA-E218007993CAPACITOR16V 100uF M
C111DA-E240647091CAPACITOR50V 47pF J
C112DA-E218008893CAPACITOR16V 22uF M
C113DA-E230003391CAPACITOR25V 0.1uF Z
C115DA-E230003391CAPACITOR25V 0.1uF Z
C116DA-E216028903CAPACITOR25V 470uF M
C119DA-E240647091CAPACITOR50V 47pF J
C120DA-E230003391CAPACITOR25V 0.1uF Z
C121DA-E230019191CAPACITOR16V 0.15uF Z
C122DA-E218007993CAPACITOR16V 100uF M
C123DA-E240647091CAPACITOR50V 47pF J
C124DA-E230003391CAPACITOR25V 0.1uF Z
C126DA-E216028903CAPACITOR25V 470uF M
C127DA-E230014191CAPACITOR16V 2.2uF M
C128DA-E230014191CAPACITOR16V 2.2uF M
C129DA-E240647091CAPACITOR50V 47pF J
C130DA-E230014191CAPACITOR16V 2.2uF M
C133DA-E218008893CAPACITOR16V 22uF M
C136DA-E218007893CAPACITOR16V 10uF M
C137DA-E218007893CAPACITOR16V 10uF M
C138DA-E230003391CAPACITOR25V 0.1uF Z
C140DA-E240615091CAPACITOR50V 15pF J
C141DA-E240615091CAPACITOR50V 15pF J
3-6(No.YA351)
Ref No.Part No.Part NameDescription Local
Ref No.Part No.Part NameDescription Local
C142DA-E230610291CAPACITOR50V 1000pF K
C143DA-E218007893CAPACITOR16V 10uF M
C145DA-E230003391CAPACITOR25V 0.1uF Z
C147DA-E230019191CAPACITOR16V 0.15uF Z
C149DA-E216028903CAPACITOR25V 470uF M
C150DA-E230003391CAPACITOR25V 0.1uF Z
C151DA-E230003391CAPACITOR25V 0.1uF Z
C162DA-E218007993CAPACITOR16V 100uF M
C163DA-E218007993CAPACITOR16V 100uF M
C169DA-E218006393CAPACITOR16V 220uF M
C171DA-E218007893CAPACITOR16V 10uF M
C175DA-E230003391CAPACITOR25V 0.1uF Z
C180DA-E230003391CAPACITOR25V 0.1uF Z
C183DA-E240610191CAPACITOR50V 100pF J
C184DA-E218007893CAPACITOR16V 10uF M
C187DA-E216027903CAPACITOR25V 100uF M
C188DA-E230610291CAPACITOR50V 1000pF K
C190DA-E240647191CAPACITOR50V 470pF J
C193DA-E250810591CAPACITOR25V 1uF Z
C195DA-E230610291CAPACITOR50V 1000pF K
C196DA-E240633991CAPACITOR50V 3.3pF
C197DA-E230610291CAPACITOR50V 1000pF K
C198DA-E250810591CAPACITOR25V 1uF Z
C200DA-E218008893CAPACITOR16V 22uF M
C201DA-E240633991CAPACITOR50V 3.3pF
C202DA-E218007893CAPACITOR16V 10uF M
C203DA-E240656091CAPACITOR50V 56pF J
C204DA-E218007893CAPACITOR16V 10uF M
C205DA-E230003391CAPACITOR25V 0.1uF Z
C206DA-E230003391CAPACITOR25V 0.1uF Z
C207DA-E230003391CAPACITOR25V 0.1uF Z
C209DA-E230003391CAPACITOR25V 0.1uF Z
C210DA-E230003391CAPACITOR25V 0.1uF Z
C211DA-E230003391CAPACITOR25V 0.1uF Z
C212DA-E230003391CAPACITOR25V 0.1uF Z
C213DA-E240656091CAPACITOR50V 56pF J
C214DA-E230003391CAPACITOR25V 0.1uF Z
C215DA-E230003391CAPACITOR25V 0.1uF Z
C216DA-E230003391CAPACITOR25V 0.1uF Z
C217DA-E230003391CAPACITOR25V 0.1uF Z
C218DA-E230610291CAPACITOR50V 1000pF K
C220DA-E230610291CAPACITOR50V 1000pF K
C221DA-E218007893CAPACITOR16V 10uF M
C222DA-E250810591CAPACITOR25V 1uF Z
C226DA-E218007893CAPACITOR16V 10uF M
C233DA-E250810591CAPACITOR25V 1uF Z
C239DA-E218027493CAPACITOR50V 4.70uF M
C240DA-E218006393CAPACITOR16V 220uF M
C242DA-E218007893CAPACITOR16V 10uF M
C243DA-E218008893CAPACITOR16V 22uF M
C263DA-E216027903CAPACITOR25V 100uF M
C276DA-E240668091CAPACITOR50V 68pF J
C285DA-E240668091CAPACITOR50V 68pF J
C286DA-E240622091CAPACITOR50V 22pF J
C288DA-E218007993CAPACITOR16V 100uF M
C294DA-E230610391CAPACITOR50V 10000pF K
C296DA-E240622091CAPACITOR50V 22pF J
C308DA-E218008893CAPACITOR16V 22uF M
C320DA-E218008893CAPACITOR16V 22uF M
C341DA-E218008893CAPACITOR16V 22uF M
C343DA-E218008893CAPACITOR16V 22uF M
C346DA-E240627291CAPACITOR50V 2700pF J
C354DA-E218008893CAPACITOR16V 22uF M
C356DA-E218008893CAPACITOR16V 22uF M
C364DA-E240627291CAPACITOR50V 2700pF J
C377DA-E218008893CAPACITOR16V 22uF M
C381DA-E218008893CAPACITOR16V 22uF M
C396DA-E218008893CAPACITOR16V 22uF M
C430DA-E216028903CAPACITOR25V 470uF M
C434DA-E230610291CAPACITOR50V 1000pF K
C435DA-E216029302CAPACITOR35V 330uF M
C436DA-E240622191CAPACITOR50V 220pF J
C437DA-E240622191CAPACITOR50V 220pF J
C439DA-E218027093CAPACITOR16V 100uF M
C441DA-E218007993CAPACITOR16V 100uF M
C443DA-E218007893CAPACITOR16V 10uF M
C445DA-E218007993CAPACITOR16V 100uF M
C446DA-E230647291CAPACITOR50V 4700pF K
C447DA-E230610391CAPACITOR50V 10000pF K
C448DA-E230610391CAPACITOR50V 10000pF K
C449DA-E230610391CAPACITOR50V 10000pF K
C451DA-E230610391CAPACITOR50V 10000pF K
C453DA-E218007893CAPACITOR16V 10uF M
C454DA-E218007993CAPACITOR16V 100uF M
C455DA-E230610391CAPACITOR50V 10000pF K
C458DA-E230647291CAPACITOR50V 4700pF K
C459DA-E230610391CAPACITOR50V 10000pF K
R604DA-E134275099RESISTOR75Ω F
R605DA-E134275099RESISTOR75Ω F
R606DA-E134622209RESISTOR2.2k
R607DA-E134275099RESISTOR75Ω F
R612DA-E134275099RESISTOR75Ω F
R613DA-E134275099RESISTOR75
R617DA-E134275099RESISTOR75
P601DA-E782502000CONNECTOR
P602DA-E782402000S JACKVIDEO1 S-IN
P603DA-E782404005AV JACKVIDEO1 V IN
P604DA-E782404006AV JACKVIDEO1 L IN
P605DA-E782404003AV JACKVIDEO1 R IN
P606DA-E782404007AV JACKVIDEO2 COMP-Y IN
P607DA-E782404009AV JACK
P608DA-E782404008AV JACKVIDEO2 COMP-Pr IN
P609DA-E782404006AV JACKVIDEO2 L IN
P610DA-E782404003AV JACKVIDEO2 R IN
C001DA-E230003391CAPACITOR25V 0.1uF Z
C003DA-E216029302CAPACITOR35V 330uF M
C004DA-E230003391CAPACITOR25V 0.1uF Z
C005DA-E218027093CAPACITOR16V 100uF M
C007DA-E218027093CAPACITOR16V 100uF M
C008DA-E230003391CAPACITOR25V 0.1uF Z
C009DA-E218027093CAPACITOR16V 100uF M
C010DA-E230003391CAPACITOR25V 0.1uF Z
C011DA-E230003391CAPACITOR25V 0.1uF Z
SST39SF040-70-4C-NHM
Ref No.Part No.Part NameDescription Local
C012DA-E218027093CAPACITOR16V 100uF M
C013DA-E240610191CAPACITOR50V 100pF J
C014DA-E240610191CAPACITOR50V 100pF J
C015DA-E240610191CAPACITOR50V 100pF J
C016DA-E240610191CAPACITOR50V 100pF J
C017DA-E240610191CAPACITOR50V 100pF J
C020DA-E240610191CAPACITOR50V 100pF J
C022DA-E240610191CAPACITOR50V 100pF J
C024DA-E218027093CAPACITOR16V 100uF M
C025DA-E230003391CAPACITOR25V 0.1uF Z
C027DA-E218027093CAPACITOR16V 100uF M
C028DA-E230003391CAPACITOR25V 0.1uF Z
C029DA-E218027093CAPACITOR16V 100uF M
C030DA-E240610191CAPACITOR50V 100pF J
C031DA-E230003391CAPACITOR25V 0.1uF Z
C032DA-E230003391CAPACITOR25V 0.1uF Z
C034DA-E230003391CAPACITOR25V 0.1uF Z
C035DA-E216029302CAPACITOR35V 330uF M
C036DA-E216027903CAPACITOR25V 100uF M
C037DA-E218027093CAPACITOR16V 100uF M
C039DA-E230003391CAPACITOR25V 0.1uF Z
C041DA-E230003391CAPACITOR25V 0.1uF Z
C042DA-E230003391CAPACITOR25V 0.1uF Z
C043DA-E250810591CAPACITOR25V 1uF Z
C044DA-E230003391CAPACITOR25V 0.1uF Z
C045DA-E218027093CAPACITOR16V 100uF M
C046DA-E216028903CAPACITOR25V 470uF M
C047DA-E218027093CAPACITOR16V 100uF M
C048DA-E216028903CAPACITOR25V 470uF M
C052DA-E230002791CAPACITOR16V 0.47uF Z
C053DA-E218027293CAPACITOR16V 47uF M
C054DA-E218007993CAPACITOR16V 100uF M
C056DA-E230647391CAPACITOR50V 47000pF K
C057DA-E230647391CAPACITOR50V 47000pF K
C058DA-E230682391CAPACITOR50V 82000pF K
C059DA-E240610191CAPACITOR50V 100pF J
C061DA-E218008893CAPACITOR16V 22uF M
C062DA-E230003391CAPACITOR25V 0.1uF Z
C064DA-E240647091CAPACITOR50V 47pF J
C065DA-E230003391CAPACITOR25V 0.1uF Z
C066DA-E230610291CAPACITOR50V 1000pF K
C067DA-E230610291CAPACITOR50V 1000pF K
C068DA-E230682291CAPACITOR50V 8200pF K
C069DA-E230003391CAPACITOR25V 0.1uF Z
C070DA-E230003391CAPACITOR25V 0.1uF Z
C071DA-E230003391CAPACITOR25V 0.1uF Z
C072DA-E230003391CAPACITOR25V 0.1uF Z
C075DA-E230003391CAPACITOR25V 0.1uF Z
C077DA-E230647391CAPACITOR50V 47000pF K
C078DA-E230003391CAPACITOR25V 0.1uF Z
C082DA-E230610291CAPACITOR50V 1000pF K
C085DA-E230647391CAPACITOR50V 47000pF K
C086DA-E230610291CAPACITOR50V 1000pF K
C089DA-E230003391CAPACITOR25V 0.1uF Z
C090DA-E230003391CAPACITOR25V 0.1uF Z
C092DA-E230003391CAPACITOR25V 0.1uF Z
C094DA-E230003391CAPACITOR25V 0.1uF Z
C095DA-E230647391CAPACITOR50V 47000pF K
C097DA-E230003391CAPACITOR25V 0.1uF Z
C098DA-E230610291CAPACITOR50V 1000pF K
C099DA-E218007993CAPACITOR16V 100uF M
C100DA-E230610291CAPACITOR50V 1000pF K
C101DA-E230003391CAPACITOR25V 0.1uF Z
C102DA-E230003391CAPACITOR25V 0.1uF Z
C103DA-E230003391CAPACITOR25V 0.1uF Z
C104DA-E230003391CAPACITOR25V 0.1uF Z
C105DA-E240605091CAPACITOR50V 5pF
C106DA-E230003391CAPACITOR25V 0.1uF Z
C107DA-E218008893CAPACITOR16V 22uF M
C110DA-E218007993CAPACITOR16V 100uF M
C111DA-E240647091CAPACITOR50V 47pF J
C112DA-E218008893CAPACITOR16V 22uF M
C113DA-E230003391CAPACITOR25V 0.1uF Z
C115DA-E230003391CAPACITOR25V 0.1uF Z
C116DA-E216028903CAPACITOR25V 470uF M
C119DA-E240647091CAPACITOR50V 47pF J
C120DA-E230003391CAPACITOR25V 0.1uF Z
C121DA-E230019191CAPACITOR16V 0.15uF Z
C122DA-E218007993CAPACITOR16V 100uF M
C123DA-E240647091CAPACITOR50V 47pF J
C124DA-E230003391CAPACITOR25V 0.1uF Z
C126DA-E216028903CAPACITOR25V 470uF M
C127DA-E230014191CAPACITOR16V 2.2uF M
C128DA-E230014191CAPACITOR16V 2.2uF M
3-14(No.YA351)
Ref No.Part No.Part NameDescription Local
Ref No.Part No.Part NameDescription Local
C129DA-E240647091CAPACITOR50V 47pF J
C130DA-E230014191CAPACITOR16V 2.2uF M
C133DA-E218008893CAPACITOR16V 22uF M
C136DA-E218007893CAPACITOR16V 10uF M
C137DA-E218007893CAPACITOR16V 10uF M
C138DA-E230003391CAPACITOR25V 0.1uF Z
C140DA-E240615091CAPACITOR50V 15pF J
C141DA-E240615091CAPACITOR50V 15pF J
C142DA-E230610291CAPACITOR50V 1000pF K
C143DA-E218007893CAPACITOR16V 10uF M
C145DA-E230003391CAPACITOR25V 0.1uF Z
C147DA-E230019191CAPACITOR16V 0.15uF Z
C149DA-E216028903CAPACITOR25V 470uF M
C150DA-E230003391CAPACITOR25V 0.1uF Z
C151DA-E230003391CAPACITOR25V 0.1uF Z
C152DA-E230003391CAPACITOR25V 0.1uF Z
C162DA-E218007993CAPACITOR16V 100uF M
C163DA-E218007993CAPACITOR16V 100uF M
C169DA-E218006393CAPACITOR16V 220uF M
C171DA-E218007893CAPACITOR16V 10uF M
C175DA-E230003391CAPACITOR25V 0.1uF Z
C180DA-E230003391CAPACITOR25V 0.1uF Z
C183DA-E240610191CAPACITOR50V 100pF J
C184DA-E218007893CAPACITOR16V 10uF M
C187DA-E216027903CAPACITOR25V 100uF M
C188DA-E230610291CAPACITOR50V 1000pF K
C190DA-E240647191CAPACITOR50V 470pF J
C193DA-E250810591CAPACITOR25V 1uF Z
C195DA-E230610291CAPACITOR50V 1000pF K
C196DA-E240633991CAPACITOR50V 3.3pF
C197DA-E230610291CAPACITOR50V 1000pF K
C198DA-E250810591CAPACITOR25V 1uF Z
C200DA-E218008893CAPACITOR16V 22uF M
C201DA-E240633991CAPACITOR50V 3.3pF
C202DA-E218007893CAPACITOR16V 10uF M
C203DA-E240656091CAPACITOR50V 56pF J
C204DA-E218007893CAPACITOR16V 10uF M
C205DA-E230003391CAPACITOR25V 0.1uF Z
C206DA-E230003391CAPACITOR25V 0.1uF Z
C207DA-E230003391CAPACITOR25V 0.1uF Z
C209DA-E230003391CAPACITOR25V 0.1uF Z
C210DA-E230003391CAPACITOR25V 0.1uF Z
C211DA-E230003391CAPACITOR25V 0.1uF Z
C212DA-E230003391CAPACITOR25V 0.1uF Z
C213DA-E240656091CAPACITOR50V 56pF J
C214DA-E230003391CAPACITOR25V 0.1uF Z
C215DA-E230003391CAPACITOR25V 0.1uF Z
C216DA-E230003391CAPACITOR25V 0.1uF Z
C217DA-E230003391CAPACITOR25V 0.1uF Z
C218DA-E230610291CAPACITOR50V 1000pF K
C219DA-E230003391CAPACITOR25V 0.1uF Z
C220DA-E230610291CAPACITOR50V 1000pF K
C221DA-E218007893CAPACITOR16V 10uF M
C222DA-E250810591CAPACITOR25V 1uF Z
C223DA-E230003391CAPACITOR25V 0.1uF Z
C224DA-E230003391CAPACITOR25V 0.1uF Z
C225DA-E230003391CAPACITOR25V 0.1uF Z
C226DA-E218007893CAPACITOR16V 10uF M
C227DA-E230003391CAPACITOR25V 0.1uF Z
C231DA-E230003391CAPACITOR25V 0.1uF Z
C233DA-E250810591CAPACITOR25V 1uF Z
C238DA-E230003391CAPACITOR25V 0.1uF Z
C239DA-E218027493CAPACITOR50V 4.70uF M
C240DA-E218006393CAPACITOR16V 220uF M
C241DA-E230003391CAPACITOR25V 0.1uF Z
C242DA-E218007893CAPACITOR16V 10uF M
C243DA-E218008893CAPACITOR16V 22uF M
C244DA-E230003391CAPACITOR25V 0.1uF Z
C245DA-E230003391CAPACITOR25V 0.1uF Z
C249DA-E230003391CAPACITOR25V 0.1uF Z
C250DA-E230003391CAPACITOR25V 0.1uF Z
C252DA-E230003391CAPACITOR25V 0.1uF Z
C254DA-E230003391CAPACITOR25V 0.1uF Z
C255DA-E230003391CAPACITOR25V 0.1uF Z
C257DA-E230003391CAPACITOR25V 0.1uF Z
C258DA-E230003391CAPACITOR25V 0.1uF Z
C259DA-E230003391CAPACITOR25V 0.1uF Z
C262DA-E230003391CAPACITOR25V 0.1uF Z
C263DA-E216027903CAPACITOR25V 100uF M
C265DA-E230003391CAPACITOR25V 0.1uF Z
C269DA-E230003391CAPACITOR25V 0.1uF Z
C271DA-E230003391CAPACITOR25V 0.1uF Z
C274DA-E230003391CAPACITOR25V 0.1uF Z
C276DA-E240668091CAPACITOR50V 68pF J
C277DA-E230003391CAPACITOR25V 0.1uF Z
C278DA-E230003391CAPACITOR25V 0.1uF Z
C279DA-E230003391CAPACITOR25V 0.1uF Z
C284DA-E230003391CAPACITOR25V 0.1uF Z
C285DA-E240668091CAPACITOR50V 68pF J
C286DA-E240622091CAPACITOR50V 22pF J
C288DA-E218007993CAPACITOR16V 100uF M
C289DA-E230003391CAPACITOR25V 0.1uF Z
C294DA-E230610391CAPACITOR50V 10000pF K
C296DA-E240622091CAPACITOR50V 22pF J
C297DA-E230003391CAPACITOR25V 0.1uF Z
C299DA-E230003391CAPACITOR25V 0.1uF Z
C301DA-E230003391CAPACITOR25V 0.1uF Z
C303DA-E230003391CAPACITOR25V 0.1uF Z
C304DA-E230003391CAPACITOR25V 0.1uF Z
C305DA-E230003391CAPACITOR25V 0.1uF Z
C307DA-E230003391CAPACITOR25V 0.1uF Z
C308DA-E218008893CAPACITOR16V 22uF M
C309DA-E230003391CAPACITOR25V 0.1uF Z
C311DA-E230003391CAPACITOR25V 0.1uF Z
C312DA-E230003391CAPACITOR25V 0.1uF Z
C313DA-E230003391CAPACITOR25V 0.1uF Z
C314DA-E230003391CAPACITOR25V 0.1uF Z
C318DA-E230003391CAPACITOR25V 0.1uF Z
C319DA-E230003391CAPACITOR25V 0.1uF Z
C320DA-E218008893CAPACITOR16V 22uF M
C325DA-E230003391CAPACITOR25V 0.1uF Z
C326DA-E230003391CAPACITOR25V 0.1uF Z
C327DA-E230003391CAPACITOR25V 0.1uF Z
C328DA-E230003391CAPACITOR25V 0.1uF Z
C330DA-E230003391CAPACITOR25V 0.1uF Z
C331DA-E230003391CAPACITOR25V 0.1uF Z
C333DA-E230003391CAPACITOR25V 0.1uF Z
C339DA-E230003391CAPACITOR25V 0.1uF Z
C341DA-E218008893CAPACITOR16V 22uF M
C343DA-E218008893CAPACITOR16V 22uF M
C345DA-E230003391CAPACITOR25V 0.1uF Z
C346DA-E240627291CAPACITOR50V 2700pF J
C353DA-E230003391CAPACITOR25V 0.1uF Z
C354DA-E218008893CAPACITOR16V 22uF M
C356DA-E218008893CAPACITOR16V 22uF M
C357DA-E230003391CAPACITOR25V 0.1uF Z
C364DA-E240627291CAPACITOR50V 2700pF J
C377DA-E218008893CAPACITOR16V 22uF M
C378DA-E230003391CAPACITOR25V 0.1uF Z
C380DA-E230003391CAPACITOR25V 0.1uF Z
C381DA-E218008893CAPACITOR16V 22uF M
C396DA-E218008893CAPACITOR16V 22uF M
C397DA-E230003391CAPACITOR25V 0.1uF Z
C428DA-E230003391CAPACITOR25V 0.1uF Z
C429DA-E230003391CAPACITOR25V 0.1uF Z
C430DA-E216028903CAPACITOR25V 470uF M
C434DA-E230610291CAPACITOR50V 1000pF K
C435DA-E216029302CAPACITOR35V 330uF M
C436DA-E240622191CAPACITOR50V 220pF J
C437DA-E240622191CAPACITOR50V 220pF J
C439DA-E218027093CAPACITOR16V 100uF M
C441DA-E218007993CAPACITOR16V 100uF M
C443DA-E218007893CAPACITOR16V 10uF M
C444DA-E230003391CAPACITOR25V 0.1uF Z
C445DA-E218007993CAPACITOR16V 100uF M
C446DA-E230647291CAPACITOR50V 4700pF K
C447DA-E230610391CAPACITOR50V 10000pF K
C448DA-E230610391CAPACITOR50V 10000pF K
C449DA-E230610391CAPACITOR50V 10000pF K
C450DA-E230003391CAPACITOR25V 0.1uF Z
C451DA-E230610391CAPACITOR50V 10000pF K
C452DA-E230003391CAPACITOR25V 0.1uF Z
C453DA-E218007893CAPACITOR16V 10uF M
C454DA-E218007993CAPACITOR16V 100uF M
C455DA-E230610391CAPACITOR50V 10000pF K
C456DA-E230003391CAPACITOR25V 0.1uF Z
C457DA-E230003391CAPACITOR25V 0.1uF Z
C458DA-E230647291CAPACITOR50V 4700pF K
C459DA-E230610391CAPACITOR50V 10000pF K
C460DA-E230610391CAPACITOR50V 10000pF K
C461DA-E230003391CAPACITOR25V 0.1uF Z
R604DA-E134275099RESISTOR75Ω F
R605DA-E134275099RESISTOR75Ω F
R606DA-E134622209RESISTOR2.2k
R607DA-E134275099RESISTOR75Ω F
R612DA-E134275099RESISTOR75
R613DA-E134275099RESISTOR75Ω F
R617DA-E134275099RESISTOR75
P601DA-E782502000CONNECTOR
P602DA-E782402000S JACKVIDEO1 S-IN
P603DA-E782404005AV JACKVIDEO1 V IN
P604DA-E782404006AV JACKVIDEO1 L IN
P605DA-E782404003AV JACKVIDEO1 R IN
P606DA-E782404007AV JACKVIDEO2 COMP-Y IN
P607DA-E782404009AV JACK
P608DA-E782404008AV JACKVIDEO2 COMP-Pr IN
P609DA-E782404006AV JACKVIDEO2 L IN
P610DA-E782404003AV JACKVIDEO2 R IN
If you’re a LCD Monitor repairer, then this is the best guide for you.
Why? Because, the author revealed all his LCD Monitor Repairing
secrets for you. I think, with just few Repair tips you learned from
this guide you will get back your investment!
Click Here to read more.
This eBook will show you how to test the electronic component
correctly and accurately. Some of you may say that I don’t
need this eBook because it is too simple! Do you know that,
there is lots of testing electronic components secrets I have learned
from this guide? Do you know how to test a‘TRIAC’ correctly and
accurately? If you answer no then I guess you have to get this
EBook. Click Here to read more.
Are you tired of searching the service manuals to look for the value
of a burnt resistor? If the answer is YES, then this eBook is a ‘must
have’ guide for you. You can save a lot of time and be able to repair
customer’s Electronic equipment with burnt resistors in it.
Click here to read more.
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
