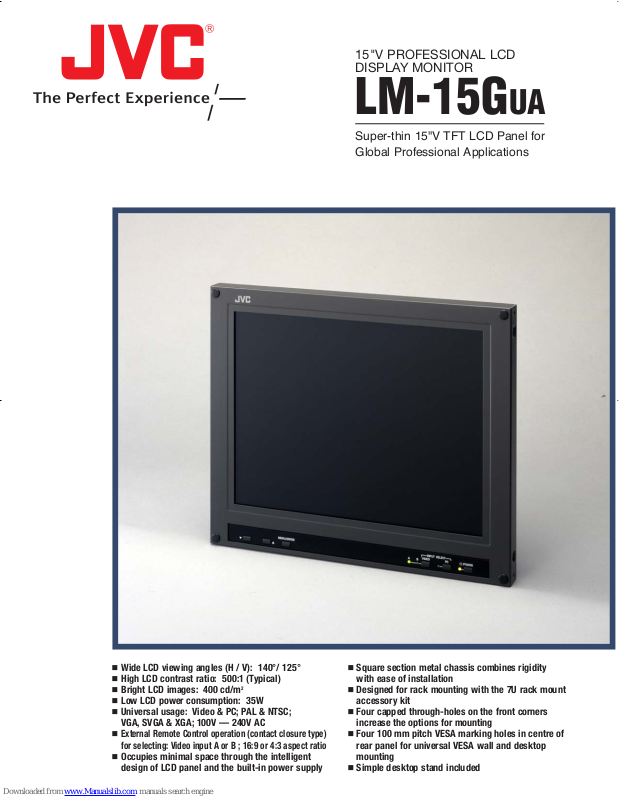

JVC LM-15GUA Quick Manual

15"V PROFESSIONAL LCD
DISPLAY MONITOR

LM-15GUA

Super-thin 15"V TFT LCD Panel for
Global Professional Applications

 Wide LCD viewing angles (H / V): 140°/ 125°
 High LCD contrast ratio: 500:1 (Typical)
 Bright LCD images: 400 cd/m
 Low LCD power consumption: 35W
 Universal usage: Video & PC; PAL & NTSC;

VGA, SVGA & XGA; 100V — 240V AC



External Remote Control operation (contact closure type)
for selecting: Video input A or B ; 16:9 or 4:3 aspect ratio

 Occupies minimal space through the intelligent

design of LCD panel and the built-in power supply

 Square section metal chassis combines rigidity

2

with ease of installation

 Designed for rack mounting with the 7U rack mount

accessory kit

 Four capped through-holes on the front corners

increase the options for mounting

 Four 100 mm pitch VESA marking holes in centre of

rear panel for universal VESA wall and desktop
mounting

 Simple desktop stand included

A Professional Quality Multi-Purpose LCD

DISTRIBUTED BY

JVC PROFESSIONAL PRODUCTS COMPANY

DIVISION OF JVC AMERICAS CORP.

1700 Valley Road, Wayne, N.J. 07470

TEL: [phone] FAX: [phone]

Internet Web Site http://www.jvc.com/pro

E-mail: [e-mail]

JVC CANADA INC.

21 Finchdene Square, Scarborough, Ontario M1X 1A7

TEL: [phone] FAX: [phone]

Internet Web Site http://www.jvc.ca/en/pro/

Designed for Flexible Installation

JVC’s LM-15G brings the advantages of LCD to the most demanding of

Specifications

Type LCD video monitor
Color system NTSC and PAL
LCD panel Size 15"V (304 mm x 228 mm)

professional users. The flat-screen LM-15G delivers crisp, bright pictures from a
lightweight package that uses a lot less power than a comparable CRT display.
The LM-15G offers even more. It can be used standalone with its own desktop
stand or be rack mounted. VESA standard 100 mm mounting holes also open
up a wide range of installation possibilities. The capability of reproducing high­resolution video images as well as PC graphics lends it to a variety of
multifunction applications in video production and CCTV.

 Needs Less Space, Less Power, Yet Offers More

The LM-15G brings you the major advantages of a flat-screen LCD.
Compared with conventional CRT displays, the LM-15G is lighter,
thinner, and uses a lot less power. The latest advances in TFT flat
display technology offer the flexibility that comes with bright (400 cd/m2)
high resolution pictures, with a wide viewing angle of 140° and with no
possibility of burn-in.

Power requirements 100V240V, 50Hz/60Hz
Power consumption 35W
Input terminals

Input signal

 Universal Mains Input

No need for adapters—with its automatic universal mains input function
the LM-15G can be connected in a range of 100V to 240V (50Hz/60Hz)
mains power.

 Video and PC Inputs (XGA)

The LM-15G comes with two standard composite input terminals
(2-channel BNC), each with a bridged input. It can also be connected
directly to a PC via the 15 pin D-sub terminal to display VGA, SVGA and
XGA resolution images at 1024 x 768 pixel resolution.

 Tough, Durable Design

A tough, yet elegant metal cabinet, which also assists the process of
heat dissipation, ensures the LM-15G has the rugged durability needed
for professional applications in the field and in other demanding
environments.

Audio terminals —
Remote control Aspect ratio select: 4:3 / 16:9
(contact closure type) Input select: Video A / Video B
Cabinet material Metal
Mounting hole VESA 100 mm pitch (rear panel)
Dimensions (W x H x D) 14-5/8 x 12-3/16 x 2-11/16 inches/

Weight 8.2 lbs./3.7 kg (without stand)
Provided accessories Power cable and stand unit (metal)

Rack Mount Adapter

 RK-C15LG

 Selectable Aspect Ratio with Remote Function

The LM-15G displays images with aspect ratios of 4:3 or 16:9, which
are easily selectable by way of an on-screen menu or an external
remote control connector.

 Multi-Standard Compatibility

Featuring a built-in auto-detection function, the LM-15G senses the
input signal as PAL or NTSC and switches itself accordingly.

 Flexible Installation

The LM-15G offers a wide range of installation options. It comes

Wall Mounting Unit

standard with its own desktop stand. Its 7U height makes for neat and
easy rack mounting. The display has four VESA standard 100 mm pitch
mounting holes on the rear panel and four capped through-holes at the
corners of the monitor cabinet, offering still more options for mounting.

Front Panel

Type TFT
Pixels 1024 x 768
Luminance 400 cd/m
Contrast ratio 500:1 (Typ.)
Viewing angle Vertical: 125°
(Typical) Horizontal: 140°
Display colours 16,770,000

Video BNC x 2, bridged
PC D-sub 15-pin

Video NTSC, PAL, B/W, manual select
PC fh: 31kHz60kHz

Supported range
of resolutions

Attached to the
LM-15G and set
in the vertical
position.

 TS-CV10WG

● Mounts horizontally for pan effect, either left or right

● Mounts vertically for tilt effect, either upwards or

downwards

● Adjustment is in the range of 0°20°

● Two adapters can be mounted in combination for

both pan & tilt

2

fv: 56Hz75Hz

VGA, SVGA and XGA

370 x 309 x 67.6 mm (without stand)

● Adjustable
tilt, upwards or
downwards, in
a range of
0°15°

Rear Panel

AC IN IN/OUT

VIDEO A

IN/OUT

VIDEO B

ASPECT

REMOTE

2-11/16 (67.6)

15/16 (22.8)

7-9/16 (192.2)

3-3/4 (94)

1-1/8 (27.5)

Unit : inches (mm)

2-5/8 (66.1)

Printed in Japan

ICN-0277B

Dimensions

14-5/8 (370)

12-3/16 (309.0)

PC ININPUT

Design and specifications subject to change without notice.

“JVC” is the trademark or registered trademark of Victor Company of Japan, Limited.
