HDD RECORDER/DVD PLAYER

Parts Identification

XV-DDV1SL

TV tuner is built in this product.

Remote Control Settings

Installing the Unit

Initial Settings

Watching TV

HDD Recording/Playback

D D

Editing HDD Navigation

Timer Recording

Basic DVD Operations

D V

Advanced DVD Operations

PROGRESSIVE

- CHANNEL

TOP MENU / HDD NAVI

ENTER

MENU / HDD PROG.

MP3/JPEG Operations

VIDEO

INSTRUCTIONS

Changing the Initial Settings

External Component Operations

Additional Information

LET0239-001A

[B]

WARNINGS, CAUTIONS AND OTHERS

IMPORTANT DO NOT

the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer. BE SURE to replace the fuse only with an identical approved type, as originally fitted. If nonetheless the mains plug is cut off ensure to remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply. If this product is not supplied fitted with a mains plug then follow the instructions given below:

IMPORTANT. DO NOT

marked with the letter E or by the safety earth symbol or coloured green or green-and-yellow. The wires in the mains lead on this product are coloured in accordance with the following code:

As these colours may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

IF IN DOUBT - CONSULT A COMPETENT ELECTRICIAN.

for the U.K.

cut off the mains plug from this equipment. If

make any connection to the terminal which is

Blue: Neutral Brown: Live

Caution: Proper Ventilation

To avoid risk of electric shock and fire and to protect from damage. Locate the apparatus as follows: Front: No obstructions and open spacing. Sides: No obstructions in 3 cm from the sides. Top: No obstructions in 5 cm from the top. Back: No obstructions in 15 cm from the back Bottom: No obstructions, place on the level surface.

Spacing 15 cm or more

XV-DDV1SL

Front

Wall or obstructions

Stand height 5 cm or more

Floor

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

CAUTION:

serviceable parts inside the unit; leave all servicing to qualified service personnel.

CAUTION:

and interlock failed or defeated. Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE THE UNIT.

Do not open the top cover. There are no user

Visible and invisible laser radiation when open

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

Caution –– STANDBY/ON button!

Disconnect the mains plug to shut the power off completely. The

STANDBY/ON button in any position does not disconnect the mains line. The power can be remote controlled.

Cautions:

• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

• Do not place any naked ﬂame sources, such as lighted candles, on the apparatus.

• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects ﬁlled with liquids, such as vases, shall be placed on the apparatus.

IMPORTANT It should be noted that it may be unlawful to re-

ordered pre-recorded tapes, records, or discs without the consent of the owner of copyright in the sound or video recording, broadcast or cable programme and in any literary, dramatic, musical, or artistic work embodied therein.

Check the copyright laws in your country before recording from DVD Video, SVCD, Video CD, Audio CD, MP3 and JPEG discs. Recording of copyrighted material may infringe copyright laws.

• You cannot record from the built-in DVD player onto the HDD.

ATTENTIONS:

• Using a cellular phone nearby the unit may cause picture disturbance on the TV. (In the worst case, nothing but a blue back screen appears on the TV.)

• Some TVs or other appliances generate strong magnetic ﬁelds. Do not place such appliance on the unit as it may cause picture disturbance.

Failure to heed the following precautions may result in damage to the discs, the built-in hard disc drive (HDD), and the remote control.

1. DO NOT

• in an environment prone to extreme temperatures

• in direct sunlight.

• in a dusty environment.

• in an environment where strong magnetic ﬁelds are

• on a surface that is unstable or subject to vibration.

2. DO NOT

If the cooling fan is blocked by a newspaper or cloth, etc., the internal heat buildup may cause ﬁre.

• The cooling fan starts rotating when the internal

3. DO NOT

4. DO NOT equipment.

If water or liquid is allowed to enter the equipment, ﬁre or electric shock may be caused.

5. DO NOT splashing.

6. DO NOT place.

7. DO NOT liquids (such as cosmetics or medicines, ﬂower vases, potted plants, cups, etc.) on the equipment.

8. DO NOT lighted candles, on the equipment.

9. DO NOT transport.

place the equipment...

or humidity. (Select a place which is level, dry and neither too hot nor too cold between 5˚C and 35˚C.)

generated.

block the cooling fan.

heat builds up (and may keep rotating until the safe inside temperature is obtained even after you turn off the power).

place heavy objects on the equipment. place anything which might spill on the

expose the equipment to dripping or

use the equipment in a bathroom or a wet

place any containers ﬁlled with water or

place any naked ﬂame sources, such as

impart violent shock to the equipment during

Moisture condensation

Moisture in the air will condense inside the unit when you move it from a cold place to a warm place, or under extremely humid conditions—just as water droplets form in the surface of a glass ﬁlled with cold liquid. In conditions where condensation may occur, keep the unit turned on for a few hours to let the moisture dry.

Precautions for the HDD

1. Before using the unit:

When the power is on, the HDD is constantly rotating at a high speed. This requires you to note the following:

• DO NOT impart vibration or shock. If given a heavy shock, not only is the data recorded damaged but also the HDD itself is damaged.

• DO NOT allow anything having strong magnetism or emitting strong electromagnetic waves (cellular phones, etc.) near the unit.

• DO NOT disconnect the power plug from the wall outlet when the power is on. If the power supply is cut off while the HDD is in operation, it can be damaged or the stored data may be damaged. Be sure to press the

(STANDBY/ON)

2. While using the unit:

• When viewing a TV program through the builtin tuner, you might notice a slight time lag compared to the actual program being broadcast. This happens because pictures received are once stored in the HDD, and then played back. The time lag is approximately 3 seconds.

• If you turn the power on with the HDD already selected, it will take about 20 seconds before the received pictures appear on the TV. During this period, no operation is accepted.

• The HDD may produce mechanical noise while power is on, but it is not a malfunction.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

button to turn off the power.

Notes on the power cord

• When you are away on travel or otherwise for an extended period of time, remove the plug from the wall outlet. A certain amount of power (15 W) is always consumed while the power cord is connected to the wall outlet.

• When unplugging the unit from the wall outlet, always pull the plug, not the power cord.

• Do not handle the power cord with wet hands

VIDEO Plus+ and PlusCode are registered trademarks of Gemstar Development Corporation. The VIDEO Plus+ system is manufactured under license from Gemstar Development Corporation.

WARNINGS, CAUTIONS AND OTHERS (cont.)

Precautions on the built-in DVD player

Playable disc types

Discs with the following marks can be played back on the unit.

DVD Video SVCD Video CD (VCD) Audio CD

VIDEO

The DVD Logo is a trademark. The unit can also play back the following discs:

• DVD-R and DVD-RW discs written in the DVD Video format and ﬁnalized.

• CD-R and CD-RW discs written in the SVCD, Video CD or Audio CD format and ﬁnalized.

• CD-R and CD-RW discs written in MP3 (see page 61) in accordance with the “ISO 9660” format.

• CD-R and CD-RW discs written in JPEG (see page 63) in accordance with the “ISO 9660” format.

NOTE

This unit may need considerable time to read the contents of the disc, or the unit may not be able to play back a disc if it is dirty, scratched or warped.

•The disc characteristic or recording condition may also affect

reproduction of the disc itself.

The unit can play back audio signals recorded in Mix-Mode CD, CD-G, CD-Extra and CD Text.

Region code of DVD Video

This unit can play back DVD Video discs whose region code numbers include “2.”

Examples:

ALL

Colour system format

This unit accommodates the PAL system, and also can play back discs recorded with NTSC system whose Region Code numbers include “2.”

• NTSC video signals are converted to PAL signals and reproduced. (It may deteriorate picture quality slightly.)

NOTES

•With some DVD Video discs, the unit starts playback

automatically after inserting the disc.

•The image may be sometimes poor or noisy due to defects in

the disc itself.

•With some discs, operations described in this manual may not

be accepted.

(CD)

423

321 654

Unplayable discs

The unit does not play back discs listed below. If you try to play back these discs, noise may generate causing damage to the speakers.

• DVD-RW discs written in the VR format

• DVD-ROM, DVD-RAM, DVD Audio, CD-ROM, Photo CD, SACD

In addition, the unit does not play:

• Unﬁnalized discs

• Discs of irregular shape or discs with tape, seals or paste on either the label side or playback side. Playing back these discs may damage the unit.

Digital audio formats

The unit supports the following digital audio formats— Linear PCM, MPEG Multichannel, Dolby Digital*, DTS** (Digital Theater Systems) (see page 93 “Glossary” for descriptions of each audio format):

NOTE

Depending on the “DIGITAL AUDIO OUTPUT” setting, digital audio signals may not be output as they are recorded on the disc. See “DIGITAL AUDIO OUTPUT” on page 78 for details.

Care and handling of discs

If a disc gets dirty, dusty, scratched or warped, playback sound and picture may be deteriorated. Take proper precautions when handling discs.

Handling

• Do not touch the surface of the disc.

• Do not damage, stick paper to, or use any adhesive either on the label side or on the playback side.

Storing discs

• Keep discs in their cases. If discs are piled without their protective cases, they may be damaged.

• Do not put discs in a location where they may be exposed to direct sunlight, or where the humidity or temperature is high. Avoid leaving discs in a car!

Cleaning discs

• Wipe with a soft dry cloth, moving from the centre outwards. If a disc is difﬁcult to clean, wipe with a cloth moistened with water.

• Never use record cleaners, petrol, alcohol or any antistatic agents.

* Manufactured under licence from Dolby Laboratries.

“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

**“DTS” and “DTS Digital Out” are trademarks of Digital

Theater Systems, inc.

PARTS IDENTIFICATION 6

Front view............................................................ 6

Rear view............................................................. 7

Display window................................................... 7

Remote control .................................................... 8

REMOTE CONTROL SETTINGS 9

Using the remote control...................................... 9

INSTALLING THE UNIT 11

Basic connections .............................................. 11

INITIAL SETTINGS 13

Easy & simple setup............................................ 13

• Presetting the built-in TV tuner automatically—

Auto Setup ...................................................... 13

• Downloading the preset information from your

TV—TV-linked Setup ...................................... 14

Selecting the playback source ............................ 16

Setting the satellite controller ............................. 17

DVD Initial Setup............................................... 20

WATCHING TV 21

Watching TV programmes.................................. 21

• Receiving stereo and bilingual programmes .... 22

HDD RECORDING/PLAYBACK 23

Basic recording .................................................. 23

• Instant Timer Recording (ITR).......................... 24

Basic playback ................................................... 25

Special effect playback....................................... 26

Playing with HDD Navigation............................ 29

• Selecting programmes on the NAVIGATION

screen ............................................................. 30

EDITING HDD NAVIGATION 34

Editing HDD Navigation .................................... 34

• Modifying recorded programmes .................... 34

• Making play lists ............................................. 37

TIMER RECORDING 40

VIDEO P

Express Timer programming ............................... 42

• Modifying timer programmings ....................... 45

Automatic Satellite Recording ........................... 46

LUS

+® Timer programming ................... 40

ADVANCED DVD OPERATIONS 51

Playing from a specific point ..............................51

• Locating a desired scene (item) from

the disc menu.................................................. 51

• Specifying a desired title.................................. 52

• Locating a desired position in the current

title or track—Time Search ..............................52

Changing the playback order ............................. 53

• Playing in a specific order—Program Play ....... 53

• Playing at random—Random Play ................... 54

• Playing repeatedly—Repeat Play ..................... 54

Changing the language, sound and scene angle ..... 55

• Selecting the subtitle language.........................56

• Changing the audio language or sound............56

Using sound effects and special picture playback

• Simulating surround sound (3D PHONIC) ....... 57

• Adjusting the picture ....................................... 58

• Zooming in .....................................................58

Menu bar operations ..........................................59

.. 5

MP3/JPEG OPERATIONS 61

Playing an MP3 disc ........................................... 61

Playing a JPEG disc............................................. 63

CHANGING THE INITIAL SETTINGS 66

Changing the HDD/TV tuner settings Changing the DVD settings

Limiting playback by children ................................ 80

................................... 75

..................... 66

EXTERNAL COMPONENT OPERATIONS 82

Setting the remote control code .......................... 82

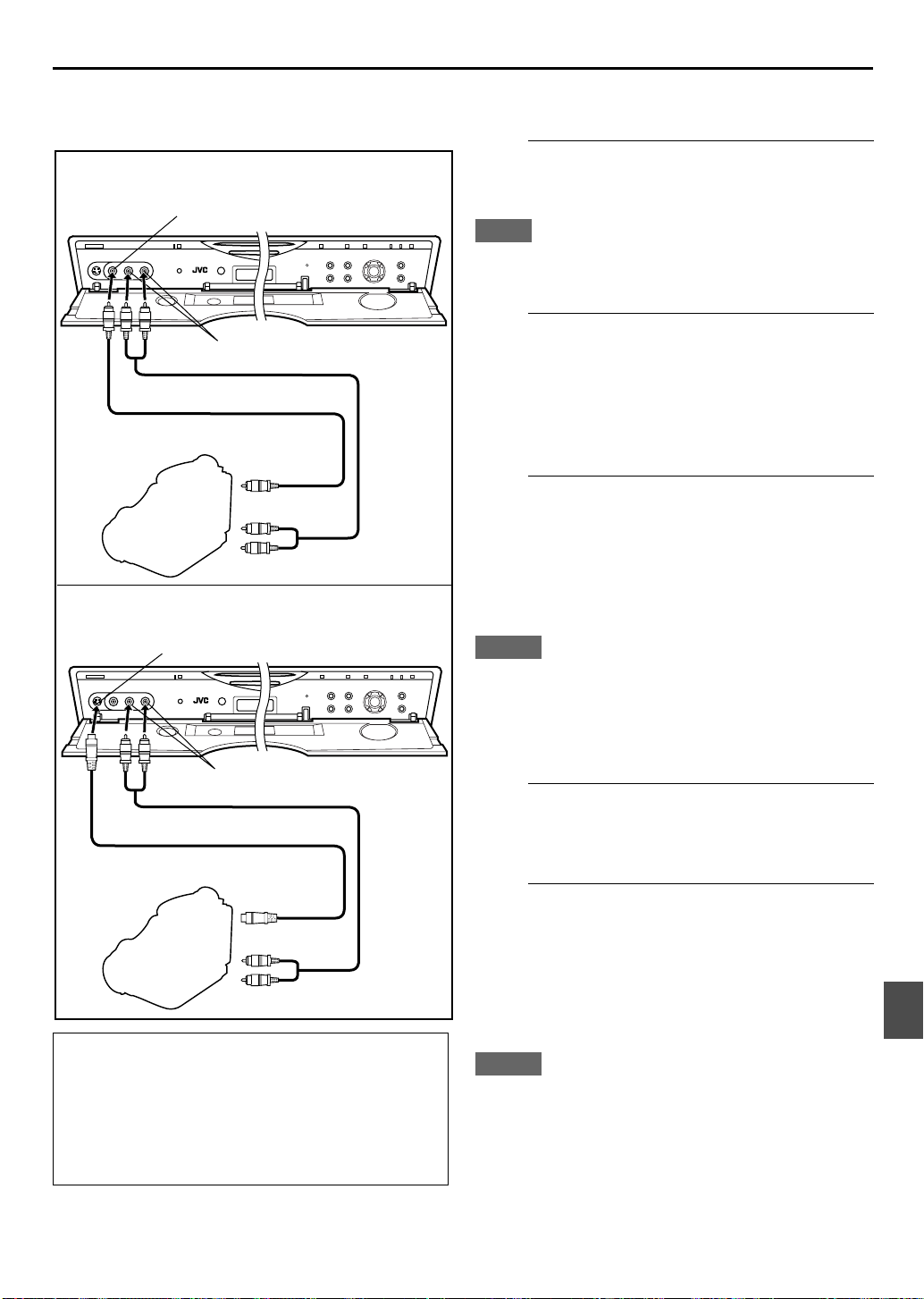

Editing from a camcorder ...................................83

Editing to or from a VCR..................................... 84

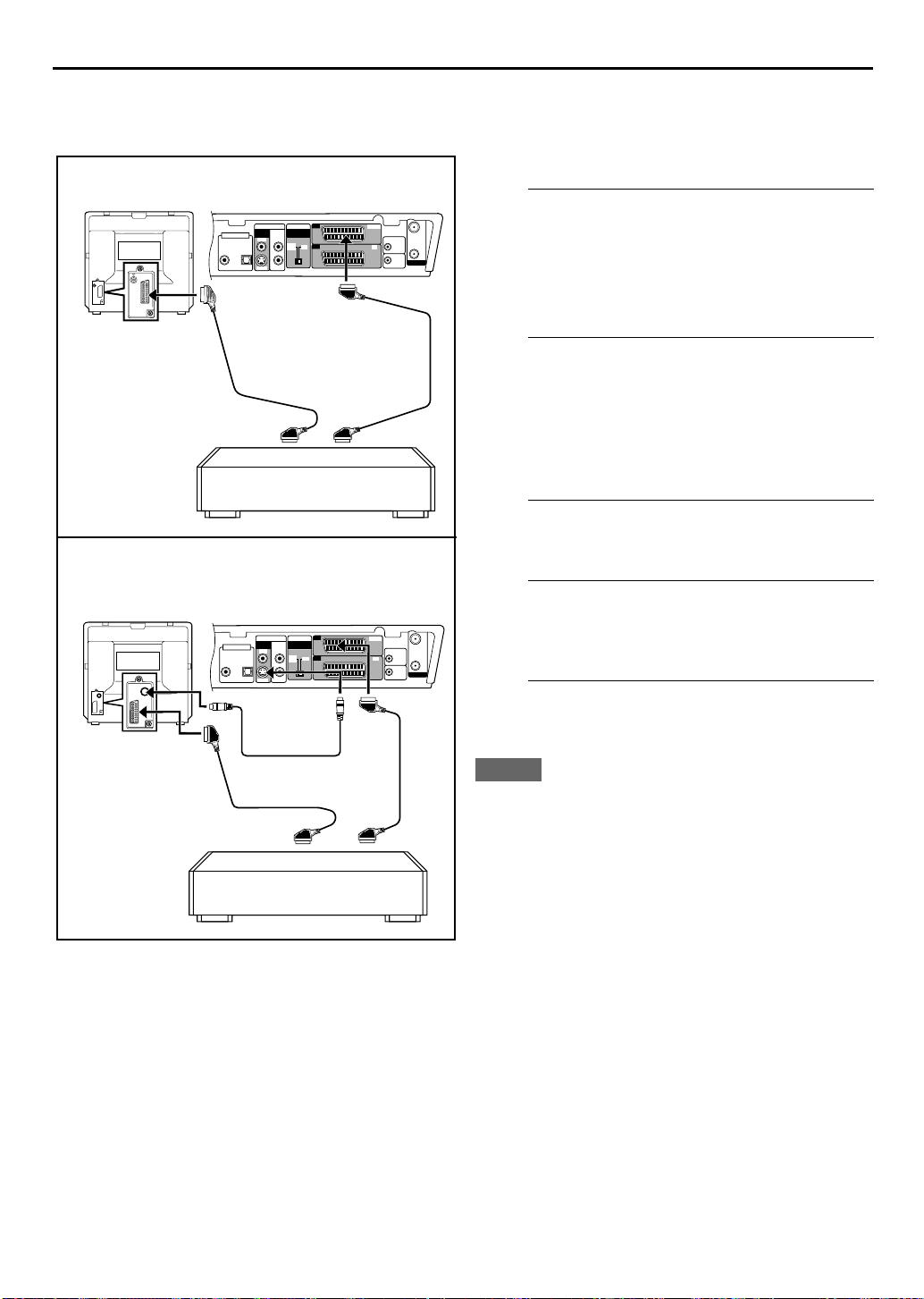

Connecting to a satellite receiver........................ 86

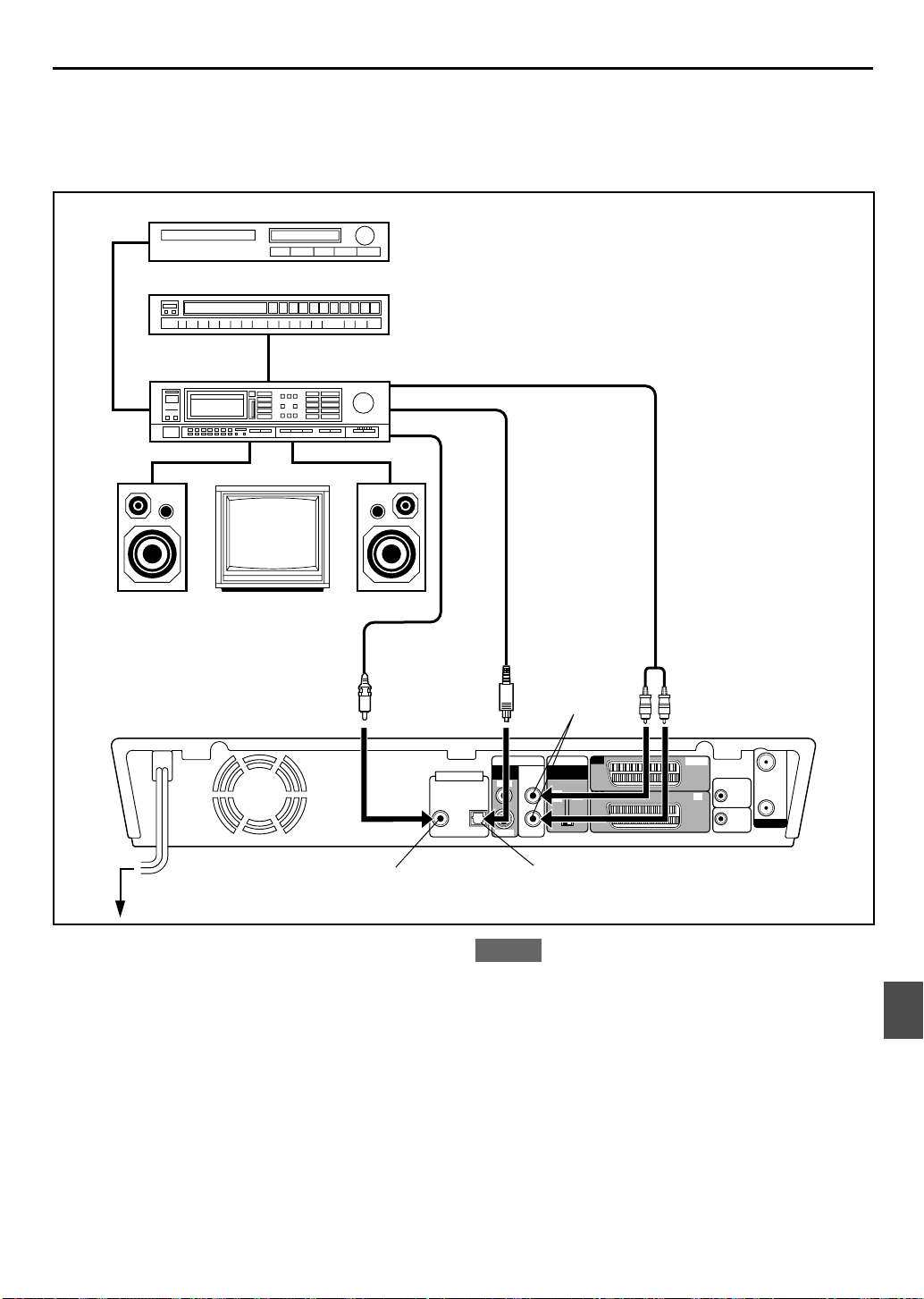

Connecting to a stereo system ............................87

ADDITIONAL INFORMATION 88

Troubleshooting .................................................88

• On-screen messages........................................ 89

Country/Area code list for Parental Lock............. 91

Table of languages and their abbreviations ......... 92

Digital output signal chart ..................................92

Glossary ............................................................. 93

Specifications ..................................................... 94

Index .................................................................. 95

BASIC DVD OPERATIONS 47

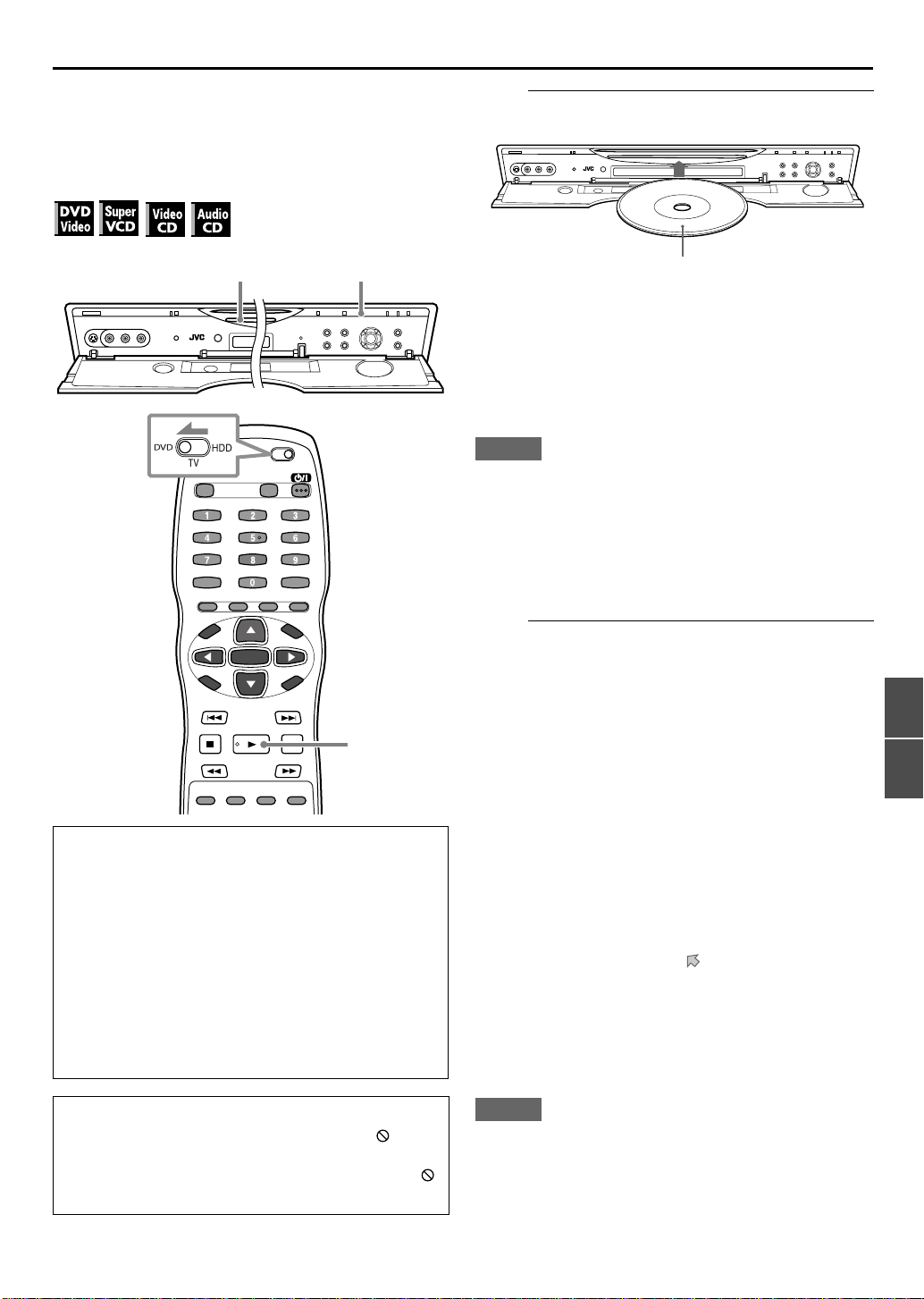

Playing back discs.............................................. 47

• Resuming playback ........................................ 49

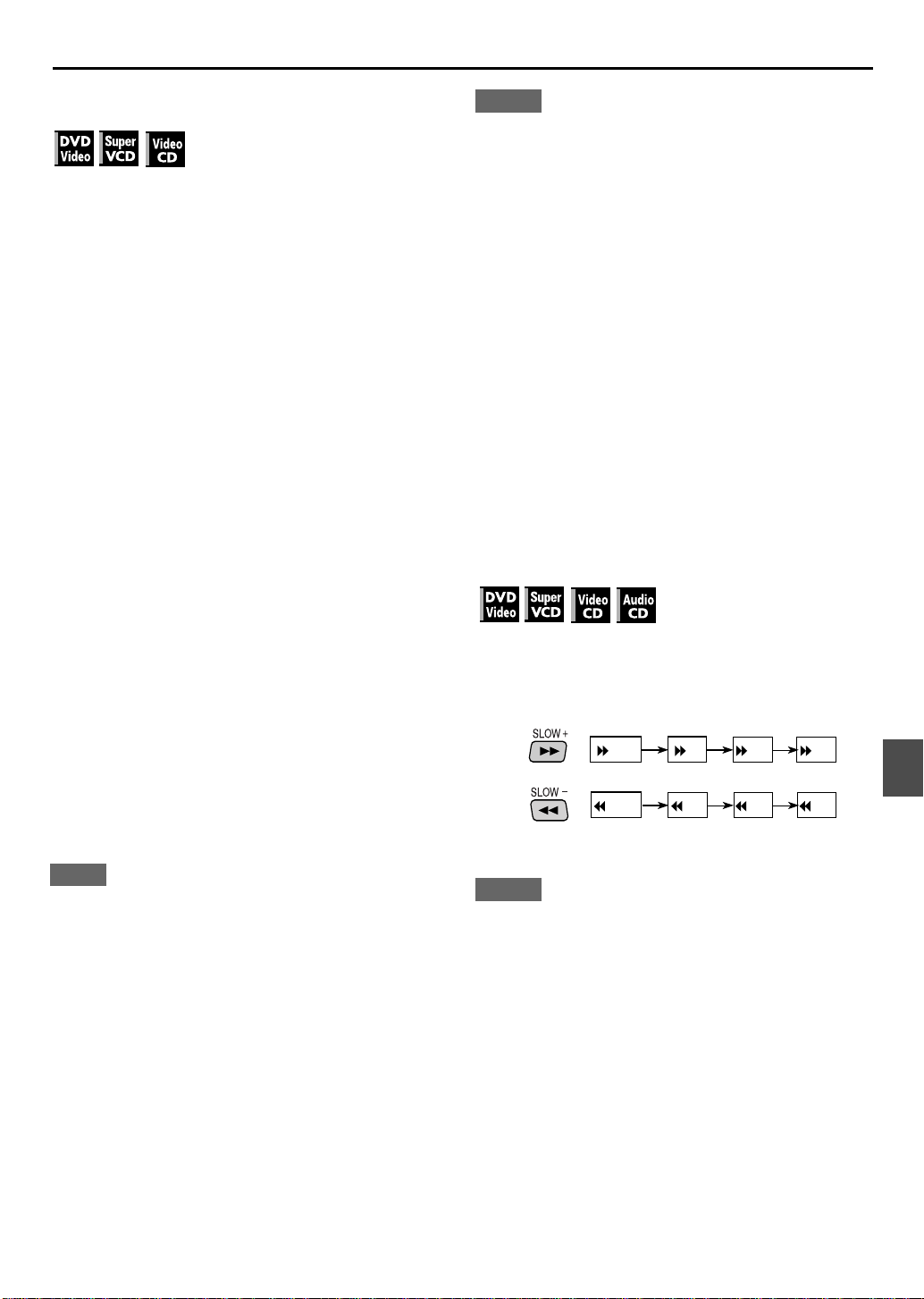

• Various speed playback .................................. 49

• Locating the beginning of a scene or song....... 50

Front view

Refer to the page indicated in parenthesis.

STANDBY/ON button

2¶ (record) button and lamp (22 – 24) 3

Illumination lamp

•Lights when the unit is turned on.

•Flashes after plugging in the unit (no operations are accepted during this period).

Disc loading slot

VIDEO lamp (86)

60 (eject) button (48) 77 (stop) button (24, 25, 48) 83 (play) button (25, 47) 9

DVD/HDD button and (DVD and HDD) lamps (19)

INPUT F-1 conncetors (83)

SAT (timer) button and lamp (46)

Remote sensor (9)

Display window Shows the clock time (or “– – : – –”) while the unit is turned off.

/ ¢ (reverse/forward search) buttons

(26, 27, 29, 49, 50)

PR (programme) + / – buttons (21, 23)

Menu operation buttons

• ENTER and cursor (2/3/5/∞) buttons

MENU button (48, 51) HDD PROGRAMME button (40 – 42, 44, 45)

TOP MENU button (48, 51) HDD NAVIGATION button (29 – 33)

PARTS IDENTIFICATION

How to open and close the front panel

To open, pull the top right edge of the front panel slowly toward you.

To close, push up the front panel softly.

IMPORTANT

When the unit is turned off, the clock time appears in the main display.

• If the built-in clock has not been set, or lost its setting, “– – : – –” appears instead.

Rear view

HDD

VIDEO SIGNAL

AUDIO

SELECTOR

OUT

LEFT

COMP.

RGB

RIGHT

DVD DIGITAL OUT (COAXIAL) conncetor (87)

DVD DIGITAL OUT (OPTICAL) conncetor (87)

DVD/HDD AUDIO OUT conncetors (12, 87)

• LEFT and RIGHT jacks

L-2 IN conncetor (85, 86)

AV COMPULINK jack

• Only for the future use.

ANTENNA OUT conncetor (11, 12, 86)

Cooling fan

DVD/HDD VIDEO OUT conncetors (12)

• VIDEO and S-VIDEO jacks

DVD VIDEO SIGNAL SELECTOR (11)

[

L-1 IN/OUT conncetor (11, 84, 85)

“

SAT CONTROL jack (17)

]

ANTENNA IN conncetor (11, 12, 86)

‘

AC power cord

DVD DIGITAL OUT

PCM / STREAM

OPTICALCOAXIAL

VIDEO

OUT

VIDEO

S-VIDEO

Display window

~Ÿ! ⁄ @

L-1

DVDDVD

L-2

Y/ C

OUT

SAT CONTROL

COMPU LINK

OUT

ANTENNA

¤

LPCM

MPEG

DOLBY DIGITAL

DTS

VCDVD

TITLEGROUP TRACK CHAP

Digital disc audio format indicators (47)

• LPCM, MPEG, DOLBY DIGITAL, and DTS

Disc type indicators (47)

• DVD, VCD, and CD

Play/Pause indicator

⁄

Disc segment indicator

• GROUP, TITLE, TRACK, and CHAP (chapter)

Repeat indicators (54, 63, 65)

• , , and A-B

ANGLE indicator (56)

Disc play mode indicators (53, 54)

• PROGRAM and RANDOM

‹

Main display

• When the unit is turned off (on standby), the clock time appears.

‹

A-B

ANGLE

Adjusting the brightness of the display window and of the illumination lamp

You can adjust the brightness in the following cases:

• While watching the currently broadcast TV programme, or

• While the DVD player is selected for the playback source, but is not playing (or with no disc loaded).

Press 8 while holding 5 or ∞ (cursor buttons) on the remote control.

Each time you press 8, the brightness changes in three levels.

Remote control

3 4

5 6 7

8 9

~ !

@ #

ENTER

$ %

& *

(

)

¡ ™ £

¢

∞

PARTS IDENTIFICATION (cont.)

DVD/TV/HDD operation mode selector

EJECT button (48)

VPS/PDC button (41, 43)

• This button only works as the PDC (Program

Delivery Control) button, but cannot work as the VPS (Video Programme System) button.

CANCEL button (53)

AUX button (21, 23)

AUDIO button (22, 56)

SUBTITLE button (56)

HDD NAVIGATION button (29 – 33) TOP MENU button (48, 51)

Menu operation buttons

• ENTER and cursor (2/3/5/∞) buttons VOL (volume) +/–

•2 / 3 buttons can also work for TV volume adjustment when no menu is shown on the TV.

RETURN button (30, 34, 40, 42, 51)

REC

button (22, 23)

(Quick & Short Review) button (22, 50)

DISPLAY button (22)

EDIT button (34 – 39)

LIVE button (21 – 23)

TV/VIDEO button (24)

(standby/on) button

TV AV button (9, 10)

Number buttons (21, 23, 50)

MUTING button (10) MEMORY button (31)

GROUP/TITLE button (52, 62, 65)

(

SET UP button (66, 75)

)

HDD PROGRAMME button (40 – 42, 45) MENU button (48, 51)

ON SCREEN button (28, 48, 52, 59, 63, 65)

DVD/HDD operation buttons

REMAIN/REC MODE button (24)

™

(Quick Skip) button (26)

ZOOM button (58, 65)

VFP (Video Fine Processor) button (58)

HDD/TV PR (programme) + / – buttons (21, 23)

∞

3D PHONIC button (57)

REMOTE CONTROL SETTINGS

Using the remote control

Installing batteries

Open the compartment cover, and place the two supplied R6P (SUM-3)/AA(15F) batteries in the remote control according to the polarity markings (“+” and “–”) inside the compartment. Then replace the cover.

The batteries will last about 6 months with normal use. If the remote control functions erratically, replace the

batteries.

Precautions for the safe use of batteries

If the batteries are used improperly, their lives may be shortened, they may burst or their contents may leak. Observe the following precautions carefully.

• Remove the batteries from the remote control if it is not going to be used for a long period of time.

• Never leave used-up batteries lying around, disassemble them, mix them with other refuse, or throw them into an incinerator.

• Never touch liquid if it has leaked out of a battery.

• Do not mix new and old batteries, or batteries of different types, when replacing them.

• Remove used-up batteries and dispose of them properly.

When the discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of the used-up batteries must be followed strictly.

Remote sensor

Point the top of the remote control toward the remote sensor as directly as possible. If you operate it from a diagonal position, the operating range (approx. 5 m) may become shorter.

Controlling the TV using remote control

Your remote control can operate the basic functions of your TV. In addition to JVC products, other manufacturer’s equipment can also be controlled.

2 4

To set the TV’s brand code.

1. Slide the DVD/TV/HDD selector to the centre position (TV).

2. Press and hold TV AV until the setting is over.

3. Press number buttons to enter the brand code, then press ENTER.

• See the brand code table on page 10.

4. Release TV AV.

5. To conﬁrm whether the setting is correctly done or not, press repeatedly.

• If the equipment turns on and off, the setting is

done correctly.

• If the equipment does not turn on and off with one

code, try entering another.

NOTES

•Once you have set the remote control to operate your

equipment, you do not have to repeat this step until you replace the batteries from the remote control.

•You can also change the remote control code for operating JVC

video products. See page 82 for details.

REMOTE CONTROL SETTINGS (cont.)

Usable buttons for operating the TV

When the (TV), you can use the following buttons:

DVD/TV/HDD

ENTER

selector is set to the centre

TV AV

Number

MUTING

VOL + / –

HDD/TV

PR + / –

TVs Codes

JVC AIWA BEIJING CCE CHANGHONG DAEWOO FERGUSON FINLUX FUNAI GRANDIENTE GRUNDIG HITACHI ITT JINXING KONKA LG (GOLDSTAR) MAGNAVOX MITSUBISHI MIVAR NEC NOBLEX NOKIA PANASONIC PEONY PHILCO PHILIPS RCA SAMSUNG SANYO SEARS SHARP SONY TCL THOMSON TOSHIBA ZENITH

01, 23, 24, 25 36 22 02 34 17, 37 27 30 32 15, 20 19 10 28 38 40 18 02 03 29 20 22 31 04, 11 34, 38, 39 10, 17, 21 02 05 12, 33, 34, 35 13, 16 13 06 07 41 26 08, 14 09

TV AV

: Selects the input (AV) mode.

(standby/on)

Number

MUTING VOL +/– HDD/TV PR +/–

: Turns on or off the power.

buttons: Selects the programme position

numbers. (For some TVs, press after pressing the

number

buttons.)

: Turns on or off sound muting.

: Adjusts the volume.

: Changes the programme position

ENTER

numbers.

IMPORTANT

Although the supplied remote control is compatible with JVC products, as well as many other models, it may not work with your equipment, or in some instances, may have limited function capability.

INSTALLING THE UNIT

Basic connections

Before using the unit, connect the unit to a TV.

Precautions for connections

• Do not connect the AC power cord until all connections are complete.

• Do not connect a VCR in between this unit and TV; otherwise, picture will be distorted while playing back a copy-protected disc. This problem also occurs when connecting the unit to an integrated TV/Video system.

Connecting a TV with the SCART connector

TV aerial cable

TV or monitor

(not supplied)

Aerial conncetor

RF cable (supplied)

Connect the RF cable (supplied) between the

ANTENNA OUT conncetor on the rear and the TV’s aerial conncetor.

Connect the 21-pin SCART cable (not

supplied) between the L-1 IN/OUT conncetor on the rear and the TV’s 21-pin SCART conncetor (input).

NOTE

For better sound reproduction, it is recommended to connect this unit to an audio ampliﬁer (see page 87).

Set the DVD VIDEO SIGNAL SELECTOR

properly according to your TV.

DVD

VIDEO SIGNAL

SELECTOR

COMP.

Y/ C

RGB

21-pin SCART conncetor

21-pin SCART cable

(not supplied)

L-1

DVD

HDD

AUDIO

OUT

LEFT

RIGHT

VIDEO SIGNAL

SELECTOR

COMP.

L-2

Y/ C

RGB

XV-DDV1SL

To AC outlet

OUT

SAT CONTROL

COMPU LINK

After the connection is complete, perform “Auto Setup” on page 13.

Disconnect the TV aerial cable from the TV.

• If your TV only accommodates the composite video signal, set the selector to “COMP./RGB.”

• If your TV accommodates Y/C signals, set the selector to “Y/C.”

• If your TV accommodates RGB signals, set the selector to “COMP./RGB.”

Notice that the HDD deck is not compatible with RGB signals. If you select “RGB” input on your TV,

OUT

ANTENNA

you can view the DVD playback, but may not be able to view the HDD playback.

NOTES

•This selector only works for the output signals through the

built-in DVD player. For setting the HDD output/input signals, see “Changing the HDD/TV tuner settings” on pages 66 and 68.

•This selector setting is valid for both the L-1 IN/OUT and L-2

IN connectors on the rear.

Plug in the unit.

The illumination lamp on the unit ﬂashes about 30 seconds.

• During this period, the unit starts up the HDD and accepts no operations.

Connect the TV aerial cable to the ANTENNA

IN conncetor on the rear.

INSTALLING THE UNIT (cont.)

Connecting a TV with the audio/video jacks

TV aerial cable

TV or monitor

S-Video cable (not supplied)

(not supplied)

S-video input

Aerial conncetor

RF cable (supplied)

Audio/video input

Audio/video cable (supplied)

Disconnect the TV aerial cable from the TV.

Connect the TV aerial cable to the ANTENNA

IN conncetor on the rear.

Connect the RF cable (supplied) between the

ANTENNA OUT conncetor on the rear and the TV’s aerial conncetor.

Connect one of the VIDEO OUT jacks (either

VIDEO or S-VIDEO) on the rear to the TV’s VIDEO or S-VIDEO input jack.

NOTE

You can obtain high-quality pictures by using S-VIDEO connection.

Connect the AUDIO OUT (LEFT/RIGHT) jacks

to the TV’s AUDIO IN jacks.

Plug in the unit.

The illumination lamp on the unit ﬂashes about 30 seconds.

• During this period, the unit starts up the HDD and accepts no operations.

DVD DIGITAL OUT

PCM / STREAM

HDD

VIDEO

AUDIO

OUT

LEFT

VIDEO

OPTICALCOAXIAL

S-VIDEO

RIGHT

L-1

DVDDVD

VIDEO SIGNAL

SELECTOR

COMP.

L-2

Y/ C

RGB

XV-DDV1SL

OUT

SAT CONTROL

ANTENNA

COMPU LINK

After the connection is complete, perform “Auto Setup” on page 13.

To connect this unit to a satellite receiver, and a stereo system (see pages 86 and 87).

OUT

Precautions on connecting the power cord

Warning

• Disconnect the power cord:

- if you are not going to use the unit for a long time.

- before cleaning the unit.

- before moving the unit.

• Do not:

- connect or disconnect the power cord with wet hands.

- pull the power cord when disconnecting it, as this may damage the cord and cause ﬁre, electric shock, or other accidents.

Caution

• Do not alter, twist or pull the power cord, or put anything heavy on it, which may cause ﬁre, electric shock, or other accidents.

• If the cord is damaged, consult a dealer and have the power cord replaced with a new one

INITIAL SETTINGS

[SET UP]

[ENTER]

[SET UP]

End

Beginning

Easy & simple setup

Presetting the built-in TV tuner automatically—Auto Setup

Before starting, make sure of the following:

• The TV aerial cable is connected ﬁrmly to the unit.

• The AC power cord is plugged in.

• An appropriate input (AV) mode is selected on the TV.

First time you turn on the power, the unit automatically shows the Auto Setup screen. Store the TV stations (programme positions), clock time and Guide Program numbers using this screen ﬁrst.

When using the remote control, slide the

HDD

selector to the right (

HDD

), then

DVD/TV/

ENTER

Turn on the power.

Press control.

• The AUTO SET/T-V LINK screen appear on the TV.

Press 5 or ∞ to move to “AUTO SET,” then press

ENTER

• AUTO SET screen appears.

• When Auto Setup is

NOTE

If you have connected the unit to a TV offering T-V Link via a 21-pin SCART cable, the unit starts “TV-linked Setup” (see page 14) even if you have selected “AUTO SET.”

STANDBY/ON

Start Auto Setup.

or 3.

As Auto Setup progresses, the “ ” mark on the TV moves from left to right. (“Au To” starts ﬂashing in the display window.)

completed, “SCAN COMPLETED” appears for about 5 seconds. The display window shows the clock time, “1” (lowest programme position number) or “– –:– –” in sequence as illustrated on page 15.

on the unit or on the remote

Once you have performed Auto Setup correctly, all the stored TV stations and their Guide Program numbers will be kept in memory and the unit will not perform Auto Setup again.

• If a power failure occurs, set the clock manually (see page 69).

• If you move to a different area, or if a new station starts broadcasting in your area, perform tuner setting manually (see page 70).

NOTES

•Where no TV station transmits Programme Delivery Control (PDC) signals, the unit cannot set up the clock time and Guide Program numbers automatically.

•The unit memorizes all detected stations even if their signals are very weak. You can delete these stations with poor picture quality later manually (see “To delete a station” on page 71).

•If a power failure occurs, or if you turn off the power while Auto Setup is in progress, Auto Setup will be interrupted. If this happens, turn off the power and try again from the beginning.

•Auto Setup may fail or stored information may be incorrect if received signals are weak.

•If you press any button on the unit or on the remote control while Auto Setup is in progress, it will be cancelled.

[ENTER]

[SET UP]

INITIAL SETTINGS (cont.)

Downloading the preset information from your TV—TV-linked Setup

If you have connected the unit to a TV offering T-V Link, etc.* (see page 11), perform TV-linked Setup instead of Auto Setup.

• After downloading TV station information from the TV, the unit sets the clock time and Guide Program numbers automatically.

NOTE

* T-V Link, EasyLink, Megalogic, SMARTLINK, Q-Link or DATA

LOGIC.

Turn on the power.

Press control.

• The AUTO SET/T- V LINK screen appears on the TV.

Press “T-V LINK,” then press ENTER or

• T-V LINK screen appears

• When TV-linked Setup is

STANDBY/ON

Start TV-linked Setup.

or ∞ to move to

for a while, then GUIDE PROG SET screen appears while setting Guide Program numbers.

completed, “COMPLETED” appears for about 5 seconds. The display window shows the clock time, “1” (lowest programme position number) or “– –:– –” in sequence as illustrated on page 15.

on the unit or on the remote

NOTES

•Where no TV station transmits Programme Delivery Control (PDC) signals, the unit cannot set up the clock time and Guide Program numbers automatically.

•If a power failure occurs, or if you turn off the power while TV-

Linked Setup is in progress, TV-Linked Setup will be interrupted. If this happens, turn off the power and try again from the beginning.

•Clock time setting may fail if received signals are weak.

•The characters available for station names (ID) are A–Z, 0–9, –,

, + and (space). Downloaded station names may differ from

the ones listed on pages 73 and 74.

•If you press any button on the unit or on the remote control while TV-linked Setup is in progress, it will be cancelled.

If the following indications appear after Auto Setup or TV-linked Setup is over:

Auto Setup or TV-linked Setup has been successfully performed.

Turn on the TV and select an appropriate input (AV) mode, then make sure that all necessary stations have been stored in memory by pressing set to the right (

TV stations have been successfully stored, but clock time setting has been failed.

Turn on the TV and select an appropriate input (AV) mode, then make sure that all necessary stations have been stored in memory by pressing set to the right (

•Set the clock time manually. See “Setting the clock time” on page 69.

Auto Setup or TV-linked Setup has been failed.

Make sure the cables are connected properly, turn off the power, then perform Auto Setup or TV-linked Setup again from the beginning.

HDD

HDD/TV PR +/–

with the

DVD/TV/HDD

selector

IMPORTANT

•If station names (ID: see pages 73 and 74) have been stored in memory, the station names will be displayed on the TV for about 5 seconds when you change the stations.

•If you want to set the tuner manually to add or skip some programme positions, to change programme positions, or to set or change station names, see pages 70 to 74.

•To check if the Guide Program numbers have been set correctly, perform the VIDEO P If the Guide Program numbers have not been set correctly, the unit will record a TV programme of an unexpected station.

•The unit is equipped with Just Clock which automatically adjusts the clock time at a regular interval, by reading data from PDC signals. To use this function, see “Just Clock” on page 69.

+® Timer programming (see page 40).

LUS

What you can do with T-V LINK

When you connect the unit to a TV offering T-V Link, etc.* using a fully-wired 21-pin SCART cable, you can use the following functions. For details, refer also to the instruction manual of your TV.

* T-V Link, EasyLink, Megalogic, SMARTLINK, Q-Link or DATA LOGIC. The degree of compatibility and available functions may

differ by system.

TV Auto Power On

The TV will turn on and an appropriate input (AV) mode is automatically selected on the TV whenever you start HDD playback on this unit.

• When you start playing the DVD player, this function does not work.

Auto Standby

You can use your TV’s remote control to turn off the unit.

• For details, refer to the instruction manual of your TV.

Direct Rec

You can easily start recording the programme that you are watching on your TV (not through the TV tuner built in this unit). To use this function, set “DIRECT REC” to “ON” (see page 67).

If you have any difﬁculty with the above procedures, call the JVC Customer Service Hot Line on 0870 330 5000

INITIAL SETTINGS (cont.)

Selecting the playback source

This unit consists of two main components—the HDD deck and the DVD player.

• For detailed operations about the HDD, see pages 21 to 46.

• For detailed operations about the DVD player, see page 47 to 65.

Before performing any operations:

• Turn on the TV and select an appropriate input (AV) mode.

• During the following periods, the unit will not accept any button operation:

- If the unit is plugged in: For about 30 seconds. The illumination lamp on the unit ﬂashes during this period.

During this period, disc insertion will not

be accepted either.

- If the unit is turned on with the HDD deck selected: For about 20 seconds. During this period, the opening screen appears.

Turn on the power.

On the remote control

Press .

On the unit

Press

• The lamp corresponding to the previously selected

• First time you turn on the power, the AUTO SET/T-V

On the remote control

On the unit

Press or DVD) lights.

• The opening screen appears on the TV.

NOTE

When the Timer Programming or HDD Setup menu screen (see pages 40, 42, and 66) is shown on the TV, you cannot change the playback source from the HDD deck to the DVD player.

STANDBY/ON

playback source (either DVD or HDD) lights on the unit.

LINK screen appear on the TV. (See page 13.)

Select the either HDD deck or DVD player.

Set the

DVD/TV/HDD

position—either to the right (

(

DVD

Press

ENTER

• You can also press

DVD/HDD

so that the respective lamp (either HDD

selector to the respective

HDD

) or to the left

LIVE

for the HDD deck.

About the opening screen

The opening screen appears on the TV when you turn on the unit.

• When you start playing a disc with the DVD player selected, the following messages will be shown at the bottom of the screen.

NOW READING

Message area

• NOW READING (The unit is reading the disc information.)

• REGION CODE ERROR! (The region code of the DVD Video disc does not match the unit. The disc cannot be played back.)

• EJECT

• LOADING

• NO DISC

Setting the satellite controller

Satellite receiver

Remote sensor

Transmitter

Satellite controller

(Supplied)

Suggested location of the satellite controller

The following procedure is required if you receive satellite programmes through a satellite receiver. Approximately 20 seconds before a timer recording starts, the unit sets its input mode to “L-2” (or “SAT”) and automatically changes the programme position numbers on the satellite receiver by sending a signal to your satellite receiver.

Installing satellite controller

Situate the satellite controller.

Place the satellite controller so that the path between its transmitter and the remote sensor on the satellite receiver is unobstructed.

Attach the satellite controller.

Fix securely using the adhesive strip attached on the back of the satellite controller.

Satellite receiver

VIDEO

DVD DIGITAL OUT

PCM / STREAM

OUT

VIDEO

OPTICALCOAXIAL

S-VIDEO

21-pin SCART cable

DVDDVD

HDD

VIDEO SIGNAL

AUDIO

SELECTOR

OUT

LEFT

COMP.

Y/ C

RGB

RIGHT

XV-DDV1SL

(not supplied)

L-1

L-2

Make connections.

Be sure to connect the L-2 IN connector on the rear to the 21-pin SCART connector on the satellite receiver.

NOTE

When connecting your satellite receiver, refer to its instruction manual.

Connect the satellite controller to the unit.

Connect the satellite controller to the SAT CONTROL connector on the rear.

OUT

SAT CONTROL

COMPU LINK

OUT

ANTENNA

INITIAL SETTINGS (cont.)

Setting satellite receiver’s brand and programme positions

After installation, set the satellite receiver’s brand correctly; otherwise, the satellite controller cannot work correctly.

5,6

3–7

Turn on the satellite receiver.

Show the Main Setup screen on the unit.

Press

SET UP

• The HDD SET UP screen appears.

NOTE

If the built-in clock has not been set, the INTIAL SET UP screen appears. If this happens, set the clock ﬁrst (see page 69).

Select the Initial Set screen.

Press 3 or 2 to move to “INITIAL SET UP,” then

press ∞.

Press 3 or 2 to move to “INITIAL SET”, then press

ENTER

Select the Sat Control Set screen.

Press 5 or ∞ to move to “SAT CONTROL SET,” then press

ENTER

or 3.

[ENTER]

[SET UP]

Enter the satellite receiver’s brand.

Press the appropriate buttons to enter the brand code from the list on page 19, then press

• If the brand code you entered is invalid, the code ﬁeld will be reset. Enter the correct brand code again.

NOTE

If the unit is playing or recording, you cannot set the brand code.

Select a programme position number for the

ENTER

number

[SET UP]



[ENTER]

satellite receiver for a test.

Press the appropriate buttons to enter one of the programme positions (1 to

999) for the satellite receiver,

then press

• The unit makes a trial to change to the selected programme position number on the satellite receiver.

ENTER

number

[SET UP]

[ENTER]

Check what happened on the satellite

receiver.

If the satellite receiver’s programme position number has changed to the same one as you set in step 6...

Press 5 or ∞ to move to “CHANGED TO...,” then press

ENTER

the setting.

to ﬁnish

If the satellite receiver’s programme position number has not changed correctly...

Press 5 or ∞ to move to “NOT CHANGED,” then press

ENTER

. Then perform the procedure again

from step 5.

• Interference from the signals sent from the remote control in step 6 may be considered as one of the causes for the unsatisfactory result. In this case, take an preventative method to avoid that interference.

NOTES

•For some satellite receivers, it is required to select 2-digit input

for the programme position number entry.

•If your satellite receiver has more than two channel modes, be

sure to set to “All Channel Mode.” For details, refer to the instruction manual of the satellite receiver.

•The satellite controller may not be used with some types of the

satellite receivers. If this is your case, leave the satellite tuner turned on and select an appropriate programme position number on the satellite receiver before the scheduled start time for a timer recording comes. You can also use the timer equipped with your satellite receiver.

[SET UP]

[ENTER]

Brand name Code

JVC AMSTRAD CANAL SATELLITE CANAL + D-BOX ECHOSTAR (VIA DIGITAL) FINLUX FORCE GALAXIS GRUNDIG HIRSCHMANN HUMAX ITT NOKIA KATHREIN LUXOR MASCOM MASPRO NOKIA PACE PANASONIC PHILIPS RADIX RFT SABA SAGEM SALORA SAMSUNG SIEMENS SKYMASTER TECHNISAT THOMSON TPS TRIAX WISI

73 60, 61, 62, 63, 92 81 81 85 82 68 89 88 64, 65, 102 64, 78, 99 88 68 70, 71, 96 68 93 70 87, 94 65, 67, 74, 86, 92 74, 92 66, 84, 101 78 69 97 83, 90 68 83 64 69, 98 66, 100 97 83 91 64

INITIAL SETTINGS (cont.)

DVD Initial Setup

Before using the built-in DVD player, activating DVD Initial Setup allows you to set up the most fundamental functions easily.

• You can set the TV monitor type and digital output signal format.

• Turn on the TV and select an appropriate input (AV) mode.

• If the unit is turned on with the HDD deck selected, it takes about 20 seconds until the broadcast picture appears on the TV. During this period, no operations are permitted.

1 246

–

Show the DVD PLAYER SET UP screen.

On the remote control

Press and hold

• The MONITO TYPE selection screen appears.

Press 5 or ∞ to move to the type of your TV, then press

ENTER

• For a wide-screen TV, select either “16:9 NORMAL” or “16:9 AUTO.” (For details, see page 77.)

• For a conventional (4:3) TV, select either “4:3 LB” or “4:3 PS.” (For details, see page 77.)

• The DIGITAL AUDIO OUTPUT selection screen appears.

SET UP

for about 2 seconds.

Select the monitor type of your TV.

DVD PLAYER SET UP

MONITOR TYPE

PICTURE SOURCE

SCREEN SAVER

MP3/JPEG

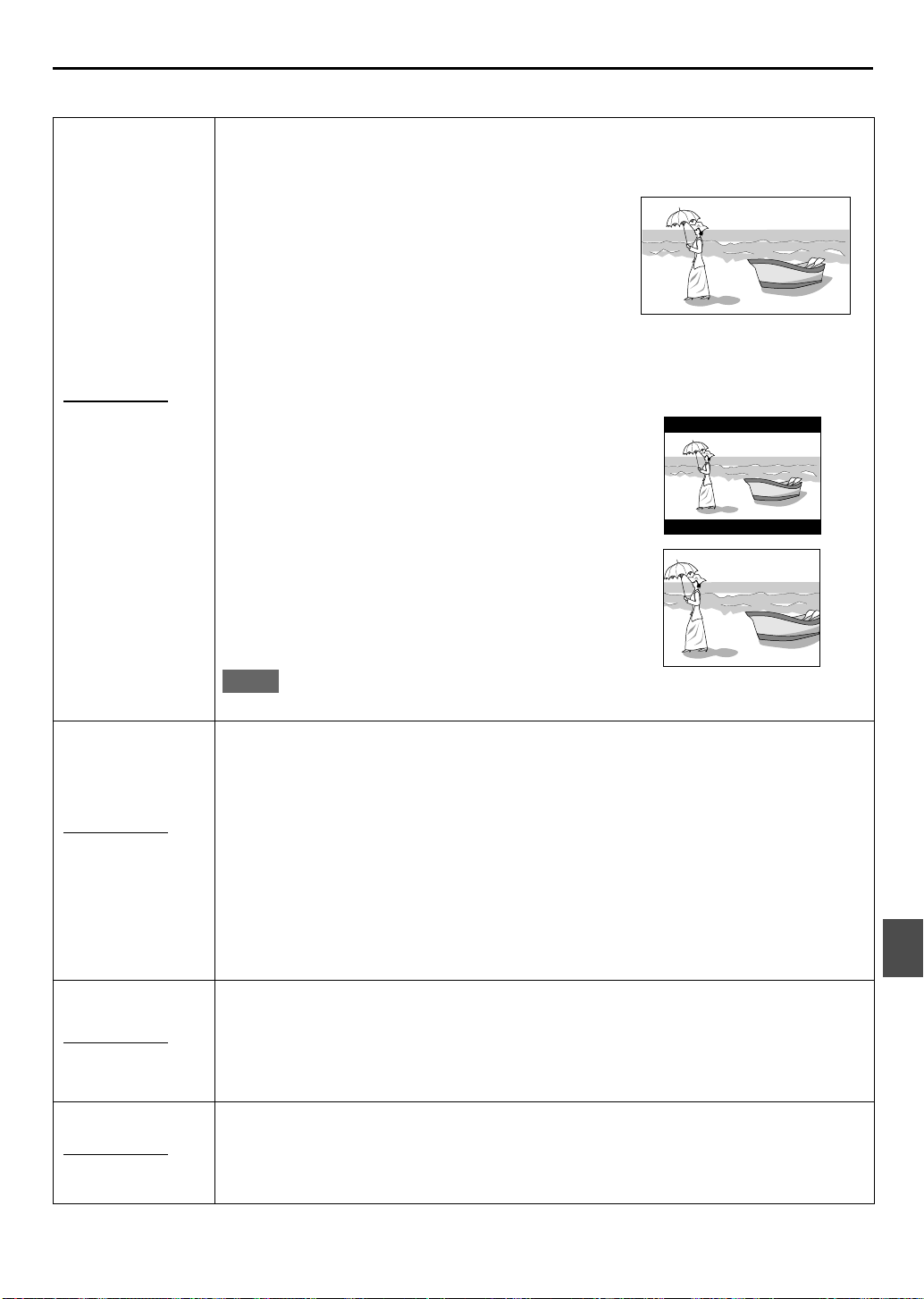

MONITOR TYPE options

4:3 L.B.

16:9 NORMAL

AUTO

16:9 AUTO 4:3 LB

4:3 PS

MP3

Select the type of the digital signal to be emitted through the DIGITAL OUT connectors on the rear.

4–6

Turn on the power.

On the remote control

Press .

On the unit

Press

• The lamp corresponding to the previously selected

On the remote control

1 2

On the unit

Press

• The opening screen appears on the TV.

STANDBY/ON

deck (either DVD or HDD) lights on the unit.

Select the DVD player.

Set the Press

ENTER

DVD/HDD

DVD/TV/HDD

so that the DVD lamp lights.

selector set to the left (

DVD

DVD PLAYER SET UP

DIGITAL AUDIO OUTPUT

ANALOG DOWN MIX

D RANGE CONTROL

OUTPUT LEVEL

DIGITAL AUDIO OUTPUT options

Press 5 or ∞ to move to the type you want, then press

ENTER

• When connecting to a recording device such as an MD recorder, and a DAT deck, select “PCM ONLY.”

• When connecting to a Dolby Digital decoder, select “DOLBY DIGITAL/PCM.”

• When connecting to a DTS, MPEG Multichannel, and DOLBY Digital decoder, select “STREAM/PCM.”

• If you do not connect the unit to such a device, you do not have to set this item.

DOLBY DIGITAL/PCM

PCM ONLY

DOLBY PROLOGIC

DOLBY DIGITAL/PCM STREAM/PCM

To bring up the DVD PLAYER SET UP screen later

Press

SET UP

• This allows you to perform more detailed settings (see pages 75 to 81).

WATCHING TV

Watching TV Programmes

You can watch TV programmes using the TV tuner built in the unit. One of the advantages of this behaviour so called “

Live Memory

What is Live Memory

Live Memory always records temporarily the programme (including programmes coming through the externally connected equipment) you are currently watching—

Memory

once again, you can goes back to that scene and play it back. You can also pause the pictures on the TV, then continue to watch it later— Furthermore, you can go back to the beginning of the programme you are now watching and record the programme from the beginning—

Recording

• You can cancel this temporary recording or select its

. So, if you want to watch a particular scene

maximum time (see page 67).

• Turn on the TV and select an appropriate input (AV) mode.

• If the unit is turned on with the HDD deck selected, it takes about 20 seconds until the broadcast picture appears on the TV. During this period, no operations are permitted.

.“

Live

Live Memory: Playback

Live Memory:

-1

Turn on the power.

On the remote control

Press .

On the unit

Press

• The lamp corresponding to the previously selected

On the remote control

On the unit

Press

• The currently received programme appears on the TV.

On the remote control

Press

On the unit

Press

• You can also select the external components—L-1, L-2

Examples: How to use the number buttons To select programme position 5, press 5. To select programme position 10, press 1, then 0. To select the external components, press

NOTES

•When you change the programme positions, it takes a few

•If TV aerial is not connected, or if no programme broadcast on

STANDBY/ON

deck (either DVD or HDD) lights on the unit.

Select the HDD deck.

Make sure that the right (

HDD

Press

LIVE

(or

The HDD lamp lights on the unit.

DVD/HDD

Notice that the scene shown on the TV is always a few second behind the actual on-air scene.

DVD/TV/HDD

EDIT

so that the HDD lamp lights.

selector set to the

Choose a programme.

HDD/TV PR +/–

PR +/–

repeatedly.

(or SAT), F-1.

seconds to change the pictures. It is not a malfunction.

the current programme position, the blue-back screen appears on the TV.

repeatedly or the

AUX

number

(0), then

buttons.

PR +/–

-2

1 2

To stop the picture temporarily while watching a programme—Live Memory: Playback (Pause)

When you have an unexpected visitor or telephone call, you can stop watching the current programme temporarily, then continue it from where you have stopped.

Press 8 on the remote control to temporarily stop the scene shown on the TV.

To restart the programme,

• You can watch the programme without missing any portion of the programme (the pictures you watch now are behind actual on-air scenes by the time you have paused the programme for).

To resume actual on-air scenes,

press 3 (SELECT

press 7 (

CLEAR) or LIVE

WATCHING TV (cont.)

To go back to and watch from a particular scene again—Live Memory: Playback (Replay)

1. Press 1 (see page 26) or 4 (see page 27) to search for the previous scene of the current programme you are watching.

2. Press

To stop playback,

The actual on-air picture resumes.

3333 (SELECT) to start replay.

press 7 (

CLEAR

) or

LIVE

To go back to a previous scene quickly and play it back

While watching a TV programme,

The HDD goes back to a scene of about 7 second before, and starts replay from it.

• Each time you press the button, the HDD goes back to

a previous scene of about 7 seconds before. For example, if you press the button three times, the HDD will goes back to the scene of about 21 seconds before.

NOTE

You can also use other various playback features during Live Memory—Playback (see page 26).

press

To go back to and record from a particular scene— Live Memory: Recording

1. Press 1 (see page 26) or 4 (see page 27) to search for the previous scene of the current programme you are watching.

2. Press

3. Press

To stop recording,

NOTES

•If the reserved amount of time (or space) for Live Memory runs

•Temporary recording for Live Memory is erased in the

8888 or

3333 (SELECT) at the scene where you want to

start recording.

¶¶¶¶ (record) on the unit, or press

holding REC

The actual on-air resumes.

• Recording speed is automatically set to “SP.”

out, the HDD overwrites the previous recordings, starting with the oldest one.

following cases:

- When you turn off the power (including a power failure).

- When you perform a recording.

- When you change the “LIVE MEMORY” setting (see page

67).

- When you change the built-in TV tuner settings (see pages 70 to 74).

¶¶¶¶ on the remote control to start recording.

press 7 (

CLEAR

3333 (SELECT) while

) twice.

To show the current clock time in the display window while watching on-air scenes in real time

Press

DISPLAY

• Each time you press the button, the channel number and clock time alternate in the display window.

on the remote control.

Receiving stereo and bilingual programmes

The unit is equipped with a digital stereo sound decoder (NICAM) which enables reception of NICAM broadcasts. When the programme is changed, the type of broadcast being received or of signals coming in will be displayed on the TV for a few seconds (see the table below).

NOTE

When “O.S.D.” is set to “OFF,” the on-screen icons is not be shown on the TV screen (see page 67)

To change the sound you hear

Press AUDIO on the remote control repeatedly until the sound you want is selected.

• The following sound icons are shown on the TV for a few seconds to indicate the sound type you have selected.

On-screen icons Sound you hear

Conventional stereo sounds

Conventional monaural sound

Main audio track of a bilingual programme

Sub-audio track of a bilingual programme

NICAM stereo sounds

NICAM monaural sound

Main audio track of a NICAM bilingual programme

Sub-audio track of a NICAM bilingual programme

NICAM FM stereo sounds

Both left and right channel sounds from externally connected equipment

Left channel sound from externally connected equipment

Right channel sound from externally connected equipment

To record NICAM bilingual programmes

Set “AUDIO REC” to “NICAM” to record NICAM bilingual programmes (see page 67)

HDD RECORDING/PLAYBACK

Basic recording

You can store up to 100 programmes in the HDD. Once recording (including timer recordings: see pages 40 and 42) is made through the built-in TV tuner, the following information about the programme is automatically memorized in the HDD.

• Thumbnails* (index—still picture of the beginning of the programme)

• Programme title*

• Category*

• Date and time

• Channel

• Recording speed

• Recording time

* The items marked with an asterisk (*) can be later modiﬁed

using HDD Navigation (see page 34).

• Turn on the TV and select an appropriate input (AV) mode.

• If the unit is turned on with the HDD deck selected, it takes about 20 seconds until the broadcast picture appears on the TV. During this period, no operations are permitted.

•

You cannot record from the built-in DVD player onto the HDD.

1 25

Turn on the power.

On the remote control

Press .

On the unit

Press

• The lamp corresponding to the previously selected

On the remote control

On the unit

Press

• The currently received programme appears on the TV.

On the remote control

Press

On the unit

Press

• You can also select the external components—L-1, L-2

Examples: How to use the number buttons To select programme position 5, press 5. To select programme position 10, press 1, then 0. To select the external components, press

STANDBY/ON

deck (either DVD or HDD) lights on the unit.

Select the HDD deck.

Make sure that the right (

HDD

Press

LIVE

The HDD lamp lights on the unit.

DVD/HDD

Notice that the scene shown on the TV is always a few second behind the actual on-air scene.

DVD/TV/HDD

so that the HDD lamp lights.

selector set to the

Choose a programme.

HDD/TV PR +/–

PR +/–

repeatedly.

(or SAT), F-1.

repeatedly or the

AUX

number

(0), then

buttons.

PR +/–

-1

-2

NOTES

•When you change the programme positions, it takes a few seconds to change the pictures. It is not a malfunction.

•When connecting a TV with TV-Link or with equivalent function (see page 15) using the SCART cable, select “OFF” for “DIRECT REC” (see page 67) in order to record S-Video signals through the L-2 IN or INPUT F-1 connector.

Set the recording speed.

On the remote control only

Press

REMAIN/REC MODE

• For details on the recording speed, see page 24.

Start recording.

On the remote control

Press and hold

On the unit

Press ¶ (record).

• The lamp next to the ¶ (record) button lights.

REC

¶, then press 3.

on the remote control.

HDD RECORDING/PLAYBACK (cont.)

To stop recording

Press 7 ( appears on the TV. Then press 7 (

• The lamp next to the ¶ (record) button goes off.

•In the middle of a recording, you can start playing back the

•It is impossible to pause an actual recording while recording a

CLEAR

) once so that the conﬁrmation message

CLEAR

) again.

NOTES

same programme (just currently being recorded) from the beginning or pause the picture shown on the TV at a particular scene. (Recording continues although you start playback or pause the TV screen picture). See “Live Memory: Playback (Pause)” on pages 21 and “Live Memory: Playback (Replay) on page 22.

programme other than from “L-1,” “L-2 (or SAT),” and “F-1” (see pages 83 to 85).

To record NICAM bilingual programmes

Set “AUDIO REC” to “NICAM” to record NICAM bilingual programmes (see page 67).

Watching another programme while recording

1. Press TV/VIDEO on the remote control so that the VIDEO lamp (inside the front panel) goes off.

2. Select another programme position on the TV.

Changing the recording speed

You can also check the current recording time and remaining time in the HDD.

Each time you press speed changes as follows:

• First time you press the button, the remaining time in

the HDD and the current recording speed alternate in the display window.

REMAIN/REC MODE

, the recording

NOTES

•The capacity of the HDD is 80 Gbytes.

•MPEG2 format is used for the HDD recording format—the same one used for DVD Video discs.

•“bps” is used to represent how much data can be recorded per second. The larger this value is, the better the picture quality is, but the more capacity is required for recording. Select “SP” for programmes where quick movement occurs, such as sports programmes, and “SEP” for talk shows, etc. where relativity less movement.

Instant Timer Recording (ITR)

This easy method lets you record for from 30 minutes to 6 hours (selectable in 30-minute increments), and turns off the power after recording is ﬁnished.

On the unit only

¶¶

Press

(record) repeatedly while recording.

¶¶

Each time you press the button, recording time increases in 30-minute intervals.

• The lamp next to the ¶ (record) button starts ﬂashing,

and recording time appears in the display window (it counts down as recording goes on).

• ITR recording time also appears on the TV for a while

when “O.S.D.” is set to “ON” (see page 67).

To stop ITR,

press

(

CLEAR

) twice.

Recording

speed

SP 6.4 Mbps 20 hours

LP 4.5 Mbps 28 hours

EP 3.2 Mbps 56 hours

SEP 2.2 Mbps 80 hours

* When “LIVE MEMORY” is set to “OFF” (see page 67).

Recording quality

(approx.)

Total recording time

(approx.)*

• When “O.S.D.” is set to “ON” (see page 67), the following screen also appears on the TV screen.

Used area

Remaining area Current recording speed

14:00

20:00

Remaining time based on each

recording speed.

40:00 60:00

SEP

Basic playback

• Turn on the TV and select an appropriate input (AV) mode.

• If the unit is turned on with the HDD deck selected, it takes about 20 seconds until the broadcast picture appears on the TV. During this period, no operations are permitted.

1 23

-1

Turn on the power.

On the remote control

Press .

On the unit

Press

• The lamp corresponding to the previously selected

On the remote control

On the unit

Press

• The currently received programme appears on the TV.

Press 3 (

• Playback starts with...

STANDBY/ON

deck (either DVD or HDD) lights on the unit.

Select the HDD deck.

Make sure that the right (

HDD

Press

LIVE

The HDD lamp lights on the unit.

DVD/HDD

DVD/TV/HDD

so that the HDD lamp lights.

selector set to the

Start playback.

SELECT

- the last programme recorded if it has not been played back yet.

- the last played-back programme if it has not played back entirely.

- the HDD Navigation screen (see page 29), or

- some demonstration programmes for the ﬁrst time you start playback.

NOTES

•When the entire programme has been played, playback stops and on-air programme is shown on the TV.

•When the programme reaches its end while searching, picture will pauses at the end.

To stop playback temporarily (Playback Pause)

Press 8 on the remote control.

To resume normal playback,

-2

To stop playback

Press 7

• The currently received programme appears on the TV.

To change the sound you hear

Press sound you want is selected. For details, see page 22.

(CLEAR)

AUDIO

on the remote control repeatedly until the

press 3

(SELECT)

Special effect playback

While playing back a recorded programme, you can use the following special effect playback.

• When using the buttons on the unit, make sure that the HDD lamp on the unit is lit. If not, press

HDD

so that the HDD lamp lights.

• When using the remote control, slide the

HDD

selector to the right (

HDD

), then press

4 / ¢

DVD/

DVD/TV/

ENTER

HDD RECORDING/PLAYBACK (cont.)

Searching for a particular scene—Variable Speed Search

You can change search speed.

• You cannot hear playback sounds during search except

1.5 times speed search.

On the remote control While playing, press ¡ (SLOW +) or 1 (SLOW –).

On the unit While playing, press ¢ or 4.

• Each time you press the button, playback speed changes as follows:

To resume normal playback,

+ x1.5

– x1 – x3 – x5 – x15 – x60

+ x3 + x5 + x15

press 3 (

SELECT

+ x60

SELECT

SLOW –

DISPLAY

2 / 3

Going back to a previous scene quickly and play it back—One Touch Replay

While playing, press on the remote control.

The HDD goes back to a scene of about 7 second before, and starts replay from it.

• Each time you press the button, the HDD goes back to a previous scene of about 7 seconds before. For example, if you press the button three times, the HDD will go back to the scene of about 21 seconds before.

Skipping forward quickly—Quick Skip

While playing, press on the remote control.

The HDD skips forward (about 30 seconds at a time) and resumes playback. This will be convenient when you want to skip a commercial in a recording.

• Each time you press the button, the HDD skips the recorded portion of about 30 seconds that follows. For example, if you press the button three times, the HDD will skip the following portion of about 1 minute and 30 seconds.

SLOW +

Skipping forward or backward at certain time intervals—Jump Search

You can locate a scene ahead or behind the current one by jumping to a selected time interval (see page 67).

• This feature is also available during recording.

While playing (or recording), press ¢ (cursor 3) or

(or cursor 2).

• Each time you press the button, you can move forward or backward to a selected time (15 minutes, 30 minutes, or 1 hour).

• When you cannot move any farther (beginning or end of programme is reached), the notice message appears on the TV. In such a case, press 4 or ¢ to cancel the last movements.

Example 1:

Jump Search during playback: When “JUMP TIME” is set to “30 MIN”:

•You can move back (or forward) to the scenes of 0 minute, 30

minute, 60 minutes, 90 minutes, 120 minutes (elapsed playing

time), and so on....

Elapsed time (shaded) and remaining time (white)

40 min.

0 min.

30 min.

60 min.

75 min.

Freezing the picture and advance it frame by frame —Still Picture/Frame-by-Frame Playback

You can show the still picture, and advance or reverse it frame by frame.

• You cannot hear playback sounds during Still Picture and Frame-by-Frame Playback.

Press 8 to freeze the picture on the TV.

Press ¡ (SLOW +) or 1 (SLOW –) repeatedly to advance or reverse the still picture.

To resume normal playback,

press 3 (

SELECT

Playing in slow motion—Slow Motion

You can select the slow motion speed.

• You cannot hear playback sounds during Slow Motion.

Press 8 to freeze the picture on the TV.

Press and hold SLOW + (¡) or SLOW – (1) for

about 2 seconds to start slow motion playback.

• Each time you press the button, playback speed changes as follows:

+ x1/18 + x1/6 + x1/2

– x1/18

– x1/6 – x1/2

Beginning of programme

•In the above example, you can go back to a scene of 30 minutes and of 0 minute (elapsed playing time).

Example 2:

Jump Search during Live Memory Playback: When “JUMP TIME” is set to “15 MIN”:

•You can move to the scenes of 0:00, 0:15, 0:30, 0:45 of the broadcasting hour.

Elapsed time (shaded) and traced time from the current time

9:00

Beginning of programme

•In the above example, you can move to the scenes of 9:00, 9:15, 9:30, 9:45, 10:00, and 10:15.

9:15 9:30

Current scene

9:40

9:45 10:00

Current replay scene

End of

programme

10:15

Current time

To resume normal playback,

press 3 (

SELECT

Repeating the same programme—Repeat Play

You can repeat the same programme repeatedly using HDD Navigation.

• For detailed operations, see “Playing with HDD Navigation” on pages 29 to 33.

HDD RECORDING/PLAYBACK (cont.)

Conﬁrming various information on the TV

With “O.S.D.” set to “ON” (see page 67), various operational information automatically appears on the TV for a while when you operate the HDD deck.

When watching (or recording) a TV programme through this unit

11:00 12:00 1:00

When playing Live Memory during playback

11:00 12:00 1:00

11:35

11:35 11:16

PR.12

PR. 8

You can also show the operational information manually without respect to the “O.S.D.” setting.

Press ON SCREEN.

• Each time you press the button, the following information screen turns on and off on the TV alternately.

Start point from where Live Memory can be played

back

Start point from where Live Memory can be

recorded (The current programme has been selected at this point.)

Current scene

Time scale

Current time

Current programme position number

Record (¶) indicator only during recording

NOTE

While recording, the recording speed/remaining time and elapsed recording time for the current recording also appear.

Time scale for temporary recording

Current scene being recorded

Current time

Current programme position number

Time scale for Live Memory

Current playback point

Live Memory: Playback indicator

Current playback time

When playing Live Memory during recording

11:00 12:00 1:00

11:35 11:33

PR. 1 2

When playing back a recorded programme (see page 29)

1:000:00 2:00

004

F I S H I N G W O R L D

1:16:48

PR.12

Current scene being recorded

Live Memory: Recording indicator

Programme start point

Current playback point

Programme end point

Time scale (This programme is an hour and a half

long.)

Playback status indicator (ex. play)

Elapsed playing time

Current programme position number

(being recorded internally)

• Appears only when recording is performed internally.

Recorded programme (or play list) number

currently being played back

Title of programme currently being played back

Sound you hear (see page 22)

Playing with HDD Navigation

Each time a recording is made, the information (for example, thumbnail picture—index) about the recording is also memorized in the HDD. You can conﬁrm the information about the recordings memorized in the HDD using HDD Navigation. Moreover, you can select and start playing one of the recordings stored in the HDD. Using HDD Navigation, you can use the following four main functions:

• To select a favourite programme from the recording list (REC LIST)

- You can also arrange the playback order of your favourite programmes.

• To select the best collections (play lists) consisting of your favourite scenes (PLAY LIST)

- Preparation: you need to make your own play lists (see page 37).

• To select your favourite programmes from the preset genres (CATEGORY)

- Preparation: you need to categorize the recorded programmes into the preset genres (see page 35).

• To search the programmes by entering their titles (TITLE)

- Preparation: you need to assign the titles to the recorded programmes (see page 36).

When you press screen appears. Before operating it any further, be familiar with the icons used on this screen.

NAVIGATION screen (entrance to HDD Navigation)

HDD NAVIGATION

, the following

Main List screen (ex. REC LIST)

NAVIGATION REC LIST



SELECT WITH [ ] THEN PRESS [ENTER]

PRESS [HDD NAVIGATION] TO EXIT

HDD

SELECT

NAVIGATION

EXIT

ENTER

Viewing window

(Shows currently received TV programme.)

Guidance for operations

Scroll bar

Appears to indicate when more than nine programmes (or play lists) are registered. To show hidden programmes (or play lists), press

/ ∞ / 5 repeatedly.

Recording information for the programme indicated

by the arrow

Thumbnail (Index—still picture of each programme)*

Thumbnail marks

:Indicates no thumbnail is registered.

: Indicates that programme now stands by for timer

recording.

:Indicates no programme is registered.

Icons (see the table that follows.)

The icons used on the Navigation screens and their meanings

This programme has never been played back (or it may be now being recorded when this icon is shown).

NAVIGATION REC LIST

SELECT WITH [ ] THEN PRESS [ENTER]

PRESS [HDD NAVIGATION] TO EXIT

HDD

SELECT

NAVIGATION

EXIT

ENTER

Viewing window

(Shows currently received TV programme.)

Guidance for operations

REC LIST icon: select to enter the REC LIST screen

PLAY LIST icon: select to enter the PLAY LIST screen.

CATEGORY icon: select to enter the CATEGORY

screen.

TITLE icon: select to enter the TITLE screen.

This programme has been recorded using daily timer recording (daily overwrite).

This programme has been recorded using daily timer recording (weekly overwrite).

* The NAVIGATION screens can show only nine thumbnails at a

time. By pressing unshown thumbnails.

To move to the ﬁrst or last recorded thumbnail,

/ ¡ on the remote control or 4 / ¢ on the unit.

This programme has been recorded using weekly timer recording (weekly overwrite).

This programme is stereo.

This programme is bilingual.

This programme has been recorded using recording timer.

/ 2 / ∞ /

repeatedly, you can show the

press

PRESS [HDD NAVIGATION] TO EXIT

SELECT WITH [ ] THEN PRESS [ENTER]

HDD

NAVIGATION

EXIT

SELECT

ENTER

NAVIGATION REC LIST

Ex. When selecting REC

LIST

HDD RECORDING/PLAYBACK (cont.)

Selecting programmes on the NAVIGATION screen

This HDD can store up to 100 recordings.

You can show the beginnings of these recorded programmes on the HDD Navigation screen, and select one to play or select some to play in your intended order.

• When using the buttons on the unit, make sure that

the HDD lamp on the unit is lit. If not, press

HDD

so that the HDD lamp lights.

• When using the remote control, slide the

HDD

selector to the right (

• HDD Navigation does not work during Automatic

Satellite Recording (see page 46).

HDD

), then press

DVD/TV/

2–4

DVD/

ENTER

• On the PLAY LIST, you can register your own play lists. For details about how to make a play list, see page 37.

Show the NAVIGATION screen.

Press

HDD NAVIGATION

Enter the REC LIST or PLAY LIST screen.

Press 3 or 2 to move to “REC LIST” or “PLAY LIST,” then press

• The REC LIST or PLAY LIST screen appears.

Press

to a thumbnail you want,

then press

• The playback selection screen appears.

ENTER

Select a programme to play.

/ 2 / ∞ / 5 to move

ENTER

2–4

To go back to the previous screen while operating HDD Navigation,

Playing back a programme or a play list

All recorded programmes (except the programmes being recorded temporarily) are automatically listed on the REC LIST. On the other hand, you need to make your own play lists yourself.

press

RETURN

Start playback.

Press 3 or 2 to move to one of the playback modes (see the table below), then press

BEGINNING

RESUME

REPEAT

NOTE

You cannot select “RESUME” for newly recorded programme (with icon).

Select to start playback from the beginning.

Select to start playback where you have stopped last.

Select to repeat the same programme. Repetition continues until you stop it.

ENTER

To stop playback

Press 7

• When you select Repeat Play (“REPEAT”), pressing 3

(CLEAR)

(SELECT)

playback.

cancels the repeat, and resumes normal

PRESS [HDD NAVIGATION] TO EXIT

SELECT WITH [ ] THEN PRESS [ENTER]

HDD

NAVIGATION

EXIT

SELECT

ENTER

NAVIGATION REC LIST

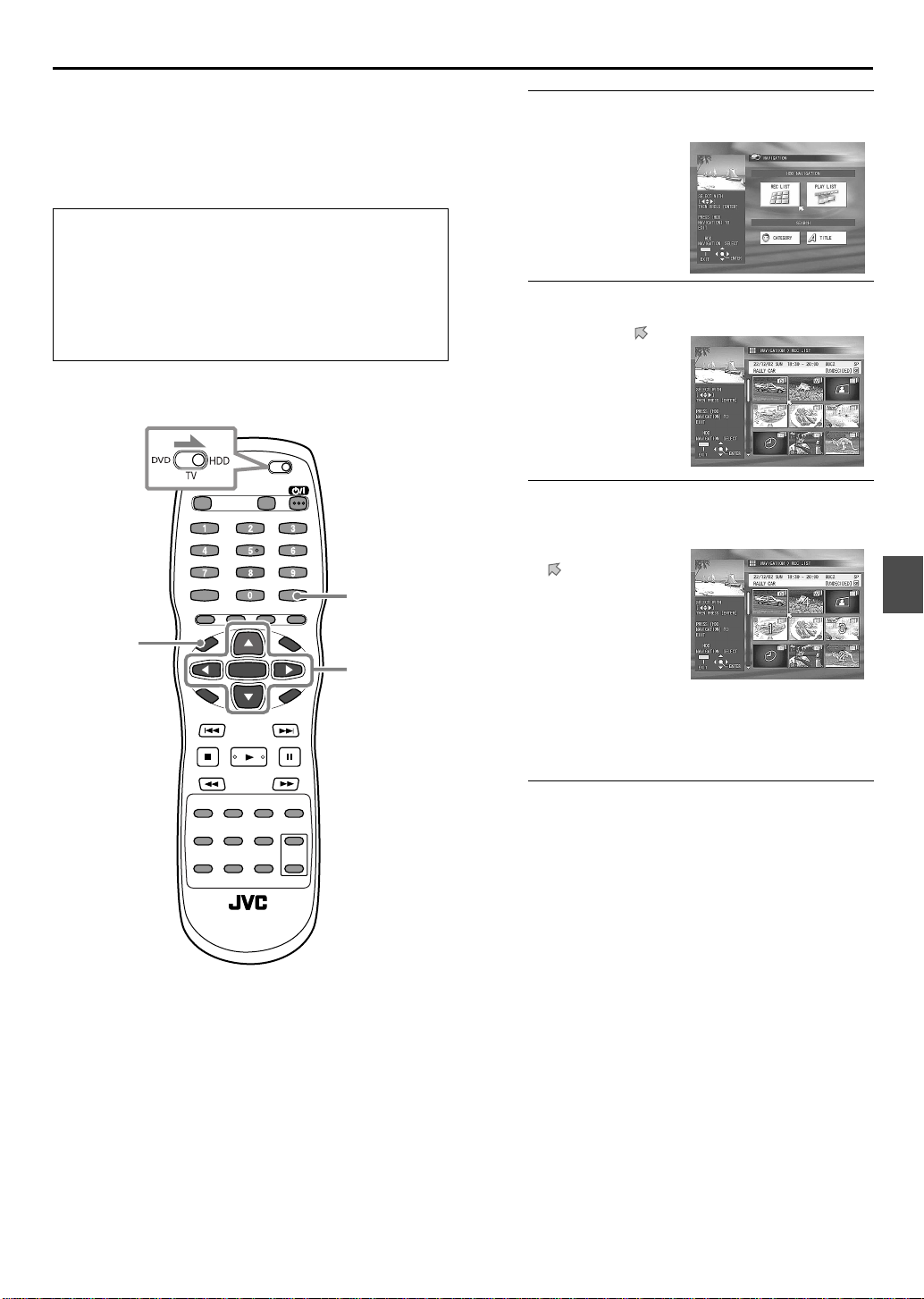

Playing back two or more programmes in your desired order

You can select up to eight programmes for continuously. This is convenient when you want to watch a series of dramas.

• When using the buttons on the unit, make sure that the HDD lamp on the unit is lit. If not, press

HDD

so that the HDD lamp lights.

• When using the remote control, slide the

HDD

selector to the right (

• HDD Navigation does not work during Automatic Satellite Recording (see page 46).

HDD

), then press

DVD/TV/

-1

DVD/

ENTER

2–4

Show the NAVIGATION screen.

Press

HDD NAVIGATION

Enter the REC LIST or PLAY LIST screen.

Press

or 2 to move to “REC LIST” or “PLAY LIST,” then press

• The REC LIST or PLAY LIST

screen appears.

ENTER

Select the programmes to play in your

desired order.

Press 3 / 2 / ∞ / 5 to

move to a thumbnail you want, then press

MEMORY

• Playback order number

Repeat step 1 to select more thumbnails.

To move to the ﬁrst or last recorded thumbnail,

/ ¡.

is assigned and is shown on the thumbnail.

press

Start playback.

Press

ENTER

• Programmes are played in the selected order.

To stop playback

Press 7

(CLEAR)

Thumbnails registered in the category appear.

HDD RECORDING/PLAYBACK (cont.)

Searching for a programme in your favourite category—CATEGORY

You can easily search for a programme or a play list if it is grouped into a particular category. There are two types of categories: “Genre” and “Family.” as sub-categories, “Genre” includes 16 groups while “Family” can include the maximum of 8 family members.

• To categorize a programme or a play list into a particular group, see page 35. You can also categorize a programme while setting the recording timers (see pages 41 and 43).

To set your family members as groups in “Family,” see “Changing the HDD/TV tuner settings” on page 66.

• When using the buttons on the unit, make sure that the HDD lamp on the unit is lit. If not, press

HDD

so that the HDD lamp lights.

• When using the remote control, slide the

HDD

selector to the right (

• HDD Navigation does not work during Automatic Satellite Recording (see page 46).

HDD

), then press

DVD/

DVD/TV/

ENTER

Show the NAVIGATION screen.

Press

HDD NAVIGATION

Enter the CATEGORY screen.

/ 2 / ∞ / 5 to move

Press

to “CATEGORY,” then

press

ENTER

Select a category.

Press

/ 2 / ∞ / 5 to move

to a category name you

want, then press

• The screen can show only 15 categories at a time. By pressing you can show other categories.

ENTER

/ 5 repeatedly,

∞

2–5

Select a programme to play.

Press 3 / 2 / ∞ / 5 to move to a thumbnail you want, then press

• The playback selection screen appears.

Press 3 or 2 to move to one of the playback modes (see the table below), then press

BEGINNING

NOTE

You cannot select “RESUME” for newly recorded programme

(with icon).

To stop playback

Press 7

• When you select Repeat Play (“REPEAT”), pressing 3

(SELECT)

playback.

ENTER

Start playback.

RESUME

REPEAT

(CLEAR)

cancels the repeat, and resumes normal

ENTER

Select to start playback from the beginning.

Select to start playback where you have stopped last.

Select to repeat the same programme. Repetition continues until you stop it.

Searching for a programme by its title—TITLE

You can easily search for a programme or a play list if it has its own title.

• To assign a title to a programme or a play list, see pages 36 and 39. You can also assign a title while setting the recording timers (see pages 41 and 43).

• When using the buttons on the unit, make sure that the HDD lamp on the unit is lit. If not, press

HDD

so that the HDD lamp lights.

• When using the remote control, slide the

HDD

selector to the right (

• HDD Navigation does not work during Automatic Satellite Recording (see page 46).

HDD

), then press

DVD/

DVD/TV/

ENTER

2–5

Show the NAVIGATION screen.

Press

HDD NAVIGATION

Enter the TITLE screen.

/ 2 / ∞ / 5 to move

Press

to “TITLE,” then press

ENTER

Select the initial letter of the title.

Press

/ 2 / ∞ / 5 to move

to the initial letter of the

title, then press

• Thumbnails which have the selected initial letter in their titles appear. If no programmes or no play lists with the selected letter are found, those with the next alphabetical letter will appear.

ENTER

2–5

Select a programme to play.

Press 3 / 2 / ∞ / 5 to move to a thumbnail you want, then press

• The playback selection screen appears.

Press 3 or 2 to move to one of the playback modes (see the table below), then press

BEGINNING

NOTE

You cannot select “RESUME” for newly recorded programme

(with icon).

To stop playback

Press 7

• When you select Repeat Play (“REPEAT”), pressing 3

(SELECT)

playback.

ENTER

Start playback.

RESUME

REPEAT

(CLEAR)

cancels the repeat, and resumes normal

ENTER

Select to start playback from the beginning.

Select to start playback where you have stopped last.

Select to repeat the same programme. Repetition continues until you stop it.

EDITING HDD NAVIGATION

Editing HDD Navigation

In the previous section you have learned how to search for the beginning of each recorded programme or of each play list using HDD Navigation.

In this section you will learn how to edit the programme and how to make a play list. You can edit HDD Navigation using the following screen. .

• REC LIST

- MODIFY: To make modiﬁcations to a recorded programme (right column).

- DELETE: To delete a recorded programme (see page 36).

- DIVIDE: To divide a recorded programme (see page 37).

Modifying recorded programmes

HDD Navigation does not work during Automatic Satellite Recording (see page 46).

ENTER

EDIT

NOTES

•If the HDD is full or 100 programmes are already stored, you cannot divide a programme.

•In the following cases, you cannot divide a programme (it will not be shown on the REC LIST/ DIVIDE screen):

- If it is being record now.

- If it has been record daily or weekly.

- If it is used as an element of a play list.

• PLAY LIST

- MODIFY: To make modiﬁcations to a list (see page

39).

- DELETE: To delete a list (see page 39).

- CREATE: To create a new list by editing the recorded programmes (see page 37).

To go back to the previous screen while editing HDD Navigation,

press

RETURN

To use your favourite scene for the thumbnail

Show the EDIT screen.

Press

EDIT

Enter the REC LIST/MODIFY screen.

Make sure that is

pointing at “MODIFY” under “REC LIST.” Press

ENTER

• The REC LIST/MODIFY screen appears.

Select a programme.

Press

to a thumbnail you want,

then press

• The main modiﬁcation screen appears.

Change the thurmbnail.

Press

“INDEX.”

• Playback starts in the viewing window. Press 8 where the scene

you want to use as a thumbnail appears.

• You can use ¡, 1, and 3 to search for your favourite scene.

∞∞

2222 /

to move

ENTER

after making sure that is pointing at

To change the category (or to categorize a programme)

Show the main modiﬁcation screen.

Press

EDIT

Press

“MODIFY” under “REC LIST.”

Press 3 / 2 / ∞ / 5 to move to a thumbnail you

want, then press

Press 3 / 2 / ∞ / 5 to move

to “CATEGORY,” then

press ENTER.

Press 3 / 2 / ∞ / 5 to move to a new category you want, then press

• The thumbnail is grouped into the selected category, and the main modiﬁcation screen appears again.

Press

EDIT

ENTER

after making sure that is pointing at

ENTER

Enter the category selection screen

Select a new category.

ENTER

Finish the procedure.

Press

ENTER

“REPLACE.”

NOTE

If you want to continue other modiﬁcations —CATEGORY and TITLE, press

modification screen appears again.

•To change the category, go to step 2 of the right column.

•To change the title, go to step 2 on page 36.

Finish the procedure.

Press

EDIT

after making sure that is pointing at

2222 to move to “RETUN.” The main

EDITING HDD NAVIGATION (cont.)

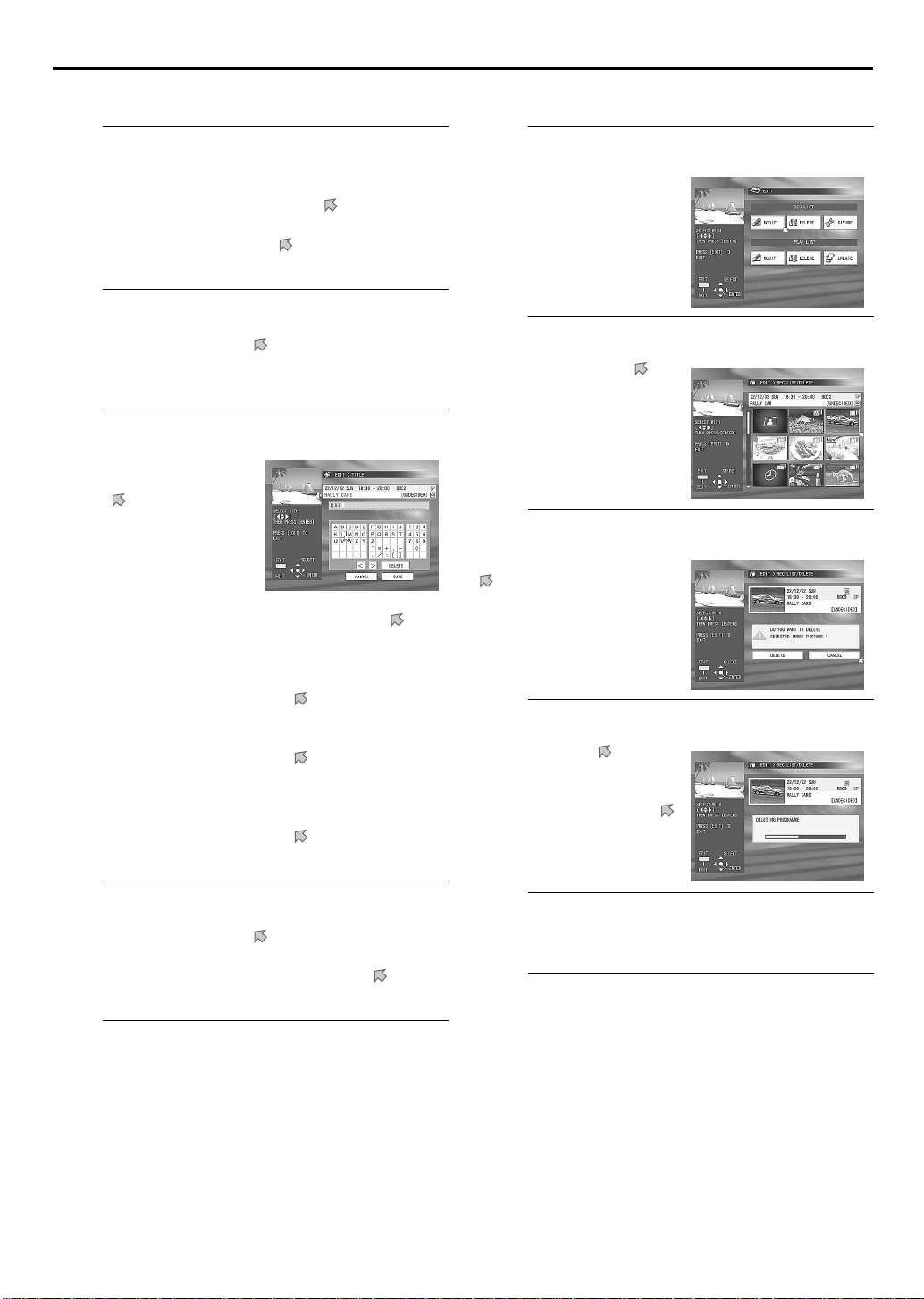

To change (or newly assign) the title

Show the main modiﬁcation screen.

Press

EDIT

Press

“MODIFY” under “REC LIST.” Press 3 / 2 / ∞ / 5 to move to a thumbnail you

want, then press

Press 3 / 2 / ∞ / 5 to move to “TITLE,” then press

ENTER

• The EDIT>TITLE screen appears.

• To enter the characters,

press 3 / 2 / ∞ / 5 to move to a desired character, then press ENTER. (Repeat this until you enter the entire title (the maximum of 26 characters)

•

To enter a space,

empty square in the character table, or to “>,” then press

• To delete and correct a misentry:

Press 3 / 2 / ∞ / 5 to move to “<”or “>,” then

press character is selected. Press 3 / 2 / ∞ / 5 to move to “DELETE,” then

press The entered characters following the deleted one moves leftward. Press 3 / 2 / ∞ / 5 to move to a correct

character, then press

ENTER

after making sure that is pointing at

ENTER

Enter the title entry screen.

Enter a new title.

press 3 / 2 / ∞ / 5 to move to an

ENTER

repeatedly until the incorrect

ENTER

To delete an unnecessary programme

Show the EDIT screen.

Press EDIT.

Enter the REC LIST/DELETE screen.

Press

3 or 2 to move to

“DELETE” under “REC LIST,” then press ENTER.

• The REC LIST/DELETE screen appears.

Select an unnecessary programme.

Press

/ 2222 / ∞∞∞∞ / 5555 to move

to a thumbnail you want

to delete, then press ENTER.

• The conﬁrmation screen appears.

Perform the deletion.

Press 2222 to move to “DELETE,” then press ENTER.

• If you want to cancel the deletion, press to “CANCEL,” then press ENTER.

move

Save the title.

Press 3 / 2 / ∞ / 5 to move to “SAVE,” then press

ENTER

•

If you want to cancel the procedure,

“CANCEL,” then press

Finish the procedure.

Press EDIT.

ENTER.

move to

Delete more unnecessary programmes.

Repeat steps 3 and 4.

Finish the procedure.

Press EDIT.

To divide a programme

Show the EDIT screen.

Press

EDIT

Enter the REC LIST/DIVIDE screen.

Press

or 2 to move to

“DIVIDE” under “REC LIST,” then press

• The REC LIST/DIVIDE screen appears.

•

If you want to relocate the dividing point, ENTER

(You can now repeat steps 2 and 3.)

•

If you want to preview the dividing point,

The ﬁrst 8 seconds of the newly divided portion is played back.

ENTER

Divide a programme.

Press 3 / 2 / ∞ / 5 to move to a thumbnail you want to divide, then press

• Playback starts in the viewing window. Press 8 where you want to divide the programme. (You can use ¡, 1, and 3 to search for your favourite scene.) Press

ENTER

after making sure that is pointing “DIVIDE.”

• The beginning scene (thumbnail) of the newly

divided portion appears in the right bottom window.

after making sure that is pointing at “RETRY.”

to move to “PREVIEW,” then press

ENTER

press

press 3 or

ENTER

Making play lists

A play list is a collection of the scenes selected from recorded programmes. A play list can be freely edited and played back without changing original programmes recorded. A play list includes information such as the beginning and ending time of the scenes, thumbnails for checking the contents, category information, and more.

HDD Navigation does not work during Automatic Satellite Recording (see page 46).

ENTER

EDIT

Conﬁrm the divided portion.

Press

3333 to move to “OK,” then press

• The conﬁrmation message appears. Press 2 to move to “DIVIDE,” then press

• If you want to cancel the division, press

to “CANCEL,” then press

ENTER

Finish the procedure.

EDIT.

ENTER

3333 to move

EDITING HDD NAVIGATION (cont.)

To create a play list

Show the EDIT screen.

Press

EDIT

Enter the PLAY LIST/CREATE screen.

Press

/ 2222 / ∞∞∞∞ / 5555 to move

to “CREATE” under “PLAY

LIST,” then press ENTER.

• The PLAY LIST/CREATE screen appears.

Select a programme which includes a scene

you want to list up in a play list.

Press

/ 2222 / ∞∞∞∞ / 5555 to move

to a thumbnail you want,

then press ENTER.

• The play list screen appears, and selected programme starts playing in the viewing window.

• You can use ¡, 1, 3, and 8 to search for your favourite scene.

Select the start and end points of the scene

you want.

Make sure that is pointing “IN/OUT.”

Press

ENTER

• The beginning of the scene (thumbnail) appears in the “IN” window below the viewing window.

• The time information of the start scene appear in the play list on the right of the screen.

Press ENTER again where

you want to end the scene.

• The end of the scene (thumbnail) appears in the “OUT” window below the viewing window.

• The time information of the end of the scene appear in the play list.

• You can use ¡, 1, 3, and 8 to search for the end point.

where you want to start the scene.

Select other scenes you want.

•

To select another scene from the same programme:

Repeat step

• To select another scene from a different programme:

Press 3 / 2 / ∞ / 5 to move to “SELECT

PROG.,” then press The PLAY LIST/CREATE screen appears again. Press 3 / 2 / ∞ / 5 to move to a thumbnail, then

press Repeat step

• To delete a scene:

Press 3 / 2 / ∞ / 5 to move to “DELETE,” then

press Press ∞ / 5 to move to a scene number you

want to delete in the right list on the screen, then press

To restore the deleted scene

deleted it, press 3 / 2 / ∞ / 5 to move to “RETRY,” then press ENTER.

• To move a scene:

Press 3 / 2 / ∞ / 5 to move to “MOVE,” then

press ENTER. Press ∞ / 5 to move to a scene number you

want to move from in the right list on the screen, then press ENTER. Press ∞ / 5 to move to the position you want to

move to in the right list on the screen, then press ENTER. The listed scenes are automatically renumbered.

- To cancel the movement soon after you have just

moved it, press 3 / 2 / ∞ / 5 to move to “RETRY,” then press ENTER.

• To modify a scene:

Press 3 / 2 / ∞ / 5 to move to “MODIFY,” then

press ENTER. Press 3 / 2 / ∞ / 5 to move to either of the start

time or the end time of a scene you want to modify in the right list on the screen, then press ENTER. Playback start from that point. (If playback does not start, press 3, ¡,or 1.) Press ENTER again at a scene which you want to

use as a new start or end point. If you want to change both the start and end points,

repeat step 2 and 3 above.

- To cancel the last change soon after you have just

made it, press 3 / 2 / ∞ / 5 to move to “RETRY,” then press ENTER.

4444.

ENTER

4444.

ENTER

soon after you have just

NOTE

You can use seven functions (except “MOVE”) listed at the bottom of the screen after you have selected the ﬁrst one scene. When the second scene is selected, “MOVE” become usable.

• To review the entire play list:

Press 3 / 2 / ∞ / 5 to move to “REVIEW,” then press ENTER. Playback starts in the viewing window.

- To stop review, press 7 (CLEAR).

Finish making (or modifying) a play list

∞∞

Press

ENTER

• The play list screen disappears, and the conﬁrmation screen appears.

Finish the procedure.

Press

ENTER

“EXIT.”

•

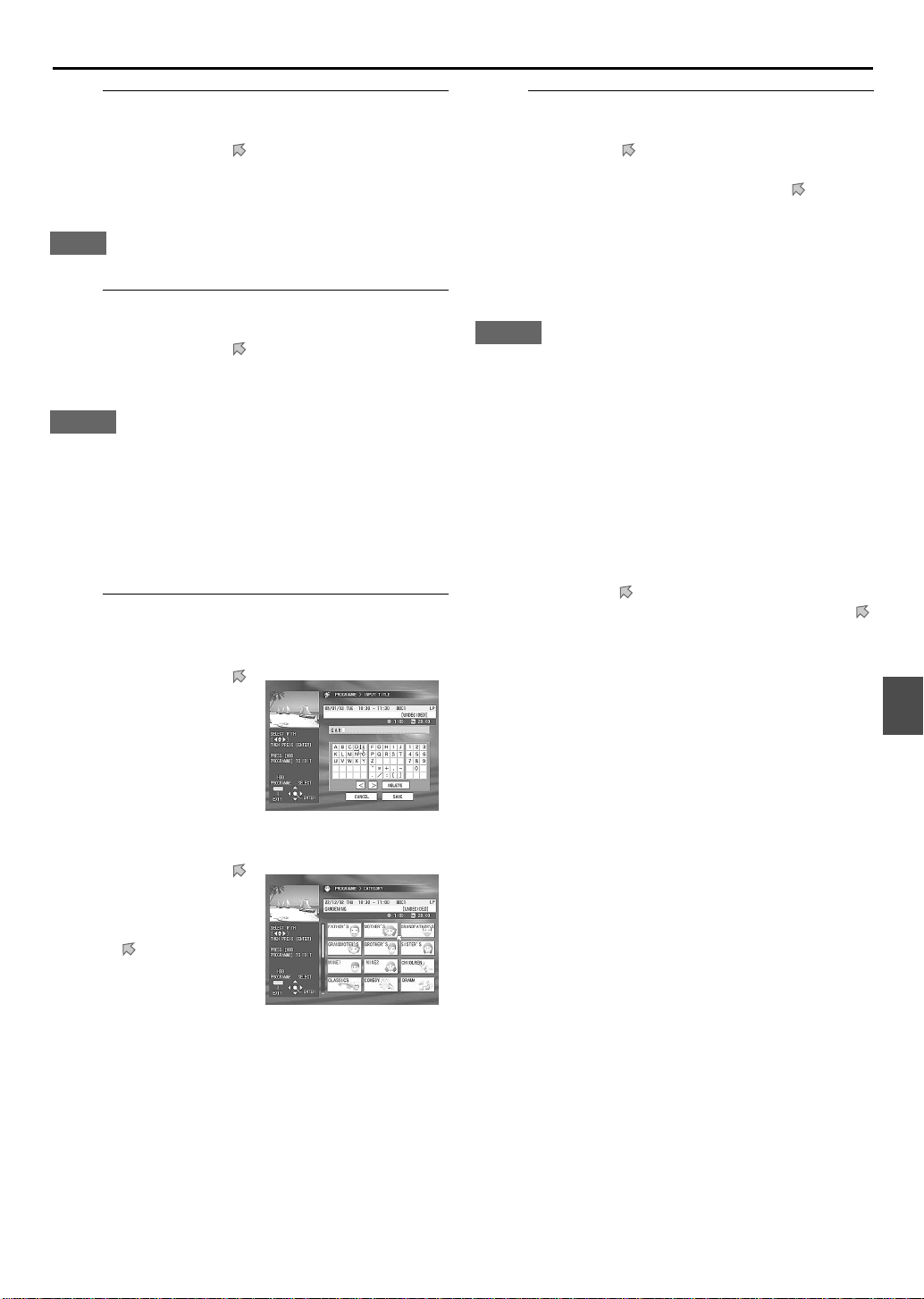

To modify the play list

“MODIFY,” then press “To modify a play list” below.)

∞∞

2222 /

to move to “OK,” then press

after making sure that is pointing at

, press

2222 to move to

ENTER

. (Then follow step 2 of

To modify a play list

Show the main modiﬁcation screen.

Press EDIT.

Press 3333 / 2222 / ∞∞∞∞ / 5555 to

move to “MODIFY” under “PLAY LIST,” then press ENTER. Press 3 / 2 / ∞ / 5 to

move to a thumbnail you want to modify, then press ENTER.

Select the item you want to modify.

Press 3 / 2 / ∞ / 5 to move to an item on the screen, then press

ENTER

To delete a play list

Show the PLAY LIST/DELETE screen.

Press

EDIT

Press

“PLAY LIST,” then press

• PLAY LIST/DELETE screen appears.

Press 3 / 2 / ∞ / 5 to move

to a thumbnail you want

to delete, then press ENTER.

• The conﬁrmation screen appears.

Press 2 to move to “DELETE,” then press ENTER.

• To cancel the deletion, press “CANCEL,” then press ENTER. (You can select a thurmbnail again.)

Press EDIT.

2222 /

∞∞

to move to “DELETE” under

∞∞

ENTER

Select an unnecessary play list.

Conﬁrm the deletion.

3 to move to

Finish the procedure.

INDEX

CATEGORY Select to change the category.

TITLE Select to change the title.

SCENE Select to modify the scenes.

Make modiﬁcations.

•

To change the thumbnail:

your favourite scene for the thumbnail” on page 35.

Press

•

To change the category:

the category (or to categorize a programme)” on page

35.

Press

•

To change the title:

change (or newly assign) the title” on page 36.

Press

• To change the scene:

scene) to 7 of “To create a play list” on page 38 and on this page.

Select to change the thumbnail.

Refer to step 4 of “To use

EDIT

to ﬁnish.

Refer to step 3 of “To change

EDIT

to ﬁnish.

Refer to steps 3 and 4 of “To

EDIT

to ﬁnish.

Refer to steps 5 (To modify a

This unit allows you to preset up to 16 recording timer settings using either one of the following:

• VIDEO P

• Express Timer programming

LUS

+® Timer programming

Show the PROGRAM screen.

Press

HDD PROGRAMME

TIMER RECORDING

VIDEO P

LUS

+® Timer

programming

With the VIDEO P greatly simpliﬁed because each TV programme has a respective code number which this unit is able to recognize.

• Make sure that the clock built in this unit is set properly.

• Turn on the TV and select an appropriate input (AV) mode.

• To record a satellite broadcast, install the supplied satellite controller on page 17.

• When using the buttons on the unit, make sure that the HDD lamp on the unit is lit. If not, press

HDD

so that the HDD lamp lights.

• When using the remote control, slide the

HDD

selector to the right (

+® system, timer programming is

LUS

DVD/TV/

HDD

), then press

–

DVD/

ENTER

12p

Select the VIDEO P

Press 3 / 2 / ∞ / 5 to move to “VIDEO PLUS+,” then press

ENTER

NOTE

If “PROGRAMME FULL DELETE UNWANTED TIMER PROGRAMME” appears on the TV, erase unwanted programmings from memory (see page 45).

You can also use

number

•

Enter the P

Press 3 / 2 / ∞ / 5 to move to a desired number, then press

ENTER

. Repeat step 1 until you enter the entire P

LUSCODE

NOTE

To make an incorrect number,

move to “DELETE,” then press Each time you press the button, the last entry is cancelled.

To delete all entered numbers at a time,

/ 5 to move to “DELETE ALL,” then press

∞

LUSCODE

number.

number

LUS

+® Timer programming.

number.

buttons to enter the

press 3 / 2 / ∞ / 5 to

ENTER

LUSCODE

press

/ 2 /

ENTER

2–p

To go back to the previous screen while programming,

press

RETURN

Conﬁrm the P

Press ∞ to move to “CONFIRM,” then press

ENTER

• The P

LUSCODE

have entered and its contents of the timer programming are shown on the screen.

NOTES

•If the number you entered is invalid, “PLUSCODE NO. ERROR CONFIRM PLUSCODE NO. THEN RETRY” appears on the TV. Enter a valid P

•If “...SET GUIDE PROG THEN RETRY” appears on the TV, set Guide Program numbers (see page 69) manually.

LUSCODE

number you

number.

Check the contents of the new timer

programming.

To erase this setting,

IMPORTANT

Make sure the programme position number you wish to record is displayed; if not, set the Guide Program number correctly (see page 69).

Select the recording speed.

Press ∞ or 5 to move to “REC MODE”, then press

ENTER

Press ∞ or 5 to select the desire mode, then press

ENTER

Set the Weekly/Daily Timer.

Press ∞ or 5 to move to “WEEKLY/DAILY,” then

press

ENTER

Press∞ or 5 to select the desire mode, then press

ENTER

NOTE

For details on each mode, see page 44.

Set the PDC mode.

Press ∞ or 5 to move to “VPS/PDC,” then press

ENTER

Press ∞ or 5 to select “ON” or “OFF.”

NOTES

•You can also use “ON and “OFF.” PDC works for a timer recording only when the unit is turned off.

•You cannot set “PDC” to “ON” for a satellite broadcast programme. If you want to use PDC for a satellite programme recording, use Automatic Satellite Recording (see page 46).

•VPS (Video Programme System) recording is not currently available in the U.K. and not possible with this unit.

press

VPS/PDC

HDD PROGRAMME

button to turn the PDC setting

Select and set other options as required.

To modify a title of the TV programme:

Press ∞∞∞∞ or 5555 to move

to “TITLE,” then press ENTER.

Enter the title by referring

to “To change (or newly assign) the title” on page

36.

To modify the category of the TV programme:

Press ∞∞∞∞ or 5555 to move

to “CATEGORY,” then press ENTER.

Press 3 / 2 / ∞ / 5 to

move to a new category, then press

ENTER.

Finish the timer programming.

Press ∞ to move to “OK,” then press

Press

ENTER

pointing at “EXIT.”

• The recording timer is automatically activated.

• For a satellite programme, leave the satellite receiver turned on.

To continue timer programming for other programmes,

press

to move the arrow to “CONTINUE,” then press

ENTER.

NOTES

•If “...PROGRAMME OVERLAPPED...” appears in step p, erase

the unnecessary programme by referring to page 45.

•About 1 minute before a timer recording starts, the lamp next

to the ¶ (record) button on the unit lights to inform you that the HDD is now ready for the timer recording.

•You cannot make a timer programming for a TV programme

with a P

To stop while recording in progress

1. Press

• The conﬁrmation screen appears.

2. Press 2

• To continue recording, simply press ENTER (with pointing at “CONTINUE”).

• You cannot stop the recording if a timer recording starts while the unit is turned off.

again after making sure that is

LUSCODE

number starting with “0.”

(CLEAR).

to move to “CANCEL,” then press ENTER

ENTER

TIMER RECORDING (cont.)

Express Timer programming

If you do not know the P programme you want to record, use the following procedure to set the timer programmings.

• Make sure that the clock built in this unit is set properly.

• Turn on the TV and select an appropriate input (AV) mode.

• When using the buttons on the unit, make sure that the HDD lamp on the unit is lit. If not, press DVD/ HDD so that the HDD lamp lights.

• When using the remote control, slide the DVD/TV/ HDD selector to the right (HDD), then press ENTER.

LUSCODE

number for a TV

–

2–p

12p

Show the PROGRAM screen.

Press HDD PROGRAMME.

Select the Express Timer programming.

Make sure that is pointing at “PROGRAMME.”

Press ENTER.

NOTE

If “PROGRAMME FULL DELETE UNWANTED TIMER PROGRAMME” appears on the TV, erase unwanted programmings from memory (see page 45).

Set the date.

Press 3 / 2 / ∞ / 5 to move to the desired date, then press

ENTER

Set the start time and stop time of the

programme.

Press ∞ or 5 to move to “START,” then press

ENTER

Press ∞ or 5 to select the desired time, then press

ENTER

Press ∞ or 5 to move to “STOP,” then press

ENTER

Press ∞ or 5 to select the desired time, then press

ENTER

Select the programme position number.

Press ∞ or 5 to move to “TV PROG,” then press

ENTER

• If you want to timer-record a satellite broadcast, press the to “SAT” before pressing

Press ∞ or 5 to select the desired programme

position number, then press

Press ∞ to move the cursor to “CONFIRM,” then

press

ENTER

number

button “0” to change “TV PROG”

ENTER

To go back to the previous screen while programming,

press

RETURN

Select the recording speed.

Press ∞ or 5 to move to “REC MODE,” then press

ENTER.

Press ∞ or 5 to select the desire mode, then press

ENTER.

Set the Weekly/Daily Timer.

Press ∞ or 5 to move to “WEEKLY/DAILY,” then

press

ENTER

Press∞ or 5 to select the desire mode, then press

ENTER

NOTE

For details on each mode, see page 44.

Set the PDC mode.

Press ∞ or 5 to move to “VPS/PDC,” then press

ENTER

Press ∞ or 5 to select “ON” or “OFF.”

NOTES

•You can also use and “OFF.” PDC works for a timer recording only when the unit is turned off.

•You cannot set “PDC” to “ON” for a satellite broadcast programme. If you want to use PDC for a satellite programme recording, use Automatic Satellite Recording (see page 46).

•VPS (Video Programme System) recording is not currently available in the U.K. and not possible with this unit.

Select and set other options as required.

To modify a title of the TV programme:

Press

to “TITLE,” then press ENTER. Enter the title by referring

to “To change (or newly assign) the title” on page

36.

∞∞

VPS/PDC

to move

button to turn the PDC setting “ON

Finish the timer programming.

Press ∞ to move to “OK,” then press

• The conﬁrmation screen appears.

Press

ENTER

pointing at “EXIT.”

• The recording timer is automatically activated.

To continue timer programming for other programmes,

press 2 to move the arrow to “CONTINUE,” then press

ENTER.

NOTES

•If “...PROGRAMME OVERLAPPED...” appears on the TV screen, erase the unnecessary programme by referring to page

45.

•For a satellite programme, leave the satellite receiver turned on.

When you conﬁrm, cancel, or change programme,

page 45.

To stop while recording in progress

1. Press

• The conﬁrmation screen appears.

2. Press 2

• To continue recording, simply press ENTER (with pointing at “CONTINUE”).

• You cannot stop the recording if a timer recording starts while the unit is turned off.

again after making sure that is

(CLEAR).

to move to “CANCEL,” then press ENTER

ENTER

see

To modify the category of the TV programme:

∞∞

ENTER

to move

Press

to “CATEGORY,” then press Press 3 / 2 / ∞ / 5 to

move to a new category, then press

ENTER.

TIMER RECORDING (cont.)

Weekly/Daily Timer

You can select the following modes for Weekly/Daily Timer—

day(s)

•

ONCE, WEEKLY (OVERWRITE)

ONCE

(Once Timer recording)

(a) certain

Select to perform the timer recording only once with this setting.

•

WEEKLY (OVERWRITE

) (Weekly Timer recording/

Weekly overwrite) Select to record a weekly programme. A recorded programme is automatically overwritten by the same series of the programme of the next week.

This week’s drama

Overwritten

•

MON-SUN (FOR A WEEK)/ MON-SAT (FOR A

WEEK)/ MON-FRI (FOR A WEEK)

Last week’s drama

(Weekly Timer

recording/Weekly overwrite) Select to record a weekly programme. A recorded programme is automatically overwritten by the same series of the programme broadcast on the same day of the next week.

This

Overwritten

•

MON-SUN (OVERWRITE)/ MON-SAT

week Last

week

(OVERWRITE)/ MON-FRI (OVERWRITE)

MON TUE WED THU FRI

(Daily

Timer recording/Daily overwrite) Select to record a daily programme. A programme recorded one day is automatically overwritten by the same series of the programme broadcast on the next day.

Programme Delivery Control (PDC) Recording

Now available from some TV stations, Programme Delivery Control (PDC) is a service designed to assure safe, accurate timer recording. With this system, special code signals are transmitted together with the audio/video signals. These code signals control your video recorder (for this unit, the HDD deck) and have precedence over the advertised times which you may have preset into the timer. This means that your recorder will start and stop recording when the preset TV programmes actually start and end—even if the broadcast time of a preset TV programme is changed from what has been advertised. PDC is available nationally on BBC1, BBC2, Channel 4 and Channel 5 (except the cases that the programmes are broadcast through a few small relay transmitters). Channel 3 operates a PDC service in some areas. All channels intend to offer this service in due course. Check your TV programme listing guide for latest information. If the TV station you intend to record does not offer a PDC service, your recorder will not start recording if PDC has been turned “ON.” Be sure to turn “OFF” PDC in this case.

NOTES

•When you use Express Timer programming, set the start time exactly as advertised in the TV listing.

•Now most of the satellite stations and the cable systems also offer the PDC service. However, with this unit, PDC recording of a satellite programme is only possible using Automatic Satellite Recording (if your satellite receiver can detect the PDC signals). See page 46.

•PDC works for a timer recording only when the unit is turned off.

Tuesday’s programme

Overwritten

NOTE

When you select a mode other than delete important recordings as they are always overwritten.

Monday’s programme

ONCE

, be careful not to

Modifying timer programmings

You can conﬁrm, erase, or modify the preset timer programmings easily.

• Make sure that the clock built in this unit is set properly.

• Turn on the TV and select an appropriate input (AV) mode.

• When using the buttons on the unit, make sure that the HDD lamp on the unit is lit. If not, press

HDD

so that the HDD lamp lights.

• When using the remote control, slide the

HDD

selector to the right (

HDD

), then press

HDD PROGRAMME

DVD/

DVD/TV/

ENTER

Show the PROGRAMME LIST screen.

Press

press

HDD

PROGRAMME

Press 3 / 2 / ∞ / 5 to move to “PROGRAMME LIST,” then press

Select a date for which the timer programming you want is listed.

/ 2 / ∞ / 5 to move

to the desired date, then

ENTER

Select the timer programming you want to conﬁrm, erase, or modify.

Press ∞ or 5 to move to select one of the timer programmings listed for the date, then press

ENTER

HDD PROGRAMME

ENTER

Conﬁrm, erase, or change the timer

programming.

To cancel the programming,

“CANCEL,” then press

Press

HDD PROGRAM

To conﬁrm or change the contents of the programming

Press

ENTER

“MODIFY.”

• The calendar appears again.

Press

date is correct.

Conﬁrm the content, or modify it by referring steps 4

to p of “Express Timer programming” on pages 42 and 43.

after making sure that is pointing at

ENTER

again after making sure that the selected

press 2 to move to

ENTER

to ﬁnish.

TIMER RECORDING (cont.)

Automatic Satellite Recording

This function allows you to automatically record a satellite programme using the timer equipped for the satellite receiver connected to the L-2 IN connector on the rear. When the signals come into the unit from the satellite receiver, the unit automatically turns on and starts recording.

• When the satellite receiver is turned off by its timer, this unit also turns off automatically (into standby mode).

Before performing the following steps:

• Set the timer on the satellite receiver correctly.

• When using the remote control, slide the

HDD

selector to the right (

Set the timer equipped for the satellite

HDD

), then press

DVD/TV/

ENTER

receiver correctly.

• For timer setting of the satellite receiver, refer to the instruction manual supplied for the satellite receiver.

Select the recording speed.

Press

REMAIN/REC MODE

repeatedly until the recording speed you want is selected (see page 24).

Activate Automatic Satellite Recording.

Press and hold the button itself illuminates (in orange).

• The unit automatically enters standby mode.

To deactivate Automatic Satellite Recording,

(timer).

To cancel Automatic Satellite Recording while recording is being made,

SAT

(timer) for about 2 seconds so that

press (

on the remote control

STANDBY/ON

press

SAT

ATTENTIONS

• Be sure not to turn on the satellite receiver before Automatic Satellite Recording start recording; otherwise, this unit will start recording when you turn on the satellite receiver manually.

• If you have connected any external component other than a satellite receiver to the L-2 IN connector, activating Automatic Satellite Recording will start recording automatically when the external component is turned on.

• While Automatic Satellite Recording is activated, recording timer is temporarily deactivated. When Automatic Satellite Recording is over, recording timer is activated again.

NOTES

SAT

•The lamp next to the ¶ (record) button lights and the

(timer)

button starts ﬂashing while Automatic Satellite

Recording is in progress.

•Some satellite receivers emit signals even if the power is off. Automatic Satellite Recording is not possible with these satellite receivers. (In this case, The lamp to the ¶ (record)

SAT

button lights and the when you activate Automatic Satellite Recording.)

•When using Automatic Satellite Recording, you cannot set a different recording speed for each programme. To do it, use Automatic Satellite Recording separately for each programme.

•With some satellite receivers connected, this unit may not be able to be synchronized to start and stop recording as exactly as set by the timer equipped with these satellite receivers.

•If you activate Automatic Satellite Recording while the satellite receiver is turned on, this unit does not start Automatic Satellite Recording.

•You can also record a programme from your cable system in the same way if the system has a timer.

•Just Clock (see page 69) does not work while Automatic Satellite Recording is being activated.

(timer)

button starts ﬂashing

BASIC DVD OPERATIONS

Playing back discs

In the DVD operation sections, the following marks are used to indicate disc availability:

1 2

Insert a disc in the disc slot.

With the label side up

To insert an 8-cm disc, insert it into the centre of the disc slot.

• When the disc is detected, the respective disc type

indicator lights in the display window (and playback starts automatically for some discs).

• If you insert a wrong disc, press 0 on the unit or

on the remote control to eject the disc.

NOTES

•If a disc has been already loaded, you cannot insert another disc.

•When inserting a double-sided disc, make sure that insert it with the surface you want to play facing down.

•If you insert a disc with the unit turned off, the unit comes on with the DVD player selected for the playback source.

•If the unit has been turned on with the HDD deck selected, press DVD/HDD so that the DVD lamp lights.

EJECT

Before performing any operations:

• Turn on the TV and select an appropriate input (AV) mode.

• During the following periods, the unit will not accept any button operation:

- If the unit is plugged in: For about 30 seconds. The illumination lamp on the unit ﬂashes during this period.

During this period, disc insertion will not

be accepted either.

- If the unit is turned on with the HDD deck selected: For about 20 seconds. During this period, the opening screen appears.

About invalid operation icon

When the unit does not accept an operation, appears on the TV.

• Operations are occasionally unacceptable even if is not displayed.

Start playback.

Press 3 (

• The digital disc audio format indicator lights in the

• While playing an MP3 disc or a JPEG disc, the

SELECT

display window, and the unit starts playback from the beginning.

associated CONTROL screen appears on the TV. For details, see pages 61 and 64.

If a menu is shown on the TV screen

When inserting a DVD Video, SVCD or VCD, the menu recorded in the disc will be shown on the TV. Using the menu, you can select a desired item to play.

For DVD Video Press 3 / 2 / ∞ / 5 to move to select an item you

want, then press ENTER

• The unit starts playing back the selected item.

For SVCD/VCD Press the number buttons to select an item you want.

• The unit starts playing back the selected item.

NOTES

•If you operate the HDD deck during playback, playback stops automatically.

•Do not insert an unplayable disc (see page 4).

BASIC DVD OPERATIONS (cont.)

About PBC (Playback Control)

Some SVCDs/VCDs are equipped with PBC. PBC allows you to enjoy menu-driven operations and high-resolution still pictures which have a resolution four times greater than moving pictures.

•

To play an SVCD/VCD without activating PBC,

press 7 (

number

track.

•

To activate PBC again

CLEAR

) to stop playback, then press the

button(s). Playback starts with the selected

, press

TOP MENU

To check the playback status

You can see the current selection number (the title/ chapter number for DVD Video or track number for SVCD/VCD/CD), time information (the track or chapter time while stopped, or elapsed track or chapter time during playback) and the transport status (stop, playback, pause, etc.) on the TV.

Press ON SCREEN.

Current transport status

Transfer rate

8.5Mbps

Note that pressing bar under the status bar, from which you can operate various functions. See page 59 for details about the menu bar.

Current chapter number

TITLE 33 TOTAL 1:25:58CHAP 33

Current title number

Example: for DVD Video

ON SCREEN

again brings up the menu

Elapsed time

To turn off the status bar

Press

ON SCREEN

repeatedly until the status bar goes off.

About On-screen guide icons

You may see the following icons displayed over the picture.

: Appears at the beginning of a scene recorded

with multi-angles (see page 60).

: Appears at the beginning of a scene recorded

with multi-audio languages (see page 56).

: Appears at the beginning of a scene recorded

with multi-subtitle languages (see page 56).

: Appears at the beginning of playback.

: Appears when you stop playback temporarily.

: Appears when you start forward search (see

page 49).

: Appears when you start reverse search (see page

49).

: Appears when you start forward slow motion

(see page 50).

: Appears when you start reverse slow motion

(see page 50).

About Screen Saver

The TV screen may have an image burned on it if a static image is displayed for a long time. To prevent this, the unit automatically activates Screen Saver if a static picture or menu is displayed for over 5 minutes. While Screen Saver is working, the TV screen dims. Pressing any button will cancel Screen Saver temporarily (see also page 77).

NOTE

Screen Saver does not work while operating the HDD deck.

To stop playback completely

Press 7 (CLEAR).

To stop playback temporarily (Pause/Still Picture)

Press 8. To resume playback,

press 3 (

SELECT

To eject the disc

Press 0 on the unit or

• If you press 0 during playback, the unit stops playback and the disc is ejected.

• You can eject the disc while the unit is turned off.

NOTE

After ejecting a disc, take it off from the loading slot by hand. Do not leave it as it is.

EJECT

on the remote control.

Resuming playback

The unit can memorize the position on a disc where you have stopped playback, and resume playback from that position later. You can select either “ON” or “DISC RESUME” for resume function.

• You can select your desired option using the menu (see page 79).

When “RESUME” is set to “ON” (initial setting)

When you press 7 ( the TV) or try to operate the HDD deck, the unit stops playback and memorizes the interrupted position.

The memory of the interrupted position is cleared when you turn off the unit or when you eject the disc.

• Next time you press 3 ( the interrupted position of the disc (“RESUME PLAY” appears on the TV).

•

To play back from the beginning,

then press 3 (

When “RESUME” is set to “DISC RESUME”

When you press 7 ( the TV) or try to operate the HDD deck, the unit stops playback and memorizes the interrupted position.

The memory of the interrupted position is not cleared even if you eject the disc or turn off the unit.

• When you insert a disc for which the unit has stored an interrupted position (“RESUME STOP” appears on the TV). Then when you press 3 ( from the interrupted position (“RESUME PLAY” appears on the TV).

•

To play back from the beginning,

inserting a disc, then press 3 ( playback.

NOTE

The unit memorizes interrupted positions for the 30 discs played recently. Storing an interrupted position for a 31st disc will erase the interrupted position stored ﬁrst.

To clear the memory

Press 7 (

To cancel the resume function

Select “OFF” for “RESUME” (see page 79).

CLEAR

) (“RESUME STOP” appears on

SELECT

), playback starts from

press 7 (

SELECT

CLEAR

) (“RESUME STOP” appears on

SELECT

), playback starts

press 7 (

SELECT

) to start

) while the disc is not playing.

CLEAR

) after

NOTES

•If you change the “RESUME” setting from “DISC RESUME” to “OFF” or “ON,” the unit cannot recall the interrupted position stored for the discs; however, the stored interrupted positions are never erased due to this setting change.

•If you stop playback of a disc with an interrupted position stored in memory, this new interrupted position is stored for the disc (the previous interrupted position is overwritten in memory).

•For a double-sided DVD Video, the unit stores an interrupted position separately for each side. To start playing such a disc, make sure of inserting it with the desired side down.

•When the unit memorizes an interrupted point for a disc, it also memorizes Audio, Subtitle and Angle settings. (See pages 56 and 60.)

•The unit may not resume playback exactly from the interrupted point of a disc. In the case of an SVCD/VCD disc with PBC, the unit may start playing it back from a point slightly different point (either backward or forward).

Various speed playback

Advancing or reversing playback rapidly while monitoring

During playback, press ¡ or 1 repeatedly on the remote control.

• Each time you press ¡ or 1, the playback speed

changes as follows:

x1.5

To return to the normal speed,

NOTES

•You can use x1.5 quick playback with sound only while playing a DVD Video or VCD. You can listen to the sounds and also see the subtitle (for DVD) on the TV. (Sound quality, level, or tone may be changed for some discs.)

•During x1.5 quick playback with sound on a DVD Video or VCD, the digital sound is output in stereo linear PCM format through the DVD DIGITAL OUT connectors.

•Rapid playback at 1.5 times normal speed is also possible on the other types of disc; however, the sound cannot be heard (for CDs, the sound will be heard intermittently).

•If you press and hold ¢ or 4 either on the unit or on the remote control, playback is advanced or reversed at 5 times normal speed.

press 3 (

x20

SELECT

x60

BASIC DVD OPERATIONS (cont.)

Advancing a still picture frame by frame—Frameby-Frame Playback

1. Press 8 during play.

Still picture appears.

2. Press ¡ repeatedly.

• Each time you press the button, the still picture advances to the next frame.

To return to the normal playback,

NOTE

You cannot reverse a still picture frame by frame (if you press

press 3 (

SELECT

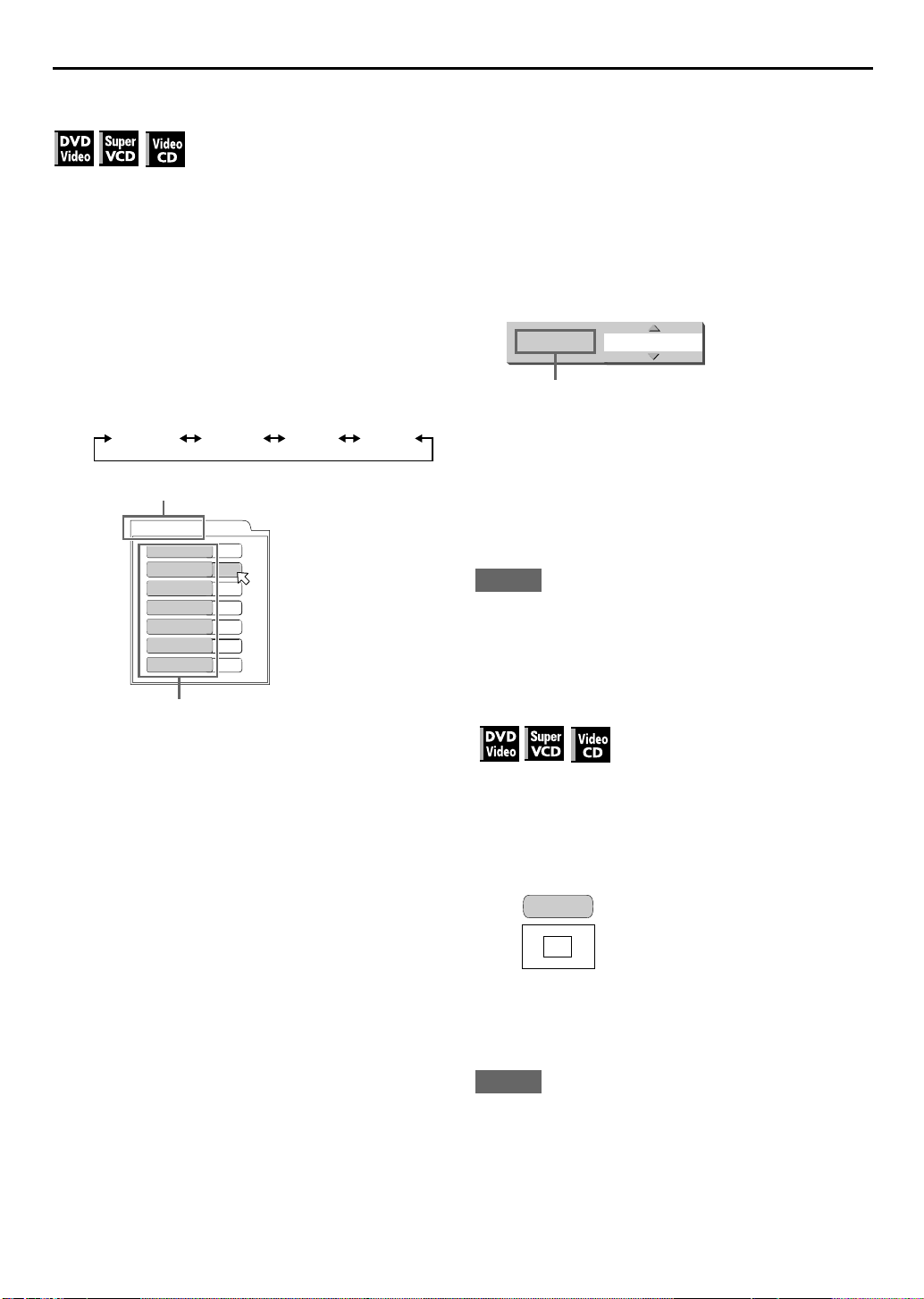

Playing back in slow motion—Slow Motion

You can select from 1/32 times, 1/16 times, 1/4 times and 1/2 times normal speed.

Playing in slow motion—Slow Motion

You can select the slow motion speed.

• You cannot hear playback sounds during Slow Motion.

Press 8 to freeze the picture on the TV.

1 2

Press and hold SLOW + (¡) or SLOW – (1) for about 2 seconds to start slow motion playback.

• Each time you press the button, playback speed changes as follows:

1/32

1/32 1/16 1/4 1/2

To return to the normal playback,

NOTES

•During slow motion playback, the sound will be muted.

•Reverse slow motion playback is not possible for an SVCD and

VCD.

1/16 1/4 1/2

press 3 (

SELECT

Going back to a previous scene quickly and play it back—One Touch Replay

Locating the beginning of a scene or song

JPEG

• For DVD Video: During playback

• For SVCD/VCD: During playback without PBC

• For CD/MP3: During playback or while in stop mode

• For JPEG: While the JPEG CONTROL screen is shown

To skip forward, press ¢. To skip backward, press 4.

When using the remote control,

number buttons.

• For DVD Video/CD/MP3:During playback or while in

stop mode

• For SVCD/VCD: During playback without PBC or

while in stop mode

• For JPEG: While the JPEG CONTROL screen is

shown

Press the number buttons to specify the number.

The unit starts playback from the beginning of the selection.

Examples:

To select 5: press To select 23: press 2, then 3. To select 40: press 4, then 0.

NOTES

•You cannot specify a 3-digit number using the number buttons.

•Depending on the disc type and the playback status, what is

speciﬁed differs:

Playback status

While stopped

During playback

Disc type What is speciﬁed

DVD Video Title

SVCD/VCD/CD/MP3/JPEG Track (File)

DVD Video

SVCD/VCD/CD/MP3/JPEG Track (File)

you can also use the

Chapter (or title, depending on the disc conﬁguration)

While playing, press .

Disc play goes back to a scene of about 10 second before, and start replay from it.

NOTES

•This function works only within the same title, though it works between chapters.

•This function may not work with some DVD Videos.

•While playing a DVD Video/SVCD/VCD, if a menu is shown on the TV, the number buttons may be used for selecting an item in the menu.

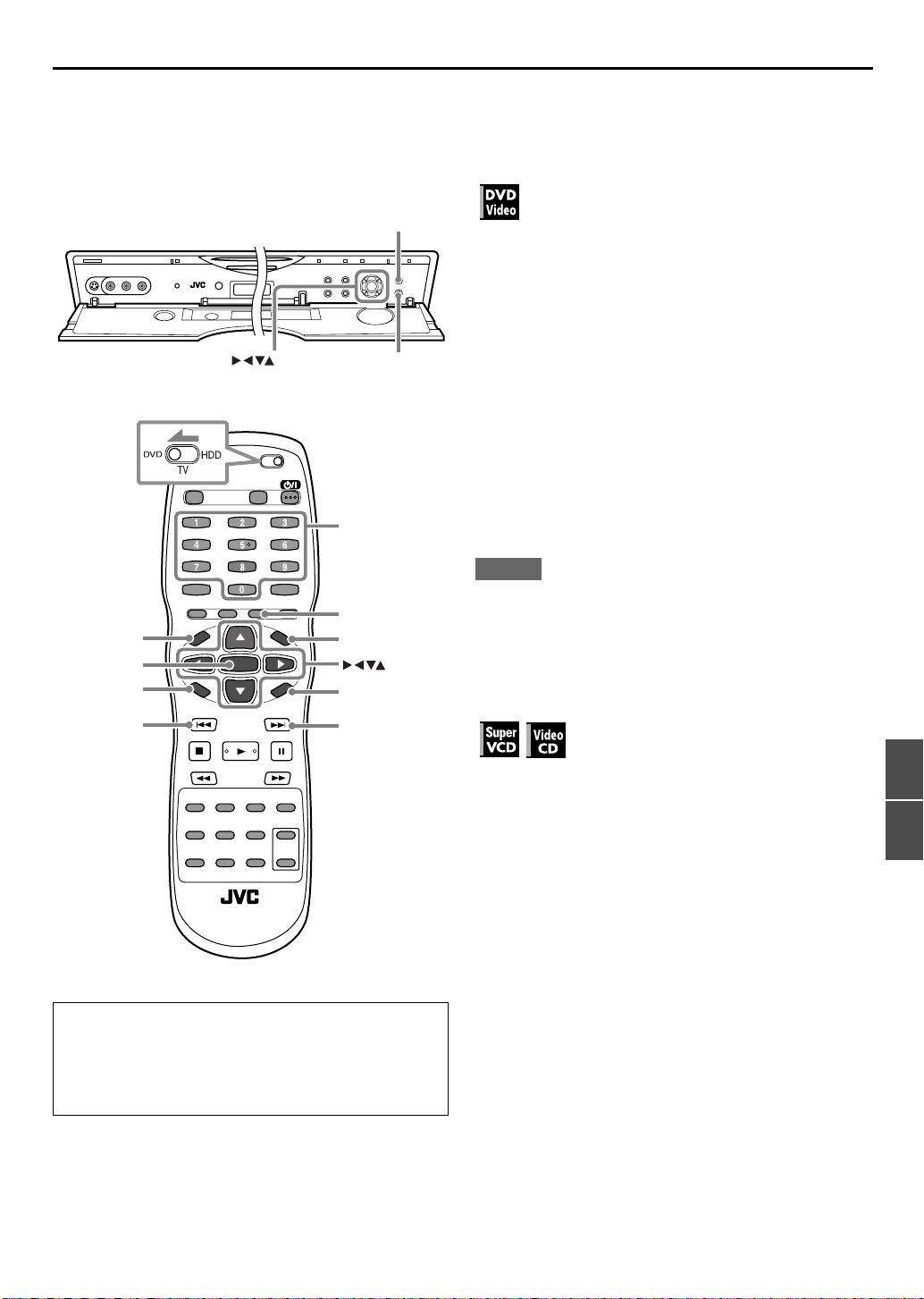

ADVANCED DVD OPERATIONS

Playing from a speciﬁc point

TOP MENU

ENTER

TOP MENU

ENTER

RETURN

Number

GROUP/TITLE

ON SCREEN NEXT

Locating a desired scene (item) from the disc menu

For DVD video:

DVD Video discs generally have their own menus which show the disc contents. These menus contain various items such as titles of movies, names of songs, or artist information, and display them on the TV. You can locate a desired scene using the DVD menu.

• See the instructions of each disc for its particular

menus.

While a DVD Video disc is inserted, press TOP MENU or MENU.

The menu appears on the TV.

• The

button works only during playback or

pause.

Press 3 / 2 / ∞ / 5 to select a desired item, then

press ENTER.

The unit starts playback of the selected item.

NOTES

•Some DVD Video discs may have different menus for

and

•With some discs, you can select items by entering the corresponding number using the number buttons, which may cause the unit to automatically start playback.

For SVCD/VCD with PBC

TOP

• When using the buttons on the unit, make sure that the DVD lamp on the unit is lit. If not, press

HDD

so that the DVD lamp lights.

• When using the remote control, slide the

HDD

selector to the left (

DVD

), then press

DVD/

DVD/TV/

ENTER

Some SVCD/VCD discs support the PBC function. PBC is an abbreviation of “Playback Control.” Some SVCD/VCD discs recorded with PBC have their own menus, such as a list of the songs of the disc. You can locate a speciﬁc scene by using the PBC menu.

• See the instructions of each disc for its particular menus.

Press 3 or TOP MENU.

Playback starts (“PBC” appears in the display window), then a disc menu appears on the TV.

• If something like “NEXT” or “PREVIOUS” appears on the TV, pressing next page of the menu, and pressing (4) returns to the previous page of the menu.

Press the number buttons to select the desired item.

The unit starts playback of the selected item.

• Examples:To select 5: press 5.

To select 10: press 1, then 0. To select 23: press 2, then 3.

To return to the menu,

NEXT (¢

press RETURN

) advances to the

Specifying a desired title

During playback, press GROUP/TITLE.

The number below the TITLE indicator changes “– –.”

Press the number button(s) to specify a title to play.

The unit starts playback from the speciﬁed title.

• Examples:To select 5: press 5. To select 23: press 2, then 3. To select 40: press 4, then 0.

NOTE

This function may not work with some DVD Video discs.

Locating a desired position in the current title or track—Time Search

You can play a disc from the desired position by specifying the time from the beginning of the current title (for DVD Video) or the disc (for SVCD/VCD/CD).

• For DVD Video/CD:Any time

• For SVCD/VCD: Any time without PBC

ADVANCED DVD OPERATIONS (cont.)

•

Example (for Audio CD):

To play back from 23(M):40(S) Press 2, 3, then 4.

TIME 23 4 _:

• You do not have to press 0 to enter the trailing zeros (for the last two digits in the ﬁrst example, and the last digit for the second example).

To correct a mis-entry

Press 2 repeatedly to move back to the digit where you entered a wrong number, and re-enter the correct one(s).

Press ENTER.

The unit starts playback from the speciﬁed time.

To clear the menu bar

Press

ON SCREEN

NOTES

•Some DVD Video discs do not contain time information, and Time Search cannot be used.

•Time Search cannot be used during Program Play (see page

53).

Press ON SCREEN twice.

The menu bar appears on the TV screen.

Press 3 or 2 to move

The pull-down menu for entering time appears.

Screen example for DVD Video

8.5Mbps

TIME _:__:__

Screen example for Audio CD

OFF PROG. RND.

TIME __:__

Press the number buttons (0 to 9) to enter the desired time.

The speciﬁed time appears in the pull-down menu.

•

Example (for DVD Video):

To play back from 2(H):34(M):00(S) Press 2, 3, then 4.

to , then press ENTER.

TITLE 33 TOTAL 1:25:58CHAP 33

CHAP.

1/3 1/3OFF 1/5

TIME 25:58TRACK 33

TIME 2:34 _ _:

Changing the playback order

Press the number buttons to specify tracks in the

desired order.

• Examples:To select 5: press 5. To select 10: press 1, then 0. To select 23: press 2, then 3.

The total program time

CANCEL

ENTER

CLEAR

ON SCREEN

SELECT

Playing in a speciﬁc order—Program

PROGRAM

No. TrackDisc

1 2 1 2 3 5 3 7 4 4 4 2 5 3 3 6 5 4 7 6 6 8 9

USE NUMERIC KEYS TO PROGRAM TRACKS. CANCEL DELETES THE LAST STEP.

To correct the program

Press 5 or ∞ to move to the track to be corrected, then press subsequent programmed tracks move up in the PROGRAM table. Pressing 7 (

Press 3 (SELECT) to start Program Play.

• With an Audio CD, the PROGRAM table remains

on the TV during Program Play. (Pressing

SCREEN

the status bar.)

• When all of the programmed tracks have ﬁnished

playing, the unit stops and the PROGRAM table appears again. (Notice that the program is not erased).

CANCEL

CLEAR

clears the PROGRAM table, and brings up

Total Program Time 00:25:12

7 DELETES ALL.

Selected track number

. The track is erased and the

) clears all the programmed tracks.

Play

By programming tracks, you can play up to 99 tracks in any order. You may program the same track more than once.

Before starting playback, press ON SCREEN twice.

The menu bar appears on the TV screen.

Press 3 or 2 to move

OFF PROG. RND.

Press ENTER.

• The PROGRAM table appears.

• The PROGRAM indicator lights in the display window.

PROG.

to , then press ENTER.

TIME 0:00TRACK 1

To stop Program Play and to check the program contents

Press 7 ( Playback stops and the PROGRAM table is shown.

• If the PROGRAM table is not shown, you can bring up

CLEAR

the table by performing steps 1 to 3.

To clear the program

While stopped and the PROGRAM table is shown, press

7 (CLEAR

To exit from the program mode

After clearing the program, press

NOTES

•When the disc is ejected or the unit is turned off, the program is also cleared.

•During Program Play, you cannot edit the program contents.

ON SCREEN

ADVANCED DVD OPERATIONS (cont.)

Playing at random—Random Play

Before starting playback, press ON SCREEN twice.

The menu bar appears on the TV.

Press 3 or 2 to move

Screen example for Audio CD

OFF PROG. RND.

The RANDOM indicator lights in the display window, and the unit starts Random Play.

• With an SVCD/VCD disc, the menu bar automatically goes off.

• After playing all tracks of the disc, the unit stops playback and Random Play is cancelled.

To stop and cancel Random Play

Press 7 (

CLEAR

To clear the menu bar and status bar if still shown

Press

ON SCREEN

again.

RND.

to , then press ENTER.

TIME 0:00TRACK 1

To start Repeat Play,

press 3 (

SELECT

) if necessary.

To stop repeat playback

Press 7 (

• When a DVD Video disc is loaded, the unit stops

• When a disc of another type is loaded, the unit stops

CLEAR

playback and cancels Repeat Play.

playback but does not cancel Repeat Play (except A-B repeat).

To cancel Repeat Play

Select “OFF” in step 3 above.

To clear the menu bar and status bar

Press

ON SCREEN

NOTES

•When Repeat Play is selected, an appropriate repeat indicator also lights in the display window— or 1, or

On-screen display Display window

CHAPTER

TITLE

ALL

TRACK

again.

A-B

Playing repeatedly—Repeat Play

To repeat the current track/ﬁle or all tracks/ﬁles

For DVD Video: During playback For SVCD/VCD: During playback without PBC and

Press ON SCREEN twice.

The menu bar appears on the TV.

Press 3 or 2 to move ENTER.

The pull-down menu for Repeat Play appears.

Press

∞ or 5 to select an option you want, then

press ENTER.

• For DVD Video: CHAPTER: Current chapter repeat TITLE: Current title repeat A-B: A-B repeat (only selectable during play:

OFF: Repeat Play is cancelled

• For SVCD/VCD/CD: TRACK: Current track repeat ALL: All track repeat A-B: A-B repeat (only selectable during play:

OFF: Repeat Play is cancelled.

while in stop mode

see the following page.)

OFF

to , then press

A-B

OFF No indication

•For Repeat Play on MP3 and JPEG discs, see pages 63 and 65.

A-B

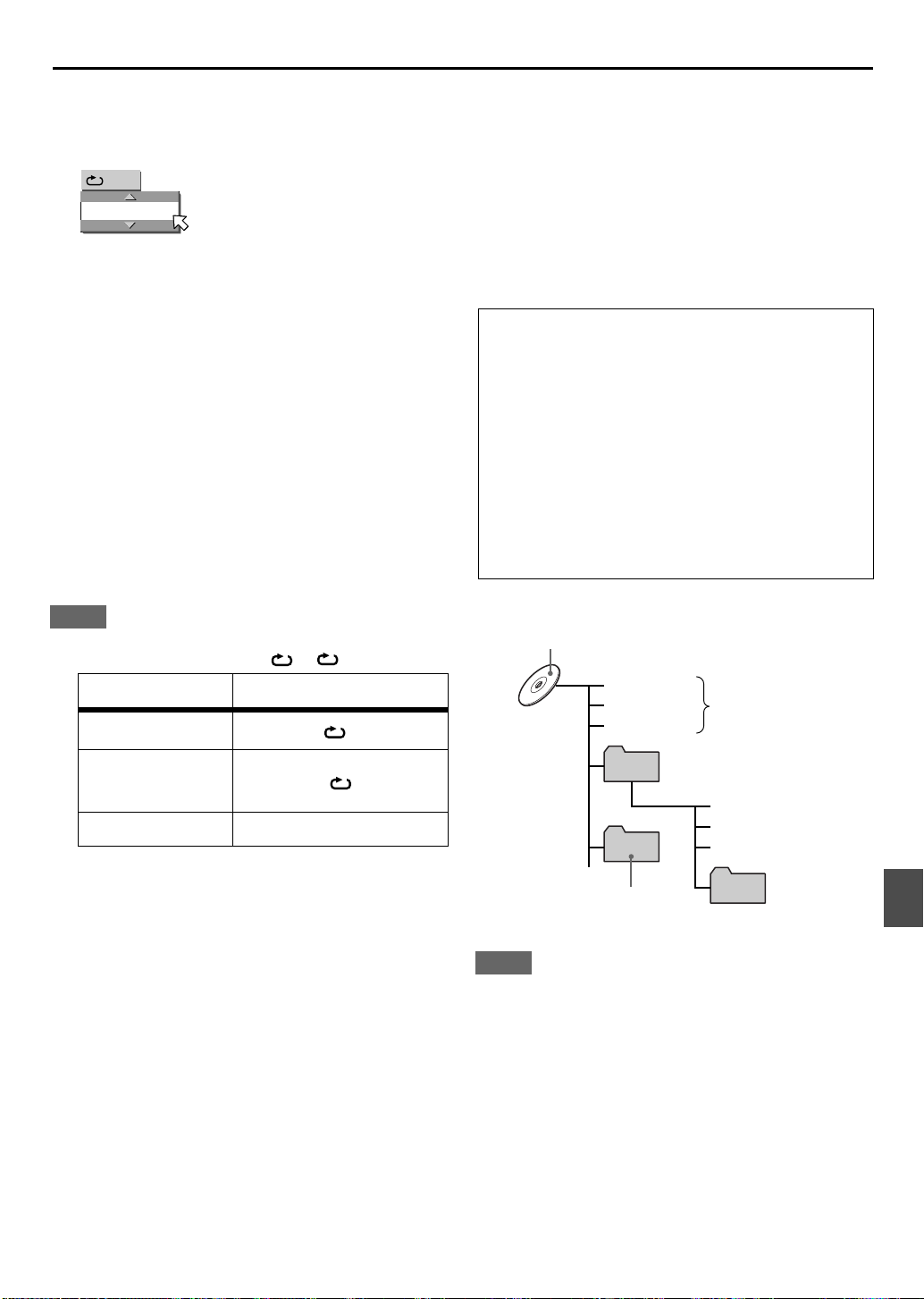

To repeat a desired part (A-B repeat playback)

Changing the language,

For DVD Video/CD:During playback For SVCD/VCD: During playback without PBC

Press ON SCREEN twice.

The menu bar appears on the TV screen.

Press 3 or 2 to move

ENTER.

The pull-down menu for repeat mode selection appears.

Press

3 4

∞ or 5 to select “A-B.”

Press ENTER at the beginning of the repeat part (point A).

The pull down menu disappears. The repeat icon shows .

Press ENTER at the end of the repeat part (point B).

The repeat icon changes . The unit locates “A” and starts repeat playback between “A” and “B.” The A-B indicator lights in the display window.

OFF

to , then press

A-

A-B

To quit A-B repeat playback

A-B

Press 3 or 2 to move to The A-B repeat mode turns off, then normal playback continues.

• Pressing 7 ( B repeat.

CLEAR

) to stop playback will also cancel A-

, and press

ENTER

sound and scene angle

AUDIO

ENTER

SUBTITLE

ON SCREEN

NOTE

The A and B points must be set within the same title/track.

ADVANCED DVD OPERATIONS (cont.)

Selecting the subtitle language

Some DVD Video and SVCD discs contain more than one subtitle language. You can choose a desired one from them.

• At the beginning of the part if the subtitles are recorded, will appear on the TV (except when the “ON SCREEN GUIDE” is set to “OFF”—see page 79).

During playback, press SUBTITLE.

The subtitle selection window appears on the TV screen.

1/3

ENGLISH

Press

∞ or 5 (or SUBTITLE) to select the subtitle.

• Each time you press language changes.

Press ENTER.

Subtitles are displayed in the selected language. The subtitle selection window goes off.

NOTES

•An SVCD disc can have up to four subtitles. Pressing 5/∞ or

SUBTITLE

are recorded or not.

•The subtitle selection window will automatically disappear if you do not change the subtitle for several seconds.

•For DVD Video, the selected language may be abbreviated on the TV. See “Table of languages and their abbreviations” on page 92.

selects subtitles regardless of whether the subtitles

the button

, the subtitle

Changing the audio language or sound

The audio selection setting allows you to change the audio language of a movie, or to listen to karaoke with or without the vocal.

• At the beginning of the part where multiple audio tracks are recorded, will appear on the TV (except when the “ON SCREEN GUIDE” is set to “OFF”—see page 79).

During playback, press AUDIO.

The audio selection window appears on the TV.

1/3

ENGLISH

Press

∞ or

5 (or AUDIO) to select the desired audio.

• Each time you press

For DVD Video (example)

1/3 ENGLISH 2/3 FRENCH 3/3 SPANISH

For SVCD

ST1 ST2 L-1 R-1 L-2 R-2

For VCD

ST (Stereo) L R

Press ENTER.

You can hear the selected audio. The audio selection window goes off.

the button

, the audio changes.

NOTES

•The audio selection window will automatically disappear if

you do not change the audio for several seconds.

•For DVD Video, the selected language may be abbreviated on

the TV. See “Table of languages and their abbreviations” on page 92.

To selecting a multi-angle view of DVD Video

You can enjoy a variety of scene angles if the DVD Video disc contains “multi-angle” parts, where multiple cameras were used to shoot the same scene from different angles.

• At the beginning of a “multi-angle” part, will appear on the TV (except when the “ON SCREEN GUIDE” is set to “OFF”—see page 79). (The ANGLE indicator remains lit in the display window while a chapter including multi-angle views is playing.)

• For detailed operations, see “Menu bar operations” on page 59.

Using sound effects and special picture playback

ENTER

ZOOM VFP

3D PHONIC

Simulating surround sound (3D PHONIC)

Using the 3D PHONIC function, you can get a simulated surround effect from your stereo system.

During playback, press 3D PHONIC.

The 3D PHONIC window appears on the TV.

Press 3 or

• Each time you press the button, the 3D PHONIC mode changes as follows:

ACTION DRAMA THEATER NONE

Selected effect mode

• ACTION

Suitable for action movies and sports programs in which the sound source moves.

• DRAMA

Natural and warm sound. You can enjoy movies in a relaxed mood.

• THEATER

You can enjoy sound effects like in a theatre.

• NONE

To cancel 3D PHONIC.

2 to select the desired mode.

+ 5ACTION 4

Press ∞ or 5 to adjust the effect level.

You can set the effect level from “1” to “5” separately for each mode. The higher value enhances the effect.

To clear the 3D PHONIC window

Press

3D PHONIC

To cancel the effect

Select “NONE” in step 2 above

• Turning off the unit also cancels the effect.

NOTES

•The 3D PHONIC window disappears if no operation is made for about 10 seconds.

•3D PHONIC works correctly only when playing back a Dolby Digital encoded DVD Video. However, if Dolby Digital does not contain the rear signal, you will not be able to achieve a correct 3D effect.

•3D PHONIC does not affect output through the DIGITAL OUT connectors on the rear.

•While 3D PHONIC is activated, the “ANALOG DOWN MIX” setting (see page 78) is temporarily cancelled.

again.

ADVANCED DVD OPERATIONS (cont.)

Adjusting the picture

Video Fine Processor (VFP) allows you to adjust the picture according to the type of software, picture tone or personal preferences. Set the video type most suitable to the current software or the room conditions.

During playback, press VFP.

The VFP mode selection window appears on the TV screen.

Press 3 or 2 to select the desired preset.

• Each time you press the button, the VFP mode changes as follows.

NORMAL CINEMA USER 1 USER 2

Selected preset

USER 1

GAMMA

BRIGHTNESS

CONTRAST

SATURATION

TINT

SHARPNESS

Y DELAY

+ 4

+13

+ 3

+ 2

• TINT

Adjust this if the appearance of ﬂesh tone is unnatural. Available range: –16 to +16.

• SHARPNESS

Adjust this if the picture is indistinct. Available range: 0 to +3.

• Y DELAY

Adjust this if the picture looks separately/overlapped. Available range: –2 to +2.

Press ENTER.

A window for setting parameters appears.

SATURATION + 4

Selected parameter

Press∞ or

5 to adjust the level of the parameter.

The higher value enhances the effect.

Press ENTER.

Repeat steps 3 to 6 if you want to set other parameters.

To clear the VFP mode window

Press

VFP

NOTES

•The VFP mode window disappears if no operation is made for about 10 seconds.

•While zoomed, VFP cannot be used.

Parameter

•

NORMAL:

•

CINEMA:

For watching TV in a general room. For watching a movie software in a room with suppressed light.

•

USER 1/USER 2:

You can adjust parameters that affect the picture character and store the settings as a user preset. See the next step.

To deﬁne a user setting (USER 1/USER 2), press ∞ or

5 to select a parameter to edit from the following.

• GAMMA

Adjust this if the neutral colour is bright or dark. The brightness of dark and bright portion remains unchanged. Available range: –4 (darkest) to +4 (brightest).

• BRIGHTNESS

Adjust this if the picture is bright or dark on the whole. Available range: –16 (darkest) to +16 (brightest).

• CONTRAST

Adjust this if the far and near position is unnatural. Available range: –16 to +16.

• SATURATION

Adjust this if the picture is whitish or blackish. Available range: –16 (black) to +16 (white).

Zooming in

During playback or while paused, press ZOOM.

At the top left of the screen, the information for the current magniﬁcation appears for about 5 seconds.

• Each time you press the button, the magniﬁcation becomes higher (1.8, 4, 8, 16, 32 and 64 times).

ZOOM x 4

Press 3 / 2 / ∞ / 5 to move the zoomed position.

To release the zoom

Press

ENTER

NOTES

•When a wide-screen picture of a DVD Video is viewed on a normal TV (4:3 Letter Box), black bars may appear at the top and bottom of the screen. In this case, if you select “ZOOM ×

1.8,” the black bars become almost invisible. When a 1:2.35 or 1:1.85 DVD Video source is played back, however, the black bars are still visible on the TV.

•While zoomed, the picture may look coarse.

Menu bar operations

ENTER

ON SCREEN

Show the status bar.

Press

ON SCREEN

• A status bar for the inserted disc appears on the TV (see

page 48).

• See page 60 for details about the status bar.

Show the menu bar

Press

ON SCREEN

• A menu bar for the inserted disc appears under the

status bar.

(for DVD Video)

(for SVCD)

(for VCD)

(for CD)

again.

8.5Mbps

OFF

OFF PROG. RND.

TITLE 33 TOTAL 1:25:58CHAP 33

CHAP.

PROG. RND.

1/3 1/3OFF 1/5

STPROG. RND.

ST1

TIME 25:58TRACK 33

-/4

TIME 25:58TRACK 33

Precaution on the menu operation

If you show the menu bar while operating the disc menu, you may not be able to operate the disc menu correctly. If this happens, clear the menu bar.

Select the icon you want to use

Press 3 or 2 to move to the icon you want to use, then press

• The pull-down window appears except for some

ENTER

functions.

Select or change the option for the selected icon.

• When the pull-down window is shown, press ∞ or 5,

then press

• When the pull-down window is not shown, press

ENTER

• For detailed operations for each icon on the menu bar,

see the next page.

To clear the menu bar and status bar

Press

NOTES

•The menu icon currently selected is shown in green.

•Some functions are not available during playback. (You cannot move

ENTER

ON SCREEN again.

to the associated icon when it is not available.)

ADVANCED DVD OPERATIONS (cont.)

Menu bar functions for DVD Video

Time information

During playback, selects the time information shown in the display window and in the status bar.

Press

ENTER

to select the time information from the

following.

• TIME: Current chapter elapsed time

• REM: Current chapter remaining time

• TOTAL:Current title elapsed time

• T.REM: Current title remaining time

Repeat Play

Selects the repeat mode during playback.

1. Press ∞ or 5 to select the repeat mode from the following.

• CHAPTER: Current chapter repeat

• TITLE: Current title repeat

• A-B: A-B repeat

• OFF: Repeat is cancelled

2. Press ENTER to activate Repeat Play.

Time search

Speciﬁes an elapsed playing time from the beginning of the current title as the point from which to begin playback.

CHAP.

During playback, speciﬁes a desired chapter to play from.

1. Press number buttons (0 to 9) to enter a desired chapter

2. Press ENTER to begin playback from the speciﬁed

Chapter search

number. (For example, to specify “10,” press 1, then 0.)

chapter.

(See also page 54)

(See also page 52)

Menu bar functions for SVCD/VCD/CD

Time information

Selects the time information shown in the display window and in the status bar.

Press

ENTER

to select the time information from the

following.

• TIME: Current track elapsed time

• REM: Current track remaining time (while not playing, current track total time)

• TOTAL:Disc elapsed time

• T.REM: Disc remaining time (while not playing, disc total time)

Repeat Play

Selects the repeat mode.

1. Press ∞ or 5 to select the repeat mode from the

following.

• TRACK: Current track repeat

• ALL: All track repeat

• A-B: A-B repeat (Only during play: see also

• OFF: Repeat is cancelled

2. Press ENTER to activate Repeat Play.

Time search

Speciﬁes an elapsed playing time from the beginning of the disc as the point from which to begin playback.

PROG.

Program Play

Before starting playback, speciﬁes the playback order of tracks.

RND.

Random Play

Before starting playback, activates Random Play.

(See also page 54)

page 55.)

(See also page 52)

(See also page 53)

(See also page 54)

Audio selection

During playback, selects the audio language or sound track.

1. Press

2. Press ENTER to play with the selected audio.

∞

or 5 to select a desired audio language or sound

track.

Subtitle selection

During playback, selects the subtitle language.

1. Press ∞ or 5 to select a desired subtitle language.

2. Press ENTER to play with the selected subtitle.

Angle selection

During playback, selects a desired scene angle in a multiangle part.

1. Press ∞ or 5 to select a scene angle.

2. Press ENTER to play with the selected scene angle.

(See also page 56)

Audio selection

During SVCD/VCD playback, selects the audio channel(s).

1. Press ∞ or 5 to select a desired audio channel(s).

2. Press ENTER to play with the selected audio channel(s).

Subtitle selection

During SVCD playback, selects the subtitle.

1. Press ∞ or 5 to select a desired subtitle.

2. Press ENTER to play with the selected subtitle.

(See also page 56)

MP3/JPEG OPERATIONS

Playing an MP3 disc

The unit can play back MP3 ﬁles on a personally recorded CD-R/RW disc or commercially available disc. A disc that contains MP3 ﬁles is referred to as an “MP3 disc” in this manual. Notice that if a disc contains both of MP3 and JPEG ﬁles, you can only play back ﬁles of the type selected by the “MP3/JPEG” setting in the “PICTURE” menu (see page

77).

About MP3 discs

In an MP3 disc, each song is recorded as a ﬁle (track). Files are sometimes grouped into folders by artists, album, etc.

• Each ﬁle is regarded as a track.

• A folder which has one or more ﬁles is regarded as a group.

• A folder which does not contain any tracks directly is ignored.

• Files which do not belong to any folder are grouped into “group 1.”

• The unit recognizes up to 150 tracks per group, and up to 99 groups per disc. If there are ﬁles other than MP3 ﬁles, they are also counted in the 150-ﬁle total.

Basic operations

Use the following buttons to operate an MP3 disc.

ENTER

: Starts playback while stopped.

3 (SELECT

7 (CLEAR

: Pauses playback.

4/¢

• If you press 3 ( unit starts playback from the beginning of the current ﬁle.

NOTES

•The unit does not support “packet writing (UDF format)” discs.

•The unit does not support the ID3 tag.

•The unit supports discs recorded with multiple sessions.

•Some discs may not play due to disc characteristics or

recording conditions.

•Program Play and Random Play cannot be used for MP3 discs.

•The unit can play back only tracks with the following ﬁle

extensions; “.MP3,” “.Mp3,” “.mp3” and “.mP3.”

•Time required for reading the disc contents may vary for

different discs, depending on the numbers of groups (folders) and tracks (ﬁles) recorded, etc.

•You cannot advance or reverse playback by pressing ¡ or

playback.

):Starts playback while stopped or paused.

): Stops playback.

: Skips back or forward a ﬁle during playback.

Selects the previous or next ﬁle while stopped.

SELECT

) or

ENTER

during playback, the

, or by holding down ¢ or 4 during MP3 disc

Tax. 99 groups per disc

Track 1.mp3 Track 2.mp3 Track 3.mp3

Group 2

Group 4

Max.150 tracks per group

Group 1

Track 4.mp3 Track 5.mp3 Track 6.mp3

Group 3

NOTE

For making your own MP3 disc using a CD-R/CD-RW disc:

•Select “ISO 9660” as the disc format.

•It is recommended to record your material at a 44.1 kHz sampling rate, using the 128 kbps data transfer rate.

Operations using the MP3 CONTROL screen

When inserting an MP3 disc, the MP3 CONTROL screen automatically appears on the TV.

Current track elapsed time

MP3 CONTROL Group : 01 / 10

spring

summer fall winter sea mountain camp picnic skiing flower

Group column

Time : 00:03:08 Track : 01 / 06 (Total 28)

begonia.mp3

german chamomile.mp3 kiwi fruit.mp3 orchard grass.mp3 petunia.mp3 north pole.mp3

File column of the current group

Selected ﬁle

MP3/JPEG OPERATIONS (cont.)

You can specify the desired group/ﬁle from the MP3 CONTROL screen using the following procedure.

4 / ¢

ENTER

Number

GROUP/TITLE

To select (highlight) a “Group” column or “Track” column on the screen, To select a group,

(highlighted bar) is in the “Group” column. If there are unshown groups, they will appear in this column as you selecting groups.

• After pressing number (up to 99) without respect to the cursor (highlighted bar) position. Examples:To select 5: press 5.

To select 23: press 2, then 3. To select 40: press

To select a ﬁle,

(highlighted bar) is in the “Track” column. If there are unshown tracks, they will appear in this column as you selecting ﬁles.

• By pressing ¢ or 4, you can change the ﬁles without respect to the cursor (highlighted bar) position.

• By pressing the number (up to 99) directly, and start play from the selected ﬁle.

To start playing back a ﬁle,

NOTE

If an MP3 ﬁle name includes any 2-byte character, the unit cannot show the ﬁle name correctly.

press 3 or 2.

press cursor ∞ or 5 when the cursor

GROUP/TITLE

press ∞ or 5 when the cursor

number

, you can select the group

, then

buttons, you can select a ﬁle

press 3 (

SELECT

) or

ENTER

CLEAR

SELECT

• When using the buttons on the unit, make sure that the DVD lamp on the unit is lit. If not, press

HDD

so that the DVD lamp lights.

• When using the remote control, slide the

HDD

selector to the left (

DVD

), then press

DVD/

DVD/TV/

ENTER

To repeat an MP3 ﬁle(s)

Press ON SCREEN once.

The pull-down menu for Repeat Play appears.

OFF

Press

∞ or 5 to select an option you want, then

press ENTER.

• TRACK: Current ﬁle repeat

• GROUP:Current group repeat

• ALL: All ﬁle repeat

• OFF: Repeat Play is cancelled

Selected repeat mode also appears on the MP3 CONTROL screen.

To start Repeat Play,

press 3 (

SELECT

) if necessary.

To stop repeat playback

Press 7 (

• The unit stops playback but does not cancel Repeat Play.

CLEAR

To cancel Repeat Play

Select “OFF” in step 2 above.

Playing a JPEG disc

The unit can play back JPEG ﬁles on a personally recorded CD-R/RW disc. A disc that contains JPEG ﬁles is referred to as a “JPEG disc” in this manual. Notice that if a disc contains both of MP3 and JPEG ﬁles, you can only play back ﬁles of the type selected by the “MP3/JPEG” setting in the “PICTURE” menu (see page

77).

About JPEG discs

In a JPEG disc, each picture is recorded as a ﬁle. Files are sometimes grouped into folders by category, etc.

• A folder which has one or more ﬁles is regarded as a group.

• A folder which does not contain any ﬁles directly is ignored.

• Files which do not belong to any folder are grouped into “group 1.”

• The unit recognizes up to 150 ﬁles per group, and up to 99 groups per disc. If there are ﬁles other than JPEG ﬁles, they are also counted in the 150-ﬁle total.

NOTE

When Repeat Play is selected, an appropriate repeat indicator also lights in the display window— or 1.

On-screen display Display window

TRACK

GROUP

ALL

OFF No indication

Tax. 99 groups per disc

File 1.jpg File 2.jpg File 3.jpg

Group 2

Group 4

Max.150 ﬁles per group

NOTE

For making your own JPEG disc using a CD-R/CD-RW disc:

•Select “ISO 9660” as the disc format.

•It is recommended to record your material at a 640 x 480 pixel resolution.

•This unit supports the baseline JPEG format.

Group 1

File 4.jpg File 5.jpg File 6.jpg

Group 3

Basic operations

Use the following buttons to operate a JPEG disc.

3 (SELECT

7 (CLEAR

4/¢

NOTES

•The unit supports the baseline JPEG format.

•The unit does not support “packet writing (UDF format)” discs.

•The unit supports discs recorded with multiple sessions.

•The unit may not be able to read some discs, or may take a long time to display a picture in the disc, due to disc characteristics, recording conditions, or numbers of groups (folders), etc.

•Program Play and Random Play cannot be used for JPEG discs.

•Screen Saver will be activated if the same picture is displayed for more than 5 minutes.

•The unit only can play back ﬁles with the following ﬁle extensions; “.jpg,” “.jpeg,” “.JPG,” “.JPEG” and any other combination of upper case and lower case letters (such as “.Jpg”).

•If a JPEG ﬁle name includes any 2-byte character, the unit may not show the ﬁle name correctly.

•If a picture has been saved at greater than 640 x 480 pixel resolution, it may take some time to display the picture.

•The unit does not support pixel size of more than 2400 pixels in horizontal resolution. Make sure that the horizontal resolution of the picture pixel size is 2400 pixels or less.

): Starts slide show while stopped or

paused.

) or

: Stops slide show.

ENTER

: Keep showing the same picture.

: Skips back or forward a ﬁle during

slide show.

ENTER

CLEAR

SELECT

MP3/JPEG OPERATIONS (cont.)

4 / ¢

ENTER

Number

GROUP/TITLE

Operations using the JPEG CONTROL screen

When inserting a JPEG disc, the JPEG CONTROL screen automatically appears on the TV.

JPEG CONTROL Group : 01 / 10

spring

summer fall winter sea mountain camp picnic skiing flower

Group column

Selected group

You can specify the desired group/ﬁle from the JPEG CONTROL screen using the following procedure.

File : 01 / 06 (Total 28)


german chamomile.jpg kiwi fruit.jpg orchard grass.jpg petunia.jpg north pole.jpg

Files in the currently selected group

• When using the buttons on the unit, make sure that the DVD lamp on the unit is lit. If not, press

HDD

so that the DVD lamp lights.

• When using the remote control, slide the

HDD

selector to the left (

DVD

), then press

DVD/

DVD/TV/

ENTER

To select (highlight) a “Group” column or “Track” column on the screen,

To select a group,

(highlighted bar) to a group you want when the cursor is in the “Group” column. If there are unshown groups, they will appear in this column as you selecting groups.

• After pressing number (up to 99) without respect to the cursor (highlighted bar) position. Examples:To select 5: press 5.

To select 23: press 2, then 3. To select 40: press

To select a ﬁle,

(highlighted bar) to a ﬁle you want when the cursor is in the “Track” column. If there are unshown tracks, they will appear in this column as you selecting ﬁles.

• By pressing ¢ or 4, you can change the ﬁles without respect to the cursor (highlighted bar) position.

• By pressing the number (up to 99) directly, and start slide show from the selected ﬁle.

To start slide show from the selected ﬁle (on the highlighted bar),

To show the selected ﬁle (on the highlighted bar) as a still image,

To move to another ﬁle, press ¢ or 4.

NOTE

If the selected ﬁle is unplayable, a black screen appears.

press

press 3 or 2.

press cursor ∞ or 5 to move the cursor

GROUP/TITLE

press ∞ or 5 to move the cursor

number

press 3 (

ENTER

, you can select the group

, then

buttons, you can select a ﬁle

SELECT

To repeat the slide show

Before starting slide show or a still image, press ON SCREEN once.

The pull-down menu for Repeat Play appears.

OFF

Press

To start Repeat Play,

∞ or 5 to select an option you want, then

press ENTER.

• GROUP: Current group repeat

• ALL: All ﬁle repeat

• OFF: Repeat Play is cancelled

Selected repeat mode also appears on the JPEG CONTROL screen.

press 3 (

SELECT

To stop repeat playback

Press 7 (

• The unit stops playback but does not cancel Repeat Play.

CLEAR

To cancel Repeat Play

Select “OFF” in step 2 above.

NOTE

When Repeat Play is selected, an appropriate repeat indicator also lights in the display window— .

To zoom in the picture

Press 8 during slide show.

Press ZOOM.

• Each time you press the button, the magniﬁcation becomes higher (1.8, 4, 8, 16, 32 and 64 times).

Press 3 / 2 / ∞ / 5 to move the zoomed position.

To release the zoom

Press

ENTER

NOTE

While zoomed, the picture may look coarse.

FUNCTION SET UP

LIVE MEMORY 1 HR

JUMP TIME 1 HR

AUDIO REC MONO

HDD SET UP INITIAL SET UP

SET UP

EXIT

SELECT

ENTER

SELECT WITH [ ] THEN PRESS [ENTER]

FUNCTION SET UP

FUNCTION

O.S.D.

DIRECT REC

OFF

INPUT/OUTPUT FAMILY

HDD SET UP INITIAL SET UP

SET UP

EXIT

SELECT

ENTER

SELECT WITH [ ] THEN PRESS [ENTER]

FUNCTION SET UP

LIVE MEMORY 1 HR

JUMP TIME 1 HR

AUDIO REC MONO

HDD SET UP INITIAL SET UP

SET UP

EXIT

SELECT

ENTER

SELECT WITH [ ] THEN PRESS [ENTER]

Changing the HDD/TV tuner settings

CHANGING THE INITIAL SETTINGS

Basic procedure

Example:

“INPUT/OUTPUT” items of the “FUNCTION SET UP” menu.

To set “L-1 OUTPUT” to “S-VIDEO” under the

Without changing the HDD settings (which includes the built-in TV tuner setting), you can use the HDD deck. However, it is recommended to change them as you prefer so that the operation of this unit become easier and convenient. The unit provides the three main setting items—HDD SET UP, FUNCTION SET UP, and INITIAL SET UP.

1, 6 2–5

When using the remote control, slide the

HDD

selector to the right (

HDD

), then press

The table below shows the HDD and the built-in TV tuner setting items.

LIVE MEMORY

HDD SET UP

AUDIO REC JUMP TIME

FUNCTION

• O.S.D.

• DIRECT REC

INPUT/OUTPUT

FUNCTION SET UP

• L-1 OUTPUT

• L-1 INPUT

• L-2 SELECT

• L-2 INPUT

• F-1 INPUT

FAMILY

(See page 68)

TUNER SET

• AUTO CH SET (See page 70)

INITIAL SET UP

• MANUAL CH SET (See page 71)

INITIAL SET

• CLOCK SET (See page 69)

• GUIDE PROG SET (See page 69)

• SAT CONTROL SET (See page 17)

DVD/TV/

(See page 67)

(See page 68)

ENTER

Show the Main Setup screen.

Press

SET UP

• The HDD SET UP screen appears.

NOTE

• If the built-in clock has not been set, the INTIAL SET UP screen appears. If this happens, set the clock ﬁrst (see page

69).

Select one of the main menu screen.

Press 3 or 2 to show one of the three main menu—HDD SET UP, FUNCTION SET UP, or INITIAL SET UP. (In this example, FUNCTION SET UP.)

Select one of the sub-menu screens.

Press ∞ to move to

one of the sub-menu

screens. Press 3 or 2 to move

to your desired submenu. (In this example, select “INPUT/OUTPUT.”)

NOTE

When changing the HDD SET UP items, skip this step.

Select an item (in this example, “L-1

OUTPUT”) you want to change.

Press ∞ or 5 to move to “L-1 OUTPUT,” then press

ENTER

Select an option for the setting.

Press ∞ or 5 to select “S-VIDEO” (in this example), then press

ENTER

Finish the setting.

Press

SETUP

repeatedly until menu screens disappear.

HDD SET UP •

You can change the temporary memory time length for Live Memory (see page 21).

LIVE MEMORY

AUDIO REC

Setting options

• NICAM

•

MONO

JUMP TIME

Setting options

• 15 MIN

•

30 MIN

•

1 HR

Setting options

OFF, 30 MIN,

When this function is set to “NICAM,” the NICAM audio programmes will be received (or recorded). (See page 22.)

When this function is set to “MONO,” the standard (monaural) audio programmes will be received (or recorded). If you receive a NICAM bilingual programme with this function set to “MONO,” the sound will be muted.

NOTE

This function works only for NICAM bilingual programme.

You can locate a scene ahead or behind of the current one by jumping a selected time interval during playback (or Live Memory: Playback) or recording (or Live Memory: Recording).

1 HR

, and 3 HR

FUNCTION SET UP

O.S.D.

Setting options

• ON

•

OFF

With this function set to “ON,” various operational indicators (for HDD and TV tuner operations) appear on the TV for a while when you operate the HDD deck.

NOTE

•When you use this unit as the playback component for editing (dubbing to a VCR, etc.), be sure to set “O.S.D.” to “OFF” before starting.

The initial setting is

bold

in the table below.

DIRECT REC

Setting options

• ON

•

OFF

When this function is set to “ON,” you can easily start recording the programme that you are watching on the TV (received by the TV itself, not through the TV tuner built in this unit) by pressing ¶ (record) on the unit (or by pressing 3 ( remote control).

NOTES

•This function is possible only when a TV offering T-V Link, etc. is connected with a fully-wired 21-pin SCART cable. (See page 11.)

•If “DIRECT REC” is set to “OFF,” follow the procedure described in “Basic Recording” (see page 23).

•During Direct Recording, “– –” appears in the display window.

•If a programme is recorded with Direct Recording, the station name will not be registered for HDD Navigation. “– – – –” will be shown for the station name.

•To record S-Video signals through the L-2 IN or INPUT F-1 connector, make sure that “DIRECT REC” is set to “OFF”; otherwise, the recorded picture will lose colour.

SELECT

) while holding

REC ¶

on the

INPUT/OUTPUT

L-1 OUTPUT

Setting options

• VIDEO

•

S-VIDEO

L-1 INPUT

Setting options

• VIDEO

•

S-VIDEO

L-2 SELECT

Setting options

• A/V

•

SAT

CHANGING THE INITIAL SETTINGS (cont.)

Set this correctly according to the external component connected to the L-1 IN/OUT connector. This setting affects only the output through the HDD and the build-in TV tuner.

•

VIDEO

: Select when the external component accepts composite video signals.

•

S-VIDEO

obtain the better picture quality. (Be sure that a 21-pin SCART cable compatible with the Y/C signals is used for connection.)

NOTE

If “L-1 INPUT” is set to “S-VIDEO,” you cannot select “S-VIDEO” for “L-1 OUTPUT.”

•

Set this correctly according to the external component connected to the L-1 IN/OUT connector.

•

VIDEO

•

S-VIDEO

the better picture quality. (Be sure that a 21-pin SCART cable compatible with the Y/C signals is used for connection.)

NOTE

If “L-1 OUTPUT” is set to “S-VIDEO,” you cannot select “S-VIDEO” for “L-1 INPUT.”

Set this correctly according to the usage of the external component connected to the L-2 IN connector.

•

A/V

receiver connected to the L-2 IN connector

•

SAT

this unit.

NOTE

•When power failure occurs or when this unit is unplugged, this function is automatically reset to “A/V.”

•When a satellite receiver is not connected to the L-2 IN connector, set this function to “A/V.”

•“L-2 SELECT” is set to “SAT,” “SAT” appears on the TV and in the display window (instead of “L-2”).

: Select when the external component accepts S-video (Y/C) signals. You can

: Select when the external component emits composite video signals.

: Select when the external component emits S-video (Y/C) signals. You can obtain

: Select when you use the HDD deck as the recording device or use the satellite

: Select when you want to view a satellite programme on the TV without turning on

L-2 INPUT

Setting options

• VIDEO

•

S-VIDEO

F-1 INPUT

Setting options

• VIDEO

•

S-VIDEO

FAMILY

Family members

Setting options

• ON

•

OFF

Set this correctly according to the external component connected to the L-2 IN connector.

•

VIDEO

: Select when the external component emits composite video signals.

•

S-VIDEO

the better picture quality. (Be sure that a 21-pin SCART cable compatible with the Y/C signals is used for connection.)

Set this correctly according to the type of connection made for the F-1 connector.

•

VIDEO

•

S-VIDEO

Set this to ﬁt to your family. When shipped from the factory, all listed family members are set to “ON” so that they can be displayed on the CATEGORY screen for HDD Navigation.

• You can erase unnecessary family members from the CATEGORY screen by setting them to

“OFF.”

: Select when the external component emits S-video (Y/C) signals. You can obtain

: Select when connecting the external component to the VIDEO jack.

: Select when connecting the external component to the S-VIDEO jack.

Setting the clock time

If you have performed Auto Setup (see page 13) or TVLinked Setup (see page 14), the clock is set automatically. Set the clock manually in the following cases.

• When the clock time has not been set correctly by Auto Setup, TV-Linked Setup, or Auto Channel Set.

• When the backup memory is expired.

• When you want to change Just Clock* setting yourself.

* Just Clock

Just Clock provides accurate time keeping through automatic adjustments at regular intervals, by reading data from a PDC signal. It also automatically adjust the summer time setting.

• Just Clock adjusts the built-in clock every hour, except for 23:00, 0:00, 1:00 and 2:00.

NOTES

Just Clock does not work in the following cases:

•When the unit is turned on.

•When the unit stands by for the timer recording or

Automatic Satellite Recording.

•When “L-2 SELECT” is set to “SAT.”

•When the built-in clock moves more than 3 minutes slower

or faster.

•When the signal reception is not good enough.

IMPORTANT: If you turn off Just Clock, the accuracy of the built-in clock may be reduced, which could adversely effect timer recording. It is recommended to turn “ON” Just Clock. However, where the clock setting data from a PDC signal is not accurate, turn “OFF” Just Clock.

Press SET UP.

Press 3 or 2 to move press ∞.

Press 3 or 2 to move

press ENTER.

Press ∞ or 5 to move

ENTER.

The Clock Set screen appears.

[ENTER]

[SET UP]

Press ∞ or 5 to set the current time, then press ENTER.

• If you hold ∞ or 5, the time changes in 30-minute

intervals.

to “INITIAL SET UP,” then

to “INITIAL SET,” then

to “CLOCK SET,” then press

[ENTER]

[SET UP]

Press ∞ or 5 to set the date, then press ENTER.

• If you hold ∞ or 5, the date changes in 15-day intervals.

Press ∞ or 5 to set the year, then press ENTER.

Press ∞ or 5 to set Just Clock, then press ENTER.

• Each time you press ∞ or 5, Just Clock turns “ON” and “OFF” alternately.

Press ∞ or 5 to select the station from which you

receive the clock setting signal.

• Select the station transmitting the clock setting signal—BBC1, BBC2,Channel 4, etc.

Press SET UP twice to ﬁnish the setting.

Setting the Guide Program number for VIDEO P

Normally, Auto Setup (see page 13), TV-Linked Setup (see page 14) or Auto Channel Set (see page 70) sets the Guide Program numbers automatically. Set the Guide Program numbers manually in the following cases.

• When the VIDEO P correct programme position number for the station you want to record.

• When you add a new station manually.

• When you want to record a satellite programme using the VIDEO P numbers for all satellite broadcast stations which can be received on your satellite receiver.)

Guide programme number

“Guide programme (GUIDE PROG) number” refers to the assigned TV station numbers in your area for the VIDEO P can be found in most TV listings.

Example: When inputting Guide Program number 4 for

Press SET UP.

1 2

Press 3 or 2 to move press ∞.

Press 3 or 2 to move press ENTER.

Press ∞ or 5 to move

“GUIDE PROG SET,” then press ENTER.

Press

Guide Program number for the desired station as shown in the TV listings, then press ENTER.

LUS

+® System

+® system cannot select the

LUS

+® system (Set the Guide Program

LUS

LUS+

system. The Guide Program numbers

CH4.

to “INITIAL SET UP,” then

to “INITIAL SET,” then

∞ or 5 to enter the

[SET UP]

[ENTER]

CHANGING THE INITIAL SETTINGS (cont.)

Press the number button “0” to select “TV PROG”

or “SAT.”

• In this example, select “TV PROG.”

• Select “SAT” to enter a programme position number of the satellite receiver.

Press ∞ or 5 to enter the

programme position number for the station of the selected Guide Program number, then press ENTER.

This is the number you select on this unit or on the satellite receiver to tune into the station.

[ENTER]

[SET UP]

(Example) If CH4 is received

on channel position

• To timer-record a satellite programme with the VIDEO P

+® system, install

LUS

the supplied satellite controller and perform the procedure described on page 17.

Repeat steps 5 to 7 to store more Guide Program numbers.

Press SET UP twice to ﬁnish the setting.

Setting the built-in TV tuner

It is required to memorize all necessary stations in the programme positions in order to record TV programmes. Set the built-in TV tuner manually only in the following cases.

• When Auto Channel Set has not been performed correctly by Auto Setup or TV-Linked Setup.

• When you have moved to a different area or if a new station starts broadcasting in your area.

To set the built-in TV tuner automatically—Auto Channel Setup

Auto Channel Setup automatically assigns the programme position numbers to all receivable stations (their Guide Program numbers are also set automatically) during Auto Channel Setup in your area. These stations stored in the programme positions can be selected by using the through any vacant programme positions).

1 2

HDD/TV PR +/–

Press SET UP.

Press 3 or 2 to move press ∞.

Press 3 or 2 to move ENTER.

buttons (without going

to “INITIAL SET UP,” then

to “TUNER SET,” then press

Press ∞ or 5 to move

“AUTO CH SET,” then press ENTER.

Press ∞ or 5 to move

AUTO CH SET

MANUAL CH SET

[ENTER]

[SET UP]

TUNER SET

either “AUTO SET” or “T-V LINK,” then press ENTER or 3.

Auto Channel Setup starts.

• If you have connected the unit to a TV offering T-V Link via a 21-pin SCART cable, select “T-V

[SET UP]

Beginning

End

LINK.”

• As Auto Channel Setup progresses, the “ ” mark on the AUTO SET screen moves from left to right.

BBC1

BBC2

ITV

CH4

CH5

When Auto Channel Setup is ﬁnished, the conﬁrmation screen appears after the message

[ENTER] [CANCEL]

[SET UP]

“SCAN COMPLETED.”

• The stations the unit has located appear on the conﬁrmation screen— programme positions (PR), station channels (CH) and station names (ID—see pages 73 and 74). The conﬁrmation screen and the programme currently being broadcasted by the ﬂashing station appear alternately for about 8 seconds each. To view the other stations preset in the programme positions, press 3 / 2 / ∞ / 5.

Press SET UP three times to ﬁnish the setting.

NOTES

•Using the conﬁrmation screen, you can skip or add stations, enter station names and perform other operations. Refer to pages 71 to 73 for the procedures.

•This unit memorizes all detected stations even if reception of some of them is poor. You can delete those stations with an unacceptable picture (see page 71).

•Depending on reception conditions, stations may not be stored in order, and the station names and/or the Guide Program numbers may not be stored correctly. If the Guide Program numbers are not set properly when you

timer-record a TV programme using the VIDEO P the unit will not record a TV programme you want (see page

40).

•Fine tuning is performed automatically during Auto Channel Set. If you want to perform tuning manually, see page 72.

•If “SCAN COMPLETED –NO SIGNAL–” appears on the TV, make sure of the aerial connection, then press Channel Set will take place again.

LUS

ENTER

+® system,

; Auto

To set the built-in TV tuner manually—Manual Channel Setup

You can store the station which cannot be stored using Auto Setup (see page 13), TV-Linked Setup (see page 14) or Auto Channel Setup (see page 70).

Press SET UP.

Press 3 or 2 to move press ∞.

Press 3 or 2 to move ENTER.

Press ∞ or 5 to move “MANUAL CH SET,” then press ENTER.

The conﬁrmation screen appears.

conﬁrmation

• The and the programme currently being broadcast by the selected (ﬂashing) channel appear alternately for about 8 seconds each.

Press 3 / 2 / ∞ / 5 to

select an unoccupied programme position number in which you want to store a station, then press ENTER.

Press ∞ or 5 to select either regular TV station (CH) or cable system (CC), then press

• Each time you press ∞ or

, CH (regular TV station) and CC (cable system) alternately appears.

to “INITIAL SET UP,” then

to “TUNER SET,” then press

BBC1

BBC2

ITV

CH4

CH5

screen

[ENTER] [CANCEL]

[SET UP]

BBC1

BBC2

ITV

CH4

CH5

[ENTER] [CANCEL]

[SET UP]

(Example) To store in

06 CH21

[ENTER] [SET UP]

position 06.

Press ENTER to store the new station.

The Conﬁrmation screen appears.

Repeat steps 5 to 9 to store other new stations.

Press SET UP three times to ﬁnish the setting.

NOTE

Guide programme numbers are not set when the stations are stored manually. If you try to make a timer programming with

the VIDEO P GUIDE PROG THEN RETRY” appears on the TV; set the Guide Program numbers

To delete a station

1 2

4 5

LUS

+® system, “GUIDE PROGRAM IS NOT SET

(see page 72)

manually.

Show the conﬁrmation screen for Manual Channel Setup.

Press SET UP. Press 3 or 2 to move to “INITIAL SET UP,” then press ∞. Press 3 or 2 to move to “TUNER SET,” then press ENTER. Press ∞ or 5 to move to “MANUAL CH SET,” then press ENTER.

Press 3 / 2 / ∞ / 5 to select a programme position number in which a station you want to delete is stored.

Press CANCEL to delete the station from the programme position.

The stored stations below the deleted station are reassigned their programme positions.

Repeat steps 2 to 3 to delete all unnecessary stations.

Press SET UP three times to ﬁnish the setting.

Press the number buttons to enter the station

channel number you want to store.

• Enter “0” before any single number entries.

• To enter the preset station name (ID—see pages 73 and 74), press 3 until “– – – –” (ID setting) begins ﬂashing, then press ∞ or 5. (To set station names other than the preset ones, see page 73.)

• For ﬁne tuning adjustment, press 3 repeatedly until “+/–” begins ﬂashing, then press ∞ or 5 for ﬁne tuning While tuning, “+” or “–” appears.

CHANGING THE INITIAL SETTINGS (cont.)

To change the programme position number assigned to a station

Show the conﬁrmation screen for Manual Channel Setup.

Press

SET UP

Press 3 or 2 to move to “INITIAL SET UP,” then

press ∞. Press 3 or 2 to move to “TUNER SET,” then

press Press ∞ or 5 to move to “MANUAL CH SET,”

then press

Press 3 / 2 / ∞ / 5 to select a programme position number in which a station you want to move is stored, then press ENTER.

The channel number (under “CH”) and station name (under “ID”) start ﬂashing.

Press 3 / 2 / ∞ / 5 to select a new programme position number for the station you have selected, then press ENTER.

• Example: If you moved the station in position 4 to

26 23 30

ENTER

position 2, the stations originally in positions 2 and 3 are reassigned the new position numbers.

BBC1

BBC1 ITV CH4

BBC2

CH5

BBC2

ITV

CH4

CH5

To ﬁne-tune the station channel

Show the conﬁrmation screen for Manual Channel

Setup.

Press SET UP.

Press 3 or 2 to move to “INITIAL SET UP,” then

press ∞. Press 3 or 2 to move to “TUNER SET,” then

press

ENTER

Press ∞ or 5 to move to “MANUAL CH SET,”

then press

Press 3 / 2 / ∞ / 5 to select a programme position number in which a station you want to ﬁne tune is stored, then press ENTER.

The channel number (under “CH”) and station name (under “ID”) start ﬂashing.

Press ENTER again.

The Manual Channel Setup screen appears.

Press 3 repeatedly until “+/–” begins ﬂashing.

Press ∞ or 5 to ﬁne tune the picture to obtain the

best picture.

Press ENTER.

The conﬁrmation screen appears.

Repeat steps 2 to 6 to ﬁne tune other stations.

Press SET UP three times to ﬁnish the setting.

ENTER

[ENTER] [SET UP]

Repeat steps 2 and 3 as necessary.

Press SET UP three times to ﬁnish the setting.

[ENTER] [CANCEL]

[SET UP]

To assign the station names

To assign the preset station names (see the tables on pages 73 and 74)

Show the conﬁrmation screen for Manual Channel Setup.

Press SET UP.

Press 3 or 2 to move to “INITIAL SET UP,” then

press ∞. Press 3 or 2 to move to “TUNER SET,” then

press ENTER. Press ∞ or 5 to move to “MANUAL CH SET,”

then press ENTER.

Press ∞ or 5 to select a programme position number

in which a station you want to assign a name to is stored, then press ENTER.

The channel number (under “CH”) and station name (under “ID”) start ﬂashing.

Press ENTER again.

The Manual Channel Setup screen appears.

Press 3 repeatedly until

the station name (under “ID”) starts ﬂashing.

Press ∞ or 5 to select a

new station name.

• Each time you press the button, preset names change.

[ENTER] [SET UP]

Press ENTER.

The conﬁrmation screen appears

Repeat steps 2 to 6 to change other station names.

Press SET UP three times to ﬁnish the setting.

To assign your own station names

Show the conﬁrmation screen for Manual Channel Setup.

Press SET UP.

Press 3 or 2 to move to “INITIAL SET UP,” then

press ∞. Press 3 or 2 to move to “TUNER SET,” then

press

ENTER

Press ∞ or 5 to move to “MANUAL CH SET,”

then press

Press ∞ or 5 to select a programme position number in which a station you want to assign a name to is stored, then press ENTER.

The channel number (under “CH”) and station name (under “ID”) start ﬂashing.

Press ENTER again

The Manual Channel Setup screen appears.

Press 3 repeatedly until the station name (under “ID”) starts ﬂashing.

Press 3 once so that the

ﬁrst character position for station name (under “ID”) starts ﬂashing.

Press ∞ or 5 to select a character you want, then press 3.

• Each time you press ∞ or

, A–Z, 0–9, –, ∗, +, and _ (space) appears in

sequence.

• Repeat this step to assign a name (up to 4 characters).

• To correct a mis-entry, press 2 (or 3) until the incorrect character starts ﬂashing, then press ∞ or

to enter the correct character.

Press ENTER.

The conﬁrmation screen appears.

Repeat steps 2 to 7 to change other station names.

Press SET UP three times to ﬁnish the setting.

ENTER

[ENTER] [SET UP]

TV station and ID list

Station name ID*

Anglia TV ARD ARTE BBC Group BBC1 BBC2 Berlin 1 Berlin 2 Border TV Bayern1 Bayern3 BRT1 BRT2 Children Ch Canal + CNN Channel TV Central TV Channel 4 Channel 5 DRS DR TV DSF Euronews Euronews Eurosports France1 France2 France3 Granada TV Grampian TV Hessen1 Hessen3 HRT HTV ITV Network Kabelkanal London MDR MTV Nord3 NDR1 NDR3 NED1 NED2 NED3 Network 2 NRK N-TV Offener Kanal ORF1 ORF2 ORF3 OWL 3 Premiere PR07 RAI1 RAI2 RAI3 RB1 RB3 Rikisutvarpid-S RTBF 1 RTBF 2 RTE 1 RTL RTL 2 RTP

ANGL ARD ARTE BBC BBC1 BBC2 BLN1 BLN2 BORD BR1 BR3 BRT1 BRT2 CHLD CH+ CNN CHNL CNTR CH 4 CH 5 DRS DRTV DSF EURN EURO EURS FR1 FR2 FR3 GRNA GRMP HR1 HR3 HRT HTV ITV KABL LNDN MDR MTV N3 NDR1 NDR3 NED1 NED2 NED3 NET2 NRK N-TV OKAN ORF1 ORF2 ORF3 OWL3 PRMI PR07 RAI1 RAI2 RAI3 RB1 RB3 RKPS RTB1 RTB2 RTE1 RTL RTL2 RTP

CHANGING THE INITIAL SETTINGS (cont.)

Station Name ID*

SAT SAT 1 Scottish TV SC4 SDR SDR1 SFB1 SFB3 SKY Sky One Sky Net Sport SR 1 Super RTL STV Test STV 1 STV 2 Suedwest3 SWF 1 Schweiz4 TYNE TEES Text TF1 TNT int TRT int TSI TSR TSW TVE TV Polonia TVP 1 TVP 2 TVS TV2 TV5 Tele Zurich Ulster TV Veronica VIVA VIVA2 VOX VTM VT4 West1 West3 YLE 1 YLE 2 Yorkshire TV ZDF Zurich 1 3SAT

* The “ID” abbreviation listed in the conﬁrmation screen

appears on the TV when the built-in tuner is tuned to the station.

SAT SAT1 SCOT SC4 SDR SDR1 SFB1 SFB3 SKY SKY1 SKYN SPRT SR1 SRTL STVT STV1 STV2 SWR SWF1 SWZ4 TEES TEXT TF1 TNT TRT TSI TSR TSW TVE TVPA TVP1 TVP2 TVS TV2 TV5 TZUR ULST VERN VIVA VIV2 VOX VTM VT4 WDR1 WDR3 YLE1 YLE2 YORK ZDF ZUR1 3SAT

TV station channel number guide

Only the main stations are listed. There are in addition many relay stations, and full lists are available from the BBC and ITV.

London & South-East

Bluebell Hill......................... 40 46 43 65 —

Crystal Palace.......................26 33 23 30 37

Dover................................... 50 56 66 53 —

Heathﬁeld ............................49 52 64 67 —

Oxford .................................57 63 60 53 49

BBC1 BBC2 ITV CH4 CH5

South-West

Beacon Hill..........................57 63 60 53 —

Caradon Hill ........................22 28 25 32 —

Huntshaw Cross ................... 55 62 59 65 67

Redruth ................................ 51 44 41 47 37

Stockland Hill ......................33 26 23 29 —

Channel Islands

Fremont Point.......................51 44 41 47 —

South

Hannington..........................39 45 42 66 35

Midhurst...............................61 55 58 68 —

Rowridge..............................31 24 27 21 —

West

Mendip ................................58 64 61 54 37

East

Sandy Heath.........................31 27 24 21 39

Sudbury................................51 44 41 47 35

Tacolneston..........................62 55 59 65 52

Midlands

Ridge Hill............................. 22 28 25 32 35

Sutton Coldﬁeld ...................46 40 43 50 37

The Wrekin .......................... 26 33 23 29 35

Waltham .............................. 58 64 61 54 35

North

Belmont ...............................22 28 25 32 56

Emley Moor..........................44 51 47 41 37

BBC1 BBC2 ITV CH4 CH5

North-West

Caldbeck.............................. 30 34 28 32 56

Winter Hill...........................55 62 59 65 48

North-East

Bilsdale West Moor..............33 26 29 23 35

Chatton ................................ 39 45 49 42 —

Pontop Pike.......................... 58 64 61 54 68

Scotland

Angus................................... 57 63 60 53 —

Black Hill.............................40 46 43 50 37

Sandale ................................ 22 ————

Caldbeck.............................. — 34 28 32 56

Creigkelly............................. 31 27 24 21 48

Darvel..................................33 26 23 29 35

Durris................................... 22 28 25 32 67

Eitshal ..................................33 26 23 29 —

Keelylang Hill ......................40 46 43 50 —

Knock More .........................33 26 23 29 —

Rosemarkie ..........................39 45 49 42 67

Rumster Forest......................31 27 24 21 —

Selkirk..................................55 62 59 65 52

Wales

Blaenplwyf...........................31 27 24 21 56

Carmel .................................57 63 60 53 —

Llanddona............................57 63 60 53 —

Moel-y-Parc .........................52 45 49 42 —

Presely .................................46 40 43 50 37

Wenvoe................................44 51 41 47 —

Northern Ireland

Brougher Mountain .............. 22 28 25 32 —

Divis ....................................31 27 24 21 37

Limavady .............................55 62 59 65 —

Changing the DVD

MONITOR TYPE

4:3 L.B.

PICTURE SOURCE

AUTO

SCREEN SAVER

MP3/JPEG

MP3


MONITOR TYPE

4:3 L.B.

PICTURE SOURCE

AUTO

SCREEN SAVER

MP3/JPEG

MP3


MP3 JPEG

settings

Without changing the DVD settings, you can use the DVD player. However, it is recommended to change them as you prefer so that the operation of this unit become easier and convenient. The unit provides the four main setting items— LANGUAGE, PICTURE, AUDIO, and OTHERS.

1, 5

The table below shows the DVD setting items.

LANGUAGE

(See page 76)


(See page 77)

AUDIO

(See page 78)

OTHERS

(See page 79)

Basic procedure

Example:

NOTE

The DVD Setup menu screen will not be shown when an MP3 or JPEG disc is loaded.

To change “MP3/JPEG” to “JPEG.”

MENU LANGUAGE AUDIO LANGUAGE SUBTITLE

MONITOR TYPE PICTURE SOURCE SCREEN SAVER MP3/JPEG

DIGITAL AUDIO OUTPUT ANALOG DOWN MIX D. RANGE CONTROL OUTPUT LEVEL

RESUME ON SCREEN GUIDE AV COMPULINK MODE PARENTAL LOCK

2–4

When using the remote control, slide the

HDD

selector to the left (

DVD

), then press

DVD/TV/

ENTER

Show the DVD Setup menu screen.

Press

SET UP

• The LANGUAGE menu screen appears.

Select one of the DVD Setup menu screens.

Press 3 or 2 to select one of the four main menus— LANGUAGE, PICTURE, AUDIO, and OTHERS. (In this example, PICTURE.)

Select an item you want to change.

Press

∞

or 5 to move to

one of the items on the main menu screen, then press

ENTER

. (In this example, select “MP3/JPEG.”)

CHANGING THE INITIAL SETTING (cont.)

Select an option for the setting.

Press ∞ or 5 to select “JPEG” (in this, example), then press

ENTER

Press

•The initial setting is

LANGUAGE

You cannot select and change the language settings during playback.

You can select the default menu language to be displayed if it is contained in a DVD Video disc.

Setting options

MENU LANGUAGE

AUDIO LANGUAGE

ENGLISH

from AA to ZU

NOTES

•If the disc does not have a menu in the selected language, the disc’s default language will be used.

•For details about language codes, see “Table of languages and their abbreviations” on page 92.

You can select the default audio language to be reproduced if it is contained in a DVD Video disc.

Setting options ENGLISH

from AA to ZU

, SPANISH, FRENCH, CHINESE, GERMAN, ITALIAN, JAPANESE, and language code

Finish the setting.

SET UP

bold

in the table below.

SUBTITLE

NOTES

•If the disc does not have the selected language, the disc’s default language will be used.

•For details about language codes, see “Table of languages and their abbreviations” on page 92.

You can select the default subtitle language to be displayed if it is contained on a DVD Video disc.

Setting options

OFF,

ENGLISH

code from AA to ZU

NOTES

•If the disc does not have a subtitle in the selected language, the disc’s default language will be used.

•For details about language codes, see “Table of languages and their abbreviations” on page 92.

, SPANISH, FRENCH, CHINESE, GERMAN, ITALIAN, JAPANESE, and language


MONITOR TYPE

Setting options

•

16:9 NORMAL

•

16:9 AUTO

• 4:3 LB

•

4:3 PS

You can select the monitor type to match your TV when you play back a DVD Video recorded for wide-screen televisions.

•

16:9 NORMAL (Wide television screen):

you connect the unit to a wide-screen (16:9) TV whose aspect ratio is ﬁxed to 16:9 (the unit automatically adjusts the screen width of the output signal correctly when playing back 4:3 software). If you play 4:3 software, the picture quality changes slightly due to the process for converting the picture width.

•

16:9 AUTO (Wide television screen):

(16:9) TV which can automatically adjust the screen size according to the incoming signals.

•

4:3 LB (Letter Box conversion):

connect the unit to a conventional (4:3) TV. When playing back DVD Video software recorded in wide picture format, the picture is shown with black bars at the top and bottom.

•

4:3 PS (Pan Scan conversion):

the unit to a normal (4:3) TV. When playing back DVD Video software recorded in wide picture format, the picture is zoomed to ﬁll the screen vertically, and the left and right sides of the picture are cut off.

Select when you

Select when you connect

Select when

Select when you connect the unit to a wide-screen

PICTURE SOURCE

Setting options

•

VIDEO(NORMAL)

•

VIDEO(ACTIVE)

•

FILM

• AUTO

SCREEN SAVER

Setting options

• ON

•

OFF

MP3/JPEG

Setting options

• MP3

•

JPEG

NOTE

The picture will be shown in “4:3 LB” depending on the disc even if you select “4:3 PS.”.

This mode selects whether the content in the disc is processed by ﬁeld (video source) or by frame (ﬁlm source.) You can obtain optimal picture quality according to the source type to be played back by selecting an appropriate option.

•

VIDEO(NORMAL):

•

VIDEO(ACTIVE):

•

FILM:

•

AUTO:

The TV screen may have an image burned on it if a static image is displayed for a long time. To prevent this, set this function to “ON.” The unit automatically activates Screen Saver, and dims the TV screen if a static picture, such as an on-screen display or menu, is displayed for over 5 minutes.

Pressing any button will cancel Screen Saver temporarily.

The unit can play MP3 and JPEG ﬁles recorded in a CD-R/CD-RW disc. However, if a disc contains both MP3 and JPEG ﬁles, you need to select which ﬁles to play.

•

MP3: JPEG:

Select to play back MP3 ﬁles. Select to play back JPEG ﬁles.

Select when playing back a video source disc with relatively a few movements. Select when playing back a video source disc with relatively a lot of movements. Select when playing back a ﬁlm source disc. Normally select this. When playing back a disc containing both video and ﬁlm source materials, the unit recognizes the picture type (ﬁlm or video source) of the current picture, and selects an appropriate mode automatically.

AUDIO

DIGITAL AUDIO OUTPUT

Setting options

•

PCM ONLY

•

DOLBY DIGITAL/ PCM

• STREAM/PCM

ANALOG DOWN MIX

Setting options

•

DOLBY SURROUND

• STEREO

CHANGING THE INITIAL SETTING (cont.)

Set this correctly according to the external component connected to the DIGITAL OUT connectors on the rear.

• See “Digital output signal chart” on page 92 for details about the relation between the setting and output signals.

•

PCM ONLY:

•

DOLBY DIGITAL/PCM:

•

STREAM/PCM:

To correctly play the audio in a DVD Video disc recorded with surround multichannel audio, set this properly according to your audio system conﬁguration.

•

DOLBY SURROUND:

•

STEREO:

Select when listening to conventional two-channel stereo audio

Select when connecting to the linear PCM digital input connector of other audio equipment such as an MD recorder. Select when connecting the digital input connector of a Dolby Digital decoder or an ampliﬁer with a built-in Dolby Digital decoder. Select when connecting the digital input connector of an ampliﬁer with a built-in DTS, MPEG Multichannel or Dolby Digital decoder, or the stand-alone unit of such a decoder.

Select when listening to multichannel surround audio through a surround decoder connected to the DVD/HDD AUDIO OUT and L-1 IN/OUT connectors on the rear.

through an ampliﬁer or receiver connected to the DVD/HDD AUDIO OUT and L-1 IN/OUT connectors on the rear. You can also connect a MiniDisc recorder, cassette deck, etc. to record through the DVD/HDD AUDIO OUT (and L-1 IN/OUT) connectors on the rear.

D. RANGE CONTROL

Setting options

•

WIDE RANGE

• NORMAL

•

TV MODE

OUTPUT LEVEL

Setting options

• STANDARD

•

LOW

NOTE

This function does not take effect when 3D PHONIC is activated.

This setting provides optimal audio quality through the DVD/HDD AUDIO OUT and L-1 IN/ OUT connectors on the rear, for listening to DVD Video discs recorded in Dolby Digital format, at low or middle volume.

•

WIDE RANGE:

•

NORMAL:

•

TV MODE:

This setting allows you to attenuate the level of the signal output through the DVD/HDD AUDIO OUT and L-1 IN/OUT connectors on the rear.

•

STANDARD:

•

LOW:

Select to enjoy powerful playback sound with the widest dynamic range. Normally, select this. Select if DVD Video disc sound level is lower than TV programme sound level. Thus you can hear sound at a lower volume clearly.

Normally, select this. Select if the reproduced sounds are distorted.

OTHERS

RESUME

Setting options

• ON

•

OFF

•

DISC RESUME

ON SCREEN GUIDE

Setting options

• ON

•

OFF

AV CMOPULINK MODE

Setting options

•

DVD 1

•

DVD 2

•

DVD 3

PARENTAL LOCK

You can select the resume playback mode.

See page 49 for details about the resume playback function.

The unit can display “on-screen guide” icons.

See page 48.

This function is provided for the future use. Set this to “

When this option is selected, pressing

ENTER

on the

DVD1

remote control brings up the PARENTAL LOCK screen. This allows you to restrict children from playing DVD Video discs.

• See following pages for details about the parental lock setting.

NOTE

You cannot select this item during play.

.”

PARENTAL LOCK

COUNTRY CODE

SET LEVEL

PASSWORD

EXIT

SELECT

ENTER

NONE

_ _ _ _

USE 5∞ TO SELECT, USE ENTER TO CONFIRM TO EXIT, PRESS SETUP.

CHANGING THE INITIAL SETTING (cont.)

Limiting playback by children

This function restricts playback of DVD Video discs which contain violent (and other) scenes according to the level set by the user. For example, if a movie which includes violent scenes supports the parental lock feature, such scenes which you do not want to let children view can be cut or replaced with other scenes (this depends on how the disc is programmed).

Setting Parental Lock

Show the OTHERS menu.

Press

SET UP

Press 3 or 2 to select “OTHERS.”

Enter the PARENTAL LOCK screen.

Press ∞ or 5 to move to “PARENTAL LOCK,” then press

ENTER

PARENTAL LOCK

COUNTRY CODE

SET LEVEL

PASSWORD

EXIT

NONE

_ _ _ _

Select the level.

Press

ENTER

• The pull-down menu appears. In the pulldown menu, “NONE”

again.

PARENTAL LOCK

COUNTRY CODE

SET LEVEL

PASSWORD

EXIT

NONE

_ _ _ _

and levels “8” to “1” are available.

Press ∞ or 5 to move to select a desired level.

• “NONE” does not restrict playback. Level “1” is the strictest level. Discs rated higher than the selected level are restricted.

Press

ENTER

• moves down to “PASSWORD.”

Enter your password.

Press the to 9) to enter any 4-digit number.

number

Finish the setting

Press

ENTER

buttons (0

PARENTAL LOCK

COUNTRY CODE

SET LEVEL

PASSWORD

EXIT

NONE

1234

• Parental Lock is set, and moves down to “EXIT.”

Press

ENTER

again.

• The OTHERS menu screen appears.

NONE 8 7 6 5 4 3

Select the country code.

Press ∞ or 5 to move

to “COUNRTY CODE,” then press

ENTER

• The pull-down menu appears.

Press ∞ or 5 to select the

PARENTAL LOCK

COUNTRY CODE

SET LEVEL

PASSWORD

EXIT

country code.

• Select the code of the country whose standards were used to rate the DVD VIdeo disc content See “Country/Area code list for Parental Lock” on page 91.

Press

ENTER

• moves down to “SET LEVEL.”

NONE

_ _ _ _

FX GA GB GD GE GF GH

To change the settings

You can change the parental lock settings later.

Press SET UP.

1 2

Press 3 or 2 to move

Press ∞ or 5 to move then press ENTER.

The PARENTAL LOCK screen appears.

While

is pointing to “PASSWORD,” press the number buttons to enter your current 4-digit password, then press ENTER.

moves to “COUNTRY CODE” if you enter the correct

password.

• If you enter a wrong password, “WRONG!

RETRY...” appears at the bottom of the screen, and you cannot go to the next step.

• If you forget your password, enter “8888.” The

current password is deleted and you can set a new password.

To change the COUNTRY CODE or SET LEVEL setting, press ENTER to enter the associated pulldown menu when

Press ∞ or 5 to select the desired option then press ENTER.

• If you change the country code, you must reselect

the parental lock level.

While

is pointing to “PASSWORD,” press the number buttons to enter a 4-digit password.

The password entered in this step becomes the new password.

• If you want to keep the same password as before,

enter the same password.

Press ENTER.

moves to “EXIT.”

Press ENTER again.

The OTHERS menu screen appears.

to “OTHERS.”

to “PARENTAL LOCK,”

is pointing to the desired item.

To temporarily release Parental Lock

If the parental level is set to a strict value, some discs may not play at all. When you insert such a disc and try to play it, the following Parental Lock screen appears on the TV, asking you whether you want Parental Lock to be temporarily released or not.

Press ∞ or 5 to move

RELEASE,” then press ENTER.

PARENTAL LOCK

TEMPORARY RELEASE

NOT RELEASE

PASSWORD

SELECT

ENTER

Press the number buttons (0 to 9) to enter your 4digit password.

The parental lock is released, and the unit starts playback.

• If you enter a wrong password, “WRONG! RETRY...” appears at the bottom of the screen. Enter the correct password.

NOTE

When you enter the wrong password three times at step 2 above, not work. If this happens, press

moves to “NOT RELEASE” automatically and 5/∞ do

to “TEMPORARY

_ _ _ _

USE 5∞ TO SELECT, USE ENTER TO CONFIRM

EJECT

to eject the disc.

NOTE

If you enter the wrong password more than three times in step 4 above, Press

moves to “EXIT” automatically and 5/∞ do not work.

ENTER

to exit.

Setting the remote control code

When you use more than two JVC video products, a product which you have not intended to operate may correspond to the signals sent from this remote control. This occurs since the other JVC products accept the signals sent from this remote control. To avoid this interference, you can change the remote control code both for the remote control and the unit.

• JVC supports four types of signal codes—A, B, C, and D. This unit and the remote control are initially set to C code.

EXTERNAL COMPONENT OPERATIONS

On the remote control

Change the remote control code.

Slide the

Press and hold 7 (

Press the

• 1 for A code, 2 for B code, 3 for C code, and 4 for

DVD/TV/HDD

number

D code.

selector to the right (

CLEAR

) until step 3 is ﬁnished.

button“1,” “2,” “3,” or “4.”

HDD

Set the remote control code for the remote control.

Press

ENTER

Release 7 (

CLEAR

-2

1 4

-3

-1

On the unit

Show the code in the display window.

If the DVD lamp on the unit is lit, press

that the HDD lamp lights. Press

Press and hold 3 for more than 5 seconds.

• The current code appears in the display window.

STANDBY/ON

to turn off the unit.

DVD/HDD

On the remote control

-3

-1

-2



Change the remote code for the unit.

Aim the remote control to the remote sensor on the front panel, then press 7 (

• The new code appears in the display window, and the unit now corresponds to this new signal code.

(Example) When you press number button 4 in step 1-3

CLEAR

) on the remote control.

Editing from a camcorder

You can use a camcorder as the playback component and the HDD as the recording deck.

Connection using the VIDEO connector

VIDEO input

AUDIO input

Video output

Camcorder

Connection using the S-VIDEO connector

S-VIDEO Input

Audio output

AUDIO input

XV-DDV1SL

Make connections.

• See the connection diagrams to the left.

NOTE

When using a monaural camcorder, connect its audio output connector to the INPUT F-1 AUDIO L(MONO) connector on the front panel.

Select the HDD deck.

On the remote control

Set the

DVD/TV/HDD

then press

On the unit

Press

On the remote control

Press to select “F-1.”

On the unit

Press

NOTES

•Set “F-1 INPUT” to “VIDEO” or “S-VIDEO” correctly

according to which terminals are used for connection (see page 68).

•When connecting a TV with TV-Link or with equivalent

function (see page 15) using the SCART cable, “DIRECT REC” is set to “OFF” (see page 67).

ENTER

DVD/HDD

Select the input mode.

AUX (number

PR +/–

to select “F-1.”

selector set to the right (

(or

LIVE

so that the HDD lamp lights.

button “0”) and/or

HDD/TV PR +/–

HDD

S-video output

Audio output

Camcorder

Precaution before editing onto the HDD

The picture shown on the TV is a few seconds behind the scene currently recorded onto the HDD. Therefore, if you start recording at the desired scene on the TV, you will miss the beginning of the scene by a few seconds. On the other hand, when you stop recording, you will record some extra scenes.

Start playback on the camcorder.

• Refer to the instruction manuals supplied with the camcorder.

Start recording on the HDD deck.

On the remote control

Press and hold

On the unit

Press ¶ (record).

The lamp next to the ¶ (record) button lights.

NOTES

•Recording pause, if used, will be released in 5 minutes

automatically. Picture and sound may be distorted at the point where the recording pause is released.

•You cannot record only sound without pictures on the HDD.

REC

¶, then press 3.

Editing to or from a VCR

EXTERNAL COMPONENT OPERATIONS (cont.)

You can use the HDD deck as the playback component or as the recording deck.

Connection only with the SCART cables

DVD DIGITAL OUT

PCM / STREAM

OPTICALCOAXIAL

XV-DDV1SL

L-1

HDD

DVDDVD

VIDEO SIGNAL

VIDEO

AUDIO

SELECTOR

OUT

LEFT

VIDEO

COMP.

L-2

Y/ C

RGB

S-VIDEO

RIGHT

21-pin SCART cables (not supplied)

VCR

OUT

SAT CONTROL

OUT

ANTENNA

COMPU LINK

When the VCR is not compatible with S-Video signal, but the TV is compatible:

DVD DIGITAL OUT

PCM / STREAM

OPTICALCOAXIAL

S-VIDEO

S-video cable (not supplied)

VIDEO

OUT

VIDEO

HDD

VIDEO SIGNAL

AUDIO

SELECTOR

OUT

LEFT

COMP.

RGB

RIGHT

XV-DDV1SL

L-1

DVDDVD

L-2

Y/ C

OUT

SAT CONTROL

OUT

ANTENNA

COMPU LINK

To use the HDD deck for the playback component:

Make connections

Connect the VCR through the L-1 IN/OUT connector on the rear using the 21-pin SCART cable (not supplied).

•

If the external VCR is compatible with S-Video signal:

Set “L-1 OUTPUT” to “S-VIDE

Select the HDD deck.

On the remote control

Set the

DVD/TV/HDD

then press

ENTER

selector set to the right (

(or

LIVE

On the unit

Press

DVD/HDD

Select the input mode on the VCR.

so that the HDD lamp lights.

• Refer to the instruction manual supplied with the VCR.

Start playback on the HDD deck.

Press 3 (

SELECT

• You can also use HDD Navigation (see page 29).

Start recording on the recording component.

• Refer to the instruction manual supplied with the VCR.

O” (see page 68).

HDD

21-pin SCART cables (not supplied)

VCR

NOTES

•For Y/C signal input/output, be sure to use a 21-pin SCART

cable that is compatible with the Y/C signal.

•When you use the HDD deck as the playback component, be

sure to set “O.S.D.” to “OFF” before starting (see page 67).

•If the VCR is equipped with audio/video (VIDEO/S-VIDEO)

input connectors, you can also connect it using those connectors.

Connection to the L-2 IN connector with the SCART cables

XV-DDV1SL

DVD DIGITAL OUT

PCM / STREAM

DVDDVD

VIDEO SIGNAL

VIDEO

AUDIO

SELECTOR

OUT

LEFT

VIDEO

COMP.

OPTICALCOAXIAL

S-VIDEO

L-2

Y/ C

RGB

RIGHT

OUT

SAT CONTROL

OUT

ANTENNA

COMPU LINK

L-1

HDD

21-pin SCART cables (not supplied)

VCR

The HDD deck is not compatible with RGB signal input. So do not connect an RGB component to the L-2 IN connector (or do not set the signal output mode of the connected component to RGB signal).

When connecting the VCR to the L-1 IN/OUT connector:

DVD DIGITAL OUT

PCM / STREAM

XV-DDV1SL

L-1

HDD

DVDDVD

VIDEO SIGNAL

VIDEO

AUDIO

SELECTOR

OUT

LEFT

VIDEO

COMP.

OPTICALCOAXIAL

S-VIDEO

L-2

Y/ C

RGB

RIGHT

S-video cable (not supplied)

21-pin SCART cables (not supplied)

OUT

SAT CONTROL

OUT

ANTENNA

COMPU LINK

To use the HDD deck for the recording component:

Make connections

Connect the VCR through the L-2 IN (or L-1 IN/OUT) connector on the rear using the 21-pin SCART cable (not supplied).

• When using the L-2 IN connector, set “L-2 SELECT” to “A/V” (see page 68).

•

If both the external VCR and the TV are compatible with S-Video signal:

Set “L-1 OUTPUT” or “L-2 INPUT” to “S-VIDEO” (see page 68).

Select the HDD deck.

On the remote control

Set the

DVD/TV/HDD

then press

ENTER

On the unit

Press

DVD/HDD

Select the input mode on the HDD deck.

On the remote control

Press

AUX (number

to select “L-2” for the L-2 IN connection, or “L-1” for the L-1 IN/OUT connection.

On the unit

Press

PR +/–

to select “L-2” for the L-2 IN connection, or

“L-1” for the L-1 IN/OUT connection.

NOTE

When connecting a TV with TV-Link or with equivalent function (see page 15) using the SCART cable, select “OFF” for “DIRECT REC” (see page 67) in order to record S-Video signals through the L-2 IN connector.

selector set to the right (

(or

LIVE

so that the HDD lamp lights.

button “0”) and/or

HDD/TV PR +/–

HDD

VCR

S-Video cable connection is required only when the VCR is not compatible with S-Video, but the TV is compatible.

Precaution before editing onto the HDD

Start playback on the VCR.

• Refer to the instruction manual supplied with the VCR.

Start recording on the HDD deck.

On the remote control

Press and hold

REC

¶, then press 3.

On the unit

Press ¶ (record).

The lamp next to the ¶ (record) button lights.

NOTE

For Y/C signal input/output, be sure to use a 21-pin SCART cable that is compatible with the Y/C signal.

EXTERNAL COMPONENT OPERATIONS (cont.)

Connecting to a satellite receiver

Simple Connections

This is an example of simple connection if your TV has a 21-pin AV input (SCART) connector.

Connect the satellite receiver to the L-2 IN connector, then connect the TV to the L-1 IN/OUT connector.

Outdoor unit

Satellite cable

Satellite receiver

Aerial

NOTES

•Be sure to use a 21-pin SCART cable (not an S-Video cable) for

the satellite receiver connection.

•Set “L-2 SELECT” to “A/V” (see page 68).

•You can use Automatic Satellite Recording (see page 46) with

this connection.

•To record a programme via the satellite receiver, select “L-2”

by pressing

AUX (number

button “0”) and/or

HDD/TV PR +/–.

“L-2” appears in the display window.

•For details, refer to the instruction manual of the satellite

receiver.

Aerial connector

TV aerial cable

ANTENNA IN

ANTENNA OUT

21-pin SCART connector

DVD DIGITAL OUT

PCM / STREAM

OPTICALCOAXIAL

VIDEO

OUT

VIDEO

S-VIDEO

HDD

AUDIO

OUT

LEFT

RIGHT

DVDDVD

VIDEO SIGNAL

SELECTOR

COMP.

RGB

L-1

L-2

Y/ C

OUT

SAT CONTROL

COMPU LINK

OUT

ANTENNA

XV-DDV1SL

Mains outlet

IMPORTANT:

When you set “L-2 SELECT” to “SAT” (see page 68) You can view a satellite broadcast on the TV (with its input (AV) mode correctly selected) without turning on this unit.

To view a satellite programme while this unit is turned on,

the right (

HDD

) so that the

VIDEO

lamp inside the front panel goes off.

press

TV/VIDEO

with the

DVD/TV/HDD

selector set to

• If you turn on this unit when the satellite receiver is turned off, no picture appears on the TV. If this happens,

perform one of the following:

- To watch a satellite programme, turn on the satellite receiver.

- To watch TV, select a desired programme position on the TV.

- To watch a TV programme through the HDD deck, press

TV/VIDEO

so that the VIDEO lamp inside the front

panel lights.

Connecting to a Stereo System

FM tuner

CD player

These instructions enable you to connect the unit to your Hi-if stereo system (if you have one) and listen to the sound through the Stereo System.

Stereo ampliﬁer

Speaker

XV-DDV1SL

Mains outlet

Television

DVD DIGITAL OUT

To audio input connector

To optical digital input

To coaxial digital input

Speaker

DVD DIGITAL OUT

PCM / STREAM

Audio cable (not supplied)

AUDIO OUT

DVDDVD

VIDEO SIGNAL

SELECTOR

COMP.

RGB

L-1

L-2

Y/ C

OUT

SAT CONTROL

COMPU LINK

OUT

ANTENNA

HDD

VIDEO

AUDIO

OUT

LEFT

VIDEO

OPTICALCOAXIAL

S-VIDEO

RIGHT

DVD DIGITAL OUT

For DVD/HDD playback:

•

When using an audio cable (not supplied):

Connect the AUDIO OUT LEFT and RIGHT connectors on the rear to the audio input connectors, such as AUX IN or LINE IN, on your ampliﬁer.

For DVD playback only:

•

When using an optical digital cable (not supplied):

Connect the DVD DIGITAL OUT OPTICAL connector on the rear to an optical digital input connector on your ampliﬁer.

•

When using an coaxial digital cable (not supplied):

Connect the DVD DIGITAL OUT COAXIAL connection on the rear to a coaxial digital input connector on your ampliﬁer.

NOTES

•You can connect this unit directly to the TV or through the Stereo System using the VIDEO OUT connectors (VIDEO/SVIDEO).

•When using the DVD DIGITAL OUT connectors, set “DIGITAL AUDIO OUTPUT” correctly to match with the connected component (see page 78).

•You can use the output connectors on the rear to connect a recording device such as an MD recorder.

Troubleshooting

Before requesting service for a problem, use this chart and see if you can repair the trouble yourself.

General

Power does not come on.

]

Power plug is not inserted securely. Plug it in securely.

You cannot insert a disc.

]

The unit does not accept any operation for about 30 seconds after it is plugged in (during this period, the illumination lamp on the unit ﬂashes).

]

Another disc has been already loaded.

The HDD deck does not accept any operations.

]

The HDD takes about 20 seconds to make itself ready to work after the unit is turned on.

]

The HDD takes about 30 seconds to make itself ready to work after the unit is plugging in. During this period, the illumination lamp on the unit ﬂashes.

“– –: – -” appear in the display window.

]

There have occurred a power failure. Reset the clock and date again.

Mechanical noise is heard from the HDD deck.

]

This occurs since the HDD is rotating at a high speed constantly.

The remote control does not function.

]

The

DVD/TV/HDD

correctly.

]

The batteries are discharged. Replace the batteries.

HDD operations

Recording:

You cannot record a programme you want.

]

A wrong programme position is selected.

No thurmbnail is stored for a programme.

]

Modify the thumbnail after recording is over.

TV broadcasts cannot be recorded.

]

“L-1,” “L-2 (or SAT),” or “F-1” is selected for input mode. Set to the desired programme position on the built-in TV tuner.

Timer recording does not work.

]

The clock and/or the timer programmings have been set incorrectly. Reset them.

]

There occurs a power failure. Reset the clock and/or timer programmings.

]

The current timer recording is interrupted, and will not start recording even after the power is recovered

The VIDEO P

]

The Guide Program number have been set incorrectly. Reset the Guide Program number correctly.

LUS

selector is not set correctly. Set it

+® system does not work properly.

ADDITIONAL INFORMATION

The picture is not recorded properly from the external component.

]

Set “INPUT/OUTPUT” correctly (see page 68).

Pictures recorded through the L-2 IN or INPUT F-1 connector do not have colour.

]

Set “DIRECR REC” to “OFF” (see page 68) or record them using Video signals (not using S-Video signals).

Playback:

The playback picture does not appear.

]

The correct input (AV) mode is not selected on the TV. Select the correct input (AV) mode.

Noise appears during visual search.

]

This is normal.

You cannot start playback.

]

You are now at the end of the recording. Press

SCREEN

You cannot use Live Memory.

]

You have deactivated the function. Activate it again (see page 67).

to check where you are.

DVD operations

General:

You cannot change the playback source from the HDD deck to the DVD player.

]

The timer programming or HDD Setup menu screen is shown on the TV. Clear the screen.

“REGION CODE ERROR!” is shown on the TV.

]

Region code of the inserted disc does not match the unit. Check the region code of the disc printed on the disc jacket.

Audio language (sound) or subtitle language cannot be changed.

]

Disc does not include these languages (or sounds). Check the disc.

]

Operations using the AUDIO and SUBTILE buttons are not accepted during playback. Change the languages using the disc menu screen.

Operations are not possible.

]

Microcomputer malfunction due to lightning or static electricity. Turn off the power and unplug the power cord, then connect the power cord again.

]

Moisture condensation caused by a sudden change of temperature or humidity. Turn off the power, then turn it on a few hours later.

]

The disc does not allow the operation, or an unplayable disc is inserted. Check and replace the disc.

“LOCK” appears in the display window and you cannot eject the disc.

]

Disc is locked. You have pressed 0 while pressing down

DVD/HDD

lock is activated. Disc cannot be ejected in this status. To release this status, turn off the unit, then press 0 while pressing down

on the unit while in standby, disc

DVD/HDD

on the unit.

Picture:

The picture is not displayed properly.

]

Set the DVD VIDEO SIGNAL SELECTOR to the appropriate position (see page 12).

Picture is noisy.

]

A VCR is connected in between the unit and the TV. Connect the unit so that the picture signal ﬂows directly to the TV.

]

With some discs, the picture may be blurred when “PICTURE SOURCE” is set to “FILM” or “AUTO.” Set “PICTURE SOURCE” to “VIDEO (NORMAL)” or “VIDEO (ACTIVE)” (see page 77).

The playback picture through the L-2 IN connector is not displayed properly.

]

You have connected an RGB component. Connect a composite video or S-Video component or set the signal output mode of the connected component to composite or S-Video signal (see page 85).

Audio

DVD Video disc playback sound level is lower than TV broadcast sound level.

]

Set the “D.RANGE CONTROL” to “TV MODE” (see page 78).

Sound reproduced are distorted.

]

Set the “OUTPUT LEVEL” to “LOW” (see page 78).

MP3 disc:

No sound comes out.

]

MP3 disc is recorded with the “packet writing (UDF format).” It cannot be played.

Files (tracks) are not played in the recorded order.

]

This unit plays the ﬁles in the alphabetic order. So, the playback order may be different from what you have expected.

JPEG disc:

No picture is played back.

]

Only the baselined-JPEG ﬁle can be played back.

The screen turns black.

]

Only the baselined-JPEG ﬁle can be played back.

On-screen messages

When one of the following messages appear on the TV, follow the instructions shown on the screen to clear the message or to perform the required operations.

MESSAGE

CANNOT DIVIDE DAILY/WEEKLY PROGRAMME You are trying to divide a daily or weekly recorded

programme.

CAN NOT MODIFY INDEX You cannot modify the thumbnails (index) of a

programme while recording is performed in the HDD. Wait until the recording ﬁnishes or stop recording to modify the index.

CAN NOT MODIFY LIVE MEMORY TIME, MORE CAPACITY NEEDED DELETE UNWANTED PROGRAMME THEN RETRY

CAPACITY IS FULL, RECORDING STOPPED The recording stopped due to the shortage of the free

CAPACITY IS FULL, UNABLE TO RECORD DELETE UNWANTED PROGRAMME FROM HDD

COPY PROHIBITED, UNABLE TO RECORD ON HDD You cannot record a copy-protected programme.

DAILY/WEEKLY PROGRAMME SELECTED WHEN NEW RECORDING PERFORMED, CREATED PLAY LIST WILL BE DELETED

There is not enough memory in the HDD for Live Memory. To increase the free space, delete the unwanted programmes. (See page 36.)

space on the HDD.

The recording cannot be started due to the shortage of the free space on the HDD.

You are trying to select a programme recorded by Daily or Weekly Timer for a play list.

DESCRIPTION

DIVISION NOT COMPLETED EXIT?

You are trying to exit from the HDD Navigation editing mode after cancelling division of a programme.

ADDITIONAL INFORMATION (cont.)

MESSAGE

DO YOU WANT TO DELETE SELECTED INDEX PICTURE?

GUIDE PROGRAM IS NOT SET SET GUIDE PROGRAM THEN RETRY

PROGRAMME COMPLETED CHECK PROGRAMME LIST TO CONFIRM

NO PROGRAMME TO PLAYBACK There is no recorded programme in the HDD.

PLUSCODE NO. ERROR CONFIRM PLUSCODE NO. THEN RETRY

PLEASE ADJUST CLOCK BEFORE TIMER PROGRAMMING

PROGRAMME FULL DELETE UNWANTED TIMER PROGRAMME

PROGRAMME NOT COMPLETED PROGRAMME OVERLAPPED PLEASE CONFIRM AND MODIFY

PROGRAMMING NOT COMPLETED EXIT?

Appears when you have tried to delete a programme from the HDD. Make sure you really want to delete the programme. (See page 36.)

To use the VIDEO P Guide Program number in advance. (See page 69.)

Timer programming is completed properly.

An invalid P

To set the timer programming, set the built-in clock in advance. (See page 69.)

You can store 16 timer programmings. To store a new programming, erase an unnecessary programming. (See page 45.)

The timer programming you set is overlapping with another timer programming.

Appears when you stop setting timer programming.

LUSCODE

DESCRIPTION

+® system for timer recording, set

LUS

number is entered.

REMAINING CAPACITY IS SMALL DELETE UNWANTED PROGRAMME FROM HDD

TITLE MEMORY IS FULL, UNABLE TO RECORD DELETE UNWANTED PROGRAMME FROM HDD

UNABLE TO GO BACK ANYMORE You cannot go back beyond the start point of the

UNABLE TO GO FORWARD ANYMORE You cannot go forward beyond the end point of the

UNABLE TO SET TIMER PROGRAMME DUE TO SHORTAGE OF CAPACITY DELETE UNWANTED PROGRAMME FROM HDD

The remaining capacity of the HDD is short for the current recording.

You have already stored 100 programmes in the HDD. The recording cannot be started even though the capacity for the recording is enough.

recording.

There is not enough memory in the HDD for recording. To increase the free space, delete the unwanted programmes. (See page 36.)

Country/Area code list for Parental Lock

AD Andorra

AE United Arab Emirates AF Afghanistan

AG Antigua and Barbuda

AI Anguilla

AL Albania AM Armenia AN Netherlands Antilles AO Angola AQ Antarctica AR Argentina

AS American Samoa

AT Austria

AU Australia AW Aruba

AZ Azerbaijan

BA Bosnia and Herzegovina

BB Barbados BD Bangladesh

BE Belgium

BF Burkina Faso BG Bulgaria BH Bahrain

BI Burundi

BJ Benin BM Bermuda BN Brunei Darussalam BO Bolivia BR Brazil

BS Bahamas

BT Bhutan

BV Bouvet Island

BW Botswana

BY Belarus

BZ Belize CA Canada CC Cocos (Keeling) Islands

CF Central African Republic CG Congo CH Switzerland

CI Côte d’Ivoire

CK Cook Islands

CL Chile CM Cameroon CN China CO Colombia CR Costa Rica CU Cuba CV Cape Verde CX Christmas Island CY Cyprus

CZ Czech Republic DE Germany

DJ Djibouti DK Denmark DM Dominica DO Dominican Republic

DZ Algeria EC Ecuador

EE Estonia EG Egypt EH Western Sahara ER Eritrea

ES Spain

ET Ethiopia

FI Finland FJ Fiji FK Falkland Islands

FM Micronesia (Federated

States of) FO Faroe Islands FR France FX France, Metropolitan

GA Gabon GB United Kingdom GD Grenada GE Georgia

GF French Guiana

GH Ghana

GI Gibraltar

GL Greenland

GM Gambia GN Guinea GP Guadeloupe GQ Equatorial Guinea GR Greece GS South Georgia and the

South Sandwich GT Guatemala

GU Guam GW Guinea-Bissau GY Guyana

HK Hong Kong

HM Heard Island and

McDonald Islands

HN Honduras HR Croatia

HT Haiti

HU Hungary

ID Indonesia

IE Ireland

IL Israel IN India IO British Indian Ocean

Territory IQ Iraq IR Iran (Islamic Republic of)

IS Iceland

IT Italy JM Jamaica JO Jordan

JP Japan

KE Kenya

KG Kyrgyzstan

KH Cambodia

KI Kiribati

KM Comoros

KN Saint Kitts and Nevis KP Korea, Democratic

People's Republic of

KR Korea, Republic of

KW Kuwait

KY Cayman Islands KZ Kazakhstan LA Lao People's Democratic

Republic LB Lebanon LC Saint Lucia

LI Liechtenstein LK Sri Lanka LR Liberia LS Lesotho

LT Lithuania

LU Luxembourg

LV Latvia LY Libyan Arab Jamahiriya

MA Morocco

MC Monaco MD Moldova, Republic of MG Madagascar MH Marshall Islands

ML Mali MM Myanmar MN Mongolia MO Macau

MP Northern Mariana

Islands MQ Martinique MR Mauritania

MS Montserrat MT Malta

MU Mauritius

MV Maldives

MW Malawi

MX Mexico MY Malaysia MZ Mozambique NA Namibia NC New Caledonia NE Niger NF Norfolk Island NG Nigeria

NI Nicaragua

NL Netherlands NO Norway NP Nepal NR Nauru NU Niue NZ New Zealand

OM Oman

PA Panama PE Peru

PF French Polynesia PG Papua New Guinea PH Philippines PK Pakistan

PL Poland PM Saint Pierre and

Miquelon PN Pitcairn PR Puerto Rico

PT Portugal

PW Palau

PY Paraguay QA Qatar RE Réunion RO Romania RU Russian Federation

RW Rwanda

SA Saudi Arabia SB Solomon Islands SC Seychelles SD Sudan SE Sweden SG Singapore SH Saint Helena

SI Slovenia

SJ Svalbard and Jan Mayen

SK Slovakia

SL Sierra Leone SM San Marino SN Senegal SO Somalia SR Suriname

ST Sao Tome and Principe

SV El Salvador SY Syrian Arab Republic SZ Swaziland TC T urks and Caicos Islands TD Chad TF French Southern

Territories TG Togo TH Thailand

TJ Tajikistan

TK Tokelau

TM Turkmenistan

TN Tunisia TO Tonga TP East Timor TR Turkey TT Trinidad and Tobago TV Tuvalu

TW Taiwan

TZ Tanzania, United

Republic of UA Ukraine

UG Uganda UM United States Minor

Outlying Islands US United States UY Uruguay UZ Uzbekistan VA Vatican City State (Holy

See) VC Saint Vincent and the

Grenadines VE Venezuela

VG Virgin Islands (British)

VI Virgin Islands (U.S.) VN Vietnam VU Vanuatu

WF Wallis and Futuna

Islands

WS Samoa

YE Yemen YT Mayotte YU Yugoslavia ZA South Africa

ZM Zambia

ZR Zaire

ZW Zimbabwe

ADDITIONAL INFORMATION (cont.)

Table of languages and their abbreviations

AA Afar FA Persian KM Cambodian OM (Afan) Oromo SU Sundanese AB Abkhazian FI Finnish KN Kannada OR Oriya SV Swedish AF Afrikaans FJ Fiji KO Korean (KOR) PA Panjabi SW Swahili AM Ameharic FO Faroese KS Kashmiri PL Polish TA Tamil AR Arabic FY Frisian KU Kurdish PS Pashto, Pushto TE Telugu AS Assamese GA Irish KY Kirghiz PT Portuguese TG Tajik AY Aymara GD Scots Gaelic LA Latin QU Quechua TH Thai AZ Azerbaijani GL Galician LN Lingala RM Rhaeto-Romance TI Tigrinya BA Bashkir GN Guarani LO Laothian RN Kirundi TK Turkmen BE Byelorussian GU Gujarati LT Lithuanian RO Rumanian TL Tagalog BG Bulgarian HA Hausa LV Latvian, Lettish RU Russian TN Setswana BH Bihari HI Hindi MG Malagasy RW Kinyarwanda TO Tongan BI Bislama HR Croatian MI Maori SA Sanskrit TR Turkish BN Bengali, Bangla HU Hungarian MK Macedonian SD Sindhi TS Tsonga BO Tibetan HY Armenian ML Malayalam SG Sangho TT Tatar BR Breton IA Interlingua MN Mongolian SH Serbo-Croatian TW Twi CA Catalan IE Interlingue MO Moldavian SI Singhalese UK Ukrainian CO Corsican IK Inupiak MR Marathi SK Slovak UR Urdu CS Czech IN Indonesian MS Malay (MAY) SL Slovenian UZ Uzbek CY Welsh IS Icelandic MT Maltese SM Samoan VI Vietnamese DA Danish IW Hebrew MY Burmese SN Shona VO Volapuk DZ Bhutani JI Yiddish NA Nauru SO Somali WO Wolof EL Greek JW Javanese NE Nepali SQ Albanian XH Xhosa EO Esperanto KA Georgian NL Dutch SR Serbian YO Yoruba ET Estonian KK Kazakh NO Norwegian SS Siswati ZU Zulu EU Basque KL Greenlandic OC Occitan ST Sesotho

Digital output signal chart

Output

Disc type

PCM ONLY DOLBY DIGITAL/PCM STREAM/PCM

DVD with 48 kHz, 16/20/24 bit linear PCM

DVD with 96 kHz, 16/20/24 bit linear PCM

DVD with DTS 48 kHz, 16 bit, stereo linear PCM DTS bitstream

DVD with Dolby Digital

DVD with MPEG Multichannel 48 kHz, 16 bit, stereo linear PCM MPEG bitstream

SVCD/Video CD/Audio CD 44.1 kHz, 16 bit, stereo linear PCM

Audio CD with DTS 44.1 kHz, 16 bit, stereo linear PCM DTS bitstream

CD-R/RW with MP3 Linear PCM

48 kHz, 16 bit, stereo linear

PCM

NOTE

With some DVD Video discs that are not fully copy-protected, a 20 or 24 bit digital signal may be output.

48 kHz, 16 bit, stereo linear PCM

48 kHz, 16 bit, stereo linear PCM (Down sampling)

Dolby Digital bitstream

Glossary

Aspect ratio

A ratio which deﬁnes the shape of the rectangular picture on a TV. It is the width of the picture relative to the height. A conventional TV picture is 4:3 in aspect ratio.

Bitstream

The digital format of multichannel audio data (e.g., 5.1channel) before it is decoded into its various channels.

Linear PCM

PCM stands for “pulse code modulation.” Linear PCM is the usual method for digitally encoding audio without compression, and is used for the audio tracks on DVD Video discs, CDs, etc.

MP3

MP3 is an audio data compression format, which stands for MPEG-1 Audio Layer 3. Using MP3, you can achieve a data reduction of about 1:10 compared to a conventional CD.

Chapter/title

Chapter is the smallest division and title is the largest division on DVD Video. A chapter is a division of a title and similar to a track for VCD or CD.

Dolby Digital (AC3)

A six-channel system consisting of left, centre, right, left rear, right rear and LFE (Low-Frequency Effect channel, for use with a subwoofer) channels. All processing is done in the digital domain. Not all Dolby Digital discs contain six (5.1) channels.

Dolby Surround/Dolby Pro Logic

Dolby Surround records four channels of front and rear audio in two channels in a way that allows a decoder to recover the original four channels for playback. Because the audio is recorded in two channels, it can be played back naturally by a two-channel stereo system. Dolby Pro Logic introduces directional circuits in decoder-side processing (increasing the level of speciﬁc channels and lowering the level of silent channels) for greater spatial perspective, and adds a centre speaker used primarily for dialogue. The result is enhanced channel separation.

DTS

A digital surround audio encoding format conﬁgured with six (5.1) channels, similar to Dolby Digital. DTS stands for Digital Theatre Systems. Not all DTS discs contain six (5.1) channels of information.

Dynamic range

The difference between the loudest and softest sounds.

JPEG

A popular ﬁle format for still image compression and storage. JPEG stands for Joint Photographic Experts Group. There are three sub-types of the JPEG format as follows.

• Baseline JPEG: used for digital cameras, the web, etc.

• Progressive JPEG: used for the web

• Lossless JPEG: an old type, rarely used now

MPEG

A family of Standards for compressing visual signals. “MPEG” standards include MPEG-1, MPEG-2 and MPEG-

4. Video CD is based on MPEG-1, while DVD is based on MPEG-2. MPEG stands for Moving Picture Experts Group.

• This is also used for compressing audio signals (ex. MP3).

MPEG Multichannel

This feature expands the 5.1 channel audio format recorded in the disc to a 7.1 channel format. The further expansion of the 5.1 channel audio makes it easy for you to reproduce the movie theatre experience in your own home.

NICAM

Broadcast providing stereo, FM sound, or bilingual programmes. The TV tuner built in this unit can receive these NICAM signals.

NTSC (National television system committee)

A black and white and colour television system format used in the U.S.A., Canada, Mexico and Japan.

PAL (Phase Alternation by Line)

A colour television system format used extensively in Western Europe.

PBC

PBC stands for “Playback control” and is a method of controlling disc play for Video CDs (VCD). You are able to interact with the disc through menus.

RGB

An abbreviation for Red, Green, and Blue. Colour monitors and colour television sets display different hues by mixing these three colours.

Track

The smallest division on SVCD, Video CD and Audio CD discs.

Speciﬁcations

HDD Deck—Video/Audio

Video format: MPEG2 (VBR) Audio format: MPEG1 Layer2 Maximum recording time (approx.)

(SP): 20 hours (LP): 28 hours (EP): 56 hours (SEP): 80 hours

DVD player—Audio

Total harmonic distortion:Less than 0.006% Dynamic range:

16 bits: 98 dB 20 bits: 100 dB 24 bits: 100 dB

Frequency range

CD (fs=44.1 kHz): 2 Hz to 20,000z DVD (fs=48 kHz): 2 Hz to 22,000z

DVD (fs=96 kHz): 2 Hz to 44,000z Output level: DVD/HDD AUDIO OUT: 2 Vrms (10 kΩ) DVD DIGITAL OUT:

COAXIAL: 0.5Vp-p (75Ω termination) OPTICAL: –21dBm to –15dBm(Peak)

ADDITIONAL INFORMATION (cont.)

General

Power requirement:AC 230 V , 50 Hz Power consumption

Power on: 45 W

Power off: 15 W Operating position : Horizontal only Dimensions (WxHxD):435 mm x 68 mm x 346 mm Weight: 4.8 kg

Accessories

RF cable: x 1 Audio/video cable: x 1 Satellite Controller: x 1 Remote control unit: x 1 Battery—R6P(SUM-3)/AA(15F): x 2

Speciﬁcations and appearance are subject to change without prior notice.

DVD player—Video

Horizontal resolution: 500 lines Output level:

RGB: 0 – 700 mV (75Ω) S-video (Y): 1.0 Vp-p (75Ω)

Composite video: 1.0 Vp-p (75

(C): 300 mV (75Ω)

Ω)

Tuner/Timer

TV channel storage capacity:

Tuning system: Frequency synthesized tuner Channel coverage: VHF: 44.5 MHz – 143 MHz/

Memory backup time: Approx. 10 min.

99 positions (+AUX position)

143 MHz – 470 MHz

UHF: 470 MHz – 862 MHz

Index

Numerics & Symbols

3D PHONIC

•ACTION 57

•DRAMA 57

•THEATER 57 x1.5 Quick Playback with sound 49

ACTION 57 AUDIO

•ANALOG DOWN MIX 78

•D. RANGE CONTROL 78

•DIGITAL AUDIO OUTPUT 78

•OUTPUT LEVEL 78

Audio language 56, 76 AUDIO REC 67 Auto Channel Setup 70 Auto Setup 13 Automatic Satellite Recording 46

Basic Playback 25 Basic Recording 23 BRIGHTNESS 58

CATEGORY 32 Changing the DVD settings 75 Conﬁrming on-screen information 28, 48 Connections

•Basic 11

•Composite video 12, 84 – 86

•SCART connector 11

•Satellite receiver 17, 86

•Stereo System 87

•S-video 12, 83 – 85

TV-linked Setup 14 CONTRAST 58

D. RANGE CONTROL 78 Daily Timer 43 DIRECT REC 67 Disc menu 51 DRAMA 57 DVD Initial Setup 20 DVD playback

•Frame-by-Frame playback 50

•Pause 48

•Program Play 53

•Quick & Short Review 50

•Random Play 54, 63, 65

•Repeat Play 54

•Slow Motion 50

•Time Search 52

•Various speed playback 49

Editing

•from a camcorder 83

•to or from a VCR 84 Express Timer programming 42

F-1 INPUT 68 Frame-by-Frame Playback 27, 50 FUNCTION SET UP 66

GAMMA 58

HDD Navigation

•CATEGORY 32

•Editing 34

•Playing 29

•TITLE 33 HDD SET UP 66

INITIAL SET UP 66 INPUT/OUTPUT

•F-1 INPUT 68

•L-1 INPUT 68

•L-1 OUTPUT 68

•L-2 INPUT 68

•L-2 SELECT 68 Instant Timer Recording (ITR) 24

JPEG disc 63 Jump Search 27 JUMP TIME 67 JVC Customer Service 15

L-1 INPUT 68 L-1 OUTPUT 68 L-2 INPUT 68 L-2 SELECT 68 LANGUAGE

•AUDIO LANGUAGE 76

•MENU LANGUAGE 76

•SUBTITLE 76 LIVE MEMORY 67 Live Memory

•Playback (Pause) 21

•Playback (Replay) 22

•Recording 22

Manual Channel Setup 71 Menu bar operations 59 MENU LANGUAGE 76 MONITOR TYPE 77 MP3 disc 61 MP3/JPEG 77 Multi-angle 56

NICAM broadcasts 22

O.S.D. 67 ON SCREEN GUIDE 79 Once Timer 43 One Touch Replay 26, 50 On-screen guide icons 48 OTHERS

•AV COMPULINK MODE 79

•ON SCREEN GUIDE 79

•PARENTAL LOCK 79

•RESUME 79 OUTPUT LEVEL 78

Parts identiﬁcation 6 Pause

•Playback 25

•Recording 83 PICTURE

•MONITOR TYPE 77

•MP3/JPEG 77

•PICTURE SOURCE 77

•SCREEN SAVER 77

•PICTURE SOURCE 77 Play list 30, 37 Playback Control 48 PlusCode number 40 Program Play 53 Programme Delivery Control Recording 44

Quick Skip 26

Random Play 54 Recording speed 24 Remaining time 24, 60 Repeat Play 27, 54, 63, 65 RESUME 79 Resume playback 49

SATURATION 58 Screen

•DVD PLAYER SET UP 20

•JPEG CONTROL 64

•MP3 CONTROL 61

•NAVIGATION 29

•Opening 16

•PARENTAL LOCK 80

•PLAY LIST 30

•PLAY LIST/CREATE 38

•PROGRAMME LIST 45

•REC LIST 30

•REC LIST/DELETE 36

•REC LIST/DIVIDE 37

•REC LIST/MODIFY 35

•SCREEN SAVER 77 Screen saver 48 Setup

•Auto Channel 70

•Auto Setup 13

•clock time 69

•DVD Initial 20

•Easy & simple 13

•Guide Program number 69

•Manual Channel 71

•Remote control code 82

•Satellite controller 17

•T-V Linked Setup 14 SHARPNESS 58 Slide show 65 Slow Motion 27, 50 Special Effect Playback

•Frame-by-Frame Playback 27

•Jump Search 27

•One Touch Replay 26

•Quick Skip 26

•Repeat Playback 27

•Slow Motion 27

•Still Picture 27

•Variable Speed Search 26

Status bar 59 Still Picture 27, 48 Subtitle 56, 76

THEATER 57 Time Search 52 Timer programming

•Express 42

•VIDEO Plus+®40

TINT 58 TITLE 33 TV station and ID list 73 TV station channel number guide 74 TV-Linked Setup 14 T-V LINK 15

Variable Speed Search 26 Various speed playback 49

•Frame-by-Frame Playback 50

•One Touch Replay 50

•Slow Motion 50

Variable Speed Search 26 Video Fine Processor 58

Watching TV Programmes 21 Weekly Timer 43

Y DELAY 58

Zoom 58, 65

SAFETY INSTRUCTIONS

“SOME DOS AND DON’TS ON THE SAFE USE OF EQUIPMENT”

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.

Do read the operating instructions before you attempt to use the equipment.

Do ensure that all electrical connections (including the mains plug, extension leads and interconnections between pieces of equipment) are properly made and in accordance with the manufacturer’s instructions. Switch off and withdraw the mains plug when making or changing connections.

Do consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.

Do be careful with glass panels or doors on equipment.

DON’T continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged in any way—switch off, withdraw the mains plug and consult your dealer.

DON’T remove any ﬁxed cover as this may expose dangerous voltages.

DON’T leave equipment switched on when it is unattended unless it is speciﬁcally stated that it is designed for unattended operation or has a standby mode.

Switch off using the switch on the equipment and make sure that your family know how to do this.

Special arrangements may need to be made for inﬁrm or handicapped people.

DON’T use equipment such as personal stereos or radios so that you are distracted from the requirements of trafﬁc safety. It is illegal to watch television whilst driving.

DON’T listen to headphones at high volume as such use can permanently damage your hearing.

DON’T obstruct the ventilation of the equipment, for example with curtains or soft furnishings. Overheating will cause damage and shorten the life of the equipment.

DON’T use makeshift stands and NEVER ﬁx legs with wood screws—to ensure complete safety always ﬁt the manufacturer’s approved stand or legs with the ﬁxings provided according to the instructions.

DON’T allow electrical equipment to be exposed to rain or moisture.

ABOVE ALL

— NEVER let anyone, especially children, push anything into holes, slots or any other opening

in the case—this could result in a fatal electrical shock;

— NEVER guess or take chances with electrical equipment of any kind—it is better to be safe

than sorry!

VICTOR COMPANY OF JAPAN, LIMITED

EN.

0603KTYMDWJEM

JVC XV-DDV1SL, LET0239-001A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

WARNINGS, CAUTIONS AND OTHERS

CONTENTS

PARTS IDENTIFICATION

REMOTE CONTROL SETTINGS

INSTALLING THE UNIT

INITIAL SETTINGS

WATCHING TV

HDD RECORDING/PLAYBACK

Basic playback

Special effect playback

Playing with HDD Navigation

EDITING HDD NAVIGATION

TIMER RECORDING

Express Timer programming

Automatic Satellite Recording

BASIC DVD OPERATIONS

Playing back discs

ADVANCED DVD OPERATIONS

Changing the playback order

Using sound effects and special picture playback

Menu bar operations

MP3/JPEG OPERATIONS

Playing an MP3 disc

Playing a JPEG disc

Changing the HDD/TV tuner settings

CHANGING THE INITIAL SETTINGS

Limiting playback by children

Setting the remote control code

EXTERNAL COMPONENT OPERATIONS

Editing from a camcorder

Editing to or from a VCR

Connecting to a satellite receiver

Connecting to a Stereo System

Troubleshooting

ADDITIONAL INFORMATION

On-screen messages

Country/Area code list for Parental Lock

Table of languages and their abbreviations

Digital output signal chart

Glossary

Index
