How to reset your unit

Press and hold both the SEL (select) and (standby/on/attenuator) buttons at the same time for several seconds. This will reset the built-in microcomputer.

ENGLISH

(standby/on/attenuator)

SEL (select)

Note:

Your preset adjustments – such as preset channels or sound adjustments – will also be erased.

How to use the number buttons:

If you press MODE, the unit goes into functions mode and the number buttons work as different function buttons.

MODE

8 9 10 11 127

RNDRPTMO

To use these buttons as number buttons again after pressing MODE, wait for 5 seconds without pressing any number button until the functions mode is cleared.

• Pressing MODE again also clears the functions mode.

Thank you for purchasing a JVC product. Please read all instructions carefully before operation,

to ensure your complete understanding and to obtain the best possible performance from the unit.

How to reset your unit............................... 2

How to use the number buttons................ 2

LOCATION OF THE BUTTONS............ 4

Control panel ........................................... 4

BASIC OPERATIONS ...................... 5

Turning on the power ................................ 5

RADIO BASIC OPERATIONS ............. 6

Listening to the radio ................................ 6

Storing stations in memory ....................... 8

Tuning in to a preset station ..................... 9

RDS OPERATIONS ........................ 10

What you can do with RDS....................... 10

Other convenient RDS functions and

adjustments........................................... 14

TAPE OPERATIONS ....................... 17

Listening to a cassette.............................. 17

Finding the beginning of a tune ................ 18

Other convenient tape functions............... 18

SOUND ADJUSTMENTS .................. 20

Adjusting the sound ................................. 20

Using the sound control memory (SCM) ... 21

Storing your own sound adjustments ....... 22

OTHER MAIN FUNCTIONS ............... 23

Setting the clock ...................................... 23

Selecting the color of the display window .. 24

Changing the general settings (PSM) ...... 24

Detaching the control panel...................... 27

CD CHANGER OPERATIONS ............. 28

Playing CDs ............................................. 28

Selecting CD playback modes.................. 29

EXTERNAL COMPONENT OPERATIONS.. 30

Playing an external component ................ 30

DAB TUNER OPERATIONS ............... 31

Tuning in to an ensemble and one of the

services ................................................. 31

Storing DAB services in memory ............. 32

Tuning in to a preset DAB service ............ 33

TROUBLESHOOTING...................... 34

MAINTENANCE ............................ 36

SPECIFICATIONS .......................... 37

ENGLISH

Note:

For security reasons, a numbered ID card is provided with this unit, and the same ID number is imprinted on the unit’s chassis. Keep the card in a safe place, as it will help the authorities to identify your unit if stolen.

BEFORE USE

For safety....

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car....

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

Control panel

Display window

ENGLISH

LOCATION OF THE BUTTONS

;

hkj

TP/PTY

SEL

DISP

1 (standby/on/attenuator) button 2 TP (traffic programme)/

PTY (programme type) button

3 SEL (select) button 4 Display window 5 Cassette compartment 6 0 (eject) button 7 CD-CH (CD changer) button 8 FM/AM button

•

Also functions as DAB button.

9 TAPE 23 button p ¢/4 buttons

•

Also function as SSM buttons when pressed together.

q +/– buttons w DISP (display) button e MO (monaural) button r RPT (repeat) button t RND (random) button y Number buttons

CD CHANGER CONTROL

SCM

FM/AM

CDCH

TAPE

SSM

11 12

RPT

RND

DAB

MODE

u MODE button i SCM (sound control memory) button o (control panel release) button

Display window

; SCM (sound control memory) indicator a FM band indicator (FM1, FM2, FM3) s Main display d Tuner reception indicators

MO (monaural), ST (stereo)

f LOUD (loudness) indicator g RND (random) indicator h AM band indicator j CD-CH (CD changer) indicator k TAPE indicator l Volume (or audio) level indicator / RDS indicators

AF, REG, PTY, TP

z RPT (repeat) indicator

BASIC OPERATIONS

TP/PTY

SEL

DISP

Turning on the power

Turn on the power.

Note on One-Touch Operation:

When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power.

Select the source.

TAPE

DAB

FM/AM

CDCH

To operate the tuner (FM or AM),

see pages 6 – 16.

To operate the tape,

see pages 17 – 19.

To operate the CD changer,

see pages 28 – 29.

To operate the external component,

see page 30.

To operate the DAB tuner,

see pages 31 – 33.

CD CHANGER CONTROL

11 12

RPT

RND

TAPE

DAB

FM/AM

SSM

CDCH

MODE

SCM

ENGLISH

Adjust the volume.

To increase the volume.

To decrease the volume.

Volume level appears.

Volume level indicator

Adjust the sound as you want. (See pages 20 – 22.)

To drop the volume in a moment

Press briefly while listening to any source. “ATT” starts flashing on the display, and the volume level will drop in a moment. To resume the previous volume level, press the button briefly again.

To turn off the power

Press and hold for more than one second.

Note:

When you use this unit for the first time, set the built-in clock correctly, see page 23.

RADIO BASIC OPERATIONS

TP/PTY

ENGLISH

SEL

DISP

Listening to the radio

You can use either automatic searching or manual searching to tune in to a particular station.

Searching a station automatically: Auto search

Select the band (FM1 – 3, AM).

DAB

FM/AM

FM1 FM2 FM3 AM

CD CHANGER CONTROL

RND

11 12

RPT

Start searching a station.

MODE

TAPE

DAB

FM/AM

SSM

CDCH

SCM

To search stations of higher

frequencies.

To search stations of lower frequencies.

When a station is received, searching stops.

To stop searching before a station is received,

press the same button you have pressed for searching.

Selected band appears.

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

Searching a station manually: Manual search

Select the band (FM1 – 3, AM).

DAB

FM/AM

• If you release your finger from the button, the manual mode will automatically turn off after 5 seconds.

• If you hold down the button, the frequency keeps changing (in 50 kHz intervals for FM and 9 kHz intervals for AM – MW/LW) until you release the button.

ENGLISH

FM1 FM2 FM3 AM

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

Press and hold ¢ or 4 until “M (manual)” starts flashing on the display.

Selected band appears.

T une in to a station you want while “M” is flashing.

When an FM stereo broadcast is hard to receive:

1 Press MODE to enter the functions mode

while listening to an FM stereo broadcast.

2 Press MO (monaural), while still in the

functions mode, so that the MO indicator lights up on the display.

MODE

When the MO indicator is lit on the display, the sound you hear becomes monaural but the reception will be improved (the ST indicator goes off).

To restore the stereo effect, repeat steps 1 and 2 so that the MO (monaural) indicator goes off.

To tune in to stations of

higher frequencies.

To tune in to stations of lower frequencies.

Storing stations in memory

You can use one of the following two methods to store broadcasting stations in memory.

• Automatic preset of FM stations: SSM (Strong-

ENGLISH

station Sequential Memory)

• Manual preset of both FM and AM stations

FM station automatic preset: SSM

Y ou can preset 6 local FM stations in each FM band (FM1, FM2 and FM3).

Select the FM band (FM1 – 3) you want to store FM stations into.

DAB

FM/AM

FM1 FM2 FM3 AM

Press and hold both buttons for more than 2 seconds.

Manual preset

You can preset up to 6 stations in each band (FM1, FM2, FM3 and AM) manually.

Ex.: Storing an FM station of 88.3 MHz into the

preset number 1 of the FM1 band

Select the band (FM1 – 3, AM) you want to store stations into (in this example, FM1).

DAB

FM/AM

FM1 FM2 FM3 AM

Tune in to a station (in this example, of 88.3 MHz).

To tune in to stations of

higher frequencies.

To tune in to stations of lower frequencies.

“SSM” appears, then disappears when automatic preset is over.

Local FM stations with the strongest signals are searched and stored automatically in the band number you have selected (FM1, FM2 or FM3). These stations are preset in the number buttons — No.1 (lowest frequency) to No .6 (highest frequency). When automatic preset is over, the station stored in number button 1 will be automatically tuned in.

Press and hold the number button (in this example, 1) for more than 2 seconds.

Tuning in to a preset station

You can easily tune in to a preset station. Remember that you must store stations first. If y ou have not stored them yet, see “Storing stations in memory” on pages 8 and 9.

Select the band (FM1 – 3, AM).

DAB

FM/AM

ENGLISH

“P1” flashes for a few seconds.

Repeat the above procedure to store other stations into other preset numbers.

Notes:

• A previously preset station is erased when a new station is stored in the same preset number.

• Preset stations are erased when the power supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the stations again.

FM1 FM2 FM3 AM

Select the number (1 – 6) for the preset station you want.

8 9 10 11 127

RNDRPTMO

RDS OPERATIONS

What you can do with RDS

RDS (Radio Data System) allows FM stations to send an additional signal along with their regular programme signals. For example, the stations

ENGLISH

send their station names, as well as information about what type of programme they broadcast, such as sports or music, etc. Another advantage of RDS function is called “Enhanced Other Networks.” By using the Enhanced Other Networks data sent from a station, you can tune in to a different station of a different network broadcasting your favourite programme or traffic announcement while listening to another programme or to another source such as tape.

By receiving the RDS data, this unit can do the following:

• Tracing the same programme automatically (Network-Tracking Reception)

• Standby Reception of TA (Traffic Announcement) or your favourite programme

• PTY (Programme Type) search

• Programme search

• And some other functions

Tracing the same programme automatically (Network-Tracking Reception)

When driving in an area where FM reception is not good, the tuner built in this unit automatically tunes in to another RDS station, broadcasting the same programme with stronger signals. So, you can continue to listen to the same programme in its finest reception, no matter where you drive. (See illustration on page 11.) Two types of the RDS data are used to make Network-Tracking Reception work correctly — PI (Programme Identification) and AF (Alternative Frequency). Without receiving these data correctly from the RDS station you are listening to, Network-Tracking Reception will not operate.

To use Network-Tracking Reception

You can select the different modes of networktracking reception to continue listening to the same programme in its finest reception. When shipped from the factory, “AF” is selected.

•AF: Network-Tracking Reception is activated with Regionalization set to “off.” With this setting, the unit switches to another station within the same network when the receiving signals from the current station become weak. (In this mode, the programme may differ from the one currently received.) The AF indicator lights up but the REG indicator does not.

• AF REG: Network-Tracking Reception is activated with Regionalization set to “on. ” With this setting, the unit switches to another station, within the same network, broadcasting the same programme when the receiving signals from the current station become weak. Both the AF indicator and the REG indicator light up.

• OFF: Network-Tracking Reception is deactivated. Neither the AF indicator nor the REG indicator lights up.

AF indicator

REG indicator

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see page 25.)

SEL

Select “AF REG (alternative frequency/Regionalization reception)” if not shown on the display.

Select the desired mode – “AF,” “AF REG” or “OFF.”

Finish the setting.

SEL

The same programme can be received on different frequencies.

Programme 1 broadcasting on frequency A

Programme 1 broadcasting on frequency B

Programme 1 broadcasting on frequency C

Programme 1 broadcasting on frequency E

Programme 1 broadcasting on frequency D

Using TA Standby Reception

TA Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) from the current source (another FM station, tape or other connected components).

• TA Standby Reception will not work if you ar e listening

to an AM station.

TP/PTY

Press TP/PTY to activate TA Standby Reception. 7 When the current source is FM, the TP

indicator either lights up or flashes.

• If the TP indicator lights up, T A Standby Reception is activated. If a station starts broadcasting a traffic announcement, “TRAFFIC” appears on the display, and this unit automatically tunes in to the station. The volume changes to the preset TA volume level (see page 15) and the traffic announcement can be heard.

• If the TP indicator flashes, T A Standby Reception is not yet activated since the station being received does not provide the signals used for TA Standby Reception. To activate TA Standby Reception, you need to tune in to another station providing these signals. Press ¢ or 4 to search for such a station. When a station providing these signals is tuned in, the TP indicator stops flashing and remains lit. Now TA Standby Reception is activated.

7 When the current source is other than FM,

the TP indicator lights up. If a station starts broadcasting a traffic announcement, “TRAFFIC” appears on the display, and this unit automatically changes the source and tunes in to the station.

To deactivate the TA Standby Reception, press TP/PTY again.

ENGLISH

Using PTY Standby Reception

SEL

PTY Standby Reception allows the unit to switch temporarily to your favourite programme (PTY: Programme Type) from the current source (another FM station, tape or other connected components).

ENGLISH

• PTY Standby Reception will not work if you are

listening to an AM station.

You can select your favourite programme type for PTY Standby Reception. When shipped from the factory, PTY Standby Reception is turned off. (“OFF” is selected f or PTY Standby Reception.)

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display . (PSM: see page 25.)

SEL

Select “PTY STBY (standby)” if not shown on the display.

Select one of the twenty-nine PTY codes. (See page 16.)

Selected code name appears on the display and is stored into memory.

• To cancel the PTY Standby Reception, select “OFF.”

Finish the setting.

7 When the current source is FM, the

PTY indicator either lights up or flashes.

• If the PTY indicator lights up, PTY Standby Reception is activated. If a station starts broadcasting the selected PTY programme, this unit automatically tunes in to the station.

• If the PTY indicator flashes, PTY Standby Reception is not yet activated since the station being received does not provide the signals used for PTY Standby Reception. To activate PTY Standby Reception, you need to tune in to another station providing these signals. Press ¢ or 4 to search for such a station. When a station providing these signals is tuned in, the PTY indicator stops flashing and remains lit. Now PTY Standby Reception is activated.

7 When the current source is other than

FM, the PTY indicator lights up.

If a station starts broadcasting the selected PTY programme, this unit automatically changes the source and tunes in to the station.

To deactivate the PTY Standby Reception,

select “OFF” in step 3 on the left column. The PTY indicator disappears.

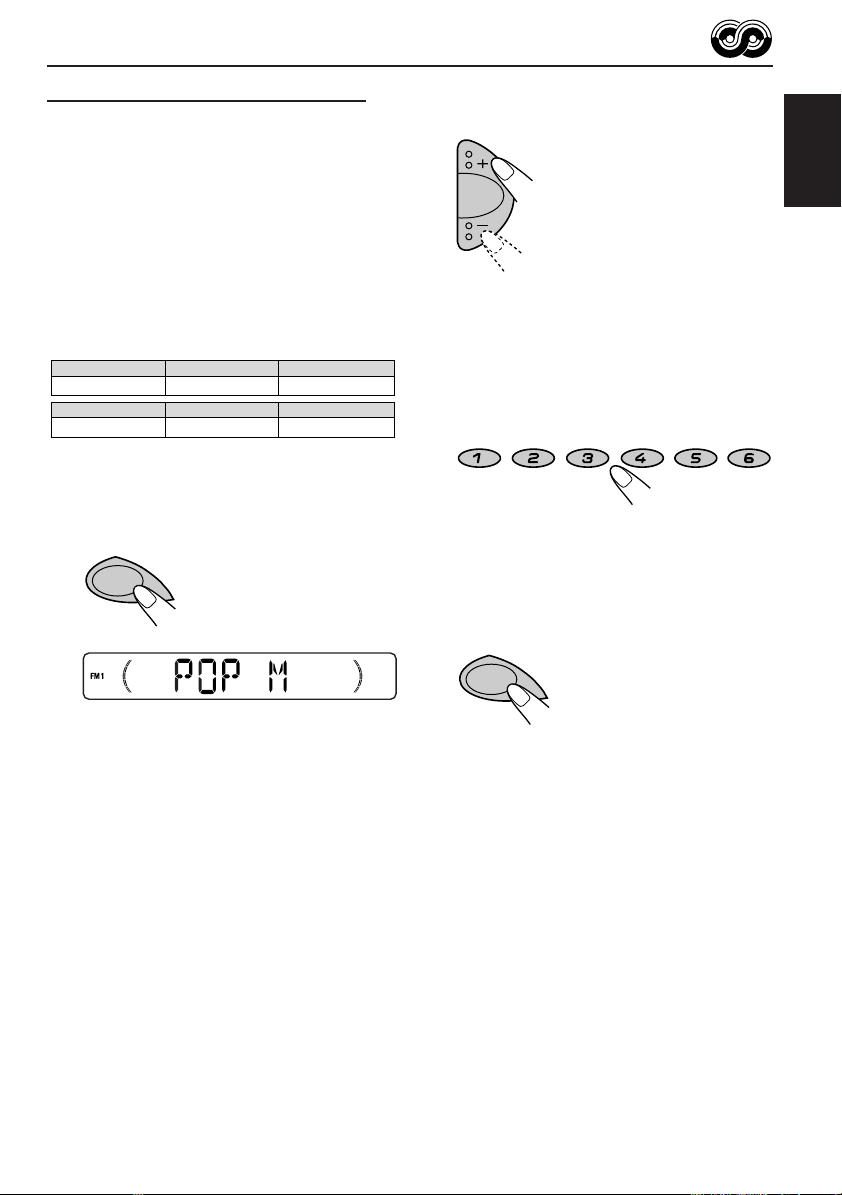

Searching your favorite programme

TP/PTY

You can search any one of the PTY codes. In addition, you can store your 6 favorite programme types in the number buttons. When shipped from the factory, the following 6 programme types have been stored in the number buttons (1 to 6).

To store your favorite programme types, see below. To search your favorite programme type, see page 14.

POP M

CLASSICS

ROCK M EASY M

AFFAIRS

To store your favorite programme types

Press and hold TP/PTY for more than 2 seconds.

TP/PTY

VARIED

Select one of the twenty-nine PTY codes. (See page 16.)

Selected code name appears on the display.

Press and hold the number button for more than 2 seconds to store the PTY code selected into the preset number you want.

8 9 10 11 127

“MEMORY ” and the selected code name alternates on the display.

Press and hold TP/PTY for more than 2 seconds.

ENGLISH

RNDRPTMO

The last selected PTY code appears.

To search your favorite programme type

Press and hold TP/PTY for more than 2 seconds while listening to an FM station.

ENGLISH

TP/PTY

The last selected PTY code appears.

Select one of the PTY codes.

8 9 10 11 127

Other convenient RDS functions and adjustments

Automatic selection of the station when using the number buttons

Usually when you press the number button, the preset station is tuned in. However , when the preset station is an RDS station, something different will happen. If the signals from that preset station are not sufficient for good reception, this unit, using the AF data, tunes in to another frequency broadcasting the same programme as the original preset station is broadcasting. (Programme search)

• The unit takes some time to tune in to another station using Programme search.

RNDRPTMO

T o activate programme search, f ollow the procedure below.

• See also “Changing the general settings (PSM)” on page 24.

1 Press and hold SEL (select) for more than 2

seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select

“P(Programme)-SEARCH.”

3 Press + to select “ON.”

Now programme search is activated.

4 Press SEL (select) to finish the setting.

Ex.: When “ROCK M” is selected

Press ¢ or 4 to start PTY search for your favourite programme.

• If there is a station broadcasting a programme of the same PTY code as you selected, that station is tuned in.

• If there is no station broadcasting a programme of the same PTY code as you selected, the station will not change.

Note:

In some areas, the PTY search will not work correctly.

To cancel programme search, repeat the same procedure and select “OFF” in step 3 by pressing –.

Changing the display mode while listening to an FM station

You can change the initial indication on the display to station name (PS NAME), station frequency (FREQ) or clock time (CLOCK) while listening to an FM RDS station.

• See also “Changing the general settings (PSM)” on page 24.

1 Press and hold SEL (select) for more than 2

seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select “DISPMODE

(display mode).”

3 Press + or – to set to the desired indication (“PS

NAME,” “FREQ” or “CLOCK”).

4 Press SEL (select) to finish the setting.

Setting the TA volume level

You can preset the volume level for TA Standby Reception. When a traffic programme is received, the volume level automatically changes to the preset level.

• See also “Changing the general settings (PSM)” on page 24.

1 Press and hold SEL (select) for more than 2

seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select “TA VOL

(volume).”

3 Press + or – to set to the desired volume.

You can set it from “VOL 00” to “VOL 50.”

4 Press SEL (select) to finish the setting.

ENGLISH

Note:

By pressing DISP (display), you can change the display while listening to an FM RDS station. Each time you press the button, the following information appears on the display:

Station name

(PS NAME)

Programme type

(PTY)

Station frequency

(FREQ)

Clock time

(CLOCK)

• Then, the display goes back to the original indication

in several seconds.

Automatic clock adjustment

When shipped from the factory, the clock built in this unit is set to be readjusted automatically using the CT (Clock Time) data in the RDS signal. If you do not want to use automatic clock adjustment, follow the procedure below.

• See also “Changing the general settings (PSM)” on page 24.

1 Press and hold SEL (select) for more than 2

seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select “AUTO ADJ

(adjustment).”

3 Press – to select “OFF.”

Now automatic clock adjustment is canceled.

4 Press SEL (select) to finish the setting.

To reactivate clock adjustment, repeat the same

procedure and select “ON” in step 3 b y pressing +.

Note:

Y ou must stay tuned to the same station for more than 2 minutes after setting “AUTO ADJ” to “ON.” Otherwise, the clock time will not be adjusted. (This is because the unit takes up to 2 minutes to capture the CT data in the RDS signal.)

PTY codes

NEWS: News AFFAIRS: Topical programmes expanding

ENGLISH

INFO: Programmes which impart advice

SPORT: Sport events EDUCATE: Educational programmes DRAMA: Radio plays CULTURE: Programmes on national or

SCIENCE: Programmes on natural science

VARIED: Other programmes like comedies

POP M: Pop music ROCK M: Rock music EASY M: Easy-listening music LIGHT M: Light music CLASSICS: Classical music OTHER M: Other music WEATHER: Weather information FINANCE: Reports on commerce, trading,

on current news or affairs

on a wide variety of topics

regional culture

and technology

or ceremonies

the Stock Market, etc.

CHILDREN: Entertainment programmes for

children SOCIAL: Programmes on social activities RELIGION: Programmes dealing with any

aspect of belief or faith, or the

nature of existence or ethics PHONE IN: Programmes where people can

express their views either by

phone or in a public forum TRAVEL: Programmes about travel

destinations, package tours, and

travel ideas and opportunities LEISURE: Programmes concerned with

recreational activities such as

gardening, cooking, fishing, etc. JAZZ: Jazz music COUNTRY: Country music NATION M: Current popular music from

another nation or region, in that

country’s language OLDIES: Classic pop music FOLK M: Folk music DOCUMENT: Programmes dealing with factual

matters, presented in an

investigative style

TAPE OPERATIONS

TP/PTY

SEL

DISP

Listening to a cassette

You can play back type 1 (normal) tapes.

Insert a cassette into the cassette compartment.

The unit turns on and tape play starts automatically . When one side of the tape reaches its end during play, the other side of the tape automatically starts playing. (Auto Reverse)

Note on One-Touch Operation:

When a cassette is already in the cassette compartment, select tape as the source by pressing TAPE 23 to start tape play.

Select the tape direction.

TAPE

Each time you press TAPE 23, the tape direction changes to forward ( ) and reverse ( ) alternately.

CD CHANGER CONTROL

TAPE

DAB

FM/AM

SSM

CD-

11 12

RPT

RND

MODE

SCM

To stop play and eject the cassette

Press 0. Tape play stops and the cassette automatically ejects from the cassette compartment. The source changes to the previously selected one. If you change the source, tape play also stops (without ejecting the cassette this time).

• Y ou can eject the cassette while the unit is turned off by pressing 0.

To fast-forward or rewind a tape

Press ¢ for more than

To stop fast forward or rewind at any position on the tape, press TAPE 23.

Tape play starts from that position on the tape.

1 second to fast-forward the tape . When the tape reaches its end, the tape is reversed and pla yback starts from the beginning of the other side.

Press 4

for more than 1 second to rewind the tape. When the tape reaches its end, playback of the same side starts.

ENGLISH

Notes:

• When one side of the tape reaches its end during

play, the other side of the tape automatically starts playing. (Auto Reverse)

• When the tape reaches its end while fast-forwarding,

the tape direction will be changed automatically.

SEL

Finding the beginning of a tune

SEL

Other convenient tape functions

Multi Music Scan allows you to automatically start playback from the beginning of a specified tune. You can specify up to 9 tunes ahead of or before

ENGLISH

the current tune.

During playback

Specify how many tunes ahead of or before the current tune the one you want is located.

Press ¢ to locate a tune

Each time you press the buttons, the number changes up to ±9. When the beginning of the specified tune is located, playback starts automatically.

Notes:

• While locating a specified tune:

– If the tape is rewound to its beginning, playback

starts from the beginning of that side.

– If the tape is fast-forwarded to the end, it is

reversed and played from the beginning of the other side.

• In the following cases, the Multi Music Scan

function may not operate correctly: – Tapes with tunes having long pianissimo passages

(very quiet parts) or non-recorded portions

between tunes. – Tapes with short non-recorded sections. – Tapes with high level of noise or humming

between tunes. – Tapes with tunes recorded at low recording levels.

ahead of the current tune on the cassette.

Press 4 to locate a tune before the current tune on the cassette.

Skipping the blank portions on the tape

You can skip blank portions between the tunes (Blank Skip). When this function is on, the unit skips blank portions of 15 seconds or more, fast-forwards to the next tune, then starts playing it.

• See also “Changing the general settings (PSM)” on page 24.

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see page 25.)

Press ¢ or 4 to select “B. SKIP (blank skip).”

Press + to select “ON.”

Now Blank Skip is activated.

Finish the setting.

To cancel Blank Skip, repeat the same procedure and select “OFF” in step 3 by pressing –.

Playing the current tune repeatedly

You can play the current tune repeatedly (Repeat Play).

1 Press MODE to enter the functions mode

while playing a tune you want to hear over again on a cassette. This unit enters the functions mode.

2 Press RPT (repeat), while still in the functions

mode, so that the RPT indicator lights up on the display.

MODE

Lights up when Repeat Play is turned on.

When the tune has been played, the tape is automatically rewound to the beginning of that tune and the same tune will be played again.

To cancel Repeat Play, repeat steps 1 and 2 again so that the RPT indicator goes off.

Note:

In the following cases, Blank Skip and Repeat Play may not operate correctly: – Tapes with tunes having long pianissimo passages

(very quiet parts) or non-recorded portions during

tunes. – Tapes with short non-recorded sections. – Tapes with high level noise or humming between

tunes. – Tapes with tunes recorded at low recording levels.

RPT

Prohibiting cassette ejection

You can prohibit cassette ejection and “lock” a cassette in the cassette compartment. Press and hold TAPE 23 and 0 (eject) for more than 2 seconds.

TAPE

“NO EJECT” flashes on the display for about 5 seconds, and the cassette is “locked.”

To cancel the prohibition and “unlock” the cassette, press and hold TAPE 23 and 0 (eject)

for more than 2 seconds again.

“EJECT OK” flashes for about 5 seconds , and this time the cassette is “unlocked.”

Note:

If you press 0 while cassette ejection is prohibited, the cassette will not be ejected.

ENGLISH

SOUND ADJUSTMENTS

Adjusting the sound

Adjust the level.

You can adjust the sound characteristics to your preference.

ENGLISH

Select the item you want to adjust.

SEL

BAS

(bass)

VOL

(volume)

Indication To do: Range

BAS Adjust the bass. –06 (min.)

TRE Adjust the treble. –06 (min.)

FAD* Adjust the front R06 (Rear only)

BAL Adjust the left L06 (Left only)

LOUD Boost low and high

VOL Adjust the volume. 00 (min.)

and rear speaker | balance. F06 (Front only)

and right speaker | balance. R06 (Right only)

frequencies to produce a wellbalanced sound at low volume level.

Each time you press the button, the adjustable items change as follows:

TRE

(treble)

LOUD

(loudness)

FAD

(fader)

BAL

(balance)

| +06 (max.)

LOUD ON | LOUD OFF

| 50 (max.)

To increase the level.

To decrease the level.

Note:

Normally, the +/– buttons work as the volume control. So you do not have to select “VOL” to adjust the volume level.

* If you are using a two-speaker system, set the fader

level to “00.”

Using the sound control memory (SCM)

You can select and store a preset sound adjustment suitable for each playback source

(Advanced SCM).

Selecting and storing the sound modes

Once you select a sound mode, it is stored in memory. It will be recalled every time you select the same source and will be shown on the display. A sound mode can be stored for each of the following sources — FM1, FM2, FM3, AM, tape and external components.

• If you do not want to store the sound mode

separately for each playback source, but want to use the same sound mode for all the sources, see “To cancel Advanced SCM – SCM LINK” on page 26.

Select the sound mode you want.

SCM

Indication For: Preset values

SCM OFF (Flat sound) 00 00 ON BEAT Rock or +02 00 ON

disco music

SOFT Quiet +01 –03 OFF

background music

POP Light music +04 +01 OFF

BAS TRE LOUD

Recalling the sound modes

When “SCM LINK” is set to “LINK ON,” select the source.

TAPE

DAB

FM/AM

CDCH

Each time you change the playback source, the SCM indicator flashes on the display.

ENGLISH

Ex.: When you select “BEAT”

Each time you press the button, the sound mode changes as follows:

BEAT

• When “SCM LINK” is set to “LINK ON,” the

selected sound mode can be stored in memory for the current source and the effect applies only to the current source.

• When “SCM LINK” is set to “LINK OFF,” the

selected sound mode effect applies to any source.

SOFT

POPSCM OFF

The sound mode stored in memory for the selected source (in this case, tape) is recalled.

Notes:

• You can adjust each sound mode to your preference, and store it in memory. If you want to adjust and store your original sound mode, see “Storing your own sound adjustments” on page 22.

• To adjust the bass and treble reinforcement levels or to turn on/off the loudness function temporarily, see page 20. (Your adjustments will be canceled if another source is selected.)

Storing your own sound adjustments

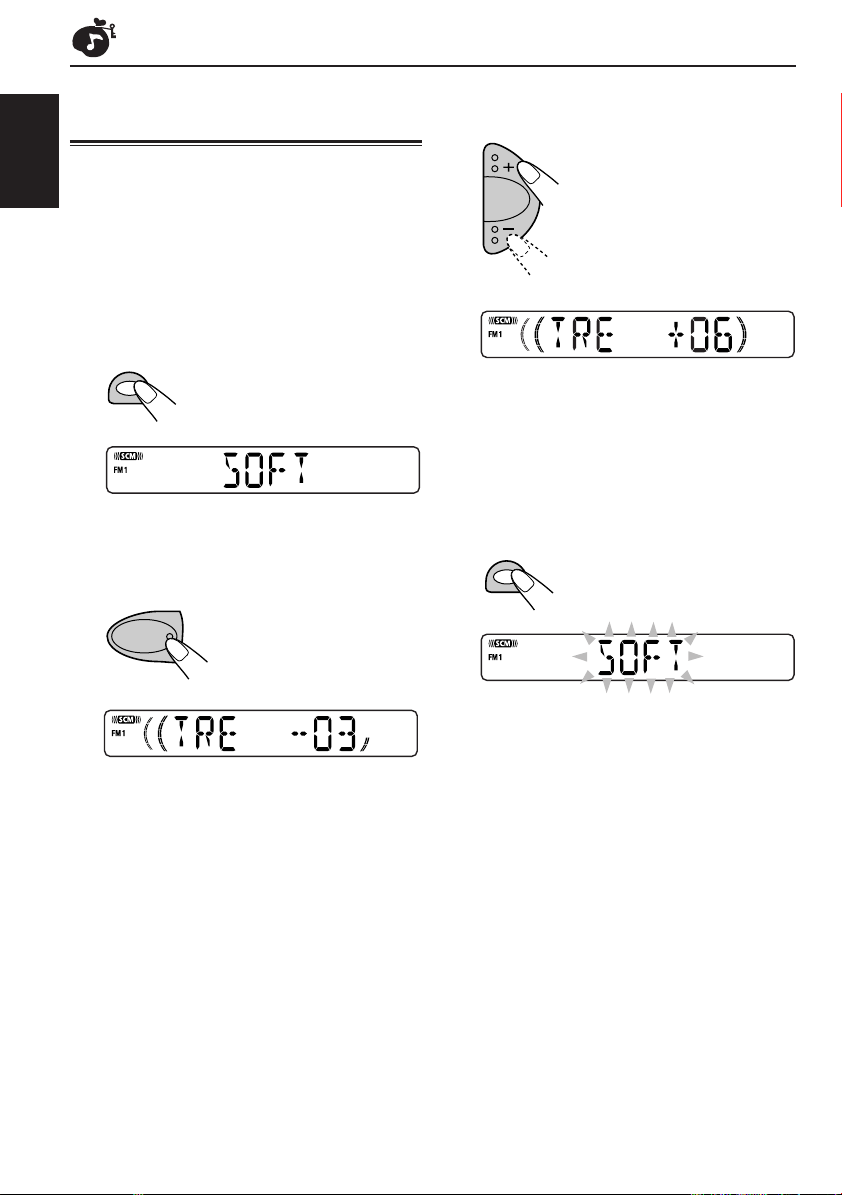

You can adjust the sound modes (BEAT, SOFT,

ENGLISH

POP) to your preference and store your own adjustments in memory.

• There is a time limit in doing the following procedure. If the setting is canceled before you finish, start from step 1 again.

Call up the sound mode you want to adjust.

SCM

Select “BAS (bass),” “TRE (treble)” or “LOUD (loudness).”

SEL

• See page 21 for details.

Ex.: When you select “SOFT”

Adjust the bass or treble level or turn the loudness function ON/OFF.

• See page 20 for details.

Repeat steps 2 and 3 to adjust the other items.

Press and hold SCM until the sound mode you have selected in step 1 flashes on the display.

SCM

Your adjustment made for the selected sound mode is stored in memory.

Repeat the same procedure to store other sound modes.

To reset to the factory settings

Repeat the same procedure and reassign the preset values listed in the table on page 21.

OTHER MAIN FUNCTIONS

SEL

Setting the clock

Y ou can also set the clock system to either 24 hours or 12 hours.

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (See page 25.)

SEL

Set the hour.

1 Select “CLOCK H (hour)” if not shown on

the display.

2 Adjust the hour.

Set the minute.

1 Select “CLOCK M (minute).” 2 Adjust the minute.

Finish the setting.

To check the current clock time or change the display mode

Press DISP (display) repeatedly. Each time you press the button, the display mode changes as follows:

• During tuner operation:

Clock Frequency

Notes:

• For the indication change during RDS operation,

see page 15.

• For the indication change during DAB operation,

see page 32.

• During tape operation:

Clock Play mode (tape direction)

• During external component operation:

Clock

• During CD changer operation:

Clock

LINE IN

Elapsed playing time

Disc number

ENGLISH

Set the clock system.

1 Select “24H/12H.” 2 Select “24H” or “12H.”

• During power off:

The power turns on and the clock time is shown for 5 seconds, then the power turns off.

Selecting the color of the

SEL

display window

Changing the general settings (PSM)

This section is only for KS-FX772R.

ENGLISH

You can select the color of the display window according to your preference. When shipped from the factory, “ALL DEMO” is selected.

• ALL DEMO: The color changes every 30

• SOURCE: The color changes according to

• BLUE 1: Blue color 1.

• BLUE 2: Blue color 2.

• PURPLE 1: Purple color 1.

• PURPLE 2: Purple color 2.

• RED 1: Red color 1.

• RED 2: Red color 2.

Press and hold DISP (display) for more than 2 seconds so that one of the colors listed above appears on the display.

DISP

Select the color you want.

seconds. the source you choose (FM/AM,

T APE, CD Changer or the external component).

You can change the items listed on the next page by using the PSM (Preferred Setting Mode) control.

Basic Procedure

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (See page 25.)

Select the PSM item you want to adjust. (See page 25.)

Adjust the PSM item selected.

Finish the setting.

DISP

Repeat steps 2 and 3 to adjust the other PSM items if necessary.

Finish the setting.

SEL

Preferred Setting Mode (PSM) items

SEL

Hold.

CLOCK H Hour adjustment CLOCK M Minute adjustment SCM LINK Sound control

24H/12H 24/12-hour time

AUTO ADJ Automatic clock

DISPMODE Display mode

CH DISP Changer display AF REG Alternative frequency/

PTY STBY PTY standby

TA VOL Traffic announcement

P-SEARCH Programme search LEVEL Level display

TEL Telephone muting

B. SKIP Blank skip EXT IN* External component

Select.

memory linkage

display

setting

Regionalization reception

volume

Set.

–

Back Back

LINK OFF

12H

OFF

PS NAME

29 programme types

OFF

VOL 00 – VOL 50

OFF ON

AUDIO 1

OFF MUTING 1

MUTING 2

Advance Advance

LINK ON

FREQ

CLOCK

DISCTIME DISC 26

AF REG

OFF

(see page 16)

AUDIO 2

OFF

LINE INCHANGER

Factorypreset settings

LINK ON

24H24H

ONOFF

PS NAME 15

OFF

AUDIO 2 26

OFF 18

CHANGER 26, 30

ENGLISH

See page

230:00

21, 26

10, 11AF

11, 12

15VOL 20

26OFF

• Press SEL (select) to finish the setting. * Displayed only when one of the following sources is selected – FM, AM and Tape.

To cancel Advanced SCM – SCM LINK

Y ou can cancel the Adv anced SCM (Sound Control Memory), and unlink the sound modes and the playback sources. When shipped from the factory, a different sound

ENGLISH

mode can be stored in memory for each source so that you can change the sound modes simply by changing the sources.

• LINK ON: Advanced SCM (different sound

• LINK OFF: Conventional SCM (one sound

modes for different sources).

mode for all sources).

To select the telephone muting – TEL

This mode is used when a cellular phone system is connected. Depending on the phone system used, select either “MUTING 1” or “MUTING 2, ” whichever mutes the sounds from this unit. When shipped from the factory, this mode is deactivated.

• MUTING 1: Select this if this setting can mute the sounds.

• MUTING 2: Select this if this setting can mute the sounds.

• OFF: Cancels the telephone muting.

To select the changer display – CH DISP

You can change the initial indication on the display either to disc number or to elapsed playing time, while using the CD changer. When shipped from the factory, “DISC” is selected.

• DISC: Shows the disc number and track number.

• TIME: Shows the elapsed playing time.

To select the level meter – LEVEL

You can select the level display according to your preference. When shipped from the factory, “AUDIO 2” is selected.

• AUDIO 1: Level meter illuminates.

• AUDIO 2: Alternates lev el meter and illumination display.

• OFF: Erases the audio level indicator.

To select the external component to use – EXT IN

You can connect the external component to the CD changer jack on the rear using the Line Input Adaptor KS-U57 (not supplied). To use the external component as the playback source through this unit, you need to select which component – CD changer or external component – to use. When shipped from the factory, CD changer is selected as the external component.

• LINE IN: To use the external component other than CD changer.

• CHANGER: To use the CD changer.

Note:

For connecting the Line Input Adaptor KS-U57 and the external component, refer to the Installation/Connection Manual (separate volume).

Detaching the control panel

You can detach the contol panel when leaving the car. When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder.

Detaching the control panel

Before detaching the control panel, be sure to turn off the power.

Unlock the control panel.

Lift and pull the control panel out of the unit.

Attaching the control panel

Insert the left side of the control panel into the groove on the panel holder.

Press the right side of the control panel to fix it to the panel holder.

ENGLISH

Put the detached control panel into the provided case.

Note on cleaning the connectors:

If you frequently detach the control panel, the connectors will deteriorate. T o minimize this possibility , periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Connectors

CD CHANGER OPERATIONS

TP/PTY

ENGLISH

SEL

DISP

We recommend that you use one of the CH-X series with your unit. If you have another CD automatic changer , consult your JVC IN-CAR ENTERTAINMENT dealer for connections.

• For example, if your CD automatic changer is one of the KD-MK series, you need a cord (KS-U15K) for connecting it to this unit.

Before operating your CD automatic changer:

• Refer also to the Instructions supplied with your CD changer.

• If no discs are in the magazine of the CD changer or the discs are inserted upside down, “NO DISC” will appear on the display. If this happens, remove the magazine and set the discs correctly.

• If “RESET 1” - “RESET 8” appears on the display, something is wrong with the connection between this unit and the CD changer. If this happens, check the connection and make sure the cords are connected firmly . Then, press the reset button of the CD changer.

CD CHANGER CONTROL

11 12

RPT

RND

MODE

TAPE

DAB

FM/AM

SSM

CDCH

SCM

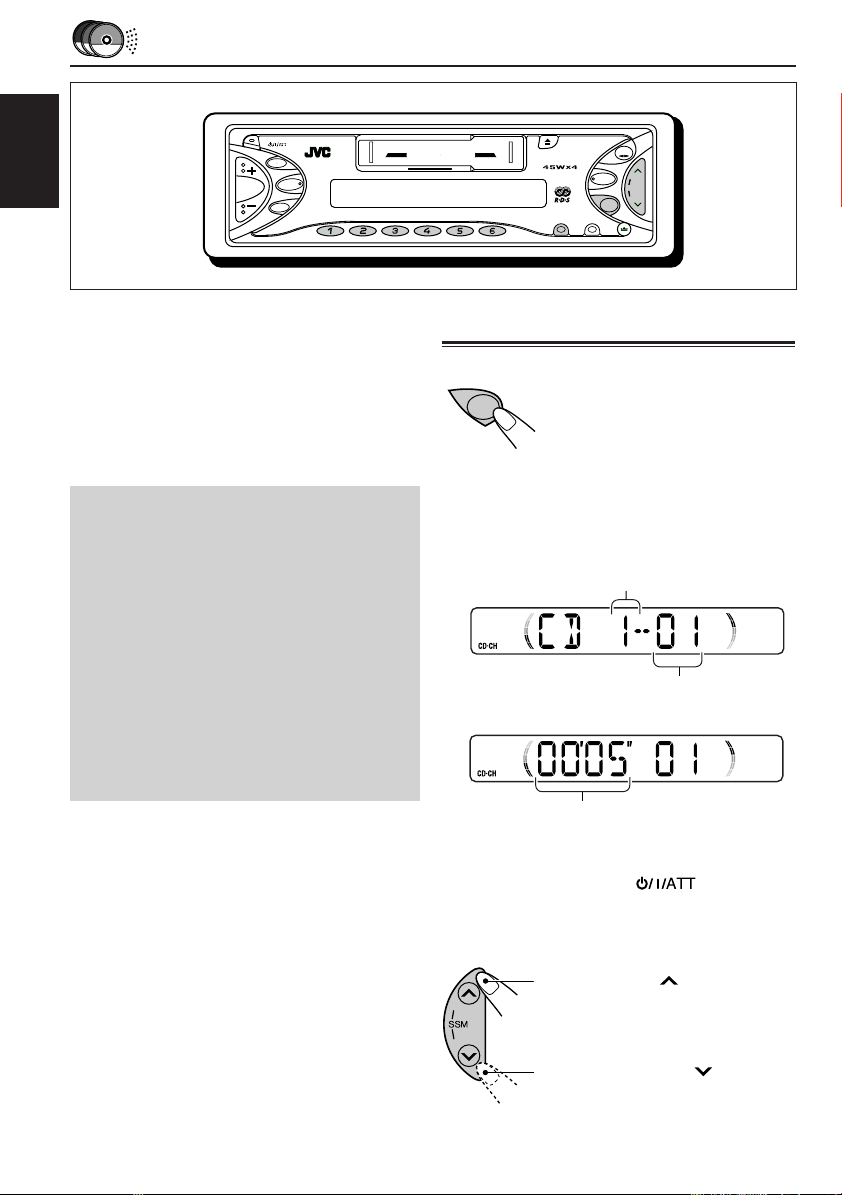

Playing CDs

Select the CD automatic changer (CD-CH).

CDCH

• The display shows the following information, depending on the “CH DISP (CD changer display)” setting (see page 25.)

• When “DISC” is selected

• When “TIME” is selected

Note on One-Touch Operation:

When you press CD-CH, the power automatically turns on. You do not have to press to turn on the power.

Playback starts from the first track of the first disc.

All tracks of all discs are played bac k.

Disc number

Track number

Elapsed playing time

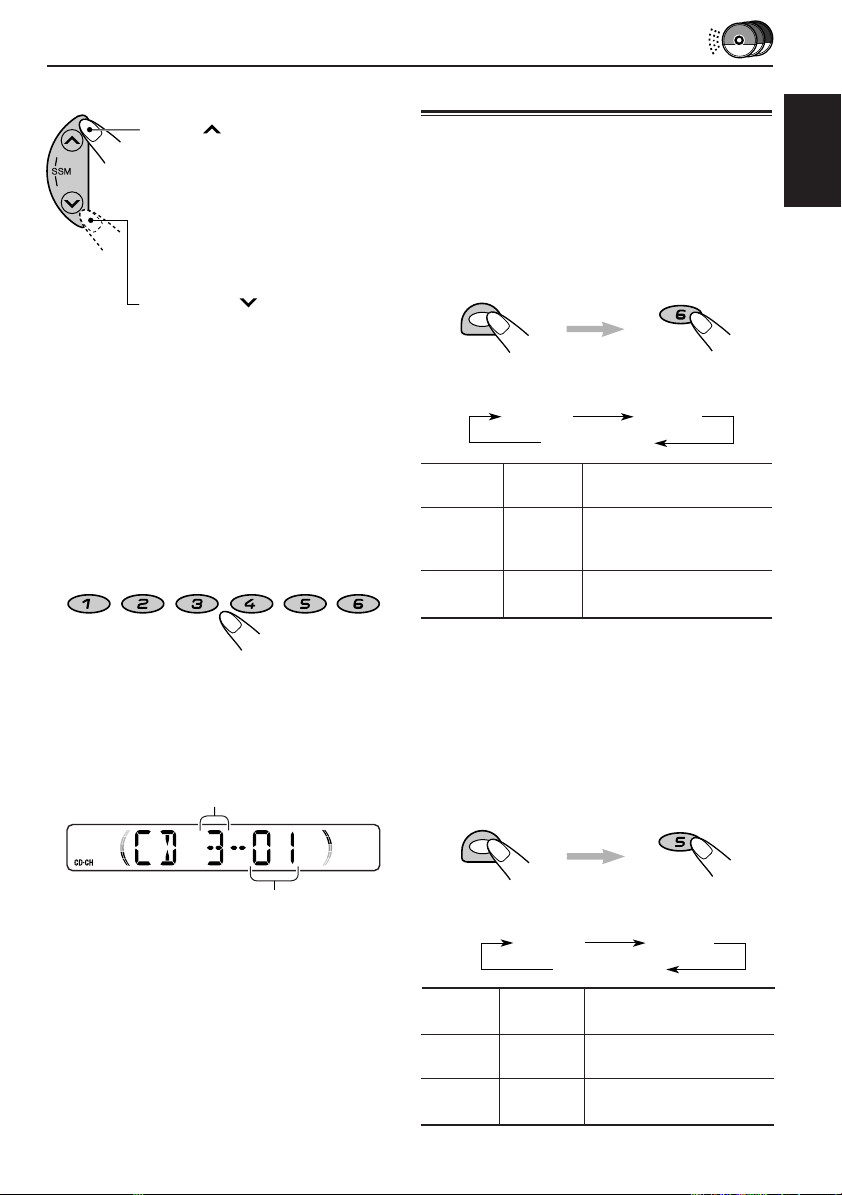

To fast-forward or reverse the track

Press and hold ¢, while

playing a CD , to fast-forward the track.

Press and hold 4 , while playing a CD, to reverse the track.

To go to the next track or the previous tracks

Press ¢ briefly, while

playing a CD, to go ahead to the beginning of the next track. Each time you press the button consecutively, the beginning of the next tracks is located and played back.

Press 4 briefly, while playing a CD, to go back to the beginning of the current track. Each time you press the button consecutively, the beginning of the previous tracks is located and played back.

To go to a particular disc directly

Press the number button corresponding to the disc number to start its playback (while the CD changer is playing).

8 9 10 11 127

RNDRPTMO

Selecting CD playback modes

To play back tracks at random (Random Play)

1 Press MODE to enter the functions mode

while playing a CD. This unit enters the functions mode.

2 Press RND (random), while still in the

functions mode, so that the RND indicator lights up on the display.

MODE

Then, each time you repeat steps 1 and 2, CD random play mode changes as follows:

RND1 RND2

Canceled

Mode

RND Indicator

RND1 Lights All tracks of the current (random1) disc, then the tracks of

RND2 Flashes All tracks of all discs (random2) inserted in the magazine.

Plays at random

the next disc, and so on.

RND

ENGLISH

• To select a disc number from 1 – 6: Press 1 (7) – 6 (12) briefly.

• To select a disc number from 7 – 12: Press and hold 1 (7) – 6 (12) for more than 1 second.

Disc number

Track number

Ex. When disc number 3 is selected

To play back tracks repeatedly (Repeat Play)

1 Press MODE to enter the functions mode

while playing a CD. This unit enters the functions mode.

2 Press RPT (repeat), while still in the functions

mode, so that the RPT indicator lights up on the display.

MODE

Then, each time you repeat steps 1 and 2, CD repeat play mode changes as follows:

RPT

RPT1 RPT2

Canceled

Mode

RPT Indicator

RPT1 Lights The current track (or (repeat1) specified track).

RPT2 Flashes All tracks of the current (repeat2) disc (or specified disc).

Plays repeatedly

EXTERNAL COMPONENT OPERATIONS

TP/PTY

ENGLISH

SEL

DISP

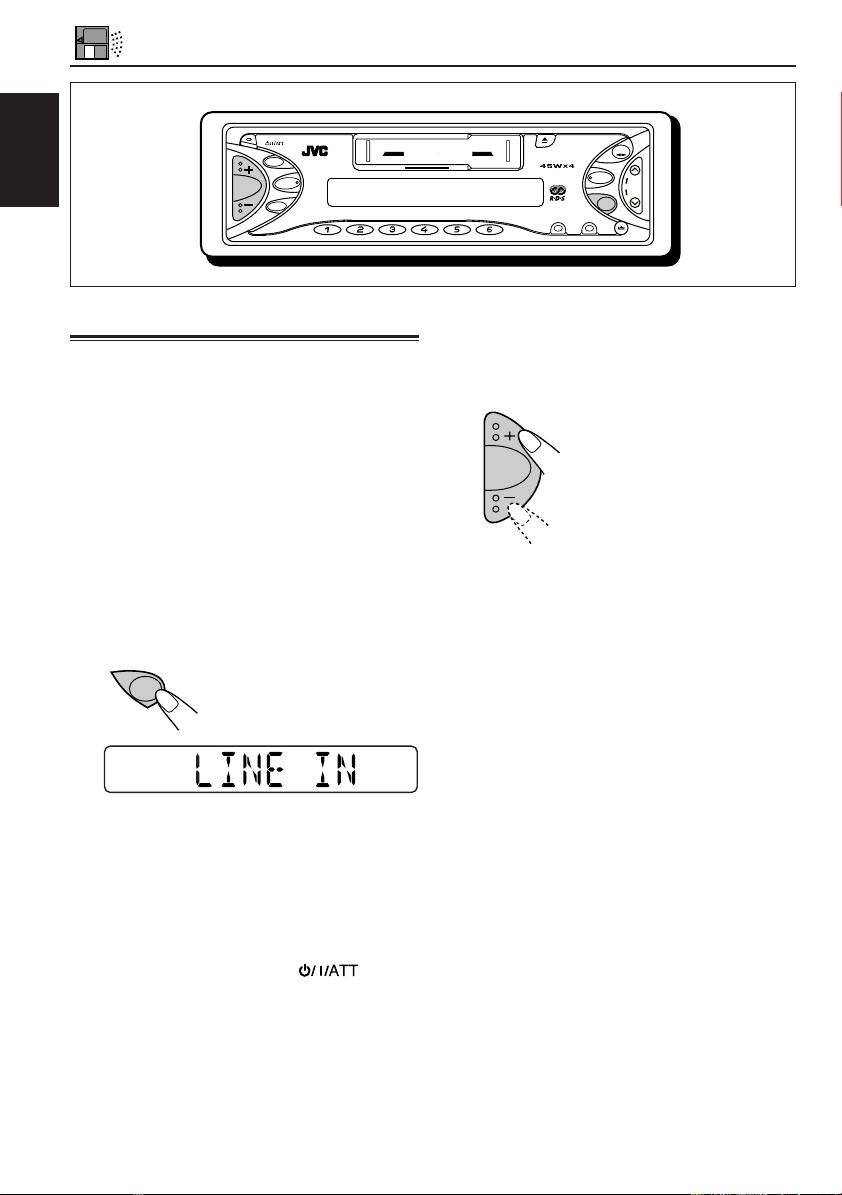

Playing an external component

You can connect the external component to the CD changer jack on the rear using the Line Input Adaptor KS-U57 (not supplied).

Preparations:

• For connecting the Line Input Adaptor KS-U57 and the external component, refer to the Installation/ Connection Manual (separate volume).

• Before operating the external component using the following procedure, select the external input correctly. (See “To select the external component to use – EXT IN” on page 26.)

Select the external component (CD-CH).

CDCH

CD CHANGER CONTROL

TAPE

DAB

FM/AM

SSM

CD-

11 12

RND

RPT

Turn on the connected component

MODE

SCM

and start playing the source.

Adjust the volume.

Adjust the sound characteristics you want. (See pages 20 – 22.)

• If “LINE IN”* does not appear on the display, see page 26 and select the external input (“LINE IN”).

* Displayed only when one of the following sources is

selected — FM, AM and Tape.

Note on One-Touch Operation:

When you press CD-CH, the power automatically comes on. You do not have to press to turn on the power.

DAB TUNER OPERATIONS

TP/PTY

SEL

DISP

We recommend that you use DAB (Digital Audio Broadcasting) tuner KT-DB1500 with your unit. If you have another DAB tuner, consult your JVC IN-CAR ENTERTAINMENT dealer.

• Refer also to the Instructions supplied with your DAB tuner.

What is DAB system?

DAB is one of the digital radio broadcasting systems available toda y . It can deliver CD quality sound without any annoying interference and signal distortion. Furthermore, it can carry text, pictures and data. In contrast to FM broadcast, where each programme is transmitted on its own frequency , DAB combines several programmes (called “services”) to form one “ensemble.” With the DAB tuner connected with this unit, you can enjoy these DAB services.

CD CHANGER CONTROL

11 12

TAPE

DAB

FM/AM

SSM

CD-

RND

RPT

MODE

SCM

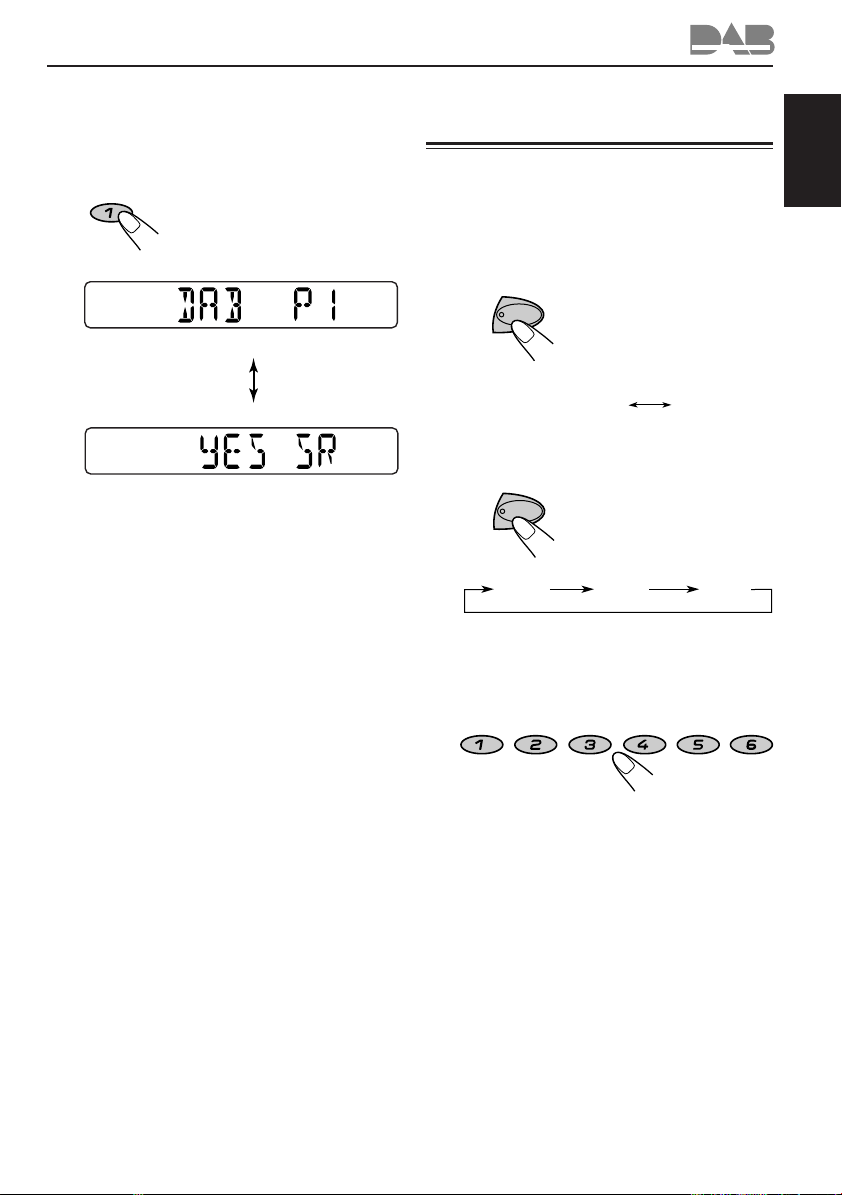

Select the DAB band (DAB1, DAB2, or DAB3).

DAB

FM/AM

DAB1

Note:

This receiver has three D AB bands (D AB1, DAB2, DAB3). You can use any of them to tune in to an ensemble.

Each time you press the button, the DAB band changes as follows:

DAB2 DAB3

Start searching an ensemble.

Press ¢ to search

ensembles of higher frequencies.

ENGLISH

Tuning in to an ensemble and one of the services

A typical ensemble has 6 or more programmes (services) broadcast at the same time. After tuning in to an ensemble, you can select a service you want to listen to.

Before you start....

Press DAB (FM/AM) briefly if tape, CD changer or external component is the current source.

Select the DAB tuner.

DAB

FM/AM

Each time you press and hold the button, the DAB tuner and the FM/AM tuner are alternately selected.

FM/AMDAB

Press 4 to search ensembles of lower frequencies.

When an ensemble is received, searching stops.

To stop searching before an ensemble is received, press the same button you have

pressed for searching.

Select a service you want to listen to.

MODE

1 Press MODE to enter the

functions mode while listening to the DAB tuner. This unit enters the functions mode.

CONTINUED ON THE NEXT PAGE

FM/AMDAB

2 Press ¢ or 4 ,

while still in the functions mode to select a service.

ENGLISH

To change the display information while tuning in to an ensemble

Normally service name is shown on the display. If you want to change the display inf ormation, press DISP (display). Each time you press the button, the following information appears on the display for a while.

Clock time

Service name

Storing DAB services in memory

You can preset up to 6 DAB services in each DAB band (DAB1, DAB2 and DAB3) manually.

Select the DAB tuner.

DAB

FM/AM

Select the DAB band (DAB1, DAB2 or DAB3) you want.

DAB

FM/AM

Each time you press and hold the button, the DAB tuner and the FM/AM tuner are alternately selected.

Each time you press the button, the DAB band changes as follows:

Ensemble name

Channel number

Frequency

Band/Preset number

To tune in to a particular ensemble without searching:

1 Press and hold DAB (FM/AM) to select DAB

tuner as the source.

2 Press DAB (FM/AM) repeatedly to select the

DAB band (DAB1, DAB2 or DAB3).

3 Press and hold ¢ or 4 for more

than 1 second.

4 Press ¢ or 4 repeatedly until the

ensemble you want is reached.

• If you hold down the button, the frequency keeps changing until you release the button.

To restore the FM/AM tuner

Press and hold DAB (FM/AM) again.

DAB1

Tune in to an ensemble you want.

Select a service you want to listen to.

MODE

DAB2 DAB3

1 Press MODE to enter the

functions mode while listening to the DAB tuner. This unit enters the functions mode.

2 Press ¢ or 4 ,

while still in the functions mode to select a service.

FM/AMDAB

Press and hold the number button (in this example, 1) you want to store the selected service into for more than 2 seconds.

Band/preset number and service name flash alternately for a while.

Repeat the above procedure to store other DAB services into other preset numbers.

Notes:

• A previously pr eset DAB service is er ased when a new DAB service is stored in the same preset number.

• Preset DAB services ar e erased when the power supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, pr eset the DAB services again.

Tuning in to a preset DAB service

You can easily tune in to a preset DAB service. Remember that you must store services first. If you have not stored them yet, see pages 32 and

33.

Select the DAB tuner.

DAB

FM/AM

Select the DAB band (DAB1, DAB2 or DAB3) you want.

DAB

FM/AM

DAB1

Select the number (1 – 6) for the preset DAB service you want.

Each time you press and hold the button, the DAB tuner and the FM/AM tuner are alternately selected.

Each time you press the button, the DAB band changes as follows:

DAB2 DAB3

8 9 10 11 127

ENGLISH

RNDRPTMO

TROUBLESHOOTING

What appears to be trouble is not always serious. Check the following points before calling a service center.

Symptoms

• A cassette tape cannot be

ENGLISH

inserted.

• A cassette tape cannot be ejected.

• Cassette tapes become hot.

• Tape sound is at very low level and sound quality is degraded.

• Sound is sometimes interrupted.

• Sound cannot be heard from the speakers.

• SSM (Strong-station Sequential Memory) automatic preset does not work.

• Static noise while listening to the radio.

Causes

You have tried to insert a cassette in the wrong way.

Cassette ejection is prohibited.

This is not a malfunction. The tape head is dirty.

Connections are not good.

The volume is turned to the minimum level.

Connections are incorrect.

Signals are too weak.

The antenna is not connected firmly.

Remedies

Insert the cassette with the exposed tape facing to the right.

Press and hold TAPE 23 and 0 for more than two seconds.

Clean it with a head cleaning tape.

Check the cords and connections.

Adjust it to the optimum level.

Check the cords and connections.

Store stations manually.

Connect the antenna firmly.

Symptoms

Causes

Remedies

• “NO DISC” appears on the display.

• “NO MAG” appears on the display.

• “RESET 8” appears on the display.

• “RESET 1” - “RESET 7”

appears on the display.

• This unit does not work at all.

• The CD changer does not

work at all.

No CD is in the magazine. CDs are inserted incorrectly. No magazine is loaded in the

CD changer. This unit is not connected to a

CD changer correctly.

The built-in microcomputer may function incorrectly due to noise, etc.

Insert CDs into the magazine. Insert them correctly. Insert the magazine.

Connect this unit and the CD changer correctly and press the reset button of the CD changer.

Press the reset button of the CD changer.

Press and hold both the SEL (select) and buttons at the same time for several seconds. (The clock setting and preset stations stored in memory are erased.) (See page 2.)

ENGLISH

MAINTENANCE

This unit requires very little attention, but you will be able to extend the life of the unit if you follow the instructions below.

To clean the heads

ENGLISH

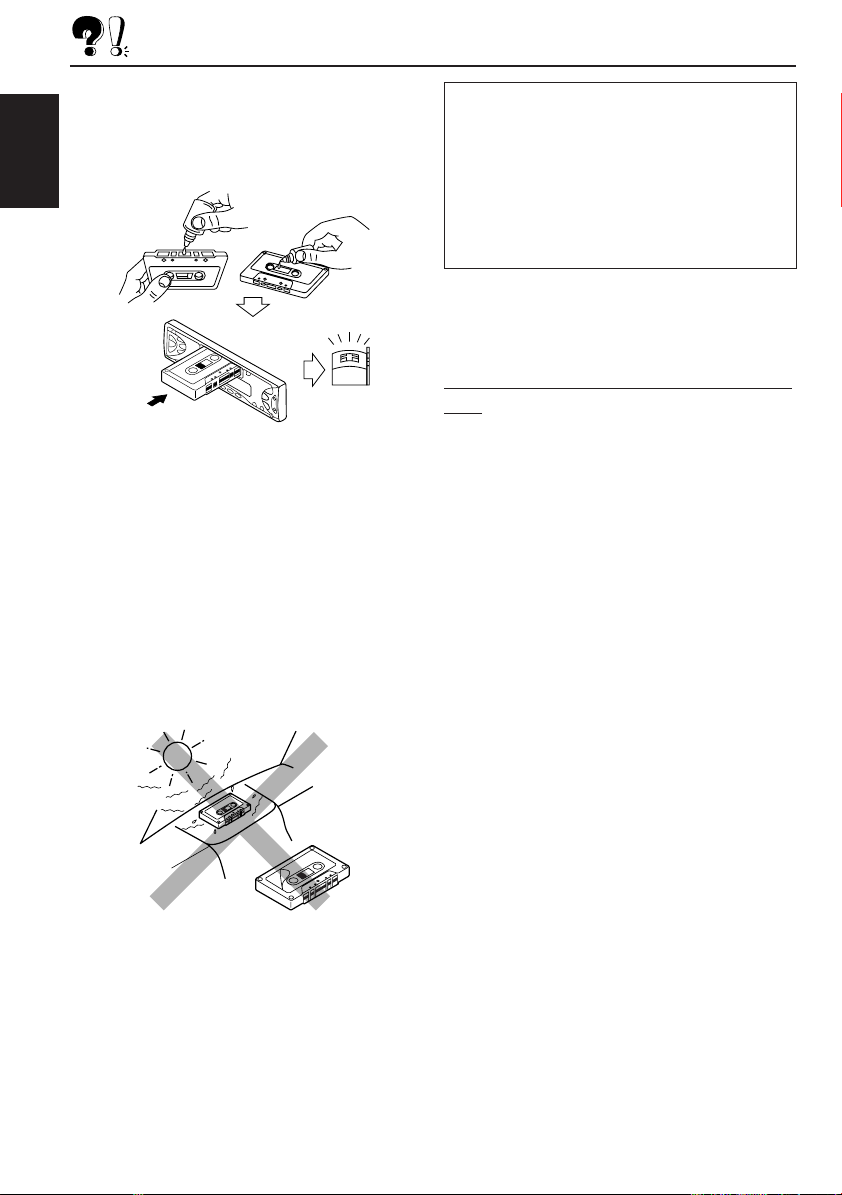

• Clean the heads after every 10 hours of use using a wet-type head cleaning tape (available at an audio store). When the head becomes dirty, you may realize the following symptoms: – Sound quality is reduced. – Sound level decreases. – Sound drops out.

• Do not play dirty or dusty tapes.

• Do not touch the highly-polished head with any metallic or magnetic tools.

CAUTION:

• Do not play the cassettes with peeling labels; otherwise, they can damage the unit.

• Tighten tapes to remove slack since loose tape may become entangled with the mechanism.

• Do not leave a cassette in the cassette compartment after use, as the tape may become slack.

The function below is also provided to ensure the longer life of this unit.

Ignition key-off release/Ignition key-on play

• Turning off the ignition ke y with a cassette in the compartment automatically releases the tape from the unit’s tapehead.

• Turning on the ignition ke y with a cassette in the compartment starts playback automatically if you turned off the ignition during tape play.

To keep the tape clean

• Always store the cassettes to their storage cases after use.

• Do not store cassettes in the following places: – Subject to direct sunlight – With high humidity – At extremely hot temperatures

SPECIFICATIONS

AUDIO AMPLIFIER SECTION

Maximum Power Output:

Front: 45 W per channel Rear: 45 W per channel

Continuous Power Output (RMS):

Front: 17 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than

0.8% total harmonic distortion.

Rear: 17 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than

0.8% total harmonic distortion. Load Impedance: 4 Ω (4 Ω to 8 Ω allowance) Tone Control Range:

Bass: ±10 dB at 100 Hz

Treble: ±10 dB at 10 kHz Frequency Response: 40 Hz to 20000 Hz Signal-to-Noise Ratio: 70 dB Line-Out Level/Impedance:

2.0 V/20 kΩ load (250 nWb/m)

TUNER SECTION

Frequency Range:

FM: 87.5 MHz to 108.0 MHz

AM: (MW)522 kHz to 1 620 kHz

(LW) 144 kHz to 279 kHz

[FM Tuner]

Usable Sensitivity: 11.3 dBf (1.0 µV/75 Ω) 50 dB Quieting Sensitivity:

16.3 dBf (1.8 µV/75 Ω)

Alternate Channel Selectivity (400 kHz):

65 dB Frequency Response: 40 Hz to 15000 Hz Stereo Separation: 30 dB Capture Ratio: 1.5 dB

CASSETTE DECK SECTION

Wow & Flutter: 0.11% (WRMS) Fast-Wind Time: 100 sec. (C-60) Frequency Response: 30 Hz to 16 000 Hz

(Normal tape) Signal-to-Noise Ratio: 56 dB Stereo Separation: 40 dB

GENERAL

Power Requirement:

Operating Voltage: DC 14.4 V

(11 V to16 V allowance) Grounding System: Negative ground Allowable Operating Temperature: 0°C to +40°C Dimensions (W × H × D):

Installation Size: 182 mm × 52 mm × 150 mm Panel Size: 188 mm × 58 mm × 14 mm Mass: 1.4 kg (excluding accessories)

Design and specifications subject to change without notice.

ENGLISH

[MW Tuner]

Sensitivity: 20 µV Selectivity: 35 dB

[LW Tuner]

Sensitivity: 50 µV

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Haben Sie PROBLEME mit dem Betrieb?

Bitte setzen Sie Ihr Gerät zurück

Siehe Seite Zurücksetzen des Geräts

Vous avez des PROBLÈMES de fonctionnement?

Réinitialisez votre appareil

Référez-vous à la page intitulée Comment réinitialiser votre appareil

Hebt u PROBLEMEN met de bediening?

Stel het apparaat terug

Zie de pagina met de paragraaf Het apparaat terugstellen

EN, GE, FR, NL

VICTOR COMPANY OF JAPAN, LIMITED

1201KKSMDTJEIN

JVC

JVC KS-FX732R, KS-FX772R User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

KS-FX772R/KS-FX732R

How to reset your unit

How to use the number buttons:

CONTENTS

Control panel

LOCATION OF THE BUTTONS

BASIC OPERATIONS

Turning on the power

RADIO BASIC OPERATIONS

Listening to the radio

Storing stations in memory

Tuning in to a preset station

RDS OPERATIONS

What you can do with RDS

Other convenient RDS functions and adjustments

TAPE OPERATIONS

Listening to a cassette

Finding the beginning of a tune

Other convenient tape functions

SOUND ADJUSTMENTS

Adjusting the sound

Using the sound control memory (SCM)

Storing your own sound adjustments

OTHER MAIN FUNCTIONS

Setting the clock

Changing the general settings (PSM)

Detaching the control panel

CD CHANGER OPERATIONS

Playing CDs

Selecting CD playback modes

EXTERNAL COMPONENT OPERATIONS

Playing an external component

DAB TUNER OPERATIONS

Tuning in to an ensemble and one of the services

Storing DAB services in memory

Tuning in to a preset DAB service

TROUBLESHOOTING

MAINTENANCE

SPECIFICATIONS
