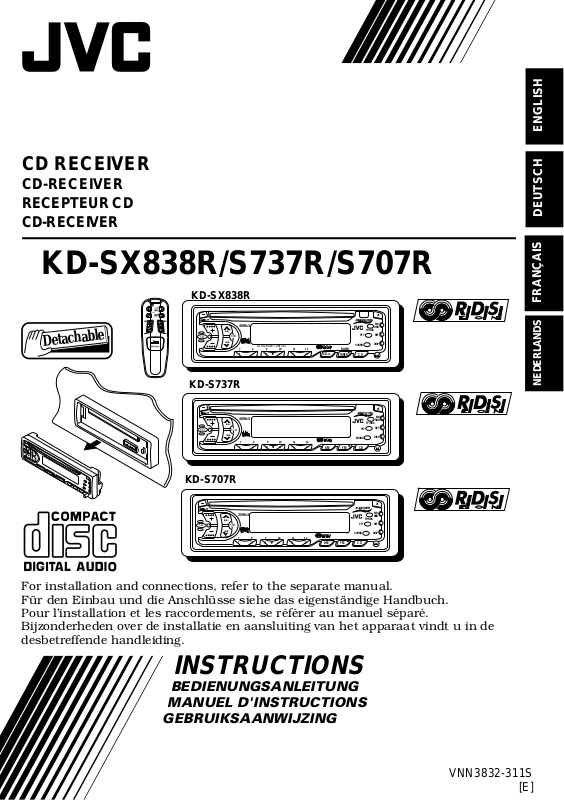

JVC KD-S737R, KD-S707R, KD-SX838R User Manual



CD RECEIVER



CD-RECEIVER RECEPTEUR CD CD-RECEIVER

 

KD-SX838R/S737R/S707R

ENGLISH

DEUTSCH

KD-SX838R

ATT

BAND PROG

DISC

FUNC

Detachable

DISC

PRESET

/ATT

40 W x 4

SSM

SEL

CD CHANGER CONTROL



KS-SX838R

MO

RND

TP/RDS

RPT

PTY

DISP

SOUND

BAND

TUNER

KD-S737R

/ATT

40 W x 4

SSM

SEL



KS-S737R

MO

RND

TP/RDS

RPT

PTY

DISP

SOUND

KD-S707R

/ATT

35 W x 4

SSM

SEL

For installation and connections, refer to the separate manual. Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch.



KS-S707R

MO

RND

TP/RDS

RPT

PTY

DISP

SOUND

Pour l’installation et les raccordements, se référer au manuel séparé. Bijzonderheden over de installatie en aansluiting van het apparaat vindt u in de  desbetreffende handleiding.

INSTRUCTIONS

BEDIENUNGSANLEITUNG MANUEL D'INSTRUCTIONS GEBRUIKSAANWIJZING



FRANÇAIS

NEDERLANDS

VNN3832-311S



[E]

Position And Reproduction Of Labels

Bottom panel of the main unit

DANGER: Invisible laser radiation when open and interlock failed or defeated. AVOID DIRECT EXPOSURE TO BEAM.  (e )

Name/Rating plate

CLASS 1 LASER PRODUCT

Caution: This product contains a laser component of higher laser class than Class 1.

ADVARSEL: Usynlig laserstråling ved åbning, når sikkerhedsafbrydere er ude  af funkti on. Undgåudsæt- telse for stråling. (d)

VARNING: Osynlig laser- strålning när denna del  är öppnad och spärren

urkopplad. Betrakta ej 

strålen.  (s)

VARO : Avattaessa ja suojalukitus ohitettaessa olet

är

alttiina näkymättömälle lasersäteilylle. Älä katso säteeseen. (f)

IMPORTANT FOR LASER PRODUCTS

Precautions:

1. CLASS 1 LASER PRODUCT

2. DANGER: Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

3. CAUTION: Do not open the top cover. There are no user-serviceable parts inside. Leave all servicing to qualified service personnel.

4. CAUTION: This CD player uses invisible laser radiation and is equipped with safety switches to prevent radiation emission when unloading CDs. It is dangerous to defeat the safety switches.

5. CAUTION: Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Note:

For security reasons, a numbered ID card is provided with this unit, and the same ID number is imprinted on the unit’s chassis. Keep the card in a safe place, as it will help the authorities to identify your unit if stolen.

BEFORE USE

* For safety....

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

*Temperature inside the car....

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

• Stop the car before performing any complicated operations.

Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit.

CONTENTS

BASIC OPERATIONS ....................................................4

RADIO OPERATIONS...................................................5

Listening to the radio ..................................................................... 5

Storing stations in memory ............................................................ 6

FM station automatic preset: SSM...............................................6

Manual preset.............................................................................. 7

Tuning into a preset station ........................................................... 8

Using RDS functions in the FM band ........................................... 9

RDS (Radio Data System) ...........................................................9

Other convenient tuner functions................................................16

Selecting FM reception sound....................................................16

CD OPERATIONS....................................................... 17

Playing a CD ................................................................................. 17

Locating a track or a particular portion or a CD......................18

Selecting CD playback modes......................................................19

Other convenient CD functions ................................................... 19

Prohibiting CD ejection.............................................................. 19

SOUND ADJUSTMENTS .............................................20

Selecting preset sound modes ...................................................... 20

Adjusting the sound......................................................................21

Storing your own sound adjustments .........................................22

ENGLISH

OTHER MAIN FUNCTIONS .........................................23

Setting the clock ............................................................................ 23

Storing your own mode settings ..................................................25

Preferred setting mode cotrol.....................................................25

T ur ning on/off the key-touch tone (ONLY FOR KD-SX838R) ....26

Selecting the level display (ONLY FOR KD-SX838R/S737R).... 26

Detaching the control panel ......................................................... 27

REMOTE OPERATIONS...............................................28

(ONLY FOR KD-SX838R)

Installing the batteries..................................................................28

Using the remote controller .........................................................28

CD CHANGER OPERATIONS ......................................29

(ONLY FOR KD-SX838R)

Playing CDs ................................................................................... 29

Selecting CD playback modes......................................................31

MAINTENANCE.........................................................32

Handling CDs ................................................................................ 32

TROUBLESHOOTING .................................................33

SPECIFICATIONS .......................................................34



BASIC OPERATIONS

Note:

When you use this unit for the first time, set the built-in clock correctly, see page 23.

/ I /ATT

Note on One-Touch Operation:

When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power.

KD-SX838R

KD-S737R/S707R

BAND

TUNER C DCD-

F MA M C D

Turn on the power.

Select the source.

To operate the tuner, see pages 5 – 16. To operate the CD player, see pages 17 – 19.

ONLY FOR KD-SX838R: To operate the CD changer, see pages 29 – 31.

Adjust the volume.

LOUD

Volume level indicator (see page 26).

Volume level appears.

Adjust the sound as you want (see pages 20 – 22).

To drop the volume in a moment

Press the volume level will drop in a moment. To resume the previous volume level, press the button briefly again.

To turn off the power

Press



briefly while listening to any source. “ATT” starts flashing on the display, and



for more than 1 second.

RADIO OPERATIONS

Listening to the radio

KD-SX838R

FM1 FM2 FM3 AM

KD-S737R/S707R

SSM

BAND

TUNER

F MA M

Select the band (FM1, FM2, FM3 or AM).

Y ou can select any one of FM1, FM2, and FM3 to listen to an FM station.

FM1AMFM2

FM3

To search stations of higher frequencies.

KD-S737R/S707R

ENGLISH

Audio level indicator (see page 26). (ONLY FOR KD-SX838R/S737R)

Start searching a station.

When a station is received, searching stops.

To search stations of lower frequencies.

To stop searching before a station is received, press the same button you have pressed for searching.

To tune in a particular frequency without searching:

1 Select the band (FM or AM).

For KD-SX838R: Press TUNER/BAND repeatedly. For KD-S737R/S707R: Press FM or AM.

2 Press and hold ¢

Now you can manually change the frequency while “M” is flashing.

3 Press ¢

• If you hold down the button, the frequency keeps changing (in 50 kHz intervals for FM and 9kHz intervals for AM-MW/LW) until you release the button.

or 4 repeatedly until the frequency you want is reached.

or 4 until “M” starts flashing on the display.

Storing stations in memory

You can use one of the following two methods to store broadcasting stations in memory.

• Automatic preset of FM stations: SSM (Strong-station Sequential Memory)

• Manual preset of both FM and AM stations

FM station automatic preset: SSM

You can preset 6 local FM stations in each FM band (FM1, FM2, and FM3).

KD-SX838R

BAND

TUNER

FM1 FM2 FM3 AM

Select the FM band number (FM1, FM2 or FM3) you want to store FM stations into.

KD-S737R/S707R

F M

FM1 FM2 FM3

Press and hold both buttons for more than 3

SSM

Local FM stations with the strongest signals are searched and stored automatically in the band number you have selected (FM1, FM2 or FM3). These stations are preset in the number buttons — No. 1 (lowest frequency) to No. 6 (highest frequency). When automatic preset is over, the station stored in number button 1 will be automatically tuned in.

seconds.

“SSM” appears, then disappears when automatic preset is over.

Manual preset

You can preset up to 6 stations in each band (FM1, FM2, FM3 and AM) manually. EXAMPLE: Storing an FM station of 88.3 MHz into the preset number 1 of the FM1 band

12 3

ENGLISH

BAND

TUNER

KD-S737R/S707RKD-SX838R

Select the FM1 band.

F M

Tune into a station of 88.3 MHz.

SSM

See page 5 to tune into a station.

Press and hold the button for more than 1 second.

Preset number “P1” starts flashing for a while.

Repeat the above procedure to store other stations into other preset numbers.

Notes:

• A previously preset station is erased when a new station is stored in the same preset number.

• Preset stations are erased when the power suppl y to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the stations again.

Tuning into a preset station

You can easily tune into a preset station. Remember that you must store stations first. If you have not stored them yet, see pages 6 and 7.

KD-SX838R

KD-S737R/S707R

KD-SX838R

FM1 FM2 FM3 AM

KD-S737R/S707R

BAND

TUNER

F MA M

Select the band (FM1, FM2, FM3 or AM) you want.

FM1AMFM2

FM3

123456

Select the number (1 – 6) for the preset station you want.

Using RDS functions in the FM band

RDS (Radio Data System)

RDS button

To select Network-Tracking mode, press the RDS button for more than 1 second.

TP /RDS

Network-Tracking reception

• Mode 1 (AF (Alternative Frequencies): on/REG: off):

Network-Tracking is activated. Switches between stations belonging to the network being received.

Note:

• In Mode 1, the broadcast may switch between different programmes even within the same network at certain times.

• Mode 2 (AF: on/REG: on):

Network-Tracking is activated and Regional mode is engaged (switches between stations broadcasting the same programme, at all times).

• Mode 3 (AF: off/REG: off): Network-Tracking is deactivated.

When driving in an area where the signal strength drops, the tuner automatically uses PI (Programme Identification) and AF codes to retune to the same programme with a stronger signal from another RDS station in the network. By utilizing these codes, you can continue to listen to the same programme in its finest condition, no matter where you drive. (See illustration.)

• When the RDS station to which you are tuned does not provide AF data or the unit is unable to receive AF data for any reason, Network-Tracking reception will NOT operate even when the signal strength drops below the reference level.

ENGLISH

The same programme can be received on different frequencies.

Programme 1 broadcasting on frequency A

Programme 1 broadcasting on frequency B

Programme 1 broadcasting on frequency C

Programme 1 broadcasting on frequency E

Programme 1 broadcasting on frequency D

PTY standby mode

Storing your favourite programme type (PTY) into memory (NEWS is factory-preset.)

SEL

SSM

Press the SEL button for more than 2 seconds to enter the preferred setting mode (see page

25).

Press the ¢ or 4 button to select the “PTY STBY” mode.

Each time the ¢ or 4 button is pressed, the display changes as follows.

Ô Ô

*Only for KD-SX838R

**Only for KD-SX838R/S737R

Press the + or – button to select one of 29 PTYs. (See the table on page 14.)

For example, when “CLASSICS” is selected in the display, the classical music PTY is stored automatically.

• Press the SEL button to return to the previous mode.

Setting and operating PTY standby mode

• When the PTY button is briefly pressed in the FM mode, the “PTY” indicator is lit during reception of a PTY station and the PTY standby mode is engaged. The selected PTY name stored on page 10 (for

PTY

example: Classics) flashes for 5 seconds.

Note:

When the station being received is not a PTY station, the "PTY" indicator flashes. Press the ¢

or 4 button to engage the PTY standby mode. "SEARCH" appears in the display, and PTY station search starts. When a PTY station is tuned in, “PTY” is lit.

• If you are listening to a CD and wish to hear a selected PTY broadcast,

press the PTY button to enter the PTY standby mode. (The “PTY” indicator lights up.)

If the PTY starts broadcasting while the PTY standby mode is active, the selected PTY name is displayed and the FM mode is engaged. The selected PTY can then be heard.

Note:

To deactivate the PTY standby mode, press the PTY button again.

TP (Traffic Programme) button

Setting and operating TA (Traffic Announcement) standby mode

• When the TP button is pressed briefly in the FM mode, the “TP” indicator is

lit during reception of a TP station and the TA standby mode is engaged.

ENGLISH

TP /RDS

Note:

When the station being received is not a TP station, the TP indica tor flashes. Press the ¢

or 4 b utton to engage the T A standby mode. "SEARCH" appears in

the display, and TP sta tion sear ch starts. When a TP station is tuned in, “TP” is lit.

• If you’re listening to a CD and wish to hear a TA broadcast, press the TP

button to enter the TA standby mode. (The “TP” indicator lights up.)

If a T A programme starts broadcasting while the TA standby mode is active, “TRAFFIC” is displayed and the FM mode is engaged. The volume increases to the preset "T A VOL" level and the TA programme can be heard (see page

15).

Note:

To deactivate the TA standby mode, press the TP button again.
