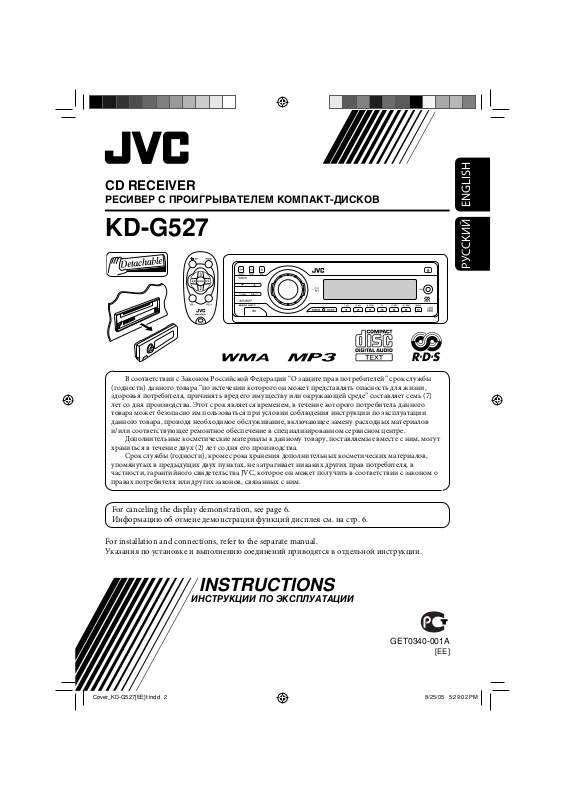

JVC KD-G527 User Manual
CD RECEIVER
РЕСИВЕР С ПРОИГРЫВАТЕЛЕМ КОМПАКТ-ДИСКОВ
KD-G527
В соответствии с Законом Российской Федерации “О защите прав потре бителей” срок службы
(годности) данного товара “по истечении которого он может представлять опасность для жизни,
здоровья потребителя, причинять вред его имуществу или окружающей среде” составляет семь (7)
лет со дня производства. Этот срок является временем, в течение которого потребитель данного
товара может безопасно им пользоваться при условии соблюдения ин струк ции по эксплуатации
данного товара, проводя необходимое обслуживание, включающее замену расходных материалов
и/или соответствующее ремонтное обеспечение в специализированном сервисном центре.
Дополнительные косметические материалы к данному товару, поставляе мые вместе с ним, могут
храниться в течение двух (2) лет со дня его производства.
Срок службы (годности), кроме срока хранения дополнительных космети ческих материалов,
упомянутых в предыдущих двух пунктах, не затрагивает никаких других прав потребителя, в
частности, гарантийного свидетельства JVC, которое он может получить в соответствии с законом о
правах потребителя или других законов, связанных с ним.
ENGLISHРУCCKИЙ
For canceling the display demonstration, see page 6.
Информацию об отмене демонстрации функций дисплея см. на стр. 6.
For installation and connections, refer to the separate manual.
Указания по установке и выполнению соединений приводятся в отдельной инструкции.
INSTRUCTIONS
ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ
GET0340-001A
[EE]
Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to ensure your complete understanding and to
obtain the best possible performance from the unit.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
ENGLISH
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave
all servicing to qualified service personnel.
3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated.
Avoid direct exposure to beam.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.
How to reset your unit
Your preset adjustments will also be erased.
How to forcibly eject a disc
“PLEASE” and “EJECT” appear alternately on
the display.
• If this does not work, reset your unit.
• Be careful not to drop the disc when it ejects.
How to detach/attach the control panel
Detaching...
How to use the M MODE button
If you press M MODE, the unit goes into
functions mode, then the number buttons
and 5/∞ buttons work as different function
buttons.
Ex.: When number button 2 works as
MO (monaural) button.
Time countdown indicator
To use these buttons for their original
functions again after pressing M MODE, wait
for 5 seconds without pressing any of these
buttons until the functions mode is cleared or
press M MODE again.
Attaching...
2
How to read this manual
• Button operations are mainly explained with
the illustrations in the table below.
• Some related tips and notes are explained in
“More about this unit” (see pages 19 – 21).
Press briefly.
Press repeatedly.
Press either
one.
Press and hold until your
desired response begins.
Press and hold both
buttons at the same time.
The following marks are used to indicate...
: Built-in CD player operations.
: External CD changer operations.
:
Indicator displayed for the
corresponding operation.
CONTENTS
Control panel ................................... 4
Remote controller —
Getting started ................................. 6
Basic operations .................................................... 6
Radio operations .............................. 7
FM RDS operations ............................ 8
Searching for your favorite FM RDS programme ... 8
Disc operations ................................. 10
Playing a disc in the unit ...................................... 10
Playing discs in the CD changer ............................ 10
Sound adjustments ........................... 13
General settings — PSM ................... 14
External component operations

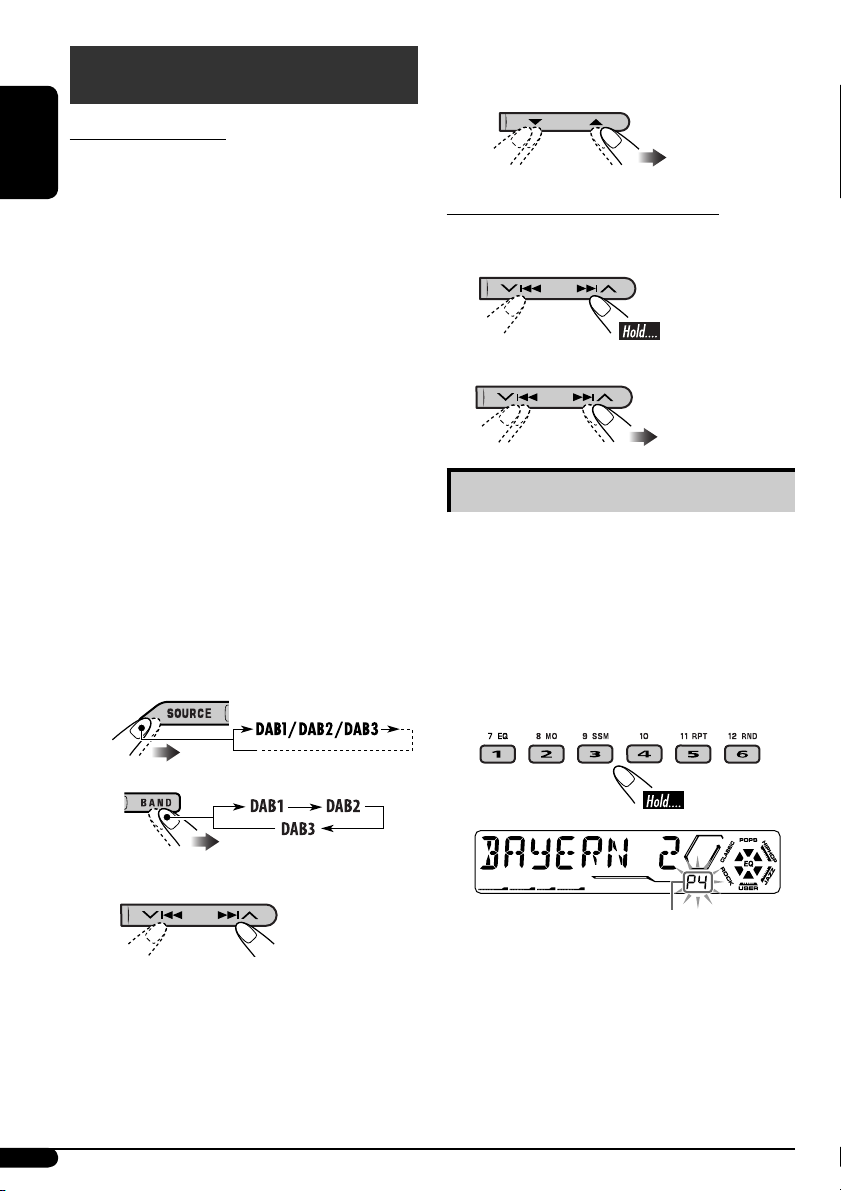

DAB tuner operations
More about this unit ......................... 19
Maintenance .................................... 22
Troubleshooting ............................... 23
Specifications ................................... 25
RM-RK50
.............. 5
............. 17
........................... 18
ENGLISH
Warning:
If you need to operate the unit while driving,
be sure to look ahead carefully or you may be
involved in a traffic accident.
Caution on volume setting:
Discs produce very little noise compared
with other sources. Lower the volume
before playing a disc to avoid damaging
the speakers by the sudden increase of the
output level.
For safety...
• Do not raise the volume level too much, as
this will block outside sounds, making driving
dangerous.
• Stop the car before performing any
complicated operations.
Temperature inside the car...
If you have parked the car for a long time in hot
or cold weather, wait until the temperature in
the car becomes normal before operating the
unit.
3
Control panel — KD-G612/KD-G611/KD-G511
Control panel
Parts identification
ENGLISH
1 5 (up) / ∞ (down) buttons
2 T/P TP/PTY (traffic programme/
programme type) button
3 D DISP (display) button
4 S SEL (select) button
5 • Control dial
•
6 Display window
7 Remote sensor
• DO NOT expose the remote sensor to
strong light (direct sunlight or artificial
lighting).
8 0 (eject) button
9
4/¢ buttons
p
(control panel release) button
q SOURCE button
w BAND button
e Number buttons
r EQ (equalizer) button
t MO (monaural) button
y SSM (Strong-station Sequential Memory)
button
u RPT (repeat) button
i RND (random) button
o M MODE button
;
AUX (auxiliary) input jack
Display window
(standby/on attenuator) button
Display window
a Main display
s Disc information indicators—TAG (ID3
Tag),
d EQ (equalizer) indicator
f Sound mode (C-EQ: custom equalizer)
indicators—ROCK, CLASSIC, POPS,
HIP HOP, JAZZ, USER
•
g Tuner reception indicators—ST (stereo),
MO (monaural)
h Disc type indicators—WMA, MP3
j Playback source indicators—
CH: Lights up only when CD-CH is selected
DISC: Lights up for the built-in CD player.
k RDS indicators—TP, PTY, AF, REG
l Playback mode / item indicators—
RND (random),
RPT (repeat)
/ LOUD (loudness) indicator
z Source display / Volume level indicator
x Tr (track) indicator
(folder), (track/file)
also works as the time countdown
indicator and level meter during play (see
page 16).
as the playback source.
(disc), (folder),
4
Remote controller — RM-RK50
Installing the lithium coin battery
(CR2025)
Aim the remote controller directly at the
remote sensor on the unit. Make sure there is
no obstacle in between.
Warning:
• Do not install any battery other than
CR2025 or its equivalent; otherwise, it may
explode.
• Store the battery in a place where children
cannot reach to avoid risk of accident.
• To prevent the battery from over-heating,
cracking, or starting a fire:
– Do not recharge, short, disassemble,
heat the battery, or dispose of it in a fire.
– Do not leave the battery with other
metallic materials.
– Do not poke the battery with tweezers or
similar tools.
– Wrap the battery with tape and insulate
when throwing away or saving it.
Caution:
Main elements and features
ENGLISH
1 (standby/on/attenuator) button
• Turns the power on if pressed briefly or
attenuates the sound when power is on.
• Turns the power off if pressed and held.
2 5 U (up) / D (down) ∞ buttons
• Changes the FM/AM/DAB bands with
5 U only.
• Changes the preset stations (or services)
with D ∞ only.
• Changes the folder of the MP3/WMA
discs.
• While playing an MP3 disc on an
MP3-compatible CD changer:
– Changes the disc if pressed briefly.
– Changes the folder if pressed and held.
3 VOL – / VOL + buttons
• Adjusts the volume level.
4 SOUND button
• Selects the sound mode (C-EQ: custom
equalizer).
5 SOURCE button
• Selects the source.
6 2 R (reverse) / F (forward) 3 buttons
• Searches for stations (or services) if
pressed briefly.
• Searches for ensembles if pressed and
held.
• Fast-forwards or reverses the track if
pressed and held.
• Changes the tracks of the disc if pressed
briefly.
5
Getting started
@ Adjust the sound as you want. (See
pages 13 and 14.)
Basic operations
~ Turn on the power.
ENGLISH
Ÿ
• Select “CD-CH” when using an Apple
iPod
or a JVC D. player (see page 17).
®
iPod is a trademark of Apple
Computer, Inc., registered in the U.S.
and other countries.
* You cannot select these sources if they
are not ready.
! • For FM/AM tuner
• For DAB tuner
⁄ Adjust the volume.
To drop the volume in a moment (ATT)
To restore the sound,
press it again.
To turn off the power
Basic settings
• See also “General settings — PSM” on pages
14 – 16.
1
2
1 Canceling the display
demonstrations
Select “DEMO,” then “DEMO OFF.”
2 Setting the clock
Select “CLOCK H” (hour), then adjust
the hour.
Select “CLOCK M” (minute), then
adjust the minute.
Select “24H/12H,” then “24H” (hour) or
“12H” (hour).
3 Finish the procedure.
Volume level appears.
Volume level indicator
6
To check the current clock time when the
power is turned off
Radio operations
~
When an FM stereo broadcast is hard to
receive
ENGLISH
Ÿ
Lights up when receiving an FM stereo broadcast with
sufficient signal strength.
Selected band appears.
! Start searching for a station.
When a station is received, searching
stops.
To stop searching, press the same button
again.
Note:
FM1 and FM2: 87.5 MHz – 108.0 MHz
FM3: 65.00 MHz – 74.00 MHz
To tune in to a station manually
In step ! above...
1
Lights up when monaural mode is activated.
Reception improves, but stereo effect will be
lost.
To restore the stereo effect, repeat the same
procedure. “MONO OFF” appears and the MO
indicator goes off.
Storing stations in memory
You can preset six stations for each band.
FM station automatic presetting —
SSM (Strong-station Sequential
Memory)
1 Select the FM band (FM1 – FM3) you
want to store into.
2
3
2 Select the desired station frequencies.
“SSM” flashes, then disappears when
automatic presetting is over.
Local FM stations with the strongest signals are
searched and stored automatically in the FM
band.
7
Manual presetting
Ex.: Storing FM station of 92.5 MHz into preset
number 4 of the FM1 band.
1
ENGLISH
2
3
FM RDS operations
What you can do with RDS
RDS (Radio Data System) allows FM stations
to send an additional signal along with their
regular programme signals.
By receiving the RDS data, this unit can do the
following:
•
Programme Type (PTY) Search (see the
following)
• TA (Traffic Announcement) and PTY
Standby Receptions (see pages 9 and 15)
•
Tracing the same programme automatically
—Network-Tracking Reception (see page 10)
• Programme Search (see page 15)
Preset number flashes for a while.
Listening to a preset station
1
2 Select the preset station (1 – 6) you
want.
To check the current clock time while
listening to an FM (non-RDS) or AM station
• For FM RDS stations, see page 10.
Frequency Ô Clock
Searching for your favorite
FM RDS programme
You can tune in to a station broadcasting your
favorite programme by searching for a PTY code.
•
To store your favorite programme types, see
page 9.
~
The last selected PTY code appears.
Ÿ Select one of your favorite
programme types.
or
Select one of the PTY codes (see
page 10).
8
! Start searching for your favorite
programme.
Using the standby receptions
TA Standby Reception
TA Standby Reception allows the unit to switch
temporarily to Traffic Announcement (TA)
from any source other than AM.
The volume changes to the preset TA volume
level (see page 15).
ENGLISH
If there is a station broadcasting a
programme of the same PTY code as you
have selected, that station is tuned in.
Storing your favorite
programme types
You can store six favorite programme types.
Preset programme types in the number buttons
(1 to 6):
1 Select a PTY code (see page 8).
2 Select the preset number (1 – 6) you
want to store into.
Ex.: When “ROCK M” is selected
3 Repeat steps 1 and 2 to store other
PTY codes into other preset numbers.
4 Finish the procedure.
To activate TA Standby Reception
The TP (Traffic Programme)
indicator either lights up or
flashes.
• If the TP indicator lights up, TA Standby
Reception is activated.
• If the TP indicator flashes, TA Standby
Reception is not yet activated. (This occurs
when you are listening to an FM station
without the RDS signals required for TA
Standby Reception.)
To activate TA Standby Reception, tune in to
another station providing these signals. The
TP indicator will stop flashing and remain lit.
To deactivate the TA Standby Reception
The TP indicator goes off.
PTY Standby Reception
PTY Standby Reception allows the unit to
switch temporarily to your favorite PTY
programme from any source other than AM.
To activate and select your favorite PTY code
for PTY Standby Reception, see page 15.
The PTY indicator either lights up or flashes.
• If the PTY indicator lights up, PTY Standby
Reception is activated.
• If the PTY indicator flashes, PTY Standby
Reception is not yet activated.
To activate PTY Standby Reception, tune in
to another station providing these signals. The
PTY indicator will stop flashing and remain lit.
To deactivate the PTY Standby Reception,
select “OFF” for the PTY code (see page 15).
The PTY indicator goes off.
9
Tracing the same programme—
Network-Tracking Reception
When driving in an area where FM reception
is not sufficient enough, this unit automatically
ENGLISH
tunes in to another FM RDS station of the
same network, possibly broadcasting the same
programme with stronger signals (see the
illustration below).
When shipped from the factory, NetworkTracking Reception is activated.
To change the Network-Tracking Reception
setting, see “AF-REG” on page 15.
Programme A broadcasting on different frequency areas
(01 – 05)
To check the current clock time while
listening to an FM RDS station
Disc operations
Playing a disc in the unit
All tracks will be played repeatedly until you
change the source or eject the disc.
To stop play and eject the disc
Playing discs in the CD changer
All discs in the magazine will be played
repeatedly until you change the source.
• Ejecting the magazine will also stop playing.
~
Station name (PS) = Station
Frequency = Programme type
(PTY) = Clock = (back to the
beginning)
PTY codes
NEWS, AFFAIRS, INFO, SPORT, EDUCATE,
DRAMA, CULTURE, SCIENCE, VARIED,
POP M (music), ROCK M (music), EASY
M (music), LIGHT M (music), CLASSICS,
OTHER M (music), WEATHER, FINANCE,
CHILDREN, SOCIAL, RELIGION, PHONE
IN, TRAVEL, LEISURE, JAZZ, COUNTRY,
NATION M (music), OLDIES, FOLK M
(music), DOCUMENT
10
* If you have changed “EXT IN” setting
to “EXT IN” (see page 16), you cannot
select the CD changer.
See also page 17 when using an iPod or
JVC D. player.
Ÿ Select a disc.
For disc number from 01 – 06:
For disc number from 07 – 12:
About MP3 and WMA discs
MP3 and WMA “tracks” (words “file” and
“track” are used interchangeably) are recorded
in “folders.”
To locate a particular track (for CD) or folder
(for MP3 or WMA discs) directly
To select a number from 01 – 06:
About the CD changer
It is recommended to use a JVC MP3compatible CD changer with your unit.
• You can also connect other CH-X series CD
changers (except CH-X99 and CH-X100).
These units are not compatible with MP3
discs.
• You cannot play any WMA disc in the CD
changer.
• You cannot use the KD-MK series CD
changers with this unit.
• Disc text information recorded in the CD
Text can be displayed when a JVC CD Text
compatible CD changer is connected.
• For connection, see Installation/Connection
Manual (separate volume).
To fast-forward or reverse the track
To go to the next or previous tracks
ENGLISH
To select a number from 07 – 12:
• To use folder search on MP3/WMA discs, it is
required that folders are assigned with 2-digit
numbers at the beginning of their folder
names—01, 02, 03, and so on.
• To select a particular track in a folder (for
MP3 or WMA disc):
To go to the next or previous folders (only for
MP3 or WMA discs)
For MP3 discs:
For WMA discs:
11
Other main functions
Skipping a track quickly during play
Changing the display information
ENGLISH
Only possible on JVC
MP3-compatible CD changer
• For MP3 or WMA disc, you can skip a track
within the same folder.
Ex.: To select track 32 while playing track 6
1
2
Each time you press the button, you can
skip 10 tracks.
• After the last track, the first track will be
selected and vice versa.
3
Prohibiting disc ejection
You can lock a disc in the loading slot.
While playing an audio CD or a CD Text
2
While playing an MP3 or WMA
• When “TAG DISP” is set to “TAG ON”
(see page 16)
• When “TAG DISP” is set to “TAG OFF”
: Elapsed playing time with the current
track number
: Clock with the current track number
*
disc
To cancel the prohibition, repeat the same
procedure.
12
1
If the current disc is an audio CD,
*
“NO NAME” appears.
2
*
Only for the built-in CD player.
3
*
If an MP3/WMA file does not have ID3 tags,
folder name and file name appear. In this
case, the TAG indicator will not light up.
Selecting the playback modes
You can use only one of the following playback
modes at a time.
Sound adjustments
You can select a preset sound mode suitable to
the music genre (C-EQ: custom equalizer).
1
2 Select your desired playback mode.
7 Repeat play
Mode Plays repeatedly
TRK RPT : The current track.
FLDR RPT*1 : All tracks of the current
folder.
DISC RPT*2 : All tracks of the current disc.
RPT OFF : Cancels.
7 Random play
1
2
Preset values
Indication (For)
USER
(Flat sound)
ROCK
(Rock or disco music)
CLASSIC
(Classical music)
POPS
(Light music)
HIP HOP
(Funk or rap music)
JAZZ
(Jazz music)
BAS TRE LOUD
(bass) (treble)
00 00 OFF
+03 +01 ON
+01 –02 OFF
+04 +01 OFF
+02 00 ON
+02 +03 OFF
(loudness)
ENGLISH
Mode Plays at random
FLDR RND*1 : All tracks of the current
folder, then tracks of the next
folder and so on.
DISC RND : All tracks of the current disc.
MAG RND*2 : All tracks of the inserted
discs.
RND OFF : Cancels.
1
Only while playing an MP3 or WMA disc.
*
2
*
Only while playing discs in the CD
changer.
Adjusting the sound
You can adjust the sound characteristics to your
preference.
1
To be continued...
13
2
Indication pattern changes as you adjust the level.
ENGLISH
Ex.: When “TRE” is selected
Indication [Range]
BAS*1 (bass)
Adjust the bass. [–06 to +06]
1
TRE*
(treble)
Adjust the treble. [–06 to +06]
2
FAD*
(fader)
Adjust the front and rear speaker balance.
[R06 to F06]
BAL (balance)
Adjust the left and right speaker balance.
[L06 to R06]
1
LOUD*
Boost low and high frequencies to produce
a well-balanced sound at low volume level.
[LOUD ON or LOUD OFF]
VOL (volume)
Adjust the volume. [00 to 30 or 50*
*
*
*
(loudness)
3
]
1
When you adjust the bass, treble, or loudness,
the adjustment you have made is stored for
the currently selected sound mode (C-EQ)
including “USER.”
2
If you are using a two-speaker system, set the
fader level to “00.”
3
Depending on the amplifier gain control
setting. (See page 16 for details.)
General settings — PSM
You can change PSM (Preferred Setting Mode)
items listed in the table that follows.
1
2 Select a PSM item.
Ex.: When you select “DIMMER”
3 Adjust the PSM item selected.
4 Repeat steps 2 and 3 to adjust the
other PSM items if necessary.
5 Finish the procedure.
14
Indications Selectable settings, [reference page]
DEMO
DEMO ON : [Initial]; Display demonstration will be activated
Display demonstration
DEMO OFF : Cancels.
CLOCK H
Hour adjustment
CLOCK M
Minute adjustment
24H/12H
Time display mode
CLK ADJ
0 – 23 (1 – 12), [6]
[Initial: 0 (0:00)]
00 – 59, [6]
[Initial: 00 (0:00)]
12H O 24H, [6]
[Initial: 24H]
AUTO : [Initial]; The built-in clock is automatically adjusted
Clock adjustment
OFF : Cancels.
AF-REG*
5
Alternative frequency/
regionalization reception
When the received signals from the current FM RDS station or DAB
service become weak...
AF : [Initial]; Switches to another station (or service)
• The AF indicator lights up.
AF REG : Switches to another station broadcasting the same
• The AF and REG indicators light up.
OFF : Cancels (not selectable when “DAB AF” is set to
PTY-STBY*
PTY standby
TA VOL
5
Activates PTY Standby Reception with one of the PTY codes, [9].
OFF [Initial] = PTY codes, [10] = (back to the beginning)
[Initial: VOL 15]; VOL 00 — VOL 30 or 50*
Traffic announcement
volume
P-SEARCH*
5
ON : Using the AF data, the unit tunes in to another
Programme search
OFF : [Initial]; Cancels.
DAB AF*
6
AF ON : [Initial]; Traces the programme among DAB services
Alternative frequency
reception
4
*
Depends on the amplifier gain control.
5
*
Only for FM RDS stations.
6
*
Displayed only when DAB tuner is connected.
AF OFF : Cancels.
automatically if no operation is done for about
20 seconds, [6].
using the CT (clock time) data in the RDS signal.
(the programme may differ from the one currently
received), [10, 19].
programme.
“AF ON”).
4
, [9]
frequency broadcasting the same programme as the
original preset RDS station is if the preset station
signals are not sufficient.
and FM RDS stations, [10, 19].
To be continued...
ENGLISH
15
Loading...
