AV-32X4SU AV-28X4SU

ENGLISH

DEUTSCH

FRANÇAIS

NEDERLANDS

CASTELLANO

ITALIANO

PORTUGUÊS

AV-32X4BU AV-28X4BU

COLOUR TELEVISION

FARBFERNSEHGERÄT TELEVISEUR COULEUR KLEURENTELEVISIE TELEVISOR A COLOR TELEVISORE A COLORI TELEVISOR A CORES

INSTRUCTIONS

BEDIENUNGSANLEITUNG

MANUEL D’INSTRUCTIONS

GEBRUIKSAANWIJZING

MANUAL DE INSTRUCCIONES

ISTRUZIONI

INSTRUÇÕES

Thank you for buying this JVC colour television. To make sure you understand how to use your new TV, please read this manual thoroughly before you begin.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

CAUTION:

• Operate only from the power source specified (AC 220 – 240 V, 50 Hz) on the unit.

• Avoid damaging the AC plug and power cord.

• When you are not using this unit for a long period of time, it is recommended that you disconnect the power cord from the main outlet.

Avoid improper installation and never position the unit where good ventilation is unattainable. When installing this television, distance recommendations must be maintained between the floor and wall, as well as installation in a tightly enclosed area or piece of furniture. Adhere to the minimum distance guidelines shown for safe operation.

• The main power button on the TV does not fully isolate the TV from the AC supply. If you are not going to use this TV for a long period of time, be sure to disconnect the AC plug from the AC socket.

ENGLISH

Failure to heed the following precautions may result in damage to the TV or remote control.

DO NOT block the TV’s ventilation openings or holes.

(If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

DO NOT place anything on top of the TV.

(such as cosmetics or medicines, flower vases, potted plants, cups, etc.)

DO NOT allow objects or liquid into the cabinet openings.

(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

DO NOT place any naked flame sources, such as lighted candles, on the TV.

The surface of the TV screen is easily damaged. Be very careful with it when handling the TV. Should the TV screen become soiled, wipe it with a soft dry cloth. Never rub it forcefully. Never use any cleaner or detergent on it.

In the event of a fault, unplug the unit and call a service technician. Do not attempt to repair it yourself or remove the rear cover.

NOTE:

Due to static electricity, the TV may be covered with dust. If this happens, wipe the TV with a soft cloth being careful not to scratch the TV.

CONTENTS

Setting up your TV ...................................3

Connecting the aerial and VCR ................. 3

Connecting the power cord to the AC

outlet....................................................... 4

Putting the batteries into the Remote

control..................................................... 4

Initial settings ............................................. 4

T-V LINK FUNCTIONS .............................. 6

TV buttons and functions........................8

Turn the Main power on ............................. 9

Turn the TV on from standby mode ........... 9

Choose a TV channel ................................ 9

Adjust the volume ...................................... 9

Remote control buttons and

functions..............................................10

Turn the TV on or off from standby

mode .................................................... 10

Choose a TV channel .............................. 10

Adjust the volume .................................... 11

Watch images from external devices....... 11

ZOOM function......................................... 12

3D CINEMA SOUND function.................. 14

Displaying the current time ...................... 14

Return to TV channel instantly................. 14

Operating a JVC brand VCR or

DVD player ........................................... 14

Teletext function ....................................15

Basic operation ........................................ 15

Using the List Mode ................................. 15

Hold.......................................................... 16

Sub-page ................................................. 16

Reveal...................................................... 16

Size .......................................................... 16

Index ........................................................ 16

Cancel...................................................... 17

Using the TV’s menu..............................18

Basic operation ........................................ 18

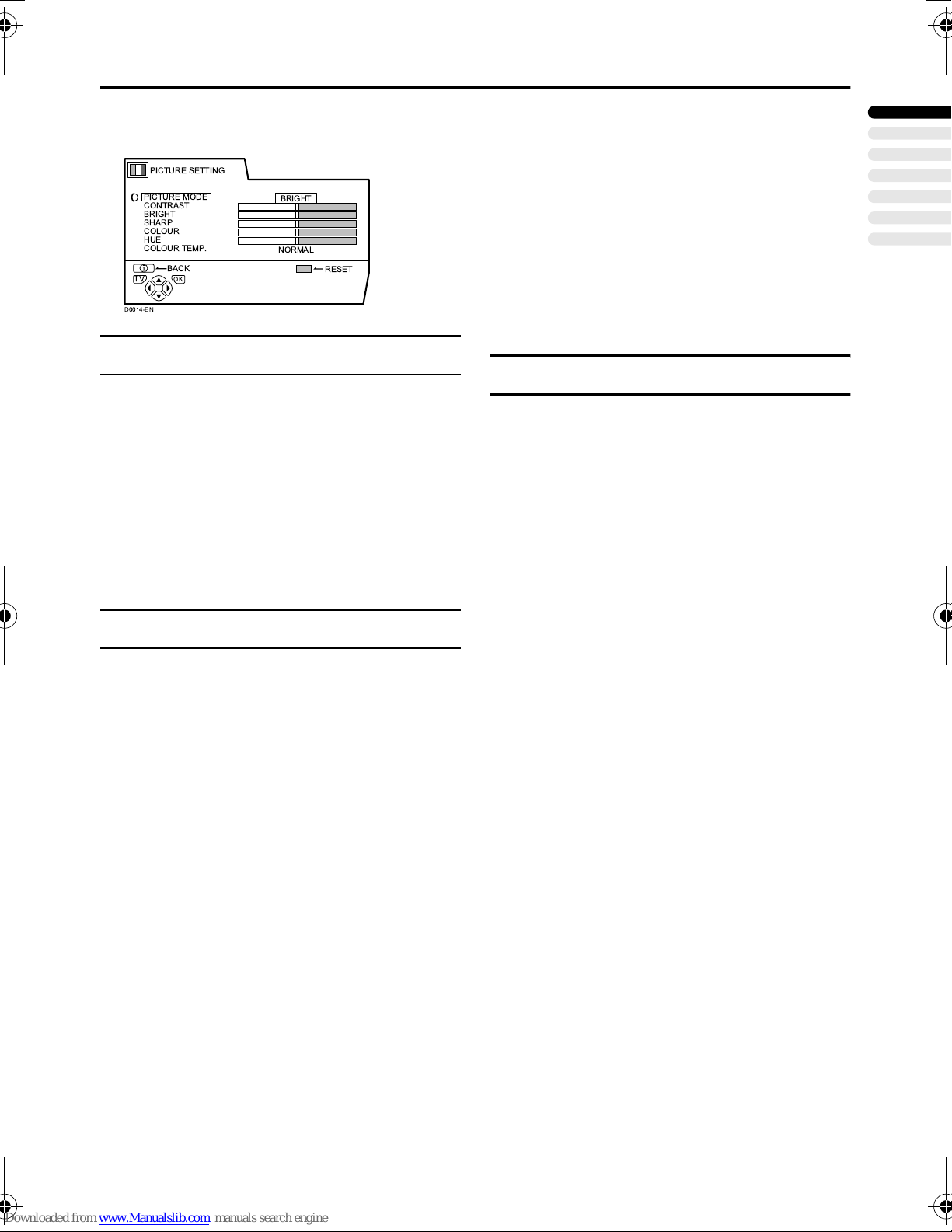

PICTURE SETTING.................................19

PICTURE MODE ..................................... 19

Picture Adjustment................................... 19

COLOUR TEMP....................................... 19

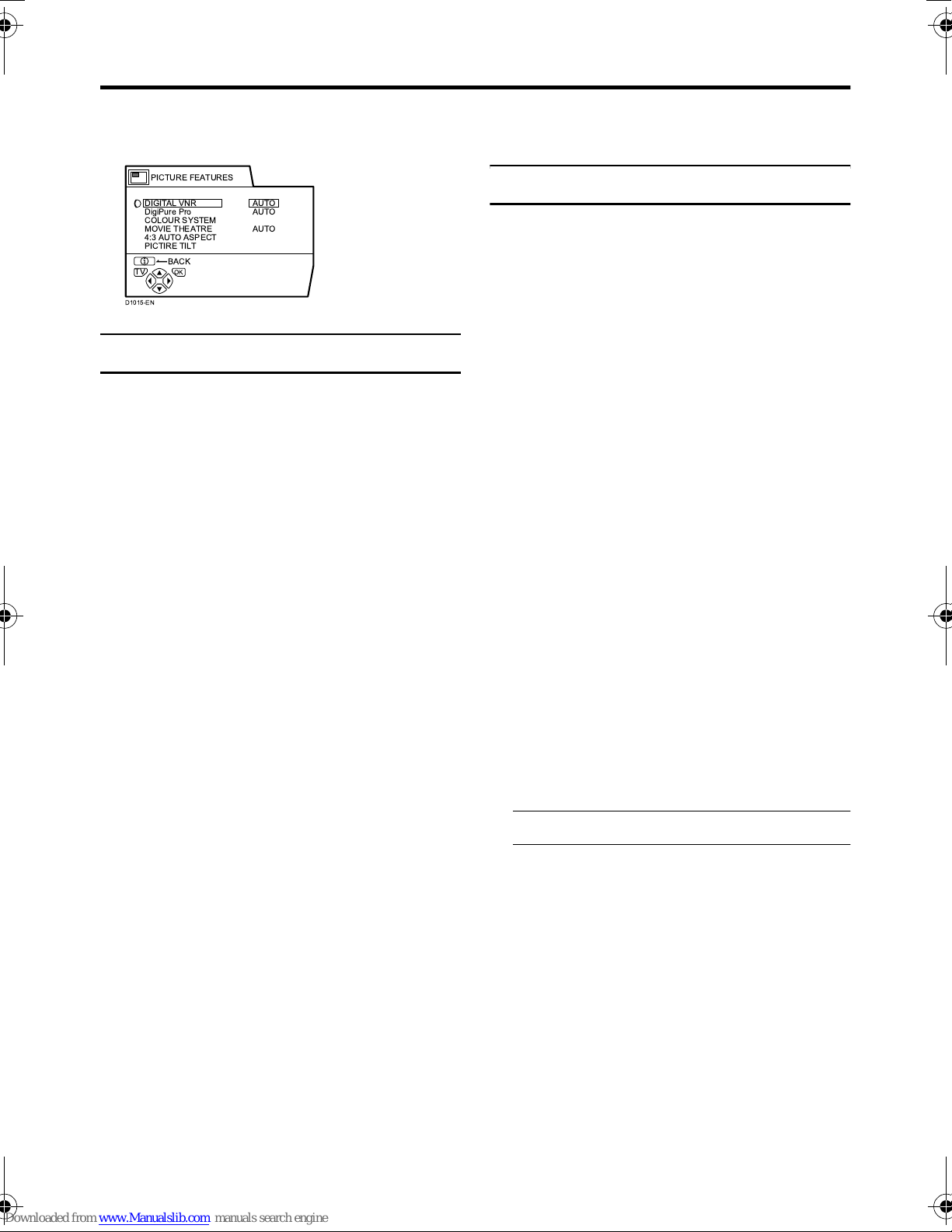

PICTURE FEATURES .............................20

DIGITAL VNR .......................................... 20

DigiPure Pro............................................. 20

COLOUR SYSTEM.................................. 21

MOVIE THEATRE.................................... 21

4:3 AUTO ASPECT.................................. 22

PICTURE TILT

(Only for AV-32X4SU/AV-32X4BU)...... 22

SOUND SETTING ................................... 23

STEREO / I • II ......................................... 23

Sound Adjustment....................................23

HYPER SOUND....................................... 23

3D CINEMA SOUND ...............................24

SURROUND ............................................ 24

BASS BOOST .......................................... 24

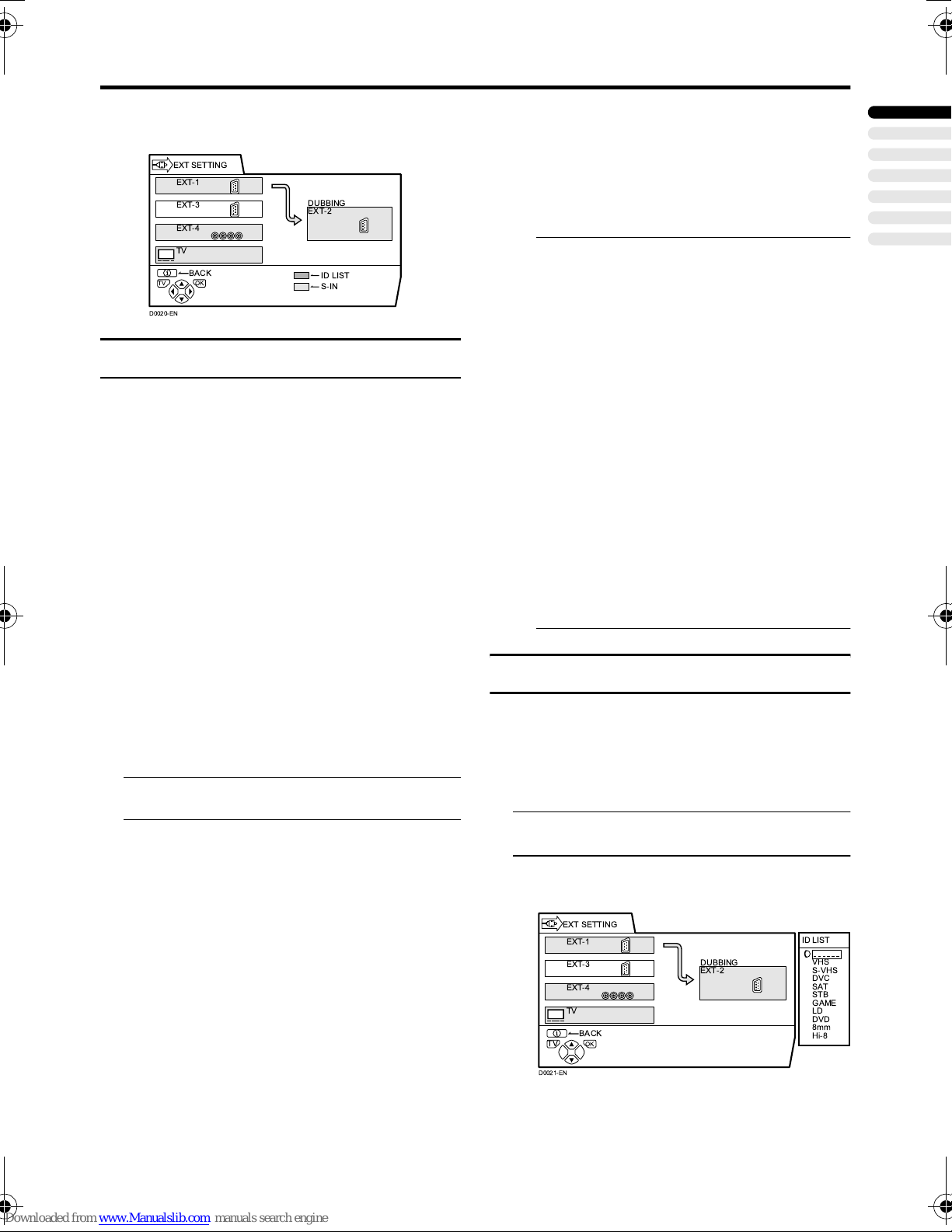

EXT SETTING .........................................25

S-IN (S-VIDEO input) ............................... 25

ID LIST ..................................................... 25

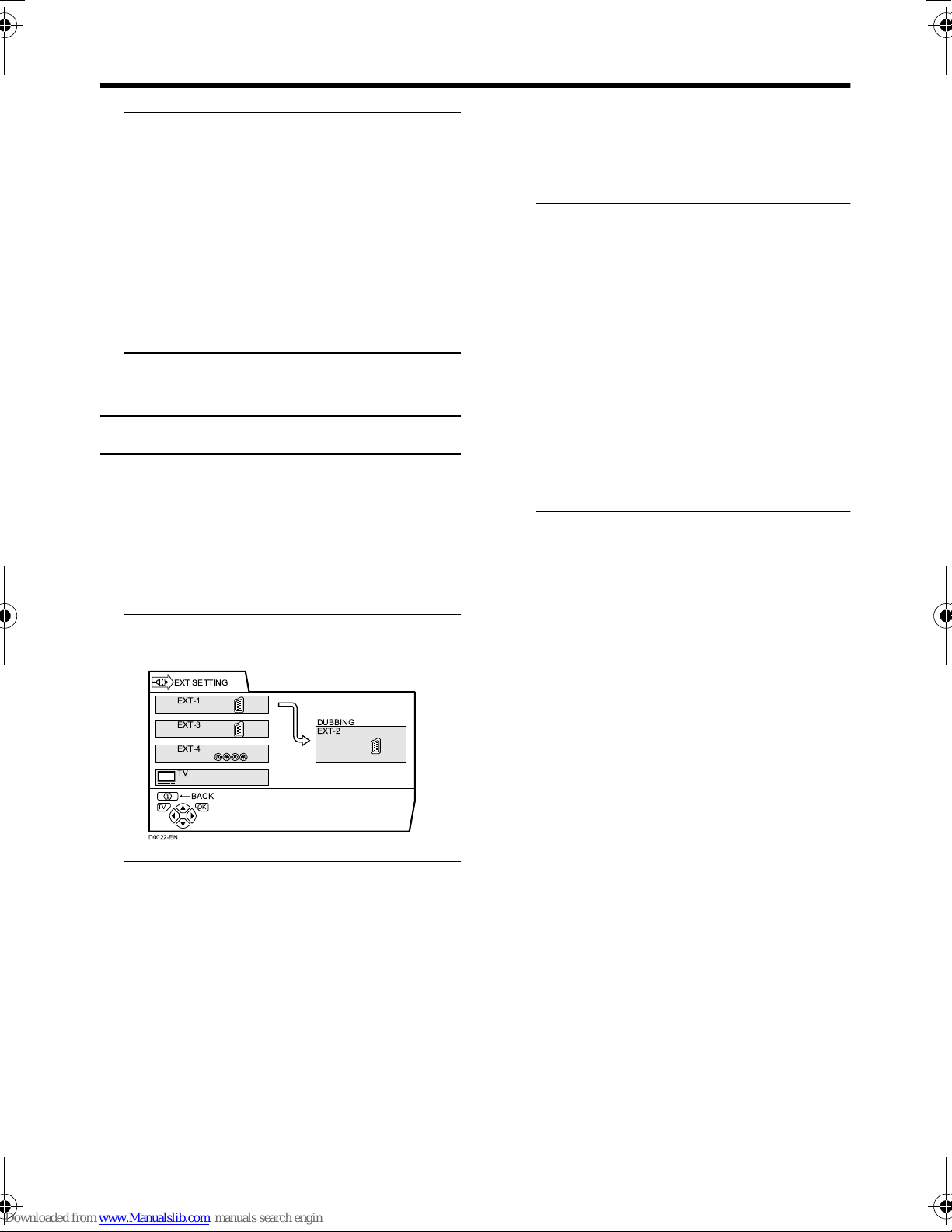

DUBBING................................................. 26

FEATURES .............................................27

SLEEP TIMER ......................................... 27

BLUE BACK ............................................. 27

CHILD LOCK............................................ 27

DECODER (EXT-2).................................. 29

INSTALL.................................................. 30

LANGUAGE ............................................. 30

AUTO PROGRAM.................................... 30

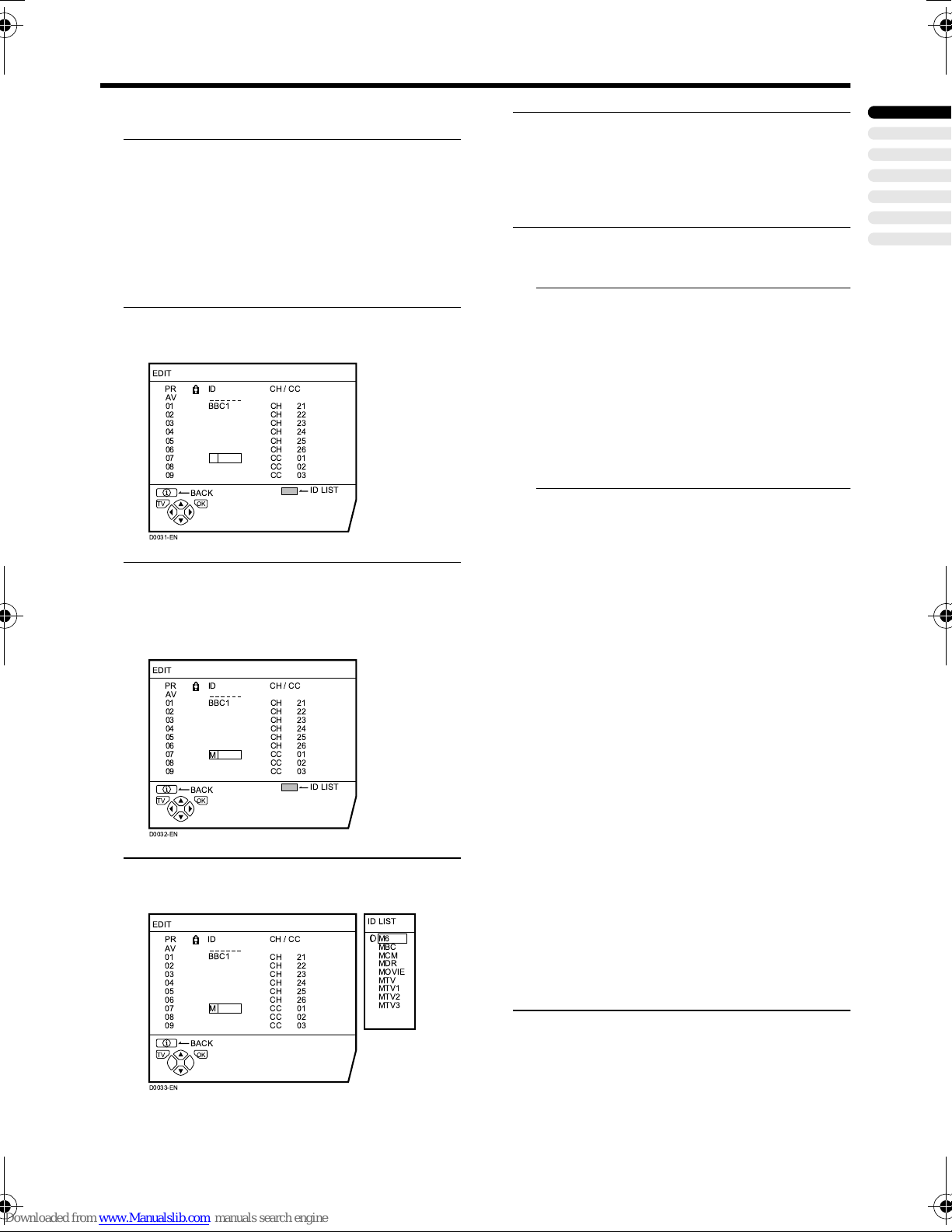

EDIT/MANUAL ......................................... 31

Additional menu operations ................. 36

Using the ACI function ............................. 36

Downloading the data to VCR.................. 37

Changing the COUNTRY setting ............. 37

Using the DECODER (EXT-2) function.... 38

Additional preparation ..........................39

Connecting the external devices .............. 39

CH/CC numbers ..................................... 41

Troubleshooting .................................... 43

Specifications ........................................46

Setting up your TV

Caution

• Turn off all the equipment including the TV before connecting anything.

Connecting the aerial and VCR

• The connecting cables are not provided.

• For further details, refer to the manuals provided with the devices to be connected.

ENGLISH

 If connecting a VCR, follow AAAA →

BBBB → CCCC.

 If not connecting a VCR, follow 1111.

To operate T-V LINK functions, a T-V LINK compatible VCR must be connected to the EXT-2 terminal on the TV. For details about T-V LINK functions, see “T-V LINK FUNCTIONS” on page 6.

• A video can be viewed from the VCR

without performing C. For details, refer to your VCR instruction manual.

• To connect additional external devices, please see “Additional preparation” on page 39.

• To connect speakers and amplifier, please see “Connecting Speakers/Amplifier” on page 40.

• When a decoder is connected to a T-V LINK compatible VCR, set the DECODER (EXT-2) function to ON. For details, see “Using the DECODER (EXT-

2) function” on page 38. Otherwise, you will not be able to view scrambled channels.

21-pin

SCART

Cable

VCR

AV IN/OUT

Back of the TV

EXT-1

EXT-2

Terminal

Aerial

75-ohm Coaxial

Cable

EXT-3

AUDIO OUT

75-ohm Coaxial

Cable

To Aerial

Input

To Aerial

Output

 Rear Panel

EXT-1

XT-

1 Aerial socket (3) 2 EXT-1 terminal (3, 25, 39) 3 EXT-2 terminal (3, 6, 25, 39) 4 EXT-3 terminal (25, 39) 5 AUDIO OUT terminal (40)

Setting up your TV

Connecting the power cord to the AC outlet

Caution

• Operate only from the power source specified (AC 220 – 240 V, 50 Hz) on the unit.

Putting the batteries into the Remote control

Use two AAA/R03 dry cell batteries. Insert the batteries from the - end, making sure the + and - polarities are correct.

Initial settings

When the TV is first turned on, it enters the initial setting mode, and the JVC logo is displayed. Follow the instructions on the onscreen display to make the initial settings.

TV OK

1 Press the Main power button on the

The Power lamp lights, and the JVC logo is displayed.

Blue button

• Follow the warnings printed on the batteries.

• Battery life is about six months to one year, depending on your frequency of use.

• The batteries we supply are only for setting up and testing your TV, please replace them as soon as necessary.

• If the remote control does not work properly, replace the batteries.

Main power

button

Power lamp

• The JVC logo does not appear when your TV has been turned on once. In this case, use the “LANGUAGE” and “AUTO PROGRAM” functions to make the initial settings. For details, see “INSTALL” on page 30.

Setting up your TV

2 Press the aaaa button

The LANGUAGE menu appears.

LANGUAGE

BACK

TV OK

D0002(E)-EN

3 Press the 5

5 and 6

6 buttons to

choose ENGLISH. Then press the aaaa button

English is set for the on-screen display description. The COUNTRY menu appears as a sub-menu of the AUTO PROGRAM function. There are two COUNTRY menus. Pressing the yellow button changes the COUNTRY menu as follows:

BACK

TV OK

D0003-EN

4 Press the 5

5 and 6

START MORE

BACK

TV OK

6 buttons to

choose the country where you are now located

START MORE

5 Press the blue button to start the

AUTO PROGRAM function

The AUTO PROGRAM menu appears and received TV channels are automatically registered in the Programme numbers (PR).

• To cancel the AUTO PROGRAM function: Press the b button.

AUTO PROGRAM

CH 10

20%

BACK

TV OK

D0004-EN

EDIT

PR ID AV 01 02 03 04 05 06 07 08 09

TV OK

BACK

MOVE

BBC1

CH / CC

CH CH CH CH CH CH CC CC CC

21 22 23 24 25 26 01 02 03

ID INSERT DELETE MANUAL

After the TV channels have been registered in the Programme numbers (PR), the EDIT menu appears

• You can proceed to edit the Programme numbers (PR) using the EDIT/MANUAL function. For details, see “EDIT/MANUAL” on page 31.

• If you do not need to use the EDIT/ MANUAL function, go to the next step.

If “ACI START/ACI SKIP” appears in the AUTO PROGRAM menu:

You can use the ACI (Automatic Channel Installation) function to decode the ACI data and complete the registration of all the TV channels in a short period of time. For details of the ACI function and how to use it, refer to “Using the ACI function” on page 36. If you don’t want to use the ACI function, press the 6 buttons to choose ACI SKIP and then press a.

ENGLISH

Setting up your TV

6 Press the aaaa button to display the

T-V LINK menu

T-V LINK

DOWNLOAD TV VCR

BACK

TV OK

D0005-EN

EXIT

7 If you do not have a T-V LINK

compatible VCR connected:

Press the b button to exit the T-V LINK menu. The T-V LINK menu disappears.

If you have a T-V LINK compatible VCR connected to the EXT-2 terminal:

Follow the operating procedure “Downloading the data to VCR” on page 37 to transmit the Programme number (PR) data.

Now, the initial settings are complete, and you can watch the TV

• When your TV can detect the TV channel name from the TV channel broadcast signal, it automatically registers the TV channel name (ID) to the Programme number (PR) in which the TV channel has been registered.

• If a TV channel you want to view is not set to a Programme number (PR), manually set it using the MANUAL function. For details, see “EDIT/ MANUAL” on page 31.

• The TV channel is not registered in Programme number PR 0 (AV). When you want to register a TV channel to PR 0 (AV), manually set it using the MANUAL function. For details, see “EDIT/MANUAL” on page 31.

T-V LINK FUNCTIONS

When a T-V LINK compatible VCR is connected to the EXT-2 Terminal on the TV, it is easier to set up the VCR and to view videos. T-V LINK uses the following features:

To use T-V LINK functions:

A T-V LINK compatible VCR is necessary. The VCR must be connected to the EXT-2 terminal on the TV by a fully wired SCART cable.

A “T-V LINK compatible VCR” means a JVC VCR with the T-V LINK logo or a VCR with one of the following logos. However, these VCRs may support some or all of the features described below. For details, refer to your VCR instruction manual.

“Q-LINK” (a trademark of Panasonic Corporation) “Data Logic” (a trademark of Metz Corporation) “Easy Link” (a trademark of Phillips Corporation) “Megalogic” (a trademark of Grundig Corporation) “SMARTLINK” (a trademark of Sony Corporation)

 Pre-set Download

Download the registered data on the TV channels from the TV to the VCR. The Preset Download function automatically begins when the initial setting is complete or whenever the AUTO PROGRAM or EDIT/ MANUAL operations are performed.

• This function can be operated via VCR operation.

When “FEATURE NOT AVAILABLE” is displayed:

If “FEATURE NOT AVAILABLE” is displayed, the download was not performed correctly. Before trying to download again, ensure the following:

• The VCR power is turned on.

• The VCR is T-V LINK compatible.

• The VCR is connected to the EXT-2 terminal.

• The SCART cable is fully wired.

 Direct Rec

“What You See Is What You Record” You can record to VCR the images that you are currently viewing on TV by a simple operation. For details, read the manual for your VCR. Operate via the VCR. “VCR IS RECORDING” is displayed.

Setting up your TV

• Operation via the TV is not possible.

• Generally, the VCR cannot record a TV channel that cannot be received properly by the VCR’s tuner, even though you can view that TV channel on the TV. However, some VCRs can record a TV channel by using the TV’s output if that channel can be viewed on the TV, even though the TV channel cannot be received properly by the VCR’s tuner. For details, refer to your VCR instruction manual.

 TV Auto Power On/VCR Image

View

When the VCR starts playing, the TV automatically turns on and the images from EXT-2 terminal are displayed on the screen. When the VCR menu is operated, the TV automatically turns on and the images from EXT-2 terminal are displayed on the screen.

• This function does not operate if your TV’s main power is turned off. Set your TV’s main power to on (standby mode).

ENGLISH

In the following conditions, the VCR will stop recording if the TV is turned off, if the TV channel or input is switched, or if the menu is displayed on the TV:

• When recording images from an external device connected to the TV.

• When recording a TV channel after it has been unscrambled on a decoder.

• When recording a TV channel by using the TV’s output because that TV channel cannot be properly received on the VCR’s tuner.

• When the VCR is not ready (for example, when there is no tape inserted), “NO RECORDING” is displayed.

TV buttons and functions

Refer to the pages in parentheses for details.

1 Main power button (4, 9) 2 Power lamp (4, 9) 3 Remote control sensor 4 r (Volume) button (9) 5 P p buttons/ q buttons (9) 6 Headphone jack (mini jack) (39) 7 EXT-4 terminal (25, 39)

MONO

EXT-4

MONO

EXT-4

Turn the Main power on

Press the Main power button on the TV.

The Power lamp lights red and your TV is in the standby mode.

To turn the Main power off:

Press the Main power button again. The Power lamp goes off.

Caution

Turn the TV on from standby

TV buttons and functions

ENGLISH

mode

Press the P p on from standby mode

When the TV is turned on, the power lamp dims slightly.

p buttons to turn the TV

Choose a TV channel

Press the P p programme number (PR) or an EXT terminal

p buttons to choose a

Adjust the volume

1 Press the rrrr (Volume) button

The volume level indicator appears.

2 Press the q

volume level indicator is displayed

q buttons while the

Remote control buttons and functions

1 Muting button 2 Number buttons 3 c button 4 3D CINEMA SOUND button

1 2 3

4 5 6

7 8 9

TV OK

F .T/L

5 Information button 6 b button 7 5 buttons 8 Standby button 9 Colour buttons 0 a button

- 6 buttons = VCR/DVD/Teletext control button ~ VCR P DVD switch g (Text) button

</>

! D

buttons

Turn the TV on or off from standby mode

Press the #### (standby) button to turn the TV on or off.

When the TV is turned on, the power lamp dims slightly.

• The power can be turned on by pressing

the b button, 6 buttons or Number buttons.

Choose a TV channel

 Use the number buttons:

Enter the programme number (PR) of the channel using the number buttons.

Example:

•PR 6 → press 6

• PR 12 → press 1 and 2

Remote control buttons and functions

 Use the 6

Press the 6

6 buttons:

6 buttons to choose

the programme number (PR) you want.

 Use the PR LIST:

1 Press the

display the PR LIST

Pressing the h (Information) button changes the display as follows:

PR LIST

PR ID AV

BBC1

01 02 03 04 05 06 07 08 09

TV OK

+10-10

D0011-EN

(Information) button to

hhhh

12:00

No indication

Adjust the volume

Press the

buttons to adjust the

volume.

The Volume indicator appears and the volume changes as you press the

buttons.

 Muting the sound

Press the

(muting) button to

llll

turn off the sound.

Pressing the l (muting) button again restores the previous volume level.

Watch images from external devices

 Use the o

Press the o an EXT terminal.

o button:

o button to choose

ENGLISH

2 Press the

and

buttons to

choose a Programme number (PR). Then press the aaaa button

• For Programme numbers (PR) with the CHILD LOCK function set, the n (CHILD LOCK) mark is displayed next to the Programme number (PR) in the PR LIST.

• You cannot use the

buttons to choose a Programme number (PR) with the CHILD LOCK function set.

• Even if you try to choose a Programme number (PR) with the CHILD LOCK function set, the n (CHILD LOCK) mark will appear, and you cannot watch the TV channel. To watch the TV channel, see “CHILD LOCK” on page 27.

• If the picture is tilted, correct it. See “PICTURE TILT (Only for AV32X4SU/AV-32X4BU)” on page 22.

TV mode EXT modes

Programme

numbers

PR 1 – PR 99

 Use the 6

Press the 6

6 buttons:

6 buttons to choose

EXT-1

EXT-4

an EXT terminal.

 Use the PR LIST:

1 Press the

display the PR LIST

2 Press the

choose an EXT terminal. Then press the a

• The EXT terminals are registered after the Programme number PR 99.

(Information) button to

hhhh

and

a button

buttons to

EXT-2

EXT-3

Remote control buttons and functions

• You can choose a video input signal from the S-VIDEO signal (Y/C signal) and regular video signal (composite signal). For details, see “S-IN (SVIDEO input)” on page 25.

• If you do not have a clear picture or no colour appears, change the colour system manually. See “COLOUR SYSTEM” on page 21.

• If you choose an EXT terminal with no input signal, the EXT terminal number becomes fixed on the screen.

• This TV set has a function which can automatically change over the input according to a special signal output from an external device. (The EXT-4 terminal does not support it.)

To return to a TV channel:

Press the b button, the 6 buttons or the Number buttons.

To use the Programme number PR 0 (AV):

When the TV and VCR are connected only by the Aerial cable, choosing the Programme number PR 0 (AV) allows you to view images from the VCR. Set the VCR RF channel to the Programme number PR 0 (AV) manually. For details, see “EDIT/ MANUAL” on page 31. Pressing the o button changes the choice as follows:

TV mode

Programme

numbers

PR 1 – PR 99

PR 0

EXT modes

EXT-1

EXT-2

ZOOM function

You can change the screen size according to the picture aspect ratio. Choose the optimum one from the following ZOOM modes.

AUTO:

For any picture format except Normal Picture (4:3 Aspect Ratio), the picture will be automatically displayed in the optimum screen size. For Normal Picture (4:3 Aspect Ratio), the picture displayed in accordance with the ZOOM mode set on the 4:3 AUTO ASPECT menu. For details, see “4:3 AUTO ASPECT” on page 22.

• AUTO may not function properly with poor signal quality. In this case, choose an optimum ZOOM mode manually.

• This TV supports WSS (wide-screen signals). When broadcasts with WSS are received with the ZOOM mode set at AUTO, the most suitable ZOOM mode is automatically chosen according to the WSS received.

REGULAR:

Use to view a normal picture (4:3 aspect ratio) as its original size is.

PANORAMIC:

This mode stretches the left and right sides of a normal picture (4:3 Aspect Ratio) to fill the screen, without making the picture appear unnatural.

EXT-4

• The VCR RF channel is sent as the RF signal from the VCR.

• Also refer to your VCR instruction manual.

EXT-3

• The top and bottom of the picture are slightly cut off.

Remote control buttons and functions

14:9 ZOOM:

This mode zooms up the Wide Picture (14:9 Aspect Ratio) to the upper and lower limits of the screen.

16:9 ZOOM:

This mode zooms up the Wide Picture (16:9 Aspect Ratio) to the full screen.

16:9 ZOOM SUBTITLE:

This mode zooms up the Wide Picture (16:9 Aspect Ratio) with subtitles to the full screen.

FULL:

This mode uniformly stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the wide TV screen.

2 Press the 6

6 buttons to choose a

ZOOM mode. Then press the aaaa button

The picture expands and the chosen ZOOM mode is displayed in about 5 seconds.

• The ZOOM mode may be automatically changed due to the control signal from an external device. When you want to return to the previous ZOOM mode, choose the ZOOM mode again.

 Adjusting the visible area of the


If subtitles or the top (or bottom) of the picture are cut off, adjust the visible area of the picture manually.

1 Press the c

The ZOOM menu appears.

2 Press the aaaa button to display the

ZOOM mode indication

Indicator is displayed.

c button

ENGLISH

Use for pictures with a 16:9 aspect ratio that have been squeezed into a normal picture (4:3 aspect ratio), you can restore their original dimensions.

 Choose the ZOOM mode

1 Press the c

the ZOOM menu

ZOOM

AUTO REGULAR PANORAMIC 14:9 ZOOM 16:9 ZOOM 16:9 ZOOM SUBTITLE FULL

TV OK

D0009-EN

c button to display

BACK

16 : 9 ZOOM

D0010-EN

3 While it is displayed, press the 6

buttons to adjust the visible area vertically

• You cannot adjust the visible area in REGULAR or FULL mode.

Remote control buttons and functions

3D CINEMA SOUND function

You can enjoy sounds with a wider ambience.

Press the //// (3D CINEMA SOUND) button to turn the 3D CINEMA SOUND function on or off

• The 3D CINEMA SOUND effect can be adjusted with the “3D CINEMA SOUND” menu (see page 24).

• The 3D CINEMA SOUND function does not work properly with mono sound.

• If the audio is mono sound, use “HYPER SOUND” (see page 23) to enjoy a simulated stereo experience.

• When 3D CINEMA SOUND is turned on, HYPER SOUND turns off, and when HYPER SOUND is turned on, 3D CINEMA SOUND turns off.

Displaying the current time

You can display the Current Time on the screen.

Press the display the current time

Pressing the h (Information) button changes the display as follows:

PR LIST

PR ID AV

BBC1

01 02 03 04 05 06 07 08 09

TV OK

+10-10

D0011-EN

• This TV uses teletext data to set the current time. If the TV has not received a TV channel that has teletext programmes since it was turned on, the time display is blank. To view the current time, choose a TV channel that has teletext programmes.

• When watching videos, an incorrect current time is sometimes displayed.

(Information) button to

hhhh

12:00

No indication

Return to TV channel instantly

You can return to a TV channel instantly.

Press the bbbb button

The TV returns to the TV mode and a TV channel appears.

Operating a JVC brand VCR or DVD player

You can operate a JVC brand VCR or DVD player. Pressing the button having the same appearance as the original remote control button of a device makes the function work in the same way as the original remote control.

1 Set the VCR PPPP DVD Switch to the

VCR or DVD position

VCR:

When you are operating the VCR, set the switch to the VCR position.

DVD:

When you are operating the DVD player, set the switch to the DVD position.

2 Press the VCR/DVD Control Button

to control your VCR or DVD player

• If your device is not made by JVC, these buttons cannot be used.

• Even if your device is made by JVC, some of these buttons or any one of the buttons may not work, depending on the device.

• You can use the p buttons to choose a TV channel. The VCR will receive or choose the chapter the DVD player plays back.

• Some DVD player models use the p buttons for both operating of Fast forward/backward functions and choosing the chapter. In this case, the 253 buttons do not work.

Teletext function

TV OK

4 Choose a teletext page by pressing

the 6

6 buttons, Number buttons

or Colour buttons

To return to the TV mode:

Press the b button or g (Text) button.

F. T / L

Basic operation

You can view three types of teletext broadcasts on the TV: FLOF (Fastext), TOP and WST.

1 Choose a TV channel with a teletext

broadcast

2 Set the VCR PPPP DVD switch to the

(Text) position

PPPP

• If you have trouble receiving teletext broadcasts, consult your local dealer or the teletext station.

• The ZOOM function will not operate in the TV and text mode or Text mode.

• No menu operations are possible when viewing a teletext programme.

• Language display depends on the country which was set on the COUNTRY menu. If characters on a Teletext programme do not appear properly, change the COUNTRY Setting to other country’s. For detail, “Changing the COUNTRY setting” on page 37.

Using the List Mode

You can store the numbers of your favourite teletext pages in memory and call them up quickly using the colour buttons.

ENGLISH

3 Press gggg (Text) button to display

the teletext

Pressing g (Text) button changes the mode as follows:

TEXT

---

TEXT

---

D1043-EN

TV mode

TEXT TEXT

---

TV and text mode

Text mode

 To store the page numbers:

1 Press B

List mode

The stored page numbers are displayed at the bottom of the screen.

2 Press a Colour button to choose a

position. Then press the Number buttons to enter the page number

B button to engage the

1 2 3

4 5 6

7 8 9

Teletext function

3 Press and hold down AAAA (Store)

button

The four page numbers blink white to indicate that they are stored in memory.

 To call up a stored page:

1 Press the B

the List mode

2 Press a colour button to which a

page has been assigned

To exit the List mode:

Press the B button again.

B button to engage

Hold

You can hold a teletext page on the screen for as long as you want, even while several other teletext pages are being received.

Reveal

Some teletext pages include hidden text (such as answers to a quiz). You can display the hidden text.

Each time you press the EEEE (Reveal) button, text is hidden or revealed

Size

You can double the height of the teletext display.

Press the FFFF (Size) button.

Press the CCCC (Hold) button

Hold indication

To cancel the Hold function:

Press C (Hold) button again.

Sub-page

Some teletext pages include sub-pages that are automatically displayed.

1 Choose a teletext page that

includes sub-pages

Sub-page numbers that can be viewed are automatically displayed at the top of the screen.

2 Press the DDDD

a sub-page number

buttons to choose

<<<</>>>>

Index

You can return to the index page instantly.

Press GGGG (Index) button

Returns to page 100 or a previously specified page.

Cancel

You can search for a teletext page while watching TV.

1 Press the Number button to enter a

page number, or press a Colour button

The TV searches for a teletext page.

2 Press HHHH (Cancel) button

The TV programme appears. When the TV finds the teletext page, its page number appears in the upper left of the screen.

3 Press HHHH (Cancel) button to return

to a teletext page when the page number is on the screen

• The TV mode cannot be resumed even

by pressing the H (Cancel) button. A TV programme is temporarily displayed instead of the teletext programme.

Teletext function

ENGLISH

Using the TV’s menu

This TV has a number of functions you can operate using menus. To fully utilize all your TV’s functions, you need to understand the basic menu operating techniques fully.

Blue button

TV OK

Basic operation

1 Press the aaaa button to display the

MENU (main menu)

PICTURE SETTING

PICTURE FEATURES

SOUND SETTING

3D CINEMA SOUND

BACK

TV OK

EXT SETTING

FEATURES

INSTALL

3 Press the 6

6 buttons to choose a

function

• For details of the functions in the menus, see the following pages.

4 Press the 5

5 buttons to choose

the setting of that function

• If you want to operate a function which appears only with its name, follow the descriptions of that function on the following pages.

• The display appearing at the bottom of a menu shows you a button on the remote control that you can use when you operate a chosen function.

5 Press the aaaa button to complete

the setting

The menu disappears.

• When watching the television with the NTSC system, the menus are displayed at about half of their normal vertical size.

D1013-EN

• The display appearing at the bottom of a menu indicates buttons on the remote control you can use when you operate a chosen function.

(Information) button

TV OK

button

2 Press the 5

5 and 6

6 buttons to

choose a menu title, and press the aaaa button

The menu appears.

To return to the previous menu:

Press the h (information) button.

To exit a menu instantly:

Press the b button.

BACK

button

PICTURE SETTING

Refer to “Using the TV’s menu” (see page 18) for details of displaying the menu.

PICTURE SETTING

PICTURE MODE CONTRAST BRIGHT SHARP COLOUR HUE COLOUR TEMP.

TV OK

D0014-EN

BACK

BRIGHT

NORMAL

RESET

PICTURE MODE

You can choose one of three PICTURE MODEs to adjust the picture settings automatically.

BRIGHT:

Heightens contrast and sharpness.

STANDARD:

Standardizes picture adjustment.

SOFT:

Softens contrast and sharpness.

Picture Adjustment

You can change the picture settings of each PICTURE MODE mode as you like.

CONTRAST:

You can adjust the picture contrast.

2 :lower 3 : higher

• You can change the HUE setting (picture hue) when the colour system is NTSC

3.58, NTSC 4.43. (See “Specifications” on page 46)

To return to the default settings in each PICTURE MODE :

Press the blue button.

• This returns the picture settings in the PICTURE MODE mode you have chosen to the default settings, and stores them in the PICTURE MODE mode.

COLOUR TEMP.

You can select one of three COLOUR TEMP. modes (three tones of white) to adjust the white balance of the picture. Since white is the colour which is used as a reference for all the other colours, changing the COLOUR TEMP. mode affects the appearance of all the other colours on the screen.

COOL:

A bluish white. Using this mode when watching bright pictures allows you to enjoy a more vivid and bright picture.

NORMAL:

The normal white colour.

WARM:

A reddish white. Using this mode when watching films allows you to enjoy colours that are characteristic of films.

ENGLISH

BRIGHT:

You can adjust the picture brightness.

2 : darker 3 : brighter

SHARP:

You can adjust the picture sharpness.

2 : softer 3 :sharper

COLOUR:

You can adjust the picture colour.

2 : lighter 3 : deeper

HUE:

You can adjust the picture tint.

2 : reddish 3 :greenish

PICTURE FEATURES

Refer to “Using the TV’s menu” (see page 18) for details of displaying the menu.

PICTURE FEATURES

DIGITAL VNR DigiPure Pro COLOUR SYSTEM MOVIE THEATRE 4:3 AUTO ASPECT PICTIRE TILT

BACK

TV OK

D1015-EN

DIGITAL VNR

The DIGITAL VNR function cuts down the amount of noise in the original picture. You can choose from the three DIGITAL VNR function settings of AUTO, MIN and MAX. The TV and external input may be given different DIGITAL VNR settings.

AUTO:

The TV will automatically adjust the level of the DIGITAL VNR effect to match the amount of noise in the picture, giving you the best possible picture.

• If you set the DIGITAL VNR effect too high it can make the picture less sharp. It is recommended to use the AUTO setting if you can.

MIN:

The level of the DIGITAL VNR effect is set to the minimum. If you set the DIGITAL VNR function to AUTO but feel that the sharpness of the original picture has not been reproduced fully, change the setting from AUTO to MIN.

• The MIN setting is not suitable for lowquality pictures which contain a lot of noise.

MAX:

The level of the DIGITAL VNR effect is set to the maximum. If you set the DIGITAL VNR function to AUTO but still notice some noise, change the setting from AUTO to MAX.

• The MAX setting is not suitable for highquality pictures which contain very little noise.

AUTO AUTO

AUTO

OFF:

The DIGITAL VNR function is turned off.

DigiPure Pro

The DigiPure Pro function uses the latest in digital technology to give you a naturallooking picture.

DigiPure function:

This function helps to create a naturallooking picture by eliminating unnecessary edges from high-contrast and crisp images. For images with low-contrast, edges are added to produce a sharper, more detailed picture. You can choose from the three DigiPure function settings of AUTO, MIN and MAX. The TV and external input may be given different DigiPure settings.

• If you set the DigiPure effect too high on a low-quality picture that contains a lot of noise, this may actually make the noise worse. We recommend you use the AUTO setting if you can.

Picture motion compensation function:

This function displays fast-moving pictures more smoothly and naturally on the screen.

• The effect level of the picture motion compensation function cannot be changed. The effect level is the same no matter which of the AUTO, MIN or MAX settings is used.

1 Choose DigiPure Pro

2 Press the 5

setting. Then press the a button

AUTO:

The TV will automatically adjust the level of the DigiPure effect to match the amount of noise in the picture, giving the best possible picture.

MIN:

The level of DigiPure effect is set to the minimum. When you set the DigiPure Pro function to AUTO and notice some noise, change the setting from AUTO to MIN.

• The MIN setting is not suitable for highquality pictures which contain very little noise.

5 buttons to choose a

MAX:

The level of DigiPure effect is set to the maximum. If you set the DigiPure Pro function to AUTO but feel that the original picture quality has not been reproduced fully, change the setting from AUTO to MAX.

• The MAX setting is not suitable for lowquality pictures which contain a lot of noise.

OFF:

PICTURE FEATURES

• The AUTO function may not function properly if you have poor signal quality. If the picture is abnormal in the AUTO function, choose another colour system manually.

• When in the Programme numbers PR 0 (AV) to PR 99, you cannot choose NTSC

3.58 or NTSC 4.43.

ENGLISH

The DigiPure Pro function is turned off.

COLOUR SYSTEM

The colour system is chosen automatically. However, if the picture is not clear or no colour appears, choose the colour system manually.

COLOUR SYSTEM

PAL

BACK

TV OK

D1016EN

1 Choose COLOUR SYSTEM then

press the aaaa button

2 Press the 5

appropriate colour system. Then press the aaaa button

PAL:

PAL system

5 buttons to chose the

MOVIE THEATRE

The MOVIE THEATRE function displays a cinema film picture more smoothly and naturally on the screen.

AUTO:

The television automatically recognizes the type of signal and turns the function on and off.

ON:

This function is turned on.

OFF:

This function is turned off.

• The motion may appear unnatural when viewing images with the NTSC colour system. When the MOVIE THEATRE function is set to AUTO or ON, the motion may appear unnatural when viewing images with the NTSC colour system.

SECAM:

SECAM system

NTSC 3.58:

NTSC 3.58 MHz system

NTSC 4.43:

NTSC 4.43 MHz system

AUTO:

This function detects a colour system from the input signal. Only when you are viewing a picture from Programme number PR 0 (AV), or EXT terminal, you can choose using the AUTO function.

PICTURE FEATURES

4:3 AUTO ASPECT

You can choose one of three ZOOM modes, REGULAR, PANORAMIC or 14:9 ZOOM, as the ZOOM mode for the normal picture (4:3 aspect ratio).

1 Choose 4:3 AUTO ASPECT then

press the aaaa button

4:3 AUTO ASPECT

PANORAMIC REGULAR 14:9 ZOOM

BACK

TV OK

D0017-EN

2 Press the 6

6 buttons to choose a

ZOOM mode. Then press the aaaa button

PICTURE TILT (Only for AV32X4SU/AV-32X4BU)

There are cases where the Earth’s magnetic force may make the picture tilt. If this happens, you can correct the picture tilt.

1 Press the 6

PICTURE TILT. Then press the aaaa button

PICTURE TILT

TV OK

D0018-EN

6 buttons to choose

BACK

2 Press the 6

6 buttons until the

picture becomes level. Then press the aaaa button

SOUND SETTING

Refer to “Using the TV’s menu” (see page 18) for details of displaying the menu.

Sound Adjustment

SOUND SETTING

STEREO/ BASS TREBLE BALANCE HYPER SOUND

TV OK

D0019-EN

BACK

OFF ON

STEREO / I • II

When you are viewing a bilingual broadcast programme, you can choose the sound from Bilingual I (Sub I) or Bilingual II (Sub II). When the stereo broadcasting is received poorly, you can change from stereo to mono sound so that you can hear the broadcast more clearly and easily.

s: Stereo sound

v : mono sound

t : Bilingual I (sub I)

u : Bilingual II (sub II)

• The sound mode you can choose differs depending on the TV programme.

• This function does not work in the EXT modes. And this function does not appear in the SOUND SETTING menu.

You can adjust the sound to your liking.

BASS:

You can adjust the low tone of the sound.

2 : weaker 3 : strong

TREBLE:

You can adjust the high tone of the sound.

2 : weaker 3 : strong

BALANCE:

You can adjust the volume balance between the left and right speaker.

2 : turn the left speaker’s volume level up. 3 : turn the right speaker’s volume level up.

HYPER SOUND

Mono sound is converted to simulated stereo for a more enjoyable audio experience.

ON:

This function is turned on.

OFF:

This function is turned off.

• If the audio is stereo sound, the “3D CINEMA SOUND function” (see page 14) is the better choice as it makes your listening experience more akin to sitting in an actual cinema.

• When HYPER SOUND is turned on, 3D CINEMA SOUND turns off, and when 3D CINEMA SOUND is turned on, HYPER SOUND turns off.

ENGLISH

3D CINEMA SOUND

Refer to “Using the TV’s menu” (see page 18) for details of displaying the menu.

3D CINEMA SOUND

SURROUND BASS BOOST

TV OK

D0063-EN

BACK

HIGH MEDIUM LOW HIGH MEDIUM LOW

Adjust the 3D CINEMA SOUND effect. For details on how to turn 3D CINEMA SOUND on and off, read “3D CINEMA SOUND function” (see page 14).

• In order to experience true 3D CINEMA SOUND, the audio needs to be stereo sound.

• When the audio is mono sound, use “HYPER SOUND” (see page 23).

SURROUND

Adjust the surround effect. You can choose HIGH, MEDIUM or LOW. Choosing LOW will reduce the surround effect and choosing HIGH will increase the surround effect.

BASS BOOST

Adjust the bass sound. You can choose HIGH, MEDIUM or LOW. Choosing LOW will reduce the bass sound and choosing HIGH will increase the bass sound.

EXT SETTING

Refer to “Using the TV’s menu” (see page 18) for details of displaying the menu.

EXT SETTING

EXT-1

DUBBING EXT-2

ID LIST S-IN

TV OK

D0020-EN

EXT-3

EXT-4

BACK

S-IN (S-VIDEO input)

When connecting a device (such as S-VHS VCR) which enables an S-VIDEO signal (Y/ C signal) to be output, you can enjoy highquality picture of the S-VIDEO signal (Y/C signal).

Preparation:

• At first, read the Device Instruction Manual and “Additional preparation” on page 39 to connect the device to the TV properly. Second, follow the Device Instruction Manual to set the device so that an S-VIDEO signal (Y/C signal) can be output to the TV.

• Do not set S-IN (S-VIDEO input) to the EXT terminal connected to a device which cannot output an S-VIDEO (Y/C signal). If it is set wrongly, a picture cannot appear.

1 Choose an EXT terminal

To cancel the S-IN (S-VIDEO input) setting:

Press the yellow button and turn off S-IN (S-VIDEO input) mark. The regular video signal (composite signal) pictures are resumed.

• The EXT-1 terminal does not support S-VIDEO signal (Y/C signal) and you cannot set S-IN (S-VIDEO input) in the EXT-1 terminal.

• Setting S-IN (S-VIDEO input) changes the head character from “E” to “S”. For example, “E2” is changed to “S2”.

• Even a device which enables the SVIDEO signal (Y/C signal) to be output may output a regular video signal (composite signal) depending on the device setting. If a picture cannot appear because S-IN (SVIDEO input) setting has been made, read the device Instruction Manual carefully again to check for the device settings.

ID LIST

You can have a name corresponding to the devices connected for each EXT terminal. Giving a name to an EXT terminal makes the EXT terminal number appear on the screen, together with the name.

ENGLISH

2 Press the yellow button and set the

S-IN (S-VIDEO input). Then press the aaaa button

An S-IN (S-VIDEO input) mark is displayed. You can view an S-VIDEO signal (Y/C signal) instead of the regular video signal (composite signal).

1 Choose an EXT terminal

2 Press the blue button to display the

name list (ID LIST)

EXT SETTING

ID LIST

VHS S-VHS DVC SAT STB GAME LD DVD 8mm Hi-8

TV OK

D0021-EN

EXT-1

EXT-3

EXT-4

BACK

DUBBING EXT-2

EXT SETTING

3 Press the 6

6 buttons to choose a

name. Then press the aaaa button

The ID LIST disappears and the name is assigned to the EXT terminal.

• You cannot assign an EXT terminal name not found in the name list (ID LIST).

To erase a name assigned to the EXT terminal:

Choose a blank space.

4 Press the aaaa button to complete

the setting

DUBBING

You can choose a signal source to be output from an EXT-2 terminal. You can choose any one of the output signal of the device connected to the EXT terminal and the picture and sound from a TV channel you are currently viewing to output it to the EXT-2 terminal.

TV:

The picture and sound of the TV channel you are currently viewing are output from the EXT-2 terminal.

• During dubbing, you cannot turn off the TV. Turning off the TV also turns off the output from the EXT-2 terminal.

• When you choose an EXT terminal as an output, you can view a TV programme or a picture from the other EXT terminal while dubbing the picture from a device connected to the EXT terminal onto a VCR connected to the EXT-2 terminal.

• The RGB signals from the TV games cannot be output. Teletext programmes cannot be output.

1 Press the 5

5 buttons to choose

the arrow from the menu

EXT SETTING

EXT-1

EXT-3

EXT-4

BACK

TV OK

D0022-EN

2 Press the 6

6 buttons to choose an

DUBBING EXT-2

EXT terminal or TV. Then press the aaaa button

The arrow in the menu represents a signal flow. The left side of the arrow denotes a signal source output from the EXT-2 terminal.

EXT-1/EXT-3/EXT-4:

The output signal of the device connected to an EXT terminal passes through the TV and is output from the EXT-2 terminal.

FEATURES

Refer to “Using the TV’s menu” (see page 18) for details of displaying the menu.

BLUE BACK

FEATURES

SLEEP TIMER BLUE BACK CHILD LOCK DECODER(EXT-2)

TV OK

D0023-EN

BACK

OFF

OFFONON

SLEEP TIMER

You can set the TV to automatically turn off after a specified period of time.

1 Choose SLEEP TIMER, then press

the aaaa button

A Sub-menu of the SLEEP TIMER function appears.

SLEEP TIMER

0 120

OFF

BACK

TV OK

D0024-EN

You can set the TV to automatically change to a blue screen and mute the sound if the signal is weak or absent, or when there is no input from an external device.

ON:

This function is turned on.

OFF:

This function is turned off.

CHILD LOCK

When there is a TV channel you wish your children not to watch, you can use the CHILD LOCK function to lock out the TV channel. Even when a child chooses a Programme number (PR) in which a locked TV channel has been registered, the screen will change to blue and displays n (CHILD LOCK) so the TV channel cannot be viewed. Unless you enter a pre-set ID number by a special operation, the lock cannot be released and the child cannot view the TV channel programmes.

ENGLISH

2 Press the 5

5 buttons to set the

period of time. Then press the aaaa button

You can set the period of time a maximum of 120 minutes (2 hours) in 10 minute increments.

• One minute before the SLEEP TIMER function turns off the TV, “GOODNIGHT!” appears.

• The SLEEP TIMER function cannot be used to turn off the TV’s main power.

• When the SLEEP TIMER function is on, you can display the Sub-menu of the SLEEP TIMER function again to confirm and/or change the remaining period of time of the SLEEP TIMER function. Press the a button to exit the menu after confirming and / or changing the remaining time.

To cancel the SLEEP TIMER function:

Press the 2 button to set a period of time to “OFF”.

 To set the CHILD LOCK function

1 Choose CHILD LOCK, then press

the o

o button

“SET ID NO.” (ID number setting screen) appears.

SET ID NO.

0000

BACK

TV OK

D0025-EN

2 Set the ID number to your liking

1 Press the 6

a number.

2 Press the 5

the cursor.

6 buttons to choose

5 buttons to move

FEATURES

3 Press the aaaa button

The Sub-menu of CHILD LOCK appears.

CHILD LOCK

PR ID AV

BBC1

01 02 03 04 05 06 07 08 09

BACK

TV OK

D0026-EN

4 Press the 6

CH/CC

LOCK

6 buttons to choose a

TV channel

Every time you press the 6 buttons, the Programme number (PR) changes, and the picture of the TV channel registered in the Programme number (PR) is displayed on the screen.

5 Press the blue button and set the

CHILD LOCK function. Then press the aaaa button

n (CHILD LOCK) appears and the TV channel is locked.

To reset the CHILD LOCK function:

Press the blue button again. n (CHILD LOCK) disappears.

To disable easy resetting of the CHILD LOCK function, the menu disappears by choosing the CHILD LOCK function and pressing the a button as in the ordinary menu operation.

 To view a locked TV channel

1 Choose a Programme number (PR)

in which a TV channel locked with the Number buttons or PR LIST

The screen changes to blue and the n (CHILD LOCK) appears. You cannot view the TV channel.

2 Press the

(Information) button to

hhhh

display “ID NO.” (ID NO. input screen).

ID NO . :

D0028-EN

3 Press the Number buttons to enter

the ID number

The lock is temporarily released so you can view the TV channel.

If you have forgotten the ID number:

Perform step 1 of “To set the CHILD LOCK function”. After confirming the ID number, press the b button to exit the menu.

• Even if you reset the lock temporarily, it does not mean that the CHILD LOCK function set for the TV channel is cancelled. The next time anyone attempts to view the TV channel, it will be locked again.

• When you would like to cancel the CHILD LOCK function, you must perform the operation “To set the CHILD LOCK function” again.

• To disable easy choosing of a Programme number (PR) in which a locked TV channel has been registered, the Programme number (PR) has been set that it cannot be chosen by the 6 buttons or the operation buttons at the TV.

• To disable easy resetting of the lock, “ID NO.” (ID NO. input screen) is set so that it cannot appear unless you press the h (Information) button.

D0027-EN

DECODER (EXT-2)

Only when connecting a Decoder with a T-V LINK compatible VCR connected to the EXT-2 terminal, you can use this function. To operate this function, see “Using the DECODER (EXT-2) function” on page 38.

Caution

• If you have not connected a Decoder with a T-V LINK compatible VCR connected to the EXT-2 terminal, setting this function to “ON” by mistake causes the picture/ sound of a TV channel you are currently viewing not to be issued.

FEATURES

ENGLISH

INSTALL

Refer to “Using the TV’s menu” (see page 18) for details of displaying the menu.

INSTALL

LANGUAGE AUTO PROGRAM EDIT / MANUAL

BACK

TV OK

D0029-EN

LANGUAGE

You can choose the language you want to use for the on-screen display from the language list in a menu.

1 Choose LANGUAGE, then press

the aaaa button

A sub-menu of the LANGUAGE function appears.

LANGUAGE

BACK

TV OK

D0002(E)-EN

2 Press the 5

choose a language. Then press the aaaa button

5 and 6

6 buttons to

2 Press the 5

5 and 6

6 buttons to

choose the country where you are now located

3 Press the blue button to start the

AUTO PROGRAM function

The AUTO PROGRAM menu appears and received TV channels are automatically registered in the Programme numbers (PR).

• To cancel the AUTO PROGRAM

function, press the b button.

AUTO PROGRAM

CH 10

20%

BACK

TV OK

D0004-EN

EDIT

PR ID AV 01 02 03 04 05 06 07 08 09

TV OK

BACK

MOVE

BBC1

CH / CC

CH CH CH CH CH CH CC CC CC

21 22 23 24 25 26 01 02 03

ID INSERT DELETE MANUAL

After the TV channels have been registered in the Programme numbers (PR), the EDIT menu appears.

• You can proceed to edit the Programme numbers (PR) using the EDIT/MANUAL function. For details, see “EDIT/MANUAL” on page 31.

• If you do not need to use the EDIT/ MANUAL function, go to the next step.

AUTO PROGRAM

You can automatically register the TV channels which can be received well at your residence in the TV’s Programme numbers (PR) by performing the following.

1 Choose AUTO PROGRAM. Then

press the aaaa button

The COUNTRY menu appears as a submenu of the AUTO PROGRAM function. There are two COUNTRY menus. Pressing the yellow button changes the COUNTRY menu as follows:

BACK

TV OK

D0003-EN

START MORE

TV OK

If “ACI START/ACI SKIP” appears in the AUTO PROGRAM menu:

BACK

START MORE

INSTALL

4 Press the aaaa button to display the

T-V LINK menu

T-V LINK

DOWNLOAD TV VCR

BACK

TV OK

D0005-EN

EXIT

5 If you do not have a T-V LINK

compatible VCR connected:

Press the b button to exit the T-V LINK menu.

If you have a T-V LINK compatible VCR connected to the EXT-2 terminal:

Follow the operating procedure “Downloading the data to VCR” on page 37 to transmit the Programme number (PR) data.

• If a TV channel you want to view is not set to a Programme number (PR), manually set it using the MANUAL function. For details, see “EDIT/ MANUAL” on page 31.

• The TV channel is not registered in Programme number PR 0 (AV). When you want to register a TV channel to PR 0 (AV) manually set it using the MANUAL function. For details, see “EDIT/MANUAL” on page 31.

EDIT/MANUAL

The EDIT/MANUAL functions are divided into two types: editing of the current Programme numbers (PR) (EDIT functions) and manual registration of a TV channel you want to view to the Programme number (PR) (MANUAL function). The details about these functions are as follows:

Caution

• Using the MOVE, DELETE or INSERT function rewrites the current Programme numbers (PR) list. Resultingly, the Programme number (PR) of some of the TV channels will change.

• Using the MANUAL function for a TV channel for which the CHILD LOCK function has been set cancels the CHILD LOCK function for the TV channel.

• Using the MANUAL function for a TV channel for which the DECODER (EXT-2) function has been set to ON returns the setting of the DECODER (EXT-2) function for the TV channel to OFF.

• When a TV channel has already been registered in PR 99, using the INSERT function deletes the TV channel.

1 Choose EDIT/MANUAL, then press

the aaaa button

EDIT

PR ID AV

BBC1

01 02 03 04 05 06 07 08 09

BACK

TV OK

D0038-EN

MOVE

• For Programme number PR 0, “AV” appears in the Programme numbers (PR) list.

• An EXT terminal number does not appear in the Programme numbers (PR) list.

CH/CC

CH CH CH CH CH CH CC CC CC

21 22 23 24 25 26 01 02 03

ID INSERT DELETE MANUAL

ENGLISH

INSTALL

• The CH/CC number is a number unique to the TV and corresponding to the Channel number of a TV channel. For the relationship of a Channel number and a CH/CC number, see “CH/CC numbers” on page 41.

2 Follow the operation description of

a function you want to use and operate the function

MOVE:

This function changes a Programme number (PR) of a TV channel.

ID:

This function registers a Channel name (ID) to a TV channel.

INSERT:

This function adds a new TV channel in the current Programme numbers (PR) list by using the CH/CC number.

• You cannot use the INSERT function if you do not know a Channel number of a TV channel. Use the MANUAL function to register a TV channel in the Programme number (PR).

4 If you do not have a T-V LINK

compatible VCR connected:

Press the b button to exit the T-V LINK menu. The T-V LINK menu disappears and all the settings are completed.

If you have a T-V LINK compatible VCR connected to the EXT-2 terminal:

Follow the operating procedure “Downloading the data to VCR” on page 37 to transmit the Programme number (PR) data to the VCR.

 MOVE

1 Press the 6

TV channel

Every time you press the 6 buttons, the Programme number (PR) is changed over, and the picture of the TV channel registered in the Programme number (PR) appears on the screen.

2 Press the 3333 button to start the

MOVE function

6 buttons to choose a

DELETE:

This function deletes an unnecessary TV channel.

MANUAL:

This function manually registers a new TV channel in a Programme number (PR).

3 Press the aaaa button to complete

the settings

The T-V LINK menu appears.

T-V LINK

DOWNLOAD TV VCR

BACK

TV OK

D0005-EN

EXIT

EDIT

PR ID AV

BBC1

01 02 03 04 05 06 07 08 09

BACK

TV OK

D0030-EN

STORE

3 Press the 6

CH / CC

6 buttons to choose a

CC 01

new Programme number (PR)

To cancel the MOVE function:

Press the h (Information) button.

4 Press the 2222 button to change the

Programme number (PR) of a TV channel to a new Programme number (PR)

INSTALL

 ID

1 Press the 6

TV channel

Every time you press the 6 buttons, the Programme number (PR) is changed over, and the picture of the TV channel registered in the Programme number (PR) appears on the screen.

2 Press the red button to start the ID

function

EDIT

PR ID AV 01 02 03 04 05 06 07 08 09

TV OK

D0031-EN

3 Press the 6

the first character of a Channel name (ID) you want to attach to the TV channel

EDIT

PR ID AV 01 02 03 04 05 06 07 08 09

TV OK

D0032-EN

4 Press the blue button to display the

ID LIST (channel name list)

EDIT

PR ID AV 01 02 03 04 05 06 07 08 09

TV OK

D0033-EN

6 buttons to choose a

CH/CC

BBC1

BACK

BBC1

BACK

BBC1

BACK

ID LIST

6 buttons to choose

CH/CC

ID LIST

CH/CC

ID LIST

M6 MBC MCM MDR MOVIE MTV MTV1 MTV2 MTV3

5 Press the 6

6 buttons to choose

the Channel name (ID)

To cancel the ID function:

Press the h (Information) button.

6 Press the aaaa button to register a

Channel name (ID) to a TV channel

• You can register your unique Channel name (ID) to the TV channel. When step 3 is completed, do not go to step 4, but press the 5 buttons to move the cursor and the 6 buttons to choose a character for completing the Channel name (ID). Then press the a button to register the Channel name (ID) to the TV channel.

 INSERT

Preparation:

• A CH/CC number unique to this TV and corresponding to the Channel number of a TV channel is required. Find the corresponding CH/CC number from a table “CH/CC numbers” on page 41 based on the Channel number of the TV channel.

• When the COUNTRY setting is not FRANCE, use a two-digit CH/CC number. When the COUNTRY setting is FRANCE, use a three-digit CH/CC number.

• Only when you add a TV channel (SECAM-L system) from a French station, be sure to set COUNTRY to FRANCE. If the COUNTRY setting is not FRANCE, follow the description “Changing the COUNTRY setting” on page 37 to change the COUNTRY setting to FRANCE, then start the INSERT function.

1 Press the 6

Programme number (PR) for which you will register a new TV channel

6 buttons to choose a

ENGLISH

INSTALL

2 Press the green button and start

the INSERT function.

EDIT

PR ID AV

BBC1

01 02 03 04 05 06 07 08 09

TV OK

CH/CC

D0034-EN

3 Press the 6

CH/CC

26 CH CC

02 CC

BACK

0 9

6 buttons to choose

“CC” or “CH” according to the CH/ CC number of the TV channel

When the COUNTRY setting is FRANCE:

Choose “CH1”, “CH2”, “CC1” or “CC2”.

To cancel the INSERT function:

Press the h (Information) button.

2 Press the yellow button to delete

the TV channel

The TV channel is deleted from the Programme numbers (PR) list.

 MANUAL

Preparation:

• As long as you register the TV channel (SECAM-L system) from a French station, be sure to set the COUNTRY setting to FRANCE. If the COUNTRY setting is not FRANCE, follow the description “Changing the COUNTRY setting” on page 37 to change the COUNTRY setting to FRANCE, then start the MANUAL function.

1 Press the 6

Programme number (PR) to which you want to register a new TV channel

6 buttons to choose a

4 Press the Number buttons to enter

the remaining CH/CC number

The TV shifts to registration mode. When the registration is completed, the picture of the TV channel appears on the screen.

• The CH/CC number is a number indicating the broadcast frequency to the TV. If the TV cannot detect the TV channel corresponding to the broadcast frequency indicated by the CH/CC number, a picture in the no-signal state appears.

 DELETE

1 Press the 6

TV channel

Every time you press the 6 buttons, the Programme number (PR) is changed over, and the picture of the TV channel registered in the Programme number (PR) appears on the screen.

6 buttons to choose a

2 Press the blue button to activate

the MANUAL function

At the right side following the CH/CC number, the SYSTEM (broadcasting system) of the TV channel appears.

MANUAL

PR ID AV 01 02 03 04 05 06 07 08 09

TV OK

D0035-EN

BBC1

BACK

SYSTEM

CH / CC

CH CH CH CH CH CH CC CC CC

21 22 23 24 25 26 01 02 03

(

)

B/G

SEARCH SEARCH

FINE

To cancel the MANUAL function:

Press the h (Information) button.

3 Press the 3333 button to choose the

SYSTEM (broadcasting system) for a TV channel you want to register

TV channel (SECAM-L system) from a French station:

Set the SYSTEM to “L”. If it is set to one other than “L”, you cannot receive the TV channel of the SECAM-L system.

Other TV channels:

If you do not know the correct broadcasting system, set the SYSTEM to “B/G”. If “B/G” is not correct, it results in the fact that you will not hear the sound normally when the TV detects a TV channel. In this case, retry to set the SYSTEM again correctly so that no problem arises.

4 Press the green or red button to

search for a TV channel

Scanning stops when the TV finds a TV channel. Then the TV channel is displayed.

INSTALL

ENGLISH

5 Press the green or red button

repeatedly until the TV channel you want appears

If the TV channel reception is poor:

Press the blue or yellow button to finetune the TV channel.

If you cannot hear the normal sound even when the picture of the TV channel appears normally:

The SYSTEM setting is wrong. Press the 3 button and choose a SYSTEM that has normal sound.

6 Press the aaaa button and register

the TV channel to a Programme number (PR)

The normal EDIT menu is resumed.

Additional menu operations

Using the ACI function

This TV has an ACI function which decodes the ACI (automatic Channel Installation) data. Using the ACI function allows all TV channels transmitted from the cable TV station to be properly registered quickly according to the data from the cable TV station.

Caution

• If your cable TV station broadcasts ACI data and if “ACI START/ACI SKIP” appears in the AUTO PROGRAM menu, the ACI function is enabled. In all other cases, it is disabled.

1 Press the 6

ACI START. Then press the aaaa button to start the ACI function

When you don’t want to use the ACI function:

Press the 6 buttons to choose ACI SKIP and then press the a button.

If the AUTO PROGRAM menu changes to another menu:

Depending on your cable TV station, there may be a broadcast selection menu set up by the cable TV station. Follow the menu indications and use the 5 and 6 buttons to operate the menu. After you have made the setting, press the a button.

6 buttons to choose

2 When the settings are completed,

the EDIT menu is displayed. Return to the instructions that you were reading before, and continue the operation

When the “Initial settings” has been made:

Return to step 6 of “Initial settings” on page 6.

When the “AUTO PROGRAM” has been made:

Return to step 4 of “AUTO PROGRAM” on page 31.

• If you have any questions about the items in the Broadcast Selection menu or how to operate the menu, please contact your cable TV station.

• When the cable TV broadcast reception is poor, the ACI function will not work properly.

• If there is an error in the ACI data itself, the TV channel cannot be registered properly. If this happens, turn the ACI function off (ACI SKIP) and use the AUTO PROGRAM function. Alternatively, use the EDIT/ MANUAL function to correct the Programme number (PR) setting.

If “ACI ERROR” is displayed in the AUTO PROGRAM menu:

“ACI ERROR” denotes that the ACI function is not working properly. Press the a button to start the ACI function again. If “ACI ERROR” still appears even after you have tried to start the ACI function several times, press the 3 button to start the AUTO PROGRAM function. It does not cause any problem because all the TV channels are registered to the Programme numbers (PR) by the AUTO PROGRAM function.

Additional menu operations

Downloading the data to VCR

You can transmit to the latest Programme numbers (PR) data to the VCR with the T-V LINK function.

Caution

• Only when the T-V LINK compatible VCR is connected to the EXT-2 terminal, this operation is enabled.

• Only when the T-V LINK menu is being displayed, this operation is enabled.

T-V LINK

DOWNLOAD TV VCR

BACK

TV OK

D0005-EN

1 Turn on the VCR

2 Press the aaaa button

The data transmission begins.

D0037-EN

The T-V LINK menu disappears once the data transmission ends.

When the T-V LINK menu is changed over to another menu:

The menu operation at the TV side is completed and it is shifted to the menu operation at the VCR side. Refer to the VCR Instruction Manual and operate the VCR.

EXIT

DOWNLOAD TV VCR

TRANSFER.....

If “FEATURE NOT AVAILABLE” appears at the T-V LINK menu, ensure the following three items are correct; then press the a button to retry data transmission.

• Has the T-V LINK compatible VCR been connected to the EXT-2 terminal?

• Has the VCR power been turned on?

• Does the SCART cable that is connected to the EXT-2 terminal to TV LINK compatible VCR have all proper connections?

Changing the COUNTRY setting

After the AUTO PROGRAM function is completed, you can change the country you have already set by using the AUTO PROGRAM function. When registering the TV channels for French broadcast stations (SECAM-L system), perform this operation to change the country.

1 Display the INSTALL menu

When the EDIT menu is currently being displayed:

Press the h (Information) to return to the INSTALL menu.

2 Press the 6

AUTO PROGRAM. Then press the aaaa button

A COUNTRY menu appears as a submenu of the AUTO PROGRAM function. There are two COUNTRY menus. Pressing the yellow button changes the COUNTRY as follows:

6 buttons to choose

ENGLISH

TV OK

D0003-EN

BACK

START MORE

TV OK

BACK

START MORE

Additional menu operations

3 Press the 5

5 and the 6

6 buttons

to choose a country

4 Press the aaaa button to complete

the setting

The menu disappears.

To return to the INSTALL menu from the COUNTRY menu:

Press the h (Information) button instead of the a button.

Using the DECODER (EXT-2) function

When connecting a Decoder with a T-V LINK compatible VCR connected to the EXT-2 terminal, use the DECODER (EXT-

2) function to unscramble the scrambled TV channels.

1 Turn on the Decoder power

2 Display the TV channel capable of

being unscrambled with the Decoder on the TV

Even if the Decoder is functioning, a scrambled picture appears at this time.

5 Press the 6

6 buttons to choose

DECODER (EXT-2). Then press the

5 buttons to choose ON

An unscrambled picture appears.

To cancel the DECODER (EXT-2) function:

Press the 5 buttons to choose OFF.

6 Press the aaaa button to complete

the setting

The T-V LINK menu appears.

T-V LINK

DOWNLOAD TV VCR

BACK

TV OK

D0005-EN

EXIT

7 Follow the operating procedure

“Downloading the data to VCR” on page 37 to transmit the Programme number (PR) data to the VCR

8 If you have another TV channel

capable of being unscrambled with a Decoder, repeat steps 2 through 7

3 Press the aaaa button to display the

The MENU (main menu) appears.

4 Press the 6

6 buttons to choose

FEATURES. Then press the aaaa button

The FEATURES menu appears.

FEATURES

SLEEP TIMER BLUE BACK CHILD LOCK DECODER(EXT-2)

TV OK

D0023-EN

BACK

OFF

OFFONON

If for some reason the DECODER (EXT-

2) function has been set to “ON” but the TV channel cannot be unscrambled, check the following:

• Has the Decoder been connected to the VCR properly according to the VCR and Decoder Instruction Manuals?

• Has the Decoder power been turned on?

• Can the TV channel be unscrambled with a Decoder?

• Is it necessary to change the VCR settings in order to connect the Decoder? Confirm that the VCR is set properly by rechecking the VCR Instruction Manual.

Additional preparation

Connecting the external devices

Connect the devices to the TV, paying attention to the following connection diagram.

Before connecting anything:

• Read the manuals provided with the devices. Depending on the devices, the connection method may differ from the figure. In addition, the device settings may be changed depending on the connection method to secure proper operation.

• Turn off all the devices including the TV.

• The “Specifications” on page 46 contains the details of the EXT terminals. If you are connecting a device not listed in the following connection diagram, see the table to choose the best EXT terminal.

• Note that connecting cables are not supplied.

• If the VCR’s audio output is in mono, connect the VCR’s AUDIO OUT (audio output) terminal and the TV’s EXT-4 AUDIO L/MONO terminal with an audio cable.

1 VCR (composite signal) 2 VCR (composite signal/S-VIDEO signal) 3 T-V LINK compatible VCR (composite

signal/S-VIDEO signal)

4 Decoder 5 DVD player (composite signal/S-VIDEO

signal)

6 DVD player (composite signal/RGB

signal)

7 TV game (composite signal/RGB signal) 8 TV game (composite signal/S-VIDEO

signal)

9 Headphones 0 Camcorder (composite signal/S-VIDEO

signal)

- SCART cable = Audio cable ~ Video cable ! S-VIDEO cable

ENGLISH

Side of the TV

MONO

EXT-4

Back of the TV

EXT-1

EXT-2

MONO

EXT-4

EXT-3

AUDIO OUT

Additional preparation

 Devices which can output the S-

VIDEO signal (Y/C signal) such as a S-VHS VCR

Connect the device to an EXT terminal other than the EXT-1 terminal. You can choose a video input signal from the S-VIDEO signal (Y/C signal) and regular video signal (composite signal). For details of how to operate the device, see “S-IN (SVIDEO input)” on page 25.

 T-V LINK compatible VCR

Be sure to connect the T-V LINK compatible VCR to the EXT-2 terminal. If not, the T-V LINK function will not work properly.

• When connecting a T-V LINK compatible VCR to the EXT-2 terminal, be sure to connect the Decoder to the VCR. If not, the T-V LINK function may not work properly. After you have registered TV channels to the Programme numbers (PR), set the DECODER (EXT-2) function for the Programme number (PR) to ON in order to unscramble a scrambled TV channel. For details of operation, see “Using the DECODER (EXT-2) function” on page 38.

 Connecting headphones

Connect the headphones with a stereo minijack (of 3.5 mm in diameter) to the headphone jack at the TV rear panel.

• When you connect the headphones, the TV speakers issue no sound.

 Video/sound signal output from

the EXT-2 terminal

You can arbitrarily change over the output of the video/sound signal from the EXT-2 terminal. It is useful when you want to dub the video/sound from another device on the VCR connected to the EXT-2 terminal. For details on how to do this operation, see “DUBBING” on page 26.

 TV output from the EXT-1 terminal

The output of video/sound signal of a TV channel you are currently viewing is always output from the EXT-1 terminal.

• Changing over a Programme number (PR) also changes over the TV output from the EXT-1 terminal.

• The video/sound signal from an EXT terminal cannot be output.

• Teletext programmes cannot be output.

 Connecting Speakers/Amplifier

While referring to the Audio equipment connection diagram, connect the audio equipment you desire to the TV. You can use external front speakers to listen to the TV sound instead of the TV speakers.

Before connecting anything:

• Read the manuals provided with the amplifier and speakers.

• Turn the TV and Amplifier off.

• To prevent magnetism from the speakers adversely effecting the TV screen, use magnetic-shielded speakers for the front speakers.

• Note that connecting cables are not supplied.

Back of the TV

AUDIO OUT

1 Amplifier 2 Front speakers (Magnetic-shielded type)

• The output from the AUDIO OUT terminal is not interrupted by headphone connection to the TV. You cannot cut the sound from the front speaker even if you connect a headphone to the TV.

• Adjust the volume of the external speakers with the amplifier.

CH/CC numbers

When you want to use the INSERT function on page 33, find the CH/CC number corresponding to the Channel number of the TV channel from this table.

CH Channel

CH 02 / CH 202 E2, R1

CH 03 / CH 203 E3, ITALY A

CH 04 / CH 204 E4, ITALY B, R2

CH 05 / CH 205 E5, ITALY D, R6

CH 06 / CH 206 E6, ITALY E, R7

CH 07 / CH 207 E7, ITALY F, R8

CH 08 / CH 208 E8, R9

CH 09 / CH 209 E9, ITALY G

CH 10 / CH 210

CH 11 / CH 211

CH 12 / CH 212

CH 21 / CH 221 E21, R21

CH 22 / CH 222 E22, R22

CH 23 / CH 223 E23, R23

CH 24 / CH 224 E24, R24

CH 25 / CH 225 E25, R25

CH 26 / CH 226 E26, R26

CH 27 / CH 227 E27, R27

CH 28 / CH 228 E28, R28

CH 29 / CH 229 E29, R29

CH 30 / CH 230 E30, R30

CH 31 / CH 231 E31, R31

CH 32 / CH 232 E32, R32

CH 33 / CH 233 E33, R33

CH 34 / CH 234 E34, R34

CH 35 / CH 235 E35, R35

CH 36 / CH 236 E36, R36

CH 37 / CH 237 E37, R37

CH 38 / CH 238 E38, R38

CH 39 / CH 239 E39, R39

E10, ITALY H, R10

E11, ITALY H+1, R11

E12, ITALY H+2, R12

CH Channel

CH 40 / CH 240 E40, R40

CH 41 / CH 241 E41, R41

CH 42 / CH 242 E42, R42

CH 43 / CH 243 E43, R43

CH 44 / CH 244 E44, R44

CH 45 / CH 245 E45, R45

CH 46 / CH 246 E46, R46

CH 47 / CH 247 E47, R47

CH 48 / CH 248 E48, R48

CH 49 / CH 249 E49, R49

CH 50 / CH 250 E50, R50

CH 51 / CH 251 E51, R51

CH 52 / CH 252 E52, R52

CH 53 / CH 253 E53, R53

CH 54 / CH 254 E54, R54

CH 55 / CH 255 E55, R55

CH 56 / CH 256 E56, R56

CH 57 / CH 257 E57, R57

CH 58 / CH 258 E58, R58

CH 59 / CH 259 E59, R59

CH 60 / CH 260 E60, R60

CH 61 / CH 261 E61, R61

CH 62 / CH 262 E62, R62

CH 63 / CH 263 E63, R63

CH 64 / CH 264 E64, R64

CH 65 / CH 265 E65, R65

CH 66 / CH 266 E66, R66

CH 67 / CH 267 E67, R67

CH 68 / CH 268 E68, R68

CH 69 / CH 269 E69, R69

CC Channel

CC 01 / CC 201 S1

CC 02 / CC 202 S2

CC 03 / CC 203 S3

CC 04 / CC 204 S4

CC 05 / CC 205 S5

CC 06 / CC 206 S6

CC 07 / CC 207 S7

CC 08 / CC 208 S8

CC 09 / CC 209 S9

CC 10 / CC 210 S10

CC 11 / CC 211 S11

CC 12 / CC 212 S12

CC 13 / CC 213 S13

CC 14 / CC 214 S14

CC 15 / CC 215 S15

CC 16 / CC 216 S16

CC 17 / CC 217 S17

CC 18 / CC 218 S18

CC 19 / CC 219 S19

CC 20 / CC 220 S20

CC 21 / CC 221 S21

CC 22 / CC 222 S22

CC 23 / CC 223 S23

CC 24 / CC 224 S24

CC 25 / CC 225 S25

CC 26 / CC 226 S26

CC 27 / CC 227 S27

CC 28 / CC 228 S28

CC 29 / CC 229 S29

CC 30 / CC 230 S30

CC Channel

CC 31 / CC 231 S31

CC 32 / CC 232 S32

CC 33 / CC 233 S33

CC 34 / CC 234 S34

CC 35 / CC 235 S35

CC 36 / CC 236 S36

CC 37 / CC 237 S37

CC 38 / CC 238 S38

CC 39 / CC 239 S39

CC 40 / CC 240 S40

CC 41 / CC 241 S41

CC 75 / CC 275 X

CC 76 / CC 276 Y, R3

CC 77 / CC 277 Z, ITALY C, R4

CC 78 / CC 278 Z+1, R5

CC 79 / CC 279 Z+2

ENGLISH

CH Channel

CH 102 F2

CH 103 F3

CH 104 F4

CH 105 F5

CH 106 F6

CH 107 F7

CH 108 F8

CH 109 F9

CH 110 F10

CH 121 F21

CH 122 F22

CH 123 F23

CH 124 F24

CH 125 F25

CH 126 F26

CH 127 F27

CH 128 F28

CH 129 F29

CH 130 F30

CH 131 F31

CH 132 F32

CH 133 F33

CH 134 F34

CH 135 F35

CH 136 F36

CH 137 F37

CH 138 F38

CH 139 F39

CH 140 F40

CH Channel

CH 141 F41

CH 142 F42

CH 143 F43

CH 144 F44

CH 145 F45

CH 146 F46

CH 147 F47

CH 148 F48

CH 149 F49

CH 150 F50

CH 151 F51

CH 152 F52

CH 153 F53

CH 154 F54

CH 155 F55

CH 156 F56

CH 157 F57

CH 158 F58

CH 159 F59

CH 160 F60

CH 161 F61

CH 162 F62

CH 163 F63

CH 164 F64

CH 165 F65

CH 166 F66

CH 167 F67

CH 168 F68

CH 169 F69

CC Frequency (MHz)

CC 110 116 - 124

CC 111 124 - 132

CC 112 132 - 140

CC 113 140 - 148

CC 114 148 - 156

CC 115 156 - 164

CC 116 164 - 172

CC 123 220 - 228

CC 124 228 - 236

CC 125 236 - 244

CC 126 244 - 252

CC 127 252 - 260

CC 128 260 - 268

CC 129 268 - 276

CC 130 276 - 284

CC 131 284 - 292

CC 132 292 - 300

CC 133 300 - 306

CC 141 306 - 311

CC 142 311 - 319

CC 143 319 - 327

CC 144 327 - 335

CC 145 335 - 343

CC 146 343 - 351

CC 147 351 - 359

CC 148 359 - 367

CC 149 367 - 375

CC 150 375 - 383

CC 151 383 - 391

CC Frequency (MHz)

CC 152 391 - 399

CC 153 399 - 407

CC 154 407 - 415

CC 155 415 - 423

CC 156 423 - 431

CC 157 431 - 439

CC 158 439 - 447

CC 159 447 - 455

CC 160 455 - 463

CC 161 463 - 469

CH/CC numbers

• When two CH/CC numbers correspond to one Channel number, choose either one according to the current COUNTRY setting. When the COUNTRY setting is other than FRANCE, choose a two-digit CH/CC number. When the COUNTRY setting is FRANCE, choose a three-digit CH/ CC number.

• Find the CH/CC number (CC110 to CC161) corresponding to the TV channel (SECAM-L system) from a French cable TV station, based on the broadcast frequency of the TV channel. When you do not know the broadcast frequency, please contact the cable TV station.

• The CH/CC numbers of CH102-CH169 and CC110-CC161 correspond to the TV channels being broadcast by a SECAM-L system. The other CH/CC numbers correspond to the TV channels being broadcast by a method other than a SECAM-L system.

Troubleshooting

If a problem arises while you are using the TV, please read this “Troubleshooting” well before you request having the TV repaired. You may be able to fix it easily by yourself. For example, if the AC plug is disconnected from the AC outlet, or the TV aerial has problems, you may think there is a problem with the TV itself.

Important:

• This Troubleshooting guide only covers problems whose cause are not easy to determine. If a question arise when you are operating a function, read the page(s) corresponding to the operation of the function well, not this Troubleshooting guide.

• After you have followed the Troubleshooting description or the operating description of the functions concerned without any success, remove the AC plug from the AC outlet and request a repair of your TV. Do not attempt to repair the TV by yourself or remove the rear cover of the TV.

ENGLISH

 If you cannot turn on the TV

• Is the AC plug connected to the AC outlet?

• Is the Power lamp lit? If not, press the Main power button.

 No picture/No sound

• Have you chosen a TV channel whose reception is extremely bad? In this case, the BLUE BACK function will be activated, the entire screen becomes blue, and the sound is muted. In spite of this, if you want to view the TV channel, follow the description “BLUE BACK” on page 27 to try to change the BLUE BACK function setting to OFF.

• Have you connected the headphones to the TV? Connecting the headphones to the TV causes sounds not to be issued from the TV speakers.

• If the SYSTEM setting for a TV channel is incorrect, it may prevent the sound from being issued. Follow the description “EDIT/MANUAL” on page 31 to use the MANUAL function to try to change the SYSTEM setting.

 Poor picture

• If noise totally obscures the picture (snow), the aerial or aerial cable may have trouble. Check the following to try to solve the trouble:

Has the TV and aerial been connected properly? Has the aerial cable been damaged? Is the aerial pointed to the right direction? Is the aerial itself faulty?

• If the TV or aerial receives interference from the other devices, stripes or noise may appear in the picture. Move such devices as an amplifier, personal computer, or a hair drier that can cause interference away from your TV, or try changing its location. If the aerial suffers interference from a radio tower or highvoltage wire, please contact your local dealer.

• If the TV receives interference from signal reflecting from mountains or building, double-pictures (ghosting) will occur. Try to change the aerial’s direction or replace the antenna with the one with better directionality.

• Are your COLOUR SYSTEM settings for the TV channels correct? Follow the description “COLOUR SYSTEM” on page 21 to try to solve the trouble.

Troubleshooting

• Has COLOUR or BRIGHT been controlled properly? Follow the description “Picture Adjustment” on page 19 to try to adjust them properly.

• Videotaping teletext is not recommended because it may not record correctly.

• When a white and bright still image (such as a white dress) is displayed on the screen, the white part may look as if it were coloured. It is a phenomenon unavoidable due to the nature of the picture tube itself, and not due to a TV failure. When the picture disappears from the screen, the unnatural colours will also disappear.

• When viewing images from commercially available video software products, or videos from videotapes which have been recorded improperly, the top of the image may be distorted. This is due to the condition of the video signal, and not because of malfunction.

 Poor sound

Have you adjusted BASS or TREBLE properly? If not, follow the description “Sound Adjustment” on page 23 to try to adjust them properly. When the TV channel reception is poor, it can be hard to hear the stereo or bilingual sound. In this case, follow the description “STEREO / I • II” on page 23 to hear the sound more easily by changing it to a mono sound.

 Operation disabled

• Have the batteries of the remote control become exhausted? Follow the description “Putting the batteries into the Remote control” on page 4 and replace them with new batteries to try to solve the problem.

• Have you attempted to use the remote control at the sides or rear of the TV or at a location more than seven meters apart from the TV location? Operate the remote control in the front of your TV or a location less than seven meters from your TV to try to solve the problem.

• When you are viewing a teletext programme, you cannot operate the menus. Press the b button to return the teletext programme to the ordinary TV programme to try operating the menus.

• If the TV operation becomes disabled suddenly, press the Main power button on the TV and turn off the main power. Try to press the Main power button again to turn on the main power. If the TV returns to a normal state, it is not a failure.

 Other concerns

• When the SLEEP TIMER function operates, the TV is automatically turned off. If the TV is turned off suddenly, try to press the # (Standby) button to turn on the TV once again. At this time, if the TV resumes a normal state, there is no problem.

• When a WSS signal is included in the broadcast signal or the signal from an external device, or when the TV is receiving a control signal from an external device, the ZOOM mode will change automatically. When you want to return to the previous ZOOM mode, press the c button to choose the ZOOM mode again.

• If you bring a magnetised device such as a speaker near to your TV, a picture may be warped or unnatural colours appear at the corners of the screen. In this case, keep the device apart from your TV. If the speakers causes such phenomena, use the magnetic-shielded speakers instead.

• A picture may be tilted due to the influence of the earth’s magnetism. In this case, use the “PICTURE TILT (Only for AV-32X4SU/AV-32X4BU)” on page 22 to complete the tilt.

• It takes a short period of time from the time an operation such as changing channels is performed until an image is displayed. This is not a malfunction. This is the time required for the image to stabilize before it can be displayed.

• The TV may emit a crackling sound due to a sudden change in temperature. It does not matter if a picture or sound does not show any abnormality. If you hear crackling sounds frequently while you are viewing the TV, other causes may be assumed. For precautionary purposes, request your service technician to inspect it.

• Touching the screen may cause you feel a slight electric shock due to its static electricity. It is an unavoidable phenomenon due to the construction of the picture tube. It is not a problem with the TV. You can rest assured that this static discharge does not have harmful influence over the human body.

Troubleshooting

ENGLISH

Specifications

Model

Item

Broadcasting systems CCIR B/G, I, D/K, L

Colour systems PAL, SECAM

Channels and frequencies • E2-E12, E21-E69, S1-S41, X, Y, Z, Z+1, Z+2, ITALY A-H, ITALY H+1, ITALY

Sound-multiplex systems A2 (B/G, D/K), NICAM (B/G, I, D/K, L) system

Teletext systems FLOF (Fastext), TOP, WST (World Standard System)

Power requirements 220 - 240 V AC, 50 Hz

Power consumption 130 W, Standby: 2.5 W 120 W, Standby: 2.5 W

Picture tube size Viewable area 76 cm (measured

Audio output Rated Power output: 10 W + 10 W

Speakers (13 cm × 6.5 cm) oval × 2

EXT-1 terminal Euroconnector (21-pin, SCART)

EXT-2 terminal Euroconnector (21-pin, SCART)

EXT-3 terminal Euroconnector (21-pin, SCART)

EXT-4 terminal RCA connectors × 3

AUDIO OUT terminal RCA connectors × 2

Headphone jack Stereo mini-jack (3.5 mm in diameter)

Dimensions (W × H × D) 864 mm × 587 mm × 550 mm 762 mm × 528 mm × 493 mm

Weight 53.0 kg 39.0 kg

Accessories Remote control unit × 1 (RM-C64)

AV-32X4SU/AV-32X4BU AV-28X4SU/AV-28X4BU

• The EXT terminals also support the NTSC 3.58/4.43 MHz system.

H+2, F2-F10, F21-F69, R1-R12, R21-R69

• French cable TV channel of broadcast frequencies 116 - 172 MHz and 220 469 MHz

Viewable area 66 cm (measured

diagonally)

• Video input, Audio L/R inputs and RGB inputs are available.

• TV broadcast outputs (Video and Audio L/R) are available.

• Video input, S-VIDEO (Y/C) input, Audio L/R inputs and RGB inputs are available.

• Video and Audio L/R outputs are available.

• T-V LINK functions are available.

• Video input, S-VIDEO (Y/C) input and Audio L/R inputs are available.

S-VIDEO connector × 1

• Video input, S-VIDEO (Y/C) input, Audio L/MONO and R inputs are available.

• Audio L/R outputs are available.

AAA/R03 dry cell battery × 2

diagonally)

Design and specifications subject to change without notice.

Pictures displayed on the screen using this TV’s ZOOM functions should not be shown for any commercial or demonstration purpose in public places (cafes, hotels, etc.) without the consent of the owners of copyright of the original picture sources, as this constitutes an infringement of copyright.

LCT1579-001A-U 0204-MK-CR-JMUK

JVC InteriArt T-V LINK AV-32X4SU, InteriArt T-V LINK AV-32X4BU, InteriArt T-V LINK AV-28X4BU, InteriArt T-V LINK AV-28X4SU Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
