JVC GZ-VX705 A User Manual

Basic User Guide
AC Adapter
AP-V30U
(GZ-VX705/GZ-VX700)
AC Adapter
(GZ-V500)
Battery Pack BN-VG212U
HDMI Mini
Cable
AV Cable
USB Cable
(Type A - Mini Type B)
CD-ROM
(GZ-VX705/
GZ-VX700)
Stylus pen
Core Filter for USB Cable x 1 for AC Adapter x1
(GZ-VX705/GZ-VX700)
Basic User Guide
(this manual)
Verifying the Accessories
HD MEMORY CAMERA
GZ-VX705 A GZ-VX700 A GZ-V500 A
LYT2439-001A-M
EN
Detailed User Guide
.
For more details on operating this product, please refer to the “Detailed User Guide” at the following website.
o
http://manual3.jvckenwood.com/ index.html/
Dear Customers
Thank you for purchasing this JVC product. Before use, please read the Safety Precautions and Cautions on p. 2 and p. 18 to ensure safe use of this product.
Mobile User Guide
.
When you are outside, refer to the “Mobile User Guide”. Mobile User Guide can be viewed with standard browser for Android tablet and iPhone.
o
http://manual3.jvckenwood.com/ mobile/en/
For Future Reference:
Enter the Model No. (located on the bottom of the camera) and Serial No. (located on the battery pack mount of the camera) below.
Model No. Serial No.

Safety Precautions

CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
NOTES:
The rating plate and safety caution are on the
bottom and/or the back of the main unit.
The serial number plate is on the battery pack
mount.
The rating information and safety caution of the
AC adapter are on its upper and lower sides.
Caution on Replaceable lithium battery
The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not recharge, disassemble, heat above 100°C (212°F) or incinerate. Replace battery with Panasonic, Sanyo, Sony or Maxell CR2025. Danger of explosion or Risk of fire if the battery is incorrectly replaced.
Dispose of used battery promptly.
Keep away from children.
Do not disassemble and do not dispose of in fire.
For USA-California Only
This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material – special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate
When the equipment is installed in a cabinet or on a shelf, make sure that it has sufficient space on all sides to allow for ventilation (10 cm (3-15/16") or more on both sides, on top and at the rear). Do not block the ventilation holes. (If the ventilation holes are blocked by a newspaper, or cloth etc. the heat may not be able to get out.) No naked flame sources, such as lighted candles, should be placed on the apparatus. When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly. The apparatus shall not be exposed to dripping or splashing. Do not use this equipment in a bathroom or places with water. Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases, potted plants, cups etc.) on top of this unit. (If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)
Do not point the lens directly into the sun. This can cause eye injuries, as well as lead to the malfunctioning of internal circuitry. There is also a risk of fire or electric shock.
CAUTION!
The following notes concern possible physical damage to this unit and to the user. Carrying or holding this unit by the LCD monitor can result in dropping the unit, or in a malfunction. Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the unit.
CAUTION!
Connecting cables (Audio/Video, etc.) to
this unit and leaving it on top of the TV is not recommended, as tripping on the cables will cause
this unit
to fall,
resulting in damage.
CAUTION:
The mains plug shall remain readily operable.
Remove the mains plug immediately if the camcorder functions abnormally.
WARNING:
The battery pack, the camcorder with battery installed, and the remote control with battery installed should not be exposed to excessive heat such as direct sunlight, fire or the like.
CAUTION:
To maintain compliance with FCC’s RF exposure guidelines, use only the supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may Cause undesired operation.
Make a backup of important recorded data
JVC will not be responsible for any lost data. It is recommended to copy your important recorded data to a disc or other recording media for storage once every 3 months.
.
2
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifi ers) that produce heat.
9. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
10. Only use attachments/accessories specifi ed by the manufacturer.
11. Use only with the cart, stand, tripod, bracket, or table specifi ed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.
12. Unplug this apparatus during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualifi ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
If this symbol is shown, it is only valid in the European Union.
Remember that this unit is intended for private consumer use only.
Any commercial use without proper permission is prohibited. (Even if you record an event such as a show, performance or exhibition for personal enjoyment, it is strongly recommended that you obtain permission beforehand.)
Trademarks
AVCHD and AVCHD logo are trademarks
of Panasonic Corporation and Sony Corporation.
x.v.Color™ is a trademark of
Sony Corporation.
HDMI is a trademark of HDMI
Licensing, LLC.
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
Windows® is either registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
Macintosh is a registered trademark of Apple Inc.
iMovie and iPhoto are trademarks of Apple Inc., registered in the U.S. and other countries.
YouTube™ and the YouTube logo are trademarks and/or registered trademarks of Google Inc.
Intel, Intel Core, and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. Android
™ is a trademark of Google Inc.
Wi-Fi, Wi-Fi logo, Wi-Fi CERTIFIED, Wi-Fi CERTIFIED logo, WPA, and WPA2 are trademarks or registered trademarks of Wi-Fi Alliance. Other product and company names included in this instruction manual are trademarks and/or registered trademarks of their respective holders.
Marks such as ™ and ® have been omitted in this manual.
When using the AC adapter in areas other than the USA
The provided AC adapter features automatic voltage selection in the AC range from 110 V to 240 V.
USING HOUSEHOLD AC PLUG ADAPTER
In case of connecting the unit’s power cord to an AC wall outlet other than American National Standard C73 series type use an AC plug adapter, called a “Siemens Plug”, as shown. For this AC plug adapter, consult your nearest JVC dealer.
Plug Adapter
Remove the AC adapter from the AC wall outlet
when not in use.
Do not leave dust or metal objects adhered to
the AC wall outlet or AC adapter (power/DC plug).
-
-
-
-
Be sure to use the supplied AC adapter.
Do not use the supplied AC adapter with other
devices.
Be sure to keep it out of reach of young children.
It may be swallowed accidentally.
Do not place the stylus pen within the reach of young children.
Doing so may cause blindness or other damages to the eye.
Do not poke your eye with the stylus pen.
Scratches and damages caused by using stylus pens besides the supplied one cannot be guaranteed.
Be sure to use the supplied stylus pen.
Stylus Pen
.
3
Contents
To be connected to this unit
Release the stopper.
Wind twice
3 cm (1-3/16”)
Safety Precautions ................................. 2
Getting Started
Charging the Battery Pack ..................... 5
Inserting an SD Card .............................. 6
Using the Icon Buttons/Thumbnails ........ 6
Changing Menu Settings ........................ 7
Clock Setting .......................................... 7
Recording
Video Recording .................................... 8
Still Image Recording ............................. 9
Playback
Playing Back/Deleting Files on this Unit
Playing Back on TV .............................. 10
For more information, please refer to the Detailed User Guide. http://manual3.jvckenwood.com/index.html/
The specifications and appearance of this product are subject to changes for further improvement without prior notice.
o
Attaching the Core Filter
Attach the core filter to the USB Cable and AC Adapter as shown in the illustration. The core filter reduces interference when this unit is connected to other devices.
Copying
Keep It High Definition (Windows) ....... 11

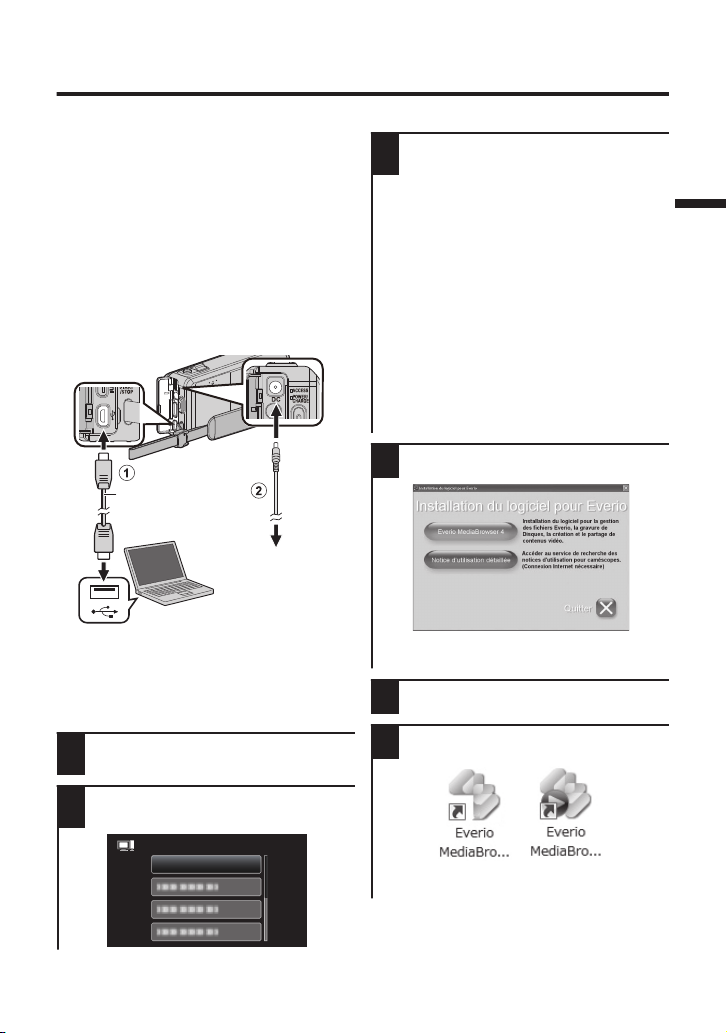

Install Everio MediaBrowser (Windows)
(GZ-VX705/GZ-VX700) ........................ 12
Install Everio MediaBrowser (Windows)
(GZ-V500) ............................................ 13
USB Menu Operations ......................... 14
File Backup (Windows) ........................ 15
View Your Video (Windows) ................. 15
AVCHD Disc Creation (Windows) ........ 16
Working with iMovie and iPhoto ........... 17
Simple File Backup with a Mac ............ 17
Further Information
.... 9
Troubleshooting/Cautions .................... 18
Recordable Time/Specifications .......... 20
4
.

Charging the Battery Pack

Charging finished: Goes out
Charging in progress: Blinks
Charging Lamp
Close the battery cover.
Connect the DC connector and plug in the power.
Open the battery cover.
To detach the battery pack, perform the above steps in reverse order.
Attach the battery pack.
(Base)
Align the terminal of the battery pack with this unit.
The battery pack is not charged at the time of purchase.
If it is difficult to detach the battery pack, open the SD card cover. (p.6)
.
* The AC adapter shown in the illustration is AC-V11U (for GZ-V500).
CAUTION
Be sure to use JVC battery packs.
0
If you use any other battery packs besides JVC battery packs, safety and performance cannot be guaranteed.
0
The charging time is when the unit is used at 25°C (77°F). If the battery pack is charged outside the room temperature range of 10°C to 35°C (50°F to 95°F), charging may take a longer time or it may not start. The recordable and playable time may also be shortened under some usage conditions such as at low temperature.
0
You can record or play back videos while the AC adapter is connected. (Battery charging cannot be performed during recording or playback.) Remove the battery when the unit is to be used for a long time. Performance of the battery may drop if it is left attached to the unit.
Battery Pack Charging Time
BN-VG212U (Supplied)
3 h 30 m 1 h 20 m 45 m
Continuous
Recording Time
Actual Recording
(GZ-VX705/GZ-VX700) BN-VG212U (Supplied)
3 h 30 m 1 h 25 m 45 m
(GZ-V500)
0
The battery pack is not charged at the time of purchase.
0
The above are values when “LIGHT” is set to “OFF” and “MONITOR BRIGHTNESS” is set to “3” (standard).
0
Recording time may differ depending on the shooting environment and usage.
Time
5

Inserting an SD Card

Turn off the power of this unit before inserting or removing a card.
(Base)
Label
Insert an SD card.
Open the cover.Close the LCD monitor.
REC
0:01:23 0:12:34
Index ScreenPlayback ScreenRecording Screen
MENU
PLAY
REC
0:01:23 0:12:34
MENU
REC
Insert a commercially available SD card before recording.
.
o
To remove the card
Push the card inward once, then pull it out straight.
NOTE
Operations are confirmed on the following SD cards.
Manufacturer Panasonic, TOSHIBA, SanDisk Video A Class 4 or higher compatible SD card (2 GB)/
Still Image B SD card (256 MB to 2 GB) / SDHC card (4 GB to 32 GB) /
0
Using SD cards (including SDHC/SDXC cards) other than those specified above may result in recording failure or data loss.
0
To protect the data, do not touch the terminals of the SD card.
0
When using an SDXC card, check its compatibility with the OS of your computer by referring to the Detailed User Guide.
Class 4 or higher compatible SDHC card (4 GB to 32 GB)/ Class 4 or higher compatible SDXC card (48 GB to 64 GB) (When recording with video quality “UXP”, Class 6 or higher is recommended.)
SDXC card (48 GB to 64 GB)

Using the Icon Buttons/Thumbnails

A
Tap the displayed button (icon) or thumbnail (file) on the touch screen to make selection.
B Drag the thumbnails on the touch screen to search for the desired file.
.
6

Changing Menu Settings

REC
PLAY
MENU
MENU
NO
YES
SET DATE/TIME!
AM
201211000
TIMEDATE

CLOCK SETTING

JAN
SET
GMT
SAVE
CLOCK/AREA SETTING
Select an item from the menu list on the menu screen.
Tap “MENU”.
1
.
0
The shortcut menu appears.
Tap the desired item in the shortcut
2
menu.
.
0
If “MENU” is tapped, go to step 3.
0
If an item other than “MENU” is tapped, go to step 4.
Tap the desired menu.
3
0
To adjust settings in the “COMMON” menu, tap “Q”.
0
Tap “∧” or “∨” to scroll the screen.
Tap the desired setting.
4
o
To exit the screen
Tap “L” (quit).
o
To return to the previous screen
Tap “J” (return).
Clock Setting
.
1
2
Open the LCD monitor.
.
0
The unit turns on. When the LCD monitor is closed, the unit turns off.
Tap “YES” when “SET DATE/TIME!” is displayed.
.
Set the date and time.
3
0
0
4 5
0
0
.
When the year, month, day, hour, or minute item is tapped, “∧” and “∨” will be displayed. Tap “∧” or “∨” to adjust the value. Repeat this step to input the year, month, day, hour, and minute.
After setting the date and time, tap “SET”.
Select the region where you live and tap “SAVE”.
The city name and time difference are displayed. Tap “<” or “>” to select the city name.
.
7

Video Recording

(Telephoto)
(Wide angle)
Zooming
Press again to stop.
Start recording.
H
P
A
C
A
2
Check if the recording mode is A video.
Check if the recording mode is C Intelligent Auto.
If the mode is H Manual, tap H on the touch screen, then tap P to switch.
If the mode is B still image, tap B on the touch screen, then tap A to switch.
MENU
PLAY
REC
0:00:00 [0:54]
Image Stabilizer
Scene Counter
Battery Indicator
Remaining Recording Time
Video Quality
Recording Media
You can record without worrying about the setting details by using the Intelligent Auto mode. Settings such as exposure and focus will be adjusted automatically to suit the shooting conditions.
0
In case of specific shooting scenes such as person etc., its icon is displayed on the screen.
Before recording an important scene, it is recommended to conduct a trial recording.
.
0
You can also tap 6 on the touch screen to record. To stop recording, tap In addition, you can also tap D to zoom.
o
Indications during video recording
7
.
.
NOTE
0
When the power is turned on, the lens cover opens automatically. After using, slide the lens cover switch to close the lens cover. (The lens cover does not close automatically.)
0
The estimated recording time of the supplied battery pack is approximately 45 minutes.
0
Do not remove the battery pack, AC adapter, or SD card when the access lamp is lighted. The recorded data may become unreadable.
0
This unit turns itself off automatically to conserve power when it is not operated for 5 minutes. (only when using the battery pack)
0
The angle of view may change when the image stabilizer is turned on or off.
8

Still Image Recording

Lights up during still image recording
Press fully
Take a still image.
Lights up in green when focused
Press halfway
Set the focus on the subject.
If the mode is A video, tap A on the touch screen, then tap B to switch.
Check if the recording mode is B still image.
SETREL ALLSEL ALL
DELETE
QUIT
Tap on the files to delete.
Ta p A.
To delete unwanted files
Turn up the volume
Turn down
the volume
Volume adjustment during playback
Ta p u to return to the video index screen.
Tap on the file to play back.
Tap “SET”.
A delete mark appears on the selected file. To remove the delete mark, tap again.
Tap E to return to the recording mode.
Ta p F on the touch screen to select the playback mode.
Ta p e to pause playback.
Tap “OK”.
Tap “EXECUTE” when the confirmation message appears.
Ta p A or B to select the video or still image mode.
.
0
Image stabilization only starts when the button is pressed halfway.
0
You can also tap Q on the touch screen to record. However, focus cannot be set by pressing halfway.

Playing Back/Deleting Files on this Unit

Select and play back the recorded videos or still images from an index screen (thumbnail display).
.
o
To capture a still image during playback
Pause the playback and press the SNAPSHOT button.
9

Playing Back on TV

HDMI Connector Input
TV
HDMI Mini Cable
(Provided)
To HDMI Mini
Connector
Red
White
Ye l l o w
TV
Audio Input (R)
Audio Input (L)
Video Input
Video Input
AV Cable (Provided)
To AV Connector
Preparation:
0
Turn off both camera and TV.
To connect using the HDMI mini connector
When connecting to a 1080p compatible TV, set “HDMI OUTPUT” to “AUTO”.
.
NOTE
0
Use a High Speed HDMI mini cable as the HDMI mini cable when not using the provided one.
To connect using the AV connector
Change the settings in “VIDEO OUTPUT” according to the connection.
.
Playback Operation
After the connection with TV is completed
A
Turn on the camera and the TV.
0
This unit powers on automatically when the AC adapter is connected.
B
Select the TV input switch.
C
Start playback on the camera.
10

Keep It High Definition (Windows)

o
Back up to a computer:
The provided JVC software also makes it easy to copy your videos to a computer.
o
For customers with a Blu-ray Player:
The provided JVC software lets you create high definition AVCHD discs using standard blank DVD-R media, and your Windows PC with DVD Burner. An AVCHD disc is a great choice because it contains the original HD video, which can be stored on inexpensive blank DVD-R media. These discs can be played back in virtually any recent Blu-ray player that has the AVCHD logo.
Upload to YouTube
YouTube is a great way to share your videos, in either HD or SD quality. JVC makes it easy.
Copying Files
You can create discs or copy the files on this unit by connecting it to various devices.
I
Recordable and playable
:
F
Playable only
:
Not applicable
:
Standard
Quality
HD Quality
Media Selection
Blu-ray Recorder
.
DVD Recorder
.
Device
.
Computer
.
VCR
.
(VHS
Tape)
.
(DVD Disc)
I
I
I
I *2 I *3 I *4
.
(DVD
Disc)
F *1
F *1
.
(Blu-ray
Disc)
I *1
.
(Device’s
internal
HDD)
I
I
I
Page
See Detailed User Guide and manual
of recorder.
See Detailed User Guide and manual
of recorder.
See Detailed User Guide and manual
of recorder.
p. 15
*1 Only on AVCHD compatible devices. *2 To create DVD-Video discs, it is necessary to install the additional software. For
details, refer to the Pixela homepage.
http://www.pixela.co.jp/oem/jvc/mediabrowser/e/ *3 For details on how to create a disc using a computer, refer to the Detailed User Guide. *4 Blu-ray discs cannot be created using the provided software. To create Blu-ray discs,
use a commercially available software.
Each of these solutions is explained in detail in the following sections.
11

Install Everio MediaBrowser (Windows) (GZ-VX705/GZ-VX700)

Everio MediaBrowser is included with your camera. It lets you archive and organize your videos. It also lets you create discs and upload video to YouTube, and other popular web sites.
Preparation:
0
Load the provided CD-ROM into your PC.
0
In Windows Vista / Windows 7, the auto play dialog box appears.
Click “Everio MediaBrowser 4”.
1
.
0
Follow the on-screen instructions.
Click “Finish”.
2
Click “Quit”.
3
Everio MediaBrowser uses a calendar based interface that makes it easy to find any video you have recorded by selecting the appropriate date.
.
.
0
Installation ends and icons are created on the desktop.
12

Install Everio MediaBrowser (Windows) (GZ-V500)

To USB Connector
To AC Outlet (110 V to 240 V)
AC Adapter
USB Cable (Provided)
To DC
Connector
To USB Connector
PLAYBACK ON PC
CONNECT TO PC
Everio MediaBrowser is included with your camera. It lets you archive and organize your videos. It also lets you create discs and upload video to YouTube, and other popular web sites.
Preparation:
0
Disconnect the power supply to turn off the camera.
0
Connect the camera to the PC with the USB cable.
0
Reconnect the power supply to turn on the camera.
.
*
The AC adapter shown in the illustration is AC-V11U (for GZ-V500).
o
On the camera:
Tap “CONNECT TO PC” on the
1
camera’s touch screen.
o
On the PC:
Perform the following steps on the
3
computer.
A
Click “Run INSTALL.EXE” in the auto play dialog box.
B
Click “Continue” on the user account control screen.
0
“Software Setup” appears after a while.
0
If it doesn’t appear, double-click “JVCCAM_APP” in “My Computer” (or “Computer”), then double-click the “install.exe”.
Click “Everio MediaBrowser 4”.
4
.
0
Follow the on-screen instructions.
Click “Finish”.
5
Click “Quit”.
6
Tap “PLAYBACK ON PC” on the
2
camera’s touch screen.
.
.
0
Installation ends and icons are created on the desktop.
13
0
CONNECT TO PC
TYPE TO CONNECT
SELECT DEVICE
SELECT DEVICE
PLAYBACK ON PC
CONNECT TO PC
Everio MediaBrowser uses a calendar based interface that makes it easy to find any video you have recorded by selecting the appropriate date.

USB Menu Operations

.
By connecting a USB cable between this unit and your computer, you can perform operations such as file backups to PC/disc or file uploads to file-sharing site using your computer.
Preparation:
0
Install the Everio MediaBrowser software onto the PC.
0
Disconnect the power supply to turn off the camera.
0
Connect the camera to the PC with the USB cable. Refer to the connection diagram in the “Install Everio MediaBrowser (Windows)” section.
0
Reconnect the power supply to turn on the camera.
The “SELECT DEVICE” menu appears.
1
Tap “CONNECT TO PC” on the camera’s touch screen.
.
0
Tap “CONNECT TO OTHER” if the camera is connected to a device other than a computer.
The “CONNECT TO PC” menu appears.
2
Tap an option that best suits your needs.
.
Option Usage
PLAYBACK ON PC
CREATE DISC
DIRECT DISC
UPLOAD
BACK UP0To back up recordings on
For detailed operations on the above options, refer to the other sections in this guide or the “Detailed User Guide”.
0
To play back your recordings on the PC.
0
To back up your recordings on the PC without using the provided software.
0
To save your recordings on a disc.
0
To save all unsaved recordings on a disc.
0
To upload videos to file­sharing sites.
the PC.
14

File Backup (Windows)

To USB Connector
To AC Outlet (110 V to 240 V)
AC Adapter
USB Cable (Provided)
To DC
Connector
To USB Connector
CONNECT TO PC
BACK UP
2
1
Click
Click
Click
Saving destination (PC)
Preparation:
0
Install the Everio MediaBrowser software onto the PC.
0
Make sure that enough space is left in the PC’s HDD.
0
Disconnect the power supply to turn off the camera.
0
Connect the camera to the PC with the USB cable.
0
Reconnect the power supply to turn on the camera.
2
0
o
On the PC:
3
4
Tap “BACK UP” on the camera’s touch screen.
.
Everio MediaBrowser starts on the PC.
Select the volume.
.
Start backup.
.
*
The AC adapter shown in the illustration is AC-V11U (for GZ-V500).
o
On the camera:
Tap “CONNECT TO PC” on the
1
camera’s touch screen.

View Your Video (Windows)

0
To view video that is still on your camera, click on Device>Camcorder in the left side panel of Everio MediaBrowser.
0
To view video that has already been archived to the computer, click on Library>Calendar and then choose the date the video was recorded.
NOTE
0
Choose Settings/Preferences to see the folder where MediaBrowser stores your videos. You can also play back your videos from this folder in most popular media players.
.
NOTE
0
File backup is only supported by the provided software.
15

AVCHD Disc Creation (Windows)

Customer Support Information
Use of this software is authorized according to the terms of the software license.
Pixela
(for inquires regarding the provided software)
Region Language Phone #
USA and Canada English +1-800-458-4029 (toll-free)
Europe (UK, Germany, France,
and Spain)
English/German/French/Spanish +800-1532-4865 (toll-free)
Other Countries in Europe English/German/French/Spanish +44-1489-564-764
Asia (Philippines) English +63-2-438-0090
nihCanihC ese 10800-163-0014 (toll-free)
Homepage: http://www.pixela.co.jp/oem/jvc/mediabrowser/e/ Please check our website for latest information and downloading.
0
Everio MediaBrowser makes it possible to create AVCHD discs to archive your recordings in their original high definition quality.
0
You can use any standard DVD-R, DVD­RW, DVD+R or DVD+RW disc.
0
Recordings made in the XP, SP, or EP mode are recorded with no loss in quality. Recordings made in the UXP mode are first converted to the XP mode, and then recorded.
0
A standard 4.7 GB disc will hold approximately 35 minutes of video in the highest quality setting.
0
AVCHD discs can be played back in any Blu-ray player that is AVCHD compatible. Just look for the AVCHD logo.
.
NOTE
0
In order to include UXP recordings on your AVCHD discs, be sure to go to Settings>Disc Creation Settings, and under “AVC Disc Creation in UXP mode”, choose “Re-encode to XP mode quality level”.
Preparation:
0
Install the software on your PC.
Click on the “Create Disc” button.
1
.
Select the video clips you wish to
2
include.
Choose a menu background and
3
enter a menu title.
Create the AVCHD disc.
4
.
16

Working with iMovie and iPhoto

USB cable (Provided)
To USB port
To USB Connector
USB cable (Provided)
To USB port
To USB Connector
PLAYBACK ON PC
CONNECT TO PC
0
You may use the software supplied with the Mac Computer to view and edit files from the Camera.
0
Connect the Camera to the Mac Computer using a USB Cable.
.
o
iMovie and iPhoto
You can import files from this unit to a computer using Apple’s iMovie ’08, ’09 or ’11 (video) or iPhoto (still image). To verify the system requirements, select “About This Mac” from the Apple menu. You can determine the operating system version, processor and amount of memory.
NOTE
0
For the latest information on iMovie or iPhoto, refer to the Apple website.
0
For details on how to use iMovie or
NOTE
0
Files must be transferred to the Mac Computer for editing.
iPhoto, refer to the help file of the software.
0
There is no guarantee that the operations will work with all computer environments.

Simple File Backup with a Mac

Preparation:
0
Make sure that enough space is left in the Mac’s HDD.
0
Close the LCD monitor to turn off the camera. Disconnect the power supply.
Open the LCD monitor to connect
1
to the computer with the USB cable.
.
0
Reconnect the power supply to turn on the camera.
Tap “CONNECT TO PC” on the
2
camera’s touch screen.
Tap “PLAYBACK ON PC” on the
3
camera’s touch screen.
.
Copy and paste the files to the Mac
4
Computer for backup.
17

Troubleshooting/Cautions

Battery Pack
Troubleshooting
The supplied battery pack is a lithium-ion battery. Before using the supplied battery pack or an optional battery pack, be sure to read the following cautions:
Terminals
To avoid hazards
...
do not burn. do not short-circuit the terminals. Keep it away
from metallic objects when not in use. When transporting, carry the battery in a plastic bag.
do not modify or disassemble. do not expose the battery to temperatures
exceeding 60°C (140°F), as this may cause the battery to overheat, explode or catch fire. use only specified chargers.
...
... ...
...
... ...
...
...
...
...
To prevent damage and prolong service life
do not subject to unnecessary shock. charge within the temperature range of 10°C to 35°C (50°F to 95°F). Cooler temperatures require longer charging time, or in some cases stop charging at all. Warmer temperatures prevent complete charging, or in some cases stop charging at all. store in a cool, dry place. Extended exposure to high temperatures will increase natural discharge and shorten service life.
keep a 30% battery level (X) if the battery pack is not to be used for a long period of time. In addition, fully charge and then fully discharge the battery pack every 6 months, then continue to store it at a 30% battery level (
X).
remove from charger or powered unit when not in use, as some machines use current even when switched off. do not drop or subject to strong impact.
While the LCD monitor screen has more than
99.99% effective pixels, 0.01% of the pixels may be bright spots (red, blue, green) or dark spots. This is not a malfunction. The spots will not be recorded.
ATTENTION:
The product you have purchased is powered by a rechargeable battery that is recyclable. Please call 1-800-8-BATTERY for information on how to recycle this battery. (USA and Canada only)
Recording Medium
Be sure to follow the guidelines below to prevent corruption or damage to your recorded data.
Do not bend or drop the recording medium,
or subject it to strong pressure, jolts or vibrations.
Do not splash the recording medium with water.
Do not use, replace, or store the recording
medium in locations that are exposed to strong static electricity or electrical noise.
Do not turn off the camcorder power or
remove the battery or AC adapter during shooting, playback, or when otherwise accessing the recording medium.
Do not bring the recording medium near
objects that have a strong magnetic field or that emit strong electromagnetic waves.
Do not store the recording medium in locations
with high temperature or high humidity.
Do not touch the metal parts.
When formatting or erasing data using the camcorder, only the file administration information is changed. The data is not completely erased from the recording medium. If you want to completely erase all of the data, we recommend either using commercially available software that is specially designed for that purpose, or by physically destroying the camcorder with a hammer etc.
LCD Monitor
To prevent damage to the LCD monitor, DO NOT
... push it strongly or apply any shocks. ... place the camcorder with LCD monitor on the
bottom.
To prolong service life
... avoid rubbing it with coarse cloth.
If the above do not solve the problem, consult your nearest JVC dealer or JVC service center.
Remove the AC adapter and battery pack from this unit, reattach them, open the LCD monitor and this unit powers on automatically.
Turn off the power. (Close the LCD monitor.)
In such a case, reset the unit.
This unit is a microcomputer-controlled device. Electrostatic discharge, external noise and interference (from a TV, a radio, etc.) might prevent it from functioning properly.
If you have difficulties operating the unit, refer to the detailed descriptions in the “Detailed User Guide”.
Refer to the “Troubleshooting” section in the “Detailed User Guide”.
If you encounter problems with this unit, check the following before requesting service.
http://manual3.jvckenwood.com/index.html/
1.
A B
2.
3.
.
18
Loading...
+ 42 hidden pages
